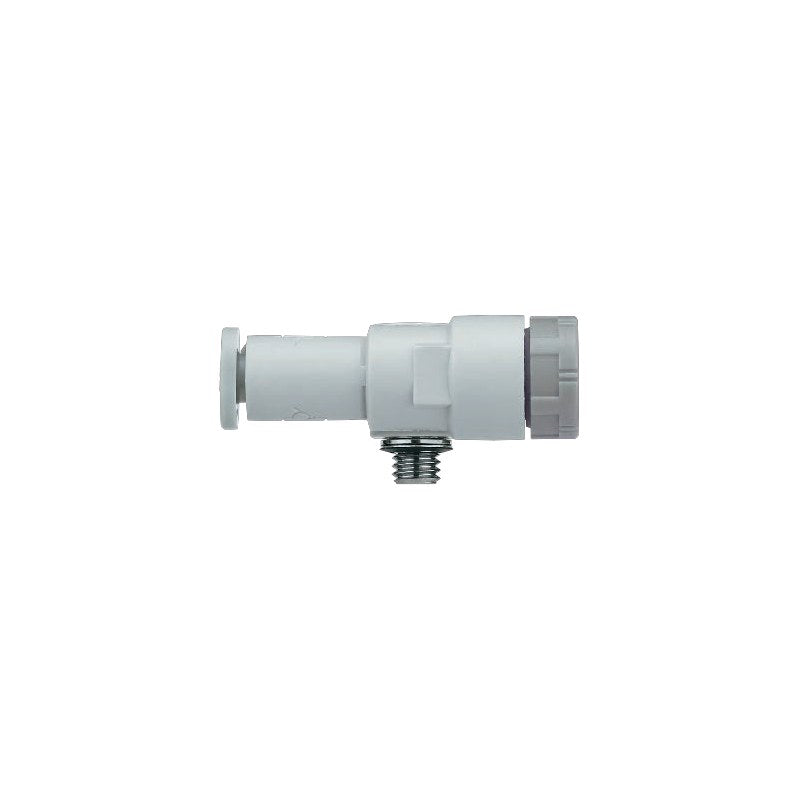

SMC JAS Thin Compact Speed Controller (Push-Lock, Elbow)

SMC JAS Thin Compact Speed Controller (Push-Lock, Elbow)

SMC JAS thin compact elbow speed controllers with push-lock handle: 12.7 mm height, 9.7 mm (43.3%) lower than AS121F-M5E-A.

Key features

  • Low profile: height 12.7 mm, about 43% lower than the standard elbow type
  • Needle adjusted from the side with a flat-blade screwdriver, ideal for narrow spaces
  • Push-lock handle; meter-out (grey) and meter-in (light blue) versions
  • Stud position right (A) or left (B) for flexible piping layout
  • Min. operating pressure 0.05 MPa; FEP and PFA tubing also usable

Specifications

Fluid Air
Type Elbow (L)
Proof pressure 1.05 MPa
Max. operating pressure 0.7 MPa
Min. operating pressure 0.05 MPa
Ambient and fluid temperature -5 to 60 °C (no freezing)
Applicable tubing Nylon, soft nylon, polyurethane, FEP, PFA
Source SMC Korea catalog CAT.KS20-260B (SMCKR_JAS.pdf), p. 1-8
JAS-LEA23-M3 Control: Meter-out | Stud position: Right (A) | Port: M3x0.5 | Tube OD: ø3.2 mm | Seal: Gasket seal
JAS-LEA04-M3 Control: Meter-out | Stud position: Right (A) | Port: M3x0.5 | Tube OD: ø4 mm | Seal: Gasket seal
JAS-LEA23-M5 Control: Meter-out | Stud position: Right (A) | Port: M5x0.8 | Tube OD: ø3.2 mm | Seal: Gasket seal
JAS-LEA04-M5 Control: Meter-out | Stud position: Right (A) | Port: M5x0.8 | Tube OD: ø4 mm | Seal: Gasket seal
JAS-LEA06-M5 Control: Meter-out | Stud position: Right (A) | Port: M5x0.8 | Tube OD: ø6 mm | Seal: Gasket seal
JAS-LEA04-01 Control: Meter-out | Stud position: Right (A) | Port: R1/8 | Tube OD: ø4 mm | Seal: No sealant
JAS-LEA04-01S Control: Meter-out | Stud position: Right (A) | Port: R1/8 | Tube OD: ø4 mm | Seal: Sealant (S)
JAS-LEA06-01 Control: Meter-out | Stud position: Right (A) | Port: R1/8 | Tube OD: ø6 mm | Seal: No sealant
JAS-LEA06-01S Control: Meter-out | Stud position: Right (A) | Port: R1/8 | Tube OD: ø6 mm | Seal: Sealant (S)
JAS-LEB23-M3 Control: Meter-out | Stud position: Left (B) | Port: M3x0.5 | Tube OD: ø3.2 mm | Seal: Gasket seal
JAS-LEB04-M3 Control: Meter-out | Stud position: Left (B) | Port: M3x0.5 | Tube OD: ø4 mm | Seal: Gasket seal
JAS-LEB23-M5 Control: Meter-out | Stud position: Left (B) | Port: M5x0.8 | Tube OD: ø3.2 mm | Seal: Gasket seal
JAS-LEB04-M5 Control: Meter-out | Stud position: Left (B) | Port: M5x0.8 | Tube OD: ø4 mm | Seal: Gasket seal
JAS-LEB06-M5 Control: Meter-out | Stud position: Left (B) | Port: M5x0.8 | Tube OD: ø6 mm | Seal: Gasket seal
JAS-LEB04-01 Control: Meter-out | Stud position: Left (B) | Port: R1/8 | Tube OD: ø4 mm | Seal: No sealant
JAS-LEB04-01S Control: Meter-out | Stud position: Left (B) | Port: R1/8 | Tube OD: ø4 mm | Seal: Sealant (S)
JAS-LEB06-01 Control: Meter-out | Stud position: Left (B) | Port: R1/8 | Tube OD: ø6 mm | Seal: No sealant
JAS-LEB06-01S Control: Meter-out | Stud position: Left (B) | Port: R1/8 | Tube OD: ø6 mm | Seal: Sealant (S)
JAS-LSA23-M3 Control: Meter-in | Stud position: Right (A) | Port: M3x0.5 | Tube OD: ø3.2 mm | Seal: Gasket seal
JAS-LSA04-M3 Control: Meter-in | Stud position: Right (A) | Port: M3x0.5 | Tube OD: ø4 mm | Seal: Gasket seal
JAS-LSA23-M5 Control: Meter-in | Stud position: Right (A) | Port: M5x0.8 | Tube OD: ø3.2 mm | Seal: Gasket seal
JAS-LSA04-M5 Control: Meter-in | Stud position: Right (A) | Port: M5x0.8 | Tube OD: ø4 mm | Seal: Gasket seal
JAS-LSA06-M5 Control: Meter-in | Stud position: Right (A) | Port: M5x0.8 | Tube OD: ø6 mm | Seal: Gasket seal
JAS-LSA04-01 Control: Meter-in | Stud position: Right (A) | Port: R1/8 | Tube OD: ø4 mm | Seal: No sealant
JAS-LSA04-01S Control: Meter-in | Stud position: Right (A) | Port: R1/8 | Tube OD: ø4 mm | Seal: Sealant (S)
JAS-LSA06-01 Control: Meter-in | Stud position: Right (A) | Port: R1/8 | Tube OD: ø6 mm | Seal: No sealant
JAS-LSA06-01S Control: Meter-in | Stud position: Right (A) | Port: R1/8 | Tube OD: ø6 mm | Seal: Sealant (S)
JAS-LSB23-M3 Control: Meter-in | Stud position: Left (B) | Port: M3x0.5 | Tube OD: ø3.2 mm | Seal: Gasket seal
JAS-LSB04-M3 Control: Meter-in | Stud position: Left (B) | Port: M3x0.5 | Tube OD: ø4 mm | Seal: Gasket seal
JAS-LSB23-M5 Control: Meter-in | Stud position: Left (B) | Port: M5x0.8 | Tube OD: ø3.2 mm | Seal: Gasket seal
JAS-LSB04-M5 Control: Meter-in | Stud position: Left (B) | Port: M5x0.8 | Tube OD: ø4 mm | Seal: Gasket seal
JAS-LSB06-M5 Control: Meter-in | Stud position: Left (B) | Port: M5x0.8 | Tube OD: ø6 mm | Seal: Gasket seal
JAS-LSB04-01 Control: Meter-in | Stud position: Left (B) | Port: R1/8 | Tube OD: ø4 mm | Seal: No sealant
JAS-LSB04-01S Control: Meter-in | Stud position: Left (B) | Port: R1/8 | Tube OD: ø4 mm | Seal: Sealant (S)
JAS-LSB06-01 Control: Meter-in | Stud position: Left (B) | Port: R1/8 | Tube OD: ø6 mm | Seal: No sealant
JAS-LSB06-01S Control: Meter-in | Stud position: Left (B) | Port: R1/8 | Tube OD: ø6 mm | Seal: Sealant (S)
