SMC JASV Compact Quick Exhaust Controller (Push-Lock, Elbow)

SMC JASV Compact Quick Exhaust Controller (Push-Lock, Elbow)

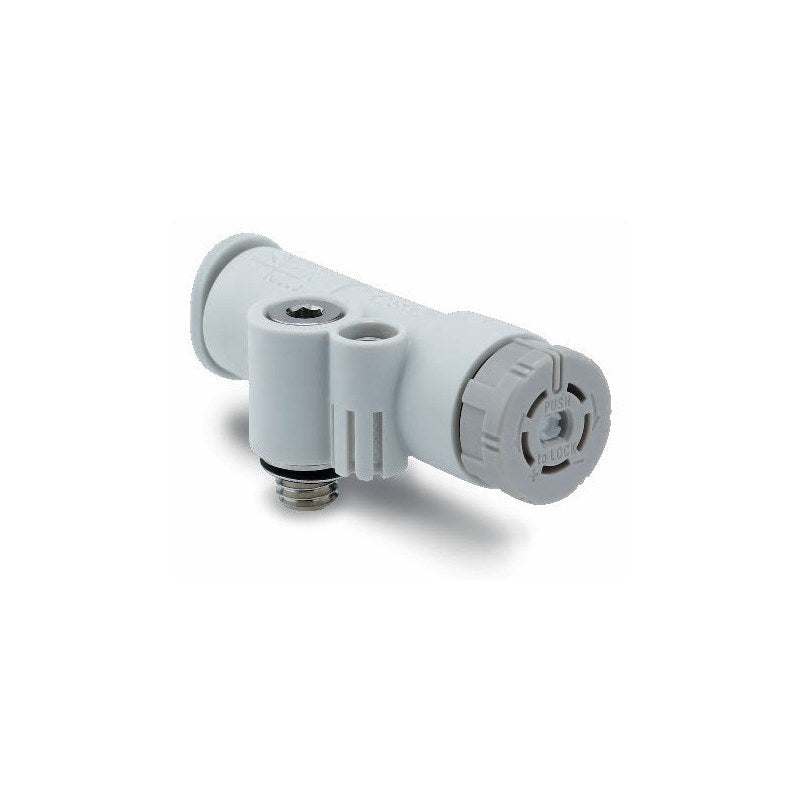

SMC JASV series low-profile elbow quick exhaust controller with one-touch fitting, integrating a quick exhaust valve and exhaust orifice to exhaust cylinder air directly.

Key features

  • Height reduced 49% (12.7 mm vs 24.9 mm for ASV220F-M5-04)
  • Direct exhaust at the cylinder helps prevent condensation in small-bore, short-stroke, high-cycle actuators
  • Push-Lock handle with orange lock mark and rotation stopper; screwdriver adjustment in tight spaces
  • Stud position right (A) or left (B)
  • M3, M5 and R1/8 ports; tube OD ø3.2 (ø1/8 in tube), ø4, ø6; NPT, G, 10-32UNF and inch tubes available

Specifications

Fluid Air
Proof pressure 1.05 MPa
Max. operating pressure 0.7 MPa
Min. operating pressure 0.1 MPa
Ambient and fluid temperature -5 to 60°C (no freezing)
Applicable tubing Nylon, soft nylon, polyurethane, FEP, PFA
Body type Elbow, low profile
Handle Push-Lock, also screwdriver adjustable
Source SMC Korea catalog CAT.KS20-264A (SMCKR_JASV.pdf), p. 1-6
JASV-LEA23-M3 Stud position: Right (A) | Port: M3x0.5 | Tube OD: ø3.2 mm (use ø1/8 in) | Seal: Gasket seal
JASV-LEA04-M3 Stud position: Right (A) | Port: M3x0.5 | Tube OD: ø4 mm | Seal: Gasket seal
JASV-LEA23-M5 Stud position: Right (A) | Port: M5x0.8 | Tube OD: ø3.2 mm (use ø1/8 in) | Seal: Gasket seal
JASV-LEA04-M5 Stud position: Right (A) | Port: M5x0.8 | Tube OD: ø4 mm | Seal: Gasket seal
JASV-LEA06-M5 Stud position: Right (A) | Port: M5x0.8 | Tube OD: ø6 mm | Seal: Gasket seal
JASV-LEA04-01 Stud position: Right (A) | Port: R1/8 | Tube OD: ø4 mm | Seal: No sealant
JASV-LEA04-01S Stud position: Right (A) | Port: R1/8 | Tube OD: ø4 mm | Seal: Sealant (S)
JASV-LEA06-01 Stud position: Right (A) | Port: R1/8 | Tube OD: ø6 mm | Seal: No sealant
JASV-LEA06-01S Stud position: Right (A) | Port: R1/8 | Tube OD: ø6 mm | Seal: Sealant (S)
JASV-LEB23-M3 Stud position: Left (B) | Port: M3x0.5 | Tube OD: ø3.2 mm (use ø1/8 in) | Seal: Gasket seal
JASV-LEB04-M3 Stud position: Left (B) | Port: M3x0.5 | Tube OD: ø4 mm | Seal: Gasket seal
JASV-LEB23-M5 Stud position: Left (B) | Port: M5x0.8 | Tube OD: ø3.2 mm (use ø1/8 in) | Seal: Gasket seal
JASV-LEB04-M5 Stud position: Left (B) | Port: M5x0.8 | Tube OD: ø4 mm | Seal: Gasket seal
JASV-LEB06-M5 Stud position: Left (B) | Port: M5x0.8 | Tube OD: ø6 mm | Seal: Gasket seal
JASV-LEB04-01 Stud position: Left (B) | Port: R1/8 | Tube OD: ø4 mm | Seal: No sealant
JASV-LEB04-01S Stud position: Left (B) | Port: R1/8 | Tube OD: ø4 mm | Seal: Sealant (S)
JASV-LEB06-01 Stud position: Left (B) | Port: R1/8 | Tube OD: ø6 mm | Seal: No sealant
JASV-LEB06-01S Stud position: Left (B) | Port: R1/8 | Tube OD: ø6 mm | Seal: Sealant (S)
