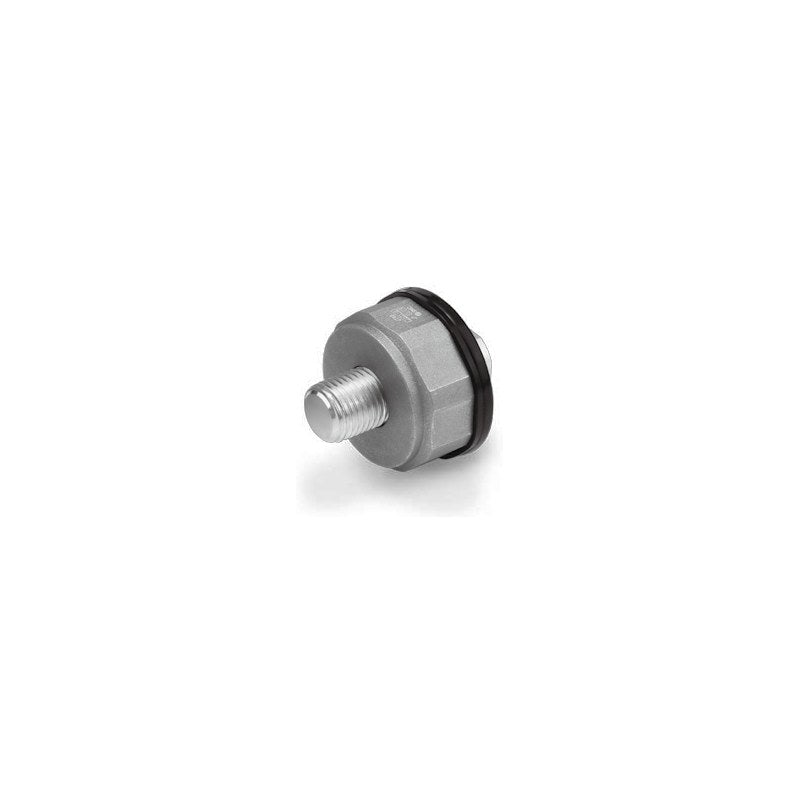

SMC JC Floating Joint (Light Load, Lightweight Type)

SMC JC series lightweight floating joint for light loads on ø20 to ø63 air cylinders, absorbing eccentricity and parallelism errors.

Key features

Aluminium case for reduced weight; installation dimensions as conventional floating joints
Reduces side load on the air cylinder; max. tensile force equivalent to 1 MPa
Swing angle ±5°, allowable eccentricity 0.5 to 1 mm
Standard and semi-standard thread sizes; one rod end nut included, dust cover replaceable

Specifications

Operating pressure	Air cylinder 1 MPa or less
Mounting	Basic
Swing angle	±5°
Operating temperature	-10 to 70°C
Case material	Aluminium, chromated
Source	SMC Korea catalog CAT.KS20-248A (SMCKR_JT_JC_JA_JAH_JB_JS.pdf), p. 1117-1118 (PDF p. 9-10)

JC20-8-125		Thread: M8x1.25 \| Cylinder bore: ø20 mm \| Max load: 300 N \| Eccentricity: 0.5 mm \| Grade: Standard
JC30-10-125		Thread: M10x1.25 \| Cylinder bore: ø25, ø32 mm \| Max load: 800 N \| Eccentricity: 0.5 mm \| Grade: Standard
JC40-14-150		Thread: M14x1.5 \| Cylinder bore: ø40 mm \| Max load: 1250 N \| Eccentricity: 0.75 mm \| Grade: Standard
JC63-18-150		Thread: M18x1.5 \| Cylinder bore: ø50, ø63 mm \| Max load: 3100 N \| Eccentricity: 1 mm \| Grade: Standard
JC20-8-100		Thread: M8x1 \| Cylinder bore: ø20 mm \| Max load: 300 N \| Eccentricity: 0.5 mm \| Grade: Semi-standard
JC25-10-150		Thread: M10x1.5 \| Cylinder bore: ø25 mm \| Max load: 800 N \| Eccentricity: 0.5 mm \| Grade: Semi-standard
JC32-10-100		Thread: M10x1 \| Cylinder bore: ø32 mm \| Max load: 800 N \| Eccentricity: 0.5 mm \| Grade: Semi-standard
JC40-12-125		Thread: M12x1.25 \| Cylinder bore: ø32, ø40 mm \| Max load: 1250 N \| Eccentricity: 0.75 mm \| Grade: Semi-standard
JC40-12-150		Thread: M12x1.5 \| Cylinder bore: ø40 mm \| Max load: 1250 N \| Eccentricity: 0.75 mm \| Grade: Semi-standard
JC40-12-175		Thread: M12x1.75 \| Cylinder bore: ø32, ø40 mm \| Max load: 1250 N \| Eccentricity: 0.75 mm \| Grade: Semi-standard
JC50-16-150		Thread: M16x1.5 \| Cylinder bore: ø50 mm \| Max load: 3100 N \| Eccentricity: 1 mm \| Grade: Semi-standard
JC63-16-200		Thread: M16x2 \| Cylinder bore: ø50, ø63 mm \| Max load: 3100 N \| Eccentricity: 1 mm \| Grade: Semi-standard
