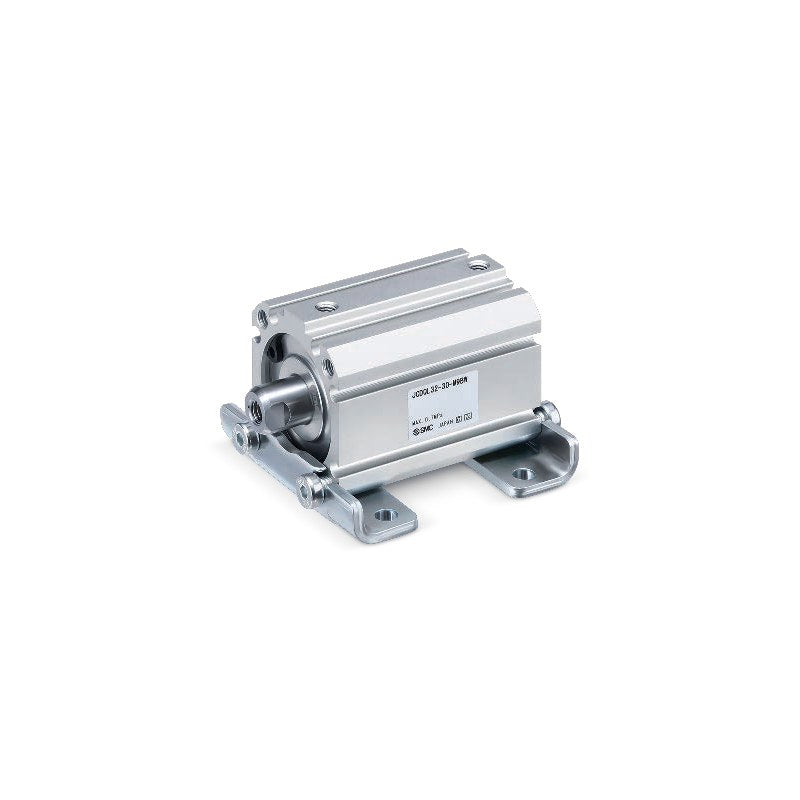

SMC JCQ Compact Cylinder (ø12 to ø100, Double Acting)

SMC JCQ Compact Cylinder (ø12 to ø100, Double Acting)

SMC JCQ series lightweight double-acting single-rod compact cylinder, ø12 to ø100, shorter, narrower and up to 46% lighter than the CQS/CQ2 series it supersedes.

Key features

  • Reduced overall length, width and height versus CQS/CQ2 (e.g. ø20 is 6.5 mm shorter at 10 mm stroke)
  • Mass reduced by up to 46% with rod flange mounting (ø32 to ø100, 10 mm stroke vs CDQ2)
  • Mounting: through-hole (standard), both ends tapped; axial foot, rod flange and head flange for ø32 to ø100
  • JCDQ type has a built-in magnet for D-M9 series solid state auto switches (ordered as suffix, e.g. -M9BW)
  • Mounting bolts (L suffix, through-hole type), NPT/G ports (TN/TF, ø50 to ø100) and made-to-order XC103 available

Specifications

Action Double acting, single rod
Fluid Air
Proof pressure 1.0 MPa
Max. operating pressure 0.7 MPa
Min. operating pressure 0.07 MPa (ø12, ø16), 0.05 MPa (ø20 to ø100)
Ambient and fluid temperature 5 to 60°C
Lubrication Not required (non-lube)
Piston speed 50 to 500 mm/s (ø12 to ø40), 50 to 300 mm/s (ø50 to ø100)
Cushion Rubber bumper
Rod end Female thread
Stroke tolerance +1.3/0 mm
Source SMC Korea catalog CAT.KS20-239D (SMCKR_JCQ.pdf), p. 3-4 (PDF p. 4-5)
JCQ12-5 Bore: ø12 mm | Mounting: Through-hole (standard) | Stroke: 5 mm | Magnet: None | Port thread: M thread
JCQ12-10 Bore: ø12 mm | Mounting: Through-hole (standard) | Stroke: 10 mm | Magnet: None | Port thread: M thread
JCQ12-15 Bore: ø12 mm | Mounting: Through-hole (standard) | Stroke: 15 mm | Magnet: None | Port thread: M thread
JCQ12-20 Bore: ø12 mm | Mounting: Through-hole (standard) | Stroke: 20 mm | Magnet: None | Port thread: M thread
JCQ12-25 Bore: ø12 mm | Mounting: Through-hole (standard) | Stroke: 25 mm | Magnet: None | Port thread: M thread
JCQ12-30 Bore: ø12 mm | Mounting: Through-hole (standard) | Stroke: 30 mm | Magnet: None | Port thread: M thread
JCQA12-5 Bore: ø12 mm | Mounting: Both ends tapped | Stroke: 5 mm | Magnet: None | Port thread: M thread
JCQA12-10 Bore: ø12 mm | Mounting: Both ends tapped | Stroke: 10 mm | Magnet: None | Port thread: M thread
JCQA12-15 Bore: ø12 mm | Mounting: Both ends tapped | Stroke: 15 mm | Magnet: None | Port thread: M thread
JCQA12-20 Bore: ø12 mm | Mounting: Both ends tapped | Stroke: 20 mm | Magnet: None | Port thread: M thread
JCQA12-25 Bore: ø12 mm | Mounting: Both ends tapped | Stroke: 25 mm | Magnet: None | Port thread: M thread
JCQA12-30 Bore: ø12 mm | Mounting: Both ends tapped | Stroke: 30 mm | Magnet: None | Port thread: M thread
JCQ16-5 Bore: ø16 mm | Mounting: Through-hole (standard) | Stroke: 5 mm | Magnet: None | Port thread: M thread
JCQ16-10 Bore: ø16 mm | Mounting: Through-hole (standard) | Stroke: 10 mm | Magnet: None | Port thread: M thread
JCQ16-15 Bore: ø16 mm | Mounting: Through-hole (standard) | Stroke: 15 mm | Magnet: None | Port thread: M thread
JCQ16-20 Bore: ø16 mm | Mounting: Through-hole (standard) | Stroke: 20 mm | Magnet: None | Port thread: M thread
JCQ16-25 Bore: ø16 mm | Mounting: Through-hole (standard) | Stroke: 25 mm | Magnet: None | Port thread: M thread
JCQ16-30 Bore: ø16 mm | Mounting: Through-hole (standard) | Stroke: 30 mm | Magnet: None | Port thread: M thread
JCQA16-5 Bore: ø16 mm | Mounting: Both ends tapped | Stroke: 5 mm | Magnet: None | Port thread: M thread
JCQA16-10 Bore: ø16 mm | Mounting: Both ends tapped | Stroke: 10 mm | Magnet: None | Port thread: M thread
JCQA16-15 Bore: ø16 mm | Mounting: Both ends tapped | Stroke: 15 mm | Magnet: None | Port thread: M thread
JCQA16-20 Bore: ø16 mm | Mounting: Both ends tapped | Stroke: 20 mm | Magnet: None | Port thread: M thread
JCQA16-25 Bore: ø16 mm | Mounting: Both ends tapped | Stroke: 25 mm | Magnet: None | Port thread: M thread
JCQA16-30 Bore: ø16 mm | Mounting: Both ends tapped | Stroke: 30 mm | Magnet: None | Port thread: M thread
JCQ20-5 Bore: ø20 mm | Mounting: Through-hole (standard) | Stroke: 5 mm | Magnet: None | Port thread: M thread
JCQ20-10 Bore: ø20 mm | Mounting: Through-hole (standard) | Stroke: 10 mm | Magnet: None | Port thread: M thread
JCQ20-15 Bore: ø20 mm | Mounting: Through-hole (standard) | Stroke: 15 mm | Magnet: None | Port thread: M thread
JCQ20-20 Bore: ø20 mm | Mounting: Through-hole (standard) | Stroke: 20 mm | Magnet: None | Port thread: M thread
JCQ20-25 Bore: ø20 mm | Mounting: Through-hole (standard) | Stroke: 25 mm | Magnet: None | Port thread: M thread
JCQ20-30 Bore: ø20 mm | Mounting: Through-hole (standard) | Stroke: 30 mm | Magnet: None | Port thread: M thread
JCQ20-35 Bore: ø20 mm | Mounting: Through-hole (standard) | Stroke: 35 mm | Magnet: None | Port thread: M thread
JCQ20-40 Bore: ø20 mm | Mounting: Through-hole (standard) | Stroke: 40 mm | Magnet: None | Port thread: M thread
JCQ20-45 Bore: ø20 mm | Mounting: Through-hole (standard) | Stroke: 45 mm | Magnet: None | Port thread: M thread
JCQ20-50 Bore: ø20 mm | Mounting: Through-hole (standard) | Stroke: 50 mm | Magnet: None | Port thread: M thread
JCQA20-5 Bore: ø20 mm | Mounting: Both ends tapped | Stroke: 5 mm | Magnet: None | Port thread: M thread
JCQA20-10 Bore: ø20 mm | Mounting: Both ends tapped | Stroke: 10 mm | Magnet: None | Port thread: M thread
JCQA20-15 Bore: ø20 mm | Mounting: Both ends tapped | Stroke: 15 mm | Magnet: None | Port thread: M thread
JCQA20-20 Bore: ø20 mm | Mounting: Both ends tapped | Stroke: 20 mm | Magnet: None | Port thread: M thread
JCQA20-25 Bore: ø20 mm | Mounting: Both ends tapped | Stroke: 25 mm | Magnet: None | Port thread: M thread
JCQA20-30 Bore: ø20 mm | Mounting: Both ends tapped | Stroke: 30 mm | Magnet: None | Port thread: M thread
JCQA20-35 Bore: ø20 mm | Mounting: Both ends tapped | Stroke: 35 mm | Magnet: None | Port thread: M thread
JCQA20-40 Bore: ø20 mm | Mounting: Both ends tapped | Stroke: 40 mm | Magnet: None | Port thread: M thread
JCQA20-45 Bore: ø20 mm | Mounting: Both ends tapped | Stroke: 45 mm | Magnet: None | Port thread: M thread
JCQA20-50 Bore: ø20 mm | Mounting: Both ends tapped | Stroke: 50 mm | Magnet: None | Port thread: M thread
JCQ25-5 Bore: ø25 mm | Mounting: Through-hole (standard) | Stroke: 5 mm | Magnet: None | Port thread: M thread
JCQ25-10 Bore: ø25 mm | Mounting: Through-hole (standard) | Stroke: 10 mm | Magnet: None | Port thread: M thread
JCQ25-15 Bore: ø25 mm | Mounting: Through-hole (standard) | Stroke: 15 mm | Magnet: None | Port thread: M thread
JCQ25-20 Bore: ø25 mm | Mounting: Through-hole (standard) | Stroke: 20 mm | Magnet: None | Port thread: M thread
JCQ25-25 Bore: ø25 mm | Mounting: Through-hole (standard) | Stroke: 25 mm | Magnet: None | Port thread: M thread
JCQ25-30 Bore: ø25 mm | Mounting: Through-hole (standard) | Stroke: 30 mm | Magnet: None | Port thread: M thread
JCQ25-35 Bore: ø25 mm | Mounting: Through-hole (standard) | Stroke: 35 mm | Magnet: None | Port thread: M thread
JCQ25-40 Bore: ø25 mm | Mounting: Through-hole (standard) | Stroke: 40 mm | Magnet: None | Port thread: M thread
JCQ25-45 Bore: ø25 mm | Mounting: Through-hole (standard) | Stroke: 45 mm | Magnet: None | Port thread: M thread
JCQ25-50 Bore: ø25 mm | Mounting: Through-hole (standard) | Stroke: 50 mm | Magnet: None | Port thread: M thread
JCQA25-5 Bore: ø25 mm | Mounting: Both ends tapped | Stroke: 5 mm | Magnet: None | Port thread: M thread
JCQA25-10 Bore: ø25 mm | Mounting: Both ends tapped | Stroke: 10 mm | Magnet: None | Port thread: M thread
JCQA25-15 Bore: ø25 mm | Mounting: Both ends tapped | Stroke: 15 mm | Magnet: None | Port thread: M thread
JCQA25-20 Bore: ø25 mm | Mounting: Both ends tapped | Stroke: 20 mm | Magnet: None | Port thread: M thread
JCQA25-25 Bore: ø25 mm | Mounting: Both ends tapped | Stroke: 25 mm | Magnet: None | Port thread: M thread
JCQA25-30 Bore: ø25 mm | Mounting: Both ends tapped | Stroke: 30 mm | Magnet: None | Port thread: M thread
JCQA25-35 Bore: ø25 mm | Mounting: Both ends tapped | Stroke: 35 mm | Magnet: None | Port thread: M thread
JCQA25-40 Bore: ø25 mm | Mounting: Both ends tapped | Stroke: 40 mm | Magnet: None | Port thread: M thread
JCQA25-45 Bore: ø25 mm | Mounting: Both ends tapped | Stroke: 45 mm | Magnet: None | Port thread: M thread
JCQA25-50 Bore: ø25 mm | Mounting: Both ends tapped | Stroke: 50 mm | Magnet: None | Port thread: M thread
JCQ32-5 Bore: ø32 mm | Mounting: Through-hole (standard) | Stroke: 5 mm | Magnet: None | Port thread: M thread
JCQ32-10 Bore: ø32 mm | Mounting: Through-hole (standard) | Stroke: 10 mm | Magnet: None | Port thread: M thread
JCQ32-15 Bore: ø32 mm | Mounting: Through-hole (standard) | Stroke: 15 mm | Magnet: None | Port thread: M thread
JCQ32-20 Bore: ø32 mm | Mounting: Through-hole (standard) | Stroke: 20 mm | Magnet: None | Port thread: M thread
JCQ32-25 Bore: ø32 mm | Mounting: Through-hole (standard) | Stroke: 25 mm | Magnet: None | Port thread: M thread
JCQ32-30 Bore: ø32 mm | Mounting: Through-hole (standard) | Stroke: 30 mm | Magnet: None | Port thread: M thread
JCQ32-35 Bore: ø32 mm | Mounting: Through-hole (standard) | Stroke: 35 mm | Magnet: None | Port thread: M thread
JCQ32-40 Bore: ø32 mm | Mounting: Through-hole (standard) | Stroke: 40 mm | Magnet: None | Port thread: M thread
JCQ32-45 Bore: ø32 mm | Mounting: Through-hole (standard) | Stroke: 45 mm | Magnet: None | Port thread: M thread
JCQ32-50 Bore: ø32 mm | Mounting: Through-hole (standard) | Stroke: 50 mm | Magnet: None | Port thread: M thread
JCQA32-5 Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 5 mm | Magnet: None | Port thread: M thread
JCQA32-10 Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 10 mm | Magnet: None | Port thread: M thread
JCQA32-15 Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 15 mm | Magnet: None | Port thread: M thread
JCQA32-20 Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 20 mm | Magnet: None | Port thread: M thread
JCQA32-25 Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 25 mm | Magnet: None | Port thread: M thread
JCQA32-30 Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 30 mm | Magnet: None | Port thread: M thread
JCQA32-35 Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 35 mm | Magnet: None | Port thread: M thread
JCQA32-40 Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 40 mm | Magnet: None | Port thread: M thread
JCQA32-45 Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 45 mm | Magnet: None | Port thread: M thread
JCQA32-50 Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 50 mm | Magnet: None | Port thread: M thread
JCQL32-5 Bore: ø32 mm | Mounting: Axial foot | Stroke: 5 mm | Magnet: None | Port thread: M thread
JCQL32-10 Bore: ø32 mm | Mounting: Axial foot | Stroke: 10 mm | Magnet: None | Port thread: M thread
JCQL32-15 Bore: ø32 mm | Mounting: Axial foot | Stroke: 15 mm | Magnet: None | Port thread: M thread
JCQL32-20 Bore: ø32 mm | Mounting: Axial foot | Stroke: 20 mm | Magnet: None | Port thread: M thread
JCQL32-25 Bore: ø32 mm | Mounting: Axial foot | Stroke: 25 mm | Magnet: None | Port thread: M thread
JCQL32-30 Bore: ø32 mm | Mounting: Axial foot | Stroke: 30 mm | Magnet: None | Port thread: M thread
JCQL32-35 Bore: ø32 mm | Mounting: Axial foot | Stroke: 35 mm | Magnet: None | Port thread: M thread
JCQL32-40 Bore: ø32 mm | Mounting: Axial foot | Stroke: 40 mm | Magnet: None | Port thread: M thread
JCQL32-45 Bore: ø32 mm | Mounting: Axial foot | Stroke: 45 mm | Magnet: None | Port thread: M thread
JCQL32-50 Bore: ø32 mm | Mounting: Axial foot | Stroke: 50 mm | Magnet: None | Port thread: M thread
JCQF32-5 Bore: ø32 mm | Mounting: Rod flange | Stroke: 5 mm | Magnet: None | Port thread: M thread
JCQF32-10 Bore: ø32 mm | Mounting: Rod flange | Stroke: 10 mm | Magnet: None | Port thread: M thread
JCQF32-15 Bore: ø32 mm | Mounting: Rod flange | Stroke: 15 mm | Magnet: None | Port thread: M thread
JCQF32-20 Bore: ø32 mm | Mounting: Rod flange | Stroke: 20 mm | Magnet: None | Port thread: M thread
JCQF32-25 Bore: ø32 mm | Mounting: Rod flange | Stroke: 25 mm | Magnet: None | Port thread: M thread
JCQF32-30 Bore: ø32 mm | Mounting: Rod flange | Stroke: 30 mm | Magnet: None | Port thread: M thread
JCQF32-35 Bore: ø32 mm | Mounting: Rod flange | Stroke: 35 mm | Magnet: None | Port thread: M thread
JCQF32-40 Bore: ø32 mm | Mounting: Rod flange | Stroke: 40 mm | Magnet: None | Port thread: M thread
JCQF32-45 Bore: ø32 mm | Mounting: Rod flange | Stroke: 45 mm | Magnet: None | Port thread: M thread
JCQF32-50 Bore: ø32 mm | Mounting: Rod flange | Stroke: 50 mm | Magnet: None | Port thread: M thread
JCQG32-5 Bore: ø32 mm | Mounting: Head flange | Stroke: 5 mm | Magnet: None | Port thread: M thread
JCQG32-10 Bore: ø32 mm | Mounting: Head flange | Stroke: 10 mm | Magnet: None | Port thread: M thread
JCQG32-15 Bore: ø32 mm | Mounting: Head flange | Stroke: 15 mm | Magnet: None | Port thread: M thread
JCQG32-20 Bore: ø32 mm | Mounting: Head flange | Stroke: 20 mm | Magnet: None | Port thread: M thread
JCQG32-25 Bore: ø32 mm | Mounting: Head flange | Stroke: 25 mm | Magnet: None | Port thread: M thread
JCQG32-30 Bore: ø32 mm | Mounting: Head flange | Stroke: 30 mm | Magnet: None | Port thread: M thread
JCQG32-35 Bore: ø32 mm | Mounting: Head flange | Stroke: 35 mm | Magnet: None | Port thread: M thread
JCQG32-40 Bore: ø32 mm | Mounting: Head flange | Stroke: 40 mm | Magnet: None | Port thread: M thread
JCQG32-45 Bore: ø32 mm | Mounting: Head flange | Stroke: 45 mm | Magnet: None | Port thread: M thread
JCQG32-50 Bore: ø32 mm | Mounting: Head flange | Stroke: 50 mm | Magnet: None | Port thread: M thread
JCQ40-5 Bore: ø40 mm | Mounting: Through-hole (standard) | Stroke: 5 mm | Magnet: None | Port thread: M thread
JCQ40-10 Bore: ø40 mm | Mounting: Through-hole (standard) | Stroke: 10 mm | Magnet: None | Port thread: M thread
JCQ40-15 Bore: ø40 mm | Mounting: Through-hole (standard) | Stroke: 15 mm | Magnet: None | Port thread: M thread
JCQ40-20 Bore: ø40 mm | Mounting: Through-hole (standard) | Stroke: 20 mm | Magnet: None | Port thread: M thread
JCQ40-25 Bore: ø40 mm | Mounting: Through-hole (standard) | Stroke: 25 mm | Magnet: None | Port thread: M thread
JCQ40-30 Bore: ø40 mm | Mounting: Through-hole (standard) | Stroke: 30 mm | Magnet: None | Port thread: M thread
JCQ40-35 Bore: ø40 mm | Mounting: Through-hole (standard) | Stroke: 35 mm | Magnet: None | Port thread: M thread
JCQ40-40 Bore: ø40 mm | Mounting: Through-hole (standard) | Stroke: 40 mm | Magnet: None | Port thread: M thread
JCQ40-45 Bore: ø40 mm | Mounting: Through-hole (standard) | Stroke: 45 mm | Magnet: None | Port thread: M thread
JCQ40-50 Bore: ø40 mm | Mounting: Through-hole (standard) | Stroke: 50 mm | Magnet: None | Port thread: M thread
JCQA40-5 Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 5 mm | Magnet: None | Port thread: M thread
JCQA40-10 Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 10 mm | Magnet: None | Port thread: M thread
JCQA40-15 Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 15 mm | Magnet: None | Port thread: M thread
JCQA40-20 Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 20 mm | Magnet: None | Port thread: M thread
JCQA40-25 Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 25 mm | Magnet: None | Port thread: M thread
JCQA40-30 Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 30 mm | Magnet: None | Port thread: M thread
JCQA40-35 Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 35 mm | Magnet: None | Port thread: M thread
JCQA40-40 Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 40 mm | Magnet: None | Port thread: M thread
JCQA40-45 Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 45 mm | Magnet: None | Port thread: M thread
JCQA40-50 Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 50 mm | Magnet: None | Port thread: M thread
JCQL40-5 Bore: ø40 mm | Mounting: Axial foot | Stroke: 5 mm | Magnet: None | Port thread: M thread
JCQL40-10 Bore: ø40 mm | Mounting: Axial foot | Stroke: 10 mm | Magnet: None | Port thread: M thread
JCQL40-15 Bore: ø40 mm | Mounting: Axial foot | Stroke: 15 mm | Magnet: None | Port thread: M thread
JCQL40-20 Bore: ø40 mm | Mounting: Axial foot | Stroke: 20 mm | Magnet: None | Port thread: M thread
JCQL40-25 Bore: ø40 mm | Mounting: Axial foot | Stroke: 25 mm | Magnet: None | Port thread: M thread
JCQL40-30 Bore: ø40 mm | Mounting: Axial foot | Stroke: 30 mm | Magnet: None | Port thread: M thread
JCQL40-35 Bore: ø40 mm | Mounting: Axial foot | Stroke: 35 mm | Magnet: None | Port thread: M thread
JCQL40-40 Bore: ø40 mm | Mounting: Axial foot | Stroke: 40 mm | Magnet: None | Port thread: M thread
JCQL40-45 Bore: ø40 mm | Mounting: Axial foot | Stroke: 45 mm | Magnet: None | Port thread: M thread
JCQL40-50 Bore: ø40 mm | Mounting: Axial foot | Stroke: 50 mm | Magnet: None | Port thread: M thread
JCQF40-5 Bore: ø40 mm | Mounting: Rod flange | Stroke: 5 mm | Magnet: None | Port thread: M thread
JCQF40-10 Bore: ø40 mm | Mounting: Rod flange | Stroke: 10 mm | Magnet: None | Port thread: M thread
JCQF40-15 Bore: ø40 mm | Mounting: Rod flange | Stroke: 15 mm | Magnet: None | Port thread: M thread
JCQF40-20 Bore: ø40 mm | Mounting: Rod flange | Stroke: 20 mm | Magnet: None | Port thread: M thread
JCQF40-25 Bore: ø40 mm | Mounting: Rod flange | Stroke: 25 mm | Magnet: None | Port thread: M thread
JCQF40-30 Bore: ø40 mm | Mounting: Rod flange | Stroke: 30 mm | Magnet: None | Port thread: M thread
JCQF40-35 Bore: ø40 mm | Mounting: Rod flange | Stroke: 35 mm | Magnet: None | Port thread: M thread
JCQF40-40 Bore: ø40 mm | Mounting: Rod flange | Stroke: 40 mm | Magnet: None | Port thread: M thread
JCQF40-45 Bore: ø40 mm | Mounting: Rod flange | Stroke: 45 mm | Magnet: None | Port thread: M thread
JCQF40-50 Bore: ø40 mm | Mounting: Rod flange | Stroke: 50 mm | Magnet: None | Port thread: M thread
JCQG40-5 Bore: ø40 mm | Mounting: Head flange | Stroke: 5 mm | Magnet: None | Port thread: M thread
JCQG40-10 Bore: ø40 mm | Mounting: Head flange | Stroke: 10 mm | Magnet: None | Port thread: M thread
JCQG40-15 Bore: ø40 mm | Mounting: Head flange | Stroke: 15 mm | Magnet: None | Port thread: M thread
JCQG40-20 Bore: ø40 mm | Mounting: Head flange | Stroke: 20 mm | Magnet: None | Port thread: M thread
JCQG40-25 Bore: ø40 mm | Mounting: Head flange | Stroke: 25 mm | Magnet: None | Port thread: M thread
JCQG40-30 Bore: ø40 mm | Mounting: Head flange | Stroke: 30 mm | Magnet: None | Port thread: M thread
JCQG40-35 Bore: ø40 mm | Mounting: Head flange | Stroke: 35 mm | Magnet: None | Port thread: M thread
JCQG40-40 Bore: ø40 mm | Mounting: Head flange | Stroke: 40 mm | Magnet: None | Port thread: M thread
JCQG40-45 Bore: ø40 mm | Mounting: Head flange | Stroke: 45 mm | Magnet: None | Port thread: M thread
JCQG40-50 Bore: ø40 mm | Mounting: Head flange | Stroke: 50 mm | Magnet: None | Port thread: M thread
JCQ50-10 Bore: ø50 mm | Mounting: Through-hole (standard) | Stroke: 10 mm | Magnet: None | Port thread: Rc
JCQ50-15 Bore: ø50 mm | Mounting: Through-hole (standard) | Stroke: 15 mm | Magnet: None | Port thread: Rc
JCQ50-20 Bore: ø50 mm | Mounting: Through-hole (standard) | Stroke: 20 mm | Magnet: None | Port thread: Rc
JCQ50-25 Bore: ø50 mm | Mounting: Through-hole (standard) | Stroke: 25 mm | Magnet: None | Port thread: Rc
JCQ50-30 Bore: ø50 mm | Mounting: Through-hole (standard) | Stroke: 30 mm | Magnet: None | Port thread: Rc
JCQ50-35 Bore: ø50 mm | Mounting: Through-hole (standard) | Stroke: 35 mm | Magnet: None | Port thread: Rc
JCQ50-40 Bore: ø50 mm | Mounting: Through-hole (standard) | Stroke: 40 mm | Magnet: None | Port thread: Rc
JCQ50-45 Bore: ø50 mm | Mounting: Through-hole (standard) | Stroke: 45 mm | Magnet: None | Port thread: Rc
JCQ50-50 Bore: ø50 mm | Mounting: Through-hole (standard) | Stroke: 50 mm | Magnet: None | Port thread: Rc
JCQA50-10 Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 10 mm | Magnet: None | Port thread: Rc
JCQA50-15 Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 15 mm | Magnet: None | Port thread: Rc
JCQA50-20 Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 20 mm | Magnet: None | Port thread: Rc
JCQA50-25 Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 25 mm | Magnet: None | Port thread: Rc
JCQA50-30 Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 30 mm | Magnet: None | Port thread: Rc
JCQA50-35 Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 35 mm | Magnet: None | Port thread: Rc
JCQA50-40 Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 40 mm | Magnet: None | Port thread: Rc
JCQA50-45 Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 45 mm | Magnet: None | Port thread: Rc
JCQA50-50 Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 50 mm | Magnet: None | Port thread: Rc
JCQL50-10 Bore: ø50 mm | Mounting: Axial foot | Stroke: 10 mm | Magnet: None | Port thread: Rc
JCQL50-15 Bore: ø50 mm | Mounting: Axial foot | Stroke: 15 mm | Magnet: None | Port thread: Rc
JCQL50-20 Bore: ø50 mm | Mounting: Axial foot | Stroke: 20 mm | Magnet: None | Port thread: Rc
JCQL50-25 Bore: ø50 mm | Mounting: Axial foot | Stroke: 25 mm | Magnet: None | Port thread: Rc
JCQL50-30 Bore: ø50 mm | Mounting: Axial foot | Stroke: 30 mm | Magnet: None | Port thread: Rc
JCQL50-35 Bore: ø50 mm | Mounting: Axial foot | Stroke: 35 mm | Magnet: None | Port thread: Rc
JCQL50-40 Bore: ø50 mm | Mounting: Axial foot | Stroke: 40 mm | Magnet: None | Port thread: Rc
JCQL50-45 Bore: ø50 mm | Mounting: Axial foot | Stroke: 45 mm | Magnet: None | Port thread: Rc
JCQL50-50 Bore: ø50 mm | Mounting: Axial foot | Stroke: 50 mm | Magnet: None | Port thread: Rc
JCQF50-10 Bore: ø50 mm | Mounting: Rod flange | Stroke: 10 mm | Magnet: None | Port thread: Rc
JCQF50-15 Bore: ø50 mm | Mounting: Rod flange | Stroke: 15 mm | Magnet: None | Port thread: Rc
JCQF50-20 Bore: ø50 mm | Mounting: Rod flange | Stroke: 20 mm | Magnet: None | Port thread: Rc
JCQF50-25 Bore: ø50 mm | Mounting: Rod flange | Stroke: 25 mm | Magnet: None | Port thread: Rc
JCQF50-30 Bore: ø50 mm | Mounting: Rod flange | Stroke: 30 mm | Magnet: None | Port thread: Rc
JCQF50-35 Bore: ø50 mm | Mounting: Rod flange | Stroke: 35 mm | Magnet: None | Port thread: Rc
JCQF50-40 Bore: ø50 mm | Mounting: Rod flange | Stroke: 40 mm | Magnet: None | Port thread: Rc
JCQF50-45 Bore: ø50 mm | Mounting: Rod flange | Stroke: 45 mm | Magnet: None | Port thread: Rc
JCQF50-50 Bore: ø50 mm | Mounting: Rod flange | Stroke: 50 mm | Magnet: None | Port thread: Rc
JCQG50-10 Bore: ø50 mm | Mounting: Head flange | Stroke: 10 mm | Magnet: None | Port thread: Rc
JCQG50-15 Bore: ø50 mm | Mounting: Head flange | Stroke: 15 mm | Magnet: None | Port thread: Rc
JCQG50-20 Bore: ø50 mm | Mounting: Head flange | Stroke: 20 mm | Magnet: None | Port thread: Rc
JCQG50-25 Bore: ø50 mm | Mounting: Head flange | Stroke: 25 mm | Magnet: None | Port thread: Rc
JCQG50-30 Bore: ø50 mm | Mounting: Head flange | Stroke: 30 mm | Magnet: None | Port thread: Rc
JCQG50-35 Bore: ø50 mm | Mounting: Head flange | Stroke: 35 mm | Magnet: None | Port thread: Rc
JCQG50-40 Bore: ø50 mm | Mounting: Head flange | Stroke: 40 mm | Magnet: None | Port thread: Rc
JCQG50-45 Bore: ø50 mm | Mounting: Head flange | Stroke: 45 mm | Magnet: None | Port thread: Rc
JCQG50-50 Bore: ø50 mm | Mounting: Head flange | Stroke: 50 mm | Magnet: None | Port thread: Rc
JCQ63-10 Bore: ø63 mm | Mounting: Through-hole (standard) | Stroke: 10 mm | Magnet: None | Port thread: Rc
JCQ63-15 Bore: ø63 mm | Mounting: Through-hole (standard) | Stroke: 15 mm | Magnet: None | Port thread: Rc
JCQ63-20 Bore: ø63 mm | Mounting: Through-hole (standard) | Stroke: 20 mm | Magnet: None | Port thread: Rc
JCQ63-25 Bore: ø63 mm | Mounting: Through-hole (standard) | Stroke: 25 mm | Magnet: None | Port thread: Rc
JCQ63-30 Bore: ø63 mm | Mounting: Through-hole (standard) | Stroke: 30 mm | Magnet: None | Port thread: Rc
JCQ63-35 Bore: ø63 mm | Mounting: Through-hole (standard) | Stroke: 35 mm | Magnet: None | Port thread: Rc
JCQ63-40 Bore: ø63 mm | Mounting: Through-hole (standard) | Stroke: 40 mm | Magnet: None | Port thread: Rc
JCQ63-45 Bore: ø63 mm | Mounting: Through-hole (standard) | Stroke: 45 mm | Magnet: None | Port thread: Rc
JCQ63-50 Bore: ø63 mm | Mounting: Through-hole (standard) | Stroke: 50 mm | Magnet: None | Port thread: Rc
JCQA63-10 Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 10 mm | Magnet: None | Port thread: Rc
JCQA63-15 Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 15 mm | Magnet: None | Port thread: Rc
JCQA63-20 Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 20 mm | Magnet: None | Port thread: Rc
JCQA63-25 Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 25 mm | Magnet: None | Port thread: Rc
JCQA63-30 Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 30 mm | Magnet: None | Port thread: Rc
JCQA63-35 Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 35 mm | Magnet: None | Port thread: Rc
JCQA63-40 Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 40 mm | Magnet: None | Port thread: Rc
JCQA63-45 Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 45 mm | Magnet: None | Port thread: Rc
JCQA63-50 Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 50 mm | Magnet: None | Port thread: Rc
JCQL63-10 Bore: ø63 mm | Mounting: Axial foot | Stroke: 10 mm | Magnet: None | Port thread: Rc
JCQL63-15 Bore: ø63 mm | Mounting: Axial foot | Stroke: 15 mm | Magnet: None | Port thread: Rc
JCQL63-20 Bore: ø63 mm | Mounting: Axial foot | Stroke: 20 mm | Magnet: None | Port thread: Rc
JCQL63-25 Bore: ø63 mm | Mounting: Axial foot | Stroke: 25 mm | Magnet: None | Port thread: Rc
JCQL63-30 Bore: ø63 mm | Mounting: Axial foot | Stroke: 30 mm | Magnet: None | Port thread: Rc
JCQL63-35 Bore: ø63 mm | Mounting: Axial foot | Stroke: 35 mm | Magnet: None | Port thread: Rc
JCQL63-40 Bore: ø63 mm | Mounting: Axial foot | Stroke: 40 mm | Magnet: None | Port thread: Rc
JCQL63-45 Bore: ø63 mm | Mounting: Axial foot | Stroke: 45 mm | Magnet: None | Port thread: Rc
JCQL63-50 Bore: ø63 mm | Mounting: Axial foot | Stroke: 50 mm | Magnet: None | Port thread: Rc
JCQF63-10 Bore: ø63 mm | Mounting: Rod flange | Stroke: 10 mm | Magnet: None | Port thread: Rc
JCQF63-15 Bore: ø63 mm | Mounting: Rod flange | Stroke: 15 mm | Magnet: None | Port thread: Rc
JCQF63-20 Bore: ø63 mm | Mounting: Rod flange | Stroke: 20 mm | Magnet: None | Port thread: Rc
JCQF63-25 Bore: ø63 mm | Mounting: Rod flange | Stroke: 25 mm | Magnet: None | Port thread: Rc
JCQF63-30 Bore: ø63 mm | Mounting: Rod flange | Stroke: 30 mm | Magnet: None | Port thread: Rc
JCQF63-35 Bore: ø63 mm | Mounting: Rod flange | Stroke: 35 mm | Magnet: None | Port thread: Rc
JCQF63-40 Bore: ø63 mm | Mounting: Rod flange | Stroke: 40 mm | Magnet: None | Port thread: Rc
JCQF63-45 Bore: ø63 mm | Mounting: Rod flange | Stroke: 45 mm | Magnet: None | Port thread: Rc
JCQF63-50 Bore: ø63 mm | Mounting: Rod flange | Stroke: 50 mm | Magnet: None | Port thread: Rc
JCQG63-10 Bore: ø63 mm | Mounting: Head flange | Stroke: 10 mm | Magnet: None | Port thread: Rc
JCQG63-15 Bore: ø63 mm | Mounting: Head flange | Stroke: 15 mm | Magnet: None | Port thread: Rc
JCQG63-20 Bore: ø63 mm | Mounting: Head flange | Stroke: 20 mm | Magnet: None | Port thread: Rc
JCQG63-25 Bore: ø63 mm | Mounting: Head flange | Stroke: 25 mm | Magnet: None | Port thread: Rc
JCQG63-30 Bore: ø63 mm | Mounting: Head flange | Stroke: 30 mm | Magnet: None | Port thread: Rc
JCQG63-35 Bore: ø63 mm | Mounting: Head flange | Stroke: 35 mm | Magnet: None | Port thread: Rc
JCQG63-40 Bore: ø63 mm | Mounting: Head flange | Stroke: 40 mm | Magnet: None | Port thread: Rc
JCQG63-45 Bore: ø63 mm | Mounting: Head flange | Stroke: 45 mm | Magnet: None | Port thread: Rc
JCQG63-50 Bore: ø63 mm | Mounting: Head flange | Stroke: 50 mm | Magnet: None | Port thread: Rc
JCQ80-10 Bore: ø80 mm | Mounting: Through-hole (standard) | Stroke: 10 mm | Magnet: None | Port thread: Rc
JCQ80-15 Bore: ø80 mm | Mounting: Through-hole (standard) | Stroke: 15 mm | Magnet: None | Port thread: Rc
JCQ80-20 Bore: ø80 mm | Mounting: Through-hole (standard) | Stroke: 20 mm | Magnet: None | Port thread: Rc
JCQ80-25 Bore: ø80 mm | Mounting: Through-hole (standard) | Stroke: 25 mm | Magnet: None | Port thread: Rc
JCQ80-30 Bore: ø80 mm | Mounting: Through-hole (standard) | Stroke: 30 mm | Magnet: None | Port thread: Rc
JCQ80-35 Bore: ø80 mm | Mounting: Through-hole (standard) | Stroke: 35 mm | Magnet: None | Port thread: Rc
JCQ80-40 Bore: ø80 mm | Mounting: Through-hole (standard) | Stroke: 40 mm | Magnet: None | Port thread: Rc
JCQ80-45 Bore: ø80 mm | Mounting: Through-hole (standard) | Stroke: 45 mm | Magnet: None | Port thread: Rc
JCQ80-50 Bore: ø80 mm | Mounting: Through-hole (standard) | Stroke: 50 mm | Magnet: None | Port thread: Rc
JCQA80-10 Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 10 mm | Magnet: None | Port thread: Rc
JCQA80-15 Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 15 mm | Magnet: None | Port thread: Rc
JCQA80-20 Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 20 mm | Magnet: None | Port thread: Rc
JCQA80-25 Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 25 mm | Magnet: None | Port thread: Rc
JCQA80-30 Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 30 mm | Magnet: None | Port thread: Rc
JCQA80-35 Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 35 mm | Magnet: None | Port thread: Rc
JCQA80-40 Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 40 mm | Magnet: None | Port thread: Rc
JCQA80-45 Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 45 mm | Magnet: None | Port thread: Rc
JCQA80-50 Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 50 mm | Magnet: None | Port thread: Rc
JCQL80-10 Bore: ø80 mm | Mounting: Axial foot | Stroke: 10 mm | Magnet: None | Port thread: Rc
JCQL80-15 Bore: ø80 mm | Mounting: Axial foot | Stroke: 15 mm | Magnet: None | Port thread: Rc
JCQL80-20 Bore: ø80 mm | Mounting: Axial foot | Stroke: 20 mm | Magnet: None | Port thread: Rc
JCQL80-25 Bore: ø80 mm | Mounting: Axial foot | Stroke: 25 mm | Magnet: None | Port thread: Rc
JCQL80-30 Bore: ø80 mm | Mounting: Axial foot | Stroke: 30 mm | Magnet: None | Port thread: Rc
JCQL80-35 Bore: ø80 mm | Mounting: Axial foot | Stroke: 35 mm | Magnet: None | Port thread: Rc
JCQL80-40 Bore: ø80 mm | Mounting: Axial foot | Stroke: 40 mm | Magnet: None | Port thread: Rc
JCQL80-45 Bore: ø80 mm | Mounting: Axial foot | Stroke: 45 mm | Magnet: None | Port thread: Rc
JCQL80-50 Bore: ø80 mm | Mounting: Axial foot | Stroke: 50 mm | Magnet: None | Port thread: Rc
JCQF80-10 Bore: ø80 mm | Mounting: Rod flange | Stroke: 10 mm | Magnet: None | Port thread: Rc
JCQF80-15 Bore: ø80 mm | Mounting: Rod flange | Stroke: 15 mm | Magnet: None | Port thread: Rc
JCQF80-20 Bore: ø80 mm | Mounting: Rod flange | Stroke: 20 mm | Magnet: None | Port thread: Rc
JCQF80-25 Bore: ø80 mm | Mounting: Rod flange | Stroke: 25 mm | Magnet: None | Port thread: Rc
JCQF80-30 Bore: ø80 mm | Mounting: Rod flange | Stroke: 30 mm | Magnet: None | Port thread: Rc
JCQF80-35 Bore: ø80 mm | Mounting: Rod flange | Stroke: 35 mm | Magnet: None | Port thread: Rc
JCQF80-40 Bore: ø80 mm | Mounting: Rod flange | Stroke: 40 mm | Magnet: None | Port thread: Rc
JCQF80-45 Bore: ø80 mm | Mounting: Rod flange | Stroke: 45 mm | Magnet: None | Port thread: Rc
JCQF80-50 Bore: ø80 mm | Mounting: Rod flange | Stroke: 50 mm | Magnet: None | Port thread: Rc
JCQG80-10 Bore: ø80 mm | Mounting: Head flange | Stroke: 10 mm | Magnet: None | Port thread: Rc
JCQG80-15 Bore: ø80 mm | Mounting: Head flange | Stroke: 15 mm | Magnet: None | Port thread: Rc
JCQG80-20 Bore: ø80 mm | Mounting: Head flange | Stroke: 20 mm | Magnet: None | Port thread: Rc
JCQG80-25 Bore: ø80 mm | Mounting: Head flange | Stroke: 25 mm | Magnet: None | Port thread: Rc
JCQG80-30 Bore: ø80 mm | Mounting: Head flange | Stroke: 30 mm | Magnet: None | Port thread: Rc
JCQG80-35 Bore: ø80 mm | Mounting: Head flange | Stroke: 35 mm | Magnet: None | Port thread: Rc
JCQG80-40 Bore: ø80 mm | Mounting: Head flange | Stroke: 40 mm | Magnet: None | Port thread: Rc
JCQG80-45 Bore: ø80 mm | Mounting: Head flange | Stroke: 45 mm | Magnet: None | Port thread: Rc
JCQG80-50 Bore: ø80 mm | Mounting: Head flange | Stroke: 50 mm | Magnet: None | Port thread: Rc
JCQ100-10 Bore: ø100 mm | Mounting: Through-hole (standard) | Stroke: 10 mm | Magnet: None | Port thread: Rc
JCQ100-15 Bore: ø100 mm | Mounting: Through-hole (standard) | Stroke: 15 mm | Magnet: None | Port thread: Rc
JCQ100-20 Bore: ø100 mm | Mounting: Through-hole (standard) | Stroke: 20 mm | Magnet: None | Port thread: Rc
JCQ100-25 Bore: ø100 mm | Mounting: Through-hole (standard) | Stroke: 25 mm | Magnet: None | Port thread: Rc
JCQ100-30 Bore: ø100 mm | Mounting: Through-hole (standard) | Stroke: 30 mm | Magnet: None | Port thread: Rc
JCQ100-35 Bore: ø100 mm | Mounting: Through-hole (standard) | Stroke: 35 mm | Magnet: None | Port thread: Rc
JCQ100-40 Bore: ø100 mm | Mounting: Through-hole (standard) | Stroke: 40 mm | Magnet: None | Port thread: Rc
JCQ100-45 Bore: ø100 mm | Mounting: Through-hole (standard) | Stroke: 45 mm | Magnet: None | Port thread: Rc
JCQ100-50 Bore: ø100 mm | Mounting: Through-hole (standard) | Stroke: 50 mm | Magnet: None | Port thread: Rc
JCQA100-10 Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 10 mm | Magnet: None | Port thread: Rc
JCQA100-15 Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 15 mm | Magnet: None | Port thread: Rc
JCQA100-20 Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 20 mm | Magnet: None | Port thread: Rc
JCQA100-25 Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 25 mm | Magnet: None | Port thread: Rc
JCQA100-30 Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 30 mm | Magnet: None | Port thread: Rc
JCQA100-35 Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 35 mm | Magnet: None | Port thread: Rc
JCQA100-40 Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 40 mm | Magnet: None | Port thread: Rc
JCQA100-45 Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 45 mm | Magnet: None | Port thread: Rc
JCQA100-50 Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 50 mm | Magnet: None | Port thread: Rc
JCQL100-10 Bore: ø100 mm | Mounting: Axial foot | Stroke: 10 mm | Magnet: None | Port thread: Rc
JCQL100-15 Bore: ø100 mm | Mounting: Axial foot | Stroke: 15 mm | Magnet: None | Port thread: Rc
JCQL100-20 Bore: ø100 mm | Mounting: Axial foot | Stroke: 20 mm | Magnet: None | Port thread: Rc
JCQL100-25 Bore: ø100 mm | Mounting: Axial foot | Stroke: 25 mm | Magnet: None | Port thread: Rc
JCQL100-30 Bore: ø100 mm | Mounting: Axial foot | Stroke: 30 mm | Magnet: None | Port thread: Rc
JCQL100-35 Bore: ø100 mm | Mounting: Axial foot | Stroke: 35 mm | Magnet: None | Port thread: Rc
JCQL100-40 Bore: ø100 mm | Mounting: Axial foot | Stroke: 40 mm | Magnet: None | Port thread: Rc
JCQL100-45 Bore: ø100 mm | Mounting: Axial foot | Stroke: 45 mm | Magnet: None | Port thread: Rc
JCQL100-50 Bore: ø100 mm | Mounting: Axial foot | Stroke: 50 mm | Magnet: None | Port thread: Rc
JCQF100-10 Bore: ø100 mm | Mounting: Rod flange | Stroke: 10 mm | Magnet: None | Port thread: Rc
JCQF100-15 Bore: ø100 mm | Mounting: Rod flange | Stroke: 15 mm | Magnet: None | Port thread: Rc
JCQF100-20 Bore: ø100 mm | Mounting: Rod flange | Stroke: 20 mm | Magnet: None | Port thread: Rc
JCQF100-25 Bore: ø100 mm | Mounting: Rod flange | Stroke: 25 mm | Magnet: None | Port thread: Rc
JCQF100-30 Bore: ø100 mm | Mounting: Rod flange | Stroke: 30 mm | Magnet: None | Port thread: Rc
JCQF100-35 Bore: ø100 mm | Mounting: Rod flange | Stroke: 35 mm | Magnet: None | Port thread: Rc
JCQF100-40 Bore: ø100 mm | Mounting: Rod flange | Stroke: 40 mm | Magnet: None | Port thread: Rc
JCQF100-45 Bore: ø100 mm | Mounting: Rod flange | Stroke: 45 mm | Magnet: None | Port thread: Rc
JCQF100-50 Bore: ø100 mm | Mounting: Rod flange | Stroke: 50 mm | Magnet: None | Port thread: Rc
JCQG100-10 Bore: ø100 mm | Mounting: Head flange | Stroke: 10 mm | Magnet: None | Port thread: Rc
JCQG100-15 Bore: ø100 mm | Mounting: Head flange | Stroke: 15 mm | Magnet: None | Port thread: Rc
JCQG100-20 Bore: ø100 mm | Mounting: Head flange | Stroke: 20 mm | Magnet: None | Port thread: Rc
JCQG100-25 Bore: ø100 mm | Mounting: Head flange | Stroke: 25 mm | Magnet: None | Port thread: Rc
JCQG100-30 Bore: ø100 mm | Mounting: Head flange | Stroke: 30 mm | Magnet: None | Port thread: Rc
JCQG100-35 Bore: ø100 mm | Mounting: Head flange | Stroke: 35 mm | Magnet: None | Port thread: Rc
JCQG100-40 Bore: ø100 mm | Mounting: Head flange | Stroke: 40 mm | Magnet: None | Port thread: Rc
JCQG100-45 Bore: ø100 mm | Mounting: Head flange | Stroke: 45 mm | Magnet: None | Port thread: Rc
JCQG100-50 Bore: ø100 mm | Mounting: Head flange | Stroke: 50 mm | Magnet: None | Port thread: Rc
JCDQ12-5 Bore: ø12 mm | Mounting: Through-hole (standard) | Stroke: 5 mm | Magnet: Built-in | Port thread: M thread
JCDQ12-10 Bore: ø12 mm | Mounting: Through-hole (standard) | Stroke: 10 mm | Magnet: Built-in | Port thread: M thread
JCDQ12-15 Bore: ø12 mm | Mounting: Through-hole (standard) | Stroke: 15 mm | Magnet: Built-in | Port thread: M thread
JCDQ12-20 Bore: ø12 mm | Mounting: Through-hole (standard) | Stroke: 20 mm | Magnet: Built-in | Port thread: M thread
JCDQ12-25 Bore: ø12 mm | Mounting: Through-hole (standard) | Stroke: 25 mm | Magnet: Built-in | Port thread: M thread
JCDQ12-30 Bore: ø12 mm | Mounting: Through-hole (standard) | Stroke: 30 mm | Magnet: Built-in | Port thread: M thread
JCDQA12-5 Bore: ø12 mm | Mounting: Both ends tapped | Stroke: 5 mm | Magnet: Built-in | Port thread: M thread
JCDQA12-10 Bore: ø12 mm | Mounting: Both ends tapped | Stroke: 10 mm | Magnet: Built-in | Port thread: M thread
JCDQA12-15 Bore: ø12 mm | Mounting: Both ends tapped | Stroke: 15 mm | Magnet: Built-in | Port thread: M thread
JCDQA12-20 Bore: ø12 mm | Mounting: Both ends tapped | Stroke: 20 mm | Magnet: Built-in | Port thread: M thread
JCDQA12-25 Bore: ø12 mm | Mounting: Both ends tapped | Stroke: 25 mm | Magnet: Built-in | Port thread: M thread
JCDQA12-30 Bore: ø12 mm | Mounting: Both ends tapped | Stroke: 30 mm | Magnet: Built-in | Port thread: M thread
JCDQ16-5 Bore: ø16 mm | Mounting: Through-hole (standard) | Stroke: 5 mm | Magnet: Built-in | Port thread: M thread
JCDQ16-10 Bore: ø16 mm | Mounting: Through-hole (standard) | Stroke: 10 mm | Magnet: Built-in | Port thread: M thread
JCDQ16-15 Bore: ø16 mm | Mounting: Through-hole (standard) | Stroke: 15 mm | Magnet: Built-in | Port thread: M thread
JCDQ16-20 Bore: ø16 mm | Mounting: Through-hole (standard) | Stroke: 20 mm | Magnet: Built-in | Port thread: M thread
JCDQ16-25 Bore: ø16 mm | Mounting: Through-hole (standard) | Stroke: 25 mm | Magnet: Built-in | Port thread: M thread
JCDQ16-30 Bore: ø16 mm | Mounting: Through-hole (standard) | Stroke: 30 mm | Magnet: Built-in | Port thread: M thread
JCDQA16-5 Bore: ø16 mm | Mounting: Both ends tapped | Stroke: 5 mm | Magnet: Built-in | Port thread: M thread
JCDQA16-10 Bore: ø16 mm | Mounting: Both ends tapped | Stroke: 10 mm | Magnet: Built-in | Port thread: M thread
JCDQA16-15 Bore: ø16 mm | Mounting: Both ends tapped | Stroke: 15 mm | Magnet: Built-in | Port thread: M thread
JCDQA16-20 Bore: ø16 mm | Mounting: Both ends tapped | Stroke: 20 mm | Magnet: Built-in | Port thread: M thread
JCDQA16-25 Bore: ø16 mm | Mounting: Both ends tapped | Stroke: 25 mm | Magnet: Built-in | Port thread: M thread
JCDQA16-30 Bore: ø16 mm | Mounting: Both ends tapped | Stroke: 30 mm | Magnet: Built-in | Port thread: M thread
JCDQ20-5 Bore: ø20 mm | Mounting: Through-hole (standard) | Stroke: 5 mm | Magnet: Built-in | Port thread: M thread
JCDQ20-10 Bore: ø20 mm | Mounting: Through-hole (standard) | Stroke: 10 mm | Magnet: Built-in | Port thread: M thread
JCDQ20-15 Bore: ø20 mm | Mounting: Through-hole (standard) | Stroke: 15 mm | Magnet: Built-in | Port thread: M thread
JCDQ20-20 Bore: ø20 mm | Mounting: Through-hole (standard) | Stroke: 20 mm | Magnet: Built-in | Port thread: M thread
JCDQ20-25 Bore: ø20 mm | Mounting: Through-hole (standard) | Stroke: 25 mm | Magnet: Built-in | Port thread: M thread
JCDQ20-30 Bore: ø20 mm | Mounting: Through-hole (standard) | Stroke: 30 mm | Magnet: Built-in | Port thread: M thread
JCDQ20-35 Bore: ø20 mm | Mounting: Through-hole (standard) | Stroke: 35 mm | Magnet: Built-in | Port thread: M thread
JCDQ20-40 Bore: ø20 mm | Mounting: Through-hole (standard) | Stroke: 40 mm | Magnet: Built-in | Port thread: M thread
JCDQ20-45 Bore: ø20 mm | Mounting: Through-hole (standard) | Stroke: 45 mm | Magnet: Built-in | Port thread: M thread
JCDQ20-50 Bore: ø20 mm | Mounting: Through-hole (standard) | Stroke: 50 mm | Magnet: Built-in | Port thread: M thread
JCDQA20-5 Bore: ø20 mm | Mounting: Both ends tapped | Stroke: 5 mm | Magnet: Built-in | Port thread: M thread
JCDQA20-10 Bore: ø20 mm | Mounting: Both ends tapped | Stroke: 10 mm | Magnet: Built-in | Port thread: M thread
JCDQA20-15 Bore: ø20 mm | Mounting: Both ends tapped | Stroke: 15 mm | Magnet: Built-in | Port thread: M thread
JCDQA20-20 Bore: ø20 mm | Mounting: Both ends tapped | Stroke: 20 mm | Magnet: Built-in | Port thread: M thread
JCDQA20-25 Bore: ø20 mm | Mounting: Both ends tapped | Stroke: 25 mm | Magnet: Built-in | Port thread: M thread
JCDQA20-30 Bore: ø20 mm | Mounting: Both ends tapped | Stroke: 30 mm | Magnet: Built-in | Port thread: M thread
JCDQA20-35 Bore: ø20 mm | Mounting: Both ends tapped | Stroke: 35 mm | Magnet: Built-in | Port thread: M thread
JCDQA20-40 Bore: ø20 mm | Mounting: Both ends tapped | Stroke: 40 mm | Magnet: Built-in | Port thread: M thread
JCDQA20-45 Bore: ø20 mm | Mounting: Both ends tapped | Stroke: 45 mm | Magnet: Built-in | Port thread: M thread
JCDQA20-50 Bore: ø20 mm | Mounting: Both ends tapped | Stroke: 50 mm | Magnet: Built-in | Port thread: M thread
JCDQ25-5 Bore: ø25 mm | Mounting: Through-hole (standard) | Stroke: 5 mm | Magnet: Built-in | Port thread: M thread
JCDQ25-10 Bore: ø25 mm | Mounting: Through-hole (standard) | Stroke: 10 mm | Magnet: Built-in | Port thread: M thread
JCDQ25-15 Bore: ø25 mm | Mounting: Through-hole (standard) | Stroke: 15 mm | Magnet: Built-in | Port thread: M thread
JCDQ25-20 Bore: ø25 mm | Mounting: Through-hole (standard) | Stroke: 20 mm | Magnet: Built-in | Port thread: M thread
JCDQ25-25 Bore: ø25 mm | Mounting: Through-hole (standard) | Stroke: 25 mm | Magnet: Built-in | Port thread: M thread
JCDQ25-30 Bore: ø25 mm | Mounting: Through-hole (standard) | Stroke: 30 mm | Magnet: Built-in | Port thread: M thread
JCDQ25-35 Bore: ø25 mm | Mounting: Through-hole (standard) | Stroke: 35 mm | Magnet: Built-in | Port thread: M thread
JCDQ25-40 Bore: ø25 mm | Mounting: Through-hole (standard) | Stroke: 40 mm | Magnet: Built-in | Port thread: M thread
JCDQ25-45 Bore: ø25 mm | Mounting: Through-hole (standard) | Stroke: 45 mm | Magnet: Built-in | Port thread: M thread
JCDQ25-50 Bore: ø25 mm | Mounting: Through-hole (standard) | Stroke: 50 mm | Magnet: Built-in | Port thread: M thread
JCDQA25-5 Bore: ø25 mm | Mounting: Both ends tapped | Stroke: 5 mm | Magnet: Built-in | Port thread: M thread
JCDQA25-10 Bore: ø25 mm | Mounting: Both ends tapped | Stroke: 10 mm | Magnet: Built-in | Port thread: M thread
JCDQA25-15 Bore: ø25 mm | Mounting: Both ends tapped | Stroke: 15 mm | Magnet: Built-in | Port thread: M thread
JCDQA25-20 Bore: ø25 mm | Mounting: Both ends tapped | Stroke: 20 mm | Magnet: Built-in | Port thread: M thread
JCDQA25-25 Bore: ø25 mm | Mounting: Both ends tapped | Stroke: 25 mm | Magnet: Built-in | Port thread: M thread
JCDQA25-30 Bore: ø25 mm | Mounting: Both ends tapped | Stroke: 30 mm | Magnet: Built-in | Port thread: M thread
JCDQA25-35 Bore: ø25 mm | Mounting: Both ends tapped | Stroke: 35 mm | Magnet: Built-in | Port thread: M thread
JCDQA25-40 Bore: ø25 mm | Mounting: Both ends tapped | Stroke: 40 mm | Magnet: Built-in | Port thread: M thread
JCDQA25-45 Bore: ø25 mm | Mounting: Both ends tapped | Stroke: 45 mm | Magnet: Built-in | Port thread: M thread
JCDQA25-50 Bore: ø25 mm | Mounting: Both ends tapped | Stroke: 50 mm | Magnet: Built-in | Port thread: M thread
JCDQ32-5 Bore: ø32 mm | Mounting: Through-hole (standard) | Stroke: 5 mm | Magnet: Built-in | Port thread: M thread
JCDQ32-10 Bore: ø32 mm | Mounting: Through-hole (standard) | Stroke: 10 mm | Magnet: Built-in | Port thread: M thread
JCDQ32-15 Bore: ø32 mm | Mounting: Through-hole (standard) | Stroke: 15 mm | Magnet: Built-in | Port thread: M thread
JCDQ32-20 Bore: ø32 mm | Mounting: Through-hole (standard) | Stroke: 20 mm | Magnet: Built-in | Port thread: M thread
JCDQ32-25 Bore: ø32 mm | Mounting: Through-hole (standard) | Stroke: 25 mm | Magnet: Built-in | Port thread: M thread
JCDQ32-30 Bore: ø32 mm | Mounting: Through-hole (standard) | Stroke: 30 mm | Magnet: Built-in | Port thread: M thread
JCDQ32-35 Bore: ø32 mm | Mounting: Through-hole (standard) | Stroke: 35 mm | Magnet: Built-in | Port thread: M thread
JCDQ32-40 Bore: ø32 mm | Mounting: Through-hole (standard) | Stroke: 40 mm | Magnet: Built-in | Port thread: M thread
JCDQ32-45 Bore: ø32 mm | Mounting: Through-hole (standard) | Stroke: 45 mm | Magnet: Built-in | Port thread: M thread
JCDQ32-50 Bore: ø32 mm | Mounting: Through-hole (standard) | Stroke: 50 mm | Magnet: Built-in | Port thread: M thread
JCDQA32-5 Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 5 mm | Magnet: Built-in | Port thread: M thread
JCDQA32-10 Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 10 mm | Magnet: Built-in | Port thread: M thread
JCDQA32-15 Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 15 mm | Magnet: Built-in | Port thread: M thread
JCDQA32-20 Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 20 mm | Magnet: Built-in | Port thread: M thread
JCDQA32-25 Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 25 mm | Magnet: Built-in | Port thread: M thread
JCDQA32-30 Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 30 mm | Magnet: Built-in | Port thread: M thread
JCDQA32-35 Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 35 mm | Magnet: Built-in | Port thread: M thread
JCDQA32-40 Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 40 mm | Magnet: Built-in | Port thread: M thread
JCDQA32-45 Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 45 mm | Magnet: Built-in | Port thread: M thread
JCDQA32-50 Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 50 mm | Magnet: Built-in | Port thread: M thread
JCDQL32-5 Bore: ø32 mm | Mounting: Axial foot | Stroke: 5 mm | Magnet: Built-in | Port thread: M thread
JCDQL32-10 Bore: ø32 mm | Mounting: Axial foot | Stroke: 10 mm | Magnet: Built-in | Port thread: M thread
JCDQL32-15 Bore: ø32 mm | Mounting: Axial foot | Stroke: 15 mm | Magnet: Built-in | Port thread: M thread
JCDQL32-20 Bore: ø32 mm | Mounting: Axial foot | Stroke: 20 mm | Magnet: Built-in | Port thread: M thread
JCDQL32-25 Bore: ø32 mm | Mounting: Axial foot | Stroke: 25 mm | Magnet: Built-in | Port thread: M thread
JCDQL32-30 Bore: ø32 mm | Mounting: Axial foot | Stroke: 30 mm | Magnet: Built-in | Port thread: M thread
JCDQL32-35 Bore: ø32 mm | Mounting: Axial foot | Stroke: 35 mm | Magnet: Built-in | Port thread: M thread
JCDQL32-40 Bore: ø32 mm | Mounting: Axial foot | Stroke: 40 mm | Magnet: Built-in | Port thread: M thread
JCDQL32-45 Bore: ø32 mm | Mounting: Axial foot | Stroke: 45 mm | Magnet: Built-in | Port thread: M thread
JCDQL32-50 Bore: ø32 mm | Mounting: Axial foot | Stroke: 50 mm | Magnet: Built-in | Port thread: M thread
JCDQF32-5 Bore: ø32 mm | Mounting: Rod flange | Stroke: 5 mm | Magnet: Built-in | Port thread: M thread
JCDQF32-10 Bore: ø32 mm | Mounting: Rod flange | Stroke: 10 mm | Magnet: Built-in | Port thread: M thread
JCDQF32-15 Bore: ø32 mm | Mounting: Rod flange | Stroke: 15 mm | Magnet: Built-in | Port thread: M thread
JCDQF32-20 Bore: ø32 mm | Mounting: Rod flange | Stroke: 20 mm | Magnet: Built-in | Port thread: M thread
JCDQF32-25 Bore: ø32 mm | Mounting: Rod flange | Stroke: 25 mm | Magnet: Built-in | Port thread: M thread
JCDQF32-30 Bore: ø32 mm | Mounting: Rod flange | Stroke: 30 mm | Magnet: Built-in | Port thread: M thread
JCDQF32-35 Bore: ø32 mm | Mounting: Rod flange | Stroke: 35 mm | Magnet: Built-in | Port thread: M thread
JCDQF32-40 Bore: ø32 mm | Mounting: Rod flange | Stroke: 40 mm | Magnet: Built-in | Port thread: M thread
JCDQF32-45 Bore: ø32 mm | Mounting: Rod flange | Stroke: 45 mm | Magnet: Built-in | Port thread: M thread
JCDQF32-50 Bore: ø32 mm | Mounting: Rod flange | Stroke: 50 mm | Magnet: Built-in | Port thread: M thread
JCDQG32-5 Bore: ø32 mm | Mounting: Head flange | Stroke: 5 mm | Magnet: Built-in | Port thread: M thread
JCDQG32-10 Bore: ø32 mm | Mounting: Head flange | Stroke: 10 mm | Magnet: Built-in | Port thread: M thread
JCDQG32-15 Bore: ø32 mm | Mounting: Head flange | Stroke: 15 mm | Magnet: Built-in | Port thread: M thread
JCDQG32-20 Bore: ø32 mm | Mounting: Head flange | Stroke: 20 mm | Magnet: Built-in | Port thread: M thread
JCDQG32-25 Bore: ø32 mm | Mounting: Head flange | Stroke: 25 mm | Magnet: Built-in | Port thread: M thread
JCDQG32-30 Bore: ø32 mm | Mounting: Head flange | Stroke: 30 mm | Magnet: Built-in | Port thread: M thread
JCDQG32-35 Bore: ø32 mm | Mounting: Head flange | Stroke: 35 mm | Magnet: Built-in | Port thread: M thread
JCDQG32-40 Bore: ø32 mm | Mounting: Head flange | Stroke: 40 mm | Magnet: Built-in | Port thread: M thread
JCDQG32-45 Bore: ø32 mm | Mounting: Head flange | Stroke: 45 mm | Magnet: Built-in | Port thread: M thread
JCDQG32-50 Bore: ø32 mm | Mounting: Head flange | Stroke: 50 mm | Magnet: Built-in | Port thread: M thread
JCDQ40-5 Bore: ø40 mm | Mounting: Through-hole (standard) | Stroke: 5 mm | Magnet: Built-in | Port thread: M thread
JCDQ40-10 Bore: ø40 mm | Mounting: Through-hole (standard) | Stroke: 10 mm | Magnet: Built-in | Port thread: M thread
JCDQ40-15 Bore: ø40 mm | Mounting: Through-hole (standard) | Stroke: 15 mm | Magnet: Built-in | Port thread: M thread
JCDQ40-20 Bore: ø40 mm | Mounting: Through-hole (standard) | Stroke: 20 mm | Magnet: Built-in | Port thread: M thread
JCDQ40-25 Bore: ø40 mm | Mounting: Through-hole (standard) | Stroke: 25 mm | Magnet: Built-in | Port thread: M thread
JCDQ40-30 Bore: ø40 mm | Mounting: Through-hole (standard) | Stroke: 30 mm | Magnet: Built-in | Port thread: M thread
JCDQ40-35 Bore: ø40 mm | Mounting: Through-hole (standard) | Stroke: 35 mm | Magnet: Built-in | Port thread: M thread
JCDQ40-40 Bore: ø40 mm | Mounting: Through-hole (standard) | Stroke: 40 mm | Magnet: Built-in | Port thread: M thread
JCDQ40-45 Bore: ø40 mm | Mounting: Through-hole (standard) | Stroke: 45 mm | Magnet: Built-in | Port thread: M thread
JCDQ40-50 Bore: ø40 mm | Mounting: Through-hole (standard) | Stroke: 50 mm | Magnet: Built-in | Port thread: M thread
JCDQA40-5 Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 5 mm | Magnet: Built-in | Port thread: M thread
JCDQA40-10 Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 10 mm | Magnet: Built-in | Port thread: M thread
JCDQA40-15 Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 15 mm | Magnet: Built-in | Port thread: M thread
JCDQA40-20 Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 20 mm | Magnet: Built-in | Port thread: M thread
JCDQA40-25 Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 25 mm | Magnet: Built-in | Port thread: M thread
JCDQA40-30 Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 30 mm | Magnet: Built-in | Port thread: M thread
JCDQA40-35 Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 35 mm | Magnet: Built-in | Port thread: M thread
JCDQA40-40 Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 40 mm | Magnet: Built-in | Port thread: M thread
JCDQA40-45 Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 45 mm | Magnet: Built-in | Port thread: M thread
JCDQA40-50 Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 50 mm | Magnet: Built-in | Port thread: M thread
JCDQL40-5 Bore: ø40 mm | Mounting: Axial foot | Stroke: 5 mm | Magnet: Built-in | Port thread: M thread
JCDQL40-10 Bore: ø40 mm | Mounting: Axial foot | Stroke: 10 mm | Magnet: Built-in | Port thread: M thread
JCDQL40-15 Bore: ø40 mm | Mounting: Axial foot | Stroke: 15 mm | Magnet: Built-in | Port thread: M thread
JCDQL40-20 Bore: ø40 mm | Mounting: Axial foot | Stroke: 20 mm | Magnet: Built-in | Port thread: M thread
JCDQL40-25 Bore: ø40 mm | Mounting: Axial foot | Stroke: 25 mm | Magnet: Built-in | Port thread: M thread
JCDQL40-30 Bore: ø40 mm | Mounting: Axial foot | Stroke: 30 mm | Magnet: Built-in | Port thread: M thread
JCDQL40-35 Bore: ø40 mm | Mounting: Axial foot | Stroke: 35 mm | Magnet: Built-in | Port thread: M thread
JCDQL40-40 Bore: ø40 mm | Mounting: Axial foot | Stroke: 40 mm | Magnet: Built-in | Port thread: M thread
JCDQL40-45 Bore: ø40 mm | Mounting: Axial foot | Stroke: 45 mm | Magnet: Built-in | Port thread: M thread
JCDQL40-50 Bore: ø40 mm | Mounting: Axial foot | Stroke: 50 mm | Magnet: Built-in | Port thread: M thread
JCDQF40-5 Bore: ø40 mm | Mounting: Rod flange | Stroke: 5 mm | Magnet: Built-in | Port thread: M thread
JCDQF40-10 Bore: ø40 mm | Mounting: Rod flange | Stroke: 10 mm | Magnet: Built-in | Port thread: M thread
JCDQF40-15 Bore: ø40 mm | Mounting: Rod flange | Stroke: 15 mm | Magnet: Built-in | Port thread: M thread
JCDQF40-20 Bore: ø40 mm | Mounting: Rod flange | Stroke: 20 mm | Magnet: Built-in | Port thread: M thread
JCDQF40-25 Bore: ø40 mm | Mounting: Rod flange | Stroke: 25 mm | Magnet: Built-in | Port thread: M thread
JCDQF40-30 Bore: ø40 mm | Mounting: Rod flange | Stroke: 30 mm | Magnet: Built-in | Port thread: M thread
JCDQF40-35 Bore: ø40 mm | Mounting: Rod flange | Stroke: 35 mm | Magnet: Built-in | Port thread: M thread
JCDQF40-40 Bore: ø40 mm | Mounting: Rod flange | Stroke: 40 mm | Magnet: Built-in | Port thread: M thread
JCDQF40-45 Bore: ø40 mm | Mounting: Rod flange | Stroke: 45 mm | Magnet: Built-in | Port thread: M thread
JCDQF40-50 Bore: ø40 mm | Mounting: Rod flange | Stroke: 50 mm | Magnet: Built-in | Port thread: M thread
JCDQG40-5 Bore: ø40 mm | Mounting: Head flange | Stroke: 5 mm | Magnet: Built-in | Port thread: M thread
JCDQG40-10 Bore: ø40 mm | Mounting: Head flange | Stroke: 10 mm | Magnet: Built-in | Port thread: M thread
JCDQG40-15 Bore: ø40 mm | Mounting: Head flange | Stroke: 15 mm | Magnet: Built-in | Port thread: M thread
JCDQG40-20 Bore: ø40 mm | Mounting: Head flange | Stroke: 20 mm | Magnet: Built-in | Port thread: M thread
JCDQG40-25 Bore: ø40 mm | Mounting: Head flange | Stroke: 25 mm | Magnet: Built-in | Port thread: M thread
JCDQG40-30 Bore: ø40 mm | Mounting: Head flange | Stroke: 30 mm | Magnet: Built-in | Port thread: M thread
JCDQG40-35 Bore: ø40 mm | Mounting: Head flange | Stroke: 35 mm | Magnet: Built-in | Port thread: M thread
JCDQG40-40 Bore: ø40 mm | Mounting: Head flange | Stroke: 40 mm | Magnet: Built-in | Port thread: M thread
JCDQG40-45 Bore: ø40 mm | Mounting: Head flange | Stroke: 45 mm | Magnet: Built-in | Port thread: M thread
JCDQG40-50 Bore: ø40 mm | Mounting: Head flange | Stroke: 50 mm | Magnet: Built-in | Port thread: M thread
JCDQ50-10 Bore: ø50 mm | Mounting: Through-hole (standard) | Stroke: 10 mm | Magnet: Built-in | Port thread: Rc
JCDQ50-15 Bore: ø50 mm | Mounting: Through-hole (standard) | Stroke: 15 mm | Magnet: Built-in | Port thread: Rc
JCDQ50-20 Bore: ø50 mm | Mounting: Through-hole (standard) | Stroke: 20 mm | Magnet: Built-in | Port thread: Rc
JCDQ50-25 Bore: ø50 mm | Mounting: Through-hole (standard) | Stroke: 25 mm | Magnet: Built-in | Port thread: Rc
JCDQ50-30 Bore: ø50 mm | Mounting: Through-hole (standard) | Stroke: 30 mm | Magnet: Built-in | Port thread: Rc
JCDQ50-35 Bore: ø50 mm | Mounting: Through-hole (standard) | Stroke: 35 mm | Magnet: Built-in | Port thread: Rc
JCDQ50-40 Bore: ø50 mm | Mounting: Through-hole (standard) | Stroke: 40 mm | Magnet: Built-in | Port thread: Rc
JCDQ50-45 Bore: ø50 mm | Mounting: Through-hole (standard) | Stroke: 45 mm | Magnet: Built-in | Port thread: Rc
JCDQ50-50 Bore: ø50 mm | Mounting: Through-hole (standard) | Stroke: 50 mm | Magnet: Built-in | Port thread: Rc
JCDQA50-10 Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 10 mm | Magnet: Built-in | Port thread: Rc
JCDQA50-15 Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 15 mm | Magnet: Built-in | Port thread: Rc
JCDQA50-20 Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 20 mm | Magnet: Built-in | Port thread: Rc
JCDQA50-25 Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 25 mm | Magnet: Built-in | Port thread: Rc
JCDQA50-30 Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 30 mm | Magnet: Built-in | Port thread: Rc
JCDQA50-35 Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 35 mm | Magnet: Built-in | Port thread: Rc
JCDQA50-40 Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 40 mm | Magnet: Built-in | Port thread: Rc
JCDQA50-45 Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 45 mm | Magnet: Built-in | Port thread: Rc
JCDQA50-50 Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 50 mm | Magnet: Built-in | Port thread: Rc
JCDQL50-10 Bore: ø50 mm | Mounting: Axial foot | Stroke: 10 mm | Magnet: Built-in | Port thread: Rc
JCDQL50-15 Bore: ø50 mm | Mounting: Axial foot | Stroke: 15 mm | Magnet: Built-in | Port thread: Rc
JCDQL50-20 Bore: ø50 mm | Mounting: Axial foot | Stroke: 20 mm | Magnet: Built-in | Port thread: Rc
JCDQL50-25 Bore: ø50 mm | Mounting: Axial foot | Stroke: 25 mm | Magnet: Built-in | Port thread: Rc
JCDQL50-30 Bore: ø50 mm | Mounting: Axial foot | Stroke: 30 mm | Magnet: Built-in | Port thread: Rc
JCDQL50-35 Bore: ø50 mm | Mounting: Axial foot | Stroke: 35 mm | Magnet: Built-in | Port thread: Rc
JCDQL50-40 Bore: ø50 mm | Mounting: Axial foot | Stroke: 40 mm | Magnet: Built-in | Port thread: Rc
JCDQL50-45 Bore: ø50 mm | Mounting: Axial foot | Stroke: 45 mm | Magnet: Built-in | Port thread: Rc
JCDQL50-50 Bore: ø50 mm | Mounting: Axial foot | Stroke: 50 mm | Magnet: Built-in | Port thread: Rc
JCDQF50-10 Bore: ø50 mm | Mounting: Rod flange | Stroke: 10 mm | Magnet: Built-in | Port thread: Rc
JCDQF50-15 Bore: ø50 mm | Mounting: Rod flange | Stroke: 15 mm | Magnet: Built-in | Port thread: Rc
JCDQF50-20 Bore: ø50 mm | Mounting: Rod flange | Stroke: 20 mm | Magnet: Built-in | Port thread: Rc
JCDQF50-25 Bore: ø50 mm | Mounting: Rod flange | Stroke: 25 mm | Magnet: Built-in | Port thread: Rc
JCDQF50-30 Bore: ø50 mm | Mounting: Rod flange | Stroke: 30 mm | Magnet: Built-in | Port thread: Rc
JCDQF50-35 Bore: ø50 mm | Mounting: Rod flange | Stroke: 35 mm | Magnet: Built-in | Port thread: Rc
JCDQF50-40 Bore: ø50 mm | Mounting: Rod flange | Stroke: 40 mm | Magnet: Built-in | Port thread: Rc
JCDQF50-45 Bore: ø50 mm | Mounting: Rod flange | Stroke: 45 mm | Magnet: Built-in | Port thread: Rc
JCDQF50-50 Bore: ø50 mm | Mounting: Rod flange | Stroke: 50 mm | Magnet: Built-in | Port thread: Rc
JCDQG50-10 Bore: ø50 mm | Mounting: Head flange | Stroke: 10 mm | Magnet: Built-in | Port thread: Rc
JCDQG50-15 Bore: ø50 mm | Mounting: Head flange | Stroke: 15 mm | Magnet: Built-in | Port thread: Rc
JCDQG50-20 Bore: ø50 mm | Mounting: Head flange | Stroke: 20 mm | Magnet: Built-in | Port thread: Rc
JCDQG50-25 Bore: ø50 mm | Mounting: Head flange | Stroke: 25 mm | Magnet: Built-in | Port thread: Rc
JCDQG50-30 Bore: ø50 mm | Mounting: Head flange | Stroke: 30 mm | Magnet: Built-in | Port thread: Rc
JCDQG50-35 Bore: ø50 mm | Mounting: Head flange | Stroke: 35 mm | Magnet: Built-in | Port thread: Rc
JCDQG50-40 Bore: ø50 mm | Mounting: Head flange | Stroke: 40 mm | Magnet: Built-in | Port thread: Rc
JCDQG50-45 Bore: ø50 mm | Mounting: Head flange | Stroke: 45 mm | Magnet: Built-in | Port thread: Rc
JCDQG50-50 Bore: ø50 mm | Mounting: Head flange | Stroke: 50 mm | Magnet: Built-in | Port thread: Rc
JCDQ63-10 Bore: ø63 mm | Mounting: Through-hole (standard) | Stroke: 10 mm | Magnet: Built-in | Port thread: Rc
JCDQ63-15 Bore: ø63 mm | Mounting: Through-hole (standard) | Stroke: 15 mm | Magnet: Built-in | Port thread: Rc
JCDQ63-20 Bore: ø63 mm | Mounting: Through-hole (standard) | Stroke: 20 mm | Magnet: Built-in | Port thread: Rc
JCDQ63-25 Bore: ø63 mm | Mounting: Through-hole (standard) | Stroke: 25 mm | Magnet: Built-in | Port thread: Rc
JCDQ63-30 Bore: ø63 mm | Mounting: Through-hole (standard) | Stroke: 30 mm | Magnet: Built-in | Port thread: Rc
JCDQ63-35 Bore: ø63 mm | Mounting: Through-hole (standard) | Stroke: 35 mm | Magnet: Built-in | Port thread: Rc
JCDQ63-40 Bore: ø63 mm | Mounting: Through-hole (standard) | Stroke: 40 mm | Magnet: Built-in | Port thread: Rc
JCDQ63-45 Bore: ø63 mm | Mounting: Through-hole (standard) | Stroke: 45 mm | Magnet: Built-in | Port thread: Rc
JCDQ63-50 Bore: ø63 mm | Mounting: Through-hole (standard) | Stroke: 50 mm | Magnet: Built-in | Port thread: Rc
JCDQA63-10 Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 10 mm | Magnet: Built-in | Port thread: Rc
JCDQA63-15 Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 15 mm | Magnet: Built-in | Port thread: Rc
JCDQA63-20 Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 20 mm | Magnet: Built-in | Port thread: Rc
JCDQA63-25 Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 25 mm | Magnet: Built-in | Port thread: Rc
JCDQA63-30 Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 30 mm | Magnet: Built-in | Port thread: Rc
JCDQA63-35 Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 35 mm | Magnet: Built-in | Port thread: Rc
JCDQA63-40 Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 40 mm | Magnet: Built-in | Port thread: Rc
JCDQA63-45 Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 45 mm | Magnet: Built-in | Port thread: Rc
JCDQA63-50 Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 50 mm | Magnet: Built-in | Port thread: Rc
JCDQL63-10 Bore: ø63 mm | Mounting: Axial foot | Stroke: 10 mm | Magnet: Built-in | Port thread: Rc
JCDQL63-15 Bore: ø63 mm | Mounting: Axial foot | Stroke: 15 mm | Magnet: Built-in | Port thread: Rc
JCDQL63-20 Bore: ø63 mm | Mounting: Axial foot | Stroke: 20 mm | Magnet: Built-in | Port thread: Rc
JCDQL63-25 Bore: ø63 mm | Mounting: Axial foot | Stroke: 25 mm | Magnet: Built-in | Port thread: Rc
JCDQL63-30 Bore: ø63 mm | Mounting: Axial foot | Stroke: 30 mm | Magnet: Built-in | Port thread: Rc
JCDQL63-35 Bore: ø63 mm | Mounting: Axial foot | Stroke: 35 mm | Magnet: Built-in | Port thread: Rc
JCDQL63-40 Bore: ø63 mm | Mounting: Axial foot | Stroke: 40 mm | Magnet: Built-in | Port thread: Rc
JCDQL63-45 Bore: ø63 mm | Mounting: Axial foot | Stroke: 45 mm | Magnet: Built-in | Port thread: Rc
JCDQL63-50 Bore: ø63 mm | Mounting: Axial foot | Stroke: 50 mm | Magnet: Built-in | Port thread: Rc
JCDQF63-10 Bore: ø63 mm | Mounting: Rod flange | Stroke: 10 mm | Magnet: Built-in | Port thread: Rc
JCDQF63-15 Bore: ø63 mm | Mounting: Rod flange | Stroke: 15 mm | Magnet: Built-in | Port thread: Rc
JCDQF63-20 Bore: ø63 mm | Mounting: Rod flange | Stroke: 20 mm | Magnet: Built-in | Port thread: Rc
JCDQF63-25 Bore: ø63 mm | Mounting: Rod flange | Stroke: 25 mm | Magnet: Built-in | Port thread: Rc
JCDQF63-30 Bore: ø63 mm | Mounting: Rod flange | Stroke: 30 mm | Magnet: Built-in | Port thread: Rc
JCDQF63-35 Bore: ø63 mm | Mounting: Rod flange | Stroke: 35 mm | Magnet: Built-in | Port thread: Rc
JCDQF63-40 Bore: ø63 mm | Mounting: Rod flange | Stroke: 40 mm | Magnet: Built-in | Port thread: Rc
JCDQF63-45 Bore: ø63 mm | Mounting: Rod flange | Stroke: 45 mm | Magnet: Built-in | Port thread: Rc
JCDQF63-50 Bore: ø63 mm | Mounting: Rod flange | Stroke: 50 mm | Magnet: Built-in | Port thread: Rc
JCDQG63-10 Bore: ø63 mm | Mounting: Head flange | Stroke: 10 mm | Magnet: Built-in | Port thread: Rc
JCDQG63-15 Bore: ø63 mm | Mounting: Head flange | Stroke: 15 mm | Magnet: Built-in | Port thread: Rc
JCDQG63-20 Bore: ø63 mm | Mounting: Head flange | Stroke: 20 mm | Magnet: Built-in | Port thread: Rc
JCDQG63-25 Bore: ø63 mm | Mounting: Head flange | Stroke: 25 mm | Magnet: Built-in | Port thread: Rc
JCDQG63-30 Bore: ø63 mm | Mounting: Head flange | Stroke: 30 mm | Magnet: Built-in | Port thread: Rc
JCDQG63-35 Bore: ø63 mm | Mounting: Head flange | Stroke: 35 mm | Magnet: Built-in | Port thread: Rc
JCDQG63-40 Bore: ø63 mm | Mounting: Head flange | Stroke: 40 mm | Magnet: Built-in | Port thread: Rc
JCDQG63-45 Bore: ø63 mm | Mounting: Head flange | Stroke: 45 mm | Magnet: Built-in | Port thread: Rc
JCDQG63-50 Bore: ø63 mm | Mounting: Head flange | Stroke: 50 mm | Magnet: Built-in | Port thread: Rc
JCDQ80-10 Bore: ø80 mm | Mounting: Through-hole (standard) | Stroke: 10 mm | Magnet: Built-in | Port thread: Rc
JCDQ80-15 Bore: ø80 mm | Mounting: Through-hole (standard) | Stroke: 15 mm | Magnet: Built-in | Port thread: Rc
JCDQ80-20 Bore: ø80 mm | Mounting: Through-hole (standard) | Stroke: 20 mm | Magnet: Built-in | Port thread: Rc
JCDQ80-25 Bore: ø80 mm | Mounting: Through-hole (standard) | Stroke: 25 mm | Magnet: Built-in | Port thread: Rc
JCDQ80-30 Bore: ø80 mm | Mounting: Through-hole (standard) | Stroke: 30 mm | Magnet: Built-in | Port thread: Rc
JCDQ80-35 Bore: ø80 mm | Mounting: Through-hole (standard) | Stroke: 35 mm | Magnet: Built-in | Port thread: Rc
JCDQ80-40 Bore: ø80 mm | Mounting: Through-hole (standard) | Stroke: 40 mm | Magnet: Built-in | Port thread: Rc
JCDQ80-45 Bore: ø80 mm | Mounting: Through-hole (standard) | Stroke: 45 mm | Magnet: Built-in | Port thread: Rc
JCDQ80-50 Bore: ø80 mm | Mounting: Through-hole (standard) | Stroke: 50 mm | Magnet: Built-in | Port thread: Rc
JCDQA80-10 Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 10 mm | Magnet: Built-in | Port thread: Rc
JCDQA80-15 Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 15 mm | Magnet: Built-in | Port thread: Rc
JCDQA80-20 Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 20 mm | Magnet: Built-in | Port thread: Rc
JCDQA80-25 Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 25 mm | Magnet: Built-in | Port thread: Rc
JCDQA80-30 Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 30 mm | Magnet: Built-in | Port thread: Rc
JCDQA80-35 Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 35 mm | Magnet: Built-in | Port thread: Rc
JCDQA80-40 Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 40 mm | Magnet: Built-in | Port thread: Rc
JCDQA80-45 Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 45 mm | Magnet: Built-in | Port thread: Rc
JCDQA80-50 Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 50 mm | Magnet: Built-in | Port thread: Rc
JCDQL80-10 Bore: ø80 mm | Mounting: Axial foot | Stroke: 10 mm | Magnet: Built-in | Port thread: Rc
JCDQL80-15 Bore: ø80 mm | Mounting: Axial foot | Stroke: 15 mm | Magnet: Built-in | Port thread: Rc
JCDQL80-20 Bore: ø80 mm | Mounting: Axial foot | Stroke: 20 mm | Magnet: Built-in | Port thread: Rc
JCDQL80-25 Bore: ø80 mm | Mounting: Axial foot | Stroke: 25 mm | Magnet: Built-in | Port thread: Rc
JCDQL80-30 Bore: ø80 mm | Mounting: Axial foot | Stroke: 30 mm | Magnet: Built-in | Port thread: Rc
JCDQL80-35 Bore: ø80 mm | Mounting: Axial foot | Stroke: 35 mm | Magnet: Built-in | Port thread: Rc
JCDQL80-40 Bore: ø80 mm | Mounting: Axial foot | Stroke: 40 mm | Magnet: Built-in | Port thread: Rc
JCDQL80-45 Bore: ø80 mm | Mounting: Axial foot | Stroke: 45 mm | Magnet: Built-in | Port thread: Rc
JCDQL80-50 Bore: ø80 mm | Mounting: Axial foot | Stroke: 50 mm | Magnet: Built-in | Port thread: Rc
JCDQF80-10 Bore: ø80 mm | Mounting: Rod flange | Stroke: 10 mm | Magnet: Built-in | Port thread: Rc
JCDQF80-15 Bore: ø80 mm | Mounting: Rod flange | Stroke: 15 mm | Magnet: Built-in | Port thread: Rc
JCDQF80-20 Bore: ø80 mm | Mounting: Rod flange | Stroke: 20 mm | Magnet: Built-in | Port thread: Rc
JCDQF80-25 Bore: ø80 mm | Mounting: Rod flange | Stroke: 25 mm | Magnet: Built-in | Port thread: Rc
JCDQF80-30 Bore: ø80 mm | Mounting: Rod flange | Stroke: 30 mm | Magnet: Built-in | Port thread: Rc
JCDQF80-35 Bore: ø80 mm | Mounting: Rod flange | Stroke: 35 mm | Magnet: Built-in | Port thread: Rc
JCDQF80-40 Bore: ø80 mm | Mounting: Rod flange | Stroke: 40 mm | Magnet: Built-in | Port thread: Rc
JCDQF80-45 Bore: ø80 mm | Mounting: Rod flange | Stroke: 45 mm | Magnet: Built-in | Port thread: Rc
JCDQF80-50 Bore: ø80 mm | Mounting: Rod flange | Stroke: 50 mm | Magnet: Built-in | Port thread: Rc
JCDQG80-10 Bore: ø80 mm | Mounting: Head flange | Stroke: 10 mm | Magnet: Built-in | Port thread: Rc
JCDQG80-15 Bore: ø80 mm | Mounting: Head flange | Stroke: 15 mm | Magnet: Built-in | Port thread: Rc
JCDQG80-20 Bore: ø80 mm | Mounting: Head flange | Stroke: 20 mm | Magnet: Built-in | Port thread: Rc
JCDQG80-25 Bore: ø80 mm | Mounting: Head flange | Stroke: 25 mm | Magnet: Built-in | Port thread: Rc
JCDQG80-30 Bore: ø80 mm | Mounting: Head flange | Stroke: 30 mm | Magnet: Built-in | Port thread: Rc
JCDQG80-35 Bore: ø80 mm | Mounting: Head flange | Stroke: 35 mm | Magnet: Built-in | Port thread: Rc
JCDQG80-40 Bore: ø80 mm | Mounting: Head flange | Stroke: 40 mm | Magnet: Built-in | Port thread: Rc
JCDQG80-45 Bore: ø80 mm | Mounting: Head flange | Stroke: 45 mm | Magnet: Built-in | Port thread: Rc
JCDQG80-50 Bore: ø80 mm | Mounting: Head flange | Stroke: 50 mm | Magnet: Built-in | Port thread: Rc
JCDQ100-10 Bore: ø100 mm | Mounting: Through-hole (standard) | Stroke: 10 mm | Magnet: Built-in | Port thread: Rc
JCDQ100-15 Bore: ø100 mm | Mounting: Through-hole (standard) | Stroke: 15 mm | Magnet: Built-in | Port thread: Rc
JCDQ100-20 Bore: ø100 mm | Mounting: Through-hole (standard) | Stroke: 20 mm | Magnet: Built-in | Port thread: Rc
JCDQ100-25 Bore: ø100 mm | Mounting: Through-hole (standard) | Stroke: 25 mm | Magnet: Built-in | Port thread: Rc
JCDQ100-30 Bore: ø100 mm | Mounting: Through-hole (standard) | Stroke: 30 mm | Magnet: Built-in | Port thread: Rc
JCDQ100-35 Bore: ø100 mm | Mounting: Through-hole (standard) | Stroke: 35 mm | Magnet: Built-in | Port thread: Rc
JCDQ100-40 Bore: ø100 mm | Mounting: Through-hole (standard) | Stroke: 40 mm | Magnet: Built-in | Port thread: Rc
JCDQ100-45 Bore: ø100 mm | Mounting: Through-hole (standard) | Stroke: 45 mm | Magnet: Built-in | Port thread: Rc
JCDQ100-50 Bore: ø100 mm | Mounting: Through-hole (standard) | Stroke: 50 mm | Magnet: Built-in | Port thread: Rc
JCDQA100-10 Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 10 mm | Magnet: Built-in | Port thread: Rc
JCDQA100-15 Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 15 mm | Magnet: Built-in | Port thread: Rc
JCDQA100-20 Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 20 mm | Magnet: Built-in | Port thread: Rc
JCDQA100-25 Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 25 mm | Magnet: Built-in | Port thread: Rc
JCDQA100-30 Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 30 mm | Magnet: Built-in | Port thread: Rc
JCDQA100-35 Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 35 mm | Magnet: Built-in | Port thread: Rc
JCDQA100-40 Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 40 mm | Magnet: Built-in | Port thread: Rc
JCDQA100-45 Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 45 mm | Magnet: Built-in | Port thread: Rc
JCDQA100-50 Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 50 mm | Magnet: Built-in | Port thread: Rc
JCDQL100-10 Bore: ø100 mm | Mounting: Axial foot | Stroke: 10 mm | Magnet: Built-in | Port thread: Rc
JCDQL100-15 Bore: ø100 mm | Mounting: Axial foot | Stroke: 15 mm | Magnet: Built-in | Port thread: Rc
JCDQL100-20 Bore: ø100 mm | Mounting: Axial foot | Stroke: 20 mm | Magnet: Built-in | Port thread: Rc
JCDQL100-25 Bore: ø100 mm | Mounting: Axial foot | Stroke: 25 mm | Magnet: Built-in | Port thread: Rc
JCDQL100-30 Bore: ø100 mm | Mounting: Axial foot | Stroke: 30 mm | Magnet: Built-in | Port thread: Rc
JCDQL100-35 Bore: ø100 mm | Mounting: Axial foot | Stroke: 35 mm | Magnet: Built-in | Port thread: Rc
JCDQL100-40 Bore: ø100 mm | Mounting: Axial foot | Stroke: 40 mm | Magnet: Built-in | Port thread: Rc
JCDQL100-45 Bore: ø100 mm | Mounting: Axial foot | Stroke: 45 mm | Magnet: Built-in | Port thread: Rc
JCDQL100-50 Bore: ø100 mm | Mounting: Axial foot | Stroke: 50 mm | Magnet: Built-in | Port thread: Rc
JCDQF100-10 Bore: ø100 mm | Mounting: Rod flange | Stroke: 10 mm | Magnet: Built-in | Port thread: Rc
JCDQF100-15 Bore: ø100 mm | Mounting: Rod flange | Stroke: 15 mm | Magnet: Built-in | Port thread: Rc
JCDQF100-20 Bore: ø100 mm | Mounting: Rod flange | Stroke: 20 mm | Magnet: Built-in | Port thread: Rc
JCDQF100-25 Bore: ø100 mm | Mounting: Rod flange | Stroke: 25 mm | Magnet: Built-in | Port thread: Rc
JCDQF100-30 Bore: ø100 mm | Mounting: Rod flange | Stroke: 30 mm | Magnet: Built-in | Port thread: Rc
JCDQF100-35 Bore: ø100 mm | Mounting: Rod flange | Stroke: 35 mm | Magnet: Built-in | Port thread: Rc
JCDQF100-40 Bore: ø100 mm | Mounting: Rod flange | Stroke: 40 mm | Magnet: Built-in | Port thread: Rc
JCDQF100-45 Bore: ø100 mm | Mounting: Rod flange | Stroke: 45 mm | Magnet: Built-in | Port thread: Rc
JCDQF100-50 Bore: ø100 mm | Mounting: Rod flange | Stroke: 50 mm | Magnet: Built-in | Port thread: Rc
JCDQG100-10 Bore: ø100 mm | Mounting: Head flange | Stroke: 10 mm | Magnet: Built-in | Port thread: Rc
JCDQG100-15 Bore: ø100 mm | Mounting: Head flange | Stroke: 15 mm | Magnet: Built-in | Port thread: Rc
JCDQG100-20 Bore: ø100 mm | Mounting: Head flange | Stroke: 20 mm | Magnet: Built-in | Port thread: Rc
JCDQG100-25 Bore: ø100 mm | Mounting: Head flange | Stroke: 25 mm | Magnet: Built-in | Port thread: Rc
JCDQG100-30 Bore: ø100 mm | Mounting: Head flange | Stroke: 30 mm | Magnet: Built-in | Port thread: Rc
JCDQG100-35 Bore: ø100 mm | Mounting: Head flange | Stroke: 35 mm | Magnet: Built-in | Port thread: Rc
JCDQG100-40 Bore: ø100 mm | Mounting: Head flange | Stroke: 40 mm | Magnet: Built-in | Port thread: Rc
JCDQG100-45 Bore: ø100 mm | Mounting: Head flange | Stroke: 45 mm | Magnet: Built-in | Port thread: Rc
JCDQG100-50 Bore: ø100 mm | Mounting: Head flange | Stroke: 50 mm | Magnet: Built-in | Port thread: Rc
Compact CylindersSMC
688 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC JCQ Compact Cylinder (ø12 to ø100, Double Acting)

Brand SMC·Compact Cylinders

Available part numbers (688)

JCQ12-5, JCQ12-10, JCQ12-15, JCQ12-20, JCQ12-25, JCQ12-30, JCQA12-5, JCQA12-10, JCQA12-15, JCQA12-20 + 678 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
JCQ12-5Bore: ø12 mm | Mounting: Through-hole (standard) | Stroke: 5 mm | Magnet: None | Port thread: M thread
JCQ12-10Bore: ø12 mm | Mounting: Through-hole (standard) | Stroke: 10 mm | Magnet: None | Port thread: M thread
JCQ12-15Bore: ø12 mm | Mounting: Through-hole (standard) | Stroke: 15 mm | Magnet: None | Port thread: M thread
JCQ12-20Bore: ø12 mm | Mounting: Through-hole (standard) | Stroke: 20 mm | Magnet: None | Port thread: M thread
JCQ12-25Bore: ø12 mm | Mounting: Through-hole (standard) | Stroke: 25 mm | Magnet: None | Port thread: M thread
JCQ12-30Bore: ø12 mm | Mounting: Through-hole (standard) | Stroke: 30 mm | Magnet: None | Port thread: M thread
JCQA12-5Bore: ø12 mm | Mounting: Both ends tapped | Stroke: 5 mm | Magnet: None | Port thread: M thread
JCQA12-10Bore: ø12 mm | Mounting: Both ends tapped | Stroke: 10 mm | Magnet: None | Port thread: M thread
JCQA12-15Bore: ø12 mm | Mounting: Both ends tapped | Stroke: 15 mm | Magnet: None | Port thread: M thread
JCQA12-20Bore: ø12 mm | Mounting: Both ends tapped | Stroke: 20 mm | Magnet: None | Port thread: M thread
JCQA12-25Bore: ø12 mm | Mounting: Both ends tapped | Stroke: 25 mm | Magnet: None | Port thread: M thread
JCQA12-30Bore: ø12 mm | Mounting: Both ends tapped | Stroke: 30 mm | Magnet: None | Port thread: M thread
JCQ16-5Bore: ø16 mm | Mounting: Through-hole (standard) | Stroke: 5 mm | Magnet: None | Port thread: M thread
JCQ16-10Bore: ø16 mm | Mounting: Through-hole (standard) | Stroke: 10 mm | Magnet: None | Port thread: M thread
JCQ16-15Bore: ø16 mm | Mounting: Through-hole (standard) | Stroke: 15 mm | Magnet: None | Port thread: M thread
JCQ16-20Bore: ø16 mm | Mounting: Through-hole (standard) | Stroke: 20 mm | Magnet: None | Port thread: M thread
JCQ16-25Bore: ø16 mm | Mounting: Through-hole (standard) | Stroke: 25 mm | Magnet: None | Port thread: M thread
JCQ16-30Bore: ø16 mm | Mounting: Through-hole (standard) | Stroke: 30 mm | Magnet: None | Port thread: M thread
JCQA16-5Bore: ø16 mm | Mounting: Both ends tapped | Stroke: 5 mm | Magnet: None | Port thread: M thread
JCQA16-10Bore: ø16 mm | Mounting: Both ends tapped | Stroke: 10 mm | Magnet: None | Port thread: M thread
JCQA16-15Bore: ø16 mm | Mounting: Both ends tapped | Stroke: 15 mm | Magnet: None | Port thread: M thread
JCQA16-20Bore: ø16 mm | Mounting: Both ends tapped | Stroke: 20 mm | Magnet: None | Port thread: M thread
JCQA16-25Bore: ø16 mm | Mounting: Both ends tapped | Stroke: 25 mm | Magnet: None | Port thread: M thread
JCQA16-30Bore: ø16 mm | Mounting: Both ends tapped | Stroke: 30 mm | Magnet: None | Port thread: M thread
JCQ20-5Bore: ø20 mm | Mounting: Through-hole (standard) | Stroke: 5 mm | Magnet: None | Port thread: M thread
JCQ20-10Bore: ø20 mm | Mounting: Through-hole (standard) | Stroke: 10 mm | Magnet: None | Port thread: M thread
JCQ20-15Bore: ø20 mm | Mounting: Through-hole (standard) | Stroke: 15 mm | Magnet: None | Port thread: M thread
JCQ20-20Bore: ø20 mm | Mounting: Through-hole (standard) | Stroke: 20 mm | Magnet: None | Port thread: M thread
JCQ20-25Bore: ø20 mm | Mounting: Through-hole (standard) | Stroke: 25 mm | Magnet: None | Port thread: M thread
JCQ20-30Bore: ø20 mm | Mounting: Through-hole (standard) | Stroke: 30 mm | Magnet: None | Port thread: M thread
JCQ20-35Bore: ø20 mm | Mounting: Through-hole (standard) | Stroke: 35 mm | Magnet: None | Port thread: M thread
JCQ20-40Bore: ø20 mm | Mounting: Through-hole (standard) | Stroke: 40 mm | Magnet: None | Port thread: M thread
JCQ20-45Bore: ø20 mm | Mounting: Through-hole (standard) | Stroke: 45 mm | Magnet: None | Port thread: M thread
JCQ20-50Bore: ø20 mm | Mounting: Through-hole (standard) | Stroke: 50 mm | Magnet: None | Port thread: M thread
JCQA20-5Bore: ø20 mm | Mounting: Both ends tapped | Stroke: 5 mm | Magnet: None | Port thread: M thread
JCQA20-10Bore: ø20 mm | Mounting: Both ends tapped | Stroke: 10 mm | Magnet: None | Port thread: M thread
JCQA20-15Bore: ø20 mm | Mounting: Both ends tapped | Stroke: 15 mm | Magnet: None | Port thread: M thread
JCQA20-20Bore: ø20 mm | Mounting: Both ends tapped | Stroke: 20 mm | Magnet: None | Port thread: M thread
JCQA20-25Bore: ø20 mm | Mounting: Both ends tapped | Stroke: 25 mm | Magnet: None | Port thread: M thread
JCQA20-30Bore: ø20 mm | Mounting: Both ends tapped | Stroke: 30 mm | Magnet: None | Port thread: M thread
JCQA20-35Bore: ø20 mm | Mounting: Both ends tapped | Stroke: 35 mm | Magnet: None | Port thread: M thread
JCQA20-40Bore: ø20 mm | Mounting: Both ends tapped | Stroke: 40 mm | Magnet: None | Port thread: M thread
JCQA20-45Bore: ø20 mm | Mounting: Both ends tapped | Stroke: 45 mm | Magnet: None | Port thread: M thread
JCQA20-50Bore: ø20 mm | Mounting: Both ends tapped | Stroke: 50 mm | Magnet: None | Port thread: M thread
JCQ25-5Bore: ø25 mm | Mounting: Through-hole (standard) | Stroke: 5 mm | Magnet: None | Port thread: M thread
JCQ25-10Bore: ø25 mm | Mounting: Through-hole (standard) | Stroke: 10 mm | Magnet: None | Port thread: M thread
JCQ25-15Bore: ø25 mm | Mounting: Through-hole (standard) | Stroke: 15 mm | Magnet: None | Port thread: M thread
JCQ25-20Bore: ø25 mm | Mounting: Through-hole (standard) | Stroke: 20 mm | Magnet: None | Port thread: M thread
JCQ25-25Bore: ø25 mm | Mounting: Through-hole (standard) | Stroke: 25 mm | Magnet: None | Port thread: M thread
JCQ25-30Bore: ø25 mm | Mounting: Through-hole (standard) | Stroke: 30 mm | Magnet: None | Port thread: M thread
JCQ25-35Bore: ø25 mm | Mounting: Through-hole (standard) | Stroke: 35 mm | Magnet: None | Port thread: M thread
JCQ25-40Bore: ø25 mm | Mounting: Through-hole (standard) | Stroke: 40 mm | Magnet: None | Port thread: M thread
JCQ25-45Bore: ø25 mm | Mounting: Through-hole (standard) | Stroke: 45 mm | Magnet: None | Port thread: M thread
JCQ25-50Bore: ø25 mm | Mounting: Through-hole (standard) | Stroke: 50 mm | Magnet: None | Port thread: M thread
JCQA25-5Bore: ø25 mm | Mounting: Both ends tapped | Stroke: 5 mm | Magnet: None | Port thread: M thread
JCQA25-10Bore: ø25 mm | Mounting: Both ends tapped | Stroke: 10 mm | Magnet: None | Port thread: M thread
JCQA25-15Bore: ø25 mm | Mounting: Both ends tapped | Stroke: 15 mm | Magnet: None | Port thread: M thread
JCQA25-20Bore: ø25 mm | Mounting: Both ends tapped | Stroke: 20 mm | Magnet: None | Port thread: M thread
JCQA25-25Bore: ø25 mm | Mounting: Both ends tapped | Stroke: 25 mm | Magnet: None | Port thread: M thread
JCQA25-30Bore: ø25 mm | Mounting: Both ends tapped | Stroke: 30 mm | Magnet: None | Port thread: M thread
JCQA25-35Bore: ø25 mm | Mounting: Both ends tapped | Stroke: 35 mm | Magnet: None | Port thread: M thread
JCQA25-40Bore: ø25 mm | Mounting: Both ends tapped | Stroke: 40 mm | Magnet: None | Port thread: M thread
JCQA25-45Bore: ø25 mm | Mounting: Both ends tapped | Stroke: 45 mm | Magnet: None | Port thread: M thread
JCQA25-50Bore: ø25 mm | Mounting: Both ends tapped | Stroke: 50 mm | Magnet: None | Port thread: M thread
JCQ32-5Bore: ø32 mm | Mounting: Through-hole (standard) | Stroke: 5 mm | Magnet: None | Port thread: M thread
JCQ32-10Bore: ø32 mm | Mounting: Through-hole (standard) | Stroke: 10 mm | Magnet: None | Port thread: M thread
JCQ32-15Bore: ø32 mm | Mounting: Through-hole (standard) | Stroke: 15 mm | Magnet: None | Port thread: M thread
JCQ32-20Bore: ø32 mm | Mounting: Through-hole (standard) | Stroke: 20 mm | Magnet: None | Port thread: M thread
JCQ32-25Bore: ø32 mm | Mounting: Through-hole (standard) | Stroke: 25 mm | Magnet: None | Port thread: M thread
JCQ32-30Bore: ø32 mm | Mounting: Through-hole (standard) | Stroke: 30 mm | Magnet: None | Port thread: M thread
JCQ32-35Bore: ø32 mm | Mounting: Through-hole (standard) | Stroke: 35 mm | Magnet: None | Port thread: M thread
JCQ32-40Bore: ø32 mm | Mounting: Through-hole (standard) | Stroke: 40 mm | Magnet: None | Port thread: M thread
JCQ32-45Bore: ø32 mm | Mounting: Through-hole (standard) | Stroke: 45 mm | Magnet: None | Port thread: M thread
JCQ32-50Bore: ø32 mm | Mounting: Through-hole (standard) | Stroke: 50 mm | Magnet: None | Port thread: M thread
JCQA32-5Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 5 mm | Magnet: None | Port thread: M thread
JCQA32-10Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 10 mm | Magnet: None | Port thread: M thread
JCQA32-15Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 15 mm | Magnet: None | Port thread: M thread
JCQA32-20Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 20 mm | Magnet: None | Port thread: M thread
JCQA32-25Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 25 mm | Magnet: None | Port thread: M thread
JCQA32-30Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 30 mm | Magnet: None | Port thread: M thread
JCQA32-35Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 35 mm | Magnet: None | Port thread: M thread
JCQA32-40Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 40 mm | Magnet: None | Port thread: M thread
JCQA32-45Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 45 mm | Magnet: None | Port thread: M thread
JCQA32-50Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 50 mm | Magnet: None | Port thread: M thread
JCQL32-5Bore: ø32 mm | Mounting: Axial foot | Stroke: 5 mm | Magnet: None | Port thread: M thread
JCQL32-10Bore: ø32 mm | Mounting: Axial foot | Stroke: 10 mm | Magnet: None | Port thread: M thread
JCQL32-15Bore: ø32 mm | Mounting: Axial foot | Stroke: 15 mm | Magnet: None | Port thread: M thread
JCQL32-20Bore: ø32 mm | Mounting: Axial foot | Stroke: 20 mm | Magnet: None | Port thread: M thread
JCQL32-25Bore: ø32 mm | Mounting: Axial foot | Stroke: 25 mm | Magnet: None | Port thread: M thread
JCQL32-30Bore: ø32 mm | Mounting: Axial foot | Stroke: 30 mm | Magnet: None | Port thread: M thread
JCQL32-35Bore: ø32 mm | Mounting: Axial foot | Stroke: 35 mm | Magnet: None | Port thread: M thread
JCQL32-40Bore: ø32 mm | Mounting: Axial foot | Stroke: 40 mm | Magnet: None | Port thread: M thread
JCQL32-45Bore: ø32 mm | Mounting: Axial foot | Stroke: 45 mm | Magnet: None | Port thread: M thread
JCQL32-50Bore: ø32 mm | Mounting: Axial foot | Stroke: 50 mm | Magnet: None | Port thread: M thread
JCQF32-5Bore: ø32 mm | Mounting: Rod flange | Stroke: 5 mm | Magnet: None | Port thread: M thread
JCQF32-10Bore: ø32 mm | Mounting: Rod flange | Stroke: 10 mm | Magnet: None | Port thread: M thread
JCQF32-15Bore: ø32 mm | Mounting: Rod flange | Stroke: 15 mm | Magnet: None | Port thread: M thread
JCQF32-20Bore: ø32 mm | Mounting: Rod flange | Stroke: 20 mm | Magnet: None | Port thread: M thread
JCQF32-25Bore: ø32 mm | Mounting: Rod flange | Stroke: 25 mm | Magnet: None | Port thread: M thread
JCQF32-30Bore: ø32 mm | Mounting: Rod flange | Stroke: 30 mm | Magnet: None | Port thread: M thread
JCQF32-35Bore: ø32 mm | Mounting: Rod flange | Stroke: 35 mm | Magnet: None | Port thread: M thread
JCQF32-40Bore: ø32 mm | Mounting: Rod flange | Stroke: 40 mm | Magnet: None | Port thread: M thread
JCQF32-45Bore: ø32 mm | Mounting: Rod flange | Stroke: 45 mm | Magnet: None | Port thread: M thread
JCQF32-50Bore: ø32 mm | Mounting: Rod flange | Stroke: 50 mm | Magnet: None | Port thread: M thread
JCQG32-5Bore: ø32 mm | Mounting: Head flange | Stroke: 5 mm | Magnet: None | Port thread: M thread
JCQG32-10Bore: ø32 mm | Mounting: Head flange | Stroke: 10 mm | Magnet: None | Port thread: M thread
JCQG32-15Bore: ø32 mm | Mounting: Head flange | Stroke: 15 mm | Magnet: None | Port thread: M thread
JCQG32-20Bore: ø32 mm | Mounting: Head flange | Stroke: 20 mm | Magnet: None | Port thread: M thread
JCQG32-25Bore: ø32 mm | Mounting: Head flange | Stroke: 25 mm | Magnet: None | Port thread: M thread
JCQG32-30Bore: ø32 mm | Mounting: Head flange | Stroke: 30 mm | Magnet: None | Port thread: M thread
JCQG32-35Bore: ø32 mm | Mounting: Head flange | Stroke: 35 mm | Magnet: None | Port thread: M thread
JCQG32-40Bore: ø32 mm | Mounting: Head flange | Stroke: 40 mm | Magnet: None | Port thread: M thread
JCQG32-45Bore: ø32 mm | Mounting: Head flange | Stroke: 45 mm | Magnet: None | Port thread: M thread
JCQG32-50Bore: ø32 mm | Mounting: Head flange | Stroke: 50 mm | Magnet: None | Port thread: M thread
JCQ40-5Bore: ø40 mm | Mounting: Through-hole (standard) | Stroke: 5 mm | Magnet: None | Port thread: M thread
JCQ40-10Bore: ø40 mm | Mounting: Through-hole (standard) | Stroke: 10 mm | Magnet: None | Port thread: M thread
JCQ40-15Bore: ø40 mm | Mounting: Through-hole (standard) | Stroke: 15 mm | Magnet: None | Port thread: M thread
JCQ40-20Bore: ø40 mm | Mounting: Through-hole (standard) | Stroke: 20 mm | Magnet: None | Port thread: M thread
JCQ40-25Bore: ø40 mm | Mounting: Through-hole (standard) | Stroke: 25 mm | Magnet: None | Port thread: M thread
JCQ40-30Bore: ø40 mm | Mounting: Through-hole (standard) | Stroke: 30 mm | Magnet: None | Port thread: M thread
JCQ40-35Bore: ø40 mm | Mounting: Through-hole (standard) | Stroke: 35 mm | Magnet: None | Port thread: M thread
JCQ40-40Bore: ø40 mm | Mounting: Through-hole (standard) | Stroke: 40 mm | Magnet: None | Port thread: M thread
JCQ40-45Bore: ø40 mm | Mounting: Through-hole (standard) | Stroke: 45 mm | Magnet: None | Port thread: M thread
JCQ40-50Bore: ø40 mm | Mounting: Through-hole (standard) | Stroke: 50 mm | Magnet: None | Port thread: M thread
JCQA40-5Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 5 mm | Magnet: None | Port thread: M thread
JCQA40-10Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 10 mm | Magnet: None | Port thread: M thread
JCQA40-15Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 15 mm | Magnet: None | Port thread: M thread
JCQA40-20Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 20 mm | Magnet: None | Port thread: M thread
JCQA40-25Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 25 mm | Magnet: None | Port thread: M thread
JCQA40-30Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 30 mm | Magnet: None | Port thread: M thread
JCQA40-35Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 35 mm | Magnet: None | Port thread: M thread
JCQA40-40Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 40 mm | Magnet: None | Port thread: M thread
JCQA40-45Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 45 mm | Magnet: None | Port thread: M thread
JCQA40-50Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 50 mm | Magnet: None | Port thread: M thread
JCQL40-5Bore: ø40 mm | Mounting: Axial foot | Stroke: 5 mm | Magnet: None | Port thread: M thread
JCQL40-10Bore: ø40 mm | Mounting: Axial foot | Stroke: 10 mm | Magnet: None | Port thread: M thread
JCQL40-15Bore: ø40 mm | Mounting: Axial foot | Stroke: 15 mm | Magnet: None | Port thread: M thread
JCQL40-20Bore: ø40 mm | Mounting: Axial foot | Stroke: 20 mm | Magnet: None | Port thread: M thread
JCQL40-25Bore: ø40 mm | Mounting: Axial foot | Stroke: 25 mm | Magnet: None | Port thread: M thread
JCQL40-30Bore: ø40 mm | Mounting: Axial foot | Stroke: 30 mm | Magnet: None | Port thread: M thread
JCQL40-35Bore: ø40 mm | Mounting: Axial foot | Stroke: 35 mm | Magnet: None | Port thread: M thread
JCQL40-40Bore: ø40 mm | Mounting: Axial foot | Stroke: 40 mm | Magnet: None | Port thread: M thread
JCQL40-45Bore: ø40 mm | Mounting: Axial foot | Stroke: 45 mm | Magnet: None | Port thread: M thread
JCQL40-50Bore: ø40 mm | Mounting: Axial foot | Stroke: 50 mm | Magnet: None | Port thread: M thread
JCQF40-5Bore: ø40 mm | Mounting: Rod flange | Stroke: 5 mm | Magnet: None | Port thread: M thread
JCQF40-10Bore: ø40 mm | Mounting: Rod flange | Stroke: 10 mm | Magnet: None | Port thread: M thread
JCQF40-15Bore: ø40 mm | Mounting: Rod flange | Stroke: 15 mm | Magnet: None | Port thread: M thread
JCQF40-20Bore: ø40 mm | Mounting: Rod flange | Stroke: 20 mm | Magnet: None | Port thread: M thread
JCQF40-25Bore: ø40 mm | Mounting: Rod flange | Stroke: 25 mm | Magnet: None | Port thread: M thread
JCQF40-30Bore: ø40 mm | Mounting: Rod flange | Stroke: 30 mm | Magnet: None | Port thread: M thread
JCQF40-35Bore: ø40 mm | Mounting: Rod flange | Stroke: 35 mm | Magnet: None | Port thread: M thread
JCQF40-40Bore: ø40 mm | Mounting: Rod flange | Stroke: 40 mm | Magnet: None | Port thread: M thread
JCQF40-45Bore: ø40 mm | Mounting: Rod flange | Stroke: 45 mm | Magnet: None | Port thread: M thread
JCQF40-50Bore: ø40 mm | Mounting: Rod flange | Stroke: 50 mm | Magnet: None | Port thread: M thread
JCQG40-5Bore: ø40 mm | Mounting: Head flange | Stroke: 5 mm | Magnet: None | Port thread: M thread
JCQG40-10Bore: ø40 mm | Mounting: Head flange | Stroke: 10 mm | Magnet: None | Port thread: M thread
JCQG40-15Bore: ø40 mm | Mounting: Head flange | Stroke: 15 mm | Magnet: None | Port thread: M thread
JCQG40-20Bore: ø40 mm | Mounting: Head flange | Stroke: 20 mm | Magnet: None | Port thread: M thread
JCQG40-25Bore: ø40 mm | Mounting: Head flange | Stroke: 25 mm | Magnet: None | Port thread: M thread
JCQG40-30Bore: ø40 mm | Mounting: Head flange | Stroke: 30 mm | Magnet: None | Port thread: M thread
JCQG40-35Bore: ø40 mm | Mounting: Head flange | Stroke: 35 mm | Magnet: None | Port thread: M thread
JCQG40-40Bore: ø40 mm | Mounting: Head flange | Stroke: 40 mm | Magnet: None | Port thread: M thread
JCQG40-45Bore: ø40 mm | Mounting: Head flange | Stroke: 45 mm | Magnet: None | Port thread: M thread
JCQG40-50Bore: ø40 mm | Mounting: Head flange | Stroke: 50 mm | Magnet: None | Port thread: M thread
JCQ50-10Bore: ø50 mm | Mounting: Through-hole (standard) | Stroke: 10 mm | Magnet: None | Port thread: Rc
JCQ50-15Bore: ø50 mm | Mounting: Through-hole (standard) | Stroke: 15 mm | Magnet: None | Port thread: Rc
JCQ50-20Bore: ø50 mm | Mounting: Through-hole (standard) | Stroke: 20 mm | Magnet: None | Port thread: Rc
JCQ50-25Bore: ø50 mm | Mounting: Through-hole (standard) | Stroke: 25 mm | Magnet: None | Port thread: Rc
JCQ50-30Bore: ø50 mm | Mounting: Through-hole (standard) | Stroke: 30 mm | Magnet: None | Port thread: Rc
JCQ50-35Bore: ø50 mm | Mounting: Through-hole (standard) | Stroke: 35 mm | Magnet: None | Port thread: Rc
JCQ50-40Bore: ø50 mm | Mounting: Through-hole (standard) | Stroke: 40 mm | Magnet: None | Port thread: Rc
JCQ50-45Bore: ø50 mm | Mounting: Through-hole (standard) | Stroke: 45 mm | Magnet: None | Port thread: Rc
JCQ50-50Bore: ø50 mm | Mounting: Through-hole (standard) | Stroke: 50 mm | Magnet: None | Port thread: Rc
JCQA50-10Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 10 mm | Magnet: None | Port thread: Rc
JCQA50-15Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 15 mm | Magnet: None | Port thread: Rc
JCQA50-20Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 20 mm | Magnet: None | Port thread: Rc
JCQA50-25Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 25 mm | Magnet: None | Port thread: Rc
JCQA50-30Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 30 mm | Magnet: None | Port thread: Rc
JCQA50-35Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 35 mm | Magnet: None | Port thread: Rc
JCQA50-40Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 40 mm | Magnet: None | Port thread: Rc
JCQA50-45Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 45 mm | Magnet: None | Port thread: Rc
JCQA50-50Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 50 mm | Magnet: None | Port thread: Rc
JCQL50-10Bore: ø50 mm | Mounting: Axial foot | Stroke: 10 mm | Magnet: None | Port thread: Rc
JCQL50-15Bore: ø50 mm | Mounting: Axial foot | Stroke: 15 mm | Magnet: None | Port thread: Rc
JCQL50-20Bore: ø50 mm | Mounting: Axial foot | Stroke: 20 mm | Magnet: None | Port thread: Rc
JCQL50-25Bore: ø50 mm | Mounting: Axial foot | Stroke: 25 mm | Magnet: None | Port thread: Rc
JCQL50-30Bore: ø50 mm | Mounting: Axial foot | Stroke: 30 mm | Magnet: None | Port thread: Rc
JCQL50-35Bore: ø50 mm | Mounting: Axial foot | Stroke: 35 mm | Magnet: None | Port thread: Rc
JCQL50-40Bore: ø50 mm | Mounting: Axial foot | Stroke: 40 mm | Magnet: None | Port thread: Rc
JCQL50-45Bore: ø50 mm | Mounting: Axial foot | Stroke: 45 mm | Magnet: None | Port thread: Rc
JCQL50-50Bore: ø50 mm | Mounting: Axial foot | Stroke: 50 mm | Magnet: None | Port thread: Rc
JCQF50-10Bore: ø50 mm | Mounting: Rod flange | Stroke: 10 mm | Magnet: None | Port thread: Rc
JCQF50-15Bore: ø50 mm | Mounting: Rod flange | Stroke: 15 mm | Magnet: None | Port thread: Rc
JCQF50-20Bore: ø50 mm | Mounting: Rod flange | Stroke: 20 mm | Magnet: None | Port thread: Rc
JCQF50-25Bore: ø50 mm | Mounting: Rod flange | Stroke: 25 mm | Magnet: None | Port thread: Rc
JCQF50-30Bore: ø50 mm | Mounting: Rod flange | Stroke: 30 mm | Magnet: None | Port thread: Rc
JCQF50-35Bore: ø50 mm | Mounting: Rod flange | Stroke: 35 mm | Magnet: None | Port thread: Rc
JCQF50-40Bore: ø50 mm | Mounting: Rod flange | Stroke: 40 mm | Magnet: None | Port thread: Rc
JCQF50-45Bore: ø50 mm | Mounting: Rod flange | Stroke: 45 mm | Magnet: None | Port thread: Rc
JCQF50-50Bore: ø50 mm | Mounting: Rod flange | Stroke: 50 mm | Magnet: None | Port thread: Rc
JCQG50-10Bore: ø50 mm | Mounting: Head flange | Stroke: 10 mm | Magnet: None | Port thread: Rc
JCQG50-15Bore: ø50 mm | Mounting: Head flange | Stroke: 15 mm | Magnet: None | Port thread: Rc
JCQG50-20Bore: ø50 mm | Mounting: Head flange | Stroke: 20 mm | Magnet: None | Port thread: Rc
JCQG50-25Bore: ø50 mm | Mounting: Head flange | Stroke: 25 mm | Magnet: None | Port thread: Rc
JCQG50-30Bore: ø50 mm | Mounting: Head flange | Stroke: 30 mm | Magnet: None | Port thread: Rc
JCQG50-35Bore: ø50 mm | Mounting: Head flange | Stroke: 35 mm | Magnet: None | Port thread: Rc
JCQG50-40Bore: ø50 mm | Mounting: Head flange | Stroke: 40 mm | Magnet: None | Port thread: Rc
JCQG50-45Bore: ø50 mm | Mounting: Head flange | Stroke: 45 mm | Magnet: None | Port thread: Rc
JCQG50-50Bore: ø50 mm | Mounting: Head flange | Stroke: 50 mm | Magnet: None | Port thread: Rc
JCQ63-10Bore: ø63 mm | Mounting: Through-hole (standard) | Stroke: 10 mm | Magnet: None | Port thread: Rc
JCQ63-15Bore: ø63 mm | Mounting: Through-hole (standard) | Stroke: 15 mm | Magnet: None | Port thread: Rc
JCQ63-20Bore: ø63 mm | Mounting: Through-hole (standard) | Stroke: 20 mm | Magnet: None | Port thread: Rc
JCQ63-25Bore: ø63 mm | Mounting: Through-hole (standard) | Stroke: 25 mm | Magnet: None | Port thread: Rc
JCQ63-30Bore: ø63 mm | Mounting: Through-hole (standard) | Stroke: 30 mm | Magnet: None | Port thread: Rc
JCQ63-35Bore: ø63 mm | Mounting: Through-hole (standard) | Stroke: 35 mm | Magnet: None | Port thread: Rc
JCQ63-40Bore: ø63 mm | Mounting: Through-hole (standard) | Stroke: 40 mm | Magnet: None | Port thread: Rc
JCQ63-45Bore: ø63 mm | Mounting: Through-hole (standard) | Stroke: 45 mm | Magnet: None | Port thread: Rc
JCQ63-50Bore: ø63 mm | Mounting: Through-hole (standard) | Stroke: 50 mm | Magnet: None | Port thread: Rc
JCQA63-10Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 10 mm | Magnet: None | Port thread: Rc
JCQA63-15Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 15 mm | Magnet: None | Port thread: Rc
JCQA63-20Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 20 mm | Magnet: None | Port thread: Rc
JCQA63-25Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 25 mm | Magnet: None | Port thread: Rc
JCQA63-30Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 30 mm | Magnet: None | Port thread: Rc
JCQA63-35Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 35 mm | Magnet: None | Port thread: Rc
JCQA63-40Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 40 mm | Magnet: None | Port thread: Rc
JCQA63-45Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 45 mm | Magnet: None | Port thread: Rc
JCQA63-50Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 50 mm | Magnet: None | Port thread: Rc
JCQL63-10Bore: ø63 mm | Mounting: Axial foot | Stroke: 10 mm | Magnet: None | Port thread: Rc
JCQL63-15Bore: ø63 mm | Mounting: Axial foot | Stroke: 15 mm | Magnet: None | Port thread: Rc
JCQL63-20Bore: ø63 mm | Mounting: Axial foot | Stroke: 20 mm | Magnet: None | Port thread: Rc
JCQL63-25Bore: ø63 mm | Mounting: Axial foot | Stroke: 25 mm | Magnet: None | Port thread: Rc
JCQL63-30Bore: ø63 mm | Mounting: Axial foot | Stroke: 30 mm | Magnet: None | Port thread: Rc
JCQL63-35Bore: ø63 mm | Mounting: Axial foot | Stroke: 35 mm | Magnet: None | Port thread: Rc
JCQL63-40Bore: ø63 mm | Mounting: Axial foot | Stroke: 40 mm | Magnet: None | Port thread: Rc
JCQL63-45Bore: ø63 mm | Mounting: Axial foot | Stroke: 45 mm | Magnet: None | Port thread: Rc
JCQL63-50Bore: ø63 mm | Mounting: Axial foot | Stroke: 50 mm | Magnet: None | Port thread: Rc
JCQF63-10Bore: ø63 mm | Mounting: Rod flange | Stroke: 10 mm | Magnet: None | Port thread: Rc
JCQF63-15Bore: ø63 mm | Mounting: Rod flange | Stroke: 15 mm | Magnet: None | Port thread: Rc
JCQF63-20Bore: ø63 mm | Mounting: Rod flange | Stroke: 20 mm | Magnet: None | Port thread: Rc
JCQF63-25Bore: ø63 mm | Mounting: Rod flange | Stroke: 25 mm | Magnet: None | Port thread: Rc
JCQF63-30Bore: ø63 mm | Mounting: Rod flange | Stroke: 30 mm | Magnet: None | Port thread: Rc
JCQF63-35Bore: ø63 mm | Mounting: Rod flange | Stroke: 35 mm | Magnet: None | Port thread: Rc
JCQF63-40Bore: ø63 mm | Mounting: Rod flange | Stroke: 40 mm | Magnet: None | Port thread: Rc
JCQF63-45Bore: ø63 mm | Mounting: Rod flange | Stroke: 45 mm | Magnet: None | Port thread: Rc
JCQF63-50Bore: ø63 mm | Mounting: Rod flange | Stroke: 50 mm | Magnet: None | Port thread: Rc
JCQG63-10Bore: ø63 mm | Mounting: Head flange | Stroke: 10 mm | Magnet: None | Port thread: Rc
JCQG63-15Bore: ø63 mm | Mounting: Head flange | Stroke: 15 mm | Magnet: None | Port thread: Rc
JCQG63-20Bore: ø63 mm | Mounting: Head flange | Stroke: 20 mm | Magnet: None | Port thread: Rc
JCQG63-25Bore: ø63 mm | Mounting: Head flange | Stroke: 25 mm | Magnet: None | Port thread: Rc
JCQG63-30Bore: ø63 mm | Mounting: Head flange | Stroke: 30 mm | Magnet: None | Port thread: Rc
JCQG63-35Bore: ø63 mm | Mounting: Head flange | Stroke: 35 mm | Magnet: None | Port thread: Rc
JCQG63-40Bore: ø63 mm | Mounting: Head flange | Stroke: 40 mm | Magnet: None | Port thread: Rc
JCQG63-45Bore: ø63 mm | Mounting: Head flange | Stroke: 45 mm | Magnet: None | Port thread: Rc
JCQG63-50Bore: ø63 mm | Mounting: Head flange | Stroke: 50 mm | Magnet: None | Port thread: Rc
JCQ80-10Bore: ø80 mm | Mounting: Through-hole (standard) | Stroke: 10 mm | Magnet: None | Port thread: Rc
JCQ80-15Bore: ø80 mm | Mounting: Through-hole (standard) | Stroke: 15 mm | Magnet: None | Port thread: Rc
JCQ80-20Bore: ø80 mm | Mounting: Through-hole (standard) | Stroke: 20 mm | Magnet: None | Port thread: Rc
JCQ80-25Bore: ø80 mm | Mounting: Through-hole (standard) | Stroke: 25 mm | Magnet: None | Port thread: Rc
JCQ80-30Bore: ø80 mm | Mounting: Through-hole (standard) | Stroke: 30 mm | Magnet: None | Port thread: Rc
JCQ80-35Bore: ø80 mm | Mounting: Through-hole (standard) | Stroke: 35 mm | Magnet: None | Port thread: Rc
JCQ80-40Bore: ø80 mm | Mounting: Through-hole (standard) | Stroke: 40 mm | Magnet: None | Port thread: Rc
JCQ80-45Bore: ø80 mm | Mounting: Through-hole (standard) | Stroke: 45 mm | Magnet: None | Port thread: Rc
JCQ80-50Bore: ø80 mm | Mounting: Through-hole (standard) | Stroke: 50 mm | Magnet: None | Port thread: Rc
JCQA80-10Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 10 mm | Magnet: None | Port thread: Rc
JCQA80-15Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 15 mm | Magnet: None | Port thread: Rc
JCQA80-20Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 20 mm | Magnet: None | Port thread: Rc
JCQA80-25Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 25 mm | Magnet: None | Port thread: Rc
JCQA80-30Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 30 mm | Magnet: None | Port thread: Rc
JCQA80-35Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 35 mm | Magnet: None | Port thread: Rc
JCQA80-40Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 40 mm | Magnet: None | Port thread: Rc
JCQA80-45Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 45 mm | Magnet: None | Port thread: Rc
JCQA80-50Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 50 mm | Magnet: None | Port thread: Rc
JCQL80-10Bore: ø80 mm | Mounting: Axial foot | Stroke: 10 mm | Magnet: None | Port thread: Rc
JCQL80-15Bore: ø80 mm | Mounting: Axial foot | Stroke: 15 mm | Magnet: None | Port thread: Rc
JCQL80-20Bore: ø80 mm | Mounting: Axial foot | Stroke: 20 mm | Magnet: None | Port thread: Rc
JCQL80-25Bore: ø80 mm | Mounting: Axial foot | Stroke: 25 mm | Magnet: None | Port thread: Rc
JCQL80-30Bore: ø80 mm | Mounting: Axial foot | Stroke: 30 mm | Magnet: None | Port thread: Rc
JCQL80-35Bore: ø80 mm | Mounting: Axial foot | Stroke: 35 mm | Magnet: None | Port thread: Rc
JCQL80-40Bore: ø80 mm | Mounting: Axial foot | Stroke: 40 mm | Magnet: None | Port thread: Rc
JCQL80-45Bore: ø80 mm | Mounting: Axial foot | Stroke: 45 mm | Magnet: None | Port thread: Rc
JCQL80-50Bore: ø80 mm | Mounting: Axial foot | Stroke: 50 mm | Magnet: None | Port thread: Rc
JCQF80-10Bore: ø80 mm | Mounting: Rod flange | Stroke: 10 mm | Magnet: None | Port thread: Rc
JCQF80-15Bore: ø80 mm | Mounting: Rod flange | Stroke: 15 mm | Magnet: None | Port thread: Rc
JCQF80-20Bore: ø80 mm | Mounting: Rod flange | Stroke: 20 mm | Magnet: None | Port thread: Rc
JCQF80-25Bore: ø80 mm | Mounting: Rod flange | Stroke: 25 mm | Magnet: None | Port thread: Rc
JCQF80-30Bore: ø80 mm | Mounting: Rod flange | Stroke: 30 mm | Magnet: None | Port thread: Rc
JCQF80-35Bore: ø80 mm | Mounting: Rod flange | Stroke: 35 mm | Magnet: None | Port thread: Rc
JCQF80-40Bore: ø80 mm | Mounting: Rod flange | Stroke: 40 mm | Magnet: None | Port thread: Rc
JCQF80-45Bore: ø80 mm | Mounting: Rod flange | Stroke: 45 mm | Magnet: None | Port thread: Rc
JCQF80-50Bore: ø80 mm | Mounting: Rod flange | Stroke: 50 mm | Magnet: None | Port thread: Rc
JCQG80-10Bore: ø80 mm | Mounting: Head flange | Stroke: 10 mm | Magnet: None | Port thread: Rc
JCQG80-15Bore: ø80 mm | Mounting: Head flange | Stroke: 15 mm | Magnet: None | Port thread: Rc
JCQG80-20Bore: ø80 mm | Mounting: Head flange | Stroke: 20 mm | Magnet: None | Port thread: Rc
JCQG80-25Bore: ø80 mm | Mounting: Head flange | Stroke: 25 mm | Magnet: None | Port thread: Rc
JCQG80-30Bore: ø80 mm | Mounting: Head flange | Stroke: 30 mm | Magnet: None | Port thread: Rc
JCQG80-35Bore: ø80 mm | Mounting: Head flange | Stroke: 35 mm | Magnet: None | Port thread: Rc
JCQG80-40Bore: ø80 mm | Mounting: Head flange | Stroke: 40 mm | Magnet: None | Port thread: Rc
JCQG80-45Bore: ø80 mm | Mounting: Head flange | Stroke: 45 mm | Magnet: None | Port thread: Rc
JCQG80-50Bore: ø80 mm | Mounting: Head flange | Stroke: 50 mm | Magnet: None | Port thread: Rc
JCQ100-10Bore: ø100 mm | Mounting: Through-hole (standard) | Stroke: 10 mm | Magnet: None | Port thread: Rc
JCQ100-15Bore: ø100 mm | Mounting: Through-hole (standard) | Stroke: 15 mm | Magnet: None | Port thread: Rc
JCQ100-20Bore: ø100 mm | Mounting: Through-hole (standard) | Stroke: 20 mm | Magnet: None | Port thread: Rc
JCQ100-25Bore: ø100 mm | Mounting: Through-hole (standard) | Stroke: 25 mm | Magnet: None | Port thread: Rc
JCQ100-30Bore: ø100 mm | Mounting: Through-hole (standard) | Stroke: 30 mm | Magnet: None | Port thread: Rc
JCQ100-35Bore: ø100 mm | Mounting: Through-hole (standard) | Stroke: 35 mm | Magnet: None | Port thread: Rc
JCQ100-40Bore: ø100 mm | Mounting: Through-hole (standard) | Stroke: 40 mm | Magnet: None | Port thread: Rc
JCQ100-45Bore: ø100 mm | Mounting: Through-hole (standard) | Stroke: 45 mm | Magnet: None | Port thread: Rc
JCQ100-50Bore: ø100 mm | Mounting: Through-hole (standard) | Stroke: 50 mm | Magnet: None | Port thread: Rc
JCQA100-10Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 10 mm | Magnet: None | Port thread: Rc
JCQA100-15Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 15 mm | Magnet: None | Port thread: Rc
JCQA100-20Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 20 mm | Magnet: None | Port thread: Rc
JCQA100-25Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 25 mm | Magnet: None | Port thread: Rc
JCQA100-30Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 30 mm | Magnet: None | Port thread: Rc
JCQA100-35Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 35 mm | Magnet: None | Port thread: Rc
JCQA100-40Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 40 mm | Magnet: None | Port thread: Rc
JCQA100-45Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 45 mm | Magnet: None | Port thread: Rc
JCQA100-50Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 50 mm | Magnet: None | Port thread: Rc
JCQL100-10Bore: ø100 mm | Mounting: Axial foot | Stroke: 10 mm | Magnet: None | Port thread: Rc
JCQL100-15Bore: ø100 mm | Mounting: Axial foot | Stroke: 15 mm | Magnet: None | Port thread: Rc
JCQL100-20Bore: ø100 mm | Mounting: Axial foot | Stroke: 20 mm | Magnet: None | Port thread: Rc
JCQL100-25Bore: ø100 mm | Mounting: Axial foot | Stroke: 25 mm | Magnet: None | Port thread: Rc
JCQL100-30Bore: ø100 mm | Mounting: Axial foot | Stroke: 30 mm | Magnet: None | Port thread: Rc
JCQL100-35Bore: ø100 mm | Mounting: Axial foot | Stroke: 35 mm | Magnet: None | Port thread: Rc
JCQL100-40Bore: ø100 mm | Mounting: Axial foot | Stroke: 40 mm | Magnet: None | Port thread: Rc
JCQL100-45Bore: ø100 mm | Mounting: Axial foot | Stroke: 45 mm | Magnet: None | Port thread: Rc
JCQL100-50Bore: ø100 mm | Mounting: Axial foot | Stroke: 50 mm | Magnet: None | Port thread: Rc
JCQF100-10Bore: ø100 mm | Mounting: Rod flange | Stroke: 10 mm | Magnet: None | Port thread: Rc
JCQF100-15Bore: ø100 mm | Mounting: Rod flange | Stroke: 15 mm | Magnet: None | Port thread: Rc
JCQF100-20Bore: ø100 mm | Mounting: Rod flange | Stroke: 20 mm | Magnet: None | Port thread: Rc
JCQF100-25Bore: ø100 mm | Mounting: Rod flange | Stroke: 25 mm | Magnet: None | Port thread: Rc
JCQF100-30Bore: ø100 mm | Mounting: Rod flange | Stroke: 30 mm | Magnet: None | Port thread: Rc
JCQF100-35Bore: ø100 mm | Mounting: Rod flange | Stroke: 35 mm | Magnet: None | Port thread: Rc
JCQF100-40Bore: ø100 mm | Mounting: Rod flange | Stroke: 40 mm | Magnet: None | Port thread: Rc
JCQF100-45Bore: ø100 mm | Mounting: Rod flange | Stroke: 45 mm | Magnet: None | Port thread: Rc
JCQF100-50Bore: ø100 mm | Mounting: Rod flange | Stroke: 50 mm | Magnet: None | Port thread: Rc
JCQG100-10Bore: ø100 mm | Mounting: Head flange | Stroke: 10 mm | Magnet: None | Port thread: Rc
JCQG100-15Bore: ø100 mm | Mounting: Head flange | Stroke: 15 mm | Magnet: None | Port thread: Rc
JCQG100-20Bore: ø100 mm | Mounting: Head flange | Stroke: 20 mm | Magnet: None | Port thread: Rc
JCQG100-25Bore: ø100 mm | Mounting: Head flange | Stroke: 25 mm | Magnet: None | Port thread: Rc
JCQG100-30Bore: ø100 mm | Mounting: Head flange | Stroke: 30 mm | Magnet: None | Port thread: Rc
JCQG100-35Bore: ø100 mm | Mounting: Head flange | Stroke: 35 mm | Magnet: None | Port thread: Rc
JCQG100-40Bore: ø100 mm | Mounting: Head flange | Stroke: 40 mm | Magnet: None | Port thread: Rc
JCQG100-45Bore: ø100 mm | Mounting: Head flange | Stroke: 45 mm | Magnet: None | Port thread: Rc
JCQG100-50Bore: ø100 mm | Mounting: Head flange | Stroke: 50 mm | Magnet: None | Port thread: Rc
JCDQ12-5Bore: ø12 mm | Mounting: Through-hole (standard) | Stroke: 5 mm | Magnet: Built-in | Port thread: M thread
JCDQ12-10Bore: ø12 mm | Mounting: Through-hole (standard) | Stroke: 10 mm | Magnet: Built-in | Port thread: M thread
JCDQ12-15Bore: ø12 mm | Mounting: Through-hole (standard) | Stroke: 15 mm | Magnet: Built-in | Port thread: M thread
JCDQ12-20Bore: ø12 mm | Mounting: Through-hole (standard) | Stroke: 20 mm | Magnet: Built-in | Port thread: M thread
JCDQ12-25Bore: ø12 mm | Mounting: Through-hole (standard) | Stroke: 25 mm | Magnet: Built-in | Port thread: M thread
JCDQ12-30Bore: ø12 mm | Mounting: Through-hole (standard) | Stroke: 30 mm | Magnet: Built-in | Port thread: M thread
JCDQA12-5Bore: ø12 mm | Mounting: Both ends tapped | Stroke: 5 mm | Magnet: Built-in | Port thread: M thread
JCDQA12-10Bore: ø12 mm | Mounting: Both ends tapped | Stroke: 10 mm | Magnet: Built-in | Port thread: M thread
JCDQA12-15Bore: ø12 mm | Mounting: Both ends tapped | Stroke: 15 mm | Magnet: Built-in | Port thread: M thread
JCDQA12-20Bore: ø12 mm | Mounting: Both ends tapped | Stroke: 20 mm | Magnet: Built-in | Port thread: M thread
JCDQA12-25Bore: ø12 mm | Mounting: Both ends tapped | Stroke: 25 mm | Magnet: Built-in | Port thread: M thread
JCDQA12-30Bore: ø12 mm | Mounting: Both ends tapped | Stroke: 30 mm | Magnet: Built-in | Port thread: M thread
JCDQ16-5Bore: ø16 mm | Mounting: Through-hole (standard) | Stroke: 5 mm | Magnet: Built-in | Port thread: M thread
JCDQ16-10Bore: ø16 mm | Mounting: Through-hole (standard) | Stroke: 10 mm | Magnet: Built-in | Port thread: M thread
JCDQ16-15Bore: ø16 mm | Mounting: Through-hole (standard) | Stroke: 15 mm | Magnet: Built-in | Port thread: M thread
JCDQ16-20Bore: ø16 mm | Mounting: Through-hole (standard) | Stroke: 20 mm | Magnet: Built-in | Port thread: M thread
JCDQ16-25Bore: ø16 mm | Mounting: Through-hole (standard) | Stroke: 25 mm | Magnet: Built-in | Port thread: M thread
JCDQ16-30Bore: ø16 mm | Mounting: Through-hole (standard) | Stroke: 30 mm | Magnet: Built-in | Port thread: M thread
JCDQA16-5Bore: ø16 mm | Mounting: Both ends tapped | Stroke: 5 mm | Magnet: Built-in | Port thread: M thread
JCDQA16-10Bore: ø16 mm | Mounting: Both ends tapped | Stroke: 10 mm | Magnet: Built-in | Port thread: M thread
JCDQA16-15Bore: ø16 mm | Mounting: Both ends tapped | Stroke: 15 mm | Magnet: Built-in | Port thread: M thread
JCDQA16-20Bore: ø16 mm | Mounting: Both ends tapped | Stroke: 20 mm | Magnet: Built-in | Port thread: M thread
JCDQA16-25Bore: ø16 mm | Mounting: Both ends tapped | Stroke: 25 mm | Magnet: Built-in | Port thread: M thread
JCDQA16-30Bore: ø16 mm | Mounting: Both ends tapped | Stroke: 30 mm | Magnet: Built-in | Port thread: M thread
JCDQ20-5Bore: ø20 mm | Mounting: Through-hole (standard) | Stroke: 5 mm | Magnet: Built-in | Port thread: M thread
JCDQ20-10Bore: ø20 mm | Mounting: Through-hole (standard) | Stroke: 10 mm | Magnet: Built-in | Port thread: M thread
JCDQ20-15Bore: ø20 mm | Mounting: Through-hole (standard) | Stroke: 15 mm | Magnet: Built-in | Port thread: M thread
JCDQ20-20Bore: ø20 mm | Mounting: Through-hole (standard) | Stroke: 20 mm | Magnet: Built-in | Port thread: M thread
JCDQ20-25Bore: ø20 mm | Mounting: Through-hole (standard) | Stroke: 25 mm | Magnet: Built-in | Port thread: M thread
JCDQ20-30Bore: ø20 mm | Mounting: Through-hole (standard) | Stroke: 30 mm | Magnet: Built-in | Port thread: M thread
JCDQ20-35Bore: ø20 mm | Mounting: Through-hole (standard) | Stroke: 35 mm | Magnet: Built-in | Port thread: M thread
JCDQ20-40Bore: ø20 mm | Mounting: Through-hole (standard) | Stroke: 40 mm | Magnet: Built-in | Port thread: M thread
JCDQ20-45Bore: ø20 mm | Mounting: Through-hole (standard) | Stroke: 45 mm | Magnet: Built-in | Port thread: M thread
JCDQ20-50Bore: ø20 mm | Mounting: Through-hole (standard) | Stroke: 50 mm | Magnet: Built-in | Port thread: M thread
JCDQA20-5Bore: ø20 mm | Mounting: Both ends tapped | Stroke: 5 mm | Magnet: Built-in | Port thread: M thread
JCDQA20-10Bore: ø20 mm | Mounting: Both ends tapped | Stroke: 10 mm | Magnet: Built-in | Port thread: M thread
JCDQA20-15Bore: ø20 mm | Mounting: Both ends tapped | Stroke: 15 mm | Magnet: Built-in | Port thread: M thread
JCDQA20-20Bore: ø20 mm | Mounting: Both ends tapped | Stroke: 20 mm | Magnet: Built-in | Port thread: M thread
JCDQA20-25Bore: ø20 mm | Mounting: Both ends tapped | Stroke: 25 mm | Magnet: Built-in | Port thread: M thread
JCDQA20-30Bore: ø20 mm | Mounting: Both ends tapped | Stroke: 30 mm | Magnet: Built-in | Port thread: M thread
JCDQA20-35Bore: ø20 mm | Mounting: Both ends tapped | Stroke: 35 mm | Magnet: Built-in | Port thread: M thread
JCDQA20-40Bore: ø20 mm | Mounting: Both ends tapped | Stroke: 40 mm | Magnet: Built-in | Port thread: M thread
JCDQA20-45Bore: ø20 mm | Mounting: Both ends tapped | Stroke: 45 mm | Magnet: Built-in | Port thread: M thread
JCDQA20-50Bore: ø20 mm | Mounting: Both ends tapped | Stroke: 50 mm | Magnet: Built-in | Port thread: M thread
JCDQ25-5Bore: ø25 mm | Mounting: Through-hole (standard) | Stroke: 5 mm | Magnet: Built-in | Port thread: M thread
JCDQ25-10Bore: ø25 mm | Mounting: Through-hole (standard) | Stroke: 10 mm | Magnet: Built-in | Port thread: M thread
JCDQ25-15Bore: ø25 mm | Mounting: Through-hole (standard) | Stroke: 15 mm | Magnet: Built-in | Port thread: M thread
JCDQ25-20Bore: ø25 mm | Mounting: Through-hole (standard) | Stroke: 20 mm | Magnet: Built-in | Port thread: M thread
JCDQ25-25Bore: ø25 mm | Mounting: Through-hole (standard) | Stroke: 25 mm | Magnet: Built-in | Port thread: M thread
JCDQ25-30Bore: ø25 mm | Mounting: Through-hole (standard) | Stroke: 30 mm | Magnet: Built-in | Port thread: M thread
JCDQ25-35Bore: ø25 mm | Mounting: Through-hole (standard) | Stroke: 35 mm | Magnet: Built-in | Port thread: M thread
JCDQ25-40Bore: ø25 mm | Mounting: Through-hole (standard) | Stroke: 40 mm | Magnet: Built-in | Port thread: M thread
JCDQ25-45Bore: ø25 mm | Mounting: Through-hole (standard) | Stroke: 45 mm | Magnet: Built-in | Port thread: M thread
JCDQ25-50Bore: ø25 mm | Mounting: Through-hole (standard) | Stroke: 50 mm | Magnet: Built-in | Port thread: M thread
JCDQA25-5Bore: ø25 mm | Mounting: Both ends tapped | Stroke: 5 mm | Magnet: Built-in | Port thread: M thread
JCDQA25-10Bore: ø25 mm | Mounting: Both ends tapped | Stroke: 10 mm | Magnet: Built-in | Port thread: M thread
JCDQA25-15Bore: ø25 mm | Mounting: Both ends tapped | Stroke: 15 mm | Magnet: Built-in | Port thread: M thread
JCDQA25-20Bore: ø25 mm | Mounting: Both ends tapped | Stroke: 20 mm | Magnet: Built-in | Port thread: M thread
JCDQA25-25Bore: ø25 mm | Mounting: Both ends tapped | Stroke: 25 mm | Magnet: Built-in | Port thread: M thread
JCDQA25-30Bore: ø25 mm | Mounting: Both ends tapped | Stroke: 30 mm | Magnet: Built-in | Port thread: M thread
JCDQA25-35Bore: ø25 mm | Mounting: Both ends tapped | Stroke: 35 mm | Magnet: Built-in | Port thread: M thread
JCDQA25-40Bore: ø25 mm | Mounting: Both ends tapped | Stroke: 40 mm | Magnet: Built-in | Port thread: M thread
JCDQA25-45Bore: ø25 mm | Mounting: Both ends tapped | Stroke: 45 mm | Magnet: Built-in | Port thread: M thread
JCDQA25-50Bore: ø25 mm | Mounting: Both ends tapped | Stroke: 50 mm | Magnet: Built-in | Port thread: M thread
JCDQ32-5Bore: ø32 mm | Mounting: Through-hole (standard) | Stroke: 5 mm | Magnet: Built-in | Port thread: M thread
JCDQ32-10Bore: ø32 mm | Mounting: Through-hole (standard) | Stroke: 10 mm | Magnet: Built-in | Port thread: M thread
JCDQ32-15Bore: ø32 mm | Mounting: Through-hole (standard) | Stroke: 15 mm | Magnet: Built-in | Port thread: M thread
JCDQ32-20Bore: ø32 mm | Mounting: Through-hole (standard) | Stroke: 20 mm | Magnet: Built-in | Port thread: M thread
JCDQ32-25Bore: ø32 mm | Mounting: Through-hole (standard) | Stroke: 25 mm | Magnet: Built-in | Port thread: M thread
JCDQ32-30Bore: ø32 mm | Mounting: Through-hole (standard) | Stroke: 30 mm | Magnet: Built-in | Port thread: M thread
JCDQ32-35Bore: ø32 mm | Mounting: Through-hole (standard) | Stroke: 35 mm | Magnet: Built-in | Port thread: M thread
JCDQ32-40Bore: ø32 mm | Mounting: Through-hole (standard) | Stroke: 40 mm | Magnet: Built-in | Port thread: M thread
JCDQ32-45Bore: ø32 mm | Mounting: Through-hole (standard) | Stroke: 45 mm | Magnet: Built-in | Port thread: M thread
JCDQ32-50Bore: ø32 mm | Mounting: Through-hole (standard) | Stroke: 50 mm | Magnet: Built-in | Port thread: M thread
JCDQA32-5Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 5 mm | Magnet: Built-in | Port thread: M thread
JCDQA32-10Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 10 mm | Magnet: Built-in | Port thread: M thread
JCDQA32-15Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 15 mm | Magnet: Built-in | Port thread: M thread
JCDQA32-20Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 20 mm | Magnet: Built-in | Port thread: M thread
JCDQA32-25Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 25 mm | Magnet: Built-in | Port thread: M thread
JCDQA32-30Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 30 mm | Magnet: Built-in | Port thread: M thread
JCDQA32-35Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 35 mm | Magnet: Built-in | Port thread: M thread
JCDQA32-40Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 40 mm | Magnet: Built-in | Port thread: M thread
JCDQA32-45Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 45 mm | Magnet: Built-in | Port thread: M thread
JCDQA32-50Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 50 mm | Magnet: Built-in | Port thread: M thread
JCDQL32-5Bore: ø32 mm | Mounting: Axial foot | Stroke: 5 mm | Magnet: Built-in | Port thread: M thread
JCDQL32-10Bore: ø32 mm | Mounting: Axial foot | Stroke: 10 mm | Magnet: Built-in | Port thread: M thread
JCDQL32-15Bore: ø32 mm | Mounting: Axial foot | Stroke: 15 mm | Magnet: Built-in | Port thread: M thread
JCDQL32-20Bore: ø32 mm | Mounting: Axial foot | Stroke: 20 mm | Magnet: Built-in | Port thread: M thread
JCDQL32-25Bore: ø32 mm | Mounting: Axial foot | Stroke: 25 mm | Magnet: Built-in | Port thread: M thread
JCDQL32-30Bore: ø32 mm | Mounting: Axial foot | Stroke: 30 mm | Magnet: Built-in | Port thread: M thread
JCDQL32-35Bore: ø32 mm | Mounting: Axial foot | Stroke: 35 mm | Magnet: Built-in | Port thread: M thread
JCDQL32-40Bore: ø32 mm | Mounting: Axial foot | Stroke: 40 mm | Magnet: Built-in | Port thread: M thread
JCDQL32-45Bore: ø32 mm | Mounting: Axial foot | Stroke: 45 mm | Magnet: Built-in | Port thread: M thread
JCDQL32-50Bore: ø32 mm | Mounting: Axial foot | Stroke: 50 mm | Magnet: Built-in | Port thread: M thread
JCDQF32-5Bore: ø32 mm | Mounting: Rod flange | Stroke: 5 mm | Magnet: Built-in | Port thread: M thread
JCDQF32-10Bore: ø32 mm | Mounting: Rod flange | Stroke: 10 mm | Magnet: Built-in | Port thread: M thread
JCDQF32-15Bore: ø32 mm | Mounting: Rod flange | Stroke: 15 mm | Magnet: Built-in | Port thread: M thread
JCDQF32-20Bore: ø32 mm | Mounting: Rod flange | Stroke: 20 mm | Magnet: Built-in | Port thread: M thread
JCDQF32-25Bore: ø32 mm | Mounting: Rod flange | Stroke: 25 mm | Magnet: Built-in | Port thread: M thread
JCDQF32-30Bore: ø32 mm | Mounting: Rod flange | Stroke: 30 mm | Magnet: Built-in | Port thread: M thread
JCDQF32-35Bore: ø32 mm | Mounting: Rod flange | Stroke: 35 mm | Magnet: Built-in | Port thread: M thread
JCDQF32-40Bore: ø32 mm | Mounting: Rod flange | Stroke: 40 mm | Magnet: Built-in | Port thread: M thread
JCDQF32-45Bore: ø32 mm | Mounting: Rod flange | Stroke: 45 mm | Magnet: Built-in | Port thread: M thread
JCDQF32-50Bore: ø32 mm | Mounting: Rod flange | Stroke: 50 mm | Magnet: Built-in | Port thread: M thread
JCDQG32-5Bore: ø32 mm | Mounting: Head flange | Stroke: 5 mm | Magnet: Built-in | Port thread: M thread
JCDQG32-10Bore: ø32 mm | Mounting: Head flange | Stroke: 10 mm | Magnet: Built-in | Port thread: M thread
JCDQG32-15Bore: ø32 mm | Mounting: Head flange | Stroke: 15 mm | Magnet: Built-in | Port thread: M thread
JCDQG32-20Bore: ø32 mm | Mounting: Head flange | Stroke: 20 mm | Magnet: Built-in | Port thread: M thread
JCDQG32-25Bore: ø32 mm | Mounting: Head flange | Stroke: 25 mm | Magnet: Built-in | Port thread: M thread
JCDQG32-30Bore: ø32 mm | Mounting: Head flange | Stroke: 30 mm | Magnet: Built-in | Port thread: M thread
JCDQG32-35Bore: ø32 mm | Mounting: Head flange | Stroke: 35 mm | Magnet: Built-in | Port thread: M thread
JCDQG32-40Bore: ø32 mm | Mounting: Head flange | Stroke: 40 mm | Magnet: Built-in | Port thread: M thread
JCDQG32-45Bore: ø32 mm | Mounting: Head flange | Stroke: 45 mm | Magnet: Built-in | Port thread: M thread
JCDQG32-50Bore: ø32 mm | Mounting: Head flange | Stroke: 50 mm | Magnet: Built-in | Port thread: M thread
JCDQ40-5Bore: ø40 mm | Mounting: Through-hole (standard) | Stroke: 5 mm | Magnet: Built-in | Port thread: M thread
JCDQ40-10Bore: ø40 mm | Mounting: Through-hole (standard) | Stroke: 10 mm | Magnet: Built-in | Port thread: M thread
JCDQ40-15Bore: ø40 mm | Mounting: Through-hole (standard) | Stroke: 15 mm | Magnet: Built-in | Port thread: M thread
JCDQ40-20Bore: ø40 mm | Mounting: Through-hole (standard) | Stroke: 20 mm | Magnet: Built-in | Port thread: M thread
JCDQ40-25Bore: ø40 mm | Mounting: Through-hole (standard) | Stroke: 25 mm | Magnet: Built-in | Port thread: M thread
JCDQ40-30Bore: ø40 mm | Mounting: Through-hole (standard) | Stroke: 30 mm | Magnet: Built-in | Port thread: M thread
JCDQ40-35Bore: ø40 mm | Mounting: Through-hole (standard) | Stroke: 35 mm | Magnet: Built-in | Port thread: M thread
JCDQ40-40Bore: ø40 mm | Mounting: Through-hole (standard) | Stroke: 40 mm | Magnet: Built-in | Port thread: M thread
JCDQ40-45Bore: ø40 mm | Mounting: Through-hole (standard) | Stroke: 45 mm | Magnet: Built-in | Port thread: M thread
JCDQ40-50Bore: ø40 mm | Mounting: Through-hole (standard) | Stroke: 50 mm | Magnet: Built-in | Port thread: M thread
JCDQA40-5Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 5 mm | Magnet: Built-in | Port thread: M thread
JCDQA40-10Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 10 mm | Magnet: Built-in | Port thread: M thread
JCDQA40-15Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 15 mm | Magnet: Built-in | Port thread: M thread
JCDQA40-20Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 20 mm | Magnet: Built-in | Port thread: M thread
JCDQA40-25Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 25 mm | Magnet: Built-in | Port thread: M thread
JCDQA40-30Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 30 mm | Magnet: Built-in | Port thread: M thread
JCDQA40-35Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 35 mm | Magnet: Built-in | Port thread: M thread
JCDQA40-40Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 40 mm | Magnet: Built-in | Port thread: M thread
JCDQA40-45Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 45 mm | Magnet: Built-in | Port thread: M thread
JCDQA40-50Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 50 mm | Magnet: Built-in | Port thread: M thread
JCDQL40-5Bore: ø40 mm | Mounting: Axial foot | Stroke: 5 mm | Magnet: Built-in | Port thread: M thread
JCDQL40-10Bore: ø40 mm | Mounting: Axial foot | Stroke: 10 mm | Magnet: Built-in | Port thread: M thread
JCDQL40-15Bore: ø40 mm | Mounting: Axial foot | Stroke: 15 mm | Magnet: Built-in | Port thread: M thread
JCDQL40-20Bore: ø40 mm | Mounting: Axial foot | Stroke: 20 mm | Magnet: Built-in | Port thread: M thread
JCDQL40-25Bore: ø40 mm | Mounting: Axial foot | Stroke: 25 mm | Magnet: Built-in | Port thread: M thread
JCDQL40-30Bore: ø40 mm | Mounting: Axial foot | Stroke: 30 mm | Magnet: Built-in | Port thread: M thread
JCDQL40-35Bore: ø40 mm | Mounting: Axial foot | Stroke: 35 mm | Magnet: Built-in | Port thread: M thread
JCDQL40-40Bore: ø40 mm | Mounting: Axial foot | Stroke: 40 mm | Magnet: Built-in | Port thread: M thread
JCDQL40-45Bore: ø40 mm | Mounting: Axial foot | Stroke: 45 mm | Magnet: Built-in | Port thread: M thread
JCDQL40-50Bore: ø40 mm | Mounting: Axial foot | Stroke: 50 mm | Magnet: Built-in | Port thread: M thread
JCDQF40-5Bore: ø40 mm | Mounting: Rod flange | Stroke: 5 mm | Magnet: Built-in | Port thread: M thread
JCDQF40-10Bore: ø40 mm | Mounting: Rod flange | Stroke: 10 mm | Magnet: Built-in | Port thread: M thread
JCDQF40-15Bore: ø40 mm | Mounting: Rod flange | Stroke: 15 mm | Magnet: Built-in | Port thread: M thread
JCDQF40-20Bore: ø40 mm | Mounting: Rod flange | Stroke: 20 mm | Magnet: Built-in | Port thread: M thread
JCDQF40-25Bore: ø40 mm | Mounting: Rod flange | Stroke: 25 mm | Magnet: Built-in | Port thread: M thread
JCDQF40-30Bore: ø40 mm | Mounting: Rod flange | Stroke: 30 mm | Magnet: Built-in | Port thread: M thread
JCDQF40-35Bore: ø40 mm | Mounting: Rod flange | Stroke: 35 mm | Magnet: Built-in | Port thread: M thread
JCDQF40-40Bore: ø40 mm | Mounting: Rod flange | Stroke: 40 mm | Magnet: Built-in | Port thread: M thread
JCDQF40-45Bore: ø40 mm | Mounting: Rod flange | Stroke: 45 mm | Magnet: Built-in | Port thread: M thread
JCDQF40-50Bore: ø40 mm | Mounting: Rod flange | Stroke: 50 mm | Magnet: Built-in | Port thread: M thread
JCDQG40-5Bore: ø40 mm | Mounting: Head flange | Stroke: 5 mm | Magnet: Built-in | Port thread: M thread
JCDQG40-10Bore: ø40 mm | Mounting: Head flange | Stroke: 10 mm | Magnet: Built-in | Port thread: M thread
JCDQG40-15Bore: ø40 mm | Mounting: Head flange | Stroke: 15 mm | Magnet: Built-in | Port thread: M thread
JCDQG40-20Bore: ø40 mm | Mounting: Head flange | Stroke: 20 mm | Magnet: Built-in | Port thread: M thread
JCDQG40-25Bore: ø40 mm | Mounting: Head flange | Stroke: 25 mm | Magnet: Built-in | Port thread: M thread
JCDQG40-30Bore: ø40 mm | Mounting: Head flange | Stroke: 30 mm | Magnet: Built-in | Port thread: M thread
JCDQG40-35Bore: ø40 mm | Mounting: Head flange | Stroke: 35 mm | Magnet: Built-in | Port thread: M thread
JCDQG40-40Bore: ø40 mm | Mounting: Head flange | Stroke: 40 mm | Magnet: Built-in | Port thread: M thread
JCDQG40-45Bore: ø40 mm | Mounting: Head flange | Stroke: 45 mm | Magnet: Built-in | Port thread: M thread
JCDQG40-50Bore: ø40 mm | Mounting: Head flange | Stroke: 50 mm | Magnet: Built-in | Port thread: M thread
JCDQ50-10Bore: ø50 mm | Mounting: Through-hole (standard) | Stroke: 10 mm | Magnet: Built-in | Port thread: Rc
JCDQ50-15Bore: ø50 mm | Mounting: Through-hole (standard) | Stroke: 15 mm | Magnet: Built-in | Port thread: Rc
JCDQ50-20Bore: ø50 mm | Mounting: Through-hole (standard) | Stroke: 20 mm | Magnet: Built-in | Port thread: Rc
JCDQ50-25Bore: ø50 mm | Mounting: Through-hole (standard) | Stroke: 25 mm | Magnet: Built-in | Port thread: Rc
JCDQ50-30Bore: ø50 mm | Mounting: Through-hole (standard) | Stroke: 30 mm | Magnet: Built-in | Port thread: Rc
JCDQ50-35Bore: ø50 mm | Mounting: Through-hole (standard) | Stroke: 35 mm | Magnet: Built-in | Port thread: Rc
JCDQ50-40Bore: ø50 mm | Mounting: Through-hole (standard) | Stroke: 40 mm | Magnet: Built-in | Port thread: Rc
JCDQ50-45Bore: ø50 mm | Mounting: Through-hole (standard) | Stroke: 45 mm | Magnet: Built-in | Port thread: Rc
JCDQ50-50Bore: ø50 mm | Mounting: Through-hole (standard) | Stroke: 50 mm | Magnet: Built-in | Port thread: Rc
JCDQA50-10Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 10 mm | Magnet: Built-in | Port thread: Rc
JCDQA50-15Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 15 mm | Magnet: Built-in | Port thread: Rc
JCDQA50-20Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 20 mm | Magnet: Built-in | Port thread: Rc
JCDQA50-25Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 25 mm | Magnet: Built-in | Port thread: Rc
JCDQA50-30Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 30 mm | Magnet: Built-in | Port thread: Rc
JCDQA50-35Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 35 mm | Magnet: Built-in | Port thread: Rc
JCDQA50-40Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 40 mm | Magnet: Built-in | Port thread: Rc
JCDQA50-45Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 45 mm | Magnet: Built-in | Port thread: Rc
JCDQA50-50Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 50 mm | Magnet: Built-in | Port thread: Rc
JCDQL50-10Bore: ø50 mm | Mounting: Axial foot | Stroke: 10 mm | Magnet: Built-in | Port thread: Rc
JCDQL50-15Bore: ø50 mm | Mounting: Axial foot | Stroke: 15 mm | Magnet: Built-in | Port thread: Rc
JCDQL50-20Bore: ø50 mm | Mounting: Axial foot | Stroke: 20 mm | Magnet: Built-in | Port thread: Rc
JCDQL50-25Bore: ø50 mm | Mounting: Axial foot | Stroke: 25 mm | Magnet: Built-in | Port thread: Rc
JCDQL50-30Bore: ø50 mm | Mounting: Axial foot | Stroke: 30 mm | Magnet: Built-in | Port thread: Rc
JCDQL50-35Bore: ø50 mm | Mounting: Axial foot | Stroke: 35 mm | Magnet: Built-in | Port thread: Rc
JCDQL50-40Bore: ø50 mm | Mounting: Axial foot | Stroke: 40 mm | Magnet: Built-in | Port thread: Rc
JCDQL50-45Bore: ø50 mm | Mounting: Axial foot | Stroke: 45 mm | Magnet: Built-in | Port thread: Rc
JCDQL50-50Bore: ø50 mm | Mounting: Axial foot | Stroke: 50 mm | Magnet: Built-in | Port thread: Rc
JCDQF50-10Bore: ø50 mm | Mounting: Rod flange | Stroke: 10 mm | Magnet: Built-in | Port thread: Rc
JCDQF50-15Bore: ø50 mm | Mounting: Rod flange | Stroke: 15 mm | Magnet: Built-in | Port thread: Rc
JCDQF50-20Bore: ø50 mm | Mounting: Rod flange | Stroke: 20 mm | Magnet: Built-in | Port thread: Rc
JCDQF50-25Bore: ø50 mm | Mounting: Rod flange | Stroke: 25 mm | Magnet: Built-in | Port thread: Rc
JCDQF50-30Bore: ø50 mm | Mounting: Rod flange | Stroke: 30 mm | Magnet: Built-in | Port thread: Rc
JCDQF50-35Bore: ø50 mm | Mounting: Rod flange | Stroke: 35 mm | Magnet: Built-in | Port thread: Rc
JCDQF50-40Bore: ø50 mm | Mounting: Rod flange | Stroke: 40 mm | Magnet: Built-in | Port thread: Rc
JCDQF50-45Bore: ø50 mm | Mounting: Rod flange | Stroke: 45 mm | Magnet: Built-in | Port thread: Rc
JCDQF50-50Bore: ø50 mm | Mounting: Rod flange | Stroke: 50 mm | Magnet: Built-in | Port thread: Rc
JCDQG50-10Bore: ø50 mm | Mounting: Head flange | Stroke: 10 mm | Magnet: Built-in | Port thread: Rc
JCDQG50-15Bore: ø50 mm | Mounting: Head flange | Stroke: 15 mm | Magnet: Built-in | Port thread: Rc
JCDQG50-20Bore: ø50 mm | Mounting: Head flange | Stroke: 20 mm | Magnet: Built-in | Port thread: Rc
JCDQG50-25Bore: ø50 mm | Mounting: Head flange | Stroke: 25 mm | Magnet: Built-in | Port thread: Rc
JCDQG50-30Bore: ø50 mm | Mounting: Head flange | Stroke: 30 mm | Magnet: Built-in | Port thread: Rc
JCDQG50-35Bore: ø50 mm | Mounting: Head flange | Stroke: 35 mm | Magnet: Built-in | Port thread: Rc
JCDQG50-40Bore: ø50 mm | Mounting: Head flange | Stroke: 40 mm | Magnet: Built-in | Port thread: Rc
JCDQG50-45Bore: ø50 mm | Mounting: Head flange | Stroke: 45 mm | Magnet: Built-in | Port thread: Rc
JCDQG50-50Bore: ø50 mm | Mounting: Head flange | Stroke: 50 mm | Magnet: Built-in | Port thread: Rc
JCDQ63-10Bore: ø63 mm | Mounting: Through-hole (standard) | Stroke: 10 mm | Magnet: Built-in | Port thread: Rc
JCDQ63-15Bore: ø63 mm | Mounting: Through-hole (standard) | Stroke: 15 mm | Magnet: Built-in | Port thread: Rc
JCDQ63-20Bore: ø63 mm | Mounting: Through-hole (standard) | Stroke: 20 mm | Magnet: Built-in | Port thread: Rc
JCDQ63-25Bore: ø63 mm | Mounting: Through-hole (standard) | Stroke: 25 mm | Magnet: Built-in | Port thread: Rc
JCDQ63-30Bore: ø63 mm | Mounting: Through-hole (standard) | Stroke: 30 mm | Magnet: Built-in | Port thread: Rc
JCDQ63-35Bore: ø63 mm | Mounting: Through-hole (standard) | Stroke: 35 mm | Magnet: Built-in | Port thread: Rc
JCDQ63-40Bore: ø63 mm | Mounting: Through-hole (standard) | Stroke: 40 mm | Magnet: Built-in | Port thread: Rc
JCDQ63-45Bore: ø63 mm | Mounting: Through-hole (standard) | Stroke: 45 mm | Magnet: Built-in | Port thread: Rc
JCDQ63-50Bore: ø63 mm | Mounting: Through-hole (standard) | Stroke: 50 mm | Magnet: Built-in | Port thread: Rc
JCDQA63-10Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 10 mm | Magnet: Built-in | Port thread: Rc
JCDQA63-15Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 15 mm | Magnet: Built-in | Port thread: Rc
JCDQA63-20Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 20 mm | Magnet: Built-in | Port thread: Rc
JCDQA63-25Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 25 mm | Magnet: Built-in | Port thread: Rc
JCDQA63-30Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 30 mm | Magnet: Built-in | Port thread: Rc
JCDQA63-35Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 35 mm | Magnet: Built-in | Port thread: Rc
JCDQA63-40Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 40 mm | Magnet: Built-in | Port thread: Rc
JCDQA63-45Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 45 mm | Magnet: Built-in | Port thread: Rc
JCDQA63-50Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 50 mm | Magnet: Built-in | Port thread: Rc
JCDQL63-10Bore: ø63 mm | Mounting: Axial foot | Stroke: 10 mm | Magnet: Built-in | Port thread: Rc
JCDQL63-15Bore: ø63 mm | Mounting: Axial foot | Stroke: 15 mm | Magnet: Built-in | Port thread: Rc
JCDQL63-20Bore: ø63 mm | Mounting: Axial foot | Stroke: 20 mm | Magnet: Built-in | Port thread: Rc
JCDQL63-25Bore: ø63 mm | Mounting: Axial foot | Stroke: 25 mm | Magnet: Built-in | Port thread: Rc
JCDQL63-30Bore: ø63 mm | Mounting: Axial foot | Stroke: 30 mm | Magnet: Built-in | Port thread: Rc
JCDQL63-35Bore: ø63 mm | Mounting: Axial foot | Stroke: 35 mm | Magnet: Built-in | Port thread: Rc
JCDQL63-40Bore: ø63 mm | Mounting: Axial foot | Stroke: 40 mm | Magnet: Built-in | Port thread: Rc
JCDQL63-45Bore: ø63 mm | Mounting: Axial foot | Stroke: 45 mm | Magnet: Built-in | Port thread: Rc
JCDQL63-50Bore: ø63 mm | Mounting: Axial foot | Stroke: 50 mm | Magnet: Built-in | Port thread: Rc
JCDQF63-10Bore: ø63 mm | Mounting: Rod flange | Stroke: 10 mm | Magnet: Built-in | Port thread: Rc
JCDQF63-15Bore: ø63 mm | Mounting: Rod flange | Stroke: 15 mm | Magnet: Built-in | Port thread: Rc
JCDQF63-20Bore: ø63 mm | Mounting: Rod flange | Stroke: 20 mm | Magnet: Built-in | Port thread: Rc
JCDQF63-25Bore: ø63 mm | Mounting: Rod flange | Stroke: 25 mm | Magnet: Built-in | Port thread: Rc
JCDQF63-30Bore: ø63 mm | Mounting: Rod flange | Stroke: 30 mm | Magnet: Built-in | Port thread: Rc
JCDQF63-35Bore: ø63 mm | Mounting: Rod flange | Stroke: 35 mm | Magnet: Built-in | Port thread: Rc
JCDQF63-40Bore: ø63 mm | Mounting: Rod flange | Stroke: 40 mm | Magnet: Built-in | Port thread: Rc
JCDQF63-45Bore: ø63 mm | Mounting: Rod flange | Stroke: 45 mm | Magnet: Built-in | Port thread: Rc
JCDQF63-50Bore: ø63 mm | Mounting: Rod flange | Stroke: 50 mm | Magnet: Built-in | Port thread: Rc
JCDQG63-10Bore: ø63 mm | Mounting: Head flange | Stroke: 10 mm | Magnet: Built-in | Port thread: Rc
JCDQG63-15Bore: ø63 mm | Mounting: Head flange | Stroke: 15 mm | Magnet: Built-in | Port thread: Rc
JCDQG63-20Bore: ø63 mm | Mounting: Head flange | Stroke: 20 mm | Magnet: Built-in | Port thread: Rc
JCDQG63-25Bore: ø63 mm | Mounting: Head flange | Stroke: 25 mm | Magnet: Built-in | Port thread: Rc
JCDQG63-30Bore: ø63 mm | Mounting: Head flange | Stroke: 30 mm | Magnet: Built-in | Port thread: Rc
JCDQG63-35Bore: ø63 mm | Mounting: Head flange | Stroke: 35 mm | Magnet: Built-in | Port thread: Rc
JCDQG63-40Bore: ø63 mm | Mounting: Head flange | Stroke: 40 mm | Magnet: Built-in | Port thread: Rc
JCDQG63-45Bore: ø63 mm | Mounting: Head flange | Stroke: 45 mm | Magnet: Built-in | Port thread: Rc
JCDQG63-50Bore: ø63 mm | Mounting: Head flange | Stroke: 50 mm | Magnet: Built-in | Port thread: Rc
JCDQ80-10Bore: ø80 mm | Mounting: Through-hole (standard) | Stroke: 10 mm | Magnet: Built-in | Port thread: Rc
JCDQ80-15Bore: ø80 mm | Mounting: Through-hole (standard) | Stroke: 15 mm | Magnet: Built-in | Port thread: Rc
JCDQ80-20Bore: ø80 mm | Mounting: Through-hole (standard) | Stroke: 20 mm | Magnet: Built-in | Port thread: Rc
JCDQ80-25Bore: ø80 mm | Mounting: Through-hole (standard) | Stroke: 25 mm | Magnet: Built-in | Port thread: Rc
JCDQ80-30Bore: ø80 mm | Mounting: Through-hole (standard) | Stroke: 30 mm | Magnet: Built-in | Port thread: Rc
JCDQ80-35Bore: ø80 mm | Mounting: Through-hole (standard) | Stroke: 35 mm | Magnet: Built-in | Port thread: Rc
JCDQ80-40Bore: ø80 mm | Mounting: Through-hole (standard) | Stroke: 40 mm | Magnet: Built-in | Port thread: Rc
JCDQ80-45Bore: ø80 mm | Mounting: Through-hole (standard) | Stroke: 45 mm | Magnet: Built-in | Port thread: Rc
JCDQ80-50Bore: ø80 mm | Mounting: Through-hole (standard) | Stroke: 50 mm | Magnet: Built-in | Port thread: Rc
JCDQA80-10Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 10 mm | Magnet: Built-in | Port thread: Rc
JCDQA80-15Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 15 mm | Magnet: Built-in | Port thread: Rc
JCDQA80-20Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 20 mm | Magnet: Built-in | Port thread: Rc
JCDQA80-25Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 25 mm | Magnet: Built-in | Port thread: Rc
JCDQA80-30Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 30 mm | Magnet: Built-in | Port thread: Rc
JCDQA80-35Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 35 mm | Magnet: Built-in | Port thread: Rc
JCDQA80-40Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 40 mm | Magnet: Built-in | Port thread: Rc
JCDQA80-45Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 45 mm | Magnet: Built-in | Port thread: Rc
JCDQA80-50Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 50 mm | Magnet: Built-in | Port thread: Rc
JCDQL80-10Bore: ø80 mm | Mounting: Axial foot | Stroke: 10 mm | Magnet: Built-in | Port thread: Rc
JCDQL80-15Bore: ø80 mm | Mounting: Axial foot | Stroke: 15 mm | Magnet: Built-in | Port thread: Rc
JCDQL80-20Bore: ø80 mm | Mounting: Axial foot | Stroke: 20 mm | Magnet: Built-in | Port thread: Rc
JCDQL80-25Bore: ø80 mm | Mounting: Axial foot | Stroke: 25 mm | Magnet: Built-in | Port thread: Rc
JCDQL80-30Bore: ø80 mm | Mounting: Axial foot | Stroke: 30 mm | Magnet: Built-in | Port thread: Rc
JCDQL80-35Bore: ø80 mm | Mounting: Axial foot | Stroke: 35 mm | Magnet: Built-in | Port thread: Rc
JCDQL80-40Bore: ø80 mm | Mounting: Axial foot | Stroke: 40 mm | Magnet: Built-in | Port thread: Rc
JCDQL80-45Bore: ø80 mm | Mounting: Axial foot | Stroke: 45 mm | Magnet: Built-in | Port thread: Rc
JCDQL80-50Bore: ø80 mm | Mounting: Axial foot | Stroke: 50 mm | Magnet: Built-in | Port thread: Rc
JCDQF80-10Bore: ø80 mm | Mounting: Rod flange | Stroke: 10 mm | Magnet: Built-in | Port thread: Rc
JCDQF80-15Bore: ø80 mm | Mounting: Rod flange | Stroke: 15 mm | Magnet: Built-in | Port thread: Rc
JCDQF80-20Bore: ø80 mm | Mounting: Rod flange | Stroke: 20 mm | Magnet: Built-in | Port thread: Rc
JCDQF80-25Bore: ø80 mm | Mounting: Rod flange | Stroke: 25 mm | Magnet: Built-in | Port thread: Rc
JCDQF80-30Bore: ø80 mm | Mounting: Rod flange | Stroke: 30 mm | Magnet: Built-in | Port thread: Rc
JCDQF80-35Bore: ø80 mm | Mounting: Rod flange | Stroke: 35 mm | Magnet: Built-in | Port thread: Rc
JCDQF80-40Bore: ø80 mm | Mounting: Rod flange | Stroke: 40 mm | Magnet: Built-in | Port thread: Rc
JCDQF80-45Bore: ø80 mm | Mounting: Rod flange | Stroke: 45 mm | Magnet: Built-in | Port thread: Rc
JCDQF80-50Bore: ø80 mm | Mounting: Rod flange | Stroke: 50 mm | Magnet: Built-in | Port thread: Rc
JCDQG80-10Bore: ø80 mm | Mounting: Head flange | Stroke: 10 mm | Magnet: Built-in | Port thread: Rc
JCDQG80-15Bore: ø80 mm | Mounting: Head flange | Stroke: 15 mm | Magnet: Built-in | Port thread: Rc
JCDQG80-20Bore: ø80 mm | Mounting: Head flange | Stroke: 20 mm | Magnet: Built-in | Port thread: Rc
JCDQG80-25Bore: ø80 mm | Mounting: Head flange | Stroke: 25 mm | Magnet: Built-in | Port thread: Rc
JCDQG80-30Bore: ø80 mm | Mounting: Head flange | Stroke: 30 mm | Magnet: Built-in | Port thread: Rc
JCDQG80-35Bore: ø80 mm | Mounting: Head flange | Stroke: 35 mm | Magnet: Built-in | Port thread: Rc
JCDQG80-40Bore: ø80 mm | Mounting: Head flange | Stroke: 40 mm | Magnet: Built-in | Port thread: Rc
JCDQG80-45Bore: ø80 mm | Mounting: Head flange | Stroke: 45 mm | Magnet: Built-in | Port thread: Rc
JCDQG80-50Bore: ø80 mm | Mounting: Head flange | Stroke: 50 mm | Magnet: Built-in | Port thread: Rc
JCDQ100-10Bore: ø100 mm | Mounting: Through-hole (standard) | Stroke: 10 mm | Magnet: Built-in | Port thread: Rc
JCDQ100-15Bore: ø100 mm | Mounting: Through-hole (standard) | Stroke: 15 mm | Magnet: Built-in | Port thread: Rc
JCDQ100-20Bore: ø100 mm | Mounting: Through-hole (standard) | Stroke: 20 mm | Magnet: Built-in | Port thread: Rc
JCDQ100-25Bore: ø100 mm | Mounting: Through-hole (standard) | Stroke: 25 mm | Magnet: Built-in | Port thread: Rc
JCDQ100-30Bore: ø100 mm | Mounting: Through-hole (standard) | Stroke: 30 mm | Magnet: Built-in | Port thread: Rc
JCDQ100-35Bore: ø100 mm | Mounting: Through-hole (standard) | Stroke: 35 mm | Magnet: Built-in | Port thread: Rc
JCDQ100-40Bore: ø100 mm | Mounting: Through-hole (standard) | Stroke: 40 mm | Magnet: Built-in | Port thread: Rc
JCDQ100-45Bore: ø100 mm | Mounting: Through-hole (standard) | Stroke: 45 mm | Magnet: Built-in | Port thread: Rc
JCDQ100-50Bore: ø100 mm | Mounting: Through-hole (standard) | Stroke: 50 mm | Magnet: Built-in | Port thread: Rc
JCDQA100-10Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 10 mm | Magnet: Built-in | Port thread: Rc
JCDQA100-15Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 15 mm | Magnet: Built-in | Port thread: Rc
JCDQA100-20Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 20 mm | Magnet: Built-in | Port thread: Rc
JCDQA100-25Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 25 mm | Magnet: Built-in | Port thread: Rc
JCDQA100-30Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 30 mm | Magnet: Built-in | Port thread: Rc
JCDQA100-35Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 35 mm | Magnet: Built-in | Port thread: Rc
JCDQA100-40Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 40 mm | Magnet: Built-in | Port thread: Rc
JCDQA100-45Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 45 mm | Magnet: Built-in | Port thread: Rc
JCDQA100-50Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 50 mm | Magnet: Built-in | Port thread: Rc
JCDQL100-10Bore: ø100 mm | Mounting: Axial foot | Stroke: 10 mm | Magnet: Built-in | Port thread: Rc
JCDQL100-15Bore: ø100 mm | Mounting: Axial foot | Stroke: 15 mm | Magnet: Built-in | Port thread: Rc
JCDQL100-20Bore: ø100 mm | Mounting: Axial foot | Stroke: 20 mm | Magnet: Built-in | Port thread: Rc
JCDQL100-25Bore: ø100 mm | Mounting: Axial foot | Stroke: 25 mm | Magnet: Built-in | Port thread: Rc
JCDQL100-30Bore: ø100 mm | Mounting: Axial foot | Stroke: 30 mm | Magnet: Built-in | Port thread: Rc
JCDQL100-35Bore: ø100 mm | Mounting: Axial foot | Stroke: 35 mm | Magnet: Built-in | Port thread: Rc
JCDQL100-40Bore: ø100 mm | Mounting: Axial foot | Stroke: 40 mm | Magnet: Built-in | Port thread: Rc
JCDQL100-45Bore: ø100 mm | Mounting: Axial foot | Stroke: 45 mm | Magnet: Built-in | Port thread: Rc
JCDQL100-50Bore: ø100 mm | Mounting: Axial foot | Stroke: 50 mm | Magnet: Built-in | Port thread: Rc
JCDQF100-10Bore: ø100 mm | Mounting: Rod flange | Stroke: 10 mm | Magnet: Built-in | Port thread: Rc
JCDQF100-15Bore: ø100 mm | Mounting: Rod flange | Stroke: 15 mm | Magnet: Built-in | Port thread: Rc
JCDQF100-20Bore: ø100 mm | Mounting: Rod flange | Stroke: 20 mm | Magnet: Built-in | Port thread: Rc
JCDQF100-25Bore: ø100 mm | Mounting: Rod flange | Stroke: 25 mm | Magnet: Built-in | Port thread: Rc
JCDQF100-30Bore: ø100 mm | Mounting: Rod flange | Stroke: 30 mm | Magnet: Built-in | Port thread: Rc
JCDQF100-35Bore: ø100 mm | Mounting: Rod flange | Stroke: 35 mm | Magnet: Built-in | Port thread: Rc
JCDQF100-40Bore: ø100 mm | Mounting: Rod flange | Stroke: 40 mm | Magnet: Built-in | Port thread: Rc
JCDQF100-45Bore: ø100 mm | Mounting: Rod flange | Stroke: 45 mm | Magnet: Built-in | Port thread: Rc
JCDQF100-50Bore: ø100 mm | Mounting: Rod flange | Stroke: 50 mm | Magnet: Built-in | Port thread: Rc
JCDQG100-10Bore: ø100 mm | Mounting: Head flange | Stroke: 10 mm | Magnet: Built-in | Port thread: Rc
JCDQG100-15Bore: ø100 mm | Mounting: Head flange | Stroke: 15 mm | Magnet: Built-in | Port thread: Rc
JCDQG100-20Bore: ø100 mm | Mounting: Head flange | Stroke: 20 mm | Magnet: Built-in | Port thread: Rc
JCDQG100-25Bore: ø100 mm | Mounting: Head flange | Stroke: 25 mm | Magnet: Built-in | Port thread: Rc
JCDQG100-30Bore: ø100 mm | Mounting: Head flange | Stroke: 30 mm | Magnet: Built-in | Port thread: Rc
JCDQG100-35Bore: ø100 mm | Mounting: Head flange | Stroke: 35 mm | Magnet: Built-in | Port thread: Rc
JCDQG100-40Bore: ø100 mm | Mounting: Head flange | Stroke: 40 mm | Magnet: Built-in | Port thread: Rc
JCDQG100-45Bore: ø100 mm | Mounting: Head flange | Stroke: 45 mm | Magnet: Built-in | Port thread: Rc
JCDQG100-50Bore: ø100 mm | Mounting: Head flange | Stroke: 50 mm | Magnet: Built-in | Port thread: Rc

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
