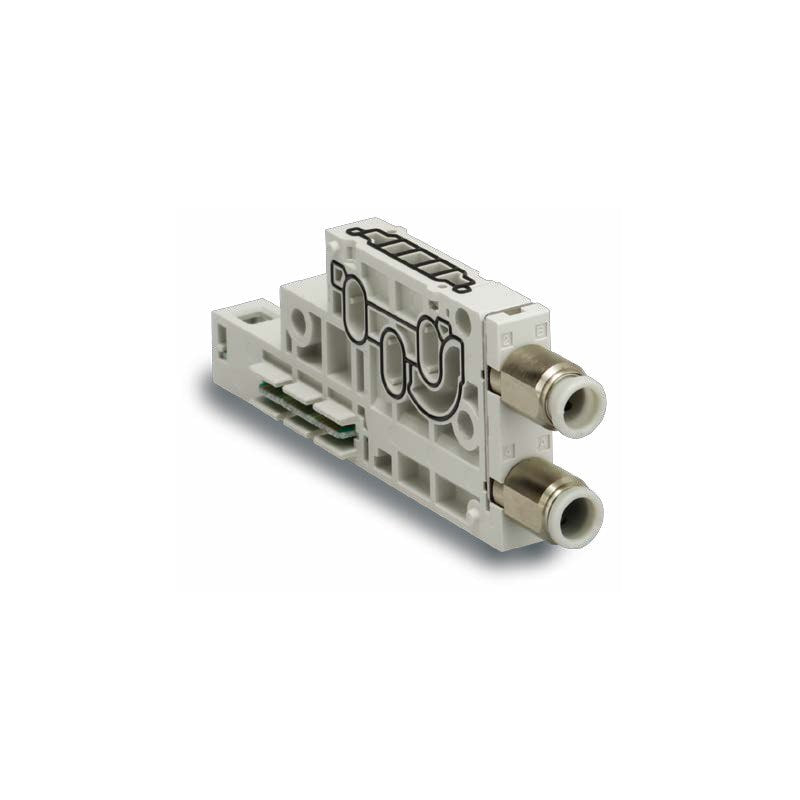

SMC JJ5SY3-10-M Manifold for ZK2 Vacuum Unit Connection

SMC JJ5SY3-10-M Manifold for ZK2 Vacuum Unit Connection

SMC JSY3000 plug-in valve manifold (JJ5SY3-10-M) that connects directly to a ZK2 vacuum ejector manifold (ZZK2_A), sharing wiring and air supply in one assembly.

Key features

  • Valve manifold and ZK2 ejector manifold joined into one unit; ejector supply/release valves are wired through the valve manifold (S0)
  • Connector or wiring: D-sub, flat cable, terminal block box or lead wire listed; serial EX600/EX245/EX250/EX260/EX120 and wireless versions available
  • Ejector manifold ZZK2_A: 1 to 8 stations, complex exhaust (ZK2C) or individual exhaust port (ZK2F/ZK2H) ejectors, common PV ø8
  • Listed codes: valve plus ejector solenoid count within the double-wiring output points (e.g. 24 points: 2-11 stations)
  • Order valve manifold, ejector manifold, valves and ZK2 ejectors together with the assembly symbol (*)

Specifications

Applicable valves JSY3000 series
Manifold type Plug-in connector base, side ported (10 type) with ZK2 connection
1(P), 3/5(E) port ø10 one-touch
Ejector system / port Ejector system, common PV ø8
Pilot Internal pilot
Mounting Direct mounting (listed codes)
Fluid Air
Source SMC Korea catalog CAT.KS11-110C (SMCKR_JSY_plugin.pdf), p. 137-139 (PDF p. 138-140)
JJ5SY3-10F1-02D-C4-M Part: Valve manifold (ZK2 connection) | Wiring: D-sub 25P, top entry | Stations: 2 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10F1-02D-C6-M Part: Valve manifold (ZK2 connection) | Wiring: D-sub 25P, top entry | Stations: 2 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10F1-02D-C8-M Part: Valve manifold (ZK2 connection) | Wiring: D-sub 25P, top entry | Stations: 2 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10F1-03D-C4-M Part: Valve manifold (ZK2 connection) | Wiring: D-sub 25P, top entry | Stations: 3 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10F1-03D-C6-M Part: Valve manifold (ZK2 connection) | Wiring: D-sub 25P, top entry | Stations: 3 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10F1-03D-C8-M Part: Valve manifold (ZK2 connection) | Wiring: D-sub 25P, top entry | Stations: 3 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10F1-04D-C4-M Part: Valve manifold (ZK2 connection) | Wiring: D-sub 25P, top entry | Stations: 4 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10F1-04D-C6-M Part: Valve manifold (ZK2 connection) | Wiring: D-sub 25P, top entry | Stations: 4 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10F1-04D-C8-M Part: Valve manifold (ZK2 connection) | Wiring: D-sub 25P, top entry | Stations: 4 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10F1-05D-C4-M Part: Valve manifold (ZK2 connection) | Wiring: D-sub 25P, top entry | Stations: 5 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10F1-05D-C6-M Part: Valve manifold (ZK2 connection) | Wiring: D-sub 25P, top entry | Stations: 5 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10F1-05D-C8-M Part: Valve manifold (ZK2 connection) | Wiring: D-sub 25P, top entry | Stations: 5 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10F1-06D-C4-M Part: Valve manifold (ZK2 connection) | Wiring: D-sub 25P, top entry | Stations: 6 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10F1-06D-C6-M Part: Valve manifold (ZK2 connection) | Wiring: D-sub 25P, top entry | Stations: 6 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10F1-06D-C8-M Part: Valve manifold (ZK2 connection) | Wiring: D-sub 25P, top entry | Stations: 6 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10F1-07D-C4-M Part: Valve manifold (ZK2 connection) | Wiring: D-sub 25P, top entry | Stations: 7 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10F1-07D-C6-M Part: Valve manifold (ZK2 connection) | Wiring: D-sub 25P, top entry | Stations: 7 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10F1-07D-C8-M Part: Valve manifold (ZK2 connection) | Wiring: D-sub 25P, top entry | Stations: 7 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10F1-08D-C4-M Part: Valve manifold (ZK2 connection) | Wiring: D-sub 25P, top entry | Stations: 8 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10F1-08D-C6-M Part: Valve manifold (ZK2 connection) | Wiring: D-sub 25P, top entry | Stations: 8 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10F1-08D-C8-M Part: Valve manifold (ZK2 connection) | Wiring: D-sub 25P, top entry | Stations: 8 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10F1-09D-C4-M Part: Valve manifold (ZK2 connection) | Wiring: D-sub 25P, top entry | Stations: 9 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10F1-09D-C6-M Part: Valve manifold (ZK2 connection) | Wiring: D-sub 25P, top entry | Stations: 9 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10F1-09D-C8-M Part: Valve manifold (ZK2 connection) | Wiring: D-sub 25P, top entry | Stations: 9 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10F1-10D-C4-M Part: Valve manifold (ZK2 connection) | Wiring: D-sub 25P, top entry | Stations: 10 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10F1-10D-C6-M Part: Valve manifold (ZK2 connection) | Wiring: D-sub 25P, top entry | Stations: 10 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10F1-10D-C8-M Part: Valve manifold (ZK2 connection) | Wiring: D-sub 25P, top entry | Stations: 10 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10F1-11B-C4-M Part: Valve manifold (ZK2 connection) | Wiring: D-sub 25P, top entry | Stations: 11 | P, E port: Both sides | A/B port: ø4 one-touch
JJ5SY3-10F1-11B-C6-M Part: Valve manifold (ZK2 connection) | Wiring: D-sub 25P, top entry | Stations: 11 | P, E port: Both sides | A/B port: ø6 one-touch
JJ5SY3-10F1-11B-C8-M Part: Valve manifold (ZK2 connection) | Wiring: D-sub 25P, top entry | Stations: 11 | P, E port: Both sides | A/B port: ø8 one-touch
JJ5SY3-10P1-02D-C4-M Part: Valve manifold (ZK2 connection) | Wiring: Flat cable 26P, top entry | Stations: 2 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10P1-02D-C6-M Part: Valve manifold (ZK2 connection) | Wiring: Flat cable 26P, top entry | Stations: 2 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10P1-02D-C8-M Part: Valve manifold (ZK2 connection) | Wiring: Flat cable 26P, top entry | Stations: 2 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10P1-03D-C4-M Part: Valve manifold (ZK2 connection) | Wiring: Flat cable 26P, top entry | Stations: 3 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10P1-03D-C6-M Part: Valve manifold (ZK2 connection) | Wiring: Flat cable 26P, top entry | Stations: 3 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10P1-03D-C8-M Part: Valve manifold (ZK2 connection) | Wiring: Flat cable 26P, top entry | Stations: 3 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10P1-04D-C4-M Part: Valve manifold (ZK2 connection) | Wiring: Flat cable 26P, top entry | Stations: 4 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10P1-04D-C6-M Part: Valve manifold (ZK2 connection) | Wiring: Flat cable 26P, top entry | Stations: 4 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10P1-04D-C8-M Part: Valve manifold (ZK2 connection) | Wiring: Flat cable 26P, top entry | Stations: 4 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10P1-05D-C4-M Part: Valve manifold (ZK2 connection) | Wiring: Flat cable 26P, top entry | Stations: 5 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10P1-05D-C6-M Part: Valve manifold (ZK2 connection) | Wiring: Flat cable 26P, top entry | Stations: 5 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10P1-05D-C8-M Part: Valve manifold (ZK2 connection) | Wiring: Flat cable 26P, top entry | Stations: 5 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10P1-06D-C4-M Part: Valve manifold (ZK2 connection) | Wiring: Flat cable 26P, top entry | Stations: 6 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10P1-06D-C6-M Part: Valve manifold (ZK2 connection) | Wiring: Flat cable 26P, top entry | Stations: 6 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10P1-06D-C8-M Part: Valve manifold (ZK2 connection) | Wiring: Flat cable 26P, top entry | Stations: 6 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10P1-07D-C4-M Part: Valve manifold (ZK2 connection) | Wiring: Flat cable 26P, top entry | Stations: 7 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10P1-07D-C6-M Part: Valve manifold (ZK2 connection) | Wiring: Flat cable 26P, top entry | Stations: 7 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10P1-07D-C8-M Part: Valve manifold (ZK2 connection) | Wiring: Flat cable 26P, top entry | Stations: 7 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10P1-08D-C4-M Part: Valve manifold (ZK2 connection) | Wiring: Flat cable 26P, top entry | Stations: 8 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10P1-08D-C6-M Part: Valve manifold (ZK2 connection) | Wiring: Flat cable 26P, top entry | Stations: 8 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10P1-08D-C8-M Part: Valve manifold (ZK2 connection) | Wiring: Flat cable 26P, top entry | Stations: 8 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10P1-09D-C4-M Part: Valve manifold (ZK2 connection) | Wiring: Flat cable 26P, top entry | Stations: 9 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10P1-09D-C6-M Part: Valve manifold (ZK2 connection) | Wiring: Flat cable 26P, top entry | Stations: 9 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10P1-09D-C8-M Part: Valve manifold (ZK2 connection) | Wiring: Flat cable 26P, top entry | Stations: 9 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10P1-10D-C4-M Part: Valve manifold (ZK2 connection) | Wiring: Flat cable 26P, top entry | Stations: 10 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10P1-10D-C6-M Part: Valve manifold (ZK2 connection) | Wiring: Flat cable 26P, top entry | Stations: 10 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10P1-10D-C8-M Part: Valve manifold (ZK2 connection) | Wiring: Flat cable 26P, top entry | Stations: 10 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10P1-11B-C4-M Part: Valve manifold (ZK2 connection) | Wiring: Flat cable 26P, top entry | Stations: 11 | P, E port: Both sides | A/B port: ø4 one-touch
JJ5SY3-10P1-11B-C6-M Part: Valve manifold (ZK2 connection) | Wiring: Flat cable 26P, top entry | Stations: 11 | P, E port: Both sides | A/B port: ø6 one-touch
JJ5SY3-10P1-11B-C8-M Part: Valve manifold (ZK2 connection) | Wiring: Flat cable 26P, top entry | Stations: 11 | P, E port: Both sides | A/B port: ø8 one-touch
JJ5SY3-10TC-02D-C4-M Part: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 2 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10TC-02D-C6-M Part: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 2 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10TC-02D-C8-M Part: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 2 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10TC-03D-C4-M Part: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 3 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10TC-03D-C6-M Part: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 3 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10TC-03D-C8-M Part: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 3 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10TC-04D-C4-M Part: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 4 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10TC-04D-C6-M Part: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 4 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10TC-04D-C8-M Part: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 4 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10TC-05D-C4-M Part: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 5 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10TC-05D-C6-M Part: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 5 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10TC-05D-C8-M Part: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 5 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10TC-06D-C4-M Part: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 6 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10TC-06D-C6-M Part: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 6 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10TC-06D-C8-M Part: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 6 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10TC-07D-C4-M Part: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 7 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10TC-07D-C6-M Part: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 7 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10TC-07D-C8-M Part: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 7 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10TC-08D-C4-M Part: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 8 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10TC-08D-C6-M Part: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 8 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10TC-08D-C8-M Part: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 8 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10TC-09D-C4-M Part: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 9 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10TC-09D-C6-M Part: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 9 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10TC-09D-C8-M Part: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 9 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10TC-10D-C4-M Part: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 10 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10TC-10D-C6-M Part: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 10 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10TC-10D-C8-M Part: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 10 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10TC-11B-C4-M Part: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 11 | P, E port: Both sides | A/B port: ø4 one-touch
JJ5SY3-10TC-11B-C6-M Part: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 11 | P, E port: Both sides | A/B port: ø6 one-touch
JJ5SY3-10TC-11B-C8-M Part: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 11 | P, E port: Both sides | A/B port: ø8 one-touch
JJ5SY3-10TC-12B-C4-M Part: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 12 | P, E port: Both sides | A/B port: ø4 one-touch
JJ5SY3-10TC-12B-C6-M Part: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 12 | P, E port: Both sides | A/B port: ø6 one-touch
JJ5SY3-10TC-12B-C8-M Part: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 12 | P, E port: Both sides | A/B port: ø8 one-touch
JJ5SY3-10TC-13B-C4-M Part: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 13 | P, E port: Both sides | A/B port: ø4 one-touch
JJ5SY3-10TC-13B-C6-M Part: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 13 | P, E port: Both sides | A/B port: ø6 one-touch
JJ5SY3-10TC-13B-C8-M Part: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 13 | P, E port: Both sides | A/B port: ø8 one-touch
JJ5SY3-10TC-14B-C4-M Part: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 14 | P, E port: Both sides | A/B port: ø4 one-touch
JJ5SY3-10TC-14B-C6-M Part: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 14 | P, E port: Both sides | A/B port: ø6 one-touch
JJ5SY3-10TC-14B-C8-M Part: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 14 | P, E port: Both sides | A/B port: ø8 one-touch
JJ5SY3-10TC-15B-C4-M Part: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 15 | P, E port: Both sides | A/B port: ø4 one-touch
JJ5SY3-10TC-15B-C6-M Part: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 15 | P, E port: Both sides | A/B port: ø6 one-touch
JJ5SY3-10TC-15B-C8-M Part: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 15 | P, E port: Both sides | A/B port: ø8 one-touch
JJ5SY3-10T-02D-C4-M Part: Valve manifold (ZK2 connection) | Wiring: Terminal block box | Stations: 2 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10T-02D-C6-M Part: Valve manifold (ZK2 connection) | Wiring: Terminal block box | Stations: 2 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10T-02D-C8-M Part: Valve manifold (ZK2 connection) | Wiring: Terminal block box | Stations: 2 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10T-03D-C4-M Part: Valve manifold (ZK2 connection) | Wiring: Terminal block box | Stations: 3 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10T-03D-C6-M Part: Valve manifold (ZK2 connection) | Wiring: Terminal block box | Stations: 3 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10T-03D-C8-M Part: Valve manifold (ZK2 connection) | Wiring: Terminal block box | Stations: 3 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10T-04D-C4-M Part: Valve manifold (ZK2 connection) | Wiring: Terminal block box | Stations: 4 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10T-04D-C6-M Part: Valve manifold (ZK2 connection) | Wiring: Terminal block box | Stations: 4 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10T-04D-C8-M Part: Valve manifold (ZK2 connection) | Wiring: Terminal block box | Stations: 4 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10T-05D-C4-M Part: Valve manifold (ZK2 connection) | Wiring: Terminal block box | Stations: 5 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10T-05D-C6-M Part: Valve manifold (ZK2 connection) | Wiring: Terminal block box | Stations: 5 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10T-05D-C8-M Part: Valve manifold (ZK2 connection) | Wiring: Terminal block box | Stations: 5 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10T-06D-C4-M Part: Valve manifold (ZK2 connection) | Wiring: Terminal block box | Stations: 6 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10T-06D-C6-M Part: Valve manifold (ZK2 connection) | Wiring: Terminal block box | Stations: 6 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10T-06D-C8-M Part: Valve manifold (ZK2 connection) | Wiring: Terminal block box | Stations: 6 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10T-07D-C4-M Part: Valve manifold (ZK2 connection) | Wiring: Terminal block box | Stations: 7 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10T-07D-C6-M Part: Valve manifold (ZK2 connection) | Wiring: Terminal block box | Stations: 7 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10T-07D-C8-M Part: Valve manifold (ZK2 connection) | Wiring: Terminal block box | Stations: 7 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10T-08D-C4-M Part: Valve manifold (ZK2 connection) | Wiring: Terminal block box | Stations: 8 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10T-08D-C6-M Part: Valve manifold (ZK2 connection) | Wiring: Terminal block box | Stations: 8 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10T-08D-C8-M Part: Valve manifold (ZK2 connection) | Wiring: Terminal block box | Stations: 8 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10T-09D-C4-M Part: Valve manifold (ZK2 connection) | Wiring: Terminal block box | Stations: 9 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10T-09D-C6-M Part: Valve manifold (ZK2 connection) | Wiring: Terminal block box | Stations: 9 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10T-09D-C8-M Part: Valve manifold (ZK2 connection) | Wiring: Terminal block box | Stations: 9 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10L11-02D-C4-M Part: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 2 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10L11-02D-C6-M Part: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 2 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10L11-02D-C8-M Part: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 2 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10L11-03D-C4-M Part: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 3 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10L11-03D-C6-M Part: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 3 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10L11-03D-C8-M Part: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 3 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10L11-04D-C4-M Part: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 4 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10L11-04D-C6-M Part: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 4 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10L11-04D-C8-M Part: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 4 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10L11-05D-C4-M Part: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 5 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10L11-05D-C6-M Part: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 5 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10L11-05D-C8-M Part: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 5 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10L11-06D-C4-M Part: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 6 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10L11-06D-C6-M Part: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 6 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10L11-06D-C8-M Part: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 6 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10L11-07D-C4-M Part: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 7 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10L11-07D-C6-M Part: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 7 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10L11-07D-C8-M Part: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 7 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10L11-08D-C4-M Part: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 8 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10L11-08D-C6-M Part: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 8 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10L11-08D-C8-M Part: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 8 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10L11-09D-C4-M Part: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 9 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10L11-09D-C6-M Part: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 9 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10L11-09D-C8-M Part: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 9 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10L11-10D-C4-M Part: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 10 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10L11-10D-C6-M Part: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 10 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10L11-10D-C8-M Part: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 10 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10L11-11B-C4-M Part: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 11 | P, E port: Both sides | A/B port: ø4 one-touch
JJ5SY3-10L11-11B-C6-M Part: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 11 | P, E port: Both sides | A/B port: ø6 one-touch
JJ5SY3-10L11-11B-C8-M Part: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 11 | P, E port: Both sides | A/B port: ø8 one-touch
JJ5SY3-10L11-12B-C4-M Part: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 12 | P, E port: Both sides | A/B port: ø4 one-touch
JJ5SY3-10L11-12B-C6-M Part: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 12 | P, E port: Both sides | A/B port: ø6 one-touch
JJ5SY3-10L11-12B-C8-M Part: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 12 | P, E port: Both sides | A/B port: ø8 one-touch
JJ5SY3-10L11-13B-C4-M Part: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 13 | P, E port: Both sides | A/B port: ø4 one-touch
JJ5SY3-10L11-13B-C6-M Part: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 13 | P, E port: Both sides | A/B port: ø6 one-touch
JJ5SY3-10L11-13B-C8-M Part: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 13 | P, E port: Both sides | A/B port: ø8 one-touch
JJ5SY3-10L11-14B-C4-M Part: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 14 | P, E port: Both sides | A/B port: ø4 one-touch
JJ5SY3-10L11-14B-C6-M Part: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 14 | P, E port: Both sides | A/B port: ø6 one-touch
JJ5SY3-10L11-14B-C8-M Part: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 14 | P, E port: Both sides | A/B port: ø8 one-touch
JJ5SY3-10L11-15B-C4-M Part: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 15 | P, E port: Both sides | A/B port: ø4 one-touch
JJ5SY3-10L11-15B-C6-M Part: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 15 | P, E port: Both sides | A/B port: ø6 one-touch
JJ5SY3-10L11-15B-C8-M Part: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 15 | P, E port: Both sides | A/B port: ø8 one-touch
ZZK201A-A1S0 Part: ZK2 ejector manifold | Wiring: Complex exhaust (ZK2C) | Stations: 1 | P, E port: Common PV ø8 | A/B port: None
ZZK201A-A2S0 Part: ZK2 ejector manifold | Wiring: Individual exhaust (ZK2F/H) | Stations: 1 | P, E port: Common PV ø8 | A/B port: None
ZZK202A-A1S0 Part: ZK2 ejector manifold | Wiring: Complex exhaust (ZK2C) | Stations: 2 | P, E port: Common PV ø8 | A/B port: None
ZZK202A-A2S0 Part: ZK2 ejector manifold | Wiring: Individual exhaust (ZK2F/H) | Stations: 2 | P, E port: Common PV ø8 | A/B port: None
ZZK203A-A1S0 Part: ZK2 ejector manifold | Wiring: Complex exhaust (ZK2C) | Stations: 3 | P, E port: Common PV ø8 | A/B port: None
ZZK203A-A2S0 Part: ZK2 ejector manifold | Wiring: Individual exhaust (ZK2F/H) | Stations: 3 | P, E port: Common PV ø8 | A/B port: None
ZZK204A-A1S0 Part: ZK2 ejector manifold | Wiring: Complex exhaust (ZK2C) | Stations: 4 | P, E port: Common PV ø8 | A/B port: None
ZZK204A-A2S0 Part: ZK2 ejector manifold | Wiring: Individual exhaust (ZK2F/H) | Stations: 4 | P, E port: Common PV ø8 | A/B port: None
ZZK205A-A1S0 Part: ZK2 ejector manifold | Wiring: Complex exhaust (ZK2C) | Stations: 5 | P, E port: Common PV ø8 | A/B port: None
ZZK205A-A2S0 Part: ZK2 ejector manifold | Wiring: Individual exhaust (ZK2F/H) | Stations: 5 | P, E port: Common PV ø8 | A/B port: None
ZZK206A-A1S0 Part: ZK2 ejector manifold | Wiring: Complex exhaust (ZK2C) | Stations: 6 | P, E port: Common PV ø8 | A/B port: None
ZZK206A-A2S0 Part: ZK2 ejector manifold | Wiring: Individual exhaust (ZK2F/H) | Stations: 6 | P, E port: Common PV ø8 | A/B port: None
ZZK207A-A1S0 Part: ZK2 ejector manifold | Wiring: Complex exhaust (ZK2C) | Stations: 7 | P, E port: Common PV ø8 | A/B port: None
ZZK207A-A2S0 Part: ZK2 ejector manifold | Wiring: Individual exhaust (ZK2F/H) | Stations: 7 | P, E port: Common PV ø8 | A/B port: None
ZZK208A-A1S0 Part: ZK2 ejector manifold | Wiring: Complex exhaust (ZK2C) | Stations: 8 | P, E port: Common PV ø8 | A/B port: None
ZZK208A-A2S0 Part: ZK2 ejector manifold | Wiring: Individual exhaust (ZK2F/H) | Stations: 8 | P, E port: Common PV ø8 | A/B port: None
ManifoldsSMC
184 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC JJ5SY3-10-M Manifold for ZK2 Vacuum Unit Connection

Brand SMC·Manifolds

Available part numbers (184)

JJ5SY3-10F1-02D-C4-M, JJ5SY3-10F1-02D-C6-M, JJ5SY3-10F1-02D-C8-M, JJ5SY3-10F1-03D-C4-M, JJ5SY3-10F1-03D-C6-M, JJ5SY3-10F1-03D-C8-M, JJ5SY3-10F1-04D-C4-M, JJ5SY3-10F1-04D-C6-M, JJ5SY3-10F1-04D-C8-M, JJ5SY3-10F1-05D-C4-M + 174 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
JJ5SY3-10F1-02D-C4-MPart: Valve manifold (ZK2 connection) | Wiring: D-sub 25P, top entry | Stations: 2 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10F1-02D-C6-MPart: Valve manifold (ZK2 connection) | Wiring: D-sub 25P, top entry | Stations: 2 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10F1-02D-C8-MPart: Valve manifold (ZK2 connection) | Wiring: D-sub 25P, top entry | Stations: 2 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10F1-03D-C4-MPart: Valve manifold (ZK2 connection) | Wiring: D-sub 25P, top entry | Stations: 3 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10F1-03D-C6-MPart: Valve manifold (ZK2 connection) | Wiring: D-sub 25P, top entry | Stations: 3 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10F1-03D-C8-MPart: Valve manifold (ZK2 connection) | Wiring: D-sub 25P, top entry | Stations: 3 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10F1-04D-C4-MPart: Valve manifold (ZK2 connection) | Wiring: D-sub 25P, top entry | Stations: 4 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10F1-04D-C6-MPart: Valve manifold (ZK2 connection) | Wiring: D-sub 25P, top entry | Stations: 4 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10F1-04D-C8-MPart: Valve manifold (ZK2 connection) | Wiring: D-sub 25P, top entry | Stations: 4 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10F1-05D-C4-MPart: Valve manifold (ZK2 connection) | Wiring: D-sub 25P, top entry | Stations: 5 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10F1-05D-C6-MPart: Valve manifold (ZK2 connection) | Wiring: D-sub 25P, top entry | Stations: 5 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10F1-05D-C8-MPart: Valve manifold (ZK2 connection) | Wiring: D-sub 25P, top entry | Stations: 5 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10F1-06D-C4-MPart: Valve manifold (ZK2 connection) | Wiring: D-sub 25P, top entry | Stations: 6 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10F1-06D-C6-MPart: Valve manifold (ZK2 connection) | Wiring: D-sub 25P, top entry | Stations: 6 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10F1-06D-C8-MPart: Valve manifold (ZK2 connection) | Wiring: D-sub 25P, top entry | Stations: 6 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10F1-07D-C4-MPart: Valve manifold (ZK2 connection) | Wiring: D-sub 25P, top entry | Stations: 7 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10F1-07D-C6-MPart: Valve manifold (ZK2 connection) | Wiring: D-sub 25P, top entry | Stations: 7 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10F1-07D-C8-MPart: Valve manifold (ZK2 connection) | Wiring: D-sub 25P, top entry | Stations: 7 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10F1-08D-C4-MPart: Valve manifold (ZK2 connection) | Wiring: D-sub 25P, top entry | Stations: 8 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10F1-08D-C6-MPart: Valve manifold (ZK2 connection) | Wiring: D-sub 25P, top entry | Stations: 8 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10F1-08D-C8-MPart: Valve manifold (ZK2 connection) | Wiring: D-sub 25P, top entry | Stations: 8 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10F1-09D-C4-MPart: Valve manifold (ZK2 connection) | Wiring: D-sub 25P, top entry | Stations: 9 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10F1-09D-C6-MPart: Valve manifold (ZK2 connection) | Wiring: D-sub 25P, top entry | Stations: 9 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10F1-09D-C8-MPart: Valve manifold (ZK2 connection) | Wiring: D-sub 25P, top entry | Stations: 9 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10F1-10D-C4-MPart: Valve manifold (ZK2 connection) | Wiring: D-sub 25P, top entry | Stations: 10 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10F1-10D-C6-MPart: Valve manifold (ZK2 connection) | Wiring: D-sub 25P, top entry | Stations: 10 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10F1-10D-C8-MPart: Valve manifold (ZK2 connection) | Wiring: D-sub 25P, top entry | Stations: 10 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10F1-11B-C4-MPart: Valve manifold (ZK2 connection) | Wiring: D-sub 25P, top entry | Stations: 11 | P, E port: Both sides | A/B port: ø4 one-touch
JJ5SY3-10F1-11B-C6-MPart: Valve manifold (ZK2 connection) | Wiring: D-sub 25P, top entry | Stations: 11 | P, E port: Both sides | A/B port: ø6 one-touch
JJ5SY3-10F1-11B-C8-MPart: Valve manifold (ZK2 connection) | Wiring: D-sub 25P, top entry | Stations: 11 | P, E port: Both sides | A/B port: ø8 one-touch
JJ5SY3-10P1-02D-C4-MPart: Valve manifold (ZK2 connection) | Wiring: Flat cable 26P, top entry | Stations: 2 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10P1-02D-C6-MPart: Valve manifold (ZK2 connection) | Wiring: Flat cable 26P, top entry | Stations: 2 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10P1-02D-C8-MPart: Valve manifold (ZK2 connection) | Wiring: Flat cable 26P, top entry | Stations: 2 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10P1-03D-C4-MPart: Valve manifold (ZK2 connection) | Wiring: Flat cable 26P, top entry | Stations: 3 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10P1-03D-C6-MPart: Valve manifold (ZK2 connection) | Wiring: Flat cable 26P, top entry | Stations: 3 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10P1-03D-C8-MPart: Valve manifold (ZK2 connection) | Wiring: Flat cable 26P, top entry | Stations: 3 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10P1-04D-C4-MPart: Valve manifold (ZK2 connection) | Wiring: Flat cable 26P, top entry | Stations: 4 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10P1-04D-C6-MPart: Valve manifold (ZK2 connection) | Wiring: Flat cable 26P, top entry | Stations: 4 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10P1-04D-C8-MPart: Valve manifold (ZK2 connection) | Wiring: Flat cable 26P, top entry | Stations: 4 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10P1-05D-C4-MPart: Valve manifold (ZK2 connection) | Wiring: Flat cable 26P, top entry | Stations: 5 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10P1-05D-C6-MPart: Valve manifold (ZK2 connection) | Wiring: Flat cable 26P, top entry | Stations: 5 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10P1-05D-C8-MPart: Valve manifold (ZK2 connection) | Wiring: Flat cable 26P, top entry | Stations: 5 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10P1-06D-C4-MPart: Valve manifold (ZK2 connection) | Wiring: Flat cable 26P, top entry | Stations: 6 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10P1-06D-C6-MPart: Valve manifold (ZK2 connection) | Wiring: Flat cable 26P, top entry | Stations: 6 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10P1-06D-C8-MPart: Valve manifold (ZK2 connection) | Wiring: Flat cable 26P, top entry | Stations: 6 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10P1-07D-C4-MPart: Valve manifold (ZK2 connection) | Wiring: Flat cable 26P, top entry | Stations: 7 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10P1-07D-C6-MPart: Valve manifold (ZK2 connection) | Wiring: Flat cable 26P, top entry | Stations: 7 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10P1-07D-C8-MPart: Valve manifold (ZK2 connection) | Wiring: Flat cable 26P, top entry | Stations: 7 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10P1-08D-C4-MPart: Valve manifold (ZK2 connection) | Wiring: Flat cable 26P, top entry | Stations: 8 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10P1-08D-C6-MPart: Valve manifold (ZK2 connection) | Wiring: Flat cable 26P, top entry | Stations: 8 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10P1-08D-C8-MPart: Valve manifold (ZK2 connection) | Wiring: Flat cable 26P, top entry | Stations: 8 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10P1-09D-C4-MPart: Valve manifold (ZK2 connection) | Wiring: Flat cable 26P, top entry | Stations: 9 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10P1-09D-C6-MPart: Valve manifold (ZK2 connection) | Wiring: Flat cable 26P, top entry | Stations: 9 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10P1-09D-C8-MPart: Valve manifold (ZK2 connection) | Wiring: Flat cable 26P, top entry | Stations: 9 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10P1-10D-C4-MPart: Valve manifold (ZK2 connection) | Wiring: Flat cable 26P, top entry | Stations: 10 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10P1-10D-C6-MPart: Valve manifold (ZK2 connection) | Wiring: Flat cable 26P, top entry | Stations: 10 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10P1-10D-C8-MPart: Valve manifold (ZK2 connection) | Wiring: Flat cable 26P, top entry | Stations: 10 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10P1-11B-C4-MPart: Valve manifold (ZK2 connection) | Wiring: Flat cable 26P, top entry | Stations: 11 | P, E port: Both sides | A/B port: ø4 one-touch
JJ5SY3-10P1-11B-C6-MPart: Valve manifold (ZK2 connection) | Wiring: Flat cable 26P, top entry | Stations: 11 | P, E port: Both sides | A/B port: ø6 one-touch
JJ5SY3-10P1-11B-C8-MPart: Valve manifold (ZK2 connection) | Wiring: Flat cable 26P, top entry | Stations: 11 | P, E port: Both sides | A/B port: ø8 one-touch
JJ5SY3-10TC-02D-C4-MPart: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 2 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10TC-02D-C6-MPart: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 2 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10TC-02D-C8-MPart: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 2 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10TC-03D-C4-MPart: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 3 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10TC-03D-C6-MPart: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 3 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10TC-03D-C8-MPart: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 3 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10TC-04D-C4-MPart: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 4 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10TC-04D-C6-MPart: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 4 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10TC-04D-C8-MPart: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 4 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10TC-05D-C4-MPart: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 5 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10TC-05D-C6-MPart: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 5 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10TC-05D-C8-MPart: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 5 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10TC-06D-C4-MPart: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 6 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10TC-06D-C6-MPart: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 6 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10TC-06D-C8-MPart: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 6 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10TC-07D-C4-MPart: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 7 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10TC-07D-C6-MPart: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 7 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10TC-07D-C8-MPart: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 7 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10TC-08D-C4-MPart: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 8 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10TC-08D-C6-MPart: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 8 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10TC-08D-C8-MPart: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 8 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10TC-09D-C4-MPart: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 9 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10TC-09D-C6-MPart: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 9 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10TC-09D-C8-MPart: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 9 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10TC-10D-C4-MPart: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 10 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10TC-10D-C6-MPart: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 10 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10TC-10D-C8-MPart: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 10 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10TC-11B-C4-MPart: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 11 | P, E port: Both sides | A/B port: ø4 one-touch
JJ5SY3-10TC-11B-C6-MPart: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 11 | P, E port: Both sides | A/B port: ø6 one-touch
JJ5SY3-10TC-11B-C8-MPart: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 11 | P, E port: Both sides | A/B port: ø8 one-touch
JJ5SY3-10TC-12B-C4-MPart: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 12 | P, E port: Both sides | A/B port: ø4 one-touch
JJ5SY3-10TC-12B-C6-MPart: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 12 | P, E port: Both sides | A/B port: ø6 one-touch
JJ5SY3-10TC-12B-C8-MPart: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 12 | P, E port: Both sides | A/B port: ø8 one-touch
JJ5SY3-10TC-13B-C4-MPart: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 13 | P, E port: Both sides | A/B port: ø4 one-touch
JJ5SY3-10TC-13B-C6-MPart: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 13 | P, E port: Both sides | A/B port: ø6 one-touch
JJ5SY3-10TC-13B-C8-MPart: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 13 | P, E port: Both sides | A/B port: ø8 one-touch
JJ5SY3-10TC-14B-C4-MPart: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 14 | P, E port: Both sides | A/B port: ø4 one-touch
JJ5SY3-10TC-14B-C6-MPart: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 14 | P, E port: Both sides | A/B port: ø6 one-touch
JJ5SY3-10TC-14B-C8-MPart: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 14 | P, E port: Both sides | A/B port: ø8 one-touch
JJ5SY3-10TC-15B-C4-MPart: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 15 | P, E port: Both sides | A/B port: ø4 one-touch
JJ5SY3-10TC-15B-C6-MPart: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 15 | P, E port: Both sides | A/B port: ø6 one-touch
JJ5SY3-10TC-15B-C8-MPart: Valve manifold (ZK2 connection) | Wiring: Spring terminal block box | Stations: 15 | P, E port: Both sides | A/B port: ø8 one-touch
JJ5SY3-10T-02D-C4-MPart: Valve manifold (ZK2 connection) | Wiring: Terminal block box | Stations: 2 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10T-02D-C6-MPart: Valve manifold (ZK2 connection) | Wiring: Terminal block box | Stations: 2 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10T-02D-C8-MPart: Valve manifold (ZK2 connection) | Wiring: Terminal block box | Stations: 2 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10T-03D-C4-MPart: Valve manifold (ZK2 connection) | Wiring: Terminal block box | Stations: 3 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10T-03D-C6-MPart: Valve manifold (ZK2 connection) | Wiring: Terminal block box | Stations: 3 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10T-03D-C8-MPart: Valve manifold (ZK2 connection) | Wiring: Terminal block box | Stations: 3 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10T-04D-C4-MPart: Valve manifold (ZK2 connection) | Wiring: Terminal block box | Stations: 4 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10T-04D-C6-MPart: Valve manifold (ZK2 connection) | Wiring: Terminal block box | Stations: 4 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10T-04D-C8-MPart: Valve manifold (ZK2 connection) | Wiring: Terminal block box | Stations: 4 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10T-05D-C4-MPart: Valve manifold (ZK2 connection) | Wiring: Terminal block box | Stations: 5 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10T-05D-C6-MPart: Valve manifold (ZK2 connection) | Wiring: Terminal block box | Stations: 5 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10T-05D-C8-MPart: Valve manifold (ZK2 connection) | Wiring: Terminal block box | Stations: 5 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10T-06D-C4-MPart: Valve manifold (ZK2 connection) | Wiring: Terminal block box | Stations: 6 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10T-06D-C6-MPart: Valve manifold (ZK2 connection) | Wiring: Terminal block box | Stations: 6 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10T-06D-C8-MPart: Valve manifold (ZK2 connection) | Wiring: Terminal block box | Stations: 6 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10T-07D-C4-MPart: Valve manifold (ZK2 connection) | Wiring: Terminal block box | Stations: 7 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10T-07D-C6-MPart: Valve manifold (ZK2 connection) | Wiring: Terminal block box | Stations: 7 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10T-07D-C8-MPart: Valve manifold (ZK2 connection) | Wiring: Terminal block box | Stations: 7 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10T-08D-C4-MPart: Valve manifold (ZK2 connection) | Wiring: Terminal block box | Stations: 8 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10T-08D-C6-MPart: Valve manifold (ZK2 connection) | Wiring: Terminal block box | Stations: 8 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10T-08D-C8-MPart: Valve manifold (ZK2 connection) | Wiring: Terminal block box | Stations: 8 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10T-09D-C4-MPart: Valve manifold (ZK2 connection) | Wiring: Terminal block box | Stations: 9 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10T-09D-C6-MPart: Valve manifold (ZK2 connection) | Wiring: Terminal block box | Stations: 9 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10T-09D-C8-MPart: Valve manifold (ZK2 connection) | Wiring: Terminal block box | Stations: 9 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10L11-02D-C4-MPart: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 2 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10L11-02D-C6-MPart: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 2 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10L11-02D-C8-MPart: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 2 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10L11-03D-C4-MPart: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 3 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10L11-03D-C6-MPart: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 3 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10L11-03D-C8-MPart: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 3 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10L11-04D-C4-MPart: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 4 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10L11-04D-C6-MPart: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 4 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10L11-04D-C8-MPart: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 4 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10L11-05D-C4-MPart: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 5 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10L11-05D-C6-MPart: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 5 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10L11-05D-C8-MPart: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 5 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10L11-06D-C4-MPart: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 6 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10L11-06D-C6-MPart: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 6 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10L11-06D-C8-MPart: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 6 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10L11-07D-C4-MPart: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 7 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10L11-07D-C6-MPart: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 7 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10L11-07D-C8-MPart: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 7 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10L11-08D-C4-MPart: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 8 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10L11-08D-C6-MPart: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 8 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10L11-08D-C8-MPart: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 8 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10L11-09D-C4-MPart: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 9 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10L11-09D-C6-MPart: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 9 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10L11-09D-C8-MPart: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 9 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10L11-10D-C4-MPart: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 10 | P, E port: D side | A/B port: ø4 one-touch
JJ5SY3-10L11-10D-C6-MPart: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 10 | P, E port: D side | A/B port: ø6 one-touch
JJ5SY3-10L11-10D-C8-MPart: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 10 | P, E port: D side | A/B port: ø8 one-touch
JJ5SY3-10L11-11B-C4-MPart: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 11 | P, E port: Both sides | A/B port: ø4 one-touch
JJ5SY3-10L11-11B-C6-MPart: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 11 | P, E port: Both sides | A/B port: ø6 one-touch
JJ5SY3-10L11-11B-C8-MPart: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 11 | P, E port: Both sides | A/B port: ø8 one-touch
JJ5SY3-10L11-12B-C4-MPart: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 12 | P, E port: Both sides | A/B port: ø4 one-touch
JJ5SY3-10L11-12B-C6-MPart: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 12 | P, E port: Both sides | A/B port: ø6 one-touch
JJ5SY3-10L11-12B-C8-MPart: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 12 | P, E port: Both sides | A/B port: ø8 one-touch
JJ5SY3-10L11-13B-C4-MPart: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 13 | P, E port: Both sides | A/B port: ø4 one-touch
JJ5SY3-10L11-13B-C6-MPart: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 13 | P, E port: Both sides | A/B port: ø6 one-touch
JJ5SY3-10L11-13B-C8-MPart: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 13 | P, E port: Both sides | A/B port: ø8 one-touch
JJ5SY3-10L11-14B-C4-MPart: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 14 | P, E port: Both sides | A/B port: ø4 one-touch
JJ5SY3-10L11-14B-C6-MPart: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 14 | P, E port: Both sides | A/B port: ø6 one-touch
JJ5SY3-10L11-14B-C8-MPart: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 14 | P, E port: Both sides | A/B port: ø8 one-touch
JJ5SY3-10L11-15B-C4-MPart: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 15 | P, E port: Both sides | A/B port: ø4 one-touch
JJ5SY3-10L11-15B-C6-MPart: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 15 | P, E port: Both sides | A/B port: ø6 one-touch
JJ5SY3-10L11-15B-C8-MPart: Valve manifold (ZK2 connection) | Wiring: Lead wire 34 cores, 0.6 m | Stations: 15 | P, E port: Both sides | A/B port: ø8 one-touch
ZZK201A-A1S0Part: ZK2 ejector manifold | Wiring: Complex exhaust (ZK2C) | Stations: 1 | P, E port: Common PV ø8 | A/B port: None
ZZK201A-A2S0Part: ZK2 ejector manifold | Wiring: Individual exhaust (ZK2F/H) | Stations: 1 | P, E port: Common PV ø8 | A/B port: None
ZZK202A-A1S0Part: ZK2 ejector manifold | Wiring: Complex exhaust (ZK2C) | Stations: 2 | P, E port: Common PV ø8 | A/B port: None
ZZK202A-A2S0Part: ZK2 ejector manifold | Wiring: Individual exhaust (ZK2F/H) | Stations: 2 | P, E port: Common PV ø8 | A/B port: None
ZZK203A-A1S0Part: ZK2 ejector manifold | Wiring: Complex exhaust (ZK2C) | Stations: 3 | P, E port: Common PV ø8 | A/B port: None
ZZK203A-A2S0Part: ZK2 ejector manifold | Wiring: Individual exhaust (ZK2F/H) | Stations: 3 | P, E port: Common PV ø8 | A/B port: None
ZZK204A-A1S0Part: ZK2 ejector manifold | Wiring: Complex exhaust (ZK2C) | Stations: 4 | P, E port: Common PV ø8 | A/B port: None
ZZK204A-A2S0Part: ZK2 ejector manifold | Wiring: Individual exhaust (ZK2F/H) | Stations: 4 | P, E port: Common PV ø8 | A/B port: None
ZZK205A-A1S0Part: ZK2 ejector manifold | Wiring: Complex exhaust (ZK2C) | Stations: 5 | P, E port: Common PV ø8 | A/B port: None
ZZK205A-A2S0Part: ZK2 ejector manifold | Wiring: Individual exhaust (ZK2F/H) | Stations: 5 | P, E port: Common PV ø8 | A/B port: None
ZZK206A-A1S0Part: ZK2 ejector manifold | Wiring: Complex exhaust (ZK2C) | Stations: 6 | P, E port: Common PV ø8 | A/B port: None
ZZK206A-A2S0Part: ZK2 ejector manifold | Wiring: Individual exhaust (ZK2F/H) | Stations: 6 | P, E port: Common PV ø8 | A/B port: None
ZZK207A-A1S0Part: ZK2 ejector manifold | Wiring: Complex exhaust (ZK2C) | Stations: 7 | P, E port: Common PV ø8 | A/B port: None
ZZK207A-A2S0Part: ZK2 ejector manifold | Wiring: Individual exhaust (ZK2F/H) | Stations: 7 | P, E port: Common PV ø8 | A/B port: None
ZZK208A-A1S0Part: ZK2 ejector manifold | Wiring: Complex exhaust (ZK2C) | Stations: 8 | P, E port: Common PV ø8 | A/B port: None
ZZK208A-A2S0Part: ZK2 ejector manifold | Wiring: Individual exhaust (ZK2F/H) | Stations: 8 | P, E port: Common PV ø8 | A/B port: None

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
