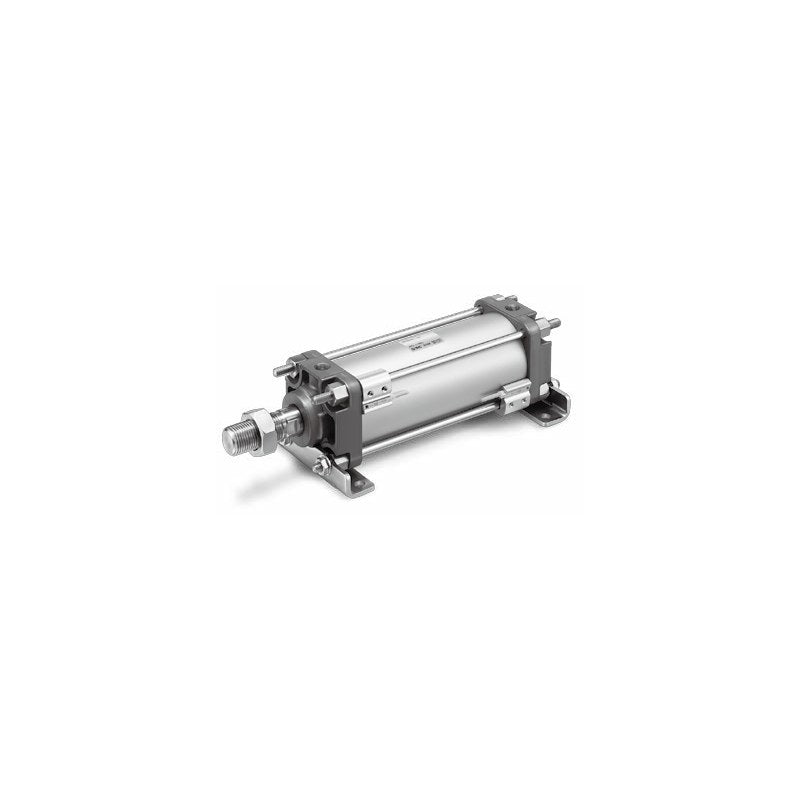

SMC JMB Air Cylinder (Lightweight, Double Acting, ø32 to ø100)

SMC JMB series lightweight, compact double acting single rod air cylinder, ø32 to ø100 mm including intermediate bores ø45, ø56, ø67 and ø85, always supplied with a built-in auto switch magnet (JMDB).

Key features

Lighter and shorter than the MB series, with intermediate bore sizes ø45, ø56, ø67 and ø85
Mounting styles: basic (B), both ends tapped (A), axial foot (L), rod flange (F) and head flange (G); ø45, ø56, ø67, ø85 are B or A only
Built-in magnet as standard for D-M9 series solid state auto switches, ordered as a suffix (e.g. -M9BW)
Non-adjustable air cushion + rubber cushion; rod end brackets V (single knuckle) and W (double knuckle) as suffixes
Rc port thread standard; NPT (TN) and G (TF) on order

Specifications

Action	Double acting, single rod
Fluid	Air
Proof pressure	1.0 MPa
Max. operating pressure	0.7 MPa
Min. operating pressure	0.05 MPa
Ambient and fluid temperature	5 to 60°C
Lubrication	Not required (non-lube)
Piston speed	50 to 500 mm/s
Cushion	Non-adjustable air cushion + rubber cushion
Auto switch magnet	Built-in (standard)
Standard strokes	ø32: 25 to 300; ø40: 25 to 300; ø45: 25 to 300; ø50: 25 to 400; ø56: 25 to 400; ø63: 25 to 400; ø67: 25 to 400; ø80: 25 to 500; ø85: 25 to 500; ø100: 25 to 500 mm
Source	SMC Korea catalog JMB (SMCKR_JMB.pdf), p. 3-4

JMDBB32-25		Mounting: Basic \| Bore: ø32 mm \| Stroke: 25 mm
JMDBB32-50		Mounting: Basic \| Bore: ø32 mm \| Stroke: 50 mm
JMDBB32-75		Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm
JMDBB32-100		Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm
JMDBB32-125		Mounting: Basic \| Bore: ø32 mm \| Stroke: 125 mm
JMDBB32-150		Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm
JMDBB32-175		Mounting: Basic \| Bore: ø32 mm \| Stroke: 175 mm
JMDBB32-200		Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm
JMDBB32-250		Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm
JMDBB32-300		Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm
JMDBB40-25		Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm
JMDBB40-50		Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm
JMDBB40-75		Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm
JMDBB40-100		Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm
JMDBB40-125		Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm
JMDBB40-150		Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm
JMDBB40-175		Mounting: Basic \| Bore: ø40 mm \| Stroke: 175 mm
JMDBB40-200		Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm
JMDBB40-250		Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm
JMDBB40-300		Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm
JMDBB45-25		Mounting: Basic \| Bore: ø45 mm \| Stroke: 25 mm
JMDBB45-50		Mounting: Basic \| Bore: ø45 mm \| Stroke: 50 mm
JMDBB45-75		Mounting: Basic \| Bore: ø45 mm \| Stroke: 75 mm
JMDBB45-100		Mounting: Basic \| Bore: ø45 mm \| Stroke: 100 mm
JMDBB45-125		Mounting: Basic \| Bore: ø45 mm \| Stroke: 125 mm
JMDBB45-150		Mounting: Basic \| Bore: ø45 mm \| Stroke: 150 mm
JMDBB45-175		Mounting: Basic \| Bore: ø45 mm \| Stroke: 175 mm
JMDBB45-200		Mounting: Basic \| Bore: ø45 mm \| Stroke: 200 mm
JMDBB45-250		Mounting: Basic \| Bore: ø45 mm \| Stroke: 250 mm
JMDBB45-300		Mounting: Basic \| Bore: ø45 mm \| Stroke: 300 mm
JMDBB50-25		Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm
JMDBB50-50		Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm
JMDBB50-75		Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm
JMDBB50-100		Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm
JMDBB50-125		Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm
JMDBB50-150		Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm
JMDBB50-175		Mounting: Basic \| Bore: ø50 mm \| Stroke: 175 mm
JMDBB50-200		Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm
JMDBB50-250		Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm
JMDBB50-300		Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm
JMDBB50-350		Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm
JMDBB50-400		Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm
JMDBB56-25		Mounting: Basic \| Bore: ø56 mm \| Stroke: 25 mm
JMDBB56-50		Mounting: Basic \| Bore: ø56 mm \| Stroke: 50 mm
JMDBB56-75		Mounting: Basic \| Bore: ø56 mm \| Stroke: 75 mm
JMDBB56-100		Mounting: Basic \| Bore: ø56 mm \| Stroke: 100 mm
JMDBB56-125		Mounting: Basic \| Bore: ø56 mm \| Stroke: 125 mm
JMDBB56-150		Mounting: Basic \| Bore: ø56 mm \| Stroke: 150 mm
JMDBB56-175		Mounting: Basic \| Bore: ø56 mm \| Stroke: 175 mm
JMDBB56-200		Mounting: Basic \| Bore: ø56 mm \| Stroke: 200 mm
JMDBB56-250		Mounting: Basic \| Bore: ø56 mm \| Stroke: 250 mm
JMDBB56-300		Mounting: Basic \| Bore: ø56 mm \| Stroke: 300 mm
JMDBB56-350		Mounting: Basic \| Bore: ø56 mm \| Stroke: 350 mm
JMDBB56-400		Mounting: Basic \| Bore: ø56 mm \| Stroke: 400 mm
JMDBB63-25		Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm
JMDBB63-50		Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm
JMDBB63-75		Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm
JMDBB63-100		Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm
JMDBB63-125		Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm
JMDBB63-150		Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm
JMDBB63-175		Mounting: Basic \| Bore: ø63 mm \| Stroke: 175 mm
JMDBB63-200		Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm
JMDBB63-250		Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm
JMDBB63-300		Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm
JMDBB63-350		Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm
JMDBB63-400		Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm
JMDBB67-25		Mounting: Basic \| Bore: ø67 mm \| Stroke: 25 mm
JMDBB67-50		Mounting: Basic \| Bore: ø67 mm \| Stroke: 50 mm
JMDBB67-75		Mounting: Basic \| Bore: ø67 mm \| Stroke: 75 mm
JMDBB67-100		Mounting: Basic \| Bore: ø67 mm \| Stroke: 100 mm
JMDBB67-125		Mounting: Basic \| Bore: ø67 mm \| Stroke: 125 mm
JMDBB67-150		Mounting: Basic \| Bore: ø67 mm \| Stroke: 150 mm
JMDBB67-175		Mounting: Basic \| Bore: ø67 mm \| Stroke: 175 mm
JMDBB67-200		Mounting: Basic \| Bore: ø67 mm \| Stroke: 200 mm
JMDBB67-250		Mounting: Basic \| Bore: ø67 mm \| Stroke: 250 mm
JMDBB67-300		Mounting: Basic \| Bore: ø67 mm \| Stroke: 300 mm
JMDBB67-350		Mounting: Basic \| Bore: ø67 mm \| Stroke: 350 mm
JMDBB67-400		Mounting: Basic \| Bore: ø67 mm \| Stroke: 400 mm
JMDBB80-25		Mounting: Basic \| Bore: ø80 mm \| Stroke: 25 mm
JMDBB80-50		Mounting: Basic \| Bore: ø80 mm \| Stroke: 50 mm
JMDBB80-75		Mounting: Basic \| Bore: ø80 mm \| Stroke: 75 mm
JMDBB80-100		Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm
JMDBB80-125		Mounting: Basic \| Bore: ø80 mm \| Stroke: 125 mm
JMDBB80-150		Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm
JMDBB80-175		Mounting: Basic \| Bore: ø80 mm \| Stroke: 175 mm
JMDBB80-200		Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm
JMDBB80-250		Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm
JMDBB80-300		Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm
JMDBB80-350		Mounting: Basic \| Bore: ø80 mm \| Stroke: 350 mm
JMDBB80-400		Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm
JMDBB80-450		Mounting: Basic \| Bore: ø80 mm \| Stroke: 450 mm
JMDBB80-500		Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm
JMDBB85-25		Mounting: Basic \| Bore: ø85 mm \| Stroke: 25 mm
JMDBB85-50		Mounting: Basic \| Bore: ø85 mm \| Stroke: 50 mm
JMDBB85-75		Mounting: Basic \| Bore: ø85 mm \| Stroke: 75 mm
JMDBB85-100		Mounting: Basic \| Bore: ø85 mm \| Stroke: 100 mm
JMDBB85-125		Mounting: Basic \| Bore: ø85 mm \| Stroke: 125 mm
JMDBB85-150		Mounting: Basic \| Bore: ø85 mm \| Stroke: 150 mm
JMDBB85-175		Mounting: Basic \| Bore: ø85 mm \| Stroke: 175 mm
JMDBB85-200		Mounting: Basic \| Bore: ø85 mm \| Stroke: 200 mm
JMDBB85-250		Mounting: Basic \| Bore: ø85 mm \| Stroke: 250 mm
JMDBB85-300		Mounting: Basic \| Bore: ø85 mm \| Stroke: 300 mm
JMDBB85-350		Mounting: Basic \| Bore: ø85 mm \| Stroke: 350 mm
JMDBB85-400		Mounting: Basic \| Bore: ø85 mm \| Stroke: 400 mm
JMDBB85-450		Mounting: Basic \| Bore: ø85 mm \| Stroke: 450 mm
JMDBB85-500		Mounting: Basic \| Bore: ø85 mm \| Stroke: 500 mm
JMDBB100-25		Mounting: Basic \| Bore: ø100 mm \| Stroke: 25 mm
JMDBB100-50		Mounting: Basic \| Bore: ø100 mm \| Stroke: 50 mm
JMDBB100-75		Mounting: Basic \| Bore: ø100 mm \| Stroke: 75 mm
JMDBB100-100		Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm
JMDBB100-125		Mounting: Basic \| Bore: ø100 mm \| Stroke: 125 mm
JMDBB100-150		Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm
JMDBB100-175		Mounting: Basic \| Bore: ø100 mm \| Stroke: 175 mm
JMDBB100-200		Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm
JMDBB100-250		Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm
JMDBB100-300		Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm
JMDBB100-350		Mounting: Basic \| Bore: ø100 mm \| Stroke: 350 mm
JMDBB100-400		Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm
JMDBB100-450		Mounting: Basic \| Bore: ø100 mm \| Stroke: 450 mm
JMDBB100-500		Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm
JMDBA32-25		Mounting: Both ends tapped \| Bore: ø32 mm \| Stroke: 25 mm
JMDBA32-50		Mounting: Both ends tapped \| Bore: ø32 mm \| Stroke: 50 mm
JMDBA32-75		Mounting: Both ends tapped \| Bore: ø32 mm \| Stroke: 75 mm
JMDBA32-100		Mounting: Both ends tapped \| Bore: ø32 mm \| Stroke: 100 mm
JMDBA32-125		Mounting: Both ends tapped \| Bore: ø32 mm \| Stroke: 125 mm
JMDBA32-150		Mounting: Both ends tapped \| Bore: ø32 mm \| Stroke: 150 mm
JMDBA32-175		Mounting: Both ends tapped \| Bore: ø32 mm \| Stroke: 175 mm
JMDBA32-200		Mounting: Both ends tapped \| Bore: ø32 mm \| Stroke: 200 mm
JMDBA32-250		Mounting: Both ends tapped \| Bore: ø32 mm \| Stroke: 250 mm
JMDBA32-300		Mounting: Both ends tapped \| Bore: ø32 mm \| Stroke: 300 mm
JMDBA40-25		Mounting: Both ends tapped \| Bore: ø40 mm \| Stroke: 25 mm
JMDBA40-50		Mounting: Both ends tapped \| Bore: ø40 mm \| Stroke: 50 mm
JMDBA40-75		Mounting: Both ends tapped \| Bore: ø40 mm \| Stroke: 75 mm
JMDBA40-100		Mounting: Both ends tapped \| Bore: ø40 mm \| Stroke: 100 mm
JMDBA40-125		Mounting: Both ends tapped \| Bore: ø40 mm \| Stroke: 125 mm
JMDBA40-150		Mounting: Both ends tapped \| Bore: ø40 mm \| Stroke: 150 mm
JMDBA40-175		Mounting: Both ends tapped \| Bore: ø40 mm \| Stroke: 175 mm
JMDBA40-200		Mounting: Both ends tapped \| Bore: ø40 mm \| Stroke: 200 mm
JMDBA40-250		Mounting: Both ends tapped \| Bore: ø40 mm \| Stroke: 250 mm
JMDBA40-300		Mounting: Both ends tapped \| Bore: ø40 mm \| Stroke: 300 mm
JMDBA45-25		Mounting: Both ends tapped \| Bore: ø45 mm \| Stroke: 25 mm
JMDBA45-50		Mounting: Both ends tapped \| Bore: ø45 mm \| Stroke: 50 mm
JMDBA45-75		Mounting: Both ends tapped \| Bore: ø45 mm \| Stroke: 75 mm
JMDBA45-100		Mounting: Both ends tapped \| Bore: ø45 mm \| Stroke: 100 mm
JMDBA45-125		Mounting: Both ends tapped \| Bore: ø45 mm \| Stroke: 125 mm
JMDBA45-150		Mounting: Both ends tapped \| Bore: ø45 mm \| Stroke: 150 mm
JMDBA45-175		Mounting: Both ends tapped \| Bore: ø45 mm \| Stroke: 175 mm
JMDBA45-200		Mounting: Both ends tapped \| Bore: ø45 mm \| Stroke: 200 mm
JMDBA45-250		Mounting: Both ends tapped \| Bore: ø45 mm \| Stroke: 250 mm
JMDBA45-300		Mounting: Both ends tapped \| Bore: ø45 mm \| Stroke: 300 mm
JMDBA50-25		Mounting: Both ends tapped \| Bore: ø50 mm \| Stroke: 25 mm
JMDBA50-50		Mounting: Both ends tapped \| Bore: ø50 mm \| Stroke: 50 mm
JMDBA50-75		Mounting: Both ends tapped \| Bore: ø50 mm \| Stroke: 75 mm
JMDBA50-100		Mounting: Both ends tapped \| Bore: ø50 mm \| Stroke: 100 mm
JMDBA50-125		Mounting: Both ends tapped \| Bore: ø50 mm \| Stroke: 125 mm
JMDBA50-150		Mounting: Both ends tapped \| Bore: ø50 mm \| Stroke: 150 mm
JMDBA50-175		Mounting: Both ends tapped \| Bore: ø50 mm \| Stroke: 175 mm
JMDBA50-200		Mounting: Both ends tapped \| Bore: ø50 mm \| Stroke: 200 mm
JMDBA50-250		Mounting: Both ends tapped \| Bore: ø50 mm \| Stroke: 250 mm
JMDBA50-300		Mounting: Both ends tapped \| Bore: ø50 mm \| Stroke: 300 mm
JMDBA50-350		Mounting: Both ends tapped \| Bore: ø50 mm \| Stroke: 350 mm
JMDBA50-400		Mounting: Both ends tapped \| Bore: ø50 mm \| Stroke: 400 mm
JMDBA56-25		Mounting: Both ends tapped \| Bore: ø56 mm \| Stroke: 25 mm
JMDBA56-50		Mounting: Both ends tapped \| Bore: ø56 mm \| Stroke: 50 mm
JMDBA56-75		Mounting: Both ends tapped \| Bore: ø56 mm \| Stroke: 75 mm
JMDBA56-100		Mounting: Both ends tapped \| Bore: ø56 mm \| Stroke: 100 mm
JMDBA56-125		Mounting: Both ends tapped \| Bore: ø56 mm \| Stroke: 125 mm
JMDBA56-150		Mounting: Both ends tapped \| Bore: ø56 mm \| Stroke: 150 mm
JMDBA56-175		Mounting: Both ends tapped \| Bore: ø56 mm \| Stroke: 175 mm
JMDBA56-200		Mounting: Both ends tapped \| Bore: ø56 mm \| Stroke: 200 mm
JMDBA56-250		Mounting: Both ends tapped \| Bore: ø56 mm \| Stroke: 250 mm
JMDBA56-300		Mounting: Both ends tapped \| Bore: ø56 mm \| Stroke: 300 mm
JMDBA56-350		Mounting: Both ends tapped \| Bore: ø56 mm \| Stroke: 350 mm
JMDBA56-400		Mounting: Both ends tapped \| Bore: ø56 mm \| Stroke: 400 mm
JMDBA63-25		Mounting: Both ends tapped \| Bore: ø63 mm \| Stroke: 25 mm
JMDBA63-50		Mounting: Both ends tapped \| Bore: ø63 mm \| Stroke: 50 mm
JMDBA63-75		Mounting: Both ends tapped \| Bore: ø63 mm \| Stroke: 75 mm
JMDBA63-100		Mounting: Both ends tapped \| Bore: ø63 mm \| Stroke: 100 mm
JMDBA63-125		Mounting: Both ends tapped \| Bore: ø63 mm \| Stroke: 125 mm
JMDBA63-150		Mounting: Both ends tapped \| Bore: ø63 mm \| Stroke: 150 mm
JMDBA63-175		Mounting: Both ends tapped \| Bore: ø63 mm \| Stroke: 175 mm
JMDBA63-200		Mounting: Both ends tapped \| Bore: ø63 mm \| Stroke: 200 mm
JMDBA63-250		Mounting: Both ends tapped \| Bore: ø63 mm \| Stroke: 250 mm
JMDBA63-300		Mounting: Both ends tapped \| Bore: ø63 mm \| Stroke: 300 mm
JMDBA63-350		Mounting: Both ends tapped \| Bore: ø63 mm \| Stroke: 350 mm
JMDBA63-400		Mounting: Both ends tapped \| Bore: ø63 mm \| Stroke: 400 mm
JMDBA67-25		Mounting: Both ends tapped \| Bore: ø67 mm \| Stroke: 25 mm
JMDBA67-50		Mounting: Both ends tapped \| Bore: ø67 mm \| Stroke: 50 mm
JMDBA67-75		Mounting: Both ends tapped \| Bore: ø67 mm \| Stroke: 75 mm
JMDBA67-100		Mounting: Both ends tapped \| Bore: ø67 mm \| Stroke: 100 mm
JMDBA67-125		Mounting: Both ends tapped \| Bore: ø67 mm \| Stroke: 125 mm
JMDBA67-150		Mounting: Both ends tapped \| Bore: ø67 mm \| Stroke: 150 mm
JMDBA67-175		Mounting: Both ends tapped \| Bore: ø67 mm \| Stroke: 175 mm
JMDBA67-200		Mounting: Both ends tapped \| Bore: ø67 mm \| Stroke: 200 mm
JMDBA67-250		Mounting: Both ends tapped \| Bore: ø67 mm \| Stroke: 250 mm
JMDBA67-300		Mounting: Both ends tapped \| Bore: ø67 mm \| Stroke: 300 mm
JMDBA67-350		Mounting: Both ends tapped \| Bore: ø67 mm \| Stroke: 350 mm
JMDBA67-400		Mounting: Both ends tapped \| Bore: ø67 mm \| Stroke: 400 mm
JMDBA80-25		Mounting: Both ends tapped \| Bore: ø80 mm \| Stroke: 25 mm
JMDBA80-50		Mounting: Both ends tapped \| Bore: ø80 mm \| Stroke: 50 mm
JMDBA80-75		Mounting: Both ends tapped \| Bore: ø80 mm \| Stroke: 75 mm
JMDBA80-100		Mounting: Both ends tapped \| Bore: ø80 mm \| Stroke: 100 mm
JMDBA80-125		Mounting: Both ends tapped \| Bore: ø80 mm \| Stroke: 125 mm
JMDBA80-150		Mounting: Both ends tapped \| Bore: ø80 mm \| Stroke: 150 mm
JMDBA80-175		Mounting: Both ends tapped \| Bore: ø80 mm \| Stroke: 175 mm
JMDBA80-200		Mounting: Both ends tapped \| Bore: ø80 mm \| Stroke: 200 mm
JMDBA80-250		Mounting: Both ends tapped \| Bore: ø80 mm \| Stroke: 250 mm
JMDBA80-300		Mounting: Both ends tapped \| Bore: ø80 mm \| Stroke: 300 mm
JMDBA80-350		Mounting: Both ends tapped \| Bore: ø80 mm \| Stroke: 350 mm
JMDBA80-400		Mounting: Both ends tapped \| Bore: ø80 mm \| Stroke: 400 mm
JMDBA80-450		Mounting: Both ends tapped \| Bore: ø80 mm \| Stroke: 450 mm
JMDBA80-500		Mounting: Both ends tapped \| Bore: ø80 mm \| Stroke: 500 mm
JMDBA85-25		Mounting: Both ends tapped \| Bore: ø85 mm \| Stroke: 25 mm
JMDBA85-50		Mounting: Both ends tapped \| Bore: ø85 mm \| Stroke: 50 mm
JMDBA85-75		Mounting: Both ends tapped \| Bore: ø85 mm \| Stroke: 75 mm
JMDBA85-100		Mounting: Both ends tapped \| Bore: ø85 mm \| Stroke: 100 mm
JMDBA85-125		Mounting: Both ends tapped \| Bore: ø85 mm \| Stroke: 125 mm
JMDBA85-150		Mounting: Both ends tapped \| Bore: ø85 mm \| Stroke: 150 mm
JMDBA85-175		Mounting: Both ends tapped \| Bore: ø85 mm \| Stroke: 175 mm
JMDBA85-200		Mounting: Both ends tapped \| Bore: ø85 mm \| Stroke: 200 mm
JMDBA85-250		Mounting: Both ends tapped \| Bore: ø85 mm \| Stroke: 250 mm
JMDBA85-300		Mounting: Both ends tapped \| Bore: ø85 mm \| Stroke: 300 mm
JMDBA85-350		Mounting: Both ends tapped \| Bore: ø85 mm \| Stroke: 350 mm
JMDBA85-400		Mounting: Both ends tapped \| Bore: ø85 mm \| Stroke: 400 mm
JMDBA85-450		Mounting: Both ends tapped \| Bore: ø85 mm \| Stroke: 450 mm
JMDBA85-500		Mounting: Both ends tapped \| Bore: ø85 mm \| Stroke: 500 mm
JMDBA100-25		Mounting: Both ends tapped \| Bore: ø100 mm \| Stroke: 25 mm
JMDBA100-50		Mounting: Both ends tapped \| Bore: ø100 mm \| Stroke: 50 mm
JMDBA100-75		Mounting: Both ends tapped \| Bore: ø100 mm \| Stroke: 75 mm
JMDBA100-100		Mounting: Both ends tapped \| Bore: ø100 mm \| Stroke: 100 mm
JMDBA100-125		Mounting: Both ends tapped \| Bore: ø100 mm \| Stroke: 125 mm
JMDBA100-150		Mounting: Both ends tapped \| Bore: ø100 mm \| Stroke: 150 mm
JMDBA100-175		Mounting: Both ends tapped \| Bore: ø100 mm \| Stroke: 175 mm
JMDBA100-200		Mounting: Both ends tapped \| Bore: ø100 mm \| Stroke: 200 mm
JMDBA100-250		Mounting: Both ends tapped \| Bore: ø100 mm \| Stroke: 250 mm
JMDBA100-300		Mounting: Both ends tapped \| Bore: ø100 mm \| Stroke: 300 mm
JMDBA100-350		Mounting: Both ends tapped \| Bore: ø100 mm \| Stroke: 350 mm
JMDBA100-400		Mounting: Both ends tapped \| Bore: ø100 mm \| Stroke: 400 mm
JMDBA100-450		Mounting: Both ends tapped \| Bore: ø100 mm \| Stroke: 450 mm
JMDBA100-500		Mounting: Both ends tapped \| Bore: ø100 mm \| Stroke: 500 mm
JMDBL32-25		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 25 mm
JMDBL32-50		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 50 mm
JMDBL32-75		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 75 mm
JMDBL32-100		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 100 mm
JMDBL32-125		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 125 mm
JMDBL32-150		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 150 mm
JMDBL32-175		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 175 mm
JMDBL32-200		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 200 mm
JMDBL32-250		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 250 mm
JMDBL32-300		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 300 mm
JMDBL40-25		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm
JMDBL40-50		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm
JMDBL40-75		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm
JMDBL40-100		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm
JMDBL40-125		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm
JMDBL40-150		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm
JMDBL40-175		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 175 mm
JMDBL40-200		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm
JMDBL40-250		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm
JMDBL40-300		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 300 mm
JMDBL50-25		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 25 mm
JMDBL50-50		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 50 mm
JMDBL50-75		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 75 mm
JMDBL50-100		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 100 mm
JMDBL50-125		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 125 mm
JMDBL50-150		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 150 mm
JMDBL50-175		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 175 mm
JMDBL50-200		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 200 mm
JMDBL50-250		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 250 mm
JMDBL50-300		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 300 mm
JMDBL50-350		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 350 mm
JMDBL50-400		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 400 mm
JMDBL63-25		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 25 mm
JMDBL63-50		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 50 mm
JMDBL63-75		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 75 mm
JMDBL63-100		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 100 mm
JMDBL63-125		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 125 mm
JMDBL63-150		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 150 mm
JMDBL63-175		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 175 mm
JMDBL63-200		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 200 mm
JMDBL63-250		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 250 mm
JMDBL63-300		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 300 mm
JMDBL63-350		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 350 mm
JMDBL63-400		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 400 mm
JMDBL80-25		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 25 mm
JMDBL80-50		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 50 mm
JMDBL80-75		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 75 mm
JMDBL80-100		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 100 mm
JMDBL80-125		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 125 mm
JMDBL80-150		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 150 mm
JMDBL80-175		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 175 mm
JMDBL80-200		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 200 mm
JMDBL80-250		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 250 mm
JMDBL80-300		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 300 mm
JMDBL80-350		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 350 mm
JMDBL80-400		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 400 mm
JMDBL80-450		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 450 mm
JMDBL80-500		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 500 mm
JMDBL100-25		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 25 mm
JMDBL100-50		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 50 mm
JMDBL100-75		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 75 mm
JMDBL100-100		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 100 mm
JMDBL100-125		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 125 mm
JMDBL100-150		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 150 mm
JMDBL100-175		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 175 mm
JMDBL100-200		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 200 mm
JMDBL100-250		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 250 mm
JMDBL100-300		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 300 mm
JMDBL100-350		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 350 mm
JMDBL100-400		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 400 mm
JMDBL100-450		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 450 mm
JMDBL100-500		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 500 mm
JMDBF32-25		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 25 mm
JMDBF32-50		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 50 mm
JMDBF32-75		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 75 mm
JMDBF32-100		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 100 mm
JMDBF32-125		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 125 mm
JMDBF32-150		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 150 mm
JMDBF32-175		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 175 mm
JMDBF32-200		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 200 mm
JMDBF32-250		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 250 mm
JMDBF32-300		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 300 mm
JMDBF40-25		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 25 mm
JMDBF40-50		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm
JMDBF40-75		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 75 mm
JMDBF40-100		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm
JMDBF40-125		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm
JMDBF40-150		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 150 mm
JMDBF40-175		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 175 mm
JMDBF40-200		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm
JMDBF40-250		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm
JMDBF40-300		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 300 mm
JMDBF50-25		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 25 mm
JMDBF50-50		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 50 mm
JMDBF50-75		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 75 mm
JMDBF50-100		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 100 mm
JMDBF50-125		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 125 mm
JMDBF50-150		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 150 mm
JMDBF50-175		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 175 mm
JMDBF50-200		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 200 mm
JMDBF50-250		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 250 mm
JMDBF50-300		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 300 mm
JMDBF50-350		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 350 mm
JMDBF50-400		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 400 mm
JMDBF63-25		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 25 mm
JMDBF63-50		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 50 mm
JMDBF63-75		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 75 mm
JMDBF63-100		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 100 mm
JMDBF63-125		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 125 mm
JMDBF63-150		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 150 mm
JMDBF63-175		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 175 mm
JMDBF63-200		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 200 mm
JMDBF63-250		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 250 mm
JMDBF63-300		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 300 mm
JMDBF63-350		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 350 mm
JMDBF63-400		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 400 mm
JMDBF80-25		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 25 mm
JMDBF80-50		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 50 mm
JMDBF80-75		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 75 mm
JMDBF80-100		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 100 mm
JMDBF80-125		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 125 mm
JMDBF80-150		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 150 mm
JMDBF80-175		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 175 mm
JMDBF80-200		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 200 mm
JMDBF80-250		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 250 mm
JMDBF80-300		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 300 mm
JMDBF80-350		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 350 mm
JMDBF80-400		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 400 mm
JMDBF80-450		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 450 mm
JMDBF80-500		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 500 mm
JMDBF100-25		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 25 mm
JMDBF100-50		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 50 mm
JMDBF100-75		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 75 mm
JMDBF100-100		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 100 mm
JMDBF100-125		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 125 mm
JMDBF100-150		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 150 mm
JMDBF100-175		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 175 mm
JMDBF100-200		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 200 mm
JMDBF100-250		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 250 mm
JMDBF100-300		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 300 mm
JMDBF100-350		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 350 mm
JMDBF100-400		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 400 mm
JMDBF100-450		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 450 mm
JMDBF100-500		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 500 mm
JMDBG32-25		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 25 mm
JMDBG32-50		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 50 mm
JMDBG32-75		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 75 mm
JMDBG32-100		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 100 mm
JMDBG32-125		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 125 mm
JMDBG32-150		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 150 mm
JMDBG32-175		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 175 mm
JMDBG32-200		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 200 mm
JMDBG32-250		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 250 mm
JMDBG32-300		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 300 mm
JMDBG40-25		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 25 mm
JMDBG40-50		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 50 mm
JMDBG40-75		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 75 mm
JMDBG40-100		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 100 mm
JMDBG40-125		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 125 mm
JMDBG40-150		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 150 mm
JMDBG40-175		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 175 mm
JMDBG40-200		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 200 mm
JMDBG40-250		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 250 mm
JMDBG40-300		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 300 mm
JMDBG50-25		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 25 mm
JMDBG50-50		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 50 mm
JMDBG50-75		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 75 mm
JMDBG50-100		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 100 mm
JMDBG50-125		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 125 mm
JMDBG50-150		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 150 mm
JMDBG50-175		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 175 mm
JMDBG50-200		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 200 mm
JMDBG50-250		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 250 mm
JMDBG50-300		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 300 mm
JMDBG50-350		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 350 mm
JMDBG50-400		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 400 mm
JMDBG63-25		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 25 mm
JMDBG63-50		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 50 mm
JMDBG63-75		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 75 mm
JMDBG63-100		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 100 mm
JMDBG63-125		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 125 mm
JMDBG63-150		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 150 mm
JMDBG63-175		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 175 mm
JMDBG63-200		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 200 mm
JMDBG63-250		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 250 mm
JMDBG63-300		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 300 mm
JMDBG63-350		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 350 mm
JMDBG63-400		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 400 mm
JMDBG80-25		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 25 mm
JMDBG80-50		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 50 mm
JMDBG80-75		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 75 mm
JMDBG80-100		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 100 mm
JMDBG80-125		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 125 mm
JMDBG80-150		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 150 mm
JMDBG80-175		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 175 mm
JMDBG80-200		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 200 mm
JMDBG80-250		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 250 mm
JMDBG80-300		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 300 mm
JMDBG80-350		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 350 mm
JMDBG80-400		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 400 mm
JMDBG80-450		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 450 mm
JMDBG80-500		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 500 mm
JMDBG100-25		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 25 mm
JMDBG100-50		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 50 mm
JMDBG100-75		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 75 mm
JMDBG100-100		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 100 mm
JMDBG100-125		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 125 mm
JMDBG100-150		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 150 mm
JMDBG100-175		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 175 mm
JMDBG100-200		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 200 mm
JMDBG100-250		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 250 mm
JMDBG100-300		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 300 mm
JMDBG100-350		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 350 mm
JMDBG100-400		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 400 mm
JMDBG100-450		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 450 mm
JMDBG100-500		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 500 mm

Round Body CylindersSMC

456 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC JMB Air Cylinder (Lightweight, Double Acting, ø32 to ø100)

Brand SMC·Round Body Cylinders

Available part numbers (456)

JMDBB32-25, JMDBB32-50, JMDBB32-75, JMDBB32-100, JMDBB32-125, JMDBB32-150, JMDBB32-175, JMDBB32-200, JMDBB32-250, JMDBB32-300 + 446 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	JMDBB32-25	Mounting: Basic \| Bore: ø32 mm \| Stroke: 25 mm
	JMDBB32-50	Mounting: Basic \| Bore: ø32 mm \| Stroke: 50 mm
	JMDBB32-75	Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm
	JMDBB32-100	Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm
	JMDBB32-125	Mounting: Basic \| Bore: ø32 mm \| Stroke: 125 mm
	JMDBB32-150	Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm
	JMDBB32-175	Mounting: Basic \| Bore: ø32 mm \| Stroke: 175 mm
	JMDBB32-200	Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm
	JMDBB32-250	Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm
	JMDBB32-300	Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm
	JMDBB40-25	Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm
	JMDBB40-50	Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm
	JMDBB40-75	Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm
	JMDBB40-100	Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm
	JMDBB40-125	Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm
	JMDBB40-150	Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm
	JMDBB40-175	Mounting: Basic \| Bore: ø40 mm \| Stroke: 175 mm
	JMDBB40-200	Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm
	JMDBB40-250	Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm
	JMDBB40-300	Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm
	JMDBB45-25	Mounting: Basic \| Bore: ø45 mm \| Stroke: 25 mm
	JMDBB45-50	Mounting: Basic \| Bore: ø45 mm \| Stroke: 50 mm
	JMDBB45-75	Mounting: Basic \| Bore: ø45 mm \| Stroke: 75 mm
	JMDBB45-100	Mounting: Basic \| Bore: ø45 mm \| Stroke: 100 mm
	JMDBB45-125	Mounting: Basic \| Bore: ø45 mm \| Stroke: 125 mm
	JMDBB45-150	Mounting: Basic \| Bore: ø45 mm \| Stroke: 150 mm
	JMDBB45-175	Mounting: Basic \| Bore: ø45 mm \| Stroke: 175 mm
	JMDBB45-200	Mounting: Basic \| Bore: ø45 mm \| Stroke: 200 mm
	JMDBB45-250	Mounting: Basic \| Bore: ø45 mm \| Stroke: 250 mm
	JMDBB45-300	Mounting: Basic \| Bore: ø45 mm \| Stroke: 300 mm
	JMDBB50-25	Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm
	JMDBB50-50	Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm
	JMDBB50-75	Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm
	JMDBB50-100	Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm
	JMDBB50-125	Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm
	JMDBB50-150	Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm
	JMDBB50-175	Mounting: Basic \| Bore: ø50 mm \| Stroke: 175 mm
	JMDBB50-200	Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm
	JMDBB50-250	Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm
	JMDBB50-300	Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm
	JMDBB50-350	Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm
	JMDBB50-400	Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm
	JMDBB56-25	Mounting: Basic \| Bore: ø56 mm \| Stroke: 25 mm
	JMDBB56-50	Mounting: Basic \| Bore: ø56 mm \| Stroke: 50 mm
	JMDBB56-75	Mounting: Basic \| Bore: ø56 mm \| Stroke: 75 mm
	JMDBB56-100	Mounting: Basic \| Bore: ø56 mm \| Stroke: 100 mm
	JMDBB56-125	Mounting: Basic \| Bore: ø56 mm \| Stroke: 125 mm
	JMDBB56-150	Mounting: Basic \| Bore: ø56 mm \| Stroke: 150 mm
	JMDBB56-175	Mounting: Basic \| Bore: ø56 mm \| Stroke: 175 mm
	JMDBB56-200	Mounting: Basic \| Bore: ø56 mm \| Stroke: 200 mm
	JMDBB56-250	Mounting: Basic \| Bore: ø56 mm \| Stroke: 250 mm
	JMDBB56-300	Mounting: Basic \| Bore: ø56 mm \| Stroke: 300 mm
	JMDBB56-350	Mounting: Basic \| Bore: ø56 mm \| Stroke: 350 mm
	JMDBB56-400	Mounting: Basic \| Bore: ø56 mm \| Stroke: 400 mm
	JMDBB63-25	Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm
	JMDBB63-50	Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm
	JMDBB63-75	Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm
	JMDBB63-100	Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm
	JMDBB63-125	Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm
	JMDBB63-150	Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm
	JMDBB63-175	Mounting: Basic \| Bore: ø63 mm \| Stroke: 175 mm
	JMDBB63-200	Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm
	JMDBB63-250	Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm
	JMDBB63-300	Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm
	JMDBB63-350	Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm
	JMDBB63-400	Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm
	JMDBB67-25	Mounting: Basic \| Bore: ø67 mm \| Stroke: 25 mm
	JMDBB67-50	Mounting: Basic \| Bore: ø67 mm \| Stroke: 50 mm
	JMDBB67-75	Mounting: Basic \| Bore: ø67 mm \| Stroke: 75 mm
	JMDBB67-100	Mounting: Basic \| Bore: ø67 mm \| Stroke: 100 mm
	JMDBB67-125	Mounting: Basic \| Bore: ø67 mm \| Stroke: 125 mm
	JMDBB67-150	Mounting: Basic \| Bore: ø67 mm \| Stroke: 150 mm
	JMDBB67-175	Mounting: Basic \| Bore: ø67 mm \| Stroke: 175 mm
	JMDBB67-200	Mounting: Basic \| Bore: ø67 mm \| Stroke: 200 mm
	JMDBB67-250	Mounting: Basic \| Bore: ø67 mm \| Stroke: 250 mm
	JMDBB67-300	Mounting: Basic \| Bore: ø67 mm \| Stroke: 300 mm
	JMDBB67-350	Mounting: Basic \| Bore: ø67 mm \| Stroke: 350 mm
	JMDBB67-400	Mounting: Basic \| Bore: ø67 mm \| Stroke: 400 mm
	JMDBB80-25	Mounting: Basic \| Bore: ø80 mm \| Stroke: 25 mm
	JMDBB80-50	Mounting: Basic \| Bore: ø80 mm \| Stroke: 50 mm
	JMDBB80-75	Mounting: Basic \| Bore: ø80 mm \| Stroke: 75 mm
	JMDBB80-100	Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm
	JMDBB80-125	Mounting: Basic \| Bore: ø80 mm \| Stroke: 125 mm
	JMDBB80-150	Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm
	JMDBB80-175	Mounting: Basic \| Bore: ø80 mm \| Stroke: 175 mm
	JMDBB80-200	Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm
	JMDBB80-250	Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm
	JMDBB80-300	Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm
	JMDBB80-350	Mounting: Basic \| Bore: ø80 mm \| Stroke: 350 mm
	JMDBB80-400	Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm
	JMDBB80-450	Mounting: Basic \| Bore: ø80 mm \| Stroke: 450 mm
	JMDBB80-500	Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm
	JMDBB85-25	Mounting: Basic \| Bore: ø85 mm \| Stroke: 25 mm
	JMDBB85-50	Mounting: Basic \| Bore: ø85 mm \| Stroke: 50 mm
	JMDBB85-75	Mounting: Basic \| Bore: ø85 mm \| Stroke: 75 mm
	JMDBB85-100	Mounting: Basic \| Bore: ø85 mm \| Stroke: 100 mm
	JMDBB85-125	Mounting: Basic \| Bore: ø85 mm \| Stroke: 125 mm
	JMDBB85-150	Mounting: Basic \| Bore: ø85 mm \| Stroke: 150 mm
	JMDBB85-175	Mounting: Basic \| Bore: ø85 mm \| Stroke: 175 mm
	JMDBB85-200	Mounting: Basic \| Bore: ø85 mm \| Stroke: 200 mm
	JMDBB85-250	Mounting: Basic \| Bore: ø85 mm \| Stroke: 250 mm
	JMDBB85-300	Mounting: Basic \| Bore: ø85 mm \| Stroke: 300 mm
	JMDBB85-350	Mounting: Basic \| Bore: ø85 mm \| Stroke: 350 mm
	JMDBB85-400	Mounting: Basic \| Bore: ø85 mm \| Stroke: 400 mm
	JMDBB85-450	Mounting: Basic \| Bore: ø85 mm \| Stroke: 450 mm
	JMDBB85-500	Mounting: Basic \| Bore: ø85 mm \| Stroke: 500 mm
	JMDBB100-25	Mounting: Basic \| Bore: ø100 mm \| Stroke: 25 mm
	JMDBB100-50	Mounting: Basic \| Bore: ø100 mm \| Stroke: 50 mm
	JMDBB100-75	Mounting: Basic \| Bore: ø100 mm \| Stroke: 75 mm
	JMDBB100-100	Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm
	JMDBB100-125	Mounting: Basic \| Bore: ø100 mm \| Stroke: 125 mm
	JMDBB100-150	Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm
	JMDBB100-175	Mounting: Basic \| Bore: ø100 mm \| Stroke: 175 mm
	JMDBB100-200	Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm
	JMDBB100-250	Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm
	JMDBB100-300	Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm
	JMDBB100-350	Mounting: Basic \| Bore: ø100 mm \| Stroke: 350 mm
	JMDBB100-400	Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm
	JMDBB100-450	Mounting: Basic \| Bore: ø100 mm \| Stroke: 450 mm
	JMDBB100-500	Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm
	JMDBA32-25	Mounting: Both ends tapped \| Bore: ø32 mm \| Stroke: 25 mm
	JMDBA32-50	Mounting: Both ends tapped \| Bore: ø32 mm \| Stroke: 50 mm
	JMDBA32-75	Mounting: Both ends tapped \| Bore: ø32 mm \| Stroke: 75 mm
	JMDBA32-100	Mounting: Both ends tapped \| Bore: ø32 mm \| Stroke: 100 mm
	JMDBA32-125	Mounting: Both ends tapped \| Bore: ø32 mm \| Stroke: 125 mm
	JMDBA32-150	Mounting: Both ends tapped \| Bore: ø32 mm \| Stroke: 150 mm
	JMDBA32-175	Mounting: Both ends tapped \| Bore: ø32 mm \| Stroke: 175 mm
	JMDBA32-200	Mounting: Both ends tapped \| Bore: ø32 mm \| Stroke: 200 mm
	JMDBA32-250	Mounting: Both ends tapped \| Bore: ø32 mm \| Stroke: 250 mm
	JMDBA32-300	Mounting: Both ends tapped \| Bore: ø32 mm \| Stroke: 300 mm
	JMDBA40-25	Mounting: Both ends tapped \| Bore: ø40 mm \| Stroke: 25 mm
	JMDBA40-50	Mounting: Both ends tapped \| Bore: ø40 mm \| Stroke: 50 mm
	JMDBA40-75	Mounting: Both ends tapped \| Bore: ø40 mm \| Stroke: 75 mm
	JMDBA40-100	Mounting: Both ends tapped \| Bore: ø40 mm \| Stroke: 100 mm
	JMDBA40-125	Mounting: Both ends tapped \| Bore: ø40 mm \| Stroke: 125 mm
	JMDBA40-150	Mounting: Both ends tapped \| Bore: ø40 mm \| Stroke: 150 mm
	JMDBA40-175	Mounting: Both ends tapped \| Bore: ø40 mm \| Stroke: 175 mm
	JMDBA40-200	Mounting: Both ends tapped \| Bore: ø40 mm \| Stroke: 200 mm
	JMDBA40-250	Mounting: Both ends tapped \| Bore: ø40 mm \| Stroke: 250 mm
	JMDBA40-300	Mounting: Both ends tapped \| Bore: ø40 mm \| Stroke: 300 mm
	JMDBA45-25	Mounting: Both ends tapped \| Bore: ø45 mm \| Stroke: 25 mm
	JMDBA45-50	Mounting: Both ends tapped \| Bore: ø45 mm \| Stroke: 50 mm
	JMDBA45-75	Mounting: Both ends tapped \| Bore: ø45 mm \| Stroke: 75 mm
	JMDBA45-100	Mounting: Both ends tapped \| Bore: ø45 mm \| Stroke: 100 mm
	JMDBA45-125	Mounting: Both ends tapped \| Bore: ø45 mm \| Stroke: 125 mm
	JMDBA45-150	Mounting: Both ends tapped \| Bore: ø45 mm \| Stroke: 150 mm
	JMDBA45-175	Mounting: Both ends tapped \| Bore: ø45 mm \| Stroke: 175 mm
	JMDBA45-200	Mounting: Both ends tapped \| Bore: ø45 mm \| Stroke: 200 mm
	JMDBA45-250	Mounting: Both ends tapped \| Bore: ø45 mm \| Stroke: 250 mm
	JMDBA45-300	Mounting: Both ends tapped \| Bore: ø45 mm \| Stroke: 300 mm
	JMDBA50-25	Mounting: Both ends tapped \| Bore: ø50 mm \| Stroke: 25 mm
	JMDBA50-50	Mounting: Both ends tapped \| Bore: ø50 mm \| Stroke: 50 mm
	JMDBA50-75	Mounting: Both ends tapped \| Bore: ø50 mm \| Stroke: 75 mm
	JMDBA50-100	Mounting: Both ends tapped \| Bore: ø50 mm \| Stroke: 100 mm
	JMDBA50-125	Mounting: Both ends tapped \| Bore: ø50 mm \| Stroke: 125 mm
	JMDBA50-150	Mounting: Both ends tapped \| Bore: ø50 mm \| Stroke: 150 mm
	JMDBA50-175	Mounting: Both ends tapped \| Bore: ø50 mm \| Stroke: 175 mm
	JMDBA50-200	Mounting: Both ends tapped \| Bore: ø50 mm \| Stroke: 200 mm
	JMDBA50-250	Mounting: Both ends tapped \| Bore: ø50 mm \| Stroke: 250 mm
	JMDBA50-300	Mounting: Both ends tapped \| Bore: ø50 mm \| Stroke: 300 mm
	JMDBA50-350	Mounting: Both ends tapped \| Bore: ø50 mm \| Stroke: 350 mm
	JMDBA50-400	Mounting: Both ends tapped \| Bore: ø50 mm \| Stroke: 400 mm
	JMDBA56-25	Mounting: Both ends tapped \| Bore: ø56 mm \| Stroke: 25 mm
	JMDBA56-50	Mounting: Both ends tapped \| Bore: ø56 mm \| Stroke: 50 mm
	JMDBA56-75	Mounting: Both ends tapped \| Bore: ø56 mm \| Stroke: 75 mm
	JMDBA56-100	Mounting: Both ends tapped \| Bore: ø56 mm \| Stroke: 100 mm
	JMDBA56-125	Mounting: Both ends tapped \| Bore: ø56 mm \| Stroke: 125 mm
	JMDBA56-150	Mounting: Both ends tapped \| Bore: ø56 mm \| Stroke: 150 mm
	JMDBA56-175	Mounting: Both ends tapped \| Bore: ø56 mm \| Stroke: 175 mm
	JMDBA56-200	Mounting: Both ends tapped \| Bore: ø56 mm \| Stroke: 200 mm
	JMDBA56-250	Mounting: Both ends tapped \| Bore: ø56 mm \| Stroke: 250 mm
	JMDBA56-300	Mounting: Both ends tapped \| Bore: ø56 mm \| Stroke: 300 mm
	JMDBA56-350	Mounting: Both ends tapped \| Bore: ø56 mm \| Stroke: 350 mm
	JMDBA56-400	Mounting: Both ends tapped \| Bore: ø56 mm \| Stroke: 400 mm
	JMDBA63-25	Mounting: Both ends tapped \| Bore: ø63 mm \| Stroke: 25 mm
	JMDBA63-50	Mounting: Both ends tapped \| Bore: ø63 mm \| Stroke: 50 mm
	JMDBA63-75	Mounting: Both ends tapped \| Bore: ø63 mm \| Stroke: 75 mm
	JMDBA63-100	Mounting: Both ends tapped \| Bore: ø63 mm \| Stroke: 100 mm
	JMDBA63-125	Mounting: Both ends tapped \| Bore: ø63 mm \| Stroke: 125 mm
	JMDBA63-150	Mounting: Both ends tapped \| Bore: ø63 mm \| Stroke: 150 mm
	JMDBA63-175	Mounting: Both ends tapped \| Bore: ø63 mm \| Stroke: 175 mm
	JMDBA63-200	Mounting: Both ends tapped \| Bore: ø63 mm \| Stroke: 200 mm
	JMDBA63-250	Mounting: Both ends tapped \| Bore: ø63 mm \| Stroke: 250 mm
	JMDBA63-300	Mounting: Both ends tapped \| Bore: ø63 mm \| Stroke: 300 mm
	JMDBA63-350	Mounting: Both ends tapped \| Bore: ø63 mm \| Stroke: 350 mm
	JMDBA63-400	Mounting: Both ends tapped \| Bore: ø63 mm \| Stroke: 400 mm
	JMDBA67-25	Mounting: Both ends tapped \| Bore: ø67 mm \| Stroke: 25 mm
	JMDBA67-50	Mounting: Both ends tapped \| Bore: ø67 mm \| Stroke: 50 mm
	JMDBA67-75	Mounting: Both ends tapped \| Bore: ø67 mm \| Stroke: 75 mm
	JMDBA67-100	Mounting: Both ends tapped \| Bore: ø67 mm \| Stroke: 100 mm
	JMDBA67-125	Mounting: Both ends tapped \| Bore: ø67 mm \| Stroke: 125 mm
	JMDBA67-150	Mounting: Both ends tapped \| Bore: ø67 mm \| Stroke: 150 mm
	JMDBA67-175	Mounting: Both ends tapped \| Bore: ø67 mm \| Stroke: 175 mm
	JMDBA67-200	Mounting: Both ends tapped \| Bore: ø67 mm \| Stroke: 200 mm
	JMDBA67-250	Mounting: Both ends tapped \| Bore: ø67 mm \| Stroke: 250 mm
	JMDBA67-300	Mounting: Both ends tapped \| Bore: ø67 mm \| Stroke: 300 mm
	JMDBA67-350	Mounting: Both ends tapped \| Bore: ø67 mm \| Stroke: 350 mm
	JMDBA67-400	Mounting: Both ends tapped \| Bore: ø67 mm \| Stroke: 400 mm
	JMDBA80-25	Mounting: Both ends tapped \| Bore: ø80 mm \| Stroke: 25 mm
	JMDBA80-50	Mounting: Both ends tapped \| Bore: ø80 mm \| Stroke: 50 mm
	JMDBA80-75	Mounting: Both ends tapped \| Bore: ø80 mm \| Stroke: 75 mm
	JMDBA80-100	Mounting: Both ends tapped \| Bore: ø80 mm \| Stroke: 100 mm
	JMDBA80-125	Mounting: Both ends tapped \| Bore: ø80 mm \| Stroke: 125 mm
	JMDBA80-150	Mounting: Both ends tapped \| Bore: ø80 mm \| Stroke: 150 mm
	JMDBA80-175	Mounting: Both ends tapped \| Bore: ø80 mm \| Stroke: 175 mm
	JMDBA80-200	Mounting: Both ends tapped \| Bore: ø80 mm \| Stroke: 200 mm
	JMDBA80-250	Mounting: Both ends tapped \| Bore: ø80 mm \| Stroke: 250 mm
	JMDBA80-300	Mounting: Both ends tapped \| Bore: ø80 mm \| Stroke: 300 mm
	JMDBA80-350	Mounting: Both ends tapped \| Bore: ø80 mm \| Stroke: 350 mm
	JMDBA80-400	Mounting: Both ends tapped \| Bore: ø80 mm \| Stroke: 400 mm
	JMDBA80-450	Mounting: Both ends tapped \| Bore: ø80 mm \| Stroke: 450 mm
	JMDBA80-500	Mounting: Both ends tapped \| Bore: ø80 mm \| Stroke: 500 mm
	JMDBA85-25	Mounting: Both ends tapped \| Bore: ø85 mm \| Stroke: 25 mm
	JMDBA85-50	Mounting: Both ends tapped \| Bore: ø85 mm \| Stroke: 50 mm
	JMDBA85-75	Mounting: Both ends tapped \| Bore: ø85 mm \| Stroke: 75 mm
	JMDBA85-100	Mounting: Both ends tapped \| Bore: ø85 mm \| Stroke: 100 mm
	JMDBA85-125	Mounting: Both ends tapped \| Bore: ø85 mm \| Stroke: 125 mm
	JMDBA85-150	Mounting: Both ends tapped \| Bore: ø85 mm \| Stroke: 150 mm
	JMDBA85-175	Mounting: Both ends tapped \| Bore: ø85 mm \| Stroke: 175 mm
	JMDBA85-200	Mounting: Both ends tapped \| Bore: ø85 mm \| Stroke: 200 mm
	JMDBA85-250	Mounting: Both ends tapped \| Bore: ø85 mm \| Stroke: 250 mm
	JMDBA85-300	Mounting: Both ends tapped \| Bore: ø85 mm \| Stroke: 300 mm
	JMDBA85-350	Mounting: Both ends tapped \| Bore: ø85 mm \| Stroke: 350 mm
	JMDBA85-400	Mounting: Both ends tapped \| Bore: ø85 mm \| Stroke: 400 mm
	JMDBA85-450	Mounting: Both ends tapped \| Bore: ø85 mm \| Stroke: 450 mm
	JMDBA85-500	Mounting: Both ends tapped \| Bore: ø85 mm \| Stroke: 500 mm
	JMDBA100-25	Mounting: Both ends tapped \| Bore: ø100 mm \| Stroke: 25 mm
	JMDBA100-50	Mounting: Both ends tapped \| Bore: ø100 mm \| Stroke: 50 mm
	JMDBA100-75	Mounting: Both ends tapped \| Bore: ø100 mm \| Stroke: 75 mm
	JMDBA100-100	Mounting: Both ends tapped \| Bore: ø100 mm \| Stroke: 100 mm
	JMDBA100-125	Mounting: Both ends tapped \| Bore: ø100 mm \| Stroke: 125 mm
	JMDBA100-150	Mounting: Both ends tapped \| Bore: ø100 mm \| Stroke: 150 mm
	JMDBA100-175	Mounting: Both ends tapped \| Bore: ø100 mm \| Stroke: 175 mm
	JMDBA100-200	Mounting: Both ends tapped \| Bore: ø100 mm \| Stroke: 200 mm
	JMDBA100-250	Mounting: Both ends tapped \| Bore: ø100 mm \| Stroke: 250 mm
	JMDBA100-300	Mounting: Both ends tapped \| Bore: ø100 mm \| Stroke: 300 mm
	JMDBA100-350	Mounting: Both ends tapped \| Bore: ø100 mm \| Stroke: 350 mm
	JMDBA100-400	Mounting: Both ends tapped \| Bore: ø100 mm \| Stroke: 400 mm
	JMDBA100-450	Mounting: Both ends tapped \| Bore: ø100 mm \| Stroke: 450 mm
	JMDBA100-500	Mounting: Both ends tapped \| Bore: ø100 mm \| Stroke: 500 mm
	JMDBL32-25	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 25 mm
	JMDBL32-50	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 50 mm
	JMDBL32-75	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 75 mm
	JMDBL32-100	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 100 mm
	JMDBL32-125	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 125 mm
	JMDBL32-150	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 150 mm
	JMDBL32-175	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 175 mm
	JMDBL32-200	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 200 mm
	JMDBL32-250	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 250 mm
	JMDBL32-300	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 300 mm
	JMDBL40-25	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm
	JMDBL40-50	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm
	JMDBL40-75	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm
	JMDBL40-100	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm
	JMDBL40-125	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm
	JMDBL40-150	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm
	JMDBL40-175	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 175 mm
	JMDBL40-200	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm
	JMDBL40-250	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm
	JMDBL40-300	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 300 mm
	JMDBL50-25	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 25 mm
	JMDBL50-50	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 50 mm
	JMDBL50-75	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 75 mm
	JMDBL50-100	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 100 mm
	JMDBL50-125	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 125 mm
	JMDBL50-150	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 150 mm
	JMDBL50-175	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 175 mm
	JMDBL50-200	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 200 mm
	JMDBL50-250	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 250 mm
	JMDBL50-300	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 300 mm
	JMDBL50-350	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 350 mm
	JMDBL50-400	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 400 mm
	JMDBL63-25	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 25 mm
	JMDBL63-50	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 50 mm
	JMDBL63-75	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 75 mm
	JMDBL63-100	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 100 mm
	JMDBL63-125	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 125 mm
	JMDBL63-150	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 150 mm
	JMDBL63-175	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 175 mm
	JMDBL63-200	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 200 mm
	JMDBL63-250	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 250 mm
	JMDBL63-300	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 300 mm
	JMDBL63-350	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 350 mm
	JMDBL63-400	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 400 mm
	JMDBL80-25	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 25 mm
	JMDBL80-50	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 50 mm
	JMDBL80-75	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 75 mm
	JMDBL80-100	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 100 mm
	JMDBL80-125	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 125 mm
	JMDBL80-150	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 150 mm
	JMDBL80-175	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 175 mm
	JMDBL80-200	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 200 mm
	JMDBL80-250	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 250 mm
	JMDBL80-300	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 300 mm
	JMDBL80-350	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 350 mm
	JMDBL80-400	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 400 mm
	JMDBL80-450	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 450 mm
	JMDBL80-500	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 500 mm
	JMDBL100-25	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 25 mm
	JMDBL100-50	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 50 mm
	JMDBL100-75	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 75 mm
	JMDBL100-100	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 100 mm
	JMDBL100-125	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 125 mm
	JMDBL100-150	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 150 mm
	JMDBL100-175	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 175 mm
	JMDBL100-200	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 200 mm
	JMDBL100-250	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 250 mm
	JMDBL100-300	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 300 mm
	JMDBL100-350	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 350 mm
	JMDBL100-400	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 400 mm
	JMDBL100-450	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 450 mm
	JMDBL100-500	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 500 mm
	JMDBF32-25	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 25 mm
	JMDBF32-50	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 50 mm
	JMDBF32-75	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 75 mm
	JMDBF32-100	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 100 mm
	JMDBF32-125	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 125 mm
	JMDBF32-150	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 150 mm
	JMDBF32-175	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 175 mm
	JMDBF32-200	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 200 mm
	JMDBF32-250	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 250 mm
	JMDBF32-300	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 300 mm
	JMDBF40-25	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 25 mm
	JMDBF40-50	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm
	JMDBF40-75	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 75 mm
	JMDBF40-100	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm
	JMDBF40-125	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm
	JMDBF40-150	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 150 mm
	JMDBF40-175	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 175 mm
	JMDBF40-200	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm
	JMDBF40-250	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm
	JMDBF40-300	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 300 mm
	JMDBF50-25	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 25 mm
	JMDBF50-50	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 50 mm
	JMDBF50-75	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 75 mm
	JMDBF50-100	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 100 mm
	JMDBF50-125	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 125 mm
	JMDBF50-150	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 150 mm
	JMDBF50-175	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 175 mm
	JMDBF50-200	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 200 mm
	JMDBF50-250	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 250 mm
	JMDBF50-300	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 300 mm
	JMDBF50-350	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 350 mm
	JMDBF50-400	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 400 mm
	JMDBF63-25	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 25 mm
	JMDBF63-50	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 50 mm
	JMDBF63-75	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 75 mm
	JMDBF63-100	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 100 mm
	JMDBF63-125	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 125 mm
	JMDBF63-150	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 150 mm
	JMDBF63-175	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 175 mm
	JMDBF63-200	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 200 mm
	JMDBF63-250	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 250 mm
	JMDBF63-300	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 300 mm
	JMDBF63-350	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 350 mm
	JMDBF63-400	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 400 mm
	JMDBF80-25	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 25 mm
	JMDBF80-50	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 50 mm
	JMDBF80-75	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 75 mm
	JMDBF80-100	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 100 mm
	JMDBF80-125	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 125 mm
	JMDBF80-150	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 150 mm
	JMDBF80-175	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 175 mm
	JMDBF80-200	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 200 mm
	JMDBF80-250	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 250 mm
	JMDBF80-300	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 300 mm
	JMDBF80-350	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 350 mm
	JMDBF80-400	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 400 mm
	JMDBF80-450	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 450 mm
	JMDBF80-500	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 500 mm
	JMDBF100-25	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 25 mm
	JMDBF100-50	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 50 mm
	JMDBF100-75	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 75 mm
	JMDBF100-100	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 100 mm
	JMDBF100-125	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 125 mm
	JMDBF100-150	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 150 mm
	JMDBF100-175	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 175 mm
	JMDBF100-200	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 200 mm
	JMDBF100-250	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 250 mm
	JMDBF100-300	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 300 mm
	JMDBF100-350	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 350 mm
	JMDBF100-400	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 400 mm
	JMDBF100-450	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 450 mm
	JMDBF100-500	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 500 mm
	JMDBG32-25	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 25 mm
	JMDBG32-50	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 50 mm
	JMDBG32-75	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 75 mm
	JMDBG32-100	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 100 mm
	JMDBG32-125	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 125 mm
	JMDBG32-150	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 150 mm
	JMDBG32-175	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 175 mm
	JMDBG32-200	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 200 mm
	JMDBG32-250	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 250 mm
	JMDBG32-300	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 300 mm
	JMDBG40-25	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 25 mm
	JMDBG40-50	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 50 mm
	JMDBG40-75	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 75 mm
	JMDBG40-100	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 100 mm
	JMDBG40-125	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 125 mm
	JMDBG40-150	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 150 mm
	JMDBG40-175	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 175 mm
	JMDBG40-200	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 200 mm
	JMDBG40-250	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 250 mm
	JMDBG40-300	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 300 mm
	JMDBG50-25	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 25 mm
	JMDBG50-50	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 50 mm
	JMDBG50-75	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 75 mm
	JMDBG50-100	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 100 mm
	JMDBG50-125	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 125 mm
	JMDBG50-150	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 150 mm
	JMDBG50-175	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 175 mm
	JMDBG50-200	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 200 mm
	JMDBG50-250	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 250 mm
	JMDBG50-300	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 300 mm
	JMDBG50-350	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 350 mm
	JMDBG50-400	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 400 mm
	JMDBG63-25	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 25 mm
	JMDBG63-50	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 50 mm
	JMDBG63-75	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 75 mm
	JMDBG63-100	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 100 mm
	JMDBG63-125	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 125 mm
	JMDBG63-150	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 150 mm
	JMDBG63-175	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 175 mm
	JMDBG63-200	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 200 mm
	JMDBG63-250	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 250 mm
	JMDBG63-300	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 300 mm
	JMDBG63-350	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 350 mm
	JMDBG63-400	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 400 mm
	JMDBG80-25	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 25 mm
	JMDBG80-50	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 50 mm
	JMDBG80-75	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 75 mm
	JMDBG80-100	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 100 mm
	JMDBG80-125	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 125 mm
	JMDBG80-150	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 150 mm
	JMDBG80-175	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 175 mm
	JMDBG80-200	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 200 mm
	JMDBG80-250	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 250 mm
	JMDBG80-300	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 300 mm
	JMDBG80-350	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 350 mm
	JMDBG80-400	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 400 mm
	JMDBG80-450	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 450 mm
	JMDBG80-500	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 500 mm
	JMDBG100-25	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 25 mm
	JMDBG100-50	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 50 mm
	JMDBG100-75	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 75 mm
	JMDBG100-100	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 100 mm
	JMDBG100-125	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 125 mm
	JMDBG100-150	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 150 mm
	JMDBG100-175	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 175 mm
	JMDBG100-200	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 200 mm
	JMDBG100-250	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 250 mm
	JMDBG100-300	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 300 mm
	JMDBG100-350	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 350 mm
	JMDBG100-400	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 400 mm
	JMDBG100-450	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 450 mm
	JMDBG100-500	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 500 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC JMB Air Cylinder (Lightweight, Double Acting, ø32 to ø100)
