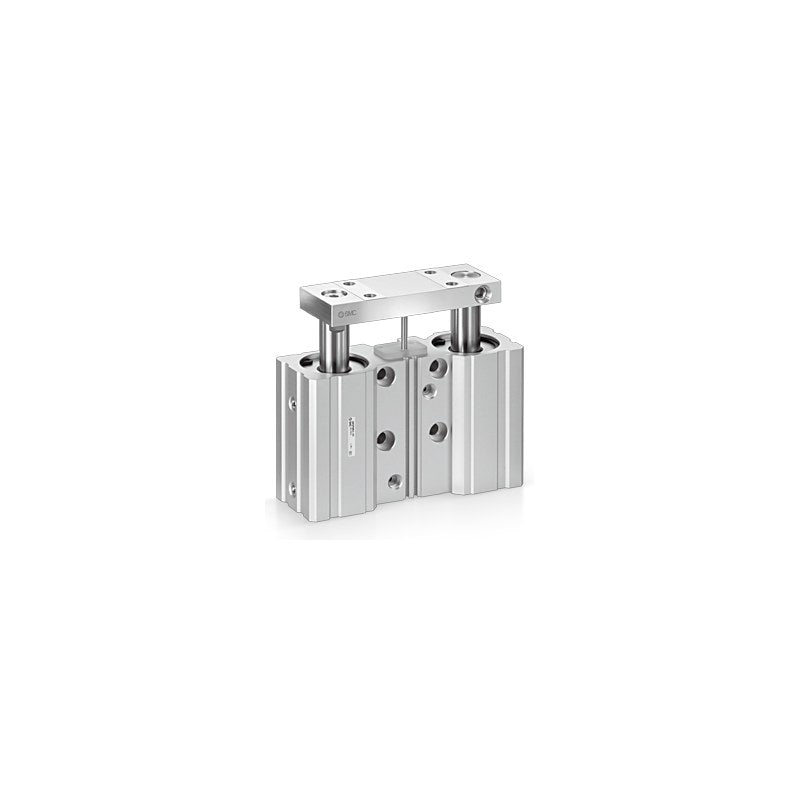

SMC JMGP Dual Rod Cylinder (ø12-ø100)

SMC JMGP Dual Rod Cylinder (ø12-ø100)

SMC JMGP series dual rod cylinder in ten bore sizes (ø12 to ø100, two pistons each), a short, light alternative to guided thin cylinders for pushers, lifters and clamps.

Key features

  • Two pistons per body (bore ø12 = ø10x2 up to ø100 = ø71x2) on a slide bearing (M)
  • Up to 48% shorter overall length and 38% lighter than comparable cylinders, with up to 6.6 times allowable lateral load
  • Non-rotating accuracy improved up to 40%; plate mountable top, bottom or front, piping from 4 directions
  • Built-in magnet; solid state auto switches D-M9 series ordered as suffix (e.g. -M9BW), lead wire 0.5/1/3/5 m
  • Intermediate strokes by spacer (5 mm increments); port thread TN (NPT) and TF (G) available for ø40-ø100

Specifications

Action Double acting
Bearing Slide bearing
Fluid Air
Proof pressure 1.05 MPa
Max. operating pressure 0.7 MPa
Min. operating pressure 0.15 MPa
Ambient and fluid temperature 5 to 60°C
Piston speed 50-300 mm/s (ø100: 50-250 mm/s)
Cushion Rubber bumper on both ends
Lubrication Not required (non-lube)
Stroke tolerance +1.5/0 mm
Magnet Built-in
Source SMC Korea catalog CAT.KS20-238D (SMCKR_JMGP.pdf), p. 3-4 (PDF p. 4-5)
JMGPM12-10 Bore: ø12 (ø10x2) | Stroke: 10 mm | Port: M thread
JMGPM12-20 Bore: ø12 (ø10x2) | Stroke: 20 mm | Port: M thread
JMGPM12-30 Bore: ø12 (ø10x2) | Stroke: 30 mm | Port: M thread
JMGPM12-50 Bore: ø12 (ø10x2) | Stroke: 50 mm | Port: M thread
JMGPM12-100 Bore: ø12 (ø10x2) | Stroke: 100 mm | Port: M thread
JMGPM16-10 Bore: ø16 (ø12x2) | Stroke: 10 mm | Port: M thread
JMGPM16-20 Bore: ø16 (ø12x2) | Stroke: 20 mm | Port: M thread
JMGPM16-30 Bore: ø16 (ø12x2) | Stroke: 30 mm | Port: M thread
JMGPM16-50 Bore: ø16 (ø12x2) | Stroke: 50 mm | Port: M thread
JMGPM16-100 Bore: ø16 (ø12x2) | Stroke: 100 mm | Port: M thread
JMGPM20-20 Bore: ø20 (ø16x2) | Stroke: 20 mm | Port: M thread
JMGPM20-30 Bore: ø20 (ø16x2) | Stroke: 30 mm | Port: M thread
JMGPM20-50 Bore: ø20 (ø16x2) | Stroke: 50 mm | Port: M thread
JMGPM20-100 Bore: ø20 (ø16x2) | Stroke: 100 mm | Port: M thread
JMGPM20-150 Bore: ø20 (ø16x2) | Stroke: 150 mm | Port: M thread
JMGPM25-20 Bore: ø25 (ø20x2) | Stroke: 20 mm | Port: M thread
JMGPM25-30 Bore: ø25 (ø20x2) | Stroke: 30 mm | Port: M thread
JMGPM25-50 Bore: ø25 (ø20x2) | Stroke: 50 mm | Port: M thread
JMGPM25-100 Bore: ø25 (ø20x2) | Stroke: 100 mm | Port: M thread
JMGPM25-150 Bore: ø25 (ø20x2) | Stroke: 150 mm | Port: M thread
JMGPM32-25 Bore: ø32 (ø25x2) | Stroke: 25 mm | Port: M thread
JMGPM32-50 Bore: ø32 (ø25x2) | Stroke: 50 mm | Port: M thread
JMGPM32-100 Bore: ø32 (ø25x2) | Stroke: 100 mm | Port: M thread
JMGPM32-150 Bore: ø32 (ø25x2) | Stroke: 150 mm | Port: M thread
JMGPM32-200 Bore: ø32 (ø25x2) | Stroke: 200 mm | Port: M thread
JMGPM40-25 Bore: ø40 (ø32x2) | Stroke: 25 mm | Port: Rc
JMGPM40-50 Bore: ø40 (ø32x2) | Stroke: 50 mm | Port: Rc
JMGPM40-100 Bore: ø40 (ø32x2) | Stroke: 100 mm | Port: Rc
JMGPM40-150 Bore: ø40 (ø32x2) | Stroke: 150 mm | Port: Rc
JMGPM40-200 Bore: ø40 (ø32x2) | Stroke: 200 mm | Port: Rc
JMGPM50-25 Bore: ø50 (ø40x2) | Stroke: 25 mm | Port: Rc
JMGPM50-50 Bore: ø50 (ø40x2) | Stroke: 50 mm | Port: Rc
JMGPM50-100 Bore: ø50 (ø40x2) | Stroke: 100 mm | Port: Rc
JMGPM50-150 Bore: ø50 (ø40x2) | Stroke: 150 mm | Port: Rc
JMGPM50-200 Bore: ø50 (ø40x2) | Stroke: 200 mm | Port: Rc
JMGPM63-25 Bore: ø63 (ø45x2) | Stroke: 25 mm | Port: Rc
JMGPM63-50 Bore: ø63 (ø45x2) | Stroke: 50 mm | Port: Rc
JMGPM63-100 Bore: ø63 (ø45x2) | Stroke: 100 mm | Port: Rc
JMGPM63-150 Bore: ø63 (ø45x2) | Stroke: 150 mm | Port: Rc
JMGPM63-200 Bore: ø63 (ø45x2) | Stroke: 200 mm | Port: Rc
JMGPM80-25 Bore: ø80 (ø56x2) | Stroke: 25 mm | Port: Rc
JMGPM80-50 Bore: ø80 (ø56x2) | Stroke: 50 mm | Port: Rc
JMGPM80-100 Bore: ø80 (ø56x2) | Stroke: 100 mm | Port: Rc
JMGPM80-150 Bore: ø80 (ø56x2) | Stroke: 150 mm | Port: Rc
JMGPM80-200 Bore: ø80 (ø56x2) | Stroke: 200 mm | Port: Rc
JMGPM100-25 Bore: ø100 (ø71x2) | Stroke: 25 mm | Port: Rc
JMGPM100-50 Bore: ø100 (ø71x2) | Stroke: 50 mm | Port: Rc
JMGPM100-100 Bore: ø100 (ø71x2) | Stroke: 100 mm | Port: Rc
JMGPM100-150 Bore: ø100 (ø71x2) | Stroke: 150 mm | Port: Rc
JMGPM100-200 Bore: ø100 (ø71x2) | Stroke: 200 mm | Port: Rc
