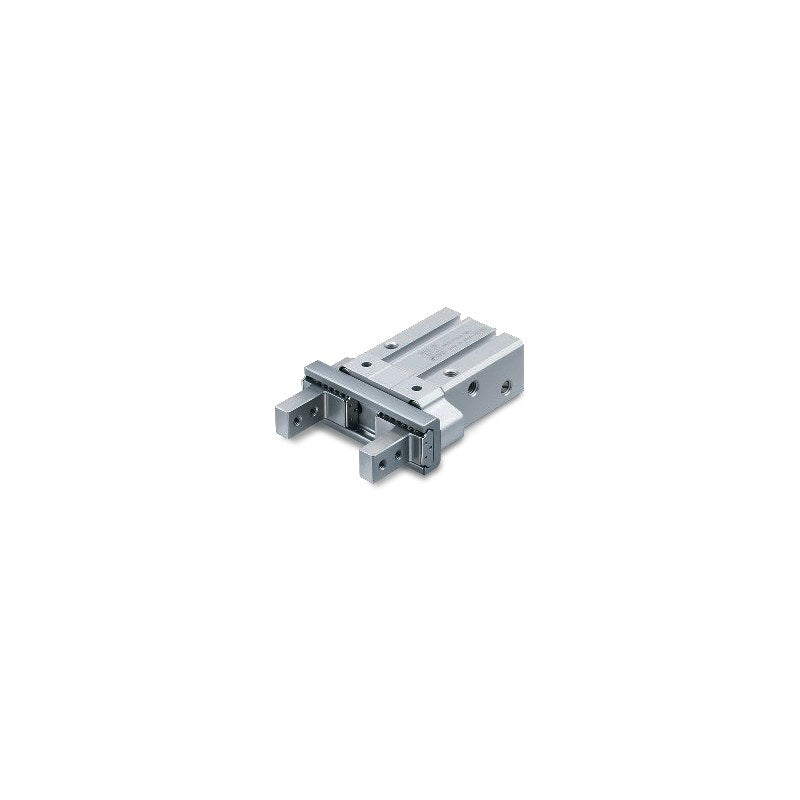

SMC JMHZ2 Parallel Air Gripper (Compact, Bore 8 to 20 mm)

SMC JMHZ2 Parallel Air Gripper (Compact, Bore 8 to 20 mm)

SMC JMHZ2 compact parallel-style air gripper with a high-precision linear guide, offering the gripping force of the next larger MHZ2 bore in a downsized body (bore 8 to 20 mm).

Key features

  • High-precision linear guide; repeatability +/-0.01 mm
  • Double acting, single acting normally open and single acting normally closed versions
  • Finger options: basic, side tapped mounting and through-hole (opening/closing direction) mounting
  • Built-in magnet for solid state auto switches D-M9N/M9P/M9B, M9NW/M9PW/M9BW and water-resistant M9NA/M9PA/M9BA (ordered as suffix)
  • Made to order: -X6900 side mounting positioning pin, -X7460 auto switch lateral mounting

Specifications

Fluid Air
Operating pressure (double acting) 0.15 to 0.7 MPa (8), 0.1 to 0.7 MPa (12 to 20)
Operating pressure (single acting) NO: 0.35 to 0.7 MPa (8), 0.3 to 0.7 (12), 0.25 to 0.7 (16, 20)
Ambient and fluid temperature -10 to 60 C (no freezing)
Repeatability +/-0.01 mm
Max. operating frequency 120 c.p.m.
Lubrication Not required
Number of fingers 2
Gripping force note At 0.5 MPa, gripping point L = 20 mm
Source SMC Korea catalog JMHZ2 (SMCKR_JMHZ2.pdf), p. 9-11 (PDF p. 10-12)
JMHZ2-8D Bore: 8 mm | Action: Double acting | Finger option: Basic | Stroke (both sides): 4 mm | Gripping force per finger: 7.8 N ext / 10.5 N int
JMHZ2-8D1 Bore: 8 mm | Action: Double acting | Finger option: Side tapped | Stroke (both sides): 4 mm | Gripping force per finger: 7.8 N ext / 10.5 N int
JMHZ2-8D2 Bore: 8 mm | Action: Double acting | Finger option: Through-hole (open/close dir.) | Stroke (both sides): 4 mm | Gripping force per finger: 7.8 N ext / 10.5 N int
JMHZ2-8S Bore: 8 mm | Action: Single acting, normally open | Finger option: Basic | Stroke (both sides): 4 mm | Gripping force per finger: 4.5 N external
JMHZ2-8S1 Bore: 8 mm | Action: Single acting, normally open | Finger option: Side tapped | Stroke (both sides): 4 mm | Gripping force per finger: 4.5 N external
JMHZ2-8S2 Bore: 8 mm | Action: Single acting, normally open | Finger option: Through-hole (open/close dir.) | Stroke (both sides): 4 mm | Gripping force per finger: 4.5 N external
JMHZ2-8C Bore: 8 mm | Action: Single acting, normally closed | Finger option: Basic | Stroke (both sides): 4 mm | Gripping force per finger: 7.8 N internal
JMHZ2-8C1 Bore: 8 mm | Action: Single acting, normally closed | Finger option: Side tapped | Stroke (both sides): 4 mm | Gripping force per finger: 7.8 N internal
JMHZ2-8C2 Bore: 8 mm | Action: Single acting, normally closed | Finger option: Through-hole (open/close dir.) | Stroke (both sides): 4 mm | Gripping force per finger: 7.8 N internal
JMHZ2-12D Bore: 12 mm | Action: Double acting | Finger option: Basic | Stroke (both sides): 6 mm | Gripping force per finger: 17.5 N ext / 23.3 N int
JMHZ2-12D1 Bore: 12 mm | Action: Double acting | Finger option: Side tapped | Stroke (both sides): 6 mm | Gripping force per finger: 17.5 N ext / 23.3 N int
JMHZ2-12D2 Bore: 12 mm | Action: Double acting | Finger option: Through-hole (open/close dir.) | Stroke (both sides): 6 mm | Gripping force per finger: 17.5 N ext / 23.3 N int
JMHZ2-12S Bore: 12 mm | Action: Single acting, normally open | Finger option: Basic | Stroke (both sides): 6 mm | Gripping force per finger: 11.2 N external
JMHZ2-12S1 Bore: 12 mm | Action: Single acting, normally open | Finger option: Side tapped | Stroke (both sides): 6 mm | Gripping force per finger: 11.2 N external
JMHZ2-12S2 Bore: 12 mm | Action: Single acting, normally open | Finger option: Through-hole (open/close dir.) | Stroke (both sides): 6 mm | Gripping force per finger: 11.2 N external
JMHZ2-12C Bore: 12 mm | Action: Single acting, normally closed | Finger option: Basic | Stroke (both sides): 6 mm | Gripping force per finger: 19.3 N internal
JMHZ2-12C1 Bore: 12 mm | Action: Single acting, normally closed | Finger option: Side tapped | Stroke (both sides): 6 mm | Gripping force per finger: 19.3 N internal
JMHZ2-12C2 Bore: 12 mm | Action: Single acting, normally closed | Finger option: Through-hole (open/close dir.) | Stroke (both sides): 6 mm | Gripping force per finger: 19.3 N internal
JMHZ2-16D Bore: 16 mm | Action: Double acting | Finger option: Basic | Stroke (both sides): 10 mm | Gripping force per finger: 32.7 N ext / 43.5 N int
JMHZ2-16D1 Bore: 16 mm | Action: Double acting | Finger option: Side tapped | Stroke (both sides): 10 mm | Gripping force per finger: 32.7 N ext / 43.5 N int
JMHZ2-16D2 Bore: 16 mm | Action: Double acting | Finger option: Through-hole (open/close dir.) | Stroke (both sides): 10 mm | Gripping force per finger: 32.7 N ext / 43.5 N int
JMHZ2-16S Bore: 16 mm | Action: Single acting, normally open | Finger option: Basic | Stroke (both sides): 10 mm | Gripping force per finger: 22.9 N external
JMHZ2-16S1 Bore: 16 mm | Action: Single acting, normally open | Finger option: Side tapped | Stroke (both sides): 10 mm | Gripping force per finger: 22.9 N external
JMHZ2-16S2 Bore: 16 mm | Action: Single acting, normally open | Finger option: Through-hole (open/close dir.) | Stroke (both sides): 10 mm | Gripping force per finger: 22.9 N external
JMHZ2-16C Bore: 16 mm | Action: Single acting, normally closed | Finger option: Basic | Stroke (both sides): 10 mm | Gripping force per finger: 36.0 N internal
JMHZ2-16C1 Bore: 16 mm | Action: Single acting, normally closed | Finger option: Side tapped | Stroke (both sides): 10 mm | Gripping force per finger: 36.0 N internal
JMHZ2-16C2 Bore: 16 mm | Action: Single acting, normally closed | Finger option: Through-hole (open/close dir.) | Stroke (both sides): 10 mm | Gripping force per finger: 36.0 N internal
JMHZ2-20D Bore: 20 mm | Action: Double acting | Finger option: Basic | Stroke (both sides): 14 mm | Gripping force per finger: 54.2 N ext / 72.2 N int
JMHZ2-20D1 Bore: 20 mm | Action: Double acting | Finger option: Side tapped | Stroke (both sides): 14 mm | Gripping force per finger: 54.2 N ext / 72.2 N int
JMHZ2-20D2 Bore: 20 mm | Action: Double acting | Finger option: Through-hole (open/close dir.) | Stroke (both sides): 14 mm | Gripping force per finger: 54.2 N ext / 72.2 N int
JMHZ2-20S Bore: 20 mm | Action: Single acting, normally open | Finger option: Basic | Stroke (both sides): 14 mm | Gripping force per finger: 38.3 N external
JMHZ2-20S1 Bore: 20 mm | Action: Single acting, normally open | Finger option: Side tapped | Stroke (both sides): 14 mm | Gripping force per finger: 38.3 N external
JMHZ2-20S2 Bore: 20 mm | Action: Single acting, normally open | Finger option: Through-hole (open/close dir.) | Stroke (both sides): 14 mm | Gripping force per finger: 38.3 N external
JMHZ2-20C Bore: 20 mm | Action: Single acting, normally closed | Finger option: Basic | Stroke (both sides): 14 mm | Gripping force per finger: 57.4 N internal
JMHZ2-20C1 Bore: 20 mm | Action: Single acting, normally closed | Finger option: Side tapped | Stroke (both sides): 14 mm | Gripping force per finger: 57.4 N internal
JMHZ2-20C2 Bore: 20 mm | Action: Single acting, normally closed | Finger option: Through-hole (open/close dir.) | Stroke (both sides): 14 mm | Gripping force per finger: 57.4 N internal
Air GrippersSMC
36 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC JMHZ2 Parallel Air Gripper (Compact, Bore 8 to 20 mm)

Brand SMC·Air Grippers

Available part numbers (36)

JMHZ2-8D, JMHZ2-8D1, JMHZ2-8D2, JMHZ2-8S, JMHZ2-8S1, JMHZ2-8S2, JMHZ2-8C, JMHZ2-8C1, JMHZ2-8C2, JMHZ2-12D + 26 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
JMHZ2-8DBore: 8 mm | Action: Double acting | Finger option: Basic | Stroke (both sides): 4 mm | Gripping force per finger: 7.8 N ext / 10.5 N int
JMHZ2-8D1Bore: 8 mm | Action: Double acting | Finger option: Side tapped | Stroke (both sides): 4 mm | Gripping force per finger: 7.8 N ext / 10.5 N int
JMHZ2-8D2Bore: 8 mm | Action: Double acting | Finger option: Through-hole (open/close dir.) | Stroke (both sides): 4 mm | Gripping force per finger: 7.8 N ext / 10.5 N int
JMHZ2-8SBore: 8 mm | Action: Single acting, normally open | Finger option: Basic | Stroke (both sides): 4 mm | Gripping force per finger: 4.5 N external
JMHZ2-8S1Bore: 8 mm | Action: Single acting, normally open | Finger option: Side tapped | Stroke (both sides): 4 mm | Gripping force per finger: 4.5 N external
JMHZ2-8S2Bore: 8 mm | Action: Single acting, normally open | Finger option: Through-hole (open/close dir.) | Stroke (both sides): 4 mm | Gripping force per finger: 4.5 N external
JMHZ2-8CBore: 8 mm | Action: Single acting, normally closed | Finger option: Basic | Stroke (both sides): 4 mm | Gripping force per finger: 7.8 N internal
JMHZ2-8C1Bore: 8 mm | Action: Single acting, normally closed | Finger option: Side tapped | Stroke (both sides): 4 mm | Gripping force per finger: 7.8 N internal
JMHZ2-8C2Bore: 8 mm | Action: Single acting, normally closed | Finger option: Through-hole (open/close dir.) | Stroke (both sides): 4 mm | Gripping force per finger: 7.8 N internal
JMHZ2-12DBore: 12 mm | Action: Double acting | Finger option: Basic | Stroke (both sides): 6 mm | Gripping force per finger: 17.5 N ext / 23.3 N int
JMHZ2-12D1Bore: 12 mm | Action: Double acting | Finger option: Side tapped | Stroke (both sides): 6 mm | Gripping force per finger: 17.5 N ext / 23.3 N int
JMHZ2-12D2Bore: 12 mm | Action: Double acting | Finger option: Through-hole (open/close dir.) | Stroke (both sides): 6 mm | Gripping force per finger: 17.5 N ext / 23.3 N int
JMHZ2-12SBore: 12 mm | Action: Single acting, normally open | Finger option: Basic | Stroke (both sides): 6 mm | Gripping force per finger: 11.2 N external
JMHZ2-12S1Bore: 12 mm | Action: Single acting, normally open | Finger option: Side tapped | Stroke (both sides): 6 mm | Gripping force per finger: 11.2 N external
JMHZ2-12S2Bore: 12 mm | Action: Single acting, normally open | Finger option: Through-hole (open/close dir.) | Stroke (both sides): 6 mm | Gripping force per finger: 11.2 N external
JMHZ2-12CBore: 12 mm | Action: Single acting, normally closed | Finger option: Basic | Stroke (both sides): 6 mm | Gripping force per finger: 19.3 N internal
JMHZ2-12C1Bore: 12 mm | Action: Single acting, normally closed | Finger option: Side tapped | Stroke (both sides): 6 mm | Gripping force per finger: 19.3 N internal
JMHZ2-12C2Bore: 12 mm | Action: Single acting, normally closed | Finger option: Through-hole (open/close dir.) | Stroke (both sides): 6 mm | Gripping force per finger: 19.3 N internal
JMHZ2-16DBore: 16 mm | Action: Double acting | Finger option: Basic | Stroke (both sides): 10 mm | Gripping force per finger: 32.7 N ext / 43.5 N int
JMHZ2-16D1Bore: 16 mm | Action: Double acting | Finger option: Side tapped | Stroke (both sides): 10 mm | Gripping force per finger: 32.7 N ext / 43.5 N int
JMHZ2-16D2Bore: 16 mm | Action: Double acting | Finger option: Through-hole (open/close dir.) | Stroke (both sides): 10 mm | Gripping force per finger: 32.7 N ext / 43.5 N int
JMHZ2-16SBore: 16 mm | Action: Single acting, normally open | Finger option: Basic | Stroke (both sides): 10 mm | Gripping force per finger: 22.9 N external
JMHZ2-16S1Bore: 16 mm | Action: Single acting, normally open | Finger option: Side tapped | Stroke (both sides): 10 mm | Gripping force per finger: 22.9 N external
JMHZ2-16S2Bore: 16 mm | Action: Single acting, normally open | Finger option: Through-hole (open/close dir.) | Stroke (both sides): 10 mm | Gripping force per finger: 22.9 N external
JMHZ2-16CBore: 16 mm | Action: Single acting, normally closed | Finger option: Basic | Stroke (both sides): 10 mm | Gripping force per finger: 36.0 N internal
JMHZ2-16C1Bore: 16 mm | Action: Single acting, normally closed | Finger option: Side tapped | Stroke (both sides): 10 mm | Gripping force per finger: 36.0 N internal
JMHZ2-16C2Bore: 16 mm | Action: Single acting, normally closed | Finger option: Through-hole (open/close dir.) | Stroke (both sides): 10 mm | Gripping force per finger: 36.0 N internal
JMHZ2-20DBore: 20 mm | Action: Double acting | Finger option: Basic | Stroke (both sides): 14 mm | Gripping force per finger: 54.2 N ext / 72.2 N int
JMHZ2-20D1Bore: 20 mm | Action: Double acting | Finger option: Side tapped | Stroke (both sides): 14 mm | Gripping force per finger: 54.2 N ext / 72.2 N int
JMHZ2-20D2Bore: 20 mm | Action: Double acting | Finger option: Through-hole (open/close dir.) | Stroke (both sides): 14 mm | Gripping force per finger: 54.2 N ext / 72.2 N int
JMHZ2-20SBore: 20 mm | Action: Single acting, normally open | Finger option: Basic | Stroke (both sides): 14 mm | Gripping force per finger: 38.3 N external
JMHZ2-20S1Bore: 20 mm | Action: Single acting, normally open | Finger option: Side tapped | Stroke (both sides): 14 mm | Gripping force per finger: 38.3 N external
JMHZ2-20S2Bore: 20 mm | Action: Single acting, normally open | Finger option: Through-hole (open/close dir.) | Stroke (both sides): 14 mm | Gripping force per finger: 38.3 N external
JMHZ2-20CBore: 20 mm | Action: Single acting, normally closed | Finger option: Basic | Stroke (both sides): 14 mm | Gripping force per finger: 57.4 N internal
JMHZ2-20C1Bore: 20 mm | Action: Single acting, normally closed | Finger option: Side tapped | Stroke (both sides): 14 mm | Gripping force per finger: 57.4 N internal
JMHZ2-20C2Bore: 20 mm | Action: Single acting, normally closed | Finger option: Through-hole (open/close dir.) | Stroke (both sides): 14 mm | Gripping force per finger: 57.4 N internal
