SMC JSB Angle Seat Valve (Air Operated, 3/8" to 2-1/2")

SMC JSB Angle Seat Valve (Air Operated, 3/8" to 2-1/2")

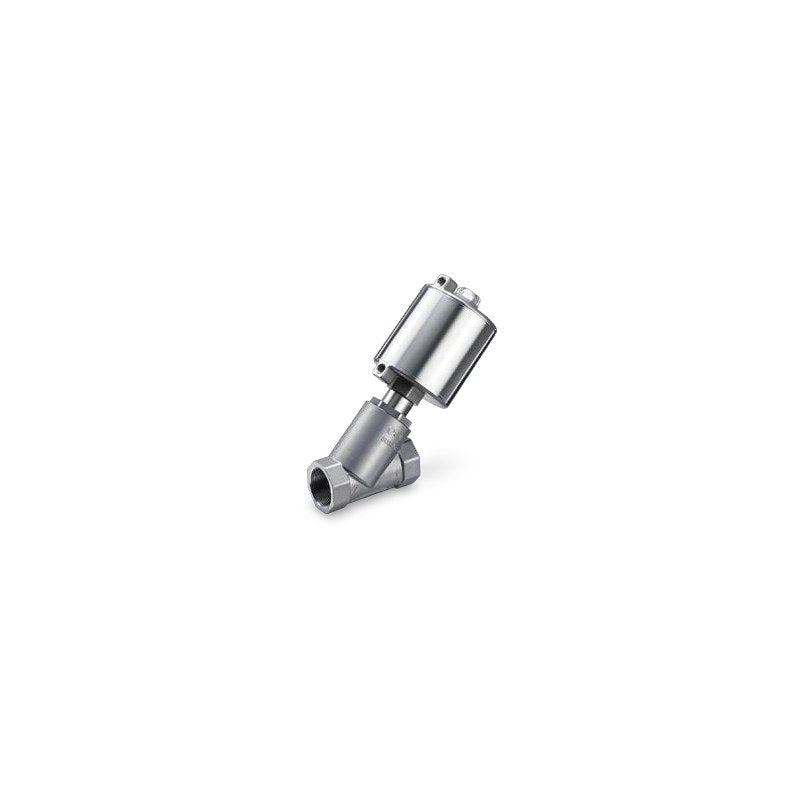

SMC JSB series air-operated angle seat valve with stainless steel body and fluororesin seal for air, water and steam, in threaded, butt-weld and clamp body types.

Key features

  • Angle seat construction for low pressure loss and high flow (approx. 2.5x Cv vs. globe type VNB at 1")
  • Long life: 10 million cycles on air/water, 3 million on steam (JSB21, SMC test conditions)
  • Visual open/close indicator; replaceable head, shaft seal and valve body assemblies
  • Valve types: N.C. standard / low pilot / high pressure, N.O. and double acting (high pressure)
  • Body connection: Rc thread 3/8" to 2", butt weld and clamp ends (DIN and ASME BPE)
  • NPT (N) and G (F) main/pilot port threads available on order; listed codes use Rc

Specifications

Valve structure Air-operated piston type, angle seat
Body material Stainless steel (SUS316L equivalent)
Seal material Fluororesin (T)
Head material Stainless steel (S)
Fluid Air, water, steam
Proof pressure 2.4 MPa
Max. operating pressure Standard 1.0 MPa, low pilot 0.5 MPa, high pressure 1.6 MPa (steam 1.0)
Fluid temperature Water/air 99°C max.; steam 183°C max. (low pilot type 158°C)
Ambient temperature 0 to 60°C (no freezing)
Internal leakage Steam/air 10 cm³/min max., water 1 cm³/min max.
Flow (Cv) 5.0 (3/8") to 87.5 (2")
Source SMC Korea catalog CAT.KS70-62B (SMCKR_JSB.pdf), p. 3-4, 9-10, 15-1
JSB11-ST10AR-2S Valve size: 10 | Valve type: N.C., standard pressure | Connection: Thread (Rc) | Port size: Rc3/8 (10A) | Actuator head: ø40
JSB21-ST15AR-2S Valve size: 20 | Valve type: N.C., standard pressure | Connection: Thread (Rc) | Port size: Rc1/2 (15A) | Actuator head: ø40
JSB31-ST20AR-3S Valve size: 30 | Valve type: N.C., standard pressure | Connection: Thread (Rc) | Port size: Rc3/4 (20A) | Actuator head: ø50
JSB41-ST25AR-4S Valve size: 40 | Valve type: N.C., standard pressure | Connection: Thread (Rc) | Port size: Rc1 (25A) | Actuator head: ø63
JSB51-ST32AR-5S Valve size: 50 | Valve type: N.C., standard pressure | Connection: Thread (Rc) | Port size: Rc1-1/4 (32A) | Actuator head: ø80
JSB61-ST40AR-6S Valve size: 60 | Valve type: N.C., standard pressure | Connection: Thread (Rc) | Port size: Rc1-1/2 (40A) | Actuator head: ø100
JSB71-ST50AR-7S Valve size: 70 | Valve type: N.C., standard pressure | Connection: Thread (Rc) | Port size: Rc2 (50A) | Actuator head: ø125
JSB11L-ST10AR-2S Valve size: 10 | Valve type: N.C., low pilot pressure | Connection: Thread (Rc) | Port size: Rc3/8 (10A) | Actuator head: ø40
JSB21L-ST15AR-2S Valve size: 20 | Valve type: N.C., low pilot pressure | Connection: Thread (Rc) | Port size: Rc1/2 (15A) | Actuator head: ø40
JSB31L-ST20AR-3S Valve size: 30 | Valve type: N.C., low pilot pressure | Connection: Thread (Rc) | Port size: Rc3/4 (20A) | Actuator head: ø50
JSB41L-ST25AR-4S Valve size: 40 | Valve type: N.C., low pilot pressure | Connection: Thread (Rc) | Port size: Rc1 (25A) | Actuator head: ø63
JSB51L-ST32AR-5S Valve size: 50 | Valve type: N.C., low pilot pressure | Connection: Thread (Rc) | Port size: Rc1-1/4 (32A) | Actuator head: ø80
JSB61L-ST40AR-6S Valve size: 60 | Valve type: N.C., low pilot pressure | Connection: Thread (Rc) | Port size: Rc1-1/2 (40A) | Actuator head: ø100
JSB71L-ST50AR-7S Valve size: 70 | Valve type: N.C., low pilot pressure | Connection: Thread (Rc) | Port size: Rc2 (50A) | Actuator head: ø125
JSB11H-ST10AR-2S Valve size: 10 | Valve type: N.C., high pressure | Connection: Thread (Rc) | Port size: Rc3/8 (10A) | Actuator head: ø40
JSB21H-ST15AR-3S Valve size: 20 | Valve type: N.C., high pressure | Connection: Thread (Rc) | Port size: Rc1/2 (15A) | Actuator head: ø50
JSB31H-ST20AR-4S Valve size: 30 | Valve type: N.C., high pressure | Connection: Thread (Rc) | Port size: Rc3/4 (20A) | Actuator head: ø63
JSB41H-ST25AR-5S Valve size: 40 | Valve type: N.C., high pressure | Connection: Thread (Rc) | Port size: Rc1 (25A) | Actuator head: ø80
JSB51H-ST32AR-6S Valve size: 50 | Valve type: N.C., high pressure | Connection: Thread (Rc) | Port size: Rc1-1/4 (32A) | Actuator head: ø100
JSB61H-ST40AR-7S Valve size: 60 | Valve type: N.C., high pressure | Connection: Thread (Rc) | Port size: Rc1-1/2 (40A) | Actuator head: ø125
JSB12-ST10AR-2S Valve size: 10 | Valve type: N.O., high pressure | Connection: Thread (Rc) | Port size: Rc3/8 (10A) | Actuator head: ø40
JSB22-ST15AR-2S Valve size: 20 | Valve type: N.O., high pressure | Connection: Thread (Rc) | Port size: Rc1/2 (15A) | Actuator head: ø40
JSB32-ST20AR-2S Valve size: 30 | Valve type: N.O., high pressure | Connection: Thread (Rc) | Port size: Rc3/4 (20A) | Actuator head: ø40
JSB42-ST25AR-3S Valve size: 40 | Valve type: N.O., high pressure | Connection: Thread (Rc) | Port size: Rc1 (25A) | Actuator head: ø50
JSB52-ST32AR-4S Valve size: 50 | Valve type: N.O., high pressure | Connection: Thread (Rc) | Port size: Rc1-1/4 (32A) | Actuator head: ø63
JSB62-ST40AR-5S Valve size: 60 | Valve type: N.O., high pressure | Connection: Thread (Rc) | Port size: Rc1-1/2 (40A) | Actuator head: ø80
JSB72-ST50AR-6S Valve size: 70 | Valve type: N.O., high pressure | Connection: Thread (Rc) | Port size: Rc2 (50A) | Actuator head: ø100
JSB14-ST10AR-2S Valve size: 10 | Valve type: Double acting, high pressure | Connection: Thread (Rc) | Port size: Rc3/8 (10A) | Actuator head: ø40
JSB24-ST15AR-2S Valve size: 20 | Valve type: Double acting, high pressure | Connection: Thread (Rc) | Port size: Rc1/2 (15A) | Actuator head: ø40
JSB34-ST20AR-2S Valve size: 30 | Valve type: Double acting, high pressure | Connection: Thread (Rc) | Port size: Rc3/4 (20A) | Actuator head: ø40
JSB44-ST25AR-3S Valve size: 40 | Valve type: Double acting, high pressure | Connection: Thread (Rc) | Port size: Rc1 (25A) | Actuator head: ø50
JSB54-ST32AR-4S Valve size: 50 | Valve type: Double acting, high pressure | Connection: Thread (Rc) | Port size: Rc1-1/4 (32A) | Actuator head: ø63
JSB64-ST40AR-5S Valve size: 60 | Valve type: Double acting, high pressure | Connection: Thread (Rc) | Port size: Rc1-1/2 (40A) | Actuator head: ø80
JSB74-ST50AR-6S Valve size: 70 | Valve type: Double acting, high pressure | Connection: Thread (Rc) | Port size: Rc2 (50A) | Actuator head: ø100
JSB11-ST10B1-2SR Valve size: 10 | Valve type: N.C., standard pressure | Connection: Butt weld, DIN EN ISO 1127 | Port size: DN10 | Actuator head: ø40
JSB21-ST15B1-2SR Valve size: 20 | Valve type: N.C., standard pressure | Connection: Butt weld, DIN EN ISO 1127 | Port size: DN15 | Actuator head: ø40
JSB31-ST20B1-3SR Valve size: 30 | Valve type: N.C., standard pressure | Connection: Butt weld, DIN EN ISO 1127 | Port size: DN20 | Actuator head: ø50
JSB41-ST25B1-4SR Valve size: 40 | Valve type: N.C., standard pressure | Connection: Butt weld, DIN EN ISO 1127 | Port size: DN25 | Actuator head: ø63
JSB51-ST32B1-5SR Valve size: 50 | Valve type: N.C., standard pressure | Connection: Butt weld, DIN EN ISO 1127 | Port size: DN32 | Actuator head: ø80
JSB61-ST40B1-6SR Valve size: 60 | Valve type: N.C., standard pressure | Connection: Butt weld, DIN EN ISO 1127 | Port size: DN40 | Actuator head: ø100
JSB71-ST50B1-7SR Valve size: 70 | Valve type: N.C., standard pressure | Connection: Butt weld, DIN EN ISO 1127 | Port size: DN50 | Actuator head: ø125
JSB11L-ST10B1-2SR Valve size: 10 | Valve type: N.C., low pilot pressure | Connection: Butt weld, DIN EN ISO 1127 | Port size: DN10 | Actuator head: ø40
JSB21L-ST15B1-2SR Valve size: 20 | Valve type: N.C., low pilot pressure | Connection: Butt weld, DIN EN ISO 1127 | Port size: DN15 | Actuator head: ø40
JSB31L-ST20B1-3SR Valve size: 30 | Valve type: N.C., low pilot pressure | Connection: Butt weld, DIN EN ISO 1127 | Port size: DN20 | Actuator head: ø50
JSB41L-ST25B1-4SR Valve size: 40 | Valve type: N.C., low pilot pressure | Connection: Butt weld, DIN EN ISO 1127 | Port size: DN25 | Actuator head: ø63
JSB51L-ST32B1-5SR Valve size: 50 | Valve type: N.C., low pilot pressure | Connection: Butt weld, DIN EN ISO 1127 | Port size: DN32 | Actuator head: ø80
JSB61L-ST40B1-6SR Valve size: 60 | Valve type: N.C., low pilot pressure | Connection: Butt weld, DIN EN ISO 1127 | Port size: DN40 | Actuator head: ø100
JSB71L-ST50B1-7SR Valve size: 70 | Valve type: N.C., low pilot pressure | Connection: Butt weld, DIN EN ISO 1127 | Port size: DN50 | Actuator head: ø125
JSB11H-ST10B1-2SR Valve size: 10 | Valve type: N.C., high pressure | Connection: Butt weld, DIN EN ISO 1127 | Port size: DN10 | Actuator head: ø40
JSB21H-ST15B1-3SR Valve size: 20 | Valve type: N.C., high pressure | Connection: Butt weld, DIN EN ISO 1127 | Port size: DN15 | Actuator head: ø50
JSB31H-ST20B1-4SR Valve size: 30 | Valve type: N.C., high pressure | Connection: Butt weld, DIN EN ISO 1127 | Port size: DN20 | Actuator head: ø63
JSB41H-ST25B1-5SR Valve size: 40 | Valve type: N.C., high pressure | Connection: Butt weld, DIN EN ISO 1127 | Port size: DN25 | Actuator head: ø80
JSB51H-ST32B1-6SR Valve size: 50 | Valve type: N.C., high pressure | Connection: Butt weld, DIN EN ISO 1127 | Port size: DN32 | Actuator head: ø100
JSB61H-ST40B1-7SR Valve size: 60 | Valve type: N.C., high pressure | Connection: Butt weld, DIN EN ISO 1127 | Port size: DN40 | Actuator head: ø125
JSB12-ST10B1-2SR Valve size: 10 | Valve type: N.O., high pressure | Connection: Butt weld, DIN EN ISO 1127 | Port size: DN10 | Actuator head: ø40
JSB22-ST15B1-2SR Valve size: 20 | Valve type: N.O., high pressure | Connection: Butt weld, DIN EN ISO 1127 | Port size: DN15 | Actuator head: ø40
JSB32-ST20B1-2SR Valve size: 30 | Valve type: N.O., high pressure | Connection: Butt weld, DIN EN ISO 1127 | Port size: DN20 | Actuator head: ø40
JSB42-ST25B1-3SR Valve size: 40 | Valve type: N.O., high pressure | Connection: Butt weld, DIN EN ISO 1127 | Port size: DN25 | Actuator head: ø50
JSB52-ST32B1-4SR Valve size: 50 | Valve type: N.O., high pressure | Connection: Butt weld, DIN EN ISO 1127 | Port size: DN32 | Actuator head: ø63
JSB62-ST40B1-5SR Valve size: 60 | Valve type: N.O., high pressure | Connection: Butt weld, DIN EN ISO 1127 | Port size: DN40 | Actuator head: ø80
JSB72-ST50B1-6SR Valve size: 70 | Valve type: N.O., high pressure | Connection: Butt weld, DIN EN ISO 1127 | Port size: DN50 | Actuator head: ø100
JSB14-ST10B1-2SR Valve size: 10 | Valve type: Double acting, high pressure | Connection: Butt weld, DIN EN ISO 1127 | Port size: DN10 | Actuator head: ø40
JSB24-ST15B1-2SR Valve size: 20 | Valve type: Double acting, high pressure | Connection: Butt weld, DIN EN ISO 1127 | Port size: DN15 | Actuator head: ø40
JSB34-ST20B1-2SR Valve size: 30 | Valve type: Double acting, high pressure | Connection: Butt weld, DIN EN ISO 1127 | Port size: DN20 | Actuator head: ø40
JSB44-ST25B1-3SR Valve size: 40 | Valve type: Double acting, high pressure | Connection: Butt weld, DIN EN ISO 1127 | Port size: DN25 | Actuator head: ø50
JSB54-ST32B1-4SR Valve size: 50 | Valve type: Double acting, high pressure | Connection: Butt weld, DIN EN ISO 1127 | Port size: DN32 | Actuator head: ø63
JSB64-ST40B1-5SR Valve size: 60 | Valve type: Double acting, high pressure | Connection: Butt weld, DIN EN ISO 1127 | Port size: DN40 | Actuator head: ø80
JSB74-ST50B1-6SR Valve size: 70 | Valve type: Double acting, high pressure | Connection: Butt weld, DIN EN ISO 1127 | Port size: DN50 | Actuator head: ø100
JSB11-ST10C1-2SR Valve size: 10 | Valve type: N.C., standard pressure | Connection: Clamp, DIN 32676 | Port size: DN10 | Actuator head: ø40
JSB21-ST15C1-2SR Valve size: 20 | Valve type: N.C., standard pressure | Connection: Clamp, DIN 32676 | Port size: DN15 | Actuator head: ø40
JSB31-ST20C1-3SR Valve size: 30 | Valve type: N.C., standard pressure | Connection: Clamp, DIN 32676 | Port size: DN20 | Actuator head: ø50
JSB41-ST25C1-4SR Valve size: 40 | Valve type: N.C., standard pressure | Connection: Clamp, DIN 32676 | Port size: DN25 | Actuator head: ø63
JSB51-ST32C1-5SR Valve size: 50 | Valve type: N.C., standard pressure | Connection: Clamp, DIN 32676 | Port size: DN32 | Actuator head: ø80
JSB61-ST40C1-6SR Valve size: 60 | Valve type: N.C., standard pressure | Connection: Clamp, DIN 32676 | Port size: DN40 | Actuator head: ø100
JSB71-ST50C1-7SR Valve size: 70 | Valve type: N.C., standard pressure | Connection: Clamp, DIN 32676 | Port size: DN50 | Actuator head: ø125
JSB11L-ST10C1-2SR Valve size: 10 | Valve type: N.C., low pilot pressure | Connection: Clamp, DIN 32676 | Port size: DN10 | Actuator head: ø40
JSB21L-ST15C1-2SR Valve size: 20 | Valve type: N.C., low pilot pressure | Connection: Clamp, DIN 32676 | Port size: DN15 | Actuator head: ø40
JSB31L-ST20C1-3SR Valve size: 30 | Valve type: N.C., low pilot pressure | Connection: Clamp, DIN 32676 | Port size: DN20 | Actuator head: ø50
JSB41L-ST25C1-4SR Valve size: 40 | Valve type: N.C., low pilot pressure | Connection: Clamp, DIN 32676 | Port size: DN25 | Actuator head: ø63
JSB51L-ST32C1-5SR Valve size: 50 | Valve type: N.C., low pilot pressure | Connection: Clamp, DIN 32676 | Port size: DN32 | Actuator head: ø80
JSB61L-ST40C1-6SR Valve size: 60 | Valve type: N.C., low pilot pressure | Connection: Clamp, DIN 32676 | Port size: DN40 | Actuator head: ø100
JSB71L-ST50C1-7SR Valve size: 70 | Valve type: N.C., low pilot pressure | Connection: Clamp, DIN 32676 | Port size: DN50 | Actuator head: ø125
JSB11H-ST10C1-2SR Valve size: 10 | Valve type: N.C., high pressure | Connection: Clamp, DIN 32676 | Port size: DN10 | Actuator head: ø40
JSB21H-ST15C1-3SR Valve size: 20 | Valve type: N.C., high pressure | Connection: Clamp, DIN 32676 | Port size: DN15 | Actuator head: ø50
JSB31H-ST20C1-4SR Valve size: 30 | Valve type: N.C., high pressure | Connection: Clamp, DIN 32676 | Port size: DN20 | Actuator head: ø63
JSB41H-ST25C1-5SR Valve size: 40 | Valve type: N.C., high pressure | Connection: Clamp, DIN 32676 | Port size: DN25 | Actuator head: ø80
JSB51H-ST32C1-6SR Valve size: 50 | Valve type: N.C., high pressure | Connection: Clamp, DIN 32676 | Port size: DN32 | Actuator head: ø100
JSB61H-ST40C1-7SR Valve size: 60 | Valve type: N.C., high pressure | Connection: Clamp, DIN 32676 | Port size: DN40 | Actuator head: ø125
JSB12-ST10C1-2SR Valve size: 10 | Valve type: N.O., high pressure | Connection: Clamp, DIN 32676 | Port size: DN10 | Actuator head: ø40
JSB22-ST15C1-2SR Valve size: 20 | Valve type: N.O., high pressure | Connection: Clamp, DIN 32676 | Port size: DN15 | Actuator head: ø40
JSB32-ST20C1-2SR Valve size: 30 | Valve type: N.O., high pressure | Connection: Clamp, DIN 32676 | Port size: DN20 | Actuator head: ø40
JSB42-ST25C1-3SR Valve size: 40 | Valve type: N.O., high pressure | Connection: Clamp, DIN 32676 | Port size: DN25 | Actuator head: ø50
JSB52-ST32C1-4SR Valve size: 50 | Valve type: N.O., high pressure | Connection: Clamp, DIN 32676 | Port size: DN32 | Actuator head: ø63
JSB62-ST40C1-5SR Valve size: 60 | Valve type: N.O., high pressure | Connection: Clamp, DIN 32676 | Port size: DN40 | Actuator head: ø80
JSB72-ST50C1-6SR Valve size: 70 | Valve type: N.O., high pressure | Connection: Clamp, DIN 32676 | Port size: DN50 | Actuator head: ø100
JSB14-ST10C1-2SR Valve size: 10 | Valve type: Double acting, high pressure | Connection: Clamp, DIN 32676 | Port size: DN10 | Actuator head: ø40
JSB24-ST15C1-2SR Valve size: 20 | Valve type: Double acting, high pressure | Connection: Clamp, DIN 32676 | Port size: DN15 | Actuator head: ø40
JSB34-ST20C1-2SR Valve size: 30 | Valve type: Double acting, high pressure | Connection: Clamp, DIN 32676 | Port size: DN20 | Actuator head: ø40
JSB44-ST25C1-3SR Valve size: 40 | Valve type: Double acting, high pressure | Connection: Clamp, DIN 32676 | Port size: DN25 | Actuator head: ø50
JSB54-ST32C1-4SR Valve size: 50 | Valve type: Double acting, high pressure | Connection: Clamp, DIN 32676 | Port size: DN32 | Actuator head: ø63
JSB64-ST40C1-5SR Valve size: 60 | Valve type: Double acting, high pressure | Connection: Clamp, DIN 32676 | Port size: DN40 | Actuator head: ø80
JSB74-ST50C1-6SR Valve size: 70 | Valve type: Double acting, high pressure | Connection: Clamp, DIN 32676 | Port size: DN50 | Actuator head: ø100
JSB11-ST15B2-2SR Valve size: 10 | Valve type: N.C., standard pressure | Connection: Butt weld, ASME BPE | Port size: 1/2" | Actuator head: ø40
JSB21-ST20B2-2SR Valve size: 20 | Valve type: N.C., standard pressure | Connection: Butt weld, ASME BPE | Port size: 3/4" | Actuator head: ø40
JSB31-ST25B2-3SR Valve size: 30 | Valve type: N.C., standard pressure | Connection: Butt weld, ASME BPE | Port size: 1" | Actuator head: ø50
JSB51-ST40B2-5SR Valve size: 50 | Valve type: N.C., standard pressure | Connection: Butt weld, ASME BPE | Port size: 1-1/2" | Actuator head: ø80
JSB61-ST50B2-6SR Valve size: 60 | Valve type: N.C., standard pressure | Connection: Butt weld, ASME BPE | Port size: 2" | Actuator head: ø100
JSB71-ST65B2-7SR Valve size: 70 | Valve type: N.C., standard pressure | Connection: Butt weld, ASME BPE | Port size: 2-1/2" | Actuator head: ø125
JSB11L-ST15B2-2SR Valve size: 10 | Valve type: N.C., low pilot pressure | Connection: Butt weld, ASME BPE | Port size: 1/2" | Actuator head: ø40
JSB21L-ST20B2-2SR Valve size: 20 | Valve type: N.C., low pilot pressure | Connection: Butt weld, ASME BPE | Port size: 3/4" | Actuator head: ø40
JSB31L-ST25B2-3SR Valve size: 30 | Valve type: N.C., low pilot pressure | Connection: Butt weld, ASME BPE | Port size: 1" | Actuator head: ø50
JSB51L-ST40B2-5SR Valve size: 50 | Valve type: N.C., low pilot pressure | Connection: Butt weld, ASME BPE | Port size: 1-1/2" | Actuator head: ø80
JSB61L-ST50B2-6SR Valve size: 60 | Valve type: N.C., low pilot pressure | Connection: Butt weld, ASME BPE | Port size: 2" | Actuator head: ø100
JSB71L-ST65B2-7SR Valve size: 70 | Valve type: N.C., low pilot pressure | Connection: Butt weld, ASME BPE | Port size: 2-1/2" | Actuator head: ø125
JSB11H-ST15B2-2SR Valve size: 10 | Valve type: N.C., high pressure | Connection: Butt weld, ASME BPE | Port size: 1/2" | Actuator head: ø40
JSB21H-ST20B2-3SR Valve size: 20 | Valve type: N.C., high pressure | Connection: Butt weld, ASME BPE | Port size: 3/4" | Actuator head: ø50
JSB31H-ST25B2-4SR Valve size: 30 | Valve type: N.C., high pressure | Connection: Butt weld, ASME BPE | Port size: 1" | Actuator head: ø63
JSB51H-ST40B2-6SR Valve size: 50 | Valve type: N.C., high pressure | Connection: Butt weld, ASME BPE | Port size: 1-1/2" | Actuator head: ø100
JSB61H-ST50B2-7SR Valve size: 60 | Valve type: N.C., high pressure | Connection: Butt weld, ASME BPE | Port size: 2" | Actuator head: ø125
JSB12-ST15B2-2SR Valve size: 10 | Valve type: N.O., high pressure | Connection: Butt weld, ASME BPE | Port size: 1/2" | Actuator head: ø40
JSB22-ST20B2-2SR Valve size: 20 | Valve type: N.O., high pressure | Connection: Butt weld, ASME BPE | Port size: 3/4" | Actuator head: ø40
JSB32-ST25B2-2SR Valve size: 30 | Valve type: N.O., high pressure | Connection: Butt weld, ASME BPE | Port size: 1" | Actuator head: ø40
JSB52-ST40B2-4SR Valve size: 50 | Valve type: N.O., high pressure | Connection: Butt weld, ASME BPE | Port size: 1-1/2" | Actuator head: ø63
JSB62-ST50B2-5SR Valve size: 60 | Valve type: N.O., high pressure | Connection: Butt weld, ASME BPE | Port size: 2" | Actuator head: ø80
JSB72-ST65B2-6SR Valve size: 70 | Valve type: N.O., high pressure | Connection: Butt weld, ASME BPE | Port size: 2-1/2" | Actuator head: ø100
JSB14-ST15B2-2SR Valve size: 10 | Valve type: Double acting, high pressure | Connection: Butt weld, ASME BPE | Port size: 1/2" | Actuator head: ø40
JSB24-ST20B2-2SR Valve size: 20 | Valve type: Double acting, high pressure | Connection: Butt weld, ASME BPE | Port size: 3/4" | Actuator head: ø40
JSB34-ST25B2-2SR Valve size: 30 | Valve type: Double acting, high pressure | Connection: Butt weld, ASME BPE | Port size: 1" | Actuator head: ø40
JSB54-ST40B2-4SR Valve size: 50 | Valve type: Double acting, high pressure | Connection: Butt weld, ASME BPE | Port size: 1-1/2" | Actuator head: ø63
JSB64-ST50B2-5SR Valve size: 60 | Valve type: Double acting, high pressure | Connection: Butt weld, ASME BPE | Port size: 2" | Actuator head: ø80
JSB74-ST65B2-6SR Valve size: 70 | Valve type: Double acting, high pressure | Connection: Butt weld, ASME BPE | Port size: 2-1/2" | Actuator head: ø100
JSB11-ST15C2-2SR Valve size: 10 | Valve type: N.C., standard pressure | Connection: Clamp, ASME BPE | Port size: 1/2" | Actuator head: ø40
JSB21-ST20C2-2SR Valve size: 20 | Valve type: N.C., standard pressure | Connection: Clamp, ASME BPE | Port size: 3/4" | Actuator head: ø40
JSB31-ST25C2-3SR Valve size: 30 | Valve type: N.C., standard pressure | Connection: Clamp, ASME BPE | Port size: 1" | Actuator head: ø50
JSB51-ST40C2-5SR Valve size: 50 | Valve type: N.C., standard pressure | Connection: Clamp, ASME BPE | Port size: 1-1/2" | Actuator head: ø80
JSB61-ST50C2-6SR Valve size: 60 | Valve type: N.C., standard pressure | Connection: Clamp, ASME BPE | Port size: 2" | Actuator head: ø100
JSB11L-ST15C2-2SR Valve size: 10 | Valve type: N.C., low pilot pressure | Connection: Clamp, ASME BPE | Port size: 1/2" | Actuator head: ø40
JSB21L-ST20C2-2SR Valve size: 20 | Valve type: N.C., low pilot pressure | Connection: Clamp, ASME BPE | Port size: 3/4" | Actuator head: ø40
JSB31L-ST25C2-3SR Valve size: 30 | Valve type: N.C., low pilot pressure | Connection: Clamp, ASME BPE | Port size: 1" | Actuator head: ø50
JSB51L-ST40C2-5SR Valve size: 50 | Valve type: N.C., low pilot pressure | Connection: Clamp, ASME BPE | Port size: 1-1/2" | Actuator head: ø80
JSB61L-ST50C2-6SR Valve size: 60 | Valve type: N.C., low pilot pressure | Connection: Clamp, ASME BPE | Port size: 2" | Actuator head: ø100
JSB11H-ST15C2-2SR Valve size: 10 | Valve type: N.C., high pressure | Connection: Clamp, ASME BPE | Port size: 1/2" | Actuator head: ø40
JSB21H-ST20C2-3SR Valve size: 20 | Valve type: N.C., high pressure | Connection: Clamp, ASME BPE | Port size: 3/4" | Actuator head: ø50
JSB31H-ST25C2-4SR Valve size: 30 | Valve type: N.C., high pressure | Connection: Clamp, ASME BPE | Port size: 1" | Actuator head: ø63
JSB51H-ST40C2-6SR Valve size: 50 | Valve type: N.C., high pressure | Connection: Clamp, ASME BPE | Port size: 1-1/2" | Actuator head: ø100
JSB61H-ST50C2-7SR Valve size: 60 | Valve type: N.C., high pressure | Connection: Clamp, ASME BPE | Port size: 2" | Actuator head: ø125
JSB12-ST15C2-2SR Valve size: 10 | Valve type: N.O., high pressure | Connection: Clamp, ASME BPE | Port size: 1/2" | Actuator head: ø40
JSB22-ST20C2-2SR Valve size: 20 | Valve type: N.O., high pressure | Connection: Clamp, ASME BPE | Port size: 3/4" | Actuator head: ø40
JSB32-ST25C2-2SR Valve size: 30 | Valve type: N.O., high pressure | Connection: Clamp, ASME BPE | Port size: 1" | Actuator head: ø40
JSB52-ST40C2-4SR Valve size: 50 | Valve type: N.O., high pressure | Connection: Clamp, ASME BPE | Port size: 1-1/2" | Actuator head: ø63
JSB62-ST50C2-5SR Valve size: 60 | Valve type: N.O., high pressure | Connection: Clamp, ASME BPE | Port size: 2" | Actuator head: ø80
JSB14-ST15C2-2SR Valve size: 10 | Valve type: Double acting, high pressure | Connection: Clamp, ASME BPE | Port size: 1/2" | Actuator head: ø40
JSB24-ST20C2-2SR Valve size: 20 | Valve type: Double acting, high pressure | Connection: Clamp, ASME BPE | Port size: 3/4" | Actuator head: ø40
JSB34-ST25C2-2SR Valve size: 30 | Valve type: Double acting, high pressure | Connection: Clamp, ASME BPE | Port size: 1" | Actuator head: ø40
JSB54-ST40C2-4SR Valve size: 50 | Valve type: Double acting, high pressure | Connection: Clamp, ASME BPE | Port size: 1-1/2" | Actuator head: ø63
JSB64-ST50C2-5SR Valve size: 60 | Valve type: Double acting, high pressure | Connection: Clamp, ASME BPE | Port size: 2" | Actuator head: ø80
2-Port ValvesSMC
156 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC JSB Angle Seat Valve (Air Operated, 3/8" to 2-1/2")

Brand SMC·2-Port Valves

Available part numbers (156)

JSB11-ST10AR-2S, JSB21-ST15AR-2S, JSB31-ST20AR-3S, JSB41-ST25AR-4S, JSB51-ST32AR-5S, JSB61-ST40AR-6S, JSB71-ST50AR-7S, JSB11L-ST10AR-2S, JSB21L-ST15AR-2S, JSB31L-ST20AR-3S + 146 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
JSB11-ST10AR-2SValve size: 10 | Valve type: N.C., standard pressure | Connection: Thread (Rc) | Port size: Rc3/8 (10A) | Actuator head: ø40
JSB21-ST15AR-2SValve size: 20 | Valve type: N.C., standard pressure | Connection: Thread (Rc) | Port size: Rc1/2 (15A) | Actuator head: ø40
JSB31-ST20AR-3SValve size: 30 | Valve type: N.C., standard pressure | Connection: Thread (Rc) | Port size: Rc3/4 (20A) | Actuator head: ø50
JSB41-ST25AR-4SValve size: 40 | Valve type: N.C., standard pressure | Connection: Thread (Rc) | Port size: Rc1 (25A) | Actuator head: ø63
JSB51-ST32AR-5SValve size: 50 | Valve type: N.C., standard pressure | Connection: Thread (Rc) | Port size: Rc1-1/4 (32A) | Actuator head: ø80
JSB61-ST40AR-6SValve size: 60 | Valve type: N.C., standard pressure | Connection: Thread (Rc) | Port size: Rc1-1/2 (40A) | Actuator head: ø100
JSB71-ST50AR-7SValve size: 70 | Valve type: N.C., standard pressure | Connection: Thread (Rc) | Port size: Rc2 (50A) | Actuator head: ø125
JSB11L-ST10AR-2SValve size: 10 | Valve type: N.C., low pilot pressure | Connection: Thread (Rc) | Port size: Rc3/8 (10A) | Actuator head: ø40
JSB21L-ST15AR-2SValve size: 20 | Valve type: N.C., low pilot pressure | Connection: Thread (Rc) | Port size: Rc1/2 (15A) | Actuator head: ø40
JSB31L-ST20AR-3SValve size: 30 | Valve type: N.C., low pilot pressure | Connection: Thread (Rc) | Port size: Rc3/4 (20A) | Actuator head: ø50
JSB41L-ST25AR-4SValve size: 40 | Valve type: N.C., low pilot pressure | Connection: Thread (Rc) | Port size: Rc1 (25A) | Actuator head: ø63
JSB51L-ST32AR-5SValve size: 50 | Valve type: N.C., low pilot pressure | Connection: Thread (Rc) | Port size: Rc1-1/4 (32A) | Actuator head: ø80
JSB61L-ST40AR-6SValve size: 60 | Valve type: N.C., low pilot pressure | Connection: Thread (Rc) | Port size: Rc1-1/2 (40A) | Actuator head: ø100
JSB71L-ST50AR-7SValve size: 70 | Valve type: N.C., low pilot pressure | Connection: Thread (Rc) | Port size: Rc2 (50A) | Actuator head: ø125
JSB11H-ST10AR-2SValve size: 10 | Valve type: N.C., high pressure | Connection: Thread (Rc) | Port size: Rc3/8 (10A) | Actuator head: ø40
JSB21H-ST15AR-3SValve size: 20 | Valve type: N.C., high pressure | Connection: Thread (Rc) | Port size: Rc1/2 (15A) | Actuator head: ø50
JSB31H-ST20AR-4SValve size: 30 | Valve type: N.C., high pressure | Connection: Thread (Rc) | Port size: Rc3/4 (20A) | Actuator head: ø63
JSB41H-ST25AR-5SValve size: 40 | Valve type: N.C., high pressure | Connection: Thread (Rc) | Port size: Rc1 (25A) | Actuator head: ø80
JSB51H-ST32AR-6SValve size: 50 | Valve type: N.C., high pressure | Connection: Thread (Rc) | Port size: Rc1-1/4 (32A) | Actuator head: ø100
JSB61H-ST40AR-7SValve size: 60 | Valve type: N.C., high pressure | Connection: Thread (Rc) | Port size: Rc1-1/2 (40A) | Actuator head: ø125
JSB12-ST10AR-2SValve size: 10 | Valve type: N.O., high pressure | Connection: Thread (Rc) | Port size: Rc3/8 (10A) | Actuator head: ø40
JSB22-ST15AR-2SValve size: 20 | Valve type: N.O., high pressure | Connection: Thread (Rc) | Port size: Rc1/2 (15A) | Actuator head: ø40
JSB32-ST20AR-2SValve size: 30 | Valve type: N.O., high pressure | Connection: Thread (Rc) | Port size: Rc3/4 (20A) | Actuator head: ø40
JSB42-ST25AR-3SValve size: 40 | Valve type: N.O., high pressure | Connection: Thread (Rc) | Port size: Rc1 (25A) | Actuator head: ø50
JSB52-ST32AR-4SValve size: 50 | Valve type: N.O., high pressure | Connection: Thread (Rc) | Port size: Rc1-1/4 (32A) | Actuator head: ø63
JSB62-ST40AR-5SValve size: 60 | Valve type: N.O., high pressure | Connection: Thread (Rc) | Port size: Rc1-1/2 (40A) | Actuator head: ø80
JSB72-ST50AR-6SValve size: 70 | Valve type: N.O., high pressure | Connection: Thread (Rc) | Port size: Rc2 (50A) | Actuator head: ø100
JSB14-ST10AR-2SValve size: 10 | Valve type: Double acting, high pressure | Connection: Thread (Rc) | Port size: Rc3/8 (10A) | Actuator head: ø40
JSB24-ST15AR-2SValve size: 20 | Valve type: Double acting, high pressure | Connection: Thread (Rc) | Port size: Rc1/2 (15A) | Actuator head: ø40
JSB34-ST20AR-2SValve size: 30 | Valve type: Double acting, high pressure | Connection: Thread (Rc) | Port size: Rc3/4 (20A) | Actuator head: ø40
JSB44-ST25AR-3SValve size: 40 | Valve type: Double acting, high pressure | Connection: Thread (Rc) | Port size: Rc1 (25A) | Actuator head: ø50
JSB54-ST32AR-4SValve size: 50 | Valve type: Double acting, high pressure | Connection: Thread (Rc) | Port size: Rc1-1/4 (32A) | Actuator head: ø63
JSB64-ST40AR-5SValve size: 60 | Valve type: Double acting, high pressure | Connection: Thread (Rc) | Port size: Rc1-1/2 (40A) | Actuator head: ø80
JSB74-ST50AR-6SValve size: 70 | Valve type: Double acting, high pressure | Connection: Thread (Rc) | Port size: Rc2 (50A) | Actuator head: ø100
JSB11-ST10B1-2SRValve size: 10 | Valve type: N.C., standard pressure | Connection: Butt weld, DIN EN ISO 1127 | Port size: DN10 | Actuator head: ø40
JSB21-ST15B1-2SRValve size: 20 | Valve type: N.C., standard pressure | Connection: Butt weld, DIN EN ISO 1127 | Port size: DN15 | Actuator head: ø40
JSB31-ST20B1-3SRValve size: 30 | Valve type: N.C., standard pressure | Connection: Butt weld, DIN EN ISO 1127 | Port size: DN20 | Actuator head: ø50
JSB41-ST25B1-4SRValve size: 40 | Valve type: N.C., standard pressure | Connection: Butt weld, DIN EN ISO 1127 | Port size: DN25 | Actuator head: ø63
JSB51-ST32B1-5SRValve size: 50 | Valve type: N.C., standard pressure | Connection: Butt weld, DIN EN ISO 1127 | Port size: DN32 | Actuator head: ø80
JSB61-ST40B1-6SRValve size: 60 | Valve type: N.C., standard pressure | Connection: Butt weld, DIN EN ISO 1127 | Port size: DN40 | Actuator head: ø100
JSB71-ST50B1-7SRValve size: 70 | Valve type: N.C., standard pressure | Connection: Butt weld, DIN EN ISO 1127 | Port size: DN50 | Actuator head: ø125
JSB11L-ST10B1-2SRValve size: 10 | Valve type: N.C., low pilot pressure | Connection: Butt weld, DIN EN ISO 1127 | Port size: DN10 | Actuator head: ø40
JSB21L-ST15B1-2SRValve size: 20 | Valve type: N.C., low pilot pressure | Connection: Butt weld, DIN EN ISO 1127 | Port size: DN15 | Actuator head: ø40
JSB31L-ST20B1-3SRValve size: 30 | Valve type: N.C., low pilot pressure | Connection: Butt weld, DIN EN ISO 1127 | Port size: DN20 | Actuator head: ø50
JSB41L-ST25B1-4SRValve size: 40 | Valve type: N.C., low pilot pressure | Connection: Butt weld, DIN EN ISO 1127 | Port size: DN25 | Actuator head: ø63
JSB51L-ST32B1-5SRValve size: 50 | Valve type: N.C., low pilot pressure | Connection: Butt weld, DIN EN ISO 1127 | Port size: DN32 | Actuator head: ø80
JSB61L-ST40B1-6SRValve size: 60 | Valve type: N.C., low pilot pressure | Connection: Butt weld, DIN EN ISO 1127 | Port size: DN40 | Actuator head: ø100
JSB71L-ST50B1-7SRValve size: 70 | Valve type: N.C., low pilot pressure | Connection: Butt weld, DIN EN ISO 1127 | Port size: DN50 | Actuator head: ø125
JSB11H-ST10B1-2SRValve size: 10 | Valve type: N.C., high pressure | Connection: Butt weld, DIN EN ISO 1127 | Port size: DN10 | Actuator head: ø40
JSB21H-ST15B1-3SRValve size: 20 | Valve type: N.C., high pressure | Connection: Butt weld, DIN EN ISO 1127 | Port size: DN15 | Actuator head: ø50
JSB31H-ST20B1-4SRValve size: 30 | Valve type: N.C., high pressure | Connection: Butt weld, DIN EN ISO 1127 | Port size: DN20 | Actuator head: ø63
JSB41H-ST25B1-5SRValve size: 40 | Valve type: N.C., high pressure | Connection: Butt weld, DIN EN ISO 1127 | Port size: DN25 | Actuator head: ø80
JSB51H-ST32B1-6SRValve size: 50 | Valve type: N.C., high pressure | Connection: Butt weld, DIN EN ISO 1127 | Port size: DN32 | Actuator head: ø100
JSB61H-ST40B1-7SRValve size: 60 | Valve type: N.C., high pressure | Connection: Butt weld, DIN EN ISO 1127 | Port size: DN40 | Actuator head: ø125
JSB12-ST10B1-2SRValve size: 10 | Valve type: N.O., high pressure | Connection: Butt weld, DIN EN ISO 1127 | Port size: DN10 | Actuator head: ø40
JSB22-ST15B1-2SRValve size: 20 | Valve type: N.O., high pressure | Connection: Butt weld, DIN EN ISO 1127 | Port size: DN15 | Actuator head: ø40
JSB32-ST20B1-2SRValve size: 30 | Valve type: N.O., high pressure | Connection: Butt weld, DIN EN ISO 1127 | Port size: DN20 | Actuator head: ø40
JSB42-ST25B1-3SRValve size: 40 | Valve type: N.O., high pressure | Connection: Butt weld, DIN EN ISO 1127 | Port size: DN25 | Actuator head: ø50
JSB52-ST32B1-4SRValve size: 50 | Valve type: N.O., high pressure | Connection: Butt weld, DIN EN ISO 1127 | Port size: DN32 | Actuator head: ø63
JSB62-ST40B1-5SRValve size: 60 | Valve type: N.O., high pressure | Connection: Butt weld, DIN EN ISO 1127 | Port size: DN40 | Actuator head: ø80
JSB72-ST50B1-6SRValve size: 70 | Valve type: N.O., high pressure | Connection: Butt weld, DIN EN ISO 1127 | Port size: DN50 | Actuator head: ø100
JSB14-ST10B1-2SRValve size: 10 | Valve type: Double acting, high pressure | Connection: Butt weld, DIN EN ISO 1127 | Port size: DN10 | Actuator head: ø40
JSB24-ST15B1-2SRValve size: 20 | Valve type: Double acting, high pressure | Connection: Butt weld, DIN EN ISO 1127 | Port size: DN15 | Actuator head: ø40
JSB34-ST20B1-2SRValve size: 30 | Valve type: Double acting, high pressure | Connection: Butt weld, DIN EN ISO 1127 | Port size: DN20 | Actuator head: ø40
JSB44-ST25B1-3SRValve size: 40 | Valve type: Double acting, high pressure | Connection: Butt weld, DIN EN ISO 1127 | Port size: DN25 | Actuator head: ø50
JSB54-ST32B1-4SRValve size: 50 | Valve type: Double acting, high pressure | Connection: Butt weld, DIN EN ISO 1127 | Port size: DN32 | Actuator head: ø63
JSB64-ST40B1-5SRValve size: 60 | Valve type: Double acting, high pressure | Connection: Butt weld, DIN EN ISO 1127 | Port size: DN40 | Actuator head: ø80
JSB74-ST50B1-6SRValve size: 70 | Valve type: Double acting, high pressure | Connection: Butt weld, DIN EN ISO 1127 | Port size: DN50 | Actuator head: ø100
JSB11-ST10C1-2SRValve size: 10 | Valve type: N.C., standard pressure | Connection: Clamp, DIN 32676 | Port size: DN10 | Actuator head: ø40
JSB21-ST15C1-2SRValve size: 20 | Valve type: N.C., standard pressure | Connection: Clamp, DIN 32676 | Port size: DN15 | Actuator head: ø40
JSB31-ST20C1-3SRValve size: 30 | Valve type: N.C., standard pressure | Connection: Clamp, DIN 32676 | Port size: DN20 | Actuator head: ø50
JSB41-ST25C1-4SRValve size: 40 | Valve type: N.C., standard pressure | Connection: Clamp, DIN 32676 | Port size: DN25 | Actuator head: ø63
JSB51-ST32C1-5SRValve size: 50 | Valve type: N.C., standard pressure | Connection: Clamp, DIN 32676 | Port size: DN32 | Actuator head: ø80
JSB61-ST40C1-6SRValve size: 60 | Valve type: N.C., standard pressure | Connection: Clamp, DIN 32676 | Port size: DN40 | Actuator head: ø100
JSB71-ST50C1-7SRValve size: 70 | Valve type: N.C., standard pressure | Connection: Clamp, DIN 32676 | Port size: DN50 | Actuator head: ø125
JSB11L-ST10C1-2SRValve size: 10 | Valve type: N.C., low pilot pressure | Connection: Clamp, DIN 32676 | Port size: DN10 | Actuator head: ø40
JSB21L-ST15C1-2SRValve size: 20 | Valve type: N.C., low pilot pressure | Connection: Clamp, DIN 32676 | Port size: DN15 | Actuator head: ø40
JSB31L-ST20C1-3SRValve size: 30 | Valve type: N.C., low pilot pressure | Connection: Clamp, DIN 32676 | Port size: DN20 | Actuator head: ø50
JSB41L-ST25C1-4SRValve size: 40 | Valve type: N.C., low pilot pressure | Connection: Clamp, DIN 32676 | Port size: DN25 | Actuator head: ø63
JSB51L-ST32C1-5SRValve size: 50 | Valve type: N.C., low pilot pressure | Connection: Clamp, DIN 32676 | Port size: DN32 | Actuator head: ø80
JSB61L-ST40C1-6SRValve size: 60 | Valve type: N.C., low pilot pressure | Connection: Clamp, DIN 32676 | Port size: DN40 | Actuator head: ø100
JSB71L-ST50C1-7SRValve size: 70 | Valve type: N.C., low pilot pressure | Connection: Clamp, DIN 32676 | Port size: DN50 | Actuator head: ø125
JSB11H-ST10C1-2SRValve size: 10 | Valve type: N.C., high pressure | Connection: Clamp, DIN 32676 | Port size: DN10 | Actuator head: ø40
JSB21H-ST15C1-3SRValve size: 20 | Valve type: N.C., high pressure | Connection: Clamp, DIN 32676 | Port size: DN15 | Actuator head: ø50
JSB31H-ST20C1-4SRValve size: 30 | Valve type: N.C., high pressure | Connection: Clamp, DIN 32676 | Port size: DN20 | Actuator head: ø63
JSB41H-ST25C1-5SRValve size: 40 | Valve type: N.C., high pressure | Connection: Clamp, DIN 32676 | Port size: DN25 | Actuator head: ø80
JSB51H-ST32C1-6SRValve size: 50 | Valve type: N.C., high pressure | Connection: Clamp, DIN 32676 | Port size: DN32 | Actuator head: ø100
JSB61H-ST40C1-7SRValve size: 60 | Valve type: N.C., high pressure | Connection: Clamp, DIN 32676 | Port size: DN40 | Actuator head: ø125
JSB12-ST10C1-2SRValve size: 10 | Valve type: N.O., high pressure | Connection: Clamp, DIN 32676 | Port size: DN10 | Actuator head: ø40
JSB22-ST15C1-2SRValve size: 20 | Valve type: N.O., high pressure | Connection: Clamp, DIN 32676 | Port size: DN15 | Actuator head: ø40
JSB32-ST20C1-2SRValve size: 30 | Valve type: N.O., high pressure | Connection: Clamp, DIN 32676 | Port size: DN20 | Actuator head: ø40
JSB42-ST25C1-3SRValve size: 40 | Valve type: N.O., high pressure | Connection: Clamp, DIN 32676 | Port size: DN25 | Actuator head: ø50
JSB52-ST32C1-4SRValve size: 50 | Valve type: N.O., high pressure | Connection: Clamp, DIN 32676 | Port size: DN32 | Actuator head: ø63
JSB62-ST40C1-5SRValve size: 60 | Valve type: N.O., high pressure | Connection: Clamp, DIN 32676 | Port size: DN40 | Actuator head: ø80
JSB72-ST50C1-6SRValve size: 70 | Valve type: N.O., high pressure | Connection: Clamp, DIN 32676 | Port size: DN50 | Actuator head: ø100
JSB14-ST10C1-2SRValve size: 10 | Valve type: Double acting, high pressure | Connection: Clamp, DIN 32676 | Port size: DN10 | Actuator head: ø40
JSB24-ST15C1-2SRValve size: 20 | Valve type: Double acting, high pressure | Connection: Clamp, DIN 32676 | Port size: DN15 | Actuator head: ø40
JSB34-ST20C1-2SRValve size: 30 | Valve type: Double acting, high pressure | Connection: Clamp, DIN 32676 | Port size: DN20 | Actuator head: ø40
JSB44-ST25C1-3SRValve size: 40 | Valve type: Double acting, high pressure | Connection: Clamp, DIN 32676 | Port size: DN25 | Actuator head: ø50
JSB54-ST32C1-4SRValve size: 50 | Valve type: Double acting, high pressure | Connection: Clamp, DIN 32676 | Port size: DN32 | Actuator head: ø63
JSB64-ST40C1-5SRValve size: 60 | Valve type: Double acting, high pressure | Connection: Clamp, DIN 32676 | Port size: DN40 | Actuator head: ø80
JSB74-ST50C1-6SRValve size: 70 | Valve type: Double acting, high pressure | Connection: Clamp, DIN 32676 | Port size: DN50 | Actuator head: ø100
JSB11-ST15B2-2SRValve size: 10 | Valve type: N.C., standard pressure | Connection: Butt weld, ASME BPE | Port size: 1/2" | Actuator head: ø40
JSB21-ST20B2-2SRValve size: 20 | Valve type: N.C., standard pressure | Connection: Butt weld, ASME BPE | Port size: 3/4" | Actuator head: ø40
JSB31-ST25B2-3SRValve size: 30 | Valve type: N.C., standard pressure | Connection: Butt weld, ASME BPE | Port size: 1" | Actuator head: ø50
JSB51-ST40B2-5SRValve size: 50 | Valve type: N.C., standard pressure | Connection: Butt weld, ASME BPE | Port size: 1-1/2" | Actuator head: ø80
JSB61-ST50B2-6SRValve size: 60 | Valve type: N.C., standard pressure | Connection: Butt weld, ASME BPE | Port size: 2" | Actuator head: ø100
JSB71-ST65B2-7SRValve size: 70 | Valve type: N.C., standard pressure | Connection: Butt weld, ASME BPE | Port size: 2-1/2" | Actuator head: ø125
JSB11L-ST15B2-2SRValve size: 10 | Valve type: N.C., low pilot pressure | Connection: Butt weld, ASME BPE | Port size: 1/2" | Actuator head: ø40
JSB21L-ST20B2-2SRValve size: 20 | Valve type: N.C., low pilot pressure | Connection: Butt weld, ASME BPE | Port size: 3/4" | Actuator head: ø40
JSB31L-ST25B2-3SRValve size: 30 | Valve type: N.C., low pilot pressure | Connection: Butt weld, ASME BPE | Port size: 1" | Actuator head: ø50
JSB51L-ST40B2-5SRValve size: 50 | Valve type: N.C., low pilot pressure | Connection: Butt weld, ASME BPE | Port size: 1-1/2" | Actuator head: ø80
JSB61L-ST50B2-6SRValve size: 60 | Valve type: N.C., low pilot pressure | Connection: Butt weld, ASME BPE | Port size: 2" | Actuator head: ø100
JSB71L-ST65B2-7SRValve size: 70 | Valve type: N.C., low pilot pressure | Connection: Butt weld, ASME BPE | Port size: 2-1/2" | Actuator head: ø125
JSB11H-ST15B2-2SRValve size: 10 | Valve type: N.C., high pressure | Connection: Butt weld, ASME BPE | Port size: 1/2" | Actuator head: ø40
JSB21H-ST20B2-3SRValve size: 20 | Valve type: N.C., high pressure | Connection: Butt weld, ASME BPE | Port size: 3/4" | Actuator head: ø50
JSB31H-ST25B2-4SRValve size: 30 | Valve type: N.C., high pressure | Connection: Butt weld, ASME BPE | Port size: 1" | Actuator head: ø63
JSB51H-ST40B2-6SRValve size: 50 | Valve type: N.C., high pressure | Connection: Butt weld, ASME BPE | Port size: 1-1/2" | Actuator head: ø100
JSB61H-ST50B2-7SRValve size: 60 | Valve type: N.C., high pressure | Connection: Butt weld, ASME BPE | Port size: 2" | Actuator head: ø125
JSB12-ST15B2-2SRValve size: 10 | Valve type: N.O., high pressure | Connection: Butt weld, ASME BPE | Port size: 1/2" | Actuator head: ø40
JSB22-ST20B2-2SRValve size: 20 | Valve type: N.O., high pressure | Connection: Butt weld, ASME BPE | Port size: 3/4" | Actuator head: ø40
JSB32-ST25B2-2SRValve size: 30 | Valve type: N.O., high pressure | Connection: Butt weld, ASME BPE | Port size: 1" | Actuator head: ø40
JSB52-ST40B2-4SRValve size: 50 | Valve type: N.O., high pressure | Connection: Butt weld, ASME BPE | Port size: 1-1/2" | Actuator head: ø63
JSB62-ST50B2-5SRValve size: 60 | Valve type: N.O., high pressure | Connection: Butt weld, ASME BPE | Port size: 2" | Actuator head: ø80
JSB72-ST65B2-6SRValve size: 70 | Valve type: N.O., high pressure | Connection: Butt weld, ASME BPE | Port size: 2-1/2" | Actuator head: ø100
JSB14-ST15B2-2SRValve size: 10 | Valve type: Double acting, high pressure | Connection: Butt weld, ASME BPE | Port size: 1/2" | Actuator head: ø40
JSB24-ST20B2-2SRValve size: 20 | Valve type: Double acting, high pressure | Connection: Butt weld, ASME BPE | Port size: 3/4" | Actuator head: ø40
JSB34-ST25B2-2SRValve size: 30 | Valve type: Double acting, high pressure | Connection: Butt weld, ASME BPE | Port size: 1" | Actuator head: ø40
JSB54-ST40B2-4SRValve size: 50 | Valve type: Double acting, high pressure | Connection: Butt weld, ASME BPE | Port size: 1-1/2" | Actuator head: ø63
JSB64-ST50B2-5SRValve size: 60 | Valve type: Double acting, high pressure | Connection: Butt weld, ASME BPE | Port size: 2" | Actuator head: ø80
JSB74-ST65B2-6SRValve size: 70 | Valve type: Double acting, high pressure | Connection: Butt weld, ASME BPE | Port size: 2-1/2" | Actuator head: ø100
JSB11-ST15C2-2SRValve size: 10 | Valve type: N.C., standard pressure | Connection: Clamp, ASME BPE | Port size: 1/2" | Actuator head: ø40
JSB21-ST20C2-2SRValve size: 20 | Valve type: N.C., standard pressure | Connection: Clamp, ASME BPE | Port size: 3/4" | Actuator head: ø40
JSB31-ST25C2-3SRValve size: 30 | Valve type: N.C., standard pressure | Connection: Clamp, ASME BPE | Port size: 1" | Actuator head: ø50
JSB51-ST40C2-5SRValve size: 50 | Valve type: N.C., standard pressure | Connection: Clamp, ASME BPE | Port size: 1-1/2" | Actuator head: ø80
JSB61-ST50C2-6SRValve size: 60 | Valve type: N.C., standard pressure | Connection: Clamp, ASME BPE | Port size: 2" | Actuator head: ø100
JSB11L-ST15C2-2SRValve size: 10 | Valve type: N.C., low pilot pressure | Connection: Clamp, ASME BPE | Port size: 1/2" | Actuator head: ø40
JSB21L-ST20C2-2SRValve size: 20 | Valve type: N.C., low pilot pressure | Connection: Clamp, ASME BPE | Port size: 3/4" | Actuator head: ø40
JSB31L-ST25C2-3SRValve size: 30 | Valve type: N.C., low pilot pressure | Connection: Clamp, ASME BPE | Port size: 1" | Actuator head: ø50
JSB51L-ST40C2-5SRValve size: 50 | Valve type: N.C., low pilot pressure | Connection: Clamp, ASME BPE | Port size: 1-1/2" | Actuator head: ø80
JSB61L-ST50C2-6SRValve size: 60 | Valve type: N.C., low pilot pressure | Connection: Clamp, ASME BPE | Port size: 2" | Actuator head: ø100
JSB11H-ST15C2-2SRValve size: 10 | Valve type: N.C., high pressure | Connection: Clamp, ASME BPE | Port size: 1/2" | Actuator head: ø40
JSB21H-ST20C2-3SRValve size: 20 | Valve type: N.C., high pressure | Connection: Clamp, ASME BPE | Port size: 3/4" | Actuator head: ø50
JSB31H-ST25C2-4SRValve size: 30 | Valve type: N.C., high pressure | Connection: Clamp, ASME BPE | Port size: 1" | Actuator head: ø63
JSB51H-ST40C2-6SRValve size: 50 | Valve type: N.C., high pressure | Connection: Clamp, ASME BPE | Port size: 1-1/2" | Actuator head: ø100
JSB61H-ST50C2-7SRValve size: 60 | Valve type: N.C., high pressure | Connection: Clamp, ASME BPE | Port size: 2" | Actuator head: ø125
JSB12-ST15C2-2SRValve size: 10 | Valve type: N.O., high pressure | Connection: Clamp, ASME BPE | Port size: 1/2" | Actuator head: ø40
JSB22-ST20C2-2SRValve size: 20 | Valve type: N.O., high pressure | Connection: Clamp, ASME BPE | Port size: 3/4" | Actuator head: ø40
JSB32-ST25C2-2SRValve size: 30 | Valve type: N.O., high pressure | Connection: Clamp, ASME BPE | Port size: 1" | Actuator head: ø40
JSB52-ST40C2-4SRValve size: 50 | Valve type: N.O., high pressure | Connection: Clamp, ASME BPE | Port size: 1-1/2" | Actuator head: ø63
JSB62-ST50C2-5SRValve size: 60 | Valve type: N.O., high pressure | Connection: Clamp, ASME BPE | Port size: 2" | Actuator head: ø80
JSB14-ST15C2-2SRValve size: 10 | Valve type: Double acting, high pressure | Connection: Clamp, ASME BPE | Port size: 1/2" | Actuator head: ø40
JSB24-ST20C2-2SRValve size: 20 | Valve type: Double acting, high pressure | Connection: Clamp, ASME BPE | Port size: 3/4" | Actuator head: ø40
JSB34-ST25C2-2SRValve size: 30 | Valve type: Double acting, high pressure | Connection: Clamp, ASME BPE | Port size: 1" | Actuator head: ø40
JSB54-ST40C2-4SRValve size: 50 | Valve type: Double acting, high pressure | Connection: Clamp, ASME BPE | Port size: 1-1/2" | Actuator head: ø63
JSB64-ST50C2-5SRValve size: 60 | Valve type: Double acting, high pressure | Connection: Clamp, ASME BPE | Port size: 2" | Actuator head: ø80

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
