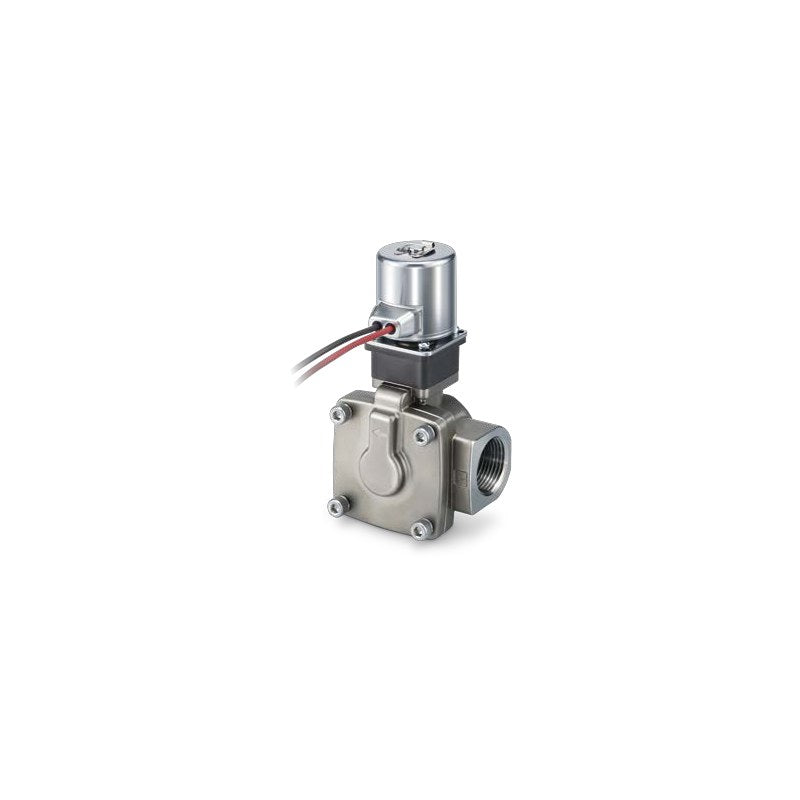

SMC JSX Direct Operated 2-Port Solenoid Valve (N.C./N.O., Size 10-30)

SMC JSX series direct operated poppet 2-port solenoid valve for air, water and oil, with stainless steel coil cover, IP67 enclosure and stainless steel, brass or aluminum body.

Key features

Direct operated poppet: operates from 0 MPa differential pressure, no minimum pressure required
N.C. in sizes 10/20/30 (SUS or brass body, AL body for air) and N.O. in sizes 20/30
Orifice 1.6 to 7.1 mm, ports 1/8 to 3/8; NBR, FKM (oil) or EPDM seals
Stainless steel coil cover, IP67 (DIN terminal IP65); CE/UKCA and UL compliant models
Lead wire: grommet G (DC only), surge-protected grommet GS, conduit CS (size 20/30), DIN terminal DS/DZ/DN, M12 connector WN; listed codes use G for DC and GS for AC
Options as suffixes: NPT/G thread (N/F), oil-free (-D), SUS bracket (-B)

Specifications

Valve structure	Direct operated poppet
Fluid and temperature	Air -10 to 60°C; water 1 to 60°C; oil -5 to 60°C (AL body: air only)
Proof pressure	2.0 MPa
Max. system pressure	1.0 MPa
Max. operating pressure differential	0.05 to 1.0 MPa depending on size and orifice
Ambient temperature	-20 to 60°C
Leakage	Air 1 cm³/min (ANR) or less; water/oil 0.1 cm³/min or less
Enclosure	IP67 (DIN terminal IP65)
Rated voltage	AC 24, 48, 100, 110, 120, 200, 220, 230, 240V; DC 12, 24V (listed: DC24V, AC100/200/220V)
Power consumption	AC 4.5/8/9.5 VA, DC 4/6/8 W (size 10/20/30)
Thread	Rc (NPT, G on order)
Source	SMC Korea catalog JSX/JSX Series (SMCKR_JSX.pdf), p. 13-18 (PDF p. 14-19)

JSX11-SN101R-5G		Valve type: N.C. (normally closed) \| Size: 10 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø1.6 mm, Rc1/8 \| Coil: DC24V, grommet (G)
JSX11-SN101R-1GS		Valve type: N.C. (normally closed) \| Size: 10 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø1.6 mm, Rc1/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX11-SN101R-2GS		Valve type: N.C. (normally closed) \| Size: 10 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø1.6 mm, Rc1/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX11-SN101R-4GS		Valve type: N.C. (normally closed) \| Size: 10 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø1.6 mm, Rc1/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX11-SN201R-5G		Valve type: N.C. (normally closed) \| Size: 10 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø2.4 mm, Rc1/8 \| Coil: DC24V, grommet (G)
JSX11-SN201R-1GS		Valve type: N.C. (normally closed) \| Size: 10 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø2.4 mm, Rc1/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX11-SN201R-2GS		Valve type: N.C. (normally closed) \| Size: 10 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø2.4 mm, Rc1/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX11-SN201R-4GS		Valve type: N.C. (normally closed) \| Size: 10 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø2.4 mm, Rc1/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX11-SF101R-5G		Valve type: N.C. (normally closed) \| Size: 10 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø1.6 mm, Rc1/8 \| Coil: DC24V, grommet (G)
JSX11-SF101R-1GS		Valve type: N.C. (normally closed) \| Size: 10 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø1.6 mm, Rc1/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX11-SF101R-2GS		Valve type: N.C. (normally closed) \| Size: 10 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø1.6 mm, Rc1/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX11-SF101R-4GS		Valve type: N.C. (normally closed) \| Size: 10 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø1.6 mm, Rc1/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX11-SF201R-5G		Valve type: N.C. (normally closed) \| Size: 10 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø2.4 mm, Rc1/8 \| Coil: DC24V, grommet (G)
JSX11-SF201R-1GS		Valve type: N.C. (normally closed) \| Size: 10 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø2.4 mm, Rc1/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX11-SF201R-2GS		Valve type: N.C. (normally closed) \| Size: 10 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø2.4 mm, Rc1/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX11-SF201R-4GS		Valve type: N.C. (normally closed) \| Size: 10 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø2.4 mm, Rc1/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX11-SE101R-5G		Valve type: N.C. (normally closed) \| Size: 10 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø1.6 mm, Rc1/8 \| Coil: DC24V, grommet (G)
JSX11-SE101R-1GS		Valve type: N.C. (normally closed) \| Size: 10 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø1.6 mm, Rc1/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX11-SE101R-2GS		Valve type: N.C. (normally closed) \| Size: 10 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø1.6 mm, Rc1/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX11-SE101R-4GS		Valve type: N.C. (normally closed) \| Size: 10 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø1.6 mm, Rc1/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX11-SE201R-5G		Valve type: N.C. (normally closed) \| Size: 10 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø2.4 mm, Rc1/8 \| Coil: DC24V, grommet (G)
JSX11-SE201R-1GS		Valve type: N.C. (normally closed) \| Size: 10 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø2.4 mm, Rc1/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX11-SE201R-2GS		Valve type: N.C. (normally closed) \| Size: 10 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø2.4 mm, Rc1/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX11-SE201R-4GS		Valve type: N.C. (normally closed) \| Size: 10 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø2.4 mm, Rc1/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX11-CN101R-5G		Valve type: N.C. (normally closed) \| Size: 10 \| Body: Brass \| Seal: NBR \| Orifice / port: ø1.6 mm, Rc1/8 \| Coil: DC24V, grommet (G)
JSX11-CN101R-1GS		Valve type: N.C. (normally closed) \| Size: 10 \| Body: Brass \| Seal: NBR \| Orifice / port: ø1.6 mm, Rc1/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX11-CN101R-2GS		Valve type: N.C. (normally closed) \| Size: 10 \| Body: Brass \| Seal: NBR \| Orifice / port: ø1.6 mm, Rc1/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX11-CN101R-4GS		Valve type: N.C. (normally closed) \| Size: 10 \| Body: Brass \| Seal: NBR \| Orifice / port: ø1.6 mm, Rc1/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX11-CN201R-5G		Valve type: N.C. (normally closed) \| Size: 10 \| Body: Brass \| Seal: NBR \| Orifice / port: ø2.4 mm, Rc1/8 \| Coil: DC24V, grommet (G)
JSX11-CN201R-1GS		Valve type: N.C. (normally closed) \| Size: 10 \| Body: Brass \| Seal: NBR \| Orifice / port: ø2.4 mm, Rc1/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX11-CN201R-2GS		Valve type: N.C. (normally closed) \| Size: 10 \| Body: Brass \| Seal: NBR \| Orifice / port: ø2.4 mm, Rc1/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX11-CN201R-4GS		Valve type: N.C. (normally closed) \| Size: 10 \| Body: Brass \| Seal: NBR \| Orifice / port: ø2.4 mm, Rc1/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX11-CF101R-5G		Valve type: N.C. (normally closed) \| Size: 10 \| Body: Brass \| Seal: FKM \| Orifice / port: ø1.6 mm, Rc1/8 \| Coil: DC24V, grommet (G)
JSX11-CF101R-1GS		Valve type: N.C. (normally closed) \| Size: 10 \| Body: Brass \| Seal: FKM \| Orifice / port: ø1.6 mm, Rc1/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX11-CF101R-2GS		Valve type: N.C. (normally closed) \| Size: 10 \| Body: Brass \| Seal: FKM \| Orifice / port: ø1.6 mm, Rc1/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX11-CF101R-4GS		Valve type: N.C. (normally closed) \| Size: 10 \| Body: Brass \| Seal: FKM \| Orifice / port: ø1.6 mm, Rc1/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX11-CF201R-5G		Valve type: N.C. (normally closed) \| Size: 10 \| Body: Brass \| Seal: FKM \| Orifice / port: ø2.4 mm, Rc1/8 \| Coil: DC24V, grommet (G)
JSX11-CF201R-1GS		Valve type: N.C. (normally closed) \| Size: 10 \| Body: Brass \| Seal: FKM \| Orifice / port: ø2.4 mm, Rc1/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX11-CF201R-2GS		Valve type: N.C. (normally closed) \| Size: 10 \| Body: Brass \| Seal: FKM \| Orifice / port: ø2.4 mm, Rc1/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX11-CF201R-4GS		Valve type: N.C. (normally closed) \| Size: 10 \| Body: Brass \| Seal: FKM \| Orifice / port: ø2.4 mm, Rc1/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX11-CE101R-5G		Valve type: N.C. (normally closed) \| Size: 10 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø1.6 mm, Rc1/8 \| Coil: DC24V, grommet (G)
JSX11-CE101R-1GS		Valve type: N.C. (normally closed) \| Size: 10 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø1.6 mm, Rc1/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX11-CE101R-2GS		Valve type: N.C. (normally closed) \| Size: 10 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø1.6 mm, Rc1/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX11-CE101R-4GS		Valve type: N.C. (normally closed) \| Size: 10 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø1.6 mm, Rc1/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX11-CE201R-5G		Valve type: N.C. (normally closed) \| Size: 10 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø2.4 mm, Rc1/8 \| Coil: DC24V, grommet (G)
JSX11-CE201R-1GS		Valve type: N.C. (normally closed) \| Size: 10 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø2.4 mm, Rc1/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX11-CE201R-2GS		Valve type: N.C. (normally closed) \| Size: 10 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø2.4 mm, Rc1/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX11-CE201R-4GS		Valve type: N.C. (normally closed) \| Size: 10 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø2.4 mm, Rc1/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX21-SN301R-5G		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: DC24V, grommet (G)
JSX21-SN301R-1GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX21-SN301R-2GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX21-SN301R-4GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX21-SN302R-5G		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX21-SN302R-1GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX21-SN302R-2GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX21-SN302R-4GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX21-SN303R-5G		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX21-SN303R-1GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX21-SN303R-2GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX21-SN303R-4GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX21-SN402R-5G		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX21-SN402R-1GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX21-SN402R-2GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX21-SN402R-4GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX21-SN403R-5G		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX21-SN403R-1GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX21-SN403R-2GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX21-SN403R-4GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX21-SN502R-5G		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX21-SN502R-1GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX21-SN502R-2GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX21-SN502R-4GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX21-SN503R-5G		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX21-SN503R-1GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX21-SN503R-2GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX21-SN503R-4GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX21-SN702R-5G		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX21-SN702R-1GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX21-SN702R-2GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX21-SN702R-4GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX21-SN703R-5G		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX21-SN703R-1GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX21-SN703R-2GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX21-SN703R-4GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX21-SF301R-5G		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: DC24V, grommet (G)
JSX21-SF301R-1GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX21-SF301R-2GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX21-SF301R-4GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX21-SF302R-5G		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX21-SF302R-1GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX21-SF302R-2GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX21-SF302R-4GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX21-SF303R-5G		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX21-SF303R-1GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX21-SF303R-2GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX21-SF303R-4GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX21-SF402R-5G		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX21-SF402R-1GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX21-SF402R-2GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX21-SF402R-4GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX21-SF403R-5G		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX21-SF403R-1GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX21-SF403R-2GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX21-SF403R-4GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX21-SF502R-5G		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX21-SF502R-1GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX21-SF502R-2GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX21-SF502R-4GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX21-SF503R-5G		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX21-SF503R-1GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX21-SF503R-2GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX21-SF503R-4GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX21-SF702R-5G		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX21-SF702R-1GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX21-SF702R-2GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX21-SF702R-4GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX21-SF703R-5G		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX21-SF703R-1GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX21-SF703R-2GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX21-SF703R-4GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX21-SE301R-5G		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: DC24V, grommet (G)
JSX21-SE301R-1GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX21-SE301R-2GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX21-SE301R-4GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX21-SE302R-5G		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX21-SE302R-1GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX21-SE302R-2GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX21-SE302R-4GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX21-SE303R-5G		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX21-SE303R-1GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX21-SE303R-2GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX21-SE303R-4GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX21-SE402R-5G		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX21-SE402R-1GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX21-SE402R-2GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX21-SE402R-4GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX21-SE403R-5G		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX21-SE403R-1GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX21-SE403R-2GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX21-SE403R-4GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX21-SE502R-5G		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX21-SE502R-1GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX21-SE502R-2GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX21-SE502R-4GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX21-SE503R-5G		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX21-SE503R-1GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX21-SE503R-2GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX21-SE503R-4GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX21-SE702R-5G		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX21-SE702R-1GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX21-SE702R-2GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX21-SE702R-4GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX21-SE703R-5G		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX21-SE703R-1GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX21-SE703R-2GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX21-SE703R-4GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX21-CN301R-5G		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: DC24V, grommet (G)
JSX21-CN301R-1GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX21-CN301R-2GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX21-CN301R-4GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX21-CN302R-5G		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX21-CN302R-1GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX21-CN302R-2GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX21-CN302R-4GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX21-CN303R-5G		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX21-CN303R-1GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX21-CN303R-2GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX21-CN303R-4GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX21-CN402R-5G		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX21-CN402R-1GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX21-CN402R-2GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX21-CN402R-4GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX21-CN403R-5G		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX21-CN403R-1GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX21-CN403R-2GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX21-CN403R-4GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX21-CN502R-5G		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX21-CN502R-1GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX21-CN502R-2GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX21-CN502R-4GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX21-CN503R-5G		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX21-CN503R-1GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX21-CN503R-2GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX21-CN503R-4GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX21-CN702R-5G		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX21-CN702R-1GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX21-CN702R-2GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX21-CN702R-4GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX21-CN703R-5G		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX21-CN703R-1GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX21-CN703R-2GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX21-CN703R-4GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX21-CF301R-5G		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: DC24V, grommet (G)
JSX21-CF301R-1GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX21-CF301R-2GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX21-CF301R-4GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX21-CF302R-5G		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX21-CF302R-1GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX21-CF302R-2GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX21-CF302R-4GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX21-CF303R-5G		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX21-CF303R-1GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX21-CF303R-2GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX21-CF303R-4GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX21-CF402R-5G		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX21-CF402R-1GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX21-CF402R-2GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX21-CF402R-4GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX21-CF403R-5G		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX21-CF403R-1GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX21-CF403R-2GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX21-CF403R-4GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX21-CF502R-5G		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX21-CF502R-1GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX21-CF502R-2GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX21-CF502R-4GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX21-CF503R-5G		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX21-CF503R-1GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX21-CF503R-2GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX21-CF503R-4GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX21-CF702R-5G		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX21-CF702R-1GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX21-CF702R-2GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX21-CF702R-4GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX21-CF703R-5G		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX21-CF703R-1GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX21-CF703R-2GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX21-CF703R-4GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX21-CE301R-5G		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: DC24V, grommet (G)
JSX21-CE301R-1GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX21-CE301R-2GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX21-CE301R-4GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX21-CE302R-5G		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX21-CE302R-1GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX21-CE302R-2GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX21-CE302R-4GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX21-CE303R-5G		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX21-CE303R-1GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX21-CE303R-2GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX21-CE303R-4GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX21-CE402R-5G		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX21-CE402R-1GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX21-CE402R-2GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX21-CE402R-4GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX21-CE403R-5G		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX21-CE403R-1GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX21-CE403R-2GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX21-CE403R-4GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX21-CE502R-5G		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX21-CE502R-1GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX21-CE502R-2GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX21-CE502R-4GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX21-CE503R-5G		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX21-CE503R-1GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX21-CE503R-2GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX21-CE503R-4GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX21-CE702R-5G		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX21-CE702R-1GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX21-CE702R-2GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX21-CE702R-4GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX21-CE703R-5G		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX21-CE703R-1GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX21-CE703R-2GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX21-CE703R-4GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX31-SN402R-5G		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX31-SN402R-1GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX31-SN402R-2GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX31-SN402R-4GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX31-SN403R-5G		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX31-SN403R-1GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX31-SN403R-2GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX31-SN403R-4GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX31-SN502R-5G		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX31-SN502R-1GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX31-SN502R-2GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX31-SN502R-4GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX31-SN503R-5G		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX31-SN503R-1GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX31-SN503R-2GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX31-SN503R-4GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX31-SN702R-5G		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX31-SN702R-1GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX31-SN702R-2GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX31-SN702R-4GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX31-SN703R-5G		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX31-SN703R-1GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX31-SN703R-2GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX31-SN703R-4GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX31-SF402R-5G		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX31-SF402R-1GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX31-SF402R-2GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX31-SF402R-4GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX31-SF403R-5G		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX31-SF403R-1GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX31-SF403R-2GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX31-SF403R-4GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX31-SF502R-5G		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX31-SF502R-1GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX31-SF502R-2GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX31-SF502R-4GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX31-SF503R-5G		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX31-SF503R-1GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX31-SF503R-2GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX31-SF503R-4GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX31-SF702R-5G		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX31-SF702R-1GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX31-SF702R-2GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX31-SF702R-4GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX31-SF703R-5G		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX31-SF703R-1GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX31-SF703R-2GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX31-SF703R-4GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX31-SE402R-5G		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX31-SE402R-1GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX31-SE402R-2GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX31-SE402R-4GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX31-SE403R-5G		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX31-SE403R-1GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX31-SE403R-2GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX31-SE403R-4GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX31-SE502R-5G		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX31-SE502R-1GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX31-SE502R-2GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX31-SE502R-4GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX31-SE503R-5G		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX31-SE503R-1GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX31-SE503R-2GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX31-SE503R-4GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX31-SE702R-5G		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX31-SE702R-1GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX31-SE702R-2GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX31-SE702R-4GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX31-SE703R-5G		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX31-SE703R-1GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX31-SE703R-2GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX31-SE703R-4GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX31-CN402R-5G		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX31-CN402R-1GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX31-CN402R-2GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX31-CN402R-4GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX31-CN403R-5G		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX31-CN403R-1GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX31-CN403R-2GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX31-CN403R-4GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX31-CN502R-5G		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX31-CN502R-1GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX31-CN502R-2GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX31-CN502R-4GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX31-CN503R-5G		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX31-CN503R-1GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX31-CN503R-2GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX31-CN503R-4GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX31-CN702R-5G		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX31-CN702R-1GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX31-CN702R-2GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX31-CN702R-4GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX31-CN703R-5G		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX31-CN703R-1GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX31-CN703R-2GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX31-CN703R-4GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX31-CF402R-5G		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX31-CF402R-1GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX31-CF402R-2GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX31-CF402R-4GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX31-CF403R-5G		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX31-CF403R-1GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX31-CF403R-2GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX31-CF403R-4GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX31-CF502R-5G		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX31-CF502R-1GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX31-CF502R-2GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX31-CF502R-4GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX31-CF503R-5G		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX31-CF503R-1GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX31-CF503R-2GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX31-CF503R-4GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX31-CF702R-5G		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX31-CF702R-1GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX31-CF702R-2GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX31-CF702R-4GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX31-CF703R-5G		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX31-CF703R-1GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX31-CF703R-2GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX31-CF703R-4GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX31-CE402R-5G		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX31-CE402R-1GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX31-CE402R-2GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX31-CE402R-4GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX31-CE403R-5G		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX31-CE403R-1GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX31-CE403R-2GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX31-CE403R-4GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX31-CE502R-5G		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX31-CE502R-1GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX31-CE502R-2GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX31-CE502R-4GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX31-CE503R-5G		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX31-CE503R-1GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX31-CE503R-2GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX31-CE503R-4GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX31-CE702R-5G		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX31-CE702R-1GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX31-CE702R-2GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX31-CE702R-4GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX31-CE703R-5G		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX31-CE703R-1GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX31-CE703R-2GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX31-CE703R-4GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX21-AN301R-5G		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Aluminum \| Seal: NBR \| Orifice / port: ø3 mm, Rc1/8 \| Coil: DC24V, grommet (G)
JSX21-AN301R-1GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Aluminum \| Seal: NBR \| Orifice / port: ø3 mm, Rc1/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX21-AN301R-2GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Aluminum \| Seal: NBR \| Orifice / port: ø3 mm, Rc1/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX21-AN301R-4GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Aluminum \| Seal: NBR \| Orifice / port: ø3 mm, Rc1/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX21-AN302R-5G		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Aluminum \| Seal: NBR \| Orifice / port: ø3 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX21-AN302R-1GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Aluminum \| Seal: NBR \| Orifice / port: ø3 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX21-AN302R-2GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Aluminum \| Seal: NBR \| Orifice / port: ø3 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX21-AN302R-4GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Aluminum \| Seal: NBR \| Orifice / port: ø3 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX21-AN501R-5G		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Aluminum \| Seal: NBR \| Orifice / port: ø5 mm, Rc1/8 \| Coil: DC24V, grommet (G)
JSX21-AN501R-1GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Aluminum \| Seal: NBR \| Orifice / port: ø5 mm, Rc1/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX21-AN501R-2GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Aluminum \| Seal: NBR \| Orifice / port: ø5 mm, Rc1/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX21-AN501R-4GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Aluminum \| Seal: NBR \| Orifice / port: ø5 mm, Rc1/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX21-AN502R-5G		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Aluminum \| Seal: NBR \| Orifice / port: ø5 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX21-AN502R-1GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Aluminum \| Seal: NBR \| Orifice / port: ø5 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX21-AN502R-2GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Aluminum \| Seal: NBR \| Orifice / port: ø5 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX21-AN502R-4GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Aluminum \| Seal: NBR \| Orifice / port: ø5 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX21-AF301R-5G		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Aluminum \| Seal: FKM \| Orifice / port: ø3 mm, Rc1/8 \| Coil: DC24V, grommet (G)
JSX21-AF301R-1GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Aluminum \| Seal: FKM \| Orifice / port: ø3 mm, Rc1/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX21-AF301R-2GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Aluminum \| Seal: FKM \| Orifice / port: ø3 mm, Rc1/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX21-AF301R-4GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Aluminum \| Seal: FKM \| Orifice / port: ø3 mm, Rc1/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX21-AF302R-5G		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Aluminum \| Seal: FKM \| Orifice / port: ø3 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX21-AF302R-1GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Aluminum \| Seal: FKM \| Orifice / port: ø3 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX21-AF302R-2GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Aluminum \| Seal: FKM \| Orifice / port: ø3 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX21-AF302R-4GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Aluminum \| Seal: FKM \| Orifice / port: ø3 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX21-AF501R-5G		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Aluminum \| Seal: FKM \| Orifice / port: ø5 mm, Rc1/8 \| Coil: DC24V, grommet (G)
JSX21-AF501R-1GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Aluminum \| Seal: FKM \| Orifice / port: ø5 mm, Rc1/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX21-AF501R-2GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Aluminum \| Seal: FKM \| Orifice / port: ø5 mm, Rc1/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX21-AF501R-4GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Aluminum \| Seal: FKM \| Orifice / port: ø5 mm, Rc1/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX21-AF502R-5G		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Aluminum \| Seal: FKM \| Orifice / port: ø5 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX21-AF502R-1GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Aluminum \| Seal: FKM \| Orifice / port: ø5 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX21-AF502R-2GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Aluminum \| Seal: FKM \| Orifice / port: ø5 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX21-AF502R-4GS		Valve type: N.C. (normally closed) \| Size: 20 \| Body: Aluminum \| Seal: FKM \| Orifice / port: ø5 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX31-AN402R-5G		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Aluminum \| Seal: NBR \| Orifice / port: ø4 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX31-AN402R-1GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Aluminum \| Seal: NBR \| Orifice / port: ø4 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX31-AN402R-2GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Aluminum \| Seal: NBR \| Orifice / port: ø4 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX31-AN402R-4GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Aluminum \| Seal: NBR \| Orifice / port: ø4 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX31-AN403R-5G		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Aluminum \| Seal: NBR \| Orifice / port: ø4 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX31-AN403R-1GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Aluminum \| Seal: NBR \| Orifice / port: ø4 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX31-AN403R-2GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Aluminum \| Seal: NBR \| Orifice / port: ø4 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX31-AN403R-4GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Aluminum \| Seal: NBR \| Orifice / port: ø4 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX31-AN702R-5G		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Aluminum \| Seal: NBR \| Orifice / port: ø7 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX31-AN702R-1GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Aluminum \| Seal: NBR \| Orifice / port: ø7 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX31-AN702R-2GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Aluminum \| Seal: NBR \| Orifice / port: ø7 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX31-AN702R-4GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Aluminum \| Seal: NBR \| Orifice / port: ø7 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX31-AN703R-5G		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Aluminum \| Seal: NBR \| Orifice / port: ø7 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX31-AN703R-1GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Aluminum \| Seal: NBR \| Orifice / port: ø7 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX31-AN703R-2GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Aluminum \| Seal: NBR \| Orifice / port: ø7 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX31-AN703R-4GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Aluminum \| Seal: NBR \| Orifice / port: ø7 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX31-AF402R-5G		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Aluminum \| Seal: FKM \| Orifice / port: ø4 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX31-AF402R-1GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Aluminum \| Seal: FKM \| Orifice / port: ø4 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX31-AF402R-2GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Aluminum \| Seal: FKM \| Orifice / port: ø4 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX31-AF402R-4GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Aluminum \| Seal: FKM \| Orifice / port: ø4 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX31-AF403R-5G		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Aluminum \| Seal: FKM \| Orifice / port: ø4 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX31-AF403R-1GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Aluminum \| Seal: FKM \| Orifice / port: ø4 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX31-AF403R-2GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Aluminum \| Seal: FKM \| Orifice / port: ø4 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX31-AF403R-4GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Aluminum \| Seal: FKM \| Orifice / port: ø4 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX31-AF702R-5G		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Aluminum \| Seal: FKM \| Orifice / port: ø7 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX31-AF702R-1GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Aluminum \| Seal: FKM \| Orifice / port: ø7 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX31-AF702R-2GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Aluminum \| Seal: FKM \| Orifice / port: ø7 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX31-AF702R-4GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Aluminum \| Seal: FKM \| Orifice / port: ø7 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX31-AF703R-5G		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Aluminum \| Seal: FKM \| Orifice / port: ø7 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX31-AF703R-1GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Aluminum \| Seal: FKM \| Orifice / port: ø7 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX31-AF703R-2GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Aluminum \| Seal: FKM \| Orifice / port: ø7 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX31-AF703R-4GS		Valve type: N.C. (normally closed) \| Size: 30 \| Body: Aluminum \| Seal: FKM \| Orifice / port: ø7 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX22-SN301R-5G		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: DC24V, grommet (G)
JSX22-SN301R-1GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX22-SN301R-2GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX22-SN301R-4GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX22-SN302R-5G		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX22-SN302R-1GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX22-SN302R-2GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX22-SN302R-4GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX22-SN303R-5G		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX22-SN303R-1GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX22-SN303R-2GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX22-SN303R-4GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX22-SN402R-5G		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX22-SN402R-1GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX22-SN402R-2GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX22-SN402R-4GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX22-SN403R-5G		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX22-SN403R-1GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX22-SN403R-2GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX22-SN403R-4GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX22-SN502R-5G		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX22-SN502R-1GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX22-SN502R-2GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX22-SN502R-4GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX22-SN503R-5G		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX22-SN503R-1GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX22-SN503R-2GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX22-SN503R-4GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX22-SN702R-5G		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX22-SN702R-1GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX22-SN702R-2GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX22-SN702R-4GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX22-SN703R-5G		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX22-SN703R-1GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX22-SN703R-2GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX22-SN703R-4GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX22-SF301R-5G		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: DC24V, grommet (G)
JSX22-SF301R-1GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX22-SF301R-2GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX22-SF301R-4GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX22-SF302R-5G		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX22-SF302R-1GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX22-SF302R-2GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX22-SF302R-4GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX22-SF303R-5G		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX22-SF303R-1GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX22-SF303R-2GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX22-SF303R-4GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX22-SF402R-5G		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX22-SF402R-1GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX22-SF402R-2GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX22-SF402R-4GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX22-SF403R-5G		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX22-SF403R-1GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX22-SF403R-2GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX22-SF403R-4GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX22-SF502R-5G		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX22-SF502R-1GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX22-SF502R-2GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX22-SF502R-4GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX22-SF503R-5G		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX22-SF503R-1GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX22-SF503R-2GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX22-SF503R-4GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX22-SF702R-5G		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX22-SF702R-1GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX22-SF702R-2GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX22-SF702R-4GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX22-SF703R-5G		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX22-SF703R-1GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX22-SF703R-2GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX22-SF703R-4GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX22-SE301R-5G		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: DC24V, grommet (G)
JSX22-SE301R-1GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX22-SE301R-2GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX22-SE301R-4GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX22-SE302R-5G		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX22-SE302R-1GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX22-SE302R-2GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX22-SE302R-4GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX22-SE303R-5G		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX22-SE303R-1GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX22-SE303R-2GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX22-SE303R-4GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX22-SE402R-5G		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX22-SE402R-1GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX22-SE402R-2GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX22-SE402R-4GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX22-SE403R-5G		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX22-SE403R-1GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX22-SE403R-2GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX22-SE403R-4GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX22-SE502R-5G		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX22-SE502R-1GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX22-SE502R-2GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX22-SE502R-4GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX22-SE503R-5G		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX22-SE503R-1GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX22-SE503R-2GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX22-SE503R-4GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX22-SE702R-5G		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX22-SE702R-1GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX22-SE702R-2GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX22-SE702R-4GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX22-SE703R-5G		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX22-SE703R-1GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX22-SE703R-2GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX22-SE703R-4GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX22-CN301R-5G		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: DC24V, grommet (G)
JSX22-CN301R-1GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX22-CN301R-2GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX22-CN301R-4GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX22-CN302R-5G		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX22-CN302R-1GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX22-CN302R-2GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX22-CN302R-4GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX22-CN303R-5G		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX22-CN303R-1GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX22-CN303R-2GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX22-CN303R-4GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX22-CN402R-5G		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX22-CN402R-1GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX22-CN402R-2GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX22-CN402R-4GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX22-CN403R-5G		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX22-CN403R-1GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX22-CN403R-2GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX22-CN403R-4GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX22-CN502R-5G		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX22-CN502R-1GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX22-CN502R-2GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX22-CN502R-4GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX22-CN503R-5G		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX22-CN503R-1GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX22-CN503R-2GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX22-CN503R-4GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX22-CN702R-5G		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX22-CN702R-1GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX22-CN702R-2GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX22-CN702R-4GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX22-CN703R-5G		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX22-CN703R-1GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX22-CN703R-2GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX22-CN703R-4GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX22-CF301R-5G		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: DC24V, grommet (G)
JSX22-CF301R-1GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX22-CF301R-2GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX22-CF301R-4GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX22-CF302R-5G		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX22-CF302R-1GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX22-CF302R-2GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX22-CF302R-4GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX22-CF303R-5G		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX22-CF303R-1GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX22-CF303R-2GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX22-CF303R-4GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX22-CF402R-5G		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX22-CF402R-1GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX22-CF402R-2GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX22-CF402R-4GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX22-CF403R-5G		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX22-CF403R-1GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX22-CF403R-2GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX22-CF403R-4GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX22-CF502R-5G		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX22-CF502R-1GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX22-CF502R-2GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX22-CF502R-4GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX22-CF503R-5G		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX22-CF503R-1GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX22-CF503R-2GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX22-CF503R-4GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX22-CF702R-5G		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX22-CF702R-1GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX22-CF702R-2GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX22-CF702R-4GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX22-CF703R-5G		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX22-CF703R-1GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX22-CF703R-2GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX22-CF703R-4GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX22-CE301R-5G		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: DC24V, grommet (G)
JSX22-CE301R-1GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX22-CE301R-2GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX22-CE301R-4GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX22-CE302R-5G		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX22-CE302R-1GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX22-CE302R-2GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX22-CE302R-4GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX22-CE303R-5G		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX22-CE303R-1GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX22-CE303R-2GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX22-CE303R-4GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX22-CE402R-5G		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX22-CE402R-1GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX22-CE402R-2GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX22-CE402R-4GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX22-CE403R-5G		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX22-CE403R-1GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX22-CE403R-2GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX22-CE403R-4GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX22-CE502R-5G		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX22-CE502R-1GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX22-CE502R-2GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX22-CE502R-4GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX22-CE503R-5G		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX22-CE503R-1GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX22-CE503R-2GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX22-CE503R-4GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX22-CE702R-5G		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX22-CE702R-1GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX22-CE702R-2GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX22-CE702R-4GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX22-CE703R-5G		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX22-CE703R-1GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX22-CE703R-2GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX22-CE703R-4GS		Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX32-SN301R-5G		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: DC24V, grommet (G)
JSX32-SN301R-1GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX32-SN301R-2GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX32-SN301R-4GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX32-SN302R-5G		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX32-SN302R-1GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX32-SN302R-2GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX32-SN302R-4GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX32-SN303R-5G		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX32-SN303R-1GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX32-SN303R-2GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX32-SN303R-4GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX32-SN402R-5G		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX32-SN402R-1GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX32-SN402R-2GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX32-SN402R-4GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX32-SN403R-5G		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX32-SN403R-1GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX32-SN403R-2GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX32-SN403R-4GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX32-SN502R-5G		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX32-SN502R-1GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX32-SN502R-2GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX32-SN502R-4GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX32-SN503R-5G		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX32-SN503R-1GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX32-SN503R-2GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX32-SN503R-4GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX32-SN702R-5G		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX32-SN702R-1GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX32-SN702R-2GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX32-SN702R-4GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX32-SN703R-5G		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX32-SN703R-1GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX32-SN703R-2GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX32-SN703R-4GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX32-SF301R-5G		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: DC24V, grommet (G)
JSX32-SF301R-1GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX32-SF301R-2GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX32-SF301R-4GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX32-SF302R-5G		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX32-SF302R-1GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX32-SF302R-2GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX32-SF302R-4GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX32-SF303R-5G		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX32-SF303R-1GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX32-SF303R-2GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX32-SF303R-4GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX32-SF402R-5G		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX32-SF402R-1GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX32-SF402R-2GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX32-SF402R-4GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX32-SF403R-5G		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX32-SF403R-1GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX32-SF403R-2GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX32-SF403R-4GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX32-SF502R-5G		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX32-SF502R-1GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX32-SF502R-2GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX32-SF502R-4GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX32-SF503R-5G		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX32-SF503R-1GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX32-SF503R-2GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX32-SF503R-4GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX32-SF702R-5G		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX32-SF702R-1GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX32-SF702R-2GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX32-SF702R-4GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX32-SF703R-5G		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX32-SF703R-1GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX32-SF703R-2GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX32-SF703R-4GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX32-SE301R-5G		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: DC24V, grommet (G)
JSX32-SE301R-1GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX32-SE301R-2GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX32-SE301R-4GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX32-SE302R-5G		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX32-SE302R-1GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX32-SE302R-2GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX32-SE302R-4GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX32-SE303R-5G		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX32-SE303R-1GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX32-SE303R-2GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX32-SE303R-4GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX32-SE402R-5G		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX32-SE402R-1GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX32-SE402R-2GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX32-SE402R-4GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX32-SE403R-5G		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX32-SE403R-1GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX32-SE403R-2GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX32-SE403R-4GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX32-SE502R-5G		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX32-SE502R-1GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX32-SE502R-2GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX32-SE502R-4GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX32-SE503R-5G		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX32-SE503R-1GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX32-SE503R-2GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX32-SE503R-4GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX32-SE702R-5G		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX32-SE702R-1GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX32-SE702R-2GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX32-SE702R-4GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX32-SE703R-5G		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX32-SE703R-1GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX32-SE703R-2GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX32-SE703R-4GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX32-CN301R-5G		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: DC24V, grommet (G)
JSX32-CN301R-1GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX32-CN301R-2GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX32-CN301R-4GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX32-CN302R-5G		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX32-CN302R-1GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX32-CN302R-2GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX32-CN302R-4GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX32-CN303R-5G		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX32-CN303R-1GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX32-CN303R-2GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX32-CN303R-4GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX32-CN402R-5G		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX32-CN402R-1GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX32-CN402R-2GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX32-CN402R-4GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX32-CN403R-5G		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX32-CN403R-1GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX32-CN403R-2GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX32-CN403R-4GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX32-CN502R-5G		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX32-CN502R-1GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX32-CN502R-2GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX32-CN502R-4GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX32-CN503R-5G		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX32-CN503R-1GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX32-CN503R-2GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX32-CN503R-4GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX32-CN702R-5G		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX32-CN702R-1GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX32-CN702R-2GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX32-CN702R-4GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX32-CN703R-5G		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX32-CN703R-1GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX32-CN703R-2GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX32-CN703R-4GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX32-CF301R-5G		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: DC24V, grommet (G)
JSX32-CF301R-1GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX32-CF301R-2GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX32-CF301R-4GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX32-CF302R-5G		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX32-CF302R-1GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX32-CF302R-2GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX32-CF302R-4GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX32-CF303R-5G		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX32-CF303R-1GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX32-CF303R-2GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX32-CF303R-4GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX32-CF402R-5G		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX32-CF402R-1GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX32-CF402R-2GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX32-CF402R-4GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX32-CF403R-5G		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX32-CF403R-1GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX32-CF403R-2GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX32-CF403R-4GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX32-CF502R-5G		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX32-CF502R-1GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX32-CF502R-2GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX32-CF502R-4GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX32-CF503R-5G		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX32-CF503R-1GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX32-CF503R-2GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX32-CF503R-4GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX32-CF702R-5G		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX32-CF702R-1GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX32-CF702R-2GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX32-CF702R-4GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX32-CF703R-5G		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX32-CF703R-1GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX32-CF703R-2GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX32-CF703R-4GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX32-CE301R-5G		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: DC24V, grommet (G)
JSX32-CE301R-1GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX32-CE301R-2GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX32-CE301R-4GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX32-CE302R-5G		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX32-CE302R-1GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX32-CE302R-2GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX32-CE302R-4GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX32-CE303R-5G		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX32-CE303R-1GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX32-CE303R-2GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX32-CE303R-4GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX32-CE402R-5G		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX32-CE402R-1GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX32-CE402R-2GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX32-CE402R-4GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX32-CE403R-5G		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX32-CE403R-1GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX32-CE403R-2GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX32-CE403R-4GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX32-CE502R-5G		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX32-CE502R-1GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX32-CE502R-2GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX32-CE502R-4GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX32-CE503R-5G		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX32-CE503R-1GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX32-CE503R-2GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX32-CE503R-4GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX32-CE702R-5G		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: DC24V, grommet (G)
JSX32-CE702R-1GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX32-CE702R-2GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX32-CE702R-4GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSX32-CE703R-5G		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: DC24V, grommet (G)
JSX32-CE703R-1GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSX32-CE703R-2GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSX32-CE703R-4GS		Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)

2-Port ValvesSMC

904 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC JSX Direct Operated 2-Port Solenoid Valve (N.C./N.O., Size 10-30)

Brand SMC·2-Port Valves

Available part numbers (904)

JSX11-SN101R-5G, JSX11-SN101R-1GS, JSX11-SN101R-2GS, JSX11-SN101R-4GS, JSX11-SN201R-5G, JSX11-SN201R-1GS, JSX11-SN201R-2GS, JSX11-SN201R-4GS, JSX11-SF101R-5G, JSX11-SF101R-1GS + 894 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	JSX11-SN101R-5G	Valve type: N.C. (normally closed) \| Size: 10 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø1.6 mm, Rc1/8 \| Coil: DC24V, grommet (G)
	JSX11-SN101R-1GS	Valve type: N.C. (normally closed) \| Size: 10 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø1.6 mm, Rc1/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX11-SN101R-2GS	Valve type: N.C. (normally closed) \| Size: 10 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø1.6 mm, Rc1/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX11-SN101R-4GS	Valve type: N.C. (normally closed) \| Size: 10 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø1.6 mm, Rc1/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX11-SN201R-5G	Valve type: N.C. (normally closed) \| Size: 10 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø2.4 mm, Rc1/8 \| Coil: DC24V, grommet (G)
	JSX11-SN201R-1GS	Valve type: N.C. (normally closed) \| Size: 10 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø2.4 mm, Rc1/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX11-SN201R-2GS	Valve type: N.C. (normally closed) \| Size: 10 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø2.4 mm, Rc1/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX11-SN201R-4GS	Valve type: N.C. (normally closed) \| Size: 10 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø2.4 mm, Rc1/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX11-SF101R-5G	Valve type: N.C. (normally closed) \| Size: 10 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø1.6 mm, Rc1/8 \| Coil: DC24V, grommet (G)
	JSX11-SF101R-1GS	Valve type: N.C. (normally closed) \| Size: 10 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø1.6 mm, Rc1/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX11-SF101R-2GS	Valve type: N.C. (normally closed) \| Size: 10 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø1.6 mm, Rc1/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX11-SF101R-4GS	Valve type: N.C. (normally closed) \| Size: 10 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø1.6 mm, Rc1/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX11-SF201R-5G	Valve type: N.C. (normally closed) \| Size: 10 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø2.4 mm, Rc1/8 \| Coil: DC24V, grommet (G)
	JSX11-SF201R-1GS	Valve type: N.C. (normally closed) \| Size: 10 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø2.4 mm, Rc1/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX11-SF201R-2GS	Valve type: N.C. (normally closed) \| Size: 10 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø2.4 mm, Rc1/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX11-SF201R-4GS	Valve type: N.C. (normally closed) \| Size: 10 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø2.4 mm, Rc1/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX11-SE101R-5G	Valve type: N.C. (normally closed) \| Size: 10 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø1.6 mm, Rc1/8 \| Coil: DC24V, grommet (G)
	JSX11-SE101R-1GS	Valve type: N.C. (normally closed) \| Size: 10 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø1.6 mm, Rc1/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX11-SE101R-2GS	Valve type: N.C. (normally closed) \| Size: 10 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø1.6 mm, Rc1/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX11-SE101R-4GS	Valve type: N.C. (normally closed) \| Size: 10 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø1.6 mm, Rc1/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX11-SE201R-5G	Valve type: N.C. (normally closed) \| Size: 10 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø2.4 mm, Rc1/8 \| Coil: DC24V, grommet (G)
	JSX11-SE201R-1GS	Valve type: N.C. (normally closed) \| Size: 10 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø2.4 mm, Rc1/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX11-SE201R-2GS	Valve type: N.C. (normally closed) \| Size: 10 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø2.4 mm, Rc1/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX11-SE201R-4GS	Valve type: N.C. (normally closed) \| Size: 10 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø2.4 mm, Rc1/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX11-CN101R-5G	Valve type: N.C. (normally closed) \| Size: 10 \| Body: Brass \| Seal: NBR \| Orifice / port: ø1.6 mm, Rc1/8 \| Coil: DC24V, grommet (G)
	JSX11-CN101R-1GS	Valve type: N.C. (normally closed) \| Size: 10 \| Body: Brass \| Seal: NBR \| Orifice / port: ø1.6 mm, Rc1/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX11-CN101R-2GS	Valve type: N.C. (normally closed) \| Size: 10 \| Body: Brass \| Seal: NBR \| Orifice / port: ø1.6 mm, Rc1/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX11-CN101R-4GS	Valve type: N.C. (normally closed) \| Size: 10 \| Body: Brass \| Seal: NBR \| Orifice / port: ø1.6 mm, Rc1/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX11-CN201R-5G	Valve type: N.C. (normally closed) \| Size: 10 \| Body: Brass \| Seal: NBR \| Orifice / port: ø2.4 mm, Rc1/8 \| Coil: DC24V, grommet (G)
	JSX11-CN201R-1GS	Valve type: N.C. (normally closed) \| Size: 10 \| Body: Brass \| Seal: NBR \| Orifice / port: ø2.4 mm, Rc1/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX11-CN201R-2GS	Valve type: N.C. (normally closed) \| Size: 10 \| Body: Brass \| Seal: NBR \| Orifice / port: ø2.4 mm, Rc1/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX11-CN201R-4GS	Valve type: N.C. (normally closed) \| Size: 10 \| Body: Brass \| Seal: NBR \| Orifice / port: ø2.4 mm, Rc1/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX11-CF101R-5G	Valve type: N.C. (normally closed) \| Size: 10 \| Body: Brass \| Seal: FKM \| Orifice / port: ø1.6 mm, Rc1/8 \| Coil: DC24V, grommet (G)
	JSX11-CF101R-1GS	Valve type: N.C. (normally closed) \| Size: 10 \| Body: Brass \| Seal: FKM \| Orifice / port: ø1.6 mm, Rc1/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX11-CF101R-2GS	Valve type: N.C. (normally closed) \| Size: 10 \| Body: Brass \| Seal: FKM \| Orifice / port: ø1.6 mm, Rc1/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX11-CF101R-4GS	Valve type: N.C. (normally closed) \| Size: 10 \| Body: Brass \| Seal: FKM \| Orifice / port: ø1.6 mm, Rc1/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX11-CF201R-5G	Valve type: N.C. (normally closed) \| Size: 10 \| Body: Brass \| Seal: FKM \| Orifice / port: ø2.4 mm, Rc1/8 \| Coil: DC24V, grommet (G)
	JSX11-CF201R-1GS	Valve type: N.C. (normally closed) \| Size: 10 \| Body: Brass \| Seal: FKM \| Orifice / port: ø2.4 mm, Rc1/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX11-CF201R-2GS	Valve type: N.C. (normally closed) \| Size: 10 \| Body: Brass \| Seal: FKM \| Orifice / port: ø2.4 mm, Rc1/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX11-CF201R-4GS	Valve type: N.C. (normally closed) \| Size: 10 \| Body: Brass \| Seal: FKM \| Orifice / port: ø2.4 mm, Rc1/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX11-CE101R-5G	Valve type: N.C. (normally closed) \| Size: 10 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø1.6 mm, Rc1/8 \| Coil: DC24V, grommet (G)
	JSX11-CE101R-1GS	Valve type: N.C. (normally closed) \| Size: 10 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø1.6 mm, Rc1/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX11-CE101R-2GS	Valve type: N.C. (normally closed) \| Size: 10 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø1.6 mm, Rc1/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX11-CE101R-4GS	Valve type: N.C. (normally closed) \| Size: 10 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø1.6 mm, Rc1/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX11-CE201R-5G	Valve type: N.C. (normally closed) \| Size: 10 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø2.4 mm, Rc1/8 \| Coil: DC24V, grommet (G)
	JSX11-CE201R-1GS	Valve type: N.C. (normally closed) \| Size: 10 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø2.4 mm, Rc1/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX11-CE201R-2GS	Valve type: N.C. (normally closed) \| Size: 10 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø2.4 mm, Rc1/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX11-CE201R-4GS	Valve type: N.C. (normally closed) \| Size: 10 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø2.4 mm, Rc1/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX21-SN301R-5G	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: DC24V, grommet (G)
	JSX21-SN301R-1GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX21-SN301R-2GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX21-SN301R-4GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX21-SN302R-5G	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX21-SN302R-1GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX21-SN302R-2GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX21-SN302R-4GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX21-SN303R-5G	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX21-SN303R-1GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX21-SN303R-2GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX21-SN303R-4GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX21-SN402R-5G	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX21-SN402R-1GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX21-SN402R-2GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX21-SN402R-4GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX21-SN403R-5G	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX21-SN403R-1GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX21-SN403R-2GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX21-SN403R-4GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX21-SN502R-5G	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX21-SN502R-1GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX21-SN502R-2GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX21-SN502R-4GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX21-SN503R-5G	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX21-SN503R-1GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX21-SN503R-2GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX21-SN503R-4GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX21-SN702R-5G	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX21-SN702R-1GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX21-SN702R-2GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX21-SN702R-4GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX21-SN703R-5G	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX21-SN703R-1GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX21-SN703R-2GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX21-SN703R-4GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX21-SF301R-5G	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: DC24V, grommet (G)
	JSX21-SF301R-1GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX21-SF301R-2GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX21-SF301R-4GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX21-SF302R-5G	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX21-SF302R-1GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX21-SF302R-2GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX21-SF302R-4GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX21-SF303R-5G	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX21-SF303R-1GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX21-SF303R-2GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX21-SF303R-4GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX21-SF402R-5G	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX21-SF402R-1GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX21-SF402R-2GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX21-SF402R-4GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX21-SF403R-5G	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX21-SF403R-1GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX21-SF403R-2GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX21-SF403R-4GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX21-SF502R-5G	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX21-SF502R-1GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX21-SF502R-2GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX21-SF502R-4GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX21-SF503R-5G	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX21-SF503R-1GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX21-SF503R-2GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX21-SF503R-4GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX21-SF702R-5G	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX21-SF702R-1GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX21-SF702R-2GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX21-SF702R-4GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX21-SF703R-5G	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX21-SF703R-1GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX21-SF703R-2GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX21-SF703R-4GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX21-SE301R-5G	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: DC24V, grommet (G)
	JSX21-SE301R-1GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX21-SE301R-2GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX21-SE301R-4GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX21-SE302R-5G	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX21-SE302R-1GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX21-SE302R-2GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX21-SE302R-4GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX21-SE303R-5G	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX21-SE303R-1GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX21-SE303R-2GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX21-SE303R-4GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX21-SE402R-5G	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX21-SE402R-1GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX21-SE402R-2GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX21-SE402R-4GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX21-SE403R-5G	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX21-SE403R-1GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX21-SE403R-2GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX21-SE403R-4GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX21-SE502R-5G	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX21-SE502R-1GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX21-SE502R-2GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX21-SE502R-4GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX21-SE503R-5G	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX21-SE503R-1GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX21-SE503R-2GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX21-SE503R-4GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX21-SE702R-5G	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX21-SE702R-1GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX21-SE702R-2GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX21-SE702R-4GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX21-SE703R-5G	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX21-SE703R-1GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX21-SE703R-2GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX21-SE703R-4GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX21-CN301R-5G	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: DC24V, grommet (G)
	JSX21-CN301R-1GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX21-CN301R-2GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX21-CN301R-4GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX21-CN302R-5G	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX21-CN302R-1GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX21-CN302R-2GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX21-CN302R-4GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX21-CN303R-5G	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX21-CN303R-1GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX21-CN303R-2GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX21-CN303R-4GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX21-CN402R-5G	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX21-CN402R-1GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX21-CN402R-2GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX21-CN402R-4GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX21-CN403R-5G	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX21-CN403R-1GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX21-CN403R-2GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX21-CN403R-4GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX21-CN502R-5G	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX21-CN502R-1GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX21-CN502R-2GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX21-CN502R-4GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX21-CN503R-5G	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX21-CN503R-1GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX21-CN503R-2GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX21-CN503R-4GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX21-CN702R-5G	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX21-CN702R-1GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX21-CN702R-2GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX21-CN702R-4GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX21-CN703R-5G	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX21-CN703R-1GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX21-CN703R-2GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX21-CN703R-4GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX21-CF301R-5G	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: DC24V, grommet (G)
	JSX21-CF301R-1GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX21-CF301R-2GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX21-CF301R-4GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX21-CF302R-5G	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX21-CF302R-1GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX21-CF302R-2GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX21-CF302R-4GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX21-CF303R-5G	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX21-CF303R-1GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX21-CF303R-2GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX21-CF303R-4GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX21-CF402R-5G	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX21-CF402R-1GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX21-CF402R-2GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX21-CF402R-4GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX21-CF403R-5G	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX21-CF403R-1GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX21-CF403R-2GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX21-CF403R-4GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX21-CF502R-5G	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX21-CF502R-1GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX21-CF502R-2GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX21-CF502R-4GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX21-CF503R-5G	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX21-CF503R-1GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX21-CF503R-2GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX21-CF503R-4GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX21-CF702R-5G	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX21-CF702R-1GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX21-CF702R-2GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX21-CF702R-4GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX21-CF703R-5G	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX21-CF703R-1GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX21-CF703R-2GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX21-CF703R-4GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX21-CE301R-5G	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: DC24V, grommet (G)
	JSX21-CE301R-1GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX21-CE301R-2GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX21-CE301R-4GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX21-CE302R-5G	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX21-CE302R-1GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX21-CE302R-2GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX21-CE302R-4GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX21-CE303R-5G	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX21-CE303R-1GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX21-CE303R-2GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX21-CE303R-4GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX21-CE402R-5G	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX21-CE402R-1GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX21-CE402R-2GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX21-CE402R-4GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX21-CE403R-5G	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX21-CE403R-1GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX21-CE403R-2GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX21-CE403R-4GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX21-CE502R-5G	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX21-CE502R-1GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX21-CE502R-2GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX21-CE502R-4GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX21-CE503R-5G	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX21-CE503R-1GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX21-CE503R-2GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX21-CE503R-4GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX21-CE702R-5G	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX21-CE702R-1GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX21-CE702R-2GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX21-CE702R-4GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX21-CE703R-5G	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX21-CE703R-1GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX21-CE703R-2GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX21-CE703R-4GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX31-SN402R-5G	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX31-SN402R-1GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX31-SN402R-2GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX31-SN402R-4GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX31-SN403R-5G	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX31-SN403R-1GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX31-SN403R-2GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX31-SN403R-4GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX31-SN502R-5G	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX31-SN502R-1GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX31-SN502R-2GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX31-SN502R-4GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX31-SN503R-5G	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX31-SN503R-1GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX31-SN503R-2GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX31-SN503R-4GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX31-SN702R-5G	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX31-SN702R-1GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX31-SN702R-2GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX31-SN702R-4GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX31-SN703R-5G	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX31-SN703R-1GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX31-SN703R-2GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX31-SN703R-4GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX31-SF402R-5G	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX31-SF402R-1GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX31-SF402R-2GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX31-SF402R-4GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX31-SF403R-5G	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX31-SF403R-1GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX31-SF403R-2GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX31-SF403R-4GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX31-SF502R-5G	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX31-SF502R-1GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX31-SF502R-2GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX31-SF502R-4GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX31-SF503R-5G	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX31-SF503R-1GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX31-SF503R-2GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX31-SF503R-4GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX31-SF702R-5G	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX31-SF702R-1GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX31-SF702R-2GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX31-SF702R-4GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX31-SF703R-5G	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX31-SF703R-1GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX31-SF703R-2GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX31-SF703R-4GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX31-SE402R-5G	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX31-SE402R-1GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX31-SE402R-2GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX31-SE402R-4GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX31-SE403R-5G	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX31-SE403R-1GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX31-SE403R-2GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX31-SE403R-4GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX31-SE502R-5G	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX31-SE502R-1GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX31-SE502R-2GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX31-SE502R-4GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX31-SE503R-5G	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX31-SE503R-1GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX31-SE503R-2GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX31-SE503R-4GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX31-SE702R-5G	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX31-SE702R-1GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX31-SE702R-2GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX31-SE702R-4GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX31-SE703R-5G	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX31-SE703R-1GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX31-SE703R-2GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX31-SE703R-4GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX31-CN402R-5G	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX31-CN402R-1GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX31-CN402R-2GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX31-CN402R-4GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX31-CN403R-5G	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX31-CN403R-1GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX31-CN403R-2GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX31-CN403R-4GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX31-CN502R-5G	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX31-CN502R-1GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX31-CN502R-2GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX31-CN502R-4GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX31-CN503R-5G	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX31-CN503R-1GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX31-CN503R-2GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX31-CN503R-4GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX31-CN702R-5G	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX31-CN702R-1GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX31-CN702R-2GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX31-CN702R-4GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX31-CN703R-5G	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX31-CN703R-1GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX31-CN703R-2GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX31-CN703R-4GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX31-CF402R-5G	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX31-CF402R-1GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX31-CF402R-2GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX31-CF402R-4GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX31-CF403R-5G	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX31-CF403R-1GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX31-CF403R-2GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX31-CF403R-4GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX31-CF502R-5G	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX31-CF502R-1GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX31-CF502R-2GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX31-CF502R-4GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX31-CF503R-5G	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX31-CF503R-1GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX31-CF503R-2GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX31-CF503R-4GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX31-CF702R-5G	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX31-CF702R-1GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX31-CF702R-2GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX31-CF702R-4GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX31-CF703R-5G	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX31-CF703R-1GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX31-CF703R-2GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX31-CF703R-4GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX31-CE402R-5G	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX31-CE402R-1GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX31-CE402R-2GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX31-CE402R-4GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX31-CE403R-5G	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX31-CE403R-1GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX31-CE403R-2GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX31-CE403R-4GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX31-CE502R-5G	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX31-CE502R-1GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX31-CE502R-2GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX31-CE502R-4GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX31-CE503R-5G	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX31-CE503R-1GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX31-CE503R-2GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX31-CE503R-4GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX31-CE702R-5G	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX31-CE702R-1GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX31-CE702R-2GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX31-CE702R-4GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX31-CE703R-5G	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX31-CE703R-1GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX31-CE703R-2GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX31-CE703R-4GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX21-AN301R-5G	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Aluminum \| Seal: NBR \| Orifice / port: ø3 mm, Rc1/8 \| Coil: DC24V, grommet (G)
	JSX21-AN301R-1GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Aluminum \| Seal: NBR \| Orifice / port: ø3 mm, Rc1/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX21-AN301R-2GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Aluminum \| Seal: NBR \| Orifice / port: ø3 mm, Rc1/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX21-AN301R-4GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Aluminum \| Seal: NBR \| Orifice / port: ø3 mm, Rc1/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX21-AN302R-5G	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Aluminum \| Seal: NBR \| Orifice / port: ø3 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX21-AN302R-1GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Aluminum \| Seal: NBR \| Orifice / port: ø3 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX21-AN302R-2GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Aluminum \| Seal: NBR \| Orifice / port: ø3 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX21-AN302R-4GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Aluminum \| Seal: NBR \| Orifice / port: ø3 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX21-AN501R-5G	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Aluminum \| Seal: NBR \| Orifice / port: ø5 mm, Rc1/8 \| Coil: DC24V, grommet (G)
	JSX21-AN501R-1GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Aluminum \| Seal: NBR \| Orifice / port: ø5 mm, Rc1/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX21-AN501R-2GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Aluminum \| Seal: NBR \| Orifice / port: ø5 mm, Rc1/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX21-AN501R-4GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Aluminum \| Seal: NBR \| Orifice / port: ø5 mm, Rc1/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX21-AN502R-5G	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Aluminum \| Seal: NBR \| Orifice / port: ø5 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX21-AN502R-1GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Aluminum \| Seal: NBR \| Orifice / port: ø5 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX21-AN502R-2GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Aluminum \| Seal: NBR \| Orifice / port: ø5 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX21-AN502R-4GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Aluminum \| Seal: NBR \| Orifice / port: ø5 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX21-AF301R-5G	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Aluminum \| Seal: FKM \| Orifice / port: ø3 mm, Rc1/8 \| Coil: DC24V, grommet (G)
	JSX21-AF301R-1GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Aluminum \| Seal: FKM \| Orifice / port: ø3 mm, Rc1/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX21-AF301R-2GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Aluminum \| Seal: FKM \| Orifice / port: ø3 mm, Rc1/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX21-AF301R-4GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Aluminum \| Seal: FKM \| Orifice / port: ø3 mm, Rc1/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX21-AF302R-5G	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Aluminum \| Seal: FKM \| Orifice / port: ø3 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX21-AF302R-1GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Aluminum \| Seal: FKM \| Orifice / port: ø3 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX21-AF302R-2GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Aluminum \| Seal: FKM \| Orifice / port: ø3 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX21-AF302R-4GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Aluminum \| Seal: FKM \| Orifice / port: ø3 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX21-AF501R-5G	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Aluminum \| Seal: FKM \| Orifice / port: ø5 mm, Rc1/8 \| Coil: DC24V, grommet (G)
	JSX21-AF501R-1GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Aluminum \| Seal: FKM \| Orifice / port: ø5 mm, Rc1/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX21-AF501R-2GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Aluminum \| Seal: FKM \| Orifice / port: ø5 mm, Rc1/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX21-AF501R-4GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Aluminum \| Seal: FKM \| Orifice / port: ø5 mm, Rc1/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX21-AF502R-5G	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Aluminum \| Seal: FKM \| Orifice / port: ø5 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX21-AF502R-1GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Aluminum \| Seal: FKM \| Orifice / port: ø5 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX21-AF502R-2GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Aluminum \| Seal: FKM \| Orifice / port: ø5 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX21-AF502R-4GS	Valve type: N.C. (normally closed) \| Size: 20 \| Body: Aluminum \| Seal: FKM \| Orifice / port: ø5 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX31-AN402R-5G	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Aluminum \| Seal: NBR \| Orifice / port: ø4 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX31-AN402R-1GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Aluminum \| Seal: NBR \| Orifice / port: ø4 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX31-AN402R-2GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Aluminum \| Seal: NBR \| Orifice / port: ø4 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX31-AN402R-4GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Aluminum \| Seal: NBR \| Orifice / port: ø4 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX31-AN403R-5G	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Aluminum \| Seal: NBR \| Orifice / port: ø4 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX31-AN403R-1GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Aluminum \| Seal: NBR \| Orifice / port: ø4 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX31-AN403R-2GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Aluminum \| Seal: NBR \| Orifice / port: ø4 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX31-AN403R-4GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Aluminum \| Seal: NBR \| Orifice / port: ø4 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX31-AN702R-5G	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Aluminum \| Seal: NBR \| Orifice / port: ø7 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX31-AN702R-1GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Aluminum \| Seal: NBR \| Orifice / port: ø7 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX31-AN702R-2GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Aluminum \| Seal: NBR \| Orifice / port: ø7 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX31-AN702R-4GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Aluminum \| Seal: NBR \| Orifice / port: ø7 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX31-AN703R-5G	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Aluminum \| Seal: NBR \| Orifice / port: ø7 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX31-AN703R-1GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Aluminum \| Seal: NBR \| Orifice / port: ø7 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX31-AN703R-2GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Aluminum \| Seal: NBR \| Orifice / port: ø7 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX31-AN703R-4GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Aluminum \| Seal: NBR \| Orifice / port: ø7 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX31-AF402R-5G	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Aluminum \| Seal: FKM \| Orifice / port: ø4 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX31-AF402R-1GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Aluminum \| Seal: FKM \| Orifice / port: ø4 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX31-AF402R-2GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Aluminum \| Seal: FKM \| Orifice / port: ø4 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX31-AF402R-4GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Aluminum \| Seal: FKM \| Orifice / port: ø4 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX31-AF403R-5G	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Aluminum \| Seal: FKM \| Orifice / port: ø4 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX31-AF403R-1GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Aluminum \| Seal: FKM \| Orifice / port: ø4 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX31-AF403R-2GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Aluminum \| Seal: FKM \| Orifice / port: ø4 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX31-AF403R-4GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Aluminum \| Seal: FKM \| Orifice / port: ø4 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX31-AF702R-5G	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Aluminum \| Seal: FKM \| Orifice / port: ø7 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX31-AF702R-1GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Aluminum \| Seal: FKM \| Orifice / port: ø7 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX31-AF702R-2GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Aluminum \| Seal: FKM \| Orifice / port: ø7 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX31-AF702R-4GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Aluminum \| Seal: FKM \| Orifice / port: ø7 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX31-AF703R-5G	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Aluminum \| Seal: FKM \| Orifice / port: ø7 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX31-AF703R-1GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Aluminum \| Seal: FKM \| Orifice / port: ø7 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX31-AF703R-2GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Aluminum \| Seal: FKM \| Orifice / port: ø7 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX31-AF703R-4GS	Valve type: N.C. (normally closed) \| Size: 30 \| Body: Aluminum \| Seal: FKM \| Orifice / port: ø7 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX22-SN301R-5G	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: DC24V, grommet (G)
	JSX22-SN301R-1GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX22-SN301R-2GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX22-SN301R-4GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX22-SN302R-5G	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX22-SN302R-1GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX22-SN302R-2GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX22-SN302R-4GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX22-SN303R-5G	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX22-SN303R-1GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX22-SN303R-2GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX22-SN303R-4GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX22-SN402R-5G	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX22-SN402R-1GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX22-SN402R-2GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX22-SN402R-4GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX22-SN403R-5G	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX22-SN403R-1GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX22-SN403R-2GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX22-SN403R-4GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX22-SN502R-5G	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX22-SN502R-1GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX22-SN502R-2GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX22-SN502R-4GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX22-SN503R-5G	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX22-SN503R-1GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX22-SN503R-2GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX22-SN503R-4GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX22-SN702R-5G	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX22-SN702R-1GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX22-SN702R-2GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX22-SN702R-4GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX22-SN703R-5G	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX22-SN703R-1GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX22-SN703R-2GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX22-SN703R-4GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX22-SF301R-5G	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: DC24V, grommet (G)
	JSX22-SF301R-1GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX22-SF301R-2GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX22-SF301R-4GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX22-SF302R-5G	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX22-SF302R-1GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX22-SF302R-2GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX22-SF302R-4GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX22-SF303R-5G	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX22-SF303R-1GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX22-SF303R-2GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX22-SF303R-4GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX22-SF402R-5G	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX22-SF402R-1GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX22-SF402R-2GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX22-SF402R-4GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX22-SF403R-5G	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX22-SF403R-1GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX22-SF403R-2GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX22-SF403R-4GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX22-SF502R-5G	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX22-SF502R-1GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX22-SF502R-2GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX22-SF502R-4GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX22-SF503R-5G	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX22-SF503R-1GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX22-SF503R-2GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX22-SF503R-4GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX22-SF702R-5G	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX22-SF702R-1GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX22-SF702R-2GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX22-SF702R-4GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX22-SF703R-5G	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX22-SF703R-1GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX22-SF703R-2GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX22-SF703R-4GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX22-SE301R-5G	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: DC24V, grommet (G)
	JSX22-SE301R-1GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX22-SE301R-2GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX22-SE301R-4GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX22-SE302R-5G	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX22-SE302R-1GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX22-SE302R-2GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX22-SE302R-4GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX22-SE303R-5G	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX22-SE303R-1GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX22-SE303R-2GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX22-SE303R-4GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX22-SE402R-5G	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX22-SE402R-1GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX22-SE402R-2GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX22-SE402R-4GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX22-SE403R-5G	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX22-SE403R-1GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX22-SE403R-2GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX22-SE403R-4GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX22-SE502R-5G	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX22-SE502R-1GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX22-SE502R-2GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX22-SE502R-4GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX22-SE503R-5G	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX22-SE503R-1GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX22-SE503R-2GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX22-SE503R-4GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX22-SE702R-5G	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX22-SE702R-1GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX22-SE702R-2GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX22-SE702R-4GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX22-SE703R-5G	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX22-SE703R-1GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX22-SE703R-2GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX22-SE703R-4GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX22-CN301R-5G	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: DC24V, grommet (G)
	JSX22-CN301R-1GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX22-CN301R-2GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX22-CN301R-4GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX22-CN302R-5G	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX22-CN302R-1GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX22-CN302R-2GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX22-CN302R-4GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX22-CN303R-5G	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX22-CN303R-1GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX22-CN303R-2GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX22-CN303R-4GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX22-CN402R-5G	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX22-CN402R-1GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX22-CN402R-2GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX22-CN402R-4GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX22-CN403R-5G	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX22-CN403R-1GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX22-CN403R-2GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX22-CN403R-4GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX22-CN502R-5G	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX22-CN502R-1GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX22-CN502R-2GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX22-CN502R-4GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX22-CN503R-5G	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX22-CN503R-1GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX22-CN503R-2GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX22-CN503R-4GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX22-CN702R-5G	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX22-CN702R-1GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX22-CN702R-2GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX22-CN702R-4GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX22-CN703R-5G	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX22-CN703R-1GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX22-CN703R-2GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX22-CN703R-4GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX22-CF301R-5G	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: DC24V, grommet (G)
	JSX22-CF301R-1GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX22-CF301R-2GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX22-CF301R-4GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX22-CF302R-5G	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX22-CF302R-1GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX22-CF302R-2GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX22-CF302R-4GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX22-CF303R-5G	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX22-CF303R-1GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX22-CF303R-2GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX22-CF303R-4GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX22-CF402R-5G	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX22-CF402R-1GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX22-CF402R-2GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX22-CF402R-4GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX22-CF403R-5G	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX22-CF403R-1GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX22-CF403R-2GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX22-CF403R-4GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX22-CF502R-5G	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX22-CF502R-1GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX22-CF502R-2GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX22-CF502R-4GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX22-CF503R-5G	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX22-CF503R-1GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX22-CF503R-2GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX22-CF503R-4GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX22-CF702R-5G	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX22-CF702R-1GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX22-CF702R-2GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX22-CF702R-4GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX22-CF703R-5G	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX22-CF703R-1GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX22-CF703R-2GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX22-CF703R-4GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX22-CE301R-5G	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: DC24V, grommet (G)
	JSX22-CE301R-1GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX22-CE301R-2GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX22-CE301R-4GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX22-CE302R-5G	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX22-CE302R-1GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX22-CE302R-2GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX22-CE302R-4GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX22-CE303R-5G	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX22-CE303R-1GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX22-CE303R-2GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX22-CE303R-4GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX22-CE402R-5G	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX22-CE402R-1GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX22-CE402R-2GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX22-CE402R-4GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX22-CE403R-5G	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX22-CE403R-1GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX22-CE403R-2GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX22-CE403R-4GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX22-CE502R-5G	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX22-CE502R-1GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX22-CE502R-2GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX22-CE502R-4GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX22-CE503R-5G	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX22-CE503R-1GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX22-CE503R-2GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX22-CE503R-4GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX22-CE702R-5G	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX22-CE702R-1GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX22-CE702R-2GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX22-CE702R-4GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX22-CE703R-5G	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX22-CE703R-1GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX22-CE703R-2GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX22-CE703R-4GS	Valve type: N.O. (normally open) \| Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX32-SN301R-5G	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: DC24V, grommet (G)
	JSX32-SN301R-1GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX32-SN301R-2GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX32-SN301R-4GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX32-SN302R-5G	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX32-SN302R-1GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX32-SN302R-2GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX32-SN302R-4GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX32-SN303R-5G	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX32-SN303R-1GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX32-SN303R-2GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX32-SN303R-4GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX32-SN402R-5G	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX32-SN402R-1GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX32-SN402R-2GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX32-SN402R-4GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX32-SN403R-5G	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX32-SN403R-1GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX32-SN403R-2GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX32-SN403R-4GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX32-SN502R-5G	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX32-SN502R-1GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX32-SN502R-2GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX32-SN502R-4GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX32-SN503R-5G	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX32-SN503R-1GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX32-SN503R-2GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX32-SN503R-4GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX32-SN702R-5G	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX32-SN702R-1GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX32-SN702R-2GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX32-SN702R-4GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX32-SN703R-5G	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX32-SN703R-1GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX32-SN703R-2GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX32-SN703R-4GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX32-SF301R-5G	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: DC24V, grommet (G)
	JSX32-SF301R-1GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX32-SF301R-2GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX32-SF301R-4GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX32-SF302R-5G	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX32-SF302R-1GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX32-SF302R-2GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX32-SF302R-4GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX32-SF303R-5G	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX32-SF303R-1GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX32-SF303R-2GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX32-SF303R-4GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX32-SF402R-5G	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX32-SF402R-1GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX32-SF402R-2GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX32-SF402R-4GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX32-SF403R-5G	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX32-SF403R-1GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX32-SF403R-2GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX32-SF403R-4GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX32-SF502R-5G	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX32-SF502R-1GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX32-SF502R-2GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX32-SF502R-4GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX32-SF503R-5G	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX32-SF503R-1GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX32-SF503R-2GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX32-SF503R-4GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX32-SF702R-5G	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX32-SF702R-1GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX32-SF702R-2GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX32-SF702R-4GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX32-SF703R-5G	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX32-SF703R-1GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX32-SF703R-2GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX32-SF703R-4GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX32-SE301R-5G	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: DC24V, grommet (G)
	JSX32-SE301R-1GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX32-SE301R-2GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX32-SE301R-4GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX32-SE302R-5G	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX32-SE302R-1GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX32-SE302R-2GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX32-SE302R-4GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX32-SE303R-5G	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX32-SE303R-1GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX32-SE303R-2GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX32-SE303R-4GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX32-SE402R-5G	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX32-SE402R-1GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX32-SE402R-2GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX32-SE402R-4GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX32-SE403R-5G	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX32-SE403R-1GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX32-SE403R-2GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX32-SE403R-4GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX32-SE502R-5G	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX32-SE502R-1GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX32-SE502R-2GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX32-SE502R-4GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX32-SE503R-5G	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX32-SE503R-1GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX32-SE503R-2GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX32-SE503R-4GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX32-SE702R-5G	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX32-SE702R-1GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX32-SE702R-2GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX32-SE702R-4GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX32-SE703R-5G	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX32-SE703R-1GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX32-SE703R-2GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX32-SE703R-4GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX32-CN301R-5G	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: DC24V, grommet (G)
	JSX32-CN301R-1GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX32-CN301R-2GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX32-CN301R-4GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX32-CN302R-5G	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX32-CN302R-1GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX32-CN302R-2GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX32-CN302R-4GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX32-CN303R-5G	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX32-CN303R-1GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX32-CN303R-2GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX32-CN303R-4GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX32-CN402R-5G	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX32-CN402R-1GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX32-CN402R-2GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX32-CN402R-4GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX32-CN403R-5G	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX32-CN403R-1GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX32-CN403R-2GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX32-CN403R-4GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX32-CN502R-5G	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX32-CN502R-1GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX32-CN502R-2GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX32-CN502R-4GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX32-CN503R-5G	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX32-CN503R-1GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX32-CN503R-2GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX32-CN503R-4GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX32-CN702R-5G	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX32-CN702R-1GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX32-CN702R-2GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX32-CN702R-4GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX32-CN703R-5G	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX32-CN703R-1GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX32-CN703R-2GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX32-CN703R-4GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX32-CF301R-5G	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: DC24V, grommet (G)
	JSX32-CF301R-1GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX32-CF301R-2GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX32-CF301R-4GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX32-CF302R-5G	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX32-CF302R-1GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX32-CF302R-2GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX32-CF302R-4GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX32-CF303R-5G	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX32-CF303R-1GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX32-CF303R-2GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX32-CF303R-4GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX32-CF402R-5G	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX32-CF402R-1GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX32-CF402R-2GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX32-CF402R-4GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX32-CF403R-5G	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX32-CF403R-1GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX32-CF403R-2GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX32-CF403R-4GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX32-CF502R-5G	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX32-CF502R-1GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX32-CF502R-2GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX32-CF502R-4GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX32-CF503R-5G	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX32-CF503R-1GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX32-CF503R-2GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX32-CF503R-4GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX32-CF702R-5G	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX32-CF702R-1GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX32-CF702R-2GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX32-CF702R-4GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX32-CF703R-5G	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX32-CF703R-1GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX32-CF703R-2GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX32-CF703R-4GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX32-CE301R-5G	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: DC24V, grommet (G)
	JSX32-CE301R-1GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX32-CE301R-2GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX32-CE301R-4GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX32-CE302R-5G	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX32-CE302R-1GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX32-CE302R-2GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX32-CE302R-4GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX32-CE303R-5G	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX32-CE303R-1GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX32-CE303R-2GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX32-CE303R-4GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø3.2 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX32-CE402R-5G	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX32-CE402R-1GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX32-CE402R-2GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX32-CE402R-4GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX32-CE403R-5G	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX32-CE403R-1GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX32-CE403R-2GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX32-CE403R-4GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX32-CE502R-5G	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX32-CE502R-1GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX32-CE502R-2GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX32-CE502R-4GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX32-CE503R-5G	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX32-CE503R-1GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX32-CE503R-2GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX32-CE503R-4GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø5.6 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX32-CE702R-5G	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: DC24V, grommet (G)
	JSX32-CE702R-1GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX32-CE702R-2GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX32-CE702R-4GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSX32-CE703R-5G	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: DC24V, grommet (G)
	JSX32-CE703R-1GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSX32-CE703R-2GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSX32-CE703R-4GS	Valve type: N.O. (normally open) \| Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC JSX Direct Operated 2-Port Solenoid Valve (N.C./N.O., Size 10-30)
