SMC JSX-S Steam / Hot Water Direct Operated 2-Port Solenoid Valve

SMC JSX-S Steam / Hot Water Direct Operated 2-Port Solenoid Valve

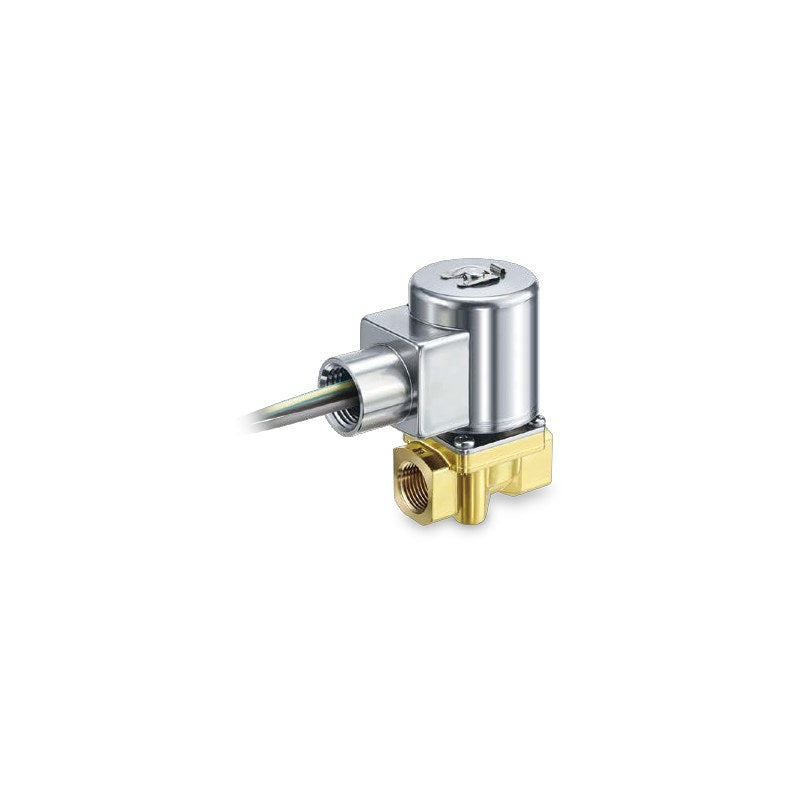

SMC JSX31S direct operated 2-port solenoid valve for steam (up to 183°C) and hot water (up to 99°C), N.C., with FKM seal and conduit coil.

Key features

  • For steam 183°C or less and hot water 99°C or less
  • Size 30, orifice 5.6 or 7.1 mm, ports 1/4 and 3/8; stainless steel or brass body
  • Max. operating pressure differential 1.0 MPa (ø5.6) / 0.5 MPa (ø7.1)
  • Conduit lead wire with surge voltage suppressor (CS) only
  • Options as suffixes: NPT/G thread (N/F), oil-free (-D), SUS bracket (-B)

Specifications

Valve structure Direct operated poppet, N.C.
Fluid Steam 183°C max., hot water 99°C max.
Seal FKM
Proof pressure 2.0 MPa
Max. system pressure 1.0 MPa
Ambient temperature -20 to 60°C
Enclosure IP67
Rated voltage AC 24, 48, 100, 110, 120, 200, 220, 230, 240V; DC 12, 24V (listed: DC24V, AC100/200/220V)
Power consumption AC 16 VA, DC 13 W
Thread Rc (NPT, G on order)
Size 30
Source SMC Korea catalog JSX/JSX Series (SMCKR_JSX.pdf), p. 39-40 (PDF p. 40-41)
JSX31S-SF502R-5CS Body: Stainless steel | Orifice / port: ø5.6 mm, Rc1/4 | Coil: DC24V, conduit w/ surge circuit (CS)
JSX31S-SF502R-1CS Body: Stainless steel | Orifice / port: ø5.6 mm, Rc1/4 | Coil: AC100V, conduit w/ surge circuit (CS)
JSX31S-SF502R-2CS Body: Stainless steel | Orifice / port: ø5.6 mm, Rc1/4 | Coil: AC200V, conduit w/ surge circuit (CS)
JSX31S-SF502R-4CS Body: Stainless steel | Orifice / port: ø5.6 mm, Rc1/4 | Coil: AC220V, conduit w/ surge circuit (CS)
JSX31S-SF503R-5CS Body: Stainless steel | Orifice / port: ø5.6 mm, Rc3/8 | Coil: DC24V, conduit w/ surge circuit (CS)
JSX31S-SF503R-1CS Body: Stainless steel | Orifice / port: ø5.6 mm, Rc3/8 | Coil: AC100V, conduit w/ surge circuit (CS)
JSX31S-SF503R-2CS Body: Stainless steel | Orifice / port: ø5.6 mm, Rc3/8 | Coil: AC200V, conduit w/ surge circuit (CS)
JSX31S-SF503R-4CS Body: Stainless steel | Orifice / port: ø5.6 mm, Rc3/8 | Coil: AC220V, conduit w/ surge circuit (CS)
JSX31S-SF702R-5CS Body: Stainless steel | Orifice / port: ø7.1 mm, Rc1/4 | Coil: DC24V, conduit w/ surge circuit (CS)
JSX31S-SF702R-1CS Body: Stainless steel | Orifice / port: ø7.1 mm, Rc1/4 | Coil: AC100V, conduit w/ surge circuit (CS)
JSX31S-SF702R-2CS Body: Stainless steel | Orifice / port: ø7.1 mm, Rc1/4 | Coil: AC200V, conduit w/ surge circuit (CS)
JSX31S-SF702R-4CS Body: Stainless steel | Orifice / port: ø7.1 mm, Rc1/4 | Coil: AC220V, conduit w/ surge circuit (CS)
JSX31S-SF703R-5CS Body: Stainless steel | Orifice / port: ø7.1 mm, Rc3/8 | Coil: DC24V, conduit w/ surge circuit (CS)
JSX31S-SF703R-1CS Body: Stainless steel | Orifice / port: ø7.1 mm, Rc3/8 | Coil: AC100V, conduit w/ surge circuit (CS)
JSX31S-SF703R-2CS Body: Stainless steel | Orifice / port: ø7.1 mm, Rc3/8 | Coil: AC200V, conduit w/ surge circuit (CS)
JSX31S-SF703R-4CS Body: Stainless steel | Orifice / port: ø7.1 mm, Rc3/8 | Coil: AC220V, conduit w/ surge circuit (CS)
JSX31S-CF502R-5CS Body: Brass | Orifice / port: ø5.6 mm, Rc1/4 | Coil: DC24V, conduit w/ surge circuit (CS)
JSX31S-CF502R-1CS Body: Brass | Orifice / port: ø5.6 mm, Rc1/4 | Coil: AC100V, conduit w/ surge circuit (CS)
JSX31S-CF502R-2CS Body: Brass | Orifice / port: ø5.6 mm, Rc1/4 | Coil: AC200V, conduit w/ surge circuit (CS)
JSX31S-CF502R-4CS Body: Brass | Orifice / port: ø5.6 mm, Rc1/4 | Coil: AC220V, conduit w/ surge circuit (CS)
JSX31S-CF503R-5CS Body: Brass | Orifice / port: ø5.6 mm, Rc3/8 | Coil: DC24V, conduit w/ surge circuit (CS)
JSX31S-CF503R-1CS Body: Brass | Orifice / port: ø5.6 mm, Rc3/8 | Coil: AC100V, conduit w/ surge circuit (CS)
JSX31S-CF503R-2CS Body: Brass | Orifice / port: ø5.6 mm, Rc3/8 | Coil: AC200V, conduit w/ surge circuit (CS)
JSX31S-CF503R-4CS Body: Brass | Orifice / port: ø5.6 mm, Rc3/8 | Coil: AC220V, conduit w/ surge circuit (CS)
JSX31S-CF702R-5CS Body: Brass | Orifice / port: ø7.1 mm, Rc1/4 | Coil: DC24V, conduit w/ surge circuit (CS)
JSX31S-CF702R-1CS Body: Brass | Orifice / port: ø7.1 mm, Rc1/4 | Coil: AC100V, conduit w/ surge circuit (CS)
JSX31S-CF702R-2CS Body: Brass | Orifice / port: ø7.1 mm, Rc1/4 | Coil: AC200V, conduit w/ surge circuit (CS)
JSX31S-CF702R-4CS Body: Brass | Orifice / port: ø7.1 mm, Rc1/4 | Coil: AC220V, conduit w/ surge circuit (CS)
JSX31S-CF703R-5CS Body: Brass | Orifice / port: ø7.1 mm, Rc3/8 | Coil: DC24V, conduit w/ surge circuit (CS)
JSX31S-CF703R-1CS Body: Brass | Orifice / port: ø7.1 mm, Rc3/8 | Coil: AC100V, conduit w/ surge circuit (CS)
JSX31S-CF703R-2CS Body: Brass | Orifice / port: ø7.1 mm, Rc3/8 | Coil: AC200V, conduit w/ surge circuit (CS)
JSX31S-CF703R-4CS Body: Brass | Orifice / port: ø7.1 mm, Rc3/8 | Coil: AC220V, conduit w/ surge circuit (CS)
2-Port ValvesSMC
32 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC JSX-S Steam / Hot Water Direct Operated 2-Port Solenoid Valve

Brand SMC·2-Port Valves

Available part numbers (32)

JSX31S-SF502R-5CS, JSX31S-SF502R-1CS, JSX31S-SF502R-2CS, JSX31S-SF502R-4CS, JSX31S-SF503R-5CS, JSX31S-SF503R-1CS, JSX31S-SF503R-2CS, JSX31S-SF503R-4CS, JSX31S-SF702R-5CS, JSX31S-SF702R-1CS + 22 more — see full table ↓
