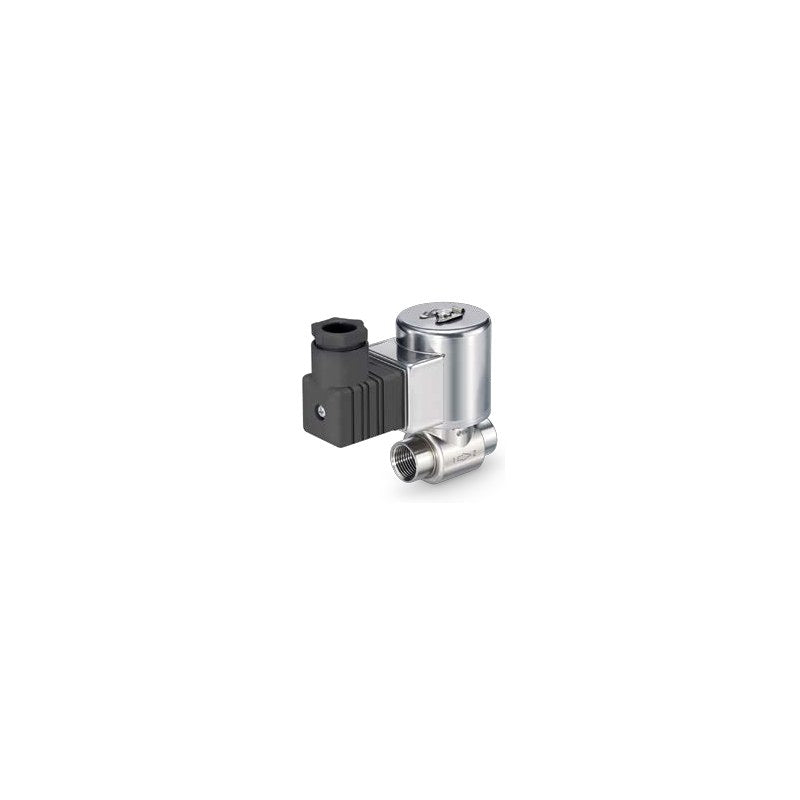

SMC JSX-U High Flow / Low Power Direct Operated 2-Port Solenoid Valve

SMC JSXU series high flow / low power direct operated 2-port solenoid valve (N.C., DC coil) with energy-saving circuit that cuts holding power after 200 ms.

Key features

Higher max. operating pressure differential than standard JSX for the same orifice (e.g. ø7.1 mm: 0.4 MPa in size 20)
Holding power 2 W (size 10) / 3 W (size 20, 30) after start-up; DC12V or DC24V coil with polarity
SUS or brass body for air, water and oil; AL body version for air
Lead wire: surge-protected grommet GS (listed), conduit CS, DIN terminal DS/DZ/DN, M12 connector WN; no plain grommet
Options as suffixes: NPT/G thread (N/F), oil-free (-D), SUS bracket (-B)

Specifications

Valve structure	Direct operated poppet, N.C.
Fluid and temperature	Air -10 to 60°C; water 1 to 60°C; oil -5 to 60°C (AL body: air only)
Proof pressure	2.0 MPa
Max. system pressure	1.0 MPa
Ambient temperature	-20 to 60°C
Enclosure	IP67 (DIN terminal IP65)
Rated voltage	DC12V, DC24V
Holding power	2 W (size 10), 3 W (size 20/30)
Vibration/impact resistance	30/100 m/s²
Standards	CE/UKCA (not UL)
Thread	Rc (NPT, G on order)
Source	SMC Korea catalog JSX/JSX Series (SMCKR_JSX.pdf), p. 19-22 (PDF p. 20-23)

JSX11U-SN201R-5GS		Size: 10 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø2.4 mm, Rc1/8 \| Coil: DC24V, grommet w/ surge circuit (GS)
JSX11U-SN201R-6GS		Size: 10 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø2.4 mm, Rc1/8 \| Coil: DC12V, grommet w/ surge circuit (GS)
JSX11U-SF201R-5GS		Size: 10 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø2.4 mm, Rc1/8 \| Coil: DC24V, grommet w/ surge circuit (GS)
JSX11U-SF201R-6GS		Size: 10 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø2.4 mm, Rc1/8 \| Coil: DC12V, grommet w/ surge circuit (GS)
JSX11U-SE201R-5GS		Size: 10 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø2.4 mm, Rc1/8 \| Coil: DC24V, grommet w/ surge circuit (GS)
JSX11U-SE201R-6GS		Size: 10 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø2.4 mm, Rc1/8 \| Coil: DC12V, grommet w/ surge circuit (GS)
JSX11U-CN201R-5GS		Size: 10 \| Body: Brass \| Seal: NBR \| Orifice / port: ø2.4 mm, Rc1/8 \| Coil: DC24V, grommet w/ surge circuit (GS)
JSX11U-CN201R-6GS		Size: 10 \| Body: Brass \| Seal: NBR \| Orifice / port: ø2.4 mm, Rc1/8 \| Coil: DC12V, grommet w/ surge circuit (GS)
JSX11U-CF201R-5GS		Size: 10 \| Body: Brass \| Seal: FKM \| Orifice / port: ø2.4 mm, Rc1/8 \| Coil: DC24V, grommet w/ surge circuit (GS)
JSX11U-CF201R-6GS		Size: 10 \| Body: Brass \| Seal: FKM \| Orifice / port: ø2.4 mm, Rc1/8 \| Coil: DC12V, grommet w/ surge circuit (GS)
JSX11U-CE201R-5GS		Size: 10 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø2.4 mm, Rc1/8 \| Coil: DC24V, grommet w/ surge circuit (GS)
JSX11U-CE201R-6GS		Size: 10 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø2.4 mm, Rc1/8 \| Coil: DC12V, grommet w/ surge circuit (GS)
JSX21U-SN402R-5GS		Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: DC24V, grommet w/ surge circuit (GS)
JSX21U-SN402R-6GS		Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: DC12V, grommet w/ surge circuit (GS)
JSX21U-SN403R-5GS		Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: DC24V, grommet w/ surge circuit (GS)
JSX21U-SN403R-6GS		Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: DC12V, grommet w/ surge circuit (GS)
JSX21U-SN702R-5GS		Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: DC24V, grommet w/ surge circuit (GS)
JSX21U-SN702R-6GS		Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: DC12V, grommet w/ surge circuit (GS)
JSX21U-SN703R-5GS		Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: DC24V, grommet w/ surge circuit (GS)
JSX21U-SN703R-6GS		Size: 20 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: DC12V, grommet w/ surge circuit (GS)
JSX21U-SF402R-5GS		Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: DC24V, grommet w/ surge circuit (GS)
JSX21U-SF402R-6GS		Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: DC12V, grommet w/ surge circuit (GS)
JSX21U-SF403R-5GS		Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: DC24V, grommet w/ surge circuit (GS)
JSX21U-SF403R-6GS		Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: DC12V, grommet w/ surge circuit (GS)
JSX21U-SF702R-5GS		Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: DC24V, grommet w/ surge circuit (GS)
JSX21U-SF702R-6GS		Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: DC12V, grommet w/ surge circuit (GS)
JSX21U-SF703R-5GS		Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: DC24V, grommet w/ surge circuit (GS)
JSX21U-SF703R-6GS		Size: 20 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: DC12V, grommet w/ surge circuit (GS)
JSX21U-SE402R-5GS		Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: DC24V, grommet w/ surge circuit (GS)
JSX21U-SE402R-6GS		Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: DC12V, grommet w/ surge circuit (GS)
JSX21U-SE403R-5GS		Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: DC24V, grommet w/ surge circuit (GS)
JSX21U-SE403R-6GS		Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: DC12V, grommet w/ surge circuit (GS)
JSX21U-SE702R-5GS		Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: DC24V, grommet w/ surge circuit (GS)
JSX21U-SE702R-6GS		Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: DC12V, grommet w/ surge circuit (GS)
JSX21U-SE703R-5GS		Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: DC24V, grommet w/ surge circuit (GS)
JSX21U-SE703R-6GS		Size: 20 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: DC12V, grommet w/ surge circuit (GS)
JSX21U-CN402R-5GS		Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: DC24V, grommet w/ surge circuit (GS)
JSX21U-CN402R-6GS		Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: DC12V, grommet w/ surge circuit (GS)
JSX21U-CN403R-5GS		Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: DC24V, grommet w/ surge circuit (GS)
JSX21U-CN403R-6GS		Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: DC12V, grommet w/ surge circuit (GS)
JSX21U-CN702R-5GS		Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: DC24V, grommet w/ surge circuit (GS)
JSX21U-CN702R-6GS		Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: DC12V, grommet w/ surge circuit (GS)
JSX21U-CN703R-5GS		Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: DC24V, grommet w/ surge circuit (GS)
JSX21U-CN703R-6GS		Size: 20 \| Body: Brass \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: DC12V, grommet w/ surge circuit (GS)
JSX21U-CF402R-5GS		Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: DC24V, grommet w/ surge circuit (GS)
JSX21U-CF402R-6GS		Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: DC12V, grommet w/ surge circuit (GS)
JSX21U-CF403R-5GS		Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: DC24V, grommet w/ surge circuit (GS)
JSX21U-CF403R-6GS		Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: DC12V, grommet w/ surge circuit (GS)
JSX21U-CF702R-5GS		Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: DC24V, grommet w/ surge circuit (GS)
JSX21U-CF702R-6GS		Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: DC12V, grommet w/ surge circuit (GS)
JSX21U-CF703R-5GS		Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: DC24V, grommet w/ surge circuit (GS)
JSX21U-CF703R-6GS		Size: 20 \| Body: Brass \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: DC12V, grommet w/ surge circuit (GS)
JSX21U-CE402R-5GS		Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: DC24V, grommet w/ surge circuit (GS)
JSX21U-CE402R-6GS		Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc1/4 \| Coil: DC12V, grommet w/ surge circuit (GS)
JSX21U-CE403R-5GS		Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: DC24V, grommet w/ surge circuit (GS)
JSX21U-CE403R-6GS		Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø4.0 mm, Rc3/8 \| Coil: DC12V, grommet w/ surge circuit (GS)
JSX21U-CE702R-5GS		Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: DC24V, grommet w/ surge circuit (GS)
JSX21U-CE702R-6GS		Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: DC12V, grommet w/ surge circuit (GS)
JSX21U-CE703R-5GS		Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: DC24V, grommet w/ surge circuit (GS)
JSX21U-CE703R-6GS		Size: 20 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: DC12V, grommet w/ surge circuit (GS)
JSX31U-SN702R-5GS		Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: DC24V, grommet w/ surge circuit (GS)
JSX31U-SN702R-6GS		Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: DC12V, grommet w/ surge circuit (GS)
JSX31U-SN703R-5GS		Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: DC24V, grommet w/ surge circuit (GS)
JSX31U-SN703R-6GS		Size: 30 \| Body: Stainless steel \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: DC12V, grommet w/ surge circuit (GS)
JSX31U-SF702R-5GS		Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: DC24V, grommet w/ surge circuit (GS)
JSX31U-SF702R-6GS		Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: DC12V, grommet w/ surge circuit (GS)
JSX31U-SF703R-5GS		Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: DC24V, grommet w/ surge circuit (GS)
JSX31U-SF703R-6GS		Size: 30 \| Body: Stainless steel \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: DC12V, grommet w/ surge circuit (GS)
JSX31U-SE702R-5GS		Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: DC24V, grommet w/ surge circuit (GS)
JSX31U-SE702R-6GS		Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: DC12V, grommet w/ surge circuit (GS)
JSX31U-SE703R-5GS		Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: DC24V, grommet w/ surge circuit (GS)
JSX31U-SE703R-6GS		Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: DC12V, grommet w/ surge circuit (GS)
JSX31U-CN702R-5GS		Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: DC24V, grommet w/ surge circuit (GS)
JSX31U-CN702R-6GS		Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: DC12V, grommet w/ surge circuit (GS)
JSX31U-CN703R-5GS		Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: DC24V, grommet w/ surge circuit (GS)
JSX31U-CN703R-6GS		Size: 30 \| Body: Brass \| Seal: NBR \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: DC12V, grommet w/ surge circuit (GS)
JSX31U-CF702R-5GS		Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: DC24V, grommet w/ surge circuit (GS)
JSX31U-CF702R-6GS		Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: DC12V, grommet w/ surge circuit (GS)
JSX31U-CF703R-5GS		Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: DC24V, grommet w/ surge circuit (GS)
JSX31U-CF703R-6GS		Size: 30 \| Body: Brass \| Seal: FKM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: DC12V, grommet w/ surge circuit (GS)
JSX31U-CE702R-5GS		Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: DC24V, grommet w/ surge circuit (GS)
JSX31U-CE702R-6GS		Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc1/4 \| Coil: DC12V, grommet w/ surge circuit (GS)
JSX31U-CE703R-5GS		Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: DC24V, grommet w/ surge circuit (GS)
JSX31U-CE703R-6GS		Size: 30 \| Body: Brass \| Seal: EPDM \| Orifice / port: ø7.1 mm, Rc3/8 \| Coil: DC12V, grommet w/ surge circuit (GS)
JSX21U-AN501R-5GS		Size: 20 \| Body: Aluminum \| Seal: NBR \| Orifice / port: ø5.0 mm, Rc1/8 \| Coil: DC24V, grommet w/ surge circuit (GS)
JSX21U-AN501R-6GS		Size: 20 \| Body: Aluminum \| Seal: NBR \| Orifice / port: ø5.0 mm, Rc1/8 \| Coil: DC12V, grommet w/ surge circuit (GS)
JSX21U-AN502R-5GS		Size: 20 \| Body: Aluminum \| Seal: NBR \| Orifice / port: ø5.0 mm, Rc1/4 \| Coil: DC24V, grommet w/ surge circuit (GS)
JSX21U-AN502R-6GS		Size: 20 \| Body: Aluminum \| Seal: NBR \| Orifice / port: ø5.0 mm, Rc1/4 \| Coil: DC12V, grommet w/ surge circuit (GS)
JSX21U-AF501R-5GS		Size: 20 \| Body: Aluminum \| Seal: FKM \| Orifice / port: ø5.0 mm, Rc1/8 \| Coil: DC24V, grommet w/ surge circuit (GS)
JSX21U-AF501R-6GS		Size: 20 \| Body: Aluminum \| Seal: FKM \| Orifice / port: ø5.0 mm, Rc1/8 \| Coil: DC12V, grommet w/ surge circuit (GS)
JSX21U-AF502R-5GS		Size: 20 \| Body: Aluminum \| Seal: FKM \| Orifice / port: ø5.0 mm, Rc1/4 \| Coil: DC24V, grommet w/ surge circuit (GS)
JSX21U-AF502R-6GS		Size: 20 \| Body: Aluminum \| Seal: FKM \| Orifice / port: ø5.0 mm, Rc1/4 \| Coil: DC12V, grommet w/ surge circuit (GS)
JSX31U-AN702R-5GS		Size: 30 \| Body: Aluminum \| Seal: NBR \| Orifice / port: ø7.0 mm, Rc1/4 \| Coil: DC24V, grommet w/ surge circuit (GS)
JSX31U-AN702R-6GS		Size: 30 \| Body: Aluminum \| Seal: NBR \| Orifice / port: ø7.0 mm, Rc1/4 \| Coil: DC12V, grommet w/ surge circuit (GS)
JSX31U-AN703R-5GS		Size: 30 \| Body: Aluminum \| Seal: NBR \| Orifice / port: ø7.0 mm, Rc3/8 \| Coil: DC24V, grommet w/ surge circuit (GS)
JSX31U-AN703R-6GS		Size: 30 \| Body: Aluminum \| Seal: NBR \| Orifice / port: ø7.0 mm, Rc3/8 \| Coil: DC12V, grommet w/ surge circuit (GS)
JSX31U-AF702R-5GS		Size: 30 \| Body: Aluminum \| Seal: FKM \| Orifice / port: ø7.0 mm, Rc1/4 \| Coil: DC24V, grommet w/ surge circuit (GS)
JSX31U-AF702R-6GS		Size: 30 \| Body: Aluminum \| Seal: FKM \| Orifice / port: ø7.0 mm, Rc1/4 \| Coil: DC12V, grommet w/ surge circuit (GS)
JSX31U-AF703R-5GS		Size: 30 \| Body: Aluminum \| Seal: FKM \| Orifice / port: ø7.0 mm, Rc3/8 \| Coil: DC24V, grommet w/ surge circuit (GS)
JSX31U-AF703R-6GS		Size: 30 \| Body: Aluminum \| Seal: FKM \| Orifice / port: ø7.0 mm, Rc3/8 \| Coil: DC12V, grommet w/ surge circuit (GS)
