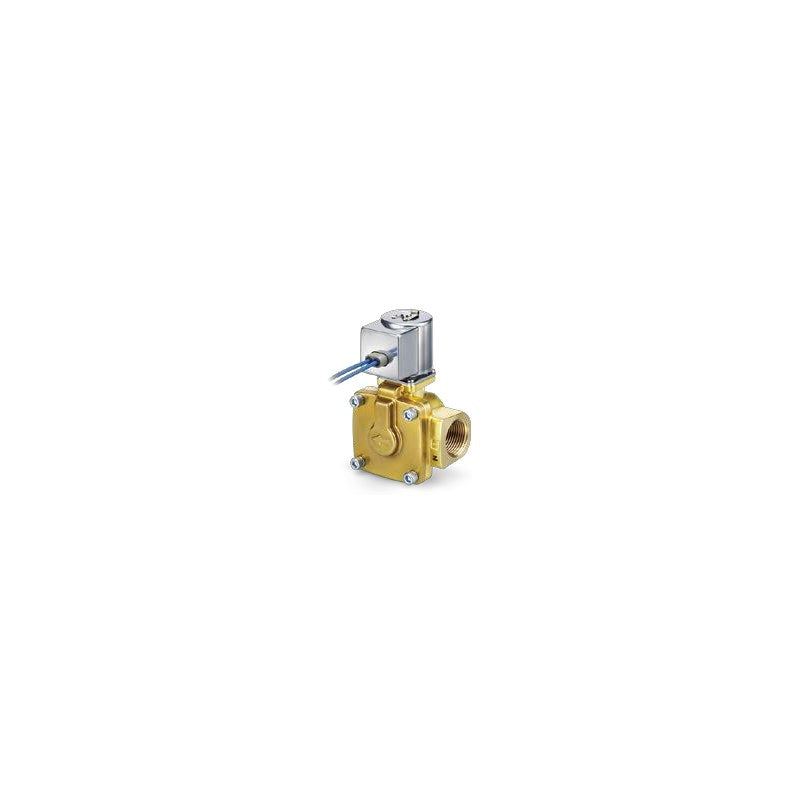

SMC JSXD Pilot Operated 2-Port Solenoid Valve (N.C./N.O., 1/4 to 2, 50A)

SMC JSXD series pilot operated diaphragm 2-port solenoid valve for air, water and oil, N.C. or N.O., in sizes 30 to 90 with threaded ports 1/4 to 2 and 32A to 50A flanges.

Key features

Pilot operated diaphragm, min. operating pressure differential 0.02 MPa (size 30-60) / 0.03 MPa (size 70-90), max. 1.0 MPa
Body: brass or stainless steel (size 30-60), aluminum (size 30 N.C., air), bronze (size 70-90, threaded or flange)
Seal: NBR, FKM (oil) or EPDM; Kv up to 42.8 (size 90)
Lead wire: grommet G (DC only), surge-protected grommet GS, conduit CS, DIN terminal DS/DZ/DN, M12 connector WN; listed codes use G for DC and GS for AC
Options as suffixes: NPT/G thread (N/F), oil-free (-D), bracket (-B, size 30-60)
CE/UKCA, UL Recognized/UL Listed models

Specifications

Valve structure	Pilot operated diaphragm
Fluid and temperature	Air -10 to 60°C; water 1 to 60°C; oil -5 to 60°C (AL: air only)
Proof pressure	2 MPa
Max. system pressure	1 MPa
Operating pressure differential	0.02 (size 30-60) / 0.03 (size 70-90) to 1.0 MPa
Ambient temperature	-20 to 60°C
Enclosure	IP67 (DIN terminal IP65)
Rated voltage	AC 24, 48, 100, 110, 120, 200, 220, 230, 240V; DC 12, 24V (listed: DC24V, AC100/200/220V)
Power consumption	AC 8 VA / 9.5 VA, DC 6 W / 8 W
Thread	Rc (NPT, G on order); flange size 70-90
Source	SMC Korea catalog JSX/JSX Series (SMCKR_JSX.pdf), p. 43-49 (PDF p. 44-50)

JSXD31-CN02R-5G		Valve type: N.C. \| Size: 30 \| Body: Brass \| Seal: NBR \| Port: Rc1/4 \| Coil: DC24V, grommet (G)
JSXD31-CN02R-1GS		Valve type: N.C. \| Size: 30 \| Body: Brass \| Seal: NBR \| Port: Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD31-CN02R-2GS		Valve type: N.C. \| Size: 30 \| Body: Brass \| Seal: NBR \| Port: Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD31-CN02R-4GS		Valve type: N.C. \| Size: 30 \| Body: Brass \| Seal: NBR \| Port: Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD31-CN03R-5G		Valve type: N.C. \| Size: 30 \| Body: Brass \| Seal: NBR \| Port: Rc3/8 \| Coil: DC24V, grommet (G)
JSXD31-CN03R-1GS		Valve type: N.C. \| Size: 30 \| Body: Brass \| Seal: NBR \| Port: Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD31-CN03R-2GS		Valve type: N.C. \| Size: 30 \| Body: Brass \| Seal: NBR \| Port: Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD31-CN03R-4GS		Valve type: N.C. \| Size: 30 \| Body: Brass \| Seal: NBR \| Port: Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD31-CN04R-5G		Valve type: N.C. \| Size: 30 \| Body: Brass \| Seal: NBR \| Port: Rc1/2 \| Coil: DC24V, grommet (G)
JSXD31-CN04R-1GS		Valve type: N.C. \| Size: 30 \| Body: Brass \| Seal: NBR \| Port: Rc1/2 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD31-CN04R-2GS		Valve type: N.C. \| Size: 30 \| Body: Brass \| Seal: NBR \| Port: Rc1/2 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD31-CN04R-4GS		Valve type: N.C. \| Size: 30 \| Body: Brass \| Seal: NBR \| Port: Rc1/2 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD31-CF02R-5G		Valve type: N.C. \| Size: 30 \| Body: Brass \| Seal: FKM \| Port: Rc1/4 \| Coil: DC24V, grommet (G)
JSXD31-CF02R-1GS		Valve type: N.C. \| Size: 30 \| Body: Brass \| Seal: FKM \| Port: Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD31-CF02R-2GS		Valve type: N.C. \| Size: 30 \| Body: Brass \| Seal: FKM \| Port: Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD31-CF02R-4GS		Valve type: N.C. \| Size: 30 \| Body: Brass \| Seal: FKM \| Port: Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD31-CF03R-5G		Valve type: N.C. \| Size: 30 \| Body: Brass \| Seal: FKM \| Port: Rc3/8 \| Coil: DC24V, grommet (G)
JSXD31-CF03R-1GS		Valve type: N.C. \| Size: 30 \| Body: Brass \| Seal: FKM \| Port: Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD31-CF03R-2GS		Valve type: N.C. \| Size: 30 \| Body: Brass \| Seal: FKM \| Port: Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD31-CF03R-4GS		Valve type: N.C. \| Size: 30 \| Body: Brass \| Seal: FKM \| Port: Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD31-CF04R-5G		Valve type: N.C. \| Size: 30 \| Body: Brass \| Seal: FKM \| Port: Rc1/2 \| Coil: DC24V, grommet (G)
JSXD31-CF04R-1GS		Valve type: N.C. \| Size: 30 \| Body: Brass \| Seal: FKM \| Port: Rc1/2 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD31-CF04R-2GS		Valve type: N.C. \| Size: 30 \| Body: Brass \| Seal: FKM \| Port: Rc1/2 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD31-CF04R-4GS		Valve type: N.C. \| Size: 30 \| Body: Brass \| Seal: FKM \| Port: Rc1/2 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD31-CE02R-5G		Valve type: N.C. \| Size: 30 \| Body: Brass \| Seal: EPDM \| Port: Rc1/4 \| Coil: DC24V, grommet (G)
JSXD31-CE02R-1GS		Valve type: N.C. \| Size: 30 \| Body: Brass \| Seal: EPDM \| Port: Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD31-CE02R-2GS		Valve type: N.C. \| Size: 30 \| Body: Brass \| Seal: EPDM \| Port: Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD31-CE02R-4GS		Valve type: N.C. \| Size: 30 \| Body: Brass \| Seal: EPDM \| Port: Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD31-CE03R-5G		Valve type: N.C. \| Size: 30 \| Body: Brass \| Seal: EPDM \| Port: Rc3/8 \| Coil: DC24V, grommet (G)
JSXD31-CE03R-1GS		Valve type: N.C. \| Size: 30 \| Body: Brass \| Seal: EPDM \| Port: Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD31-CE03R-2GS		Valve type: N.C. \| Size: 30 \| Body: Brass \| Seal: EPDM \| Port: Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD31-CE03R-4GS		Valve type: N.C. \| Size: 30 \| Body: Brass \| Seal: EPDM \| Port: Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD31-CE04R-5G		Valve type: N.C. \| Size: 30 \| Body: Brass \| Seal: EPDM \| Port: Rc1/2 \| Coil: DC24V, grommet (G)
JSXD31-CE04R-1GS		Valve type: N.C. \| Size: 30 \| Body: Brass \| Seal: EPDM \| Port: Rc1/2 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD31-CE04R-2GS		Valve type: N.C. \| Size: 30 \| Body: Brass \| Seal: EPDM \| Port: Rc1/2 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD31-CE04R-4GS		Valve type: N.C. \| Size: 30 \| Body: Brass \| Seal: EPDM \| Port: Rc1/2 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD31-SN02R-5G		Valve type: N.C. \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Port: Rc1/4 \| Coil: DC24V, grommet (G)
JSXD31-SN02R-1GS		Valve type: N.C. \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Port: Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD31-SN02R-2GS		Valve type: N.C. \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Port: Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD31-SN02R-4GS		Valve type: N.C. \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Port: Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD31-SN03R-5G		Valve type: N.C. \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Port: Rc3/8 \| Coil: DC24V, grommet (G)
JSXD31-SN03R-1GS		Valve type: N.C. \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Port: Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD31-SN03R-2GS		Valve type: N.C. \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Port: Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD31-SN03R-4GS		Valve type: N.C. \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Port: Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD31-SN04R-5G		Valve type: N.C. \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Port: Rc1/2 \| Coil: DC24V, grommet (G)
JSXD31-SN04R-1GS		Valve type: N.C. \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Port: Rc1/2 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD31-SN04R-2GS		Valve type: N.C. \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Port: Rc1/2 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD31-SN04R-4GS		Valve type: N.C. \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Port: Rc1/2 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD31-SF02R-5G		Valve type: N.C. \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Port: Rc1/4 \| Coil: DC24V, grommet (G)
JSXD31-SF02R-1GS		Valve type: N.C. \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Port: Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD31-SF02R-2GS		Valve type: N.C. \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Port: Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD31-SF02R-4GS		Valve type: N.C. \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Port: Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD31-SF03R-5G		Valve type: N.C. \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Port: Rc3/8 \| Coil: DC24V, grommet (G)
JSXD31-SF03R-1GS		Valve type: N.C. \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Port: Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD31-SF03R-2GS		Valve type: N.C. \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Port: Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD31-SF03R-4GS		Valve type: N.C. \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Port: Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD31-SF04R-5G		Valve type: N.C. \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Port: Rc1/2 \| Coil: DC24V, grommet (G)
JSXD31-SF04R-1GS		Valve type: N.C. \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Port: Rc1/2 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD31-SF04R-2GS		Valve type: N.C. \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Port: Rc1/2 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD31-SF04R-4GS		Valve type: N.C. \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Port: Rc1/2 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD31-SE02R-5G		Valve type: N.C. \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc1/4 \| Coil: DC24V, grommet (G)
JSXD31-SE02R-1GS		Valve type: N.C. \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD31-SE02R-2GS		Valve type: N.C. \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD31-SE02R-4GS		Valve type: N.C. \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD31-SE03R-5G		Valve type: N.C. \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc3/8 \| Coil: DC24V, grommet (G)
JSXD31-SE03R-1GS		Valve type: N.C. \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD31-SE03R-2GS		Valve type: N.C. \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD31-SE03R-4GS		Valve type: N.C. \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD31-SE04R-5G		Valve type: N.C. \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc1/2 \| Coil: DC24V, grommet (G)
JSXD31-SE04R-1GS		Valve type: N.C. \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc1/2 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD31-SE04R-2GS		Valve type: N.C. \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc1/2 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD31-SE04R-4GS		Valve type: N.C. \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc1/2 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD31-AN02R-5G		Valve type: N.C. \| Size: 30 \| Body: Aluminum \| Seal: NBR \| Port: Rc1/4 \| Coil: DC24V, grommet (G)
JSXD31-AN02R-1GS		Valve type: N.C. \| Size: 30 \| Body: Aluminum \| Seal: NBR \| Port: Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD31-AN02R-2GS		Valve type: N.C. \| Size: 30 \| Body: Aluminum \| Seal: NBR \| Port: Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD31-AN02R-4GS		Valve type: N.C. \| Size: 30 \| Body: Aluminum \| Seal: NBR \| Port: Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD31-AN03R-5G		Valve type: N.C. \| Size: 30 \| Body: Aluminum \| Seal: NBR \| Port: Rc3/8 \| Coil: DC24V, grommet (G)
JSXD31-AN03R-1GS		Valve type: N.C. \| Size: 30 \| Body: Aluminum \| Seal: NBR \| Port: Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD31-AN03R-2GS		Valve type: N.C. \| Size: 30 \| Body: Aluminum \| Seal: NBR \| Port: Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD31-AN03R-4GS		Valve type: N.C. \| Size: 30 \| Body: Aluminum \| Seal: NBR \| Port: Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD31-AN04R-5G		Valve type: N.C. \| Size: 30 \| Body: Aluminum \| Seal: NBR \| Port: Rc1/2 \| Coil: DC24V, grommet (G)
JSXD31-AN04R-1GS		Valve type: N.C. \| Size: 30 \| Body: Aluminum \| Seal: NBR \| Port: Rc1/2 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD31-AN04R-2GS		Valve type: N.C. \| Size: 30 \| Body: Aluminum \| Seal: NBR \| Port: Rc1/2 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD31-AN04R-4GS		Valve type: N.C. \| Size: 30 \| Body: Aluminum \| Seal: NBR \| Port: Rc1/2 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD31-AF02R-5G		Valve type: N.C. \| Size: 30 \| Body: Aluminum \| Seal: FKM \| Port: Rc1/4 \| Coil: DC24V, grommet (G)
JSXD31-AF02R-1GS		Valve type: N.C. \| Size: 30 \| Body: Aluminum \| Seal: FKM \| Port: Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD31-AF02R-2GS		Valve type: N.C. \| Size: 30 \| Body: Aluminum \| Seal: FKM \| Port: Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD31-AF02R-4GS		Valve type: N.C. \| Size: 30 \| Body: Aluminum \| Seal: FKM \| Port: Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD31-AF03R-5G		Valve type: N.C. \| Size: 30 \| Body: Aluminum \| Seal: FKM \| Port: Rc3/8 \| Coil: DC24V, grommet (G)
JSXD31-AF03R-1GS		Valve type: N.C. \| Size: 30 \| Body: Aluminum \| Seal: FKM \| Port: Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD31-AF03R-2GS		Valve type: N.C. \| Size: 30 \| Body: Aluminum \| Seal: FKM \| Port: Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD31-AF03R-4GS		Valve type: N.C. \| Size: 30 \| Body: Aluminum \| Seal: FKM \| Port: Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD31-AF04R-5G		Valve type: N.C. \| Size: 30 \| Body: Aluminum \| Seal: FKM \| Port: Rc1/2 \| Coil: DC24V, grommet (G)
JSXD31-AF04R-1GS		Valve type: N.C. \| Size: 30 \| Body: Aluminum \| Seal: FKM \| Port: Rc1/2 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD31-AF04R-2GS		Valve type: N.C. \| Size: 30 \| Body: Aluminum \| Seal: FKM \| Port: Rc1/2 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD31-AF04R-4GS		Valve type: N.C. \| Size: 30 \| Body: Aluminum \| Seal: FKM \| Port: Rc1/2 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD41-CN03R-5G		Valve type: N.C. \| Size: 40 \| Body: Brass \| Seal: NBR \| Port: Rc3/8 \| Coil: DC24V, grommet (G)
JSXD41-CN03R-1GS		Valve type: N.C. \| Size: 40 \| Body: Brass \| Seal: NBR \| Port: Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD41-CN03R-2GS		Valve type: N.C. \| Size: 40 \| Body: Brass \| Seal: NBR \| Port: Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD41-CN03R-4GS		Valve type: N.C. \| Size: 40 \| Body: Brass \| Seal: NBR \| Port: Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD41-CN04R-5G		Valve type: N.C. \| Size: 40 \| Body: Brass \| Seal: NBR \| Port: Rc1/2 \| Coil: DC24V, grommet (G)
JSXD41-CN04R-1GS		Valve type: N.C. \| Size: 40 \| Body: Brass \| Seal: NBR \| Port: Rc1/2 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD41-CN04R-2GS		Valve type: N.C. \| Size: 40 \| Body: Brass \| Seal: NBR \| Port: Rc1/2 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD41-CN04R-4GS		Valve type: N.C. \| Size: 40 \| Body: Brass \| Seal: NBR \| Port: Rc1/2 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD41-CF03R-5G		Valve type: N.C. \| Size: 40 \| Body: Brass \| Seal: FKM \| Port: Rc3/8 \| Coil: DC24V, grommet (G)
JSXD41-CF03R-1GS		Valve type: N.C. \| Size: 40 \| Body: Brass \| Seal: FKM \| Port: Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD41-CF03R-2GS		Valve type: N.C. \| Size: 40 \| Body: Brass \| Seal: FKM \| Port: Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD41-CF03R-4GS		Valve type: N.C. \| Size: 40 \| Body: Brass \| Seal: FKM \| Port: Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD41-CF04R-5G		Valve type: N.C. \| Size: 40 \| Body: Brass \| Seal: FKM \| Port: Rc1/2 \| Coil: DC24V, grommet (G)
JSXD41-CF04R-1GS		Valve type: N.C. \| Size: 40 \| Body: Brass \| Seal: FKM \| Port: Rc1/2 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD41-CF04R-2GS		Valve type: N.C. \| Size: 40 \| Body: Brass \| Seal: FKM \| Port: Rc1/2 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD41-CF04R-4GS		Valve type: N.C. \| Size: 40 \| Body: Brass \| Seal: FKM \| Port: Rc1/2 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD41-CE03R-5G		Valve type: N.C. \| Size: 40 \| Body: Brass \| Seal: EPDM \| Port: Rc3/8 \| Coil: DC24V, grommet (G)
JSXD41-CE03R-1GS		Valve type: N.C. \| Size: 40 \| Body: Brass \| Seal: EPDM \| Port: Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD41-CE03R-2GS		Valve type: N.C. \| Size: 40 \| Body: Brass \| Seal: EPDM \| Port: Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD41-CE03R-4GS		Valve type: N.C. \| Size: 40 \| Body: Brass \| Seal: EPDM \| Port: Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD41-CE04R-5G		Valve type: N.C. \| Size: 40 \| Body: Brass \| Seal: EPDM \| Port: Rc1/2 \| Coil: DC24V, grommet (G)
JSXD41-CE04R-1GS		Valve type: N.C. \| Size: 40 \| Body: Brass \| Seal: EPDM \| Port: Rc1/2 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD41-CE04R-2GS		Valve type: N.C. \| Size: 40 \| Body: Brass \| Seal: EPDM \| Port: Rc1/2 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD41-CE04R-4GS		Valve type: N.C. \| Size: 40 \| Body: Brass \| Seal: EPDM \| Port: Rc1/2 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD41-SN03R-5G		Valve type: N.C. \| Size: 40 \| Body: Stainless steel \| Seal: NBR \| Port: Rc3/8 \| Coil: DC24V, grommet (G)
JSXD41-SN03R-1GS		Valve type: N.C. \| Size: 40 \| Body: Stainless steel \| Seal: NBR \| Port: Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD41-SN03R-2GS		Valve type: N.C. \| Size: 40 \| Body: Stainless steel \| Seal: NBR \| Port: Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD41-SN03R-4GS		Valve type: N.C. \| Size: 40 \| Body: Stainless steel \| Seal: NBR \| Port: Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD41-SN04R-5G		Valve type: N.C. \| Size: 40 \| Body: Stainless steel \| Seal: NBR \| Port: Rc1/2 \| Coil: DC24V, grommet (G)
JSXD41-SN04R-1GS		Valve type: N.C. \| Size: 40 \| Body: Stainless steel \| Seal: NBR \| Port: Rc1/2 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD41-SN04R-2GS		Valve type: N.C. \| Size: 40 \| Body: Stainless steel \| Seal: NBR \| Port: Rc1/2 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD41-SN04R-4GS		Valve type: N.C. \| Size: 40 \| Body: Stainless steel \| Seal: NBR \| Port: Rc1/2 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD41-SF03R-5G		Valve type: N.C. \| Size: 40 \| Body: Stainless steel \| Seal: FKM \| Port: Rc3/8 \| Coil: DC24V, grommet (G)
JSXD41-SF03R-1GS		Valve type: N.C. \| Size: 40 \| Body: Stainless steel \| Seal: FKM \| Port: Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD41-SF03R-2GS		Valve type: N.C. \| Size: 40 \| Body: Stainless steel \| Seal: FKM \| Port: Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD41-SF03R-4GS		Valve type: N.C. \| Size: 40 \| Body: Stainless steel \| Seal: FKM \| Port: Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD41-SF04R-5G		Valve type: N.C. \| Size: 40 \| Body: Stainless steel \| Seal: FKM \| Port: Rc1/2 \| Coil: DC24V, grommet (G)
JSXD41-SF04R-1GS		Valve type: N.C. \| Size: 40 \| Body: Stainless steel \| Seal: FKM \| Port: Rc1/2 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD41-SF04R-2GS		Valve type: N.C. \| Size: 40 \| Body: Stainless steel \| Seal: FKM \| Port: Rc1/2 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD41-SF04R-4GS		Valve type: N.C. \| Size: 40 \| Body: Stainless steel \| Seal: FKM \| Port: Rc1/2 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD41-SE03R-5G		Valve type: N.C. \| Size: 40 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc3/8 \| Coil: DC24V, grommet (G)
JSXD41-SE03R-1GS		Valve type: N.C. \| Size: 40 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD41-SE03R-2GS		Valve type: N.C. \| Size: 40 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD41-SE03R-4GS		Valve type: N.C. \| Size: 40 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD41-SE04R-5G		Valve type: N.C. \| Size: 40 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc1/2 \| Coil: DC24V, grommet (G)
JSXD41-SE04R-1GS		Valve type: N.C. \| Size: 40 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc1/2 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD41-SE04R-2GS		Valve type: N.C. \| Size: 40 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc1/2 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD41-SE04R-4GS		Valve type: N.C. \| Size: 40 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc1/2 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD51-CN06R-5G		Valve type: N.C. \| Size: 50 \| Body: Brass \| Seal: NBR \| Port: Rc3/4 \| Coil: DC24V, grommet (G)
JSXD51-CN06R-1GS		Valve type: N.C. \| Size: 50 \| Body: Brass \| Seal: NBR \| Port: Rc3/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD51-CN06R-2GS		Valve type: N.C. \| Size: 50 \| Body: Brass \| Seal: NBR \| Port: Rc3/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD51-CN06R-4GS		Valve type: N.C. \| Size: 50 \| Body: Brass \| Seal: NBR \| Port: Rc3/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD51-CF06R-5G		Valve type: N.C. \| Size: 50 \| Body: Brass \| Seal: FKM \| Port: Rc3/4 \| Coil: DC24V, grommet (G)
JSXD51-CF06R-1GS		Valve type: N.C. \| Size: 50 \| Body: Brass \| Seal: FKM \| Port: Rc3/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD51-CF06R-2GS		Valve type: N.C. \| Size: 50 \| Body: Brass \| Seal: FKM \| Port: Rc3/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD51-CF06R-4GS		Valve type: N.C. \| Size: 50 \| Body: Brass \| Seal: FKM \| Port: Rc3/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD51-CE06R-5G		Valve type: N.C. \| Size: 50 \| Body: Brass \| Seal: EPDM \| Port: Rc3/4 \| Coil: DC24V, grommet (G)
JSXD51-CE06R-1GS		Valve type: N.C. \| Size: 50 \| Body: Brass \| Seal: EPDM \| Port: Rc3/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD51-CE06R-2GS		Valve type: N.C. \| Size: 50 \| Body: Brass \| Seal: EPDM \| Port: Rc3/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD51-CE06R-4GS		Valve type: N.C. \| Size: 50 \| Body: Brass \| Seal: EPDM \| Port: Rc3/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD51-SN06R-5G		Valve type: N.C. \| Size: 50 \| Body: Stainless steel \| Seal: NBR \| Port: Rc3/4 \| Coil: DC24V, grommet (G)
JSXD51-SN06R-1GS		Valve type: N.C. \| Size: 50 \| Body: Stainless steel \| Seal: NBR \| Port: Rc3/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD51-SN06R-2GS		Valve type: N.C. \| Size: 50 \| Body: Stainless steel \| Seal: NBR \| Port: Rc3/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD51-SN06R-4GS		Valve type: N.C. \| Size: 50 \| Body: Stainless steel \| Seal: NBR \| Port: Rc3/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD51-SF06R-5G		Valve type: N.C. \| Size: 50 \| Body: Stainless steel \| Seal: FKM \| Port: Rc3/4 \| Coil: DC24V, grommet (G)
JSXD51-SF06R-1GS		Valve type: N.C. \| Size: 50 \| Body: Stainless steel \| Seal: FKM \| Port: Rc3/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD51-SF06R-2GS		Valve type: N.C. \| Size: 50 \| Body: Stainless steel \| Seal: FKM \| Port: Rc3/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD51-SF06R-4GS		Valve type: N.C. \| Size: 50 \| Body: Stainless steel \| Seal: FKM \| Port: Rc3/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD51-SE06R-5G		Valve type: N.C. \| Size: 50 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc3/4 \| Coil: DC24V, grommet (G)
JSXD51-SE06R-1GS		Valve type: N.C. \| Size: 50 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc3/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD51-SE06R-2GS		Valve type: N.C. \| Size: 50 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc3/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD51-SE06R-4GS		Valve type: N.C. \| Size: 50 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc3/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD61-CN10R-5G		Valve type: N.C. \| Size: 60 \| Body: Brass \| Seal: NBR \| Port: Rc1 \| Coil: DC24V, grommet (G)
JSXD61-CN10R-1GS		Valve type: N.C. \| Size: 60 \| Body: Brass \| Seal: NBR \| Port: Rc1 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD61-CN10R-2GS		Valve type: N.C. \| Size: 60 \| Body: Brass \| Seal: NBR \| Port: Rc1 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD61-CN10R-4GS		Valve type: N.C. \| Size: 60 \| Body: Brass \| Seal: NBR \| Port: Rc1 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD61-CF10R-5G		Valve type: N.C. \| Size: 60 \| Body: Brass \| Seal: FKM \| Port: Rc1 \| Coil: DC24V, grommet (G)
JSXD61-CF10R-1GS		Valve type: N.C. \| Size: 60 \| Body: Brass \| Seal: FKM \| Port: Rc1 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD61-CF10R-2GS		Valve type: N.C. \| Size: 60 \| Body: Brass \| Seal: FKM \| Port: Rc1 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD61-CF10R-4GS		Valve type: N.C. \| Size: 60 \| Body: Brass \| Seal: FKM \| Port: Rc1 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD61-CE10R-5G		Valve type: N.C. \| Size: 60 \| Body: Brass \| Seal: EPDM \| Port: Rc1 \| Coil: DC24V, grommet (G)
JSXD61-CE10R-1GS		Valve type: N.C. \| Size: 60 \| Body: Brass \| Seal: EPDM \| Port: Rc1 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD61-CE10R-2GS		Valve type: N.C. \| Size: 60 \| Body: Brass \| Seal: EPDM \| Port: Rc1 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD61-CE10R-4GS		Valve type: N.C. \| Size: 60 \| Body: Brass \| Seal: EPDM \| Port: Rc1 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD61-SN10R-5G		Valve type: N.C. \| Size: 60 \| Body: Stainless steel \| Seal: NBR \| Port: Rc1 \| Coil: DC24V, grommet (G)
JSXD61-SN10R-1GS		Valve type: N.C. \| Size: 60 \| Body: Stainless steel \| Seal: NBR \| Port: Rc1 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD61-SN10R-2GS		Valve type: N.C. \| Size: 60 \| Body: Stainless steel \| Seal: NBR \| Port: Rc1 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD61-SN10R-4GS		Valve type: N.C. \| Size: 60 \| Body: Stainless steel \| Seal: NBR \| Port: Rc1 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD61-SF10R-5G		Valve type: N.C. \| Size: 60 \| Body: Stainless steel \| Seal: FKM \| Port: Rc1 \| Coil: DC24V, grommet (G)
JSXD61-SF10R-1GS		Valve type: N.C. \| Size: 60 \| Body: Stainless steel \| Seal: FKM \| Port: Rc1 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD61-SF10R-2GS		Valve type: N.C. \| Size: 60 \| Body: Stainless steel \| Seal: FKM \| Port: Rc1 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD61-SF10R-4GS		Valve type: N.C. \| Size: 60 \| Body: Stainless steel \| Seal: FKM \| Port: Rc1 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD61-SE10R-5G		Valve type: N.C. \| Size: 60 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc1 \| Coil: DC24V, grommet (G)
JSXD61-SE10R-1GS		Valve type: N.C. \| Size: 60 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc1 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD61-SE10R-2GS		Valve type: N.C. \| Size: 60 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc1 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD61-SE10R-4GS		Valve type: N.C. \| Size: 60 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc1 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD71-BN12R-5G		Valve type: N.C. \| Size: 70 \| Body: Bronze \| Seal: NBR \| Port: Rc1-1/4 \| Coil: DC24V, grommet (G)
JSXD71-BN12R-1GS		Valve type: N.C. \| Size: 70 \| Body: Bronze \| Seal: NBR \| Port: Rc1-1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD71-BN12R-2GS		Valve type: N.C. \| Size: 70 \| Body: Bronze \| Seal: NBR \| Port: Rc1-1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD71-BN12R-4GS		Valve type: N.C. \| Size: 70 \| Body: Bronze \| Seal: NBR \| Port: Rc1-1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD71-BN32-5G		Valve type: N.C. \| Size: 70 \| Body: Bronze \| Seal: NBR \| Port: 32A flange \| Coil: DC24V, grommet (G)
JSXD71-BN32-1GS		Valve type: N.C. \| Size: 70 \| Body: Bronze \| Seal: NBR \| Port: 32A flange \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD71-BN32-2GS		Valve type: N.C. \| Size: 70 \| Body: Bronze \| Seal: NBR \| Port: 32A flange \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD71-BN32-4GS		Valve type: N.C. \| Size: 70 \| Body: Bronze \| Seal: NBR \| Port: 32A flange \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD71-BF12R-5G		Valve type: N.C. \| Size: 70 \| Body: Bronze \| Seal: FKM \| Port: Rc1-1/4 \| Coil: DC24V, grommet (G)
JSXD71-BF12R-1GS		Valve type: N.C. \| Size: 70 \| Body: Bronze \| Seal: FKM \| Port: Rc1-1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD71-BF12R-2GS		Valve type: N.C. \| Size: 70 \| Body: Bronze \| Seal: FKM \| Port: Rc1-1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD71-BF12R-4GS		Valve type: N.C. \| Size: 70 \| Body: Bronze \| Seal: FKM \| Port: Rc1-1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD71-BF32-5G		Valve type: N.C. \| Size: 70 \| Body: Bronze \| Seal: FKM \| Port: 32A flange \| Coil: DC24V, grommet (G)
JSXD71-BF32-1GS		Valve type: N.C. \| Size: 70 \| Body: Bronze \| Seal: FKM \| Port: 32A flange \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD71-BF32-2GS		Valve type: N.C. \| Size: 70 \| Body: Bronze \| Seal: FKM \| Port: 32A flange \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD71-BF32-4GS		Valve type: N.C. \| Size: 70 \| Body: Bronze \| Seal: FKM \| Port: 32A flange \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD71-BE12R-5G		Valve type: N.C. \| Size: 70 \| Body: Bronze \| Seal: EPDM \| Port: Rc1-1/4 \| Coil: DC24V, grommet (G)
JSXD71-BE12R-1GS		Valve type: N.C. \| Size: 70 \| Body: Bronze \| Seal: EPDM \| Port: Rc1-1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD71-BE12R-2GS		Valve type: N.C. \| Size: 70 \| Body: Bronze \| Seal: EPDM \| Port: Rc1-1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD71-BE12R-4GS		Valve type: N.C. \| Size: 70 \| Body: Bronze \| Seal: EPDM \| Port: Rc1-1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD71-BE32-5G		Valve type: N.C. \| Size: 70 \| Body: Bronze \| Seal: EPDM \| Port: 32A flange \| Coil: DC24V, grommet (G)
JSXD71-BE32-1GS		Valve type: N.C. \| Size: 70 \| Body: Bronze \| Seal: EPDM \| Port: 32A flange \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD71-BE32-2GS		Valve type: N.C. \| Size: 70 \| Body: Bronze \| Seal: EPDM \| Port: 32A flange \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD71-BE32-4GS		Valve type: N.C. \| Size: 70 \| Body: Bronze \| Seal: EPDM \| Port: 32A flange \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD81-BN14R-5G		Valve type: N.C. \| Size: 80 \| Body: Bronze \| Seal: NBR \| Port: Rc1-1/2 \| Coil: DC24V, grommet (G)
JSXD81-BN14R-1GS		Valve type: N.C. \| Size: 80 \| Body: Bronze \| Seal: NBR \| Port: Rc1-1/2 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD81-BN14R-2GS		Valve type: N.C. \| Size: 80 \| Body: Bronze \| Seal: NBR \| Port: Rc1-1/2 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD81-BN14R-4GS		Valve type: N.C. \| Size: 80 \| Body: Bronze \| Seal: NBR \| Port: Rc1-1/2 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD81-BN40-5G		Valve type: N.C. \| Size: 80 \| Body: Bronze \| Seal: NBR \| Port: 40A flange \| Coil: DC24V, grommet (G)
JSXD81-BN40-1GS		Valve type: N.C. \| Size: 80 \| Body: Bronze \| Seal: NBR \| Port: 40A flange \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD81-BN40-2GS		Valve type: N.C. \| Size: 80 \| Body: Bronze \| Seal: NBR \| Port: 40A flange \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD81-BN40-4GS		Valve type: N.C. \| Size: 80 \| Body: Bronze \| Seal: NBR \| Port: 40A flange \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD81-BF14R-5G		Valve type: N.C. \| Size: 80 \| Body: Bronze \| Seal: FKM \| Port: Rc1-1/2 \| Coil: DC24V, grommet (G)
JSXD81-BF14R-1GS		Valve type: N.C. \| Size: 80 \| Body: Bronze \| Seal: FKM \| Port: Rc1-1/2 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD81-BF14R-2GS		Valve type: N.C. \| Size: 80 \| Body: Bronze \| Seal: FKM \| Port: Rc1-1/2 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD81-BF14R-4GS		Valve type: N.C. \| Size: 80 \| Body: Bronze \| Seal: FKM \| Port: Rc1-1/2 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD81-BF40-5G		Valve type: N.C. \| Size: 80 \| Body: Bronze \| Seal: FKM \| Port: 40A flange \| Coil: DC24V, grommet (G)
JSXD81-BF40-1GS		Valve type: N.C. \| Size: 80 \| Body: Bronze \| Seal: FKM \| Port: 40A flange \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD81-BF40-2GS		Valve type: N.C. \| Size: 80 \| Body: Bronze \| Seal: FKM \| Port: 40A flange \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD81-BF40-4GS		Valve type: N.C. \| Size: 80 \| Body: Bronze \| Seal: FKM \| Port: 40A flange \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD81-BE14R-5G		Valve type: N.C. \| Size: 80 \| Body: Bronze \| Seal: EPDM \| Port: Rc1-1/2 \| Coil: DC24V, grommet (G)
JSXD81-BE14R-1GS		Valve type: N.C. \| Size: 80 \| Body: Bronze \| Seal: EPDM \| Port: Rc1-1/2 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD81-BE14R-2GS		Valve type: N.C. \| Size: 80 \| Body: Bronze \| Seal: EPDM \| Port: Rc1-1/2 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD81-BE14R-4GS		Valve type: N.C. \| Size: 80 \| Body: Bronze \| Seal: EPDM \| Port: Rc1-1/2 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD81-BE40-5G		Valve type: N.C. \| Size: 80 \| Body: Bronze \| Seal: EPDM \| Port: 40A flange \| Coil: DC24V, grommet (G)
JSXD81-BE40-1GS		Valve type: N.C. \| Size: 80 \| Body: Bronze \| Seal: EPDM \| Port: 40A flange \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD81-BE40-2GS		Valve type: N.C. \| Size: 80 \| Body: Bronze \| Seal: EPDM \| Port: 40A flange \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD81-BE40-4GS		Valve type: N.C. \| Size: 80 \| Body: Bronze \| Seal: EPDM \| Port: 40A flange \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD91-BN20R-5G		Valve type: N.C. \| Size: 90 \| Body: Bronze \| Seal: NBR \| Port: Rc2 \| Coil: DC24V, grommet (G)
JSXD91-BN20R-1GS		Valve type: N.C. \| Size: 90 \| Body: Bronze \| Seal: NBR \| Port: Rc2 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD91-BN20R-2GS		Valve type: N.C. \| Size: 90 \| Body: Bronze \| Seal: NBR \| Port: Rc2 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD91-BN20R-4GS		Valve type: N.C. \| Size: 90 \| Body: Bronze \| Seal: NBR \| Port: Rc2 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD91-BN50-5G		Valve type: N.C. \| Size: 90 \| Body: Bronze \| Seal: NBR \| Port: 50A flange \| Coil: DC24V, grommet (G)
JSXD91-BN50-1GS		Valve type: N.C. \| Size: 90 \| Body: Bronze \| Seal: NBR \| Port: 50A flange \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD91-BN50-2GS		Valve type: N.C. \| Size: 90 \| Body: Bronze \| Seal: NBR \| Port: 50A flange \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD91-BN50-4GS		Valve type: N.C. \| Size: 90 \| Body: Bronze \| Seal: NBR \| Port: 50A flange \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD91-BF20R-5G		Valve type: N.C. \| Size: 90 \| Body: Bronze \| Seal: FKM \| Port: Rc2 \| Coil: DC24V, grommet (G)
JSXD91-BF20R-1GS		Valve type: N.C. \| Size: 90 \| Body: Bronze \| Seal: FKM \| Port: Rc2 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD91-BF20R-2GS		Valve type: N.C. \| Size: 90 \| Body: Bronze \| Seal: FKM \| Port: Rc2 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD91-BF20R-4GS		Valve type: N.C. \| Size: 90 \| Body: Bronze \| Seal: FKM \| Port: Rc2 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD91-BF50-5G		Valve type: N.C. \| Size: 90 \| Body: Bronze \| Seal: FKM \| Port: 50A flange \| Coil: DC24V, grommet (G)
JSXD91-BF50-1GS		Valve type: N.C. \| Size: 90 \| Body: Bronze \| Seal: FKM \| Port: 50A flange \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD91-BF50-2GS		Valve type: N.C. \| Size: 90 \| Body: Bronze \| Seal: FKM \| Port: 50A flange \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD91-BF50-4GS		Valve type: N.C. \| Size: 90 \| Body: Bronze \| Seal: FKM \| Port: 50A flange \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD91-BE20R-5G		Valve type: N.C. \| Size: 90 \| Body: Bronze \| Seal: EPDM \| Port: Rc2 \| Coil: DC24V, grommet (G)
JSXD91-BE20R-1GS		Valve type: N.C. \| Size: 90 \| Body: Bronze \| Seal: EPDM \| Port: Rc2 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD91-BE20R-2GS		Valve type: N.C. \| Size: 90 \| Body: Bronze \| Seal: EPDM \| Port: Rc2 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD91-BE20R-4GS		Valve type: N.C. \| Size: 90 \| Body: Bronze \| Seal: EPDM \| Port: Rc2 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD91-BE50-5G		Valve type: N.C. \| Size: 90 \| Body: Bronze \| Seal: EPDM \| Port: 50A flange \| Coil: DC24V, grommet (G)
JSXD91-BE50-1GS		Valve type: N.C. \| Size: 90 \| Body: Bronze \| Seal: EPDM \| Port: 50A flange \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD91-BE50-2GS		Valve type: N.C. \| Size: 90 \| Body: Bronze \| Seal: EPDM \| Port: 50A flange \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD91-BE50-4GS		Valve type: N.C. \| Size: 90 \| Body: Bronze \| Seal: EPDM \| Port: 50A flange \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD32-CN02R-5G		Valve type: N.O. \| Size: 30 \| Body: Brass \| Seal: NBR \| Port: Rc1/4 \| Coil: DC24V, grommet (G)
JSXD32-CN02R-1GS		Valve type: N.O. \| Size: 30 \| Body: Brass \| Seal: NBR \| Port: Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD32-CN02R-2GS		Valve type: N.O. \| Size: 30 \| Body: Brass \| Seal: NBR \| Port: Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD32-CN02R-4GS		Valve type: N.O. \| Size: 30 \| Body: Brass \| Seal: NBR \| Port: Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD32-CN03R-5G		Valve type: N.O. \| Size: 30 \| Body: Brass \| Seal: NBR \| Port: Rc3/8 \| Coil: DC24V, grommet (G)
JSXD32-CN03R-1GS		Valve type: N.O. \| Size: 30 \| Body: Brass \| Seal: NBR \| Port: Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD32-CN03R-2GS		Valve type: N.O. \| Size: 30 \| Body: Brass \| Seal: NBR \| Port: Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD32-CN03R-4GS		Valve type: N.O. \| Size: 30 \| Body: Brass \| Seal: NBR \| Port: Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD32-CF02R-5G		Valve type: N.O. \| Size: 30 \| Body: Brass \| Seal: FKM \| Port: Rc1/4 \| Coil: DC24V, grommet (G)
JSXD32-CF02R-1GS		Valve type: N.O. \| Size: 30 \| Body: Brass \| Seal: FKM \| Port: Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD32-CF02R-2GS		Valve type: N.O. \| Size: 30 \| Body: Brass \| Seal: FKM \| Port: Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD32-CF02R-4GS		Valve type: N.O. \| Size: 30 \| Body: Brass \| Seal: FKM \| Port: Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD32-CF03R-5G		Valve type: N.O. \| Size: 30 \| Body: Brass \| Seal: FKM \| Port: Rc3/8 \| Coil: DC24V, grommet (G)
JSXD32-CF03R-1GS		Valve type: N.O. \| Size: 30 \| Body: Brass \| Seal: FKM \| Port: Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD32-CF03R-2GS		Valve type: N.O. \| Size: 30 \| Body: Brass \| Seal: FKM \| Port: Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD32-CF03R-4GS		Valve type: N.O. \| Size: 30 \| Body: Brass \| Seal: FKM \| Port: Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD32-CE02R-5G		Valve type: N.O. \| Size: 30 \| Body: Brass \| Seal: EPDM \| Port: Rc1/4 \| Coil: DC24V, grommet (G)
JSXD32-CE02R-1GS		Valve type: N.O. \| Size: 30 \| Body: Brass \| Seal: EPDM \| Port: Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD32-CE02R-2GS		Valve type: N.O. \| Size: 30 \| Body: Brass \| Seal: EPDM \| Port: Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD32-CE02R-4GS		Valve type: N.O. \| Size: 30 \| Body: Brass \| Seal: EPDM \| Port: Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD32-CE03R-5G		Valve type: N.O. \| Size: 30 \| Body: Brass \| Seal: EPDM \| Port: Rc3/8 \| Coil: DC24V, grommet (G)
JSXD32-CE03R-1GS		Valve type: N.O. \| Size: 30 \| Body: Brass \| Seal: EPDM \| Port: Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD32-CE03R-2GS		Valve type: N.O. \| Size: 30 \| Body: Brass \| Seal: EPDM \| Port: Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD32-CE03R-4GS		Valve type: N.O. \| Size: 30 \| Body: Brass \| Seal: EPDM \| Port: Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD32-SN02R-5G		Valve type: N.O. \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Port: Rc1/4 \| Coil: DC24V, grommet (G)
JSXD32-SN02R-1GS		Valve type: N.O. \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Port: Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD32-SN02R-2GS		Valve type: N.O. \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Port: Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD32-SN02R-4GS		Valve type: N.O. \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Port: Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD32-SN03R-5G		Valve type: N.O. \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Port: Rc3/8 \| Coil: DC24V, grommet (G)
JSXD32-SN03R-1GS		Valve type: N.O. \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Port: Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD32-SN03R-2GS		Valve type: N.O. \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Port: Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD32-SN03R-4GS		Valve type: N.O. \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Port: Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD32-SF02R-5G		Valve type: N.O. \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Port: Rc1/4 \| Coil: DC24V, grommet (G)
JSXD32-SF02R-1GS		Valve type: N.O. \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Port: Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD32-SF02R-2GS		Valve type: N.O. \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Port: Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD32-SF02R-4GS		Valve type: N.O. \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Port: Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD32-SF03R-5G		Valve type: N.O. \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Port: Rc3/8 \| Coil: DC24V, grommet (G)
JSXD32-SF03R-1GS		Valve type: N.O. \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Port: Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD32-SF03R-2GS		Valve type: N.O. \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Port: Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD32-SF03R-4GS		Valve type: N.O. \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Port: Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD32-SE02R-5G		Valve type: N.O. \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc1/4 \| Coil: DC24V, grommet (G)
JSXD32-SE02R-1GS		Valve type: N.O. \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD32-SE02R-2GS		Valve type: N.O. \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD32-SE02R-4GS		Valve type: N.O. \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD32-SE03R-5G		Valve type: N.O. \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc3/8 \| Coil: DC24V, grommet (G)
JSXD32-SE03R-1GS		Valve type: N.O. \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD32-SE03R-2GS		Valve type: N.O. \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD32-SE03R-4GS		Valve type: N.O. \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD42-CN03R-5G		Valve type: N.O. \| Size: 40 \| Body: Brass \| Seal: NBR \| Port: Rc3/8 \| Coil: DC24V, grommet (G)
JSXD42-CN03R-1GS		Valve type: N.O. \| Size: 40 \| Body: Brass \| Seal: NBR \| Port: Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD42-CN03R-2GS		Valve type: N.O. \| Size: 40 \| Body: Brass \| Seal: NBR \| Port: Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD42-CN03R-4GS		Valve type: N.O. \| Size: 40 \| Body: Brass \| Seal: NBR \| Port: Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD42-CN04R-5G		Valve type: N.O. \| Size: 40 \| Body: Brass \| Seal: NBR \| Port: Rc1/2 \| Coil: DC24V, grommet (G)
JSXD42-CN04R-1GS		Valve type: N.O. \| Size: 40 \| Body: Brass \| Seal: NBR \| Port: Rc1/2 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD42-CN04R-2GS		Valve type: N.O. \| Size: 40 \| Body: Brass \| Seal: NBR \| Port: Rc1/2 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD42-CN04R-4GS		Valve type: N.O. \| Size: 40 \| Body: Brass \| Seal: NBR \| Port: Rc1/2 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD42-CF03R-5G		Valve type: N.O. \| Size: 40 \| Body: Brass \| Seal: FKM \| Port: Rc3/8 \| Coil: DC24V, grommet (G)
JSXD42-CF03R-1GS		Valve type: N.O. \| Size: 40 \| Body: Brass \| Seal: FKM \| Port: Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD42-CF03R-2GS		Valve type: N.O. \| Size: 40 \| Body: Brass \| Seal: FKM \| Port: Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD42-CF03R-4GS		Valve type: N.O. \| Size: 40 \| Body: Brass \| Seal: FKM \| Port: Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD42-CF04R-5G		Valve type: N.O. \| Size: 40 \| Body: Brass \| Seal: FKM \| Port: Rc1/2 \| Coil: DC24V, grommet (G)
JSXD42-CF04R-1GS		Valve type: N.O. \| Size: 40 \| Body: Brass \| Seal: FKM \| Port: Rc1/2 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD42-CF04R-2GS		Valve type: N.O. \| Size: 40 \| Body: Brass \| Seal: FKM \| Port: Rc1/2 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD42-CF04R-4GS		Valve type: N.O. \| Size: 40 \| Body: Brass \| Seal: FKM \| Port: Rc1/2 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD42-CE03R-5G		Valve type: N.O. \| Size: 40 \| Body: Brass \| Seal: EPDM \| Port: Rc3/8 \| Coil: DC24V, grommet (G)
JSXD42-CE03R-1GS		Valve type: N.O. \| Size: 40 \| Body: Brass \| Seal: EPDM \| Port: Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD42-CE03R-2GS		Valve type: N.O. \| Size: 40 \| Body: Brass \| Seal: EPDM \| Port: Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD42-CE03R-4GS		Valve type: N.O. \| Size: 40 \| Body: Brass \| Seal: EPDM \| Port: Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD42-CE04R-5G		Valve type: N.O. \| Size: 40 \| Body: Brass \| Seal: EPDM \| Port: Rc1/2 \| Coil: DC24V, grommet (G)
JSXD42-CE04R-1GS		Valve type: N.O. \| Size: 40 \| Body: Brass \| Seal: EPDM \| Port: Rc1/2 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD42-CE04R-2GS		Valve type: N.O. \| Size: 40 \| Body: Brass \| Seal: EPDM \| Port: Rc1/2 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD42-CE04R-4GS		Valve type: N.O. \| Size: 40 \| Body: Brass \| Seal: EPDM \| Port: Rc1/2 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD42-SN03R-5G		Valve type: N.O. \| Size: 40 \| Body: Stainless steel \| Seal: NBR \| Port: Rc3/8 \| Coil: DC24V, grommet (G)
JSXD42-SN03R-1GS		Valve type: N.O. \| Size: 40 \| Body: Stainless steel \| Seal: NBR \| Port: Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD42-SN03R-2GS		Valve type: N.O. \| Size: 40 \| Body: Stainless steel \| Seal: NBR \| Port: Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD42-SN03R-4GS		Valve type: N.O. \| Size: 40 \| Body: Stainless steel \| Seal: NBR \| Port: Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD42-SN04R-5G		Valve type: N.O. \| Size: 40 \| Body: Stainless steel \| Seal: NBR \| Port: Rc1/2 \| Coil: DC24V, grommet (G)
JSXD42-SN04R-1GS		Valve type: N.O. \| Size: 40 \| Body: Stainless steel \| Seal: NBR \| Port: Rc1/2 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD42-SN04R-2GS		Valve type: N.O. \| Size: 40 \| Body: Stainless steel \| Seal: NBR \| Port: Rc1/2 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD42-SN04R-4GS		Valve type: N.O. \| Size: 40 \| Body: Stainless steel \| Seal: NBR \| Port: Rc1/2 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD42-SF03R-5G		Valve type: N.O. \| Size: 40 \| Body: Stainless steel \| Seal: FKM \| Port: Rc3/8 \| Coil: DC24V, grommet (G)
JSXD42-SF03R-1GS		Valve type: N.O. \| Size: 40 \| Body: Stainless steel \| Seal: FKM \| Port: Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD42-SF03R-2GS		Valve type: N.O. \| Size: 40 \| Body: Stainless steel \| Seal: FKM \| Port: Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD42-SF03R-4GS		Valve type: N.O. \| Size: 40 \| Body: Stainless steel \| Seal: FKM \| Port: Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD42-SF04R-5G		Valve type: N.O. \| Size: 40 \| Body: Stainless steel \| Seal: FKM \| Port: Rc1/2 \| Coil: DC24V, grommet (G)
JSXD42-SF04R-1GS		Valve type: N.O. \| Size: 40 \| Body: Stainless steel \| Seal: FKM \| Port: Rc1/2 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD42-SF04R-2GS		Valve type: N.O. \| Size: 40 \| Body: Stainless steel \| Seal: FKM \| Port: Rc1/2 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD42-SF04R-4GS		Valve type: N.O. \| Size: 40 \| Body: Stainless steel \| Seal: FKM \| Port: Rc1/2 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD42-SE03R-5G		Valve type: N.O. \| Size: 40 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc3/8 \| Coil: DC24V, grommet (G)
JSXD42-SE03R-1GS		Valve type: N.O. \| Size: 40 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD42-SE03R-2GS		Valve type: N.O. \| Size: 40 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD42-SE03R-4GS		Valve type: N.O. \| Size: 40 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD42-SE04R-5G		Valve type: N.O. \| Size: 40 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc1/2 \| Coil: DC24V, grommet (G)
JSXD42-SE04R-1GS		Valve type: N.O. \| Size: 40 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc1/2 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD42-SE04R-2GS		Valve type: N.O. \| Size: 40 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc1/2 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD42-SE04R-4GS		Valve type: N.O. \| Size: 40 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc1/2 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD52-CN06R-5G		Valve type: N.O. \| Size: 50 \| Body: Brass \| Seal: NBR \| Port: Rc3/4 \| Coil: DC24V, grommet (G)
JSXD52-CN06R-1GS		Valve type: N.O. \| Size: 50 \| Body: Brass \| Seal: NBR \| Port: Rc3/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD52-CN06R-2GS		Valve type: N.O. \| Size: 50 \| Body: Brass \| Seal: NBR \| Port: Rc3/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD52-CN06R-4GS		Valve type: N.O. \| Size: 50 \| Body: Brass \| Seal: NBR \| Port: Rc3/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD52-CF06R-5G		Valve type: N.O. \| Size: 50 \| Body: Brass \| Seal: FKM \| Port: Rc3/4 \| Coil: DC24V, grommet (G)
JSXD52-CF06R-1GS		Valve type: N.O. \| Size: 50 \| Body: Brass \| Seal: FKM \| Port: Rc3/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD52-CF06R-2GS		Valve type: N.O. \| Size: 50 \| Body: Brass \| Seal: FKM \| Port: Rc3/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD52-CF06R-4GS		Valve type: N.O. \| Size: 50 \| Body: Brass \| Seal: FKM \| Port: Rc3/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD52-CE06R-5G		Valve type: N.O. \| Size: 50 \| Body: Brass \| Seal: EPDM \| Port: Rc3/4 \| Coil: DC24V, grommet (G)
JSXD52-CE06R-1GS		Valve type: N.O. \| Size: 50 \| Body: Brass \| Seal: EPDM \| Port: Rc3/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD52-CE06R-2GS		Valve type: N.O. \| Size: 50 \| Body: Brass \| Seal: EPDM \| Port: Rc3/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD52-CE06R-4GS		Valve type: N.O. \| Size: 50 \| Body: Brass \| Seal: EPDM \| Port: Rc3/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD52-SN06R-5G		Valve type: N.O. \| Size: 50 \| Body: Stainless steel \| Seal: NBR \| Port: Rc3/4 \| Coil: DC24V, grommet (G)
JSXD52-SN06R-1GS		Valve type: N.O. \| Size: 50 \| Body: Stainless steel \| Seal: NBR \| Port: Rc3/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD52-SN06R-2GS		Valve type: N.O. \| Size: 50 \| Body: Stainless steel \| Seal: NBR \| Port: Rc3/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD52-SN06R-4GS		Valve type: N.O. \| Size: 50 \| Body: Stainless steel \| Seal: NBR \| Port: Rc3/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD52-SF06R-5G		Valve type: N.O. \| Size: 50 \| Body: Stainless steel \| Seal: FKM \| Port: Rc3/4 \| Coil: DC24V, grommet (G)
JSXD52-SF06R-1GS		Valve type: N.O. \| Size: 50 \| Body: Stainless steel \| Seal: FKM \| Port: Rc3/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD52-SF06R-2GS		Valve type: N.O. \| Size: 50 \| Body: Stainless steel \| Seal: FKM \| Port: Rc3/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD52-SF06R-4GS		Valve type: N.O. \| Size: 50 \| Body: Stainless steel \| Seal: FKM \| Port: Rc3/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD52-SE06R-5G		Valve type: N.O. \| Size: 50 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc3/4 \| Coil: DC24V, grommet (G)
JSXD52-SE06R-1GS		Valve type: N.O. \| Size: 50 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc3/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD52-SE06R-2GS		Valve type: N.O. \| Size: 50 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc3/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD52-SE06R-4GS		Valve type: N.O. \| Size: 50 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc3/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD62-CN10R-5G		Valve type: N.O. \| Size: 60 \| Body: Brass \| Seal: NBR \| Port: Rc1 \| Coil: DC24V, grommet (G)
JSXD62-CN10R-1GS		Valve type: N.O. \| Size: 60 \| Body: Brass \| Seal: NBR \| Port: Rc1 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD62-CN10R-2GS		Valve type: N.O. \| Size: 60 \| Body: Brass \| Seal: NBR \| Port: Rc1 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD62-CN10R-4GS		Valve type: N.O. \| Size: 60 \| Body: Brass \| Seal: NBR \| Port: Rc1 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD62-CF10R-5G		Valve type: N.O. \| Size: 60 \| Body: Brass \| Seal: FKM \| Port: Rc1 \| Coil: DC24V, grommet (G)
JSXD62-CF10R-1GS		Valve type: N.O. \| Size: 60 \| Body: Brass \| Seal: FKM \| Port: Rc1 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD62-CF10R-2GS		Valve type: N.O. \| Size: 60 \| Body: Brass \| Seal: FKM \| Port: Rc1 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD62-CF10R-4GS		Valve type: N.O. \| Size: 60 \| Body: Brass \| Seal: FKM \| Port: Rc1 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD62-CE10R-5G		Valve type: N.O. \| Size: 60 \| Body: Brass \| Seal: EPDM \| Port: Rc1 \| Coil: DC24V, grommet (G)
JSXD62-CE10R-1GS		Valve type: N.O. \| Size: 60 \| Body: Brass \| Seal: EPDM \| Port: Rc1 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD62-CE10R-2GS		Valve type: N.O. \| Size: 60 \| Body: Brass \| Seal: EPDM \| Port: Rc1 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD62-CE10R-4GS		Valve type: N.O. \| Size: 60 \| Body: Brass \| Seal: EPDM \| Port: Rc1 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD62-SN10R-5G		Valve type: N.O. \| Size: 60 \| Body: Stainless steel \| Seal: NBR \| Port: Rc1 \| Coil: DC24V, grommet (G)
JSXD62-SN10R-1GS		Valve type: N.O. \| Size: 60 \| Body: Stainless steel \| Seal: NBR \| Port: Rc1 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD62-SN10R-2GS		Valve type: N.O. \| Size: 60 \| Body: Stainless steel \| Seal: NBR \| Port: Rc1 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD62-SN10R-4GS		Valve type: N.O. \| Size: 60 \| Body: Stainless steel \| Seal: NBR \| Port: Rc1 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD62-SF10R-5G		Valve type: N.O. \| Size: 60 \| Body: Stainless steel \| Seal: FKM \| Port: Rc1 \| Coil: DC24V, grommet (G)
JSXD62-SF10R-1GS		Valve type: N.O. \| Size: 60 \| Body: Stainless steel \| Seal: FKM \| Port: Rc1 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD62-SF10R-2GS		Valve type: N.O. \| Size: 60 \| Body: Stainless steel \| Seal: FKM \| Port: Rc1 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD62-SF10R-4GS		Valve type: N.O. \| Size: 60 \| Body: Stainless steel \| Seal: FKM \| Port: Rc1 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD62-SE10R-5G		Valve type: N.O. \| Size: 60 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc1 \| Coil: DC24V, grommet (G)
JSXD62-SE10R-1GS		Valve type: N.O. \| Size: 60 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc1 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD62-SE10R-2GS		Valve type: N.O. \| Size: 60 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc1 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD62-SE10R-4GS		Valve type: N.O. \| Size: 60 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc1 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD72-BN12R-5G		Valve type: N.O. \| Size: 70 \| Body: Bronze \| Seal: NBR \| Port: Rc1-1/4 \| Coil: DC24V, grommet (G)
JSXD72-BN12R-1GS		Valve type: N.O. \| Size: 70 \| Body: Bronze \| Seal: NBR \| Port: Rc1-1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD72-BN12R-2GS		Valve type: N.O. \| Size: 70 \| Body: Bronze \| Seal: NBR \| Port: Rc1-1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD72-BN12R-4GS		Valve type: N.O. \| Size: 70 \| Body: Bronze \| Seal: NBR \| Port: Rc1-1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD72-BN32-5G		Valve type: N.O. \| Size: 70 \| Body: Bronze \| Seal: NBR \| Port: 32A flange \| Coil: DC24V, grommet (G)
JSXD72-BN32-1GS		Valve type: N.O. \| Size: 70 \| Body: Bronze \| Seal: NBR \| Port: 32A flange \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD72-BN32-2GS		Valve type: N.O. \| Size: 70 \| Body: Bronze \| Seal: NBR \| Port: 32A flange \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD72-BN32-4GS		Valve type: N.O. \| Size: 70 \| Body: Bronze \| Seal: NBR \| Port: 32A flange \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD72-BF12R-5G		Valve type: N.O. \| Size: 70 \| Body: Bronze \| Seal: FKM \| Port: Rc1-1/4 \| Coil: DC24V, grommet (G)
JSXD72-BF12R-1GS		Valve type: N.O. \| Size: 70 \| Body: Bronze \| Seal: FKM \| Port: Rc1-1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD72-BF12R-2GS		Valve type: N.O. \| Size: 70 \| Body: Bronze \| Seal: FKM \| Port: Rc1-1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD72-BF12R-4GS		Valve type: N.O. \| Size: 70 \| Body: Bronze \| Seal: FKM \| Port: Rc1-1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD72-BF32-5G		Valve type: N.O. \| Size: 70 \| Body: Bronze \| Seal: FKM \| Port: 32A flange \| Coil: DC24V, grommet (G)
JSXD72-BF32-1GS		Valve type: N.O. \| Size: 70 \| Body: Bronze \| Seal: FKM \| Port: 32A flange \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD72-BF32-2GS		Valve type: N.O. \| Size: 70 \| Body: Bronze \| Seal: FKM \| Port: 32A flange \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD72-BF32-4GS		Valve type: N.O. \| Size: 70 \| Body: Bronze \| Seal: FKM \| Port: 32A flange \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD72-BE12R-5G		Valve type: N.O. \| Size: 70 \| Body: Bronze \| Seal: EPDM \| Port: Rc1-1/4 \| Coil: DC24V, grommet (G)
JSXD72-BE12R-1GS		Valve type: N.O. \| Size: 70 \| Body: Bronze \| Seal: EPDM \| Port: Rc1-1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD72-BE12R-2GS		Valve type: N.O. \| Size: 70 \| Body: Bronze \| Seal: EPDM \| Port: Rc1-1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD72-BE12R-4GS		Valve type: N.O. \| Size: 70 \| Body: Bronze \| Seal: EPDM \| Port: Rc1-1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD72-BE32-5G		Valve type: N.O. \| Size: 70 \| Body: Bronze \| Seal: EPDM \| Port: 32A flange \| Coil: DC24V, grommet (G)
JSXD72-BE32-1GS		Valve type: N.O. \| Size: 70 \| Body: Bronze \| Seal: EPDM \| Port: 32A flange \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD72-BE32-2GS		Valve type: N.O. \| Size: 70 \| Body: Bronze \| Seal: EPDM \| Port: 32A flange \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD72-BE32-4GS		Valve type: N.O. \| Size: 70 \| Body: Bronze \| Seal: EPDM \| Port: 32A flange \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD82-BN14R-5G		Valve type: N.O. \| Size: 80 \| Body: Bronze \| Seal: NBR \| Port: Rc1-1/2 \| Coil: DC24V, grommet (G)
JSXD82-BN14R-1GS		Valve type: N.O. \| Size: 80 \| Body: Bronze \| Seal: NBR \| Port: Rc1-1/2 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD82-BN14R-2GS		Valve type: N.O. \| Size: 80 \| Body: Bronze \| Seal: NBR \| Port: Rc1-1/2 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD82-BN14R-4GS		Valve type: N.O. \| Size: 80 \| Body: Bronze \| Seal: NBR \| Port: Rc1-1/2 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD82-BN40-5G		Valve type: N.O. \| Size: 80 \| Body: Bronze \| Seal: NBR \| Port: 40A flange \| Coil: DC24V, grommet (G)
JSXD82-BN40-1GS		Valve type: N.O. \| Size: 80 \| Body: Bronze \| Seal: NBR \| Port: 40A flange \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD82-BN40-2GS		Valve type: N.O. \| Size: 80 \| Body: Bronze \| Seal: NBR \| Port: 40A flange \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD82-BN40-4GS		Valve type: N.O. \| Size: 80 \| Body: Bronze \| Seal: NBR \| Port: 40A flange \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD82-BF14R-5G		Valve type: N.O. \| Size: 80 \| Body: Bronze \| Seal: FKM \| Port: Rc1-1/2 \| Coil: DC24V, grommet (G)
JSXD82-BF14R-1GS		Valve type: N.O. \| Size: 80 \| Body: Bronze \| Seal: FKM \| Port: Rc1-1/2 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD82-BF14R-2GS		Valve type: N.O. \| Size: 80 \| Body: Bronze \| Seal: FKM \| Port: Rc1-1/2 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD82-BF14R-4GS		Valve type: N.O. \| Size: 80 \| Body: Bronze \| Seal: FKM \| Port: Rc1-1/2 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD82-BF40-5G		Valve type: N.O. \| Size: 80 \| Body: Bronze \| Seal: FKM \| Port: 40A flange \| Coil: DC24V, grommet (G)
JSXD82-BF40-1GS		Valve type: N.O. \| Size: 80 \| Body: Bronze \| Seal: FKM \| Port: 40A flange \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD82-BF40-2GS		Valve type: N.O. \| Size: 80 \| Body: Bronze \| Seal: FKM \| Port: 40A flange \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD82-BF40-4GS		Valve type: N.O. \| Size: 80 \| Body: Bronze \| Seal: FKM \| Port: 40A flange \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD82-BE14R-5G		Valve type: N.O. \| Size: 80 \| Body: Bronze \| Seal: EPDM \| Port: Rc1-1/2 \| Coil: DC24V, grommet (G)
JSXD82-BE14R-1GS		Valve type: N.O. \| Size: 80 \| Body: Bronze \| Seal: EPDM \| Port: Rc1-1/2 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD82-BE14R-2GS		Valve type: N.O. \| Size: 80 \| Body: Bronze \| Seal: EPDM \| Port: Rc1-1/2 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD82-BE14R-4GS		Valve type: N.O. \| Size: 80 \| Body: Bronze \| Seal: EPDM \| Port: Rc1-1/2 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD82-BE40-5G		Valve type: N.O. \| Size: 80 \| Body: Bronze \| Seal: EPDM \| Port: 40A flange \| Coil: DC24V, grommet (G)
JSXD82-BE40-1GS		Valve type: N.O. \| Size: 80 \| Body: Bronze \| Seal: EPDM \| Port: 40A flange \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD82-BE40-2GS		Valve type: N.O. \| Size: 80 \| Body: Bronze \| Seal: EPDM \| Port: 40A flange \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD82-BE40-4GS		Valve type: N.O. \| Size: 80 \| Body: Bronze \| Seal: EPDM \| Port: 40A flange \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD92-BN20R-5G		Valve type: N.O. \| Size: 90 \| Body: Bronze \| Seal: NBR \| Port: Rc2 \| Coil: DC24V, grommet (G)
JSXD92-BN20R-1GS		Valve type: N.O. \| Size: 90 \| Body: Bronze \| Seal: NBR \| Port: Rc2 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD92-BN20R-2GS		Valve type: N.O. \| Size: 90 \| Body: Bronze \| Seal: NBR \| Port: Rc2 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD92-BN20R-4GS		Valve type: N.O. \| Size: 90 \| Body: Bronze \| Seal: NBR \| Port: Rc2 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD92-BN50-5G		Valve type: N.O. \| Size: 90 \| Body: Bronze \| Seal: NBR \| Port: 50A flange \| Coil: DC24V, grommet (G)
JSXD92-BN50-1GS		Valve type: N.O. \| Size: 90 \| Body: Bronze \| Seal: NBR \| Port: 50A flange \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD92-BN50-2GS		Valve type: N.O. \| Size: 90 \| Body: Bronze \| Seal: NBR \| Port: 50A flange \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD92-BN50-4GS		Valve type: N.O. \| Size: 90 \| Body: Bronze \| Seal: NBR \| Port: 50A flange \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD92-BF20R-5G		Valve type: N.O. \| Size: 90 \| Body: Bronze \| Seal: FKM \| Port: Rc2 \| Coil: DC24V, grommet (G)
JSXD92-BF20R-1GS		Valve type: N.O. \| Size: 90 \| Body: Bronze \| Seal: FKM \| Port: Rc2 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD92-BF20R-2GS		Valve type: N.O. \| Size: 90 \| Body: Bronze \| Seal: FKM \| Port: Rc2 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD92-BF20R-4GS		Valve type: N.O. \| Size: 90 \| Body: Bronze \| Seal: FKM \| Port: Rc2 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD92-BF50-5G		Valve type: N.O. \| Size: 90 \| Body: Bronze \| Seal: FKM \| Port: 50A flange \| Coil: DC24V, grommet (G)
JSXD92-BF50-1GS		Valve type: N.O. \| Size: 90 \| Body: Bronze \| Seal: FKM \| Port: 50A flange \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD92-BF50-2GS		Valve type: N.O. \| Size: 90 \| Body: Bronze \| Seal: FKM \| Port: 50A flange \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD92-BF50-4GS		Valve type: N.O. \| Size: 90 \| Body: Bronze \| Seal: FKM \| Port: 50A flange \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD92-BE20R-5G		Valve type: N.O. \| Size: 90 \| Body: Bronze \| Seal: EPDM \| Port: Rc2 \| Coil: DC24V, grommet (G)
JSXD92-BE20R-1GS		Valve type: N.O. \| Size: 90 \| Body: Bronze \| Seal: EPDM \| Port: Rc2 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD92-BE20R-2GS		Valve type: N.O. \| Size: 90 \| Body: Bronze \| Seal: EPDM \| Port: Rc2 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD92-BE20R-4GS		Valve type: N.O. \| Size: 90 \| Body: Bronze \| Seal: EPDM \| Port: Rc2 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXD92-BE50-5G		Valve type: N.O. \| Size: 90 \| Body: Bronze \| Seal: EPDM \| Port: 50A flange \| Coil: DC24V, grommet (G)
JSXD92-BE50-1GS		Valve type: N.O. \| Size: 90 \| Body: Bronze \| Seal: EPDM \| Port: 50A flange \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXD92-BE50-2GS		Valve type: N.O. \| Size: 90 \| Body: Bronze \| Seal: EPDM \| Port: 50A flange \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXD92-BE50-4GS		Valve type: N.O. \| Size: 90 \| Body: Bronze \| Seal: EPDM \| Port: 50A flange \| Coil: AC220V, grommet w/ surge circuit (GS)

2-Port ValvesSMC

480 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC JSXD Pilot Operated 2-Port Solenoid Valve (N.C./N.O., 1/4 to 2, 50A)

Brand SMC·2-Port Valves

Available part numbers (480)

JSXD31-CN02R-5G, JSXD31-CN02R-1GS, JSXD31-CN02R-2GS, JSXD31-CN02R-4GS, JSXD31-CN03R-5G, JSXD31-CN03R-1GS, JSXD31-CN03R-2GS, JSXD31-CN03R-4GS, JSXD31-CN04R-5G, JSXD31-CN04R-1GS + 470 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	JSXD31-CN02R-5G	Valve type: N.C. \| Size: 30 \| Body: Brass \| Seal: NBR \| Port: Rc1/4 \| Coil: DC24V, grommet (G)
	JSXD31-CN02R-1GS	Valve type: N.C. \| Size: 30 \| Body: Brass \| Seal: NBR \| Port: Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD31-CN02R-2GS	Valve type: N.C. \| Size: 30 \| Body: Brass \| Seal: NBR \| Port: Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD31-CN02R-4GS	Valve type: N.C. \| Size: 30 \| Body: Brass \| Seal: NBR \| Port: Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD31-CN03R-5G	Valve type: N.C. \| Size: 30 \| Body: Brass \| Seal: NBR \| Port: Rc3/8 \| Coil: DC24V, grommet (G)
	JSXD31-CN03R-1GS	Valve type: N.C. \| Size: 30 \| Body: Brass \| Seal: NBR \| Port: Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD31-CN03R-2GS	Valve type: N.C. \| Size: 30 \| Body: Brass \| Seal: NBR \| Port: Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD31-CN03R-4GS	Valve type: N.C. \| Size: 30 \| Body: Brass \| Seal: NBR \| Port: Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD31-CN04R-5G	Valve type: N.C. \| Size: 30 \| Body: Brass \| Seal: NBR \| Port: Rc1/2 \| Coil: DC24V, grommet (G)
	JSXD31-CN04R-1GS	Valve type: N.C. \| Size: 30 \| Body: Brass \| Seal: NBR \| Port: Rc1/2 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD31-CN04R-2GS	Valve type: N.C. \| Size: 30 \| Body: Brass \| Seal: NBR \| Port: Rc1/2 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD31-CN04R-4GS	Valve type: N.C. \| Size: 30 \| Body: Brass \| Seal: NBR \| Port: Rc1/2 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD31-CF02R-5G	Valve type: N.C. \| Size: 30 \| Body: Brass \| Seal: FKM \| Port: Rc1/4 \| Coil: DC24V, grommet (G)
	JSXD31-CF02R-1GS	Valve type: N.C. \| Size: 30 \| Body: Brass \| Seal: FKM \| Port: Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD31-CF02R-2GS	Valve type: N.C. \| Size: 30 \| Body: Brass \| Seal: FKM \| Port: Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD31-CF02R-4GS	Valve type: N.C. \| Size: 30 \| Body: Brass \| Seal: FKM \| Port: Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD31-CF03R-5G	Valve type: N.C. \| Size: 30 \| Body: Brass \| Seal: FKM \| Port: Rc3/8 \| Coil: DC24V, grommet (G)
	JSXD31-CF03R-1GS	Valve type: N.C. \| Size: 30 \| Body: Brass \| Seal: FKM \| Port: Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD31-CF03R-2GS	Valve type: N.C. \| Size: 30 \| Body: Brass \| Seal: FKM \| Port: Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD31-CF03R-4GS	Valve type: N.C. \| Size: 30 \| Body: Brass \| Seal: FKM \| Port: Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD31-CF04R-5G	Valve type: N.C. \| Size: 30 \| Body: Brass \| Seal: FKM \| Port: Rc1/2 \| Coil: DC24V, grommet (G)
	JSXD31-CF04R-1GS	Valve type: N.C. \| Size: 30 \| Body: Brass \| Seal: FKM \| Port: Rc1/2 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD31-CF04R-2GS	Valve type: N.C. \| Size: 30 \| Body: Brass \| Seal: FKM \| Port: Rc1/2 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD31-CF04R-4GS	Valve type: N.C. \| Size: 30 \| Body: Brass \| Seal: FKM \| Port: Rc1/2 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD31-CE02R-5G	Valve type: N.C. \| Size: 30 \| Body: Brass \| Seal: EPDM \| Port: Rc1/4 \| Coil: DC24V, grommet (G)
	JSXD31-CE02R-1GS	Valve type: N.C. \| Size: 30 \| Body: Brass \| Seal: EPDM \| Port: Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD31-CE02R-2GS	Valve type: N.C. \| Size: 30 \| Body: Brass \| Seal: EPDM \| Port: Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD31-CE02R-4GS	Valve type: N.C. \| Size: 30 \| Body: Brass \| Seal: EPDM \| Port: Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD31-CE03R-5G	Valve type: N.C. \| Size: 30 \| Body: Brass \| Seal: EPDM \| Port: Rc3/8 \| Coil: DC24V, grommet (G)
	JSXD31-CE03R-1GS	Valve type: N.C. \| Size: 30 \| Body: Brass \| Seal: EPDM \| Port: Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD31-CE03R-2GS	Valve type: N.C. \| Size: 30 \| Body: Brass \| Seal: EPDM \| Port: Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD31-CE03R-4GS	Valve type: N.C. \| Size: 30 \| Body: Brass \| Seal: EPDM \| Port: Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD31-CE04R-5G	Valve type: N.C. \| Size: 30 \| Body: Brass \| Seal: EPDM \| Port: Rc1/2 \| Coil: DC24V, grommet (G)
	JSXD31-CE04R-1GS	Valve type: N.C. \| Size: 30 \| Body: Brass \| Seal: EPDM \| Port: Rc1/2 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD31-CE04R-2GS	Valve type: N.C. \| Size: 30 \| Body: Brass \| Seal: EPDM \| Port: Rc1/2 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD31-CE04R-4GS	Valve type: N.C. \| Size: 30 \| Body: Brass \| Seal: EPDM \| Port: Rc1/2 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD31-SN02R-5G	Valve type: N.C. \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Port: Rc1/4 \| Coil: DC24V, grommet (G)
	JSXD31-SN02R-1GS	Valve type: N.C. \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Port: Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD31-SN02R-2GS	Valve type: N.C. \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Port: Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD31-SN02R-4GS	Valve type: N.C. \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Port: Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD31-SN03R-5G	Valve type: N.C. \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Port: Rc3/8 \| Coil: DC24V, grommet (G)
	JSXD31-SN03R-1GS	Valve type: N.C. \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Port: Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD31-SN03R-2GS	Valve type: N.C. \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Port: Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD31-SN03R-4GS	Valve type: N.C. \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Port: Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD31-SN04R-5G	Valve type: N.C. \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Port: Rc1/2 \| Coil: DC24V, grommet (G)
	JSXD31-SN04R-1GS	Valve type: N.C. \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Port: Rc1/2 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD31-SN04R-2GS	Valve type: N.C. \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Port: Rc1/2 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD31-SN04R-4GS	Valve type: N.C. \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Port: Rc1/2 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD31-SF02R-5G	Valve type: N.C. \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Port: Rc1/4 \| Coil: DC24V, grommet (G)
	JSXD31-SF02R-1GS	Valve type: N.C. \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Port: Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD31-SF02R-2GS	Valve type: N.C. \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Port: Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD31-SF02R-4GS	Valve type: N.C. \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Port: Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD31-SF03R-5G	Valve type: N.C. \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Port: Rc3/8 \| Coil: DC24V, grommet (G)
	JSXD31-SF03R-1GS	Valve type: N.C. \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Port: Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD31-SF03R-2GS	Valve type: N.C. \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Port: Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD31-SF03R-4GS	Valve type: N.C. \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Port: Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD31-SF04R-5G	Valve type: N.C. \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Port: Rc1/2 \| Coil: DC24V, grommet (G)
	JSXD31-SF04R-1GS	Valve type: N.C. \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Port: Rc1/2 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD31-SF04R-2GS	Valve type: N.C. \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Port: Rc1/2 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD31-SF04R-4GS	Valve type: N.C. \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Port: Rc1/2 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD31-SE02R-5G	Valve type: N.C. \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc1/4 \| Coil: DC24V, grommet (G)
	JSXD31-SE02R-1GS	Valve type: N.C. \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD31-SE02R-2GS	Valve type: N.C. \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD31-SE02R-4GS	Valve type: N.C. \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD31-SE03R-5G	Valve type: N.C. \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc3/8 \| Coil: DC24V, grommet (G)
	JSXD31-SE03R-1GS	Valve type: N.C. \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD31-SE03R-2GS	Valve type: N.C. \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD31-SE03R-4GS	Valve type: N.C. \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD31-SE04R-5G	Valve type: N.C. \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc1/2 \| Coil: DC24V, grommet (G)
	JSXD31-SE04R-1GS	Valve type: N.C. \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc1/2 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD31-SE04R-2GS	Valve type: N.C. \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc1/2 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD31-SE04R-4GS	Valve type: N.C. \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc1/2 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD31-AN02R-5G	Valve type: N.C. \| Size: 30 \| Body: Aluminum \| Seal: NBR \| Port: Rc1/4 \| Coil: DC24V, grommet (G)
	JSXD31-AN02R-1GS	Valve type: N.C. \| Size: 30 \| Body: Aluminum \| Seal: NBR \| Port: Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD31-AN02R-2GS	Valve type: N.C. \| Size: 30 \| Body: Aluminum \| Seal: NBR \| Port: Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD31-AN02R-4GS	Valve type: N.C. \| Size: 30 \| Body: Aluminum \| Seal: NBR \| Port: Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD31-AN03R-5G	Valve type: N.C. \| Size: 30 \| Body: Aluminum \| Seal: NBR \| Port: Rc3/8 \| Coil: DC24V, grommet (G)
	JSXD31-AN03R-1GS	Valve type: N.C. \| Size: 30 \| Body: Aluminum \| Seal: NBR \| Port: Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD31-AN03R-2GS	Valve type: N.C. \| Size: 30 \| Body: Aluminum \| Seal: NBR \| Port: Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD31-AN03R-4GS	Valve type: N.C. \| Size: 30 \| Body: Aluminum \| Seal: NBR \| Port: Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD31-AN04R-5G	Valve type: N.C. \| Size: 30 \| Body: Aluminum \| Seal: NBR \| Port: Rc1/2 \| Coil: DC24V, grommet (G)
	JSXD31-AN04R-1GS	Valve type: N.C. \| Size: 30 \| Body: Aluminum \| Seal: NBR \| Port: Rc1/2 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD31-AN04R-2GS	Valve type: N.C. \| Size: 30 \| Body: Aluminum \| Seal: NBR \| Port: Rc1/2 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD31-AN04R-4GS	Valve type: N.C. \| Size: 30 \| Body: Aluminum \| Seal: NBR \| Port: Rc1/2 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD31-AF02R-5G	Valve type: N.C. \| Size: 30 \| Body: Aluminum \| Seal: FKM \| Port: Rc1/4 \| Coil: DC24V, grommet (G)
	JSXD31-AF02R-1GS	Valve type: N.C. \| Size: 30 \| Body: Aluminum \| Seal: FKM \| Port: Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD31-AF02R-2GS	Valve type: N.C. \| Size: 30 \| Body: Aluminum \| Seal: FKM \| Port: Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD31-AF02R-4GS	Valve type: N.C. \| Size: 30 \| Body: Aluminum \| Seal: FKM \| Port: Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD31-AF03R-5G	Valve type: N.C. \| Size: 30 \| Body: Aluminum \| Seal: FKM \| Port: Rc3/8 \| Coil: DC24V, grommet (G)
	JSXD31-AF03R-1GS	Valve type: N.C. \| Size: 30 \| Body: Aluminum \| Seal: FKM \| Port: Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD31-AF03R-2GS	Valve type: N.C. \| Size: 30 \| Body: Aluminum \| Seal: FKM \| Port: Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD31-AF03R-4GS	Valve type: N.C. \| Size: 30 \| Body: Aluminum \| Seal: FKM \| Port: Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD31-AF04R-5G	Valve type: N.C. \| Size: 30 \| Body: Aluminum \| Seal: FKM \| Port: Rc1/2 \| Coil: DC24V, grommet (G)
	JSXD31-AF04R-1GS	Valve type: N.C. \| Size: 30 \| Body: Aluminum \| Seal: FKM \| Port: Rc1/2 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD31-AF04R-2GS	Valve type: N.C. \| Size: 30 \| Body: Aluminum \| Seal: FKM \| Port: Rc1/2 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD31-AF04R-4GS	Valve type: N.C. \| Size: 30 \| Body: Aluminum \| Seal: FKM \| Port: Rc1/2 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD41-CN03R-5G	Valve type: N.C. \| Size: 40 \| Body: Brass \| Seal: NBR \| Port: Rc3/8 \| Coil: DC24V, grommet (G)
	JSXD41-CN03R-1GS	Valve type: N.C. \| Size: 40 \| Body: Brass \| Seal: NBR \| Port: Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD41-CN03R-2GS	Valve type: N.C. \| Size: 40 \| Body: Brass \| Seal: NBR \| Port: Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD41-CN03R-4GS	Valve type: N.C. \| Size: 40 \| Body: Brass \| Seal: NBR \| Port: Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD41-CN04R-5G	Valve type: N.C. \| Size: 40 \| Body: Brass \| Seal: NBR \| Port: Rc1/2 \| Coil: DC24V, grommet (G)
	JSXD41-CN04R-1GS	Valve type: N.C. \| Size: 40 \| Body: Brass \| Seal: NBR \| Port: Rc1/2 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD41-CN04R-2GS	Valve type: N.C. \| Size: 40 \| Body: Brass \| Seal: NBR \| Port: Rc1/2 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD41-CN04R-4GS	Valve type: N.C. \| Size: 40 \| Body: Brass \| Seal: NBR \| Port: Rc1/2 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD41-CF03R-5G	Valve type: N.C. \| Size: 40 \| Body: Brass \| Seal: FKM \| Port: Rc3/8 \| Coil: DC24V, grommet (G)
	JSXD41-CF03R-1GS	Valve type: N.C. \| Size: 40 \| Body: Brass \| Seal: FKM \| Port: Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD41-CF03R-2GS	Valve type: N.C. \| Size: 40 \| Body: Brass \| Seal: FKM \| Port: Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD41-CF03R-4GS	Valve type: N.C. \| Size: 40 \| Body: Brass \| Seal: FKM \| Port: Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD41-CF04R-5G	Valve type: N.C. \| Size: 40 \| Body: Brass \| Seal: FKM \| Port: Rc1/2 \| Coil: DC24V, grommet (G)
	JSXD41-CF04R-1GS	Valve type: N.C. \| Size: 40 \| Body: Brass \| Seal: FKM \| Port: Rc1/2 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD41-CF04R-2GS	Valve type: N.C. \| Size: 40 \| Body: Brass \| Seal: FKM \| Port: Rc1/2 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD41-CF04R-4GS	Valve type: N.C. \| Size: 40 \| Body: Brass \| Seal: FKM \| Port: Rc1/2 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD41-CE03R-5G	Valve type: N.C. \| Size: 40 \| Body: Brass \| Seal: EPDM \| Port: Rc3/8 \| Coil: DC24V, grommet (G)
	JSXD41-CE03R-1GS	Valve type: N.C. \| Size: 40 \| Body: Brass \| Seal: EPDM \| Port: Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD41-CE03R-2GS	Valve type: N.C. \| Size: 40 \| Body: Brass \| Seal: EPDM \| Port: Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD41-CE03R-4GS	Valve type: N.C. \| Size: 40 \| Body: Brass \| Seal: EPDM \| Port: Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD41-CE04R-5G	Valve type: N.C. \| Size: 40 \| Body: Brass \| Seal: EPDM \| Port: Rc1/2 \| Coil: DC24V, grommet (G)
	JSXD41-CE04R-1GS	Valve type: N.C. \| Size: 40 \| Body: Brass \| Seal: EPDM \| Port: Rc1/2 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD41-CE04R-2GS	Valve type: N.C. \| Size: 40 \| Body: Brass \| Seal: EPDM \| Port: Rc1/2 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD41-CE04R-4GS	Valve type: N.C. \| Size: 40 \| Body: Brass \| Seal: EPDM \| Port: Rc1/2 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD41-SN03R-5G	Valve type: N.C. \| Size: 40 \| Body: Stainless steel \| Seal: NBR \| Port: Rc3/8 \| Coil: DC24V, grommet (G)
	JSXD41-SN03R-1GS	Valve type: N.C. \| Size: 40 \| Body: Stainless steel \| Seal: NBR \| Port: Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD41-SN03R-2GS	Valve type: N.C. \| Size: 40 \| Body: Stainless steel \| Seal: NBR \| Port: Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD41-SN03R-4GS	Valve type: N.C. \| Size: 40 \| Body: Stainless steel \| Seal: NBR \| Port: Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD41-SN04R-5G	Valve type: N.C. \| Size: 40 \| Body: Stainless steel \| Seal: NBR \| Port: Rc1/2 \| Coil: DC24V, grommet (G)
	JSXD41-SN04R-1GS	Valve type: N.C. \| Size: 40 \| Body: Stainless steel \| Seal: NBR \| Port: Rc1/2 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD41-SN04R-2GS	Valve type: N.C. \| Size: 40 \| Body: Stainless steel \| Seal: NBR \| Port: Rc1/2 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD41-SN04R-4GS	Valve type: N.C. \| Size: 40 \| Body: Stainless steel \| Seal: NBR \| Port: Rc1/2 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD41-SF03R-5G	Valve type: N.C. \| Size: 40 \| Body: Stainless steel \| Seal: FKM \| Port: Rc3/8 \| Coil: DC24V, grommet (G)
	JSXD41-SF03R-1GS	Valve type: N.C. \| Size: 40 \| Body: Stainless steel \| Seal: FKM \| Port: Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD41-SF03R-2GS	Valve type: N.C. \| Size: 40 \| Body: Stainless steel \| Seal: FKM \| Port: Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD41-SF03R-4GS	Valve type: N.C. \| Size: 40 \| Body: Stainless steel \| Seal: FKM \| Port: Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD41-SF04R-5G	Valve type: N.C. \| Size: 40 \| Body: Stainless steel \| Seal: FKM \| Port: Rc1/2 \| Coil: DC24V, grommet (G)
	JSXD41-SF04R-1GS	Valve type: N.C. \| Size: 40 \| Body: Stainless steel \| Seal: FKM \| Port: Rc1/2 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD41-SF04R-2GS	Valve type: N.C. \| Size: 40 \| Body: Stainless steel \| Seal: FKM \| Port: Rc1/2 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD41-SF04R-4GS	Valve type: N.C. \| Size: 40 \| Body: Stainless steel \| Seal: FKM \| Port: Rc1/2 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD41-SE03R-5G	Valve type: N.C. \| Size: 40 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc3/8 \| Coil: DC24V, grommet (G)
	JSXD41-SE03R-1GS	Valve type: N.C. \| Size: 40 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD41-SE03R-2GS	Valve type: N.C. \| Size: 40 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD41-SE03R-4GS	Valve type: N.C. \| Size: 40 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD41-SE04R-5G	Valve type: N.C. \| Size: 40 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc1/2 \| Coil: DC24V, grommet (G)
	JSXD41-SE04R-1GS	Valve type: N.C. \| Size: 40 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc1/2 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD41-SE04R-2GS	Valve type: N.C. \| Size: 40 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc1/2 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD41-SE04R-4GS	Valve type: N.C. \| Size: 40 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc1/2 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD51-CN06R-5G	Valve type: N.C. \| Size: 50 \| Body: Brass \| Seal: NBR \| Port: Rc3/4 \| Coil: DC24V, grommet (G)
	JSXD51-CN06R-1GS	Valve type: N.C. \| Size: 50 \| Body: Brass \| Seal: NBR \| Port: Rc3/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD51-CN06R-2GS	Valve type: N.C. \| Size: 50 \| Body: Brass \| Seal: NBR \| Port: Rc3/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD51-CN06R-4GS	Valve type: N.C. \| Size: 50 \| Body: Brass \| Seal: NBR \| Port: Rc3/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD51-CF06R-5G	Valve type: N.C. \| Size: 50 \| Body: Brass \| Seal: FKM \| Port: Rc3/4 \| Coil: DC24V, grommet (G)
	JSXD51-CF06R-1GS	Valve type: N.C. \| Size: 50 \| Body: Brass \| Seal: FKM \| Port: Rc3/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD51-CF06R-2GS	Valve type: N.C. \| Size: 50 \| Body: Brass \| Seal: FKM \| Port: Rc3/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD51-CF06R-4GS	Valve type: N.C. \| Size: 50 \| Body: Brass \| Seal: FKM \| Port: Rc3/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD51-CE06R-5G	Valve type: N.C. \| Size: 50 \| Body: Brass \| Seal: EPDM \| Port: Rc3/4 \| Coil: DC24V, grommet (G)
	JSXD51-CE06R-1GS	Valve type: N.C. \| Size: 50 \| Body: Brass \| Seal: EPDM \| Port: Rc3/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD51-CE06R-2GS	Valve type: N.C. \| Size: 50 \| Body: Brass \| Seal: EPDM \| Port: Rc3/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD51-CE06R-4GS	Valve type: N.C. \| Size: 50 \| Body: Brass \| Seal: EPDM \| Port: Rc3/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD51-SN06R-5G	Valve type: N.C. \| Size: 50 \| Body: Stainless steel \| Seal: NBR \| Port: Rc3/4 \| Coil: DC24V, grommet (G)
	JSXD51-SN06R-1GS	Valve type: N.C. \| Size: 50 \| Body: Stainless steel \| Seal: NBR \| Port: Rc3/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD51-SN06R-2GS	Valve type: N.C. \| Size: 50 \| Body: Stainless steel \| Seal: NBR \| Port: Rc3/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD51-SN06R-4GS	Valve type: N.C. \| Size: 50 \| Body: Stainless steel \| Seal: NBR \| Port: Rc3/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD51-SF06R-5G	Valve type: N.C. \| Size: 50 \| Body: Stainless steel \| Seal: FKM \| Port: Rc3/4 \| Coil: DC24V, grommet (G)
	JSXD51-SF06R-1GS	Valve type: N.C. \| Size: 50 \| Body: Stainless steel \| Seal: FKM \| Port: Rc3/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD51-SF06R-2GS	Valve type: N.C. \| Size: 50 \| Body: Stainless steel \| Seal: FKM \| Port: Rc3/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD51-SF06R-4GS	Valve type: N.C. \| Size: 50 \| Body: Stainless steel \| Seal: FKM \| Port: Rc3/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD51-SE06R-5G	Valve type: N.C. \| Size: 50 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc3/4 \| Coil: DC24V, grommet (G)
	JSXD51-SE06R-1GS	Valve type: N.C. \| Size: 50 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc3/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD51-SE06R-2GS	Valve type: N.C. \| Size: 50 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc3/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD51-SE06R-4GS	Valve type: N.C. \| Size: 50 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc3/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD61-CN10R-5G	Valve type: N.C. \| Size: 60 \| Body: Brass \| Seal: NBR \| Port: Rc1 \| Coil: DC24V, grommet (G)
	JSXD61-CN10R-1GS	Valve type: N.C. \| Size: 60 \| Body: Brass \| Seal: NBR \| Port: Rc1 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD61-CN10R-2GS	Valve type: N.C. \| Size: 60 \| Body: Brass \| Seal: NBR \| Port: Rc1 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD61-CN10R-4GS	Valve type: N.C. \| Size: 60 \| Body: Brass \| Seal: NBR \| Port: Rc1 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD61-CF10R-5G	Valve type: N.C. \| Size: 60 \| Body: Brass \| Seal: FKM \| Port: Rc1 \| Coil: DC24V, grommet (G)
	JSXD61-CF10R-1GS	Valve type: N.C. \| Size: 60 \| Body: Brass \| Seal: FKM \| Port: Rc1 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD61-CF10R-2GS	Valve type: N.C. \| Size: 60 \| Body: Brass \| Seal: FKM \| Port: Rc1 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD61-CF10R-4GS	Valve type: N.C. \| Size: 60 \| Body: Brass \| Seal: FKM \| Port: Rc1 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD61-CE10R-5G	Valve type: N.C. \| Size: 60 \| Body: Brass \| Seal: EPDM \| Port: Rc1 \| Coil: DC24V, grommet (G)
	JSXD61-CE10R-1GS	Valve type: N.C. \| Size: 60 \| Body: Brass \| Seal: EPDM \| Port: Rc1 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD61-CE10R-2GS	Valve type: N.C. \| Size: 60 \| Body: Brass \| Seal: EPDM \| Port: Rc1 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD61-CE10R-4GS	Valve type: N.C. \| Size: 60 \| Body: Brass \| Seal: EPDM \| Port: Rc1 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD61-SN10R-5G	Valve type: N.C. \| Size: 60 \| Body: Stainless steel \| Seal: NBR \| Port: Rc1 \| Coil: DC24V, grommet (G)
	JSXD61-SN10R-1GS	Valve type: N.C. \| Size: 60 \| Body: Stainless steel \| Seal: NBR \| Port: Rc1 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD61-SN10R-2GS	Valve type: N.C. \| Size: 60 \| Body: Stainless steel \| Seal: NBR \| Port: Rc1 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD61-SN10R-4GS	Valve type: N.C. \| Size: 60 \| Body: Stainless steel \| Seal: NBR \| Port: Rc1 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD61-SF10R-5G	Valve type: N.C. \| Size: 60 \| Body: Stainless steel \| Seal: FKM \| Port: Rc1 \| Coil: DC24V, grommet (G)
	JSXD61-SF10R-1GS	Valve type: N.C. \| Size: 60 \| Body: Stainless steel \| Seal: FKM \| Port: Rc1 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD61-SF10R-2GS	Valve type: N.C. \| Size: 60 \| Body: Stainless steel \| Seal: FKM \| Port: Rc1 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD61-SF10R-4GS	Valve type: N.C. \| Size: 60 \| Body: Stainless steel \| Seal: FKM \| Port: Rc1 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD61-SE10R-5G	Valve type: N.C. \| Size: 60 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc1 \| Coil: DC24V, grommet (G)
	JSXD61-SE10R-1GS	Valve type: N.C. \| Size: 60 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc1 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD61-SE10R-2GS	Valve type: N.C. \| Size: 60 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc1 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD61-SE10R-4GS	Valve type: N.C. \| Size: 60 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc1 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD71-BN12R-5G	Valve type: N.C. \| Size: 70 \| Body: Bronze \| Seal: NBR \| Port: Rc1-1/4 \| Coil: DC24V, grommet (G)
	JSXD71-BN12R-1GS	Valve type: N.C. \| Size: 70 \| Body: Bronze \| Seal: NBR \| Port: Rc1-1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD71-BN12R-2GS	Valve type: N.C. \| Size: 70 \| Body: Bronze \| Seal: NBR \| Port: Rc1-1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD71-BN12R-4GS	Valve type: N.C. \| Size: 70 \| Body: Bronze \| Seal: NBR \| Port: Rc1-1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD71-BN32-5G	Valve type: N.C. \| Size: 70 \| Body: Bronze \| Seal: NBR \| Port: 32A flange \| Coil: DC24V, grommet (G)
	JSXD71-BN32-1GS	Valve type: N.C. \| Size: 70 \| Body: Bronze \| Seal: NBR \| Port: 32A flange \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD71-BN32-2GS	Valve type: N.C. \| Size: 70 \| Body: Bronze \| Seal: NBR \| Port: 32A flange \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD71-BN32-4GS	Valve type: N.C. \| Size: 70 \| Body: Bronze \| Seal: NBR \| Port: 32A flange \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD71-BF12R-5G	Valve type: N.C. \| Size: 70 \| Body: Bronze \| Seal: FKM \| Port: Rc1-1/4 \| Coil: DC24V, grommet (G)
	JSXD71-BF12R-1GS	Valve type: N.C. \| Size: 70 \| Body: Bronze \| Seal: FKM \| Port: Rc1-1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD71-BF12R-2GS	Valve type: N.C. \| Size: 70 \| Body: Bronze \| Seal: FKM \| Port: Rc1-1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD71-BF12R-4GS	Valve type: N.C. \| Size: 70 \| Body: Bronze \| Seal: FKM \| Port: Rc1-1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD71-BF32-5G	Valve type: N.C. \| Size: 70 \| Body: Bronze \| Seal: FKM \| Port: 32A flange \| Coil: DC24V, grommet (G)
	JSXD71-BF32-1GS	Valve type: N.C. \| Size: 70 \| Body: Bronze \| Seal: FKM \| Port: 32A flange \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD71-BF32-2GS	Valve type: N.C. \| Size: 70 \| Body: Bronze \| Seal: FKM \| Port: 32A flange \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD71-BF32-4GS	Valve type: N.C. \| Size: 70 \| Body: Bronze \| Seal: FKM \| Port: 32A flange \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD71-BE12R-5G	Valve type: N.C. \| Size: 70 \| Body: Bronze \| Seal: EPDM \| Port: Rc1-1/4 \| Coil: DC24V, grommet (G)
	JSXD71-BE12R-1GS	Valve type: N.C. \| Size: 70 \| Body: Bronze \| Seal: EPDM \| Port: Rc1-1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD71-BE12R-2GS	Valve type: N.C. \| Size: 70 \| Body: Bronze \| Seal: EPDM \| Port: Rc1-1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD71-BE12R-4GS	Valve type: N.C. \| Size: 70 \| Body: Bronze \| Seal: EPDM \| Port: Rc1-1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD71-BE32-5G	Valve type: N.C. \| Size: 70 \| Body: Bronze \| Seal: EPDM \| Port: 32A flange \| Coil: DC24V, grommet (G)
	JSXD71-BE32-1GS	Valve type: N.C. \| Size: 70 \| Body: Bronze \| Seal: EPDM \| Port: 32A flange \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD71-BE32-2GS	Valve type: N.C. \| Size: 70 \| Body: Bronze \| Seal: EPDM \| Port: 32A flange \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD71-BE32-4GS	Valve type: N.C. \| Size: 70 \| Body: Bronze \| Seal: EPDM \| Port: 32A flange \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD81-BN14R-5G	Valve type: N.C. \| Size: 80 \| Body: Bronze \| Seal: NBR \| Port: Rc1-1/2 \| Coil: DC24V, grommet (G)
	JSXD81-BN14R-1GS	Valve type: N.C. \| Size: 80 \| Body: Bronze \| Seal: NBR \| Port: Rc1-1/2 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD81-BN14R-2GS	Valve type: N.C. \| Size: 80 \| Body: Bronze \| Seal: NBR \| Port: Rc1-1/2 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD81-BN14R-4GS	Valve type: N.C. \| Size: 80 \| Body: Bronze \| Seal: NBR \| Port: Rc1-1/2 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD81-BN40-5G	Valve type: N.C. \| Size: 80 \| Body: Bronze \| Seal: NBR \| Port: 40A flange \| Coil: DC24V, grommet (G)
	JSXD81-BN40-1GS	Valve type: N.C. \| Size: 80 \| Body: Bronze \| Seal: NBR \| Port: 40A flange \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD81-BN40-2GS	Valve type: N.C. \| Size: 80 \| Body: Bronze \| Seal: NBR \| Port: 40A flange \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD81-BN40-4GS	Valve type: N.C. \| Size: 80 \| Body: Bronze \| Seal: NBR \| Port: 40A flange \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD81-BF14R-5G	Valve type: N.C. \| Size: 80 \| Body: Bronze \| Seal: FKM \| Port: Rc1-1/2 \| Coil: DC24V, grommet (G)
	JSXD81-BF14R-1GS	Valve type: N.C. \| Size: 80 \| Body: Bronze \| Seal: FKM \| Port: Rc1-1/2 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD81-BF14R-2GS	Valve type: N.C. \| Size: 80 \| Body: Bronze \| Seal: FKM \| Port: Rc1-1/2 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD81-BF14R-4GS	Valve type: N.C. \| Size: 80 \| Body: Bronze \| Seal: FKM \| Port: Rc1-1/2 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD81-BF40-5G	Valve type: N.C. \| Size: 80 \| Body: Bronze \| Seal: FKM \| Port: 40A flange \| Coil: DC24V, grommet (G)
	JSXD81-BF40-1GS	Valve type: N.C. \| Size: 80 \| Body: Bronze \| Seal: FKM \| Port: 40A flange \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD81-BF40-2GS	Valve type: N.C. \| Size: 80 \| Body: Bronze \| Seal: FKM \| Port: 40A flange \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD81-BF40-4GS	Valve type: N.C. \| Size: 80 \| Body: Bronze \| Seal: FKM \| Port: 40A flange \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD81-BE14R-5G	Valve type: N.C. \| Size: 80 \| Body: Bronze \| Seal: EPDM \| Port: Rc1-1/2 \| Coil: DC24V, grommet (G)
	JSXD81-BE14R-1GS	Valve type: N.C. \| Size: 80 \| Body: Bronze \| Seal: EPDM \| Port: Rc1-1/2 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD81-BE14R-2GS	Valve type: N.C. \| Size: 80 \| Body: Bronze \| Seal: EPDM \| Port: Rc1-1/2 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD81-BE14R-4GS	Valve type: N.C. \| Size: 80 \| Body: Bronze \| Seal: EPDM \| Port: Rc1-1/2 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD81-BE40-5G	Valve type: N.C. \| Size: 80 \| Body: Bronze \| Seal: EPDM \| Port: 40A flange \| Coil: DC24V, grommet (G)
	JSXD81-BE40-1GS	Valve type: N.C. \| Size: 80 \| Body: Bronze \| Seal: EPDM \| Port: 40A flange \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD81-BE40-2GS	Valve type: N.C. \| Size: 80 \| Body: Bronze \| Seal: EPDM \| Port: 40A flange \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD81-BE40-4GS	Valve type: N.C. \| Size: 80 \| Body: Bronze \| Seal: EPDM \| Port: 40A flange \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD91-BN20R-5G	Valve type: N.C. \| Size: 90 \| Body: Bronze \| Seal: NBR \| Port: Rc2 \| Coil: DC24V, grommet (G)
	JSXD91-BN20R-1GS	Valve type: N.C. \| Size: 90 \| Body: Bronze \| Seal: NBR \| Port: Rc2 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD91-BN20R-2GS	Valve type: N.C. \| Size: 90 \| Body: Bronze \| Seal: NBR \| Port: Rc2 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD91-BN20R-4GS	Valve type: N.C. \| Size: 90 \| Body: Bronze \| Seal: NBR \| Port: Rc2 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD91-BN50-5G	Valve type: N.C. \| Size: 90 \| Body: Bronze \| Seal: NBR \| Port: 50A flange \| Coil: DC24V, grommet (G)
	JSXD91-BN50-1GS	Valve type: N.C. \| Size: 90 \| Body: Bronze \| Seal: NBR \| Port: 50A flange \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD91-BN50-2GS	Valve type: N.C. \| Size: 90 \| Body: Bronze \| Seal: NBR \| Port: 50A flange \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD91-BN50-4GS	Valve type: N.C. \| Size: 90 \| Body: Bronze \| Seal: NBR \| Port: 50A flange \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD91-BF20R-5G	Valve type: N.C. \| Size: 90 \| Body: Bronze \| Seal: FKM \| Port: Rc2 \| Coil: DC24V, grommet (G)
	JSXD91-BF20R-1GS	Valve type: N.C. \| Size: 90 \| Body: Bronze \| Seal: FKM \| Port: Rc2 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD91-BF20R-2GS	Valve type: N.C. \| Size: 90 \| Body: Bronze \| Seal: FKM \| Port: Rc2 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD91-BF20R-4GS	Valve type: N.C. \| Size: 90 \| Body: Bronze \| Seal: FKM \| Port: Rc2 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD91-BF50-5G	Valve type: N.C. \| Size: 90 \| Body: Bronze \| Seal: FKM \| Port: 50A flange \| Coil: DC24V, grommet (G)
	JSXD91-BF50-1GS	Valve type: N.C. \| Size: 90 \| Body: Bronze \| Seal: FKM \| Port: 50A flange \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD91-BF50-2GS	Valve type: N.C. \| Size: 90 \| Body: Bronze \| Seal: FKM \| Port: 50A flange \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD91-BF50-4GS	Valve type: N.C. \| Size: 90 \| Body: Bronze \| Seal: FKM \| Port: 50A flange \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD91-BE20R-5G	Valve type: N.C. \| Size: 90 \| Body: Bronze \| Seal: EPDM \| Port: Rc2 \| Coil: DC24V, grommet (G)
	JSXD91-BE20R-1GS	Valve type: N.C. \| Size: 90 \| Body: Bronze \| Seal: EPDM \| Port: Rc2 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD91-BE20R-2GS	Valve type: N.C. \| Size: 90 \| Body: Bronze \| Seal: EPDM \| Port: Rc2 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD91-BE20R-4GS	Valve type: N.C. \| Size: 90 \| Body: Bronze \| Seal: EPDM \| Port: Rc2 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD91-BE50-5G	Valve type: N.C. \| Size: 90 \| Body: Bronze \| Seal: EPDM \| Port: 50A flange \| Coil: DC24V, grommet (G)
	JSXD91-BE50-1GS	Valve type: N.C. \| Size: 90 \| Body: Bronze \| Seal: EPDM \| Port: 50A flange \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD91-BE50-2GS	Valve type: N.C. \| Size: 90 \| Body: Bronze \| Seal: EPDM \| Port: 50A flange \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD91-BE50-4GS	Valve type: N.C. \| Size: 90 \| Body: Bronze \| Seal: EPDM \| Port: 50A flange \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD32-CN02R-5G	Valve type: N.O. \| Size: 30 \| Body: Brass \| Seal: NBR \| Port: Rc1/4 \| Coil: DC24V, grommet (G)
	JSXD32-CN02R-1GS	Valve type: N.O. \| Size: 30 \| Body: Brass \| Seal: NBR \| Port: Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD32-CN02R-2GS	Valve type: N.O. \| Size: 30 \| Body: Brass \| Seal: NBR \| Port: Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD32-CN02R-4GS	Valve type: N.O. \| Size: 30 \| Body: Brass \| Seal: NBR \| Port: Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD32-CN03R-5G	Valve type: N.O. \| Size: 30 \| Body: Brass \| Seal: NBR \| Port: Rc3/8 \| Coil: DC24V, grommet (G)
	JSXD32-CN03R-1GS	Valve type: N.O. \| Size: 30 \| Body: Brass \| Seal: NBR \| Port: Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD32-CN03R-2GS	Valve type: N.O. \| Size: 30 \| Body: Brass \| Seal: NBR \| Port: Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD32-CN03R-4GS	Valve type: N.O. \| Size: 30 \| Body: Brass \| Seal: NBR \| Port: Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD32-CF02R-5G	Valve type: N.O. \| Size: 30 \| Body: Brass \| Seal: FKM \| Port: Rc1/4 \| Coil: DC24V, grommet (G)
	JSXD32-CF02R-1GS	Valve type: N.O. \| Size: 30 \| Body: Brass \| Seal: FKM \| Port: Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD32-CF02R-2GS	Valve type: N.O. \| Size: 30 \| Body: Brass \| Seal: FKM \| Port: Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD32-CF02R-4GS	Valve type: N.O. \| Size: 30 \| Body: Brass \| Seal: FKM \| Port: Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD32-CF03R-5G	Valve type: N.O. \| Size: 30 \| Body: Brass \| Seal: FKM \| Port: Rc3/8 \| Coil: DC24V, grommet (G)
	JSXD32-CF03R-1GS	Valve type: N.O. \| Size: 30 \| Body: Brass \| Seal: FKM \| Port: Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD32-CF03R-2GS	Valve type: N.O. \| Size: 30 \| Body: Brass \| Seal: FKM \| Port: Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD32-CF03R-4GS	Valve type: N.O. \| Size: 30 \| Body: Brass \| Seal: FKM \| Port: Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD32-CE02R-5G	Valve type: N.O. \| Size: 30 \| Body: Brass \| Seal: EPDM \| Port: Rc1/4 \| Coil: DC24V, grommet (G)
	JSXD32-CE02R-1GS	Valve type: N.O. \| Size: 30 \| Body: Brass \| Seal: EPDM \| Port: Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD32-CE02R-2GS	Valve type: N.O. \| Size: 30 \| Body: Brass \| Seal: EPDM \| Port: Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD32-CE02R-4GS	Valve type: N.O. \| Size: 30 \| Body: Brass \| Seal: EPDM \| Port: Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD32-CE03R-5G	Valve type: N.O. \| Size: 30 \| Body: Brass \| Seal: EPDM \| Port: Rc3/8 \| Coil: DC24V, grommet (G)
	JSXD32-CE03R-1GS	Valve type: N.O. \| Size: 30 \| Body: Brass \| Seal: EPDM \| Port: Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD32-CE03R-2GS	Valve type: N.O. \| Size: 30 \| Body: Brass \| Seal: EPDM \| Port: Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD32-CE03R-4GS	Valve type: N.O. \| Size: 30 \| Body: Brass \| Seal: EPDM \| Port: Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD32-SN02R-5G	Valve type: N.O. \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Port: Rc1/4 \| Coil: DC24V, grommet (G)
	JSXD32-SN02R-1GS	Valve type: N.O. \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Port: Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD32-SN02R-2GS	Valve type: N.O. \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Port: Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD32-SN02R-4GS	Valve type: N.O. \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Port: Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD32-SN03R-5G	Valve type: N.O. \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Port: Rc3/8 \| Coil: DC24V, grommet (G)
	JSXD32-SN03R-1GS	Valve type: N.O. \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Port: Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD32-SN03R-2GS	Valve type: N.O. \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Port: Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD32-SN03R-4GS	Valve type: N.O. \| Size: 30 \| Body: Stainless steel \| Seal: NBR \| Port: Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD32-SF02R-5G	Valve type: N.O. \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Port: Rc1/4 \| Coil: DC24V, grommet (G)
	JSXD32-SF02R-1GS	Valve type: N.O. \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Port: Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD32-SF02R-2GS	Valve type: N.O. \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Port: Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD32-SF02R-4GS	Valve type: N.O. \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Port: Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD32-SF03R-5G	Valve type: N.O. \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Port: Rc3/8 \| Coil: DC24V, grommet (G)
	JSXD32-SF03R-1GS	Valve type: N.O. \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Port: Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD32-SF03R-2GS	Valve type: N.O. \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Port: Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD32-SF03R-4GS	Valve type: N.O. \| Size: 30 \| Body: Stainless steel \| Seal: FKM \| Port: Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD32-SE02R-5G	Valve type: N.O. \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc1/4 \| Coil: DC24V, grommet (G)
	JSXD32-SE02R-1GS	Valve type: N.O. \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD32-SE02R-2GS	Valve type: N.O. \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD32-SE02R-4GS	Valve type: N.O. \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD32-SE03R-5G	Valve type: N.O. \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc3/8 \| Coil: DC24V, grommet (G)
	JSXD32-SE03R-1GS	Valve type: N.O. \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD32-SE03R-2GS	Valve type: N.O. \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD32-SE03R-4GS	Valve type: N.O. \| Size: 30 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD42-CN03R-5G	Valve type: N.O. \| Size: 40 \| Body: Brass \| Seal: NBR \| Port: Rc3/8 \| Coil: DC24V, grommet (G)
	JSXD42-CN03R-1GS	Valve type: N.O. \| Size: 40 \| Body: Brass \| Seal: NBR \| Port: Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD42-CN03R-2GS	Valve type: N.O. \| Size: 40 \| Body: Brass \| Seal: NBR \| Port: Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD42-CN03R-4GS	Valve type: N.O. \| Size: 40 \| Body: Brass \| Seal: NBR \| Port: Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD42-CN04R-5G	Valve type: N.O. \| Size: 40 \| Body: Brass \| Seal: NBR \| Port: Rc1/2 \| Coil: DC24V, grommet (G)
	JSXD42-CN04R-1GS	Valve type: N.O. \| Size: 40 \| Body: Brass \| Seal: NBR \| Port: Rc1/2 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD42-CN04R-2GS	Valve type: N.O. \| Size: 40 \| Body: Brass \| Seal: NBR \| Port: Rc1/2 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD42-CN04R-4GS	Valve type: N.O. \| Size: 40 \| Body: Brass \| Seal: NBR \| Port: Rc1/2 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD42-CF03R-5G	Valve type: N.O. \| Size: 40 \| Body: Brass \| Seal: FKM \| Port: Rc3/8 \| Coil: DC24V, grommet (G)
	JSXD42-CF03R-1GS	Valve type: N.O. \| Size: 40 \| Body: Brass \| Seal: FKM \| Port: Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD42-CF03R-2GS	Valve type: N.O. \| Size: 40 \| Body: Brass \| Seal: FKM \| Port: Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD42-CF03R-4GS	Valve type: N.O. \| Size: 40 \| Body: Brass \| Seal: FKM \| Port: Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD42-CF04R-5G	Valve type: N.O. \| Size: 40 \| Body: Brass \| Seal: FKM \| Port: Rc1/2 \| Coil: DC24V, grommet (G)
	JSXD42-CF04R-1GS	Valve type: N.O. \| Size: 40 \| Body: Brass \| Seal: FKM \| Port: Rc1/2 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD42-CF04R-2GS	Valve type: N.O. \| Size: 40 \| Body: Brass \| Seal: FKM \| Port: Rc1/2 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD42-CF04R-4GS	Valve type: N.O. \| Size: 40 \| Body: Brass \| Seal: FKM \| Port: Rc1/2 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD42-CE03R-5G	Valve type: N.O. \| Size: 40 \| Body: Brass \| Seal: EPDM \| Port: Rc3/8 \| Coil: DC24V, grommet (G)
	JSXD42-CE03R-1GS	Valve type: N.O. \| Size: 40 \| Body: Brass \| Seal: EPDM \| Port: Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD42-CE03R-2GS	Valve type: N.O. \| Size: 40 \| Body: Brass \| Seal: EPDM \| Port: Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD42-CE03R-4GS	Valve type: N.O. \| Size: 40 \| Body: Brass \| Seal: EPDM \| Port: Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD42-CE04R-5G	Valve type: N.O. \| Size: 40 \| Body: Brass \| Seal: EPDM \| Port: Rc1/2 \| Coil: DC24V, grommet (G)
	JSXD42-CE04R-1GS	Valve type: N.O. \| Size: 40 \| Body: Brass \| Seal: EPDM \| Port: Rc1/2 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD42-CE04R-2GS	Valve type: N.O. \| Size: 40 \| Body: Brass \| Seal: EPDM \| Port: Rc1/2 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD42-CE04R-4GS	Valve type: N.O. \| Size: 40 \| Body: Brass \| Seal: EPDM \| Port: Rc1/2 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD42-SN03R-5G	Valve type: N.O. \| Size: 40 \| Body: Stainless steel \| Seal: NBR \| Port: Rc3/8 \| Coil: DC24V, grommet (G)
	JSXD42-SN03R-1GS	Valve type: N.O. \| Size: 40 \| Body: Stainless steel \| Seal: NBR \| Port: Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD42-SN03R-2GS	Valve type: N.O. \| Size: 40 \| Body: Stainless steel \| Seal: NBR \| Port: Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD42-SN03R-4GS	Valve type: N.O. \| Size: 40 \| Body: Stainless steel \| Seal: NBR \| Port: Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD42-SN04R-5G	Valve type: N.O. \| Size: 40 \| Body: Stainless steel \| Seal: NBR \| Port: Rc1/2 \| Coil: DC24V, grommet (G)
	JSXD42-SN04R-1GS	Valve type: N.O. \| Size: 40 \| Body: Stainless steel \| Seal: NBR \| Port: Rc1/2 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD42-SN04R-2GS	Valve type: N.O. \| Size: 40 \| Body: Stainless steel \| Seal: NBR \| Port: Rc1/2 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD42-SN04R-4GS	Valve type: N.O. \| Size: 40 \| Body: Stainless steel \| Seal: NBR \| Port: Rc1/2 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD42-SF03R-5G	Valve type: N.O. \| Size: 40 \| Body: Stainless steel \| Seal: FKM \| Port: Rc3/8 \| Coil: DC24V, grommet (G)
	JSXD42-SF03R-1GS	Valve type: N.O. \| Size: 40 \| Body: Stainless steel \| Seal: FKM \| Port: Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD42-SF03R-2GS	Valve type: N.O. \| Size: 40 \| Body: Stainless steel \| Seal: FKM \| Port: Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD42-SF03R-4GS	Valve type: N.O. \| Size: 40 \| Body: Stainless steel \| Seal: FKM \| Port: Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD42-SF04R-5G	Valve type: N.O. \| Size: 40 \| Body: Stainless steel \| Seal: FKM \| Port: Rc1/2 \| Coil: DC24V, grommet (G)
	JSXD42-SF04R-1GS	Valve type: N.O. \| Size: 40 \| Body: Stainless steel \| Seal: FKM \| Port: Rc1/2 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD42-SF04R-2GS	Valve type: N.O. \| Size: 40 \| Body: Stainless steel \| Seal: FKM \| Port: Rc1/2 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD42-SF04R-4GS	Valve type: N.O. \| Size: 40 \| Body: Stainless steel \| Seal: FKM \| Port: Rc1/2 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD42-SE03R-5G	Valve type: N.O. \| Size: 40 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc3/8 \| Coil: DC24V, grommet (G)
	JSXD42-SE03R-1GS	Valve type: N.O. \| Size: 40 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD42-SE03R-2GS	Valve type: N.O. \| Size: 40 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD42-SE03R-4GS	Valve type: N.O. \| Size: 40 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD42-SE04R-5G	Valve type: N.O. \| Size: 40 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc1/2 \| Coil: DC24V, grommet (G)
	JSXD42-SE04R-1GS	Valve type: N.O. \| Size: 40 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc1/2 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD42-SE04R-2GS	Valve type: N.O. \| Size: 40 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc1/2 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD42-SE04R-4GS	Valve type: N.O. \| Size: 40 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc1/2 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD52-CN06R-5G	Valve type: N.O. \| Size: 50 \| Body: Brass \| Seal: NBR \| Port: Rc3/4 \| Coil: DC24V, grommet (G)
	JSXD52-CN06R-1GS	Valve type: N.O. \| Size: 50 \| Body: Brass \| Seal: NBR \| Port: Rc3/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD52-CN06R-2GS	Valve type: N.O. \| Size: 50 \| Body: Brass \| Seal: NBR \| Port: Rc3/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD52-CN06R-4GS	Valve type: N.O. \| Size: 50 \| Body: Brass \| Seal: NBR \| Port: Rc3/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD52-CF06R-5G	Valve type: N.O. \| Size: 50 \| Body: Brass \| Seal: FKM \| Port: Rc3/4 \| Coil: DC24V, grommet (G)
	JSXD52-CF06R-1GS	Valve type: N.O. \| Size: 50 \| Body: Brass \| Seal: FKM \| Port: Rc3/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD52-CF06R-2GS	Valve type: N.O. \| Size: 50 \| Body: Brass \| Seal: FKM \| Port: Rc3/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD52-CF06R-4GS	Valve type: N.O. \| Size: 50 \| Body: Brass \| Seal: FKM \| Port: Rc3/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD52-CE06R-5G	Valve type: N.O. \| Size: 50 \| Body: Brass \| Seal: EPDM \| Port: Rc3/4 \| Coil: DC24V, grommet (G)
	JSXD52-CE06R-1GS	Valve type: N.O. \| Size: 50 \| Body: Brass \| Seal: EPDM \| Port: Rc3/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD52-CE06R-2GS	Valve type: N.O. \| Size: 50 \| Body: Brass \| Seal: EPDM \| Port: Rc3/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD52-CE06R-4GS	Valve type: N.O. \| Size: 50 \| Body: Brass \| Seal: EPDM \| Port: Rc3/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD52-SN06R-5G	Valve type: N.O. \| Size: 50 \| Body: Stainless steel \| Seal: NBR \| Port: Rc3/4 \| Coil: DC24V, grommet (G)
	JSXD52-SN06R-1GS	Valve type: N.O. \| Size: 50 \| Body: Stainless steel \| Seal: NBR \| Port: Rc3/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD52-SN06R-2GS	Valve type: N.O. \| Size: 50 \| Body: Stainless steel \| Seal: NBR \| Port: Rc3/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD52-SN06R-4GS	Valve type: N.O. \| Size: 50 \| Body: Stainless steel \| Seal: NBR \| Port: Rc3/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD52-SF06R-5G	Valve type: N.O. \| Size: 50 \| Body: Stainless steel \| Seal: FKM \| Port: Rc3/4 \| Coil: DC24V, grommet (G)
	JSXD52-SF06R-1GS	Valve type: N.O. \| Size: 50 \| Body: Stainless steel \| Seal: FKM \| Port: Rc3/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD52-SF06R-2GS	Valve type: N.O. \| Size: 50 \| Body: Stainless steel \| Seal: FKM \| Port: Rc3/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD52-SF06R-4GS	Valve type: N.O. \| Size: 50 \| Body: Stainless steel \| Seal: FKM \| Port: Rc3/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD52-SE06R-5G	Valve type: N.O. \| Size: 50 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc3/4 \| Coil: DC24V, grommet (G)
	JSXD52-SE06R-1GS	Valve type: N.O. \| Size: 50 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc3/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD52-SE06R-2GS	Valve type: N.O. \| Size: 50 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc3/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD52-SE06R-4GS	Valve type: N.O. \| Size: 50 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc3/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD62-CN10R-5G	Valve type: N.O. \| Size: 60 \| Body: Brass \| Seal: NBR \| Port: Rc1 \| Coil: DC24V, grommet (G)
	JSXD62-CN10R-1GS	Valve type: N.O. \| Size: 60 \| Body: Brass \| Seal: NBR \| Port: Rc1 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD62-CN10R-2GS	Valve type: N.O. \| Size: 60 \| Body: Brass \| Seal: NBR \| Port: Rc1 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD62-CN10R-4GS	Valve type: N.O. \| Size: 60 \| Body: Brass \| Seal: NBR \| Port: Rc1 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD62-CF10R-5G	Valve type: N.O. \| Size: 60 \| Body: Brass \| Seal: FKM \| Port: Rc1 \| Coil: DC24V, grommet (G)
	JSXD62-CF10R-1GS	Valve type: N.O. \| Size: 60 \| Body: Brass \| Seal: FKM \| Port: Rc1 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD62-CF10R-2GS	Valve type: N.O. \| Size: 60 \| Body: Brass \| Seal: FKM \| Port: Rc1 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD62-CF10R-4GS	Valve type: N.O. \| Size: 60 \| Body: Brass \| Seal: FKM \| Port: Rc1 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD62-CE10R-5G	Valve type: N.O. \| Size: 60 \| Body: Brass \| Seal: EPDM \| Port: Rc1 \| Coil: DC24V, grommet (G)
	JSXD62-CE10R-1GS	Valve type: N.O. \| Size: 60 \| Body: Brass \| Seal: EPDM \| Port: Rc1 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD62-CE10R-2GS	Valve type: N.O. \| Size: 60 \| Body: Brass \| Seal: EPDM \| Port: Rc1 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD62-CE10R-4GS	Valve type: N.O. \| Size: 60 \| Body: Brass \| Seal: EPDM \| Port: Rc1 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD62-SN10R-5G	Valve type: N.O. \| Size: 60 \| Body: Stainless steel \| Seal: NBR \| Port: Rc1 \| Coil: DC24V, grommet (G)
	JSXD62-SN10R-1GS	Valve type: N.O. \| Size: 60 \| Body: Stainless steel \| Seal: NBR \| Port: Rc1 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD62-SN10R-2GS	Valve type: N.O. \| Size: 60 \| Body: Stainless steel \| Seal: NBR \| Port: Rc1 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD62-SN10R-4GS	Valve type: N.O. \| Size: 60 \| Body: Stainless steel \| Seal: NBR \| Port: Rc1 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD62-SF10R-5G	Valve type: N.O. \| Size: 60 \| Body: Stainless steel \| Seal: FKM \| Port: Rc1 \| Coil: DC24V, grommet (G)
	JSXD62-SF10R-1GS	Valve type: N.O. \| Size: 60 \| Body: Stainless steel \| Seal: FKM \| Port: Rc1 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD62-SF10R-2GS	Valve type: N.O. \| Size: 60 \| Body: Stainless steel \| Seal: FKM \| Port: Rc1 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD62-SF10R-4GS	Valve type: N.O. \| Size: 60 \| Body: Stainless steel \| Seal: FKM \| Port: Rc1 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD62-SE10R-5G	Valve type: N.O. \| Size: 60 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc1 \| Coil: DC24V, grommet (G)
	JSXD62-SE10R-1GS	Valve type: N.O. \| Size: 60 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc1 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD62-SE10R-2GS	Valve type: N.O. \| Size: 60 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc1 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD62-SE10R-4GS	Valve type: N.O. \| Size: 60 \| Body: Stainless steel \| Seal: EPDM \| Port: Rc1 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD72-BN12R-5G	Valve type: N.O. \| Size: 70 \| Body: Bronze \| Seal: NBR \| Port: Rc1-1/4 \| Coil: DC24V, grommet (G)
	JSXD72-BN12R-1GS	Valve type: N.O. \| Size: 70 \| Body: Bronze \| Seal: NBR \| Port: Rc1-1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD72-BN12R-2GS	Valve type: N.O. \| Size: 70 \| Body: Bronze \| Seal: NBR \| Port: Rc1-1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD72-BN12R-4GS	Valve type: N.O. \| Size: 70 \| Body: Bronze \| Seal: NBR \| Port: Rc1-1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD72-BN32-5G	Valve type: N.O. \| Size: 70 \| Body: Bronze \| Seal: NBR \| Port: 32A flange \| Coil: DC24V, grommet (G)
	JSXD72-BN32-1GS	Valve type: N.O. \| Size: 70 \| Body: Bronze \| Seal: NBR \| Port: 32A flange \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD72-BN32-2GS	Valve type: N.O. \| Size: 70 \| Body: Bronze \| Seal: NBR \| Port: 32A flange \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD72-BN32-4GS	Valve type: N.O. \| Size: 70 \| Body: Bronze \| Seal: NBR \| Port: 32A flange \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD72-BF12R-5G	Valve type: N.O. \| Size: 70 \| Body: Bronze \| Seal: FKM \| Port: Rc1-1/4 \| Coil: DC24V, grommet (G)
	JSXD72-BF12R-1GS	Valve type: N.O. \| Size: 70 \| Body: Bronze \| Seal: FKM \| Port: Rc1-1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD72-BF12R-2GS	Valve type: N.O. \| Size: 70 \| Body: Bronze \| Seal: FKM \| Port: Rc1-1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD72-BF12R-4GS	Valve type: N.O. \| Size: 70 \| Body: Bronze \| Seal: FKM \| Port: Rc1-1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD72-BF32-5G	Valve type: N.O. \| Size: 70 \| Body: Bronze \| Seal: FKM \| Port: 32A flange \| Coil: DC24V, grommet (G)
	JSXD72-BF32-1GS	Valve type: N.O. \| Size: 70 \| Body: Bronze \| Seal: FKM \| Port: 32A flange \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD72-BF32-2GS	Valve type: N.O. \| Size: 70 \| Body: Bronze \| Seal: FKM \| Port: 32A flange \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD72-BF32-4GS	Valve type: N.O. \| Size: 70 \| Body: Bronze \| Seal: FKM \| Port: 32A flange \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD72-BE12R-5G	Valve type: N.O. \| Size: 70 \| Body: Bronze \| Seal: EPDM \| Port: Rc1-1/4 \| Coil: DC24V, grommet (G)
	JSXD72-BE12R-1GS	Valve type: N.O. \| Size: 70 \| Body: Bronze \| Seal: EPDM \| Port: Rc1-1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD72-BE12R-2GS	Valve type: N.O. \| Size: 70 \| Body: Bronze \| Seal: EPDM \| Port: Rc1-1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD72-BE12R-4GS	Valve type: N.O. \| Size: 70 \| Body: Bronze \| Seal: EPDM \| Port: Rc1-1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD72-BE32-5G	Valve type: N.O. \| Size: 70 \| Body: Bronze \| Seal: EPDM \| Port: 32A flange \| Coil: DC24V, grommet (G)
	JSXD72-BE32-1GS	Valve type: N.O. \| Size: 70 \| Body: Bronze \| Seal: EPDM \| Port: 32A flange \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD72-BE32-2GS	Valve type: N.O. \| Size: 70 \| Body: Bronze \| Seal: EPDM \| Port: 32A flange \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD72-BE32-4GS	Valve type: N.O. \| Size: 70 \| Body: Bronze \| Seal: EPDM \| Port: 32A flange \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD82-BN14R-5G	Valve type: N.O. \| Size: 80 \| Body: Bronze \| Seal: NBR \| Port: Rc1-1/2 \| Coil: DC24V, grommet (G)
	JSXD82-BN14R-1GS	Valve type: N.O. \| Size: 80 \| Body: Bronze \| Seal: NBR \| Port: Rc1-1/2 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD82-BN14R-2GS	Valve type: N.O. \| Size: 80 \| Body: Bronze \| Seal: NBR \| Port: Rc1-1/2 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD82-BN14R-4GS	Valve type: N.O. \| Size: 80 \| Body: Bronze \| Seal: NBR \| Port: Rc1-1/2 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD82-BN40-5G	Valve type: N.O. \| Size: 80 \| Body: Bronze \| Seal: NBR \| Port: 40A flange \| Coil: DC24V, grommet (G)
	JSXD82-BN40-1GS	Valve type: N.O. \| Size: 80 \| Body: Bronze \| Seal: NBR \| Port: 40A flange \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD82-BN40-2GS	Valve type: N.O. \| Size: 80 \| Body: Bronze \| Seal: NBR \| Port: 40A flange \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD82-BN40-4GS	Valve type: N.O. \| Size: 80 \| Body: Bronze \| Seal: NBR \| Port: 40A flange \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD82-BF14R-5G	Valve type: N.O. \| Size: 80 \| Body: Bronze \| Seal: FKM \| Port: Rc1-1/2 \| Coil: DC24V, grommet (G)
	JSXD82-BF14R-1GS	Valve type: N.O. \| Size: 80 \| Body: Bronze \| Seal: FKM \| Port: Rc1-1/2 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD82-BF14R-2GS	Valve type: N.O. \| Size: 80 \| Body: Bronze \| Seal: FKM \| Port: Rc1-1/2 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD82-BF14R-4GS	Valve type: N.O. \| Size: 80 \| Body: Bronze \| Seal: FKM \| Port: Rc1-1/2 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD82-BF40-5G	Valve type: N.O. \| Size: 80 \| Body: Bronze \| Seal: FKM \| Port: 40A flange \| Coil: DC24V, grommet (G)
	JSXD82-BF40-1GS	Valve type: N.O. \| Size: 80 \| Body: Bronze \| Seal: FKM \| Port: 40A flange \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD82-BF40-2GS	Valve type: N.O. \| Size: 80 \| Body: Bronze \| Seal: FKM \| Port: 40A flange \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD82-BF40-4GS	Valve type: N.O. \| Size: 80 \| Body: Bronze \| Seal: FKM \| Port: 40A flange \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD82-BE14R-5G	Valve type: N.O. \| Size: 80 \| Body: Bronze \| Seal: EPDM \| Port: Rc1-1/2 \| Coil: DC24V, grommet (G)
	JSXD82-BE14R-1GS	Valve type: N.O. \| Size: 80 \| Body: Bronze \| Seal: EPDM \| Port: Rc1-1/2 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD82-BE14R-2GS	Valve type: N.O. \| Size: 80 \| Body: Bronze \| Seal: EPDM \| Port: Rc1-1/2 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD82-BE14R-4GS	Valve type: N.O. \| Size: 80 \| Body: Bronze \| Seal: EPDM \| Port: Rc1-1/2 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD82-BE40-5G	Valve type: N.O. \| Size: 80 \| Body: Bronze \| Seal: EPDM \| Port: 40A flange \| Coil: DC24V, grommet (G)
	JSXD82-BE40-1GS	Valve type: N.O. \| Size: 80 \| Body: Bronze \| Seal: EPDM \| Port: 40A flange \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD82-BE40-2GS	Valve type: N.O. \| Size: 80 \| Body: Bronze \| Seal: EPDM \| Port: 40A flange \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD82-BE40-4GS	Valve type: N.O. \| Size: 80 \| Body: Bronze \| Seal: EPDM \| Port: 40A flange \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD92-BN20R-5G	Valve type: N.O. \| Size: 90 \| Body: Bronze \| Seal: NBR \| Port: Rc2 \| Coil: DC24V, grommet (G)
	JSXD92-BN20R-1GS	Valve type: N.O. \| Size: 90 \| Body: Bronze \| Seal: NBR \| Port: Rc2 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD92-BN20R-2GS	Valve type: N.O. \| Size: 90 \| Body: Bronze \| Seal: NBR \| Port: Rc2 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD92-BN20R-4GS	Valve type: N.O. \| Size: 90 \| Body: Bronze \| Seal: NBR \| Port: Rc2 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD92-BN50-5G	Valve type: N.O. \| Size: 90 \| Body: Bronze \| Seal: NBR \| Port: 50A flange \| Coil: DC24V, grommet (G)
	JSXD92-BN50-1GS	Valve type: N.O. \| Size: 90 \| Body: Bronze \| Seal: NBR \| Port: 50A flange \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD92-BN50-2GS	Valve type: N.O. \| Size: 90 \| Body: Bronze \| Seal: NBR \| Port: 50A flange \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD92-BN50-4GS	Valve type: N.O. \| Size: 90 \| Body: Bronze \| Seal: NBR \| Port: 50A flange \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD92-BF20R-5G	Valve type: N.O. \| Size: 90 \| Body: Bronze \| Seal: FKM \| Port: Rc2 \| Coil: DC24V, grommet (G)
	JSXD92-BF20R-1GS	Valve type: N.O. \| Size: 90 \| Body: Bronze \| Seal: FKM \| Port: Rc2 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD92-BF20R-2GS	Valve type: N.O. \| Size: 90 \| Body: Bronze \| Seal: FKM \| Port: Rc2 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD92-BF20R-4GS	Valve type: N.O. \| Size: 90 \| Body: Bronze \| Seal: FKM \| Port: Rc2 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD92-BF50-5G	Valve type: N.O. \| Size: 90 \| Body: Bronze \| Seal: FKM \| Port: 50A flange \| Coil: DC24V, grommet (G)
	JSXD92-BF50-1GS	Valve type: N.O. \| Size: 90 \| Body: Bronze \| Seal: FKM \| Port: 50A flange \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD92-BF50-2GS	Valve type: N.O. \| Size: 90 \| Body: Bronze \| Seal: FKM \| Port: 50A flange \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD92-BF50-4GS	Valve type: N.O. \| Size: 90 \| Body: Bronze \| Seal: FKM \| Port: 50A flange \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD92-BE20R-5G	Valve type: N.O. \| Size: 90 \| Body: Bronze \| Seal: EPDM \| Port: Rc2 \| Coil: DC24V, grommet (G)
	JSXD92-BE20R-1GS	Valve type: N.O. \| Size: 90 \| Body: Bronze \| Seal: EPDM \| Port: Rc2 \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD92-BE20R-2GS	Valve type: N.O. \| Size: 90 \| Body: Bronze \| Seal: EPDM \| Port: Rc2 \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD92-BE20R-4GS	Valve type: N.O. \| Size: 90 \| Body: Bronze \| Seal: EPDM \| Port: Rc2 \| Coil: AC220V, grommet w/ surge circuit (GS)
	JSXD92-BE50-5G	Valve type: N.O. \| Size: 90 \| Body: Bronze \| Seal: EPDM \| Port: 50A flange \| Coil: DC24V, grommet (G)
	JSXD92-BE50-1GS	Valve type: N.O. \| Size: 90 \| Body: Bronze \| Seal: EPDM \| Port: 50A flange \| Coil: AC100V, grommet w/ surge circuit (GS)
	JSXD92-BE50-2GS	Valve type: N.O. \| Size: 90 \| Body: Bronze \| Seal: EPDM \| Port: 50A flange \| Coil: AC200V, grommet w/ surge circuit (GS)
	JSXD92-BE50-4GS	Valve type: N.O. \| Size: 90 \| Body: Bronze \| Seal: EPDM \| Port: 50A flange \| Coil: AC220V, grommet w/ surge circuit (GS)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC JSXD Pilot Operated 2-Port Solenoid Valve (N.C./N.O., 1/4 to 2, 50A)
