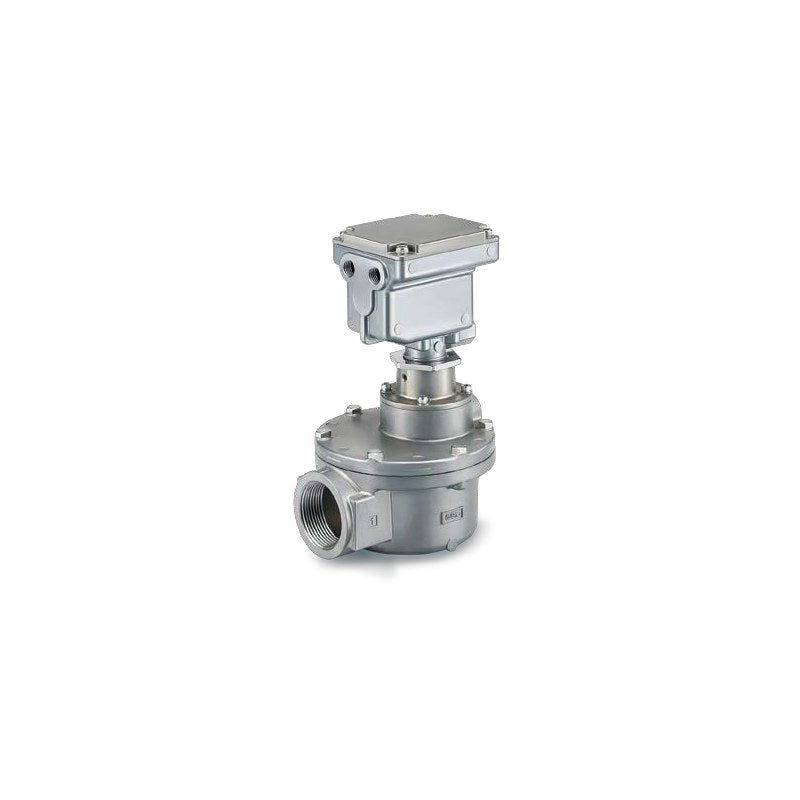

SMC JSXF-P SMARTVENT Pulse Valve (Built-in Control Board, DC24V)

SMC JSXF-P SMARTVENT Pulse Valve (Built-in Control Board, DC24V)

SMC JSXF-P SMARTVENT pulse valve for dust collectors with built-in pulse control board, so one base valve can drive remote valves without a separate timer controller.

Key features

  • Control board in the valve: base (PP, PB, PBW) or remote (PR, PRW) types; W types with M12 connectors
  • PP base accepts a customer-supplied differential pressure sensor (4-20 mA, 2-wire) to detect filter clogging
  • ON time 100 to 234 ms, OFF interval 4 to 29 s adjustable on board
  • Piping: dresser fitting (E), straight (F), tank mount immersion (H) for 4 to 10 inch tanks
  • Options: silencer (-S), lead wire direction 180 deg reversed (2), NPT/G thread; cables for M12 ordered separately

Specifications

Fluid Air
Valve construction Pilot diaphragm, N.C.
Pilot orifice dia.4.5 mm
Operating pressure differential 0.1 to 0.9 MPa
Withstand pressure 1.5 MPa
Rated voltage DC24V
Power consumption 18 W
Fluid and ambient temperature -40 to 60°C
Enclosure IP67, NEMA4
Thread Rc
Source SMC Korea catalog JSXF/JSXFA (SMCKR_JSXFA.pdf), p. 19-24 (PDF p. 20-25)
JSXFE-06R-5PPB Piping: Dresser (compression) fitting | Port: Rc3/4 (20A), orifice 32 | Control board: Base, with diff. pressure sensor input
JSXFE-06R-5PBB Piping: Dresser (compression) fitting | Port: Rc3/4 (20A), orifice 32 | Control board: Base board
JSXFE-06R-5PRB Piping: Dresser (compression) fitting | Port: Rc3/4 (20A), orifice 32 | Control board: Remote board
JSXFE-06R-5PBWB Piping: Dresser (compression) fitting | Port: Rc3/4 (20A), orifice 32 | Control board: Base board with M12 connector
JSXFE-06R-5PRWB Piping: Dresser (compression) fitting | Port: Rc3/4 (20A), orifice 32 | Control board: Remote board with M12 connector
JSXFE-10R-5PPB Piping: Dresser (compression) fitting | Port: Rc1 (25A), orifice 40 | Control board: Base, with diff. pressure sensor input
JSXFE-10R-5PBB Piping: Dresser (compression) fitting | Port: Rc1 (25A), orifice 40 | Control board: Base board
JSXFE-10R-5PRB Piping: Dresser (compression) fitting | Port: Rc1 (25A), orifice 40 | Control board: Remote board
JSXFE-10R-5PBWB Piping: Dresser (compression) fitting | Port: Rc1 (25A), orifice 40 | Control board: Base board with M12 connector
JSXFE-10R-5PRWB Piping: Dresser (compression) fitting | Port: Rc1 (25A), orifice 40 | Control board: Remote board with M12 connector
JSXFE-14R-5PPB Piping: Dresser (compression) fitting | Port: Rc1 1/2 (40A), orifice 50 | Control board: Base, with diff. pressure sensor input
JSXFE-14R-5PBB Piping: Dresser (compression) fitting | Port: Rc1 1/2 (40A), orifice 50 | Control board: Base board
JSXFE-14R-5PRB Piping: Dresser (compression) fitting | Port: Rc1 1/2 (40A), orifice 50 | Control board: Remote board
JSXFE-14R-5PBWB Piping: Dresser (compression) fitting | Port: Rc1 1/2 (40A), orifice 50 | Control board: Base board with M12 connector
JSXFE-14R-5PRWB Piping: Dresser (compression) fitting | Port: Rc1 1/2 (40A), orifice 50 | Control board: Remote board with M12 connector
JSXFF-06R-5PPB Piping: Straight (threaded) | Port: Rc3/4 (20A), orifice 32 | Control board: Base, with diff. pressure sensor input
JSXFF-06R-5PBB Piping: Straight (threaded) | Port: Rc3/4 (20A), orifice 32 | Control board: Base board
JSXFF-06R-5PRB Piping: Straight (threaded) | Port: Rc3/4 (20A), orifice 32 | Control board: Remote board
JSXFF-06R-5PBWB Piping: Straight (threaded) | Port: Rc3/4 (20A), orifice 32 | Control board: Base board with M12 connector
JSXFF-06R-5PRWB Piping: Straight (threaded) | Port: Rc3/4 (20A), orifice 32 | Control board: Remote board with M12 connector
JSXFF-10R-5PPB Piping: Straight (threaded) | Port: Rc1 (25A), orifice 40 | Control board: Base, with diff. pressure sensor input
JSXFF-10R-5PBB Piping: Straight (threaded) | Port: Rc1 (25A), orifice 40 | Control board: Base board
JSXFF-10R-5PRB Piping: Straight (threaded) | Port: Rc1 (25A), orifice 40 | Control board: Remote board
JSXFF-10R-5PBWB Piping: Straight (threaded) | Port: Rc1 (25A), orifice 40 | Control board: Base board with M12 connector
JSXFF-10R-5PRWB Piping: Straight (threaded) | Port: Rc1 (25A), orifice 40 | Control board: Remote board with M12 connector
JSXFF-14R-5PPB Piping: Straight (threaded) | Port: Rc1 1/2 (40A), orifice 50 | Control board: Base, with diff. pressure sensor input
JSXFF-14R-5PBB Piping: Straight (threaded) | Port: Rc1 1/2 (40A), orifice 50 | Control board: Base board
JSXFF-14R-5PRB Piping: Straight (threaded) | Port: Rc1 1/2 (40A), orifice 50 | Control board: Remote board
JSXFF-14R-5PBWB Piping: Straight (threaded) | Port: Rc1 1/2 (40A), orifice 50 | Control board: Base board with M12 connector
JSXFF-14R-5PRWB Piping: Straight (threaded) | Port: Rc1 1/2 (40A), orifice 50 | Control board: Remote board with M12 connector
JSXFH4-06R1-5PPB Piping: Tank mount 4 inch, short pipe, no G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Base, with diff. pressure sensor input
JSXFH4-06R1-5PBB Piping: Tank mount 4 inch, short pipe, no G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Base board
JSXFH4-06R1-5PRB Piping: Tank mount 4 inch, short pipe, no G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Remote board
JSXFH4-06R1-5PBWB Piping: Tank mount 4 inch, short pipe, no G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Base board with M12 connector
JSXFH4-06R1-5PRWB Piping: Tank mount 4 inch, short pipe, no G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Remote board with M12 connector
JSXFH4-06R2-5PPB Piping: Tank mount 4 inch, long pipe, no G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Base, with diff. pressure sensor input
JSXFH4-06R2-5PBB Piping: Tank mount 4 inch, long pipe, no G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Base board
JSXFH4-06R2-5PRB Piping: Tank mount 4 inch, long pipe, no G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Remote board
JSXFH4-06R2-5PBWB Piping: Tank mount 4 inch, long pipe, no G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Base board with M12 connector
JSXFH4-06R2-5PRWB Piping: Tank mount 4 inch, long pipe, no G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Remote board with M12 connector
JSXFH4-06R3-5PPB Piping: Tank mount 4 inch, short pipe, G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Base, with diff. pressure sensor input
JSXFH4-06R3-5PBB Piping: Tank mount 4 inch, short pipe, G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Base board
JSXFH4-06R3-5PRB Piping: Tank mount 4 inch, short pipe, G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Remote board
JSXFH4-06R3-5PBWB Piping: Tank mount 4 inch, short pipe, G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Base board with M12 connector
JSXFH4-06R3-5PRWB Piping: Tank mount 4 inch, short pipe, G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Remote board with M12 connector
JSXFH4-06R4-5PPB Piping: Tank mount 4 inch, long pipe, G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Base, with diff. pressure sensor input
JSXFH4-06R4-5PBB Piping: Tank mount 4 inch, long pipe, G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Base board
JSXFH4-06R4-5PRB Piping: Tank mount 4 inch, long pipe, G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Remote board
JSXFH4-06R4-5PBWB Piping: Tank mount 4 inch, long pipe, G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Base board with M12 connector
JSXFH4-06R4-5PRWB Piping: Tank mount 4 inch, long pipe, G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Remote board with M12 connector
JSXFH5-06R1-5PPB Piping: Tank mount 5 inch, short pipe, no G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Base, with diff. pressure sensor input
JSXFH5-06R1-5PBB Piping: Tank mount 5 inch, short pipe, no G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Base board
JSXFH5-06R1-5PRB Piping: Tank mount 5 inch, short pipe, no G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Remote board
JSXFH5-06R1-5PBWB Piping: Tank mount 5 inch, short pipe, no G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Base board with M12 connector
JSXFH5-06R1-5PRWB Piping: Tank mount 5 inch, short pipe, no G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Remote board with M12 connector
JSXFH5-06R2-5PPB Piping: Tank mount 5 inch, long pipe, no G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Base, with diff. pressure sensor input
JSXFH5-06R2-5PBB Piping: Tank mount 5 inch, long pipe, no G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Base board
JSXFH5-06R2-5PRB Piping: Tank mount 5 inch, long pipe, no G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Remote board
JSXFH5-06R2-5PBWB Piping: Tank mount 5 inch, long pipe, no G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Base board with M12 connector
JSXFH5-06R2-5PRWB Piping: Tank mount 5 inch, long pipe, no G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Remote board with M12 connector
JSXFH5-06R3-5PPB Piping: Tank mount 5 inch, short pipe, G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Base, with diff. pressure sensor input
JSXFH5-06R3-5PBB Piping: Tank mount 5 inch, short pipe, G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Base board
JSXFH5-06R3-5PRB Piping: Tank mount 5 inch, short pipe, G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Remote board
JSXFH5-06R3-5PBWB Piping: Tank mount 5 inch, short pipe, G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Base board with M12 connector
JSXFH5-06R3-5PRWB Piping: Tank mount 5 inch, short pipe, G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Remote board with M12 connector
JSXFH5-06R4-5PPB Piping: Tank mount 5 inch, long pipe, G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Base, with diff. pressure sensor input
JSXFH5-06R4-5PBB Piping: Tank mount 5 inch, long pipe, G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Base board
JSXFH5-06R4-5PRB Piping: Tank mount 5 inch, long pipe, G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Remote board
JSXFH5-06R4-5PBWB Piping: Tank mount 5 inch, long pipe, G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Base board with M12 connector
JSXFH5-06R4-5PRWB Piping: Tank mount 5 inch, long pipe, G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Remote board with M12 connector
JSXFH5-10R1-5PPB Piping: Tank mount 5 inch, short pipe, no G thread | Port: Rc1 (25A), orifice 40 | Control board: Base, with diff. pressure sensor input
JSXFH5-10R1-5PBB Piping: Tank mount 5 inch, short pipe, no G thread | Port: Rc1 (25A), orifice 40 | Control board: Base board
JSXFH5-10R1-5PRB Piping: Tank mount 5 inch, short pipe, no G thread | Port: Rc1 (25A), orifice 40 | Control board: Remote board
JSXFH5-10R1-5PBWB Piping: Tank mount 5 inch, short pipe, no G thread | Port: Rc1 (25A), orifice 40 | Control board: Base board with M12 connector
JSXFH5-10R1-5PRWB Piping: Tank mount 5 inch, short pipe, no G thread | Port: Rc1 (25A), orifice 40 | Control board: Remote board with M12 connector
JSXFH5-10R2-5PPB Piping: Tank mount 5 inch, long pipe, no G thread | Port: Rc1 (25A), orifice 40 | Control board: Base, with diff. pressure sensor input
JSXFH5-10R2-5PBB Piping: Tank mount 5 inch, long pipe, no G thread | Port: Rc1 (25A), orifice 40 | Control board: Base board
JSXFH5-10R2-5PRB Piping: Tank mount 5 inch, long pipe, no G thread | Port: Rc1 (25A), orifice 40 | Control board: Remote board
JSXFH5-10R2-5PBWB Piping: Tank mount 5 inch, long pipe, no G thread | Port: Rc1 (25A), orifice 40 | Control board: Base board with M12 connector
JSXFH5-10R2-5PRWB Piping: Tank mount 5 inch, long pipe, no G thread | Port: Rc1 (25A), orifice 40 | Control board: Remote board with M12 connector
JSXFH5-10R3-5PPB Piping: Tank mount 5 inch, short pipe, G thread | Port: Rc1 (25A), orifice 40 | Control board: Base, with diff. pressure sensor input
JSXFH5-10R3-5PBB Piping: Tank mount 5 inch, short pipe, G thread | Port: Rc1 (25A), orifice 40 | Control board: Base board
JSXFH5-10R3-5PRB Piping: Tank mount 5 inch, short pipe, G thread | Port: Rc1 (25A), orifice 40 | Control board: Remote board
JSXFH5-10R3-5PBWB Piping: Tank mount 5 inch, short pipe, G thread | Port: Rc1 (25A), orifice 40 | Control board: Base board with M12 connector
JSXFH5-10R3-5PRWB Piping: Tank mount 5 inch, short pipe, G thread | Port: Rc1 (25A), orifice 40 | Control board: Remote board with M12 connector
JSXFH5-10R4-5PPB Piping: Tank mount 5 inch, long pipe, G thread | Port: Rc1 (25A), orifice 40 | Control board: Base, with diff. pressure sensor input
JSXFH5-10R4-5PBB Piping: Tank mount 5 inch, long pipe, G thread | Port: Rc1 (25A), orifice 40 | Control board: Base board
JSXFH5-10R4-5PRB Piping: Tank mount 5 inch, long pipe, G thread | Port: Rc1 (25A), orifice 40 | Control board: Remote board
JSXFH5-10R4-5PBWB Piping: Tank mount 5 inch, long pipe, G thread | Port: Rc1 (25A), orifice 40 | Control board: Base board with M12 connector
JSXFH5-10R4-5PRWB Piping: Tank mount 5 inch, long pipe, G thread | Port: Rc1 (25A), orifice 40 | Control board: Remote board with M12 connector
JSXFH6-10R1-5PPB Piping: Tank mount 6 inch, short pipe, no G thread | Port: Rc1 (25A), orifice 40 | Control board: Base, with diff. pressure sensor input
JSXFH6-10R1-5PBB Piping: Tank mount 6 inch, short pipe, no G thread | Port: Rc1 (25A), orifice 40 | Control board: Base board
JSXFH6-10R1-5PRB Piping: Tank mount 6 inch, short pipe, no G thread | Port: Rc1 (25A), orifice 40 | Control board: Remote board
JSXFH6-10R1-5PBWB Piping: Tank mount 6 inch, short pipe, no G thread | Port: Rc1 (25A), orifice 40 | Control board: Base board with M12 connector
JSXFH6-10R1-5PRWB Piping: Tank mount 6 inch, short pipe, no G thread | Port: Rc1 (25A), orifice 40 | Control board: Remote board with M12 connector
JSXFH6-10R2-5PPB Piping: Tank mount 6 inch, long pipe, no G thread | Port: Rc1 (25A), orifice 40 | Control board: Base, with diff. pressure sensor input
JSXFH6-10R2-5PBB Piping: Tank mount 6 inch, long pipe, no G thread | Port: Rc1 (25A), orifice 40 | Control board: Base board
JSXFH6-10R2-5PRB Piping: Tank mount 6 inch, long pipe, no G thread | Port: Rc1 (25A), orifice 40 | Control board: Remote board
JSXFH6-10R2-5PBWB Piping: Tank mount 6 inch, long pipe, no G thread | Port: Rc1 (25A), orifice 40 | Control board: Base board with M12 connector
JSXFH6-10R2-5PRWB Piping: Tank mount 6 inch, long pipe, no G thread | Port: Rc1 (25A), orifice 40 | Control board: Remote board with M12 connector
JSXFH6-10R3-5PPB Piping: Tank mount 6 inch, short pipe, G thread | Port: Rc1 (25A), orifice 40 | Control board: Base, with diff. pressure sensor input
JSXFH6-10R3-5PBB Piping: Tank mount 6 inch, short pipe, G thread | Port: Rc1 (25A), orifice 40 | Control board: Base board
JSXFH6-10R3-5PRB Piping: Tank mount 6 inch, short pipe, G thread | Port: Rc1 (25A), orifice 40 | Control board: Remote board
JSXFH6-10R3-5PBWB Piping: Tank mount 6 inch, short pipe, G thread | Port: Rc1 (25A), orifice 40 | Control board: Base board with M12 connector
JSXFH6-10R3-5PRWB Piping: Tank mount 6 inch, short pipe, G thread | Port: Rc1 (25A), orifice 40 | Control board: Remote board with M12 connector
JSXFH6-10R4-5PPB Piping: Tank mount 6 inch, long pipe, G thread | Port: Rc1 (25A), orifice 40 | Control board: Base, with diff. pressure sensor input
JSXFH6-10R4-5PBB Piping: Tank mount 6 inch, long pipe, G thread | Port: Rc1 (25A), orifice 40 | Control board: Base board
JSXFH6-10R4-5PRB Piping: Tank mount 6 inch, long pipe, G thread | Port: Rc1 (25A), orifice 40 | Control board: Remote board
JSXFH6-10R4-5PBWB Piping: Tank mount 6 inch, long pipe, G thread | Port: Rc1 (25A), orifice 40 | Control board: Base board with M12 connector
JSXFH6-10R4-5PRWB Piping: Tank mount 6 inch, long pipe, G thread | Port: Rc1 (25A), orifice 40 | Control board: Remote board with M12 connector
JSXFH6-14R1-5PPB Piping: Tank mount 6 inch, short pipe, no G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Base, with diff. pressure sensor input
JSXFH6-14R1-5PBB Piping: Tank mount 6 inch, short pipe, no G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Base board
JSXFH6-14R1-5PRB Piping: Tank mount 6 inch, short pipe, no G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Remote board
JSXFH6-14R1-5PBWB Piping: Tank mount 6 inch, short pipe, no G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Base board with M12 connector
JSXFH6-14R1-5PRWB Piping: Tank mount 6 inch, short pipe, no G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Remote board with M12 connector
JSXFH6-14R2-5PPB Piping: Tank mount 6 inch, long pipe, no G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Base, with diff. pressure sensor input
JSXFH6-14R2-5PBB Piping: Tank mount 6 inch, long pipe, no G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Base board
JSXFH6-14R2-5PRB Piping: Tank mount 6 inch, long pipe, no G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Remote board
JSXFH6-14R2-5PBWB Piping: Tank mount 6 inch, long pipe, no G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Base board with M12 connector
JSXFH6-14R2-5PRWB Piping: Tank mount 6 inch, long pipe, no G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Remote board with M12 connector
JSXFH6-14R3-5PPB Piping: Tank mount 6 inch, short pipe, G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Base, with diff. pressure sensor input
JSXFH6-14R3-5PBB Piping: Tank mount 6 inch, short pipe, G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Base board
JSXFH6-14R3-5PRB Piping: Tank mount 6 inch, short pipe, G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Remote board
JSXFH6-14R3-5PBWB Piping: Tank mount 6 inch, short pipe, G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Base board with M12 connector
JSXFH6-14R3-5PRWB Piping: Tank mount 6 inch, short pipe, G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Remote board with M12 connector
JSXFH6-14R4-5PPB Piping: Tank mount 6 inch, long pipe, G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Base, with diff. pressure sensor input
JSXFH6-14R4-5PBB Piping: Tank mount 6 inch, long pipe, G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Base board
JSXFH6-14R4-5PRB Piping: Tank mount 6 inch, long pipe, G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Remote board
JSXFH6-14R4-5PBWB Piping: Tank mount 6 inch, long pipe, G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Base board with M12 connector
JSXFH6-14R4-5PRWB Piping: Tank mount 6 inch, long pipe, G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Remote board with M12 connector
JSXFH8-14R1-5PPB Piping: Tank mount 8 inch, short pipe, no G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Base, with diff. pressure sensor input
JSXFH8-14R1-5PBB Piping: Tank mount 8 inch, short pipe, no G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Base board
JSXFH8-14R1-5PRB Piping: Tank mount 8 inch, short pipe, no G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Remote board
JSXFH8-14R1-5PBWB Piping: Tank mount 8 inch, short pipe, no G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Base board with M12 connector
JSXFH8-14R1-5PRWB Piping: Tank mount 8 inch, short pipe, no G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Remote board with M12 connector
JSXFH8-14R2-5PPB Piping: Tank mount 8 inch, long pipe, no G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Base, with diff. pressure sensor input
JSXFH8-14R2-5PBB Piping: Tank mount 8 inch, long pipe, no G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Base board
JSXFH8-14R2-5PRB Piping: Tank mount 8 inch, long pipe, no G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Remote board
JSXFH8-14R2-5PBWB Piping: Tank mount 8 inch, long pipe, no G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Base board with M12 connector
JSXFH8-14R2-5PRWB Piping: Tank mount 8 inch, long pipe, no G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Remote board with M12 connector
JSXFH8-14R3-5PPB Piping: Tank mount 8 inch, short pipe, G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Base, with diff. pressure sensor input
JSXFH8-14R3-5PBB Piping: Tank mount 8 inch, short pipe, G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Base board
JSXFH8-14R3-5PRB Piping: Tank mount 8 inch, short pipe, G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Remote board
JSXFH8-14R3-5PBWB Piping: Tank mount 8 inch, short pipe, G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Base board with M12 connector
JSXFH8-14R3-5PRWB Piping: Tank mount 8 inch, short pipe, G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Remote board with M12 connector
JSXFH8-14R4-5PPB Piping: Tank mount 8 inch, long pipe, G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Base, with diff. pressure sensor input
JSXFH8-14R4-5PBB Piping: Tank mount 8 inch, long pipe, G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Base board
JSXFH8-14R4-5PRB Piping: Tank mount 8 inch, long pipe, G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Remote board
JSXFH8-14R4-5PBWB Piping: Tank mount 8 inch, long pipe, G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Base board with M12 connector
JSXFH8-14R4-5PRWB Piping: Tank mount 8 inch, long pipe, G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Remote board with M12 connector
JSXFH8-20R1-5PPB Piping: Tank mount 8 inch, short pipe, no G thread | Port: Rc2 (50A), orifice 55 | Control board: Base, with diff. pressure sensor input
JSXFH8-20R1-5PBB Piping: Tank mount 8 inch, short pipe, no G thread | Port: Rc2 (50A), orifice 55 | Control board: Base board
JSXFH8-20R1-5PRB Piping: Tank mount 8 inch, short pipe, no G thread | Port: Rc2 (50A), orifice 55 | Control board: Remote board
JSXFH8-20R1-5PBWB Piping: Tank mount 8 inch, short pipe, no G thread | Port: Rc2 (50A), orifice 55 | Control board: Base board with M12 connector
JSXFH8-20R1-5PRWB Piping: Tank mount 8 inch, short pipe, no G thread | Port: Rc2 (50A), orifice 55 | Control board: Remote board with M12 connector
JSXFH8-20R2-5PPB Piping: Tank mount 8 inch, long pipe, no G thread | Port: Rc2 (50A), orifice 55 | Control board: Base, with diff. pressure sensor input
JSXFH8-20R2-5PBB Piping: Tank mount 8 inch, long pipe, no G thread | Port: Rc2 (50A), orifice 55 | Control board: Base board
JSXFH8-20R2-5PRB Piping: Tank mount 8 inch, long pipe, no G thread | Port: Rc2 (50A), orifice 55 | Control board: Remote board
JSXFH8-20R2-5PBWB Piping: Tank mount 8 inch, long pipe, no G thread | Port: Rc2 (50A), orifice 55 | Control board: Base board with M12 connector
JSXFH8-20R2-5PRWB Piping: Tank mount 8 inch, long pipe, no G thread | Port: Rc2 (50A), orifice 55 | Control board: Remote board with M12 connector
JSXFH8-20R3-5PPB Piping: Tank mount 8 inch, short pipe, G thread | Port: Rc2 (50A), orifice 55 | Control board: Base, with diff. pressure sensor input
JSXFH8-20R3-5PBB Piping: Tank mount 8 inch, short pipe, G thread | Port: Rc2 (50A), orifice 55 | Control board: Base board
JSXFH8-20R3-5PRB Piping: Tank mount 8 inch, short pipe, G thread | Port: Rc2 (50A), orifice 55 | Control board: Remote board
JSXFH8-20R3-5PBWB Piping: Tank mount 8 inch, short pipe, G thread | Port: Rc2 (50A), orifice 55 | Control board: Base board with M12 connector
JSXFH8-20R3-5PRWB Piping: Tank mount 8 inch, short pipe, G thread | Port: Rc2 (50A), orifice 55 | Control board: Remote board with M12 connector
JSXFH8-20R4-5PPB Piping: Tank mount 8 inch, long pipe, G thread | Port: Rc2 (50A), orifice 55 | Control board: Base, with diff. pressure sensor input
JSXFH8-20R4-5PBB Piping: Tank mount 8 inch, long pipe, G thread | Port: Rc2 (50A), orifice 55 | Control board: Base board
JSXFH8-20R4-5PRB Piping: Tank mount 8 inch, long pipe, G thread | Port: Rc2 (50A), orifice 55 | Control board: Remote board
JSXFH8-20R4-5PBWB Piping: Tank mount 8 inch, long pipe, G thread | Port: Rc2 (50A), orifice 55 | Control board: Base board with M12 connector
JSXFH8-20R4-5PRWB Piping: Tank mount 8 inch, long pipe, G thread | Port: Rc2 (50A), orifice 55 | Control board: Remote board with M12 connector
JSXFH10-20R1-5PPB Piping: Tank mount 10 inch, short pipe, no G thread | Port: Rc2 (50A), orifice 55 | Control board: Base, with diff. pressure sensor input
JSXFH10-20R1-5PBB Piping: Tank mount 10 inch, short pipe, no G thread | Port: Rc2 (50A), orifice 55 | Control board: Base board
JSXFH10-20R1-5PRB Piping: Tank mount 10 inch, short pipe, no G thread | Port: Rc2 (50A), orifice 55 | Control board: Remote board
JSXFH10-20R1-5PBWB Piping: Tank mount 10 inch, short pipe, no G thread | Port: Rc2 (50A), orifice 55 | Control board: Base board with M12 connector
JSXFH10-20R1-5PRWB Piping: Tank mount 10 inch, short pipe, no G thread | Port: Rc2 (50A), orifice 55 | Control board: Remote board with M12 connector
JSXFH10-20R2-5PPB Piping: Tank mount 10 inch, long pipe, no G thread | Port: Rc2 (50A), orifice 55 | Control board: Base, with diff. pressure sensor input
JSXFH10-20R2-5PBB Piping: Tank mount 10 inch, long pipe, no G thread | Port: Rc2 (50A), orifice 55 | Control board: Base board
JSXFH10-20R2-5PRB Piping: Tank mount 10 inch, long pipe, no G thread | Port: Rc2 (50A), orifice 55 | Control board: Remote board
JSXFH10-20R2-5PBWB Piping: Tank mount 10 inch, long pipe, no G thread | Port: Rc2 (50A), orifice 55 | Control board: Base board with M12 connector
JSXFH10-20R2-5PRWB Piping: Tank mount 10 inch, long pipe, no G thread | Port: Rc2 (50A), orifice 55 | Control board: Remote board with M12 connector
JSXFH10-20R3-5PPB Piping: Tank mount 10 inch, short pipe, G thread | Port: Rc2 (50A), orifice 55 | Control board: Base, with diff. pressure sensor input
JSXFH10-20R3-5PBB Piping: Tank mount 10 inch, short pipe, G thread | Port: Rc2 (50A), orifice 55 | Control board: Base board
JSXFH10-20R3-5PRB Piping: Tank mount 10 inch, short pipe, G thread | Port: Rc2 (50A), orifice 55 | Control board: Remote board
JSXFH10-20R3-5PBWB Piping: Tank mount 10 inch, short pipe, G thread | Port: Rc2 (50A), orifice 55 | Control board: Base board with M12 connector
JSXFH10-20R3-5PRWB Piping: Tank mount 10 inch, short pipe, G thread | Port: Rc2 (50A), orifice 55 | Control board: Remote board with M12 connector
JSXFH10-20R4-5PPB Piping: Tank mount 10 inch, long pipe, G thread | Port: Rc2 (50A), orifice 55 | Control board: Base, with diff. pressure sensor input
JSXFH10-20R4-5PBB Piping: Tank mount 10 inch, long pipe, G thread | Port: Rc2 (50A), orifice 55 | Control board: Base board
JSXFH10-20R4-5PRB Piping: Tank mount 10 inch, long pipe, G thread | Port: Rc2 (50A), orifice 55 | Control board: Remote board
JSXFH10-20R4-5PBWB Piping: Tank mount 10 inch, long pipe, G thread | Port: Rc2 (50A), orifice 55 | Control board: Base board with M12 connector
JSXFH10-20R4-5PRWB Piping: Tank mount 10 inch, long pipe, G thread | Port: Rc2 (50A), orifice 55 | Control board: Remote board with M12 connector
2-Port ValvesSMC
190 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC JSXF-P SMARTVENT Pulse Valve (Built-in Control Board, DC24V)

Brand SMC·2-Port Valves

Available part numbers (190)

JSXFE-06R-5PPB, JSXFE-06R-5PBB, JSXFE-06R-5PRB, JSXFE-06R-5PBWB, JSXFE-06R-5PRWB, JSXFE-10R-5PPB, JSXFE-10R-5PBB, JSXFE-10R-5PRB, JSXFE-10R-5PBWB, JSXFE-10R-5PRWB + 180 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
JSXFE-06R-5PPBPiping: Dresser (compression) fitting | Port: Rc3/4 (20A), orifice 32 | Control board: Base, with diff. pressure sensor input
JSXFE-06R-5PBBPiping: Dresser (compression) fitting | Port: Rc3/4 (20A), orifice 32 | Control board: Base board
JSXFE-06R-5PRBPiping: Dresser (compression) fitting | Port: Rc3/4 (20A), orifice 32 | Control board: Remote board
JSXFE-06R-5PBWBPiping: Dresser (compression) fitting | Port: Rc3/4 (20A), orifice 32 | Control board: Base board with M12 connector
JSXFE-06R-5PRWBPiping: Dresser (compression) fitting | Port: Rc3/4 (20A), orifice 32 | Control board: Remote board with M12 connector
JSXFE-10R-5PPBPiping: Dresser (compression) fitting | Port: Rc1 (25A), orifice 40 | Control board: Base, with diff. pressure sensor input
JSXFE-10R-5PBBPiping: Dresser (compression) fitting | Port: Rc1 (25A), orifice 40 | Control board: Base board
JSXFE-10R-5PRBPiping: Dresser (compression) fitting | Port: Rc1 (25A), orifice 40 | Control board: Remote board
JSXFE-10R-5PBWBPiping: Dresser (compression) fitting | Port: Rc1 (25A), orifice 40 | Control board: Base board with M12 connector
JSXFE-10R-5PRWBPiping: Dresser (compression) fitting | Port: Rc1 (25A), orifice 40 | Control board: Remote board with M12 connector
JSXFE-14R-5PPBPiping: Dresser (compression) fitting | Port: Rc1 1/2 (40A), orifice 50 | Control board: Base, with diff. pressure sensor input
JSXFE-14R-5PBBPiping: Dresser (compression) fitting | Port: Rc1 1/2 (40A), orifice 50 | Control board: Base board
JSXFE-14R-5PRBPiping: Dresser (compression) fitting | Port: Rc1 1/2 (40A), orifice 50 | Control board: Remote board
JSXFE-14R-5PBWBPiping: Dresser (compression) fitting | Port: Rc1 1/2 (40A), orifice 50 | Control board: Base board with M12 connector
JSXFE-14R-5PRWBPiping: Dresser (compression) fitting | Port: Rc1 1/2 (40A), orifice 50 | Control board: Remote board with M12 connector
JSXFF-06R-5PPBPiping: Straight (threaded) | Port: Rc3/4 (20A), orifice 32 | Control board: Base, with diff. pressure sensor input
JSXFF-06R-5PBBPiping: Straight (threaded) | Port: Rc3/4 (20A), orifice 32 | Control board: Base board
JSXFF-06R-5PRBPiping: Straight (threaded) | Port: Rc3/4 (20A), orifice 32 | Control board: Remote board
JSXFF-06R-5PBWBPiping: Straight (threaded) | Port: Rc3/4 (20A), orifice 32 | Control board: Base board with M12 connector
JSXFF-06R-5PRWBPiping: Straight (threaded) | Port: Rc3/4 (20A), orifice 32 | Control board: Remote board with M12 connector
JSXFF-10R-5PPBPiping: Straight (threaded) | Port: Rc1 (25A), orifice 40 | Control board: Base, with diff. pressure sensor input
JSXFF-10R-5PBBPiping: Straight (threaded) | Port: Rc1 (25A), orifice 40 | Control board: Base board
JSXFF-10R-5PRBPiping: Straight (threaded) | Port: Rc1 (25A), orifice 40 | Control board: Remote board
JSXFF-10R-5PBWBPiping: Straight (threaded) | Port: Rc1 (25A), orifice 40 | Control board: Base board with M12 connector
JSXFF-10R-5PRWBPiping: Straight (threaded) | Port: Rc1 (25A), orifice 40 | Control board: Remote board with M12 connector
JSXFF-14R-5PPBPiping: Straight (threaded) | Port: Rc1 1/2 (40A), orifice 50 | Control board: Base, with diff. pressure sensor input
JSXFF-14R-5PBBPiping: Straight (threaded) | Port: Rc1 1/2 (40A), orifice 50 | Control board: Base board
JSXFF-14R-5PRBPiping: Straight (threaded) | Port: Rc1 1/2 (40A), orifice 50 | Control board: Remote board
JSXFF-14R-5PBWBPiping: Straight (threaded) | Port: Rc1 1/2 (40A), orifice 50 | Control board: Base board with M12 connector
JSXFF-14R-5PRWBPiping: Straight (threaded) | Port: Rc1 1/2 (40A), orifice 50 | Control board: Remote board with M12 connector
JSXFH4-06R1-5PPBPiping: Tank mount 4 inch, short pipe, no G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Base, with diff. pressure sensor input
JSXFH4-06R1-5PBBPiping: Tank mount 4 inch, short pipe, no G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Base board
JSXFH4-06R1-5PRBPiping: Tank mount 4 inch, short pipe, no G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Remote board
JSXFH4-06R1-5PBWBPiping: Tank mount 4 inch, short pipe, no G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Base board with M12 connector
JSXFH4-06R1-5PRWBPiping: Tank mount 4 inch, short pipe, no G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Remote board with M12 connector
JSXFH4-06R2-5PPBPiping: Tank mount 4 inch, long pipe, no G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Base, with diff. pressure sensor input
JSXFH4-06R2-5PBBPiping: Tank mount 4 inch, long pipe, no G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Base board
JSXFH4-06R2-5PRBPiping: Tank mount 4 inch, long pipe, no G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Remote board
JSXFH4-06R2-5PBWBPiping: Tank mount 4 inch, long pipe, no G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Base board with M12 connector
JSXFH4-06R2-5PRWBPiping: Tank mount 4 inch, long pipe, no G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Remote board with M12 connector
JSXFH4-06R3-5PPBPiping: Tank mount 4 inch, short pipe, G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Base, with diff. pressure sensor input
JSXFH4-06R3-5PBBPiping: Tank mount 4 inch, short pipe, G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Base board
JSXFH4-06R3-5PRBPiping: Tank mount 4 inch, short pipe, G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Remote board
JSXFH4-06R3-5PBWBPiping: Tank mount 4 inch, short pipe, G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Base board with M12 connector
JSXFH4-06R3-5PRWBPiping: Tank mount 4 inch, short pipe, G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Remote board with M12 connector
JSXFH4-06R4-5PPBPiping: Tank mount 4 inch, long pipe, G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Base, with diff. pressure sensor input
JSXFH4-06R4-5PBBPiping: Tank mount 4 inch, long pipe, G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Base board
JSXFH4-06R4-5PRBPiping: Tank mount 4 inch, long pipe, G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Remote board
JSXFH4-06R4-5PBWBPiping: Tank mount 4 inch, long pipe, G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Base board with M12 connector
JSXFH4-06R4-5PRWBPiping: Tank mount 4 inch, long pipe, G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Remote board with M12 connector
JSXFH5-06R1-5PPBPiping: Tank mount 5 inch, short pipe, no G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Base, with diff. pressure sensor input
JSXFH5-06R1-5PBBPiping: Tank mount 5 inch, short pipe, no G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Base board
JSXFH5-06R1-5PRBPiping: Tank mount 5 inch, short pipe, no G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Remote board
JSXFH5-06R1-5PBWBPiping: Tank mount 5 inch, short pipe, no G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Base board with M12 connector
JSXFH5-06R1-5PRWBPiping: Tank mount 5 inch, short pipe, no G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Remote board with M12 connector
JSXFH5-06R2-5PPBPiping: Tank mount 5 inch, long pipe, no G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Base, with diff. pressure sensor input
JSXFH5-06R2-5PBBPiping: Tank mount 5 inch, long pipe, no G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Base board
JSXFH5-06R2-5PRBPiping: Tank mount 5 inch, long pipe, no G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Remote board
JSXFH5-06R2-5PBWBPiping: Tank mount 5 inch, long pipe, no G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Base board with M12 connector
JSXFH5-06R2-5PRWBPiping: Tank mount 5 inch, long pipe, no G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Remote board with M12 connector
JSXFH5-06R3-5PPBPiping: Tank mount 5 inch, short pipe, G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Base, with diff. pressure sensor input
JSXFH5-06R3-5PBBPiping: Tank mount 5 inch, short pipe, G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Base board
JSXFH5-06R3-5PRBPiping: Tank mount 5 inch, short pipe, G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Remote board
JSXFH5-06R3-5PBWBPiping: Tank mount 5 inch, short pipe, G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Base board with M12 connector
JSXFH5-06R3-5PRWBPiping: Tank mount 5 inch, short pipe, G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Remote board with M12 connector
JSXFH5-06R4-5PPBPiping: Tank mount 5 inch, long pipe, G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Base, with diff. pressure sensor input
JSXFH5-06R4-5PBBPiping: Tank mount 5 inch, long pipe, G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Base board
JSXFH5-06R4-5PRBPiping: Tank mount 5 inch, long pipe, G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Remote board
JSXFH5-06R4-5PBWBPiping: Tank mount 5 inch, long pipe, G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Base board with M12 connector
JSXFH5-06R4-5PRWBPiping: Tank mount 5 inch, long pipe, G thread | Port: Rc3/4 (20A), orifice 32 | Control board: Remote board with M12 connector
JSXFH5-10R1-5PPBPiping: Tank mount 5 inch, short pipe, no G thread | Port: Rc1 (25A), orifice 40 | Control board: Base, with diff. pressure sensor input
JSXFH5-10R1-5PBBPiping: Tank mount 5 inch, short pipe, no G thread | Port: Rc1 (25A), orifice 40 | Control board: Base board
JSXFH5-10R1-5PRBPiping: Tank mount 5 inch, short pipe, no G thread | Port: Rc1 (25A), orifice 40 | Control board: Remote board
JSXFH5-10R1-5PBWBPiping: Tank mount 5 inch, short pipe, no G thread | Port: Rc1 (25A), orifice 40 | Control board: Base board with M12 connector
JSXFH5-10R1-5PRWBPiping: Tank mount 5 inch, short pipe, no G thread | Port: Rc1 (25A), orifice 40 | Control board: Remote board with M12 connector
JSXFH5-10R2-5PPBPiping: Tank mount 5 inch, long pipe, no G thread | Port: Rc1 (25A), orifice 40 | Control board: Base, with diff. pressure sensor input
JSXFH5-10R2-5PBBPiping: Tank mount 5 inch, long pipe, no G thread | Port: Rc1 (25A), orifice 40 | Control board: Base board
JSXFH5-10R2-5PRBPiping: Tank mount 5 inch, long pipe, no G thread | Port: Rc1 (25A), orifice 40 | Control board: Remote board
JSXFH5-10R2-5PBWBPiping: Tank mount 5 inch, long pipe, no G thread | Port: Rc1 (25A), orifice 40 | Control board: Base board with M12 connector
JSXFH5-10R2-5PRWBPiping: Tank mount 5 inch, long pipe, no G thread | Port: Rc1 (25A), orifice 40 | Control board: Remote board with M12 connector
JSXFH5-10R3-5PPBPiping: Tank mount 5 inch, short pipe, G thread | Port: Rc1 (25A), orifice 40 | Control board: Base, with diff. pressure sensor input
JSXFH5-10R3-5PBBPiping: Tank mount 5 inch, short pipe, G thread | Port: Rc1 (25A), orifice 40 | Control board: Base board
JSXFH5-10R3-5PRBPiping: Tank mount 5 inch, short pipe, G thread | Port: Rc1 (25A), orifice 40 | Control board: Remote board
JSXFH5-10R3-5PBWBPiping: Tank mount 5 inch, short pipe, G thread | Port: Rc1 (25A), orifice 40 | Control board: Base board with M12 connector
JSXFH5-10R3-5PRWBPiping: Tank mount 5 inch, short pipe, G thread | Port: Rc1 (25A), orifice 40 | Control board: Remote board with M12 connector
JSXFH5-10R4-5PPBPiping: Tank mount 5 inch, long pipe, G thread | Port: Rc1 (25A), orifice 40 | Control board: Base, with diff. pressure sensor input
JSXFH5-10R4-5PBBPiping: Tank mount 5 inch, long pipe, G thread | Port: Rc1 (25A), orifice 40 | Control board: Base board
JSXFH5-10R4-5PRBPiping: Tank mount 5 inch, long pipe, G thread | Port: Rc1 (25A), orifice 40 | Control board: Remote board
JSXFH5-10R4-5PBWBPiping: Tank mount 5 inch, long pipe, G thread | Port: Rc1 (25A), orifice 40 | Control board: Base board with M12 connector
JSXFH5-10R4-5PRWBPiping: Tank mount 5 inch, long pipe, G thread | Port: Rc1 (25A), orifice 40 | Control board: Remote board with M12 connector
JSXFH6-10R1-5PPBPiping: Tank mount 6 inch, short pipe, no G thread | Port: Rc1 (25A), orifice 40 | Control board: Base, with diff. pressure sensor input
JSXFH6-10R1-5PBBPiping: Tank mount 6 inch, short pipe, no G thread | Port: Rc1 (25A), orifice 40 | Control board: Base board
JSXFH6-10R1-5PRBPiping: Tank mount 6 inch, short pipe, no G thread | Port: Rc1 (25A), orifice 40 | Control board: Remote board
JSXFH6-10R1-5PBWBPiping: Tank mount 6 inch, short pipe, no G thread | Port: Rc1 (25A), orifice 40 | Control board: Base board with M12 connector
JSXFH6-10R1-5PRWBPiping: Tank mount 6 inch, short pipe, no G thread | Port: Rc1 (25A), orifice 40 | Control board: Remote board with M12 connector
JSXFH6-10R2-5PPBPiping: Tank mount 6 inch, long pipe, no G thread | Port: Rc1 (25A), orifice 40 | Control board: Base, with diff. pressure sensor input
JSXFH6-10R2-5PBBPiping: Tank mount 6 inch, long pipe, no G thread | Port: Rc1 (25A), orifice 40 | Control board: Base board
JSXFH6-10R2-5PRBPiping: Tank mount 6 inch, long pipe, no G thread | Port: Rc1 (25A), orifice 40 | Control board: Remote board
JSXFH6-10R2-5PBWBPiping: Tank mount 6 inch, long pipe, no G thread | Port: Rc1 (25A), orifice 40 | Control board: Base board with M12 connector
JSXFH6-10R2-5PRWBPiping: Tank mount 6 inch, long pipe, no G thread | Port: Rc1 (25A), orifice 40 | Control board: Remote board with M12 connector
JSXFH6-10R3-5PPBPiping: Tank mount 6 inch, short pipe, G thread | Port: Rc1 (25A), orifice 40 | Control board: Base, with diff. pressure sensor input
JSXFH6-10R3-5PBBPiping: Tank mount 6 inch, short pipe, G thread | Port: Rc1 (25A), orifice 40 | Control board: Base board
JSXFH6-10R3-5PRBPiping: Tank mount 6 inch, short pipe, G thread | Port: Rc1 (25A), orifice 40 | Control board: Remote board
JSXFH6-10R3-5PBWBPiping: Tank mount 6 inch, short pipe, G thread | Port: Rc1 (25A), orifice 40 | Control board: Base board with M12 connector
JSXFH6-10R3-5PRWBPiping: Tank mount 6 inch, short pipe, G thread | Port: Rc1 (25A), orifice 40 | Control board: Remote board with M12 connector
JSXFH6-10R4-5PPBPiping: Tank mount 6 inch, long pipe, G thread | Port: Rc1 (25A), orifice 40 | Control board: Base, with diff. pressure sensor input
JSXFH6-10R4-5PBBPiping: Tank mount 6 inch, long pipe, G thread | Port: Rc1 (25A), orifice 40 | Control board: Base board
JSXFH6-10R4-5PRBPiping: Tank mount 6 inch, long pipe, G thread | Port: Rc1 (25A), orifice 40 | Control board: Remote board
JSXFH6-10R4-5PBWBPiping: Tank mount 6 inch, long pipe, G thread | Port: Rc1 (25A), orifice 40 | Control board: Base board with M12 connector
JSXFH6-10R4-5PRWBPiping: Tank mount 6 inch, long pipe, G thread | Port: Rc1 (25A), orifice 40 | Control board: Remote board with M12 connector
JSXFH6-14R1-5PPBPiping: Tank mount 6 inch, short pipe, no G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Base, with diff. pressure sensor input
JSXFH6-14R1-5PBBPiping: Tank mount 6 inch, short pipe, no G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Base board
JSXFH6-14R1-5PRBPiping: Tank mount 6 inch, short pipe, no G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Remote board
JSXFH6-14R1-5PBWBPiping: Tank mount 6 inch, short pipe, no G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Base board with M12 connector
JSXFH6-14R1-5PRWBPiping: Tank mount 6 inch, short pipe, no G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Remote board with M12 connector
JSXFH6-14R2-5PPBPiping: Tank mount 6 inch, long pipe, no G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Base, with diff. pressure sensor input
JSXFH6-14R2-5PBBPiping: Tank mount 6 inch, long pipe, no G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Base board
JSXFH6-14R2-5PRBPiping: Tank mount 6 inch, long pipe, no G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Remote board
JSXFH6-14R2-5PBWBPiping: Tank mount 6 inch, long pipe, no G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Base board with M12 connector
JSXFH6-14R2-5PRWBPiping: Tank mount 6 inch, long pipe, no G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Remote board with M12 connector
JSXFH6-14R3-5PPBPiping: Tank mount 6 inch, short pipe, G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Base, with diff. pressure sensor input
JSXFH6-14R3-5PBBPiping: Tank mount 6 inch, short pipe, G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Base board
JSXFH6-14R3-5PRBPiping: Tank mount 6 inch, short pipe, G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Remote board
JSXFH6-14R3-5PBWBPiping: Tank mount 6 inch, short pipe, G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Base board with M12 connector
JSXFH6-14R3-5PRWBPiping: Tank mount 6 inch, short pipe, G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Remote board with M12 connector
JSXFH6-14R4-5PPBPiping: Tank mount 6 inch, long pipe, G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Base, with diff. pressure sensor input
JSXFH6-14R4-5PBBPiping: Tank mount 6 inch, long pipe, G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Base board
JSXFH6-14R4-5PRBPiping: Tank mount 6 inch, long pipe, G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Remote board
JSXFH6-14R4-5PBWBPiping: Tank mount 6 inch, long pipe, G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Base board with M12 connector
JSXFH6-14R4-5PRWBPiping: Tank mount 6 inch, long pipe, G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Remote board with M12 connector
JSXFH8-14R1-5PPBPiping: Tank mount 8 inch, short pipe, no G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Base, with diff. pressure sensor input
JSXFH8-14R1-5PBBPiping: Tank mount 8 inch, short pipe, no G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Base board
JSXFH8-14R1-5PRBPiping: Tank mount 8 inch, short pipe, no G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Remote board
JSXFH8-14R1-5PBWBPiping: Tank mount 8 inch, short pipe, no G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Base board with M12 connector
JSXFH8-14R1-5PRWBPiping: Tank mount 8 inch, short pipe, no G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Remote board with M12 connector
JSXFH8-14R2-5PPBPiping: Tank mount 8 inch, long pipe, no G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Base, with diff. pressure sensor input
JSXFH8-14R2-5PBBPiping: Tank mount 8 inch, long pipe, no G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Base board
JSXFH8-14R2-5PRBPiping: Tank mount 8 inch, long pipe, no G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Remote board
JSXFH8-14R2-5PBWBPiping: Tank mount 8 inch, long pipe, no G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Base board with M12 connector
JSXFH8-14R2-5PRWBPiping: Tank mount 8 inch, long pipe, no G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Remote board with M12 connector
JSXFH8-14R3-5PPBPiping: Tank mount 8 inch, short pipe, G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Base, with diff. pressure sensor input
JSXFH8-14R3-5PBBPiping: Tank mount 8 inch, short pipe, G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Base board
JSXFH8-14R3-5PRBPiping: Tank mount 8 inch, short pipe, G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Remote board
JSXFH8-14R3-5PBWBPiping: Tank mount 8 inch, short pipe, G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Base board with M12 connector
JSXFH8-14R3-5PRWBPiping: Tank mount 8 inch, short pipe, G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Remote board with M12 connector
JSXFH8-14R4-5PPBPiping: Tank mount 8 inch, long pipe, G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Base, with diff. pressure sensor input
JSXFH8-14R4-5PBBPiping: Tank mount 8 inch, long pipe, G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Base board
JSXFH8-14R4-5PRBPiping: Tank mount 8 inch, long pipe, G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Remote board
JSXFH8-14R4-5PBWBPiping: Tank mount 8 inch, long pipe, G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Base board with M12 connector
JSXFH8-14R4-5PRWBPiping: Tank mount 8 inch, long pipe, G thread | Port: Rc1 1/2 (40A), orifice 45 | Control board: Remote board with M12 connector
JSXFH8-20R1-5PPBPiping: Tank mount 8 inch, short pipe, no G thread | Port: Rc2 (50A), orifice 55 | Control board: Base, with diff. pressure sensor input
JSXFH8-20R1-5PBBPiping: Tank mount 8 inch, short pipe, no G thread | Port: Rc2 (50A), orifice 55 | Control board: Base board
JSXFH8-20R1-5PRBPiping: Tank mount 8 inch, short pipe, no G thread | Port: Rc2 (50A), orifice 55 | Control board: Remote board
JSXFH8-20R1-5PBWBPiping: Tank mount 8 inch, short pipe, no G thread | Port: Rc2 (50A), orifice 55 | Control board: Base board with M12 connector
JSXFH8-20R1-5PRWBPiping: Tank mount 8 inch, short pipe, no G thread | Port: Rc2 (50A), orifice 55 | Control board: Remote board with M12 connector
JSXFH8-20R2-5PPBPiping: Tank mount 8 inch, long pipe, no G thread | Port: Rc2 (50A), orifice 55 | Control board: Base, with diff. pressure sensor input
JSXFH8-20R2-5PBBPiping: Tank mount 8 inch, long pipe, no G thread | Port: Rc2 (50A), orifice 55 | Control board: Base board
JSXFH8-20R2-5PRBPiping: Tank mount 8 inch, long pipe, no G thread | Port: Rc2 (50A), orifice 55 | Control board: Remote board
JSXFH8-20R2-5PBWBPiping: Tank mount 8 inch, long pipe, no G thread | Port: Rc2 (50A), orifice 55 | Control board: Base board with M12 connector
JSXFH8-20R2-5PRWBPiping: Tank mount 8 inch, long pipe, no G thread | Port: Rc2 (50A), orifice 55 | Control board: Remote board with M12 connector
JSXFH8-20R3-5PPBPiping: Tank mount 8 inch, short pipe, G thread | Port: Rc2 (50A), orifice 55 | Control board: Base, with diff. pressure sensor input
JSXFH8-20R3-5PBBPiping: Tank mount 8 inch, short pipe, G thread | Port: Rc2 (50A), orifice 55 | Control board: Base board
JSXFH8-20R3-5PRBPiping: Tank mount 8 inch, short pipe, G thread | Port: Rc2 (50A), orifice 55 | Control board: Remote board
JSXFH8-20R3-5PBWBPiping: Tank mount 8 inch, short pipe, G thread | Port: Rc2 (50A), orifice 55 | Control board: Base board with M12 connector
JSXFH8-20R3-5PRWBPiping: Tank mount 8 inch, short pipe, G thread | Port: Rc2 (50A), orifice 55 | Control board: Remote board with M12 connector
JSXFH8-20R4-5PPBPiping: Tank mount 8 inch, long pipe, G thread | Port: Rc2 (50A), orifice 55 | Control board: Base, with diff. pressure sensor input
JSXFH8-20R4-5PBBPiping: Tank mount 8 inch, long pipe, G thread | Port: Rc2 (50A), orifice 55 | Control board: Base board
JSXFH8-20R4-5PRBPiping: Tank mount 8 inch, long pipe, G thread | Port: Rc2 (50A), orifice 55 | Control board: Remote board
JSXFH8-20R4-5PBWBPiping: Tank mount 8 inch, long pipe, G thread | Port: Rc2 (50A), orifice 55 | Control board: Base board with M12 connector
JSXFH8-20R4-5PRWBPiping: Tank mount 8 inch, long pipe, G thread | Port: Rc2 (50A), orifice 55 | Control board: Remote board with M12 connector
JSXFH10-20R1-5PPBPiping: Tank mount 10 inch, short pipe, no G thread | Port: Rc2 (50A), orifice 55 | Control board: Base, with diff. pressure sensor input
JSXFH10-20R1-5PBBPiping: Tank mount 10 inch, short pipe, no G thread | Port: Rc2 (50A), orifice 55 | Control board: Base board
JSXFH10-20R1-5PRBPiping: Tank mount 10 inch, short pipe, no G thread | Port: Rc2 (50A), orifice 55 | Control board: Remote board
JSXFH10-20R1-5PBWBPiping: Tank mount 10 inch, short pipe, no G thread | Port: Rc2 (50A), orifice 55 | Control board: Base board with M12 connector
JSXFH10-20R1-5PRWBPiping: Tank mount 10 inch, short pipe, no G thread | Port: Rc2 (50A), orifice 55 | Control board: Remote board with M12 connector
JSXFH10-20R2-5PPBPiping: Tank mount 10 inch, long pipe, no G thread | Port: Rc2 (50A), orifice 55 | Control board: Base, with diff. pressure sensor input
JSXFH10-20R2-5PBBPiping: Tank mount 10 inch, long pipe, no G thread | Port: Rc2 (50A), orifice 55 | Control board: Base board
JSXFH10-20R2-5PRBPiping: Tank mount 10 inch, long pipe, no G thread | Port: Rc2 (50A), orifice 55 | Control board: Remote board
JSXFH10-20R2-5PBWBPiping: Tank mount 10 inch, long pipe, no G thread | Port: Rc2 (50A), orifice 55 | Control board: Base board with M12 connector
JSXFH10-20R2-5PRWBPiping: Tank mount 10 inch, long pipe, no G thread | Port: Rc2 (50A), orifice 55 | Control board: Remote board with M12 connector
JSXFH10-20R3-5PPBPiping: Tank mount 10 inch, short pipe, G thread | Port: Rc2 (50A), orifice 55 | Control board: Base, with diff. pressure sensor input
JSXFH10-20R3-5PBBPiping: Tank mount 10 inch, short pipe, G thread | Port: Rc2 (50A), orifice 55 | Control board: Base board
JSXFH10-20R3-5PRBPiping: Tank mount 10 inch, short pipe, G thread | Port: Rc2 (50A), orifice 55 | Control board: Remote board
JSXFH10-20R3-5PBWBPiping: Tank mount 10 inch, short pipe, G thread | Port: Rc2 (50A), orifice 55 | Control board: Base board with M12 connector
JSXFH10-20R3-5PRWBPiping: Tank mount 10 inch, short pipe, G thread | Port: Rc2 (50A), orifice 55 | Control board: Remote board with M12 connector
JSXFH10-20R4-5PPBPiping: Tank mount 10 inch, long pipe, G thread | Port: Rc2 (50A), orifice 55 | Control board: Base, with diff. pressure sensor input
JSXFH10-20R4-5PBBPiping: Tank mount 10 inch, long pipe, G thread | Port: Rc2 (50A), orifice 55 | Control board: Base board
JSXFH10-20R4-5PRBPiping: Tank mount 10 inch, long pipe, G thread | Port: Rc2 (50A), orifice 55 | Control board: Remote board
JSXFH10-20R4-5PBWBPiping: Tank mount 10 inch, long pipe, G thread | Port: Rc2 (50A), orifice 55 | Control board: Base board with M12 connector
JSXFH10-20R4-5PRWBPiping: Tank mount 10 inch, long pipe, G thread | Port: Rc2 (50A), orifice 55 | Control board: Remote board with M12 connector

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
