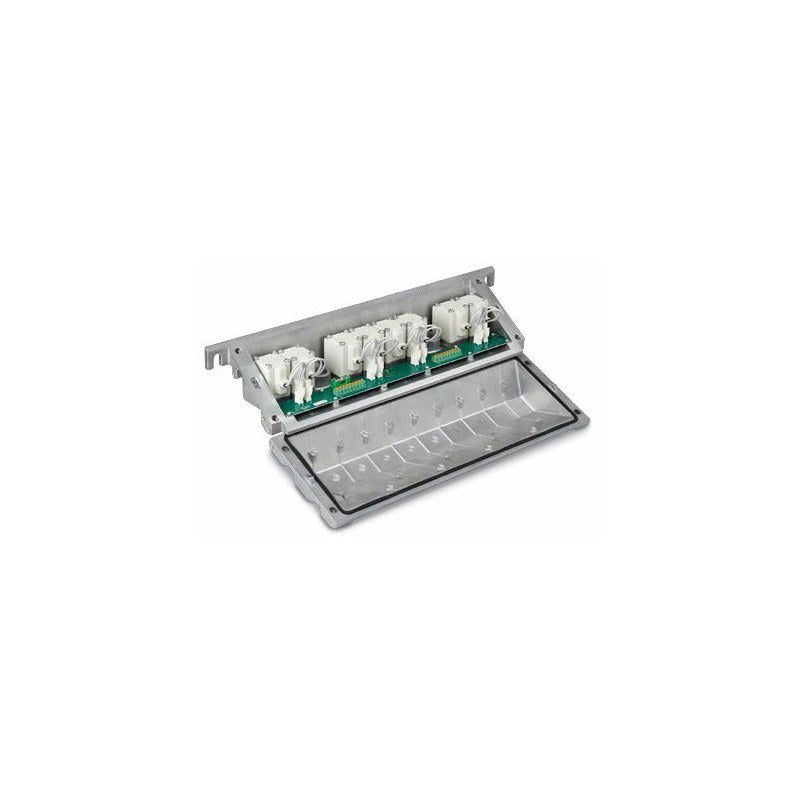

SMC JSXFM Pilot Valve Box for Air-Operated Pulse Valves (6/8 Stn)

SMC JSXFM Pilot Valve Box for Air-Operated Pulse Valves (6/8 Stn)

SMC JSXFM pilot valve box housing up to 6 or 8 pilot solenoid valves to drive JSXFA air-operated pulse valves remotely.

Key features

  • 6-station or 8-station box; mounted valves fill from the D side, unused stations fitted with blanking plugs
  • IN port 1/8 per station; conduit port 1/2 (6-station, 1 hole) or 3/4 (8-station, 2 holes)
  • Rated voltages AC100V, AC200V, AC220V, DC24V listed; AC120V (AC110V), AC240V, AC230V also available; CE/UKCA for DC24V only
  • Thread: Rc IN with NPT conduit (R, listed); NPT (N) or G (F) available
  • Options: lid drop prevention (A), bracket (B) or both (AB)

Specifications

Application Pilot for JSXFA air-operated pulse valves
IN port 1/8 per station
Enclosure IP66, NEMA4
Mixed voltages Not possible within one box
Thread (R) IN Rc, conduit NPT
Order example JSXFM06-03-5-N
Source SMC Korea catalog JSXF/JSXFA (SMCKR_JSXFA.pdf), p. 5, 43-46 (PDF p. 6, 44-47)
JSXFM06-01-1-R Box: 6 stations | Valves mounted: 1 | Voltage: AC100V
JSXFM06-01-2-R Box: 6 stations | Valves mounted: 1 | Voltage: AC200V
JSXFM06-01-4-R Box: 6 stations | Valves mounted: 1 | Voltage: AC220V
JSXFM06-01-5-R Box: 6 stations | Valves mounted: 1 | Voltage: DC24V
JSXFM06-02-1-R Box: 6 stations | Valves mounted: 2 | Voltage: AC100V
JSXFM06-02-2-R Box: 6 stations | Valves mounted: 2 | Voltage: AC200V
JSXFM06-02-4-R Box: 6 stations | Valves mounted: 2 | Voltage: AC220V
JSXFM06-02-5-R Box: 6 stations | Valves mounted: 2 | Voltage: DC24V
JSXFM06-03-1-R Box: 6 stations | Valves mounted: 3 | Voltage: AC100V
JSXFM06-03-2-R Box: 6 stations | Valves mounted: 3 | Voltage: AC200V
JSXFM06-03-4-R Box: 6 stations | Valves mounted: 3 | Voltage: AC220V
JSXFM06-03-5-R Box: 6 stations | Valves mounted: 3 | Voltage: DC24V
JSXFM06-04-1-R Box: 6 stations | Valves mounted: 4 | Voltage: AC100V
JSXFM06-04-2-R Box: 6 stations | Valves mounted: 4 | Voltage: AC200V
JSXFM06-04-4-R Box: 6 stations | Valves mounted: 4 | Voltage: AC220V
JSXFM06-04-5-R Box: 6 stations | Valves mounted: 4 | Voltage: DC24V
JSXFM06-05-1-R Box: 6 stations | Valves mounted: 5 | Voltage: AC100V
JSXFM06-05-2-R Box: 6 stations | Valves mounted: 5 | Voltage: AC200V
JSXFM06-05-4-R Box: 6 stations | Valves mounted: 5 | Voltage: AC220V
JSXFM06-05-5-R Box: 6 stations | Valves mounted: 5 | Voltage: DC24V
JSXFM06-06-1-R Box: 6 stations | Valves mounted: 6 | Voltage: AC100V
JSXFM06-06-2-R Box: 6 stations | Valves mounted: 6 | Voltage: AC200V
JSXFM06-06-4-R Box: 6 stations | Valves mounted: 6 | Voltage: AC220V
JSXFM06-06-5-R Box: 6 stations | Valves mounted: 6 | Voltage: DC24V
JSXFM08-01-1-R Box: 8 stations | Valves mounted: 1 | Voltage: AC100V
JSXFM08-01-2-R Box: 8 stations | Valves mounted: 1 | Voltage: AC200V
JSXFM08-01-4-R Box: 8 stations | Valves mounted: 1 | Voltage: AC220V
JSXFM08-01-5-R Box: 8 stations | Valves mounted: 1 | Voltage: DC24V
JSXFM08-02-1-R Box: 8 stations | Valves mounted: 2 | Voltage: AC100V
JSXFM08-02-2-R Box: 8 stations | Valves mounted: 2 | Voltage: AC200V
JSXFM08-02-4-R Box: 8 stations | Valves mounted: 2 | Voltage: AC220V
JSXFM08-02-5-R Box: 8 stations | Valves mounted: 2 | Voltage: DC24V
JSXFM08-03-1-R Box: 8 stations | Valves mounted: 3 | Voltage: AC100V
JSXFM08-03-2-R Box: 8 stations | Valves mounted: 3 | Voltage: AC200V
JSXFM08-03-4-R Box: 8 stations | Valves mounted: 3 | Voltage: AC220V
JSXFM08-03-5-R Box: 8 stations | Valves mounted: 3 | Voltage: DC24V
JSXFM08-04-1-R Box: 8 stations | Valves mounted: 4 | Voltage: AC100V
JSXFM08-04-2-R Box: 8 stations | Valves mounted: 4 | Voltage: AC200V
JSXFM08-04-4-R Box: 8 stations | Valves mounted: 4 | Voltage: AC220V
JSXFM08-04-5-R Box: 8 stations | Valves mounted: 4 | Voltage: DC24V
JSXFM08-05-1-R Box: 8 stations | Valves mounted: 5 | Voltage: AC100V
JSXFM08-05-2-R Box: 8 stations | Valves mounted: 5 | Voltage: AC200V
JSXFM08-05-4-R Box: 8 stations | Valves mounted: 5 | Voltage: AC220V
JSXFM08-05-5-R Box: 8 stations | Valves mounted: 5 | Voltage: DC24V
JSXFM08-06-1-R Box: 8 stations | Valves mounted: 6 | Voltage: AC100V
JSXFM08-06-2-R Box: 8 stations | Valves mounted: 6 | Voltage: AC200V
JSXFM08-06-4-R Box: 8 stations | Valves mounted: 6 | Voltage: AC220V
JSXFM08-06-5-R Box: 8 stations | Valves mounted: 6 | Voltage: DC24V
JSXFM08-07-1-R Box: 8 stations | Valves mounted: 7 | Voltage: AC100V
JSXFM08-07-2-R Box: 8 stations | Valves mounted: 7 | Voltage: AC200V
JSXFM08-07-4-R Box: 8 stations | Valves mounted: 7 | Voltage: AC220V
JSXFM08-07-5-R Box: 8 stations | Valves mounted: 7 | Voltage: DC24V
JSXFM08-08-1-R Box: 8 stations | Valves mounted: 8 | Voltage: AC100V
JSXFM08-08-2-R Box: 8 stations | Valves mounted: 8 | Voltage: AC200V
JSXFM08-08-4-R Box: 8 stations | Valves mounted: 8 | Voltage: AC220V
JSXFM08-08-5-R Box: 8 stations | Valves mounted: 8 | Voltage: DC24V
2-Port ValvesSMC
56 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC JSXFM Pilot Valve Box for Air-Operated Pulse Valves (6/8 Stn)

Brand SMC·2-Port Valves

Available part numbers (56)

JSXFM06-01-1-R, JSXFM06-01-2-R, JSXFM06-01-4-R, JSXFM06-01-5-R, JSXFM06-02-1-R, JSXFM06-02-2-R, JSXFM06-02-4-R, JSXFM06-02-5-R, JSXFM06-03-1-R, JSXFM06-03-2-R + 46 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
JSXFM06-01-1-RBox: 6 stations | Valves mounted: 1 | Voltage: AC100V
JSXFM06-01-2-RBox: 6 stations | Valves mounted: 1 | Voltage: AC200V
JSXFM06-01-4-RBox: 6 stations | Valves mounted: 1 | Voltage: AC220V
JSXFM06-01-5-RBox: 6 stations | Valves mounted: 1 | Voltage: DC24V
JSXFM06-02-1-RBox: 6 stations | Valves mounted: 2 | Voltage: AC100V
JSXFM06-02-2-RBox: 6 stations | Valves mounted: 2 | Voltage: AC200V
JSXFM06-02-4-RBox: 6 stations | Valves mounted: 2 | Voltage: AC220V
JSXFM06-02-5-RBox: 6 stations | Valves mounted: 2 | Voltage: DC24V
JSXFM06-03-1-RBox: 6 stations | Valves mounted: 3 | Voltage: AC100V
JSXFM06-03-2-RBox: 6 stations | Valves mounted: 3 | Voltage: AC200V
JSXFM06-03-4-RBox: 6 stations | Valves mounted: 3 | Voltage: AC220V
JSXFM06-03-5-RBox: 6 stations | Valves mounted: 3 | Voltage: DC24V
JSXFM06-04-1-RBox: 6 stations | Valves mounted: 4 | Voltage: AC100V
JSXFM06-04-2-RBox: 6 stations | Valves mounted: 4 | Voltage: AC200V
JSXFM06-04-4-RBox: 6 stations | Valves mounted: 4 | Voltage: AC220V
JSXFM06-04-5-RBox: 6 stations | Valves mounted: 4 | Voltage: DC24V
JSXFM06-05-1-RBox: 6 stations | Valves mounted: 5 | Voltage: AC100V
JSXFM06-05-2-RBox: 6 stations | Valves mounted: 5 | Voltage: AC200V
JSXFM06-05-4-RBox: 6 stations | Valves mounted: 5 | Voltage: AC220V
JSXFM06-05-5-RBox: 6 stations | Valves mounted: 5 | Voltage: DC24V
JSXFM06-06-1-RBox: 6 stations | Valves mounted: 6 | Voltage: AC100V
JSXFM06-06-2-RBox: 6 stations | Valves mounted: 6 | Voltage: AC200V
JSXFM06-06-4-RBox: 6 stations | Valves mounted: 6 | Voltage: AC220V
JSXFM06-06-5-RBox: 6 stations | Valves mounted: 6 | Voltage: DC24V
JSXFM08-01-1-RBox: 8 stations | Valves mounted: 1 | Voltage: AC100V
JSXFM08-01-2-RBox: 8 stations | Valves mounted: 1 | Voltage: AC200V
JSXFM08-01-4-RBox: 8 stations | Valves mounted: 1 | Voltage: AC220V
JSXFM08-01-5-RBox: 8 stations | Valves mounted: 1 | Voltage: DC24V
JSXFM08-02-1-RBox: 8 stations | Valves mounted: 2 | Voltage: AC100V
JSXFM08-02-2-RBox: 8 stations | Valves mounted: 2 | Voltage: AC200V
JSXFM08-02-4-RBox: 8 stations | Valves mounted: 2 | Voltage: AC220V
JSXFM08-02-5-RBox: 8 stations | Valves mounted: 2 | Voltage: DC24V
JSXFM08-03-1-RBox: 8 stations | Valves mounted: 3 | Voltage: AC100V
JSXFM08-03-2-RBox: 8 stations | Valves mounted: 3 | Voltage: AC200V
JSXFM08-03-4-RBox: 8 stations | Valves mounted: 3 | Voltage: AC220V
JSXFM08-03-5-RBox: 8 stations | Valves mounted: 3 | Voltage: DC24V
JSXFM08-04-1-RBox: 8 stations | Valves mounted: 4 | Voltage: AC100V
JSXFM08-04-2-RBox: 8 stations | Valves mounted: 4 | Voltage: AC200V
JSXFM08-04-4-RBox: 8 stations | Valves mounted: 4 | Voltage: AC220V
JSXFM08-04-5-RBox: 8 stations | Valves mounted: 4 | Voltage: DC24V
JSXFM08-05-1-RBox: 8 stations | Valves mounted: 5 | Voltage: AC100V
JSXFM08-05-2-RBox: 8 stations | Valves mounted: 5 | Voltage: AC200V
JSXFM08-05-4-RBox: 8 stations | Valves mounted: 5 | Voltage: AC220V
JSXFM08-05-5-RBox: 8 stations | Valves mounted: 5 | Voltage: DC24V
JSXFM08-06-1-RBox: 8 stations | Valves mounted: 6 | Voltage: AC100V
JSXFM08-06-2-RBox: 8 stations | Valves mounted: 6 | Voltage: AC200V
JSXFM08-06-4-RBox: 8 stations | Valves mounted: 6 | Voltage: AC220V
JSXFM08-06-5-RBox: 8 stations | Valves mounted: 6 | Voltage: DC24V
JSXFM08-07-1-RBox: 8 stations | Valves mounted: 7 | Voltage: AC100V
JSXFM08-07-2-RBox: 8 stations | Valves mounted: 7 | Voltage: AC200V
JSXFM08-07-4-RBox: 8 stations | Valves mounted: 7 | Voltage: AC220V
JSXFM08-07-5-RBox: 8 stations | Valves mounted: 7 | Voltage: DC24V
JSXFM08-08-1-RBox: 8 stations | Valves mounted: 8 | Voltage: AC100V
JSXFM08-08-2-RBox: 8 stations | Valves mounted: 8 | Voltage: AC200V
JSXFM08-08-4-RBox: 8 stations | Valves mounted: 8 | Voltage: AC220V
JSXFM08-08-5-RBox: 8 stations | Valves mounted: 8 | Voltage: DC24V
