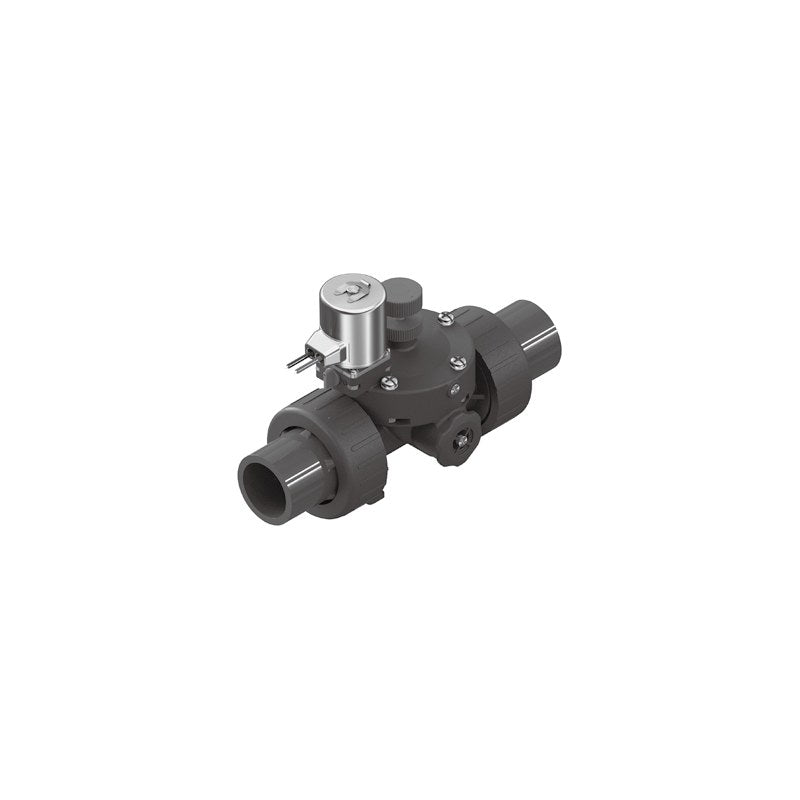

SMC JSXN-X1 Resin Pilot Operated 2-Port Solenoid Valve (20A/25A)

SMC JSXN-X1 Resin Pilot Operated 2-Port Solenoid Valve (20A/25A)

SMC JSXN-X1 pilot-operated diaphragm 2-port solenoid valve with high-strength PA66 resin body for water and diluted agrochemicals, with water hammer relief and built-in flow adjustment.

Key features

  • High-strength PA66 body rated to 1 MPa; water hammer relief type
  • Stainless steel coil cover, IP67 enclosure; 3 W DC / 4.5 VA AC power
  • Built-in flow adjustment and 90° manual override; filter assembly (100 mesh) with spare supply orifice included
  • Piping: union ends with socket (PVC) or thread (SUS), or without union end/nut
  • Rated voltage AC100V, AC200V, AC24V, DC24V; listed codes use G (DC) and GS surge-protected grommet (AC); AC24V on order
  • Union thread Rc standard; NPT (N) and G (F) available

Specifications

Valve structure Pilot-operated diaphragm, N.C.
Body material PA66
Fluid Water, diluted agrochemicals / liquid fertilizer
Fluid temperature 1 to 60°C (no freezing)
Ambient temperature -20 to 60°C
Proof pressure 1.5 MPa
Max. system pressure 1 MPa
Operating pressure differential 0.02 to 1.0 MPa
Orifice ø25 mm
Flow (Kv) 11.2 (size 50), 12.5 (size 60)
Enclosure IP67
Source SMC Korea catalog CAT.KS70-66A (SMCKR_JSXN.pdf), p. 1-5
JSXN51-PN06-5G-X1 Size: 50 | Seal: NBR | Port: 20A (ø26.5 socket / 3/4") | Piping type: No union end/nut | Coil: DC24V, grommet (G)
JSXN51-PN06-1GS-X1 Size: 50 | Seal: NBR | Port: 20A (ø26.5 socket / 3/4") | Piping type: No union end/nut | Coil: AC100V, grommet w/ surge (GS)
JSXN51-PN06-2GS-X1 Size: 50 | Seal: NBR | Port: 20A (ø26.5 socket / 3/4") | Piping type: No union end/nut | Coil: AC200V, grommet w/ surge (GS)
JSXN51-PN06S-5G-X1 Size: 50 | Seal: NBR | Port: 20A (ø26.5 socket / 3/4") | Piping type: Socket (PVC union end) | Coil: DC24V, grommet (G)
JSXN51-PN06S-1GS-X1 Size: 50 | Seal: NBR | Port: 20A (ø26.5 socket / 3/4") | Piping type: Socket (PVC union end) | Coil: AC100V, grommet w/ surge (GS)
JSXN51-PN06S-2GS-X1 Size: 50 | Seal: NBR | Port: 20A (ø26.5 socket / 3/4") | Piping type: Socket (PVC union end) | Coil: AC200V, grommet w/ surge (GS)
JSXN51-PN06R-5G-X1 Size: 50 | Seal: NBR | Port: 20A (ø26.5 socket / 3/4") | Piping type: Thread Rc (SUS union end) | Coil: DC24V, grommet (G)
JSXN51-PN06R-1GS-X1 Size: 50 | Seal: NBR | Port: 20A (ø26.5 socket / 3/4") | Piping type: Thread Rc (SUS union end) | Coil: AC100V, grommet w/ surge (GS)
JSXN51-PN06R-2GS-X1 Size: 50 | Seal: NBR | Port: 20A (ø26.5 socket / 3/4") | Piping type: Thread Rc (SUS union end) | Coil: AC200V, grommet w/ surge (GS)
JSXN51-PF06-5G-X1 Size: 50 | Seal: FKM | Port: 20A (ø26.5 socket / 3/4") | Piping type: No union end/nut | Coil: DC24V, grommet (G)
JSXN51-PF06-1GS-X1 Size: 50 | Seal: FKM | Port: 20A (ø26.5 socket / 3/4") | Piping type: No union end/nut | Coil: AC100V, grommet w/ surge (GS)
JSXN51-PF06-2GS-X1 Size: 50 | Seal: FKM | Port: 20A (ø26.5 socket / 3/4") | Piping type: No union end/nut | Coil: AC200V, grommet w/ surge (GS)
JSXN51-PF06S-5G-X1 Size: 50 | Seal: FKM | Port: 20A (ø26.5 socket / 3/4") | Piping type: Socket (PVC union end) | Coil: DC24V, grommet (G)
JSXN51-PF06S-1GS-X1 Size: 50 | Seal: FKM | Port: 20A (ø26.5 socket / 3/4") | Piping type: Socket (PVC union end) | Coil: AC100V, grommet w/ surge (GS)
JSXN51-PF06S-2GS-X1 Size: 50 | Seal: FKM | Port: 20A (ø26.5 socket / 3/4") | Piping type: Socket (PVC union end) | Coil: AC200V, grommet w/ surge (GS)
JSXN51-PF06R-5G-X1 Size: 50 | Seal: FKM | Port: 20A (ø26.5 socket / 3/4") | Piping type: Thread Rc (SUS union end) | Coil: DC24V, grommet (G)
JSXN51-PF06R-1GS-X1 Size: 50 | Seal: FKM | Port: 20A (ø26.5 socket / 3/4") | Piping type: Thread Rc (SUS union end) | Coil: AC100V, grommet w/ surge (GS)
JSXN51-PF06R-2GS-X1 Size: 50 | Seal: FKM | Port: 20A (ø26.5 socket / 3/4") | Piping type: Thread Rc (SUS union end) | Coil: AC200V, grommet w/ surge (GS)
JSXN51-PE06-5G-X1 Size: 50 | Seal: EPDM | Port: 20A (ø26.5 socket / 3/4") | Piping type: No union end/nut | Coil: DC24V, grommet (G)
JSXN51-PE06-1GS-X1 Size: 50 | Seal: EPDM | Port: 20A (ø26.5 socket / 3/4") | Piping type: No union end/nut | Coil: AC100V, grommet w/ surge (GS)
JSXN51-PE06-2GS-X1 Size: 50 | Seal: EPDM | Port: 20A (ø26.5 socket / 3/4") | Piping type: No union end/nut | Coil: AC200V, grommet w/ surge (GS)
JSXN51-PE06S-5G-X1 Size: 50 | Seal: EPDM | Port: 20A (ø26.5 socket / 3/4") | Piping type: Socket (PVC union end) | Coil: DC24V, grommet (G)
JSXN51-PE06S-1GS-X1 Size: 50 | Seal: EPDM | Port: 20A (ø26.5 socket / 3/4") | Piping type: Socket (PVC union end) | Coil: AC100V, grommet w/ surge (GS)
JSXN51-PE06S-2GS-X1 Size: 50 | Seal: EPDM | Port: 20A (ø26.5 socket / 3/4") | Piping type: Socket (PVC union end) | Coil: AC200V, grommet w/ surge (GS)
JSXN51-PE06R-5G-X1 Size: 50 | Seal: EPDM | Port: 20A (ø26.5 socket / 3/4") | Piping type: Thread Rc (SUS union end) | Coil: DC24V, grommet (G)
JSXN51-PE06R-1GS-X1 Size: 50 | Seal: EPDM | Port: 20A (ø26.5 socket / 3/4") | Piping type: Thread Rc (SUS union end) | Coil: AC100V, grommet w/ surge (GS)
JSXN51-PE06R-2GS-X1 Size: 50 | Seal: EPDM | Port: 20A (ø26.5 socket / 3/4") | Piping type: Thread Rc (SUS union end) | Coil: AC200V, grommet w/ surge (GS)
JSXN61-PN10-5G-X1 Size: 60 | Seal: NBR | Port: 25A (ø32.6 socket / 1") | Piping type: No union end/nut | Coil: DC24V, grommet (G)
JSXN61-PN10-1GS-X1 Size: 60 | Seal: NBR | Port: 25A (ø32.6 socket / 1") | Piping type: No union end/nut | Coil: AC100V, grommet w/ surge (GS)
JSXN61-PN10-2GS-X1 Size: 60 | Seal: NBR | Port: 25A (ø32.6 socket / 1") | Piping type: No union end/nut | Coil: AC200V, grommet w/ surge (GS)
JSXN61-PN10S-5G-X1 Size: 60 | Seal: NBR | Port: 25A (ø32.6 socket / 1") | Piping type: Socket (PVC union end) | Coil: DC24V, grommet (G)
JSXN61-PN10S-1GS-X1 Size: 60 | Seal: NBR | Port: 25A (ø32.6 socket / 1") | Piping type: Socket (PVC union end) | Coil: AC100V, grommet w/ surge (GS)
JSXN61-PN10S-2GS-X1 Size: 60 | Seal: NBR | Port: 25A (ø32.6 socket / 1") | Piping type: Socket (PVC union end) | Coil: AC200V, grommet w/ surge (GS)
JSXN61-PN10R-5G-X1 Size: 60 | Seal: NBR | Port: 25A (ø32.6 socket / 1") | Piping type: Thread Rc (SUS union end) | Coil: DC24V, grommet (G)
JSXN61-PN10R-1GS-X1 Size: 60 | Seal: NBR | Port: 25A (ø32.6 socket / 1") | Piping type: Thread Rc (SUS union end) | Coil: AC100V, grommet w/ surge (GS)
JSXN61-PN10R-2GS-X1 Size: 60 | Seal: NBR | Port: 25A (ø32.6 socket / 1") | Piping type: Thread Rc (SUS union end) | Coil: AC200V, grommet w/ surge (GS)
JSXN61-PF10-5G-X1 Size: 60 | Seal: FKM | Port: 25A (ø32.6 socket / 1") | Piping type: No union end/nut | Coil: DC24V, grommet (G)
JSXN61-PF10-1GS-X1 Size: 60 | Seal: FKM | Port: 25A (ø32.6 socket / 1") | Piping type: No union end/nut | Coil: AC100V, grommet w/ surge (GS)
JSXN61-PF10-2GS-X1 Size: 60 | Seal: FKM | Port: 25A (ø32.6 socket / 1") | Piping type: No union end/nut | Coil: AC200V, grommet w/ surge (GS)
JSXN61-PF10S-5G-X1 Size: 60 | Seal: FKM | Port: 25A (ø32.6 socket / 1") | Piping type: Socket (PVC union end) | Coil: DC24V, grommet (G)
JSXN61-PF10S-1GS-X1 Size: 60 | Seal: FKM | Port: 25A (ø32.6 socket / 1") | Piping type: Socket (PVC union end) | Coil: AC100V, grommet w/ surge (GS)
JSXN61-PF10S-2GS-X1 Size: 60 | Seal: FKM | Port: 25A (ø32.6 socket / 1") | Piping type: Socket (PVC union end) | Coil: AC200V, grommet w/ surge (GS)
JSXN61-PF10R-5G-X1 Size: 60 | Seal: FKM | Port: 25A (ø32.6 socket / 1") | Piping type: Thread Rc (SUS union end) | Coil: DC24V, grommet (G)
JSXN61-PF10R-1GS-X1 Size: 60 | Seal: FKM | Port: 25A (ø32.6 socket / 1") | Piping type: Thread Rc (SUS union end) | Coil: AC100V, grommet w/ surge (GS)
JSXN61-PF10R-2GS-X1 Size: 60 | Seal: FKM | Port: 25A (ø32.6 socket / 1") | Piping type: Thread Rc (SUS union end) | Coil: AC200V, grommet w/ surge (GS)
JSXN61-PE10-5G-X1 Size: 60 | Seal: EPDM | Port: 25A (ø32.6 socket / 1") | Piping type: No union end/nut | Coil: DC24V, grommet (G)
JSXN61-PE10-1GS-X1 Size: 60 | Seal: EPDM | Port: 25A (ø32.6 socket / 1") | Piping type: No union end/nut | Coil: AC100V, grommet w/ surge (GS)
JSXN61-PE10-2GS-X1 Size: 60 | Seal: EPDM | Port: 25A (ø32.6 socket / 1") | Piping type: No union end/nut | Coil: AC200V, grommet w/ surge (GS)
JSXN61-PE10S-5G-X1 Size: 60 | Seal: EPDM | Port: 25A (ø32.6 socket / 1") | Piping type: Socket (PVC union end) | Coil: DC24V, grommet (G)
JSXN61-PE10S-1GS-X1 Size: 60 | Seal: EPDM | Port: 25A (ø32.6 socket / 1") | Piping type: Socket (PVC union end) | Coil: AC100V, grommet w/ surge (GS)
JSXN61-PE10S-2GS-X1 Size: 60 | Seal: EPDM | Port: 25A (ø32.6 socket / 1") | Piping type: Socket (PVC union end) | Coil: AC200V, grommet w/ surge (GS)
JSXN61-PE10R-5G-X1 Size: 60 | Seal: EPDM | Port: 25A (ø32.6 socket / 1") | Piping type: Thread Rc (SUS union end) | Coil: DC24V, grommet (G)
JSXN61-PE10R-1GS-X1 Size: 60 | Seal: EPDM | Port: 25A (ø32.6 socket / 1") | Piping type: Thread Rc (SUS union end) | Coil: AC100V, grommet w/ surge (GS)
JSXN61-PE10R-2GS-X1 Size: 60 | Seal: EPDM | Port: 25A (ø32.6 socket / 1") | Piping type: Thread Rc (SUS union end) | Coil: AC200V, grommet w/ surge (GS)
2-Port ValvesSMC
54 product codes available in this family
