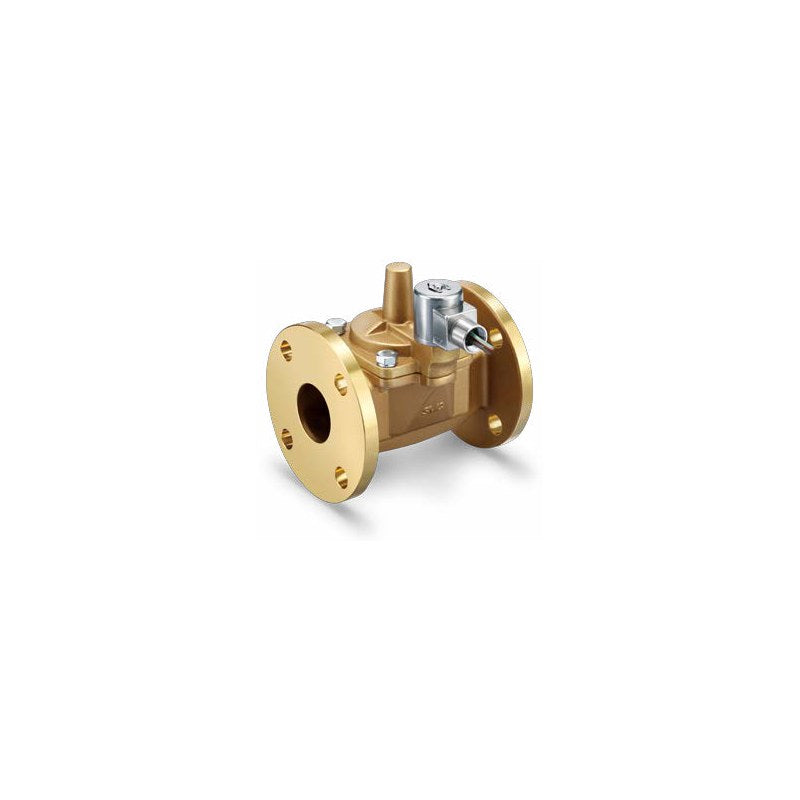

SMC JSXP Steam Pilot Operated 2-Port Solenoid Valve (3/8 to 2, 50A)

SMC JSXP series pilot operated diaphragm 2-port solenoid valve for steam (183°C max.) and hot water (99°C max.), N.C., sizes 40 to 90.

Key features

For steam 183°C or less and hot water 99°C or less; FKM or PTFE seal
Body: brass or stainless steel (size 40-60), bronze (size 70-90, threaded or 32A-50A flange)
Operating pressure differential 0.04 (size 40-60) / 0.03 (size 70-90) to 1.0 MPa
Lead wire: grommet G (DC only), grommet with surge circuit GR, conduit CR (NPT) / FR (G); listed codes use G for DC and GR for AC
Options as suffixes: NPT/G thread (N/F), oil-free (-D), bracket (-B, size 40-60)

Specifications

Valve structure	Pilot operated diaphragm, N.C.
Fluid	Steam 183°C max., hot water 99°C max.
Proof pressure	2 MPa
Max. system pressure	1 MPa
Ambient temperature	-20 to 60°C
Enclosure	IP67
Rated voltage	AC 24, 48, 100, 110, 120, 200, 220, 230, 240V; DC 12, 24V (listed: DC24V, AC100/200/220V)
Power consumption	AC 8/9.5/16 VA, DC 6/8/13 W
Standards	CE/UKCA
Thread	Rc (NPT, G on order); flange size 70-90
Source	SMC Korea catalog JSX/JSX Series (SMCKR_JSX.pdf), p. 57-58 (PDF p. 58-59)

JSXP41-CF03R-5G		Size: 40 \| Body: Brass \| Seal: FKM \| Port: Rc3/8 \| Coil: DC24V, grommet (G)
JSXP41-CF03R-1GR		Size: 40 \| Body: Brass \| Seal: FKM \| Port: Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GR)
JSXP41-CF03R-2GR		Size: 40 \| Body: Brass \| Seal: FKM \| Port: Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GR)
JSXP41-CF03R-4GR		Size: 40 \| Body: Brass \| Seal: FKM \| Port: Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GR)
JSXP41-CF04R-5G		Size: 40 \| Body: Brass \| Seal: FKM \| Port: Rc1/2 \| Coil: DC24V, grommet (G)
JSXP41-CF04R-1GR		Size: 40 \| Body: Brass \| Seal: FKM \| Port: Rc1/2 \| Coil: AC100V, grommet w/ surge circuit (GR)
JSXP41-CF04R-2GR		Size: 40 \| Body: Brass \| Seal: FKM \| Port: Rc1/2 \| Coil: AC200V, grommet w/ surge circuit (GR)
JSXP41-CF04R-4GR		Size: 40 \| Body: Brass \| Seal: FKM \| Port: Rc1/2 \| Coil: AC220V, grommet w/ surge circuit (GR)
JSXP41-CT03R-5G		Size: 40 \| Body: Brass \| Seal: PTFE \| Port: Rc3/8 \| Coil: DC24V, grommet (G)
JSXP41-CT03R-1GR		Size: 40 \| Body: Brass \| Seal: PTFE \| Port: Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GR)
JSXP41-CT03R-2GR		Size: 40 \| Body: Brass \| Seal: PTFE \| Port: Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GR)
JSXP41-CT03R-4GR		Size: 40 \| Body: Brass \| Seal: PTFE \| Port: Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GR)
JSXP41-CT04R-5G		Size: 40 \| Body: Brass \| Seal: PTFE \| Port: Rc1/2 \| Coil: DC24V, grommet (G)
JSXP41-CT04R-1GR		Size: 40 \| Body: Brass \| Seal: PTFE \| Port: Rc1/2 \| Coil: AC100V, grommet w/ surge circuit (GR)
JSXP41-CT04R-2GR		Size: 40 \| Body: Brass \| Seal: PTFE \| Port: Rc1/2 \| Coil: AC200V, grommet w/ surge circuit (GR)
JSXP41-CT04R-4GR		Size: 40 \| Body: Brass \| Seal: PTFE \| Port: Rc1/2 \| Coil: AC220V, grommet w/ surge circuit (GR)
JSXP41-SF03R-5G		Size: 40 \| Body: Stainless steel \| Seal: FKM \| Port: Rc3/8 \| Coil: DC24V, grommet (G)
JSXP41-SF03R-1GR		Size: 40 \| Body: Stainless steel \| Seal: FKM \| Port: Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GR)
JSXP41-SF03R-2GR		Size: 40 \| Body: Stainless steel \| Seal: FKM \| Port: Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GR)
JSXP41-SF03R-4GR		Size: 40 \| Body: Stainless steel \| Seal: FKM \| Port: Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GR)
JSXP41-SF04R-5G		Size: 40 \| Body: Stainless steel \| Seal: FKM \| Port: Rc1/2 \| Coil: DC24V, grommet (G)
JSXP41-SF04R-1GR		Size: 40 \| Body: Stainless steel \| Seal: FKM \| Port: Rc1/2 \| Coil: AC100V, grommet w/ surge circuit (GR)
JSXP41-SF04R-2GR		Size: 40 \| Body: Stainless steel \| Seal: FKM \| Port: Rc1/2 \| Coil: AC200V, grommet w/ surge circuit (GR)
JSXP41-SF04R-4GR		Size: 40 \| Body: Stainless steel \| Seal: FKM \| Port: Rc1/2 \| Coil: AC220V, grommet w/ surge circuit (GR)
JSXP41-ST03R-5G		Size: 40 \| Body: Stainless steel \| Seal: PTFE \| Port: Rc3/8 \| Coil: DC24V, grommet (G)
JSXP41-ST03R-1GR		Size: 40 \| Body: Stainless steel \| Seal: PTFE \| Port: Rc3/8 \| Coil: AC100V, grommet w/ surge circuit (GR)
JSXP41-ST03R-2GR		Size: 40 \| Body: Stainless steel \| Seal: PTFE \| Port: Rc3/8 \| Coil: AC200V, grommet w/ surge circuit (GR)
JSXP41-ST03R-4GR		Size: 40 \| Body: Stainless steel \| Seal: PTFE \| Port: Rc3/8 \| Coil: AC220V, grommet w/ surge circuit (GR)
JSXP41-ST04R-5G		Size: 40 \| Body: Stainless steel \| Seal: PTFE \| Port: Rc1/2 \| Coil: DC24V, grommet (G)
JSXP41-ST04R-1GR		Size: 40 \| Body: Stainless steel \| Seal: PTFE \| Port: Rc1/2 \| Coil: AC100V, grommet w/ surge circuit (GR)
JSXP41-ST04R-2GR		Size: 40 \| Body: Stainless steel \| Seal: PTFE \| Port: Rc1/2 \| Coil: AC200V, grommet w/ surge circuit (GR)
JSXP41-ST04R-4GR		Size: 40 \| Body: Stainless steel \| Seal: PTFE \| Port: Rc1/2 \| Coil: AC220V, grommet w/ surge circuit (GR)
JSXP51-CF06R-5G		Size: 50 \| Body: Brass \| Seal: FKM \| Port: Rc3/4 \| Coil: DC24V, grommet (G)
JSXP51-CF06R-1GR		Size: 50 \| Body: Brass \| Seal: FKM \| Port: Rc3/4 \| Coil: AC100V, grommet w/ surge circuit (GR)
JSXP51-CF06R-2GR		Size: 50 \| Body: Brass \| Seal: FKM \| Port: Rc3/4 \| Coil: AC200V, grommet w/ surge circuit (GR)
JSXP51-CF06R-4GR		Size: 50 \| Body: Brass \| Seal: FKM \| Port: Rc3/4 \| Coil: AC220V, grommet w/ surge circuit (GR)
JSXP51-CT06R-5G		Size: 50 \| Body: Brass \| Seal: PTFE \| Port: Rc3/4 \| Coil: DC24V, grommet (G)
JSXP51-CT06R-1GR		Size: 50 \| Body: Brass \| Seal: PTFE \| Port: Rc3/4 \| Coil: AC100V, grommet w/ surge circuit (GR)
JSXP51-CT06R-2GR		Size: 50 \| Body: Brass \| Seal: PTFE \| Port: Rc3/4 \| Coil: AC200V, grommet w/ surge circuit (GR)
JSXP51-CT06R-4GR		Size: 50 \| Body: Brass \| Seal: PTFE \| Port: Rc3/4 \| Coil: AC220V, grommet w/ surge circuit (GR)
JSXP51-SF06R-5G		Size: 50 \| Body: Stainless steel \| Seal: FKM \| Port: Rc3/4 \| Coil: DC24V, grommet (G)
JSXP51-SF06R-1GR		Size: 50 \| Body: Stainless steel \| Seal: FKM \| Port: Rc3/4 \| Coil: AC100V, grommet w/ surge circuit (GR)
JSXP51-SF06R-2GR		Size: 50 \| Body: Stainless steel \| Seal: FKM \| Port: Rc3/4 \| Coil: AC200V, grommet w/ surge circuit (GR)
JSXP51-SF06R-4GR		Size: 50 \| Body: Stainless steel \| Seal: FKM \| Port: Rc3/4 \| Coil: AC220V, grommet w/ surge circuit (GR)
JSXP51-ST06R-5G		Size: 50 \| Body: Stainless steel \| Seal: PTFE \| Port: Rc3/4 \| Coil: DC24V, grommet (G)
JSXP51-ST06R-1GR		Size: 50 \| Body: Stainless steel \| Seal: PTFE \| Port: Rc3/4 \| Coil: AC100V, grommet w/ surge circuit (GR)
JSXP51-ST06R-2GR		Size: 50 \| Body: Stainless steel \| Seal: PTFE \| Port: Rc3/4 \| Coil: AC200V, grommet w/ surge circuit (GR)
JSXP51-ST06R-4GR		Size: 50 \| Body: Stainless steel \| Seal: PTFE \| Port: Rc3/4 \| Coil: AC220V, grommet w/ surge circuit (GR)
JSXP61-CF10R-5G		Size: 60 \| Body: Brass \| Seal: FKM \| Port: Rc1 \| Coil: DC24V, grommet (G)
JSXP61-CF10R-1GR		Size: 60 \| Body: Brass \| Seal: FKM \| Port: Rc1 \| Coil: AC100V, grommet w/ surge circuit (GR)
JSXP61-CF10R-2GR		Size: 60 \| Body: Brass \| Seal: FKM \| Port: Rc1 \| Coil: AC200V, grommet w/ surge circuit (GR)
JSXP61-CF10R-4GR		Size: 60 \| Body: Brass \| Seal: FKM \| Port: Rc1 \| Coil: AC220V, grommet w/ surge circuit (GR)
JSXP61-CT10R-5G		Size: 60 \| Body: Brass \| Seal: PTFE \| Port: Rc1 \| Coil: DC24V, grommet (G)
JSXP61-CT10R-1GR		Size: 60 \| Body: Brass \| Seal: PTFE \| Port: Rc1 \| Coil: AC100V, grommet w/ surge circuit (GR)
JSXP61-CT10R-2GR		Size: 60 \| Body: Brass \| Seal: PTFE \| Port: Rc1 \| Coil: AC200V, grommet w/ surge circuit (GR)
JSXP61-CT10R-4GR		Size: 60 \| Body: Brass \| Seal: PTFE \| Port: Rc1 \| Coil: AC220V, grommet w/ surge circuit (GR)
JSXP61-SF10R-5G		Size: 60 \| Body: Stainless steel \| Seal: FKM \| Port: Rc1 \| Coil: DC24V, grommet (G)
JSXP61-SF10R-1GR		Size: 60 \| Body: Stainless steel \| Seal: FKM \| Port: Rc1 \| Coil: AC100V, grommet w/ surge circuit (GR)
JSXP61-SF10R-2GR		Size: 60 \| Body: Stainless steel \| Seal: FKM \| Port: Rc1 \| Coil: AC200V, grommet w/ surge circuit (GR)
JSXP61-SF10R-4GR		Size: 60 \| Body: Stainless steel \| Seal: FKM \| Port: Rc1 \| Coil: AC220V, grommet w/ surge circuit (GR)
JSXP61-ST10R-5G		Size: 60 \| Body: Stainless steel \| Seal: PTFE \| Port: Rc1 \| Coil: DC24V, grommet (G)
JSXP61-ST10R-1GR		Size: 60 \| Body: Stainless steel \| Seal: PTFE \| Port: Rc1 \| Coil: AC100V, grommet w/ surge circuit (GR)
JSXP61-ST10R-2GR		Size: 60 \| Body: Stainless steel \| Seal: PTFE \| Port: Rc1 \| Coil: AC200V, grommet w/ surge circuit (GR)
JSXP61-ST10R-4GR		Size: 60 \| Body: Stainless steel \| Seal: PTFE \| Port: Rc1 \| Coil: AC220V, grommet w/ surge circuit (GR)
JSXP71-BF12R-5G		Size: 70 \| Body: Bronze \| Seal: FKM \| Port: Rc1-1/4 \| Coil: DC24V, grommet (G)
JSXP71-BF12R-1GR		Size: 70 \| Body: Bronze \| Seal: FKM \| Port: Rc1-1/4 \| Coil: AC100V, grommet w/ surge circuit (GR)
JSXP71-BF12R-2GR		Size: 70 \| Body: Bronze \| Seal: FKM \| Port: Rc1-1/4 \| Coil: AC200V, grommet w/ surge circuit (GR)
JSXP71-BF12R-4GR		Size: 70 \| Body: Bronze \| Seal: FKM \| Port: Rc1-1/4 \| Coil: AC220V, grommet w/ surge circuit (GR)
JSXP71-BF32-5G		Size: 70 \| Body: Bronze \| Seal: FKM \| Port: 32A flange \| Coil: DC24V, grommet (G)
JSXP71-BF32-1GR		Size: 70 \| Body: Bronze \| Seal: FKM \| Port: 32A flange \| Coil: AC100V, grommet w/ surge circuit (GR)
JSXP71-BF32-2GR		Size: 70 \| Body: Bronze \| Seal: FKM \| Port: 32A flange \| Coil: AC200V, grommet w/ surge circuit (GR)
JSXP71-BF32-4GR		Size: 70 \| Body: Bronze \| Seal: FKM \| Port: 32A flange \| Coil: AC220V, grommet w/ surge circuit (GR)
JSXP71-BT12R-5G		Size: 70 \| Body: Bronze \| Seal: PTFE \| Port: Rc1-1/4 \| Coil: DC24V, grommet (G)
JSXP71-BT12R-1GR		Size: 70 \| Body: Bronze \| Seal: PTFE \| Port: Rc1-1/4 \| Coil: AC100V, grommet w/ surge circuit (GR)
JSXP71-BT12R-2GR		Size: 70 \| Body: Bronze \| Seal: PTFE \| Port: Rc1-1/4 \| Coil: AC200V, grommet w/ surge circuit (GR)
JSXP71-BT12R-4GR		Size: 70 \| Body: Bronze \| Seal: PTFE \| Port: Rc1-1/4 \| Coil: AC220V, grommet w/ surge circuit (GR)
JSXP71-BT32-5G		Size: 70 \| Body: Bronze \| Seal: PTFE \| Port: 32A flange \| Coil: DC24V, grommet (G)
JSXP71-BT32-1GR		Size: 70 \| Body: Bronze \| Seal: PTFE \| Port: 32A flange \| Coil: AC100V, grommet w/ surge circuit (GR)
JSXP71-BT32-2GR		Size: 70 \| Body: Bronze \| Seal: PTFE \| Port: 32A flange \| Coil: AC200V, grommet w/ surge circuit (GR)
JSXP71-BT32-4GR		Size: 70 \| Body: Bronze \| Seal: PTFE \| Port: 32A flange \| Coil: AC220V, grommet w/ surge circuit (GR)
JSXP81-BF14R-5G		Size: 80 \| Body: Bronze \| Seal: FKM \| Port: Rc1-1/2 \| Coil: DC24V, grommet (G)
JSXP81-BF14R-1GR		Size: 80 \| Body: Bronze \| Seal: FKM \| Port: Rc1-1/2 \| Coil: AC100V, grommet w/ surge circuit (GR)
JSXP81-BF14R-2GR		Size: 80 \| Body: Bronze \| Seal: FKM \| Port: Rc1-1/2 \| Coil: AC200V, grommet w/ surge circuit (GR)
JSXP81-BF14R-4GR		Size: 80 \| Body: Bronze \| Seal: FKM \| Port: Rc1-1/2 \| Coil: AC220V, grommet w/ surge circuit (GR)
JSXP81-BF40-5G		Size: 80 \| Body: Bronze \| Seal: FKM \| Port: 40A flange \| Coil: DC24V, grommet (G)
JSXP81-BF40-1GR		Size: 80 \| Body: Bronze \| Seal: FKM \| Port: 40A flange \| Coil: AC100V, grommet w/ surge circuit (GR)
JSXP81-BF40-2GR		Size: 80 \| Body: Bronze \| Seal: FKM \| Port: 40A flange \| Coil: AC200V, grommet w/ surge circuit (GR)
JSXP81-BF40-4GR		Size: 80 \| Body: Bronze \| Seal: FKM \| Port: 40A flange \| Coil: AC220V, grommet w/ surge circuit (GR)
JSXP81-BT14R-5G		Size: 80 \| Body: Bronze \| Seal: PTFE \| Port: Rc1-1/2 \| Coil: DC24V, grommet (G)
JSXP81-BT14R-1GR		Size: 80 \| Body: Bronze \| Seal: PTFE \| Port: Rc1-1/2 \| Coil: AC100V, grommet w/ surge circuit (GR)
JSXP81-BT14R-2GR		Size: 80 \| Body: Bronze \| Seal: PTFE \| Port: Rc1-1/2 \| Coil: AC200V, grommet w/ surge circuit (GR)
JSXP81-BT14R-4GR		Size: 80 \| Body: Bronze \| Seal: PTFE \| Port: Rc1-1/2 \| Coil: AC220V, grommet w/ surge circuit (GR)
JSXP81-BT40-5G		Size: 80 \| Body: Bronze \| Seal: PTFE \| Port: 40A flange \| Coil: DC24V, grommet (G)
JSXP81-BT40-1GR		Size: 80 \| Body: Bronze \| Seal: PTFE \| Port: 40A flange \| Coil: AC100V, grommet w/ surge circuit (GR)
JSXP81-BT40-2GR		Size: 80 \| Body: Bronze \| Seal: PTFE \| Port: 40A flange \| Coil: AC200V, grommet w/ surge circuit (GR)
JSXP81-BT40-4GR		Size: 80 \| Body: Bronze \| Seal: PTFE \| Port: 40A flange \| Coil: AC220V, grommet w/ surge circuit (GR)
JSXP91-BF20R-5G		Size: 90 \| Body: Bronze \| Seal: FKM \| Port: Rc2 \| Coil: DC24V, grommet (G)
JSXP91-BF20R-1GR		Size: 90 \| Body: Bronze \| Seal: FKM \| Port: Rc2 \| Coil: AC100V, grommet w/ surge circuit (GR)
JSXP91-BF20R-2GR		Size: 90 \| Body: Bronze \| Seal: FKM \| Port: Rc2 \| Coil: AC200V, grommet w/ surge circuit (GR)
JSXP91-BF20R-4GR		Size: 90 \| Body: Bronze \| Seal: FKM \| Port: Rc2 \| Coil: AC220V, grommet w/ surge circuit (GR)
JSXP91-BF50-5G		Size: 90 \| Body: Bronze \| Seal: FKM \| Port: 50A flange \| Coil: DC24V, grommet (G)
JSXP91-BF50-1GR		Size: 90 \| Body: Bronze \| Seal: FKM \| Port: 50A flange \| Coil: AC100V, grommet w/ surge circuit (GR)
JSXP91-BF50-2GR		Size: 90 \| Body: Bronze \| Seal: FKM \| Port: 50A flange \| Coil: AC200V, grommet w/ surge circuit (GR)
JSXP91-BF50-4GR		Size: 90 \| Body: Bronze \| Seal: FKM \| Port: 50A flange \| Coil: AC220V, grommet w/ surge circuit (GR)
JSXP91-BT20R-5G		Size: 90 \| Body: Bronze \| Seal: PTFE \| Port: Rc2 \| Coil: DC24V, grommet (G)
JSXP91-BT20R-1GR		Size: 90 \| Body: Bronze \| Seal: PTFE \| Port: Rc2 \| Coil: AC100V, grommet w/ surge circuit (GR)
JSXP91-BT20R-2GR		Size: 90 \| Body: Bronze \| Seal: PTFE \| Port: Rc2 \| Coil: AC200V, grommet w/ surge circuit (GR)
JSXP91-BT20R-4GR		Size: 90 \| Body: Bronze \| Seal: PTFE \| Port: Rc2 \| Coil: AC220V, grommet w/ surge circuit (GR)
JSXP91-BT50-5G		Size: 90 \| Body: Bronze \| Seal: PTFE \| Port: 50A flange \| Coil: DC24V, grommet (G)
JSXP91-BT50-1GR		Size: 90 \| Body: Bronze \| Seal: PTFE \| Port: 50A flange \| Coil: AC100V, grommet w/ surge circuit (GR)
JSXP91-BT50-2GR		Size: 90 \| Body: Bronze \| Seal: PTFE \| Port: 50A flange \| Coil: AC200V, grommet w/ surge circuit (GR)
JSXP91-BT50-4GR		Size: 90 \| Body: Bronze \| Seal: PTFE \| Port: 50A flange \| Coil: AC220V, grommet w/ surge circuit (GR)
