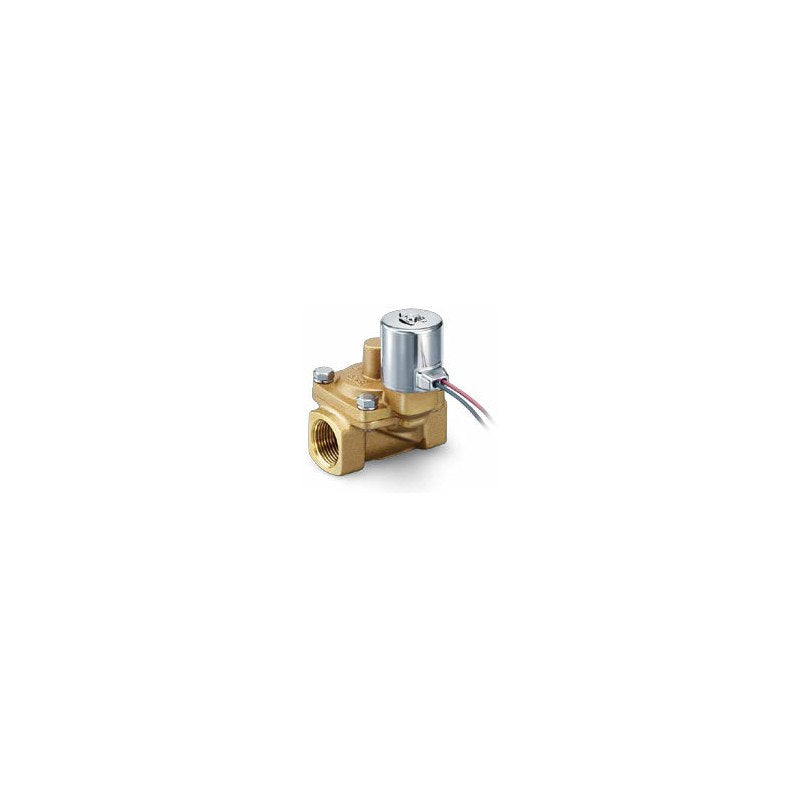

SMC JSXR Water Hammer Relief Pilot Operated 2-Port Solenoid Valve

SMC JSXR series pilot operated 2-port solenoid valve for water with water hammer relief, N.C., bronze body, ports 1/2 to 2.

Key features

Water hammer relief construction slows valve closing to reduce surge pressure
Bronze body, NBR or FKM seal; sizes 50 to 90, Kv 5.7 to 42.8
Operating pressure differential 0.04 to 1.0 MPa; water 1 to 60°C
Lead wire: grommet G (DC only), GS, conduit CS (NPT) / FS (G), DIN DS/DZ/DN, M12 WN, conduit terminal TS; listed codes use G for DC and GS for AC
Options as suffixes: NPT/G thread (N/F), oil-free (-D)

Specifications

Valve structure	Pilot operated diaphragm, N.C.
Fluid	Water, 1 to 60°C
Body	Bronze
Proof pressure	2 MPa
Max. system pressure	1 MPa
Operating pressure differential	0.04 to 1.0 MPa
Ambient temperature	-20 to 60°C
Enclosure	IP67 (DIN terminal, conduit terminal IP65)
Rated voltage	AC 24, 48, 100, 110, 120, 200, 220, 230, 240V; DC 12, 24V (listed: DC24V, AC100/200/220V)
Power consumption	AC 8/9.5/16 VA, DC 6/8/13 W
Thread	Rc (NPT, G on order)
Source	SMC Korea catalog JSX/JSX Series (SMCKR_JSX.pdf), p. 65-70 (PDF p. 66-71)

JSXR51-BN04R-5G		Size: 50 \| Seal: NBR \| Port: Rc1/2 \| Coil: DC24V, grommet (G)
JSXR51-BN04R-1GS		Size: 50 \| Seal: NBR \| Port: Rc1/2 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXR51-BN04R-2GS		Size: 50 \| Seal: NBR \| Port: Rc1/2 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXR51-BN04R-4GS		Size: 50 \| Seal: NBR \| Port: Rc1/2 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXR51-BN06R-5G		Size: 50 \| Seal: NBR \| Port: Rc3/4 \| Coil: DC24V, grommet (G)
JSXR51-BN06R-1GS		Size: 50 \| Seal: NBR \| Port: Rc3/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXR51-BN06R-2GS		Size: 50 \| Seal: NBR \| Port: Rc3/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXR51-BN06R-4GS		Size: 50 \| Seal: NBR \| Port: Rc3/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXR51-BF04R-5G		Size: 50 \| Seal: FKM \| Port: Rc1/2 \| Coil: DC24V, grommet (G)
JSXR51-BF04R-1GS		Size: 50 \| Seal: FKM \| Port: Rc1/2 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXR51-BF04R-2GS		Size: 50 \| Seal: FKM \| Port: Rc1/2 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXR51-BF04R-4GS		Size: 50 \| Seal: FKM \| Port: Rc1/2 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXR51-BF06R-5G		Size: 50 \| Seal: FKM \| Port: Rc3/4 \| Coil: DC24V, grommet (G)
JSXR51-BF06R-1GS		Size: 50 \| Seal: FKM \| Port: Rc3/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXR51-BF06R-2GS		Size: 50 \| Seal: FKM \| Port: Rc3/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXR51-BF06R-4GS		Size: 50 \| Seal: FKM \| Port: Rc3/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXR61-BN10R-5G		Size: 60 \| Seal: NBR \| Port: Rc1 \| Coil: DC24V, grommet (G)
JSXR61-BN10R-1GS		Size: 60 \| Seal: NBR \| Port: Rc1 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXR61-BN10R-2GS		Size: 60 \| Seal: NBR \| Port: Rc1 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXR61-BN10R-4GS		Size: 60 \| Seal: NBR \| Port: Rc1 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXR61-BF10R-5G		Size: 60 \| Seal: FKM \| Port: Rc1 \| Coil: DC24V, grommet (G)
JSXR61-BF10R-1GS		Size: 60 \| Seal: FKM \| Port: Rc1 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXR61-BF10R-2GS		Size: 60 \| Seal: FKM \| Port: Rc1 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXR61-BF10R-4GS		Size: 60 \| Seal: FKM \| Port: Rc1 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXR71-BN12R-5G		Size: 70 \| Seal: NBR \| Port: Rc1-1/4 \| Coil: DC24V, grommet (G)
JSXR71-BN12R-1GS		Size: 70 \| Seal: NBR \| Port: Rc1-1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXR71-BN12R-2GS		Size: 70 \| Seal: NBR \| Port: Rc1-1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXR71-BN12R-4GS		Size: 70 \| Seal: NBR \| Port: Rc1-1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXR71-BF12R-5G		Size: 70 \| Seal: FKM \| Port: Rc1-1/4 \| Coil: DC24V, grommet (G)
JSXR71-BF12R-1GS		Size: 70 \| Seal: FKM \| Port: Rc1-1/4 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXR71-BF12R-2GS		Size: 70 \| Seal: FKM \| Port: Rc1-1/4 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXR71-BF12R-4GS		Size: 70 \| Seal: FKM \| Port: Rc1-1/4 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXR81-BN14R-5G		Size: 80 \| Seal: NBR \| Port: Rc1-1/2 \| Coil: DC24V, grommet (G)
JSXR81-BN14R-1GS		Size: 80 \| Seal: NBR \| Port: Rc1-1/2 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXR81-BN14R-2GS		Size: 80 \| Seal: NBR \| Port: Rc1-1/2 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXR81-BN14R-4GS		Size: 80 \| Seal: NBR \| Port: Rc1-1/2 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXR81-BF14R-5G		Size: 80 \| Seal: FKM \| Port: Rc1-1/2 \| Coil: DC24V, grommet (G)
JSXR81-BF14R-1GS		Size: 80 \| Seal: FKM \| Port: Rc1-1/2 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXR81-BF14R-2GS		Size: 80 \| Seal: FKM \| Port: Rc1-1/2 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXR81-BF14R-4GS		Size: 80 \| Seal: FKM \| Port: Rc1-1/2 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXR91-BN20R-5G		Size: 90 \| Seal: NBR \| Port: Rc2 \| Coil: DC24V, grommet (G)
JSXR91-BN20R-1GS		Size: 90 \| Seal: NBR \| Port: Rc2 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXR91-BN20R-2GS		Size: 90 \| Seal: NBR \| Port: Rc2 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXR91-BN20R-4GS		Size: 90 \| Seal: NBR \| Port: Rc2 \| Coil: AC220V, grommet w/ surge circuit (GS)
JSXR91-BF20R-5G		Size: 90 \| Seal: FKM \| Port: Rc2 \| Coil: DC24V, grommet (G)
JSXR91-BF20R-1GS		Size: 90 \| Seal: FKM \| Port: Rc2 \| Coil: AC100V, grommet w/ surge circuit (GS)
JSXR91-BF20R-2GS		Size: 90 \| Seal: FKM \| Port: Rc2 \| Coil: AC200V, grommet w/ surge circuit (GS)
JSXR91-BF20R-4GS		Size: 90 \| Seal: FKM \| Port: Rc2 \| Coil: AC220V, grommet w/ surge circuit (GS)
