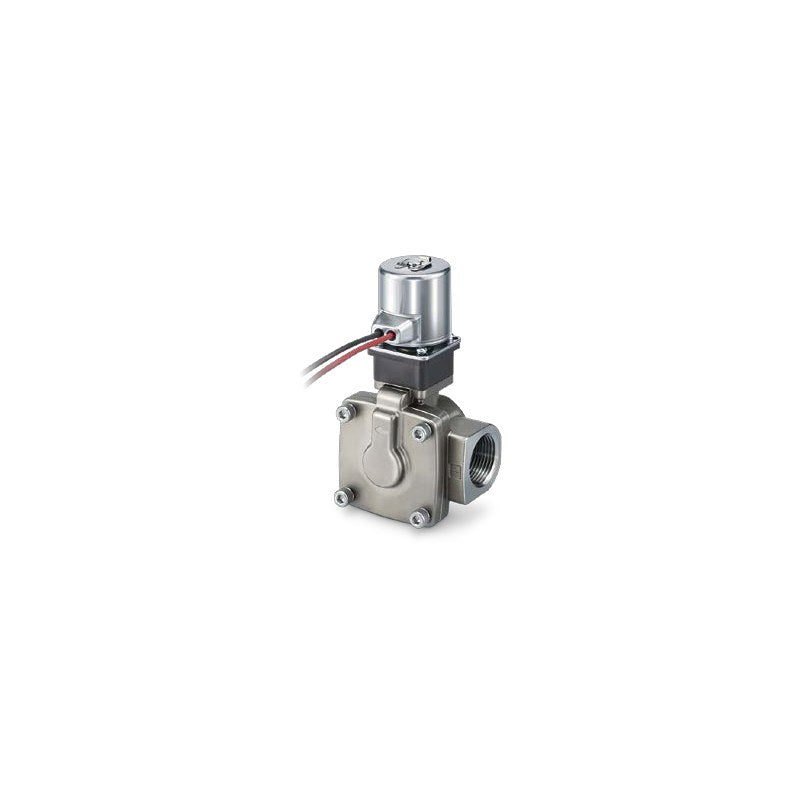

SMC JSXZ Zero Differential Pressure Pilot 2-Port Solenoid Valve

SMC JSXZ Zero Differential Pressure Pilot 2-Port Solenoid Valve

SMC JSXZ series zero differential pressure type pilot operated 2-port solenoid valve for air, water and oil, N.C., operating from 0 MPa differential up to 1.0 MPa.

Key features

  • Pilot diaphragm valve that operates from 0 MPa pressure differential (no minimum differential)
  • Sizes 30 to 60, ports 1/4 to 1; brass or stainless steel body, AL body (size 30, air)
  • Seal: NBR, FKM (oil) or EPDM
  • Lead wire: grommet G (DC only), surge-protected grommet GS, conduit CS, DIN terminal DS/DZ/DN, M12 connector WN; listed codes use G for DC and GS for AC
  • Options as suffixes: NPT/G thread (N/F), oil-free (-D), bracket (-B)

Specifications

Valve structure Pilot operated diaphragm (zero differential), N.C.
Fluid and temperature Air -10 to 60°C; water 1 to 60°C; oil -5 to 60°C (AL: air only)
Operating pressure differential 0 to 1.0 MPa
Proof pressure 2 MPa
Max. system pressure 1 MPa
Ambient temperature -20 to 60°C
Enclosure IP67 (DIN terminal IP65)
Rated voltage AC 24, 48, 100, 110, 120, 200, 220, 230, 240V; DC 12, 24V (listed: DC24V, AC100/200/220V)
Power consumption AC 9.5/16 VA, DC 8/13 W
Thread Rc (NPT, G on order)
Source SMC Korea catalog JSX/JSX Series (SMCKR_JSX.pdf), p. 71-74 (PDF p. 72-75)
JSXZ31-CN02R-5G Size: 30 | Body: Brass | Seal: NBR | Port: Rc1/4 | Coil: DC24V, grommet (G)
JSXZ31-CN02R-1GS Size: 30 | Body: Brass | Seal: NBR | Port: Rc1/4 | Coil: AC100V, grommet w/ surge circuit (GS)
JSXZ31-CN02R-2GS Size: 30 | Body: Brass | Seal: NBR | Port: Rc1/4 | Coil: AC200V, grommet w/ surge circuit (GS)
JSXZ31-CN02R-4GS Size: 30 | Body: Brass | Seal: NBR | Port: Rc1/4 | Coil: AC220V, grommet w/ surge circuit (GS)
JSXZ31-CN03R-5G Size: 30 | Body: Brass | Seal: NBR | Port: Rc3/8 | Coil: DC24V, grommet (G)
JSXZ31-CN03R-1GS Size: 30 | Body: Brass | Seal: NBR | Port: Rc3/8 | Coil: AC100V, grommet w/ surge circuit (GS)
JSXZ31-CN03R-2GS Size: 30 | Body: Brass | Seal: NBR | Port: Rc3/8 | Coil: AC200V, grommet w/ surge circuit (GS)
JSXZ31-CN03R-4GS Size: 30 | Body: Brass | Seal: NBR | Port: Rc3/8 | Coil: AC220V, grommet w/ surge circuit (GS)
JSXZ31-CF02R-5G Size: 30 | Body: Brass | Seal: FKM | Port: Rc1/4 | Coil: DC24V, grommet (G)
JSXZ31-CF02R-1GS Size: 30 | Body: Brass | Seal: FKM | Port: Rc1/4 | Coil: AC100V, grommet w/ surge circuit (GS)
JSXZ31-CF02R-2GS Size: 30 | Body: Brass | Seal: FKM | Port: Rc1/4 | Coil: AC200V, grommet w/ surge circuit (GS)
JSXZ31-CF02R-4GS Size: 30 | Body: Brass | Seal: FKM | Port: Rc1/4 | Coil: AC220V, grommet w/ surge circuit (GS)
JSXZ31-CF03R-5G Size: 30 | Body: Brass | Seal: FKM | Port: Rc3/8 | Coil: DC24V, grommet (G)
JSXZ31-CF03R-1GS Size: 30 | Body: Brass | Seal: FKM | Port: Rc3/8 | Coil: AC100V, grommet w/ surge circuit (GS)
JSXZ31-CF03R-2GS Size: 30 | Body: Brass | Seal: FKM | Port: Rc3/8 | Coil: AC200V, grommet w/ surge circuit (GS)
JSXZ31-CF03R-4GS Size: 30 | Body: Brass | Seal: FKM | Port: Rc3/8 | Coil: AC220V, grommet w/ surge circuit (GS)
JSXZ31-CE02R-5G Size: 30 | Body: Brass | Seal: EPDM | Port: Rc1/4 | Coil: DC24V, grommet (G)
JSXZ31-CE02R-1GS Size: 30 | Body: Brass | Seal: EPDM | Port: Rc1/4 | Coil: AC100V, grommet w/ surge circuit (GS)
JSXZ31-CE02R-2GS Size: 30 | Body: Brass | Seal: EPDM | Port: Rc1/4 | Coil: AC200V, grommet w/ surge circuit (GS)
JSXZ31-CE02R-4GS Size: 30 | Body: Brass | Seal: EPDM | Port: Rc1/4 | Coil: AC220V, grommet w/ surge circuit (GS)
JSXZ31-CE03R-5G Size: 30 | Body: Brass | Seal: EPDM | Port: Rc3/8 | Coil: DC24V, grommet (G)
JSXZ31-CE03R-1GS Size: 30 | Body: Brass | Seal: EPDM | Port: Rc3/8 | Coil: AC100V, grommet w/ surge circuit (GS)
JSXZ31-CE03R-2GS Size: 30 | Body: Brass | Seal: EPDM | Port: Rc3/8 | Coil: AC200V, grommet w/ surge circuit (GS)
JSXZ31-CE03R-4GS Size: 30 | Body: Brass | Seal: EPDM | Port: Rc3/8 | Coil: AC220V, grommet w/ surge circuit (GS)
JSXZ31-SN02R-5G Size: 30 | Body: Stainless steel | Seal: NBR | Port: Rc1/4 | Coil: DC24V, grommet (G)
JSXZ31-SN02R-1GS Size: 30 | Body: Stainless steel | Seal: NBR | Port: Rc1/4 | Coil: AC100V, grommet w/ surge circuit (GS)
JSXZ31-SN02R-2GS Size: 30 | Body: Stainless steel | Seal: NBR | Port: Rc1/4 | Coil: AC200V, grommet w/ surge circuit (GS)
JSXZ31-SN02R-4GS Size: 30 | Body: Stainless steel | Seal: NBR | Port: Rc1/4 | Coil: AC220V, grommet w/ surge circuit (GS)
JSXZ31-SN03R-5G Size: 30 | Body: Stainless steel | Seal: NBR | Port: Rc3/8 | Coil: DC24V, grommet (G)
JSXZ31-SN03R-1GS Size: 30 | Body: Stainless steel | Seal: NBR | Port: Rc3/8 | Coil: AC100V, grommet w/ surge circuit (GS)
JSXZ31-SN03R-2GS Size: 30 | Body: Stainless steel | Seal: NBR | Port: Rc3/8 | Coil: AC200V, grommet w/ surge circuit (GS)
JSXZ31-SN03R-4GS Size: 30 | Body: Stainless steel | Seal: NBR | Port: Rc3/8 | Coil: AC220V, grommet w/ surge circuit (GS)
JSXZ31-SF02R-5G Size: 30 | Body: Stainless steel | Seal: FKM | Port: Rc1/4 | Coil: DC24V, grommet (G)
JSXZ31-SF02R-1GS Size: 30 | Body: Stainless steel | Seal: FKM | Port: Rc1/4 | Coil: AC100V, grommet w/ surge circuit (GS)
JSXZ31-SF02R-2GS Size: 30 | Body: Stainless steel | Seal: FKM | Port: Rc1/4 | Coil: AC200V, grommet w/ surge circuit (GS)
JSXZ31-SF02R-4GS Size: 30 | Body: Stainless steel | Seal: FKM | Port: Rc1/4 | Coil: AC220V, grommet w/ surge circuit (GS)
JSXZ31-SF03R-5G Size: 30 | Body: Stainless steel | Seal: FKM | Port: Rc3/8 | Coil: DC24V, grommet (G)
JSXZ31-SF03R-1GS Size: 30 | Body: Stainless steel | Seal: FKM | Port: Rc3/8 | Coil: AC100V, grommet w/ surge circuit (GS)
JSXZ31-SF03R-2GS Size: 30 | Body: Stainless steel | Seal: FKM | Port: Rc3/8 | Coil: AC200V, grommet w/ surge circuit (GS)
JSXZ31-SF03R-4GS Size: 30 | Body: Stainless steel | Seal: FKM | Port: Rc3/8 | Coil: AC220V, grommet w/ surge circuit (GS)
JSXZ31-SE02R-5G Size: 30 | Body: Stainless steel | Seal: EPDM | Port: Rc1/4 | Coil: DC24V, grommet (G)
JSXZ31-SE02R-1GS Size: 30 | Body: Stainless steel | Seal: EPDM | Port: Rc1/4 | Coil: AC100V, grommet w/ surge circuit (GS)
JSXZ31-SE02R-2GS Size: 30 | Body: Stainless steel | Seal: EPDM | Port: Rc1/4 | Coil: AC200V, grommet w/ surge circuit (GS)
JSXZ31-SE02R-4GS Size: 30 | Body: Stainless steel | Seal: EPDM | Port: Rc1/4 | Coil: AC220V, grommet w/ surge circuit (GS)
JSXZ31-SE03R-5G Size: 30 | Body: Stainless steel | Seal: EPDM | Port: Rc3/8 | Coil: DC24V, grommet (G)
JSXZ31-SE03R-1GS Size: 30 | Body: Stainless steel | Seal: EPDM | Port: Rc3/8 | Coil: AC100V, grommet w/ surge circuit (GS)
JSXZ31-SE03R-2GS Size: 30 | Body: Stainless steel | Seal: EPDM | Port: Rc3/8 | Coil: AC200V, grommet w/ surge circuit (GS)
JSXZ31-SE03R-4GS Size: 30 | Body: Stainless steel | Seal: EPDM | Port: Rc3/8 | Coil: AC220V, grommet w/ surge circuit (GS)
JSXZ31-AN02R-5G Size: 30 | Body: Aluminum | Seal: NBR | Port: Rc1/4 | Coil: DC24V, grommet (G)
JSXZ31-AN02R-1GS Size: 30 | Body: Aluminum | Seal: NBR | Port: Rc1/4 | Coil: AC100V, grommet w/ surge circuit (GS)
JSXZ31-AN02R-2GS Size: 30 | Body: Aluminum | Seal: NBR | Port: Rc1/4 | Coil: AC200V, grommet w/ surge circuit (GS)
JSXZ31-AN02R-4GS Size: 30 | Body: Aluminum | Seal: NBR | Port: Rc1/4 | Coil: AC220V, grommet w/ surge circuit (GS)
JSXZ31-AN03R-5G Size: 30 | Body: Aluminum | Seal: NBR | Port: Rc3/8 | Coil: DC24V, grommet (G)
JSXZ31-AN03R-1GS Size: 30 | Body: Aluminum | Seal: NBR | Port: Rc3/8 | Coil: AC100V, grommet w/ surge circuit (GS)
JSXZ31-AN03R-2GS Size: 30 | Body: Aluminum | Seal: NBR | Port: Rc3/8 | Coil: AC200V, grommet w/ surge circuit (GS)
JSXZ31-AN03R-4GS Size: 30 | Body: Aluminum | Seal: NBR | Port: Rc3/8 | Coil: AC220V, grommet w/ surge circuit (GS)
JSXZ31-AF02R-5G Size: 30 | Body: Aluminum | Seal: FKM | Port: Rc1/4 | Coil: DC24V, grommet (G)
JSXZ31-AF02R-1GS Size: 30 | Body: Aluminum | Seal: FKM | Port: Rc1/4 | Coil: AC100V, grommet w/ surge circuit (GS)
JSXZ31-AF02R-2GS Size: 30 | Body: Aluminum | Seal: FKM | Port: Rc1/4 | Coil: AC200V, grommet w/ surge circuit (GS)
JSXZ31-AF02R-4GS Size: 30 | Body: Aluminum | Seal: FKM | Port: Rc1/4 | Coil: AC220V, grommet w/ surge circuit (GS)
JSXZ31-AF03R-5G Size: 30 | Body: Aluminum | Seal: FKM | Port: Rc3/8 | Coil: DC24V, grommet (G)
JSXZ31-AF03R-1GS Size: 30 | Body: Aluminum | Seal: FKM | Port: Rc3/8 | Coil: AC100V, grommet w/ surge circuit (GS)
JSXZ31-AF03R-2GS Size: 30 | Body: Aluminum | Seal: FKM | Port: Rc3/8 | Coil: AC200V, grommet w/ surge circuit (GS)
JSXZ31-AF03R-4GS Size: 30 | Body: Aluminum | Seal: FKM | Port: Rc3/8 | Coil: AC220V, grommet w/ surge circuit (GS)
JSXZ41-CN04R-5G Size: 40 | Body: Brass | Seal: NBR | Port: Rc1/2 | Coil: DC24V, grommet (G)
JSXZ41-CN04R-1GS Size: 40 | Body: Brass | Seal: NBR | Port: Rc1/2 | Coil: AC100V, grommet w/ surge circuit (GS)
JSXZ41-CN04R-2GS Size: 40 | Body: Brass | Seal: NBR | Port: Rc1/2 | Coil: AC200V, grommet w/ surge circuit (GS)
JSXZ41-CN04R-4GS Size: 40 | Body: Brass | Seal: NBR | Port: Rc1/2 | Coil: AC220V, grommet w/ surge circuit (GS)
JSXZ41-CF04R-5G Size: 40 | Body: Brass | Seal: FKM | Port: Rc1/2 | Coil: DC24V, grommet (G)
JSXZ41-CF04R-1GS Size: 40 | Body: Brass | Seal: FKM | Port: Rc1/2 | Coil: AC100V, grommet w/ surge circuit (GS)
JSXZ41-CF04R-2GS Size: 40 | Body: Brass | Seal: FKM | Port: Rc1/2 | Coil: AC200V, grommet w/ surge circuit (GS)
JSXZ41-CF04R-4GS Size: 40 | Body: Brass | Seal: FKM | Port: Rc1/2 | Coil: AC220V, grommet w/ surge circuit (GS)
JSXZ41-CE04R-5G Size: 40 | Body: Brass | Seal: EPDM | Port: Rc1/2 | Coil: DC24V, grommet (G)
JSXZ41-CE04R-1GS Size: 40 | Body: Brass | Seal: EPDM | Port: Rc1/2 | Coil: AC100V, grommet w/ surge circuit (GS)
JSXZ41-CE04R-2GS Size: 40 | Body: Brass | Seal: EPDM | Port: Rc1/2 | Coil: AC200V, grommet w/ surge circuit (GS)
JSXZ41-CE04R-4GS Size: 40 | Body: Brass | Seal: EPDM | Port: Rc1/2 | Coil: AC220V, grommet w/ surge circuit (GS)
JSXZ41-SN04R-5G Size: 40 | Body: Stainless steel | Seal: NBR | Port: Rc1/2 | Coil: DC24V, grommet (G)
JSXZ41-SN04R-1GS Size: 40 | Body: Stainless steel | Seal: NBR | Port: Rc1/2 | Coil: AC100V, grommet w/ surge circuit (GS)
JSXZ41-SN04R-2GS Size: 40 | Body: Stainless steel | Seal: NBR | Port: Rc1/2 | Coil: AC200V, grommet w/ surge circuit (GS)
JSXZ41-SN04R-4GS Size: 40 | Body: Stainless steel | Seal: NBR | Port: Rc1/2 | Coil: AC220V, grommet w/ surge circuit (GS)
JSXZ41-SF04R-5G Size: 40 | Body: Stainless steel | Seal: FKM | Port: Rc1/2 | Coil: DC24V, grommet (G)
JSXZ41-SF04R-1GS Size: 40 | Body: Stainless steel | Seal: FKM | Port: Rc1/2 | Coil: AC100V, grommet w/ surge circuit (GS)
JSXZ41-SF04R-2GS Size: 40 | Body: Stainless steel | Seal: FKM | Port: Rc1/2 | Coil: AC200V, grommet w/ surge circuit (GS)
JSXZ41-SF04R-4GS Size: 40 | Body: Stainless steel | Seal: FKM | Port: Rc1/2 | Coil: AC220V, grommet w/ surge circuit (GS)
JSXZ41-SE04R-5G Size: 40 | Body: Stainless steel | Seal: EPDM | Port: Rc1/2 | Coil: DC24V, grommet (G)
JSXZ41-SE04R-1GS Size: 40 | Body: Stainless steel | Seal: EPDM | Port: Rc1/2 | Coil: AC100V, grommet w/ surge circuit (GS)
JSXZ41-SE04R-2GS Size: 40 | Body: Stainless steel | Seal: EPDM | Port: Rc1/2 | Coil: AC200V, grommet w/ surge circuit (GS)
JSXZ41-SE04R-4GS Size: 40 | Body: Stainless steel | Seal: EPDM | Port: Rc1/2 | Coil: AC220V, grommet w/ surge circuit (GS)
JSXZ51-CN06R-5G Size: 50 | Body: Brass | Seal: NBR | Port: Rc3/4 | Coil: DC24V, grommet (G)
JSXZ51-CN06R-1GS Size: 50 | Body: Brass | Seal: NBR | Port: Rc3/4 | Coil: AC100V, grommet w/ surge circuit (GS)
JSXZ51-CN06R-2GS Size: 50 | Body: Brass | Seal: NBR | Port: Rc3/4 | Coil: AC200V, grommet w/ surge circuit (GS)
JSXZ51-CN06R-4GS Size: 50 | Body: Brass | Seal: NBR | Port: Rc3/4 | Coil: AC220V, grommet w/ surge circuit (GS)
JSXZ51-CF06R-5G Size: 50 | Body: Brass | Seal: FKM | Port: Rc3/4 | Coil: DC24V, grommet (G)
JSXZ51-CF06R-1GS Size: 50 | Body: Brass | Seal: FKM | Port: Rc3/4 | Coil: AC100V, grommet w/ surge circuit (GS)
JSXZ51-CF06R-2GS Size: 50 | Body: Brass | Seal: FKM | Port: Rc3/4 | Coil: AC200V, grommet w/ surge circuit (GS)
JSXZ51-CF06R-4GS Size: 50 | Body: Brass | Seal: FKM | Port: Rc3/4 | Coil: AC220V, grommet w/ surge circuit (GS)
JSXZ51-CE06R-5G Size: 50 | Body: Brass | Seal: EPDM | Port: Rc3/4 | Coil: DC24V, grommet (G)
JSXZ51-CE06R-1GS Size: 50 | Body: Brass | Seal: EPDM | Port: Rc3/4 | Coil: AC100V, grommet w/ surge circuit (GS)
JSXZ51-CE06R-2GS Size: 50 | Body: Brass | Seal: EPDM | Port: Rc3/4 | Coil: AC200V, grommet w/ surge circuit (GS)
JSXZ51-CE06R-4GS Size: 50 | Body: Brass | Seal: EPDM | Port: Rc3/4 | Coil: AC220V, grommet w/ surge circuit (GS)
JSXZ51-SN06R-5G Size: 50 | Body: Stainless steel | Seal: NBR | Port: Rc3/4 | Coil: DC24V, grommet (G)
JSXZ51-SN06R-1GS Size: 50 | Body: Stainless steel | Seal: NBR | Port: Rc3/4 | Coil: AC100V, grommet w/ surge circuit (GS)
JSXZ51-SN06R-2GS Size: 50 | Body: Stainless steel | Seal: NBR | Port: Rc3/4 | Coil: AC200V, grommet w/ surge circuit (GS)
JSXZ51-SN06R-4GS Size: 50 | Body: Stainless steel | Seal: NBR | Port: Rc3/4 | Coil: AC220V, grommet w/ surge circuit (GS)
JSXZ51-SF06R-5G Size: 50 | Body: Stainless steel | Seal: FKM | Port: Rc3/4 | Coil: DC24V, grommet (G)
JSXZ51-SF06R-1GS Size: 50 | Body: Stainless steel | Seal: FKM | Port: Rc3/4 | Coil: AC100V, grommet w/ surge circuit (GS)
JSXZ51-SF06R-2GS Size: 50 | Body: Stainless steel | Seal: FKM | Port: Rc3/4 | Coil: AC200V, grommet w/ surge circuit (GS)
JSXZ51-SF06R-4GS Size: 50 | Body: Stainless steel | Seal: FKM | Port: Rc3/4 | Coil: AC220V, grommet w/ surge circuit (GS)
JSXZ51-SE06R-5G Size: 50 | Body: Stainless steel | Seal: EPDM | Port: Rc3/4 | Coil: DC24V, grommet (G)
JSXZ51-SE06R-1GS Size: 50 | Body: Stainless steel | Seal: EPDM | Port: Rc3/4 | Coil: AC100V, grommet w/ surge circuit (GS)
JSXZ51-SE06R-2GS Size: 50 | Body: Stainless steel | Seal: EPDM | Port: Rc3/4 | Coil: AC200V, grommet w/ surge circuit (GS)
JSXZ51-SE06R-4GS Size: 50 | Body: Stainless steel | Seal: EPDM | Port: Rc3/4 | Coil: AC220V, grommet w/ surge circuit (GS)
JSXZ61-CN10R-5G Size: 60 | Body: Brass | Seal: NBR | Port: Rc1 | Coil: DC24V, grommet (G)
JSXZ61-CN10R-1GS Size: 60 | Body: Brass | Seal: NBR | Port: Rc1 | Coil: AC100V, grommet w/ surge circuit (GS)
JSXZ61-CN10R-2GS Size: 60 | Body: Brass | Seal: NBR | Port: Rc1 | Coil: AC200V, grommet w/ surge circuit (GS)
JSXZ61-CN10R-4GS Size: 60 | Body: Brass | Seal: NBR | Port: Rc1 | Coil: AC220V, grommet w/ surge circuit (GS)
JSXZ61-CF10R-5G Size: 60 | Body: Brass | Seal: FKM | Port: Rc1 | Coil: DC24V, grommet (G)
JSXZ61-CF10R-1GS Size: 60 | Body: Brass | Seal: FKM | Port: Rc1 | Coil: AC100V, grommet w/ surge circuit (GS)
JSXZ61-CF10R-2GS Size: 60 | Body: Brass | Seal: FKM | Port: Rc1 | Coil: AC200V, grommet w/ surge circuit (GS)
JSXZ61-CF10R-4GS Size: 60 | Body: Brass | Seal: FKM | Port: Rc1 | Coil: AC220V, grommet w/ surge circuit (GS)
JSXZ61-CE10R-5G Size: 60 | Body: Brass | Seal: EPDM | Port: Rc1 | Coil: DC24V, grommet (G)
JSXZ61-CE10R-1GS Size: 60 | Body: Brass | Seal: EPDM | Port: Rc1 | Coil: AC100V, grommet w/ surge circuit (GS)
JSXZ61-CE10R-2GS Size: 60 | Body: Brass | Seal: EPDM | Port: Rc1 | Coil: AC200V, grommet w/ surge circuit (GS)
JSXZ61-CE10R-4GS Size: 60 | Body: Brass | Seal: EPDM | Port: Rc1 | Coil: AC220V, grommet w/ surge circuit (GS)
JSXZ61-SN10R-5G Size: 60 | Body: Stainless steel | Seal: NBR | Port: Rc1 | Coil: DC24V, grommet (G)
JSXZ61-SN10R-1GS Size: 60 | Body: Stainless steel | Seal: NBR | Port: Rc1 | Coil: AC100V, grommet w/ surge circuit (GS)
JSXZ61-SN10R-2GS Size: 60 | Body: Stainless steel | Seal: NBR | Port: Rc1 | Coil: AC200V, grommet w/ surge circuit (GS)
JSXZ61-SN10R-4GS Size: 60 | Body: Stainless steel | Seal: NBR | Port: Rc1 | Coil: AC220V, grommet w/ surge circuit (GS)
JSXZ61-SF10R-5G Size: 60 | Body: Stainless steel | Seal: FKM | Port: Rc1 | Coil: DC24V, grommet (G)
JSXZ61-SF10R-1GS Size: 60 | Body: Stainless steel | Seal: FKM | Port: Rc1 | Coil: AC100V, grommet w/ surge circuit (GS)
JSXZ61-SF10R-2GS Size: 60 | Body: Stainless steel | Seal: FKM | Port: Rc1 | Coil: AC200V, grommet w/ surge circuit (GS)
JSXZ61-SF10R-4GS Size: 60 | Body: Stainless steel | Seal: FKM | Port: Rc1 | Coil: AC220V, grommet w/ surge circuit (GS)
JSXZ61-SE10R-5G Size: 60 | Body: Stainless steel | Seal: EPDM | Port: Rc1 | Coil: DC24V, grommet (G)
JSXZ61-SE10R-1GS Size: 60 | Body: Stainless steel | Seal: EPDM | Port: Rc1 | Coil: AC100V, grommet w/ surge circuit (GS)
JSXZ61-SE10R-2GS Size: 60 | Body: Stainless steel | Seal: EPDM | Port: Rc1 | Coil: AC200V, grommet w/ surge circuit (GS)
JSXZ61-SE10R-4GS Size: 60 | Body: Stainless steel | Seal: EPDM | Port: Rc1 | Coil: AC220V, grommet w/ surge circuit (GS)
2-Port ValvesSMC
136 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC JSXZ Zero Differential Pressure Pilot 2-Port Solenoid Valve

Brand SMC·2-Port Valves

Available part numbers (136)

JSXZ31-CN02R-5G, JSXZ31-CN02R-1GS, JSXZ31-CN02R-2GS, JSXZ31-CN02R-4GS, JSXZ31-CN03R-5G, JSXZ31-CN03R-1GS, JSXZ31-CN03R-2GS, JSXZ31-CN03R-4GS, JSXZ31-CF02R-5G, JSXZ31-CF02R-1GS + 126 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
JSXZ31-CN02R-5GSize: 30 | Body: Brass | Seal: NBR | Port: Rc1/4 | Coil: DC24V, grommet (G)
JSXZ31-CN02R-1GSSize: 30 | Body: Brass | Seal: NBR | Port: Rc1/4 | Coil: AC100V, grommet w/ surge circuit (GS)
JSXZ31-CN02R-2GSSize: 30 | Body: Brass | Seal: NBR | Port: Rc1/4 | Coil: AC200V, grommet w/ surge circuit (GS)
JSXZ31-CN02R-4GSSize: 30 | Body: Brass | Seal: NBR | Port: Rc1/4 | Coil: AC220V, grommet w/ surge circuit (GS)
JSXZ31-CN03R-5GSize: 30 | Body: Brass | Seal: NBR | Port: Rc3/8 | Coil: DC24V, grommet (G)
JSXZ31-CN03R-1GSSize: 30 | Body: Brass | Seal: NBR | Port: Rc3/8 | Coil: AC100V, grommet w/ surge circuit (GS)
JSXZ31-CN03R-2GSSize: 30 | Body: Brass | Seal: NBR | Port: Rc3/8 | Coil: AC200V, grommet w/ surge circuit (GS)
JSXZ31-CN03R-4GSSize: 30 | Body: Brass | Seal: NBR | Port: Rc3/8 | Coil: AC220V, grommet w/ surge circuit (GS)
JSXZ31-CF02R-5GSize: 30 | Body: Brass | Seal: FKM | Port: Rc1/4 | Coil: DC24V, grommet (G)
JSXZ31-CF02R-1GSSize: 30 | Body: Brass | Seal: FKM | Port: Rc1/4 | Coil: AC100V, grommet w/ surge circuit (GS)
JSXZ31-CF02R-2GSSize: 30 | Body: Brass | Seal: FKM | Port: Rc1/4 | Coil: AC200V, grommet w/ surge circuit (GS)
JSXZ31-CF02R-4GSSize: 30 | Body: Brass | Seal: FKM | Port: Rc1/4 | Coil: AC220V, grommet w/ surge circuit (GS)
JSXZ31-CF03R-5GSize: 30 | Body: Brass | Seal: FKM | Port: Rc3/8 | Coil: DC24V, grommet (G)
JSXZ31-CF03R-1GSSize: 30 | Body: Brass | Seal: FKM | Port: Rc3/8 | Coil: AC100V, grommet w/ surge circuit (GS)
JSXZ31-CF03R-2GSSize: 30 | Body: Brass | Seal: FKM | Port: Rc3/8 | Coil: AC200V, grommet w/ surge circuit (GS)
JSXZ31-CF03R-4GSSize: 30 | Body: Brass | Seal: FKM | Port: Rc3/8 | Coil: AC220V, grommet w/ surge circuit (GS)
JSXZ31-CE02R-5GSize: 30 | Body: Brass | Seal: EPDM | Port: Rc1/4 | Coil: DC24V, grommet (G)
JSXZ31-CE02R-1GSSize: 30 | Body: Brass | Seal: EPDM | Port: Rc1/4 | Coil: AC100V, grommet w/ surge circuit (GS)
JSXZ31-CE02R-2GSSize: 30 | Body: Brass | Seal: EPDM | Port: Rc1/4 | Coil: AC200V, grommet w/ surge circuit (GS)
JSXZ31-CE02R-4GSSize: 30 | Body: Brass | Seal: EPDM | Port: Rc1/4 | Coil: AC220V, grommet w/ surge circuit (GS)
JSXZ31-CE03R-5GSize: 30 | Body: Brass | Seal: EPDM | Port: Rc3/8 | Coil: DC24V, grommet (G)
JSXZ31-CE03R-1GSSize: 30 | Body: Brass | Seal: EPDM | Port: Rc3/8 | Coil: AC100V, grommet w/ surge circuit (GS)
JSXZ31-CE03R-2GSSize: 30 | Body: Brass | Seal: EPDM | Port: Rc3/8 | Coil: AC200V, grommet w/ surge circuit (GS)
JSXZ31-CE03R-4GSSize: 30 | Body: Brass | Seal: EPDM | Port: Rc3/8 | Coil: AC220V, grommet w/ surge circuit (GS)
JSXZ31-SN02R-5GSize: 30 | Body: Stainless steel | Seal: NBR | Port: Rc1/4 | Coil: DC24V, grommet (G)
JSXZ31-SN02R-1GSSize: 30 | Body: Stainless steel | Seal: NBR | Port: Rc1/4 | Coil: AC100V, grommet w/ surge circuit (GS)
JSXZ31-SN02R-2GSSize: 30 | Body: Stainless steel | Seal: NBR | Port: Rc1/4 | Coil: AC200V, grommet w/ surge circuit (GS)
JSXZ31-SN02R-4GSSize: 30 | Body: Stainless steel | Seal: NBR | Port: Rc1/4 | Coil: AC220V, grommet w/ surge circuit (GS)
JSXZ31-SN03R-5GSize: 30 | Body: Stainless steel | Seal: NBR | Port: Rc3/8 | Coil: DC24V, grommet (G)
JSXZ31-SN03R-1GSSize: 30 | Body: Stainless steel | Seal: NBR | Port: Rc3/8 | Coil: AC100V, grommet w/ surge circuit (GS)
JSXZ31-SN03R-2GSSize: 30 | Body: Stainless steel | Seal: NBR | Port: Rc3/8 | Coil: AC200V, grommet w/ surge circuit (GS)
JSXZ31-SN03R-4GSSize: 30 | Body: Stainless steel | Seal: NBR | Port: Rc3/8 | Coil: AC220V, grommet w/ surge circuit (GS)
JSXZ31-SF02R-5GSize: 30 | Body: Stainless steel | Seal: FKM | Port: Rc1/4 | Coil: DC24V, grommet (G)
JSXZ31-SF02R-1GSSize: 30 | Body: Stainless steel | Seal: FKM | Port: Rc1/4 | Coil: AC100V, grommet w/ surge circuit (GS)
JSXZ31-SF02R-2GSSize: 30 | Body: Stainless steel | Seal: FKM | Port: Rc1/4 | Coil: AC200V, grommet w/ surge circuit (GS)
JSXZ31-SF02R-4GSSize: 30 | Body: Stainless steel | Seal: FKM | Port: Rc1/4 | Coil: AC220V, grommet w/ surge circuit (GS)
JSXZ31-SF03R-5GSize: 30 | Body: Stainless steel | Seal: FKM | Port: Rc3/8 | Coil: DC24V, grommet (G)
JSXZ31-SF03R-1GSSize: 30 | Body: Stainless steel | Seal: FKM | Port: Rc3/8 | Coil: AC100V, grommet w/ surge circuit (GS)
JSXZ31-SF03R-2GSSize: 30 | Body: Stainless steel | Seal: FKM | Port: Rc3/8 | Coil: AC200V, grommet w/ surge circuit (GS)
JSXZ31-SF03R-4GSSize: 30 | Body: Stainless steel | Seal: FKM | Port: Rc3/8 | Coil: AC220V, grommet w/ surge circuit (GS)
JSXZ31-SE02R-5GSize: 30 | Body: Stainless steel | Seal: EPDM | Port: Rc1/4 | Coil: DC24V, grommet (G)
JSXZ31-SE02R-1GSSize: 30 | Body: Stainless steel | Seal: EPDM | Port: Rc1/4 | Coil: AC100V, grommet w/ surge circuit (GS)
JSXZ31-SE02R-2GSSize: 30 | Body: Stainless steel | Seal: EPDM | Port: Rc1/4 | Coil: AC200V, grommet w/ surge circuit (GS)
JSXZ31-SE02R-4GSSize: 30 | Body: Stainless steel | Seal: EPDM | Port: Rc1/4 | Coil: AC220V, grommet w/ surge circuit (GS)
JSXZ31-SE03R-5GSize: 30 | Body: Stainless steel | Seal: EPDM | Port: Rc3/8 | Coil: DC24V, grommet (G)
JSXZ31-SE03R-1GSSize: 30 | Body: Stainless steel | Seal: EPDM | Port: Rc3/8 | Coil: AC100V, grommet w/ surge circuit (GS)
JSXZ31-SE03R-2GSSize: 30 | Body: Stainless steel | Seal: EPDM | Port: Rc3/8 | Coil: AC200V, grommet w/ surge circuit (GS)
JSXZ31-SE03R-4GSSize: 30 | Body: Stainless steel | Seal: EPDM | Port: Rc3/8 | Coil: AC220V, grommet w/ surge circuit (GS)
JSXZ31-AN02R-5GSize: 30 | Body: Aluminum | Seal: NBR | Port: Rc1/4 | Coil: DC24V, grommet (G)
JSXZ31-AN02R-1GSSize: 30 | Body: Aluminum | Seal: NBR | Port: Rc1/4 | Coil: AC100V, grommet w/ surge circuit (GS)
JSXZ31-AN02R-2GSSize: 30 | Body: Aluminum | Seal: NBR | Port: Rc1/4 | Coil: AC200V, grommet w/ surge circuit (GS)
JSXZ31-AN02R-4GSSize: 30 | Body: Aluminum | Seal: NBR | Port: Rc1/4 | Coil: AC220V, grommet w/ surge circuit (GS)
JSXZ31-AN03R-5GSize: 30 | Body: Aluminum | Seal: NBR | Port: Rc3/8 | Coil: DC24V, grommet (G)
JSXZ31-AN03R-1GSSize: 30 | Body: Aluminum | Seal: NBR | Port: Rc3/8 | Coil: AC100V, grommet w/ surge circuit (GS)
JSXZ31-AN03R-2GSSize: 30 | Body: Aluminum | Seal: NBR | Port: Rc3/8 | Coil: AC200V, grommet w/ surge circuit (GS)
JSXZ31-AN03R-4GSSize: 30 | Body: Aluminum | Seal: NBR | Port: Rc3/8 | Coil: AC220V, grommet w/ surge circuit (GS)
JSXZ31-AF02R-5GSize: 30 | Body: Aluminum | Seal: FKM | Port: Rc1/4 | Coil: DC24V, grommet (G)
JSXZ31-AF02R-1GSSize: 30 | Body: Aluminum | Seal: FKM | Port: Rc1/4 | Coil: AC100V, grommet w/ surge circuit (GS)
JSXZ31-AF02R-2GSSize: 30 | Body: Aluminum | Seal: FKM | Port: Rc1/4 | Coil: AC200V, grommet w/ surge circuit (GS)
JSXZ31-AF02R-4GSSize: 30 | Body: Aluminum | Seal: FKM | Port: Rc1/4 | Coil: AC220V, grommet w/ surge circuit (GS)
JSXZ31-AF03R-5GSize: 30 | Body: Aluminum | Seal: FKM | Port: Rc3/8 | Coil: DC24V, grommet (G)
JSXZ31-AF03R-1GSSize: 30 | Body: Aluminum | Seal: FKM | Port: Rc3/8 | Coil: AC100V, grommet w/ surge circuit (GS)
JSXZ31-AF03R-2GSSize: 30 | Body: Aluminum | Seal: FKM | Port: Rc3/8 | Coil: AC200V, grommet w/ surge circuit (GS)
JSXZ31-AF03R-4GSSize: 30 | Body: Aluminum | Seal: FKM | Port: Rc3/8 | Coil: AC220V, grommet w/ surge circuit (GS)
JSXZ41-CN04R-5GSize: 40 | Body: Brass | Seal: NBR | Port: Rc1/2 | Coil: DC24V, grommet (G)
JSXZ41-CN04R-1GSSize: 40 | Body: Brass | Seal: NBR | Port: Rc1/2 | Coil: AC100V, grommet w/ surge circuit (GS)
JSXZ41-CN04R-2GSSize: 40 | Body: Brass | Seal: NBR | Port: Rc1/2 | Coil: AC200V, grommet w/ surge circuit (GS)
JSXZ41-CN04R-4GSSize: 40 | Body: Brass | Seal: NBR | Port: Rc1/2 | Coil: AC220V, grommet w/ surge circuit (GS)
JSXZ41-CF04R-5GSize: 40 | Body: Brass | Seal: FKM | Port: Rc1/2 | Coil: DC24V, grommet (G)
JSXZ41-CF04R-1GSSize: 40 | Body: Brass | Seal: FKM | Port: Rc1/2 | Coil: AC100V, grommet w/ surge circuit (GS)
JSXZ41-CF04R-2GSSize: 40 | Body: Brass | Seal: FKM | Port: Rc1/2 | Coil: AC200V, grommet w/ surge circuit (GS)
JSXZ41-CF04R-4GSSize: 40 | Body: Brass | Seal: FKM | Port: Rc1/2 | Coil: AC220V, grommet w/ surge circuit (GS)
JSXZ41-CE04R-5GSize: 40 | Body: Brass | Seal: EPDM | Port: Rc1/2 | Coil: DC24V, grommet (G)
JSXZ41-CE04R-1GSSize: 40 | Body: Brass | Seal: EPDM | Port: Rc1/2 | Coil: AC100V, grommet w/ surge circuit (GS)
JSXZ41-CE04R-2GSSize: 40 | Body: Brass | Seal: EPDM | Port: Rc1/2 | Coil: AC200V, grommet w/ surge circuit (GS)
JSXZ41-CE04R-4GSSize: 40 | Body: Brass | Seal: EPDM | Port: Rc1/2 | Coil: AC220V, grommet w/ surge circuit (GS)
JSXZ41-SN04R-5GSize: 40 | Body: Stainless steel | Seal: NBR | Port: Rc1/2 | Coil: DC24V, grommet (G)
JSXZ41-SN04R-1GSSize: 40 | Body: Stainless steel | Seal: NBR | Port: Rc1/2 | Coil: AC100V, grommet w/ surge circuit (GS)
JSXZ41-SN04R-2GSSize: 40 | Body: Stainless steel | Seal: NBR | Port: Rc1/2 | Coil: AC200V, grommet w/ surge circuit (GS)
JSXZ41-SN04R-4GSSize: 40 | Body: Stainless steel | Seal: NBR | Port: Rc1/2 | Coil: AC220V, grommet w/ surge circuit (GS)
JSXZ41-SF04R-5GSize: 40 | Body: Stainless steel | Seal: FKM | Port: Rc1/2 | Coil: DC24V, grommet (G)
JSXZ41-SF04R-1GSSize: 40 | Body: Stainless steel | Seal: FKM | Port: Rc1/2 | Coil: AC100V, grommet w/ surge circuit (GS)
JSXZ41-SF04R-2GSSize: 40 | Body: Stainless steel | Seal: FKM | Port: Rc1/2 | Coil: AC200V, grommet w/ surge circuit (GS)
JSXZ41-SF04R-4GSSize: 40 | Body: Stainless steel | Seal: FKM | Port: Rc1/2 | Coil: AC220V, grommet w/ surge circuit (GS)
JSXZ41-SE04R-5GSize: 40 | Body: Stainless steel | Seal: EPDM | Port: Rc1/2 | Coil: DC24V, grommet (G)
JSXZ41-SE04R-1GSSize: 40 | Body: Stainless steel | Seal: EPDM | Port: Rc1/2 | Coil: AC100V, grommet w/ surge circuit (GS)
JSXZ41-SE04R-2GSSize: 40 | Body: Stainless steel | Seal: EPDM | Port: Rc1/2 | Coil: AC200V, grommet w/ surge circuit (GS)
JSXZ41-SE04R-4GSSize: 40 | Body: Stainless steel | Seal: EPDM | Port: Rc1/2 | Coil: AC220V, grommet w/ surge circuit (GS)
JSXZ51-CN06R-5GSize: 50 | Body: Brass | Seal: NBR | Port: Rc3/4 | Coil: DC24V, grommet (G)
JSXZ51-CN06R-1GSSize: 50 | Body: Brass | Seal: NBR | Port: Rc3/4 | Coil: AC100V, grommet w/ surge circuit (GS)
JSXZ51-CN06R-2GSSize: 50 | Body: Brass | Seal: NBR | Port: Rc3/4 | Coil: AC200V, grommet w/ surge circuit (GS)
JSXZ51-CN06R-4GSSize: 50 | Body: Brass | Seal: NBR | Port: Rc3/4 | Coil: AC220V, grommet w/ surge circuit (GS)
JSXZ51-CF06R-5GSize: 50 | Body: Brass | Seal: FKM | Port: Rc3/4 | Coil: DC24V, grommet (G)
JSXZ51-CF06R-1GSSize: 50 | Body: Brass | Seal: FKM | Port: Rc3/4 | Coil: AC100V, grommet w/ surge circuit (GS)
JSXZ51-CF06R-2GSSize: 50 | Body: Brass | Seal: FKM | Port: Rc3/4 | Coil: AC200V, grommet w/ surge circuit (GS)
JSXZ51-CF06R-4GSSize: 50 | Body: Brass | Seal: FKM | Port: Rc3/4 | Coil: AC220V, grommet w/ surge circuit (GS)
JSXZ51-CE06R-5GSize: 50 | Body: Brass | Seal: EPDM | Port: Rc3/4 | Coil: DC24V, grommet (G)
JSXZ51-CE06R-1GSSize: 50 | Body: Brass | Seal: EPDM | Port: Rc3/4 | Coil: AC100V, grommet w/ surge circuit (GS)
JSXZ51-CE06R-2GSSize: 50 | Body: Brass | Seal: EPDM | Port: Rc3/4 | Coil: AC200V, grommet w/ surge circuit (GS)
JSXZ51-CE06R-4GSSize: 50 | Body: Brass | Seal: EPDM | Port: Rc3/4 | Coil: AC220V, grommet w/ surge circuit (GS)
JSXZ51-SN06R-5GSize: 50 | Body: Stainless steel | Seal: NBR | Port: Rc3/4 | Coil: DC24V, grommet (G)
JSXZ51-SN06R-1GSSize: 50 | Body: Stainless steel | Seal: NBR | Port: Rc3/4 | Coil: AC100V, grommet w/ surge circuit (GS)
JSXZ51-SN06R-2GSSize: 50 | Body: Stainless steel | Seal: NBR | Port: Rc3/4 | Coil: AC200V, grommet w/ surge circuit (GS)
JSXZ51-SN06R-4GSSize: 50 | Body: Stainless steel | Seal: NBR | Port: Rc3/4 | Coil: AC220V, grommet w/ surge circuit (GS)
JSXZ51-SF06R-5GSize: 50 | Body: Stainless steel | Seal: FKM | Port: Rc3/4 | Coil: DC24V, grommet (G)
JSXZ51-SF06R-1GSSize: 50 | Body: Stainless steel | Seal: FKM | Port: Rc3/4 | Coil: AC100V, grommet w/ surge circuit (GS)
JSXZ51-SF06R-2GSSize: 50 | Body: Stainless steel | Seal: FKM | Port: Rc3/4 | Coil: AC200V, grommet w/ surge circuit (GS)
JSXZ51-SF06R-4GSSize: 50 | Body: Stainless steel | Seal: FKM | Port: Rc3/4 | Coil: AC220V, grommet w/ surge circuit (GS)
JSXZ51-SE06R-5GSize: 50 | Body: Stainless steel | Seal: EPDM | Port: Rc3/4 | Coil: DC24V, grommet (G)
JSXZ51-SE06R-1GSSize: 50 | Body: Stainless steel | Seal: EPDM | Port: Rc3/4 | Coil: AC100V, grommet w/ surge circuit (GS)
JSXZ51-SE06R-2GSSize: 50 | Body: Stainless steel | Seal: EPDM | Port: Rc3/4 | Coil: AC200V, grommet w/ surge circuit (GS)
JSXZ51-SE06R-4GSSize: 50 | Body: Stainless steel | Seal: EPDM | Port: Rc3/4 | Coil: AC220V, grommet w/ surge circuit (GS)
JSXZ61-CN10R-5GSize: 60 | Body: Brass | Seal: NBR | Port: Rc1 | Coil: DC24V, grommet (G)
JSXZ61-CN10R-1GSSize: 60 | Body: Brass | Seal: NBR | Port: Rc1 | Coil: AC100V, grommet w/ surge circuit (GS)
JSXZ61-CN10R-2GSSize: 60 | Body: Brass | Seal: NBR | Port: Rc1 | Coil: AC200V, grommet w/ surge circuit (GS)
JSXZ61-CN10R-4GSSize: 60 | Body: Brass | Seal: NBR | Port: Rc1 | Coil: AC220V, grommet w/ surge circuit (GS)
JSXZ61-CF10R-5GSize: 60 | Body: Brass | Seal: FKM | Port: Rc1 | Coil: DC24V, grommet (G)
JSXZ61-CF10R-1GSSize: 60 | Body: Brass | Seal: FKM | Port: Rc1 | Coil: AC100V, grommet w/ surge circuit (GS)
JSXZ61-CF10R-2GSSize: 60 | Body: Brass | Seal: FKM | Port: Rc1 | Coil: AC200V, grommet w/ surge circuit (GS)
JSXZ61-CF10R-4GSSize: 60 | Body: Brass | Seal: FKM | Port: Rc1 | Coil: AC220V, grommet w/ surge circuit (GS)
JSXZ61-CE10R-5GSize: 60 | Body: Brass | Seal: EPDM | Port: Rc1 | Coil: DC24V, grommet (G)
JSXZ61-CE10R-1GSSize: 60 | Body: Brass | Seal: EPDM | Port: Rc1 | Coil: AC100V, grommet w/ surge circuit (GS)
JSXZ61-CE10R-2GSSize: 60 | Body: Brass | Seal: EPDM | Port: Rc1 | Coil: AC200V, grommet w/ surge circuit (GS)
JSXZ61-CE10R-4GSSize: 60 | Body: Brass | Seal: EPDM | Port: Rc1 | Coil: AC220V, grommet w/ surge circuit (GS)
JSXZ61-SN10R-5GSize: 60 | Body: Stainless steel | Seal: NBR | Port: Rc1 | Coil: DC24V, grommet (G)
JSXZ61-SN10R-1GSSize: 60 | Body: Stainless steel | Seal: NBR | Port: Rc1 | Coil: AC100V, grommet w/ surge circuit (GS)
JSXZ61-SN10R-2GSSize: 60 | Body: Stainless steel | Seal: NBR | Port: Rc1 | Coil: AC200V, grommet w/ surge circuit (GS)
JSXZ61-SN10R-4GSSize: 60 | Body: Stainless steel | Seal: NBR | Port: Rc1 | Coil: AC220V, grommet w/ surge circuit (GS)
JSXZ61-SF10R-5GSize: 60 | Body: Stainless steel | Seal: FKM | Port: Rc1 | Coil: DC24V, grommet (G)
JSXZ61-SF10R-1GSSize: 60 | Body: Stainless steel | Seal: FKM | Port: Rc1 | Coil: AC100V, grommet w/ surge circuit (GS)
JSXZ61-SF10R-2GSSize: 60 | Body: Stainless steel | Seal: FKM | Port: Rc1 | Coil: AC200V, grommet w/ surge circuit (GS)
JSXZ61-SF10R-4GSSize: 60 | Body: Stainless steel | Seal: FKM | Port: Rc1 | Coil: AC220V, grommet w/ surge circuit (GS)
JSXZ61-SE10R-5GSize: 60 | Body: Stainless steel | Seal: EPDM | Port: Rc1 | Coil: DC24V, grommet (G)
JSXZ61-SE10R-1GSSize: 60 | Body: Stainless steel | Seal: EPDM | Port: Rc1 | Coil: AC100V, grommet w/ surge circuit (GS)
JSXZ61-SE10R-2GSSize: 60 | Body: Stainless steel | Seal: EPDM | Port: Rc1 | Coil: AC200V, grommet w/ surge circuit (GS)
JSXZ61-SE10R-4GSSize: 60 | Body: Stainless steel | Seal: EPDM | Port: Rc1 | Coil: AC220V, grommet w/ surge circuit (GS)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
