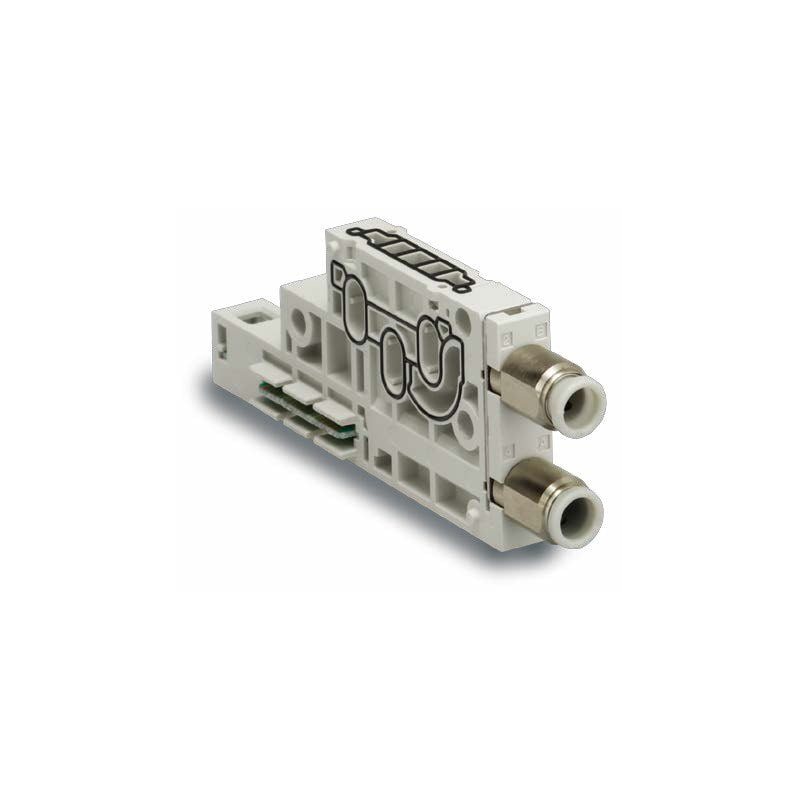

SMC JSY3000/5000 Single Unit Sub-plate Valve (M12, IP67)

SMC JSY3000/5000 plug-in 5-port solenoid valve mounted on a single-unit sub-plate with M12 waterproof connector, side or bottom ported, IP67.

Key features

Valve plus plug-in sub-plate ordered as one part number, or the sub-plate alone (JSY_1M-27P-1)
M12 waterproof connector on the sub-plate; individual SUP/EXH ports with separate 5(EA) and 3(EB)
Side ported or bottom ported (B); Rc1/8 (JSY3000) or Rc1/4 (JSY5000), G (F) and NPT (N) threads on order
Listed codes without cable (WO); M12 connector cable 300 mm to 5000 mm (W1-W7) available
Same switching, power-saving and manual override options as the plug-in JSY valve

Specifications

Fluid	Air
Enclosure	IP67 (IEC60529)
Connector	M12 waterproof connector
Internal wiring	+Common, -Common
Rated voltage	DC24V
Flow rate C, 1→4/2	JSY3000 2.4, JSY5000 6.9 dm³/(s·bar)
Sub-plate mass	JSY3000 125 g (side) / 133 g (bottom); JSY5000 176 g / 208 g
Ambient and fluid temperature	-10 to 50°C (no freezing)
Source	SMC Korea catalog CAT.KS11-110C (SMCKR_JSY_plugin.pdf), p. 155-157 (PDF p. 156-158)

JSY3100-5U-WO-01		Series: JSY3000 \| Switching: 2-pos single \| Coil/Common: Non-polar \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
JSY3100-5U-WO-B01		Series: JSY3000 \| Switching: 2-pos single \| Coil/Common: Non-polar \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
JSY3100-5UD-WO-01		Series: JSY3000 \| Switching: 2-pos single \| Coil/Common: Non-polar \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
JSY3100-5UD-WO-B01		Series: JSY3000 \| Switching: 2-pos single \| Coil/Common: Non-polar \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
JSY3100-5UE-WO-01		Series: JSY3000 \| Switching: 2-pos single \| Coil/Common: Non-polar \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
JSY3100-5UE-WO-B01		Series: JSY3000 \| Switching: 2-pos single \| Coil/Common: Non-polar \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
JSY3100-5Z-WO-01		Series: JSY3000 \| Switching: 2-pos single \| Coil/Common: +Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
JSY3100-5Z-WO-B01		Series: JSY3000 \| Switching: 2-pos single \| Coil/Common: +Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
JSY3100-5ZD-WO-01		Series: JSY3000 \| Switching: 2-pos single \| Coil/Common: +Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
JSY3100-5ZD-WO-B01		Series: JSY3000 \| Switching: 2-pos single \| Coil/Common: +Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
JSY3100-5ZE-WO-01		Series: JSY3000 \| Switching: 2-pos single \| Coil/Common: +Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
JSY3100-5ZE-WO-B01		Series: JSY3000 \| Switching: 2-pos single \| Coil/Common: +Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
JSY3100-5NZ-WO-01		Series: JSY3000 \| Switching: 2-pos single \| Coil/Common: -Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
JSY3100-5NZ-WO-B01		Series: JSY3000 \| Switching: 2-pos single \| Coil/Common: -Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
JSY3100-5NZD-WO-01		Series: JSY3000 \| Switching: 2-pos single \| Coil/Common: -Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
JSY3100-5NZD-WO-B01		Series: JSY3000 \| Switching: 2-pos single \| Coil/Common: -Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
JSY3100-5NZE-WO-01		Series: JSY3000 \| Switching: 2-pos single \| Coil/Common: -Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
JSY3100-5NZE-WO-B01		Series: JSY3000 \| Switching: 2-pos single \| Coil/Common: -Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
JSY3100T-5Z-WO-01		Series: JSY3000 \| Switching: 2-pos single \| Coil/Common: Power-saving, +Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
JSY3100T-5Z-WO-B01		Series: JSY3000 \| Switching: 2-pos single \| Coil/Common: Power-saving, +Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
JSY3100T-5ZD-WO-01		Series: JSY3000 \| Switching: 2-pos single \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
JSY3100T-5ZD-WO-B01		Series: JSY3000 \| Switching: 2-pos single \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
JSY3100T-5ZE-WO-01		Series: JSY3000 \| Switching: 2-pos single \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
JSY3100T-5ZE-WO-B01		Series: JSY3000 \| Switching: 2-pos single \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
JSY3100T-5NZ-WO-01		Series: JSY3000 \| Switching: 2-pos single \| Coil/Common: Power-saving, -Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
JSY3100T-5NZ-WO-B01		Series: JSY3000 \| Switching: 2-pos single \| Coil/Common: Power-saving, -Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
JSY3100T-5NZD-WO-01		Series: JSY3000 \| Switching: 2-pos single \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
JSY3100T-5NZD-WO-B01		Series: JSY3000 \| Switching: 2-pos single \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
JSY3100T-5NZE-WO-01		Series: JSY3000 \| Switching: 2-pos single \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
JSY3100T-5NZE-WO-B01		Series: JSY3000 \| Switching: 2-pos single \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
JSY3200-5U-WO-01		Series: JSY3000 \| Switching: 2-pos double \| Coil/Common: Non-polar \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
JSY3200-5U-WO-B01		Series: JSY3000 \| Switching: 2-pos double \| Coil/Common: Non-polar \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
JSY3200-5UD-WO-01		Series: JSY3000 \| Switching: 2-pos double \| Coil/Common: Non-polar \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
JSY3200-5UD-WO-B01		Series: JSY3000 \| Switching: 2-pos double \| Coil/Common: Non-polar \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
JSY3200-5UE-WO-01		Series: JSY3000 \| Switching: 2-pos double \| Coil/Common: Non-polar \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
JSY3200-5UE-WO-B01		Series: JSY3000 \| Switching: 2-pos double \| Coil/Common: Non-polar \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
JSY3200-5Z-WO-01		Series: JSY3000 \| Switching: 2-pos double \| Coil/Common: +Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
JSY3200-5Z-WO-B01		Series: JSY3000 \| Switching: 2-pos double \| Coil/Common: +Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
JSY3200-5ZD-WO-01		Series: JSY3000 \| Switching: 2-pos double \| Coil/Common: +Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
JSY3200-5ZD-WO-B01		Series: JSY3000 \| Switching: 2-pos double \| Coil/Common: +Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
JSY3200-5ZE-WO-01		Series: JSY3000 \| Switching: 2-pos double \| Coil/Common: +Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
JSY3200-5ZE-WO-B01		Series: JSY3000 \| Switching: 2-pos double \| Coil/Common: +Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
JSY3200-5NZ-WO-01		Series: JSY3000 \| Switching: 2-pos double \| Coil/Common: -Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
JSY3200-5NZ-WO-B01		Series: JSY3000 \| Switching: 2-pos double \| Coil/Common: -Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
JSY3200-5NZD-WO-01		Series: JSY3000 \| Switching: 2-pos double \| Coil/Common: -Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
JSY3200-5NZD-WO-B01		Series: JSY3000 \| Switching: 2-pos double \| Coil/Common: -Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
JSY3200-5NZE-WO-01		Series: JSY3000 \| Switching: 2-pos double \| Coil/Common: -Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
JSY3200-5NZE-WO-B01		Series: JSY3000 \| Switching: 2-pos double \| Coil/Common: -Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
JSY3200T-5Z-WO-01		Series: JSY3000 \| Switching: 2-pos double \| Coil/Common: Power-saving, +Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
JSY3200T-5Z-WO-B01		Series: JSY3000 \| Switching: 2-pos double \| Coil/Common: Power-saving, +Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
JSY3200T-5ZD-WO-01		Series: JSY3000 \| Switching: 2-pos double \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
JSY3200T-5ZD-WO-B01		Series: JSY3000 \| Switching: 2-pos double \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
JSY3200T-5ZE-WO-01		Series: JSY3000 \| Switching: 2-pos double \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
JSY3200T-5ZE-WO-B01		Series: JSY3000 \| Switching: 2-pos double \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
JSY3200T-5NZ-WO-01		Series: JSY3000 \| Switching: 2-pos double \| Coil/Common: Power-saving, -Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
JSY3200T-5NZ-WO-B01		Series: JSY3000 \| Switching: 2-pos double \| Coil/Common: Power-saving, -Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
JSY3200T-5NZD-WO-01		Series: JSY3000 \| Switching: 2-pos double \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
JSY3200T-5NZD-WO-B01		Series: JSY3000 \| Switching: 2-pos double \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
JSY3200T-5NZE-WO-01		Series: JSY3000 \| Switching: 2-pos double \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
JSY3200T-5NZE-WO-B01		Series: JSY3000 \| Switching: 2-pos double \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
JSY3300-5U-WO-01		Series: JSY3000 \| Switching: 3-pos closed center \| Coil/Common: Non-polar \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
JSY3300-5U-WO-B01		Series: JSY3000 \| Switching: 3-pos closed center \| Coil/Common: Non-polar \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
JSY3300-5UD-WO-01		Series: JSY3000 \| Switching: 3-pos closed center \| Coil/Common: Non-polar \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
JSY3300-5UD-WO-B01		Series: JSY3000 \| Switching: 3-pos closed center \| Coil/Common: Non-polar \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
JSY3300-5UE-WO-01		Series: JSY3000 \| Switching: 3-pos closed center \| Coil/Common: Non-polar \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
JSY3300-5UE-WO-B01		Series: JSY3000 \| Switching: 3-pos closed center \| Coil/Common: Non-polar \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
JSY3300-5Z-WO-01		Series: JSY3000 \| Switching: 3-pos closed center \| Coil/Common: +Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
JSY3300-5Z-WO-B01		Series: JSY3000 \| Switching: 3-pos closed center \| Coil/Common: +Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
JSY3300-5ZD-WO-01		Series: JSY3000 \| Switching: 3-pos closed center \| Coil/Common: +Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
JSY3300-5ZD-WO-B01		Series: JSY3000 \| Switching: 3-pos closed center \| Coil/Common: +Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
JSY3300-5ZE-WO-01		Series: JSY3000 \| Switching: 3-pos closed center \| Coil/Common: +Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
JSY3300-5ZE-WO-B01		Series: JSY3000 \| Switching: 3-pos closed center \| Coil/Common: +Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
JSY3300-5NZ-WO-01		Series: JSY3000 \| Switching: 3-pos closed center \| Coil/Common: -Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
JSY3300-5NZ-WO-B01		Series: JSY3000 \| Switching: 3-pos closed center \| Coil/Common: -Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
JSY3300-5NZD-WO-01		Series: JSY3000 \| Switching: 3-pos closed center \| Coil/Common: -Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
JSY3300-5NZD-WO-B01		Series: JSY3000 \| Switching: 3-pos closed center \| Coil/Common: -Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
JSY3300-5NZE-WO-01		Series: JSY3000 \| Switching: 3-pos closed center \| Coil/Common: -Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
JSY3300-5NZE-WO-B01		Series: JSY3000 \| Switching: 3-pos closed center \| Coil/Common: -Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
JSY3300T-5Z-WO-01		Series: JSY3000 \| Switching: 3-pos closed center \| Coil/Common: Power-saving, +Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
JSY3300T-5Z-WO-B01		Series: JSY3000 \| Switching: 3-pos closed center \| Coil/Common: Power-saving, +Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
JSY3300T-5ZD-WO-01		Series: JSY3000 \| Switching: 3-pos closed center \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
JSY3300T-5ZD-WO-B01		Series: JSY3000 \| Switching: 3-pos closed center \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
JSY3300T-5ZE-WO-01		Series: JSY3000 \| Switching: 3-pos closed center \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
JSY3300T-5ZE-WO-B01		Series: JSY3000 \| Switching: 3-pos closed center \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
JSY3300T-5NZ-WO-01		Series: JSY3000 \| Switching: 3-pos closed center \| Coil/Common: Power-saving, -Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
JSY3300T-5NZ-WO-B01		Series: JSY3000 \| Switching: 3-pos closed center \| Coil/Common: Power-saving, -Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
JSY3300T-5NZD-WO-01		Series: JSY3000 \| Switching: 3-pos closed center \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
JSY3300T-5NZD-WO-B01		Series: JSY3000 \| Switching: 3-pos closed center \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
JSY3300T-5NZE-WO-01		Series: JSY3000 \| Switching: 3-pos closed center \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
JSY3300T-5NZE-WO-B01		Series: JSY3000 \| Switching: 3-pos closed center \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
JSY3400-5U-WO-01		Series: JSY3000 \| Switching: 3-pos exhaust center \| Coil/Common: Non-polar \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
JSY3400-5U-WO-B01		Series: JSY3000 \| Switching: 3-pos exhaust center \| Coil/Common: Non-polar \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
JSY3400-5UD-WO-01		Series: JSY3000 \| Switching: 3-pos exhaust center \| Coil/Common: Non-polar \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
JSY3400-5UD-WO-B01		Series: JSY3000 \| Switching: 3-pos exhaust center \| Coil/Common: Non-polar \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
JSY3400-5UE-WO-01		Series: JSY3000 \| Switching: 3-pos exhaust center \| Coil/Common: Non-polar \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
JSY3400-5UE-WO-B01		Series: JSY3000 \| Switching: 3-pos exhaust center \| Coil/Common: Non-polar \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
JSY3400-5Z-WO-01		Series: JSY3000 \| Switching: 3-pos exhaust center \| Coil/Common: +Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
JSY3400-5Z-WO-B01		Series: JSY3000 \| Switching: 3-pos exhaust center \| Coil/Common: +Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
JSY3400-5ZD-WO-01		Series: JSY3000 \| Switching: 3-pos exhaust center \| Coil/Common: +Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
JSY3400-5ZD-WO-B01		Series: JSY3000 \| Switching: 3-pos exhaust center \| Coil/Common: +Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
JSY3400-5ZE-WO-01		Series: JSY3000 \| Switching: 3-pos exhaust center \| Coil/Common: +Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
JSY3400-5ZE-WO-B01		Series: JSY3000 \| Switching: 3-pos exhaust center \| Coil/Common: +Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
JSY3400-5NZ-WO-01		Series: JSY3000 \| Switching: 3-pos exhaust center \| Coil/Common: -Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
JSY3400-5NZ-WO-B01		Series: JSY3000 \| Switching: 3-pos exhaust center \| Coil/Common: -Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
JSY3400-5NZD-WO-01		Series: JSY3000 \| Switching: 3-pos exhaust center \| Coil/Common: -Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
JSY3400-5NZD-WO-B01		Series: JSY3000 \| Switching: 3-pos exhaust center \| Coil/Common: -Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
JSY3400-5NZE-WO-01		Series: JSY3000 \| Switching: 3-pos exhaust center \| Coil/Common: -Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
JSY3400-5NZE-WO-B01		Series: JSY3000 \| Switching: 3-pos exhaust center \| Coil/Common: -Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
JSY3400T-5Z-WO-01		Series: JSY3000 \| Switching: 3-pos exhaust center \| Coil/Common: Power-saving, +Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
JSY3400T-5Z-WO-B01		Series: JSY3000 \| Switching: 3-pos exhaust center \| Coil/Common: Power-saving, +Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
JSY3400T-5ZD-WO-01		Series: JSY3000 \| Switching: 3-pos exhaust center \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
JSY3400T-5ZD-WO-B01		Series: JSY3000 \| Switching: 3-pos exhaust center \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
JSY3400T-5ZE-WO-01		Series: JSY3000 \| Switching: 3-pos exhaust center \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
JSY3400T-5ZE-WO-B01		Series: JSY3000 \| Switching: 3-pos exhaust center \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
JSY3400T-5NZ-WO-01		Series: JSY3000 \| Switching: 3-pos exhaust center \| Coil/Common: Power-saving, -Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
JSY3400T-5NZ-WO-B01		Series: JSY3000 \| Switching: 3-pos exhaust center \| Coil/Common: Power-saving, -Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
JSY3400T-5NZD-WO-01		Series: JSY3000 \| Switching: 3-pos exhaust center \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
JSY3400T-5NZD-WO-B01		Series: JSY3000 \| Switching: 3-pos exhaust center \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
JSY3400T-5NZE-WO-01		Series: JSY3000 \| Switching: 3-pos exhaust center \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
JSY3400T-5NZE-WO-B01		Series: JSY3000 \| Switching: 3-pos exhaust center \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
JSY3500-5U-WO-01		Series: JSY3000 \| Switching: 3-pos pressure center \| Coil/Common: Non-polar \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
JSY3500-5U-WO-B01		Series: JSY3000 \| Switching: 3-pos pressure center \| Coil/Common: Non-polar \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
JSY3500-5UD-WO-01		Series: JSY3000 \| Switching: 3-pos pressure center \| Coil/Common: Non-polar \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
JSY3500-5UD-WO-B01		Series: JSY3000 \| Switching: 3-pos pressure center \| Coil/Common: Non-polar \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
JSY3500-5UE-WO-01		Series: JSY3000 \| Switching: 3-pos pressure center \| Coil/Common: Non-polar \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
JSY3500-5UE-WO-B01		Series: JSY3000 \| Switching: 3-pos pressure center \| Coil/Common: Non-polar \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
JSY3500-5Z-WO-01		Series: JSY3000 \| Switching: 3-pos pressure center \| Coil/Common: +Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
JSY3500-5Z-WO-B01		Series: JSY3000 \| Switching: 3-pos pressure center \| Coil/Common: +Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
JSY3500-5ZD-WO-01		Series: JSY3000 \| Switching: 3-pos pressure center \| Coil/Common: +Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
JSY3500-5ZD-WO-B01		Series: JSY3000 \| Switching: 3-pos pressure center \| Coil/Common: +Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
JSY3500-5ZE-WO-01		Series: JSY3000 \| Switching: 3-pos pressure center \| Coil/Common: +Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
JSY3500-5ZE-WO-B01		Series: JSY3000 \| Switching: 3-pos pressure center \| Coil/Common: +Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
JSY3500-5NZ-WO-01		Series: JSY3000 \| Switching: 3-pos pressure center \| Coil/Common: -Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
JSY3500-5NZ-WO-B01		Series: JSY3000 \| Switching: 3-pos pressure center \| Coil/Common: -Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
JSY3500-5NZD-WO-01		Series: JSY3000 \| Switching: 3-pos pressure center \| Coil/Common: -Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
JSY3500-5NZD-WO-B01		Series: JSY3000 \| Switching: 3-pos pressure center \| Coil/Common: -Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
JSY3500-5NZE-WO-01		Series: JSY3000 \| Switching: 3-pos pressure center \| Coil/Common: -Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
JSY3500-5NZE-WO-B01		Series: JSY3000 \| Switching: 3-pos pressure center \| Coil/Common: -Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
JSY3500T-5Z-WO-01		Series: JSY3000 \| Switching: 3-pos pressure center \| Coil/Common: Power-saving, +Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
JSY3500T-5Z-WO-B01		Series: JSY3000 \| Switching: 3-pos pressure center \| Coil/Common: Power-saving, +Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
JSY3500T-5ZD-WO-01		Series: JSY3000 \| Switching: 3-pos pressure center \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
JSY3500T-5ZD-WO-B01		Series: JSY3000 \| Switching: 3-pos pressure center \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
JSY3500T-5ZE-WO-01		Series: JSY3000 \| Switching: 3-pos pressure center \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
JSY3500T-5ZE-WO-B01		Series: JSY3000 \| Switching: 3-pos pressure center \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
JSY3500T-5NZ-WO-01		Series: JSY3000 \| Switching: 3-pos pressure center \| Coil/Common: Power-saving, -Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
JSY3500T-5NZ-WO-B01		Series: JSY3000 \| Switching: 3-pos pressure center \| Coil/Common: Power-saving, -Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
JSY3500T-5NZD-WO-01		Series: JSY3000 \| Switching: 3-pos pressure center \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
JSY3500T-5NZD-WO-B01		Series: JSY3000 \| Switching: 3-pos pressure center \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
JSY3500T-5NZE-WO-01		Series: JSY3000 \| Switching: 3-pos pressure center \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
JSY3500T-5NZE-WO-B01		Series: JSY3000 \| Switching: 3-pos pressure center \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
JSY3A00-5U-WO-01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: Non-polar \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
JSY3A00-5U-WO-B01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: Non-polar \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
JSY3A00-5UD-WO-01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: Non-polar \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
JSY3A00-5UD-WO-B01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: Non-polar \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
JSY3A00-5UE-WO-01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: Non-polar \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
JSY3A00-5UE-WO-B01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: Non-polar \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
JSY3A00-5Z-WO-01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: +Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
JSY3A00-5Z-WO-B01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: +Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
JSY3A00-5ZD-WO-01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: +Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
JSY3A00-5ZD-WO-B01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: +Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
JSY3A00-5ZE-WO-01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: +Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
JSY3A00-5ZE-WO-B01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: +Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
JSY3A00-5NZ-WO-01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: -Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
JSY3A00-5NZ-WO-B01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: -Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
JSY3A00-5NZD-WO-01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: -Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
JSY3A00-5NZD-WO-B01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: -Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
JSY3A00-5NZE-WO-01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: -Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
JSY3A00-5NZE-WO-B01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: -Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
JSY3A00T-5Z-WO-01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: Power-saving, +Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
JSY3A00T-5Z-WO-B01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: Power-saving, +Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
JSY3A00T-5ZD-WO-01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
JSY3A00T-5ZD-WO-B01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
JSY3A00T-5ZE-WO-01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
JSY3A00T-5ZE-WO-B01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
JSY3A00T-5NZ-WO-01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: Power-saving, -Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
JSY3A00T-5NZ-WO-B01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: Power-saving, -Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
JSY3A00T-5NZD-WO-01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
JSY3A00T-5NZD-WO-B01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
JSY3A00T-5NZE-WO-01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
JSY3A00T-5NZE-WO-B01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
JSY3B00-5U-WO-01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: Non-polar \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
JSY3B00-5U-WO-B01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: Non-polar \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
JSY3B00-5UD-WO-01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: Non-polar \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
JSY3B00-5UD-WO-B01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: Non-polar \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
JSY3B00-5UE-WO-01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: Non-polar \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
JSY3B00-5UE-WO-B01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: Non-polar \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
JSY3B00-5Z-WO-01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: +Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
JSY3B00-5Z-WO-B01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: +Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
JSY3B00-5ZD-WO-01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: +Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
JSY3B00-5ZD-WO-B01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: +Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
JSY3B00-5ZE-WO-01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: +Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
JSY3B00-5ZE-WO-B01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: +Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
JSY3B00-5NZ-WO-01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: -Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
JSY3B00-5NZ-WO-B01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: -Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
JSY3B00-5NZD-WO-01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: -Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
JSY3B00-5NZD-WO-B01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: -Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
JSY3B00-5NZE-WO-01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: -Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
JSY3B00-5NZE-WO-B01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: -Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
JSY3B00T-5Z-WO-01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: Power-saving, +Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
JSY3B00T-5Z-WO-B01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: Power-saving, +Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
JSY3B00T-5ZD-WO-01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
JSY3B00T-5ZD-WO-B01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
JSY3B00T-5ZE-WO-01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
JSY3B00T-5ZE-WO-B01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
JSY3B00T-5NZ-WO-01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: Power-saving, -Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
JSY3B00T-5NZ-WO-B01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: Power-saving, -Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
JSY3B00T-5NZD-WO-01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
JSY3B00T-5NZD-WO-B01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
JSY3B00T-5NZE-WO-01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
JSY3B00T-5NZE-WO-B01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
JSY3C00-5U-WO-01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: Non-polar \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
JSY3C00-5U-WO-B01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: Non-polar \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
JSY3C00-5UD-WO-01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: Non-polar \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
JSY3C00-5UD-WO-B01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: Non-polar \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
JSY3C00-5UE-WO-01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: Non-polar \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
JSY3C00-5UE-WO-B01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: Non-polar \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
JSY3C00-5Z-WO-01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: +Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
JSY3C00-5Z-WO-B01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: +Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
JSY3C00-5ZD-WO-01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: +Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
JSY3C00-5ZD-WO-B01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: +Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
JSY3C00-5ZE-WO-01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: +Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
JSY3C00-5ZE-WO-B01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: +Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
JSY3C00-5NZ-WO-01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: -Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
JSY3C00-5NZ-WO-B01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: -Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
JSY3C00-5NZD-WO-01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: -Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
JSY3C00-5NZD-WO-B01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: -Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
JSY3C00-5NZE-WO-01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: -Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
JSY3C00-5NZE-WO-B01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: -Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
JSY3C00T-5Z-WO-01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: Power-saving, +Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
JSY3C00T-5Z-WO-B01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: Power-saving, +Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
JSY3C00T-5ZD-WO-01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
JSY3C00T-5ZD-WO-B01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
JSY3C00T-5ZE-WO-01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
JSY3C00T-5ZE-WO-B01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
JSY3C00T-5NZ-WO-01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: Power-saving, -Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
JSY3C00T-5NZ-WO-B01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: Power-saving, -Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
JSY3C00T-5NZD-WO-01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
JSY3C00T-5NZD-WO-B01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
JSY3C00T-5NZE-WO-01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
JSY3C00T-5NZE-WO-B01		Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
JSY5100-5U-WO-02		Series: JSY5000 \| Switching: 2-pos single \| Coil/Common: Non-polar \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
JSY5100-5U-WO-B02		Series: JSY5000 \| Switching: 2-pos single \| Coil/Common: Non-polar \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
JSY5100-5UD-WO-02		Series: JSY5000 \| Switching: 2-pos single \| Coil/Common: Non-polar \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
JSY5100-5UD-WO-B02		Series: JSY5000 \| Switching: 2-pos single \| Coil/Common: Non-polar \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
JSY5100-5UE-WO-02		Series: JSY5000 \| Switching: 2-pos single \| Coil/Common: Non-polar \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
JSY5100-5UE-WO-B02		Series: JSY5000 \| Switching: 2-pos single \| Coil/Common: Non-polar \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
JSY5100-5Z-WO-02		Series: JSY5000 \| Switching: 2-pos single \| Coil/Common: +Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
JSY5100-5Z-WO-B02		Series: JSY5000 \| Switching: 2-pos single \| Coil/Common: +Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
JSY5100-5ZD-WO-02		Series: JSY5000 \| Switching: 2-pos single \| Coil/Common: +Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
JSY5100-5ZD-WO-B02		Series: JSY5000 \| Switching: 2-pos single \| Coil/Common: +Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
JSY5100-5ZE-WO-02		Series: JSY5000 \| Switching: 2-pos single \| Coil/Common: +Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
JSY5100-5ZE-WO-B02		Series: JSY5000 \| Switching: 2-pos single \| Coil/Common: +Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
JSY5100-5NZ-WO-02		Series: JSY5000 \| Switching: 2-pos single \| Coil/Common: -Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
JSY5100-5NZ-WO-B02		Series: JSY5000 \| Switching: 2-pos single \| Coil/Common: -Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
JSY5100-5NZD-WO-02		Series: JSY5000 \| Switching: 2-pos single \| Coil/Common: -Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
JSY5100-5NZD-WO-B02		Series: JSY5000 \| Switching: 2-pos single \| Coil/Common: -Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
JSY5100-5NZE-WO-02		Series: JSY5000 \| Switching: 2-pos single \| Coil/Common: -Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
JSY5100-5NZE-WO-B02		Series: JSY5000 \| Switching: 2-pos single \| Coil/Common: -Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
JSY5100T-5Z-WO-02		Series: JSY5000 \| Switching: 2-pos single \| Coil/Common: Power-saving, +Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
JSY5100T-5Z-WO-B02		Series: JSY5000 \| Switching: 2-pos single \| Coil/Common: Power-saving, +Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
JSY5100T-5ZD-WO-02		Series: JSY5000 \| Switching: 2-pos single \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
JSY5100T-5ZD-WO-B02		Series: JSY5000 \| Switching: 2-pos single \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
JSY5100T-5ZE-WO-02		Series: JSY5000 \| Switching: 2-pos single \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
JSY5100T-5ZE-WO-B02		Series: JSY5000 \| Switching: 2-pos single \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
JSY5100T-5NZ-WO-02		Series: JSY5000 \| Switching: 2-pos single \| Coil/Common: Power-saving, -Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
JSY5100T-5NZ-WO-B02		Series: JSY5000 \| Switching: 2-pos single \| Coil/Common: Power-saving, -Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
JSY5100T-5NZD-WO-02		Series: JSY5000 \| Switching: 2-pos single \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
JSY5100T-5NZD-WO-B02		Series: JSY5000 \| Switching: 2-pos single \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
JSY5100T-5NZE-WO-02		Series: JSY5000 \| Switching: 2-pos single \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
JSY5100T-5NZE-WO-B02		Series: JSY5000 \| Switching: 2-pos single \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
JSY5200-5U-WO-02		Series: JSY5000 \| Switching: 2-pos double \| Coil/Common: Non-polar \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
JSY5200-5U-WO-B02		Series: JSY5000 \| Switching: 2-pos double \| Coil/Common: Non-polar \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
JSY5200-5UD-WO-02		Series: JSY5000 \| Switching: 2-pos double \| Coil/Common: Non-polar \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
JSY5200-5UD-WO-B02		Series: JSY5000 \| Switching: 2-pos double \| Coil/Common: Non-polar \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
JSY5200-5UE-WO-02		Series: JSY5000 \| Switching: 2-pos double \| Coil/Common: Non-polar \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
JSY5200-5UE-WO-B02		Series: JSY5000 \| Switching: 2-pos double \| Coil/Common: Non-polar \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
JSY5200-5Z-WO-02		Series: JSY5000 \| Switching: 2-pos double \| Coil/Common: +Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
JSY5200-5Z-WO-B02		Series: JSY5000 \| Switching: 2-pos double \| Coil/Common: +Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
JSY5200-5ZD-WO-02		Series: JSY5000 \| Switching: 2-pos double \| Coil/Common: +Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
JSY5200-5ZD-WO-B02		Series: JSY5000 \| Switching: 2-pos double \| Coil/Common: +Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
JSY5200-5ZE-WO-02		Series: JSY5000 \| Switching: 2-pos double \| Coil/Common: +Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
JSY5200-5ZE-WO-B02		Series: JSY5000 \| Switching: 2-pos double \| Coil/Common: +Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
JSY5200-5NZ-WO-02		Series: JSY5000 \| Switching: 2-pos double \| Coil/Common: -Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
JSY5200-5NZ-WO-B02		Series: JSY5000 \| Switching: 2-pos double \| Coil/Common: -Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
JSY5200-5NZD-WO-02		Series: JSY5000 \| Switching: 2-pos double \| Coil/Common: -Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
JSY5200-5NZD-WO-B02		Series: JSY5000 \| Switching: 2-pos double \| Coil/Common: -Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
JSY5200-5NZE-WO-02		Series: JSY5000 \| Switching: 2-pos double \| Coil/Common: -Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
JSY5200-5NZE-WO-B02		Series: JSY5000 \| Switching: 2-pos double \| Coil/Common: -Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
JSY5200T-5Z-WO-02		Series: JSY5000 \| Switching: 2-pos double \| Coil/Common: Power-saving, +Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
JSY5200T-5Z-WO-B02		Series: JSY5000 \| Switching: 2-pos double \| Coil/Common: Power-saving, +Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
JSY5200T-5ZD-WO-02		Series: JSY5000 \| Switching: 2-pos double \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
JSY5200T-5ZD-WO-B02		Series: JSY5000 \| Switching: 2-pos double \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
JSY5200T-5ZE-WO-02		Series: JSY5000 \| Switching: 2-pos double \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
JSY5200T-5ZE-WO-B02		Series: JSY5000 \| Switching: 2-pos double \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
JSY5200T-5NZ-WO-02		Series: JSY5000 \| Switching: 2-pos double \| Coil/Common: Power-saving, -Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
JSY5200T-5NZ-WO-B02		Series: JSY5000 \| Switching: 2-pos double \| Coil/Common: Power-saving, -Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
JSY5200T-5NZD-WO-02		Series: JSY5000 \| Switching: 2-pos double \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
JSY5200T-5NZD-WO-B02		Series: JSY5000 \| Switching: 2-pos double \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
JSY5200T-5NZE-WO-02		Series: JSY5000 \| Switching: 2-pos double \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
JSY5200T-5NZE-WO-B02		Series: JSY5000 \| Switching: 2-pos double \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
JSY5300-5U-WO-02		Series: JSY5000 \| Switching: 3-pos closed center \| Coil/Common: Non-polar \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
JSY5300-5U-WO-B02		Series: JSY5000 \| Switching: 3-pos closed center \| Coil/Common: Non-polar \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
JSY5300-5UD-WO-02		Series: JSY5000 \| Switching: 3-pos closed center \| Coil/Common: Non-polar \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
JSY5300-5UD-WO-B02		Series: JSY5000 \| Switching: 3-pos closed center \| Coil/Common: Non-polar \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
JSY5300-5UE-WO-02		Series: JSY5000 \| Switching: 3-pos closed center \| Coil/Common: Non-polar \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
JSY5300-5UE-WO-B02		Series: JSY5000 \| Switching: 3-pos closed center \| Coil/Common: Non-polar \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
JSY5300-5Z-WO-02		Series: JSY5000 \| Switching: 3-pos closed center \| Coil/Common: +Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
JSY5300-5Z-WO-B02		Series: JSY5000 \| Switching: 3-pos closed center \| Coil/Common: +Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
JSY5300-5ZD-WO-02		Series: JSY5000 \| Switching: 3-pos closed center \| Coil/Common: +Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
JSY5300-5ZD-WO-B02		Series: JSY5000 \| Switching: 3-pos closed center \| Coil/Common: +Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
JSY5300-5ZE-WO-02		Series: JSY5000 \| Switching: 3-pos closed center \| Coil/Common: +Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
JSY5300-5ZE-WO-B02		Series: JSY5000 \| Switching: 3-pos closed center \| Coil/Common: +Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
JSY5300-5NZ-WO-02		Series: JSY5000 \| Switching: 3-pos closed center \| Coil/Common: -Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
JSY5300-5NZ-WO-B02		Series: JSY5000 \| Switching: 3-pos closed center \| Coil/Common: -Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
JSY5300-5NZD-WO-02		Series: JSY5000 \| Switching: 3-pos closed center \| Coil/Common: -Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
JSY5300-5NZD-WO-B02		Series: JSY5000 \| Switching: 3-pos closed center \| Coil/Common: -Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
JSY5300-5NZE-WO-02		Series: JSY5000 \| Switching: 3-pos closed center \| Coil/Common: -Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
JSY5300-5NZE-WO-B02		Series: JSY5000 \| Switching: 3-pos closed center \| Coil/Common: -Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
JSY5300T-5Z-WO-02		Series: JSY5000 \| Switching: 3-pos closed center \| Coil/Common: Power-saving, +Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
JSY5300T-5Z-WO-B02		Series: JSY5000 \| Switching: 3-pos closed center \| Coil/Common: Power-saving, +Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
JSY5300T-5ZD-WO-02		Series: JSY5000 \| Switching: 3-pos closed center \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
JSY5300T-5ZD-WO-B02		Series: JSY5000 \| Switching: 3-pos closed center \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
JSY5300T-5ZE-WO-02		Series: JSY5000 \| Switching: 3-pos closed center \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
JSY5300T-5ZE-WO-B02		Series: JSY5000 \| Switching: 3-pos closed center \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
JSY5300T-5NZ-WO-02		Series: JSY5000 \| Switching: 3-pos closed center \| Coil/Common: Power-saving, -Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
JSY5300T-5NZ-WO-B02		Series: JSY5000 \| Switching: 3-pos closed center \| Coil/Common: Power-saving, -Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
JSY5300T-5NZD-WO-02		Series: JSY5000 \| Switching: 3-pos closed center \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
JSY5300T-5NZD-WO-B02		Series: JSY5000 \| Switching: 3-pos closed center \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
JSY5300T-5NZE-WO-02		Series: JSY5000 \| Switching: 3-pos closed center \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
JSY5300T-5NZE-WO-B02		Series: JSY5000 \| Switching: 3-pos closed center \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
JSY5400-5U-WO-02		Series: JSY5000 \| Switching: 3-pos exhaust center \| Coil/Common: Non-polar \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
JSY5400-5U-WO-B02		Series: JSY5000 \| Switching: 3-pos exhaust center \| Coil/Common: Non-polar \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
JSY5400-5UD-WO-02		Series: JSY5000 \| Switching: 3-pos exhaust center \| Coil/Common: Non-polar \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
JSY5400-5UD-WO-B02		Series: JSY5000 \| Switching: 3-pos exhaust center \| Coil/Common: Non-polar \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
JSY5400-5UE-WO-02		Series: JSY5000 \| Switching: 3-pos exhaust center \| Coil/Common: Non-polar \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
JSY5400-5UE-WO-B02		Series: JSY5000 \| Switching: 3-pos exhaust center \| Coil/Common: Non-polar \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
JSY5400-5Z-WO-02		Series: JSY5000 \| Switching: 3-pos exhaust center \| Coil/Common: +Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
JSY5400-5Z-WO-B02		Series: JSY5000 \| Switching: 3-pos exhaust center \| Coil/Common: +Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
JSY5400-5ZD-WO-02		Series: JSY5000 \| Switching: 3-pos exhaust center \| Coil/Common: +Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
JSY5400-5ZD-WO-B02		Series: JSY5000 \| Switching: 3-pos exhaust center \| Coil/Common: +Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
JSY5400-5ZE-WO-02		Series: JSY5000 \| Switching: 3-pos exhaust center \| Coil/Common: +Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
JSY5400-5ZE-WO-B02		Series: JSY5000 \| Switching: 3-pos exhaust center \| Coil/Common: +Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
JSY5400-5NZ-WO-02		Series: JSY5000 \| Switching: 3-pos exhaust center \| Coil/Common: -Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
JSY5400-5NZ-WO-B02		Series: JSY5000 \| Switching: 3-pos exhaust center \| Coil/Common: -Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
JSY5400-5NZD-WO-02		Series: JSY5000 \| Switching: 3-pos exhaust center \| Coil/Common: -Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
JSY5400-5NZD-WO-B02		Series: JSY5000 \| Switching: 3-pos exhaust center \| Coil/Common: -Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
JSY5400-5NZE-WO-02		Series: JSY5000 \| Switching: 3-pos exhaust center \| Coil/Common: -Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
JSY5400-5NZE-WO-B02		Series: JSY5000 \| Switching: 3-pos exhaust center \| Coil/Common: -Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
JSY5400T-5Z-WO-02		Series: JSY5000 \| Switching: 3-pos exhaust center \| Coil/Common: Power-saving, +Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
JSY5400T-5Z-WO-B02		Series: JSY5000 \| Switching: 3-pos exhaust center \| Coil/Common: Power-saving, +Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
JSY5400T-5ZD-WO-02		Series: JSY5000 \| Switching: 3-pos exhaust center \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
JSY5400T-5ZD-WO-B02		Series: JSY5000 \| Switching: 3-pos exhaust center \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
JSY5400T-5ZE-WO-02		Series: JSY5000 \| Switching: 3-pos exhaust center \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
JSY5400T-5ZE-WO-B02		Series: JSY5000 \| Switching: 3-pos exhaust center \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
JSY5400T-5NZ-WO-02		Series: JSY5000 \| Switching: 3-pos exhaust center \| Coil/Common: Power-saving, -Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
JSY5400T-5NZ-WO-B02		Series: JSY5000 \| Switching: 3-pos exhaust center \| Coil/Common: Power-saving, -Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
JSY5400T-5NZD-WO-02		Series: JSY5000 \| Switching: 3-pos exhaust center \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
JSY5400T-5NZD-WO-B02		Series: JSY5000 \| Switching: 3-pos exhaust center \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
JSY5400T-5NZE-WO-02		Series: JSY5000 \| Switching: 3-pos exhaust center \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
JSY5400T-5NZE-WO-B02		Series: JSY5000 \| Switching: 3-pos exhaust center \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
JSY5500-5U-WO-02		Series: JSY5000 \| Switching: 3-pos pressure center \| Coil/Common: Non-polar \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
JSY5500-5U-WO-B02		Series: JSY5000 \| Switching: 3-pos pressure center \| Coil/Common: Non-polar \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
JSY5500-5UD-WO-02		Series: JSY5000 \| Switching: 3-pos pressure center \| Coil/Common: Non-polar \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
JSY5500-5UD-WO-B02		Series: JSY5000 \| Switching: 3-pos pressure center \| Coil/Common: Non-polar \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
JSY5500-5UE-WO-02		Series: JSY5000 \| Switching: 3-pos pressure center \| Coil/Common: Non-polar \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
JSY5500-5UE-WO-B02		Series: JSY5000 \| Switching: 3-pos pressure center \| Coil/Common: Non-polar \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
JSY5500-5Z-WO-02		Series: JSY5000 \| Switching: 3-pos pressure center \| Coil/Common: +Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
JSY5500-5Z-WO-B02		Series: JSY5000 \| Switching: 3-pos pressure center \| Coil/Common: +Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
JSY5500-5ZD-WO-02		Series: JSY5000 \| Switching: 3-pos pressure center \| Coil/Common: +Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
JSY5500-5ZD-WO-B02		Series: JSY5000 \| Switching: 3-pos pressure center \| Coil/Common: +Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
JSY5500-5ZE-WO-02		Series: JSY5000 \| Switching: 3-pos pressure center \| Coil/Common: +Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
JSY5500-5ZE-WO-B02		Series: JSY5000 \| Switching: 3-pos pressure center \| Coil/Common: +Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
JSY5500-5NZ-WO-02		Series: JSY5000 \| Switching: 3-pos pressure center \| Coil/Common: -Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
JSY5500-5NZ-WO-B02		Series: JSY5000 \| Switching: 3-pos pressure center \| Coil/Common: -Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
JSY5500-5NZD-WO-02		Series: JSY5000 \| Switching: 3-pos pressure center \| Coil/Common: -Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
JSY5500-5NZD-WO-B02		Series: JSY5000 \| Switching: 3-pos pressure center \| Coil/Common: -Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
JSY5500-5NZE-WO-02		Series: JSY5000 \| Switching: 3-pos pressure center \| Coil/Common: -Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
JSY5500-5NZE-WO-B02		Series: JSY5000 \| Switching: 3-pos pressure center \| Coil/Common: -Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
JSY5500T-5Z-WO-02		Series: JSY5000 \| Switching: 3-pos pressure center \| Coil/Common: Power-saving, +Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
JSY5500T-5Z-WO-B02		Series: JSY5000 \| Switching: 3-pos pressure center \| Coil/Common: Power-saving, +Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
JSY5500T-5ZD-WO-02		Series: JSY5000 \| Switching: 3-pos pressure center \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
JSY5500T-5ZD-WO-B02		Series: JSY5000 \| Switching: 3-pos pressure center \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
JSY5500T-5ZE-WO-02		Series: JSY5000 \| Switching: 3-pos pressure center \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
JSY5500T-5ZE-WO-B02		Series: JSY5000 \| Switching: 3-pos pressure center \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
JSY5500T-5NZ-WO-02		Series: JSY5000 \| Switching: 3-pos pressure center \| Coil/Common: Power-saving, -Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
JSY5500T-5NZ-WO-B02		Series: JSY5000 \| Switching: 3-pos pressure center \| Coil/Common: Power-saving, -Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
JSY5500T-5NZD-WO-02		Series: JSY5000 \| Switching: 3-pos pressure center \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
JSY5500T-5NZD-WO-B02		Series: JSY5000 \| Switching: 3-pos pressure center \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
JSY5500T-5NZE-WO-02		Series: JSY5000 \| Switching: 3-pos pressure center \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
JSY5500T-5NZE-WO-B02		Series: JSY5000 \| Switching: 3-pos pressure center \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
JSY5A00-5U-WO-02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: Non-polar \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
JSY5A00-5U-WO-B02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: Non-polar \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
JSY5A00-5UD-WO-02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: Non-polar \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
JSY5A00-5UD-WO-B02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: Non-polar \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
JSY5A00-5UE-WO-02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: Non-polar \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
JSY5A00-5UE-WO-B02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: Non-polar \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
JSY5A00-5Z-WO-02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: +Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
JSY5A00-5Z-WO-B02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: +Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
JSY5A00-5ZD-WO-02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: +Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
JSY5A00-5ZD-WO-B02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: +Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
JSY5A00-5ZE-WO-02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: +Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
JSY5A00-5ZE-WO-B02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: +Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
JSY5A00-5NZ-WO-02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: -Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
JSY5A00-5NZ-WO-B02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: -Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
JSY5A00-5NZD-WO-02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: -Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
JSY5A00-5NZD-WO-B02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: -Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
JSY5A00-5NZE-WO-02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: -Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
JSY5A00-5NZE-WO-B02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: -Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
JSY5A00T-5Z-WO-02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: Power-saving, +Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
JSY5A00T-5Z-WO-B02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: Power-saving, +Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
JSY5A00T-5ZD-WO-02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
JSY5A00T-5ZD-WO-B02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
JSY5A00T-5ZE-WO-02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
JSY5A00T-5ZE-WO-B02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
JSY5A00T-5NZ-WO-02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: Power-saving, -Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
JSY5A00T-5NZ-WO-B02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: Power-saving, -Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
JSY5A00T-5NZD-WO-02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
JSY5A00T-5NZD-WO-B02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
JSY5A00T-5NZE-WO-02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
JSY5A00T-5NZE-WO-B02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
JSY5B00-5U-WO-02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: Non-polar \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
JSY5B00-5U-WO-B02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: Non-polar \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
JSY5B00-5UD-WO-02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: Non-polar \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
JSY5B00-5UD-WO-B02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: Non-polar \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
JSY5B00-5UE-WO-02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: Non-polar \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
JSY5B00-5UE-WO-B02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: Non-polar \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
JSY5B00-5Z-WO-02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: +Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
JSY5B00-5Z-WO-B02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: +Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
JSY5B00-5ZD-WO-02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: +Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
JSY5B00-5ZD-WO-B02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: +Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
JSY5B00-5ZE-WO-02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: +Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
JSY5B00-5ZE-WO-B02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: +Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
JSY5B00-5NZ-WO-02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: -Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
JSY5B00-5NZ-WO-B02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: -Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
JSY5B00-5NZD-WO-02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: -Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
JSY5B00-5NZD-WO-B02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: -Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
JSY5B00-5NZE-WO-02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: -Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
JSY5B00-5NZE-WO-B02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: -Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
JSY5B00T-5Z-WO-02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: Power-saving, +Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
JSY5B00T-5Z-WO-B02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: Power-saving, +Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
JSY5B00T-5ZD-WO-02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
JSY5B00T-5ZD-WO-B02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
JSY5B00T-5ZE-WO-02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
JSY5B00T-5ZE-WO-B02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
JSY5B00T-5NZ-WO-02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: Power-saving, -Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
JSY5B00T-5NZ-WO-B02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: Power-saving, -Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
JSY5B00T-5NZD-WO-02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
JSY5B00T-5NZD-WO-B02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
JSY5B00T-5NZE-WO-02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
JSY5B00T-5NZE-WO-B02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
JSY5C00-5U-WO-02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: Non-polar \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
JSY5C00-5U-WO-B02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: Non-polar \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
JSY5C00-5UD-WO-02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: Non-polar \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
JSY5C00-5UD-WO-B02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: Non-polar \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
JSY5C00-5UE-WO-02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: Non-polar \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
JSY5C00-5UE-WO-B02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: Non-polar \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
JSY5C00-5Z-WO-02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: +Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
JSY5C00-5Z-WO-B02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: +Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
JSY5C00-5ZD-WO-02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: +Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
JSY5C00-5ZD-WO-B02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: +Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
JSY5C00-5ZE-WO-02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: +Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
JSY5C00-5ZE-WO-B02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: +Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
JSY5C00-5NZ-WO-02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: -Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
JSY5C00-5NZ-WO-B02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: -Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
JSY5C00-5NZD-WO-02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: -Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
JSY5C00-5NZD-WO-B02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: -Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
JSY5C00-5NZE-WO-02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: -Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
JSY5C00-5NZE-WO-B02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: -Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
JSY5C00T-5Z-WO-02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: Power-saving, +Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
JSY5C00T-5Z-WO-B02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: Power-saving, +Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
JSY5C00T-5ZD-WO-02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
JSY5C00T-5ZD-WO-B02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
JSY5C00T-5ZE-WO-02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
JSY5C00T-5ZE-WO-B02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
JSY5C00T-5NZ-WO-02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: Power-saving, -Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
JSY5C00T-5NZ-WO-B02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: Power-saving, -Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
JSY5C00T-5NZD-WO-02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
JSY5C00T-5NZD-WO-B02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
JSY5C00T-5NZE-WO-02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
JSY5C00T-5NZE-WO-B02		Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
JSY31M-27P-1-WO-01		Series: JSY3000 \| Switching: Sub-plate only (no valve) \| Coil/Common: None \| Manual override: None \| Piping: Side ported Rc1/8
JSY31M-27P-1-WO-B01		Series: JSY3000 \| Switching: Sub-plate only (no valve) \| Coil/Common: None \| Manual override: None \| Piping: Bottom ported Rc1/8
JSY51M-27P-1-WO-02		Series: JSY5000 \| Switching: Sub-plate only (no valve) \| Coil/Common: None \| Manual override: None \| Piping: Side ported Rc1/4
JSY51M-27P-1-WO-B02		Series: JSY5000 \| Switching: Sub-plate only (no valve) \| Coil/Common: None \| Manual override: None \| Piping: Bottom ported Rc1/4

5-Port Solenoid ValvesSMC

484 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC JSY3000/5000 Single Unit Sub-plate Valve (M12, IP67)

Brand SMC·5-Port Solenoid Valves

Available part numbers (484)

JSY3100-5U-WO-01, JSY3100-5U-WO-B01, JSY3100-5UD-WO-01, JSY3100-5UD-WO-B01, JSY3100-5UE-WO-01, JSY3100-5UE-WO-B01, JSY3100-5Z-WO-01, JSY3100-5Z-WO-B01, JSY3100-5ZD-WO-01, JSY3100-5ZD-WO-B01 + 474 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	JSY3100-5U-WO-01	Series: JSY3000 \| Switching: 2-pos single \| Coil/Common: Non-polar \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
	JSY3100-5U-WO-B01	Series: JSY3000 \| Switching: 2-pos single \| Coil/Common: Non-polar \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
	JSY3100-5UD-WO-01	Series: JSY3000 \| Switching: 2-pos single \| Coil/Common: Non-polar \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
	JSY3100-5UD-WO-B01	Series: JSY3000 \| Switching: 2-pos single \| Coil/Common: Non-polar \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
	JSY3100-5UE-WO-01	Series: JSY3000 \| Switching: 2-pos single \| Coil/Common: Non-polar \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
	JSY3100-5UE-WO-B01	Series: JSY3000 \| Switching: 2-pos single \| Coil/Common: Non-polar \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
	JSY3100-5Z-WO-01	Series: JSY3000 \| Switching: 2-pos single \| Coil/Common: +Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
	JSY3100-5Z-WO-B01	Series: JSY3000 \| Switching: 2-pos single \| Coil/Common: +Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
	JSY3100-5ZD-WO-01	Series: JSY3000 \| Switching: 2-pos single \| Coil/Common: +Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
	JSY3100-5ZD-WO-B01	Series: JSY3000 \| Switching: 2-pos single \| Coil/Common: +Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
	JSY3100-5ZE-WO-01	Series: JSY3000 \| Switching: 2-pos single \| Coil/Common: +Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
	JSY3100-5ZE-WO-B01	Series: JSY3000 \| Switching: 2-pos single \| Coil/Common: +Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
	JSY3100-5NZ-WO-01	Series: JSY3000 \| Switching: 2-pos single \| Coil/Common: -Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
	JSY3100-5NZ-WO-B01	Series: JSY3000 \| Switching: 2-pos single \| Coil/Common: -Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
	JSY3100-5NZD-WO-01	Series: JSY3000 \| Switching: 2-pos single \| Coil/Common: -Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
	JSY3100-5NZD-WO-B01	Series: JSY3000 \| Switching: 2-pos single \| Coil/Common: -Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
	JSY3100-5NZE-WO-01	Series: JSY3000 \| Switching: 2-pos single \| Coil/Common: -Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
	JSY3100-5NZE-WO-B01	Series: JSY3000 \| Switching: 2-pos single \| Coil/Common: -Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
	JSY3100T-5Z-WO-01	Series: JSY3000 \| Switching: 2-pos single \| Coil/Common: Power-saving, +Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
	JSY3100T-5Z-WO-B01	Series: JSY3000 \| Switching: 2-pos single \| Coil/Common: Power-saving, +Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
	JSY3100T-5ZD-WO-01	Series: JSY3000 \| Switching: 2-pos single \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
	JSY3100T-5ZD-WO-B01	Series: JSY3000 \| Switching: 2-pos single \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
	JSY3100T-5ZE-WO-01	Series: JSY3000 \| Switching: 2-pos single \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
	JSY3100T-5ZE-WO-B01	Series: JSY3000 \| Switching: 2-pos single \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
	JSY3100T-5NZ-WO-01	Series: JSY3000 \| Switching: 2-pos single \| Coil/Common: Power-saving, -Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
	JSY3100T-5NZ-WO-B01	Series: JSY3000 \| Switching: 2-pos single \| Coil/Common: Power-saving, -Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
	JSY3100T-5NZD-WO-01	Series: JSY3000 \| Switching: 2-pos single \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
	JSY3100T-5NZD-WO-B01	Series: JSY3000 \| Switching: 2-pos single \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
	JSY3100T-5NZE-WO-01	Series: JSY3000 \| Switching: 2-pos single \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
	JSY3100T-5NZE-WO-B01	Series: JSY3000 \| Switching: 2-pos single \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
	JSY3200-5U-WO-01	Series: JSY3000 \| Switching: 2-pos double \| Coil/Common: Non-polar \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
	JSY3200-5U-WO-B01	Series: JSY3000 \| Switching: 2-pos double \| Coil/Common: Non-polar \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
	JSY3200-5UD-WO-01	Series: JSY3000 \| Switching: 2-pos double \| Coil/Common: Non-polar \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
	JSY3200-5UD-WO-B01	Series: JSY3000 \| Switching: 2-pos double \| Coil/Common: Non-polar \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
	JSY3200-5UE-WO-01	Series: JSY3000 \| Switching: 2-pos double \| Coil/Common: Non-polar \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
	JSY3200-5UE-WO-B01	Series: JSY3000 \| Switching: 2-pos double \| Coil/Common: Non-polar \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
	JSY3200-5Z-WO-01	Series: JSY3000 \| Switching: 2-pos double \| Coil/Common: +Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
	JSY3200-5Z-WO-B01	Series: JSY3000 \| Switching: 2-pos double \| Coil/Common: +Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
	JSY3200-5ZD-WO-01	Series: JSY3000 \| Switching: 2-pos double \| Coil/Common: +Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
	JSY3200-5ZD-WO-B01	Series: JSY3000 \| Switching: 2-pos double \| Coil/Common: +Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
	JSY3200-5ZE-WO-01	Series: JSY3000 \| Switching: 2-pos double \| Coil/Common: +Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
	JSY3200-5ZE-WO-B01	Series: JSY3000 \| Switching: 2-pos double \| Coil/Common: +Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
	JSY3200-5NZ-WO-01	Series: JSY3000 \| Switching: 2-pos double \| Coil/Common: -Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
	JSY3200-5NZ-WO-B01	Series: JSY3000 \| Switching: 2-pos double \| Coil/Common: -Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
	JSY3200-5NZD-WO-01	Series: JSY3000 \| Switching: 2-pos double \| Coil/Common: -Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
	JSY3200-5NZD-WO-B01	Series: JSY3000 \| Switching: 2-pos double \| Coil/Common: -Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
	JSY3200-5NZE-WO-01	Series: JSY3000 \| Switching: 2-pos double \| Coil/Common: -Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
	JSY3200-5NZE-WO-B01	Series: JSY3000 \| Switching: 2-pos double \| Coil/Common: -Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
	JSY3200T-5Z-WO-01	Series: JSY3000 \| Switching: 2-pos double \| Coil/Common: Power-saving, +Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
	JSY3200T-5Z-WO-B01	Series: JSY3000 \| Switching: 2-pos double \| Coil/Common: Power-saving, +Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
	JSY3200T-5ZD-WO-01	Series: JSY3000 \| Switching: 2-pos double \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
	JSY3200T-5ZD-WO-B01	Series: JSY3000 \| Switching: 2-pos double \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
	JSY3200T-5ZE-WO-01	Series: JSY3000 \| Switching: 2-pos double \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
	JSY3200T-5ZE-WO-B01	Series: JSY3000 \| Switching: 2-pos double \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
	JSY3200T-5NZ-WO-01	Series: JSY3000 \| Switching: 2-pos double \| Coil/Common: Power-saving, -Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
	JSY3200T-5NZ-WO-B01	Series: JSY3000 \| Switching: 2-pos double \| Coil/Common: Power-saving, -Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
	JSY3200T-5NZD-WO-01	Series: JSY3000 \| Switching: 2-pos double \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
	JSY3200T-5NZD-WO-B01	Series: JSY3000 \| Switching: 2-pos double \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
	JSY3200T-5NZE-WO-01	Series: JSY3000 \| Switching: 2-pos double \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
	JSY3200T-5NZE-WO-B01	Series: JSY3000 \| Switching: 2-pos double \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
	JSY3300-5U-WO-01	Series: JSY3000 \| Switching: 3-pos closed center \| Coil/Common: Non-polar \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
	JSY3300-5U-WO-B01	Series: JSY3000 \| Switching: 3-pos closed center \| Coil/Common: Non-polar \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
	JSY3300-5UD-WO-01	Series: JSY3000 \| Switching: 3-pos closed center \| Coil/Common: Non-polar \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
	JSY3300-5UD-WO-B01	Series: JSY3000 \| Switching: 3-pos closed center \| Coil/Common: Non-polar \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
	JSY3300-5UE-WO-01	Series: JSY3000 \| Switching: 3-pos closed center \| Coil/Common: Non-polar \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
	JSY3300-5UE-WO-B01	Series: JSY3000 \| Switching: 3-pos closed center \| Coil/Common: Non-polar \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
	JSY3300-5Z-WO-01	Series: JSY3000 \| Switching: 3-pos closed center \| Coil/Common: +Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
	JSY3300-5Z-WO-B01	Series: JSY3000 \| Switching: 3-pos closed center \| Coil/Common: +Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
	JSY3300-5ZD-WO-01	Series: JSY3000 \| Switching: 3-pos closed center \| Coil/Common: +Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
	JSY3300-5ZD-WO-B01	Series: JSY3000 \| Switching: 3-pos closed center \| Coil/Common: +Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
	JSY3300-5ZE-WO-01	Series: JSY3000 \| Switching: 3-pos closed center \| Coil/Common: +Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
	JSY3300-5ZE-WO-B01	Series: JSY3000 \| Switching: 3-pos closed center \| Coil/Common: +Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
	JSY3300-5NZ-WO-01	Series: JSY3000 \| Switching: 3-pos closed center \| Coil/Common: -Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
	JSY3300-5NZ-WO-B01	Series: JSY3000 \| Switching: 3-pos closed center \| Coil/Common: -Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
	JSY3300-5NZD-WO-01	Series: JSY3000 \| Switching: 3-pos closed center \| Coil/Common: -Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
	JSY3300-5NZD-WO-B01	Series: JSY3000 \| Switching: 3-pos closed center \| Coil/Common: -Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
	JSY3300-5NZE-WO-01	Series: JSY3000 \| Switching: 3-pos closed center \| Coil/Common: -Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
	JSY3300-5NZE-WO-B01	Series: JSY3000 \| Switching: 3-pos closed center \| Coil/Common: -Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
	JSY3300T-5Z-WO-01	Series: JSY3000 \| Switching: 3-pos closed center \| Coil/Common: Power-saving, +Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
	JSY3300T-5Z-WO-B01	Series: JSY3000 \| Switching: 3-pos closed center \| Coil/Common: Power-saving, +Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
	JSY3300T-5ZD-WO-01	Series: JSY3000 \| Switching: 3-pos closed center \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
	JSY3300T-5ZD-WO-B01	Series: JSY3000 \| Switching: 3-pos closed center \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
	JSY3300T-5ZE-WO-01	Series: JSY3000 \| Switching: 3-pos closed center \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
	JSY3300T-5ZE-WO-B01	Series: JSY3000 \| Switching: 3-pos closed center \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
	JSY3300T-5NZ-WO-01	Series: JSY3000 \| Switching: 3-pos closed center \| Coil/Common: Power-saving, -Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
	JSY3300T-5NZ-WO-B01	Series: JSY3000 \| Switching: 3-pos closed center \| Coil/Common: Power-saving, -Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
	JSY3300T-5NZD-WO-01	Series: JSY3000 \| Switching: 3-pos closed center \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
	JSY3300T-5NZD-WO-B01	Series: JSY3000 \| Switching: 3-pos closed center \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
	JSY3300T-5NZE-WO-01	Series: JSY3000 \| Switching: 3-pos closed center \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
	JSY3300T-5NZE-WO-B01	Series: JSY3000 \| Switching: 3-pos closed center \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
	JSY3400-5U-WO-01	Series: JSY3000 \| Switching: 3-pos exhaust center \| Coil/Common: Non-polar \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
	JSY3400-5U-WO-B01	Series: JSY3000 \| Switching: 3-pos exhaust center \| Coil/Common: Non-polar \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
	JSY3400-5UD-WO-01	Series: JSY3000 \| Switching: 3-pos exhaust center \| Coil/Common: Non-polar \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
	JSY3400-5UD-WO-B01	Series: JSY3000 \| Switching: 3-pos exhaust center \| Coil/Common: Non-polar \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
	JSY3400-5UE-WO-01	Series: JSY3000 \| Switching: 3-pos exhaust center \| Coil/Common: Non-polar \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
	JSY3400-5UE-WO-B01	Series: JSY3000 \| Switching: 3-pos exhaust center \| Coil/Common: Non-polar \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
	JSY3400-5Z-WO-01	Series: JSY3000 \| Switching: 3-pos exhaust center \| Coil/Common: +Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
	JSY3400-5Z-WO-B01	Series: JSY3000 \| Switching: 3-pos exhaust center \| Coil/Common: +Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
	JSY3400-5ZD-WO-01	Series: JSY3000 \| Switching: 3-pos exhaust center \| Coil/Common: +Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
	JSY3400-5ZD-WO-B01	Series: JSY3000 \| Switching: 3-pos exhaust center \| Coil/Common: +Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
	JSY3400-5ZE-WO-01	Series: JSY3000 \| Switching: 3-pos exhaust center \| Coil/Common: +Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
	JSY3400-5ZE-WO-B01	Series: JSY3000 \| Switching: 3-pos exhaust center \| Coil/Common: +Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
	JSY3400-5NZ-WO-01	Series: JSY3000 \| Switching: 3-pos exhaust center \| Coil/Common: -Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
	JSY3400-5NZ-WO-B01	Series: JSY3000 \| Switching: 3-pos exhaust center \| Coil/Common: -Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
	JSY3400-5NZD-WO-01	Series: JSY3000 \| Switching: 3-pos exhaust center \| Coil/Common: -Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
	JSY3400-5NZD-WO-B01	Series: JSY3000 \| Switching: 3-pos exhaust center \| Coil/Common: -Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
	JSY3400-5NZE-WO-01	Series: JSY3000 \| Switching: 3-pos exhaust center \| Coil/Common: -Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
	JSY3400-5NZE-WO-B01	Series: JSY3000 \| Switching: 3-pos exhaust center \| Coil/Common: -Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
	JSY3400T-5Z-WO-01	Series: JSY3000 \| Switching: 3-pos exhaust center \| Coil/Common: Power-saving, +Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
	JSY3400T-5Z-WO-B01	Series: JSY3000 \| Switching: 3-pos exhaust center \| Coil/Common: Power-saving, +Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
	JSY3400T-5ZD-WO-01	Series: JSY3000 \| Switching: 3-pos exhaust center \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
	JSY3400T-5ZD-WO-B01	Series: JSY3000 \| Switching: 3-pos exhaust center \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
	JSY3400T-5ZE-WO-01	Series: JSY3000 \| Switching: 3-pos exhaust center \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
	JSY3400T-5ZE-WO-B01	Series: JSY3000 \| Switching: 3-pos exhaust center \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
	JSY3400T-5NZ-WO-01	Series: JSY3000 \| Switching: 3-pos exhaust center \| Coil/Common: Power-saving, -Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
	JSY3400T-5NZ-WO-B01	Series: JSY3000 \| Switching: 3-pos exhaust center \| Coil/Common: Power-saving, -Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
	JSY3400T-5NZD-WO-01	Series: JSY3000 \| Switching: 3-pos exhaust center \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
	JSY3400T-5NZD-WO-B01	Series: JSY3000 \| Switching: 3-pos exhaust center \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
	JSY3400T-5NZE-WO-01	Series: JSY3000 \| Switching: 3-pos exhaust center \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
	JSY3400T-5NZE-WO-B01	Series: JSY3000 \| Switching: 3-pos exhaust center \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
	JSY3500-5U-WO-01	Series: JSY3000 \| Switching: 3-pos pressure center \| Coil/Common: Non-polar \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
	JSY3500-5U-WO-B01	Series: JSY3000 \| Switching: 3-pos pressure center \| Coil/Common: Non-polar \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
	JSY3500-5UD-WO-01	Series: JSY3000 \| Switching: 3-pos pressure center \| Coil/Common: Non-polar \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
	JSY3500-5UD-WO-B01	Series: JSY3000 \| Switching: 3-pos pressure center \| Coil/Common: Non-polar \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
	JSY3500-5UE-WO-01	Series: JSY3000 \| Switching: 3-pos pressure center \| Coil/Common: Non-polar \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
	JSY3500-5UE-WO-B01	Series: JSY3000 \| Switching: 3-pos pressure center \| Coil/Common: Non-polar \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
	JSY3500-5Z-WO-01	Series: JSY3000 \| Switching: 3-pos pressure center \| Coil/Common: +Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
	JSY3500-5Z-WO-B01	Series: JSY3000 \| Switching: 3-pos pressure center \| Coil/Common: +Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
	JSY3500-5ZD-WO-01	Series: JSY3000 \| Switching: 3-pos pressure center \| Coil/Common: +Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
	JSY3500-5ZD-WO-B01	Series: JSY3000 \| Switching: 3-pos pressure center \| Coil/Common: +Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
	JSY3500-5ZE-WO-01	Series: JSY3000 \| Switching: 3-pos pressure center \| Coil/Common: +Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
	JSY3500-5ZE-WO-B01	Series: JSY3000 \| Switching: 3-pos pressure center \| Coil/Common: +Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
	JSY3500-5NZ-WO-01	Series: JSY3000 \| Switching: 3-pos pressure center \| Coil/Common: -Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
	JSY3500-5NZ-WO-B01	Series: JSY3000 \| Switching: 3-pos pressure center \| Coil/Common: -Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
	JSY3500-5NZD-WO-01	Series: JSY3000 \| Switching: 3-pos pressure center \| Coil/Common: -Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
	JSY3500-5NZD-WO-B01	Series: JSY3000 \| Switching: 3-pos pressure center \| Coil/Common: -Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
	JSY3500-5NZE-WO-01	Series: JSY3000 \| Switching: 3-pos pressure center \| Coil/Common: -Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
	JSY3500-5NZE-WO-B01	Series: JSY3000 \| Switching: 3-pos pressure center \| Coil/Common: -Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
	JSY3500T-5Z-WO-01	Series: JSY3000 \| Switching: 3-pos pressure center \| Coil/Common: Power-saving, +Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
	JSY3500T-5Z-WO-B01	Series: JSY3000 \| Switching: 3-pos pressure center \| Coil/Common: Power-saving, +Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
	JSY3500T-5ZD-WO-01	Series: JSY3000 \| Switching: 3-pos pressure center \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
	JSY3500T-5ZD-WO-B01	Series: JSY3000 \| Switching: 3-pos pressure center \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
	JSY3500T-5ZE-WO-01	Series: JSY3000 \| Switching: 3-pos pressure center \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
	JSY3500T-5ZE-WO-B01	Series: JSY3000 \| Switching: 3-pos pressure center \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
	JSY3500T-5NZ-WO-01	Series: JSY3000 \| Switching: 3-pos pressure center \| Coil/Common: Power-saving, -Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
	JSY3500T-5NZ-WO-B01	Series: JSY3000 \| Switching: 3-pos pressure center \| Coil/Common: Power-saving, -Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
	JSY3500T-5NZD-WO-01	Series: JSY3000 \| Switching: 3-pos pressure center \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
	JSY3500T-5NZD-WO-B01	Series: JSY3000 \| Switching: 3-pos pressure center \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
	JSY3500T-5NZE-WO-01	Series: JSY3000 \| Switching: 3-pos pressure center \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
	JSY3500T-5NZE-WO-B01	Series: JSY3000 \| Switching: 3-pos pressure center \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
	JSY3A00-5U-WO-01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: Non-polar \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
	JSY3A00-5U-WO-B01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: Non-polar \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
	JSY3A00-5UD-WO-01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: Non-polar \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
	JSY3A00-5UD-WO-B01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: Non-polar \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
	JSY3A00-5UE-WO-01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: Non-polar \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
	JSY3A00-5UE-WO-B01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: Non-polar \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
	JSY3A00-5Z-WO-01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: +Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
	JSY3A00-5Z-WO-B01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: +Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
	JSY3A00-5ZD-WO-01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: +Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
	JSY3A00-5ZD-WO-B01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: +Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
	JSY3A00-5ZE-WO-01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: +Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
	JSY3A00-5ZE-WO-B01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: +Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
	JSY3A00-5NZ-WO-01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: -Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
	JSY3A00-5NZ-WO-B01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: -Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
	JSY3A00-5NZD-WO-01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: -Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
	JSY3A00-5NZD-WO-B01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: -Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
	JSY3A00-5NZE-WO-01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: -Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
	JSY3A00-5NZE-WO-B01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: -Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
	JSY3A00T-5Z-WO-01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: Power-saving, +Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
	JSY3A00T-5Z-WO-B01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: Power-saving, +Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
	JSY3A00T-5ZD-WO-01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
	JSY3A00T-5ZD-WO-B01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
	JSY3A00T-5ZE-WO-01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
	JSY3A00T-5ZE-WO-B01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
	JSY3A00T-5NZ-WO-01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: Power-saving, -Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
	JSY3A00T-5NZ-WO-B01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: Power-saving, -Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
	JSY3A00T-5NZD-WO-01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
	JSY3A00T-5NZD-WO-B01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
	JSY3A00T-5NZE-WO-01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
	JSY3A00T-5NZE-WO-B01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
	JSY3B00-5U-WO-01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: Non-polar \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
	JSY3B00-5U-WO-B01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: Non-polar \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
	JSY3B00-5UD-WO-01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: Non-polar \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
	JSY3B00-5UD-WO-B01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: Non-polar \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
	JSY3B00-5UE-WO-01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: Non-polar \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
	JSY3B00-5UE-WO-B01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: Non-polar \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
	JSY3B00-5Z-WO-01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: +Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
	JSY3B00-5Z-WO-B01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: +Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
	JSY3B00-5ZD-WO-01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: +Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
	JSY3B00-5ZD-WO-B01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: +Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
	JSY3B00-5ZE-WO-01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: +Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
	JSY3B00-5ZE-WO-B01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: +Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
	JSY3B00-5NZ-WO-01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: -Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
	JSY3B00-5NZ-WO-B01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: -Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
	JSY3B00-5NZD-WO-01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: -Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
	JSY3B00-5NZD-WO-B01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: -Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
	JSY3B00-5NZE-WO-01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: -Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
	JSY3B00-5NZE-WO-B01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: -Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
	JSY3B00T-5Z-WO-01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: Power-saving, +Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
	JSY3B00T-5Z-WO-B01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: Power-saving, +Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
	JSY3B00T-5ZD-WO-01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
	JSY3B00T-5ZD-WO-B01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
	JSY3B00T-5ZE-WO-01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
	JSY3B00T-5ZE-WO-B01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
	JSY3B00T-5NZ-WO-01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: Power-saving, -Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
	JSY3B00T-5NZ-WO-B01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: Power-saving, -Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
	JSY3B00T-5NZD-WO-01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
	JSY3B00T-5NZD-WO-B01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
	JSY3B00T-5NZE-WO-01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
	JSY3B00T-5NZE-WO-B01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
	JSY3C00-5U-WO-01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: Non-polar \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
	JSY3C00-5U-WO-B01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: Non-polar \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
	JSY3C00-5UD-WO-01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: Non-polar \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
	JSY3C00-5UD-WO-B01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: Non-polar \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
	JSY3C00-5UE-WO-01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: Non-polar \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
	JSY3C00-5UE-WO-B01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: Non-polar \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
	JSY3C00-5Z-WO-01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: +Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
	JSY3C00-5Z-WO-B01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: +Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
	JSY3C00-5ZD-WO-01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: +Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
	JSY3C00-5ZD-WO-B01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: +Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
	JSY3C00-5ZE-WO-01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: +Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
	JSY3C00-5ZE-WO-B01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: +Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
	JSY3C00-5NZ-WO-01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: -Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
	JSY3C00-5NZ-WO-B01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: -Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
	JSY3C00-5NZD-WO-01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: -Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
	JSY3C00-5NZD-WO-B01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: -Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
	JSY3C00-5NZE-WO-01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: -Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
	JSY3C00-5NZE-WO-B01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: -Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
	JSY3C00T-5Z-WO-01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: Power-saving, +Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
	JSY3C00T-5Z-WO-B01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: Power-saving, +Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
	JSY3C00T-5ZD-WO-01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
	JSY3C00T-5ZD-WO-B01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
	JSY3C00T-5ZE-WO-01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
	JSY3C00T-5ZE-WO-B01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
	JSY3C00T-5NZ-WO-01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: Power-saving, -Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/8
	JSY3C00T-5NZ-WO-B01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: Power-saving, -Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/8
	JSY3C00T-5NZD-WO-01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/8
	JSY3C00T-5NZD-WO-B01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/8
	JSY3C00T-5NZE-WO-01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/8
	JSY3C00T-5NZE-WO-B01	Series: JSY3000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/8
	JSY5100-5U-WO-02	Series: JSY5000 \| Switching: 2-pos single \| Coil/Common: Non-polar \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
	JSY5100-5U-WO-B02	Series: JSY5000 \| Switching: 2-pos single \| Coil/Common: Non-polar \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
	JSY5100-5UD-WO-02	Series: JSY5000 \| Switching: 2-pos single \| Coil/Common: Non-polar \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
	JSY5100-5UD-WO-B02	Series: JSY5000 \| Switching: 2-pos single \| Coil/Common: Non-polar \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
	JSY5100-5UE-WO-02	Series: JSY5000 \| Switching: 2-pos single \| Coil/Common: Non-polar \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
	JSY5100-5UE-WO-B02	Series: JSY5000 \| Switching: 2-pos single \| Coil/Common: Non-polar \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
	JSY5100-5Z-WO-02	Series: JSY5000 \| Switching: 2-pos single \| Coil/Common: +Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
	JSY5100-5Z-WO-B02	Series: JSY5000 \| Switching: 2-pos single \| Coil/Common: +Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
	JSY5100-5ZD-WO-02	Series: JSY5000 \| Switching: 2-pos single \| Coil/Common: +Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
	JSY5100-5ZD-WO-B02	Series: JSY5000 \| Switching: 2-pos single \| Coil/Common: +Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
	JSY5100-5ZE-WO-02	Series: JSY5000 \| Switching: 2-pos single \| Coil/Common: +Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
	JSY5100-5ZE-WO-B02	Series: JSY5000 \| Switching: 2-pos single \| Coil/Common: +Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
	JSY5100-5NZ-WO-02	Series: JSY5000 \| Switching: 2-pos single \| Coil/Common: -Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
	JSY5100-5NZ-WO-B02	Series: JSY5000 \| Switching: 2-pos single \| Coil/Common: -Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
	JSY5100-5NZD-WO-02	Series: JSY5000 \| Switching: 2-pos single \| Coil/Common: -Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
	JSY5100-5NZD-WO-B02	Series: JSY5000 \| Switching: 2-pos single \| Coil/Common: -Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
	JSY5100-5NZE-WO-02	Series: JSY5000 \| Switching: 2-pos single \| Coil/Common: -Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
	JSY5100-5NZE-WO-B02	Series: JSY5000 \| Switching: 2-pos single \| Coil/Common: -Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
	JSY5100T-5Z-WO-02	Series: JSY5000 \| Switching: 2-pos single \| Coil/Common: Power-saving, +Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
	JSY5100T-5Z-WO-B02	Series: JSY5000 \| Switching: 2-pos single \| Coil/Common: Power-saving, +Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
	JSY5100T-5ZD-WO-02	Series: JSY5000 \| Switching: 2-pos single \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
	JSY5100T-5ZD-WO-B02	Series: JSY5000 \| Switching: 2-pos single \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
	JSY5100T-5ZE-WO-02	Series: JSY5000 \| Switching: 2-pos single \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
	JSY5100T-5ZE-WO-B02	Series: JSY5000 \| Switching: 2-pos single \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
	JSY5100T-5NZ-WO-02	Series: JSY5000 \| Switching: 2-pos single \| Coil/Common: Power-saving, -Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
	JSY5100T-5NZ-WO-B02	Series: JSY5000 \| Switching: 2-pos single \| Coil/Common: Power-saving, -Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
	JSY5100T-5NZD-WO-02	Series: JSY5000 \| Switching: 2-pos single \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
	JSY5100T-5NZD-WO-B02	Series: JSY5000 \| Switching: 2-pos single \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
	JSY5100T-5NZE-WO-02	Series: JSY5000 \| Switching: 2-pos single \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
	JSY5100T-5NZE-WO-B02	Series: JSY5000 \| Switching: 2-pos single \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
	JSY5200-5U-WO-02	Series: JSY5000 \| Switching: 2-pos double \| Coil/Common: Non-polar \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
	JSY5200-5U-WO-B02	Series: JSY5000 \| Switching: 2-pos double \| Coil/Common: Non-polar \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
	JSY5200-5UD-WO-02	Series: JSY5000 \| Switching: 2-pos double \| Coil/Common: Non-polar \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
	JSY5200-5UD-WO-B02	Series: JSY5000 \| Switching: 2-pos double \| Coil/Common: Non-polar \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
	JSY5200-5UE-WO-02	Series: JSY5000 \| Switching: 2-pos double \| Coil/Common: Non-polar \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
	JSY5200-5UE-WO-B02	Series: JSY5000 \| Switching: 2-pos double \| Coil/Common: Non-polar \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
	JSY5200-5Z-WO-02	Series: JSY5000 \| Switching: 2-pos double \| Coil/Common: +Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
	JSY5200-5Z-WO-B02	Series: JSY5000 \| Switching: 2-pos double \| Coil/Common: +Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
	JSY5200-5ZD-WO-02	Series: JSY5000 \| Switching: 2-pos double \| Coil/Common: +Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
	JSY5200-5ZD-WO-B02	Series: JSY5000 \| Switching: 2-pos double \| Coil/Common: +Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
	JSY5200-5ZE-WO-02	Series: JSY5000 \| Switching: 2-pos double \| Coil/Common: +Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
	JSY5200-5ZE-WO-B02	Series: JSY5000 \| Switching: 2-pos double \| Coil/Common: +Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
	JSY5200-5NZ-WO-02	Series: JSY5000 \| Switching: 2-pos double \| Coil/Common: -Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
	JSY5200-5NZ-WO-B02	Series: JSY5000 \| Switching: 2-pos double \| Coil/Common: -Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
	JSY5200-5NZD-WO-02	Series: JSY5000 \| Switching: 2-pos double \| Coil/Common: -Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
	JSY5200-5NZD-WO-B02	Series: JSY5000 \| Switching: 2-pos double \| Coil/Common: -Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
	JSY5200-5NZE-WO-02	Series: JSY5000 \| Switching: 2-pos double \| Coil/Common: -Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
	JSY5200-5NZE-WO-B02	Series: JSY5000 \| Switching: 2-pos double \| Coil/Common: -Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
	JSY5200T-5Z-WO-02	Series: JSY5000 \| Switching: 2-pos double \| Coil/Common: Power-saving, +Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
	JSY5200T-5Z-WO-B02	Series: JSY5000 \| Switching: 2-pos double \| Coil/Common: Power-saving, +Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
	JSY5200T-5ZD-WO-02	Series: JSY5000 \| Switching: 2-pos double \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
	JSY5200T-5ZD-WO-B02	Series: JSY5000 \| Switching: 2-pos double \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
	JSY5200T-5ZE-WO-02	Series: JSY5000 \| Switching: 2-pos double \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
	JSY5200T-5ZE-WO-B02	Series: JSY5000 \| Switching: 2-pos double \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
	JSY5200T-5NZ-WO-02	Series: JSY5000 \| Switching: 2-pos double \| Coil/Common: Power-saving, -Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
	JSY5200T-5NZ-WO-B02	Series: JSY5000 \| Switching: 2-pos double \| Coil/Common: Power-saving, -Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
	JSY5200T-5NZD-WO-02	Series: JSY5000 \| Switching: 2-pos double \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
	JSY5200T-5NZD-WO-B02	Series: JSY5000 \| Switching: 2-pos double \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
	JSY5200T-5NZE-WO-02	Series: JSY5000 \| Switching: 2-pos double \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
	JSY5200T-5NZE-WO-B02	Series: JSY5000 \| Switching: 2-pos double \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
	JSY5300-5U-WO-02	Series: JSY5000 \| Switching: 3-pos closed center \| Coil/Common: Non-polar \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
	JSY5300-5U-WO-B02	Series: JSY5000 \| Switching: 3-pos closed center \| Coil/Common: Non-polar \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
	JSY5300-5UD-WO-02	Series: JSY5000 \| Switching: 3-pos closed center \| Coil/Common: Non-polar \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
	JSY5300-5UD-WO-B02	Series: JSY5000 \| Switching: 3-pos closed center \| Coil/Common: Non-polar \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
	JSY5300-5UE-WO-02	Series: JSY5000 \| Switching: 3-pos closed center \| Coil/Common: Non-polar \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
	JSY5300-5UE-WO-B02	Series: JSY5000 \| Switching: 3-pos closed center \| Coil/Common: Non-polar \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
	JSY5300-5Z-WO-02	Series: JSY5000 \| Switching: 3-pos closed center \| Coil/Common: +Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
	JSY5300-5Z-WO-B02	Series: JSY5000 \| Switching: 3-pos closed center \| Coil/Common: +Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
	JSY5300-5ZD-WO-02	Series: JSY5000 \| Switching: 3-pos closed center \| Coil/Common: +Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
	JSY5300-5ZD-WO-B02	Series: JSY5000 \| Switching: 3-pos closed center \| Coil/Common: +Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
	JSY5300-5ZE-WO-02	Series: JSY5000 \| Switching: 3-pos closed center \| Coil/Common: +Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
	JSY5300-5ZE-WO-B02	Series: JSY5000 \| Switching: 3-pos closed center \| Coil/Common: +Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
	JSY5300-5NZ-WO-02	Series: JSY5000 \| Switching: 3-pos closed center \| Coil/Common: -Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
	JSY5300-5NZ-WO-B02	Series: JSY5000 \| Switching: 3-pos closed center \| Coil/Common: -Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
	JSY5300-5NZD-WO-02	Series: JSY5000 \| Switching: 3-pos closed center \| Coil/Common: -Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
	JSY5300-5NZD-WO-B02	Series: JSY5000 \| Switching: 3-pos closed center \| Coil/Common: -Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
	JSY5300-5NZE-WO-02	Series: JSY5000 \| Switching: 3-pos closed center \| Coil/Common: -Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
	JSY5300-5NZE-WO-B02	Series: JSY5000 \| Switching: 3-pos closed center \| Coil/Common: -Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
	JSY5300T-5Z-WO-02	Series: JSY5000 \| Switching: 3-pos closed center \| Coil/Common: Power-saving, +Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
	JSY5300T-5Z-WO-B02	Series: JSY5000 \| Switching: 3-pos closed center \| Coil/Common: Power-saving, +Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
	JSY5300T-5ZD-WO-02	Series: JSY5000 \| Switching: 3-pos closed center \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
	JSY5300T-5ZD-WO-B02	Series: JSY5000 \| Switching: 3-pos closed center \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
	JSY5300T-5ZE-WO-02	Series: JSY5000 \| Switching: 3-pos closed center \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
	JSY5300T-5ZE-WO-B02	Series: JSY5000 \| Switching: 3-pos closed center \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
	JSY5300T-5NZ-WO-02	Series: JSY5000 \| Switching: 3-pos closed center \| Coil/Common: Power-saving, -Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
	JSY5300T-5NZ-WO-B02	Series: JSY5000 \| Switching: 3-pos closed center \| Coil/Common: Power-saving, -Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
	JSY5300T-5NZD-WO-02	Series: JSY5000 \| Switching: 3-pos closed center \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
	JSY5300T-5NZD-WO-B02	Series: JSY5000 \| Switching: 3-pos closed center \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
	JSY5300T-5NZE-WO-02	Series: JSY5000 \| Switching: 3-pos closed center \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
	JSY5300T-5NZE-WO-B02	Series: JSY5000 \| Switching: 3-pos closed center \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
	JSY5400-5U-WO-02	Series: JSY5000 \| Switching: 3-pos exhaust center \| Coil/Common: Non-polar \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
	JSY5400-5U-WO-B02	Series: JSY5000 \| Switching: 3-pos exhaust center \| Coil/Common: Non-polar \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
	JSY5400-5UD-WO-02	Series: JSY5000 \| Switching: 3-pos exhaust center \| Coil/Common: Non-polar \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
	JSY5400-5UD-WO-B02	Series: JSY5000 \| Switching: 3-pos exhaust center \| Coil/Common: Non-polar \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
	JSY5400-5UE-WO-02	Series: JSY5000 \| Switching: 3-pos exhaust center \| Coil/Common: Non-polar \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
	JSY5400-5UE-WO-B02	Series: JSY5000 \| Switching: 3-pos exhaust center \| Coil/Common: Non-polar \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
	JSY5400-5Z-WO-02	Series: JSY5000 \| Switching: 3-pos exhaust center \| Coil/Common: +Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
	JSY5400-5Z-WO-B02	Series: JSY5000 \| Switching: 3-pos exhaust center \| Coil/Common: +Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
	JSY5400-5ZD-WO-02	Series: JSY5000 \| Switching: 3-pos exhaust center \| Coil/Common: +Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
	JSY5400-5ZD-WO-B02	Series: JSY5000 \| Switching: 3-pos exhaust center \| Coil/Common: +Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
	JSY5400-5ZE-WO-02	Series: JSY5000 \| Switching: 3-pos exhaust center \| Coil/Common: +Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
	JSY5400-5ZE-WO-B02	Series: JSY5000 \| Switching: 3-pos exhaust center \| Coil/Common: +Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
	JSY5400-5NZ-WO-02	Series: JSY5000 \| Switching: 3-pos exhaust center \| Coil/Common: -Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
	JSY5400-5NZ-WO-B02	Series: JSY5000 \| Switching: 3-pos exhaust center \| Coil/Common: -Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
	JSY5400-5NZD-WO-02	Series: JSY5000 \| Switching: 3-pos exhaust center \| Coil/Common: -Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
	JSY5400-5NZD-WO-B02	Series: JSY5000 \| Switching: 3-pos exhaust center \| Coil/Common: -Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
	JSY5400-5NZE-WO-02	Series: JSY5000 \| Switching: 3-pos exhaust center \| Coil/Common: -Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
	JSY5400-5NZE-WO-B02	Series: JSY5000 \| Switching: 3-pos exhaust center \| Coil/Common: -Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
	JSY5400T-5Z-WO-02	Series: JSY5000 \| Switching: 3-pos exhaust center \| Coil/Common: Power-saving, +Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
	JSY5400T-5Z-WO-B02	Series: JSY5000 \| Switching: 3-pos exhaust center \| Coil/Common: Power-saving, +Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
	JSY5400T-5ZD-WO-02	Series: JSY5000 \| Switching: 3-pos exhaust center \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
	JSY5400T-5ZD-WO-B02	Series: JSY5000 \| Switching: 3-pos exhaust center \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
	JSY5400T-5ZE-WO-02	Series: JSY5000 \| Switching: 3-pos exhaust center \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
	JSY5400T-5ZE-WO-B02	Series: JSY5000 \| Switching: 3-pos exhaust center \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
	JSY5400T-5NZ-WO-02	Series: JSY5000 \| Switching: 3-pos exhaust center \| Coil/Common: Power-saving, -Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
	JSY5400T-5NZ-WO-B02	Series: JSY5000 \| Switching: 3-pos exhaust center \| Coil/Common: Power-saving, -Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
	JSY5400T-5NZD-WO-02	Series: JSY5000 \| Switching: 3-pos exhaust center \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
	JSY5400T-5NZD-WO-B02	Series: JSY5000 \| Switching: 3-pos exhaust center \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
	JSY5400T-5NZE-WO-02	Series: JSY5000 \| Switching: 3-pos exhaust center \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
	JSY5400T-5NZE-WO-B02	Series: JSY5000 \| Switching: 3-pos exhaust center \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
	JSY5500-5U-WO-02	Series: JSY5000 \| Switching: 3-pos pressure center \| Coil/Common: Non-polar \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
	JSY5500-5U-WO-B02	Series: JSY5000 \| Switching: 3-pos pressure center \| Coil/Common: Non-polar \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
	JSY5500-5UD-WO-02	Series: JSY5000 \| Switching: 3-pos pressure center \| Coil/Common: Non-polar \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
	JSY5500-5UD-WO-B02	Series: JSY5000 \| Switching: 3-pos pressure center \| Coil/Common: Non-polar \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
	JSY5500-5UE-WO-02	Series: JSY5000 \| Switching: 3-pos pressure center \| Coil/Common: Non-polar \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
	JSY5500-5UE-WO-B02	Series: JSY5000 \| Switching: 3-pos pressure center \| Coil/Common: Non-polar \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
	JSY5500-5Z-WO-02	Series: JSY5000 \| Switching: 3-pos pressure center \| Coil/Common: +Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
	JSY5500-5Z-WO-B02	Series: JSY5000 \| Switching: 3-pos pressure center \| Coil/Common: +Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
	JSY5500-5ZD-WO-02	Series: JSY5000 \| Switching: 3-pos pressure center \| Coil/Common: +Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
	JSY5500-5ZD-WO-B02	Series: JSY5000 \| Switching: 3-pos pressure center \| Coil/Common: +Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
	JSY5500-5ZE-WO-02	Series: JSY5000 \| Switching: 3-pos pressure center \| Coil/Common: +Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
	JSY5500-5ZE-WO-B02	Series: JSY5000 \| Switching: 3-pos pressure center \| Coil/Common: +Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
	JSY5500-5NZ-WO-02	Series: JSY5000 \| Switching: 3-pos pressure center \| Coil/Common: -Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
	JSY5500-5NZ-WO-B02	Series: JSY5000 \| Switching: 3-pos pressure center \| Coil/Common: -Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
	JSY5500-5NZD-WO-02	Series: JSY5000 \| Switching: 3-pos pressure center \| Coil/Common: -Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
	JSY5500-5NZD-WO-B02	Series: JSY5000 \| Switching: 3-pos pressure center \| Coil/Common: -Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
	JSY5500-5NZE-WO-02	Series: JSY5000 \| Switching: 3-pos pressure center \| Coil/Common: -Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
	JSY5500-5NZE-WO-B02	Series: JSY5000 \| Switching: 3-pos pressure center \| Coil/Common: -Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
	JSY5500T-5Z-WO-02	Series: JSY5000 \| Switching: 3-pos pressure center \| Coil/Common: Power-saving, +Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
	JSY5500T-5Z-WO-B02	Series: JSY5000 \| Switching: 3-pos pressure center \| Coil/Common: Power-saving, +Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
	JSY5500T-5ZD-WO-02	Series: JSY5000 \| Switching: 3-pos pressure center \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
	JSY5500T-5ZD-WO-B02	Series: JSY5000 \| Switching: 3-pos pressure center \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
	JSY5500T-5ZE-WO-02	Series: JSY5000 \| Switching: 3-pos pressure center \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
	JSY5500T-5ZE-WO-B02	Series: JSY5000 \| Switching: 3-pos pressure center \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
	JSY5500T-5NZ-WO-02	Series: JSY5000 \| Switching: 3-pos pressure center \| Coil/Common: Power-saving, -Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
	JSY5500T-5NZ-WO-B02	Series: JSY5000 \| Switching: 3-pos pressure center \| Coil/Common: Power-saving, -Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
	JSY5500T-5NZD-WO-02	Series: JSY5000 \| Switching: 3-pos pressure center \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
	JSY5500T-5NZD-WO-B02	Series: JSY5000 \| Switching: 3-pos pressure center \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
	JSY5500T-5NZE-WO-02	Series: JSY5000 \| Switching: 3-pos pressure center \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
	JSY5500T-5NZE-WO-B02	Series: JSY5000 \| Switching: 3-pos pressure center \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
	JSY5A00-5U-WO-02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: Non-polar \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
	JSY5A00-5U-WO-B02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: Non-polar \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
	JSY5A00-5UD-WO-02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: Non-polar \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
	JSY5A00-5UD-WO-B02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: Non-polar \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
	JSY5A00-5UE-WO-02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: Non-polar \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
	JSY5A00-5UE-WO-B02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: Non-polar \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
	JSY5A00-5Z-WO-02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: +Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
	JSY5A00-5Z-WO-B02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: +Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
	JSY5A00-5ZD-WO-02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: +Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
	JSY5A00-5ZD-WO-B02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: +Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
	JSY5A00-5ZE-WO-02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: +Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
	JSY5A00-5ZE-WO-B02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: +Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
	JSY5A00-5NZ-WO-02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: -Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
	JSY5A00-5NZ-WO-B02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: -Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
	JSY5A00-5NZD-WO-02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: -Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
	JSY5A00-5NZD-WO-B02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: -Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
	JSY5A00-5NZE-WO-02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: -Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
	JSY5A00-5NZE-WO-B02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: -Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
	JSY5A00T-5Z-WO-02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: Power-saving, +Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
	JSY5A00T-5Z-WO-B02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: Power-saving, +Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
	JSY5A00T-5ZD-WO-02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
	JSY5A00T-5ZD-WO-B02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
	JSY5A00T-5ZE-WO-02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
	JSY5A00T-5ZE-WO-B02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
	JSY5A00T-5NZ-WO-02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: Power-saving, -Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
	JSY5A00T-5NZ-WO-B02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: Power-saving, -Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
	JSY5A00T-5NZD-WO-02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
	JSY5A00T-5NZD-WO-B02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
	JSY5A00T-5NZE-WO-02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
	JSY5A00T-5NZE-WO-B02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
	JSY5B00-5U-WO-02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: Non-polar \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
	JSY5B00-5U-WO-B02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: Non-polar \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
	JSY5B00-5UD-WO-02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: Non-polar \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
	JSY5B00-5UD-WO-B02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: Non-polar \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
	JSY5B00-5UE-WO-02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: Non-polar \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
	JSY5B00-5UE-WO-B02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: Non-polar \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
	JSY5B00-5Z-WO-02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: +Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
	JSY5B00-5Z-WO-B02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: +Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
	JSY5B00-5ZD-WO-02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: +Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
	JSY5B00-5ZD-WO-B02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: +Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
	JSY5B00-5ZE-WO-02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: +Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
	JSY5B00-5ZE-WO-B02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: +Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
	JSY5B00-5NZ-WO-02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: -Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
	JSY5B00-5NZ-WO-B02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: -Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
	JSY5B00-5NZD-WO-02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: -Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
	JSY5B00-5NZD-WO-B02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: -Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
	JSY5B00-5NZE-WO-02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: -Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
	JSY5B00-5NZE-WO-B02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: -Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
	JSY5B00T-5Z-WO-02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: Power-saving, +Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
	JSY5B00T-5Z-WO-B02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: Power-saving, +Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
	JSY5B00T-5ZD-WO-02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
	JSY5B00T-5ZD-WO-B02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
	JSY5B00T-5ZE-WO-02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
	JSY5B00T-5ZE-WO-B02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
	JSY5B00T-5NZ-WO-02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: Power-saving, -Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
	JSY5B00T-5NZ-WO-B02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: Power-saving, -Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
	JSY5B00T-5NZD-WO-02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
	JSY5B00T-5NZD-WO-B02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
	JSY5B00T-5NZE-WO-02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
	JSY5B00T-5NZE-WO-B02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
	JSY5C00-5U-WO-02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: Non-polar \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
	JSY5C00-5U-WO-B02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: Non-polar \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
	JSY5C00-5UD-WO-02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: Non-polar \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
	JSY5C00-5UD-WO-B02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: Non-polar \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
	JSY5C00-5UE-WO-02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: Non-polar \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
	JSY5C00-5UE-WO-B02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: Non-polar \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
	JSY5C00-5Z-WO-02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: +Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
	JSY5C00-5Z-WO-B02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: +Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
	JSY5C00-5ZD-WO-02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: +Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
	JSY5C00-5ZD-WO-B02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: +Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
	JSY5C00-5ZE-WO-02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: +Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
	JSY5C00-5ZE-WO-B02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: +Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
	JSY5C00-5NZ-WO-02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: -Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
	JSY5C00-5NZ-WO-B02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: -Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
	JSY5C00-5NZD-WO-02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: -Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
	JSY5C00-5NZD-WO-B02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: -Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
	JSY5C00-5NZE-WO-02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: -Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
	JSY5C00-5NZE-WO-B02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: -Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
	JSY5C00T-5Z-WO-02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: Power-saving, +Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
	JSY5C00T-5Z-WO-B02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: Power-saving, +Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
	JSY5C00T-5ZD-WO-02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
	JSY5C00T-5ZD-WO-B02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
	JSY5C00T-5ZE-WO-02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
	JSY5C00T-5ZE-WO-B02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: Power-saving, +Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
	JSY5C00T-5NZ-WO-02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: Power-saving, -Common \| Manual override: Non-locking push \| Piping: Side ported Rc1/4
	JSY5C00T-5NZ-WO-B02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: Power-saving, -Common \| Manual override: Non-locking push \| Piping: Bottom ported Rc1/4
	JSY5C00T-5NZD-WO-02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking slotted \| Piping: Side ported Rc1/4
	JSY5C00T-5NZD-WO-B02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking slotted \| Piping: Bottom ported Rc1/4
	JSY5C00T-5NZE-WO-02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking manual \| Piping: Side ported Rc1/4
	JSY5C00T-5NZE-WO-B02	Series: JSY5000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Coil/Common: Power-saving, -Common \| Manual override: Push-turn locking manual \| Piping: Bottom ported Rc1/4
	JSY31M-27P-1-WO-01	Series: JSY3000 \| Switching: Sub-plate only (no valve) \| Coil/Common: None \| Manual override: None \| Piping: Side ported Rc1/8
	JSY31M-27P-1-WO-B01	Series: JSY3000 \| Switching: Sub-plate only (no valve) \| Coil/Common: None \| Manual override: None \| Piping: Bottom ported Rc1/8
	JSY51M-27P-1-WO-02	Series: JSY5000 \| Switching: Sub-plate only (no valve) \| Coil/Common: None \| Manual override: None \| Piping: Side ported Rc1/4
	JSY51M-27P-1-WO-B02	Series: JSY5000 \| Switching: Sub-plate only (no valve) \| Coil/Common: None \| Manual override: None \| Piping: Bottom ported Rc1/4

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC JSY3000/5000 Single Unit Sub-plate Valve (M12, IP67)
