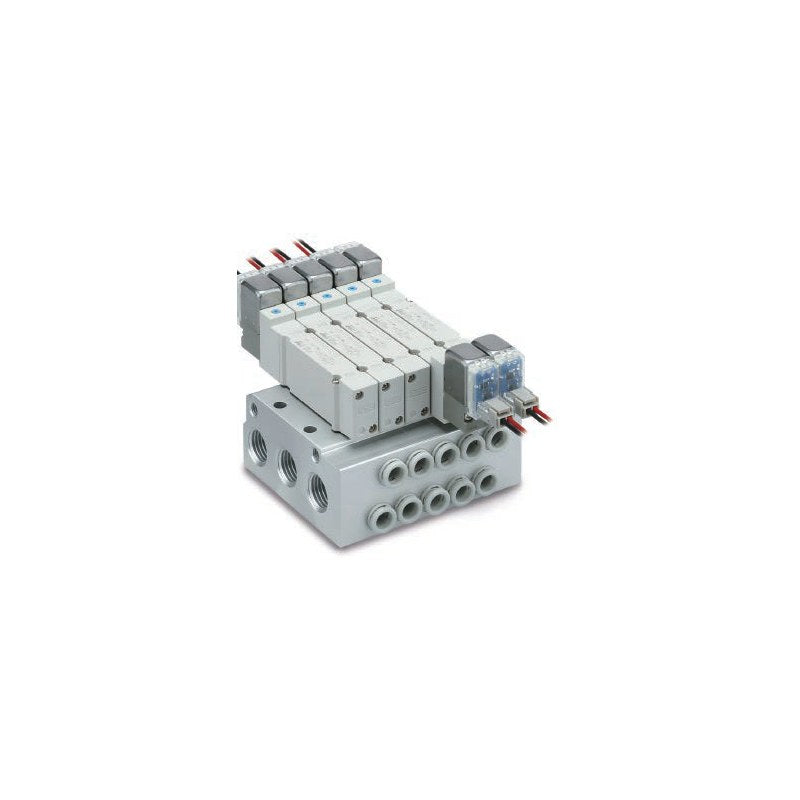

SMC JSY 5-Port Solenoid Valve (Non Plug-in, Metal Base, JSY1000-5000)

SMC JSY 5-Port Solenoid Valve (Non Plug-in, Metal Base, JSY1000-5000)

SMC JSY1000/3000/5000 compact non plug-in 5-port solenoid valve for JJ5SY metal base manifolds (type 40 side ported / type 41 bottom ported), 6.4, 10 and 15 mm valve widths.

Key features

  • Compact rubber seal spool valve: JSY1000 drives up to ø32, JSY3000 up to ø50, JSY5000 up to ø80 cylinders (at 300 mm/s)
  • Switching: 2-position single/double, 3-position closed/exhaust/pressure center and 4-position dual 3-port (N.C./N.C., N.O./N.O., N.C./N.O.)
  • Coil: standard 0.4 W or power-saving circuit (T) 0.1 W holding; JSY1000 is power-saving type only (0.2 W holding)
  • Electrical entry: L/M plug connector with or without lead, DIN terminal D/Y (JSY5000); M8 (W, WA) and M12 (K, JSY5000) connectors on order
  • Lamp/surge voltage suppressor (Z) standard; manual override non-locking push, push-turn locking slotted (D) or lever (E) as suffix
  • Supplied with 2 mounting screws; base gasket must be ordered separately when ordering a valve alone

Specifications

Fluid Air
Valve construction Rubber seal spool, internal pilot, individual pilot exhaust
Operating pressure (internal pilot) 0.15-0.7 MPa (2-pos single), 0.1-0.7 MPa (double), 0.2-0.7 MPa (3-pos)
Ambient and fluid temperature -10 to 50°C (no freezing)
Rated voltage DC24V
Power consumption Standard 0.4 W; power-saving 0.1 W (JSY1000 0.2 W)
Lamp/surge suppressor LED / diode (DIN terminal: varistor), Z type
Enclosure IP40 (L, M plug connector), IP65 (DIN terminal, M8, M12)
Lubrication Not required
Impact/vibration resistance 150/30 m/s²
Source SMC Korea catalog JSY1000/3000/5000 Non Plug-in (SMCKR_JSY_non-plugin.pdf), p. 172-173, 179 (PDF p. 10-11, 17)
JSY1140T-5LZ Series: JSY1000 | Switching: 2-pos single | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, 300 mm lead
JSY1140T-5LOZ Series: JSY1000 | Switching: 2-pos single | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, no lead
JSY1140T-5MZ Series: JSY1000 | Switching: 2-pos single | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, 300 mm lead
JSY1140T-5MOZ Series: JSY1000 | Switching: 2-pos single | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, no lead
JSY1240T-5LZ Series: JSY1000 | Switching: 2-pos double | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, 300 mm lead
JSY1240T-5LOZ Series: JSY1000 | Switching: 2-pos double | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, no lead
JSY1240T-5MZ Series: JSY1000 | Switching: 2-pos double | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, 300 mm lead
JSY1240T-5MOZ Series: JSY1000 | Switching: 2-pos double | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, no lead
JSY1340T-5LZ Series: JSY1000 | Switching: 3-pos closed center | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, 300 mm lead
JSY1340T-5LOZ Series: JSY1000 | Switching: 3-pos closed center | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, no lead
JSY1340T-5MZ Series: JSY1000 | Switching: 3-pos closed center | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, 300 mm lead
JSY1340T-5MOZ Series: JSY1000 | Switching: 3-pos closed center | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, no lead
JSY1440T-5LZ Series: JSY1000 | Switching: 3-pos exhaust center | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, 300 mm lead
JSY1440T-5LOZ Series: JSY1000 | Switching: 3-pos exhaust center | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, no lead
JSY1440T-5MZ Series: JSY1000 | Switching: 3-pos exhaust center | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, 300 mm lead
JSY1440T-5MOZ Series: JSY1000 | Switching: 3-pos exhaust center | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, no lead
JSY1540T-5LZ Series: JSY1000 | Switching: 3-pos pressure center | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, 300 mm lead
JSY1540T-5LOZ Series: JSY1000 | Switching: 3-pos pressure center | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, no lead
JSY1540T-5MZ Series: JSY1000 | Switching: 3-pos pressure center | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, 300 mm lead
JSY1540T-5MOZ Series: JSY1000 | Switching: 3-pos pressure center | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, no lead
JSY1A40T-5LZ Series: JSY1000 | Switching: 4-pos dual 3-port N.C./N.C. | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, 300 mm lead
JSY1A40T-5LOZ Series: JSY1000 | Switching: 4-pos dual 3-port N.C./N.C. | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, no lead
JSY1A40T-5MZ Series: JSY1000 | Switching: 4-pos dual 3-port N.C./N.C. | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, 300 mm lead
JSY1A40T-5MOZ Series: JSY1000 | Switching: 4-pos dual 3-port N.C./N.C. | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, no lead
JSY1B40T-5LZ Series: JSY1000 | Switching: 4-pos dual 3-port N.O./N.O. | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, 300 mm lead
JSY1B40T-5LOZ Series: JSY1000 | Switching: 4-pos dual 3-port N.O./N.O. | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, no lead
JSY1B40T-5MZ Series: JSY1000 | Switching: 4-pos dual 3-port N.O./N.O. | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, 300 mm lead
JSY1B40T-5MOZ Series: JSY1000 | Switching: 4-pos dual 3-port N.O./N.O. | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, no lead
JSY1C40T-5LZ Series: JSY1000 | Switching: 4-pos dual 3-port N.C./N.O. | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, 300 mm lead
JSY1C40T-5LOZ Series: JSY1000 | Switching: 4-pos dual 3-port N.C./N.O. | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, no lead
JSY1C40T-5MZ Series: JSY1000 | Switching: 4-pos dual 3-port N.C./N.O. | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, 300 mm lead
JSY1C40T-5MOZ Series: JSY1000 | Switching: 4-pos dual 3-port N.C./N.O. | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, no lead
JSY3140-5LZ Series: JSY3000 | Switching: 2-pos single | Coil: Standard | Electrical entry: L plug connector, 300 mm lead
JSY3140-5LOZ Series: JSY3000 | Switching: 2-pos single | Coil: Standard | Electrical entry: L plug connector, no lead
JSY3140-5MZ Series: JSY3000 | Switching: 2-pos single | Coil: Standard | Electrical entry: M plug connector, 300 mm lead
JSY3140-5MOZ Series: JSY3000 | Switching: 2-pos single | Coil: Standard | Electrical entry: M plug connector, no lead
JSY3140T-5LZ Series: JSY3000 | Switching: 2-pos single | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, 300 mm lead
JSY3140T-5LOZ Series: JSY3000 | Switching: 2-pos single | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, no lead
JSY3140T-5MZ Series: JSY3000 | Switching: 2-pos single | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, 300 mm lead
JSY3140T-5MOZ Series: JSY3000 | Switching: 2-pos single | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, no lead
JSY3240-5LZ Series: JSY3000 | Switching: 2-pos double | Coil: Standard | Electrical entry: L plug connector, 300 mm lead
JSY3240-5LOZ Series: JSY3000 | Switching: 2-pos double | Coil: Standard | Electrical entry: L plug connector, no lead
JSY3240-5MZ Series: JSY3000 | Switching: 2-pos double | Coil: Standard | Electrical entry: M plug connector, 300 mm lead
JSY3240-5MOZ Series: JSY3000 | Switching: 2-pos double | Coil: Standard | Electrical entry: M plug connector, no lead
JSY3240T-5LZ Series: JSY3000 | Switching: 2-pos double | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, 300 mm lead
JSY3240T-5LOZ Series: JSY3000 | Switching: 2-pos double | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, no lead
JSY3240T-5MZ Series: JSY3000 | Switching: 2-pos double | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, 300 mm lead
JSY3240T-5MOZ Series: JSY3000 | Switching: 2-pos double | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, no lead
JSY3340-5LZ Series: JSY3000 | Switching: 3-pos closed center | Coil: Standard | Electrical entry: L plug connector, 300 mm lead
JSY3340-5LOZ Series: JSY3000 | Switching: 3-pos closed center | Coil: Standard | Electrical entry: L plug connector, no lead
JSY3340-5MZ Series: JSY3000 | Switching: 3-pos closed center | Coil: Standard | Electrical entry: M plug connector, 300 mm lead
JSY3340-5MOZ Series: JSY3000 | Switching: 3-pos closed center | Coil: Standard | Electrical entry: M plug connector, no lead
JSY3340T-5LZ Series: JSY3000 | Switching: 3-pos closed center | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, 300 mm lead
JSY3340T-5LOZ Series: JSY3000 | Switching: 3-pos closed center | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, no lead
JSY3340T-5MZ Series: JSY3000 | Switching: 3-pos closed center | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, 300 mm lead
JSY3340T-5MOZ Series: JSY3000 | Switching: 3-pos closed center | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, no lead
JSY3440-5LZ Series: JSY3000 | Switching: 3-pos exhaust center | Coil: Standard | Electrical entry: L plug connector, 300 mm lead
JSY3440-5LOZ Series: JSY3000 | Switching: 3-pos exhaust center | Coil: Standard | Electrical entry: L plug connector, no lead
JSY3440-5MZ Series: JSY3000 | Switching: 3-pos exhaust center | Coil: Standard | Electrical entry: M plug connector, 300 mm lead
JSY3440-5MOZ Series: JSY3000 | Switching: 3-pos exhaust center | Coil: Standard | Electrical entry: M plug connector, no lead
JSY3440T-5LZ Series: JSY3000 | Switching: 3-pos exhaust center | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, 300 mm lead
JSY3440T-5LOZ Series: JSY3000 | Switching: 3-pos exhaust center | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, no lead
JSY3440T-5MZ Series: JSY3000 | Switching: 3-pos exhaust center | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, 300 mm lead
JSY3440T-5MOZ Series: JSY3000 | Switching: 3-pos exhaust center | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, no lead
JSY3540-5LZ Series: JSY3000 | Switching: 3-pos pressure center | Coil: Standard | Electrical entry: L plug connector, 300 mm lead
JSY3540-5LOZ Series: JSY3000 | Switching: 3-pos pressure center | Coil: Standard | Electrical entry: L plug connector, no lead
JSY3540-5MZ Series: JSY3000 | Switching: 3-pos pressure center | Coil: Standard | Electrical entry: M plug connector, 300 mm lead
JSY3540-5MOZ Series: JSY3000 | Switching: 3-pos pressure center | Coil: Standard | Electrical entry: M plug connector, no lead
JSY3540T-5LZ Series: JSY3000 | Switching: 3-pos pressure center | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, 300 mm lead
JSY3540T-5LOZ Series: JSY3000 | Switching: 3-pos pressure center | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, no lead
JSY3540T-5MZ Series: JSY3000 | Switching: 3-pos pressure center | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, 300 mm lead
JSY3540T-5MOZ Series: JSY3000 | Switching: 3-pos pressure center | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, no lead
JSY3A40-5LZ Series: JSY3000 | Switching: 4-pos dual 3-port N.C./N.C. | Coil: Standard | Electrical entry: L plug connector, 300 mm lead
JSY3A40-5LOZ Series: JSY3000 | Switching: 4-pos dual 3-port N.C./N.C. | Coil: Standard | Electrical entry: L plug connector, no lead
JSY3A40-5MZ Series: JSY3000 | Switching: 4-pos dual 3-port N.C./N.C. | Coil: Standard | Electrical entry: M plug connector, 300 mm lead
JSY3A40-5MOZ Series: JSY3000 | Switching: 4-pos dual 3-port N.C./N.C. | Coil: Standard | Electrical entry: M plug connector, no lead
JSY3A40T-5LZ Series: JSY3000 | Switching: 4-pos dual 3-port N.C./N.C. | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, 300 mm lead
JSY3A40T-5LOZ Series: JSY3000 | Switching: 4-pos dual 3-port N.C./N.C. | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, no lead
JSY3A40T-5MZ Series: JSY3000 | Switching: 4-pos dual 3-port N.C./N.C. | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, 300 mm lead
JSY3A40T-5MOZ Series: JSY3000 | Switching: 4-pos dual 3-port N.C./N.C. | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, no lead
JSY3B40-5LZ Series: JSY3000 | Switching: 4-pos dual 3-port N.O./N.O. | Coil: Standard | Electrical entry: L plug connector, 300 mm lead
JSY3B40-5LOZ Series: JSY3000 | Switching: 4-pos dual 3-port N.O./N.O. | Coil: Standard | Electrical entry: L plug connector, no lead
JSY3B40-5MZ Series: JSY3000 | Switching: 4-pos dual 3-port N.O./N.O. | Coil: Standard | Electrical entry: M plug connector, 300 mm lead
JSY3B40-5MOZ Series: JSY3000 | Switching: 4-pos dual 3-port N.O./N.O. | Coil: Standard | Electrical entry: M plug connector, no lead
JSY3B40T-5LZ Series: JSY3000 | Switching: 4-pos dual 3-port N.O./N.O. | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, 300 mm lead
JSY3B40T-5LOZ Series: JSY3000 | Switching: 4-pos dual 3-port N.O./N.O. | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, no lead
JSY3B40T-5MZ Series: JSY3000 | Switching: 4-pos dual 3-port N.O./N.O. | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, 300 mm lead
JSY3B40T-5MOZ Series: JSY3000 | Switching: 4-pos dual 3-port N.O./N.O. | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, no lead
JSY3C40-5LZ Series: JSY3000 | Switching: 4-pos dual 3-port N.C./N.O. | Coil: Standard | Electrical entry: L plug connector, 300 mm lead
JSY3C40-5LOZ Series: JSY3000 | Switching: 4-pos dual 3-port N.C./N.O. | Coil: Standard | Electrical entry: L plug connector, no lead
JSY3C40-5MZ Series: JSY3000 | Switching: 4-pos dual 3-port N.C./N.O. | Coil: Standard | Electrical entry: M plug connector, 300 mm lead
JSY3C40-5MOZ Series: JSY3000 | Switching: 4-pos dual 3-port N.C./N.O. | Coil: Standard | Electrical entry: M plug connector, no lead
JSY3C40T-5LZ Series: JSY3000 | Switching: 4-pos dual 3-port N.C./N.O. | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, 300 mm lead
JSY3C40T-5LOZ Series: JSY3000 | Switching: 4-pos dual 3-port N.C./N.O. | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, no lead
JSY3C40T-5MZ Series: JSY3000 | Switching: 4-pos dual 3-port N.C./N.O. | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, 300 mm lead
JSY3C40T-5MOZ Series: JSY3000 | Switching: 4-pos dual 3-port N.C./N.O. | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, no lead
JSY5140-5LZ Series: JSY5000 | Switching: 2-pos single | Coil: Standard | Electrical entry: L plug connector, 300 mm lead
JSY5140-5LOZ Series: JSY5000 | Switching: 2-pos single | Coil: Standard | Electrical entry: L plug connector, no lead
JSY5140-5MZ Series: JSY5000 | Switching: 2-pos single | Coil: Standard | Electrical entry: M plug connector, 300 mm lead
JSY5140-5MOZ Series: JSY5000 | Switching: 2-pos single | Coil: Standard | Electrical entry: M plug connector, no lead
JSY5140-5DZ Series: JSY5000 | Switching: 2-pos single | Coil: Standard | Electrical entry: DIN terminal (D type)
JSY5140-5YZ Series: JSY5000 | Switching: 2-pos single | Coil: Standard | Electrical entry: DIN terminal (Y type, EN 175301)
JSY5140T-5LZ Series: JSY5000 | Switching: 2-pos single | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, 300 mm lead
JSY5140T-5LOZ Series: JSY5000 | Switching: 2-pos single | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, no lead
JSY5140T-5MZ Series: JSY5000 | Switching: 2-pos single | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, 300 mm lead
JSY5140T-5MOZ Series: JSY5000 | Switching: 2-pos single | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, no lead
JSY5240-5LZ Series: JSY5000 | Switching: 2-pos double | Coil: Standard | Electrical entry: L plug connector, 300 mm lead
JSY5240-5LOZ Series: JSY5000 | Switching: 2-pos double | Coil: Standard | Electrical entry: L plug connector, no lead
JSY5240-5MZ Series: JSY5000 | Switching: 2-pos double | Coil: Standard | Electrical entry: M plug connector, 300 mm lead
JSY5240-5MOZ Series: JSY5000 | Switching: 2-pos double | Coil: Standard | Electrical entry: M plug connector, no lead
JSY5240-5DZ Series: JSY5000 | Switching: 2-pos double | Coil: Standard | Electrical entry: DIN terminal (D type)
JSY5240-5YZ Series: JSY5000 | Switching: 2-pos double | Coil: Standard | Electrical entry: DIN terminal (Y type, EN 175301)
JSY5240T-5LZ Series: JSY5000 | Switching: 2-pos double | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, 300 mm lead
JSY5240T-5LOZ Series: JSY5000 | Switching: 2-pos double | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, no lead
JSY5240T-5MZ Series: JSY5000 | Switching: 2-pos double | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, 300 mm lead
JSY5240T-5MOZ Series: JSY5000 | Switching: 2-pos double | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, no lead
JSY5340-5LZ Series: JSY5000 | Switching: 3-pos closed center | Coil: Standard | Electrical entry: L plug connector, 300 mm lead
JSY5340-5LOZ Series: JSY5000 | Switching: 3-pos closed center | Coil: Standard | Electrical entry: L plug connector, no lead
JSY5340-5MZ Series: JSY5000 | Switching: 3-pos closed center | Coil: Standard | Electrical entry: M plug connector, 300 mm lead
JSY5340-5MOZ Series: JSY5000 | Switching: 3-pos closed center | Coil: Standard | Electrical entry: M plug connector, no lead
JSY5340-5DZ Series: JSY5000 | Switching: 3-pos closed center | Coil: Standard | Electrical entry: DIN terminal (D type)
JSY5340-5YZ Series: JSY5000 | Switching: 3-pos closed center | Coil: Standard | Electrical entry: DIN terminal (Y type, EN 175301)
JSY5340T-5LZ Series: JSY5000 | Switching: 3-pos closed center | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, 300 mm lead
JSY5340T-5LOZ Series: JSY5000 | Switching: 3-pos closed center | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, no lead
JSY5340T-5MZ Series: JSY5000 | Switching: 3-pos closed center | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, 300 mm lead
JSY5340T-5MOZ Series: JSY5000 | Switching: 3-pos closed center | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, no lead
JSY5440-5LZ Series: JSY5000 | Switching: 3-pos exhaust center | Coil: Standard | Electrical entry: L plug connector, 300 mm lead
JSY5440-5LOZ Series: JSY5000 | Switching: 3-pos exhaust center | Coil: Standard | Electrical entry: L plug connector, no lead
JSY5440-5MZ Series: JSY5000 | Switching: 3-pos exhaust center | Coil: Standard | Electrical entry: M plug connector, 300 mm lead
JSY5440-5MOZ Series: JSY5000 | Switching: 3-pos exhaust center | Coil: Standard | Electrical entry: M plug connector, no lead
JSY5440-5DZ Series: JSY5000 | Switching: 3-pos exhaust center | Coil: Standard | Electrical entry: DIN terminal (D type)
JSY5440-5YZ Series: JSY5000 | Switching: 3-pos exhaust center | Coil: Standard | Electrical entry: DIN terminal (Y type, EN 175301)
JSY5440T-5LZ Series: JSY5000 | Switching: 3-pos exhaust center | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, 300 mm lead
JSY5440T-5LOZ Series: JSY5000 | Switching: 3-pos exhaust center | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, no lead
JSY5440T-5MZ Series: JSY5000 | Switching: 3-pos exhaust center | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, 300 mm lead
JSY5440T-5MOZ Series: JSY5000 | Switching: 3-pos exhaust center | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, no lead
JSY5540-5LZ Series: JSY5000 | Switching: 3-pos pressure center | Coil: Standard | Electrical entry: L plug connector, 300 mm lead
JSY5540-5LOZ Series: JSY5000 | Switching: 3-pos pressure center | Coil: Standard | Electrical entry: L plug connector, no lead
JSY5540-5MZ Series: JSY5000 | Switching: 3-pos pressure center | Coil: Standard | Electrical entry: M plug connector, 300 mm lead
JSY5540-5MOZ Series: JSY5000 | Switching: 3-pos pressure center | Coil: Standard | Electrical entry: M plug connector, no lead
JSY5540-5DZ Series: JSY5000 | Switching: 3-pos pressure center | Coil: Standard | Electrical entry: DIN terminal (D type)
JSY5540-5YZ Series: JSY5000 | Switching: 3-pos pressure center | Coil: Standard | Electrical entry: DIN terminal (Y type, EN 175301)
JSY5540T-5LZ Series: JSY5000 | Switching: 3-pos pressure center | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, 300 mm lead
JSY5540T-5LOZ Series: JSY5000 | Switching: 3-pos pressure center | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, no lead
JSY5540T-5MZ Series: JSY5000 | Switching: 3-pos pressure center | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, 300 mm lead
JSY5540T-5MOZ Series: JSY5000 | Switching: 3-pos pressure center | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, no lead
JSY5A40-5LZ Series: JSY5000 | Switching: 4-pos dual 3-port N.C./N.C. | Coil: Standard | Electrical entry: L plug connector, 300 mm lead
JSY5A40-5LOZ Series: JSY5000 | Switching: 4-pos dual 3-port N.C./N.C. | Coil: Standard | Electrical entry: L plug connector, no lead
JSY5A40-5MZ Series: JSY5000 | Switching: 4-pos dual 3-port N.C./N.C. | Coil: Standard | Electrical entry: M plug connector, 300 mm lead
JSY5A40-5MOZ Series: JSY5000 | Switching: 4-pos dual 3-port N.C./N.C. | Coil: Standard | Electrical entry: M plug connector, no lead
JSY5A40-5DZ Series: JSY5000 | Switching: 4-pos dual 3-port N.C./N.C. | Coil: Standard | Electrical entry: DIN terminal (D type)
JSY5A40-5YZ Series: JSY5000 | Switching: 4-pos dual 3-port N.C./N.C. | Coil: Standard | Electrical entry: DIN terminal (Y type, EN 175301)
JSY5A40T-5LZ Series: JSY5000 | Switching: 4-pos dual 3-port N.C./N.C. | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, 300 mm lead
JSY5A40T-5LOZ Series: JSY5000 | Switching: 4-pos dual 3-port N.C./N.C. | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, no lead
JSY5A40T-5MZ Series: JSY5000 | Switching: 4-pos dual 3-port N.C./N.C. | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, 300 mm lead
JSY5A40T-5MOZ Series: JSY5000 | Switching: 4-pos dual 3-port N.C./N.C. | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, no lead
JSY5B40-5LZ Series: JSY5000 | Switching: 4-pos dual 3-port N.O./N.O. | Coil: Standard | Electrical entry: L plug connector, 300 mm lead
JSY5B40-5LOZ Series: JSY5000 | Switching: 4-pos dual 3-port N.O./N.O. | Coil: Standard | Electrical entry: L plug connector, no lead
JSY5B40-5MZ Series: JSY5000 | Switching: 4-pos dual 3-port N.O./N.O. | Coil: Standard | Electrical entry: M plug connector, 300 mm lead
JSY5B40-5MOZ Series: JSY5000 | Switching: 4-pos dual 3-port N.O./N.O. | Coil: Standard | Electrical entry: M plug connector, no lead
JSY5B40-5DZ Series: JSY5000 | Switching: 4-pos dual 3-port N.O./N.O. | Coil: Standard | Electrical entry: DIN terminal (D type)
JSY5B40-5YZ Series: JSY5000 | Switching: 4-pos dual 3-port N.O./N.O. | Coil: Standard | Electrical entry: DIN terminal (Y type, EN 175301)
JSY5B40T-5LZ Series: JSY5000 | Switching: 4-pos dual 3-port N.O./N.O. | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, 300 mm lead
JSY5B40T-5LOZ Series: JSY5000 | Switching: 4-pos dual 3-port N.O./N.O. | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, no lead
JSY5B40T-5MZ Series: JSY5000 | Switching: 4-pos dual 3-port N.O./N.O. | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, 300 mm lead
JSY5B40T-5MOZ Series: JSY5000 | Switching: 4-pos dual 3-port N.O./N.O. | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, no lead
JSY5C40-5LZ Series: JSY5000 | Switching: 4-pos dual 3-port N.C./N.O. | Coil: Standard | Electrical entry: L plug connector, 300 mm lead
JSY5C40-5LOZ Series: JSY5000 | Switching: 4-pos dual 3-port N.C./N.O. | Coil: Standard | Electrical entry: L plug connector, no lead
JSY5C40-5MZ Series: JSY5000 | Switching: 4-pos dual 3-port N.C./N.O. | Coil: Standard | Electrical entry: M plug connector, 300 mm lead
JSY5C40-5MOZ Series: JSY5000 | Switching: 4-pos dual 3-port N.C./N.O. | Coil: Standard | Electrical entry: M plug connector, no lead
JSY5C40-5DZ Series: JSY5000 | Switching: 4-pos dual 3-port N.C./N.O. | Coil: Standard | Electrical entry: DIN terminal (D type)
JSY5C40-5YZ Series: JSY5000 | Switching: 4-pos dual 3-port N.C./N.O. | Coil: Standard | Electrical entry: DIN terminal (Y type, EN 175301)
JSY5C40T-5LZ Series: JSY5000 | Switching: 4-pos dual 3-port N.C./N.O. | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, 300 mm lead
JSY5C40T-5LOZ Series: JSY5000 | Switching: 4-pos dual 3-port N.C./N.O. | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, no lead
JSY5C40T-5MZ Series: JSY5000 | Switching: 4-pos dual 3-port N.C./N.O. | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, 300 mm lead
JSY5C40T-5MOZ Series: JSY5000 | Switching: 4-pos dual 3-port N.C./N.O. | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, no lead
5-Port Solenoid ValvesSMC
176 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC JSY 5-Port Solenoid Valve (Non Plug-in, Metal Base, JSY1000-5000)

Brand SMC·5-Port Solenoid Valves

Available part numbers (176)

JSY1140T-5LZ, JSY1140T-5LOZ, JSY1140T-5MZ, JSY1140T-5MOZ, JSY1240T-5LZ, JSY1240T-5LOZ, JSY1240T-5MZ, JSY1240T-5MOZ, JSY1340T-5LZ, JSY1340T-5LOZ + 166 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
JSY1140T-5LZSeries: JSY1000 | Switching: 2-pos single | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, 300 mm lead
JSY1140T-5LOZSeries: JSY1000 | Switching: 2-pos single | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, no lead
JSY1140T-5MZSeries: JSY1000 | Switching: 2-pos single | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, 300 mm lead
JSY1140T-5MOZSeries: JSY1000 | Switching: 2-pos single | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, no lead
JSY1240T-5LZSeries: JSY1000 | Switching: 2-pos double | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, 300 mm lead
JSY1240T-5LOZSeries: JSY1000 | Switching: 2-pos double | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, no lead
JSY1240T-5MZSeries: JSY1000 | Switching: 2-pos double | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, 300 mm lead
JSY1240T-5MOZSeries: JSY1000 | Switching: 2-pos double | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, no lead
JSY1340T-5LZSeries: JSY1000 | Switching: 3-pos closed center | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, 300 mm lead
JSY1340T-5LOZSeries: JSY1000 | Switching: 3-pos closed center | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, no lead
JSY1340T-5MZSeries: JSY1000 | Switching: 3-pos closed center | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, 300 mm lead
JSY1340T-5MOZSeries: JSY1000 | Switching: 3-pos closed center | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, no lead
JSY1440T-5LZSeries: JSY1000 | Switching: 3-pos exhaust center | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, 300 mm lead
JSY1440T-5LOZSeries: JSY1000 | Switching: 3-pos exhaust center | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, no lead
JSY1440T-5MZSeries: JSY1000 | Switching: 3-pos exhaust center | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, 300 mm lead
JSY1440T-5MOZSeries: JSY1000 | Switching: 3-pos exhaust center | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, no lead
JSY1540T-5LZSeries: JSY1000 | Switching: 3-pos pressure center | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, 300 mm lead
JSY1540T-5LOZSeries: JSY1000 | Switching: 3-pos pressure center | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, no lead
JSY1540T-5MZSeries: JSY1000 | Switching: 3-pos pressure center | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, 300 mm lead
JSY1540T-5MOZSeries: JSY1000 | Switching: 3-pos pressure center | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, no lead
JSY1A40T-5LZSeries: JSY1000 | Switching: 4-pos dual 3-port N.C./N.C. | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, 300 mm lead
JSY1A40T-5LOZSeries: JSY1000 | Switching: 4-pos dual 3-port N.C./N.C. | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, no lead
JSY1A40T-5MZSeries: JSY1000 | Switching: 4-pos dual 3-port N.C./N.C. | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, 300 mm lead
JSY1A40T-5MOZSeries: JSY1000 | Switching: 4-pos dual 3-port N.C./N.C. | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, no lead
JSY1B40T-5LZSeries: JSY1000 | Switching: 4-pos dual 3-port N.O./N.O. | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, 300 mm lead
JSY1B40T-5LOZSeries: JSY1000 | Switching: 4-pos dual 3-port N.O./N.O. | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, no lead
JSY1B40T-5MZSeries: JSY1000 | Switching: 4-pos dual 3-port N.O./N.O. | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, 300 mm lead
JSY1B40T-5MOZSeries: JSY1000 | Switching: 4-pos dual 3-port N.O./N.O. | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, no lead
JSY1C40T-5LZSeries: JSY1000 | Switching: 4-pos dual 3-port N.C./N.O. | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, 300 mm lead
JSY1C40T-5LOZSeries: JSY1000 | Switching: 4-pos dual 3-port N.C./N.O. | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, no lead
JSY1C40T-5MZSeries: JSY1000 | Switching: 4-pos dual 3-port N.C./N.O. | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, 300 mm lead
JSY1C40T-5MOZSeries: JSY1000 | Switching: 4-pos dual 3-port N.C./N.O. | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, no lead
JSY3140-5LZSeries: JSY3000 | Switching: 2-pos single | Coil: Standard | Electrical entry: L plug connector, 300 mm lead
JSY3140-5LOZSeries: JSY3000 | Switching: 2-pos single | Coil: Standard | Electrical entry: L plug connector, no lead
JSY3140-5MZSeries: JSY3000 | Switching: 2-pos single | Coil: Standard | Electrical entry: M plug connector, 300 mm lead
JSY3140-5MOZSeries: JSY3000 | Switching: 2-pos single | Coil: Standard | Electrical entry: M plug connector, no lead
JSY3140T-5LZSeries: JSY3000 | Switching: 2-pos single | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, 300 mm lead
JSY3140T-5LOZSeries: JSY3000 | Switching: 2-pos single | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, no lead
JSY3140T-5MZSeries: JSY3000 | Switching: 2-pos single | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, 300 mm lead
JSY3140T-5MOZSeries: JSY3000 | Switching: 2-pos single | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, no lead
JSY3240-5LZSeries: JSY3000 | Switching: 2-pos double | Coil: Standard | Electrical entry: L plug connector, 300 mm lead
JSY3240-5LOZSeries: JSY3000 | Switching: 2-pos double | Coil: Standard | Electrical entry: L plug connector, no lead
JSY3240-5MZSeries: JSY3000 | Switching: 2-pos double | Coil: Standard | Electrical entry: M plug connector, 300 mm lead
JSY3240-5MOZSeries: JSY3000 | Switching: 2-pos double | Coil: Standard | Electrical entry: M plug connector, no lead
JSY3240T-5LZSeries: JSY3000 | Switching: 2-pos double | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, 300 mm lead
JSY3240T-5LOZSeries: JSY3000 | Switching: 2-pos double | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, no lead
JSY3240T-5MZSeries: JSY3000 | Switching: 2-pos double | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, 300 mm lead
JSY3240T-5MOZSeries: JSY3000 | Switching: 2-pos double | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, no lead
JSY3340-5LZSeries: JSY3000 | Switching: 3-pos closed center | Coil: Standard | Electrical entry: L plug connector, 300 mm lead
JSY3340-5LOZSeries: JSY3000 | Switching: 3-pos closed center | Coil: Standard | Electrical entry: L plug connector, no lead
JSY3340-5MZSeries: JSY3000 | Switching: 3-pos closed center | Coil: Standard | Electrical entry: M plug connector, 300 mm lead
JSY3340-5MOZSeries: JSY3000 | Switching: 3-pos closed center | Coil: Standard | Electrical entry: M plug connector, no lead
JSY3340T-5LZSeries: JSY3000 | Switching: 3-pos closed center | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, 300 mm lead
JSY3340T-5LOZSeries: JSY3000 | Switching: 3-pos closed center | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, no lead
JSY3340T-5MZSeries: JSY3000 | Switching: 3-pos closed center | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, 300 mm lead
JSY3340T-5MOZSeries: JSY3000 | Switching: 3-pos closed center | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, no lead
JSY3440-5LZSeries: JSY3000 | Switching: 3-pos exhaust center | Coil: Standard | Electrical entry: L plug connector, 300 mm lead
JSY3440-5LOZSeries: JSY3000 | Switching: 3-pos exhaust center | Coil: Standard | Electrical entry: L plug connector, no lead
JSY3440-5MZSeries: JSY3000 | Switching: 3-pos exhaust center | Coil: Standard | Electrical entry: M plug connector, 300 mm lead
JSY3440-5MOZSeries: JSY3000 | Switching: 3-pos exhaust center | Coil: Standard | Electrical entry: M plug connector, no lead
JSY3440T-5LZSeries: JSY3000 | Switching: 3-pos exhaust center | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, 300 mm lead
JSY3440T-5LOZSeries: JSY3000 | Switching: 3-pos exhaust center | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, no lead
JSY3440T-5MZSeries: JSY3000 | Switching: 3-pos exhaust center | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, 300 mm lead
JSY3440T-5MOZSeries: JSY3000 | Switching: 3-pos exhaust center | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, no lead
JSY3540-5LZSeries: JSY3000 | Switching: 3-pos pressure center | Coil: Standard | Electrical entry: L plug connector, 300 mm lead
JSY3540-5LOZSeries: JSY3000 | Switching: 3-pos pressure center | Coil: Standard | Electrical entry: L plug connector, no lead
JSY3540-5MZSeries: JSY3000 | Switching: 3-pos pressure center | Coil: Standard | Electrical entry: M plug connector, 300 mm lead
JSY3540-5MOZSeries: JSY3000 | Switching: 3-pos pressure center | Coil: Standard | Electrical entry: M plug connector, no lead
JSY3540T-5LZSeries: JSY3000 | Switching: 3-pos pressure center | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, 300 mm lead
JSY3540T-5LOZSeries: JSY3000 | Switching: 3-pos pressure center | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, no lead
JSY3540T-5MZSeries: JSY3000 | Switching: 3-pos pressure center | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, 300 mm lead
JSY3540T-5MOZSeries: JSY3000 | Switching: 3-pos pressure center | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, no lead
JSY3A40-5LZSeries: JSY3000 | Switching: 4-pos dual 3-port N.C./N.C. | Coil: Standard | Electrical entry: L plug connector, 300 mm lead
JSY3A40-5LOZSeries: JSY3000 | Switching: 4-pos dual 3-port N.C./N.C. | Coil: Standard | Electrical entry: L plug connector, no lead
JSY3A40-5MZSeries: JSY3000 | Switching: 4-pos dual 3-port N.C./N.C. | Coil: Standard | Electrical entry: M plug connector, 300 mm lead
JSY3A40-5MOZSeries: JSY3000 | Switching: 4-pos dual 3-port N.C./N.C. | Coil: Standard | Electrical entry: M plug connector, no lead
JSY3A40T-5LZSeries: JSY3000 | Switching: 4-pos dual 3-port N.C./N.C. | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, 300 mm lead
JSY3A40T-5LOZSeries: JSY3000 | Switching: 4-pos dual 3-port N.C./N.C. | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, no lead
JSY3A40T-5MZSeries: JSY3000 | Switching: 4-pos dual 3-port N.C./N.C. | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, 300 mm lead
JSY3A40T-5MOZSeries: JSY3000 | Switching: 4-pos dual 3-port N.C./N.C. | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, no lead
JSY3B40-5LZSeries: JSY3000 | Switching: 4-pos dual 3-port N.O./N.O. | Coil: Standard | Electrical entry: L plug connector, 300 mm lead
JSY3B40-5LOZSeries: JSY3000 | Switching: 4-pos dual 3-port N.O./N.O. | Coil: Standard | Electrical entry: L plug connector, no lead
JSY3B40-5MZSeries: JSY3000 | Switching: 4-pos dual 3-port N.O./N.O. | Coil: Standard | Electrical entry: M plug connector, 300 mm lead
JSY3B40-5MOZSeries: JSY3000 | Switching: 4-pos dual 3-port N.O./N.O. | Coil: Standard | Electrical entry: M plug connector, no lead
JSY3B40T-5LZSeries: JSY3000 | Switching: 4-pos dual 3-port N.O./N.O. | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, 300 mm lead
JSY3B40T-5LOZSeries: JSY3000 | Switching: 4-pos dual 3-port N.O./N.O. | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, no lead
JSY3B40T-5MZSeries: JSY3000 | Switching: 4-pos dual 3-port N.O./N.O. | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, 300 mm lead
JSY3B40T-5MOZSeries: JSY3000 | Switching: 4-pos dual 3-port N.O./N.O. | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, no lead
JSY3C40-5LZSeries: JSY3000 | Switching: 4-pos dual 3-port N.C./N.O. | Coil: Standard | Electrical entry: L plug connector, 300 mm lead
JSY3C40-5LOZSeries: JSY3000 | Switching: 4-pos dual 3-port N.C./N.O. | Coil: Standard | Electrical entry: L plug connector, no lead
JSY3C40-5MZSeries: JSY3000 | Switching: 4-pos dual 3-port N.C./N.O. | Coil: Standard | Electrical entry: M plug connector, 300 mm lead
JSY3C40-5MOZSeries: JSY3000 | Switching: 4-pos dual 3-port N.C./N.O. | Coil: Standard | Electrical entry: M plug connector, no lead
JSY3C40T-5LZSeries: JSY3000 | Switching: 4-pos dual 3-port N.C./N.O. | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, 300 mm lead
JSY3C40T-5LOZSeries: JSY3000 | Switching: 4-pos dual 3-port N.C./N.O. | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, no lead
JSY3C40T-5MZSeries: JSY3000 | Switching: 4-pos dual 3-port N.C./N.O. | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, 300 mm lead
JSY3C40T-5MOZSeries: JSY3000 | Switching: 4-pos dual 3-port N.C./N.O. | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, no lead
JSY5140-5LZSeries: JSY5000 | Switching: 2-pos single | Coil: Standard | Electrical entry: L plug connector, 300 mm lead
JSY5140-5LOZSeries: JSY5000 | Switching: 2-pos single | Coil: Standard | Electrical entry: L plug connector, no lead
JSY5140-5MZSeries: JSY5000 | Switching: 2-pos single | Coil: Standard | Electrical entry: M plug connector, 300 mm lead
JSY5140-5MOZSeries: JSY5000 | Switching: 2-pos single | Coil: Standard | Electrical entry: M plug connector, no lead
JSY5140-5DZSeries: JSY5000 | Switching: 2-pos single | Coil: Standard | Electrical entry: DIN terminal (D type)
JSY5140-5YZSeries: JSY5000 | Switching: 2-pos single | Coil: Standard | Electrical entry: DIN terminal (Y type, EN 175301)
JSY5140T-5LZSeries: JSY5000 | Switching: 2-pos single | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, 300 mm lead
JSY5140T-5LOZSeries: JSY5000 | Switching: 2-pos single | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, no lead
JSY5140T-5MZSeries: JSY5000 | Switching: 2-pos single | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, 300 mm lead
JSY5140T-5MOZSeries: JSY5000 | Switching: 2-pos single | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, no lead
JSY5240-5LZSeries: JSY5000 | Switching: 2-pos double | Coil: Standard | Electrical entry: L plug connector, 300 mm lead
JSY5240-5LOZSeries: JSY5000 | Switching: 2-pos double | Coil: Standard | Electrical entry: L plug connector, no lead
JSY5240-5MZSeries: JSY5000 | Switching: 2-pos double | Coil: Standard | Electrical entry: M plug connector, 300 mm lead
JSY5240-5MOZSeries: JSY5000 | Switching: 2-pos double | Coil: Standard | Electrical entry: M plug connector, no lead
JSY5240-5DZSeries: JSY5000 | Switching: 2-pos double | Coil: Standard | Electrical entry: DIN terminal (D type)
JSY5240-5YZSeries: JSY5000 | Switching: 2-pos double | Coil: Standard | Electrical entry: DIN terminal (Y type, EN 175301)
JSY5240T-5LZSeries: JSY5000 | Switching: 2-pos double | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, 300 mm lead
JSY5240T-5LOZSeries: JSY5000 | Switching: 2-pos double | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, no lead
JSY5240T-5MZSeries: JSY5000 | Switching: 2-pos double | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, 300 mm lead
JSY5240T-5MOZSeries: JSY5000 | Switching: 2-pos double | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, no lead
JSY5340-5LZSeries: JSY5000 | Switching: 3-pos closed center | Coil: Standard | Electrical entry: L plug connector, 300 mm lead
JSY5340-5LOZSeries: JSY5000 | Switching: 3-pos closed center | Coil: Standard | Electrical entry: L plug connector, no lead
JSY5340-5MZSeries: JSY5000 | Switching: 3-pos closed center | Coil: Standard | Electrical entry: M plug connector, 300 mm lead
JSY5340-5MOZSeries: JSY5000 | Switching: 3-pos closed center | Coil: Standard | Electrical entry: M plug connector, no lead
JSY5340-5DZSeries: JSY5000 | Switching: 3-pos closed center | Coil: Standard | Electrical entry: DIN terminal (D type)
JSY5340-5YZSeries: JSY5000 | Switching: 3-pos closed center | Coil: Standard | Electrical entry: DIN terminal (Y type, EN 175301)
JSY5340T-5LZSeries: JSY5000 | Switching: 3-pos closed center | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, 300 mm lead
JSY5340T-5LOZSeries: JSY5000 | Switching: 3-pos closed center | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, no lead
JSY5340T-5MZSeries: JSY5000 | Switching: 3-pos closed center | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, 300 mm lead
JSY5340T-5MOZSeries: JSY5000 | Switching: 3-pos closed center | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, no lead
JSY5440-5LZSeries: JSY5000 | Switching: 3-pos exhaust center | Coil: Standard | Electrical entry: L plug connector, 300 mm lead
JSY5440-5LOZSeries: JSY5000 | Switching: 3-pos exhaust center | Coil: Standard | Electrical entry: L plug connector, no lead
JSY5440-5MZSeries: JSY5000 | Switching: 3-pos exhaust center | Coil: Standard | Electrical entry: M plug connector, 300 mm lead
JSY5440-5MOZSeries: JSY5000 | Switching: 3-pos exhaust center | Coil: Standard | Electrical entry: M plug connector, no lead
JSY5440-5DZSeries: JSY5000 | Switching: 3-pos exhaust center | Coil: Standard | Electrical entry: DIN terminal (D type)
JSY5440-5YZSeries: JSY5000 | Switching: 3-pos exhaust center | Coil: Standard | Electrical entry: DIN terminal (Y type, EN 175301)
JSY5440T-5LZSeries: JSY5000 | Switching: 3-pos exhaust center | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, 300 mm lead
JSY5440T-5LOZSeries: JSY5000 | Switching: 3-pos exhaust center | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, no lead
JSY5440T-5MZSeries: JSY5000 | Switching: 3-pos exhaust center | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, 300 mm lead
JSY5440T-5MOZSeries: JSY5000 | Switching: 3-pos exhaust center | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, no lead
JSY5540-5LZSeries: JSY5000 | Switching: 3-pos pressure center | Coil: Standard | Electrical entry: L plug connector, 300 mm lead
JSY5540-5LOZSeries: JSY5000 | Switching: 3-pos pressure center | Coil: Standard | Electrical entry: L plug connector, no lead
JSY5540-5MZSeries: JSY5000 | Switching: 3-pos pressure center | Coil: Standard | Electrical entry: M plug connector, 300 mm lead
JSY5540-5MOZSeries: JSY5000 | Switching: 3-pos pressure center | Coil: Standard | Electrical entry: M plug connector, no lead
JSY5540-5DZSeries: JSY5000 | Switching: 3-pos pressure center | Coil: Standard | Electrical entry: DIN terminal (D type)
JSY5540-5YZSeries: JSY5000 | Switching: 3-pos pressure center | Coil: Standard | Electrical entry: DIN terminal (Y type, EN 175301)
JSY5540T-5LZSeries: JSY5000 | Switching: 3-pos pressure center | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, 300 mm lead
JSY5540T-5LOZSeries: JSY5000 | Switching: 3-pos pressure center | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, no lead
JSY5540T-5MZSeries: JSY5000 | Switching: 3-pos pressure center | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, 300 mm lead
JSY5540T-5MOZSeries: JSY5000 | Switching: 3-pos pressure center | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, no lead
JSY5A40-5LZSeries: JSY5000 | Switching: 4-pos dual 3-port N.C./N.C. | Coil: Standard | Electrical entry: L plug connector, 300 mm lead
JSY5A40-5LOZSeries: JSY5000 | Switching: 4-pos dual 3-port N.C./N.C. | Coil: Standard | Electrical entry: L plug connector, no lead
JSY5A40-5MZSeries: JSY5000 | Switching: 4-pos dual 3-port N.C./N.C. | Coil: Standard | Electrical entry: M plug connector, 300 mm lead
JSY5A40-5MOZSeries: JSY5000 | Switching: 4-pos dual 3-port N.C./N.C. | Coil: Standard | Electrical entry: M plug connector, no lead
JSY5A40-5DZSeries: JSY5000 | Switching: 4-pos dual 3-port N.C./N.C. | Coil: Standard | Electrical entry: DIN terminal (D type)
JSY5A40-5YZSeries: JSY5000 | Switching: 4-pos dual 3-port N.C./N.C. | Coil: Standard | Electrical entry: DIN terminal (Y type, EN 175301)
JSY5A40T-5LZSeries: JSY5000 | Switching: 4-pos dual 3-port N.C./N.C. | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, 300 mm lead
JSY5A40T-5LOZSeries: JSY5000 | Switching: 4-pos dual 3-port N.C./N.C. | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, no lead
JSY5A40T-5MZSeries: JSY5000 | Switching: 4-pos dual 3-port N.C./N.C. | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, 300 mm lead
JSY5A40T-5MOZSeries: JSY5000 | Switching: 4-pos dual 3-port N.C./N.C. | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, no lead
JSY5B40-5LZSeries: JSY5000 | Switching: 4-pos dual 3-port N.O./N.O. | Coil: Standard | Electrical entry: L plug connector, 300 mm lead
JSY5B40-5LOZSeries: JSY5000 | Switching: 4-pos dual 3-port N.O./N.O. | Coil: Standard | Electrical entry: L plug connector, no lead
JSY5B40-5MZSeries: JSY5000 | Switching: 4-pos dual 3-port N.O./N.O. | Coil: Standard | Electrical entry: M plug connector, 300 mm lead
JSY5B40-5MOZSeries: JSY5000 | Switching: 4-pos dual 3-port N.O./N.O. | Coil: Standard | Electrical entry: M plug connector, no lead
JSY5B40-5DZSeries: JSY5000 | Switching: 4-pos dual 3-port N.O./N.O. | Coil: Standard | Electrical entry: DIN terminal (D type)
JSY5B40-5YZSeries: JSY5000 | Switching: 4-pos dual 3-port N.O./N.O. | Coil: Standard | Electrical entry: DIN terminal (Y type, EN 175301)
JSY5B40T-5LZSeries: JSY5000 | Switching: 4-pos dual 3-port N.O./N.O. | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, 300 mm lead
JSY5B40T-5LOZSeries: JSY5000 | Switching: 4-pos dual 3-port N.O./N.O. | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, no lead
JSY5B40T-5MZSeries: JSY5000 | Switching: 4-pos dual 3-port N.O./N.O. | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, 300 mm lead
JSY5B40T-5MOZSeries: JSY5000 | Switching: 4-pos dual 3-port N.O./N.O. | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, no lead
JSY5C40-5LZSeries: JSY5000 | Switching: 4-pos dual 3-port N.C./N.O. | Coil: Standard | Electrical entry: L plug connector, 300 mm lead
JSY5C40-5LOZSeries: JSY5000 | Switching: 4-pos dual 3-port N.C./N.O. | Coil: Standard | Electrical entry: L plug connector, no lead
JSY5C40-5MZSeries: JSY5000 | Switching: 4-pos dual 3-port N.C./N.O. | Coil: Standard | Electrical entry: M plug connector, 300 mm lead
JSY5C40-5MOZSeries: JSY5000 | Switching: 4-pos dual 3-port N.C./N.O. | Coil: Standard | Electrical entry: M plug connector, no lead
JSY5C40-5DZSeries: JSY5000 | Switching: 4-pos dual 3-port N.C./N.O. | Coil: Standard | Electrical entry: DIN terminal (D type)
JSY5C40-5YZSeries: JSY5000 | Switching: 4-pos dual 3-port N.C./N.O. | Coil: Standard | Electrical entry: DIN terminal (Y type, EN 175301)
JSY5C40T-5LZSeries: JSY5000 | Switching: 4-pos dual 3-port N.C./N.O. | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, 300 mm lead
JSY5C40T-5LOZSeries: JSY5000 | Switching: 4-pos dual 3-port N.C./N.O. | Coil: Power-saving circuit (T) | Electrical entry: L plug connector, no lead
JSY5C40T-5MZSeries: JSY5000 | Switching: 4-pos dual 3-port N.C./N.O. | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, 300 mm lead
JSY5C40T-5MOZSeries: JSY5000 | Switching: 4-pos dual 3-port N.C./N.O. | Coil: Power-saving circuit (T) | Electrical entry: M plug connector, no lead

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
