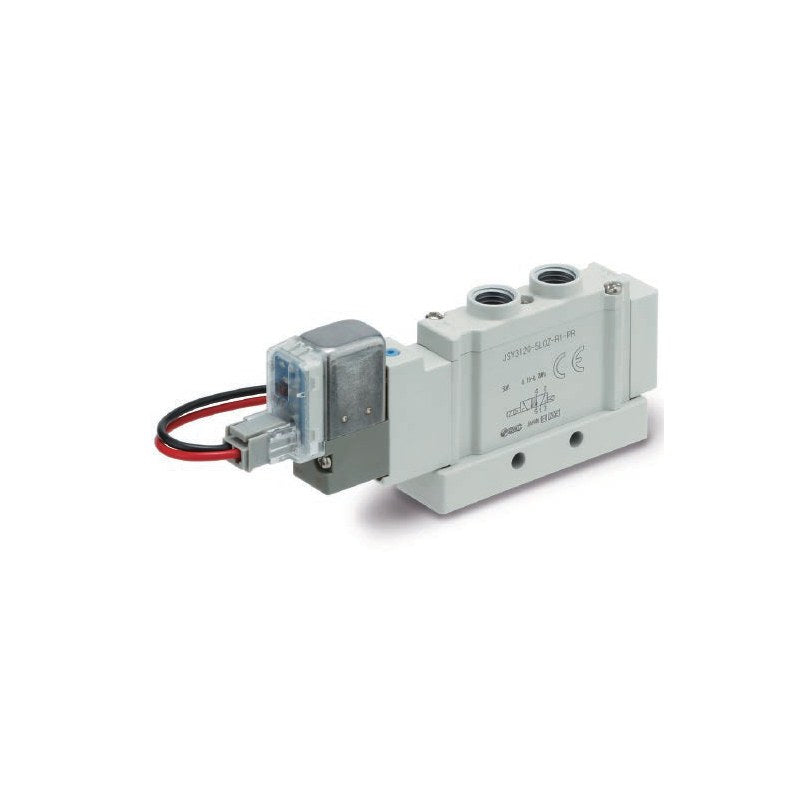

SMC JSY 5-Port Solenoid Valve (Direct Piping, with P.E Plate)

SMC JSY 5-Port Solenoid Valve (Direct Piping, with P.E Plate)

SMC JSY1000/3000/5000 non plug-in 5-port solenoid valve, direct piping single unit with P.E plate (type 20, top ported) for wall or panel mounting.

Key features

  • Single unit with P.E plate: 1(P), 3/5(E) ports on the plate, 4(A), 2(B) ports on the valve top
  • Valve widths 6.4 mm (JSY1000), 10 mm (JSY3000) and 15 mm (JSY5000), lighter and narrower than SY3000/5000/7000
  • 2-position single or double solenoid, internal pilot, individual pilot exhaust
  • L or M plug connector with 300 mm lead or without lead; lamp/surge voltage suppressor (Z) standard
  • JSY1000 has built-in power-saving circuit (T) as standard; power-saving type for JSY3000/5000 is made to order

Specifications

Fluid Air
Valve construction Rubber seal spool, internal pilot, individual pilot exhaust
Operating pressure 0.15-0.7 MPa (2-pos single), 0.1-0.7 MPa (2-pos double)
Ambient and fluid temperature -10 to 50°C (no freezing)
Rated voltage DC24V
1(P), 3/5(E) port JSY1000 M5x0.8, JSY3000 Rc1/16, JSY5000 Rc1/8
Flow rate C [dm³/(s·bar)] JSY1000 0.6, JSY3000 2.0, JSY5000 5.5 (P to A/B)
Power consumption JSY1000 0.2 W (power-saving); JSY3000/5000 0.4 W
Enclosure IP40
Lubrication Not required
Source SMC Korea catalog JSY Non Plug-in direct piping with P.E plate (SMCKR_JSY_non-plugin_withPE.pdf), p. 211-214 (PDF p. 1-4)
JSY1120T-5LZ-M3-PE Series: JSY1000 | Switching: 2-pos single | Electrical entry: L plug connector, 300 mm lead | Manual override: Non-locking push | A, B port: M3x0.5
JSY1120T-5LZ-M5-PE Series: JSY1000 | Switching: 2-pos single | Electrical entry: L plug connector, 300 mm lead | Manual override: Non-locking push | A, B port: M5x0.8
JSY1120T-5LZD-M3-PE Series: JSY1000 | Switching: 2-pos single | Electrical entry: L plug connector, 300 mm lead | Manual override: Push-turn locking slotted | A, B port: M3x0.5
JSY1120T-5LZD-M5-PE Series: JSY1000 | Switching: 2-pos single | Electrical entry: L plug connector, 300 mm lead | Manual override: Push-turn locking slotted | A, B port: M5x0.8
JSY1120T-5LZE-M3-PE Series: JSY1000 | Switching: 2-pos single | Electrical entry: L plug connector, 300 mm lead | Manual override: Push-turn locking lever | A, B port: M3x0.5
JSY1120T-5LZE-M5-PE Series: JSY1000 | Switching: 2-pos single | Electrical entry: L plug connector, 300 mm lead | Manual override: Push-turn locking lever | A, B port: M5x0.8
JSY1120T-5LOZ-M3-PE Series: JSY1000 | Switching: 2-pos single | Electrical entry: L plug connector, no lead | Manual override: Non-locking push | A, B port: M3x0.5
JSY1120T-5LOZ-M5-PE Series: JSY1000 | Switching: 2-pos single | Electrical entry: L plug connector, no lead | Manual override: Non-locking push | A, B port: M5x0.8
JSY1120T-5LOZD-M3-PE Series: JSY1000 | Switching: 2-pos single | Electrical entry: L plug connector, no lead | Manual override: Push-turn locking slotted | A, B port: M3x0.5
JSY1120T-5LOZD-M5-PE Series: JSY1000 | Switching: 2-pos single | Electrical entry: L plug connector, no lead | Manual override: Push-turn locking slotted | A, B port: M5x0.8
JSY1120T-5LOZE-M3-PE Series: JSY1000 | Switching: 2-pos single | Electrical entry: L plug connector, no lead | Manual override: Push-turn locking lever | A, B port: M3x0.5
JSY1120T-5LOZE-M5-PE Series: JSY1000 | Switching: 2-pos single | Electrical entry: L plug connector, no lead | Manual override: Push-turn locking lever | A, B port: M5x0.8
JSY1120T-5MZ-M3-PE Series: JSY1000 | Switching: 2-pos single | Electrical entry: M plug connector, 300 mm lead | Manual override: Non-locking push | A, B port: M3x0.5
JSY1120T-5MZ-M5-PE Series: JSY1000 | Switching: 2-pos single | Electrical entry: M plug connector, 300 mm lead | Manual override: Non-locking push | A, B port: M5x0.8
JSY1120T-5MZD-M3-PE Series: JSY1000 | Switching: 2-pos single | Electrical entry: M plug connector, 300 mm lead | Manual override: Push-turn locking slotted | A, B port: M3x0.5
JSY1120T-5MZD-M5-PE Series: JSY1000 | Switching: 2-pos single | Electrical entry: M plug connector, 300 mm lead | Manual override: Push-turn locking slotted | A, B port: M5x0.8
JSY1120T-5MZE-M3-PE Series: JSY1000 | Switching: 2-pos single | Electrical entry: M plug connector, 300 mm lead | Manual override: Push-turn locking lever | A, B port: M3x0.5
JSY1120T-5MZE-M5-PE Series: JSY1000 | Switching: 2-pos single | Electrical entry: M plug connector, 300 mm lead | Manual override: Push-turn locking lever | A, B port: M5x0.8
JSY1120T-5MOZ-M3-PE Series: JSY1000 | Switching: 2-pos single | Electrical entry: M plug connector, no lead | Manual override: Non-locking push | A, B port: M3x0.5
JSY1120T-5MOZ-M5-PE Series: JSY1000 | Switching: 2-pos single | Electrical entry: M plug connector, no lead | Manual override: Non-locking push | A, B port: M5x0.8
JSY1120T-5MOZD-M3-PE Series: JSY1000 | Switching: 2-pos single | Electrical entry: M plug connector, no lead | Manual override: Push-turn locking slotted | A, B port: M3x0.5
JSY1120T-5MOZD-M5-PE Series: JSY1000 | Switching: 2-pos single | Electrical entry: M plug connector, no lead | Manual override: Push-turn locking slotted | A, B port: M5x0.8
JSY1120T-5MOZE-M3-PE Series: JSY1000 | Switching: 2-pos single | Electrical entry: M plug connector, no lead | Manual override: Push-turn locking lever | A, B port: M3x0.5
JSY1120T-5MOZE-M5-PE Series: JSY1000 | Switching: 2-pos single | Electrical entry: M plug connector, no lead | Manual override: Push-turn locking lever | A, B port: M5x0.8
JSY1220T-5LZ-M3-PE Series: JSY1000 | Switching: 2-pos double | Electrical entry: L plug connector, 300 mm lead | Manual override: Non-locking push | A, B port: M3x0.5
JSY1220T-5LZ-M5-PE Series: JSY1000 | Switching: 2-pos double | Electrical entry: L plug connector, 300 mm lead | Manual override: Non-locking push | A, B port: M5x0.8
JSY1220T-5LZD-M3-PE Series: JSY1000 | Switching: 2-pos double | Electrical entry: L plug connector, 300 mm lead | Manual override: Push-turn locking slotted | A, B port: M3x0.5
JSY1220T-5LZD-M5-PE Series: JSY1000 | Switching: 2-pos double | Electrical entry: L plug connector, 300 mm lead | Manual override: Push-turn locking slotted | A, B port: M5x0.8
JSY1220T-5LZE-M3-PE Series: JSY1000 | Switching: 2-pos double | Electrical entry: L plug connector, 300 mm lead | Manual override: Push-turn locking lever | A, B port: M3x0.5
JSY1220T-5LZE-M5-PE Series: JSY1000 | Switching: 2-pos double | Electrical entry: L plug connector, 300 mm lead | Manual override: Push-turn locking lever | A, B port: M5x0.8
JSY1220T-5LOZ-M3-PE Series: JSY1000 | Switching: 2-pos double | Electrical entry: L plug connector, no lead | Manual override: Non-locking push | A, B port: M3x0.5
JSY1220T-5LOZ-M5-PE Series: JSY1000 | Switching: 2-pos double | Electrical entry: L plug connector, no lead | Manual override: Non-locking push | A, B port: M5x0.8
JSY1220T-5LOZD-M3-PE Series: JSY1000 | Switching: 2-pos double | Electrical entry: L plug connector, no lead | Manual override: Push-turn locking slotted | A, B port: M3x0.5
JSY1220T-5LOZD-M5-PE Series: JSY1000 | Switching: 2-pos double | Electrical entry: L plug connector, no lead | Manual override: Push-turn locking slotted | A, B port: M5x0.8
JSY1220T-5LOZE-M3-PE Series: JSY1000 | Switching: 2-pos double | Electrical entry: L plug connector, no lead | Manual override: Push-turn locking lever | A, B port: M3x0.5
JSY1220T-5LOZE-M5-PE Series: JSY1000 | Switching: 2-pos double | Electrical entry: L plug connector, no lead | Manual override: Push-turn locking lever | A, B port: M5x0.8
JSY1220T-5MZ-M3-PE Series: JSY1000 | Switching: 2-pos double | Electrical entry: M plug connector, 300 mm lead | Manual override: Non-locking push | A, B port: M3x0.5
JSY1220T-5MZ-M5-PE Series: JSY1000 | Switching: 2-pos double | Electrical entry: M plug connector, 300 mm lead | Manual override: Non-locking push | A, B port: M5x0.8
JSY1220T-5MZD-M3-PE Series: JSY1000 | Switching: 2-pos double | Electrical entry: M plug connector, 300 mm lead | Manual override: Push-turn locking slotted | A, B port: M3x0.5
JSY1220T-5MZD-M5-PE Series: JSY1000 | Switching: 2-pos double | Electrical entry: M plug connector, 300 mm lead | Manual override: Push-turn locking slotted | A, B port: M5x0.8
JSY1220T-5MZE-M3-PE Series: JSY1000 | Switching: 2-pos double | Electrical entry: M plug connector, 300 mm lead | Manual override: Push-turn locking lever | A, B port: M3x0.5
JSY1220T-5MZE-M5-PE Series: JSY1000 | Switching: 2-pos double | Electrical entry: M plug connector, 300 mm lead | Manual override: Push-turn locking lever | A, B port: M5x0.8
JSY1220T-5MOZ-M3-PE Series: JSY1000 | Switching: 2-pos double | Electrical entry: M plug connector, no lead | Manual override: Non-locking push | A, B port: M3x0.5
JSY1220T-5MOZ-M5-PE Series: JSY1000 | Switching: 2-pos double | Electrical entry: M plug connector, no lead | Manual override: Non-locking push | A, B port: M5x0.8
JSY1220T-5MOZD-M3-PE Series: JSY1000 | Switching: 2-pos double | Electrical entry: M plug connector, no lead | Manual override: Push-turn locking slotted | A, B port: M3x0.5
JSY1220T-5MOZD-M5-PE Series: JSY1000 | Switching: 2-pos double | Electrical entry: M plug connector, no lead | Manual override: Push-turn locking slotted | A, B port: M5x0.8
JSY1220T-5MOZE-M3-PE Series: JSY1000 | Switching: 2-pos double | Electrical entry: M plug connector, no lead | Manual override: Push-turn locking lever | A, B port: M3x0.5
JSY1220T-5MOZE-M5-PE Series: JSY1000 | Switching: 2-pos double | Electrical entry: M plug connector, no lead | Manual override: Push-turn locking lever | A, B port: M5x0.8
JSY3120-5LZ-R1-PE Series: JSY3000 | Switching: 2-pos single | Electrical entry: L plug connector, 300 mm lead | Manual override: Non-locking push | A, B port: Rc1/16
JSY3120-5LZD-R1-PE Series: JSY3000 | Switching: 2-pos single | Electrical entry: L plug connector, 300 mm lead | Manual override: Push-turn locking slotted | A, B port: Rc1/16
JSY3120-5LZE-R1-PE Series: JSY3000 | Switching: 2-pos single | Electrical entry: L plug connector, 300 mm lead | Manual override: Push-turn locking lever | A, B port: Rc1/16
JSY3120-5LOZ-R1-PE Series: JSY3000 | Switching: 2-pos single | Electrical entry: L plug connector, no lead | Manual override: Non-locking push | A, B port: Rc1/16
JSY3120-5LOZD-R1-PE Series: JSY3000 | Switching: 2-pos single | Electrical entry: L plug connector, no lead | Manual override: Push-turn locking slotted | A, B port: Rc1/16
JSY3120-5LOZE-R1-PE Series: JSY3000 | Switching: 2-pos single | Electrical entry: L plug connector, no lead | Manual override: Push-turn locking lever | A, B port: Rc1/16
JSY3120-5MZ-R1-PE Series: JSY3000 | Switching: 2-pos single | Electrical entry: M plug connector, 300 mm lead | Manual override: Non-locking push | A, B port: Rc1/16
JSY3120-5MZD-R1-PE Series: JSY3000 | Switching: 2-pos single | Electrical entry: M plug connector, 300 mm lead | Manual override: Push-turn locking slotted | A, B port: Rc1/16
JSY3120-5MZE-R1-PE Series: JSY3000 | Switching: 2-pos single | Electrical entry: M plug connector, 300 mm lead | Manual override: Push-turn locking lever | A, B port: Rc1/16
JSY3120-5MOZ-R1-PE Series: JSY3000 | Switching: 2-pos single | Electrical entry: M plug connector, no lead | Manual override: Non-locking push | A, B port: Rc1/16
JSY3120-5MOZD-R1-PE Series: JSY3000 | Switching: 2-pos single | Electrical entry: M plug connector, no lead | Manual override: Push-turn locking slotted | A, B port: Rc1/16
JSY3120-5MOZE-R1-PE Series: JSY3000 | Switching: 2-pos single | Electrical entry: M plug connector, no lead | Manual override: Push-turn locking lever | A, B port: Rc1/16
JSY3220-5LZ-R1-PE Series: JSY3000 | Switching: 2-pos double | Electrical entry: L plug connector, 300 mm lead | Manual override: Non-locking push | A, B port: Rc1/16
JSY3220-5LZD-R1-PE Series: JSY3000 | Switching: 2-pos double | Electrical entry: L plug connector, 300 mm lead | Manual override: Push-turn locking slotted | A, B port: Rc1/16
JSY3220-5LZE-R1-PE Series: JSY3000 | Switching: 2-pos double | Electrical entry: L plug connector, 300 mm lead | Manual override: Push-turn locking lever | A, B port: Rc1/16
JSY3220-5LOZ-R1-PE Series: JSY3000 | Switching: 2-pos double | Electrical entry: L plug connector, no lead | Manual override: Non-locking push | A, B port: Rc1/16
JSY3220-5LOZD-R1-PE Series: JSY3000 | Switching: 2-pos double | Electrical entry: L plug connector, no lead | Manual override: Push-turn locking slotted | A, B port: Rc1/16
JSY3220-5LOZE-R1-PE Series: JSY3000 | Switching: 2-pos double | Electrical entry: L plug connector, no lead | Manual override: Push-turn locking lever | A, B port: Rc1/16
JSY3220-5MZ-R1-PE Series: JSY3000 | Switching: 2-pos double | Electrical entry: M plug connector, 300 mm lead | Manual override: Non-locking push | A, B port: Rc1/16
JSY3220-5MZD-R1-PE Series: JSY3000 | Switching: 2-pos double | Electrical entry: M plug connector, 300 mm lead | Manual override: Push-turn locking slotted | A, B port: Rc1/16
JSY3220-5MZE-R1-PE Series: JSY3000 | Switching: 2-pos double | Electrical entry: M plug connector, 300 mm lead | Manual override: Push-turn locking lever | A, B port: Rc1/16
JSY3220-5MOZ-R1-PE Series: JSY3000 | Switching: 2-pos double | Electrical entry: M plug connector, no lead | Manual override: Non-locking push | A, B port: Rc1/16
JSY3220-5MOZD-R1-PE Series: JSY3000 | Switching: 2-pos double | Electrical entry: M plug connector, no lead | Manual override: Push-turn locking slotted | A, B port: Rc1/16
JSY3220-5MOZE-R1-PE Series: JSY3000 | Switching: 2-pos double | Electrical entry: M plug connector, no lead | Manual override: Push-turn locking lever | A, B port: Rc1/16
JSY5120-5LZ-01-PE Series: JSY5000 | Switching: 2-pos single | Electrical entry: L plug connector, 300 mm lead | Manual override: Non-locking push | A, B port: Rc1/8
JSY5120-5LZD-01-PE Series: JSY5000 | Switching: 2-pos single | Electrical entry: L plug connector, 300 mm lead | Manual override: Push-turn locking slotted | A, B port: Rc1/8
JSY5120-5LZE-01-PE Series: JSY5000 | Switching: 2-pos single | Electrical entry: L plug connector, 300 mm lead | Manual override: Push-turn locking lever | A, B port: Rc1/8
JSY5120-5LOZ-01-PE Series: JSY5000 | Switching: 2-pos single | Electrical entry: L plug connector, no lead | Manual override: Non-locking push | A, B port: Rc1/8
JSY5120-5LOZD-01-PE Series: JSY5000 | Switching: 2-pos single | Electrical entry: L plug connector, no lead | Manual override: Push-turn locking slotted | A, B port: Rc1/8
JSY5120-5LOZE-01-PE Series: JSY5000 | Switching: 2-pos single | Electrical entry: L plug connector, no lead | Manual override: Push-turn locking lever | A, B port: Rc1/8
JSY5120-5MZ-01-PE Series: JSY5000 | Switching: 2-pos single | Electrical entry: M plug connector, 300 mm lead | Manual override: Non-locking push | A, B port: Rc1/8
JSY5120-5MZD-01-PE Series: JSY5000 | Switching: 2-pos single | Electrical entry: M plug connector, 300 mm lead | Manual override: Push-turn locking slotted | A, B port: Rc1/8
JSY5120-5MZE-01-PE Series: JSY5000 | Switching: 2-pos single | Electrical entry: M plug connector, 300 mm lead | Manual override: Push-turn locking lever | A, B port: Rc1/8
JSY5120-5MOZ-01-PE Series: JSY5000 | Switching: 2-pos single | Electrical entry: M plug connector, no lead | Manual override: Non-locking push | A, B port: Rc1/8
JSY5120-5MOZD-01-PE Series: JSY5000 | Switching: 2-pos single | Electrical entry: M plug connector, no lead | Manual override: Push-turn locking slotted | A, B port: Rc1/8
JSY5120-5MOZE-01-PE Series: JSY5000 | Switching: 2-pos single | Electrical entry: M plug connector, no lead | Manual override: Push-turn locking lever | A, B port: Rc1/8
JSY5220-5LZ-01-PE Series: JSY5000 | Switching: 2-pos double | Electrical entry: L plug connector, 300 mm lead | Manual override: Non-locking push | A, B port: Rc1/8
JSY5220-5LZD-01-PE Series: JSY5000 | Switching: 2-pos double | Electrical entry: L plug connector, 300 mm lead | Manual override: Push-turn locking slotted | A, B port: Rc1/8
JSY5220-5LZE-01-PE Series: JSY5000 | Switching: 2-pos double | Electrical entry: L plug connector, 300 mm lead | Manual override: Push-turn locking lever | A, B port: Rc1/8
JSY5220-5LOZ-01-PE Series: JSY5000 | Switching: 2-pos double | Electrical entry: L plug connector, no lead | Manual override: Non-locking push | A, B port: Rc1/8
JSY5220-5LOZD-01-PE Series: JSY5000 | Switching: 2-pos double | Electrical entry: L plug connector, no lead | Manual override: Push-turn locking slotted | A, B port: Rc1/8
JSY5220-5LOZE-01-PE Series: JSY5000 | Switching: 2-pos double | Electrical entry: L plug connector, no lead | Manual override: Push-turn locking lever | A, B port: Rc1/8
JSY5220-5MZ-01-PE Series: JSY5000 | Switching: 2-pos double | Electrical entry: M plug connector, 300 mm lead | Manual override: Non-locking push | A, B port: Rc1/8
JSY5220-5MZD-01-PE Series: JSY5000 | Switching: 2-pos double | Electrical entry: M plug connector, 300 mm lead | Manual override: Push-turn locking slotted | A, B port: Rc1/8
JSY5220-5MZE-01-PE Series: JSY5000 | Switching: 2-pos double | Electrical entry: M plug connector, 300 mm lead | Manual override: Push-turn locking lever | A, B port: Rc1/8
JSY5220-5MOZ-01-PE Series: JSY5000 | Switching: 2-pos double | Electrical entry: M plug connector, no lead | Manual override: Non-locking push | A, B port: Rc1/8
JSY5220-5MOZD-01-PE Series: JSY5000 | Switching: 2-pos double | Electrical entry: M plug connector, no lead | Manual override: Push-turn locking slotted | A, B port: Rc1/8
JSY5220-5MOZE-01-PE Series: JSY5000 | Switching: 2-pos double | Electrical entry: M plug connector, no lead | Manual override: Push-turn locking lever | A, B port: Rc1/8
5-Port Solenoid ValvesSMC
96 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC JSY 5-Port Solenoid Valve (Direct Piping, with P.E Plate)

Brand SMC·5-Port Solenoid Valves

Available part numbers (96)

JSY1120T-5LZ-M3-PE, JSY1120T-5LZ-M5-PE, JSY1120T-5LZD-M3-PE, JSY1120T-5LZD-M5-PE, JSY1120T-5LZE-M3-PE, JSY1120T-5LZE-M5-PE, JSY1120T-5LOZ-M3-PE, JSY1120T-5LOZ-M5-PE, JSY1120T-5LOZD-M3-PE, JSY1120T-5LOZD-M5-PE + 86 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
