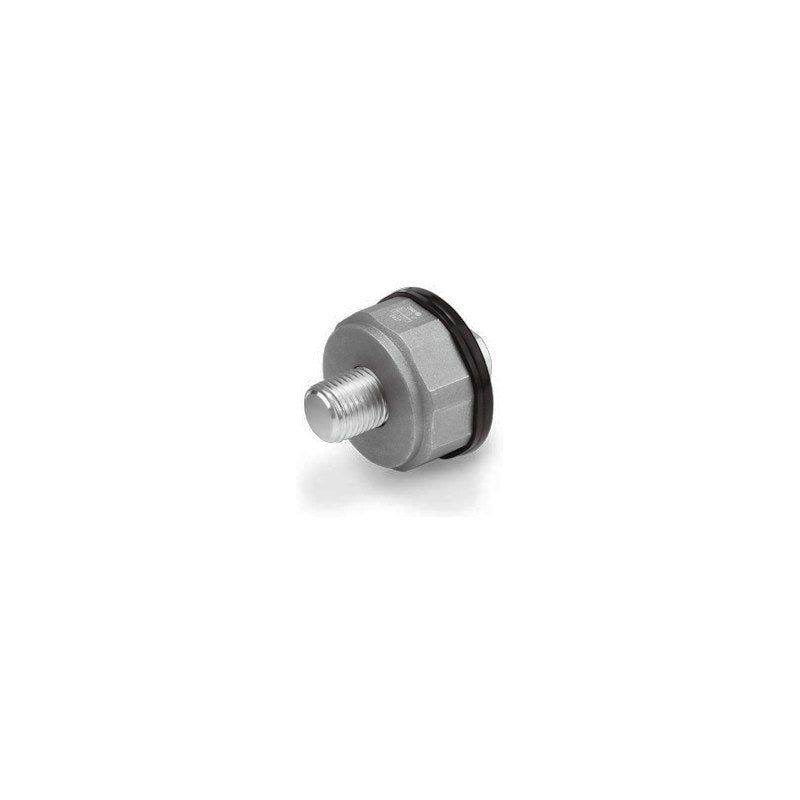

SMC JT Floating Joint (Lightweight Compact Type)

SMC JT Floating Joint (Lightweight Compact Type)

SMC JT series lightweight compact floating joint for ø20 to ø40 air cylinders, absorbing misalignment between cylinder and workpiece at up to 56% less weight than JA.

Key features

  • Absorbs eccentricity and parallelism errors between cylinder and driven object
  • Overall length shortened by up to 18.5 mm (JT40) and mass reduced by up to 56% vs. JA20
  • Best combined with JCM series cylinders (male rod end) for compact assemblies
  • Aluminium alloy case, carbon steel stud/socket, nitrided slider; replacement dust cover available

Specifications

Operating pressure Air cylinder 0.7 MPa or less
Mounting Basic
Swing angle ±2°
Operating temperature -10 to 70°C
Note Use with cylinders that have a built-in cushion
Source SMC Korea catalog CAT.KS20-248A (SMCKR_JT_JC_JA_JAH_JB_JS.pdf), p. 2-3 (PDF p. 3-4)
JT20 Thread: M8x1.25 | Cylinder bore: ø20 mm | Max load: 220 N | Eccentricity: 0.5 mm | Mass: 22 g
JT32 Thread: M10x1.25 | Cylinder bore: ø25, ø32 mm | Max load: 560 N | Eccentricity: 0.5 mm | Mass: 38 g
JT40 Thread: M14x1.5 | Cylinder bore: ø40 mm | Max load: 880 N | Eccentricity: 0.75 mm | Mass: 98 g
AccessoriesSMC
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC JT Floating Joint (Lightweight Compact Type)

Brand SMC·Accessories

Available part numbers (3)

JT20, JT32, JT40

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
JT20Thread: M8x1.25 | Cylinder bore: ø20 mm | Max load: 220 N | Eccentricity: 0.5 mm | Mass: 22 g
JT32Thread: M10x1.25 | Cylinder bore: ø25, ø32 mm | Max load: 560 N | Eccentricity: 0.5 mm | Mass: 38 g
JT40Thread: M14x1.5 | Cylinder bore: ø40 mm | Max load: 880 N | Eccentricity: 0.75 mm | Mass: 98 g
