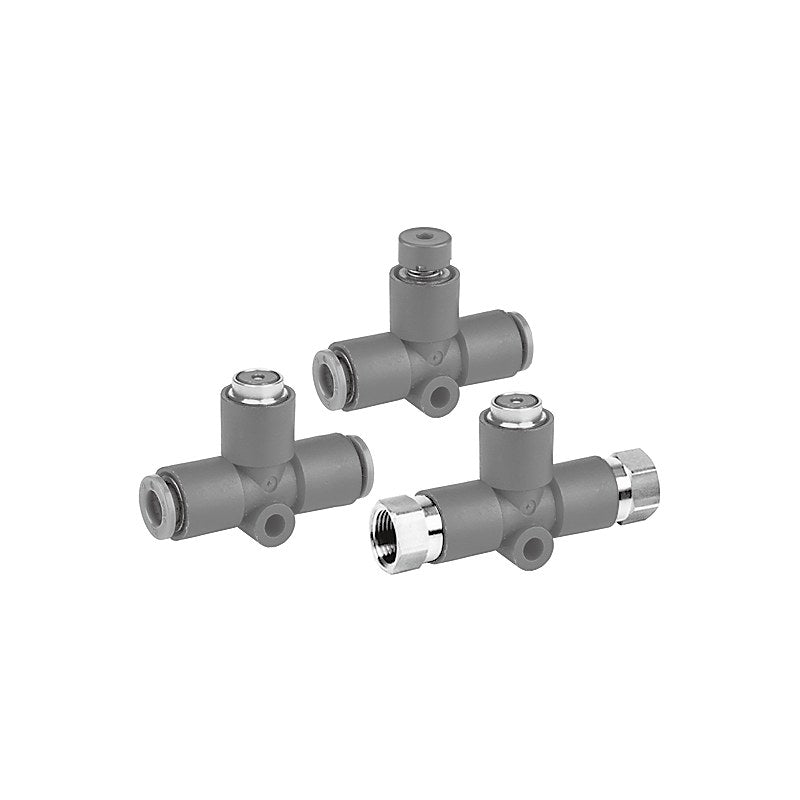

SMC KE Residual Pressure Release Valve (One-Touch Fitting / Rc)

SMC KE Residual Pressure Release Valve (One-Touch Fitting / Rc)

SMC KE series in-line residual pressure release valve that vents trapped cylinder pressure to atmosphere at the push of a button.

Key features

  • Simple push button operation (red body and button)
  • KEA: without button guard, KEB: with button guard (one-touch fittings 6 to 12 mm); KEC: with guard, Rc1/4 or Rc3/8
  • Residual exhaust time approx. 7 s (0.5 to 0.05 MPa, bore 100 mm x 200 mm stroke cylinder)
  • Residual exhaust effective area 1.8 mm2
  • Multi holder TMA available for panel mounting

Specifications

Fluid Air
Operating pressure range 0 to 1 MPa
Ambient and fluid temperature -5 to 60°C (no freezing)
Residual exhaust effective area 1.8 mm2
Applicable tube material Nylon, soft nylon, polyurethane, FEP, PFA
Color Body/button red, release bushing blue
Source SMC Korea catalog (SMCKR_KE.pdf), p. 665 (PDF p. 1)
KEA06 Push button: Without guard | Connection: One-touch 6 mm | Effective area AB: 13.1 mm2 (nylon tube) | Weight: 10 g
KEA08 Push button: Without guard | Connection: One-touch 8 mm | Effective area AB: 26.1 mm2 (nylon tube) | Weight: 15 g
KEA10 Push button: Without guard | Connection: One-touch 10 mm | Effective area AB: 41.5 mm2 (nylon tube) | Weight: 22.5 g
KEA12 Push button: Without guard | Connection: One-touch 12 mm | Effective area AB: 58.3 mm2 (nylon tube) | Weight: 29.5 g
KEB06 Push button: With guard | Connection: One-touch 6 mm | Effective area AB: 13.1 mm2 (nylon tube) | Weight: 13 g
KEB08 Push button: With guard | Connection: One-touch 8 mm | Effective area AB: 26.1 mm2 (nylon tube) | Weight: 17 g
KEB10 Push button: With guard | Connection: One-touch 10 mm | Effective area AB: 41.5 mm2 (nylon tube) | Weight: 24 g
KEB12 Push button: With guard | Connection: One-touch 12 mm | Effective area AB: 58.3 mm2 (nylon tube) | Weight: 31 g
KEC-02 Push button: With guard | Connection: Rc1/4 | Effective area AB: 26.1 mm2 (nylon tube) | Weight: 64 g
KEC-03 Push button: With guard | Connection: Rc3/8 | Effective area AB: 58.3 mm2 (nylon tube) | Weight: 89 g
Residual Pressure Release ValvesSMC
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC KE Residual Pressure Release Valve (One-Touch Fitting / Rc)

Brand SMC·Residual Pressure Release Valves

Available part numbers (10)

KEA06, KEA08, KEA10, KEA12, KEB06, KEB08, KEB10, KEB12, KEC-02, KEC-03

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KEA06Push button: Without guard | Connection: One-touch 6 mm | Effective area AB: 13.1 mm2 (nylon tube) | Weight: 10 g
KEA08Push button: Without guard | Connection: One-touch 8 mm | Effective area AB: 26.1 mm2 (nylon tube) | Weight: 15 g
KEA10Push button: Without guard | Connection: One-touch 10 mm | Effective area AB: 41.5 mm2 (nylon tube) | Weight: 22.5 g
KEA12Push button: Without guard | Connection: One-touch 12 mm | Effective area AB: 58.3 mm2 (nylon tube) | Weight: 29.5 g
KEB06Push button: With guard | Connection: One-touch 6 mm | Effective area AB: 13.1 mm2 (nylon tube) | Weight: 13 g
KEB08Push button: With guard | Connection: One-touch 8 mm | Effective area AB: 26.1 mm2 (nylon tube) | Weight: 17 g
KEB10Push button: With guard | Connection: One-touch 10 mm | Effective area AB: 41.5 mm2 (nylon tube) | Weight: 24 g
KEB12Push button: With guard | Connection: One-touch 12 mm | Effective area AB: 58.3 mm2 (nylon tube) | Weight: 31 g
KEC-02Push button: With guard | Connection: Rc1/4 | Effective area AB: 26.1 mm2 (nylon tube) | Weight: 64 g
KEC-03Push button: With guard | Connection: Rc3/8 | Effective area AB: 58.3 mm2 (nylon tube) | Weight: 89 g
