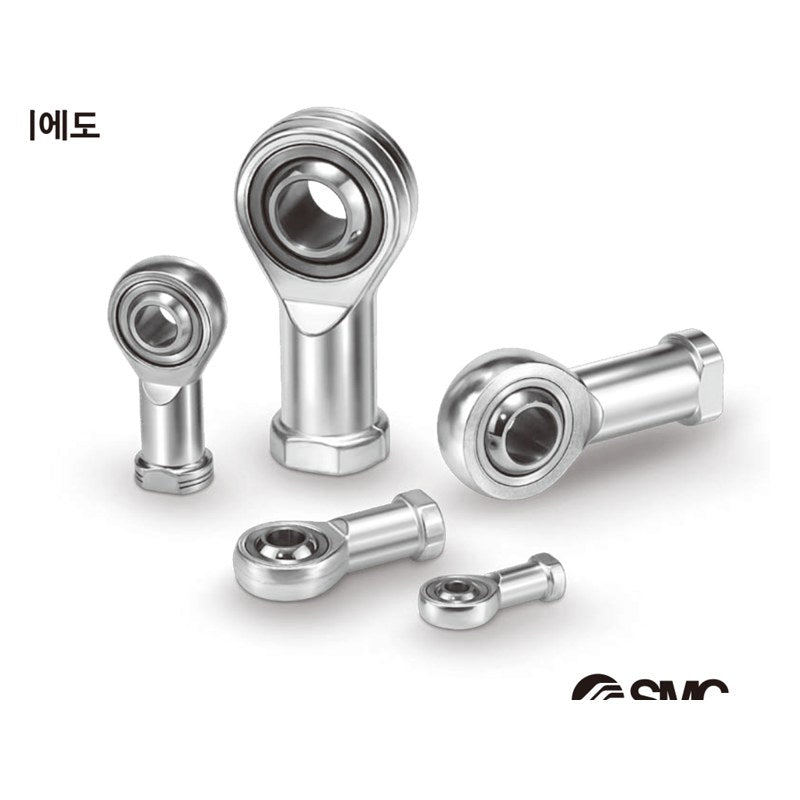

SMC KJ-D Rod End (Spherical Plain Bearing, M4 to M42)

SMC KJ-D Rod End (Spherical Plain Bearing, M4 to M42)

SMC KJD series rod end with spherical plain bearing for piston rod ends, thread sizes M4 to M42, giving smooth self-aligning rotation.

Key features

  • Spherical plain bearing with PTFE liner: lubrication-free, smooth automatic alignment
  • Allowable tilt angle up to 19° (KJ36D, round pin)
  • Applicable to CJ2, CM2, CG1, CA2, MB, MB1, CQ2, C85, C75, C76, C95, C96 and CP96 cylinders
  • Also usable as an auxiliary bracket for swing mechanisms, reducing design and assembly work
  • Body carbon steel zinc plated, bearing steel hard chrome plated; not disassemblable

Specifications

Bearing type Spherical plain bearing, PTFE liner
Body material Carbon steel, zinc plated
Bearing material Bearing steel, hard chrome plated
Operating temperature 20 to 70°C (as printed in leaflet)
Lubrication Not required
Thread Female (rod end) thread
Note Some sizes (KJ4D, KJ6D for C85; KJ12D-KJ42D for C95/CP96) made to order
Source SMC Korea leaflet 16-K671 (SMCKR_KJD.pdf), p. 1-2
KJ4DA Rod thread: M4x0.7 | Pin bore: ø4 mm (H7) | Radial static load: 2.5 kN | Tilt angle: 13° | Mass: 0.01 kg
KJ4D Rod thread: M4x0.7 | Pin bore: ø5 mm (H7) | Radial static load: 6 kN | Tilt angle: 13° | Mass: 0.02 kg
KJ5D Rod thread: M5x0.8 | Pin bore: ø5 mm (H7) | Radial static load: 6 kN | Tilt angle: 13° | Mass: 0.02 kg
KJ6D Rod thread: M6x1.0 | Pin bore: ø6 mm (H7) | Radial static load: 7 kN | Tilt angle: 13° | Mass: 0.03 kg
KJ8D Rod thread: M8x1.25 | Pin bore: ø8 mm (H7) | Radial static load: 12 kN | Tilt angle: 14° | Mass: 0.05 kg
KJ10D Rod thread: M10x1.25 | Pin bore: ø10 mm (H7) | Radial static load: 14 kN | Tilt angle: 13° | Mass: 0.07 kg
KJ10DA Rod thread: M10x1.5 | Pin bore: ø10 mm (H7) | Radial static load: 14 kN | Tilt angle: 13° | Mass: 0.07 kg
KJ12D Rod thread: M12x1.25 | Pin bore: ø12 mm (H7) | Radial static load: 19 kN | Tilt angle: 13° | Mass: 0.11 kg
KJ12DA Rod thread: M12x1.75 | Pin bore: ø12 mm (H7) | Radial static load: 19 kN | Tilt angle: 13° | Mass: 0.11 kg
KJ14D Rod thread: M14x1.5 | Pin bore: ø14 mm (H7) | Radial static load: 36 kN | Tilt angle: 15° | Mass: 0.16 kg
KJ16D Rod thread: M16x1.5 | Pin bore: ø16 mm (H7) | Radial static load: 48 kN | Tilt angle: 15° | Mass: 0.23 kg
KJ18D Rod thread: M18x1.5 | Pin bore: ø18 mm (H7) | Radial static load: 51 kN | Tilt angle: 15° | Mass: 0.30 kg
KJ20D Rod thread: M20x1.5 | Pin bore: ø20 mm (H7) | Radial static load: 52 kN | Tilt angle: 14° | Mass: 0.40 kg
KJ22D Rod thread: M22x1.5 | Pin bore: ø22 mm (H7) | Radial static load: 75 kN | Tilt angle: 15° | Mass: 0.49 kg
KJ26D Rod thread: M26x1.5 | Pin bore: ø25 mm (H7) | Radial static load: 85 kN | Tilt angle: 15° | Mass: 0.67 kg
KJ27D Rod thread: M27x2.0 | Pin bore: ø30 mm (H7) | Radial static load: 108 kN | Tilt angle: 17° | Mass: 1.12 kg
KJ36D Rod thread: M36x2.0 | Pin bore: ø35 mm (H7) | Radial static load: 124 kN | Tilt angle: 19° | Mass: 1.64 kg
KJ42D Rod thread: M42x2.0 | Pin bore: ø40 mm (H7) | Radial static load: 145 kN | Tilt angle: 16° | Mass: 2.40 kg
