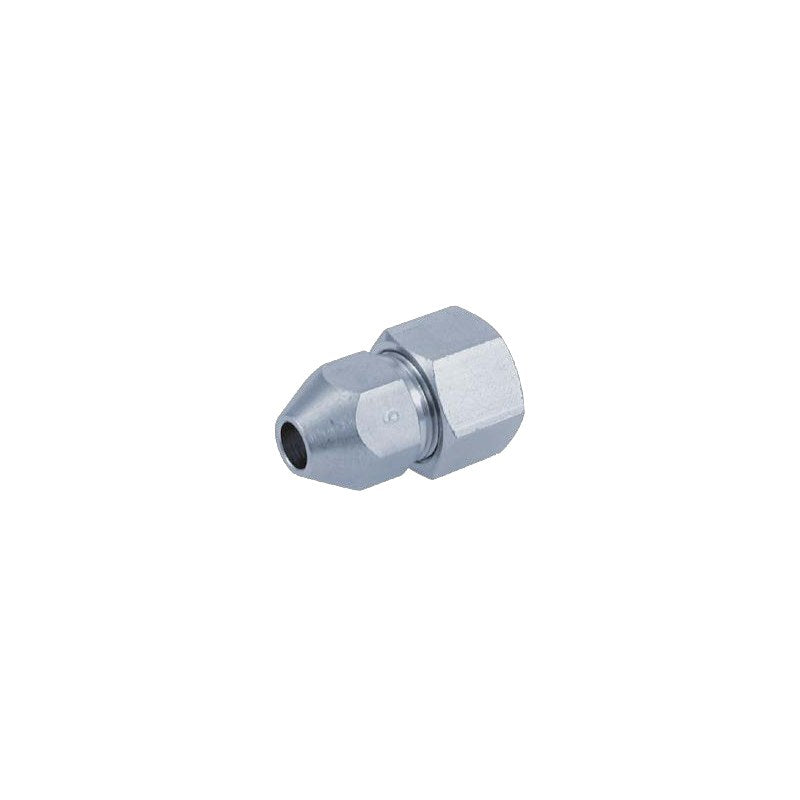

SMC KN Blow Nozzle (Nut Fitting, Male Thread, One-touch, Long Types)

SMC KN Blow Nozzle (Nut Fitting, Male Thread, One-touch, Long Types)

SMC KN series blow nozzles for air and coolant blow, from single-hole brass nozzles to ball-joint, low-noise, high-efficiency and long pipe types.

Key features

  • Nut fitting (tube ø4 to ø20) and male thread (R1/8 to R1) single-hole nozzles, ø1 to ø8 nozzle diameter
  • One-touch fitting nozzles in resin (KN-QA) and metal (KN-Q) for ø6 to ø12 SMC fittings
  • Ball joint nozzles KNK with 35° direction adjustment; flow adjustable nozzle KNC with scale
  • Low noise KNS (multi-hole) and OSHA-compliant high efficiency KNH nozzles
  • Long copper pipe nozzles KNL (300/600 mm) and VMG1 long nozzle sets (100 to 600 mm)
  • Made-to-order: blow nozzles, bender tubes and stainless nozzles (-X)

Specifications

Fluid Air, coolant (KNS, KN-QA, KNC: air only)
Max. operating pressure 1 MPa (0.3 MPa with OST tube)
Ambient and fluid temperature -5 to 60°C (no freezing)
Applicable tube material Nylon, soft nylon, soft copper (C1220T-O), OST tube
Threads Mounting JIS B0203 taper; nut JIS B0205 metric fine
Body material C3604 brass, electroless nickel plated (KN-QA: POM)
Ball joint nozzle SUS303, swivel 35°
High efficiency KNH Blow flow 2 to 3 times at 0.5 MPa, OSHA compliant
Accessories KNP-1/KNP-2 impact pressure probes, P5670129 nozzle covers
Source SMC Korea catalog CAT.KS50-43B Blow Nozzles (SMCKR_Blownozzle.pdf), p. 10-14 (PDF p. 11-15)
KN-04-100 Nozzle type: Nut fitting nozzle | Nozzle dia.: ø1 | Connection: Tube ø4 | Nozzle length: Standard
KN-04-150 Nozzle type: Nut fitting nozzle | Nozzle dia.: ø1.5 | Connection: Tube ø4 | Nozzle length: Standard
KN-06-100 Nozzle type: Nut fitting nozzle | Nozzle dia.: ø1 | Connection: Tube ø6 | Nozzle length: Standard
KN-06-150 Nozzle type: Nut fitting nozzle | Nozzle dia.: ø1.5 | Connection: Tube ø6 | Nozzle length: Standard
KN-06-200 Nozzle type: Nut fitting nozzle | Nozzle dia.: ø2 | Connection: Tube ø6 | Nozzle length: Standard
KN-08-150 Nozzle type: Nut fitting nozzle | Nozzle dia.: ø1.5 | Connection: Tube ø8 | Nozzle length: Standard
KN-08-200 Nozzle type: Nut fitting nozzle | Nozzle dia.: ø2 | Connection: Tube ø8 | Nozzle length: Standard
KN-10-250 Nozzle type: Nut fitting nozzle | Nozzle dia.: ø2.5 | Connection: Tube ø10 | Nozzle length: Standard
KN-10-300 Nozzle type: Nut fitting nozzle | Nozzle dia.: ø3 | Connection: Tube ø10 | Nozzle length: Standard
KN-10-350 Nozzle type: Nut fitting nozzle | Nozzle dia.: ø3.5 | Connection: Tube ø10 | Nozzle length: Standard
KN-10-400 Nozzle type: Nut fitting nozzle | Nozzle dia.: ø4 | Connection: Tube ø10 | Nozzle length: Standard
KN-10-600 Nozzle type: Nut fitting nozzle | Nozzle dia.: ø6 | Connection: Tube ø10 | Nozzle length: Standard
KN-12-350 Nozzle type: Nut fitting nozzle | Nozzle dia.: ø3.5 | Connection: Tube ø12 | Nozzle length: Standard
KN-12-400 Nozzle type: Nut fitting nozzle | Nozzle dia.: ø4 | Connection: Tube ø12 | Nozzle length: Standard
KN-12-600 Nozzle type: Nut fitting nozzle | Nozzle dia.: ø6 | Connection: Tube ø12 | Nozzle length: Standard
KN-16-400 Nozzle type: Nut fitting nozzle | Nozzle dia.: ø4 | Connection: Tube ø16 | Nozzle length: Standard
KN-16-600 Nozzle type: Nut fitting nozzle | Nozzle dia.: ø6 | Connection: Tube ø16 | Nozzle length: Standard
KN-20-400 Nozzle type: Nut fitting nozzle | Nozzle dia.: ø4 | Connection: Tube ø20 | Nozzle length: Standard
KN-20-600 Nozzle type: Nut fitting nozzle | Nozzle dia.: ø6 | Connection: Tube ø20 | Nozzle length: Standard
KN-R01-100 Nozzle type: Male thread nozzle | Nozzle dia.: ø1 | Connection: R1/8 | Nozzle length: Standard
KN-R01-150 Nozzle type: Male thread nozzle | Nozzle dia.: ø1.5 | Connection: R1/8 | Nozzle length: Standard
KN-R02-100 Nozzle type: Male thread nozzle | Nozzle dia.: ø1 | Connection: R1/4 | Nozzle length: Standard
KN-R02-150 Nozzle type: Male thread nozzle | Nozzle dia.: ø1.5 | Connection: R1/4 | Nozzle length: Standard
KN-R02-200 Nozzle type: Male thread nozzle | Nozzle dia.: ø2 | Connection: R1/4 | Nozzle length: Standard
KN-R02-250 Nozzle type: Male thread nozzle | Nozzle dia.: ø2.5 | Connection: R1/4 | Nozzle length: Standard
VMG1-R02-300 Nozzle type: Male thread nozzle | Nozzle dia.: ø3 | Connection: R1/4 | Nozzle length: Standard
VMG1-R02-350 Nozzle type: Male thread nozzle | Nozzle dia.: ø3.5 | Connection: R1/4 | Nozzle length: Standard
VMG1-R02-400 Nozzle type: Male thread nozzle | Nozzle dia.: ø4 | Connection: R1/4 | Nozzle length: Standard
KN-R02-600 Nozzle type: Male thread nozzle | Nozzle dia.: ø6 | Connection: R1/4 | Nozzle length: Standard
KN-R03-400 Nozzle type: Male thread nozzle | Nozzle dia.: ø4 | Connection: R3/8 | Nozzle length: Standard
KN-R03-600 Nozzle type: Male thread nozzle | Nozzle dia.: ø6 | Connection: R3/8 | Nozzle length: Standard
KN-R04-400 Nozzle type: Male thread nozzle | Nozzle dia.: ø4 | Connection: R1/2 | Nozzle length: Standard
KN-R04-600 Nozzle type: Male thread nozzle | Nozzle dia.: ø6 | Connection: R1/2 | Nozzle length: Standard
KN-R06-600 Nozzle type: Male thread nozzle | Nozzle dia.: ø6 | Connection: R3/4 | Nozzle length: Standard
KN-R06-800 Nozzle type: Male thread nozzle | Nozzle dia.: ø8 | Connection: R3/4 | Nozzle length: Standard
KN-R10-800 Nozzle type: Male thread nozzle | Nozzle dia.: ø8 | Connection: R1 | Nozzle length: Standard
KNL3-06-150 Nozzle type: Long copper pipe nozzle | Nozzle dia.: ø1.5 | Connection: Pipe OD ø6 | Nozzle length: 300 mm
KNL3-06-200 Nozzle type: Long copper pipe nozzle | Nozzle dia.: ø2 | Connection: Pipe OD ø6 | Nozzle length: 300 mm
KNL3-08-200 Nozzle type: Long copper pipe nozzle | Nozzle dia.: ø2 | Connection: Pipe OD ø8 | Nozzle length: 300 mm
KNL3-08-250 Nozzle type: Long copper pipe nozzle | Nozzle dia.: ø2.5 | Connection: Pipe OD ø8 | Nozzle length: 300 mm
KNL3-10-250 Nozzle type: Long copper pipe nozzle | Nozzle dia.: ø2.5 | Connection: Pipe OD ø10 | Nozzle length: 300 mm
KNL3-10-300 Nozzle type: Long copper pipe nozzle | Nozzle dia.: ø3 | Connection: Pipe OD ø10 | Nozzle length: 300 mm
KNL6-06-150 Nozzle type: Long copper pipe nozzle | Nozzle dia.: ø1.5 | Connection: Pipe OD ø6 | Nozzle length: 600 mm
KNL6-06-200 Nozzle type: Long copper pipe nozzle | Nozzle dia.: ø2 | Connection: Pipe OD ø6 | Nozzle length: 600 mm
KNL6-08-200 Nozzle type: Long copper pipe nozzle | Nozzle dia.: ø2 | Connection: Pipe OD ø8 | Nozzle length: 600 mm
KNL6-08-250 Nozzle type: Long copper pipe nozzle | Nozzle dia.: ø2.5 | Connection: Pipe OD ø8 | Nozzle length: 600 mm
KNL6-10-250 Nozzle type: Long copper pipe nozzle | Nozzle dia.: ø2.5 | Connection: Pipe OD ø10 | Nozzle length: 600 mm
KNL6-10-300 Nozzle type: Long copper pipe nozzle | Nozzle dia.: ø3 | Connection: Pipe OD ø10 | Nozzle length: 600 mm
VMG1-06-150-100 Nozzle type: Long nozzle set with nut fitting | Nozzle dia.: ø1.5 | Connection: R1/4, pipe OD ø6 | Nozzle length: 100 mm
VMG1-06-200-100 Nozzle type: Long nozzle set with nut fitting | Nozzle dia.: ø2 | Connection: R1/4, pipe OD ø6 | Nozzle length: 100 mm
VMG1-06-150-150 Nozzle type: Long nozzle set with nut fitting | Nozzle dia.: ø1.5 | Connection: R1/4, pipe OD ø6 | Nozzle length: 150 mm
VMG1-06-200-150 Nozzle type: Long nozzle set with nut fitting | Nozzle dia.: ø2 | Connection: R1/4, pipe OD ø6 | Nozzle length: 150 mm
VMG1-06-150-300 Nozzle type: Long nozzle set with nut fitting | Nozzle dia.: ø1.5 | Connection: R1/4, pipe OD ø6 | Nozzle length: 300 mm
VMG1-06-200-300 Nozzle type: Long nozzle set with nut fitting | Nozzle dia.: ø2 | Connection: R1/4, pipe OD ø6 | Nozzle length: 300 mm
VMG1-06-150-600 Nozzle type: Long nozzle set with nut fitting | Nozzle dia.: ø1.5 | Connection: R1/4, pipe OD ø6 | Nozzle length: 600 mm
VMG1-06-200-600 Nozzle type: Long nozzle set with nut fitting | Nozzle dia.: ø2 | Connection: R1/4, pipe OD ø6 | Nozzle length: 600 mm
VMG1-08-250-100 Nozzle type: Long nozzle set with nut fitting | Nozzle dia.: ø2.5 | Connection: R1/4, pipe OD ø8 | Nozzle length: 100 mm
VMG1-08-300-100 Nozzle type: Long nozzle set with nut fitting | Nozzle dia.: ø3 | Connection: R1/4, pipe OD ø8 | Nozzle length: 100 mm
VMG1-08-350-100 Nozzle type: Long nozzle set with nut fitting | Nozzle dia.: ø3.5 | Connection: R1/4, pipe OD ø8 | Nozzle length: 100 mm
VMG1-08-250-150 Nozzle type: Long nozzle set with nut fitting | Nozzle dia.: ø2.5 | Connection: R1/4, pipe OD ø8 | Nozzle length: 150 mm
VMG1-08-300-150 Nozzle type: Long nozzle set with nut fitting | Nozzle dia.: ø3 | Connection: R1/4, pipe OD ø8 | Nozzle length: 150 mm
VMG1-08-350-150 Nozzle type: Long nozzle set with nut fitting | Nozzle dia.: ø3.5 | Connection: R1/4, pipe OD ø8 | Nozzle length: 150 mm
VMG1-08-250-300 Nozzle type: Long nozzle set with nut fitting | Nozzle dia.: ø2.5 | Connection: R1/4, pipe OD ø8 | Nozzle length: 300 mm
VMG1-08-300-300 Nozzle type: Long nozzle set with nut fitting | Nozzle dia.: ø3 | Connection: R1/4, pipe OD ø8 | Nozzle length: 300 mm
VMG1-08-350-300 Nozzle type: Long nozzle set with nut fitting | Nozzle dia.: ø3.5 | Connection: R1/4, pipe OD ø8 | Nozzle length: 300 mm
VMG1-08-250-600 Nozzle type: Long nozzle set with nut fitting | Nozzle dia.: ø2.5 | Connection: R1/4, pipe OD ø8 | Nozzle length: 600 mm
VMG1-08-300-600 Nozzle type: Long nozzle set with nut fitting | Nozzle dia.: ø3 | Connection: R1/4, pipe OD ø8 | Nozzle length: 600 mm
VMG1-08-350-600 Nozzle type: Long nozzle set with nut fitting | Nozzle dia.: ø3.5 | Connection: R1/4, pipe OD ø8 | Nozzle length: 600 mm
KN-Q06A-100 Nozzle type: One-touch fitting nozzle, resin | Nozzle dia.: ø1 | Connection: One-touch ø6 | Nozzle length: Standard
KN-Q06A-150 Nozzle type: One-touch fitting nozzle, resin | Nozzle dia.: ø1.5 | Connection: One-touch ø6 | Nozzle length: Standard
KN-Q06A-200 Nozzle type: One-touch fitting nozzle, resin | Nozzle dia.: ø2 | Connection: One-touch ø6 | Nozzle length: Standard
KN-Q08A-150 Nozzle type: One-touch fitting nozzle, resin | Nozzle dia.: ø1.5 | Connection: One-touch ø8 | Nozzle length: Standard
KN-Q08A-200 Nozzle type: One-touch fitting nozzle, resin | Nozzle dia.: ø2 | Connection: One-touch ø8 | Nozzle length: Standard
KN-Q10A-200 Nozzle type: One-touch fitting nozzle, resin | Nozzle dia.: ø2 | Connection: One-touch ø10 | Nozzle length: Standard
KN-Q10A-250 Nozzle type: One-touch fitting nozzle, resin | Nozzle dia.: ø2.5 | Connection: One-touch ø10 | Nozzle length: Standard
KN-Q12A-250 Nozzle type: One-touch fitting nozzle, resin | Nozzle dia.: ø2.5 | Connection: One-touch ø12 | Nozzle length: Standard
KN-Q12A-300 Nozzle type: One-touch fitting nozzle, resin | Nozzle dia.: ø3 | Connection: One-touch ø12 | Nozzle length: Standard
KNC-R02-200 Nozzle type: Flow adjustable nozzle | Nozzle dia.: ø2.6 | Connection: R1/4 | Nozzle length: Standard
KN-Q06-100 Nozzle type: One-touch fitting nozzle, metal | Nozzle dia.: ø1 | Connection: One-touch ø6 | Nozzle length: Standard
KN-Q06-150 Nozzle type: One-touch fitting nozzle, metal | Nozzle dia.: ø1.5 | Connection: One-touch ø6 | Nozzle length: Standard
KN-Q06-200 Nozzle type: One-touch fitting nozzle, metal | Nozzle dia.: ø2 | Connection: One-touch ø6 | Nozzle length: Standard
KN-Q08-150 Nozzle type: One-touch fitting nozzle, metal | Nozzle dia.: ø1.5 | Connection: One-touch ø8 | Nozzle length: Standard
KN-Q08-200 Nozzle type: One-touch fitting nozzle, metal | Nozzle dia.: ø2 | Connection: One-touch ø8 | Nozzle length: Standard
KN-Q10-200 Nozzle type: One-touch fitting nozzle, metal | Nozzle dia.: ø2 | Connection: One-touch ø10 | Nozzle length: Standard
KN-Q10-250 Nozzle type: One-touch fitting nozzle, metal | Nozzle dia.: ø2.5 | Connection: One-touch ø10 | Nozzle length: Standard
KN-Q12-250 Nozzle type: One-touch fitting nozzle, metal | Nozzle dia.: ø2.5 | Connection: One-touch ø12 | Nozzle length: Standard
KN-Q12-300 Nozzle type: One-touch fitting nozzle, metal | Nozzle dia.: ø3 | Connection: One-touch ø12 | Nozzle length: Standard
KNS-08-075-4 Nozzle type: Low noise nozzle, nut fitting | Nozzle dia.: ø0.75x4 | Connection: Tube ø8 | Nozzle length: Standard
KNS-08-100-4 Nozzle type: Low noise nozzle, nut fitting | Nozzle dia.: ø1x4 | Connection: Tube ø8 | Nozzle length: Standard
KNS-10-075-4 Nozzle type: Low noise nozzle, nut fitting | Nozzle dia.: ø0.75x4 | Connection: Tube ø10 | Nozzle length: Standard
KNS-10-090-8 Nozzle type: Low noise nozzle, nut fitting | Nozzle dia.: ø0.9x8 | Connection: Tube ø10 | Nozzle length: Standard
KNS-10-100-4 Nozzle type: Low noise nozzle, nut fitting | Nozzle dia.: ø1x4 | Connection: Tube ø10 | Nozzle length: Standard
KNK-R02-400 Nozzle type: Ball joint nozzle, male thread | Nozzle dia.: ø4 | Connection: R1/4 | Nozzle length: Standard
KNK-R02-600 Nozzle type: Ball joint nozzle, male thread | Nozzle dia.: ø6 | Connection: R1/4 | Nozzle length: Standard
KNK-R03-400 Nozzle type: Ball joint nozzle, male thread | Nozzle dia.: ø4 | Connection: R3/8 | Nozzle length: Standard
KNK-R03-600 Nozzle type: Ball joint nozzle, male thread | Nozzle dia.: ø6 | Connection: R3/8 | Nozzle length: Standard
KNK-R04-400 Nozzle type: Ball joint nozzle, male thread | Nozzle dia.: ø4 | Connection: R1/2 | Nozzle length: Standard
KNK-R04-600 Nozzle type: Ball joint nozzle, male thread | Nozzle dia.: ø6 | Connection: R1/2 | Nozzle length: Standard
KNH-R02-100 Nozzle type: High efficiency nozzle (OSHA) | Nozzle dia.: ø1 | Connection: R1/4 | Nozzle length: Standard
KNH-R02-150 Nozzle type: High efficiency nozzle (OSHA) | Nozzle dia.: ø1.5 | Connection: R1/4 | Nozzle length: Standard
KNH-R02-200 Nozzle type: High efficiency nozzle (OSHA) | Nozzle dia.: ø2 | Connection: R1/4 | Nozzle length: Standard
KNK-10-400 Nozzle type: Ball joint nozzle, nut fitting | Nozzle dia.: ø4 | Connection: Tube ø10 | Nozzle length: Standard
KNK-10-600 Nozzle type: Ball joint nozzle, nut fitting | Nozzle dia.: ø6 | Connection: Tube ø10 | Nozzle length: Standard
KNK-12-400 Nozzle type: Ball joint nozzle, nut fitting | Nozzle dia.: ø4 | Connection: Tube ø12 | Nozzle length: Standard
KNK-12-600 Nozzle type: Ball joint nozzle, nut fitting | Nozzle dia.: ø6 | Connection: Tube ø12 | Nozzle length: Standard
KNK-16-400 Nozzle type: Ball joint nozzle, nut fitting | Nozzle dia.: ø4 | Connection: Tube ø16 | Nozzle length: Standard
KNK-16-600 Nozzle type: Ball joint nozzle, nut fitting | Nozzle dia.: ø6 | Connection: Tube ø16 | Nozzle length: Standard
KNK-20-400 Nozzle type: Ball joint nozzle, nut fitting | Nozzle dia.: ø4 | Connection: Tube ø20 | Nozzle length: Standard
KNK-20-600 Nozzle type: Ball joint nozzle, nut fitting | Nozzle dia.: ø6 | Connection: Tube ø20 | Nozzle length: Standard
KNS-R01-075-4 Nozzle type: Low noise nozzle, male thread | Nozzle dia.: ø0.75x4 | Connection: R1/8 | Nozzle length: Standard
KNS-R01-100-4 Nozzle type: Low noise nozzle, male thread | Nozzle dia.: ø1x4 | Connection: R1/8 | Nozzle length: Standard
KNS-R01-090-8 Nozzle type: Low noise nozzle, male thread | Nozzle dia.: ø0.9x8 | Connection: R1/8 | Nozzle length: Standard
KNS-R02-075-4 Nozzle type: Low noise nozzle, male thread | Nozzle dia.: ø0.75x4 | Connection: R1/4 | Nozzle length: Standard
KNS-R02-090-8 Nozzle type: Low noise nozzle, male thread | Nozzle dia.: ø0.9x8 | Connection: R1/4 | Nozzle length: Standard
KNS-R02-100-4 Nozzle type: Low noise nozzle, male thread | Nozzle dia.: ø1x4 | Connection: R1/4 | Nozzle length: Standard
KNS-R02-110-8 Nozzle type: Low noise nozzle, male thread | Nozzle dia.: ø1.1x8 | Connection: R1/4 | Nozzle length: Standard
