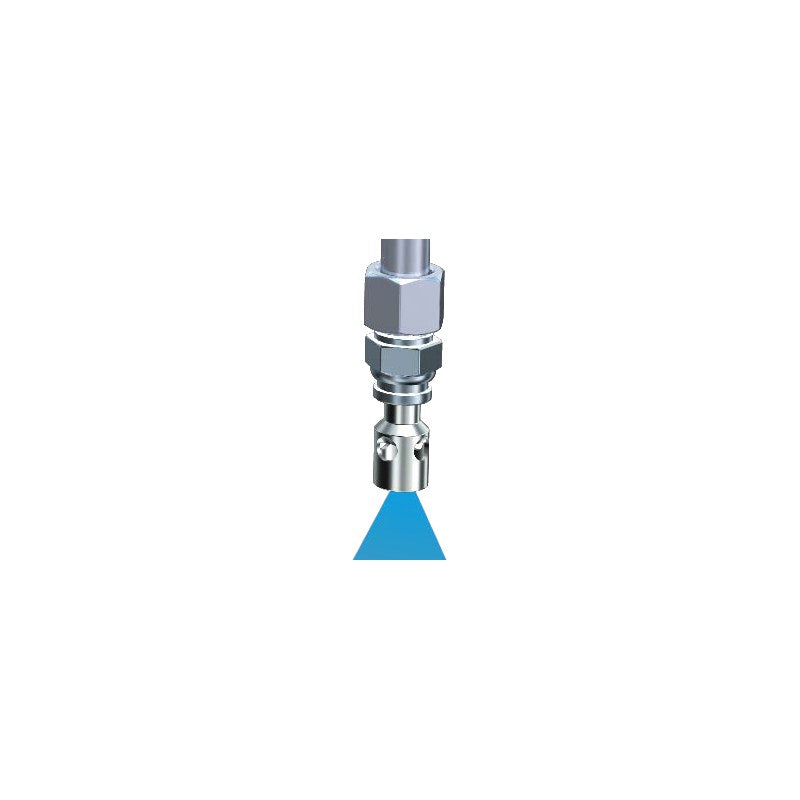

SMC KNA OSHA-Compliant Nozzle for One-touch Fittings (ø10)

SMC KNA OSHA-Compliant Nozzle for One-touch Fittings (ø10)

SMC KNA(G) nozzle that plugs into a ø10 SMC one-touch fitting and meets OSHA 1910.242(B) for safe compressed-air cleaning.

Key features

  • Side discharge ports keep pressure at 30 psi or less if the outlet is blocked (at 0.5 MPa or less)
  • Air consumption cut by about 42% versus a comb-type nozzle at the same impact pressure
  • Up to 8 dB(A) quieter than a male-thread nozzle at the same impact pressure (76 dB(A))
  • Resin type (PBT, KNA) and stainless SUS316 type (KNAG) for fluid temperatures up to 150°C
  • Twin, triple and bar layouts built from KQ2/KQG2 branch, elbow and union fittings

Specifications

Fluid Air
Max. operating pressure 1 MPa
Nozzle diameter ø1.8 equivalent
Applicable one-touch fitting size ø10
Standard OSHA 1910.242(B) compliant at 0.5 MPa or less
Noise 76 dB(A) at 5 kPa impact pressure
Applicable fittings Resin: KQ2, KS/KX, KC, KB, KG, KP, KQB2, KQG2; SUS: KQB2, KQG2
Source SMC Korea catalog CAT.KS50-44A (SMCKR_KNA.pdf), p. 1-3
KNA-Q10-180 Material: PBT (resin type) | Ambient and fluid temperature: -5 to 60°C | Mass: 3 g
KNAG-Q10-180 Material: SUS316 (stainless type) | Ambient and fluid temperature: -5 to 150°C | Mass: 17 g
Blow NozzlesSMC
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC KNA OSHA-Compliant Nozzle for One-touch Fittings (ø10)

Brand SMC·Blow Nozzles

Available part numbers (2)

KNA-Q10-180, KNAG-Q10-180

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KNA-Q10-180Material: PBT (resin type) | Ambient and fluid temperature: -5 to 60°C | Mass: 3 g
KNAG-Q10-180Material: SUS316 (stainless type) | Ambient and fluid temperature: -5 to 150°C | Mass: 17 g
