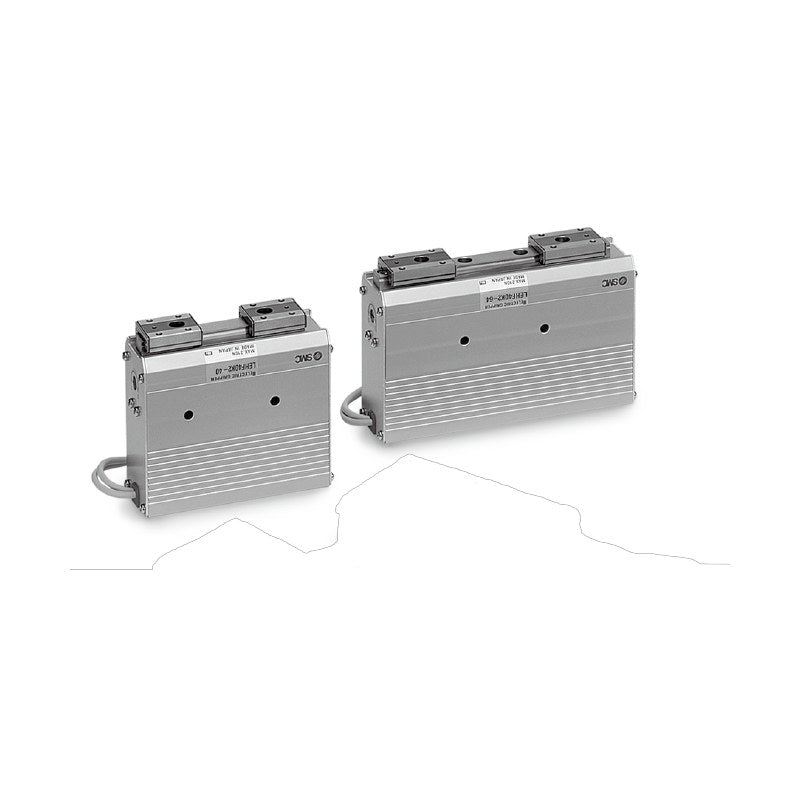

SMC LEHF Battery-less Absolute Electric Gripper (2-Finger, 32/40)

SMC LEHF Battery-less Absolute Electric Gripper (2-Finger, 32/40)

SMC LEHF 2-finger parallel electric gripper with battery-less absolute encoder step motor (DC24V), sizes 32 and 40 with basic or long stroke.

Key features

  • Battery-less absolute encoder: finger position retained at power off, no backup battery maintenance
  • Slide screw + belt drive with linear guide fingers; gripping force 48-120 N (32) and 72-180 N (40)
  • Basic or long opening/closing stroke; motor cable exit right (standard) or left (L)
  • Gripping check and width measurement possible via controller
  • Controller (JXC51/61 step data input; JXCE1/91/P1/D1/L1/M1 EtherCAT, EtherNet/IP, PROFINET, DeviceNet, IO-Link, CC-Link direct input), robot actuator cable length (R1/R3/R5/R8/RA/RB/RC = 1.5 to 20 m) and I/O cable are ordered as suffixes, not listed

Specifications

Finger type 2-finger
Lead 70/16 (4.375)
Drive Sliding screw + belt
Opening/closing speed 5-100 mm/s, pushing speed 5-30 mm/s
Repeatability ±0.05 mm
Max. operating frequency 60 c.p.m.
Motor size 42
Motor Battery-less absolute encoder step motor (servo/DC24V)
Encoder Battery-less absolute (position held at power off)
Power supply voltage DC24V ±10%
Source SMC Korea catalog Battery-less Absolute Encoder Type LE Series (SMCKR_Batteryless_LE__.pdf), p. 147-149 (PDF p. 148-150)
LEHF32EK2-32 Size: 32 | Stroke: 32 mm (basic) | Cable exit: Right side (basic)
LEHF32EK2-32L Size: 32 | Stroke: 32 mm (basic) | Cable exit: Left side
LEHF32EK2-64 Size: 32 | Stroke: 64 mm (long) | Cable exit: Right side (basic)
LEHF32EK2-64L Size: 32 | Stroke: 64 mm (long) | Cable exit: Left side
LEHF40EK2-40 Size: 40 | Stroke: 40 mm (basic) | Cable exit: Right side (basic)
LEHF40EK2-40L Size: 40 | Stroke: 40 mm (basic) | Cable exit: Left side
LEHF40EK2-80 Size: 40 | Stroke: 80 mm (long) | Cable exit: Right side (basic)
LEHF40EK2-80L Size: 40 | Stroke: 80 mm (long) | Cable exit: Left side
Air GrippersSMC
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC LEHF Battery-less Absolute Electric Gripper (2-Finger, 32/40)

Brand SMC·Air Grippers

Available part numbers (8)

LEHF32EK2-32, LEHF32EK2-32L, LEHF32EK2-64, LEHF32EK2-64L, LEHF40EK2-40, LEHF40EK2-40L, LEHF40EK2-80, LEHF40EK2-80L

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LEHF32EK2-32Size: 32 | Stroke: 32 mm (basic) | Cable exit: Right side (basic)
LEHF32EK2-32LSize: 32 | Stroke: 32 mm (basic) | Cable exit: Left side
LEHF32EK2-64Size: 32 | Stroke: 64 mm (long) | Cable exit: Right side (basic)
LEHF32EK2-64LSize: 32 | Stroke: 64 mm (long) | Cable exit: Left side
LEHF40EK2-40Size: 40 | Stroke: 40 mm (basic) | Cable exit: Right side (basic)
LEHF40EK2-40LSize: 40 | Stroke: 40 mm (basic) | Cable exit: Left side
LEHF40EK2-80Size: 40 | Stroke: 80 mm (long) | Cable exit: Right side (basic)
LEHF40EK2-80LSize: 40 | Stroke: 80 mm (long) | Cable exit: Left side
