SMC LMU100/LMU200 Mist Spray Unit (Intermittent Oil Mist)

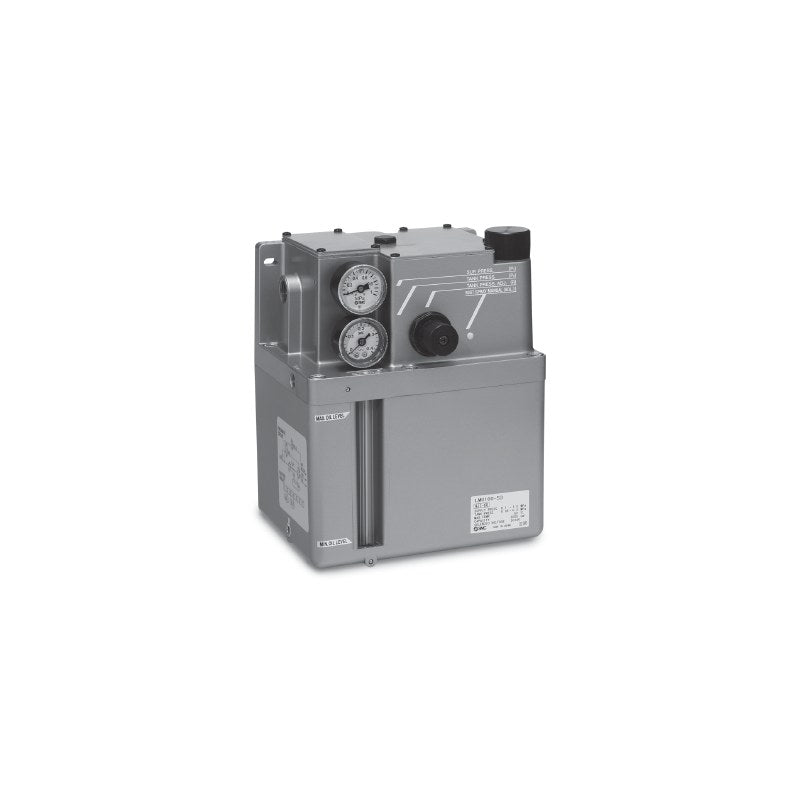

SMC LMU series mist spray unit that intermittently sprays oil mist from mixing valves for cutting, press work, gears and chains, with a built-in 3 L oil tank and solenoid on/off control.

Key features

Oil tank with pressure-setting regulator, supply and tank gauges and solenoid on/off valve for oil mist
LMU100 adds an air blow circuit with its own on/off valve; LMU200 is the oil mist only version
Solenoid voltage AC100V, AC200V or DC24V; optional float switch for upper/lower level control (contact AC50VA/DC50W)
Uses turbine oil or water-insoluble cutting oil (JIS N1) of 2 to 200 mm²/s
Combine with LMV mixing valves, LMH magnet holders, LMD distributors and T0604/T0425/T0806 nylon tubes

Specifications

Inlet air pressure	0.1 to 1.0 MPa
Oil tank set pressure	0.05 to 0.2 MPa
Oil	Turbine oil, water-insoluble cutting oil (JIS N1)
Oil viscosity (40°C)	2 to 200 mm²/s
Oil tank capacity	3000 cm³ total, 2500 cm³ effective
Ambient and fluid temperature	5 to 50°C
Connection	SUP Rc1/4; OUT 3x Rc1/4 (AIR ø6, OIL ø4, AIR BLOW ø8 tube)
Mass	LMU100 8.4 kg, LMU200 7.9 kg
Source	SMC Korea catalog LMU100/200 (SMCKR_LMU.pdf), p. 1330-1332 (PDF p. 1-3)

LMU100-10		Model: LMU100 \| Air blow: With air blow circuit \| Voltage: AC100V 50/60Hz \| Float switch: None
LMU100-13		Model: LMU100 \| Air blow: With air blow circuit \| Voltage: AC100V 50/60Hz \| Float switch: Upper/lower level control
LMU100-20		Model: LMU100 \| Air blow: With air blow circuit \| Voltage: AC200V 50/60Hz \| Float switch: None
LMU100-23		Model: LMU100 \| Air blow: With air blow circuit \| Voltage: AC200V 50/60Hz \| Float switch: Upper/lower level control
LMU100-50		Model: LMU100 \| Air blow: With air blow circuit \| Voltage: DC24V \| Float switch: None
LMU100-53		Model: LMU100 \| Air blow: With air blow circuit \| Voltage: DC24V \| Float switch: Upper/lower level control
LMU200-10		Model: LMU200 \| Air blow: Without air blow circuit \| Voltage: AC100V 50/60Hz \| Float switch: None
LMU200-13		Model: LMU200 \| Air blow: Without air blow circuit \| Voltage: AC100V 50/60Hz \| Float switch: Upper/lower level control
LMU200-20		Model: LMU200 \| Air blow: Without air blow circuit \| Voltage: AC200V 50/60Hz \| Float switch: None
LMU200-23		Model: LMU200 \| Air blow: Without air blow circuit \| Voltage: AC200V 50/60Hz \| Float switch: Upper/lower level control
LMU200-50		Model: LMU200 \| Air blow: Without air blow circuit \| Voltage: DC24V \| Float switch: None
LMU200-53		Model: LMU200 \| Air blow: Without air blow circuit \| Voltage: DC24V \| Float switch: Upper/lower level control
