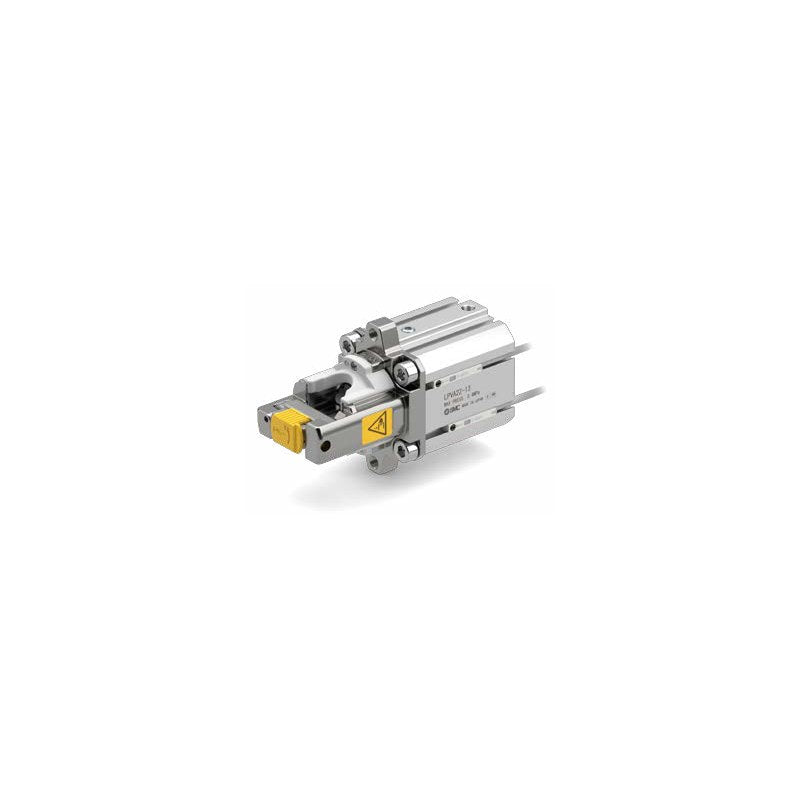

SMC LPVA Pinch Valve (Air Operated Type, N.C./N.O.)

SMC LPVA Pinch Valve (Air Operated Type, N.C./N.O.)

SMC LPVA series air-operated pinch valve with a front-opening cover for tube insertion, for 3/8", 7/16" and 1/2" OD tubing carrying gases or liquids.

Key features

  • Front access: open the cover and insert the tube, cutting tube replacement time by up to 40%
  • N.C. (LPVA21) or N.O. (LPVA22) valve type; pilot port position selectable in four directions
  • Compact and lightweight: 372.8 g (LPVA21), 256.6 g (LPVA22)
  • Tube adapter LPVA-09A/-11A/-13A (2 pcs per set) available
  • Auto switches D-M9N/M9P/M9B and 2-color D-M9NW/PW/BW mountable (ordered separately)

Specifications

Operation Air operated
Applicable fluid Gas and liquid suitable for the tube
Fluid temperature 0 to 60°C (no freezing)
Ambient temperature 5 to 60°C
Pilot fluid Air, ISO 8573-1:2010 [2:4:3] to [2:6:3]
Pilot pressure N.C.: pinch 0 to 0.35, release 0.35 to 0.4 MPa; N.O.: pinch 0.1 to 0.4 MPa
Proof pressure 0.6 MPa
Mounting orientation Unrestricted
Source SMC Korea catalog CAT.KS70-67A (SMCKR_LPVA.pdf), p. 3 (PDF p. 1, 4, 6-7)
LPVA21-09 Valve type: N.C. | Tube OD: ø3/8" | Port position: Cover opens 0°
LPVA21-09-R Valve type: N.C. | Tube OD: ø3/8" | Port position: Cover opens 90°
LPVA21-09-U Valve type: N.C. | Tube OD: ø3/8" | Port position: Cover opens 180°
LPVA21-09-L Valve type: N.C. | Tube OD: ø3/8" | Port position: Cover opens 270°
LPVA21-11 Valve type: N.C. | Tube OD: ø7/16" | Port position: Cover opens 0°
LPVA21-11-R Valve type: N.C. | Tube OD: ø7/16" | Port position: Cover opens 90°
LPVA21-11-U Valve type: N.C. | Tube OD: ø7/16" | Port position: Cover opens 180°
LPVA21-11-L Valve type: N.C. | Tube OD: ø7/16" | Port position: Cover opens 270°
LPVA21-13 Valve type: N.C. | Tube OD: ø1/2" | Port position: Cover opens 0°
LPVA21-13-R Valve type: N.C. | Tube OD: ø1/2" | Port position: Cover opens 90°
LPVA21-13-U Valve type: N.C. | Tube OD: ø1/2" | Port position: Cover opens 180°
LPVA21-13-L Valve type: N.C. | Tube OD: ø1/2" | Port position: Cover opens 270°
LPVA22-09 Valve type: N.O. | Tube OD: ø3/8" | Port position: Cover opens 0°
LPVA22-09-R Valve type: N.O. | Tube OD: ø3/8" | Port position: Cover opens 90°
LPVA22-09-U Valve type: N.O. | Tube OD: ø3/8" | Port position: Cover opens 180°
LPVA22-09-L Valve type: N.O. | Tube OD: ø3/8" | Port position: Cover opens 270°
LPVA22-11 Valve type: N.O. | Tube OD: ø7/16" | Port position: Cover opens 0°
LPVA22-11-R Valve type: N.O. | Tube OD: ø7/16" | Port position: Cover opens 90°
LPVA22-11-U Valve type: N.O. | Tube OD: ø7/16" | Port position: Cover opens 180°
LPVA22-11-L Valve type: N.O. | Tube OD: ø7/16" | Port position: Cover opens 270°
LPVA22-13 Valve type: N.O. | Tube OD: ø1/2" | Port position: Cover opens 0°
LPVA22-13-R Valve type: N.O. | Tube OD: ø1/2" | Port position: Cover opens 90°
LPVA22-13-U Valve type: N.O. | Tube OD: ø1/2" | Port position: Cover opens 180°
LPVA22-13-L Valve type: N.O. | Tube OD: ø1/2" | Port position: Cover opens 270°
2-Port ValvesSMC
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC LPVA Pinch Valve (Air Operated Type, N.C./N.O.)

Brand SMC·2-Port Valves

Available part numbers (24)

LPVA21-09, LPVA21-09-R, LPVA21-09-U, LPVA21-09-L, LPVA21-11, LPVA21-11-R, LPVA21-11-U, LPVA21-11-L, LPVA21-13, LPVA21-13-R + 14 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LPVA21-09Valve type: N.C. | Tube OD: ø3/8" | Port position: Cover opens 0°
LPVA21-09-RValve type: N.C. | Tube OD: ø3/8" | Port position: Cover opens 90°
LPVA21-09-UValve type: N.C. | Tube OD: ø3/8" | Port position: Cover opens 180°
LPVA21-09-LValve type: N.C. | Tube OD: ø3/8" | Port position: Cover opens 270°
LPVA21-11Valve type: N.C. | Tube OD: ø7/16" | Port position: Cover opens 0°
LPVA21-11-RValve type: N.C. | Tube OD: ø7/16" | Port position: Cover opens 90°
LPVA21-11-UValve type: N.C. | Tube OD: ø7/16" | Port position: Cover opens 180°
LPVA21-11-LValve type: N.C. | Tube OD: ø7/16" | Port position: Cover opens 270°
LPVA21-13Valve type: N.C. | Tube OD: ø1/2" | Port position: Cover opens 0°
LPVA21-13-RValve type: N.C. | Tube OD: ø1/2" | Port position: Cover opens 90°
LPVA21-13-UValve type: N.C. | Tube OD: ø1/2" | Port position: Cover opens 180°
LPVA21-13-LValve type: N.C. | Tube OD: ø1/2" | Port position: Cover opens 270°
LPVA22-09Valve type: N.O. | Tube OD: ø3/8" | Port position: Cover opens 0°
LPVA22-09-RValve type: N.O. | Tube OD: ø3/8" | Port position: Cover opens 90°
LPVA22-09-UValve type: N.O. | Tube OD: ø3/8" | Port position: Cover opens 180°
LPVA22-09-LValve type: N.O. | Tube OD: ø3/8" | Port position: Cover opens 270°
LPVA22-11Valve type: N.O. | Tube OD: ø7/16" | Port position: Cover opens 0°
LPVA22-11-RValve type: N.O. | Tube OD: ø7/16" | Port position: Cover opens 90°
LPVA22-11-UValve type: N.O. | Tube OD: ø7/16" | Port position: Cover opens 180°
LPVA22-11-LValve type: N.O. | Tube OD: ø7/16" | Port position: Cover opens 270°
LPVA22-13Valve type: N.O. | Tube OD: ø1/2" | Port position: Cover opens 0°
LPVA22-13-RValve type: N.O. | Tube OD: ø1/2" | Port position: Cover opens 90°
LPVA22-13-UValve type: N.O. | Tube OD: ø1/2" | Port position: Cover opens 180°
LPVA22-13-LValve type: N.O. | Tube OD: ø1/2" | Port position: Cover opens 270°
