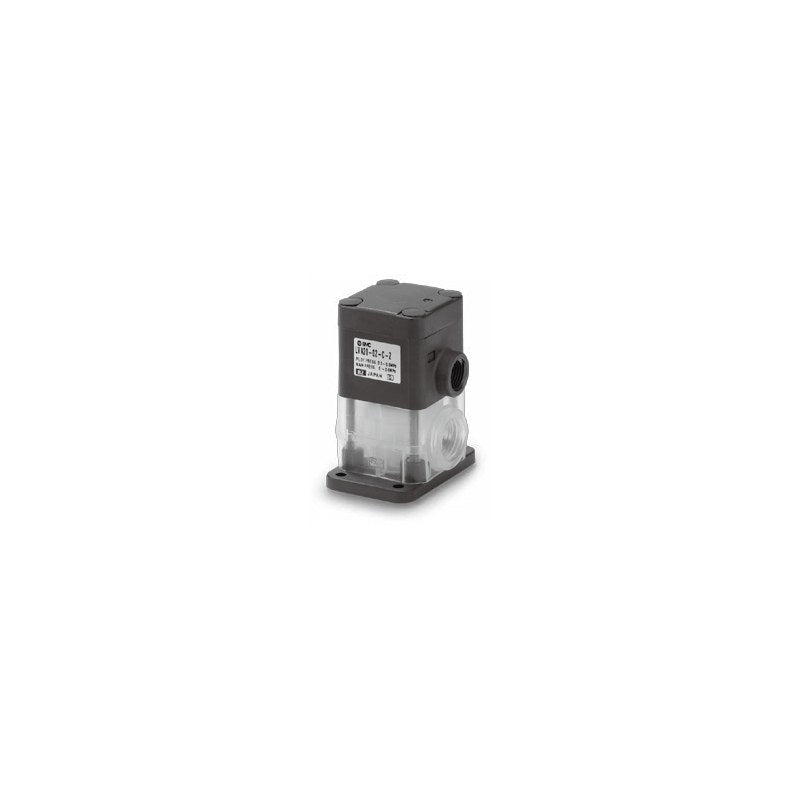

SMC LVA Air Operated Chemical Valve (Threaded, SUS/PPS/PFA Body)

SMC LVA Air Operated Chemical Valve (Threaded, SUS/PPS/PFA Body)

SMC LVA series air operated 2-port chemical valve with threaded ports and SUS316, PPS or PFA body, body classes 1 to 6 (Rc1/8 to Rc1), plus 3-port valve, manifold valves and LLA manifold bases.

Key features

  • Body materials SUS316, PPS or PFA with PTFE, NBR or EPDM diaphragm; select by fluid compatibility
  • N.C., N.O. and double acting types (LVA10: N.C. and double acting only)
  • Options flow adjustment, bypass, flow adjustment + bypass (PFA body) and indicator
  • Material N for ammonia water; material F (PFA/PVDF) for hydrofluoric acid on LVA40/50
  • Stacking manifold LLA (2 to 5 stations, PFA) with LVAA manifold valves
  • NPT (N) or G (F) threads, vacuum spec (-V) and 1/8 pilot port for LVA20 (-Z) are suffixes; listed codes are Rc

Specifications

Operation Air operated diaphragm valve
Proof pressure 1 MPa
Operating pressure (A to B) 0 to 0.5 MPa (class 5-6: 0 to 0.4 MPa)
Pilot pressure 0.3 to 0.5 MPa
Pilot port M5 (class 1-2), Rc1/8 (class 3 to 6)
Fluid temperature 0 to 100°C (NBR/EPDM diaphragm 0 to 60°C)
Ambient temperature 0 to 60°C
Valve leakage 0 cm3/min (with water)
Flow Kv LVA10 0.06, 20 0.3, 30 1.4, 40 2.8, 50 5.1, 60 6.8
Source SMC Korea catalog LVC/LVA/LVH Series (SMCKR_LVC_LVA_LVH.pdf), p. 171-185 (PDF p. 20-34)
LVA10-01-A Type: Single 2-port, N.C. | Body class: 1 (orifice 2 mm) | Port: Rc1/8 | Option: Basic | Material: SUS body, PTFE, FKM
LVA10-01-B Type: Single 2-port, N.C. | Body class: 1 (orifice 2 mm) | Port: Rc1/8 | Option: Basic | Material: PPS body, PTFE, FKM
LVA10-01-C Type: Single 2-port, N.C. | Body class: 1 (orifice 2 mm) | Port: Rc1/8 | Option: Basic | Material: PFA body, PTFE, FKM
LVA10-01-D Type: Single 2-port, N.C. | Body class: 1 (orifice 2 mm) | Port: Rc1/8 | Option: Basic | Material: SUS body, NBR, FKM
LVA10-01-E Type: Single 2-port, N.C. | Body class: 1 (orifice 2 mm) | Port: Rc1/8 | Option: Basic | Material: SUS body, EPDM, EPDM
LVA10-01-G Type: Single 2-port, N.C. | Body class: 1 (orifice 2 mm) | Port: Rc1/8 | Option: Basic | Material: PPS body, NBR, FKM
LVA10-01-H Type: Single 2-port, N.C. | Body class: 1 (orifice 2 mm) | Port: Rc1/8 | Option: Basic | Material: PPS body, EPDM, EPDM
LVA10-01-N Type: Single 2-port, N.C. | Body class: 1 (orifice 2 mm) | Port: Rc1/8 | Option: Basic | Material: PFA body, PTFE, EPDM
LVA10-02-A Type: Single 2-port, N.C. | Body class: 1 (orifice 2 mm) | Port: Rc1/4 | Option: Basic | Material: SUS body, PTFE, FKM
LVA10-02-B Type: Single 2-port, N.C. | Body class: 1 (orifice 2 mm) | Port: Rc1/4 | Option: Basic | Material: PPS body, PTFE, FKM
LVA10-02-D Type: Single 2-port, N.C. | Body class: 1 (orifice 2 mm) | Port: Rc1/4 | Option: Basic | Material: SUS body, NBR, FKM
LVA10-02-E Type: Single 2-port, N.C. | Body class: 1 (orifice 2 mm) | Port: Rc1/4 | Option: Basic | Material: SUS body, EPDM, EPDM
LVA10-02-G Type: Single 2-port, N.C. | Body class: 1 (orifice 2 mm) | Port: Rc1/4 | Option: Basic | Material: PPS body, NBR, FKM
LVA10-02-H Type: Single 2-port, N.C. | Body class: 1 (orifice 2 mm) | Port: Rc1/4 | Option: Basic | Material: PPS body, EPDM, EPDM
LVA12-01-A Type: Single 2-port, Double acting | Body class: 1 (orifice 2 mm) | Port: Rc1/8 | Option: Basic | Material: SUS body, PTFE, FKM
LVA12-01-B Type: Single 2-port, Double acting | Body class: 1 (orifice 2 mm) | Port: Rc1/8 | Option: Basic | Material: PPS body, PTFE, FKM
LVA12-01-C Type: Single 2-port, Double acting | Body class: 1 (orifice 2 mm) | Port: Rc1/8 | Option: Basic | Material: PFA body, PTFE, FKM
LVA12-01-D Type: Single 2-port, Double acting | Body class: 1 (orifice 2 mm) | Port: Rc1/8 | Option: Basic | Material: SUS body, NBR, FKM
LVA12-01-E Type: Single 2-port, Double acting | Body class: 1 (orifice 2 mm) | Port: Rc1/8 | Option: Basic | Material: SUS body, EPDM, EPDM
LVA12-01-G Type: Single 2-port, Double acting | Body class: 1 (orifice 2 mm) | Port: Rc1/8 | Option: Basic | Material: PPS body, NBR, FKM
LVA12-01-H Type: Single 2-port, Double acting | Body class: 1 (orifice 2 mm) | Port: Rc1/8 | Option: Basic | Material: PPS body, EPDM, EPDM
LVA12-01-N Type: Single 2-port, Double acting | Body class: 1 (orifice 2 mm) | Port: Rc1/8 | Option: Basic | Material: PFA body, PTFE, EPDM
LVA12-02-A Type: Single 2-port, Double acting | Body class: 1 (orifice 2 mm) | Port: Rc1/4 | Option: Basic | Material: SUS body, PTFE, FKM
LVA12-02-B Type: Single 2-port, Double acting | Body class: 1 (orifice 2 mm) | Port: Rc1/4 | Option: Basic | Material: PPS body, PTFE, FKM
LVA12-02-D Type: Single 2-port, Double acting | Body class: 1 (orifice 2 mm) | Port: Rc1/4 | Option: Basic | Material: SUS body, NBR, FKM
LVA12-02-E Type: Single 2-port, Double acting | Body class: 1 (orifice 2 mm) | Port: Rc1/4 | Option: Basic | Material: SUS body, EPDM, EPDM
LVA12-02-G Type: Single 2-port, Double acting | Body class: 1 (orifice 2 mm) | Port: Rc1/4 | Option: Basic | Material: PPS body, NBR, FKM
LVA12-02-H Type: Single 2-port, Double acting | Body class: 1 (orifice 2 mm) | Port: Rc1/4 | Option: Basic | Material: PPS body, EPDM, EPDM
LVA20-01-A Type: Single 2-port, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/8 | Option: Basic | Material: SUS body, PTFE, FKM
LVA20-01-A1 Type: Single 2-port, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/8 | Option: Flow adjustment | Material: SUS body, PTFE, FKM
LVA20-01-A4 Type: Single 2-port, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/8 | Option: Indicator | Material: SUS body, PTFE, FKM
LVA20-01-D Type: Single 2-port, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/8 | Option: Basic | Material: SUS body, NBR, FKM
LVA20-01-D1 Type: Single 2-port, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/8 | Option: Flow adjustment | Material: SUS body, NBR, FKM
LVA20-01-D4 Type: Single 2-port, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/8 | Option: Indicator | Material: SUS body, NBR, FKM
LVA20-01-E Type: Single 2-port, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/8 | Option: Basic | Material: SUS body, EPDM, EPDM
LVA20-01-E1 Type: Single 2-port, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/8 | Option: Flow adjustment | Material: SUS body, EPDM, EPDM
LVA20-01-E4 Type: Single 2-port, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/8 | Option: Indicator | Material: SUS body, EPDM, EPDM
LVA20-02-A Type: Single 2-port, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Basic | Material: SUS body, PTFE, FKM
LVA20-02-A1 Type: Single 2-port, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Flow adjustment | Material: SUS body, PTFE, FKM
LVA20-02-A4 Type: Single 2-port, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Indicator | Material: SUS body, PTFE, FKM
LVA20-02-B Type: Single 2-port, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Basic | Material: PPS body, PTFE, FKM
LVA20-02-B1 Type: Single 2-port, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Flow adjustment | Material: PPS body, PTFE, FKM
LVA20-02-B4 Type: Single 2-port, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Indicator | Material: PPS body, PTFE, FKM
LVA20-02-C Type: Single 2-port, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Basic | Material: PFA body, PTFE, FKM
LVA20-02-C1 Type: Single 2-port, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Flow adjustment | Material: PFA body, PTFE, FKM
LVA20-02-C4 Type: Single 2-port, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Indicator | Material: PFA body, PTFE, FKM
LVA20-02-D Type: Single 2-port, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Basic | Material: SUS body, NBR, FKM
LVA20-02-D1 Type: Single 2-port, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Flow adjustment | Material: SUS body, NBR, FKM
LVA20-02-D4 Type: Single 2-port, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Indicator | Material: SUS body, NBR, FKM
LVA20-02-E Type: Single 2-port, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Basic | Material: SUS body, EPDM, EPDM
LVA20-02-E1 Type: Single 2-port, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Flow adjustment | Material: SUS body, EPDM, EPDM
LVA20-02-E4 Type: Single 2-port, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Indicator | Material: SUS body, EPDM, EPDM
LVA20-02-G Type: Single 2-port, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Basic | Material: PPS body, NBR, FKM
LVA20-02-G1 Type: Single 2-port, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Flow adjustment | Material: PPS body, NBR, FKM
LVA20-02-G4 Type: Single 2-port, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Indicator | Material: PPS body, NBR, FKM
LVA20-02-H Type: Single 2-port, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Basic | Material: PPS body, EPDM, EPDM
LVA20-02-H1 Type: Single 2-port, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Flow adjustment | Material: PPS body, EPDM, EPDM
LVA20-02-H4 Type: Single 2-port, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Indicator | Material: PPS body, EPDM, EPDM
LVA20-02-N Type: Single 2-port, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Basic | Material: PFA body, PTFE, EPDM
LVA20-02-N1 Type: Single 2-port, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Flow adjustment | Material: PFA body, PTFE, EPDM
LVA20-02-N4 Type: Single 2-port, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Indicator | Material: PFA body, PTFE, EPDM
LVA21-01-A Type: Single 2-port, N.O. | Body class: 2 (orifice 4 mm) | Port: Rc1/8 | Option: Basic | Material: SUS body, PTFE, FKM
LVA21-01-D Type: Single 2-port, N.O. | Body class: 2 (orifice 4 mm) | Port: Rc1/8 | Option: Basic | Material: SUS body, NBR, FKM
LVA21-01-E Type: Single 2-port, N.O. | Body class: 2 (orifice 4 mm) | Port: Rc1/8 | Option: Basic | Material: SUS body, EPDM, EPDM
LVA21-02-A Type: Single 2-port, N.O. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Basic | Material: SUS body, PTFE, FKM
LVA21-02-B Type: Single 2-port, N.O. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Basic | Material: PPS body, PTFE, FKM
LVA21-02-C Type: Single 2-port, N.O. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Basic | Material: PFA body, PTFE, FKM
LVA21-02-D Type: Single 2-port, N.O. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Basic | Material: SUS body, NBR, FKM
LVA21-02-E Type: Single 2-port, N.O. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Basic | Material: SUS body, EPDM, EPDM
LVA21-02-G Type: Single 2-port, N.O. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Basic | Material: PPS body, NBR, FKM
LVA21-02-H Type: Single 2-port, N.O. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Basic | Material: PPS body, EPDM, EPDM
LVA21-02-N Type: Single 2-port, N.O. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Basic | Material: PFA body, PTFE, EPDM
LVA22-01-A Type: Single 2-port, Double acting | Body class: 2 (orifice 4 mm) | Port: Rc1/8 | Option: Basic | Material: SUS body, PTFE, FKM
LVA22-01-A1 Type: Single 2-port, Double acting | Body class: 2 (orifice 4 mm) | Port: Rc1/8 | Option: Flow adjustment | Material: SUS body, PTFE, FKM
LVA22-01-D Type: Single 2-port, Double acting | Body class: 2 (orifice 4 mm) | Port: Rc1/8 | Option: Basic | Material: SUS body, NBR, FKM
LVA22-01-D1 Type: Single 2-port, Double acting | Body class: 2 (orifice 4 mm) | Port: Rc1/8 | Option: Flow adjustment | Material: SUS body, NBR, FKM
LVA22-01-E Type: Single 2-port, Double acting | Body class: 2 (orifice 4 mm) | Port: Rc1/8 | Option: Basic | Material: SUS body, EPDM, EPDM
LVA22-01-E1 Type: Single 2-port, Double acting | Body class: 2 (orifice 4 mm) | Port: Rc1/8 | Option: Flow adjustment | Material: SUS body, EPDM, EPDM
LVA22-02-A Type: Single 2-port, Double acting | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Basic | Material: SUS body, PTFE, FKM
LVA22-02-A1 Type: Single 2-port, Double acting | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Flow adjustment | Material: SUS body, PTFE, FKM
LVA22-02-B Type: Single 2-port, Double acting | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Basic | Material: PPS body, PTFE, FKM
LVA22-02-B1 Type: Single 2-port, Double acting | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Flow adjustment | Material: PPS body, PTFE, FKM
LVA22-02-C Type: Single 2-port, Double acting | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Basic | Material: PFA body, PTFE, FKM
LVA22-02-C1 Type: Single 2-port, Double acting | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Flow adjustment | Material: PFA body, PTFE, FKM
LVA22-02-D Type: Single 2-port, Double acting | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Basic | Material: SUS body, NBR, FKM
LVA22-02-D1 Type: Single 2-port, Double acting | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Flow adjustment | Material: SUS body, NBR, FKM
LVA22-02-E Type: Single 2-port, Double acting | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Basic | Material: SUS body, EPDM, EPDM
LVA22-02-E1 Type: Single 2-port, Double acting | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Flow adjustment | Material: SUS body, EPDM, EPDM
LVA22-02-G Type: Single 2-port, Double acting | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Basic | Material: PPS body, NBR, FKM
LVA22-02-G1 Type: Single 2-port, Double acting | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Flow adjustment | Material: PPS body, NBR, FKM
LVA22-02-H Type: Single 2-port, Double acting | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Basic | Material: PPS body, EPDM, EPDM
LVA22-02-H1 Type: Single 2-port, Double acting | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Flow adjustment | Material: PPS body, EPDM, EPDM
LVA22-02-N Type: Single 2-port, Double acting | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Basic | Material: PFA body, PTFE, EPDM
LVA22-02-N1 Type: Single 2-port, Double acting | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Flow adjustment | Material: PFA body, PTFE, EPDM
LVA30-02-A Type: Single 2-port, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc1/4 | Option: Basic | Material: SUS body, PTFE, FKM
LVA30-02-A1 Type: Single 2-port, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc1/4 | Option: Flow adjustment | Material: SUS body, PTFE, FKM
LVA30-02-A4 Type: Single 2-port, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc1/4 | Option: Indicator | Material: SUS body, PTFE, FKM
LVA30-02-D Type: Single 2-port, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc1/4 | Option: Basic | Material: SUS body, NBR, FKM
LVA30-02-D1 Type: Single 2-port, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc1/4 | Option: Flow adjustment | Material: SUS body, NBR, FKM
LVA30-02-D4 Type: Single 2-port, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc1/4 | Option: Indicator | Material: SUS body, NBR, FKM
LVA30-02-E Type: Single 2-port, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc1/4 | Option: Basic | Material: SUS body, EPDM, EPDM
LVA30-02-E1 Type: Single 2-port, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc1/4 | Option: Flow adjustment | Material: SUS body, EPDM, EPDM
LVA30-02-E4 Type: Single 2-port, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc1/4 | Option: Indicator | Material: SUS body, EPDM, EPDM
LVA30-03-A Type: Single 2-port, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Basic | Material: SUS body, PTFE, FKM
LVA30-03-A1 Type: Single 2-port, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Flow adjustment | Material: SUS body, PTFE, FKM
LVA30-03-A4 Type: Single 2-port, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Indicator | Material: SUS body, PTFE, FKM
LVA30-03-B Type: Single 2-port, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Basic | Material: PPS body, PTFE, FKM
LVA30-03-B1 Type: Single 2-port, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Flow adjustment | Material: PPS body, PTFE, FKM
LVA30-03-B4 Type: Single 2-port, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Indicator | Material: PPS body, PTFE, FKM
LVA30-03-C Type: Single 2-port, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Basic | Material: PFA body, PTFE, FKM
LVA30-03-C1 Type: Single 2-port, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Flow adjustment | Material: PFA body, PTFE, FKM
LVA30-03-C2 Type: Single 2-port, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Bypass | Material: PFA body, PTFE, FKM
LVA30-03-C3 Type: Single 2-port, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Flow adj. + bypass | Material: PFA body, PTFE, FKM
LVA30-03-C4 Type: Single 2-port, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Indicator | Material: PFA body, PTFE, FKM
LVA30-03-D Type: Single 2-port, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Basic | Material: SUS body, NBR, FKM
LVA30-03-D1 Type: Single 2-port, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Flow adjustment | Material: SUS body, NBR, FKM
LVA30-03-D4 Type: Single 2-port, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Indicator | Material: SUS body, NBR, FKM
LVA30-03-E Type: Single 2-port, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Basic | Material: SUS body, EPDM, EPDM
LVA30-03-E1 Type: Single 2-port, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Flow adjustment | Material: SUS body, EPDM, EPDM
LVA30-03-E4 Type: Single 2-port, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Indicator | Material: SUS body, EPDM, EPDM
LVA30-03-G Type: Single 2-port, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Basic | Material: PPS body, NBR, FKM
LVA30-03-G1 Type: Single 2-port, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Flow adjustment | Material: PPS body, NBR, FKM
LVA30-03-G4 Type: Single 2-port, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Indicator | Material: PPS body, NBR, FKM
LVA30-03-H Type: Single 2-port, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Basic | Material: PPS body, EPDM, EPDM
LVA30-03-H1 Type: Single 2-port, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Flow adjustment | Material: PPS body, EPDM, EPDM
LVA30-03-H4 Type: Single 2-port, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Indicator | Material: PPS body, EPDM, EPDM
LVA30-03-N Type: Single 2-port, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Basic | Material: PFA body, PTFE, EPDM
LVA30-03-N1 Type: Single 2-port, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Flow adjustment | Material: PFA body, PTFE, EPDM
LVA30-03-N2 Type: Single 2-port, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Bypass | Material: PFA body, PTFE, EPDM
LVA30-03-N3 Type: Single 2-port, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Flow adj. + bypass | Material: PFA body, PTFE, EPDM
LVA30-03-N4 Type: Single 2-port, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Indicator | Material: PFA body, PTFE, EPDM
LVA31-02-A Type: Single 2-port, N.O. | Body class: 3 (orifice 8 mm) | Port: Rc1/4 | Option: Basic | Material: SUS body, PTFE, FKM
LVA31-02-D Type: Single 2-port, N.O. | Body class: 3 (orifice 8 mm) | Port: Rc1/4 | Option: Basic | Material: SUS body, NBR, FKM
LVA31-02-E Type: Single 2-port, N.O. | Body class: 3 (orifice 8 mm) | Port: Rc1/4 | Option: Basic | Material: SUS body, EPDM, EPDM
LVA31-03-A Type: Single 2-port, N.O. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Basic | Material: SUS body, PTFE, FKM
LVA31-03-B Type: Single 2-port, N.O. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Basic | Material: PPS body, PTFE, FKM
LVA31-03-C Type: Single 2-port, N.O. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Basic | Material: PFA body, PTFE, FKM
LVA31-03-D Type: Single 2-port, N.O. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Basic | Material: SUS body, NBR, FKM
LVA31-03-E Type: Single 2-port, N.O. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Basic | Material: SUS body, EPDM, EPDM
LVA31-03-G Type: Single 2-port, N.O. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Basic | Material: PPS body, NBR, FKM
LVA31-03-H Type: Single 2-port, N.O. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Basic | Material: PPS body, EPDM, EPDM
LVA31-03-N Type: Single 2-port, N.O. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Basic | Material: PFA body, PTFE, EPDM
LVA32-02-A Type: Single 2-port, Double acting | Body class: 3 (orifice 8 mm) | Port: Rc1/4 | Option: Basic | Material: SUS body, PTFE, FKM
LVA32-02-A1 Type: Single 2-port, Double acting | Body class: 3 (orifice 8 mm) | Port: Rc1/4 | Option: Flow adjustment | Material: SUS body, PTFE, FKM
LVA32-02-D Type: Single 2-port, Double acting | Body class: 3 (orifice 8 mm) | Port: Rc1/4 | Option: Basic | Material: SUS body, NBR, FKM
LVA32-02-D1 Type: Single 2-port, Double acting | Body class: 3 (orifice 8 mm) | Port: Rc1/4 | Option: Flow adjustment | Material: SUS body, NBR, FKM
LVA32-02-E Type: Single 2-port, Double acting | Body class: 3 (orifice 8 mm) | Port: Rc1/4 | Option: Basic | Material: SUS body, EPDM, EPDM
LVA32-02-E1 Type: Single 2-port, Double acting | Body class: 3 (orifice 8 mm) | Port: Rc1/4 | Option: Flow adjustment | Material: SUS body, EPDM, EPDM
LVA32-03-A Type: Single 2-port, Double acting | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Basic | Material: SUS body, PTFE, FKM
LVA32-03-A1 Type: Single 2-port, Double acting | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Flow adjustment | Material: SUS body, PTFE, FKM
LVA32-03-B Type: Single 2-port, Double acting | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Basic | Material: PPS body, PTFE, FKM
LVA32-03-B1 Type: Single 2-port, Double acting | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Flow adjustment | Material: PPS body, PTFE, FKM
LVA32-03-C Type: Single 2-port, Double acting | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Basic | Material: PFA body, PTFE, FKM
LVA32-03-C1 Type: Single 2-port, Double acting | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Flow adjustment | Material: PFA body, PTFE, FKM
LVA32-03-C2 Type: Single 2-port, Double acting | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Bypass | Material: PFA body, PTFE, FKM
LVA32-03-C3 Type: Single 2-port, Double acting | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Flow adj. + bypass | Material: PFA body, PTFE, FKM
LVA32-03-D Type: Single 2-port, Double acting | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Basic | Material: SUS body, NBR, FKM
LVA32-03-D1 Type: Single 2-port, Double acting | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Flow adjustment | Material: SUS body, NBR, FKM
LVA32-03-E Type: Single 2-port, Double acting | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Basic | Material: SUS body, EPDM, EPDM
LVA32-03-E1 Type: Single 2-port, Double acting | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Flow adjustment | Material: SUS body, EPDM, EPDM
LVA32-03-G Type: Single 2-port, Double acting | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Basic | Material: PPS body, NBR, FKM
LVA32-03-G1 Type: Single 2-port, Double acting | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Flow adjustment | Material: PPS body, NBR, FKM
LVA32-03-H Type: Single 2-port, Double acting | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Basic | Material: PPS body, EPDM, EPDM
LVA32-03-H1 Type: Single 2-port, Double acting | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Flow adjustment | Material: PPS body, EPDM, EPDM
LVA32-03-N Type: Single 2-port, Double acting | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Basic | Material: PFA body, PTFE, EPDM
LVA32-03-N1 Type: Single 2-port, Double acting | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Flow adjustment | Material: PFA body, PTFE, EPDM
LVA32-03-N2 Type: Single 2-port, Double acting | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Bypass | Material: PFA body, PTFE, EPDM
LVA32-03-N3 Type: Single 2-port, Double acting | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Flow adj. + bypass | Material: PFA body, PTFE, EPDM
LVA40-03-A Type: Single 2-port, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc3/8 | Option: Basic | Material: SUS body, PTFE, FKM
LVA40-03-A1 Type: Single 2-port, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc3/8 | Option: Flow adjustment | Material: SUS body, PTFE, FKM
LVA40-03-A4 Type: Single 2-port, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc3/8 | Option: Indicator | Material: SUS body, PTFE, FKM
LVA40-03-D Type: Single 2-port, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc3/8 | Option: Basic | Material: SUS body, NBR, FKM
LVA40-03-D1 Type: Single 2-port, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc3/8 | Option: Flow adjustment | Material: SUS body, NBR, FKM
LVA40-03-D4 Type: Single 2-port, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc3/8 | Option: Indicator | Material: SUS body, NBR, FKM
LVA40-03-E Type: Single 2-port, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc3/8 | Option: Basic | Material: SUS body, EPDM, EPDM
LVA40-03-E1 Type: Single 2-port, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc3/8 | Option: Flow adjustment | Material: SUS body, EPDM, EPDM
LVA40-03-E4 Type: Single 2-port, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc3/8 | Option: Indicator | Material: SUS body, EPDM, EPDM
LVA40-04-A Type: Single 2-port, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Basic | Material: SUS body, PTFE, FKM
LVA40-04-A1 Type: Single 2-port, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Flow adjustment | Material: SUS body, PTFE, FKM
LVA40-04-A4 Type: Single 2-port, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Indicator | Material: SUS body, PTFE, FKM
LVA40-04-B Type: Single 2-port, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Basic | Material: PPS body, PTFE, FKM
LVA40-04-B1 Type: Single 2-port, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Flow adjustment | Material: PPS body, PTFE, FKM
LVA40-04-B4 Type: Single 2-port, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Indicator | Material: PPS body, PTFE, FKM
LVA40-04-C Type: Single 2-port, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Basic | Material: PFA body, PTFE, FKM
LVA40-04-C1 Type: Single 2-port, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Flow adjustment | Material: PFA body, PTFE, FKM
LVA40-04-C2 Type: Single 2-port, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Bypass | Material: PFA body, PTFE, FKM
LVA40-04-C3 Type: Single 2-port, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Flow adj. + bypass | Material: PFA body, PTFE, FKM
LVA40-04-C4 Type: Single 2-port, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Indicator | Material: PFA body, PTFE, FKM
LVA40-04-D Type: Single 2-port, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Basic | Material: SUS body, NBR, FKM
LVA40-04-D1 Type: Single 2-port, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Flow adjustment | Material: SUS body, NBR, FKM
LVA40-04-D4 Type: Single 2-port, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Indicator | Material: SUS body, NBR, FKM
LVA40-04-E Type: Single 2-port, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Basic | Material: SUS body, EPDM, EPDM
LVA40-04-E1 Type: Single 2-port, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Flow adjustment | Material: SUS body, EPDM, EPDM
LVA40-04-E4 Type: Single 2-port, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Indicator | Material: SUS body, EPDM, EPDM
LVA40-04-F Type: Single 2-port, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Basic | Material: PFA body, PVDF actuator (HF)
LVA40-04-G Type: Single 2-port, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Basic | Material: PPS body, NBR, FKM
LVA40-04-G1 Type: Single 2-port, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Flow adjustment | Material: PPS body, NBR, FKM
LVA40-04-G4 Type: Single 2-port, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Indicator | Material: PPS body, NBR, FKM
LVA40-04-H Type: Single 2-port, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Basic | Material: PPS body, EPDM, EPDM
LVA40-04-H1 Type: Single 2-port, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Flow adjustment | Material: PPS body, EPDM, EPDM
LVA40-04-H4 Type: Single 2-port, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Indicator | Material: PPS body, EPDM, EPDM
LVA40-04-N Type: Single 2-port, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Basic | Material: PFA body, PTFE, EPDM
LVA40-04-N1 Type: Single 2-port, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Flow adjustment | Material: PFA body, PTFE, EPDM
LVA40-04-N2 Type: Single 2-port, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Bypass | Material: PFA body, PTFE, EPDM
LVA40-04-N3 Type: Single 2-port, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Flow adj. + bypass | Material: PFA body, PTFE, EPDM
LVA40-04-N4 Type: Single 2-port, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Indicator | Material: PFA body, PTFE, EPDM
LVA41-03-A Type: Single 2-port, N.O. | Body class: 4 (orifice 12 mm) | Port: Rc3/8 | Option: Basic | Material: SUS body, PTFE, FKM
LVA41-03-D Type: Single 2-port, N.O. | Body class: 4 (orifice 12 mm) | Port: Rc3/8 | Option: Basic | Material: SUS body, NBR, FKM
LVA41-03-E Type: Single 2-port, N.O. | Body class: 4 (orifice 12 mm) | Port: Rc3/8 | Option: Basic | Material: SUS body, EPDM, EPDM
LVA41-04-A Type: Single 2-port, N.O. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Basic | Material: SUS body, PTFE, FKM
LVA41-04-B Type: Single 2-port, N.O. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Basic | Material: PPS body, PTFE, FKM
LVA41-04-C Type: Single 2-port, N.O. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Basic | Material: PFA body, PTFE, FKM
LVA41-04-D Type: Single 2-port, N.O. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Basic | Material: SUS body, NBR, FKM
LVA41-04-E Type: Single 2-port, N.O. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Basic | Material: SUS body, EPDM, EPDM
LVA41-04-F Type: Single 2-port, N.O. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Basic | Material: PFA body, PVDF actuator (HF)
LVA41-04-G Type: Single 2-port, N.O. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Basic | Material: PPS body, NBR, FKM
LVA41-04-H Type: Single 2-port, N.O. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Basic | Material: PPS body, EPDM, EPDM
LVA41-04-N Type: Single 2-port, N.O. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Basic | Material: PFA body, PTFE, EPDM
LVA42-03-A Type: Single 2-port, Double acting | Body class: 4 (orifice 12 mm) | Port: Rc3/8 | Option: Basic | Material: SUS body, PTFE, FKM
LVA42-03-A1 Type: Single 2-port, Double acting | Body class: 4 (orifice 12 mm) | Port: Rc3/8 | Option: Flow adjustment | Material: SUS body, PTFE, FKM
LVA42-03-D Type: Single 2-port, Double acting | Body class: 4 (orifice 12 mm) | Port: Rc3/8 | Option: Basic | Material: SUS body, NBR, FKM
LVA42-03-D1 Type: Single 2-port, Double acting | Body class: 4 (orifice 12 mm) | Port: Rc3/8 | Option: Flow adjustment | Material: SUS body, NBR, FKM
LVA42-03-E Type: Single 2-port, Double acting | Body class: 4 (orifice 12 mm) | Port: Rc3/8 | Option: Basic | Material: SUS body, EPDM, EPDM
LVA42-03-E1 Type: Single 2-port, Double acting | Body class: 4 (orifice 12 mm) | Port: Rc3/8 | Option: Flow adjustment | Material: SUS body, EPDM, EPDM
LVA42-04-A Type: Single 2-port, Double acting | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Basic | Material: SUS body, PTFE, FKM
LVA42-04-A1 Type: Single 2-port, Double acting | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Flow adjustment | Material: SUS body, PTFE, FKM
LVA42-04-B Type: Single 2-port, Double acting | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Basic | Material: PPS body, PTFE, FKM
LVA42-04-B1 Type: Single 2-port, Double acting | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Flow adjustment | Material: PPS body, PTFE, FKM
LVA42-04-C Type: Single 2-port, Double acting | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Basic | Material: PFA body, PTFE, FKM
LVA42-04-C1 Type: Single 2-port, Double acting | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Flow adjustment | Material: PFA body, PTFE, FKM
LVA42-04-C2 Type: Single 2-port, Double acting | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Bypass | Material: PFA body, PTFE, FKM
LVA42-04-C3 Type: Single 2-port, Double acting | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Flow adj. + bypass | Material: PFA body, PTFE, FKM
LVA42-04-D Type: Single 2-port, Double acting | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Basic | Material: SUS body, NBR, FKM
LVA42-04-D1 Type: Single 2-port, Double acting | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Flow adjustment | Material: SUS body, NBR, FKM
LVA42-04-E Type: Single 2-port, Double acting | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Basic | Material: SUS body, EPDM, EPDM
LVA42-04-E1 Type: Single 2-port, Double acting | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Flow adjustment | Material: SUS body, EPDM, EPDM
LVA42-04-F Type: Single 2-port, Double acting | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Basic | Material: PFA body, PVDF actuator (HF)
LVA42-04-G Type: Single 2-port, Double acting | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Basic | Material: PPS body, NBR, FKM
LVA42-04-G1 Type: Single 2-port, Double acting | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Flow adjustment | Material: PPS body, NBR, FKM
LVA42-04-H Type: Single 2-port, Double acting | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Basic | Material: PPS body, EPDM, EPDM
LVA42-04-H1 Type: Single 2-port, Double acting | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Flow adjustment | Material: PPS body, EPDM, EPDM
LVA42-04-N Type: Single 2-port, Double acting | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Basic | Material: PFA body, PTFE, EPDM
LVA42-04-N1 Type: Single 2-port, Double acting | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Flow adjustment | Material: PFA body, PTFE, EPDM
LVA42-04-N2 Type: Single 2-port, Double acting | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Bypass | Material: PFA body, PTFE, EPDM
LVA42-04-N3 Type: Single 2-port, Double acting | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Flow adj. + bypass | Material: PFA body, PTFE, EPDM
LVA50-04-A Type: Single 2-port, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc1/2 | Option: Basic | Material: SUS body, PTFE, FKM
LVA50-04-A1 Type: Single 2-port, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc1/2 | Option: Flow adjustment | Material: SUS body, PTFE, FKM
LVA50-04-A4 Type: Single 2-port, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc1/2 | Option: Indicator | Material: SUS body, PTFE, FKM
LVA50-04-D Type: Single 2-port, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc1/2 | Option: Basic | Material: SUS body, NBR, FKM
LVA50-04-D1 Type: Single 2-port, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc1/2 | Option: Flow adjustment | Material: SUS body, NBR, FKM
LVA50-04-D4 Type: Single 2-port, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc1/2 | Option: Indicator | Material: SUS body, NBR, FKM
LVA50-04-E Type: Single 2-port, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc1/2 | Option: Basic | Material: SUS body, EPDM, EPDM
LVA50-04-E1 Type: Single 2-port, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc1/2 | Option: Flow adjustment | Material: SUS body, EPDM, EPDM
LVA50-04-E4 Type: Single 2-port, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc1/2 | Option: Indicator | Material: SUS body, EPDM, EPDM
LVA50-06-A Type: Single 2-port, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Basic | Material: SUS body, PTFE, FKM
LVA50-06-A1 Type: Single 2-port, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Flow adjustment | Material: SUS body, PTFE, FKM
LVA50-06-A4 Type: Single 2-port, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Indicator | Material: SUS body, PTFE, FKM
LVA50-06-B Type: Single 2-port, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Basic | Material: PPS body, PTFE, FKM
LVA50-06-B1 Type: Single 2-port, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Flow adjustment | Material: PPS body, PTFE, FKM
LVA50-06-B4 Type: Single 2-port, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Indicator | Material: PPS body, PTFE, FKM
LVA50-06-C Type: Single 2-port, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Basic | Material: PFA body, PTFE, FKM
LVA50-06-C1 Type: Single 2-port, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Flow adjustment | Material: PFA body, PTFE, FKM
LVA50-06-C2 Type: Single 2-port, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Bypass | Material: PFA body, PTFE, FKM
LVA50-06-C3 Type: Single 2-port, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Flow adj. + bypass | Material: PFA body, PTFE, FKM
LVA50-06-C4 Type: Single 2-port, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Indicator | Material: PFA body, PTFE, FKM
LVA50-06-D Type: Single 2-port, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Basic | Material: SUS body, NBR, FKM
LVA50-06-D1 Type: Single 2-port, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Flow adjustment | Material: SUS body, NBR, FKM
LVA50-06-D4 Type: Single 2-port, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Indicator | Material: SUS body, NBR, FKM
LVA50-06-E Type: Single 2-port, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Basic | Material: SUS body, EPDM, EPDM
LVA50-06-E1 Type: Single 2-port, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Flow adjustment | Material: SUS body, EPDM, EPDM
LVA50-06-E4 Type: Single 2-port, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Indicator | Material: SUS body, EPDM, EPDM
LVA50-06-F Type: Single 2-port, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Basic | Material: PFA body, PVDF actuator (HF)
LVA50-06-G Type: Single 2-port, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Basic | Material: PPS body, NBR, FKM
LVA50-06-G1 Type: Single 2-port, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Flow adjustment | Material: PPS body, NBR, FKM
LVA50-06-G4 Type: Single 2-port, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Indicator | Material: PPS body, NBR, FKM
LVA50-06-H Type: Single 2-port, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Basic | Material: PPS body, EPDM, EPDM
LVA50-06-H1 Type: Single 2-port, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Flow adjustment | Material: PPS body, EPDM, EPDM
LVA50-06-H4 Type: Single 2-port, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Indicator | Material: PPS body, EPDM, EPDM
LVA50-06-N Type: Single 2-port, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Basic | Material: PFA body, PTFE, EPDM
LVA50-06-N1 Type: Single 2-port, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Flow adjustment | Material: PFA body, PTFE, EPDM
LVA50-06-N2 Type: Single 2-port, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Bypass | Material: PFA body, PTFE, EPDM
LVA50-06-N3 Type: Single 2-port, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Flow adj. + bypass | Material: PFA body, PTFE, EPDM
LVA50-06-N4 Type: Single 2-port, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Indicator | Material: PFA body, PTFE, EPDM
LVA51-04-A Type: Single 2-port, N.O. | Body class: 5 (orifice 20 mm) | Port: Rc1/2 | Option: Basic | Material: SUS body, PTFE, FKM
LVA51-04-D Type: Single 2-port, N.O. | Body class: 5 (orifice 20 mm) | Port: Rc1/2 | Option: Basic | Material: SUS body, NBR, FKM
LVA51-04-E Type: Single 2-port, N.O. | Body class: 5 (orifice 20 mm) | Port: Rc1/2 | Option: Basic | Material: SUS body, EPDM, EPDM
LVA51-06-A Type: Single 2-port, N.O. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Basic | Material: SUS body, PTFE, FKM
LVA51-06-B Type: Single 2-port, N.O. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Basic | Material: PPS body, PTFE, FKM
LVA51-06-C Type: Single 2-port, N.O. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Basic | Material: PFA body, PTFE, FKM
LVA51-06-D Type: Single 2-port, N.O. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Basic | Material: SUS body, NBR, FKM
LVA51-06-E Type: Single 2-port, N.O. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Basic | Material: SUS body, EPDM, EPDM
LVA51-06-F Type: Single 2-port, N.O. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Basic | Material: PFA body, PVDF actuator (HF)
LVA51-06-G Type: Single 2-port, N.O. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Basic | Material: PPS body, NBR, FKM
LVA51-06-H Type: Single 2-port, N.O. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Basic | Material: PPS body, EPDM, EPDM
LVA51-06-N Type: Single 2-port, N.O. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Basic | Material: PFA body, PTFE, EPDM
LVA52-04-A Type: Single 2-port, Double acting | Body class: 5 (orifice 20 mm) | Port: Rc1/2 | Option: Basic | Material: SUS body, PTFE, FKM
LVA52-04-A1 Type: Single 2-port, Double acting | Body class: 5 (orifice 20 mm) | Port: Rc1/2 | Option: Flow adjustment | Material: SUS body, PTFE, FKM
LVA52-04-D Type: Single 2-port, Double acting | Body class: 5 (orifice 20 mm) | Port: Rc1/2 | Option: Basic | Material: SUS body, NBR, FKM
LVA52-04-D1 Type: Single 2-port, Double acting | Body class: 5 (orifice 20 mm) | Port: Rc1/2 | Option: Flow adjustment | Material: SUS body, NBR, FKM
LVA52-04-E Type: Single 2-port, Double acting | Body class: 5 (orifice 20 mm) | Port: Rc1/2 | Option: Basic | Material: SUS body, EPDM, EPDM
LVA52-04-E1 Type: Single 2-port, Double acting | Body class: 5 (orifice 20 mm) | Port: Rc1/2 | Option: Flow adjustment | Material: SUS body, EPDM, EPDM
LVA52-06-A Type: Single 2-port, Double acting | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Basic | Material: SUS body, PTFE, FKM
LVA52-06-A1 Type: Single 2-port, Double acting | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Flow adjustment | Material: SUS body, PTFE, FKM
LVA52-06-B Type: Single 2-port, Double acting | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Basic | Material: PPS body, PTFE, FKM
LVA52-06-B1 Type: Single 2-port, Double acting | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Flow adjustment | Material: PPS body, PTFE, FKM
LVA52-06-C Type: Single 2-port, Double acting | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Basic | Material: PFA body, PTFE, FKM
LVA52-06-C1 Type: Single 2-port, Double acting | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Flow adjustment | Material: PFA body, PTFE, FKM
LVA52-06-C2 Type: Single 2-port, Double acting | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Bypass | Material: PFA body, PTFE, FKM
LVA52-06-C3 Type: Single 2-port, Double acting | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Flow adj. + bypass | Material: PFA body, PTFE, FKM
LVA52-06-D Type: Single 2-port, Double acting | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Basic | Material: SUS body, NBR, FKM
LVA52-06-D1 Type: Single 2-port, Double acting | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Flow adjustment | Material: SUS body, NBR, FKM
LVA52-06-E Type: Single 2-port, Double acting | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Basic | Material: SUS body, EPDM, EPDM
LVA52-06-E1 Type: Single 2-port, Double acting | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Flow adjustment | Material: SUS body, EPDM, EPDM
LVA52-06-F Type: Single 2-port, Double acting | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Basic | Material: PFA body, PVDF actuator (HF)
LVA52-06-G Type: Single 2-port, Double acting | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Basic | Material: PPS body, NBR, FKM
LVA52-06-G1 Type: Single 2-port, Double acting | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Flow adjustment | Material: PPS body, NBR, FKM
LVA52-06-H Type: Single 2-port, Double acting | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Basic | Material: PPS body, EPDM, EPDM
LVA52-06-H1 Type: Single 2-port, Double acting | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Flow adjustment | Material: PPS body, EPDM, EPDM
LVA52-06-N Type: Single 2-port, Double acting | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Basic | Material: PFA body, PTFE, EPDM
LVA52-06-N1 Type: Single 2-port, Double acting | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Flow adjustment | Material: PFA body, PTFE, EPDM
LVA52-06-N2 Type: Single 2-port, Double acting | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Bypass | Material: PFA body, PTFE, EPDM
LVA52-06-N3 Type: Single 2-port, Double acting | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Flow adj. + bypass | Material: PFA body, PTFE, EPDM
LVA60-10-A Type: Single 2-port, N.C. | Body class: 6 (orifice 22 mm) | Port: Rc1 | Option: Basic | Material: SUS body, PTFE, FKM
LVA60-10-A1 Type: Single 2-port, N.C. | Body class: 6 (orifice 22 mm) | Port: Rc1 | Option: Flow adjustment | Material: SUS body, PTFE, FKM
LVA60-10-A4 Type: Single 2-port, N.C. | Body class: 6 (orifice 22 mm) | Port: Rc1 | Option: Indicator | Material: SUS body, PTFE, FKM
LVA60-10-C Type: Single 2-port, N.C. | Body class: 6 (orifice 22 mm) | Port: Rc1 | Option: Basic | Material: PFA body, PTFE, FKM
LVA60-10-C1 Type: Single 2-port, N.C. | Body class: 6 (orifice 22 mm) | Port: Rc1 | Option: Flow adjustment | Material: PFA body, PTFE, FKM
LVA60-10-C4 Type: Single 2-port, N.C. | Body class: 6 (orifice 22 mm) | Port: Rc1 | Option: Indicator | Material: PFA body, PTFE, FKM
LVA60-10-N Type: Single 2-port, N.C. | Body class: 6 (orifice 22 mm) | Port: Rc1 | Option: Basic | Material: PFA body, PTFE, EPDM
LVA60-10-N1 Type: Single 2-port, N.C. | Body class: 6 (orifice 22 mm) | Port: Rc1 | Option: Flow adjustment | Material: PFA body, PTFE, EPDM
LVA60-10-N4 Type: Single 2-port, N.C. | Body class: 6 (orifice 22 mm) | Port: Rc1 | Option: Indicator | Material: PFA body, PTFE, EPDM
LVA61-10-A Type: Single 2-port, N.O. | Body class: 6 (orifice 22 mm) | Port: Rc1 | Option: Basic | Material: SUS body, PTFE, FKM
LVA61-10-C Type: Single 2-port, N.O. | Body class: 6 (orifice 22 mm) | Port: Rc1 | Option: Basic | Material: PFA body, PTFE, FKM
LVA61-10-N Type: Single 2-port, N.O. | Body class: 6 (orifice 22 mm) | Port: Rc1 | Option: Basic | Material: PFA body, PTFE, EPDM
LVA62-10-A Type: Single 2-port, Double acting | Body class: 6 (orifice 22 mm) | Port: Rc1 | Option: Basic | Material: SUS body, PTFE, FKM
LVA62-10-A1 Type: Single 2-port, Double acting | Body class: 6 (orifice 22 mm) | Port: Rc1 | Option: Flow adjustment | Material: SUS body, PTFE, FKM
LVA62-10-C Type: Single 2-port, Double acting | Body class: 6 (orifice 22 mm) | Port: Rc1 | Option: Basic | Material: PFA body, PTFE, FKM
LVA62-10-C1 Type: Single 2-port, Double acting | Body class: 6 (orifice 22 mm) | Port: Rc1 | Option: Flow adjustment | Material: PFA body, PTFE, FKM
LVA62-10-N Type: Single 2-port, Double acting | Body class: 6 (orifice 22 mm) | Port: Rc1 | Option: Basic | Material: PFA body, PTFE, EPDM
LVA62-10-N1 Type: Single 2-port, Double acting | Body class: 6 (orifice 22 mm) | Port: Rc1 | Option: Flow adjustment | Material: PFA body, PTFE, EPDM
LVA200-02-C Type: Single 3-port, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Basic | Material: PFA body, PTFE, FKM
LVA20A-02-C Type: Manifold valve, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 (A port) | Option: Basic | Material: PFA body, PTFE, FKM
LVA20A-02-C1 Type: Manifold valve, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 (A port) | Option: Flow adjustment | Material: PFA body, PTFE, FKM
LVA20A-02-C4 Type: Manifold valve, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 (A port) | Option: Indicator | Material: PFA body, PTFE, FKM
LVA20A-02-N Type: Manifold valve, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 (A port) | Option: Basic | Material: PFA body, PTFE, EPDM
LVA20A-02-N1 Type: Manifold valve, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 (A port) | Option: Flow adjustment | Material: PFA body, PTFE, EPDM
LVA20A-02-N4 Type: Manifold valve, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 (A port) | Option: Indicator | Material: PFA body, PTFE, EPDM
LVA21A-02-C Type: Manifold valve, N.O. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 (A port) | Option: Basic | Material: PFA body, PTFE, FKM
LVA21A-02-N Type: Manifold valve, N.O. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 (A port) | Option: Basic | Material: PFA body, PTFE, EPDM
LVA22A-02-C Type: Manifold valve, Double acting | Body class: 2 (orifice 4 mm) | Port: Rc1/4 (A port) | Option: Basic | Material: PFA body, PTFE, FKM
LVA22A-02-C1 Type: Manifold valve, Double acting | Body class: 2 (orifice 4 mm) | Port: Rc1/4 (A port) | Option: Flow adjustment | Material: PFA body, PTFE, FKM
LVA22A-02-N Type: Manifold valve, Double acting | Body class: 2 (orifice 4 mm) | Port: Rc1/4 (A port) | Option: Basic | Material: PFA body, PTFE, EPDM
LVA22A-02-N1 Type: Manifold valve, Double acting | Body class: 2 (orifice 4 mm) | Port: Rc1/4 (A port) | Option: Flow adjustment | Material: PFA body, PTFE, EPDM
LVA30A-03-C Type: Manifold valve, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 (A port) | Option: Basic | Material: PFA body, PTFE, FKM
LVA30A-03-C1 Type: Manifold valve, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 (A port) | Option: Flow adjustment | Material: PFA body, PTFE, FKM
LVA30A-03-C4 Type: Manifold valve, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 (A port) | Option: Indicator | Material: PFA body, PTFE, FKM
LVA30A-03-N Type: Manifold valve, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 (A port) | Option: Basic | Material: PFA body, PTFE, EPDM
LVA30A-03-N1 Type: Manifold valve, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 (A port) | Option: Flow adjustment | Material: PFA body, PTFE, EPDM
LVA30A-03-N4 Type: Manifold valve, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 (A port) | Option: Indicator | Material: PFA body, PTFE, EPDM
LVA31A-03-C Type: Manifold valve, N.O. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 (A port) | Option: Basic | Material: PFA body, PTFE, FKM
LVA31A-03-N Type: Manifold valve, N.O. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 (A port) | Option: Basic | Material: PFA body, PTFE, EPDM
LVA32A-03-C Type: Manifold valve, Double acting | Body class: 3 (orifice 8 mm) | Port: Rc3/8 (A port) | Option: Basic | Material: PFA body, PTFE, FKM
LVA32A-03-C1 Type: Manifold valve, Double acting | Body class: 3 (orifice 8 mm) | Port: Rc3/8 (A port) | Option: Flow adjustment | Material: PFA body, PTFE, FKM
LVA32A-03-N Type: Manifold valve, Double acting | Body class: 3 (orifice 8 mm) | Port: Rc3/8 (A port) | Option: Basic | Material: PFA body, PTFE, EPDM
LVA32A-03-N1 Type: Manifold valve, Double acting | Body class: 3 (orifice 8 mm) | Port: Rc3/8 (A port) | Option: Flow adjustment | Material: PFA body, PTFE, EPDM
LVA40A-04-C Type: Manifold valve, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 (A port) | Option: Basic | Material: PFA body, PTFE, FKM
LVA40A-04-C1 Type: Manifold valve, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 (A port) | Option: Flow adjustment | Material: PFA body, PTFE, FKM
LVA40A-04-C4 Type: Manifold valve, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 (A port) | Option: Indicator | Material: PFA body, PTFE, FKM
LVA40A-04-F Type: Manifold valve, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 (A port) | Option: Basic | Material: PFA body, PVDF actuator (HF)
LVA40A-04-N Type: Manifold valve, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 (A port) | Option: Basic | Material: PFA body, PTFE, EPDM
LVA40A-04-N1 Type: Manifold valve, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 (A port) | Option: Flow adjustment | Material: PFA body, PTFE, EPDM
LVA40A-04-N4 Type: Manifold valve, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 (A port) | Option: Indicator | Material: PFA body, PTFE, EPDM
LVA41A-04-C Type: Manifold valve, N.O. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 (A port) | Option: Basic | Material: PFA body, PTFE, FKM
LVA41A-04-F Type: Manifold valve, N.O. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 (A port) | Option: Basic | Material: PFA body, PVDF actuator (HF)
LVA41A-04-N Type: Manifold valve, N.O. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 (A port) | Option: Basic | Material: PFA body, PTFE, EPDM
LVA42A-04-C Type: Manifold valve, Double acting | Body class: 4 (orifice 12 mm) | Port: Rc1/2 (A port) | Option: Basic | Material: PFA body, PTFE, FKM
LVA42A-04-C1 Type: Manifold valve, Double acting | Body class: 4 (orifice 12 mm) | Port: Rc1/2 (A port) | Option: Flow adjustment | Material: PFA body, PTFE, FKM
LVA42A-04-F Type: Manifold valve, Double acting | Body class: 4 (orifice 12 mm) | Port: Rc1/2 (A port) | Option: Basic | Material: PFA body, PVDF actuator (HF)
LVA42A-04-N Type: Manifold valve, Double acting | Body class: 4 (orifice 12 mm) | Port: Rc1/2 (A port) | Option: Basic | Material: PFA body, PTFE, EPDM
LVA42A-04-N1 Type: Manifold valve, Double acting | Body class: 4 (orifice 12 mm) | Port: Rc1/2 (A port) | Option: Flow adjustment | Material: PFA body, PTFE, EPDM
LVA50A-06-C Type: Manifold valve, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 (A port) | Option: Basic | Material: PFA body, PTFE, FKM
LVA50A-06-C1 Type: Manifold valve, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 (A port) | Option: Flow adjustment | Material: PFA body, PTFE, FKM
LVA50A-06-C4 Type: Manifold valve, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 (A port) | Option: Indicator | Material: PFA body, PTFE, FKM
LVA50A-06-F Type: Manifold valve, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 (A port) | Option: Basic | Material: PFA body, PVDF actuator (HF)
LVA50A-06-N Type: Manifold valve, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 (A port) | Option: Basic | Material: PFA body, PTFE, EPDM
LVA50A-06-N1 Type: Manifold valve, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 (A port) | Option: Flow adjustment | Material: PFA body, PTFE, EPDM
LVA50A-06-N4 Type: Manifold valve, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 (A port) | Option: Indicator | Material: PFA body, PTFE, EPDM
LVA51A-06-C Type: Manifold valve, N.O. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 (A port) | Option: Basic | Material: PFA body, PTFE, FKM
LVA51A-06-F Type: Manifold valve, N.O. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 (A port) | Option: Basic | Material: PFA body, PVDF actuator (HF)
LVA51A-06-N Type: Manifold valve, N.O. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 (A port) | Option: Basic | Material: PFA body, PTFE, EPDM
LVA52A-06-C Type: Manifold valve, Double acting | Body class: 5 (orifice 20 mm) | Port: Rc3/4 (A port) | Option: Basic | Material: PFA body, PTFE, FKM
LVA52A-06-C1 Type: Manifold valve, Double acting | Body class: 5 (orifice 20 mm) | Port: Rc3/4 (A port) | Option: Flow adjustment | Material: PFA body, PTFE, FKM
LVA52A-06-F Type: Manifold valve, Double acting | Body class: 5 (orifice 20 mm) | Port: Rc3/4 (A port) | Option: Basic | Material: PFA body, PVDF actuator (HF)
LVA52A-06-N Type: Manifold valve, Double acting | Body class: 5 (orifice 20 mm) | Port: Rc3/4 (A port) | Option: Basic | Material: PFA body, PTFE, EPDM
LVA52A-06-N1 Type: Manifold valve, Double acting | Body class: 5 (orifice 20 mm) | Port: Rc3/4 (A port) | Option: Flow adjustment | Material: PFA body, PTFE, EPDM
LLA2A-02-02-C Type: Manifold base, 2 stations | Body class: 2 | Port: Rc1/4 (P port) | Option: Stacking type | Material: PFA manifold
LLA2A-03-02-C Type: Manifold base, 3 stations | Body class: 2 | Port: Rc1/4 (P port) | Option: Stacking type | Material: PFA manifold
LLA2A-04-02-C Type: Manifold base, 4 stations | Body class: 2 | Port: Rc1/4 (P port) | Option: Stacking type | Material: PFA manifold
LLA2A-05-02-C Type: Manifold base, 5 stations | Body class: 2 | Port: Rc1/4 (P port) | Option: Stacking type | Material: PFA manifold
LLA3A-02-03-C Type: Manifold base, 2 stations | Body class: 3 | Port: Rc3/8 (P port) | Option: Stacking type | Material: PFA manifold
LLA3A-03-03-C Type: Manifold base, 3 stations | Body class: 3 | Port: Rc3/8 (P port) | Option: Stacking type | Material: PFA manifold
LLA3A-04-03-C Type: Manifold base, 4 stations | Body class: 3 | Port: Rc3/8 (P port) | Option: Stacking type | Material: PFA manifold
LLA3A-05-03-C Type: Manifold base, 5 stations | Body class: 3 | Port: Rc3/8 (P port) | Option: Stacking type | Material: PFA manifold
LLA4A-02-04-C Type: Manifold base, 2 stations | Body class: 4 | Port: Rc1/2 (P port) | Option: Stacking type | Material: PFA manifold
LLA4A-03-04-C Type: Manifold base, 3 stations | Body class: 4 | Port: Rc1/2 (P port) | Option: Stacking type | Material: PFA manifold
LLA4A-04-04-C Type: Manifold base, 4 stations | Body class: 4 | Port: Rc1/2 (P port) | Option: Stacking type | Material: PFA manifold
LLA4A-05-04-C Type: Manifold base, 5 stations | Body class: 4 | Port: Rc1/2 (P port) | Option: Stacking type | Material: PFA manifold
LLA5A-02-06-C Type: Manifold base, 2 stations | Body class: 5 | Port: Rc3/4 (P port) | Option: Stacking type | Material: PFA manifold
LLA5A-03-06-C Type: Manifold base, 3 stations | Body class: 5 | Port: Rc3/4 (P port) | Option: Stacking type | Material: PFA manifold
LLA5A-04-06-C Type: Manifold base, 4 stations | Body class: 5 | Port: Rc3/4 (P port) | Option: Stacking type | Material: PFA manifold
LLA5A-05-06-C Type: Manifold base, 5 stations | Body class: 5 | Port: Rc3/4 (P port) | Option: Stacking type | Material: PFA manifold
Chemical ValvesSMC
411 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC LVA Air Operated Chemical Valve (Threaded, SUS/PPS/PFA Body)

Brand SMC·Chemical Valves

Available part numbers (411)

LVA10-01-A, LVA10-01-B, LVA10-01-C, LVA10-01-D, LVA10-01-E, LVA10-01-G, LVA10-01-H, LVA10-01-N, LVA10-02-A, LVA10-02-B + 401 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LVA10-01-AType: Single 2-port, N.C. | Body class: 1 (orifice 2 mm) | Port: Rc1/8 | Option: Basic | Material: SUS body, PTFE, FKM
LVA10-01-BType: Single 2-port, N.C. | Body class: 1 (orifice 2 mm) | Port: Rc1/8 | Option: Basic | Material: PPS body, PTFE, FKM
LVA10-01-CType: Single 2-port, N.C. | Body class: 1 (orifice 2 mm) | Port: Rc1/8 | Option: Basic | Material: PFA body, PTFE, FKM
LVA10-01-DType: Single 2-port, N.C. | Body class: 1 (orifice 2 mm) | Port: Rc1/8 | Option: Basic | Material: SUS body, NBR, FKM
LVA10-01-EType: Single 2-port, N.C. | Body class: 1 (orifice 2 mm) | Port: Rc1/8 | Option: Basic | Material: SUS body, EPDM, EPDM
LVA10-01-GType: Single 2-port, N.C. | Body class: 1 (orifice 2 mm) | Port: Rc1/8 | Option: Basic | Material: PPS body, NBR, FKM
LVA10-01-HType: Single 2-port, N.C. | Body class: 1 (orifice 2 mm) | Port: Rc1/8 | Option: Basic | Material: PPS body, EPDM, EPDM
LVA10-01-NType: Single 2-port, N.C. | Body class: 1 (orifice 2 mm) | Port: Rc1/8 | Option: Basic | Material: PFA body, PTFE, EPDM
LVA10-02-AType: Single 2-port, N.C. | Body class: 1 (orifice 2 mm) | Port: Rc1/4 | Option: Basic | Material: SUS body, PTFE, FKM
LVA10-02-BType: Single 2-port, N.C. | Body class: 1 (orifice 2 mm) | Port: Rc1/4 | Option: Basic | Material: PPS body, PTFE, FKM
LVA10-02-DType: Single 2-port, N.C. | Body class: 1 (orifice 2 mm) | Port: Rc1/4 | Option: Basic | Material: SUS body, NBR, FKM
LVA10-02-EType: Single 2-port, N.C. | Body class: 1 (orifice 2 mm) | Port: Rc1/4 | Option: Basic | Material: SUS body, EPDM, EPDM
LVA10-02-GType: Single 2-port, N.C. | Body class: 1 (orifice 2 mm) | Port: Rc1/4 | Option: Basic | Material: PPS body, NBR, FKM
LVA10-02-HType: Single 2-port, N.C. | Body class: 1 (orifice 2 mm) | Port: Rc1/4 | Option: Basic | Material: PPS body, EPDM, EPDM
LVA12-01-AType: Single 2-port, Double acting | Body class: 1 (orifice 2 mm) | Port: Rc1/8 | Option: Basic | Material: SUS body, PTFE, FKM
LVA12-01-BType: Single 2-port, Double acting | Body class: 1 (orifice 2 mm) | Port: Rc1/8 | Option: Basic | Material: PPS body, PTFE, FKM
LVA12-01-CType: Single 2-port, Double acting | Body class: 1 (orifice 2 mm) | Port: Rc1/8 | Option: Basic | Material: PFA body, PTFE, FKM
LVA12-01-DType: Single 2-port, Double acting | Body class: 1 (orifice 2 mm) | Port: Rc1/8 | Option: Basic | Material: SUS body, NBR, FKM
LVA12-01-EType: Single 2-port, Double acting | Body class: 1 (orifice 2 mm) | Port: Rc1/8 | Option: Basic | Material: SUS body, EPDM, EPDM
LVA12-01-GType: Single 2-port, Double acting | Body class: 1 (orifice 2 mm) | Port: Rc1/8 | Option: Basic | Material: PPS body, NBR, FKM
LVA12-01-HType: Single 2-port, Double acting | Body class: 1 (orifice 2 mm) | Port: Rc1/8 | Option: Basic | Material: PPS body, EPDM, EPDM
LVA12-01-NType: Single 2-port, Double acting | Body class: 1 (orifice 2 mm) | Port: Rc1/8 | Option: Basic | Material: PFA body, PTFE, EPDM
LVA12-02-AType: Single 2-port, Double acting | Body class: 1 (orifice 2 mm) | Port: Rc1/4 | Option: Basic | Material: SUS body, PTFE, FKM
LVA12-02-BType: Single 2-port, Double acting | Body class: 1 (orifice 2 mm) | Port: Rc1/4 | Option: Basic | Material: PPS body, PTFE, FKM
LVA12-02-DType: Single 2-port, Double acting | Body class: 1 (orifice 2 mm) | Port: Rc1/4 | Option: Basic | Material: SUS body, NBR, FKM
LVA12-02-EType: Single 2-port, Double acting | Body class: 1 (orifice 2 mm) | Port: Rc1/4 | Option: Basic | Material: SUS body, EPDM, EPDM
LVA12-02-GType: Single 2-port, Double acting | Body class: 1 (orifice 2 mm) | Port: Rc1/4 | Option: Basic | Material: PPS body, NBR, FKM
LVA12-02-HType: Single 2-port, Double acting | Body class: 1 (orifice 2 mm) | Port: Rc1/4 | Option: Basic | Material: PPS body, EPDM, EPDM
LVA20-01-AType: Single 2-port, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/8 | Option: Basic | Material: SUS body, PTFE, FKM
LVA20-01-A1Type: Single 2-port, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/8 | Option: Flow adjustment | Material: SUS body, PTFE, FKM
LVA20-01-A4Type: Single 2-port, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/8 | Option: Indicator | Material: SUS body, PTFE, FKM
LVA20-01-DType: Single 2-port, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/8 | Option: Basic | Material: SUS body, NBR, FKM
LVA20-01-D1Type: Single 2-port, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/8 | Option: Flow adjustment | Material: SUS body, NBR, FKM
LVA20-01-D4Type: Single 2-port, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/8 | Option: Indicator | Material: SUS body, NBR, FKM
LVA20-01-EType: Single 2-port, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/8 | Option: Basic | Material: SUS body, EPDM, EPDM
LVA20-01-E1Type: Single 2-port, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/8 | Option: Flow adjustment | Material: SUS body, EPDM, EPDM
LVA20-01-E4Type: Single 2-port, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/8 | Option: Indicator | Material: SUS body, EPDM, EPDM
LVA20-02-AType: Single 2-port, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Basic | Material: SUS body, PTFE, FKM
LVA20-02-A1Type: Single 2-port, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Flow adjustment | Material: SUS body, PTFE, FKM
LVA20-02-A4Type: Single 2-port, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Indicator | Material: SUS body, PTFE, FKM
LVA20-02-BType: Single 2-port, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Basic | Material: PPS body, PTFE, FKM
LVA20-02-B1Type: Single 2-port, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Flow adjustment | Material: PPS body, PTFE, FKM
LVA20-02-B4Type: Single 2-port, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Indicator | Material: PPS body, PTFE, FKM
LVA20-02-CType: Single 2-port, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Basic | Material: PFA body, PTFE, FKM
LVA20-02-C1Type: Single 2-port, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Flow adjustment | Material: PFA body, PTFE, FKM
LVA20-02-C4Type: Single 2-port, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Indicator | Material: PFA body, PTFE, FKM
LVA20-02-DType: Single 2-port, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Basic | Material: SUS body, NBR, FKM
LVA20-02-D1Type: Single 2-port, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Flow adjustment | Material: SUS body, NBR, FKM
LVA20-02-D4Type: Single 2-port, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Indicator | Material: SUS body, NBR, FKM
LVA20-02-EType: Single 2-port, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Basic | Material: SUS body, EPDM, EPDM
LVA20-02-E1Type: Single 2-port, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Flow adjustment | Material: SUS body, EPDM, EPDM
LVA20-02-E4Type: Single 2-port, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Indicator | Material: SUS body, EPDM, EPDM
LVA20-02-GType: Single 2-port, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Basic | Material: PPS body, NBR, FKM
LVA20-02-G1Type: Single 2-port, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Flow adjustment | Material: PPS body, NBR, FKM
LVA20-02-G4Type: Single 2-port, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Indicator | Material: PPS body, NBR, FKM
LVA20-02-HType: Single 2-port, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Basic | Material: PPS body, EPDM, EPDM
LVA20-02-H1Type: Single 2-port, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Flow adjustment | Material: PPS body, EPDM, EPDM
LVA20-02-H4Type: Single 2-port, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Indicator | Material: PPS body, EPDM, EPDM
LVA20-02-NType: Single 2-port, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Basic | Material: PFA body, PTFE, EPDM
LVA20-02-N1Type: Single 2-port, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Flow adjustment | Material: PFA body, PTFE, EPDM
LVA20-02-N4Type: Single 2-port, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Indicator | Material: PFA body, PTFE, EPDM
LVA21-01-AType: Single 2-port, N.O. | Body class: 2 (orifice 4 mm) | Port: Rc1/8 | Option: Basic | Material: SUS body, PTFE, FKM
LVA21-01-DType: Single 2-port, N.O. | Body class: 2 (orifice 4 mm) | Port: Rc1/8 | Option: Basic | Material: SUS body, NBR, FKM
LVA21-01-EType: Single 2-port, N.O. | Body class: 2 (orifice 4 mm) | Port: Rc1/8 | Option: Basic | Material: SUS body, EPDM, EPDM
LVA21-02-AType: Single 2-port, N.O. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Basic | Material: SUS body, PTFE, FKM
LVA21-02-BType: Single 2-port, N.O. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Basic | Material: PPS body, PTFE, FKM
LVA21-02-CType: Single 2-port, N.O. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Basic | Material: PFA body, PTFE, FKM
LVA21-02-DType: Single 2-port, N.O. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Basic | Material: SUS body, NBR, FKM
LVA21-02-EType: Single 2-port, N.O. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Basic | Material: SUS body, EPDM, EPDM
LVA21-02-GType: Single 2-port, N.O. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Basic | Material: PPS body, NBR, FKM
LVA21-02-HType: Single 2-port, N.O. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Basic | Material: PPS body, EPDM, EPDM
LVA21-02-NType: Single 2-port, N.O. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Basic | Material: PFA body, PTFE, EPDM
LVA22-01-AType: Single 2-port, Double acting | Body class: 2 (orifice 4 mm) | Port: Rc1/8 | Option: Basic | Material: SUS body, PTFE, FKM
LVA22-01-A1Type: Single 2-port, Double acting | Body class: 2 (orifice 4 mm) | Port: Rc1/8 | Option: Flow adjustment | Material: SUS body, PTFE, FKM
LVA22-01-DType: Single 2-port, Double acting | Body class: 2 (orifice 4 mm) | Port: Rc1/8 | Option: Basic | Material: SUS body, NBR, FKM
LVA22-01-D1Type: Single 2-port, Double acting | Body class: 2 (orifice 4 mm) | Port: Rc1/8 | Option: Flow adjustment | Material: SUS body, NBR, FKM
LVA22-01-EType: Single 2-port, Double acting | Body class: 2 (orifice 4 mm) | Port: Rc1/8 | Option: Basic | Material: SUS body, EPDM, EPDM
LVA22-01-E1Type: Single 2-port, Double acting | Body class: 2 (orifice 4 mm) | Port: Rc1/8 | Option: Flow adjustment | Material: SUS body, EPDM, EPDM
LVA22-02-AType: Single 2-port, Double acting | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Basic | Material: SUS body, PTFE, FKM
LVA22-02-A1Type: Single 2-port, Double acting | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Flow adjustment | Material: SUS body, PTFE, FKM
LVA22-02-BType: Single 2-port, Double acting | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Basic | Material: PPS body, PTFE, FKM
LVA22-02-B1Type: Single 2-port, Double acting | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Flow adjustment | Material: PPS body, PTFE, FKM
LVA22-02-CType: Single 2-port, Double acting | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Basic | Material: PFA body, PTFE, FKM
LVA22-02-C1Type: Single 2-port, Double acting | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Flow adjustment | Material: PFA body, PTFE, FKM
LVA22-02-DType: Single 2-port, Double acting | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Basic | Material: SUS body, NBR, FKM
LVA22-02-D1Type: Single 2-port, Double acting | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Flow adjustment | Material: SUS body, NBR, FKM
LVA22-02-EType: Single 2-port, Double acting | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Basic | Material: SUS body, EPDM, EPDM
LVA22-02-E1Type: Single 2-port, Double acting | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Flow adjustment | Material: SUS body, EPDM, EPDM
LVA22-02-GType: Single 2-port, Double acting | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Basic | Material: PPS body, NBR, FKM
LVA22-02-G1Type: Single 2-port, Double acting | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Flow adjustment | Material: PPS body, NBR, FKM
LVA22-02-HType: Single 2-port, Double acting | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Basic | Material: PPS body, EPDM, EPDM
LVA22-02-H1Type: Single 2-port, Double acting | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Flow adjustment | Material: PPS body, EPDM, EPDM
LVA22-02-NType: Single 2-port, Double acting | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Basic | Material: PFA body, PTFE, EPDM
LVA22-02-N1Type: Single 2-port, Double acting | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Flow adjustment | Material: PFA body, PTFE, EPDM
LVA30-02-AType: Single 2-port, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc1/4 | Option: Basic | Material: SUS body, PTFE, FKM
LVA30-02-A1Type: Single 2-port, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc1/4 | Option: Flow adjustment | Material: SUS body, PTFE, FKM
LVA30-02-A4Type: Single 2-port, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc1/4 | Option: Indicator | Material: SUS body, PTFE, FKM
LVA30-02-DType: Single 2-port, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc1/4 | Option: Basic | Material: SUS body, NBR, FKM
LVA30-02-D1Type: Single 2-port, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc1/4 | Option: Flow adjustment | Material: SUS body, NBR, FKM
LVA30-02-D4Type: Single 2-port, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc1/4 | Option: Indicator | Material: SUS body, NBR, FKM
LVA30-02-EType: Single 2-port, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc1/4 | Option: Basic | Material: SUS body, EPDM, EPDM
LVA30-02-E1Type: Single 2-port, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc1/4 | Option: Flow adjustment | Material: SUS body, EPDM, EPDM
LVA30-02-E4Type: Single 2-port, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc1/4 | Option: Indicator | Material: SUS body, EPDM, EPDM
LVA30-03-AType: Single 2-port, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Basic | Material: SUS body, PTFE, FKM
LVA30-03-A1Type: Single 2-port, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Flow adjustment | Material: SUS body, PTFE, FKM
LVA30-03-A4Type: Single 2-port, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Indicator | Material: SUS body, PTFE, FKM
LVA30-03-BType: Single 2-port, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Basic | Material: PPS body, PTFE, FKM
LVA30-03-B1Type: Single 2-port, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Flow adjustment | Material: PPS body, PTFE, FKM
LVA30-03-B4Type: Single 2-port, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Indicator | Material: PPS body, PTFE, FKM
LVA30-03-CType: Single 2-port, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Basic | Material: PFA body, PTFE, FKM
LVA30-03-C1Type: Single 2-port, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Flow adjustment | Material: PFA body, PTFE, FKM
LVA30-03-C2Type: Single 2-port, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Bypass | Material: PFA body, PTFE, FKM
LVA30-03-C3Type: Single 2-port, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Flow adj. + bypass | Material: PFA body, PTFE, FKM
LVA30-03-C4Type: Single 2-port, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Indicator | Material: PFA body, PTFE, FKM
LVA30-03-DType: Single 2-port, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Basic | Material: SUS body, NBR, FKM
LVA30-03-D1Type: Single 2-port, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Flow adjustment | Material: SUS body, NBR, FKM
LVA30-03-D4Type: Single 2-port, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Indicator | Material: SUS body, NBR, FKM
LVA30-03-EType: Single 2-port, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Basic | Material: SUS body, EPDM, EPDM
LVA30-03-E1Type: Single 2-port, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Flow adjustment | Material: SUS body, EPDM, EPDM
LVA30-03-E4Type: Single 2-port, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Indicator | Material: SUS body, EPDM, EPDM
LVA30-03-GType: Single 2-port, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Basic | Material: PPS body, NBR, FKM
LVA30-03-G1Type: Single 2-port, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Flow adjustment | Material: PPS body, NBR, FKM
LVA30-03-G4Type: Single 2-port, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Indicator | Material: PPS body, NBR, FKM
LVA30-03-HType: Single 2-port, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Basic | Material: PPS body, EPDM, EPDM
LVA30-03-H1Type: Single 2-port, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Flow adjustment | Material: PPS body, EPDM, EPDM
LVA30-03-H4Type: Single 2-port, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Indicator | Material: PPS body, EPDM, EPDM
LVA30-03-NType: Single 2-port, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Basic | Material: PFA body, PTFE, EPDM
LVA30-03-N1Type: Single 2-port, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Flow adjustment | Material: PFA body, PTFE, EPDM
LVA30-03-N2Type: Single 2-port, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Bypass | Material: PFA body, PTFE, EPDM
LVA30-03-N3Type: Single 2-port, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Flow adj. + bypass | Material: PFA body, PTFE, EPDM
LVA30-03-N4Type: Single 2-port, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Indicator | Material: PFA body, PTFE, EPDM
LVA31-02-AType: Single 2-port, N.O. | Body class: 3 (orifice 8 mm) | Port: Rc1/4 | Option: Basic | Material: SUS body, PTFE, FKM
LVA31-02-DType: Single 2-port, N.O. | Body class: 3 (orifice 8 mm) | Port: Rc1/4 | Option: Basic | Material: SUS body, NBR, FKM
LVA31-02-EType: Single 2-port, N.O. | Body class: 3 (orifice 8 mm) | Port: Rc1/4 | Option: Basic | Material: SUS body, EPDM, EPDM
LVA31-03-AType: Single 2-port, N.O. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Basic | Material: SUS body, PTFE, FKM
LVA31-03-BType: Single 2-port, N.O. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Basic | Material: PPS body, PTFE, FKM
LVA31-03-CType: Single 2-port, N.O. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Basic | Material: PFA body, PTFE, FKM
LVA31-03-DType: Single 2-port, N.O. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Basic | Material: SUS body, NBR, FKM
LVA31-03-EType: Single 2-port, N.O. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Basic | Material: SUS body, EPDM, EPDM
LVA31-03-GType: Single 2-port, N.O. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Basic | Material: PPS body, NBR, FKM
LVA31-03-HType: Single 2-port, N.O. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Basic | Material: PPS body, EPDM, EPDM
LVA31-03-NType: Single 2-port, N.O. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Basic | Material: PFA body, PTFE, EPDM
LVA32-02-AType: Single 2-port, Double acting | Body class: 3 (orifice 8 mm) | Port: Rc1/4 | Option: Basic | Material: SUS body, PTFE, FKM
LVA32-02-A1Type: Single 2-port, Double acting | Body class: 3 (orifice 8 mm) | Port: Rc1/4 | Option: Flow adjustment | Material: SUS body, PTFE, FKM
LVA32-02-DType: Single 2-port, Double acting | Body class: 3 (orifice 8 mm) | Port: Rc1/4 | Option: Basic | Material: SUS body, NBR, FKM
LVA32-02-D1Type: Single 2-port, Double acting | Body class: 3 (orifice 8 mm) | Port: Rc1/4 | Option: Flow adjustment | Material: SUS body, NBR, FKM
LVA32-02-EType: Single 2-port, Double acting | Body class: 3 (orifice 8 mm) | Port: Rc1/4 | Option: Basic | Material: SUS body, EPDM, EPDM
LVA32-02-E1Type: Single 2-port, Double acting | Body class: 3 (orifice 8 mm) | Port: Rc1/4 | Option: Flow adjustment | Material: SUS body, EPDM, EPDM
LVA32-03-AType: Single 2-port, Double acting | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Basic | Material: SUS body, PTFE, FKM
LVA32-03-A1Type: Single 2-port, Double acting | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Flow adjustment | Material: SUS body, PTFE, FKM
LVA32-03-BType: Single 2-port, Double acting | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Basic | Material: PPS body, PTFE, FKM
LVA32-03-B1Type: Single 2-port, Double acting | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Flow adjustment | Material: PPS body, PTFE, FKM
LVA32-03-CType: Single 2-port, Double acting | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Basic | Material: PFA body, PTFE, FKM
LVA32-03-C1Type: Single 2-port, Double acting | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Flow adjustment | Material: PFA body, PTFE, FKM
LVA32-03-C2Type: Single 2-port, Double acting | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Bypass | Material: PFA body, PTFE, FKM
LVA32-03-C3Type: Single 2-port, Double acting | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Flow adj. + bypass | Material: PFA body, PTFE, FKM
LVA32-03-DType: Single 2-port, Double acting | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Basic | Material: SUS body, NBR, FKM
LVA32-03-D1Type: Single 2-port, Double acting | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Flow adjustment | Material: SUS body, NBR, FKM
LVA32-03-EType: Single 2-port, Double acting | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Basic | Material: SUS body, EPDM, EPDM
LVA32-03-E1Type: Single 2-port, Double acting | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Flow adjustment | Material: SUS body, EPDM, EPDM
LVA32-03-GType: Single 2-port, Double acting | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Basic | Material: PPS body, NBR, FKM
LVA32-03-G1Type: Single 2-port, Double acting | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Flow adjustment | Material: PPS body, NBR, FKM
LVA32-03-HType: Single 2-port, Double acting | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Basic | Material: PPS body, EPDM, EPDM
LVA32-03-H1Type: Single 2-port, Double acting | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Flow adjustment | Material: PPS body, EPDM, EPDM
LVA32-03-NType: Single 2-port, Double acting | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Basic | Material: PFA body, PTFE, EPDM
LVA32-03-N1Type: Single 2-port, Double acting | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Flow adjustment | Material: PFA body, PTFE, EPDM
LVA32-03-N2Type: Single 2-port, Double acting | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Bypass | Material: PFA body, PTFE, EPDM
LVA32-03-N3Type: Single 2-port, Double acting | Body class: 3 (orifice 8 mm) | Port: Rc3/8 | Option: Flow adj. + bypass | Material: PFA body, PTFE, EPDM
LVA40-03-AType: Single 2-port, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc3/8 | Option: Basic | Material: SUS body, PTFE, FKM
LVA40-03-A1Type: Single 2-port, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc3/8 | Option: Flow adjustment | Material: SUS body, PTFE, FKM
LVA40-03-A4Type: Single 2-port, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc3/8 | Option: Indicator | Material: SUS body, PTFE, FKM
LVA40-03-DType: Single 2-port, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc3/8 | Option: Basic | Material: SUS body, NBR, FKM
LVA40-03-D1Type: Single 2-port, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc3/8 | Option: Flow adjustment | Material: SUS body, NBR, FKM
LVA40-03-D4Type: Single 2-port, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc3/8 | Option: Indicator | Material: SUS body, NBR, FKM
LVA40-03-EType: Single 2-port, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc3/8 | Option: Basic | Material: SUS body, EPDM, EPDM
LVA40-03-E1Type: Single 2-port, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc3/8 | Option: Flow adjustment | Material: SUS body, EPDM, EPDM
LVA40-03-E4Type: Single 2-port, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc3/8 | Option: Indicator | Material: SUS body, EPDM, EPDM
LVA40-04-AType: Single 2-port, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Basic | Material: SUS body, PTFE, FKM
LVA40-04-A1Type: Single 2-port, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Flow adjustment | Material: SUS body, PTFE, FKM
LVA40-04-A4Type: Single 2-port, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Indicator | Material: SUS body, PTFE, FKM
LVA40-04-BType: Single 2-port, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Basic | Material: PPS body, PTFE, FKM
LVA40-04-B1Type: Single 2-port, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Flow adjustment | Material: PPS body, PTFE, FKM
LVA40-04-B4Type: Single 2-port, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Indicator | Material: PPS body, PTFE, FKM
LVA40-04-CType: Single 2-port, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Basic | Material: PFA body, PTFE, FKM
LVA40-04-C1Type: Single 2-port, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Flow adjustment | Material: PFA body, PTFE, FKM
LVA40-04-C2Type: Single 2-port, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Bypass | Material: PFA body, PTFE, FKM
LVA40-04-C3Type: Single 2-port, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Flow adj. + bypass | Material: PFA body, PTFE, FKM
LVA40-04-C4Type: Single 2-port, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Indicator | Material: PFA body, PTFE, FKM
LVA40-04-DType: Single 2-port, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Basic | Material: SUS body, NBR, FKM
LVA40-04-D1Type: Single 2-port, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Flow adjustment | Material: SUS body, NBR, FKM
LVA40-04-D4Type: Single 2-port, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Indicator | Material: SUS body, NBR, FKM
LVA40-04-EType: Single 2-port, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Basic | Material: SUS body, EPDM, EPDM
LVA40-04-E1Type: Single 2-port, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Flow adjustment | Material: SUS body, EPDM, EPDM
LVA40-04-E4Type: Single 2-port, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Indicator | Material: SUS body, EPDM, EPDM
LVA40-04-FType: Single 2-port, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Basic | Material: PFA body, PVDF actuator (HF)
LVA40-04-GType: Single 2-port, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Basic | Material: PPS body, NBR, FKM
LVA40-04-G1Type: Single 2-port, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Flow adjustment | Material: PPS body, NBR, FKM
LVA40-04-G4Type: Single 2-port, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Indicator | Material: PPS body, NBR, FKM
LVA40-04-HType: Single 2-port, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Basic | Material: PPS body, EPDM, EPDM
LVA40-04-H1Type: Single 2-port, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Flow adjustment | Material: PPS body, EPDM, EPDM
LVA40-04-H4Type: Single 2-port, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Indicator | Material: PPS body, EPDM, EPDM
LVA40-04-NType: Single 2-port, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Basic | Material: PFA body, PTFE, EPDM
LVA40-04-N1Type: Single 2-port, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Flow adjustment | Material: PFA body, PTFE, EPDM
LVA40-04-N2Type: Single 2-port, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Bypass | Material: PFA body, PTFE, EPDM
LVA40-04-N3Type: Single 2-port, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Flow adj. + bypass | Material: PFA body, PTFE, EPDM
LVA40-04-N4Type: Single 2-port, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Indicator | Material: PFA body, PTFE, EPDM
LVA41-03-AType: Single 2-port, N.O. | Body class: 4 (orifice 12 mm) | Port: Rc3/8 | Option: Basic | Material: SUS body, PTFE, FKM
LVA41-03-DType: Single 2-port, N.O. | Body class: 4 (orifice 12 mm) | Port: Rc3/8 | Option: Basic | Material: SUS body, NBR, FKM
LVA41-03-EType: Single 2-port, N.O. | Body class: 4 (orifice 12 mm) | Port: Rc3/8 | Option: Basic | Material: SUS body, EPDM, EPDM
LVA41-04-AType: Single 2-port, N.O. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Basic | Material: SUS body, PTFE, FKM
LVA41-04-BType: Single 2-port, N.O. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Basic | Material: PPS body, PTFE, FKM
LVA41-04-CType: Single 2-port, N.O. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Basic | Material: PFA body, PTFE, FKM
LVA41-04-DType: Single 2-port, N.O. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Basic | Material: SUS body, NBR, FKM
LVA41-04-EType: Single 2-port, N.O. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Basic | Material: SUS body, EPDM, EPDM
LVA41-04-FType: Single 2-port, N.O. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Basic | Material: PFA body, PVDF actuator (HF)
LVA41-04-GType: Single 2-port, N.O. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Basic | Material: PPS body, NBR, FKM
LVA41-04-HType: Single 2-port, N.O. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Basic | Material: PPS body, EPDM, EPDM
LVA41-04-NType: Single 2-port, N.O. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Basic | Material: PFA body, PTFE, EPDM
LVA42-03-AType: Single 2-port, Double acting | Body class: 4 (orifice 12 mm) | Port: Rc3/8 | Option: Basic | Material: SUS body, PTFE, FKM
LVA42-03-A1Type: Single 2-port, Double acting | Body class: 4 (orifice 12 mm) | Port: Rc3/8 | Option: Flow adjustment | Material: SUS body, PTFE, FKM
LVA42-03-DType: Single 2-port, Double acting | Body class: 4 (orifice 12 mm) | Port: Rc3/8 | Option: Basic | Material: SUS body, NBR, FKM
LVA42-03-D1Type: Single 2-port, Double acting | Body class: 4 (orifice 12 mm) | Port: Rc3/8 | Option: Flow adjustment | Material: SUS body, NBR, FKM
LVA42-03-EType: Single 2-port, Double acting | Body class: 4 (orifice 12 mm) | Port: Rc3/8 | Option: Basic | Material: SUS body, EPDM, EPDM
LVA42-03-E1Type: Single 2-port, Double acting | Body class: 4 (orifice 12 mm) | Port: Rc3/8 | Option: Flow adjustment | Material: SUS body, EPDM, EPDM
LVA42-04-AType: Single 2-port, Double acting | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Basic | Material: SUS body, PTFE, FKM
LVA42-04-A1Type: Single 2-port, Double acting | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Flow adjustment | Material: SUS body, PTFE, FKM
LVA42-04-BType: Single 2-port, Double acting | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Basic | Material: PPS body, PTFE, FKM
LVA42-04-B1Type: Single 2-port, Double acting | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Flow adjustment | Material: PPS body, PTFE, FKM
LVA42-04-CType: Single 2-port, Double acting | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Basic | Material: PFA body, PTFE, FKM
LVA42-04-C1Type: Single 2-port, Double acting | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Flow adjustment | Material: PFA body, PTFE, FKM
LVA42-04-C2Type: Single 2-port, Double acting | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Bypass | Material: PFA body, PTFE, FKM
LVA42-04-C3Type: Single 2-port, Double acting | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Flow adj. + bypass | Material: PFA body, PTFE, FKM
LVA42-04-DType: Single 2-port, Double acting | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Basic | Material: SUS body, NBR, FKM
LVA42-04-D1Type: Single 2-port, Double acting | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Flow adjustment | Material: SUS body, NBR, FKM
LVA42-04-EType: Single 2-port, Double acting | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Basic | Material: SUS body, EPDM, EPDM
LVA42-04-E1Type: Single 2-port, Double acting | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Flow adjustment | Material: SUS body, EPDM, EPDM
LVA42-04-FType: Single 2-port, Double acting | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Basic | Material: PFA body, PVDF actuator (HF)
LVA42-04-GType: Single 2-port, Double acting | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Basic | Material: PPS body, NBR, FKM
LVA42-04-G1Type: Single 2-port, Double acting | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Flow adjustment | Material: PPS body, NBR, FKM
LVA42-04-HType: Single 2-port, Double acting | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Basic | Material: PPS body, EPDM, EPDM
LVA42-04-H1Type: Single 2-port, Double acting | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Flow adjustment | Material: PPS body, EPDM, EPDM
LVA42-04-NType: Single 2-port, Double acting | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Basic | Material: PFA body, PTFE, EPDM
LVA42-04-N1Type: Single 2-port, Double acting | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Flow adjustment | Material: PFA body, PTFE, EPDM
LVA42-04-N2Type: Single 2-port, Double acting | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Bypass | Material: PFA body, PTFE, EPDM
LVA42-04-N3Type: Single 2-port, Double acting | Body class: 4 (orifice 12 mm) | Port: Rc1/2 | Option: Flow adj. + bypass | Material: PFA body, PTFE, EPDM
LVA50-04-AType: Single 2-port, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc1/2 | Option: Basic | Material: SUS body, PTFE, FKM
LVA50-04-A1Type: Single 2-port, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc1/2 | Option: Flow adjustment | Material: SUS body, PTFE, FKM
LVA50-04-A4Type: Single 2-port, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc1/2 | Option: Indicator | Material: SUS body, PTFE, FKM
LVA50-04-DType: Single 2-port, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc1/2 | Option: Basic | Material: SUS body, NBR, FKM
LVA50-04-D1Type: Single 2-port, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc1/2 | Option: Flow adjustment | Material: SUS body, NBR, FKM
LVA50-04-D4Type: Single 2-port, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc1/2 | Option: Indicator | Material: SUS body, NBR, FKM
LVA50-04-EType: Single 2-port, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc1/2 | Option: Basic | Material: SUS body, EPDM, EPDM
LVA50-04-E1Type: Single 2-port, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc1/2 | Option: Flow adjustment | Material: SUS body, EPDM, EPDM
LVA50-04-E4Type: Single 2-port, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc1/2 | Option: Indicator | Material: SUS body, EPDM, EPDM
LVA50-06-AType: Single 2-port, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Basic | Material: SUS body, PTFE, FKM
LVA50-06-A1Type: Single 2-port, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Flow adjustment | Material: SUS body, PTFE, FKM
LVA50-06-A4Type: Single 2-port, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Indicator | Material: SUS body, PTFE, FKM
LVA50-06-BType: Single 2-port, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Basic | Material: PPS body, PTFE, FKM
LVA50-06-B1Type: Single 2-port, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Flow adjustment | Material: PPS body, PTFE, FKM
LVA50-06-B4Type: Single 2-port, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Indicator | Material: PPS body, PTFE, FKM
LVA50-06-CType: Single 2-port, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Basic | Material: PFA body, PTFE, FKM
LVA50-06-C1Type: Single 2-port, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Flow adjustment | Material: PFA body, PTFE, FKM
LVA50-06-C2Type: Single 2-port, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Bypass | Material: PFA body, PTFE, FKM
LVA50-06-C3Type: Single 2-port, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Flow adj. + bypass | Material: PFA body, PTFE, FKM
LVA50-06-C4Type: Single 2-port, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Indicator | Material: PFA body, PTFE, FKM
LVA50-06-DType: Single 2-port, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Basic | Material: SUS body, NBR, FKM
LVA50-06-D1Type: Single 2-port, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Flow adjustment | Material: SUS body, NBR, FKM
LVA50-06-D4Type: Single 2-port, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Indicator | Material: SUS body, NBR, FKM
LVA50-06-EType: Single 2-port, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Basic | Material: SUS body, EPDM, EPDM
LVA50-06-E1Type: Single 2-port, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Flow adjustment | Material: SUS body, EPDM, EPDM
LVA50-06-E4Type: Single 2-port, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Indicator | Material: SUS body, EPDM, EPDM
LVA50-06-FType: Single 2-port, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Basic | Material: PFA body, PVDF actuator (HF)
LVA50-06-GType: Single 2-port, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Basic | Material: PPS body, NBR, FKM
LVA50-06-G1Type: Single 2-port, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Flow adjustment | Material: PPS body, NBR, FKM
LVA50-06-G4Type: Single 2-port, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Indicator | Material: PPS body, NBR, FKM
LVA50-06-HType: Single 2-port, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Basic | Material: PPS body, EPDM, EPDM
LVA50-06-H1Type: Single 2-port, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Flow adjustment | Material: PPS body, EPDM, EPDM
LVA50-06-H4Type: Single 2-port, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Indicator | Material: PPS body, EPDM, EPDM
LVA50-06-NType: Single 2-port, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Basic | Material: PFA body, PTFE, EPDM
LVA50-06-N1Type: Single 2-port, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Flow adjustment | Material: PFA body, PTFE, EPDM
LVA50-06-N2Type: Single 2-port, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Bypass | Material: PFA body, PTFE, EPDM
LVA50-06-N3Type: Single 2-port, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Flow adj. + bypass | Material: PFA body, PTFE, EPDM
LVA50-06-N4Type: Single 2-port, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Indicator | Material: PFA body, PTFE, EPDM
LVA51-04-AType: Single 2-port, N.O. | Body class: 5 (orifice 20 mm) | Port: Rc1/2 | Option: Basic | Material: SUS body, PTFE, FKM
LVA51-04-DType: Single 2-port, N.O. | Body class: 5 (orifice 20 mm) | Port: Rc1/2 | Option: Basic | Material: SUS body, NBR, FKM
LVA51-04-EType: Single 2-port, N.O. | Body class: 5 (orifice 20 mm) | Port: Rc1/2 | Option: Basic | Material: SUS body, EPDM, EPDM
LVA51-06-AType: Single 2-port, N.O. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Basic | Material: SUS body, PTFE, FKM
LVA51-06-BType: Single 2-port, N.O. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Basic | Material: PPS body, PTFE, FKM
LVA51-06-CType: Single 2-port, N.O. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Basic | Material: PFA body, PTFE, FKM
LVA51-06-DType: Single 2-port, N.O. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Basic | Material: SUS body, NBR, FKM
LVA51-06-EType: Single 2-port, N.O. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Basic | Material: SUS body, EPDM, EPDM
LVA51-06-FType: Single 2-port, N.O. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Basic | Material: PFA body, PVDF actuator (HF)
LVA51-06-GType: Single 2-port, N.O. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Basic | Material: PPS body, NBR, FKM
LVA51-06-HType: Single 2-port, N.O. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Basic | Material: PPS body, EPDM, EPDM
LVA51-06-NType: Single 2-port, N.O. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Basic | Material: PFA body, PTFE, EPDM
LVA52-04-AType: Single 2-port, Double acting | Body class: 5 (orifice 20 mm) | Port: Rc1/2 | Option: Basic | Material: SUS body, PTFE, FKM
LVA52-04-A1Type: Single 2-port, Double acting | Body class: 5 (orifice 20 mm) | Port: Rc1/2 | Option: Flow adjustment | Material: SUS body, PTFE, FKM
LVA52-04-DType: Single 2-port, Double acting | Body class: 5 (orifice 20 mm) | Port: Rc1/2 | Option: Basic | Material: SUS body, NBR, FKM
LVA52-04-D1Type: Single 2-port, Double acting | Body class: 5 (orifice 20 mm) | Port: Rc1/2 | Option: Flow adjustment | Material: SUS body, NBR, FKM
LVA52-04-EType: Single 2-port, Double acting | Body class: 5 (orifice 20 mm) | Port: Rc1/2 | Option: Basic | Material: SUS body, EPDM, EPDM
LVA52-04-E1Type: Single 2-port, Double acting | Body class: 5 (orifice 20 mm) | Port: Rc1/2 | Option: Flow adjustment | Material: SUS body, EPDM, EPDM
LVA52-06-AType: Single 2-port, Double acting | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Basic | Material: SUS body, PTFE, FKM
LVA52-06-A1Type: Single 2-port, Double acting | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Flow adjustment | Material: SUS body, PTFE, FKM
LVA52-06-BType: Single 2-port, Double acting | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Basic | Material: PPS body, PTFE, FKM
LVA52-06-B1Type: Single 2-port, Double acting | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Flow adjustment | Material: PPS body, PTFE, FKM
LVA52-06-CType: Single 2-port, Double acting | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Basic | Material: PFA body, PTFE, FKM
LVA52-06-C1Type: Single 2-port, Double acting | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Flow adjustment | Material: PFA body, PTFE, FKM
LVA52-06-C2Type: Single 2-port, Double acting | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Bypass | Material: PFA body, PTFE, FKM
LVA52-06-C3Type: Single 2-port, Double acting | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Flow adj. + bypass | Material: PFA body, PTFE, FKM
LVA52-06-DType: Single 2-port, Double acting | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Basic | Material: SUS body, NBR, FKM
LVA52-06-D1Type: Single 2-port, Double acting | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Flow adjustment | Material: SUS body, NBR, FKM
LVA52-06-EType: Single 2-port, Double acting | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Basic | Material: SUS body, EPDM, EPDM
LVA52-06-E1Type: Single 2-port, Double acting | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Flow adjustment | Material: SUS body, EPDM, EPDM
LVA52-06-FType: Single 2-port, Double acting | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Basic | Material: PFA body, PVDF actuator (HF)
LVA52-06-GType: Single 2-port, Double acting | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Basic | Material: PPS body, NBR, FKM
LVA52-06-G1Type: Single 2-port, Double acting | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Flow adjustment | Material: PPS body, NBR, FKM
LVA52-06-HType: Single 2-port, Double acting | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Basic | Material: PPS body, EPDM, EPDM
LVA52-06-H1Type: Single 2-port, Double acting | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Flow adjustment | Material: PPS body, EPDM, EPDM
LVA52-06-NType: Single 2-port, Double acting | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Basic | Material: PFA body, PTFE, EPDM
LVA52-06-N1Type: Single 2-port, Double acting | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Flow adjustment | Material: PFA body, PTFE, EPDM
LVA52-06-N2Type: Single 2-port, Double acting | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Bypass | Material: PFA body, PTFE, EPDM
LVA52-06-N3Type: Single 2-port, Double acting | Body class: 5 (orifice 20 mm) | Port: Rc3/4 | Option: Flow adj. + bypass | Material: PFA body, PTFE, EPDM
LVA60-10-AType: Single 2-port, N.C. | Body class: 6 (orifice 22 mm) | Port: Rc1 | Option: Basic | Material: SUS body, PTFE, FKM
LVA60-10-A1Type: Single 2-port, N.C. | Body class: 6 (orifice 22 mm) | Port: Rc1 | Option: Flow adjustment | Material: SUS body, PTFE, FKM
LVA60-10-A4Type: Single 2-port, N.C. | Body class: 6 (orifice 22 mm) | Port: Rc1 | Option: Indicator | Material: SUS body, PTFE, FKM
LVA60-10-CType: Single 2-port, N.C. | Body class: 6 (orifice 22 mm) | Port: Rc1 | Option: Basic | Material: PFA body, PTFE, FKM
LVA60-10-C1Type: Single 2-port, N.C. | Body class: 6 (orifice 22 mm) | Port: Rc1 | Option: Flow adjustment | Material: PFA body, PTFE, FKM
LVA60-10-C4Type: Single 2-port, N.C. | Body class: 6 (orifice 22 mm) | Port: Rc1 | Option: Indicator | Material: PFA body, PTFE, FKM
LVA60-10-NType: Single 2-port, N.C. | Body class: 6 (orifice 22 mm) | Port: Rc1 | Option: Basic | Material: PFA body, PTFE, EPDM
LVA60-10-N1Type: Single 2-port, N.C. | Body class: 6 (orifice 22 mm) | Port: Rc1 | Option: Flow adjustment | Material: PFA body, PTFE, EPDM
LVA60-10-N4Type: Single 2-port, N.C. | Body class: 6 (orifice 22 mm) | Port: Rc1 | Option: Indicator | Material: PFA body, PTFE, EPDM
LVA61-10-AType: Single 2-port, N.O. | Body class: 6 (orifice 22 mm) | Port: Rc1 | Option: Basic | Material: SUS body, PTFE, FKM
LVA61-10-CType: Single 2-port, N.O. | Body class: 6 (orifice 22 mm) | Port: Rc1 | Option: Basic | Material: PFA body, PTFE, FKM
LVA61-10-NType: Single 2-port, N.O. | Body class: 6 (orifice 22 mm) | Port: Rc1 | Option: Basic | Material: PFA body, PTFE, EPDM
LVA62-10-AType: Single 2-port, Double acting | Body class: 6 (orifice 22 mm) | Port: Rc1 | Option: Basic | Material: SUS body, PTFE, FKM
LVA62-10-A1Type: Single 2-port, Double acting | Body class: 6 (orifice 22 mm) | Port: Rc1 | Option: Flow adjustment | Material: SUS body, PTFE, FKM
LVA62-10-CType: Single 2-port, Double acting | Body class: 6 (orifice 22 mm) | Port: Rc1 | Option: Basic | Material: PFA body, PTFE, FKM
LVA62-10-C1Type: Single 2-port, Double acting | Body class: 6 (orifice 22 mm) | Port: Rc1 | Option: Flow adjustment | Material: PFA body, PTFE, FKM
LVA62-10-NType: Single 2-port, Double acting | Body class: 6 (orifice 22 mm) | Port: Rc1 | Option: Basic | Material: PFA body, PTFE, EPDM
LVA62-10-N1Type: Single 2-port, Double acting | Body class: 6 (orifice 22 mm) | Port: Rc1 | Option: Flow adjustment | Material: PFA body, PTFE, EPDM
LVA200-02-CType: Single 3-port, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 | Option: Basic | Material: PFA body, PTFE, FKM
LVA20A-02-CType: Manifold valve, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 (A port) | Option: Basic | Material: PFA body, PTFE, FKM
LVA20A-02-C1Type: Manifold valve, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 (A port) | Option: Flow adjustment | Material: PFA body, PTFE, FKM
LVA20A-02-C4Type: Manifold valve, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 (A port) | Option: Indicator | Material: PFA body, PTFE, FKM
LVA20A-02-NType: Manifold valve, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 (A port) | Option: Basic | Material: PFA body, PTFE, EPDM
LVA20A-02-N1Type: Manifold valve, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 (A port) | Option: Flow adjustment | Material: PFA body, PTFE, EPDM
LVA20A-02-N4Type: Manifold valve, N.C. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 (A port) | Option: Indicator | Material: PFA body, PTFE, EPDM
LVA21A-02-CType: Manifold valve, N.O. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 (A port) | Option: Basic | Material: PFA body, PTFE, FKM
LVA21A-02-NType: Manifold valve, N.O. | Body class: 2 (orifice 4 mm) | Port: Rc1/4 (A port) | Option: Basic | Material: PFA body, PTFE, EPDM
LVA22A-02-CType: Manifold valve, Double acting | Body class: 2 (orifice 4 mm) | Port: Rc1/4 (A port) | Option: Basic | Material: PFA body, PTFE, FKM
LVA22A-02-C1Type: Manifold valve, Double acting | Body class: 2 (orifice 4 mm) | Port: Rc1/4 (A port) | Option: Flow adjustment | Material: PFA body, PTFE, FKM
LVA22A-02-NType: Manifold valve, Double acting | Body class: 2 (orifice 4 mm) | Port: Rc1/4 (A port) | Option: Basic | Material: PFA body, PTFE, EPDM
LVA22A-02-N1Type: Manifold valve, Double acting | Body class: 2 (orifice 4 mm) | Port: Rc1/4 (A port) | Option: Flow adjustment | Material: PFA body, PTFE, EPDM
LVA30A-03-CType: Manifold valve, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 (A port) | Option: Basic | Material: PFA body, PTFE, FKM
LVA30A-03-C1Type: Manifold valve, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 (A port) | Option: Flow adjustment | Material: PFA body, PTFE, FKM
LVA30A-03-C4Type: Manifold valve, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 (A port) | Option: Indicator | Material: PFA body, PTFE, FKM
LVA30A-03-NType: Manifold valve, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 (A port) | Option: Basic | Material: PFA body, PTFE, EPDM
LVA30A-03-N1Type: Manifold valve, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 (A port) | Option: Flow adjustment | Material: PFA body, PTFE, EPDM
LVA30A-03-N4Type: Manifold valve, N.C. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 (A port) | Option: Indicator | Material: PFA body, PTFE, EPDM
LVA31A-03-CType: Manifold valve, N.O. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 (A port) | Option: Basic | Material: PFA body, PTFE, FKM
LVA31A-03-NType: Manifold valve, N.O. | Body class: 3 (orifice 8 mm) | Port: Rc3/8 (A port) | Option: Basic | Material: PFA body, PTFE, EPDM
LVA32A-03-CType: Manifold valve, Double acting | Body class: 3 (orifice 8 mm) | Port: Rc3/8 (A port) | Option: Basic | Material: PFA body, PTFE, FKM
LVA32A-03-C1Type: Manifold valve, Double acting | Body class: 3 (orifice 8 mm) | Port: Rc3/8 (A port) | Option: Flow adjustment | Material: PFA body, PTFE, FKM
LVA32A-03-NType: Manifold valve, Double acting | Body class: 3 (orifice 8 mm) | Port: Rc3/8 (A port) | Option: Basic | Material: PFA body, PTFE, EPDM
LVA32A-03-N1Type: Manifold valve, Double acting | Body class: 3 (orifice 8 mm) | Port: Rc3/8 (A port) | Option: Flow adjustment | Material: PFA body, PTFE, EPDM
LVA40A-04-CType: Manifold valve, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 (A port) | Option: Basic | Material: PFA body, PTFE, FKM
LVA40A-04-C1Type: Manifold valve, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 (A port) | Option: Flow adjustment | Material: PFA body, PTFE, FKM
LVA40A-04-C4Type: Manifold valve, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 (A port) | Option: Indicator | Material: PFA body, PTFE, FKM
LVA40A-04-FType: Manifold valve, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 (A port) | Option: Basic | Material: PFA body, PVDF actuator (HF)
LVA40A-04-NType: Manifold valve, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 (A port) | Option: Basic | Material: PFA body, PTFE, EPDM
LVA40A-04-N1Type: Manifold valve, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 (A port) | Option: Flow adjustment | Material: PFA body, PTFE, EPDM
LVA40A-04-N4Type: Manifold valve, N.C. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 (A port) | Option: Indicator | Material: PFA body, PTFE, EPDM
LVA41A-04-CType: Manifold valve, N.O. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 (A port) | Option: Basic | Material: PFA body, PTFE, FKM
LVA41A-04-FType: Manifold valve, N.O. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 (A port) | Option: Basic | Material: PFA body, PVDF actuator (HF)
LVA41A-04-NType: Manifold valve, N.O. | Body class: 4 (orifice 12 mm) | Port: Rc1/2 (A port) | Option: Basic | Material: PFA body, PTFE, EPDM
LVA42A-04-CType: Manifold valve, Double acting | Body class: 4 (orifice 12 mm) | Port: Rc1/2 (A port) | Option: Basic | Material: PFA body, PTFE, FKM
LVA42A-04-C1Type: Manifold valve, Double acting | Body class: 4 (orifice 12 mm) | Port: Rc1/2 (A port) | Option: Flow adjustment | Material: PFA body, PTFE, FKM
LVA42A-04-FType: Manifold valve, Double acting | Body class: 4 (orifice 12 mm) | Port: Rc1/2 (A port) | Option: Basic | Material: PFA body, PVDF actuator (HF)
LVA42A-04-NType: Manifold valve, Double acting | Body class: 4 (orifice 12 mm) | Port: Rc1/2 (A port) | Option: Basic | Material: PFA body, PTFE, EPDM
LVA42A-04-N1Type: Manifold valve, Double acting | Body class: 4 (orifice 12 mm) | Port: Rc1/2 (A port) | Option: Flow adjustment | Material: PFA body, PTFE, EPDM
LVA50A-06-CType: Manifold valve, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 (A port) | Option: Basic | Material: PFA body, PTFE, FKM
LVA50A-06-C1Type: Manifold valve, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 (A port) | Option: Flow adjustment | Material: PFA body, PTFE, FKM
LVA50A-06-C4Type: Manifold valve, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 (A port) | Option: Indicator | Material: PFA body, PTFE, FKM
LVA50A-06-FType: Manifold valve, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 (A port) | Option: Basic | Material: PFA body, PVDF actuator (HF)
LVA50A-06-NType: Manifold valve, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 (A port) | Option: Basic | Material: PFA body, PTFE, EPDM
LVA50A-06-N1Type: Manifold valve, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 (A port) | Option: Flow adjustment | Material: PFA body, PTFE, EPDM
LVA50A-06-N4Type: Manifold valve, N.C. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 (A port) | Option: Indicator | Material: PFA body, PTFE, EPDM
LVA51A-06-CType: Manifold valve, N.O. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 (A port) | Option: Basic | Material: PFA body, PTFE, FKM
LVA51A-06-FType: Manifold valve, N.O. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 (A port) | Option: Basic | Material: PFA body, PVDF actuator (HF)
LVA51A-06-NType: Manifold valve, N.O. | Body class: 5 (orifice 20 mm) | Port: Rc3/4 (A port) | Option: Basic | Material: PFA body, PTFE, EPDM
LVA52A-06-CType: Manifold valve, Double acting | Body class: 5 (orifice 20 mm) | Port: Rc3/4 (A port) | Option: Basic | Material: PFA body, PTFE, FKM
LVA52A-06-C1Type: Manifold valve, Double acting | Body class: 5 (orifice 20 mm) | Port: Rc3/4 (A port) | Option: Flow adjustment | Material: PFA body, PTFE, FKM
LVA52A-06-FType: Manifold valve, Double acting | Body class: 5 (orifice 20 mm) | Port: Rc3/4 (A port) | Option: Basic | Material: PFA body, PVDF actuator (HF)
LVA52A-06-NType: Manifold valve, Double acting | Body class: 5 (orifice 20 mm) | Port: Rc3/4 (A port) | Option: Basic | Material: PFA body, PTFE, EPDM
LVA52A-06-N1Type: Manifold valve, Double acting | Body class: 5 (orifice 20 mm) | Port: Rc3/4 (A port) | Option: Flow adjustment | Material: PFA body, PTFE, EPDM
LLA2A-02-02-CType: Manifold base, 2 stations | Body class: 2 | Port: Rc1/4 (P port) | Option: Stacking type | Material: PFA manifold
LLA2A-03-02-CType: Manifold base, 3 stations | Body class: 2 | Port: Rc1/4 (P port) | Option: Stacking type | Material: PFA manifold
LLA2A-04-02-CType: Manifold base, 4 stations | Body class: 2 | Port: Rc1/4 (P port) | Option: Stacking type | Material: PFA manifold
LLA2A-05-02-CType: Manifold base, 5 stations | Body class: 2 | Port: Rc1/4 (P port) | Option: Stacking type | Material: PFA manifold
LLA3A-02-03-CType: Manifold base, 2 stations | Body class: 3 | Port: Rc3/8 (P port) | Option: Stacking type | Material: PFA manifold
LLA3A-03-03-CType: Manifold base, 3 stations | Body class: 3 | Port: Rc3/8 (P port) | Option: Stacking type | Material: PFA manifold
LLA3A-04-03-CType: Manifold base, 4 stations | Body class: 3 | Port: Rc3/8 (P port) | Option: Stacking type | Material: PFA manifold
LLA3A-05-03-CType: Manifold base, 5 stations | Body class: 3 | Port: Rc3/8 (P port) | Option: Stacking type | Material: PFA manifold
LLA4A-02-04-CType: Manifold base, 2 stations | Body class: 4 | Port: Rc1/2 (P port) | Option: Stacking type | Material: PFA manifold
LLA4A-03-04-CType: Manifold base, 3 stations | Body class: 4 | Port: Rc1/2 (P port) | Option: Stacking type | Material: PFA manifold
LLA4A-04-04-CType: Manifold base, 4 stations | Body class: 4 | Port: Rc1/2 (P port) | Option: Stacking type | Material: PFA manifold
LLA4A-05-04-CType: Manifold base, 5 stations | Body class: 4 | Port: Rc1/2 (P port) | Option: Stacking type | Material: PFA manifold
LLA5A-02-06-CType: Manifold base, 2 stations | Body class: 5 | Port: Rc3/4 (P port) | Option: Stacking type | Material: PFA manifold
LLA5A-03-06-CType: Manifold base, 3 stations | Body class: 5 | Port: Rc3/4 (P port) | Option: Stacking type | Material: PFA manifold
LLA5A-04-06-CType: Manifold base, 4 stations | Body class: 5 | Port: Rc3/4 (P port) | Option: Stacking type | Material: PFA manifold
LLA5A-05-06-CType: Manifold base, 5 stations | Body class: 5 | Port: Rc3/4 (P port) | Option: Stacking type | Material: PFA manifold

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
