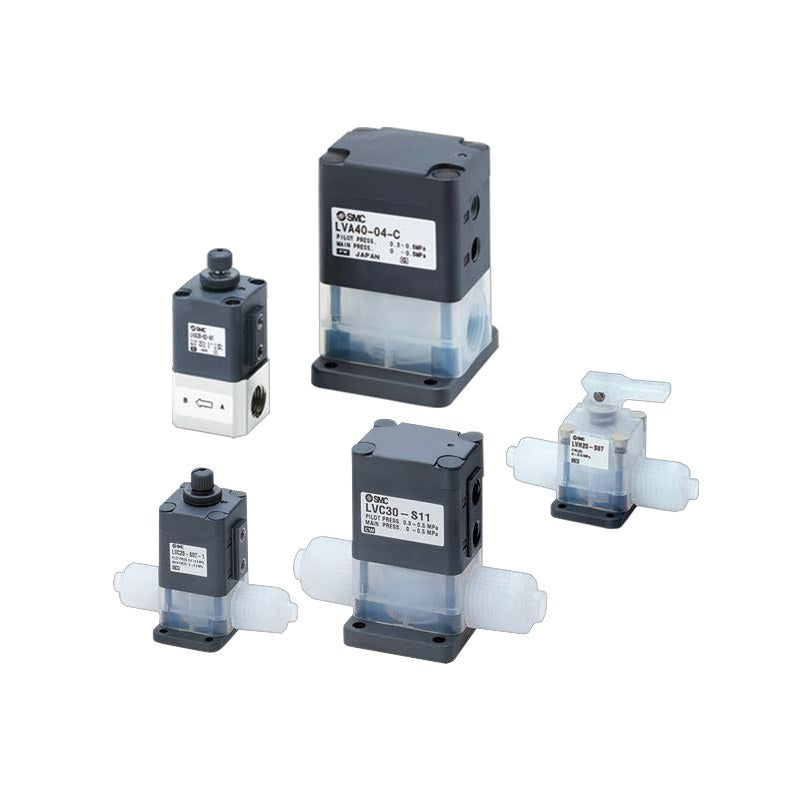

SMC LVC Air Operated Chemical Valve (Insert Bushing / LQ2 Fitting)

SMC LVC series air operated 2-port chemical valve with PFA body and integrated LQ2 hyper fittings (insert bushing type), in body classes 2 to 6, with 3-port valve, manifold valves and LLC manifold bases.

Key features

PFA wetted body and PTFE diaphragm for high-purity chemicals; integrated LQ2 fittings (class 6: LQ1)
N.C., N.O. and double acting types; options flow adjustment, bypass, flow adjustment + bypass and indicator
Body classes 2 to 6 (orifice 4 to 22 mm) for tube 3 mm to 25 mm (1/8 to 1 in); reducer bushings allow other tube sizes in a class
Material N (EPDM buffer) for ammonia water; material F (PVDF actuator) for hydrofluoric acid on LVC40/50
Stacking manifold LLC (2 to 5 stations, common IN, individual OUT) with LVCA manifold valves
Different B-port tube size, pilot port NPT/G (N/F), vacuum spec (-V) and 1/8 pilot port for LVC20 (-Z) are suffixes

Specifications

Operation	Air operated diaphragm valve
Proof pressure	1 MPa
Operating pressure (A to B)	0 to 0.5 MPa (class 5-6: 0 to 0.4 MPa)
Pilot pressure	0.3 to 0.5 MPa (3-port: 0.4 to 0.5 MPa)
Pilot port	M5 (class 2), Rc1/8 (class 3 to 6)
Fluid temperature	0 to 100°C
Ambient temperature	0 to 60°C
Valve leakage	0 cm3/min (with water)
Flow Kv	LVC20 0.3, 30 1.4, 40 2.1, 50 5.1, 60 6.8
Source	SMC Korea catalog LVC/LVA/LVH Series (SMCKR_LVC_LVA_LVH.pdf), p. 159-170 (PDF p. 8-19)

LVC20-S03		Type: Single 2-port, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 3x2 mm or 1/8 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC20-S03-1		Type: Single 2-port, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 3x2 mm or 1/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
LVC20-S03-4		Type: Single 2-port, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 3x2 mm or 1/8 in \| Option: Indicator \| Material: PFA body, PPS actuator, FKM
LVC20-S03-N		Type: Single 2-port, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 3x2 mm or 1/8 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC20-S03-N1		Type: Single 2-port, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 3x2 mm or 1/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
LVC20-S03-N4		Type: Single 2-port, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 3x2 mm or 1/8 in \| Option: Indicator \| Material: PFA body, PPS actuator, EPDM
LVC20-S04		Type: Single 2-port, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 4x3 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC20-S04-1		Type: Single 2-port, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 4x3 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
LVC20-S04-4		Type: Single 2-port, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 4x3 mm \| Option: Indicator \| Material: PFA body, PPS actuator, FKM
LVC20-S04-N		Type: Single 2-port, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 4x3 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC20-S04-N1		Type: Single 2-port, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 4x3 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
LVC20-S04-N4		Type: Single 2-port, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 4x3 mm \| Option: Indicator \| Material: PFA body, PPS actuator, EPDM
LVC20-S05		Type: Single 2-port, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 3/16x1/8 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC20-S05-1		Type: Single 2-port, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 3/16x1/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
LVC20-S05-4		Type: Single 2-port, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 3/16x1/8 in \| Option: Indicator \| Material: PFA body, PPS actuator, FKM
LVC20-S05-N		Type: Single 2-port, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 3/16x1/8 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC20-S05-N1		Type: Single 2-port, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 3/16x1/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
LVC20-S05-N4		Type: Single 2-port, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 3/16x1/8 in \| Option: Indicator \| Material: PFA body, PPS actuator, EPDM
LVC20-S06		Type: Single 2-port, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 6x4 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC20-S06-1		Type: Single 2-port, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 6x4 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
LVC20-S06-4		Type: Single 2-port, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 6x4 mm \| Option: Indicator \| Material: PFA body, PPS actuator, FKM
LVC20-S06-N		Type: Single 2-port, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 6x4 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC20-S06-N1		Type: Single 2-port, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 6x4 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
LVC20-S06-N4		Type: Single 2-port, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 6x4 mm \| Option: Indicator \| Material: PFA body, PPS actuator, EPDM
LVC20-S07		Type: Single 2-port, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 1/4x5/32 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC20-S07-1		Type: Single 2-port, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 1/4x5/32 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
LVC20-S07-4		Type: Single 2-port, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 1/4x5/32 in \| Option: Indicator \| Material: PFA body, PPS actuator, FKM
LVC20-S07-N		Type: Single 2-port, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 1/4x5/32 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC20-S07-N1		Type: Single 2-port, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 1/4x5/32 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
LVC20-S07-N4		Type: Single 2-port, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 1/4x5/32 in \| Option: Indicator \| Material: PFA body, PPS actuator, EPDM
LVC21-S03		Type: Single 2-port, N.O. \| Body class: 2 (orifice 4 mm) \| Tube: 3x2 mm or 1/8 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC21-S03-N		Type: Single 2-port, N.O. \| Body class: 2 (orifice 4 mm) \| Tube: 3x2 mm or 1/8 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC21-S04		Type: Single 2-port, N.O. \| Body class: 2 (orifice 4 mm) \| Tube: 4x3 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC21-S04-N		Type: Single 2-port, N.O. \| Body class: 2 (orifice 4 mm) \| Tube: 4x3 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC21-S05		Type: Single 2-port, N.O. \| Body class: 2 (orifice 4 mm) \| Tube: 3/16x1/8 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC21-S05-N		Type: Single 2-port, N.O. \| Body class: 2 (orifice 4 mm) \| Tube: 3/16x1/8 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC21-S06		Type: Single 2-port, N.O. \| Body class: 2 (orifice 4 mm) \| Tube: 6x4 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC21-S06-N		Type: Single 2-port, N.O. \| Body class: 2 (orifice 4 mm) \| Tube: 6x4 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC21-S07		Type: Single 2-port, N.O. \| Body class: 2 (orifice 4 mm) \| Tube: 1/4x5/32 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC21-S07-N		Type: Single 2-port, N.O. \| Body class: 2 (orifice 4 mm) \| Tube: 1/4x5/32 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC22-S03		Type: Single 2-port, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 3x2 mm or 1/8 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC22-S03-1		Type: Single 2-port, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 3x2 mm or 1/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
LVC22-S03-N		Type: Single 2-port, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 3x2 mm or 1/8 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC22-S03-N1		Type: Single 2-port, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 3x2 mm or 1/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
LVC22-S04		Type: Single 2-port, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 4x3 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC22-S04-1		Type: Single 2-port, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 4x3 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
LVC22-S04-N		Type: Single 2-port, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 4x3 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC22-S04-N1		Type: Single 2-port, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 4x3 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
LVC22-S05		Type: Single 2-port, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 3/16x1/8 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC22-S05-1		Type: Single 2-port, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 3/16x1/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
LVC22-S05-N		Type: Single 2-port, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 3/16x1/8 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC22-S05-N1		Type: Single 2-port, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 3/16x1/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
LVC22-S06		Type: Single 2-port, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 6x4 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC22-S06-1		Type: Single 2-port, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 6x4 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
LVC22-S06-N		Type: Single 2-port, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 6x4 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC22-S06-N1		Type: Single 2-port, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 6x4 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
LVC22-S07		Type: Single 2-port, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 1/4x5/32 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC22-S07-1		Type: Single 2-port, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 1/4x5/32 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
LVC22-S07-N		Type: Single 2-port, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 1/4x5/32 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC22-S07-N1		Type: Single 2-port, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 1/4x5/32 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
LVC30-S06		Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 6x4 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC30-S06-1		Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 6x4 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
LVC30-S06-2		Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 6x4 mm \| Option: Bypass \| Material: PFA body, PPS actuator, FKM
LVC30-S06-3		Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 6x4 mm \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, FKM
LVC30-S06-4		Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 6x4 mm \| Option: Indicator \| Material: PFA body, PPS actuator, FKM
LVC30-S06-N		Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 6x4 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC30-S06-N1		Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 6x4 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
LVC30-S06-N2		Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 6x4 mm \| Option: Bypass \| Material: PFA body, PPS actuator, EPDM
LVC30-S06-N3		Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 6x4 mm \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, EPDM
LVC30-S06-N4		Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 6x4 mm \| Option: Indicator \| Material: PFA body, PPS actuator, EPDM
LVC30-S07		Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 1/4x5/32 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC30-S07-1		Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 1/4x5/32 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
LVC30-S07-2		Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 1/4x5/32 in \| Option: Bypass \| Material: PFA body, PPS actuator, FKM
LVC30-S07-3		Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 1/4x5/32 in \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, FKM
LVC30-S07-4		Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 1/4x5/32 in \| Option: Indicator \| Material: PFA body, PPS actuator, FKM
LVC30-S07-N		Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 1/4x5/32 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC30-S07-N1		Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 1/4x5/32 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
LVC30-S07-N2		Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 1/4x5/32 in \| Option: Bypass \| Material: PFA body, PPS actuator, EPDM
LVC30-S07-N3		Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 1/4x5/32 in \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, EPDM
LVC30-S07-N4		Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 1/4x5/32 in \| Option: Indicator \| Material: PFA body, PPS actuator, EPDM
LVC30-S08		Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 8x6 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC30-S08-1		Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 8x6 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
LVC30-S08-2		Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 8x6 mm \| Option: Bypass \| Material: PFA body, PPS actuator, FKM
LVC30-S08-3		Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 8x6 mm \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, FKM
LVC30-S08-4		Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 8x6 mm \| Option: Indicator \| Material: PFA body, PPS actuator, FKM
LVC30-S08-N		Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 8x6 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC30-S08-N1		Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 8x6 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
LVC30-S08-N2		Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 8x6 mm \| Option: Bypass \| Material: PFA body, PPS actuator, EPDM
LVC30-S08-N3		Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 8x6 mm \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, EPDM
LVC30-S08-N4		Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 8x6 mm \| Option: Indicator \| Material: PFA body, PPS actuator, EPDM
LVC30-S10		Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 10x8 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC30-S10-1		Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 10x8 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
LVC30-S10-2		Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 10x8 mm \| Option: Bypass \| Material: PFA body, PPS actuator, FKM
LVC30-S10-3		Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 10x8 mm \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, FKM
LVC30-S10-4		Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 10x8 mm \| Option: Indicator \| Material: PFA body, PPS actuator, FKM
LVC30-S10-N		Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 10x8 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC30-S10-N1		Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 10x8 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
LVC30-S10-N2		Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 10x8 mm \| Option: Bypass \| Material: PFA body, PPS actuator, EPDM
LVC30-S10-N3		Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 10x8 mm \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, EPDM
LVC30-S10-N4		Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 10x8 mm \| Option: Indicator \| Material: PFA body, PPS actuator, EPDM
LVC30-S11		Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 3/8x1/4 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC30-S11-1		Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 3/8x1/4 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
LVC30-S11-2		Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 3/8x1/4 in \| Option: Bypass \| Material: PFA body, PPS actuator, FKM
LVC30-S11-3		Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 3/8x1/4 in \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, FKM
LVC30-S11-4		Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 3/8x1/4 in \| Option: Indicator \| Material: PFA body, PPS actuator, FKM
LVC30-S11-N		Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 3/8x1/4 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC30-S11-N1		Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 3/8x1/4 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
LVC30-S11-N2		Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 3/8x1/4 in \| Option: Bypass \| Material: PFA body, PPS actuator, EPDM
LVC30-S11-N3		Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 3/8x1/4 in \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, EPDM
LVC30-S11-N4		Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 3/8x1/4 in \| Option: Indicator \| Material: PFA body, PPS actuator, EPDM
LVC31-S06		Type: Single 2-port, N.O. \| Body class: 3 (orifice 8 mm) \| Tube: 6x4 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC31-S06-N		Type: Single 2-port, N.O. \| Body class: 3 (orifice 8 mm) \| Tube: 6x4 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC31-S07		Type: Single 2-port, N.O. \| Body class: 3 (orifice 8 mm) \| Tube: 1/4x5/32 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC31-S07-N		Type: Single 2-port, N.O. \| Body class: 3 (orifice 8 mm) \| Tube: 1/4x5/32 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC31-S08		Type: Single 2-port, N.O. \| Body class: 3 (orifice 8 mm) \| Tube: 8x6 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC31-S08-N		Type: Single 2-port, N.O. \| Body class: 3 (orifice 8 mm) \| Tube: 8x6 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC31-S10		Type: Single 2-port, N.O. \| Body class: 3 (orifice 8 mm) \| Tube: 10x8 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC31-S10-N		Type: Single 2-port, N.O. \| Body class: 3 (orifice 8 mm) \| Tube: 10x8 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC31-S11		Type: Single 2-port, N.O. \| Body class: 3 (orifice 8 mm) \| Tube: 3/8x1/4 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC31-S11-N		Type: Single 2-port, N.O. \| Body class: 3 (orifice 8 mm) \| Tube: 3/8x1/4 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC32-S06		Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 6x4 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC32-S06-1		Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 6x4 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
LVC32-S06-2		Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 6x4 mm \| Option: Bypass \| Material: PFA body, PPS actuator, FKM
LVC32-S06-3		Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 6x4 mm \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, FKM
LVC32-S06-N		Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 6x4 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC32-S06-N1		Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 6x4 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
LVC32-S06-N2		Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 6x4 mm \| Option: Bypass \| Material: PFA body, PPS actuator, EPDM
LVC32-S06-N3		Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 6x4 mm \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, EPDM
LVC32-S07		Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 1/4x5/32 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC32-S07-1		Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 1/4x5/32 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
LVC32-S07-2		Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 1/4x5/32 in \| Option: Bypass \| Material: PFA body, PPS actuator, FKM
LVC32-S07-3		Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 1/4x5/32 in \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, FKM
LVC32-S07-N		Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 1/4x5/32 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC32-S07-N1		Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 1/4x5/32 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
LVC32-S07-N2		Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 1/4x5/32 in \| Option: Bypass \| Material: PFA body, PPS actuator, EPDM
LVC32-S07-N3		Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 1/4x5/32 in \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, EPDM
LVC32-S08		Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 8x6 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC32-S08-1		Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 8x6 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
LVC32-S08-2		Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 8x6 mm \| Option: Bypass \| Material: PFA body, PPS actuator, FKM
LVC32-S08-3		Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 8x6 mm \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, FKM
LVC32-S08-N		Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 8x6 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC32-S08-N1		Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 8x6 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
LVC32-S08-N2		Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 8x6 mm \| Option: Bypass \| Material: PFA body, PPS actuator, EPDM
LVC32-S08-N3		Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 8x6 mm \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, EPDM
LVC32-S10		Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 10x8 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC32-S10-1		Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 10x8 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
LVC32-S10-2		Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 10x8 mm \| Option: Bypass \| Material: PFA body, PPS actuator, FKM
LVC32-S10-3		Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 10x8 mm \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, FKM
LVC32-S10-N		Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 10x8 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC32-S10-N1		Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 10x8 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
LVC32-S10-N2		Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 10x8 mm \| Option: Bypass \| Material: PFA body, PPS actuator, EPDM
LVC32-S10-N3		Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 10x8 mm \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, EPDM
LVC32-S11		Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 3/8x1/4 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC32-S11-1		Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 3/8x1/4 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
LVC32-S11-2		Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 3/8x1/4 in \| Option: Bypass \| Material: PFA body, PPS actuator, FKM
LVC32-S11-3		Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 3/8x1/4 in \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, FKM
LVC32-S11-N		Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 3/8x1/4 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC32-S11-N1		Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 3/8x1/4 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
LVC32-S11-N2		Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 3/8x1/4 in \| Option: Bypass \| Material: PFA body, PPS actuator, EPDM
LVC32-S11-N3		Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 3/8x1/4 in \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, EPDM
LVC40-S10		Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 10x8 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC40-S10-1		Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 10x8 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
LVC40-S10-2		Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 10x8 mm \| Option: Bypass \| Material: PFA body, PPS actuator, FKM
LVC40-S10-3		Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 10x8 mm \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, FKM
LVC40-S10-4		Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 10x8 mm \| Option: Indicator \| Material: PFA body, PPS actuator, FKM
LVC40-S10-N		Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 10x8 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC40-S10-N1		Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 10x8 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
LVC40-S10-N2		Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 10x8 mm \| Option: Bypass \| Material: PFA body, PPS actuator, EPDM
LVC40-S10-N3		Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 10x8 mm \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, EPDM
LVC40-S10-N4		Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 10x8 mm \| Option: Indicator \| Material: PFA body, PPS actuator, EPDM
LVC40-S10-F		Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 10x8 mm \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
LVC40-S11		Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 3/8x1/4 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC40-S11-1		Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 3/8x1/4 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
LVC40-S11-2		Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 3/8x1/4 in \| Option: Bypass \| Material: PFA body, PPS actuator, FKM
LVC40-S11-3		Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 3/8x1/4 in \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, FKM
LVC40-S11-4		Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 3/8x1/4 in \| Option: Indicator \| Material: PFA body, PPS actuator, FKM
LVC40-S11-N		Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 3/8x1/4 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC40-S11-N1		Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 3/8x1/4 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
LVC40-S11-N2		Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 3/8x1/4 in \| Option: Bypass \| Material: PFA body, PPS actuator, EPDM
LVC40-S11-N3		Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 3/8x1/4 in \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, EPDM
LVC40-S11-N4		Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 3/8x1/4 in \| Option: Indicator \| Material: PFA body, PPS actuator, EPDM
LVC40-S11-F		Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 3/8x1/4 in \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
LVC40-S12		Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 12x10 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC40-S12-1		Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 12x10 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
LVC40-S12-2		Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 12x10 mm \| Option: Bypass \| Material: PFA body, PPS actuator, FKM
LVC40-S12-3		Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 12x10 mm \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, FKM
LVC40-S12-4		Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 12x10 mm \| Option: Indicator \| Material: PFA body, PPS actuator, FKM
LVC40-S12-N		Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 12x10 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC40-S12-N1		Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 12x10 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
LVC40-S12-N2		Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 12x10 mm \| Option: Bypass \| Material: PFA body, PPS actuator, EPDM
LVC40-S12-N3		Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 12x10 mm \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, EPDM
LVC40-S12-N4		Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 12x10 mm \| Option: Indicator \| Material: PFA body, PPS actuator, EPDM
LVC40-S12-F		Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 12x10 mm \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
LVC40-S13		Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 1/2x3/8 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC40-S13-1		Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 1/2x3/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
LVC40-S13-2		Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 1/2x3/8 in \| Option: Bypass \| Material: PFA body, PPS actuator, FKM
LVC40-S13-3		Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 1/2x3/8 in \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, FKM
LVC40-S13-4		Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 1/2x3/8 in \| Option: Indicator \| Material: PFA body, PPS actuator, FKM
LVC40-S13-N		Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 1/2x3/8 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC40-S13-N1		Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 1/2x3/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
LVC40-S13-N2		Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 1/2x3/8 in \| Option: Bypass \| Material: PFA body, PPS actuator, EPDM
LVC40-S13-N3		Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 1/2x3/8 in \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, EPDM
LVC40-S13-N4		Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 1/2x3/8 in \| Option: Indicator \| Material: PFA body, PPS actuator, EPDM
LVC40-S13-F		Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 1/2x3/8 in \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
LVC41-S10		Type: Single 2-port, N.O. \| Body class: 4 (orifice 10 mm) \| Tube: 10x8 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC41-S10-N		Type: Single 2-port, N.O. \| Body class: 4 (orifice 10 mm) \| Tube: 10x8 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC41-S10-F		Type: Single 2-port, N.O. \| Body class: 4 (orifice 10 mm) \| Tube: 10x8 mm \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
LVC41-S11		Type: Single 2-port, N.O. \| Body class: 4 (orifice 10 mm) \| Tube: 3/8x1/4 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC41-S11-N		Type: Single 2-port, N.O. \| Body class: 4 (orifice 10 mm) \| Tube: 3/8x1/4 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC41-S11-F		Type: Single 2-port, N.O. \| Body class: 4 (orifice 10 mm) \| Tube: 3/8x1/4 in \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
LVC41-S12		Type: Single 2-port, N.O. \| Body class: 4 (orifice 10 mm) \| Tube: 12x10 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC41-S12-N		Type: Single 2-port, N.O. \| Body class: 4 (orifice 10 mm) \| Tube: 12x10 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC41-S12-F		Type: Single 2-port, N.O. \| Body class: 4 (orifice 10 mm) \| Tube: 12x10 mm \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
LVC41-S13		Type: Single 2-port, N.O. \| Body class: 4 (orifice 10 mm) \| Tube: 1/2x3/8 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC41-S13-N		Type: Single 2-port, N.O. \| Body class: 4 (orifice 10 mm) \| Tube: 1/2x3/8 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC41-S13-F		Type: Single 2-port, N.O. \| Body class: 4 (orifice 10 mm) \| Tube: 1/2x3/8 in \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
LVC42-S10		Type: Single 2-port, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 10x8 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC42-S10-1		Type: Single 2-port, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 10x8 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
LVC42-S10-2		Type: Single 2-port, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 10x8 mm \| Option: Bypass \| Material: PFA body, PPS actuator, FKM
LVC42-S10-3		Type: Single 2-port, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 10x8 mm \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, FKM
LVC42-S10-N		Type: Single 2-port, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 10x8 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC42-S10-N1		Type: Single 2-port, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 10x8 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
LVC42-S10-N2		Type: Single 2-port, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 10x8 mm \| Option: Bypass \| Material: PFA body, PPS actuator, EPDM
LVC42-S10-N3		Type: Single 2-port, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 10x8 mm \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, EPDM
LVC42-S10-F		Type: Single 2-port, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 10x8 mm \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
LVC42-S11		Type: Single 2-port, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 3/8x1/4 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC42-S11-1		Type: Single 2-port, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 3/8x1/4 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
LVC42-S11-2		Type: Single 2-port, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 3/8x1/4 in \| Option: Bypass \| Material: PFA body, PPS actuator, FKM
LVC42-S11-3		Type: Single 2-port, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 3/8x1/4 in \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, FKM
LVC42-S11-N		Type: Single 2-port, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 3/8x1/4 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC42-S11-N1		Type: Single 2-port, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 3/8x1/4 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
LVC42-S11-N2		Type: Single 2-port, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 3/8x1/4 in \| Option: Bypass \| Material: PFA body, PPS actuator, EPDM
LVC42-S11-N3		Type: Single 2-port, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 3/8x1/4 in \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, EPDM
LVC42-S11-F		Type: Single 2-port, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 3/8x1/4 in \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
LVC42-S12		Type: Single 2-port, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 12x10 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC42-S12-1		Type: Single 2-port, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 12x10 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
LVC42-S12-2		Type: Single 2-port, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 12x10 mm \| Option: Bypass \| Material: PFA body, PPS actuator, FKM
LVC42-S12-3		Type: Single 2-port, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 12x10 mm \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, FKM
LVC42-S12-N		Type: Single 2-port, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 12x10 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC42-S12-N1		Type: Single 2-port, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 12x10 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
LVC42-S12-N2		Type: Single 2-port, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 12x10 mm \| Option: Bypass \| Material: PFA body, PPS actuator, EPDM
LVC42-S12-N3		Type: Single 2-port, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 12x10 mm \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, EPDM
LVC42-S12-F		Type: Single 2-port, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 12x10 mm \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
LVC42-S13		Type: Single 2-port, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 1/2x3/8 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC42-S13-1		Type: Single 2-port, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 1/2x3/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
LVC42-S13-2		Type: Single 2-port, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 1/2x3/8 in \| Option: Bypass \| Material: PFA body, PPS actuator, FKM
LVC42-S13-3		Type: Single 2-port, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 1/2x3/8 in \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, FKM
LVC42-S13-N		Type: Single 2-port, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 1/2x3/8 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC42-S13-N1		Type: Single 2-port, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 1/2x3/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
LVC42-S13-N2		Type: Single 2-port, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 1/2x3/8 in \| Option: Bypass \| Material: PFA body, PPS actuator, EPDM
LVC42-S13-N3		Type: Single 2-port, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 1/2x3/8 in \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, EPDM
LVC42-S13-F		Type: Single 2-port, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 1/2x3/8 in \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
LVC50-S12		Type: Single 2-port, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 12x10 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC50-S12-1		Type: Single 2-port, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 12x10 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
LVC50-S12-2		Type: Single 2-port, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 12x10 mm \| Option: Bypass \| Material: PFA body, PPS actuator, FKM
LVC50-S12-3		Type: Single 2-port, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 12x10 mm \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, FKM
LVC50-S12-4		Type: Single 2-port, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 12x10 mm \| Option: Indicator \| Material: PFA body, PPS actuator, FKM
LVC50-S12-N		Type: Single 2-port, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 12x10 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC50-S12-N1		Type: Single 2-port, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 12x10 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
LVC50-S12-N2		Type: Single 2-port, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 12x10 mm \| Option: Bypass \| Material: PFA body, PPS actuator, EPDM
LVC50-S12-N3		Type: Single 2-port, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 12x10 mm \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, EPDM
LVC50-S12-N4		Type: Single 2-port, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 12x10 mm \| Option: Indicator \| Material: PFA body, PPS actuator, EPDM
LVC50-S12-F		Type: Single 2-port, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 12x10 mm \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
LVC50-S13		Type: Single 2-port, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 1/2x3/8 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC50-S13-1		Type: Single 2-port, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 1/2x3/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
LVC50-S13-2		Type: Single 2-port, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 1/2x3/8 in \| Option: Bypass \| Material: PFA body, PPS actuator, FKM
LVC50-S13-3		Type: Single 2-port, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 1/2x3/8 in \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, FKM
LVC50-S13-4		Type: Single 2-port, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 1/2x3/8 in \| Option: Indicator \| Material: PFA body, PPS actuator, FKM
LVC50-S13-N		Type: Single 2-port, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 1/2x3/8 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC50-S13-N1		Type: Single 2-port, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 1/2x3/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
LVC50-S13-N2		Type: Single 2-port, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 1/2x3/8 in \| Option: Bypass \| Material: PFA body, PPS actuator, EPDM
LVC50-S13-N3		Type: Single 2-port, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 1/2x3/8 in \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, EPDM
LVC50-S13-N4		Type: Single 2-port, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 1/2x3/8 in \| Option: Indicator \| Material: PFA body, PPS actuator, EPDM
LVC50-S13-F		Type: Single 2-port, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 1/2x3/8 in \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
LVC50-S19		Type: Single 2-port, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC50-S19-1		Type: Single 2-port, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
LVC50-S19-2		Type: Single 2-port, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Bypass \| Material: PFA body, PPS actuator, FKM
LVC50-S19-3		Type: Single 2-port, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, FKM
LVC50-S19-4		Type: Single 2-port, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Indicator \| Material: PFA body, PPS actuator, FKM
LVC50-S19-N		Type: Single 2-port, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC50-S19-N1		Type: Single 2-port, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
LVC50-S19-N2		Type: Single 2-port, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Bypass \| Material: PFA body, PPS actuator, EPDM
LVC50-S19-N3		Type: Single 2-port, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, EPDM
LVC50-S19-N4		Type: Single 2-port, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Indicator \| Material: PFA body, PPS actuator, EPDM
LVC50-S19-F		Type: Single 2-port, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
LVC51-S12		Type: Single 2-port, N.O. \| Body class: 5 (orifice 16 mm) \| Tube: 12x10 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC51-S12-N		Type: Single 2-port, N.O. \| Body class: 5 (orifice 16 mm) \| Tube: 12x10 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC51-S12-F		Type: Single 2-port, N.O. \| Body class: 5 (orifice 16 mm) \| Tube: 12x10 mm \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
LVC51-S13		Type: Single 2-port, N.O. \| Body class: 5 (orifice 16 mm) \| Tube: 1/2x3/8 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC51-S13-N		Type: Single 2-port, N.O. \| Body class: 5 (orifice 16 mm) \| Tube: 1/2x3/8 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC51-S13-F		Type: Single 2-port, N.O. \| Body class: 5 (orifice 16 mm) \| Tube: 1/2x3/8 in \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
LVC51-S19		Type: Single 2-port, N.O. \| Body class: 5 (orifice 16 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC51-S19-N		Type: Single 2-port, N.O. \| Body class: 5 (orifice 16 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC51-S19-F		Type: Single 2-port, N.O. \| Body class: 5 (orifice 16 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
LVC52-S12		Type: Single 2-port, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 12x10 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC52-S12-1		Type: Single 2-port, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 12x10 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
LVC52-S12-2		Type: Single 2-port, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 12x10 mm \| Option: Bypass \| Material: PFA body, PPS actuator, FKM
LVC52-S12-3		Type: Single 2-port, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 12x10 mm \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, FKM
LVC52-S12-N		Type: Single 2-port, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 12x10 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC52-S12-N1		Type: Single 2-port, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 12x10 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
LVC52-S12-N2		Type: Single 2-port, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 12x10 mm \| Option: Bypass \| Material: PFA body, PPS actuator, EPDM
LVC52-S12-N3		Type: Single 2-port, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 12x10 mm \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, EPDM
LVC52-S12-F		Type: Single 2-port, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 12x10 mm \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
LVC52-S13		Type: Single 2-port, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 1/2x3/8 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC52-S13-1		Type: Single 2-port, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 1/2x3/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
LVC52-S13-2		Type: Single 2-port, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 1/2x3/8 in \| Option: Bypass \| Material: PFA body, PPS actuator, FKM
LVC52-S13-3		Type: Single 2-port, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 1/2x3/8 in \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, FKM
LVC52-S13-N		Type: Single 2-port, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 1/2x3/8 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC52-S13-N1		Type: Single 2-port, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 1/2x3/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
LVC52-S13-N2		Type: Single 2-port, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 1/2x3/8 in \| Option: Bypass \| Material: PFA body, PPS actuator, EPDM
LVC52-S13-N3		Type: Single 2-port, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 1/2x3/8 in \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, EPDM
LVC52-S13-F		Type: Single 2-port, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 1/2x3/8 in \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
LVC52-S19		Type: Single 2-port, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC52-S19-1		Type: Single 2-port, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
LVC52-S19-2		Type: Single 2-port, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Bypass \| Material: PFA body, PPS actuator, FKM
LVC52-S19-3		Type: Single 2-port, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, FKM
LVC52-S19-N		Type: Single 2-port, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC52-S19-N1		Type: Single 2-port, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
LVC52-S19-N2		Type: Single 2-port, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Bypass \| Material: PFA body, PPS actuator, EPDM
LVC52-S19-N3		Type: Single 2-port, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, EPDM
LVC52-S19-F		Type: Single 2-port, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
LVC60-S19		Type: Single 2-port, N.C. \| Body class: 6 (orifice 22 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC60-S19-1		Type: Single 2-port, N.C. \| Body class: 6 (orifice 22 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
LVC60-S19-4		Type: Single 2-port, N.C. \| Body class: 6 (orifice 22 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Indicator \| Material: PFA body, PPS actuator, FKM
LVC60-S19-N		Type: Single 2-port, N.C. \| Body class: 6 (orifice 22 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC60-S19-N1		Type: Single 2-port, N.C. \| Body class: 6 (orifice 22 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
LVC60-S19-N4		Type: Single 2-port, N.C. \| Body class: 6 (orifice 22 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Indicator \| Material: PFA body, PPS actuator, EPDM
LVC60-S25		Type: Single 2-port, N.C. \| Body class: 6 (orifice 22 mm) \| Tube: 25x22 mm or 1x7/8 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC60-S25-1		Type: Single 2-port, N.C. \| Body class: 6 (orifice 22 mm) \| Tube: 25x22 mm or 1x7/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
LVC60-S25-4		Type: Single 2-port, N.C. \| Body class: 6 (orifice 22 mm) \| Tube: 25x22 mm or 1x7/8 in \| Option: Indicator \| Material: PFA body, PPS actuator, FKM
LVC60-S25-N		Type: Single 2-port, N.C. \| Body class: 6 (orifice 22 mm) \| Tube: 25x22 mm or 1x7/8 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC60-S25-N1		Type: Single 2-port, N.C. \| Body class: 6 (orifice 22 mm) \| Tube: 25x22 mm or 1x7/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
LVC60-S25-N4		Type: Single 2-port, N.C. \| Body class: 6 (orifice 22 mm) \| Tube: 25x22 mm or 1x7/8 in \| Option: Indicator \| Material: PFA body, PPS actuator, EPDM
LVC61-S19		Type: Single 2-port, N.O. \| Body class: 6 (orifice 22 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC61-S19-N		Type: Single 2-port, N.O. \| Body class: 6 (orifice 22 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC61-S25		Type: Single 2-port, N.O. \| Body class: 6 (orifice 22 mm) \| Tube: 25x22 mm or 1x7/8 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC61-S25-N		Type: Single 2-port, N.O. \| Body class: 6 (orifice 22 mm) \| Tube: 25x22 mm or 1x7/8 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC62-S19		Type: Single 2-port, Double acting \| Body class: 6 (orifice 22 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC62-S19-1		Type: Single 2-port, Double acting \| Body class: 6 (orifice 22 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
LVC62-S19-N		Type: Single 2-port, Double acting \| Body class: 6 (orifice 22 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC62-S19-N1		Type: Single 2-port, Double acting \| Body class: 6 (orifice 22 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
LVC62-S25		Type: Single 2-port, Double acting \| Body class: 6 (orifice 22 mm) \| Tube: 25x22 mm or 1x7/8 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC62-S25-1		Type: Single 2-port, Double acting \| Body class: 6 (orifice 22 mm) \| Tube: 25x22 mm or 1x7/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
LVC62-S25-N		Type: Single 2-port, Double acting \| Body class: 6 (orifice 22 mm) \| Tube: 25x22 mm or 1x7/8 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC62-S25-N1		Type: Single 2-port, Double acting \| Body class: 6 (orifice 22 mm) \| Tube: 25x22 mm or 1x7/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
LVC200-S03		Type: Single 3-port, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 3x2 mm or 1/8 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC200-S04		Type: Single 3-port, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 4x3 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC200-S05		Type: Single 3-port, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 3/16x1/8 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC200-S06		Type: Single 3-port, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 6x4 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC200-S07		Type: Single 3-port, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 1/4x5/32 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC20A-S03		Type: Manifold valve, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 3x2 mm or 1/8 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC20A-S03-1		Type: Manifold valve, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 3x2 mm or 1/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
LVC20A-S03-4		Type: Manifold valve, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 3x2 mm or 1/8 in \| Option: Indicator \| Material: PFA body, PPS actuator, FKM
LVC20A-S03-N		Type: Manifold valve, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 3x2 mm or 1/8 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC20A-S03-N1		Type: Manifold valve, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 3x2 mm or 1/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
LVC20A-S03-N4		Type: Manifold valve, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 3x2 mm or 1/8 in \| Option: Indicator \| Material: PFA body, PPS actuator, EPDM
LVC20A-S04		Type: Manifold valve, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 4x3 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC20A-S04-1		Type: Manifold valve, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 4x3 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
LVC20A-S04-4		Type: Manifold valve, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 4x3 mm \| Option: Indicator \| Material: PFA body, PPS actuator, FKM
LVC20A-S04-N		Type: Manifold valve, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 4x3 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC20A-S04-N1		Type: Manifold valve, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 4x3 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
LVC20A-S04-N4		Type: Manifold valve, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 4x3 mm \| Option: Indicator \| Material: PFA body, PPS actuator, EPDM
LVC20A-S05		Type: Manifold valve, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 3/16x1/8 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC20A-S05-1		Type: Manifold valve, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 3/16x1/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
LVC20A-S05-4		Type: Manifold valve, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 3/16x1/8 in \| Option: Indicator \| Material: PFA body, PPS actuator, FKM
LVC20A-S05-N		Type: Manifold valve, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 3/16x1/8 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC20A-S05-N1		Type: Manifold valve, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 3/16x1/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
LVC20A-S05-N4		Type: Manifold valve, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 3/16x1/8 in \| Option: Indicator \| Material: PFA body, PPS actuator, EPDM
LVC20A-S06		Type: Manifold valve, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 6x4 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC20A-S06-1		Type: Manifold valve, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 6x4 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
LVC20A-S06-4		Type: Manifold valve, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 6x4 mm \| Option: Indicator \| Material: PFA body, PPS actuator, FKM
LVC20A-S06-N		Type: Manifold valve, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 6x4 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC20A-S06-N1		Type: Manifold valve, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 6x4 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
LVC20A-S06-N4		Type: Manifold valve, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 6x4 mm \| Option: Indicator \| Material: PFA body, PPS actuator, EPDM
LVC20A-S07		Type: Manifold valve, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 1/4x5/32 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC20A-S07-1		Type: Manifold valve, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 1/4x5/32 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
LVC20A-S07-4		Type: Manifold valve, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 1/4x5/32 in \| Option: Indicator \| Material: PFA body, PPS actuator, FKM
LVC20A-S07-N		Type: Manifold valve, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 1/4x5/32 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC20A-S07-N1		Type: Manifold valve, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 1/4x5/32 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
LVC20A-S07-N4		Type: Manifold valve, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 1/4x5/32 in \| Option: Indicator \| Material: PFA body, PPS actuator, EPDM
LVC21A-S03		Type: Manifold valve, N.O. \| Body class: 2 (orifice 4 mm) \| Tube: 3x2 mm or 1/8 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC21A-S03-N		Type: Manifold valve, N.O. \| Body class: 2 (orifice 4 mm) \| Tube: 3x2 mm or 1/8 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC21A-S04		Type: Manifold valve, N.O. \| Body class: 2 (orifice 4 mm) \| Tube: 4x3 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC21A-S04-N		Type: Manifold valve, N.O. \| Body class: 2 (orifice 4 mm) \| Tube: 4x3 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC21A-S05		Type: Manifold valve, N.O. \| Body class: 2 (orifice 4 mm) \| Tube: 3/16x1/8 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC21A-S05-N		Type: Manifold valve, N.O. \| Body class: 2 (orifice 4 mm) \| Tube: 3/16x1/8 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC21A-S06		Type: Manifold valve, N.O. \| Body class: 2 (orifice 4 mm) \| Tube: 6x4 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC21A-S06-N		Type: Manifold valve, N.O. \| Body class: 2 (orifice 4 mm) \| Tube: 6x4 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC21A-S07		Type: Manifold valve, N.O. \| Body class: 2 (orifice 4 mm) \| Tube: 1/4x5/32 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC21A-S07-N		Type: Manifold valve, N.O. \| Body class: 2 (orifice 4 mm) \| Tube: 1/4x5/32 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC22A-S03		Type: Manifold valve, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 3x2 mm or 1/8 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC22A-S03-1		Type: Manifold valve, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 3x2 mm or 1/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
LVC22A-S03-N		Type: Manifold valve, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 3x2 mm or 1/8 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC22A-S03-N1		Type: Manifold valve, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 3x2 mm or 1/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
LVC22A-S04		Type: Manifold valve, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 4x3 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC22A-S04-1		Type: Manifold valve, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 4x3 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
LVC22A-S04-N		Type: Manifold valve, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 4x3 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC22A-S04-N1		Type: Manifold valve, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 4x3 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
LVC22A-S05		Type: Manifold valve, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 3/16x1/8 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC22A-S05-1		Type: Manifold valve, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 3/16x1/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
LVC22A-S05-N		Type: Manifold valve, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 3/16x1/8 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC22A-S05-N1		Type: Manifold valve, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 3/16x1/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
LVC22A-S06		Type: Manifold valve, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 6x4 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC22A-S06-1		Type: Manifold valve, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 6x4 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
LVC22A-S06-N		Type: Manifold valve, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 6x4 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC22A-S06-N1		Type: Manifold valve, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 6x4 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
LVC22A-S07		Type: Manifold valve, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 1/4x5/32 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC22A-S07-1		Type: Manifold valve, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 1/4x5/32 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
LVC22A-S07-N		Type: Manifold valve, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 1/4x5/32 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC22A-S07-N1		Type: Manifold valve, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 1/4x5/32 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
LVC30A-S06		Type: Manifold valve, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 6x4 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC30A-S06-1		Type: Manifold valve, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 6x4 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
LVC30A-S06-4		Type: Manifold valve, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 6x4 mm \| Option: Indicator \| Material: PFA body, PPS actuator, FKM
LVC30A-S06-N		Type: Manifold valve, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 6x4 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC30A-S06-N1		Type: Manifold valve, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 6x4 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
LVC30A-S06-N4		Type: Manifold valve, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 6x4 mm \| Option: Indicator \| Material: PFA body, PPS actuator, EPDM
LVC30A-S07		Type: Manifold valve, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 1/4x5/32 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC30A-S07-1		Type: Manifold valve, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 1/4x5/32 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
LVC30A-S07-4		Type: Manifold valve, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 1/4x5/32 in \| Option: Indicator \| Material: PFA body, PPS actuator, FKM
LVC30A-S07-N		Type: Manifold valve, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 1/4x5/32 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC30A-S07-N1		Type: Manifold valve, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 1/4x5/32 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
LVC30A-S07-N4		Type: Manifold valve, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 1/4x5/32 in \| Option: Indicator \| Material: PFA body, PPS actuator, EPDM
LVC30A-S08		Type: Manifold valve, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 8x6 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC30A-S08-1		Type: Manifold valve, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 8x6 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
LVC30A-S08-4		Type: Manifold valve, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 8x6 mm \| Option: Indicator \| Material: PFA body, PPS actuator, FKM
LVC30A-S08-N		Type: Manifold valve, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 8x6 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC30A-S08-N1		Type: Manifold valve, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 8x6 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
LVC30A-S08-N4		Type: Manifold valve, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 8x6 mm \| Option: Indicator \| Material: PFA body, PPS actuator, EPDM
LVC30A-S10		Type: Manifold valve, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 10x8 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC30A-S10-1		Type: Manifold valve, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 10x8 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
LVC30A-S10-4		Type: Manifold valve, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 10x8 mm \| Option: Indicator \| Material: PFA body, PPS actuator, FKM
LVC30A-S10-N		Type: Manifold valve, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 10x8 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC30A-S10-N1		Type: Manifold valve, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 10x8 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
LVC30A-S10-N4		Type: Manifold valve, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 10x8 mm \| Option: Indicator \| Material: PFA body, PPS actuator, EPDM
LVC30A-S11		Type: Manifold valve, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 3/8x1/4 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC30A-S11-1		Type: Manifold valve, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 3/8x1/4 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
LVC30A-S11-4		Type: Manifold valve, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 3/8x1/4 in \| Option: Indicator \| Material: PFA body, PPS actuator, FKM
LVC30A-S11-N		Type: Manifold valve, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 3/8x1/4 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC30A-S11-N1		Type: Manifold valve, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 3/8x1/4 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
LVC30A-S11-N4		Type: Manifold valve, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 3/8x1/4 in \| Option: Indicator \| Material: PFA body, PPS actuator, EPDM
LVC31A-S06		Type: Manifold valve, N.O. \| Body class: 3 (orifice 8 mm) \| Tube: 6x4 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC31A-S06-N		Type: Manifold valve, N.O. \| Body class: 3 (orifice 8 mm) \| Tube: 6x4 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC31A-S07		Type: Manifold valve, N.O. \| Body class: 3 (orifice 8 mm) \| Tube: 1/4x5/32 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC31A-S07-N		Type: Manifold valve, N.O. \| Body class: 3 (orifice 8 mm) \| Tube: 1/4x5/32 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC31A-S08		Type: Manifold valve, N.O. \| Body class: 3 (orifice 8 mm) \| Tube: 8x6 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC31A-S08-N		Type: Manifold valve, N.O. \| Body class: 3 (orifice 8 mm) \| Tube: 8x6 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC31A-S10		Type: Manifold valve, N.O. \| Body class: 3 (orifice 8 mm) \| Tube: 10x8 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC31A-S10-N		Type: Manifold valve, N.O. \| Body class: 3 (orifice 8 mm) \| Tube: 10x8 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC31A-S11		Type: Manifold valve, N.O. \| Body class: 3 (orifice 8 mm) \| Tube: 3/8x1/4 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC31A-S11-N		Type: Manifold valve, N.O. \| Body class: 3 (orifice 8 mm) \| Tube: 3/8x1/4 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC32A-S06		Type: Manifold valve, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 6x4 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC32A-S06-1		Type: Manifold valve, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 6x4 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
LVC32A-S06-N		Type: Manifold valve, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 6x4 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC32A-S06-N1		Type: Manifold valve, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 6x4 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
LVC32A-S07		Type: Manifold valve, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 1/4x5/32 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC32A-S07-1		Type: Manifold valve, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 1/4x5/32 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
LVC32A-S07-N		Type: Manifold valve, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 1/4x5/32 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC32A-S07-N1		Type: Manifold valve, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 1/4x5/32 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
LVC32A-S08		Type: Manifold valve, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 8x6 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC32A-S08-1		Type: Manifold valve, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 8x6 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
LVC32A-S08-N		Type: Manifold valve, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 8x6 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC32A-S08-N1		Type: Manifold valve, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 8x6 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
LVC32A-S10		Type: Manifold valve, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 10x8 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC32A-S10-1		Type: Manifold valve, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 10x8 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
LVC32A-S10-N		Type: Manifold valve, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 10x8 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC32A-S10-N1		Type: Manifold valve, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 10x8 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
LVC32A-S11		Type: Manifold valve, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 3/8x1/4 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC32A-S11-1		Type: Manifold valve, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 3/8x1/4 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
LVC32A-S11-N		Type: Manifold valve, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 3/8x1/4 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC32A-S11-N1		Type: Manifold valve, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 3/8x1/4 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
LVC40A-S10		Type: Manifold valve, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 10x8 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC40A-S10-1		Type: Manifold valve, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 10x8 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
LVC40A-S10-4		Type: Manifold valve, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 10x8 mm \| Option: Indicator \| Material: PFA body, PPS actuator, FKM
LVC40A-S10-N		Type: Manifold valve, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 10x8 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC40A-S10-N1		Type: Manifold valve, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 10x8 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
LVC40A-S10-N4		Type: Manifold valve, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 10x8 mm \| Option: Indicator \| Material: PFA body, PPS actuator, EPDM
LVC40A-S10-F		Type: Manifold valve, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 10x8 mm \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
LVC40A-S11		Type: Manifold valve, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 3/8x1/4 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC40A-S11-1		Type: Manifold valve, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 3/8x1/4 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
LVC40A-S11-4		Type: Manifold valve, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 3/8x1/4 in \| Option: Indicator \| Material: PFA body, PPS actuator, FKM
LVC40A-S11-N		Type: Manifold valve, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 3/8x1/4 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC40A-S11-N1		Type: Manifold valve, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 3/8x1/4 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
LVC40A-S11-N4		Type: Manifold valve, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 3/8x1/4 in \| Option: Indicator \| Material: PFA body, PPS actuator, EPDM
LVC40A-S11-F		Type: Manifold valve, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 3/8x1/4 in \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
LVC40A-S12		Type: Manifold valve, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 12x10 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC40A-S12-1		Type: Manifold valve, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 12x10 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
LVC40A-S12-4		Type: Manifold valve, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 12x10 mm \| Option: Indicator \| Material: PFA body, PPS actuator, FKM
LVC40A-S12-N		Type: Manifold valve, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 12x10 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC40A-S12-N1		Type: Manifold valve, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 12x10 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
LVC40A-S12-N4		Type: Manifold valve, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 12x10 mm \| Option: Indicator \| Material: PFA body, PPS actuator, EPDM
LVC40A-S12-F		Type: Manifold valve, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 12x10 mm \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
LVC40A-S13		Type: Manifold valve, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 1/2x3/8 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC40A-S13-1		Type: Manifold valve, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 1/2x3/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
LVC40A-S13-4		Type: Manifold valve, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 1/2x3/8 in \| Option: Indicator \| Material: PFA body, PPS actuator, FKM
LVC40A-S13-N		Type: Manifold valve, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 1/2x3/8 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC40A-S13-N1		Type: Manifold valve, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 1/2x3/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
LVC40A-S13-N4		Type: Manifold valve, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 1/2x3/8 in \| Option: Indicator \| Material: PFA body, PPS actuator, EPDM
LVC40A-S13-F		Type: Manifold valve, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 1/2x3/8 in \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
LVC41A-S10		Type: Manifold valve, N.O. \| Body class: 4 (orifice 10 mm) \| Tube: 10x8 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC41A-S10-N		Type: Manifold valve, N.O. \| Body class: 4 (orifice 10 mm) \| Tube: 10x8 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC41A-S10-F		Type: Manifold valve, N.O. \| Body class: 4 (orifice 10 mm) \| Tube: 10x8 mm \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
LVC41A-S11		Type: Manifold valve, N.O. \| Body class: 4 (orifice 10 mm) \| Tube: 3/8x1/4 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC41A-S11-N		Type: Manifold valve, N.O. \| Body class: 4 (orifice 10 mm) \| Tube: 3/8x1/4 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC41A-S11-F		Type: Manifold valve, N.O. \| Body class: 4 (orifice 10 mm) \| Tube: 3/8x1/4 in \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
LVC41A-S12		Type: Manifold valve, N.O. \| Body class: 4 (orifice 10 mm) \| Tube: 12x10 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC41A-S12-N		Type: Manifold valve, N.O. \| Body class: 4 (orifice 10 mm) \| Tube: 12x10 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC41A-S12-F		Type: Manifold valve, N.O. \| Body class: 4 (orifice 10 mm) \| Tube: 12x10 mm \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
LVC41A-S13		Type: Manifold valve, N.O. \| Body class: 4 (orifice 10 mm) \| Tube: 1/2x3/8 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC41A-S13-N		Type: Manifold valve, N.O. \| Body class: 4 (orifice 10 mm) \| Tube: 1/2x3/8 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC41A-S13-F		Type: Manifold valve, N.O. \| Body class: 4 (orifice 10 mm) \| Tube: 1/2x3/8 in \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
LVC42A-S10		Type: Manifold valve, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 10x8 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC42A-S10-1		Type: Manifold valve, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 10x8 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
LVC42A-S10-N		Type: Manifold valve, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 10x8 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC42A-S10-N1		Type: Manifold valve, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 10x8 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
LVC42A-S10-F		Type: Manifold valve, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 10x8 mm \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
LVC42A-S11		Type: Manifold valve, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 3/8x1/4 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC42A-S11-1		Type: Manifold valve, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 3/8x1/4 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
LVC42A-S11-N		Type: Manifold valve, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 3/8x1/4 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC42A-S11-N1		Type: Manifold valve, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 3/8x1/4 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
LVC42A-S11-F		Type: Manifold valve, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 3/8x1/4 in \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
LVC42A-S12		Type: Manifold valve, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 12x10 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC42A-S12-1		Type: Manifold valve, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 12x10 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
LVC42A-S12-N		Type: Manifold valve, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 12x10 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC42A-S12-N1		Type: Manifold valve, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 12x10 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
LVC42A-S12-F		Type: Manifold valve, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 12x10 mm \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
LVC42A-S13		Type: Manifold valve, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 1/2x3/8 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC42A-S13-1		Type: Manifold valve, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 1/2x3/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
LVC42A-S13-N		Type: Manifold valve, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 1/2x3/8 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC42A-S13-N1		Type: Manifold valve, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 1/2x3/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
LVC42A-S13-F		Type: Manifold valve, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 1/2x3/8 in \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
LVC50A-S12		Type: Manifold valve, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 12x10 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC50A-S12-1		Type: Manifold valve, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 12x10 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
LVC50A-S12-4		Type: Manifold valve, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 12x10 mm \| Option: Indicator \| Material: PFA body, PPS actuator, FKM
LVC50A-S12-N		Type: Manifold valve, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 12x10 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC50A-S12-N1		Type: Manifold valve, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 12x10 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
LVC50A-S12-N4		Type: Manifold valve, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 12x10 mm \| Option: Indicator \| Material: PFA body, PPS actuator, EPDM
LVC50A-S12-F		Type: Manifold valve, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 12x10 mm \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
LVC50A-S13		Type: Manifold valve, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 1/2x3/8 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC50A-S13-1		Type: Manifold valve, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 1/2x3/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
LVC50A-S13-4		Type: Manifold valve, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 1/2x3/8 in \| Option: Indicator \| Material: PFA body, PPS actuator, FKM
LVC50A-S13-N		Type: Manifold valve, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 1/2x3/8 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC50A-S13-N1		Type: Manifold valve, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 1/2x3/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
LVC50A-S13-N4		Type: Manifold valve, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 1/2x3/8 in \| Option: Indicator \| Material: PFA body, PPS actuator, EPDM
LVC50A-S13-F		Type: Manifold valve, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 1/2x3/8 in \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
LVC50A-S19		Type: Manifold valve, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC50A-S19-1		Type: Manifold valve, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
LVC50A-S19-4		Type: Manifold valve, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Indicator \| Material: PFA body, PPS actuator, FKM
LVC50A-S19-N		Type: Manifold valve, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC50A-S19-N1		Type: Manifold valve, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
LVC50A-S19-N4		Type: Manifold valve, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Indicator \| Material: PFA body, PPS actuator, EPDM
LVC50A-S19-F		Type: Manifold valve, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
LVC51A-S12		Type: Manifold valve, N.O. \| Body class: 5 (orifice 16 mm) \| Tube: 12x10 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC51A-S12-N		Type: Manifold valve, N.O. \| Body class: 5 (orifice 16 mm) \| Tube: 12x10 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC51A-S12-F		Type: Manifold valve, N.O. \| Body class: 5 (orifice 16 mm) \| Tube: 12x10 mm \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
LVC51A-S13		Type: Manifold valve, N.O. \| Body class: 5 (orifice 16 mm) \| Tube: 1/2x3/8 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC51A-S13-N		Type: Manifold valve, N.O. \| Body class: 5 (orifice 16 mm) \| Tube: 1/2x3/8 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC51A-S13-F		Type: Manifold valve, N.O. \| Body class: 5 (orifice 16 mm) \| Tube: 1/2x3/8 in \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
LVC51A-S19		Type: Manifold valve, N.O. \| Body class: 5 (orifice 16 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC51A-S19-N		Type: Manifold valve, N.O. \| Body class: 5 (orifice 16 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC51A-S19-F		Type: Manifold valve, N.O. \| Body class: 5 (orifice 16 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
LVC52A-S12		Type: Manifold valve, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 12x10 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC52A-S12-1		Type: Manifold valve, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 12x10 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
LVC52A-S12-N		Type: Manifold valve, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 12x10 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC52A-S12-N1		Type: Manifold valve, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 12x10 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
LVC52A-S12-F		Type: Manifold valve, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 12x10 mm \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
LVC52A-S13		Type: Manifold valve, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 1/2x3/8 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC52A-S13-1		Type: Manifold valve, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 1/2x3/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
LVC52A-S13-N		Type: Manifold valve, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 1/2x3/8 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC52A-S13-N1		Type: Manifold valve, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 1/2x3/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
LVC52A-S13-F		Type: Manifold valve, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 1/2x3/8 in \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
LVC52A-S19		Type: Manifold valve, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
LVC52A-S19-1		Type: Manifold valve, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
LVC52A-S19-N		Type: Manifold valve, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
LVC52A-S19-N1		Type: Manifold valve, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
LVC52A-S19-F		Type: Manifold valve, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
LLC2A-02-S06		Type: Manifold base, 2 stations \| Body class: 2 \| Tube: 6x4 mm (P port) \| Option: Stacking type \| Material: PFA manifold
LLC2A-02-S07		Type: Manifold base, 2 stations \| Body class: 2 \| Tube: 1/4x5/32 in (P port) \| Option: Stacking type \| Material: PFA manifold
LLC2A-02-S08		Type: Manifold base, 2 stations \| Body class: 2 \| Tube: 8x6 mm (P port) \| Option: Stacking type \| Material: PFA manifold
LLC2A-02-S10		Type: Manifold base, 2 stations \| Body class: 2 \| Tube: 10x8 mm (P port) \| Option: Stacking type \| Material: PFA manifold
LLC2A-02-S11		Type: Manifold base, 2 stations \| Body class: 2 \| Tube: 3/8x1/4 in (P port) \| Option: Stacking type \| Material: PFA manifold
LLC2A-03-S06		Type: Manifold base, 3 stations \| Body class: 2 \| Tube: 6x4 mm (P port) \| Option: Stacking type \| Material: PFA manifold
LLC2A-03-S07		Type: Manifold base, 3 stations \| Body class: 2 \| Tube: 1/4x5/32 in (P port) \| Option: Stacking type \| Material: PFA manifold
LLC2A-03-S08		Type: Manifold base, 3 stations \| Body class: 2 \| Tube: 8x6 mm (P port) \| Option: Stacking type \| Material: PFA manifold
LLC2A-03-S10		Type: Manifold base, 3 stations \| Body class: 2 \| Tube: 10x8 mm (P port) \| Option: Stacking type \| Material: PFA manifold
LLC2A-03-S11		Type: Manifold base, 3 stations \| Body class: 2 \| Tube: 3/8x1/4 in (P port) \| Option: Stacking type \| Material: PFA manifold
LLC2A-04-S06		Type: Manifold base, 4 stations \| Body class: 2 \| Tube: 6x4 mm (P port) \| Option: Stacking type \| Material: PFA manifold
LLC2A-04-S07		Type: Manifold base, 4 stations \| Body class: 2 \| Tube: 1/4x5/32 in (P port) \| Option: Stacking type \| Material: PFA manifold
LLC2A-04-S08		Type: Manifold base, 4 stations \| Body class: 2 \| Tube: 8x6 mm (P port) \| Option: Stacking type \| Material: PFA manifold
LLC2A-04-S10		Type: Manifold base, 4 stations \| Body class: 2 \| Tube: 10x8 mm (P port) \| Option: Stacking type \| Material: PFA manifold
LLC2A-04-S11		Type: Manifold base, 4 stations \| Body class: 2 \| Tube: 3/8x1/4 in (P port) \| Option: Stacking type \| Material: PFA manifold
LLC2A-05-S06		Type: Manifold base, 5 stations \| Body class: 2 \| Tube: 6x4 mm (P port) \| Option: Stacking type \| Material: PFA manifold
LLC2A-05-S07		Type: Manifold base, 5 stations \| Body class: 2 \| Tube: 1/4x5/32 in (P port) \| Option: Stacking type \| Material: PFA manifold
LLC2A-05-S08		Type: Manifold base, 5 stations \| Body class: 2 \| Tube: 8x6 mm (P port) \| Option: Stacking type \| Material: PFA manifold
LLC2A-05-S10		Type: Manifold base, 5 stations \| Body class: 2 \| Tube: 10x8 mm (P port) \| Option: Stacking type \| Material: PFA manifold
LLC2A-05-S11		Type: Manifold base, 5 stations \| Body class: 2 \| Tube: 3/8x1/4 in (P port) \| Option: Stacking type \| Material: PFA manifold
LLC3A-02-S10		Type: Manifold base, 2 stations \| Body class: 3 \| Tube: 10x8 mm (P port) \| Option: Stacking type \| Material: PFA manifold
LLC3A-02-S11		Type: Manifold base, 2 stations \| Body class: 3 \| Tube: 3/8x1/4 in (P port) \| Option: Stacking type \| Material: PFA manifold
LLC3A-02-S12		Type: Manifold base, 2 stations \| Body class: 3 \| Tube: 12x10 mm (P port) \| Option: Stacking type \| Material: PFA manifold
LLC3A-02-S13		Type: Manifold base, 2 stations \| Body class: 3 \| Tube: 1/2x3/8 in (P port) \| Option: Stacking type \| Material: PFA manifold
LLC3A-03-S10		Type: Manifold base, 3 stations \| Body class: 3 \| Tube: 10x8 mm (P port) \| Option: Stacking type \| Material: PFA manifold
LLC3A-03-S11		Type: Manifold base, 3 stations \| Body class: 3 \| Tube: 3/8x1/4 in (P port) \| Option: Stacking type \| Material: PFA manifold
LLC3A-03-S12		Type: Manifold base, 3 stations \| Body class: 3 \| Tube: 12x10 mm (P port) \| Option: Stacking type \| Material: PFA manifold
LLC3A-03-S13		Type: Manifold base, 3 stations \| Body class: 3 \| Tube: 1/2x3/8 in (P port) \| Option: Stacking type \| Material: PFA manifold
LLC3A-04-S10		Type: Manifold base, 4 stations \| Body class: 3 \| Tube: 10x8 mm (P port) \| Option: Stacking type \| Material: PFA manifold
LLC3A-04-S11		Type: Manifold base, 4 stations \| Body class: 3 \| Tube: 3/8x1/4 in (P port) \| Option: Stacking type \| Material: PFA manifold
LLC3A-04-S12		Type: Manifold base, 4 stations \| Body class: 3 \| Tube: 12x10 mm (P port) \| Option: Stacking type \| Material: PFA manifold
LLC3A-04-S13		Type: Manifold base, 4 stations \| Body class: 3 \| Tube: 1/2x3/8 in (P port) \| Option: Stacking type \| Material: PFA manifold
LLC3A-05-S10		Type: Manifold base, 5 stations \| Body class: 3 \| Tube: 10x8 mm (P port) \| Option: Stacking type \| Material: PFA manifold
LLC3A-05-S11		Type: Manifold base, 5 stations \| Body class: 3 \| Tube: 3/8x1/4 in (P port) \| Option: Stacking type \| Material: PFA manifold
LLC3A-05-S12		Type: Manifold base, 5 stations \| Body class: 3 \| Tube: 12x10 mm (P port) \| Option: Stacking type \| Material: PFA manifold
LLC3A-05-S13		Type: Manifold base, 5 stations \| Body class: 3 \| Tube: 1/2x3/8 in (P port) \| Option: Stacking type \| Material: PFA manifold
LLC4A-02-S12		Type: Manifold base, 2 stations \| Body class: 4 \| Tube: 12x10 mm (P port) \| Option: Stacking type \| Material: PFA manifold
LLC4A-02-S13		Type: Manifold base, 2 stations \| Body class: 4 \| Tube: 1/2x3/8 in (P port) \| Option: Stacking type \| Material: PFA manifold
LLC4A-02-S19		Type: Manifold base, 2 stations \| Body class: 4 \| Tube: 19x16 mm or 3/4x5/8 in (P port) \| Option: Stacking type \| Material: PFA manifold
LLC4A-03-S12		Type: Manifold base, 3 stations \| Body class: 4 \| Tube: 12x10 mm (P port) \| Option: Stacking type \| Material: PFA manifold
LLC4A-03-S13		Type: Manifold base, 3 stations \| Body class: 4 \| Tube: 1/2x3/8 in (P port) \| Option: Stacking type \| Material: PFA manifold
LLC4A-03-S19		Type: Manifold base, 3 stations \| Body class: 4 \| Tube: 19x16 mm or 3/4x5/8 in (P port) \| Option: Stacking type \| Material: PFA manifold
LLC4A-04-S12		Type: Manifold base, 4 stations \| Body class: 4 \| Tube: 12x10 mm (P port) \| Option: Stacking type \| Material: PFA manifold
LLC4A-04-S13		Type: Manifold base, 4 stations \| Body class: 4 \| Tube: 1/2x3/8 in (P port) \| Option: Stacking type \| Material: PFA manifold
LLC4A-04-S19		Type: Manifold base, 4 stations \| Body class: 4 \| Tube: 19x16 mm or 3/4x5/8 in (P port) \| Option: Stacking type \| Material: PFA manifold
LLC4A-05-S12		Type: Manifold base, 5 stations \| Body class: 4 \| Tube: 12x10 mm (P port) \| Option: Stacking type \| Material: PFA manifold
LLC4A-05-S13		Type: Manifold base, 5 stations \| Body class: 4 \| Tube: 1/2x3/8 in (P port) \| Option: Stacking type \| Material: PFA manifold
LLC4A-05-S19		Type: Manifold base, 5 stations \| Body class: 4 \| Tube: 19x16 mm or 3/4x5/8 in (P port) \| Option: Stacking type \| Material: PFA manifold
LLC5A-02-S12		Type: Manifold base, 2 stations \| Body class: 5 \| Tube: 12x10 mm (P port) \| Option: Stacking type \| Material: PFA manifold
LLC5A-02-S13		Type: Manifold base, 2 stations \| Body class: 5 \| Tube: 1/2x3/8 in (P port) \| Option: Stacking type \| Material: PFA manifold
LLC5A-02-S19		Type: Manifold base, 2 stations \| Body class: 5 \| Tube: 19x16 mm or 3/4x5/8 in (P port) \| Option: Stacking type \| Material: PFA manifold
LLC5A-03-S12		Type: Manifold base, 3 stations \| Body class: 5 \| Tube: 12x10 mm (P port) \| Option: Stacking type \| Material: PFA manifold
LLC5A-03-S13		Type: Manifold base, 3 stations \| Body class: 5 \| Tube: 1/2x3/8 in (P port) \| Option: Stacking type \| Material: PFA manifold
LLC5A-03-S19		Type: Manifold base, 3 stations \| Body class: 5 \| Tube: 19x16 mm or 3/4x5/8 in (P port) \| Option: Stacking type \| Material: PFA manifold
LLC5A-04-S12		Type: Manifold base, 4 stations \| Body class: 5 \| Tube: 12x10 mm (P port) \| Option: Stacking type \| Material: PFA manifold
LLC5A-04-S13		Type: Manifold base, 4 stations \| Body class: 5 \| Tube: 1/2x3/8 in (P port) \| Option: Stacking type \| Material: PFA manifold
LLC5A-04-S19		Type: Manifold base, 4 stations \| Body class: 5 \| Tube: 19x16 mm or 3/4x5/8 in (P port) \| Option: Stacking type \| Material: PFA manifold
LLC5A-05-S12		Type: Manifold base, 5 stations \| Body class: 5 \| Tube: 12x10 mm (P port) \| Option: Stacking type \| Material: PFA manifold
LLC5A-05-S13		Type: Manifold base, 5 stations \| Body class: 5 \| Tube: 1/2x3/8 in (P port) \| Option: Stacking type \| Material: PFA manifold
LLC5A-05-S19		Type: Manifold base, 5 stations \| Body class: 5 \| Tube: 19x16 mm or 3/4x5/8 in (P port) \| Option: Stacking type \| Material: PFA manifold

Chemical ValvesSMC

635 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC LVC Air Operated Chemical Valve (Insert Bushing / LQ2 Fitting)

Brand SMC·Chemical Valves

Available part numbers (635)

LVC20-S03, LVC20-S03-1, LVC20-S03-4, LVC20-S03-N, LVC20-S03-N1, LVC20-S03-N4, LVC20-S04, LVC20-S04-1, LVC20-S04-4, LVC20-S04-N + 625 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	LVC20-S03	Type: Single 2-port, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 3x2 mm or 1/8 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC20-S03-1	Type: Single 2-port, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 3x2 mm or 1/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
	LVC20-S03-4	Type: Single 2-port, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 3x2 mm or 1/8 in \| Option: Indicator \| Material: PFA body, PPS actuator, FKM
	LVC20-S03-N	Type: Single 2-port, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 3x2 mm or 1/8 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC20-S03-N1	Type: Single 2-port, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 3x2 mm or 1/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
	LVC20-S03-N4	Type: Single 2-port, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 3x2 mm or 1/8 in \| Option: Indicator \| Material: PFA body, PPS actuator, EPDM
	LVC20-S04	Type: Single 2-port, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 4x3 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC20-S04-1	Type: Single 2-port, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 4x3 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
	LVC20-S04-4	Type: Single 2-port, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 4x3 mm \| Option: Indicator \| Material: PFA body, PPS actuator, FKM
	LVC20-S04-N	Type: Single 2-port, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 4x3 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC20-S04-N1	Type: Single 2-port, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 4x3 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
	LVC20-S04-N4	Type: Single 2-port, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 4x3 mm \| Option: Indicator \| Material: PFA body, PPS actuator, EPDM
	LVC20-S05	Type: Single 2-port, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 3/16x1/8 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC20-S05-1	Type: Single 2-port, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 3/16x1/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
	LVC20-S05-4	Type: Single 2-port, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 3/16x1/8 in \| Option: Indicator \| Material: PFA body, PPS actuator, FKM
	LVC20-S05-N	Type: Single 2-port, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 3/16x1/8 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC20-S05-N1	Type: Single 2-port, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 3/16x1/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
	LVC20-S05-N4	Type: Single 2-port, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 3/16x1/8 in \| Option: Indicator \| Material: PFA body, PPS actuator, EPDM
	LVC20-S06	Type: Single 2-port, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 6x4 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC20-S06-1	Type: Single 2-port, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 6x4 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
	LVC20-S06-4	Type: Single 2-port, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 6x4 mm \| Option: Indicator \| Material: PFA body, PPS actuator, FKM
	LVC20-S06-N	Type: Single 2-port, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 6x4 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC20-S06-N1	Type: Single 2-port, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 6x4 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
	LVC20-S06-N4	Type: Single 2-port, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 6x4 mm \| Option: Indicator \| Material: PFA body, PPS actuator, EPDM
	LVC20-S07	Type: Single 2-port, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 1/4x5/32 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC20-S07-1	Type: Single 2-port, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 1/4x5/32 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
	LVC20-S07-4	Type: Single 2-port, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 1/4x5/32 in \| Option: Indicator \| Material: PFA body, PPS actuator, FKM
	LVC20-S07-N	Type: Single 2-port, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 1/4x5/32 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC20-S07-N1	Type: Single 2-port, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 1/4x5/32 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
	LVC20-S07-N4	Type: Single 2-port, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 1/4x5/32 in \| Option: Indicator \| Material: PFA body, PPS actuator, EPDM
	LVC21-S03	Type: Single 2-port, N.O. \| Body class: 2 (orifice 4 mm) \| Tube: 3x2 mm or 1/8 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC21-S03-N	Type: Single 2-port, N.O. \| Body class: 2 (orifice 4 mm) \| Tube: 3x2 mm or 1/8 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC21-S04	Type: Single 2-port, N.O. \| Body class: 2 (orifice 4 mm) \| Tube: 4x3 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC21-S04-N	Type: Single 2-port, N.O. \| Body class: 2 (orifice 4 mm) \| Tube: 4x3 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC21-S05	Type: Single 2-port, N.O. \| Body class: 2 (orifice 4 mm) \| Tube: 3/16x1/8 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC21-S05-N	Type: Single 2-port, N.O. \| Body class: 2 (orifice 4 mm) \| Tube: 3/16x1/8 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC21-S06	Type: Single 2-port, N.O. \| Body class: 2 (orifice 4 mm) \| Tube: 6x4 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC21-S06-N	Type: Single 2-port, N.O. \| Body class: 2 (orifice 4 mm) \| Tube: 6x4 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC21-S07	Type: Single 2-port, N.O. \| Body class: 2 (orifice 4 mm) \| Tube: 1/4x5/32 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC21-S07-N	Type: Single 2-port, N.O. \| Body class: 2 (orifice 4 mm) \| Tube: 1/4x5/32 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC22-S03	Type: Single 2-port, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 3x2 mm or 1/8 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC22-S03-1	Type: Single 2-port, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 3x2 mm or 1/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
	LVC22-S03-N	Type: Single 2-port, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 3x2 mm or 1/8 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC22-S03-N1	Type: Single 2-port, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 3x2 mm or 1/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
	LVC22-S04	Type: Single 2-port, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 4x3 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC22-S04-1	Type: Single 2-port, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 4x3 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
	LVC22-S04-N	Type: Single 2-port, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 4x3 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC22-S04-N1	Type: Single 2-port, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 4x3 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
	LVC22-S05	Type: Single 2-port, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 3/16x1/8 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC22-S05-1	Type: Single 2-port, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 3/16x1/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
	LVC22-S05-N	Type: Single 2-port, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 3/16x1/8 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC22-S05-N1	Type: Single 2-port, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 3/16x1/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
	LVC22-S06	Type: Single 2-port, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 6x4 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC22-S06-1	Type: Single 2-port, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 6x4 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
	LVC22-S06-N	Type: Single 2-port, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 6x4 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC22-S06-N1	Type: Single 2-port, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 6x4 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
	LVC22-S07	Type: Single 2-port, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 1/4x5/32 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC22-S07-1	Type: Single 2-port, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 1/4x5/32 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
	LVC22-S07-N	Type: Single 2-port, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 1/4x5/32 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC22-S07-N1	Type: Single 2-port, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 1/4x5/32 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
	LVC30-S06	Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 6x4 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC30-S06-1	Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 6x4 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
	LVC30-S06-2	Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 6x4 mm \| Option: Bypass \| Material: PFA body, PPS actuator, FKM
	LVC30-S06-3	Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 6x4 mm \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, FKM
	LVC30-S06-4	Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 6x4 mm \| Option: Indicator \| Material: PFA body, PPS actuator, FKM
	LVC30-S06-N	Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 6x4 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC30-S06-N1	Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 6x4 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
	LVC30-S06-N2	Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 6x4 mm \| Option: Bypass \| Material: PFA body, PPS actuator, EPDM
	LVC30-S06-N3	Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 6x4 mm \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, EPDM
	LVC30-S06-N4	Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 6x4 mm \| Option: Indicator \| Material: PFA body, PPS actuator, EPDM
	LVC30-S07	Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 1/4x5/32 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC30-S07-1	Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 1/4x5/32 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
	LVC30-S07-2	Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 1/4x5/32 in \| Option: Bypass \| Material: PFA body, PPS actuator, FKM
	LVC30-S07-3	Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 1/4x5/32 in \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, FKM
	LVC30-S07-4	Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 1/4x5/32 in \| Option: Indicator \| Material: PFA body, PPS actuator, FKM
	LVC30-S07-N	Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 1/4x5/32 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC30-S07-N1	Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 1/4x5/32 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
	LVC30-S07-N2	Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 1/4x5/32 in \| Option: Bypass \| Material: PFA body, PPS actuator, EPDM
	LVC30-S07-N3	Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 1/4x5/32 in \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, EPDM
	LVC30-S07-N4	Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 1/4x5/32 in \| Option: Indicator \| Material: PFA body, PPS actuator, EPDM
	LVC30-S08	Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 8x6 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC30-S08-1	Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 8x6 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
	LVC30-S08-2	Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 8x6 mm \| Option: Bypass \| Material: PFA body, PPS actuator, FKM
	LVC30-S08-3	Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 8x6 mm \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, FKM
	LVC30-S08-4	Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 8x6 mm \| Option: Indicator \| Material: PFA body, PPS actuator, FKM
	LVC30-S08-N	Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 8x6 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC30-S08-N1	Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 8x6 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
	LVC30-S08-N2	Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 8x6 mm \| Option: Bypass \| Material: PFA body, PPS actuator, EPDM
	LVC30-S08-N3	Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 8x6 mm \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, EPDM
	LVC30-S08-N4	Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 8x6 mm \| Option: Indicator \| Material: PFA body, PPS actuator, EPDM
	LVC30-S10	Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 10x8 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC30-S10-1	Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 10x8 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
	LVC30-S10-2	Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 10x8 mm \| Option: Bypass \| Material: PFA body, PPS actuator, FKM
	LVC30-S10-3	Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 10x8 mm \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, FKM
	LVC30-S10-4	Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 10x8 mm \| Option: Indicator \| Material: PFA body, PPS actuator, FKM
	LVC30-S10-N	Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 10x8 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC30-S10-N1	Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 10x8 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
	LVC30-S10-N2	Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 10x8 mm \| Option: Bypass \| Material: PFA body, PPS actuator, EPDM
	LVC30-S10-N3	Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 10x8 mm \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, EPDM
	LVC30-S10-N4	Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 10x8 mm \| Option: Indicator \| Material: PFA body, PPS actuator, EPDM
	LVC30-S11	Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 3/8x1/4 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC30-S11-1	Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 3/8x1/4 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
	LVC30-S11-2	Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 3/8x1/4 in \| Option: Bypass \| Material: PFA body, PPS actuator, FKM
	LVC30-S11-3	Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 3/8x1/4 in \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, FKM
	LVC30-S11-4	Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 3/8x1/4 in \| Option: Indicator \| Material: PFA body, PPS actuator, FKM
	LVC30-S11-N	Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 3/8x1/4 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC30-S11-N1	Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 3/8x1/4 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
	LVC30-S11-N2	Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 3/8x1/4 in \| Option: Bypass \| Material: PFA body, PPS actuator, EPDM
	LVC30-S11-N3	Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 3/8x1/4 in \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, EPDM
	LVC30-S11-N4	Type: Single 2-port, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 3/8x1/4 in \| Option: Indicator \| Material: PFA body, PPS actuator, EPDM
	LVC31-S06	Type: Single 2-port, N.O. \| Body class: 3 (orifice 8 mm) \| Tube: 6x4 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC31-S06-N	Type: Single 2-port, N.O. \| Body class: 3 (orifice 8 mm) \| Tube: 6x4 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC31-S07	Type: Single 2-port, N.O. \| Body class: 3 (orifice 8 mm) \| Tube: 1/4x5/32 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC31-S07-N	Type: Single 2-port, N.O. \| Body class: 3 (orifice 8 mm) \| Tube: 1/4x5/32 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC31-S08	Type: Single 2-port, N.O. \| Body class: 3 (orifice 8 mm) \| Tube: 8x6 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC31-S08-N	Type: Single 2-port, N.O. \| Body class: 3 (orifice 8 mm) \| Tube: 8x6 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC31-S10	Type: Single 2-port, N.O. \| Body class: 3 (orifice 8 mm) \| Tube: 10x8 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC31-S10-N	Type: Single 2-port, N.O. \| Body class: 3 (orifice 8 mm) \| Tube: 10x8 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC31-S11	Type: Single 2-port, N.O. \| Body class: 3 (orifice 8 mm) \| Tube: 3/8x1/4 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC31-S11-N	Type: Single 2-port, N.O. \| Body class: 3 (orifice 8 mm) \| Tube: 3/8x1/4 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC32-S06	Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 6x4 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC32-S06-1	Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 6x4 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
	LVC32-S06-2	Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 6x4 mm \| Option: Bypass \| Material: PFA body, PPS actuator, FKM
	LVC32-S06-3	Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 6x4 mm \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, FKM
	LVC32-S06-N	Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 6x4 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC32-S06-N1	Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 6x4 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
	LVC32-S06-N2	Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 6x4 mm \| Option: Bypass \| Material: PFA body, PPS actuator, EPDM
	LVC32-S06-N3	Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 6x4 mm \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, EPDM
	LVC32-S07	Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 1/4x5/32 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC32-S07-1	Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 1/4x5/32 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
	LVC32-S07-2	Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 1/4x5/32 in \| Option: Bypass \| Material: PFA body, PPS actuator, FKM
	LVC32-S07-3	Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 1/4x5/32 in \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, FKM
	LVC32-S07-N	Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 1/4x5/32 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC32-S07-N1	Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 1/4x5/32 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
	LVC32-S07-N2	Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 1/4x5/32 in \| Option: Bypass \| Material: PFA body, PPS actuator, EPDM
	LVC32-S07-N3	Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 1/4x5/32 in \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, EPDM
	LVC32-S08	Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 8x6 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC32-S08-1	Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 8x6 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
	LVC32-S08-2	Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 8x6 mm \| Option: Bypass \| Material: PFA body, PPS actuator, FKM
	LVC32-S08-3	Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 8x6 mm \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, FKM
	LVC32-S08-N	Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 8x6 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC32-S08-N1	Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 8x6 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
	LVC32-S08-N2	Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 8x6 mm \| Option: Bypass \| Material: PFA body, PPS actuator, EPDM
	LVC32-S08-N3	Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 8x6 mm \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, EPDM
	LVC32-S10	Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 10x8 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC32-S10-1	Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 10x8 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
	LVC32-S10-2	Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 10x8 mm \| Option: Bypass \| Material: PFA body, PPS actuator, FKM
	LVC32-S10-3	Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 10x8 mm \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, FKM
	LVC32-S10-N	Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 10x8 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC32-S10-N1	Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 10x8 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
	LVC32-S10-N2	Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 10x8 mm \| Option: Bypass \| Material: PFA body, PPS actuator, EPDM
	LVC32-S10-N3	Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 10x8 mm \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, EPDM
	LVC32-S11	Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 3/8x1/4 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC32-S11-1	Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 3/8x1/4 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
	LVC32-S11-2	Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 3/8x1/4 in \| Option: Bypass \| Material: PFA body, PPS actuator, FKM
	LVC32-S11-3	Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 3/8x1/4 in \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, FKM
	LVC32-S11-N	Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 3/8x1/4 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC32-S11-N1	Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 3/8x1/4 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
	LVC32-S11-N2	Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 3/8x1/4 in \| Option: Bypass \| Material: PFA body, PPS actuator, EPDM
	LVC32-S11-N3	Type: Single 2-port, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 3/8x1/4 in \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, EPDM
	LVC40-S10	Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 10x8 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC40-S10-1	Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 10x8 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
	LVC40-S10-2	Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 10x8 mm \| Option: Bypass \| Material: PFA body, PPS actuator, FKM
	LVC40-S10-3	Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 10x8 mm \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, FKM
	LVC40-S10-4	Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 10x8 mm \| Option: Indicator \| Material: PFA body, PPS actuator, FKM
	LVC40-S10-N	Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 10x8 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC40-S10-N1	Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 10x8 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
	LVC40-S10-N2	Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 10x8 mm \| Option: Bypass \| Material: PFA body, PPS actuator, EPDM
	LVC40-S10-N3	Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 10x8 mm \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, EPDM
	LVC40-S10-N4	Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 10x8 mm \| Option: Indicator \| Material: PFA body, PPS actuator, EPDM
	LVC40-S10-F	Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 10x8 mm \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
	LVC40-S11	Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 3/8x1/4 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC40-S11-1	Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 3/8x1/4 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
	LVC40-S11-2	Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 3/8x1/4 in \| Option: Bypass \| Material: PFA body, PPS actuator, FKM
	LVC40-S11-3	Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 3/8x1/4 in \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, FKM
	LVC40-S11-4	Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 3/8x1/4 in \| Option: Indicator \| Material: PFA body, PPS actuator, FKM
	LVC40-S11-N	Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 3/8x1/4 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC40-S11-N1	Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 3/8x1/4 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
	LVC40-S11-N2	Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 3/8x1/4 in \| Option: Bypass \| Material: PFA body, PPS actuator, EPDM
	LVC40-S11-N3	Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 3/8x1/4 in \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, EPDM
	LVC40-S11-N4	Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 3/8x1/4 in \| Option: Indicator \| Material: PFA body, PPS actuator, EPDM
	LVC40-S11-F	Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 3/8x1/4 in \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
	LVC40-S12	Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 12x10 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC40-S12-1	Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 12x10 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
	LVC40-S12-2	Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 12x10 mm \| Option: Bypass \| Material: PFA body, PPS actuator, FKM
	LVC40-S12-3	Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 12x10 mm \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, FKM
	LVC40-S12-4	Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 12x10 mm \| Option: Indicator \| Material: PFA body, PPS actuator, FKM
	LVC40-S12-N	Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 12x10 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC40-S12-N1	Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 12x10 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
	LVC40-S12-N2	Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 12x10 mm \| Option: Bypass \| Material: PFA body, PPS actuator, EPDM
	LVC40-S12-N3	Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 12x10 mm \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, EPDM
	LVC40-S12-N4	Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 12x10 mm \| Option: Indicator \| Material: PFA body, PPS actuator, EPDM
	LVC40-S12-F	Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 12x10 mm \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
	LVC40-S13	Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 1/2x3/8 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC40-S13-1	Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 1/2x3/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
	LVC40-S13-2	Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 1/2x3/8 in \| Option: Bypass \| Material: PFA body, PPS actuator, FKM
	LVC40-S13-3	Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 1/2x3/8 in \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, FKM
	LVC40-S13-4	Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 1/2x3/8 in \| Option: Indicator \| Material: PFA body, PPS actuator, FKM
	LVC40-S13-N	Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 1/2x3/8 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC40-S13-N1	Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 1/2x3/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
	LVC40-S13-N2	Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 1/2x3/8 in \| Option: Bypass \| Material: PFA body, PPS actuator, EPDM
	LVC40-S13-N3	Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 1/2x3/8 in \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, EPDM
	LVC40-S13-N4	Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 1/2x3/8 in \| Option: Indicator \| Material: PFA body, PPS actuator, EPDM
	LVC40-S13-F	Type: Single 2-port, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 1/2x3/8 in \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
	LVC41-S10	Type: Single 2-port, N.O. \| Body class: 4 (orifice 10 mm) \| Tube: 10x8 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC41-S10-N	Type: Single 2-port, N.O. \| Body class: 4 (orifice 10 mm) \| Tube: 10x8 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC41-S10-F	Type: Single 2-port, N.O. \| Body class: 4 (orifice 10 mm) \| Tube: 10x8 mm \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
	LVC41-S11	Type: Single 2-port, N.O. \| Body class: 4 (orifice 10 mm) \| Tube: 3/8x1/4 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC41-S11-N	Type: Single 2-port, N.O. \| Body class: 4 (orifice 10 mm) \| Tube: 3/8x1/4 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC41-S11-F	Type: Single 2-port, N.O. \| Body class: 4 (orifice 10 mm) \| Tube: 3/8x1/4 in \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
	LVC41-S12	Type: Single 2-port, N.O. \| Body class: 4 (orifice 10 mm) \| Tube: 12x10 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC41-S12-N	Type: Single 2-port, N.O. \| Body class: 4 (orifice 10 mm) \| Tube: 12x10 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC41-S12-F	Type: Single 2-port, N.O. \| Body class: 4 (orifice 10 mm) \| Tube: 12x10 mm \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
	LVC41-S13	Type: Single 2-port, N.O. \| Body class: 4 (orifice 10 mm) \| Tube: 1/2x3/8 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC41-S13-N	Type: Single 2-port, N.O. \| Body class: 4 (orifice 10 mm) \| Tube: 1/2x3/8 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC41-S13-F	Type: Single 2-port, N.O. \| Body class: 4 (orifice 10 mm) \| Tube: 1/2x3/8 in \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
	LVC42-S10	Type: Single 2-port, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 10x8 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC42-S10-1	Type: Single 2-port, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 10x8 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
	LVC42-S10-2	Type: Single 2-port, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 10x8 mm \| Option: Bypass \| Material: PFA body, PPS actuator, FKM
	LVC42-S10-3	Type: Single 2-port, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 10x8 mm \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, FKM
	LVC42-S10-N	Type: Single 2-port, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 10x8 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC42-S10-N1	Type: Single 2-port, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 10x8 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
	LVC42-S10-N2	Type: Single 2-port, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 10x8 mm \| Option: Bypass \| Material: PFA body, PPS actuator, EPDM
	LVC42-S10-N3	Type: Single 2-port, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 10x8 mm \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, EPDM
	LVC42-S10-F	Type: Single 2-port, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 10x8 mm \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
	LVC42-S11	Type: Single 2-port, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 3/8x1/4 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC42-S11-1	Type: Single 2-port, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 3/8x1/4 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
	LVC42-S11-2	Type: Single 2-port, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 3/8x1/4 in \| Option: Bypass \| Material: PFA body, PPS actuator, FKM
	LVC42-S11-3	Type: Single 2-port, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 3/8x1/4 in \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, FKM
	LVC42-S11-N	Type: Single 2-port, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 3/8x1/4 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC42-S11-N1	Type: Single 2-port, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 3/8x1/4 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
	LVC42-S11-N2	Type: Single 2-port, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 3/8x1/4 in \| Option: Bypass \| Material: PFA body, PPS actuator, EPDM
	LVC42-S11-N3	Type: Single 2-port, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 3/8x1/4 in \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, EPDM
	LVC42-S11-F	Type: Single 2-port, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 3/8x1/4 in \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
	LVC42-S12	Type: Single 2-port, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 12x10 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC42-S12-1	Type: Single 2-port, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 12x10 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
	LVC42-S12-2	Type: Single 2-port, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 12x10 mm \| Option: Bypass \| Material: PFA body, PPS actuator, FKM
	LVC42-S12-3	Type: Single 2-port, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 12x10 mm \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, FKM
	LVC42-S12-N	Type: Single 2-port, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 12x10 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC42-S12-N1	Type: Single 2-port, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 12x10 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
	LVC42-S12-N2	Type: Single 2-port, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 12x10 mm \| Option: Bypass \| Material: PFA body, PPS actuator, EPDM
	LVC42-S12-N3	Type: Single 2-port, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 12x10 mm \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, EPDM
	LVC42-S12-F	Type: Single 2-port, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 12x10 mm \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
	LVC42-S13	Type: Single 2-port, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 1/2x3/8 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC42-S13-1	Type: Single 2-port, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 1/2x3/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
	LVC42-S13-2	Type: Single 2-port, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 1/2x3/8 in \| Option: Bypass \| Material: PFA body, PPS actuator, FKM
	LVC42-S13-3	Type: Single 2-port, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 1/2x3/8 in \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, FKM
	LVC42-S13-N	Type: Single 2-port, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 1/2x3/8 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC42-S13-N1	Type: Single 2-port, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 1/2x3/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
	LVC42-S13-N2	Type: Single 2-port, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 1/2x3/8 in \| Option: Bypass \| Material: PFA body, PPS actuator, EPDM
	LVC42-S13-N3	Type: Single 2-port, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 1/2x3/8 in \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, EPDM
	LVC42-S13-F	Type: Single 2-port, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 1/2x3/8 in \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
	LVC50-S12	Type: Single 2-port, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 12x10 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC50-S12-1	Type: Single 2-port, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 12x10 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
	LVC50-S12-2	Type: Single 2-port, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 12x10 mm \| Option: Bypass \| Material: PFA body, PPS actuator, FKM
	LVC50-S12-3	Type: Single 2-port, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 12x10 mm \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, FKM
	LVC50-S12-4	Type: Single 2-port, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 12x10 mm \| Option: Indicator \| Material: PFA body, PPS actuator, FKM
	LVC50-S12-N	Type: Single 2-port, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 12x10 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC50-S12-N1	Type: Single 2-port, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 12x10 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
	LVC50-S12-N2	Type: Single 2-port, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 12x10 mm \| Option: Bypass \| Material: PFA body, PPS actuator, EPDM
	LVC50-S12-N3	Type: Single 2-port, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 12x10 mm \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, EPDM
	LVC50-S12-N4	Type: Single 2-port, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 12x10 mm \| Option: Indicator \| Material: PFA body, PPS actuator, EPDM
	LVC50-S12-F	Type: Single 2-port, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 12x10 mm \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
	LVC50-S13	Type: Single 2-port, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 1/2x3/8 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC50-S13-1	Type: Single 2-port, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 1/2x3/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
	LVC50-S13-2	Type: Single 2-port, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 1/2x3/8 in \| Option: Bypass \| Material: PFA body, PPS actuator, FKM
	LVC50-S13-3	Type: Single 2-port, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 1/2x3/8 in \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, FKM
	LVC50-S13-4	Type: Single 2-port, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 1/2x3/8 in \| Option: Indicator \| Material: PFA body, PPS actuator, FKM
	LVC50-S13-N	Type: Single 2-port, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 1/2x3/8 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC50-S13-N1	Type: Single 2-port, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 1/2x3/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
	LVC50-S13-N2	Type: Single 2-port, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 1/2x3/8 in \| Option: Bypass \| Material: PFA body, PPS actuator, EPDM
	LVC50-S13-N3	Type: Single 2-port, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 1/2x3/8 in \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, EPDM
	LVC50-S13-N4	Type: Single 2-port, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 1/2x3/8 in \| Option: Indicator \| Material: PFA body, PPS actuator, EPDM
	LVC50-S13-F	Type: Single 2-port, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 1/2x3/8 in \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
	LVC50-S19	Type: Single 2-port, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC50-S19-1	Type: Single 2-port, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
	LVC50-S19-2	Type: Single 2-port, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Bypass \| Material: PFA body, PPS actuator, FKM
	LVC50-S19-3	Type: Single 2-port, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, FKM
	LVC50-S19-4	Type: Single 2-port, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Indicator \| Material: PFA body, PPS actuator, FKM
	LVC50-S19-N	Type: Single 2-port, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC50-S19-N1	Type: Single 2-port, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
	LVC50-S19-N2	Type: Single 2-port, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Bypass \| Material: PFA body, PPS actuator, EPDM
	LVC50-S19-N3	Type: Single 2-port, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, EPDM
	LVC50-S19-N4	Type: Single 2-port, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Indicator \| Material: PFA body, PPS actuator, EPDM
	LVC50-S19-F	Type: Single 2-port, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
	LVC51-S12	Type: Single 2-port, N.O. \| Body class: 5 (orifice 16 mm) \| Tube: 12x10 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC51-S12-N	Type: Single 2-port, N.O. \| Body class: 5 (orifice 16 mm) \| Tube: 12x10 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC51-S12-F	Type: Single 2-port, N.O. \| Body class: 5 (orifice 16 mm) \| Tube: 12x10 mm \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
	LVC51-S13	Type: Single 2-port, N.O. \| Body class: 5 (orifice 16 mm) \| Tube: 1/2x3/8 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC51-S13-N	Type: Single 2-port, N.O. \| Body class: 5 (orifice 16 mm) \| Tube: 1/2x3/8 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC51-S13-F	Type: Single 2-port, N.O. \| Body class: 5 (orifice 16 mm) \| Tube: 1/2x3/8 in \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
	LVC51-S19	Type: Single 2-port, N.O. \| Body class: 5 (orifice 16 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC51-S19-N	Type: Single 2-port, N.O. \| Body class: 5 (orifice 16 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC51-S19-F	Type: Single 2-port, N.O. \| Body class: 5 (orifice 16 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
	LVC52-S12	Type: Single 2-port, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 12x10 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC52-S12-1	Type: Single 2-port, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 12x10 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
	LVC52-S12-2	Type: Single 2-port, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 12x10 mm \| Option: Bypass \| Material: PFA body, PPS actuator, FKM
	LVC52-S12-3	Type: Single 2-port, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 12x10 mm \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, FKM
	LVC52-S12-N	Type: Single 2-port, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 12x10 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC52-S12-N1	Type: Single 2-port, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 12x10 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
	LVC52-S12-N2	Type: Single 2-port, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 12x10 mm \| Option: Bypass \| Material: PFA body, PPS actuator, EPDM
	LVC52-S12-N3	Type: Single 2-port, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 12x10 mm \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, EPDM
	LVC52-S12-F	Type: Single 2-port, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 12x10 mm \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
	LVC52-S13	Type: Single 2-port, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 1/2x3/8 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC52-S13-1	Type: Single 2-port, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 1/2x3/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
	LVC52-S13-2	Type: Single 2-port, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 1/2x3/8 in \| Option: Bypass \| Material: PFA body, PPS actuator, FKM
	LVC52-S13-3	Type: Single 2-port, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 1/2x3/8 in \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, FKM
	LVC52-S13-N	Type: Single 2-port, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 1/2x3/8 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC52-S13-N1	Type: Single 2-port, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 1/2x3/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
	LVC52-S13-N2	Type: Single 2-port, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 1/2x3/8 in \| Option: Bypass \| Material: PFA body, PPS actuator, EPDM
	LVC52-S13-N3	Type: Single 2-port, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 1/2x3/8 in \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, EPDM
	LVC52-S13-F	Type: Single 2-port, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 1/2x3/8 in \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
	LVC52-S19	Type: Single 2-port, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC52-S19-1	Type: Single 2-port, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
	LVC52-S19-2	Type: Single 2-port, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Bypass \| Material: PFA body, PPS actuator, FKM
	LVC52-S19-3	Type: Single 2-port, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, FKM
	LVC52-S19-N	Type: Single 2-port, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC52-S19-N1	Type: Single 2-port, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
	LVC52-S19-N2	Type: Single 2-port, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Bypass \| Material: PFA body, PPS actuator, EPDM
	LVC52-S19-N3	Type: Single 2-port, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Flow adj. + bypass \| Material: PFA body, PPS actuator, EPDM
	LVC52-S19-F	Type: Single 2-port, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
	LVC60-S19	Type: Single 2-port, N.C. \| Body class: 6 (orifice 22 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC60-S19-1	Type: Single 2-port, N.C. \| Body class: 6 (orifice 22 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
	LVC60-S19-4	Type: Single 2-port, N.C. \| Body class: 6 (orifice 22 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Indicator \| Material: PFA body, PPS actuator, FKM
	LVC60-S19-N	Type: Single 2-port, N.C. \| Body class: 6 (orifice 22 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC60-S19-N1	Type: Single 2-port, N.C. \| Body class: 6 (orifice 22 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
	LVC60-S19-N4	Type: Single 2-port, N.C. \| Body class: 6 (orifice 22 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Indicator \| Material: PFA body, PPS actuator, EPDM
	LVC60-S25	Type: Single 2-port, N.C. \| Body class: 6 (orifice 22 mm) \| Tube: 25x22 mm or 1x7/8 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC60-S25-1	Type: Single 2-port, N.C. \| Body class: 6 (orifice 22 mm) \| Tube: 25x22 mm or 1x7/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
	LVC60-S25-4	Type: Single 2-port, N.C. \| Body class: 6 (orifice 22 mm) \| Tube: 25x22 mm or 1x7/8 in \| Option: Indicator \| Material: PFA body, PPS actuator, FKM
	LVC60-S25-N	Type: Single 2-port, N.C. \| Body class: 6 (orifice 22 mm) \| Tube: 25x22 mm or 1x7/8 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC60-S25-N1	Type: Single 2-port, N.C. \| Body class: 6 (orifice 22 mm) \| Tube: 25x22 mm or 1x7/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
	LVC60-S25-N4	Type: Single 2-port, N.C. \| Body class: 6 (orifice 22 mm) \| Tube: 25x22 mm or 1x7/8 in \| Option: Indicator \| Material: PFA body, PPS actuator, EPDM
	LVC61-S19	Type: Single 2-port, N.O. \| Body class: 6 (orifice 22 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC61-S19-N	Type: Single 2-port, N.O. \| Body class: 6 (orifice 22 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC61-S25	Type: Single 2-port, N.O. \| Body class: 6 (orifice 22 mm) \| Tube: 25x22 mm or 1x7/8 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC61-S25-N	Type: Single 2-port, N.O. \| Body class: 6 (orifice 22 mm) \| Tube: 25x22 mm or 1x7/8 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC62-S19	Type: Single 2-port, Double acting \| Body class: 6 (orifice 22 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC62-S19-1	Type: Single 2-port, Double acting \| Body class: 6 (orifice 22 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
	LVC62-S19-N	Type: Single 2-port, Double acting \| Body class: 6 (orifice 22 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC62-S19-N1	Type: Single 2-port, Double acting \| Body class: 6 (orifice 22 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
	LVC62-S25	Type: Single 2-port, Double acting \| Body class: 6 (orifice 22 mm) \| Tube: 25x22 mm or 1x7/8 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC62-S25-1	Type: Single 2-port, Double acting \| Body class: 6 (orifice 22 mm) \| Tube: 25x22 mm or 1x7/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
	LVC62-S25-N	Type: Single 2-port, Double acting \| Body class: 6 (orifice 22 mm) \| Tube: 25x22 mm or 1x7/8 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC62-S25-N1	Type: Single 2-port, Double acting \| Body class: 6 (orifice 22 mm) \| Tube: 25x22 mm or 1x7/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
	LVC200-S03	Type: Single 3-port, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 3x2 mm or 1/8 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC200-S04	Type: Single 3-port, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 4x3 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC200-S05	Type: Single 3-port, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 3/16x1/8 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC200-S06	Type: Single 3-port, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 6x4 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC200-S07	Type: Single 3-port, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 1/4x5/32 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC20A-S03	Type: Manifold valve, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 3x2 mm or 1/8 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC20A-S03-1	Type: Manifold valve, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 3x2 mm or 1/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
	LVC20A-S03-4	Type: Manifold valve, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 3x2 mm or 1/8 in \| Option: Indicator \| Material: PFA body, PPS actuator, FKM
	LVC20A-S03-N	Type: Manifold valve, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 3x2 mm or 1/8 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC20A-S03-N1	Type: Manifold valve, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 3x2 mm or 1/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
	LVC20A-S03-N4	Type: Manifold valve, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 3x2 mm or 1/8 in \| Option: Indicator \| Material: PFA body, PPS actuator, EPDM
	LVC20A-S04	Type: Manifold valve, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 4x3 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC20A-S04-1	Type: Manifold valve, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 4x3 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
	LVC20A-S04-4	Type: Manifold valve, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 4x3 mm \| Option: Indicator \| Material: PFA body, PPS actuator, FKM
	LVC20A-S04-N	Type: Manifold valve, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 4x3 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC20A-S04-N1	Type: Manifold valve, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 4x3 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
	LVC20A-S04-N4	Type: Manifold valve, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 4x3 mm \| Option: Indicator \| Material: PFA body, PPS actuator, EPDM
	LVC20A-S05	Type: Manifold valve, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 3/16x1/8 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC20A-S05-1	Type: Manifold valve, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 3/16x1/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
	LVC20A-S05-4	Type: Manifold valve, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 3/16x1/8 in \| Option: Indicator \| Material: PFA body, PPS actuator, FKM
	LVC20A-S05-N	Type: Manifold valve, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 3/16x1/8 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC20A-S05-N1	Type: Manifold valve, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 3/16x1/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
	LVC20A-S05-N4	Type: Manifold valve, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 3/16x1/8 in \| Option: Indicator \| Material: PFA body, PPS actuator, EPDM
	LVC20A-S06	Type: Manifold valve, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 6x4 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC20A-S06-1	Type: Manifold valve, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 6x4 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
	LVC20A-S06-4	Type: Manifold valve, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 6x4 mm \| Option: Indicator \| Material: PFA body, PPS actuator, FKM
	LVC20A-S06-N	Type: Manifold valve, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 6x4 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC20A-S06-N1	Type: Manifold valve, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 6x4 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
	LVC20A-S06-N4	Type: Manifold valve, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 6x4 mm \| Option: Indicator \| Material: PFA body, PPS actuator, EPDM
	LVC20A-S07	Type: Manifold valve, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 1/4x5/32 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC20A-S07-1	Type: Manifold valve, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 1/4x5/32 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
	LVC20A-S07-4	Type: Manifold valve, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 1/4x5/32 in \| Option: Indicator \| Material: PFA body, PPS actuator, FKM
	LVC20A-S07-N	Type: Manifold valve, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 1/4x5/32 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC20A-S07-N1	Type: Manifold valve, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 1/4x5/32 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
	LVC20A-S07-N4	Type: Manifold valve, N.C. \| Body class: 2 (orifice 4 mm) \| Tube: 1/4x5/32 in \| Option: Indicator \| Material: PFA body, PPS actuator, EPDM
	LVC21A-S03	Type: Manifold valve, N.O. \| Body class: 2 (orifice 4 mm) \| Tube: 3x2 mm or 1/8 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC21A-S03-N	Type: Manifold valve, N.O. \| Body class: 2 (orifice 4 mm) \| Tube: 3x2 mm or 1/8 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC21A-S04	Type: Manifold valve, N.O. \| Body class: 2 (orifice 4 mm) \| Tube: 4x3 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC21A-S04-N	Type: Manifold valve, N.O. \| Body class: 2 (orifice 4 mm) \| Tube: 4x3 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC21A-S05	Type: Manifold valve, N.O. \| Body class: 2 (orifice 4 mm) \| Tube: 3/16x1/8 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC21A-S05-N	Type: Manifold valve, N.O. \| Body class: 2 (orifice 4 mm) \| Tube: 3/16x1/8 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC21A-S06	Type: Manifold valve, N.O. \| Body class: 2 (orifice 4 mm) \| Tube: 6x4 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC21A-S06-N	Type: Manifold valve, N.O. \| Body class: 2 (orifice 4 mm) \| Tube: 6x4 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC21A-S07	Type: Manifold valve, N.O. \| Body class: 2 (orifice 4 mm) \| Tube: 1/4x5/32 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC21A-S07-N	Type: Manifold valve, N.O. \| Body class: 2 (orifice 4 mm) \| Tube: 1/4x5/32 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC22A-S03	Type: Manifold valve, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 3x2 mm or 1/8 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC22A-S03-1	Type: Manifold valve, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 3x2 mm or 1/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
	LVC22A-S03-N	Type: Manifold valve, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 3x2 mm or 1/8 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC22A-S03-N1	Type: Manifold valve, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 3x2 mm or 1/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
	LVC22A-S04	Type: Manifold valve, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 4x3 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC22A-S04-1	Type: Manifold valve, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 4x3 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
	LVC22A-S04-N	Type: Manifold valve, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 4x3 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC22A-S04-N1	Type: Manifold valve, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 4x3 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
	LVC22A-S05	Type: Manifold valve, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 3/16x1/8 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC22A-S05-1	Type: Manifold valve, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 3/16x1/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
	LVC22A-S05-N	Type: Manifold valve, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 3/16x1/8 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC22A-S05-N1	Type: Manifold valve, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 3/16x1/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
	LVC22A-S06	Type: Manifold valve, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 6x4 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC22A-S06-1	Type: Manifold valve, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 6x4 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
	LVC22A-S06-N	Type: Manifold valve, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 6x4 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC22A-S06-N1	Type: Manifold valve, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 6x4 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
	LVC22A-S07	Type: Manifold valve, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 1/4x5/32 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC22A-S07-1	Type: Manifold valve, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 1/4x5/32 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
	LVC22A-S07-N	Type: Manifold valve, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 1/4x5/32 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC22A-S07-N1	Type: Manifold valve, Double acting \| Body class: 2 (orifice 4 mm) \| Tube: 1/4x5/32 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
	LVC30A-S06	Type: Manifold valve, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 6x4 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC30A-S06-1	Type: Manifold valve, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 6x4 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
	LVC30A-S06-4	Type: Manifold valve, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 6x4 mm \| Option: Indicator \| Material: PFA body, PPS actuator, FKM
	LVC30A-S06-N	Type: Manifold valve, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 6x4 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC30A-S06-N1	Type: Manifold valve, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 6x4 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
	LVC30A-S06-N4	Type: Manifold valve, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 6x4 mm \| Option: Indicator \| Material: PFA body, PPS actuator, EPDM
	LVC30A-S07	Type: Manifold valve, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 1/4x5/32 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC30A-S07-1	Type: Manifold valve, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 1/4x5/32 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
	LVC30A-S07-4	Type: Manifold valve, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 1/4x5/32 in \| Option: Indicator \| Material: PFA body, PPS actuator, FKM
	LVC30A-S07-N	Type: Manifold valve, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 1/4x5/32 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC30A-S07-N1	Type: Manifold valve, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 1/4x5/32 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
	LVC30A-S07-N4	Type: Manifold valve, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 1/4x5/32 in \| Option: Indicator \| Material: PFA body, PPS actuator, EPDM
	LVC30A-S08	Type: Manifold valve, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 8x6 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC30A-S08-1	Type: Manifold valve, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 8x6 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
	LVC30A-S08-4	Type: Manifold valve, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 8x6 mm \| Option: Indicator \| Material: PFA body, PPS actuator, FKM
	LVC30A-S08-N	Type: Manifold valve, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 8x6 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC30A-S08-N1	Type: Manifold valve, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 8x6 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
	LVC30A-S08-N4	Type: Manifold valve, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 8x6 mm \| Option: Indicator \| Material: PFA body, PPS actuator, EPDM
	LVC30A-S10	Type: Manifold valve, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 10x8 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC30A-S10-1	Type: Manifold valve, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 10x8 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
	LVC30A-S10-4	Type: Manifold valve, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 10x8 mm \| Option: Indicator \| Material: PFA body, PPS actuator, FKM
	LVC30A-S10-N	Type: Manifold valve, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 10x8 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC30A-S10-N1	Type: Manifold valve, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 10x8 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
	LVC30A-S10-N4	Type: Manifold valve, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 10x8 mm \| Option: Indicator \| Material: PFA body, PPS actuator, EPDM
	LVC30A-S11	Type: Manifold valve, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 3/8x1/4 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC30A-S11-1	Type: Manifold valve, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 3/8x1/4 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
	LVC30A-S11-4	Type: Manifold valve, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 3/8x1/4 in \| Option: Indicator \| Material: PFA body, PPS actuator, FKM
	LVC30A-S11-N	Type: Manifold valve, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 3/8x1/4 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC30A-S11-N1	Type: Manifold valve, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 3/8x1/4 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
	LVC30A-S11-N4	Type: Manifold valve, N.C. \| Body class: 3 (orifice 8 mm) \| Tube: 3/8x1/4 in \| Option: Indicator \| Material: PFA body, PPS actuator, EPDM
	LVC31A-S06	Type: Manifold valve, N.O. \| Body class: 3 (orifice 8 mm) \| Tube: 6x4 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC31A-S06-N	Type: Manifold valve, N.O. \| Body class: 3 (orifice 8 mm) \| Tube: 6x4 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC31A-S07	Type: Manifold valve, N.O. \| Body class: 3 (orifice 8 mm) \| Tube: 1/4x5/32 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC31A-S07-N	Type: Manifold valve, N.O. \| Body class: 3 (orifice 8 mm) \| Tube: 1/4x5/32 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC31A-S08	Type: Manifold valve, N.O. \| Body class: 3 (orifice 8 mm) \| Tube: 8x6 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC31A-S08-N	Type: Manifold valve, N.O. \| Body class: 3 (orifice 8 mm) \| Tube: 8x6 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC31A-S10	Type: Manifold valve, N.O. \| Body class: 3 (orifice 8 mm) \| Tube: 10x8 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC31A-S10-N	Type: Manifold valve, N.O. \| Body class: 3 (orifice 8 mm) \| Tube: 10x8 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC31A-S11	Type: Manifold valve, N.O. \| Body class: 3 (orifice 8 mm) \| Tube: 3/8x1/4 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC31A-S11-N	Type: Manifold valve, N.O. \| Body class: 3 (orifice 8 mm) \| Tube: 3/8x1/4 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC32A-S06	Type: Manifold valve, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 6x4 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC32A-S06-1	Type: Manifold valve, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 6x4 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
	LVC32A-S06-N	Type: Manifold valve, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 6x4 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC32A-S06-N1	Type: Manifold valve, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 6x4 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
	LVC32A-S07	Type: Manifold valve, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 1/4x5/32 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC32A-S07-1	Type: Manifold valve, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 1/4x5/32 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
	LVC32A-S07-N	Type: Manifold valve, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 1/4x5/32 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC32A-S07-N1	Type: Manifold valve, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 1/4x5/32 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
	LVC32A-S08	Type: Manifold valve, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 8x6 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC32A-S08-1	Type: Manifold valve, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 8x6 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
	LVC32A-S08-N	Type: Manifold valve, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 8x6 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC32A-S08-N1	Type: Manifold valve, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 8x6 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
	LVC32A-S10	Type: Manifold valve, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 10x8 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC32A-S10-1	Type: Manifold valve, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 10x8 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
	LVC32A-S10-N	Type: Manifold valve, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 10x8 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC32A-S10-N1	Type: Manifold valve, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 10x8 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
	LVC32A-S11	Type: Manifold valve, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 3/8x1/4 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC32A-S11-1	Type: Manifold valve, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 3/8x1/4 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
	LVC32A-S11-N	Type: Manifold valve, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 3/8x1/4 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC32A-S11-N1	Type: Manifold valve, Double acting \| Body class: 3 (orifice 8 mm) \| Tube: 3/8x1/4 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
	LVC40A-S10	Type: Manifold valve, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 10x8 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC40A-S10-1	Type: Manifold valve, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 10x8 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
	LVC40A-S10-4	Type: Manifold valve, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 10x8 mm \| Option: Indicator \| Material: PFA body, PPS actuator, FKM
	LVC40A-S10-N	Type: Manifold valve, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 10x8 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC40A-S10-N1	Type: Manifold valve, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 10x8 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
	LVC40A-S10-N4	Type: Manifold valve, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 10x8 mm \| Option: Indicator \| Material: PFA body, PPS actuator, EPDM
	LVC40A-S10-F	Type: Manifold valve, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 10x8 mm \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
	LVC40A-S11	Type: Manifold valve, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 3/8x1/4 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC40A-S11-1	Type: Manifold valve, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 3/8x1/4 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
	LVC40A-S11-4	Type: Manifold valve, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 3/8x1/4 in \| Option: Indicator \| Material: PFA body, PPS actuator, FKM
	LVC40A-S11-N	Type: Manifold valve, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 3/8x1/4 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC40A-S11-N1	Type: Manifold valve, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 3/8x1/4 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
	LVC40A-S11-N4	Type: Manifold valve, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 3/8x1/4 in \| Option: Indicator \| Material: PFA body, PPS actuator, EPDM
	LVC40A-S11-F	Type: Manifold valve, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 3/8x1/4 in \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
	LVC40A-S12	Type: Manifold valve, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 12x10 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC40A-S12-1	Type: Manifold valve, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 12x10 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
	LVC40A-S12-4	Type: Manifold valve, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 12x10 mm \| Option: Indicator \| Material: PFA body, PPS actuator, FKM
	LVC40A-S12-N	Type: Manifold valve, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 12x10 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC40A-S12-N1	Type: Manifold valve, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 12x10 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
	LVC40A-S12-N4	Type: Manifold valve, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 12x10 mm \| Option: Indicator \| Material: PFA body, PPS actuator, EPDM
	LVC40A-S12-F	Type: Manifold valve, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 12x10 mm \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
	LVC40A-S13	Type: Manifold valve, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 1/2x3/8 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC40A-S13-1	Type: Manifold valve, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 1/2x3/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
	LVC40A-S13-4	Type: Manifold valve, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 1/2x3/8 in \| Option: Indicator \| Material: PFA body, PPS actuator, FKM
	LVC40A-S13-N	Type: Manifold valve, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 1/2x3/8 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC40A-S13-N1	Type: Manifold valve, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 1/2x3/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
	LVC40A-S13-N4	Type: Manifold valve, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 1/2x3/8 in \| Option: Indicator \| Material: PFA body, PPS actuator, EPDM
	LVC40A-S13-F	Type: Manifold valve, N.C. \| Body class: 4 (orifice 10 mm) \| Tube: 1/2x3/8 in \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
	LVC41A-S10	Type: Manifold valve, N.O. \| Body class: 4 (orifice 10 mm) \| Tube: 10x8 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC41A-S10-N	Type: Manifold valve, N.O. \| Body class: 4 (orifice 10 mm) \| Tube: 10x8 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC41A-S10-F	Type: Manifold valve, N.O. \| Body class: 4 (orifice 10 mm) \| Tube: 10x8 mm \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
	LVC41A-S11	Type: Manifold valve, N.O. \| Body class: 4 (orifice 10 mm) \| Tube: 3/8x1/4 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC41A-S11-N	Type: Manifold valve, N.O. \| Body class: 4 (orifice 10 mm) \| Tube: 3/8x1/4 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC41A-S11-F	Type: Manifold valve, N.O. \| Body class: 4 (orifice 10 mm) \| Tube: 3/8x1/4 in \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
	LVC41A-S12	Type: Manifold valve, N.O. \| Body class: 4 (orifice 10 mm) \| Tube: 12x10 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC41A-S12-N	Type: Manifold valve, N.O. \| Body class: 4 (orifice 10 mm) \| Tube: 12x10 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC41A-S12-F	Type: Manifold valve, N.O. \| Body class: 4 (orifice 10 mm) \| Tube: 12x10 mm \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
	LVC41A-S13	Type: Manifold valve, N.O. \| Body class: 4 (orifice 10 mm) \| Tube: 1/2x3/8 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC41A-S13-N	Type: Manifold valve, N.O. \| Body class: 4 (orifice 10 mm) \| Tube: 1/2x3/8 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC41A-S13-F	Type: Manifold valve, N.O. \| Body class: 4 (orifice 10 mm) \| Tube: 1/2x3/8 in \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
	LVC42A-S10	Type: Manifold valve, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 10x8 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC42A-S10-1	Type: Manifold valve, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 10x8 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
	LVC42A-S10-N	Type: Manifold valve, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 10x8 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC42A-S10-N1	Type: Manifold valve, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 10x8 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
	LVC42A-S10-F	Type: Manifold valve, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 10x8 mm \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
	LVC42A-S11	Type: Manifold valve, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 3/8x1/4 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC42A-S11-1	Type: Manifold valve, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 3/8x1/4 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
	LVC42A-S11-N	Type: Manifold valve, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 3/8x1/4 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC42A-S11-N1	Type: Manifold valve, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 3/8x1/4 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
	LVC42A-S11-F	Type: Manifold valve, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 3/8x1/4 in \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
	LVC42A-S12	Type: Manifold valve, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 12x10 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC42A-S12-1	Type: Manifold valve, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 12x10 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
	LVC42A-S12-N	Type: Manifold valve, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 12x10 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC42A-S12-N1	Type: Manifold valve, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 12x10 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
	LVC42A-S12-F	Type: Manifold valve, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 12x10 mm \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
	LVC42A-S13	Type: Manifold valve, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 1/2x3/8 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC42A-S13-1	Type: Manifold valve, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 1/2x3/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
	LVC42A-S13-N	Type: Manifold valve, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 1/2x3/8 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC42A-S13-N1	Type: Manifold valve, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 1/2x3/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
	LVC42A-S13-F	Type: Manifold valve, Double acting \| Body class: 4 (orifice 10 mm) \| Tube: 1/2x3/8 in \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
	LVC50A-S12	Type: Manifold valve, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 12x10 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC50A-S12-1	Type: Manifold valve, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 12x10 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
	LVC50A-S12-4	Type: Manifold valve, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 12x10 mm \| Option: Indicator \| Material: PFA body, PPS actuator, FKM
	LVC50A-S12-N	Type: Manifold valve, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 12x10 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC50A-S12-N1	Type: Manifold valve, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 12x10 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
	LVC50A-S12-N4	Type: Manifold valve, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 12x10 mm \| Option: Indicator \| Material: PFA body, PPS actuator, EPDM
	LVC50A-S12-F	Type: Manifold valve, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 12x10 mm \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
	LVC50A-S13	Type: Manifold valve, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 1/2x3/8 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC50A-S13-1	Type: Manifold valve, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 1/2x3/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
	LVC50A-S13-4	Type: Manifold valve, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 1/2x3/8 in \| Option: Indicator \| Material: PFA body, PPS actuator, FKM
	LVC50A-S13-N	Type: Manifold valve, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 1/2x3/8 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC50A-S13-N1	Type: Manifold valve, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 1/2x3/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
	LVC50A-S13-N4	Type: Manifold valve, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 1/2x3/8 in \| Option: Indicator \| Material: PFA body, PPS actuator, EPDM
	LVC50A-S13-F	Type: Manifold valve, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 1/2x3/8 in \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
	LVC50A-S19	Type: Manifold valve, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC50A-S19-1	Type: Manifold valve, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
	LVC50A-S19-4	Type: Manifold valve, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Indicator \| Material: PFA body, PPS actuator, FKM
	LVC50A-S19-N	Type: Manifold valve, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC50A-S19-N1	Type: Manifold valve, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
	LVC50A-S19-N4	Type: Manifold valve, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Indicator \| Material: PFA body, PPS actuator, EPDM
	LVC50A-S19-F	Type: Manifold valve, N.C. \| Body class: 5 (orifice 16 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
	LVC51A-S12	Type: Manifold valve, N.O. \| Body class: 5 (orifice 16 mm) \| Tube: 12x10 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC51A-S12-N	Type: Manifold valve, N.O. \| Body class: 5 (orifice 16 mm) \| Tube: 12x10 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC51A-S12-F	Type: Manifold valve, N.O. \| Body class: 5 (orifice 16 mm) \| Tube: 12x10 mm \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
	LVC51A-S13	Type: Manifold valve, N.O. \| Body class: 5 (orifice 16 mm) \| Tube: 1/2x3/8 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC51A-S13-N	Type: Manifold valve, N.O. \| Body class: 5 (orifice 16 mm) \| Tube: 1/2x3/8 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC51A-S13-F	Type: Manifold valve, N.O. \| Body class: 5 (orifice 16 mm) \| Tube: 1/2x3/8 in \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
	LVC51A-S19	Type: Manifold valve, N.O. \| Body class: 5 (orifice 16 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC51A-S19-N	Type: Manifold valve, N.O. \| Body class: 5 (orifice 16 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC51A-S19-F	Type: Manifold valve, N.O. \| Body class: 5 (orifice 16 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
	LVC52A-S12	Type: Manifold valve, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 12x10 mm \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC52A-S12-1	Type: Manifold valve, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 12x10 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
	LVC52A-S12-N	Type: Manifold valve, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 12x10 mm \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC52A-S12-N1	Type: Manifold valve, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 12x10 mm \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
	LVC52A-S12-F	Type: Manifold valve, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 12x10 mm \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
	LVC52A-S13	Type: Manifold valve, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 1/2x3/8 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC52A-S13-1	Type: Manifold valve, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 1/2x3/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
	LVC52A-S13-N	Type: Manifold valve, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 1/2x3/8 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC52A-S13-N1	Type: Manifold valve, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 1/2x3/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
	LVC52A-S13-F	Type: Manifold valve, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 1/2x3/8 in \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
	LVC52A-S19	Type: Manifold valve, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Basic \| Material: PFA body, PPS actuator, FKM
	LVC52A-S19-1	Type: Manifold valve, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, FKM
	LVC52A-S19-N	Type: Manifold valve, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Basic \| Material: PFA body, PPS actuator, EPDM
	LVC52A-S19-N1	Type: Manifold valve, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Flow adjustment \| Material: PFA body, PPS actuator, EPDM
	LVC52A-S19-F	Type: Manifold valve, Double acting \| Body class: 5 (orifice 16 mm) \| Tube: 19x16 mm or 3/4x5/8 in \| Option: Basic \| Material: PFA body, PVDF actuator (HF)
	LLC2A-02-S06	Type: Manifold base, 2 stations \| Body class: 2 \| Tube: 6x4 mm (P port) \| Option: Stacking type \| Material: PFA manifold
	LLC2A-02-S07	Type: Manifold base, 2 stations \| Body class: 2 \| Tube: 1/4x5/32 in (P port) \| Option: Stacking type \| Material: PFA manifold
	LLC2A-02-S08	Type: Manifold base, 2 stations \| Body class: 2 \| Tube: 8x6 mm (P port) \| Option: Stacking type \| Material: PFA manifold
	LLC2A-02-S10	Type: Manifold base, 2 stations \| Body class: 2 \| Tube: 10x8 mm (P port) \| Option: Stacking type \| Material: PFA manifold
	LLC2A-02-S11	Type: Manifold base, 2 stations \| Body class: 2 \| Tube: 3/8x1/4 in (P port) \| Option: Stacking type \| Material: PFA manifold
	LLC2A-03-S06	Type: Manifold base, 3 stations \| Body class: 2 \| Tube: 6x4 mm (P port) \| Option: Stacking type \| Material: PFA manifold
	LLC2A-03-S07	Type: Manifold base, 3 stations \| Body class: 2 \| Tube: 1/4x5/32 in (P port) \| Option: Stacking type \| Material: PFA manifold
	LLC2A-03-S08	Type: Manifold base, 3 stations \| Body class: 2 \| Tube: 8x6 mm (P port) \| Option: Stacking type \| Material: PFA manifold
	LLC2A-03-S10	Type: Manifold base, 3 stations \| Body class: 2 \| Tube: 10x8 mm (P port) \| Option: Stacking type \| Material: PFA manifold
	LLC2A-03-S11	Type: Manifold base, 3 stations \| Body class: 2 \| Tube: 3/8x1/4 in (P port) \| Option: Stacking type \| Material: PFA manifold
	LLC2A-04-S06	Type: Manifold base, 4 stations \| Body class: 2 \| Tube: 6x4 mm (P port) \| Option: Stacking type \| Material: PFA manifold
	LLC2A-04-S07	Type: Manifold base, 4 stations \| Body class: 2 \| Tube: 1/4x5/32 in (P port) \| Option: Stacking type \| Material: PFA manifold
	LLC2A-04-S08	Type: Manifold base, 4 stations \| Body class: 2 \| Tube: 8x6 mm (P port) \| Option: Stacking type \| Material: PFA manifold
	LLC2A-04-S10	Type: Manifold base, 4 stations \| Body class: 2 \| Tube: 10x8 mm (P port) \| Option: Stacking type \| Material: PFA manifold
	LLC2A-04-S11	Type: Manifold base, 4 stations \| Body class: 2 \| Tube: 3/8x1/4 in (P port) \| Option: Stacking type \| Material: PFA manifold
	LLC2A-05-S06	Type: Manifold base, 5 stations \| Body class: 2 \| Tube: 6x4 mm (P port) \| Option: Stacking type \| Material: PFA manifold
	LLC2A-05-S07	Type: Manifold base, 5 stations \| Body class: 2 \| Tube: 1/4x5/32 in (P port) \| Option: Stacking type \| Material: PFA manifold
	LLC2A-05-S08	Type: Manifold base, 5 stations \| Body class: 2 \| Tube: 8x6 mm (P port) \| Option: Stacking type \| Material: PFA manifold
	LLC2A-05-S10	Type: Manifold base, 5 stations \| Body class: 2 \| Tube: 10x8 mm (P port) \| Option: Stacking type \| Material: PFA manifold
	LLC2A-05-S11	Type: Manifold base, 5 stations \| Body class: 2 \| Tube: 3/8x1/4 in (P port) \| Option: Stacking type \| Material: PFA manifold
	LLC3A-02-S10	Type: Manifold base, 2 stations \| Body class: 3 \| Tube: 10x8 mm (P port) \| Option: Stacking type \| Material: PFA manifold
	LLC3A-02-S11	Type: Manifold base, 2 stations \| Body class: 3 \| Tube: 3/8x1/4 in (P port) \| Option: Stacking type \| Material: PFA manifold
	LLC3A-02-S12	Type: Manifold base, 2 stations \| Body class: 3 \| Tube: 12x10 mm (P port) \| Option: Stacking type \| Material: PFA manifold
	LLC3A-02-S13	Type: Manifold base, 2 stations \| Body class: 3 \| Tube: 1/2x3/8 in (P port) \| Option: Stacking type \| Material: PFA manifold
	LLC3A-03-S10	Type: Manifold base, 3 stations \| Body class: 3 \| Tube: 10x8 mm (P port) \| Option: Stacking type \| Material: PFA manifold
	LLC3A-03-S11	Type: Manifold base, 3 stations \| Body class: 3 \| Tube: 3/8x1/4 in (P port) \| Option: Stacking type \| Material: PFA manifold
	LLC3A-03-S12	Type: Manifold base, 3 stations \| Body class: 3 \| Tube: 12x10 mm (P port) \| Option: Stacking type \| Material: PFA manifold
	LLC3A-03-S13	Type: Manifold base, 3 stations \| Body class: 3 \| Tube: 1/2x3/8 in (P port) \| Option: Stacking type \| Material: PFA manifold
	LLC3A-04-S10	Type: Manifold base, 4 stations \| Body class: 3 \| Tube: 10x8 mm (P port) \| Option: Stacking type \| Material: PFA manifold
	LLC3A-04-S11	Type: Manifold base, 4 stations \| Body class: 3 \| Tube: 3/8x1/4 in (P port) \| Option: Stacking type \| Material: PFA manifold
	LLC3A-04-S12	Type: Manifold base, 4 stations \| Body class: 3 \| Tube: 12x10 mm (P port) \| Option: Stacking type \| Material: PFA manifold
	LLC3A-04-S13	Type: Manifold base, 4 stations \| Body class: 3 \| Tube: 1/2x3/8 in (P port) \| Option: Stacking type \| Material: PFA manifold
	LLC3A-05-S10	Type: Manifold base, 5 stations \| Body class: 3 \| Tube: 10x8 mm (P port) \| Option: Stacking type \| Material: PFA manifold
	LLC3A-05-S11	Type: Manifold base, 5 stations \| Body class: 3 \| Tube: 3/8x1/4 in (P port) \| Option: Stacking type \| Material: PFA manifold
	LLC3A-05-S12	Type: Manifold base, 5 stations \| Body class: 3 \| Tube: 12x10 mm (P port) \| Option: Stacking type \| Material: PFA manifold
	LLC3A-05-S13	Type: Manifold base, 5 stations \| Body class: 3 \| Tube: 1/2x3/8 in (P port) \| Option: Stacking type \| Material: PFA manifold
	LLC4A-02-S12	Type: Manifold base, 2 stations \| Body class: 4 \| Tube: 12x10 mm (P port) \| Option: Stacking type \| Material: PFA manifold
	LLC4A-02-S13	Type: Manifold base, 2 stations \| Body class: 4 \| Tube: 1/2x3/8 in (P port) \| Option: Stacking type \| Material: PFA manifold
	LLC4A-02-S19	Type: Manifold base, 2 stations \| Body class: 4 \| Tube: 19x16 mm or 3/4x5/8 in (P port) \| Option: Stacking type \| Material: PFA manifold
	LLC4A-03-S12	Type: Manifold base, 3 stations \| Body class: 4 \| Tube: 12x10 mm (P port) \| Option: Stacking type \| Material: PFA manifold
	LLC4A-03-S13	Type: Manifold base, 3 stations \| Body class: 4 \| Tube: 1/2x3/8 in (P port) \| Option: Stacking type \| Material: PFA manifold
	LLC4A-03-S19	Type: Manifold base, 3 stations \| Body class: 4 \| Tube: 19x16 mm or 3/4x5/8 in (P port) \| Option: Stacking type \| Material: PFA manifold
	LLC4A-04-S12	Type: Manifold base, 4 stations \| Body class: 4 \| Tube: 12x10 mm (P port) \| Option: Stacking type \| Material: PFA manifold
	LLC4A-04-S13	Type: Manifold base, 4 stations \| Body class: 4 \| Tube: 1/2x3/8 in (P port) \| Option: Stacking type \| Material: PFA manifold
	LLC4A-04-S19	Type: Manifold base, 4 stations \| Body class: 4 \| Tube: 19x16 mm or 3/4x5/8 in (P port) \| Option: Stacking type \| Material: PFA manifold
	LLC4A-05-S12	Type: Manifold base, 5 stations \| Body class: 4 \| Tube: 12x10 mm (P port) \| Option: Stacking type \| Material: PFA manifold
	LLC4A-05-S13	Type: Manifold base, 5 stations \| Body class: 4 \| Tube: 1/2x3/8 in (P port) \| Option: Stacking type \| Material: PFA manifold
	LLC4A-05-S19	Type: Manifold base, 5 stations \| Body class: 4 \| Tube: 19x16 mm or 3/4x5/8 in (P port) \| Option: Stacking type \| Material: PFA manifold
	LLC5A-02-S12	Type: Manifold base, 2 stations \| Body class: 5 \| Tube: 12x10 mm (P port) \| Option: Stacking type \| Material: PFA manifold
	LLC5A-02-S13	Type: Manifold base, 2 stations \| Body class: 5 \| Tube: 1/2x3/8 in (P port) \| Option: Stacking type \| Material: PFA manifold
	LLC5A-02-S19	Type: Manifold base, 2 stations \| Body class: 5 \| Tube: 19x16 mm or 3/4x5/8 in (P port) \| Option: Stacking type \| Material: PFA manifold
	LLC5A-03-S12	Type: Manifold base, 3 stations \| Body class: 5 \| Tube: 12x10 mm (P port) \| Option: Stacking type \| Material: PFA manifold
	LLC5A-03-S13	Type: Manifold base, 3 stations \| Body class: 5 \| Tube: 1/2x3/8 in (P port) \| Option: Stacking type \| Material: PFA manifold
	LLC5A-03-S19	Type: Manifold base, 3 stations \| Body class: 5 \| Tube: 19x16 mm or 3/4x5/8 in (P port) \| Option: Stacking type \| Material: PFA manifold
	LLC5A-04-S12	Type: Manifold base, 4 stations \| Body class: 5 \| Tube: 12x10 mm (P port) \| Option: Stacking type \| Material: PFA manifold
	LLC5A-04-S13	Type: Manifold base, 4 stations \| Body class: 5 \| Tube: 1/2x3/8 in (P port) \| Option: Stacking type \| Material: PFA manifold
	LLC5A-04-S19	Type: Manifold base, 4 stations \| Body class: 5 \| Tube: 19x16 mm or 3/4x5/8 in (P port) \| Option: Stacking type \| Material: PFA manifold
	LLC5A-05-S12	Type: Manifold base, 5 stations \| Body class: 5 \| Tube: 12x10 mm (P port) \| Option: Stacking type \| Material: PFA manifold
	LLC5A-05-S13	Type: Manifold base, 5 stations \| Body class: 5 \| Tube: 1/2x3/8 in (P port) \| Option: Stacking type \| Material: PFA manifold
	LLC5A-05-S19	Type: Manifold base, 5 stations \| Body class: 5 \| Tube: 19x16 mm or 3/4x5/8 in (P port) \| Option: Stacking type \| Material: PFA manifold

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC LVC Air Operated Chemical Valve (Insert Bushing / LQ2 Fitting)
