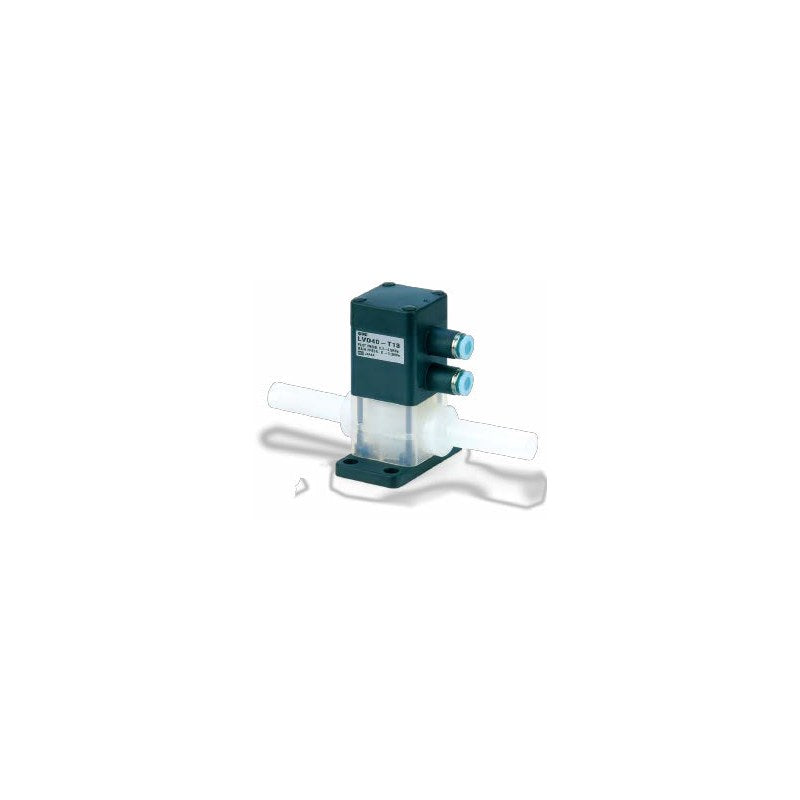

SMC LVD Compact Air Operated Chemical Valve (LQ1 / Tube, PPS)

SMC LVD series compact air-operated chemical valve with New PFA body, PTFE diaphragm and PPS actuator, with integrated LQ1 fitting (S) or integral tube (T), plus LVD13U suck-back valve.

Key features

Up to 29% shorter piping length than the LVC series; mounting base to SEMI F65-1101 (except LVD10)
Integrated LQ1 hyper fitting (S) with reducer sizes, or integral PFA tube ends (LVD-T)
Pilot port: clean one-touch fitting (ø4 class 1, ø6 class 2-5) or M5x0.8 thread; 4 pilot port positions (P2 to P4 suffix)
Options: flow adjustment, bypass, flow adjustment + bypass; N material for ammonia water
LVD13U suck-back valve draws back liquid at the nozzle tip to prevent dripping

Specifications

Fluid	Deionized water, chemicals (see compatibility list)
Proof pressure	1 MPa
Operating pressure	A to B 0 to 0.5 MPa (class 1-2), 0 to 0.3 MPa (class 3-5)
Pilot pressure	0.3 to 0.5 MPa
Valve leakage	0 cm3/min (water pressure)
Flow Cv (class 1/2/3/4/5)	0.09 / 0.35 / 1.3 / 1.9 / 5
Fluid temperature	0 to 100 C
Ambient temperature	0 to 60 C
Materials	Body PFA, diaphragm PTFE, actuator/end plate PPS
Source	SMC Korea catalog LVD Series (SMCKR_LVD.pdf), p. 740-749 (PDF p. 4-13)

LVD10-S03		Body class: 1 (ø2 orifice) \| Valve type: N.C. \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: ø4 one-touch fitting \| Option: None \| Material: Standard
LVD10-S03-N		Body class: 1 (ø2 orifice) \| Valve type: N.C. \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: ø4 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD10-S032		Body class: 1 (ø2 orifice) \| Valve type: N.C. \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD10-S032-N		Body class: 1 (ø2 orifice) \| Valve type: N.C. \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD10-S03-1		Body class: 1 (ø2 orifice) \| Valve type: N.C. \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: ø4 one-touch fitting \| Option: Flow adjustment \| Material: Standard
LVD10-S03-N1		Body class: 1 (ø2 orifice) \| Valve type: N.C. \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: ø4 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
LVD10-S032-1		Body class: 1 (ø2 orifice) \| Valve type: N.C. \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
LVD10-S032-N1		Body class: 1 (ø2 orifice) \| Valve type: N.C. \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
LVD11-S03		Body class: 1 (ø2 orifice) \| Valve type: N.O. \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: ø4 one-touch fitting \| Option: None \| Material: Standard
LVD11-S03-N		Body class: 1 (ø2 orifice) \| Valve type: N.O. \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: ø4 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD11-S032		Body class: 1 (ø2 orifice) \| Valve type: N.O. \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD11-S032-N		Body class: 1 (ø2 orifice) \| Valve type: N.O. \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD12-S03		Body class: 1 (ø2 orifice) \| Valve type: Double acting \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: ø4 one-touch fitting \| Option: None \| Material: Standard
LVD12-S03-N		Body class: 1 (ø2 orifice) \| Valve type: Double acting \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: ø4 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD12-S032		Body class: 1 (ø2 orifice) \| Valve type: Double acting \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD12-S032-N		Body class: 1 (ø2 orifice) \| Valve type: Double acting \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD12-S03-1		Body class: 1 (ø2 orifice) \| Valve type: Double acting \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: ø4 one-touch fitting \| Option: Flow adjustment \| Material: Standard
LVD12-S03-N1		Body class: 1 (ø2 orifice) \| Valve type: Double acting \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: ø4 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
LVD12-S032-1		Body class: 1 (ø2 orifice) \| Valve type: Double acting \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
LVD12-S032-N1		Body class: 1 (ø2 orifice) \| Valve type: Double acting \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
LVD10-S04		Body class: 1 (ø2 orifice) \| Valve type: N.C. \| Connection: LQ1 4x3 mm \| Pilot port: ø4 one-touch fitting \| Option: None \| Material: Standard
LVD10-S04-N		Body class: 1 (ø2 orifice) \| Valve type: N.C. \| Connection: LQ1 4x3 mm \| Pilot port: ø4 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD10-S042		Body class: 1 (ø2 orifice) \| Valve type: N.C. \| Connection: LQ1 4x3 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD10-S042-N		Body class: 1 (ø2 orifice) \| Valve type: N.C. \| Connection: LQ1 4x3 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD10-S04-1		Body class: 1 (ø2 orifice) \| Valve type: N.C. \| Connection: LQ1 4x3 mm \| Pilot port: ø4 one-touch fitting \| Option: Flow adjustment \| Material: Standard
LVD10-S04-N1		Body class: 1 (ø2 orifice) \| Valve type: N.C. \| Connection: LQ1 4x3 mm \| Pilot port: ø4 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
LVD10-S042-1		Body class: 1 (ø2 orifice) \| Valve type: N.C. \| Connection: LQ1 4x3 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
LVD10-S042-N1		Body class: 1 (ø2 orifice) \| Valve type: N.C. \| Connection: LQ1 4x3 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
LVD11-S04		Body class: 1 (ø2 orifice) \| Valve type: N.O. \| Connection: LQ1 4x3 mm \| Pilot port: ø4 one-touch fitting \| Option: None \| Material: Standard
LVD11-S04-N		Body class: 1 (ø2 orifice) \| Valve type: N.O. \| Connection: LQ1 4x3 mm \| Pilot port: ø4 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD11-S042		Body class: 1 (ø2 orifice) \| Valve type: N.O. \| Connection: LQ1 4x3 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD11-S042-N		Body class: 1 (ø2 orifice) \| Valve type: N.O. \| Connection: LQ1 4x3 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD12-S04		Body class: 1 (ø2 orifice) \| Valve type: Double acting \| Connection: LQ1 4x3 mm \| Pilot port: ø4 one-touch fitting \| Option: None \| Material: Standard
LVD12-S04-N		Body class: 1 (ø2 orifice) \| Valve type: Double acting \| Connection: LQ1 4x3 mm \| Pilot port: ø4 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD12-S042		Body class: 1 (ø2 orifice) \| Valve type: Double acting \| Connection: LQ1 4x3 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD12-S042-N		Body class: 1 (ø2 orifice) \| Valve type: Double acting \| Connection: LQ1 4x3 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD12-S04-1		Body class: 1 (ø2 orifice) \| Valve type: Double acting \| Connection: LQ1 4x3 mm \| Pilot port: ø4 one-touch fitting \| Option: Flow adjustment \| Material: Standard
LVD12-S04-N1		Body class: 1 (ø2 orifice) \| Valve type: Double acting \| Connection: LQ1 4x3 mm \| Pilot port: ø4 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
LVD12-S042-1		Body class: 1 (ø2 orifice) \| Valve type: Double acting \| Connection: LQ1 4x3 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
LVD12-S042-N1		Body class: 1 (ø2 orifice) \| Valve type: Double acting \| Connection: LQ1 4x3 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
LVD20-S03		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
LVD20-S03-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD20-S032		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD20-S032-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD20-S03-1		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
LVD20-S03-N1		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
LVD20-S032-1		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
LVD20-S032-N1		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
LVD20-S03-2		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Standard
LVD20-S03-N2		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Ammonia compatible
LVD20-S032-2		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Standard
LVD20-S032-N2		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Ammonia compatible
LVD20-S03-3		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Standard
LVD20-S03-N3		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Ammonia compatible
LVD20-S032-3		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Standard
LVD20-S032-N3		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Ammonia compatible
LVD21-S03		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
LVD21-S03-N		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD21-S032		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD21-S032-N		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD22-S03		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
LVD22-S03-N		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD22-S032		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD22-S032-N		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD22-S03-1		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
LVD22-S03-N1		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
LVD22-S032-1		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
LVD22-S032-N1		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
LVD22-S03-2		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Standard
LVD22-S03-N2		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Ammonia compatible
LVD22-S032-2		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Standard
LVD22-S032-N2		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Ammonia compatible
LVD22-S03-3		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Standard
LVD22-S03-N3		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Ammonia compatible
LVD22-S032-3		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Standard
LVD22-S032-N3		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Ammonia compatible
LVD20-S04		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 4x3 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
LVD20-S04-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 4x3 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD20-S042		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 4x3 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD20-S042-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 4x3 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD20-S04-1		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 4x3 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
LVD20-S04-N1		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 4x3 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
LVD20-S042-1		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 4x3 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
LVD20-S042-N1		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 4x3 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
LVD20-S04-2		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 4x3 mm \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Standard
LVD20-S04-N2		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 4x3 mm \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Ammonia compatible
LVD20-S042-2		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 4x3 mm \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Standard
LVD20-S042-N2		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 4x3 mm \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Ammonia compatible
LVD20-S04-3		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 4x3 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Standard
LVD20-S04-N3		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 4x3 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Ammonia compatible
LVD20-S042-3		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 4x3 mm \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Standard
LVD20-S042-N3		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 4x3 mm \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Ammonia compatible
LVD21-S04		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 4x3 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
LVD21-S04-N		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 4x3 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD21-S042		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 4x3 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD21-S042-N		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 4x3 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD22-S04		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 4x3 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
LVD22-S04-N		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 4x3 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD22-S042		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 4x3 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD22-S042-N		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 4x3 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD22-S04-1		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 4x3 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
LVD22-S04-N1		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 4x3 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
LVD22-S042-1		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 4x3 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
LVD22-S042-N1		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 4x3 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
LVD22-S04-2		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 4x3 mm \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Standard
LVD22-S04-N2		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 4x3 mm \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Ammonia compatible
LVD22-S042-2		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 4x3 mm \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Standard
LVD22-S042-N2		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 4x3 mm \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Ammonia compatible
LVD22-S04-3		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 4x3 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Standard
LVD22-S04-N3		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 4x3 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Ammonia compatible
LVD22-S042-3		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 4x3 mm \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Standard
LVD22-S042-N3		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 4x3 mm \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Ammonia compatible
LVD20-S06		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 6x4 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
LVD20-S06-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 6x4 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD20-S062		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 6x4 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD20-S062-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 6x4 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD20-S06-1		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 6x4 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
LVD20-S06-N1		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 6x4 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
LVD20-S062-1		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 6x4 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
LVD20-S062-N1		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 6x4 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
LVD20-S06-2		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 6x4 mm \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Standard
LVD20-S06-N2		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 6x4 mm \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Ammonia compatible
LVD20-S062-2		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 6x4 mm \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Standard
LVD20-S062-N2		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 6x4 mm \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Ammonia compatible
LVD20-S06-3		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 6x4 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Standard
LVD20-S06-N3		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 6x4 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Ammonia compatible
LVD20-S062-3		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 6x4 mm \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Standard
LVD20-S062-N3		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 6x4 mm \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Ammonia compatible
LVD21-S06		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 6x4 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
LVD21-S06-N		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 6x4 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD21-S062		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 6x4 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD21-S062-N		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 6x4 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD22-S06		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 6x4 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
LVD22-S06-N		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 6x4 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD22-S062		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 6x4 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD22-S062-N		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 6x4 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD22-S06-1		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 6x4 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
LVD22-S06-N1		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 6x4 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
LVD22-S062-1		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 6x4 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
LVD22-S062-N1		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 6x4 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
LVD22-S06-2		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 6x4 mm \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Standard
LVD22-S06-N2		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 6x4 mm \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Ammonia compatible
LVD22-S062-2		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 6x4 mm \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Standard
LVD22-S062-N2		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 6x4 mm \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Ammonia compatible
LVD22-S06-3		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 6x4 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Standard
LVD22-S06-N3		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 6x4 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Ammonia compatible
LVD22-S062-3		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 6x4 mm \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Standard
LVD22-S062-N3		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 6x4 mm \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Ammonia compatible
LVD20-S05		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 3/16 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
LVD20-S05-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 3/16 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD20-S052		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 3/16 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD20-S052-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 3/16 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD20-S05-1		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 3/16 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
LVD20-S05-N1		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 3/16 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
LVD20-S052-1		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 3/16 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
LVD20-S052-N1		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 3/16 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
LVD20-S05-2		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 3/16 in \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Standard
LVD20-S05-N2		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 3/16 in \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Ammonia compatible
LVD20-S052-2		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 3/16 in \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Standard
LVD20-S052-N2		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 3/16 in \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Ammonia compatible
LVD20-S05-3		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 3/16 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Standard
LVD20-S05-N3		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 3/16 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Ammonia compatible
LVD20-S052-3		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 3/16 in \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Standard
LVD20-S052-N3		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 3/16 in \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Ammonia compatible
LVD21-S05		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 3/16 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
LVD21-S05-N		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 3/16 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD21-S052		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 3/16 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD21-S052-N		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 3/16 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD22-S05		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 3/16 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
LVD22-S05-N		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 3/16 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD22-S052		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 3/16 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD22-S052-N		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 3/16 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD22-S05-1		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 3/16 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
LVD22-S05-N1		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 3/16 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
LVD22-S052-1		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 3/16 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
LVD22-S052-N1		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 3/16 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
LVD22-S05-2		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 3/16 in \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Standard
LVD22-S05-N2		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 3/16 in \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Ammonia compatible
LVD22-S052-2		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 3/16 in \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Standard
LVD22-S052-N2		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 3/16 in \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Ammonia compatible
LVD22-S05-3		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 3/16 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Standard
LVD22-S05-N3		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 3/16 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Ammonia compatible
LVD22-S052-3		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 3/16 in \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Standard
LVD22-S052-N3		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 3/16 in \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Ammonia compatible
LVD20-S07		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
LVD20-S07-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD20-S072		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 1/4 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD20-S072-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 1/4 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD20-S07-1		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
LVD20-S07-N1		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
LVD20-S072-1		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 1/4 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
LVD20-S072-N1		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 1/4 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
LVD20-S07-2		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Standard
LVD20-S07-N2		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Ammonia compatible
LVD20-S072-2		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 1/4 in \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Standard
LVD20-S072-N2		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 1/4 in \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Ammonia compatible
LVD20-S07-3		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Standard
LVD20-S07-N3		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Ammonia compatible
LVD20-S072-3		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 1/4 in \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Standard
LVD20-S072-N3		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 1/4 in \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Ammonia compatible
LVD21-S07		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
LVD21-S07-N		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD21-S072		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 1/4 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD21-S072-N		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 1/4 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD22-S07		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
LVD22-S07-N		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD22-S072		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 1/4 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD22-S072-N		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 1/4 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD22-S07-1		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
LVD22-S07-N1		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
LVD22-S072-1		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 1/4 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
LVD22-S072-N1		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 1/4 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
LVD22-S07-2		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Standard
LVD22-S07-N2		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Ammonia compatible
LVD22-S072-2		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 1/4 in \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Standard
LVD22-S072-N2		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 1/4 in \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Ammonia compatible
LVD22-S07-3		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Standard
LVD22-S07-N3		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Ammonia compatible
LVD22-S072-3		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 1/4 in \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Standard
LVD22-S072-N3		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 1/4 in \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Ammonia compatible
LVD30-S06		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 6x4 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
LVD30-S06-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 6x4 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD30-S062		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 6x4 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD30-S062-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 6x4 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD30-S06-1		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 6x4 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
LVD30-S06-N1		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 6x4 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
LVD30-S062-1		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 6x4 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
LVD30-S062-N1		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 6x4 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
LVD30-S06-2		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 6x4 mm \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Standard
LVD30-S06-N2		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 6x4 mm \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Ammonia compatible
LVD30-S062-2		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 6x4 mm \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Standard
LVD30-S062-N2		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 6x4 mm \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Ammonia compatible
LVD30-S06-3		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 6x4 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Standard
LVD30-S06-N3		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 6x4 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Ammonia compatible
LVD30-S062-3		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 6x4 mm \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Standard
LVD30-S062-N3		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 6x4 mm \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Ammonia compatible
LVD31-S06		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 6x4 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
LVD31-S06-N		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 6x4 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD31-S062		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 6x4 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD31-S062-N		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 6x4 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD32-S06		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 6x4 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
LVD32-S06-N		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 6x4 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD32-S062		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 6x4 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD32-S062-N		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 6x4 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD32-S06-1		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 6x4 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
LVD32-S06-N1		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 6x4 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
LVD32-S062-1		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 6x4 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
LVD32-S062-N1		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 6x4 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
LVD32-S06-2		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 6x4 mm \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Standard
LVD32-S06-N2		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 6x4 mm \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Ammonia compatible
LVD32-S062-2		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 6x4 mm \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Standard
LVD32-S062-N2		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 6x4 mm \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Ammonia compatible
LVD32-S06-3		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 6x4 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Standard
LVD32-S06-N3		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 6x4 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Ammonia compatible
LVD32-S062-3		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 6x4 mm \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Standard
LVD32-S062-N3		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 6x4 mm \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Ammonia compatible
LVD30-S08		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 8x6 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
LVD30-S08-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 8x6 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD30-S082		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 8x6 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD30-S082-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 8x6 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD30-S08-1		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 8x6 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
LVD30-S08-N1		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 8x6 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
LVD30-S082-1		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 8x6 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
LVD30-S082-N1		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 8x6 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
LVD30-S08-2		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 8x6 mm \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Standard
LVD30-S08-N2		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 8x6 mm \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Ammonia compatible
LVD30-S082-2		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 8x6 mm \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Standard
LVD30-S082-N2		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 8x6 mm \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Ammonia compatible
LVD30-S08-3		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 8x6 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Standard
LVD30-S08-N3		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 8x6 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Ammonia compatible
LVD30-S082-3		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 8x6 mm \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Standard
LVD30-S082-N3		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 8x6 mm \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Ammonia compatible
LVD31-S08		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 8x6 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
LVD31-S08-N		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 8x6 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD31-S082		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 8x6 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD31-S082-N		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 8x6 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD32-S08		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 8x6 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
LVD32-S08-N		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 8x6 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD32-S082		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 8x6 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD32-S082-N		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 8x6 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD32-S08-1		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 8x6 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
LVD32-S08-N1		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 8x6 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
LVD32-S082-1		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 8x6 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
LVD32-S082-N1		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 8x6 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
LVD32-S08-2		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 8x6 mm \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Standard
LVD32-S08-N2		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 8x6 mm \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Ammonia compatible
LVD32-S082-2		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 8x6 mm \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Standard
LVD32-S082-N2		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 8x6 mm \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Ammonia compatible
LVD32-S08-3		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 8x6 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Standard
LVD32-S08-N3		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 8x6 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Ammonia compatible
LVD32-S082-3		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 8x6 mm \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Standard
LVD32-S082-N3		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 8x6 mm \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Ammonia compatible
LVD30-S10		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 10x8 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
LVD30-S10-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 10x8 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD30-S102		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 10x8 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD30-S102-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 10x8 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD30-S10-1		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 10x8 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
LVD30-S10-N1		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 10x8 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
LVD30-S102-1		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 10x8 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
LVD30-S102-N1		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 10x8 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
LVD30-S10-2		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 10x8 mm \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Standard
LVD30-S10-N2		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 10x8 mm \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Ammonia compatible
LVD30-S102-2		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 10x8 mm \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Standard
LVD30-S102-N2		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 10x8 mm \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Ammonia compatible
LVD30-S10-3		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 10x8 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Standard
LVD30-S10-N3		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 10x8 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Ammonia compatible
LVD30-S102-3		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 10x8 mm \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Standard
LVD30-S102-N3		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 10x8 mm \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Ammonia compatible
LVD31-S10		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 10x8 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
LVD31-S10-N		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 10x8 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD31-S102		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 10x8 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD31-S102-N		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 10x8 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD32-S10		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 10x8 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
LVD32-S10-N		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 10x8 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD32-S102		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 10x8 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD32-S102-N		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 10x8 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD32-S10-1		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 10x8 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
LVD32-S10-N1		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 10x8 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
LVD32-S102-1		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 10x8 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
LVD32-S102-N1		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 10x8 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
LVD32-S10-2		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 10x8 mm \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Standard
LVD32-S10-N2		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 10x8 mm \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Ammonia compatible
LVD32-S102-2		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 10x8 mm \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Standard
LVD32-S102-N2		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 10x8 mm \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Ammonia compatible
LVD32-S10-3		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 10x8 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Standard
LVD32-S10-N3		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 10x8 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Ammonia compatible
LVD32-S102-3		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 10x8 mm \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Standard
LVD32-S102-N3		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 10x8 mm \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Ammonia compatible
LVD30-S07		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
LVD30-S07-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD30-S072		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 1/4 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD30-S072-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 1/4 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD30-S07-1		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
LVD30-S07-N1		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
LVD30-S072-1		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 1/4 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
LVD30-S072-N1		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 1/4 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
LVD30-S07-2		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Standard
LVD30-S07-N2		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Ammonia compatible
LVD30-S072-2		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 1/4 in \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Standard
LVD30-S072-N2		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 1/4 in \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Ammonia compatible
LVD30-S07-3		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Standard
LVD30-S07-N3		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Ammonia compatible
LVD30-S072-3		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 1/4 in \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Standard
LVD30-S072-N3		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 1/4 in \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Ammonia compatible
LVD31-S07		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
LVD31-S07-N		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD31-S072		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 1/4 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD31-S072-N		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 1/4 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD32-S07		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
LVD32-S07-N		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD32-S072		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 1/4 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD32-S072-N		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 1/4 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD32-S07-1		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
LVD32-S07-N1		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
LVD32-S072-1		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 1/4 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
LVD32-S072-N1		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 1/4 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
LVD32-S07-2		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Standard
LVD32-S07-N2		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Ammonia compatible
LVD32-S072-2		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 1/4 in \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Standard
LVD32-S072-N2		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 1/4 in \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Ammonia compatible
LVD32-S07-3		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Standard
LVD32-S07-N3		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Ammonia compatible
LVD32-S072-3		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 1/4 in \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Standard
LVD32-S072-N3		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 1/4 in \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Ammonia compatible
LVD30-S11		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
LVD30-S11-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD30-S112		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 3/8 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD30-S112-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 3/8 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD30-S11-1		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
LVD30-S11-N1		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
LVD30-S112-1		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 3/8 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
LVD30-S112-N1		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 3/8 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
LVD30-S11-2		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Standard
LVD30-S11-N2		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Ammonia compatible
LVD30-S112-2		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 3/8 in \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Standard
LVD30-S112-N2		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 3/8 in \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Ammonia compatible
LVD30-S11-3		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Standard
LVD30-S11-N3		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Ammonia compatible
LVD30-S112-3		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 3/8 in \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Standard
LVD30-S112-N3		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 3/8 in \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Ammonia compatible
LVD31-S11		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
LVD31-S11-N		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD31-S112		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 3/8 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD31-S112-N		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 3/8 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD32-S11		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
LVD32-S11-N		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD32-S112		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 3/8 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD32-S112-N		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 3/8 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD32-S11-1		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
LVD32-S11-N1		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
LVD32-S112-1		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 3/8 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
LVD32-S112-N1		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 3/8 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
LVD32-S11-2		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Standard
LVD32-S11-N2		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Ammonia compatible
LVD32-S112-2		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 3/8 in \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Standard
LVD32-S112-N2		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 3/8 in \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Ammonia compatible
LVD32-S11-3		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Standard
LVD32-S11-N3		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Ammonia compatible
LVD32-S112-3		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 3/8 in \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Standard
LVD32-S112-N3		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 3/8 in \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Ammonia compatible
LVD40-S10		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 10x8 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
LVD40-S10-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 10x8 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD40-S102		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 10x8 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD40-S102-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 10x8 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD40-S10-1		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 10x8 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
LVD40-S10-N1		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 10x8 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
LVD40-S102-1		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 10x8 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
LVD40-S102-N1		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 10x8 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
LVD40-S10-2		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 10x8 mm \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Standard
LVD40-S10-N2		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 10x8 mm \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Ammonia compatible
LVD40-S102-2		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 10x8 mm \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Standard
LVD40-S102-N2		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 10x8 mm \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Ammonia compatible
LVD40-S10-3		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 10x8 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Standard
LVD40-S10-N3		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 10x8 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Ammonia compatible
LVD40-S102-3		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 10x8 mm \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Standard
LVD40-S102-N3		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 10x8 mm \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Ammonia compatible
LVD41-S10		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ1 10x8 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
LVD41-S10-N		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ1 10x8 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD41-S102		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ1 10x8 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD41-S102-N		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ1 10x8 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD42-S10		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 10x8 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
LVD42-S10-N		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 10x8 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD42-S102		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 10x8 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD42-S102-N		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 10x8 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD42-S10-1		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 10x8 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
LVD42-S10-N1		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 10x8 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
LVD42-S102-1		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 10x8 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
LVD42-S102-N1		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 10x8 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
LVD42-S10-2		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 10x8 mm \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Standard
LVD42-S10-N2		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 10x8 mm \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Ammonia compatible
LVD42-S102-2		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 10x8 mm \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Standard
LVD42-S102-N2		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 10x8 mm \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Ammonia compatible
LVD42-S10-3		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 10x8 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Standard
LVD42-S10-N3		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 10x8 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Ammonia compatible
LVD42-S102-3		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 10x8 mm \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Standard
LVD42-S102-N3		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 10x8 mm \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Ammonia compatible
LVD40-S12		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 12x10 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
LVD40-S12-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 12x10 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD40-S122		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 12x10 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD40-S122-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 12x10 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD40-S12-1		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 12x10 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
LVD40-S12-N1		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 12x10 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
LVD40-S122-1		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 12x10 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
LVD40-S122-N1		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 12x10 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
LVD40-S12-2		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 12x10 mm \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Standard
LVD40-S12-N2		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 12x10 mm \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Ammonia compatible
LVD40-S122-2		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 12x10 mm \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Standard
LVD40-S122-N2		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 12x10 mm \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Ammonia compatible
LVD40-S12-3		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 12x10 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Standard
LVD40-S12-N3		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 12x10 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Ammonia compatible
LVD40-S122-3		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 12x10 mm \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Standard
LVD40-S122-N3		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 12x10 mm \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Ammonia compatible
LVD41-S12		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ1 12x10 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
LVD41-S12-N		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ1 12x10 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD41-S122		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ1 12x10 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD41-S122-N		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ1 12x10 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD42-S12		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 12x10 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
LVD42-S12-N		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 12x10 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD42-S122		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 12x10 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD42-S122-N		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 12x10 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD42-S12-1		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 12x10 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
LVD42-S12-N1		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 12x10 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
LVD42-S122-1		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 12x10 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
LVD42-S122-N1		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 12x10 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
LVD42-S12-2		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 12x10 mm \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Standard
LVD42-S12-N2		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 12x10 mm \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Ammonia compatible
LVD42-S122-2		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 12x10 mm \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Standard
LVD42-S122-N2		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 12x10 mm \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Ammonia compatible
LVD42-S12-3		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 12x10 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Standard
LVD42-S12-N3		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 12x10 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Ammonia compatible
LVD42-S122-3		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 12x10 mm \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Standard
LVD42-S122-N3		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 12x10 mm \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Ammonia compatible
LVD40-S11		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
LVD40-S11-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD40-S112		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 3/8 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD40-S112-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 3/8 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD40-S11-1		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
LVD40-S11-N1		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
LVD40-S112-1		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 3/8 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
LVD40-S112-N1		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 3/8 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
LVD40-S11-2		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Standard
LVD40-S11-N2		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Ammonia compatible
LVD40-S112-2		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 3/8 in \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Standard
LVD40-S112-N2		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 3/8 in \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Ammonia compatible
LVD40-S11-3		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Standard
LVD40-S11-N3		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Ammonia compatible
LVD40-S112-3		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 3/8 in \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Standard
LVD40-S112-N3		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 3/8 in \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Ammonia compatible
LVD41-S11		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ1 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
LVD41-S11-N		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ1 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD41-S112		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ1 3/8 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD41-S112-N		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ1 3/8 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD42-S11		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
LVD42-S11-N		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD42-S112		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 3/8 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD42-S112-N		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 3/8 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD42-S11-1		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
LVD42-S11-N1		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
LVD42-S112-1		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 3/8 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
LVD42-S112-N1		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 3/8 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
LVD42-S11-2		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Standard
LVD42-S11-N2		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Ammonia compatible
LVD42-S112-2		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 3/8 in \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Standard
LVD42-S112-N2		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 3/8 in \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Ammonia compatible
LVD42-S11-3		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Standard
LVD42-S11-N3		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Ammonia compatible
LVD42-S112-3		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 3/8 in \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Standard
LVD42-S112-N3		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 3/8 in \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Ammonia compatible
LVD40-S13		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
LVD40-S13-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD40-S132		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 1/2 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD40-S132-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 1/2 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD40-S13-1		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
LVD40-S13-N1		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
LVD40-S132-1		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 1/2 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
LVD40-S132-N1		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 1/2 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
LVD40-S13-2		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Standard
LVD40-S13-N2		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Ammonia compatible
LVD40-S132-2		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 1/2 in \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Standard
LVD40-S132-N2		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 1/2 in \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Ammonia compatible
LVD40-S13-3		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Standard
LVD40-S13-N3		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Ammonia compatible
LVD40-S132-3		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 1/2 in \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Standard
LVD40-S132-N3		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 1/2 in \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Ammonia compatible
LVD41-S13		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ1 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
LVD41-S13-N		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ1 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD41-S132		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ1 1/2 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD41-S132-N		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ1 1/2 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD42-S13		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
LVD42-S13-N		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD42-S132		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 1/2 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD42-S132-N		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 1/2 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD42-S13-1		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
LVD42-S13-N1		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
LVD42-S132-1		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 1/2 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
LVD42-S132-N1		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 1/2 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
LVD42-S13-2		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Standard
LVD42-S13-N2		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Ammonia compatible
LVD42-S132-2		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 1/2 in \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Standard
LVD42-S132-N2		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 1/2 in \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Ammonia compatible
LVD42-S13-3		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Standard
LVD42-S13-N3		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Ammonia compatible
LVD42-S132-3		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 1/2 in \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Standard
LVD42-S132-N3		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 1/2 in \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Ammonia compatible
LVD50-S12		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 12x10 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
LVD50-S12-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 12x10 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD50-S122		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 12x10 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD50-S122-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 12x10 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD50-S12-1		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 12x10 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
LVD50-S12-N1		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 12x10 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
LVD50-S122-1		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 12x10 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
LVD50-S122-N1		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 12x10 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
LVD50-S12-2		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 12x10 mm \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Standard
LVD50-S12-N2		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 12x10 mm \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Ammonia compatible
LVD50-S122-2		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 12x10 mm \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Standard
LVD50-S122-N2		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 12x10 mm \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Ammonia compatible
LVD50-S12-3		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 12x10 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Standard
LVD50-S12-N3		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 12x10 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Ammonia compatible
LVD50-S122-3		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 12x10 mm \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Standard
LVD50-S122-N3		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 12x10 mm \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Ammonia compatible
LVD51-S12		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Connection: LQ1 12x10 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
LVD51-S12-N		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Connection: LQ1 12x10 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD51-S122		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Connection: LQ1 12x10 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD51-S122-N		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Connection: LQ1 12x10 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD52-S12		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 12x10 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
LVD52-S12-N		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 12x10 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD52-S122		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 12x10 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD52-S122-N		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 12x10 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD52-S12-1		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 12x10 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
LVD52-S12-N1		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 12x10 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
LVD52-S122-1		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 12x10 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
LVD52-S122-N1		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 12x10 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
LVD52-S12-2		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 12x10 mm \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Standard
LVD52-S12-N2		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 12x10 mm \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Ammonia compatible
LVD52-S122-2		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 12x10 mm \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Standard
LVD52-S122-N2		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 12x10 mm \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Ammonia compatible
LVD52-S12-3		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 12x10 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Standard
LVD52-S12-N3		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 12x10 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Ammonia compatible
LVD52-S122-3		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 12x10 mm \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Standard
LVD52-S122-N3		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 12x10 mm \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Ammonia compatible
LVD50-S19		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 19x16 mm / 3/4 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
LVD50-S19-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 19x16 mm / 3/4 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD50-S192		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 19x16 mm / 3/4 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD50-S192-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 19x16 mm / 3/4 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD50-S19-1		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 19x16 mm / 3/4 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
LVD50-S19-N1		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 19x16 mm / 3/4 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
LVD50-S192-1		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 19x16 mm / 3/4 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
LVD50-S192-N1		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 19x16 mm / 3/4 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
LVD50-S19-2		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 19x16 mm / 3/4 in \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Standard
LVD50-S19-N2		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 19x16 mm / 3/4 in \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Ammonia compatible
LVD50-S192-2		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 19x16 mm / 3/4 in \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Standard
LVD50-S192-N2		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 19x16 mm / 3/4 in \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Ammonia compatible
LVD50-S19-3		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 19x16 mm / 3/4 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Standard
LVD50-S19-N3		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 19x16 mm / 3/4 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Ammonia compatible
LVD50-S192-3		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 19x16 mm / 3/4 in \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Standard
LVD50-S192-N3		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 19x16 mm / 3/4 in \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Ammonia compatible
LVD51-S19		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Connection: LQ1 19x16 mm / 3/4 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
LVD51-S19-N		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Connection: LQ1 19x16 mm / 3/4 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD51-S192		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Connection: LQ1 19x16 mm / 3/4 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD51-S192-N		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Connection: LQ1 19x16 mm / 3/4 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD52-S19		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 19x16 mm / 3/4 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
LVD52-S19-N		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 19x16 mm / 3/4 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD52-S192		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 19x16 mm / 3/4 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD52-S192-N		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 19x16 mm / 3/4 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD52-S19-1		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 19x16 mm / 3/4 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
LVD52-S19-N1		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 19x16 mm / 3/4 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
LVD52-S192-1		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 19x16 mm / 3/4 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
LVD52-S192-N1		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 19x16 mm / 3/4 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
LVD52-S19-2		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 19x16 mm / 3/4 in \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Standard
LVD52-S19-N2		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 19x16 mm / 3/4 in \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Ammonia compatible
LVD52-S192-2		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 19x16 mm / 3/4 in \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Standard
LVD52-S192-N2		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 19x16 mm / 3/4 in \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Ammonia compatible
LVD52-S19-3		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 19x16 mm / 3/4 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Standard
LVD52-S19-N3		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 19x16 mm / 3/4 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Ammonia compatible
LVD52-S192-3		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 19x16 mm / 3/4 in \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Standard
LVD52-S192-N3		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 19x16 mm / 3/4 in \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Ammonia compatible
LVD50-S13		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
LVD50-S13-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD50-S132		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 1/2 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD50-S132-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 1/2 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD50-S13-1		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
LVD50-S13-N1		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
LVD50-S132-1		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 1/2 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
LVD50-S132-N1		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 1/2 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
LVD50-S13-2		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Standard
LVD50-S13-N2		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Ammonia compatible
LVD50-S132-2		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 1/2 in \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Standard
LVD50-S132-N2		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 1/2 in \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Ammonia compatible
LVD50-S13-3		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Standard
LVD50-S13-N3		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Ammonia compatible
LVD50-S132-3		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 1/2 in \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Standard
LVD50-S132-N3		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 1/2 in \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Ammonia compatible
LVD51-S13		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Connection: LQ1 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
LVD51-S13-N		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Connection: LQ1 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD51-S132		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Connection: LQ1 1/2 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD51-S132-N		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Connection: LQ1 1/2 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD52-S13		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
LVD52-S13-N		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD52-S132		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 1/2 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD52-S132-N		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 1/2 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD52-S13-1		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
LVD52-S13-N1		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
LVD52-S132-1		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 1/2 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
LVD52-S132-N1		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 1/2 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
LVD52-S13-2		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Standard
LVD52-S13-N2		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Ammonia compatible
LVD52-S132-2		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 1/2 in \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Standard
LVD52-S132-N2		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 1/2 in \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Ammonia compatible
LVD52-S13-3		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Standard
LVD52-S13-N3		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Ammonia compatible
LVD52-S132-3		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 1/2 in \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Standard
LVD52-S132-N3		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 1/2 in \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Ammonia compatible
LVD20-T06		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Tube OD 6 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
LVD20-T06-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Tube OD 6 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD20-T062		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Tube OD 6 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD20-T062-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Tube OD 6 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD20-T06-1		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Tube OD 6 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
LVD20-T06-N1		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Tube OD 6 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
LVD20-T062-1		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Tube OD 6 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
LVD20-T062-N1		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Tube OD 6 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
LVD21-T06		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: Tube OD 6 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
LVD21-T06-N		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: Tube OD 6 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD21-T062		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: Tube OD 6 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD21-T062-N		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: Tube OD 6 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD22-T06		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: Tube OD 6 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
LVD22-T06-N		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: Tube OD 6 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD22-T062		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: Tube OD 6 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD22-T062-N		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: Tube OD 6 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD22-T06-1		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: Tube OD 6 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
LVD22-T06-N1		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: Tube OD 6 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
LVD22-T062-1		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: Tube OD 6 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
LVD22-T062-N1		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: Tube OD 6 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
LVD20-T07		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Tube OD 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
LVD20-T07-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Tube OD 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD20-T072		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Tube OD 1/4 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD20-T072-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Tube OD 1/4 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD20-T07-1		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Tube OD 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
LVD20-T07-N1		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Tube OD 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
LVD20-T072-1		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Tube OD 1/4 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
LVD20-T072-N1		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Tube OD 1/4 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
LVD21-T07		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: Tube OD 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
LVD21-T07-N		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: Tube OD 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD21-T072		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: Tube OD 1/4 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD21-T072-N		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: Tube OD 1/4 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD22-T07		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: Tube OD 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
LVD22-T07-N		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: Tube OD 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD22-T072		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: Tube OD 1/4 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD22-T072-N		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: Tube OD 1/4 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD22-T07-1		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: Tube OD 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
LVD22-T07-N1		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: Tube OD 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
LVD22-T072-1		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: Tube OD 1/4 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
LVD22-T072-N1		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: Tube OD 1/4 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
LVD30-T10		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Tube OD 10 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
LVD30-T10-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Tube OD 10 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD30-T102		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Tube OD 10 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD30-T102-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Tube OD 10 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD30-T10-1		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Tube OD 10 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
LVD30-T10-N1		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Tube OD 10 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
LVD30-T102-1		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Tube OD 10 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
LVD30-T102-N1		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Tube OD 10 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
LVD31-T10		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: Tube OD 10 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
LVD31-T10-N		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: Tube OD 10 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD31-T102		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: Tube OD 10 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD31-T102-N		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: Tube OD 10 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD32-T10		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: Tube OD 10 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
LVD32-T10-N		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: Tube OD 10 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD32-T102		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: Tube OD 10 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD32-T102-N		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: Tube OD 10 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD32-T10-1		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: Tube OD 10 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
LVD32-T10-N1		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: Tube OD 10 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
LVD32-T102-1		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: Tube OD 10 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
LVD32-T102-N1		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: Tube OD 10 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
LVD30-T11		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Tube OD 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
LVD30-T11-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Tube OD 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD30-T112		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Tube OD 3/8 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD30-T112-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Tube OD 3/8 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD30-T11-1		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Tube OD 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
LVD30-T11-N1		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Tube OD 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
LVD30-T112-1		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Tube OD 3/8 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
LVD30-T112-N1		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Tube OD 3/8 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
LVD31-T11		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: Tube OD 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
LVD31-T11-N		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: Tube OD 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD31-T112		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: Tube OD 3/8 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD31-T112-N		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: Tube OD 3/8 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD32-T11		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: Tube OD 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
LVD32-T11-N		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: Tube OD 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD32-T112		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: Tube OD 3/8 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD32-T112-N		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: Tube OD 3/8 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD32-T11-1		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: Tube OD 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
LVD32-T11-N1		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: Tube OD 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
LVD32-T112-1		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: Tube OD 3/8 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
LVD32-T112-N1		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: Tube OD 3/8 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
LVD40-T12		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Tube OD 12 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
LVD40-T12-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Tube OD 12 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD40-T122		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Tube OD 12 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD40-T122-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Tube OD 12 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD40-T12-1		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Tube OD 12 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
LVD40-T12-N1		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Tube OD 12 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
LVD40-T122-1		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Tube OD 12 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
LVD40-T122-N1		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Tube OD 12 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
LVD41-T12		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: Tube OD 12 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
LVD41-T12-N		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: Tube OD 12 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD41-T122		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: Tube OD 12 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD41-T122-N		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: Tube OD 12 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD42-T12		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: Tube OD 12 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
LVD42-T12-N		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: Tube OD 12 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD42-T122		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: Tube OD 12 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD42-T122-N		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: Tube OD 12 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD42-T12-1		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: Tube OD 12 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
LVD42-T12-N1		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: Tube OD 12 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
LVD42-T122-1		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: Tube OD 12 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
LVD42-T122-N1		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: Tube OD 12 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
LVD40-T13		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Tube OD 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
LVD40-T13-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Tube OD 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD40-T132		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Tube OD 1/2 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD40-T132-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Tube OD 1/2 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD40-T13-1		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Tube OD 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
LVD40-T13-N1		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Tube OD 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
LVD40-T132-1		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Tube OD 1/2 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
LVD40-T132-N1		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Tube OD 1/2 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
LVD41-T13		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: Tube OD 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
LVD41-T13-N		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: Tube OD 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD41-T132		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: Tube OD 1/2 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD41-T132-N		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: Tube OD 1/2 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD42-T13		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: Tube OD 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
LVD42-T13-N		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: Tube OD 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD42-T132		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: Tube OD 1/2 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD42-T132-N		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: Tube OD 1/2 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD42-T13-1		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: Tube OD 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
LVD42-T13-N1		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: Tube OD 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
LVD42-T132-1		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: Tube OD 1/2 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
LVD42-T132-N1		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: Tube OD 1/2 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
LVD50-T19		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: Tube OD 19 mm / 3/4 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
LVD50-T19-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: Tube OD 19 mm / 3/4 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD50-T192		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: Tube OD 19 mm / 3/4 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD50-T192-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: Tube OD 19 mm / 3/4 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD50-T19-1		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: Tube OD 19 mm / 3/4 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
LVD50-T19-N1		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: Tube OD 19 mm / 3/4 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
LVD50-T192-1		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: Tube OD 19 mm / 3/4 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
LVD50-T192-N1		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: Tube OD 19 mm / 3/4 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
LVD51-T19		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Connection: Tube OD 19 mm / 3/4 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
LVD51-T19-N		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Connection: Tube OD 19 mm / 3/4 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD51-T192		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Connection: Tube OD 19 mm / 3/4 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD51-T192-N		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Connection: Tube OD 19 mm / 3/4 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD52-T19		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: Tube OD 19 mm / 3/4 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
LVD52-T19-N		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: Tube OD 19 mm / 3/4 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
LVD52-T192		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: Tube OD 19 mm / 3/4 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
LVD52-T192-N		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: Tube OD 19 mm / 3/4 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
LVD52-T19-1		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: Tube OD 19 mm / 3/4 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
LVD52-T19-N1		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: Tube OD 19 mm / 3/4 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
LVD52-T192-1		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: Tube OD 19 mm / 3/4 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
LVD52-T192-N1		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: Tube OD 19 mm / 3/4 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
LVD13U-S03		Body class: 1 (ø2 orifice) \| Valve type: Suck-back valve \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: ø4 one-touch fitting \| Option: Suck-back adjust \| Material: Standard
LVD13U-S032		Body class: 1 (ø2 orifice) \| Valve type: Suck-back valve \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: M5x0.8 thread \| Option: Suck-back adjust \| Material: Standard
LVD13U-S04		Body class: 1 (ø2 orifice) \| Valve type: Suck-back valve \| Connection: LQ1 4x3 mm \| Pilot port: ø4 one-touch fitting \| Option: Suck-back adjust \| Material: Standard
LVD13U-S042		Body class: 1 (ø2 orifice) \| Valve type: Suck-back valve \| Connection: LQ1 4x3 mm \| Pilot port: M5x0.8 thread \| Option: Suck-back adjust \| Material: Standard

Chemical ValvesSMC

796 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC LVD Compact Air Operated Chemical Valve (LQ1 / Tube, PPS)

Brand SMC·Chemical Valves

Available part numbers (796)

LVD10-S03, LVD10-S03-N, LVD10-S032, LVD10-S032-N, LVD10-S03-1, LVD10-S03-N1, LVD10-S032-1, LVD10-S032-N1, LVD11-S03, LVD11-S03-N + 786 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	LVD10-S03	Body class: 1 (ø2 orifice) \| Valve type: N.C. \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: ø4 one-touch fitting \| Option: None \| Material: Standard
	LVD10-S03-N	Body class: 1 (ø2 orifice) \| Valve type: N.C. \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: ø4 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD10-S032	Body class: 1 (ø2 orifice) \| Valve type: N.C. \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD10-S032-N	Body class: 1 (ø2 orifice) \| Valve type: N.C. \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD10-S03-1	Body class: 1 (ø2 orifice) \| Valve type: N.C. \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: ø4 one-touch fitting \| Option: Flow adjustment \| Material: Standard
	LVD10-S03-N1	Body class: 1 (ø2 orifice) \| Valve type: N.C. \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: ø4 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD10-S032-1	Body class: 1 (ø2 orifice) \| Valve type: N.C. \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
	LVD10-S032-N1	Body class: 1 (ø2 orifice) \| Valve type: N.C. \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD11-S03	Body class: 1 (ø2 orifice) \| Valve type: N.O. \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: ø4 one-touch fitting \| Option: None \| Material: Standard
	LVD11-S03-N	Body class: 1 (ø2 orifice) \| Valve type: N.O. \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: ø4 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD11-S032	Body class: 1 (ø2 orifice) \| Valve type: N.O. \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD11-S032-N	Body class: 1 (ø2 orifice) \| Valve type: N.O. \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD12-S03	Body class: 1 (ø2 orifice) \| Valve type: Double acting \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: ø4 one-touch fitting \| Option: None \| Material: Standard
	LVD12-S03-N	Body class: 1 (ø2 orifice) \| Valve type: Double acting \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: ø4 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD12-S032	Body class: 1 (ø2 orifice) \| Valve type: Double acting \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD12-S032-N	Body class: 1 (ø2 orifice) \| Valve type: Double acting \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD12-S03-1	Body class: 1 (ø2 orifice) \| Valve type: Double acting \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: ø4 one-touch fitting \| Option: Flow adjustment \| Material: Standard
	LVD12-S03-N1	Body class: 1 (ø2 orifice) \| Valve type: Double acting \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: ø4 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD12-S032-1	Body class: 1 (ø2 orifice) \| Valve type: Double acting \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
	LVD12-S032-N1	Body class: 1 (ø2 orifice) \| Valve type: Double acting \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD10-S04	Body class: 1 (ø2 orifice) \| Valve type: N.C. \| Connection: LQ1 4x3 mm \| Pilot port: ø4 one-touch fitting \| Option: None \| Material: Standard
	LVD10-S04-N	Body class: 1 (ø2 orifice) \| Valve type: N.C. \| Connection: LQ1 4x3 mm \| Pilot port: ø4 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD10-S042	Body class: 1 (ø2 orifice) \| Valve type: N.C. \| Connection: LQ1 4x3 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD10-S042-N	Body class: 1 (ø2 orifice) \| Valve type: N.C. \| Connection: LQ1 4x3 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD10-S04-1	Body class: 1 (ø2 orifice) \| Valve type: N.C. \| Connection: LQ1 4x3 mm \| Pilot port: ø4 one-touch fitting \| Option: Flow adjustment \| Material: Standard
	LVD10-S04-N1	Body class: 1 (ø2 orifice) \| Valve type: N.C. \| Connection: LQ1 4x3 mm \| Pilot port: ø4 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD10-S042-1	Body class: 1 (ø2 orifice) \| Valve type: N.C. \| Connection: LQ1 4x3 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
	LVD10-S042-N1	Body class: 1 (ø2 orifice) \| Valve type: N.C. \| Connection: LQ1 4x3 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD11-S04	Body class: 1 (ø2 orifice) \| Valve type: N.O. \| Connection: LQ1 4x3 mm \| Pilot port: ø4 one-touch fitting \| Option: None \| Material: Standard
	LVD11-S04-N	Body class: 1 (ø2 orifice) \| Valve type: N.O. \| Connection: LQ1 4x3 mm \| Pilot port: ø4 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD11-S042	Body class: 1 (ø2 orifice) \| Valve type: N.O. \| Connection: LQ1 4x3 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD11-S042-N	Body class: 1 (ø2 orifice) \| Valve type: N.O. \| Connection: LQ1 4x3 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD12-S04	Body class: 1 (ø2 orifice) \| Valve type: Double acting \| Connection: LQ1 4x3 mm \| Pilot port: ø4 one-touch fitting \| Option: None \| Material: Standard
	LVD12-S04-N	Body class: 1 (ø2 orifice) \| Valve type: Double acting \| Connection: LQ1 4x3 mm \| Pilot port: ø4 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD12-S042	Body class: 1 (ø2 orifice) \| Valve type: Double acting \| Connection: LQ1 4x3 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD12-S042-N	Body class: 1 (ø2 orifice) \| Valve type: Double acting \| Connection: LQ1 4x3 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD12-S04-1	Body class: 1 (ø2 orifice) \| Valve type: Double acting \| Connection: LQ1 4x3 mm \| Pilot port: ø4 one-touch fitting \| Option: Flow adjustment \| Material: Standard
	LVD12-S04-N1	Body class: 1 (ø2 orifice) \| Valve type: Double acting \| Connection: LQ1 4x3 mm \| Pilot port: ø4 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD12-S042-1	Body class: 1 (ø2 orifice) \| Valve type: Double acting \| Connection: LQ1 4x3 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
	LVD12-S042-N1	Body class: 1 (ø2 orifice) \| Valve type: Double acting \| Connection: LQ1 4x3 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD20-S03	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
	LVD20-S03-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD20-S032	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD20-S032-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD20-S03-1	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
	LVD20-S03-N1	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD20-S032-1	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
	LVD20-S032-N1	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD20-S03-2	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Standard
	LVD20-S03-N2	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Ammonia compatible
	LVD20-S032-2	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Standard
	LVD20-S032-N2	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Ammonia compatible
	LVD20-S03-3	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Standard
	LVD20-S03-N3	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Ammonia compatible
	LVD20-S032-3	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Standard
	LVD20-S032-N3	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Ammonia compatible
	LVD21-S03	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
	LVD21-S03-N	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD21-S032	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD21-S032-N	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD22-S03	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
	LVD22-S03-N	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD22-S032	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD22-S032-N	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD22-S03-1	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
	LVD22-S03-N1	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD22-S032-1	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
	LVD22-S032-N1	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD22-S03-2	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Standard
	LVD22-S03-N2	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Ammonia compatible
	LVD22-S032-2	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Standard
	LVD22-S032-N2	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Ammonia compatible
	LVD22-S03-3	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Standard
	LVD22-S03-N3	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Ammonia compatible
	LVD22-S032-3	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Standard
	LVD22-S032-N3	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Ammonia compatible
	LVD20-S04	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 4x3 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
	LVD20-S04-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 4x3 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD20-S042	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 4x3 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD20-S042-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 4x3 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD20-S04-1	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 4x3 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
	LVD20-S04-N1	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 4x3 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD20-S042-1	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 4x3 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
	LVD20-S042-N1	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 4x3 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD20-S04-2	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 4x3 mm \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Standard
	LVD20-S04-N2	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 4x3 mm \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Ammonia compatible
	LVD20-S042-2	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 4x3 mm \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Standard
	LVD20-S042-N2	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 4x3 mm \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Ammonia compatible
	LVD20-S04-3	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 4x3 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Standard
	LVD20-S04-N3	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 4x3 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Ammonia compatible
	LVD20-S042-3	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 4x3 mm \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Standard
	LVD20-S042-N3	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 4x3 mm \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Ammonia compatible
	LVD21-S04	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 4x3 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
	LVD21-S04-N	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 4x3 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD21-S042	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 4x3 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD21-S042-N	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 4x3 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD22-S04	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 4x3 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
	LVD22-S04-N	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 4x3 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD22-S042	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 4x3 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD22-S042-N	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 4x3 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD22-S04-1	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 4x3 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
	LVD22-S04-N1	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 4x3 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD22-S042-1	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 4x3 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
	LVD22-S042-N1	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 4x3 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD22-S04-2	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 4x3 mm \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Standard
	LVD22-S04-N2	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 4x3 mm \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Ammonia compatible
	LVD22-S042-2	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 4x3 mm \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Standard
	LVD22-S042-N2	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 4x3 mm \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Ammonia compatible
	LVD22-S04-3	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 4x3 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Standard
	LVD22-S04-N3	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 4x3 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Ammonia compatible
	LVD22-S042-3	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 4x3 mm \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Standard
	LVD22-S042-N3	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 4x3 mm \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Ammonia compatible
	LVD20-S06	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 6x4 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
	LVD20-S06-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 6x4 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD20-S062	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 6x4 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD20-S062-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 6x4 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD20-S06-1	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 6x4 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
	LVD20-S06-N1	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 6x4 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD20-S062-1	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 6x4 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
	LVD20-S062-N1	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 6x4 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD20-S06-2	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 6x4 mm \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Standard
	LVD20-S06-N2	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 6x4 mm \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Ammonia compatible
	LVD20-S062-2	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 6x4 mm \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Standard
	LVD20-S062-N2	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 6x4 mm \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Ammonia compatible
	LVD20-S06-3	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 6x4 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Standard
	LVD20-S06-N3	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 6x4 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Ammonia compatible
	LVD20-S062-3	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 6x4 mm \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Standard
	LVD20-S062-N3	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 6x4 mm \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Ammonia compatible
	LVD21-S06	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 6x4 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
	LVD21-S06-N	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 6x4 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD21-S062	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 6x4 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD21-S062-N	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 6x4 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD22-S06	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 6x4 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
	LVD22-S06-N	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 6x4 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD22-S062	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 6x4 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD22-S062-N	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 6x4 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD22-S06-1	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 6x4 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
	LVD22-S06-N1	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 6x4 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD22-S062-1	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 6x4 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
	LVD22-S062-N1	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 6x4 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD22-S06-2	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 6x4 mm \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Standard
	LVD22-S06-N2	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 6x4 mm \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Ammonia compatible
	LVD22-S062-2	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 6x4 mm \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Standard
	LVD22-S062-N2	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 6x4 mm \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Ammonia compatible
	LVD22-S06-3	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 6x4 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Standard
	LVD22-S06-N3	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 6x4 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Ammonia compatible
	LVD22-S062-3	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 6x4 mm \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Standard
	LVD22-S062-N3	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 6x4 mm \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Ammonia compatible
	LVD20-S05	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 3/16 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
	LVD20-S05-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 3/16 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD20-S052	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 3/16 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD20-S052-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 3/16 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD20-S05-1	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 3/16 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
	LVD20-S05-N1	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 3/16 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD20-S052-1	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 3/16 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
	LVD20-S052-N1	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 3/16 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD20-S05-2	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 3/16 in \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Standard
	LVD20-S05-N2	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 3/16 in \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Ammonia compatible
	LVD20-S052-2	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 3/16 in \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Standard
	LVD20-S052-N2	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 3/16 in \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Ammonia compatible
	LVD20-S05-3	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 3/16 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Standard
	LVD20-S05-N3	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 3/16 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Ammonia compatible
	LVD20-S052-3	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 3/16 in \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Standard
	LVD20-S052-N3	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 3/16 in \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Ammonia compatible
	LVD21-S05	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 3/16 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
	LVD21-S05-N	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 3/16 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD21-S052	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 3/16 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD21-S052-N	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 3/16 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD22-S05	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 3/16 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
	LVD22-S05-N	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 3/16 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD22-S052	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 3/16 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD22-S052-N	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 3/16 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD22-S05-1	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 3/16 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
	LVD22-S05-N1	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 3/16 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD22-S052-1	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 3/16 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
	LVD22-S052-N1	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 3/16 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD22-S05-2	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 3/16 in \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Standard
	LVD22-S05-N2	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 3/16 in \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Ammonia compatible
	LVD22-S052-2	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 3/16 in \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Standard
	LVD22-S052-N2	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 3/16 in \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Ammonia compatible
	LVD22-S05-3	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 3/16 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Standard
	LVD22-S05-N3	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 3/16 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Ammonia compatible
	LVD22-S052-3	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 3/16 in \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Standard
	LVD22-S052-N3	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 3/16 in \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Ammonia compatible
	LVD20-S07	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
	LVD20-S07-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD20-S072	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 1/4 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD20-S072-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 1/4 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD20-S07-1	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
	LVD20-S07-N1	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD20-S072-1	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 1/4 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
	LVD20-S072-N1	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 1/4 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD20-S07-2	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Standard
	LVD20-S07-N2	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Ammonia compatible
	LVD20-S072-2	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 1/4 in \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Standard
	LVD20-S072-N2	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 1/4 in \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Ammonia compatible
	LVD20-S07-3	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Standard
	LVD20-S07-N3	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Ammonia compatible
	LVD20-S072-3	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 1/4 in \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Standard
	LVD20-S072-N3	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 1/4 in \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Ammonia compatible
	LVD21-S07	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
	LVD21-S07-N	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD21-S072	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 1/4 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD21-S072-N	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 1/4 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD22-S07	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
	LVD22-S07-N	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD22-S072	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 1/4 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD22-S072-N	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 1/4 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD22-S07-1	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
	LVD22-S07-N1	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD22-S072-1	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 1/4 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
	LVD22-S072-N1	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 1/4 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD22-S07-2	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Standard
	LVD22-S07-N2	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Ammonia compatible
	LVD22-S072-2	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 1/4 in \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Standard
	LVD22-S072-N2	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 1/4 in \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Ammonia compatible
	LVD22-S07-3	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Standard
	LVD22-S07-N3	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Ammonia compatible
	LVD22-S072-3	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 1/4 in \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Standard
	LVD22-S072-N3	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 1/4 in \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Ammonia compatible
	LVD30-S06	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 6x4 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
	LVD30-S06-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 6x4 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD30-S062	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 6x4 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD30-S062-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 6x4 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD30-S06-1	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 6x4 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
	LVD30-S06-N1	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 6x4 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD30-S062-1	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 6x4 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
	LVD30-S062-N1	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 6x4 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD30-S06-2	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 6x4 mm \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Standard
	LVD30-S06-N2	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 6x4 mm \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Ammonia compatible
	LVD30-S062-2	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 6x4 mm \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Standard
	LVD30-S062-N2	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 6x4 mm \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Ammonia compatible
	LVD30-S06-3	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 6x4 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Standard
	LVD30-S06-N3	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 6x4 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Ammonia compatible
	LVD30-S062-3	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 6x4 mm \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Standard
	LVD30-S062-N3	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 6x4 mm \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Ammonia compatible
	LVD31-S06	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 6x4 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
	LVD31-S06-N	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 6x4 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD31-S062	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 6x4 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD31-S062-N	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 6x4 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD32-S06	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 6x4 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
	LVD32-S06-N	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 6x4 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD32-S062	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 6x4 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD32-S062-N	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 6x4 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD32-S06-1	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 6x4 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
	LVD32-S06-N1	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 6x4 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD32-S062-1	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 6x4 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
	LVD32-S062-N1	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 6x4 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD32-S06-2	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 6x4 mm \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Standard
	LVD32-S06-N2	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 6x4 mm \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Ammonia compatible
	LVD32-S062-2	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 6x4 mm \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Standard
	LVD32-S062-N2	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 6x4 mm \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Ammonia compatible
	LVD32-S06-3	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 6x4 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Standard
	LVD32-S06-N3	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 6x4 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Ammonia compatible
	LVD32-S062-3	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 6x4 mm \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Standard
	LVD32-S062-N3	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 6x4 mm \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Ammonia compatible
	LVD30-S08	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 8x6 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
	LVD30-S08-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 8x6 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD30-S082	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 8x6 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD30-S082-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 8x6 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD30-S08-1	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 8x6 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
	LVD30-S08-N1	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 8x6 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD30-S082-1	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 8x6 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
	LVD30-S082-N1	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 8x6 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD30-S08-2	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 8x6 mm \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Standard
	LVD30-S08-N2	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 8x6 mm \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Ammonia compatible
	LVD30-S082-2	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 8x6 mm \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Standard
	LVD30-S082-N2	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 8x6 mm \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Ammonia compatible
	LVD30-S08-3	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 8x6 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Standard
	LVD30-S08-N3	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 8x6 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Ammonia compatible
	LVD30-S082-3	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 8x6 mm \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Standard
	LVD30-S082-N3	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 8x6 mm \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Ammonia compatible
	LVD31-S08	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 8x6 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
	LVD31-S08-N	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 8x6 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD31-S082	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 8x6 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD31-S082-N	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 8x6 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD32-S08	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 8x6 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
	LVD32-S08-N	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 8x6 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD32-S082	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 8x6 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD32-S082-N	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 8x6 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD32-S08-1	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 8x6 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
	LVD32-S08-N1	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 8x6 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD32-S082-1	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 8x6 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
	LVD32-S082-N1	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 8x6 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD32-S08-2	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 8x6 mm \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Standard
	LVD32-S08-N2	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 8x6 mm \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Ammonia compatible
	LVD32-S082-2	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 8x6 mm \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Standard
	LVD32-S082-N2	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 8x6 mm \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Ammonia compatible
	LVD32-S08-3	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 8x6 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Standard
	LVD32-S08-N3	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 8x6 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Ammonia compatible
	LVD32-S082-3	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 8x6 mm \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Standard
	LVD32-S082-N3	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 8x6 mm \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Ammonia compatible
	LVD30-S10	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 10x8 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
	LVD30-S10-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 10x8 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD30-S102	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 10x8 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD30-S102-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 10x8 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD30-S10-1	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 10x8 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
	LVD30-S10-N1	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 10x8 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD30-S102-1	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 10x8 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
	LVD30-S102-N1	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 10x8 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD30-S10-2	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 10x8 mm \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Standard
	LVD30-S10-N2	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 10x8 mm \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Ammonia compatible
	LVD30-S102-2	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 10x8 mm \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Standard
	LVD30-S102-N2	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 10x8 mm \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Ammonia compatible
	LVD30-S10-3	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 10x8 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Standard
	LVD30-S10-N3	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 10x8 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Ammonia compatible
	LVD30-S102-3	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 10x8 mm \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Standard
	LVD30-S102-N3	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 10x8 mm \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Ammonia compatible
	LVD31-S10	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 10x8 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
	LVD31-S10-N	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 10x8 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD31-S102	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 10x8 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD31-S102-N	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 10x8 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD32-S10	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 10x8 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
	LVD32-S10-N	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 10x8 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD32-S102	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 10x8 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD32-S102-N	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 10x8 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD32-S10-1	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 10x8 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
	LVD32-S10-N1	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 10x8 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD32-S102-1	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 10x8 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
	LVD32-S102-N1	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 10x8 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD32-S10-2	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 10x8 mm \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Standard
	LVD32-S10-N2	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 10x8 mm \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Ammonia compatible
	LVD32-S102-2	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 10x8 mm \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Standard
	LVD32-S102-N2	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 10x8 mm \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Ammonia compatible
	LVD32-S10-3	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 10x8 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Standard
	LVD32-S10-N3	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 10x8 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Ammonia compatible
	LVD32-S102-3	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 10x8 mm \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Standard
	LVD32-S102-N3	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 10x8 mm \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Ammonia compatible
	LVD30-S07	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
	LVD30-S07-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD30-S072	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 1/4 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD30-S072-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 1/4 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD30-S07-1	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
	LVD30-S07-N1	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD30-S072-1	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 1/4 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
	LVD30-S072-N1	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 1/4 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD30-S07-2	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Standard
	LVD30-S07-N2	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Ammonia compatible
	LVD30-S072-2	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 1/4 in \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Standard
	LVD30-S072-N2	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 1/4 in \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Ammonia compatible
	LVD30-S07-3	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Standard
	LVD30-S07-N3	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Ammonia compatible
	LVD30-S072-3	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 1/4 in \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Standard
	LVD30-S072-N3	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 1/4 in \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Ammonia compatible
	LVD31-S07	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
	LVD31-S07-N	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD31-S072	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 1/4 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD31-S072-N	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 1/4 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD32-S07	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
	LVD32-S07-N	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD32-S072	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 1/4 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD32-S072-N	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 1/4 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD32-S07-1	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
	LVD32-S07-N1	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD32-S072-1	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 1/4 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
	LVD32-S072-N1	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 1/4 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD32-S07-2	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Standard
	LVD32-S07-N2	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Ammonia compatible
	LVD32-S072-2	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 1/4 in \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Standard
	LVD32-S072-N2	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 1/4 in \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Ammonia compatible
	LVD32-S07-3	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Standard
	LVD32-S07-N3	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Ammonia compatible
	LVD32-S072-3	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 1/4 in \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Standard
	LVD32-S072-N3	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 1/4 in \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Ammonia compatible
	LVD30-S11	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
	LVD30-S11-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD30-S112	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 3/8 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD30-S112-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 3/8 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD30-S11-1	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
	LVD30-S11-N1	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD30-S112-1	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 3/8 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
	LVD30-S112-N1	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 3/8 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD30-S11-2	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Standard
	LVD30-S11-N2	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Ammonia compatible
	LVD30-S112-2	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 3/8 in \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Standard
	LVD30-S112-N2	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 3/8 in \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Ammonia compatible
	LVD30-S11-3	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Standard
	LVD30-S11-N3	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Ammonia compatible
	LVD30-S112-3	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 3/8 in \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Standard
	LVD30-S112-N3	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 3/8 in \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Ammonia compatible
	LVD31-S11	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
	LVD31-S11-N	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD31-S112	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 3/8 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD31-S112-N	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 3/8 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD32-S11	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
	LVD32-S11-N	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD32-S112	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 3/8 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD32-S112-N	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 3/8 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD32-S11-1	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
	LVD32-S11-N1	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD32-S112-1	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 3/8 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
	LVD32-S112-N1	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 3/8 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD32-S11-2	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Standard
	LVD32-S11-N2	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Ammonia compatible
	LVD32-S112-2	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 3/8 in \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Standard
	LVD32-S112-N2	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 3/8 in \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Ammonia compatible
	LVD32-S11-3	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Standard
	LVD32-S11-N3	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Ammonia compatible
	LVD32-S112-3	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 3/8 in \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Standard
	LVD32-S112-N3	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 3/8 in \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Ammonia compatible
	LVD40-S10	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 10x8 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
	LVD40-S10-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 10x8 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD40-S102	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 10x8 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD40-S102-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 10x8 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD40-S10-1	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 10x8 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
	LVD40-S10-N1	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 10x8 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD40-S102-1	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 10x8 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
	LVD40-S102-N1	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 10x8 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD40-S10-2	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 10x8 mm \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Standard
	LVD40-S10-N2	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 10x8 mm \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Ammonia compatible
	LVD40-S102-2	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 10x8 mm \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Standard
	LVD40-S102-N2	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 10x8 mm \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Ammonia compatible
	LVD40-S10-3	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 10x8 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Standard
	LVD40-S10-N3	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 10x8 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Ammonia compatible
	LVD40-S102-3	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 10x8 mm \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Standard
	LVD40-S102-N3	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 10x8 mm \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Ammonia compatible
	LVD41-S10	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ1 10x8 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
	LVD41-S10-N	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ1 10x8 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD41-S102	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ1 10x8 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD41-S102-N	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ1 10x8 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD42-S10	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 10x8 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
	LVD42-S10-N	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 10x8 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD42-S102	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 10x8 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD42-S102-N	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 10x8 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD42-S10-1	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 10x8 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
	LVD42-S10-N1	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 10x8 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD42-S102-1	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 10x8 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
	LVD42-S102-N1	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 10x8 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD42-S10-2	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 10x8 mm \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Standard
	LVD42-S10-N2	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 10x8 mm \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Ammonia compatible
	LVD42-S102-2	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 10x8 mm \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Standard
	LVD42-S102-N2	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 10x8 mm \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Ammonia compatible
	LVD42-S10-3	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 10x8 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Standard
	LVD42-S10-N3	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 10x8 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Ammonia compatible
	LVD42-S102-3	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 10x8 mm \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Standard
	LVD42-S102-N3	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 10x8 mm \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Ammonia compatible
	LVD40-S12	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 12x10 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
	LVD40-S12-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 12x10 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD40-S122	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 12x10 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD40-S122-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 12x10 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD40-S12-1	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 12x10 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
	LVD40-S12-N1	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 12x10 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD40-S122-1	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 12x10 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
	LVD40-S122-N1	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 12x10 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD40-S12-2	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 12x10 mm \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Standard
	LVD40-S12-N2	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 12x10 mm \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Ammonia compatible
	LVD40-S122-2	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 12x10 mm \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Standard
	LVD40-S122-N2	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 12x10 mm \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Ammonia compatible
	LVD40-S12-3	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 12x10 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Standard
	LVD40-S12-N3	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 12x10 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Ammonia compatible
	LVD40-S122-3	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 12x10 mm \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Standard
	LVD40-S122-N3	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 12x10 mm \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Ammonia compatible
	LVD41-S12	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ1 12x10 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
	LVD41-S12-N	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ1 12x10 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD41-S122	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ1 12x10 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD41-S122-N	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ1 12x10 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD42-S12	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 12x10 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
	LVD42-S12-N	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 12x10 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD42-S122	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 12x10 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD42-S122-N	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 12x10 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD42-S12-1	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 12x10 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
	LVD42-S12-N1	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 12x10 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD42-S122-1	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 12x10 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
	LVD42-S122-N1	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 12x10 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD42-S12-2	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 12x10 mm \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Standard
	LVD42-S12-N2	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 12x10 mm \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Ammonia compatible
	LVD42-S122-2	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 12x10 mm \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Standard
	LVD42-S122-N2	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 12x10 mm \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Ammonia compatible
	LVD42-S12-3	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 12x10 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Standard
	LVD42-S12-N3	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 12x10 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Ammonia compatible
	LVD42-S122-3	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 12x10 mm \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Standard
	LVD42-S122-N3	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 12x10 mm \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Ammonia compatible
	LVD40-S11	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
	LVD40-S11-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD40-S112	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 3/8 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD40-S112-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 3/8 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD40-S11-1	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
	LVD40-S11-N1	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD40-S112-1	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 3/8 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
	LVD40-S112-N1	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 3/8 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD40-S11-2	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Standard
	LVD40-S11-N2	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Ammonia compatible
	LVD40-S112-2	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 3/8 in \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Standard
	LVD40-S112-N2	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 3/8 in \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Ammonia compatible
	LVD40-S11-3	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Standard
	LVD40-S11-N3	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Ammonia compatible
	LVD40-S112-3	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 3/8 in \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Standard
	LVD40-S112-N3	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 3/8 in \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Ammonia compatible
	LVD41-S11	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ1 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
	LVD41-S11-N	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ1 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD41-S112	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ1 3/8 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD41-S112-N	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ1 3/8 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD42-S11	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
	LVD42-S11-N	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD42-S112	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 3/8 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD42-S112-N	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 3/8 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD42-S11-1	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
	LVD42-S11-N1	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD42-S112-1	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 3/8 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
	LVD42-S112-N1	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 3/8 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD42-S11-2	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Standard
	LVD42-S11-N2	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Ammonia compatible
	LVD42-S112-2	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 3/8 in \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Standard
	LVD42-S112-N2	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 3/8 in \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Ammonia compatible
	LVD42-S11-3	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Standard
	LVD42-S11-N3	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Ammonia compatible
	LVD42-S112-3	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 3/8 in \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Standard
	LVD42-S112-N3	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 3/8 in \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Ammonia compatible
	LVD40-S13	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
	LVD40-S13-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD40-S132	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 1/2 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD40-S132-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 1/2 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD40-S13-1	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
	LVD40-S13-N1	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD40-S132-1	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 1/2 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
	LVD40-S132-N1	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 1/2 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD40-S13-2	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Standard
	LVD40-S13-N2	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Ammonia compatible
	LVD40-S132-2	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 1/2 in \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Standard
	LVD40-S132-N2	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 1/2 in \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Ammonia compatible
	LVD40-S13-3	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Standard
	LVD40-S13-N3	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Ammonia compatible
	LVD40-S132-3	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 1/2 in \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Standard
	LVD40-S132-N3	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 1/2 in \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Ammonia compatible
	LVD41-S13	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ1 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
	LVD41-S13-N	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ1 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD41-S132	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ1 1/2 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD41-S132-N	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ1 1/2 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD42-S13	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
	LVD42-S13-N	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD42-S132	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 1/2 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD42-S132-N	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 1/2 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD42-S13-1	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
	LVD42-S13-N1	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD42-S132-1	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 1/2 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
	LVD42-S132-N1	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 1/2 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD42-S13-2	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Standard
	LVD42-S13-N2	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Ammonia compatible
	LVD42-S132-2	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 1/2 in \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Standard
	LVD42-S132-N2	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 1/2 in \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Ammonia compatible
	LVD42-S13-3	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Standard
	LVD42-S13-N3	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Ammonia compatible
	LVD42-S132-3	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 1/2 in \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Standard
	LVD42-S132-N3	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 1/2 in \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Ammonia compatible
	LVD50-S12	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 12x10 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
	LVD50-S12-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 12x10 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD50-S122	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 12x10 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD50-S122-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 12x10 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD50-S12-1	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 12x10 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
	LVD50-S12-N1	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 12x10 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD50-S122-1	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 12x10 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
	LVD50-S122-N1	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 12x10 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD50-S12-2	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 12x10 mm \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Standard
	LVD50-S12-N2	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 12x10 mm \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Ammonia compatible
	LVD50-S122-2	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 12x10 mm \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Standard
	LVD50-S122-N2	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 12x10 mm \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Ammonia compatible
	LVD50-S12-3	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 12x10 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Standard
	LVD50-S12-N3	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 12x10 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Ammonia compatible
	LVD50-S122-3	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 12x10 mm \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Standard
	LVD50-S122-N3	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 12x10 mm \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Ammonia compatible
	LVD51-S12	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Connection: LQ1 12x10 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
	LVD51-S12-N	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Connection: LQ1 12x10 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD51-S122	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Connection: LQ1 12x10 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD51-S122-N	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Connection: LQ1 12x10 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD52-S12	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 12x10 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
	LVD52-S12-N	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 12x10 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD52-S122	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 12x10 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD52-S122-N	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 12x10 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD52-S12-1	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 12x10 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
	LVD52-S12-N1	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 12x10 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD52-S122-1	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 12x10 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
	LVD52-S122-N1	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 12x10 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD52-S12-2	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 12x10 mm \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Standard
	LVD52-S12-N2	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 12x10 mm \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Ammonia compatible
	LVD52-S122-2	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 12x10 mm \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Standard
	LVD52-S122-N2	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 12x10 mm \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Ammonia compatible
	LVD52-S12-3	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 12x10 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Standard
	LVD52-S12-N3	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 12x10 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Ammonia compatible
	LVD52-S122-3	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 12x10 mm \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Standard
	LVD52-S122-N3	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 12x10 mm \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Ammonia compatible
	LVD50-S19	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 19x16 mm / 3/4 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
	LVD50-S19-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 19x16 mm / 3/4 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD50-S192	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 19x16 mm / 3/4 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD50-S192-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 19x16 mm / 3/4 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD50-S19-1	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 19x16 mm / 3/4 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
	LVD50-S19-N1	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 19x16 mm / 3/4 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD50-S192-1	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 19x16 mm / 3/4 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
	LVD50-S192-N1	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 19x16 mm / 3/4 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD50-S19-2	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 19x16 mm / 3/4 in \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Standard
	LVD50-S19-N2	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 19x16 mm / 3/4 in \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Ammonia compatible
	LVD50-S192-2	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 19x16 mm / 3/4 in \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Standard
	LVD50-S192-N2	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 19x16 mm / 3/4 in \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Ammonia compatible
	LVD50-S19-3	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 19x16 mm / 3/4 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Standard
	LVD50-S19-N3	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 19x16 mm / 3/4 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Ammonia compatible
	LVD50-S192-3	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 19x16 mm / 3/4 in \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Standard
	LVD50-S192-N3	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 19x16 mm / 3/4 in \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Ammonia compatible
	LVD51-S19	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Connection: LQ1 19x16 mm / 3/4 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
	LVD51-S19-N	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Connection: LQ1 19x16 mm / 3/4 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD51-S192	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Connection: LQ1 19x16 mm / 3/4 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD51-S192-N	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Connection: LQ1 19x16 mm / 3/4 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD52-S19	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 19x16 mm / 3/4 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
	LVD52-S19-N	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 19x16 mm / 3/4 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD52-S192	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 19x16 mm / 3/4 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD52-S192-N	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 19x16 mm / 3/4 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD52-S19-1	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 19x16 mm / 3/4 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
	LVD52-S19-N1	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 19x16 mm / 3/4 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD52-S192-1	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 19x16 mm / 3/4 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
	LVD52-S192-N1	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 19x16 mm / 3/4 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD52-S19-2	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 19x16 mm / 3/4 in \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Standard
	LVD52-S19-N2	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 19x16 mm / 3/4 in \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Ammonia compatible
	LVD52-S192-2	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 19x16 mm / 3/4 in \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Standard
	LVD52-S192-N2	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 19x16 mm / 3/4 in \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Ammonia compatible
	LVD52-S19-3	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 19x16 mm / 3/4 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Standard
	LVD52-S19-N3	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 19x16 mm / 3/4 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Ammonia compatible
	LVD52-S192-3	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 19x16 mm / 3/4 in \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Standard
	LVD52-S192-N3	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 19x16 mm / 3/4 in \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Ammonia compatible
	LVD50-S13	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
	LVD50-S13-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD50-S132	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 1/2 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD50-S132-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 1/2 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD50-S13-1	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
	LVD50-S13-N1	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD50-S132-1	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 1/2 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
	LVD50-S132-N1	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 1/2 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD50-S13-2	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Standard
	LVD50-S13-N2	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Ammonia compatible
	LVD50-S132-2	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 1/2 in \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Standard
	LVD50-S132-N2	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 1/2 in \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Ammonia compatible
	LVD50-S13-3	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Standard
	LVD50-S13-N3	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Ammonia compatible
	LVD50-S132-3	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 1/2 in \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Standard
	LVD50-S132-N3	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 1/2 in \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Ammonia compatible
	LVD51-S13	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Connection: LQ1 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
	LVD51-S13-N	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Connection: LQ1 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD51-S132	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Connection: LQ1 1/2 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD51-S132-N	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Connection: LQ1 1/2 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD52-S13	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
	LVD52-S13-N	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD52-S132	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 1/2 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD52-S132-N	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 1/2 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD52-S13-1	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
	LVD52-S13-N1	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD52-S132-1	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 1/2 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
	LVD52-S132-N1	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 1/2 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD52-S13-2	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Standard
	LVD52-S13-N2	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: Bypass \| Material: Ammonia compatible
	LVD52-S132-2	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 1/2 in \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Standard
	LVD52-S132-N2	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 1/2 in \| Pilot port: M5x0.8 thread \| Option: Bypass \| Material: Ammonia compatible
	LVD52-S13-3	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Standard
	LVD52-S13-N3	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adj. + bypass \| Material: Ammonia compatible
	LVD52-S132-3	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 1/2 in \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Standard
	LVD52-S132-N3	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 1/2 in \| Pilot port: M5x0.8 thread \| Option: Flow adj. + bypass \| Material: Ammonia compatible
	LVD20-T06	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Tube OD 6 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
	LVD20-T06-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Tube OD 6 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD20-T062	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Tube OD 6 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD20-T062-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Tube OD 6 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD20-T06-1	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Tube OD 6 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
	LVD20-T06-N1	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Tube OD 6 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD20-T062-1	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Tube OD 6 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
	LVD20-T062-N1	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Tube OD 6 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD21-T06	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: Tube OD 6 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
	LVD21-T06-N	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: Tube OD 6 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD21-T062	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: Tube OD 6 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD21-T062-N	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: Tube OD 6 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD22-T06	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: Tube OD 6 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
	LVD22-T06-N	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: Tube OD 6 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD22-T062	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: Tube OD 6 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD22-T062-N	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: Tube OD 6 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD22-T06-1	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: Tube OD 6 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
	LVD22-T06-N1	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: Tube OD 6 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD22-T062-1	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: Tube OD 6 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
	LVD22-T062-N1	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: Tube OD 6 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD20-T07	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Tube OD 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
	LVD20-T07-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Tube OD 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD20-T072	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Tube OD 1/4 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD20-T072-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Tube OD 1/4 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD20-T07-1	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Tube OD 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
	LVD20-T07-N1	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Tube OD 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD20-T072-1	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Tube OD 1/4 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
	LVD20-T072-N1	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Tube OD 1/4 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD21-T07	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: Tube OD 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
	LVD21-T07-N	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: Tube OD 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD21-T072	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: Tube OD 1/4 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD21-T072-N	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: Tube OD 1/4 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD22-T07	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: Tube OD 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
	LVD22-T07-N	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: Tube OD 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD22-T072	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: Tube OD 1/4 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD22-T072-N	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: Tube OD 1/4 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD22-T07-1	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: Tube OD 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
	LVD22-T07-N1	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: Tube OD 1/4 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD22-T072-1	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: Tube OD 1/4 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
	LVD22-T072-N1	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: Tube OD 1/4 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD30-T10	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Tube OD 10 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
	LVD30-T10-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Tube OD 10 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD30-T102	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Tube OD 10 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD30-T102-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Tube OD 10 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD30-T10-1	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Tube OD 10 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
	LVD30-T10-N1	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Tube OD 10 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD30-T102-1	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Tube OD 10 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
	LVD30-T102-N1	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Tube OD 10 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD31-T10	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: Tube OD 10 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
	LVD31-T10-N	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: Tube OD 10 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD31-T102	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: Tube OD 10 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD31-T102-N	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: Tube OD 10 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD32-T10	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: Tube OD 10 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
	LVD32-T10-N	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: Tube OD 10 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD32-T102	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: Tube OD 10 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD32-T102-N	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: Tube OD 10 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD32-T10-1	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: Tube OD 10 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
	LVD32-T10-N1	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: Tube OD 10 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD32-T102-1	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: Tube OD 10 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
	LVD32-T102-N1	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: Tube OD 10 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD30-T11	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Tube OD 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
	LVD30-T11-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Tube OD 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD30-T112	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Tube OD 3/8 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD30-T112-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Tube OD 3/8 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD30-T11-1	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Tube OD 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
	LVD30-T11-N1	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Tube OD 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD30-T112-1	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Tube OD 3/8 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
	LVD30-T112-N1	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Tube OD 3/8 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD31-T11	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: Tube OD 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
	LVD31-T11-N	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: Tube OD 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD31-T112	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: Tube OD 3/8 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD31-T112-N	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: Tube OD 3/8 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD32-T11	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: Tube OD 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
	LVD32-T11-N	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: Tube OD 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD32-T112	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: Tube OD 3/8 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD32-T112-N	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: Tube OD 3/8 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD32-T11-1	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: Tube OD 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
	LVD32-T11-N1	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: Tube OD 3/8 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD32-T112-1	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: Tube OD 3/8 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
	LVD32-T112-N1	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: Tube OD 3/8 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD40-T12	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Tube OD 12 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
	LVD40-T12-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Tube OD 12 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD40-T122	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Tube OD 12 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD40-T122-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Tube OD 12 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD40-T12-1	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Tube OD 12 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
	LVD40-T12-N1	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Tube OD 12 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD40-T122-1	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Tube OD 12 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
	LVD40-T122-N1	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Tube OD 12 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD41-T12	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: Tube OD 12 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
	LVD41-T12-N	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: Tube OD 12 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD41-T122	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: Tube OD 12 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD41-T122-N	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: Tube OD 12 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD42-T12	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: Tube OD 12 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
	LVD42-T12-N	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: Tube OD 12 mm \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD42-T122	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: Tube OD 12 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD42-T122-N	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: Tube OD 12 mm \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD42-T12-1	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: Tube OD 12 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
	LVD42-T12-N1	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: Tube OD 12 mm \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD42-T122-1	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: Tube OD 12 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
	LVD42-T122-N1	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: Tube OD 12 mm \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD40-T13	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Tube OD 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
	LVD40-T13-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Tube OD 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD40-T132	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Tube OD 1/2 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD40-T132-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Tube OD 1/2 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD40-T13-1	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Tube OD 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
	LVD40-T13-N1	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Tube OD 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD40-T132-1	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Tube OD 1/2 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
	LVD40-T132-N1	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Tube OD 1/2 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD41-T13	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: Tube OD 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
	LVD41-T13-N	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: Tube OD 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD41-T132	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: Tube OD 1/2 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD41-T132-N	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: Tube OD 1/2 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD42-T13	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: Tube OD 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
	LVD42-T13-N	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: Tube OD 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD42-T132	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: Tube OD 1/2 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD42-T132-N	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: Tube OD 1/2 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD42-T13-1	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: Tube OD 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
	LVD42-T13-N1	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: Tube OD 1/2 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD42-T132-1	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: Tube OD 1/2 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
	LVD42-T132-N1	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: Tube OD 1/2 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD50-T19	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: Tube OD 19 mm / 3/4 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
	LVD50-T19-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: Tube OD 19 mm / 3/4 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD50-T192	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: Tube OD 19 mm / 3/4 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD50-T192-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: Tube OD 19 mm / 3/4 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD50-T19-1	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: Tube OD 19 mm / 3/4 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
	LVD50-T19-N1	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: Tube OD 19 mm / 3/4 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD50-T192-1	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: Tube OD 19 mm / 3/4 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
	LVD50-T192-N1	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: Tube OD 19 mm / 3/4 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD51-T19	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Connection: Tube OD 19 mm / 3/4 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
	LVD51-T19-N	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Connection: Tube OD 19 mm / 3/4 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD51-T192	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Connection: Tube OD 19 mm / 3/4 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD51-T192-N	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Connection: Tube OD 19 mm / 3/4 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD52-T19	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: Tube OD 19 mm / 3/4 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Standard
	LVD52-T19-N	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: Tube OD 19 mm / 3/4 in \| Pilot port: ø6 one-touch fitting \| Option: None \| Material: Ammonia compatible
	LVD52-T192	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: Tube OD 19 mm / 3/4 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Standard
	LVD52-T192-N	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: Tube OD 19 mm / 3/4 in \| Pilot port: M5x0.8 thread \| Option: None \| Material: Ammonia compatible
	LVD52-T19-1	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: Tube OD 19 mm / 3/4 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Standard
	LVD52-T19-N1	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: Tube OD 19 mm / 3/4 in \| Pilot port: ø6 one-touch fitting \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD52-T192-1	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: Tube OD 19 mm / 3/4 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Standard
	LVD52-T192-N1	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: Tube OD 19 mm / 3/4 in \| Pilot port: M5x0.8 thread \| Option: Flow adjustment \| Material: Ammonia compatible
	LVD13U-S03	Body class: 1 (ø2 orifice) \| Valve type: Suck-back valve \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: ø4 one-touch fitting \| Option: Suck-back adjust \| Material: Standard
	LVD13U-S032	Body class: 1 (ø2 orifice) \| Valve type: Suck-back valve \| Connection: LQ1 3x2 mm / 1/8 in \| Pilot port: M5x0.8 thread \| Option: Suck-back adjust \| Material: Standard
	LVD13U-S04	Body class: 1 (ø2 orifice) \| Valve type: Suck-back valve \| Connection: LQ1 4x3 mm \| Pilot port: ø4 one-touch fitting \| Option: Suck-back adjust \| Material: Standard
	LVD13U-S042	Body class: 1 (ø2 orifice) \| Valve type: Suck-back valve \| Connection: LQ1 4x3 mm \| Pilot port: M5x0.8 thread \| Option: Suck-back adjust \| Material: Standard

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC LVD Compact Air Operated Chemical Valve (LQ1 / Tube, PPS)
