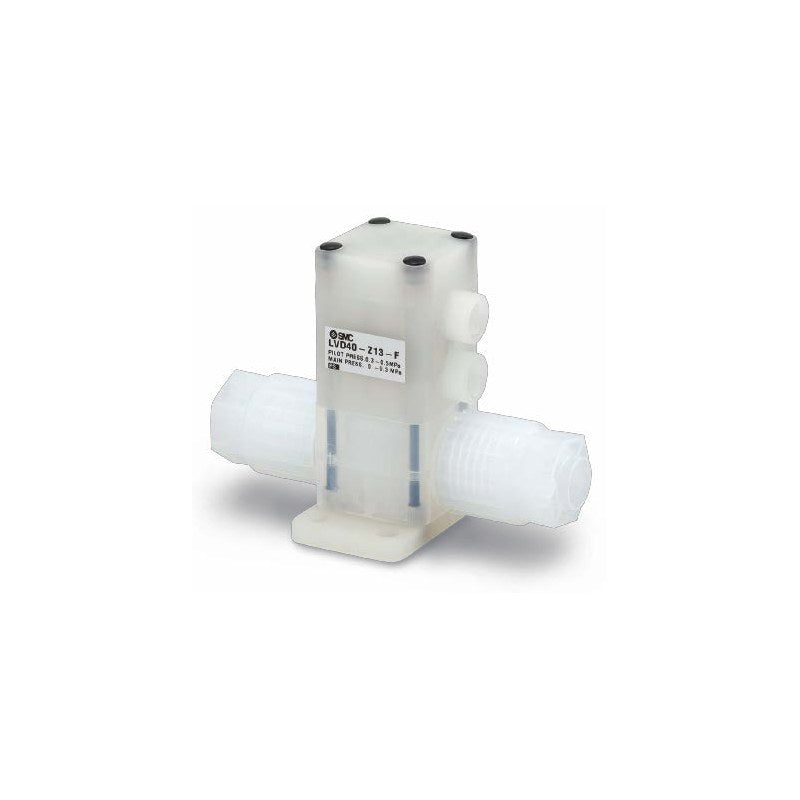

SMC LVD-F/FN Compact Air Operated Chemical Valve (PVDF Actuator)

SMC LVD-F/FN series compact air-operated chemical valve with New PFA body and PVDF actuator, LQ1 insert-bushing (V), LQ3 flare (Z) or integral tube (T) connection.

Key features

PVDF actuator and end plate, New PFA body, PTFE diaphragm; FKM (F) or EPDM (FN) buffer and packing
Connection: LQ1 insert-bushing fitting with reducer sizes (V), LQ3 flare fitting (Z) or integral tube (T)
Options: flow adjustment, bypass, indicator and high back pressure 0.5 MPa versions
Pilot port Rc1/8 (listed) or NPT1/8 (N); 4 pilot port positions (P2 to P4, LVD60 only P3)
Mounting base dimensions to SEMI F65-1101 (except LVD60)

Specifications

Fluid	Deionized water, chemicals (see compatibility list)
Proof pressure	1 MPa
Operating pressure (A to B)	0 to 0.5 MPa (class 2), 0 to 0.3 MPa (3-5), 0 to 0.4 MPa (6); high BP 0.5
Pilot pressure	0.3 to 0.5 MPa (high back pressure 0.5 to 0.8 MPa)
Pilot port	Rc1/8
Flow Cv (class 2/3/4/5/6)	0.35 / 1.3 / 1.9 / 5 / 8
Fluid temperature	0 to 100 C
Ambient temperature	0 to 60 C
Valve leakage	0 cm3/min (water pressure)
Source	SMC Korea catalog LVD Series (SMCKR_LVD.pdf), p. 750-759 (PDF p. 14-23)

LVD20-V03-F		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3x2 mm / 1/8 in \| Option: None \| Material: FKM buffer/packing
LVD20-V03-FN		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3x2 mm / 1/8 in \| Option: None \| Material: EPDM buffer/packing
LVD20-V03-F1		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3x2 mm / 1/8 in \| Option: Flow adjustment \| Material: FKM buffer/packing
LVD20-V03-FN1		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3x2 mm / 1/8 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
LVD20-V03-F4		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3x2 mm / 1/8 in \| Option: Indicator \| Material: FKM buffer/packing
LVD20-V03-FN4		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3x2 mm / 1/8 in \| Option: Indicator \| Material: EPDM buffer/packing
LVD20-V03-F5		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3x2 mm / 1/8 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD20-V03-FN5		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3x2 mm / 1/8 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD20-V03-F6		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3x2 mm / 1/8 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
LVD20-V03-FN6		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3x2 mm / 1/8 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
LVD20-V03-F9		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3x2 mm / 1/8 in \| Option: High BP + indicator \| Material: FKM buffer/packing
LVD20-V03-FN9		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3x2 mm / 1/8 in \| Option: High BP + indicator \| Material: EPDM buffer/packing
LVD21-V03-F		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 3x2 mm / 1/8 in \| Option: None \| Material: FKM buffer/packing
LVD21-V03-FN		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 3x2 mm / 1/8 in \| Option: None \| Material: EPDM buffer/packing
LVD21-V03-F5		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 3x2 mm / 1/8 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD21-V03-FN5		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 3x2 mm / 1/8 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD22-V03-F		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3x2 mm / 1/8 in \| Option: None \| Material: FKM buffer/packing
LVD22-V03-FN		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3x2 mm / 1/8 in \| Option: None \| Material: EPDM buffer/packing
LVD22-V03-F1		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3x2 mm / 1/8 in \| Option: Flow adjustment \| Material: FKM buffer/packing
LVD22-V03-FN1		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3x2 mm / 1/8 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
LVD22-V03-F5		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3x2 mm / 1/8 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD22-V03-FN5		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3x2 mm / 1/8 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD22-V03-F6		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3x2 mm / 1/8 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
LVD22-V03-FN6		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3x2 mm / 1/8 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
LVD20-V04-F		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 4x3 mm \| Option: None \| Material: FKM buffer/packing
LVD20-V04-FN		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 4x3 mm \| Option: None \| Material: EPDM buffer/packing
LVD20-V04-F1		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 4x3 mm \| Option: Flow adjustment \| Material: FKM buffer/packing
LVD20-V04-FN1		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 4x3 mm \| Option: Flow adjustment \| Material: EPDM buffer/packing
LVD20-V04-F4		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 4x3 mm \| Option: Indicator \| Material: FKM buffer/packing
LVD20-V04-FN4		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 4x3 mm \| Option: Indicator \| Material: EPDM buffer/packing
LVD20-V04-F5		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 4x3 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD20-V04-FN5		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 4x3 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD20-V04-F6		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 4x3 mm \| Option: High BP + flow adj. \| Material: FKM buffer/packing
LVD20-V04-FN6		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 4x3 mm \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
LVD20-V04-F9		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 4x3 mm \| Option: High BP + indicator \| Material: FKM buffer/packing
LVD20-V04-FN9		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 4x3 mm \| Option: High BP + indicator \| Material: EPDM buffer/packing
LVD21-V04-F		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 4x3 mm \| Option: None \| Material: FKM buffer/packing
LVD21-V04-FN		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 4x3 mm \| Option: None \| Material: EPDM buffer/packing
LVD21-V04-F5		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 4x3 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD21-V04-FN5		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 4x3 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD22-V04-F		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 4x3 mm \| Option: None \| Material: FKM buffer/packing
LVD22-V04-FN		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 4x3 mm \| Option: None \| Material: EPDM buffer/packing
LVD22-V04-F1		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 4x3 mm \| Option: Flow adjustment \| Material: FKM buffer/packing
LVD22-V04-FN1		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 4x3 mm \| Option: Flow adjustment \| Material: EPDM buffer/packing
LVD22-V04-F5		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 4x3 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD22-V04-FN5		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 4x3 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD22-V04-F6		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 4x3 mm \| Option: High BP + flow adj. \| Material: FKM buffer/packing
LVD22-V04-FN6		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 4x3 mm \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
LVD20-V06-F		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: None \| Material: FKM buffer/packing
LVD20-V06-FN		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: None \| Material: EPDM buffer/packing
LVD20-V06-F1		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: Flow adjustment \| Material: FKM buffer/packing
LVD20-V06-FN1		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: Flow adjustment \| Material: EPDM buffer/packing
LVD20-V06-F4		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: Indicator \| Material: FKM buffer/packing
LVD20-V06-FN4		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: Indicator \| Material: EPDM buffer/packing
LVD20-V06-F5		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD20-V06-FN5		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD20-V06-F6		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: High BP + flow adj. \| Material: FKM buffer/packing
LVD20-V06-FN6		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
LVD20-V06-F9		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: High BP + indicator \| Material: FKM buffer/packing
LVD20-V06-FN9		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: High BP + indicator \| Material: EPDM buffer/packing
LVD21-V06-F		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: None \| Material: FKM buffer/packing
LVD21-V06-FN		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: None \| Material: EPDM buffer/packing
LVD21-V06-F5		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD21-V06-FN5		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD22-V06-F		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: None \| Material: FKM buffer/packing
LVD22-V06-FN		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: None \| Material: EPDM buffer/packing
LVD22-V06-F1		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: Flow adjustment \| Material: FKM buffer/packing
LVD22-V06-FN1		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: Flow adjustment \| Material: EPDM buffer/packing
LVD22-V06-F5		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD22-V06-FN5		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD22-V06-F6		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: High BP + flow adj. \| Material: FKM buffer/packing
LVD22-V06-FN6		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
LVD20-V05-F		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/16 in \| Option: None \| Material: FKM buffer/packing
LVD20-V05-FN		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/16 in \| Option: None \| Material: EPDM buffer/packing
LVD20-V05-F1		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/16 in \| Option: Flow adjustment \| Material: FKM buffer/packing
LVD20-V05-FN1		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/16 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
LVD20-V05-F4		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/16 in \| Option: Indicator \| Material: FKM buffer/packing
LVD20-V05-FN4		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/16 in \| Option: Indicator \| Material: EPDM buffer/packing
LVD20-V05-F5		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/16 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD20-V05-FN5		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/16 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD20-V05-F6		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/16 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
LVD20-V05-FN6		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/16 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
LVD20-V05-F9		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/16 in \| Option: High BP + indicator \| Material: FKM buffer/packing
LVD20-V05-FN9		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/16 in \| Option: High BP + indicator \| Material: EPDM buffer/packing
LVD21-V05-F		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 3/16 in \| Option: None \| Material: FKM buffer/packing
LVD21-V05-FN		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 3/16 in \| Option: None \| Material: EPDM buffer/packing
LVD21-V05-F5		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 3/16 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD21-V05-FN5		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 3/16 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD22-V05-F		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/16 in \| Option: None \| Material: FKM buffer/packing
LVD22-V05-FN		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/16 in \| Option: None \| Material: EPDM buffer/packing
LVD22-V05-F1		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/16 in \| Option: Flow adjustment \| Material: FKM buffer/packing
LVD22-V05-FN1		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/16 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
LVD22-V05-F5		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/16 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD22-V05-FN5		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/16 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD22-V05-F6		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/16 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
LVD22-V05-FN6		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/16 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
LVD20-V07-F		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: None \| Material: FKM buffer/packing
LVD20-V07-FN		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: None \| Material: EPDM buffer/packing
LVD20-V07-F1		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: Flow adjustment \| Material: FKM buffer/packing
LVD20-V07-FN1		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
LVD20-V07-F4		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: Indicator \| Material: FKM buffer/packing
LVD20-V07-FN4		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: Indicator \| Material: EPDM buffer/packing
LVD20-V07-F5		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD20-V07-FN5		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD20-V07-F6		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
LVD20-V07-FN6		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
LVD20-V07-F9		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: High BP + indicator \| Material: FKM buffer/packing
LVD20-V07-FN9		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: High BP + indicator \| Material: EPDM buffer/packing
LVD21-V07-F		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: None \| Material: FKM buffer/packing
LVD21-V07-FN		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: None \| Material: EPDM buffer/packing
LVD21-V07-F5		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD21-V07-FN5		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD22-V07-F		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: None \| Material: FKM buffer/packing
LVD22-V07-FN		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: None \| Material: EPDM buffer/packing
LVD22-V07-F1		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: Flow adjustment \| Material: FKM buffer/packing
LVD22-V07-FN1		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
LVD22-V07-F5		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD22-V07-FN5		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD22-V07-F6		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
LVD22-V07-FN6		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
LVD30-V06-F		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: None \| Material: FKM buffer/packing
LVD30-V06-FN		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: None \| Material: EPDM buffer/packing
LVD30-V06-F1		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: Flow adjustment \| Material: FKM buffer/packing
LVD30-V06-FN1		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: Flow adjustment \| Material: EPDM buffer/packing
LVD30-V06-F2		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: Bypass \| Material: FKM buffer/packing
LVD30-V06-FN2		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: Bypass \| Material: EPDM buffer/packing
LVD30-V06-F3		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: Flow adj. + bypass \| Material: FKM buffer/packing
LVD30-V06-FN3		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: Flow adj. + bypass \| Material: EPDM buffer/packing
LVD30-V06-F4		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: Indicator \| Material: FKM buffer/packing
LVD30-V06-FN4		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: Indicator \| Material: EPDM buffer/packing
LVD30-V06-F5		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD30-V06-FN5		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD30-V06-F6		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: High BP + flow adj. \| Material: FKM buffer/packing
LVD30-V06-FN6		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
LVD30-V06-F7		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: High BP + bypass \| Material: FKM buffer/packing
LVD30-V06-FN7		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: High BP + bypass \| Material: EPDM buffer/packing
LVD30-V06-F8		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: High BP + flow adj. + bypass \| Material: FKM buffer/packing
LVD30-V06-FN8		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: High BP + flow adj. + bypass \| Material: EPDM buffer/packing
LVD30-V06-F9		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: High BP + indicator \| Material: FKM buffer/packing
LVD30-V06-FN9		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: High BP + indicator \| Material: EPDM buffer/packing
LVD30-V06-F24		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: Bypass + indicator \| Material: FKM buffer/packing
LVD30-V06-FN24		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: Bypass + indicator \| Material: EPDM buffer/packing
LVD31-V06-F		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: None \| Material: FKM buffer/packing
LVD31-V06-FN		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: None \| Material: EPDM buffer/packing
LVD31-V06-F5		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD31-V06-FN5		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD32-V06-F		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: None \| Material: FKM buffer/packing
LVD32-V06-FN		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: None \| Material: EPDM buffer/packing
LVD32-V06-F1		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: Flow adjustment \| Material: FKM buffer/packing
LVD32-V06-FN1		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: Flow adjustment \| Material: EPDM buffer/packing
LVD32-V06-F2		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: Bypass \| Material: FKM buffer/packing
LVD32-V06-FN2		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: Bypass \| Material: EPDM buffer/packing
LVD32-V06-F3		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: Flow adj. + bypass \| Material: FKM buffer/packing
LVD32-V06-FN3		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: Flow adj. + bypass \| Material: EPDM buffer/packing
LVD32-V06-F5		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD32-V06-FN5		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD32-V06-F6		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: High BP + flow adj. \| Material: FKM buffer/packing
LVD32-V06-FN6		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
LVD32-V06-F7		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: High BP + bypass \| Material: FKM buffer/packing
LVD32-V06-FN7		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: High BP + bypass \| Material: EPDM buffer/packing
LVD32-V06-F8		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: High BP + flow adj. + bypass \| Material: FKM buffer/packing
LVD32-V06-FN8		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: High BP + flow adj. + bypass \| Material: EPDM buffer/packing
LVD30-V08-F		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: None \| Material: FKM buffer/packing
LVD30-V08-FN		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: None \| Material: EPDM buffer/packing
LVD30-V08-F1		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: Flow adjustment \| Material: FKM buffer/packing
LVD30-V08-FN1		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: Flow adjustment \| Material: EPDM buffer/packing
LVD30-V08-F2		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: Bypass \| Material: FKM buffer/packing
LVD30-V08-FN2		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: Bypass \| Material: EPDM buffer/packing
LVD30-V08-F3		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: Flow adj. + bypass \| Material: FKM buffer/packing
LVD30-V08-FN3		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: Flow adj. + bypass \| Material: EPDM buffer/packing
LVD30-V08-F4		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: Indicator \| Material: FKM buffer/packing
LVD30-V08-FN4		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: Indicator \| Material: EPDM buffer/packing
LVD30-V08-F5		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD30-V08-FN5		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD30-V08-F6		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: High BP + flow adj. \| Material: FKM buffer/packing
LVD30-V08-FN6		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
LVD30-V08-F7		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: High BP + bypass \| Material: FKM buffer/packing
LVD30-V08-FN7		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: High BP + bypass \| Material: EPDM buffer/packing
LVD30-V08-F8		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: High BP + flow adj. + bypass \| Material: FKM buffer/packing
LVD30-V08-FN8		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: High BP + flow adj. + bypass \| Material: EPDM buffer/packing
LVD30-V08-F9		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: High BP + indicator \| Material: FKM buffer/packing
LVD30-V08-FN9		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: High BP + indicator \| Material: EPDM buffer/packing
LVD30-V08-F24		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: Bypass + indicator \| Material: FKM buffer/packing
LVD30-V08-FN24		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: Bypass + indicator \| Material: EPDM buffer/packing
LVD31-V08-F		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: None \| Material: FKM buffer/packing
LVD31-V08-FN		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: None \| Material: EPDM buffer/packing
LVD31-V08-F5		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD31-V08-FN5		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD32-V08-F		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: None \| Material: FKM buffer/packing
LVD32-V08-FN		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: None \| Material: EPDM buffer/packing
LVD32-V08-F1		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: Flow adjustment \| Material: FKM buffer/packing
LVD32-V08-FN1		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: Flow adjustment \| Material: EPDM buffer/packing
LVD32-V08-F2		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: Bypass \| Material: FKM buffer/packing
LVD32-V08-FN2		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: Bypass \| Material: EPDM buffer/packing
LVD32-V08-F3		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: Flow adj. + bypass \| Material: FKM buffer/packing
LVD32-V08-FN3		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: Flow adj. + bypass \| Material: EPDM buffer/packing
LVD32-V08-F5		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD32-V08-FN5		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD32-V08-F6		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: High BP + flow adj. \| Material: FKM buffer/packing
LVD32-V08-FN6		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
LVD32-V08-F7		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: High BP + bypass \| Material: FKM buffer/packing
LVD32-V08-FN7		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: High BP + bypass \| Material: EPDM buffer/packing
LVD32-V08-F8		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: High BP + flow adj. + bypass \| Material: FKM buffer/packing
LVD32-V08-FN8		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: High BP + flow adj. + bypass \| Material: EPDM buffer/packing
LVD30-V10-F		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: None \| Material: FKM buffer/packing
LVD30-V10-FN		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: None \| Material: EPDM buffer/packing
LVD30-V10-F1		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: Flow adjustment \| Material: FKM buffer/packing
LVD30-V10-FN1		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: Flow adjustment \| Material: EPDM buffer/packing
LVD30-V10-F2		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: Bypass \| Material: FKM buffer/packing
LVD30-V10-FN2		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: Bypass \| Material: EPDM buffer/packing
LVD30-V10-F3		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: Flow adj. + bypass \| Material: FKM buffer/packing
LVD30-V10-FN3		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: Flow adj. + bypass \| Material: EPDM buffer/packing
LVD30-V10-F4		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: Indicator \| Material: FKM buffer/packing
LVD30-V10-FN4		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: Indicator \| Material: EPDM buffer/packing
LVD30-V10-F5		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD30-V10-FN5		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD30-V10-F6		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High BP + flow adj. \| Material: FKM buffer/packing
LVD30-V10-FN6		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
LVD30-V10-F7		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High BP + bypass \| Material: FKM buffer/packing
LVD30-V10-FN7		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High BP + bypass \| Material: EPDM buffer/packing
LVD30-V10-F8		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High BP + flow adj. + bypass \| Material: FKM buffer/packing
LVD30-V10-FN8		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High BP + flow adj. + bypass \| Material: EPDM buffer/packing
LVD30-V10-F9		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High BP + indicator \| Material: FKM buffer/packing
LVD30-V10-FN9		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High BP + indicator \| Material: EPDM buffer/packing
LVD30-V10-F24		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: Bypass + indicator \| Material: FKM buffer/packing
LVD30-V10-FN24		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: Bypass + indicator \| Material: EPDM buffer/packing
LVD31-V10-F		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: None \| Material: FKM buffer/packing
LVD31-V10-FN		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: None \| Material: EPDM buffer/packing
LVD31-V10-F5		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD31-V10-FN5		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD32-V10-F		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: None \| Material: FKM buffer/packing
LVD32-V10-FN		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: None \| Material: EPDM buffer/packing
LVD32-V10-F1		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: Flow adjustment \| Material: FKM buffer/packing
LVD32-V10-FN1		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: Flow adjustment \| Material: EPDM buffer/packing
LVD32-V10-F2		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: Bypass \| Material: FKM buffer/packing
LVD32-V10-FN2		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: Bypass \| Material: EPDM buffer/packing
LVD32-V10-F3		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: Flow adj. + bypass \| Material: FKM buffer/packing
LVD32-V10-FN3		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: Flow adj. + bypass \| Material: EPDM buffer/packing
LVD32-V10-F5		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD32-V10-FN5		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD32-V10-F6		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High BP + flow adj. \| Material: FKM buffer/packing
LVD32-V10-FN6		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
LVD32-V10-F7		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High BP + bypass \| Material: FKM buffer/packing
LVD32-V10-FN7		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High BP + bypass \| Material: EPDM buffer/packing
LVD32-V10-F8		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High BP + flow adj. + bypass \| Material: FKM buffer/packing
LVD32-V10-FN8		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High BP + flow adj. + bypass \| Material: EPDM buffer/packing
LVD30-V07-F		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: None \| Material: FKM buffer/packing
LVD30-V07-FN		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: None \| Material: EPDM buffer/packing
LVD30-V07-F1		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: Flow adjustment \| Material: FKM buffer/packing
LVD30-V07-FN1		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
LVD30-V07-F2		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: Bypass \| Material: FKM buffer/packing
LVD30-V07-FN2		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: Bypass \| Material: EPDM buffer/packing
LVD30-V07-F3		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: Flow adj. + bypass \| Material: FKM buffer/packing
LVD30-V07-FN3		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: Flow adj. + bypass \| Material: EPDM buffer/packing
LVD30-V07-F4		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: Indicator \| Material: FKM buffer/packing
LVD30-V07-FN4		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: Indicator \| Material: EPDM buffer/packing
LVD30-V07-F5		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD30-V07-FN5		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD30-V07-F6		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
LVD30-V07-FN6		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
LVD30-V07-F7		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: High BP + bypass \| Material: FKM buffer/packing
LVD30-V07-FN7		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: High BP + bypass \| Material: EPDM buffer/packing
LVD30-V07-F8		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: High BP + flow adj. + bypass \| Material: FKM buffer/packing
LVD30-V07-FN8		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: High BP + flow adj. + bypass \| Material: EPDM buffer/packing
LVD30-V07-F9		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: High BP + indicator \| Material: FKM buffer/packing
LVD30-V07-FN9		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: High BP + indicator \| Material: EPDM buffer/packing
LVD30-V07-F24		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: Bypass + indicator \| Material: FKM buffer/packing
LVD30-V07-FN24		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: Bypass + indicator \| Material: EPDM buffer/packing
LVD31-V07-F		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: None \| Material: FKM buffer/packing
LVD31-V07-FN		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: None \| Material: EPDM buffer/packing
LVD31-V07-F5		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD31-V07-FN5		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD32-V07-F		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: None \| Material: FKM buffer/packing
LVD32-V07-FN		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: None \| Material: EPDM buffer/packing
LVD32-V07-F1		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: Flow adjustment \| Material: FKM buffer/packing
LVD32-V07-FN1		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
LVD32-V07-F2		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: Bypass \| Material: FKM buffer/packing
LVD32-V07-FN2		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: Bypass \| Material: EPDM buffer/packing
LVD32-V07-F3		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: Flow adj. + bypass \| Material: FKM buffer/packing
LVD32-V07-FN3		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: Flow adj. + bypass \| Material: EPDM buffer/packing
LVD32-V07-F5		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD32-V07-FN5		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD32-V07-F6		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
LVD32-V07-FN6		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
LVD32-V07-F7		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: High BP + bypass \| Material: FKM buffer/packing
LVD32-V07-FN7		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: High BP + bypass \| Material: EPDM buffer/packing
LVD32-V07-F8		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: High BP + flow adj. + bypass \| Material: FKM buffer/packing
LVD32-V07-FN8		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: High BP + flow adj. + bypass \| Material: EPDM buffer/packing
LVD30-V11-F		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: None \| Material: FKM buffer/packing
LVD30-V11-FN		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: None \| Material: EPDM buffer/packing
LVD30-V11-F1		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: Flow adjustment \| Material: FKM buffer/packing
LVD30-V11-FN1		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
LVD30-V11-F2		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: Bypass \| Material: FKM buffer/packing
LVD30-V11-FN2		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: Bypass \| Material: EPDM buffer/packing
LVD30-V11-F3		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: Flow adj. + bypass \| Material: FKM buffer/packing
LVD30-V11-FN3		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: Flow adj. + bypass \| Material: EPDM buffer/packing
LVD30-V11-F4		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: Indicator \| Material: FKM buffer/packing
LVD30-V11-FN4		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: Indicator \| Material: EPDM buffer/packing
LVD30-V11-F5		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD30-V11-FN5		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD30-V11-F6		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
LVD30-V11-FN6		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
LVD30-V11-F7		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High BP + bypass \| Material: FKM buffer/packing
LVD30-V11-FN7		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High BP + bypass \| Material: EPDM buffer/packing
LVD30-V11-F8		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High BP + flow adj. + bypass \| Material: FKM buffer/packing
LVD30-V11-FN8		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High BP + flow adj. + bypass \| Material: EPDM buffer/packing
LVD30-V11-F9		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High BP + indicator \| Material: FKM buffer/packing
LVD30-V11-FN9		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High BP + indicator \| Material: EPDM buffer/packing
LVD30-V11-F24		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: Bypass + indicator \| Material: FKM buffer/packing
LVD30-V11-FN24		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: Bypass + indicator \| Material: EPDM buffer/packing
LVD31-V11-F		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: None \| Material: FKM buffer/packing
LVD31-V11-FN		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: None \| Material: EPDM buffer/packing
LVD31-V11-F5		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD31-V11-FN5		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD32-V11-F		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: None \| Material: FKM buffer/packing
LVD32-V11-FN		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: None \| Material: EPDM buffer/packing
LVD32-V11-F1		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: Flow adjustment \| Material: FKM buffer/packing
LVD32-V11-FN1		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
LVD32-V11-F2		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: Bypass \| Material: FKM buffer/packing
LVD32-V11-FN2		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: Bypass \| Material: EPDM buffer/packing
LVD32-V11-F3		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: Flow adj. + bypass \| Material: FKM buffer/packing
LVD32-V11-FN3		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: Flow adj. + bypass \| Material: EPDM buffer/packing
LVD32-V11-F5		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD32-V11-FN5		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD32-V11-F6		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
LVD32-V11-FN6		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
LVD32-V11-F7		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High BP + bypass \| Material: FKM buffer/packing
LVD32-V11-FN7		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High BP + bypass \| Material: EPDM buffer/packing
LVD32-V11-F8		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High BP + flow adj. + bypass \| Material: FKM buffer/packing
LVD32-V11-FN8		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High BP + flow adj. + bypass \| Material: EPDM buffer/packing
LVD40-V10-F		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: None \| Material: FKM buffer/packing
LVD40-V10-FN		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: None \| Material: EPDM buffer/packing
LVD40-V10-F1		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: Flow adjustment \| Material: FKM buffer/packing
LVD40-V10-FN1		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: Flow adjustment \| Material: EPDM buffer/packing
LVD40-V10-F2		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: Bypass \| Material: FKM buffer/packing
LVD40-V10-FN2		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: Bypass \| Material: EPDM buffer/packing
LVD40-V10-F3		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: Flow adj. + bypass \| Material: FKM buffer/packing
LVD40-V10-FN3		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: Flow adj. + bypass \| Material: EPDM buffer/packing
LVD40-V10-F4		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: Indicator \| Material: FKM buffer/packing
LVD40-V10-FN4		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: Indicator \| Material: EPDM buffer/packing
LVD40-V10-F5		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD40-V10-FN5		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD40-V10-F6		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High BP + flow adj. \| Material: FKM buffer/packing
LVD40-V10-FN6		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
LVD40-V10-F7		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High BP + bypass \| Material: FKM buffer/packing
LVD40-V10-FN7		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High BP + bypass \| Material: EPDM buffer/packing
LVD40-V10-F8		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High BP + flow adj. + bypass \| Material: FKM buffer/packing
LVD40-V10-FN8		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High BP + flow adj. + bypass \| Material: EPDM buffer/packing
LVD40-V10-F9		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High BP + indicator \| Material: FKM buffer/packing
LVD40-V10-FN9		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High BP + indicator \| Material: EPDM buffer/packing
LVD40-V10-F24		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: Bypass + indicator \| Material: FKM buffer/packing
LVD40-V10-FN24		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: Bypass + indicator \| Material: EPDM buffer/packing
LVD41-V10-F		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: None \| Material: FKM buffer/packing
LVD41-V10-FN		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: None \| Material: EPDM buffer/packing
LVD41-V10-F5		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD41-V10-FN5		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD42-V10-F		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: None \| Material: FKM buffer/packing
LVD42-V10-FN		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: None \| Material: EPDM buffer/packing
LVD42-V10-F1		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: Flow adjustment \| Material: FKM buffer/packing
LVD42-V10-FN1		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: Flow adjustment \| Material: EPDM buffer/packing
LVD42-V10-F2		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: Bypass \| Material: FKM buffer/packing
LVD42-V10-FN2		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: Bypass \| Material: EPDM buffer/packing
LVD42-V10-F3		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: Flow adj. + bypass \| Material: FKM buffer/packing
LVD42-V10-FN3		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: Flow adj. + bypass \| Material: EPDM buffer/packing
LVD42-V10-F5		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD42-V10-FN5		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD42-V10-F6		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High BP + flow adj. \| Material: FKM buffer/packing
LVD42-V10-FN6		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
LVD42-V10-F7		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High BP + bypass \| Material: FKM buffer/packing
LVD42-V10-FN7		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High BP + bypass \| Material: EPDM buffer/packing
LVD42-V10-F8		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High BP + flow adj. + bypass \| Material: FKM buffer/packing
LVD42-V10-FN8		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High BP + flow adj. + bypass \| Material: EPDM buffer/packing
LVD40-V12-F		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: None \| Material: FKM buffer/packing
LVD40-V12-FN		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: None \| Material: EPDM buffer/packing
LVD40-V12-F1		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: Flow adjustment \| Material: FKM buffer/packing
LVD40-V12-FN1		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: Flow adjustment \| Material: EPDM buffer/packing
LVD40-V12-F2		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: Bypass \| Material: FKM buffer/packing
LVD40-V12-FN2		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: Bypass \| Material: EPDM buffer/packing
LVD40-V12-F3		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: Flow adj. + bypass \| Material: FKM buffer/packing
LVD40-V12-FN3		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: Flow adj. + bypass \| Material: EPDM buffer/packing
LVD40-V12-F4		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: Indicator \| Material: FKM buffer/packing
LVD40-V12-FN4		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: Indicator \| Material: EPDM buffer/packing
LVD40-V12-F5		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD40-V12-FN5		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD40-V12-F6		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High BP + flow adj. \| Material: FKM buffer/packing
LVD40-V12-FN6		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
LVD40-V12-F7		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High BP + bypass \| Material: FKM buffer/packing
LVD40-V12-FN7		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High BP + bypass \| Material: EPDM buffer/packing
LVD40-V12-F8		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High BP + flow adj. + bypass \| Material: FKM buffer/packing
LVD40-V12-FN8		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High BP + flow adj. + bypass \| Material: EPDM buffer/packing
LVD40-V12-F9		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High BP + indicator \| Material: FKM buffer/packing
LVD40-V12-FN9		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High BP + indicator \| Material: EPDM buffer/packing
LVD40-V12-F24		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: Bypass + indicator \| Material: FKM buffer/packing
LVD40-V12-FN24		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: Bypass + indicator \| Material: EPDM buffer/packing
LVD41-V12-F		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: None \| Material: FKM buffer/packing
LVD41-V12-FN		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: None \| Material: EPDM buffer/packing
LVD41-V12-F5		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD41-V12-FN5		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD42-V12-F		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: None \| Material: FKM buffer/packing
LVD42-V12-FN		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: None \| Material: EPDM buffer/packing
LVD42-V12-F1		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: Flow adjustment \| Material: FKM buffer/packing
LVD42-V12-FN1		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: Flow adjustment \| Material: EPDM buffer/packing
LVD42-V12-F2		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: Bypass \| Material: FKM buffer/packing
LVD42-V12-FN2		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: Bypass \| Material: EPDM buffer/packing
LVD42-V12-F3		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: Flow adj. + bypass \| Material: FKM buffer/packing
LVD42-V12-FN3		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: Flow adj. + bypass \| Material: EPDM buffer/packing
LVD42-V12-F5		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD42-V12-FN5		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD42-V12-F6		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High BP + flow adj. \| Material: FKM buffer/packing
LVD42-V12-FN6		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
LVD42-V12-F7		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High BP + bypass \| Material: FKM buffer/packing
LVD42-V12-FN7		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High BP + bypass \| Material: EPDM buffer/packing
LVD42-V12-F8		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High BP + flow adj. + bypass \| Material: FKM buffer/packing
LVD42-V12-FN8		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High BP + flow adj. + bypass \| Material: EPDM buffer/packing
LVD40-V11-F		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: None \| Material: FKM buffer/packing
LVD40-V11-FN		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: None \| Material: EPDM buffer/packing
LVD40-V11-F1		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: Flow adjustment \| Material: FKM buffer/packing
LVD40-V11-FN1		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
LVD40-V11-F2		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: Bypass \| Material: FKM buffer/packing
LVD40-V11-FN2		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: Bypass \| Material: EPDM buffer/packing
LVD40-V11-F3		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: Flow adj. + bypass \| Material: FKM buffer/packing
LVD40-V11-FN3		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: Flow adj. + bypass \| Material: EPDM buffer/packing
LVD40-V11-F4		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: Indicator \| Material: FKM buffer/packing
LVD40-V11-FN4		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: Indicator \| Material: EPDM buffer/packing
LVD40-V11-F5		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD40-V11-FN5		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD40-V11-F6		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
LVD40-V11-FN6		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
LVD40-V11-F7		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High BP + bypass \| Material: FKM buffer/packing
LVD40-V11-FN7		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High BP + bypass \| Material: EPDM buffer/packing
LVD40-V11-F8		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High BP + flow adj. + bypass \| Material: FKM buffer/packing
LVD40-V11-FN8		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High BP + flow adj. + bypass \| Material: EPDM buffer/packing
LVD40-V11-F9		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High BP + indicator \| Material: FKM buffer/packing
LVD40-V11-FN9		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High BP + indicator \| Material: EPDM buffer/packing
LVD40-V11-F24		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: Bypass + indicator \| Material: FKM buffer/packing
LVD40-V11-FN24		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: Bypass + indicator \| Material: EPDM buffer/packing
LVD41-V11-F		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: None \| Material: FKM buffer/packing
LVD41-V11-FN		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: None \| Material: EPDM buffer/packing
LVD41-V11-F5		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD41-V11-FN5		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD42-V11-F		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: None \| Material: FKM buffer/packing
LVD42-V11-FN		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: None \| Material: EPDM buffer/packing
LVD42-V11-F1		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: Flow adjustment \| Material: FKM buffer/packing
LVD42-V11-FN1		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
LVD42-V11-F2		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: Bypass \| Material: FKM buffer/packing
LVD42-V11-FN2		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: Bypass \| Material: EPDM buffer/packing
LVD42-V11-F3		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: Flow adj. + bypass \| Material: FKM buffer/packing
LVD42-V11-FN3		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: Flow adj. + bypass \| Material: EPDM buffer/packing
LVD42-V11-F5		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD42-V11-FN5		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD42-V11-F6		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
LVD42-V11-FN6		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
LVD42-V11-F7		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High BP + bypass \| Material: FKM buffer/packing
LVD42-V11-FN7		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High BP + bypass \| Material: EPDM buffer/packing
LVD42-V11-F8		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High BP + flow adj. + bypass \| Material: FKM buffer/packing
LVD42-V11-FN8		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High BP + flow adj. + bypass \| Material: EPDM buffer/packing
LVD40-V13-F		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: None \| Material: FKM buffer/packing
LVD40-V13-FN		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: None \| Material: EPDM buffer/packing
LVD40-V13-F1		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: Flow adjustment \| Material: FKM buffer/packing
LVD40-V13-FN1		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
LVD40-V13-F2		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: Bypass \| Material: FKM buffer/packing
LVD40-V13-FN2		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: Bypass \| Material: EPDM buffer/packing
LVD40-V13-F3		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: Flow adj. + bypass \| Material: FKM buffer/packing
LVD40-V13-FN3		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: Flow adj. + bypass \| Material: EPDM buffer/packing
LVD40-V13-F4		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: Indicator \| Material: FKM buffer/packing
LVD40-V13-FN4		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: Indicator \| Material: EPDM buffer/packing
LVD40-V13-F5		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD40-V13-FN5		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD40-V13-F6		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
LVD40-V13-FN6		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
LVD40-V13-F7		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High BP + bypass \| Material: FKM buffer/packing
LVD40-V13-FN7		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High BP + bypass \| Material: EPDM buffer/packing
LVD40-V13-F8		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High BP + flow adj. + bypass \| Material: FKM buffer/packing
LVD40-V13-FN8		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High BP + flow adj. + bypass \| Material: EPDM buffer/packing
LVD40-V13-F9		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High BP + indicator \| Material: FKM buffer/packing
LVD40-V13-FN9		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High BP + indicator \| Material: EPDM buffer/packing
LVD40-V13-F24		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: Bypass + indicator \| Material: FKM buffer/packing
LVD40-V13-FN24		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: Bypass + indicator \| Material: EPDM buffer/packing
LVD41-V13-F		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: None \| Material: FKM buffer/packing
LVD41-V13-FN		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: None \| Material: EPDM buffer/packing
LVD41-V13-F5		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD41-V13-FN5		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD42-V13-F		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: None \| Material: FKM buffer/packing
LVD42-V13-FN		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: None \| Material: EPDM buffer/packing
LVD42-V13-F1		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: Flow adjustment \| Material: FKM buffer/packing
LVD42-V13-FN1		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
LVD42-V13-F2		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: Bypass \| Material: FKM buffer/packing
LVD42-V13-FN2		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: Bypass \| Material: EPDM buffer/packing
LVD42-V13-F3		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: Flow adj. + bypass \| Material: FKM buffer/packing
LVD42-V13-FN3		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: Flow adj. + bypass \| Material: EPDM buffer/packing
LVD42-V13-F5		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD42-V13-FN5		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD42-V13-F6		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
LVD42-V13-FN6		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
LVD42-V13-F7		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High BP + bypass \| Material: FKM buffer/packing
LVD42-V13-FN7		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High BP + bypass \| Material: EPDM buffer/packing
LVD42-V13-F8		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High BP + flow adj. + bypass \| Material: FKM buffer/packing
LVD42-V13-FN8		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High BP + flow adj. + bypass \| Material: EPDM buffer/packing
LVD50-V12-F		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: None \| Material: FKM buffer/packing
LVD50-V12-FN		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: None \| Material: EPDM buffer/packing
LVD50-V12-F1		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: Flow adjustment \| Material: FKM buffer/packing
LVD50-V12-FN1		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: Flow adjustment \| Material: EPDM buffer/packing
LVD50-V12-F2		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: Bypass \| Material: FKM buffer/packing
LVD50-V12-FN2		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: Bypass \| Material: EPDM buffer/packing
LVD50-V12-F3		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: Flow adj. + bypass \| Material: FKM buffer/packing
LVD50-V12-FN3		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: Flow adj. + bypass \| Material: EPDM buffer/packing
LVD50-V12-F4		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: Indicator \| Material: FKM buffer/packing
LVD50-V12-FN4		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: Indicator \| Material: EPDM buffer/packing
LVD50-V12-F5		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD50-V12-FN5		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD50-V12-F6		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High BP + flow adj. \| Material: FKM buffer/packing
LVD50-V12-FN6		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
LVD50-V12-F7		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High BP + bypass \| Material: FKM buffer/packing
LVD50-V12-FN7		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High BP + bypass \| Material: EPDM buffer/packing
LVD50-V12-F8		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High BP + flow adj. + bypass \| Material: FKM buffer/packing
LVD50-V12-FN8		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High BP + flow adj. + bypass \| Material: EPDM buffer/packing
LVD50-V12-F9		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High BP + indicator \| Material: FKM buffer/packing
LVD50-V12-FN9		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High BP + indicator \| Material: EPDM buffer/packing
LVD50-V12-F24		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: Bypass + indicator \| Material: FKM buffer/packing
LVD50-V12-FN24		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: Bypass + indicator \| Material: EPDM buffer/packing
LVD51-V12-F		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: None \| Material: FKM buffer/packing
LVD51-V12-FN		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: None \| Material: EPDM buffer/packing
LVD51-V12-F5		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD51-V12-FN5		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD52-V12-F		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: None \| Material: FKM buffer/packing
LVD52-V12-FN		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: None \| Material: EPDM buffer/packing
LVD52-V12-F1		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: Flow adjustment \| Material: FKM buffer/packing
LVD52-V12-FN1		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: Flow adjustment \| Material: EPDM buffer/packing
LVD52-V12-F2		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: Bypass \| Material: FKM buffer/packing
LVD52-V12-FN2		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: Bypass \| Material: EPDM buffer/packing
LVD52-V12-F3		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: Flow adj. + bypass \| Material: FKM buffer/packing
LVD52-V12-FN3		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: Flow adj. + bypass \| Material: EPDM buffer/packing
LVD52-V12-F5		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD52-V12-FN5		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD52-V12-F6		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High BP + flow adj. \| Material: FKM buffer/packing
LVD52-V12-FN6		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
LVD52-V12-F7		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High BP + bypass \| Material: FKM buffer/packing
LVD52-V12-FN7		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High BP + bypass \| Material: EPDM buffer/packing
LVD52-V12-F8		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High BP + flow adj. + bypass \| Material: FKM buffer/packing
LVD52-V12-FN8		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High BP + flow adj. + bypass \| Material: EPDM buffer/packing
LVD50-V19-F		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: None \| Material: FKM buffer/packing
LVD50-V19-FN		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: None \| Material: EPDM buffer/packing
LVD50-V19-F1		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: Flow adjustment \| Material: FKM buffer/packing
LVD50-V19-FN1		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
LVD50-V19-F2		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: Bypass \| Material: FKM buffer/packing
LVD50-V19-FN2		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: Bypass \| Material: EPDM buffer/packing
LVD50-V19-F3		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: Flow adj. + bypass \| Material: FKM buffer/packing
LVD50-V19-FN3		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: Flow adj. + bypass \| Material: EPDM buffer/packing
LVD50-V19-F4		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: Indicator \| Material: FKM buffer/packing
LVD50-V19-FN4		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: Indicator \| Material: EPDM buffer/packing
LVD50-V19-F5		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD50-V19-FN5		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD50-V19-F6		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
LVD50-V19-FN6		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
LVD50-V19-F7		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High BP + bypass \| Material: FKM buffer/packing
LVD50-V19-FN7		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High BP + bypass \| Material: EPDM buffer/packing
LVD50-V19-F8		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High BP + flow adj. + bypass \| Material: FKM buffer/packing
LVD50-V19-FN8		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High BP + flow adj. + bypass \| Material: EPDM buffer/packing
LVD50-V19-F9		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High BP + indicator \| Material: FKM buffer/packing
LVD50-V19-FN9		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High BP + indicator \| Material: EPDM buffer/packing
LVD50-V19-F24		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: Bypass + indicator \| Material: FKM buffer/packing
LVD50-V19-FN24		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: Bypass + indicator \| Material: EPDM buffer/packing
LVD51-V19-F		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: None \| Material: FKM buffer/packing
LVD51-V19-FN		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: None \| Material: EPDM buffer/packing
LVD51-V19-F5		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD51-V19-FN5		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD52-V19-F		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: None \| Material: FKM buffer/packing
LVD52-V19-FN		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: None \| Material: EPDM buffer/packing
LVD52-V19-F1		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: Flow adjustment \| Material: FKM buffer/packing
LVD52-V19-FN1		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
LVD52-V19-F2		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: Bypass \| Material: FKM buffer/packing
LVD52-V19-FN2		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: Bypass \| Material: EPDM buffer/packing
LVD52-V19-F3		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: Flow adj. + bypass \| Material: FKM buffer/packing
LVD52-V19-FN3		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: Flow adj. + bypass \| Material: EPDM buffer/packing
LVD52-V19-F5		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD52-V19-FN5		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD52-V19-F6		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
LVD52-V19-FN6		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
LVD52-V19-F7		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High BP + bypass \| Material: FKM buffer/packing
LVD52-V19-FN7		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High BP + bypass \| Material: EPDM buffer/packing
LVD52-V19-F8		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High BP + flow adj. + bypass \| Material: FKM buffer/packing
LVD52-V19-FN8		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High BP + flow adj. + bypass \| Material: EPDM buffer/packing
LVD50-V13-F		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: None \| Material: FKM buffer/packing
LVD50-V13-FN		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: None \| Material: EPDM buffer/packing
LVD50-V13-F1		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: Flow adjustment \| Material: FKM buffer/packing
LVD50-V13-FN1		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
LVD50-V13-F2		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: Bypass \| Material: FKM buffer/packing
LVD50-V13-FN2		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: Bypass \| Material: EPDM buffer/packing
LVD50-V13-F3		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: Flow adj. + bypass \| Material: FKM buffer/packing
LVD50-V13-FN3		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: Flow adj. + bypass \| Material: EPDM buffer/packing
LVD50-V13-F4		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: Indicator \| Material: FKM buffer/packing
LVD50-V13-FN4		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: Indicator \| Material: EPDM buffer/packing
LVD50-V13-F5		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD50-V13-FN5		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD50-V13-F6		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
LVD50-V13-FN6		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
LVD50-V13-F7		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High BP + bypass \| Material: FKM buffer/packing
LVD50-V13-FN7		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High BP + bypass \| Material: EPDM buffer/packing
LVD50-V13-F8		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High BP + flow adj. + bypass \| Material: FKM buffer/packing
LVD50-V13-FN8		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High BP + flow adj. + bypass \| Material: EPDM buffer/packing
LVD50-V13-F9		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High BP + indicator \| Material: FKM buffer/packing
LVD50-V13-FN9		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High BP + indicator \| Material: EPDM buffer/packing
LVD50-V13-F24		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: Bypass + indicator \| Material: FKM buffer/packing
LVD50-V13-FN24		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: Bypass + indicator \| Material: EPDM buffer/packing
LVD51-V13-F		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: None \| Material: FKM buffer/packing
LVD51-V13-FN		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: None \| Material: EPDM buffer/packing
LVD51-V13-F5		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD51-V13-FN5		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD52-V13-F		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: None \| Material: FKM buffer/packing
LVD52-V13-FN		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: None \| Material: EPDM buffer/packing
LVD52-V13-F1		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: Flow adjustment \| Material: FKM buffer/packing
LVD52-V13-FN1		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
LVD52-V13-F2		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: Bypass \| Material: FKM buffer/packing
LVD52-V13-FN2		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: Bypass \| Material: EPDM buffer/packing
LVD52-V13-F3		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: Flow adj. + bypass \| Material: FKM buffer/packing
LVD52-V13-FN3		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: Flow adj. + bypass \| Material: EPDM buffer/packing
LVD52-V13-F5		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD52-V13-FN5		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD52-V13-F6		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
LVD52-V13-FN6		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
LVD52-V13-F7		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High BP + bypass \| Material: FKM buffer/packing
LVD52-V13-FN7		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High BP + bypass \| Material: EPDM buffer/packing
LVD52-V13-F8		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High BP + flow adj. + bypass \| Material: FKM buffer/packing
LVD52-V13-FN8		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High BP + flow adj. + bypass \| Material: EPDM buffer/packing
LVD60-V19-F		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: None \| Material: FKM buffer/packing
LVD60-V19-FN		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: None \| Material: EPDM buffer/packing
LVD60-V19-F1		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: Flow adjustment \| Material: FKM buffer/packing
LVD60-V19-FN1		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
LVD60-V19-F4		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: Indicator \| Material: FKM buffer/packing
LVD60-V19-FN4		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: Indicator \| Material: EPDM buffer/packing
LVD60-V19-F5		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD60-V19-FN5		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD60-V19-F6		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
LVD60-V19-FN6		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
LVD60-V19-F9		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High BP + indicator \| Material: FKM buffer/packing
LVD60-V19-FN9		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High BP + indicator \| Material: EPDM buffer/packing
LVD61-V19-F		Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: None \| Material: FKM buffer/packing
LVD61-V19-FN		Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: None \| Material: EPDM buffer/packing
LVD61-V19-F5		Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD61-V19-FN5		Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD62-V19-F		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: None \| Material: FKM buffer/packing
LVD62-V19-FN		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: None \| Material: EPDM buffer/packing
LVD62-V19-F1		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: Flow adjustment \| Material: FKM buffer/packing
LVD62-V19-FN1		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
LVD62-V19-F5		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD62-V19-FN5		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD62-V19-F6		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
LVD62-V19-FN6		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
LVD60-V25-F		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 25x22 mm / 1 in \| Option: None \| Material: FKM buffer/packing
LVD60-V25-FN		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 25x22 mm / 1 in \| Option: None \| Material: EPDM buffer/packing
LVD60-V25-F1		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 25x22 mm / 1 in \| Option: Flow adjustment \| Material: FKM buffer/packing
LVD60-V25-FN1		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 25x22 mm / 1 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
LVD60-V25-F4		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 25x22 mm / 1 in \| Option: Indicator \| Material: FKM buffer/packing
LVD60-V25-FN4		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 25x22 mm / 1 in \| Option: Indicator \| Material: EPDM buffer/packing
LVD60-V25-F5		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 25x22 mm / 1 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD60-V25-FN5		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 25x22 mm / 1 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD60-V25-F6		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 25x22 mm / 1 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
LVD60-V25-FN6		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 25x22 mm / 1 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
LVD60-V25-F9		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 25x22 mm / 1 in \| Option: High BP + indicator \| Material: FKM buffer/packing
LVD60-V25-FN9		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 25x22 mm / 1 in \| Option: High BP + indicator \| Material: EPDM buffer/packing
LVD61-V25-F		Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 25x22 mm / 1 in \| Option: None \| Material: FKM buffer/packing
LVD61-V25-FN		Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 25x22 mm / 1 in \| Option: None \| Material: EPDM buffer/packing
LVD61-V25-F5		Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 25x22 mm / 1 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD61-V25-FN5		Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 25x22 mm / 1 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD62-V25-F		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 25x22 mm / 1 in \| Option: None \| Material: FKM buffer/packing
LVD62-V25-FN		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 25x22 mm / 1 in \| Option: None \| Material: EPDM buffer/packing
LVD62-V25-F1		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 25x22 mm / 1 in \| Option: Flow adjustment \| Material: FKM buffer/packing
LVD62-V25-FN1		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 25x22 mm / 1 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
LVD62-V25-F5		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 25x22 mm / 1 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD62-V25-FN5		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 25x22 mm / 1 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD62-V25-F6		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 25x22 mm / 1 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
LVD62-V25-FN6		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 25x22 mm / 1 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
LVD20-Z06-F		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 6x4 mm \| Option: None \| Material: FKM buffer/packing
LVD20-Z06-FN		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 6x4 mm \| Option: None \| Material: EPDM buffer/packing
LVD20-Z06-F1		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 6x4 mm \| Option: Flow adjustment \| Material: FKM buffer/packing
LVD20-Z06-FN1		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 6x4 mm \| Option: Flow adjustment \| Material: EPDM buffer/packing
LVD20-Z06-F4		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 6x4 mm \| Option: Indicator \| Material: FKM buffer/packing
LVD20-Z06-FN4		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 6x4 mm \| Option: Indicator \| Material: EPDM buffer/packing
LVD20-Z06-F5		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 6x4 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD20-Z06-FN5		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 6x4 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD20-Z06-F6		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 6x4 mm \| Option: High BP + flow adj. \| Material: FKM buffer/packing
LVD20-Z06-FN6		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 6x4 mm \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
LVD20-Z06-F9		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 6x4 mm \| Option: High BP + indicator \| Material: FKM buffer/packing
LVD20-Z06-FN9		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 6x4 mm \| Option: High BP + indicator \| Material: EPDM buffer/packing
LVD21-Z06-F		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ3 flare fitting \| Tube size: 6x4 mm \| Option: None \| Material: FKM buffer/packing
LVD21-Z06-FN		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ3 flare fitting \| Tube size: 6x4 mm \| Option: None \| Material: EPDM buffer/packing
LVD21-Z06-F5		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ3 flare fitting \| Tube size: 6x4 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD21-Z06-FN5		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ3 flare fitting \| Tube size: 6x4 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD22-Z06-F		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 6x4 mm \| Option: None \| Material: FKM buffer/packing
LVD22-Z06-FN		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 6x4 mm \| Option: None \| Material: EPDM buffer/packing
LVD22-Z06-F1		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 6x4 mm \| Option: Flow adjustment \| Material: FKM buffer/packing
LVD22-Z06-FN1		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 6x4 mm \| Option: Flow adjustment \| Material: EPDM buffer/packing
LVD22-Z06-F5		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 6x4 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD22-Z06-FN5		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 6x4 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD22-Z06-F6		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 6x4 mm \| Option: High BP + flow adj. \| Material: FKM buffer/packing
LVD22-Z06-FN6		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 6x4 mm \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
LVD20-Z07-F		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 1/4 in \| Option: None \| Material: FKM buffer/packing
LVD20-Z07-FN		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 1/4 in \| Option: None \| Material: EPDM buffer/packing
LVD20-Z07-F1		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 1/4 in \| Option: Flow adjustment \| Material: FKM buffer/packing
LVD20-Z07-FN1		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 1/4 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
LVD20-Z07-F4		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 1/4 in \| Option: Indicator \| Material: FKM buffer/packing
LVD20-Z07-FN4		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 1/4 in \| Option: Indicator \| Material: EPDM buffer/packing
LVD20-Z07-F5		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 1/4 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD20-Z07-FN5		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 1/4 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD20-Z07-F6		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 1/4 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
LVD20-Z07-FN6		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 1/4 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
LVD20-Z07-F9		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 1/4 in \| Option: High BP + indicator \| Material: FKM buffer/packing
LVD20-Z07-FN9		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 1/4 in \| Option: High BP + indicator \| Material: EPDM buffer/packing
LVD21-Z07-F		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ3 flare fitting \| Tube size: 1/4 in \| Option: None \| Material: FKM buffer/packing
LVD21-Z07-FN		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ3 flare fitting \| Tube size: 1/4 in \| Option: None \| Material: EPDM buffer/packing
LVD21-Z07-F5		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ3 flare fitting \| Tube size: 1/4 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD21-Z07-FN5		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ3 flare fitting \| Tube size: 1/4 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD22-Z07-F		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 1/4 in \| Option: None \| Material: FKM buffer/packing
LVD22-Z07-FN		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 1/4 in \| Option: None \| Material: EPDM buffer/packing
LVD22-Z07-F1		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 1/4 in \| Option: Flow adjustment \| Material: FKM buffer/packing
LVD22-Z07-FN1		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 1/4 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
LVD22-Z07-F5		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 1/4 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD22-Z07-FN5		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 1/4 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD22-Z07-F6		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 1/4 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
LVD22-Z07-FN6		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 1/4 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
LVD30-Z08-F		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 8x6 mm \| Option: None \| Material: FKM buffer/packing
LVD30-Z08-FN		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 8x6 mm \| Option: None \| Material: EPDM buffer/packing
LVD30-Z08-F1		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 8x6 mm \| Option: Flow adjustment \| Material: FKM buffer/packing
LVD30-Z08-FN1		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 8x6 mm \| Option: Flow adjustment \| Material: EPDM buffer/packing
LVD30-Z08-F4		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 8x6 mm \| Option: Indicator \| Material: FKM buffer/packing
LVD30-Z08-FN4		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 8x6 mm \| Option: Indicator \| Material: EPDM buffer/packing
LVD30-Z08-F5		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 8x6 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD30-Z08-FN5		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 8x6 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD30-Z08-F6		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 8x6 mm \| Option: High BP + flow adj. \| Material: FKM buffer/packing
LVD30-Z08-FN6		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 8x6 mm \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
LVD30-Z08-F9		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 8x6 mm \| Option: High BP + indicator \| Material: FKM buffer/packing
LVD30-Z08-FN9		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 8x6 mm \| Option: High BP + indicator \| Material: EPDM buffer/packing
LVD31-Z08-F		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ3 flare fitting \| Tube size: 8x6 mm \| Option: None \| Material: FKM buffer/packing
LVD31-Z08-FN		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ3 flare fitting \| Tube size: 8x6 mm \| Option: None \| Material: EPDM buffer/packing
LVD31-Z08-F5		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ3 flare fitting \| Tube size: 8x6 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD31-Z08-FN5		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ3 flare fitting \| Tube size: 8x6 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD32-Z08-F		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 8x6 mm \| Option: None \| Material: FKM buffer/packing
LVD32-Z08-FN		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 8x6 mm \| Option: None \| Material: EPDM buffer/packing
LVD32-Z08-F1		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 8x6 mm \| Option: Flow adjustment \| Material: FKM buffer/packing
LVD32-Z08-FN1		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 8x6 mm \| Option: Flow adjustment \| Material: EPDM buffer/packing
LVD32-Z08-F5		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 8x6 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD32-Z08-FN5		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 8x6 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD32-Z08-F6		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 8x6 mm \| Option: High BP + flow adj. \| Material: FKM buffer/packing
LVD32-Z08-FN6		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 8x6 mm \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
LVD30-Z10-F		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 10x8 mm \| Option: None \| Material: FKM buffer/packing
LVD30-Z10-FN		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 10x8 mm \| Option: None \| Material: EPDM buffer/packing
LVD30-Z10-F1		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 10x8 mm \| Option: Flow adjustment \| Material: FKM buffer/packing
LVD30-Z10-FN1		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 10x8 mm \| Option: Flow adjustment \| Material: EPDM buffer/packing
LVD30-Z10-F4		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 10x8 mm \| Option: Indicator \| Material: FKM buffer/packing
LVD30-Z10-FN4		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 10x8 mm \| Option: Indicator \| Material: EPDM buffer/packing
LVD30-Z10-F5		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 10x8 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD30-Z10-FN5		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 10x8 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD30-Z10-F6		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 10x8 mm \| Option: High BP + flow adj. \| Material: FKM buffer/packing
LVD30-Z10-FN6		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 10x8 mm \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
LVD30-Z10-F9		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 10x8 mm \| Option: High BP + indicator \| Material: FKM buffer/packing
LVD30-Z10-FN9		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 10x8 mm \| Option: High BP + indicator \| Material: EPDM buffer/packing
LVD31-Z10-F		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ3 flare fitting \| Tube size: 10x8 mm \| Option: None \| Material: FKM buffer/packing
LVD31-Z10-FN		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ3 flare fitting \| Tube size: 10x8 mm \| Option: None \| Material: EPDM buffer/packing
LVD31-Z10-F5		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ3 flare fitting \| Tube size: 10x8 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD31-Z10-FN5		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ3 flare fitting \| Tube size: 10x8 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD32-Z10-F		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 10x8 mm \| Option: None \| Material: FKM buffer/packing
LVD32-Z10-FN		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 10x8 mm \| Option: None \| Material: EPDM buffer/packing
LVD32-Z10-F1		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 10x8 mm \| Option: Flow adjustment \| Material: FKM buffer/packing
LVD32-Z10-FN1		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 10x8 mm \| Option: Flow adjustment \| Material: EPDM buffer/packing
LVD32-Z10-F5		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 10x8 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD32-Z10-FN5		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 10x8 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD32-Z10-F6		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 10x8 mm \| Option: High BP + flow adj. \| Material: FKM buffer/packing
LVD32-Z10-FN6		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 10x8 mm \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
LVD30-Z11-F		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 3/8 in \| Option: None \| Material: FKM buffer/packing
LVD30-Z11-FN		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 3/8 in \| Option: None \| Material: EPDM buffer/packing
LVD30-Z11-F1		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 3/8 in \| Option: Flow adjustment \| Material: FKM buffer/packing
LVD30-Z11-FN1		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 3/8 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
LVD30-Z11-F4		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 3/8 in \| Option: Indicator \| Material: FKM buffer/packing
LVD30-Z11-FN4		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 3/8 in \| Option: Indicator \| Material: EPDM buffer/packing
LVD30-Z11-F5		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 3/8 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD30-Z11-FN5		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 3/8 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD30-Z11-F6		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 3/8 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
LVD30-Z11-FN6		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 3/8 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
LVD30-Z11-F9		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 3/8 in \| Option: High BP + indicator \| Material: FKM buffer/packing
LVD30-Z11-FN9		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 3/8 in \| Option: High BP + indicator \| Material: EPDM buffer/packing
LVD31-Z11-F		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ3 flare fitting \| Tube size: 3/8 in \| Option: None \| Material: FKM buffer/packing
LVD31-Z11-FN		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ3 flare fitting \| Tube size: 3/8 in \| Option: None \| Material: EPDM buffer/packing
LVD31-Z11-F5		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ3 flare fitting \| Tube size: 3/8 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD31-Z11-FN5		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ3 flare fitting \| Tube size: 3/8 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD32-Z11-F		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 3/8 in \| Option: None \| Material: FKM buffer/packing
LVD32-Z11-FN		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 3/8 in \| Option: None \| Material: EPDM buffer/packing
LVD32-Z11-F1		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 3/8 in \| Option: Flow adjustment \| Material: FKM buffer/packing
LVD32-Z11-FN1		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 3/8 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
LVD32-Z11-F5		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 3/8 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD32-Z11-FN5		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 3/8 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD32-Z11-F6		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 3/8 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
LVD32-Z11-FN6		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 3/8 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
LVD40-Z12-F		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 12x10 mm \| Option: None \| Material: FKM buffer/packing
LVD40-Z12-FN		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 12x10 mm \| Option: None \| Material: EPDM buffer/packing
LVD40-Z12-F1		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 12x10 mm \| Option: Flow adjustment \| Material: FKM buffer/packing
LVD40-Z12-FN1		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 12x10 mm \| Option: Flow adjustment \| Material: EPDM buffer/packing
LVD40-Z12-F4		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 12x10 mm \| Option: Indicator \| Material: FKM buffer/packing
LVD40-Z12-FN4		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 12x10 mm \| Option: Indicator \| Material: EPDM buffer/packing
LVD40-Z12-F5		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 12x10 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD40-Z12-FN5		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 12x10 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD40-Z12-F6		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 12x10 mm \| Option: High BP + flow adj. \| Material: FKM buffer/packing
LVD40-Z12-FN6		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 12x10 mm \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
LVD40-Z12-F9		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 12x10 mm \| Option: High BP + indicator \| Material: FKM buffer/packing
LVD40-Z12-FN9		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 12x10 mm \| Option: High BP + indicator \| Material: EPDM buffer/packing
LVD41-Z12-F		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ3 flare fitting \| Tube size: 12x10 mm \| Option: None \| Material: FKM buffer/packing
LVD41-Z12-FN		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ3 flare fitting \| Tube size: 12x10 mm \| Option: None \| Material: EPDM buffer/packing
LVD41-Z12-F5		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ3 flare fitting \| Tube size: 12x10 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD41-Z12-FN5		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ3 flare fitting \| Tube size: 12x10 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD42-Z12-F		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 12x10 mm \| Option: None \| Material: FKM buffer/packing
LVD42-Z12-FN		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 12x10 mm \| Option: None \| Material: EPDM buffer/packing
LVD42-Z12-F1		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 12x10 mm \| Option: Flow adjustment \| Material: FKM buffer/packing
LVD42-Z12-FN1		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 12x10 mm \| Option: Flow adjustment \| Material: EPDM buffer/packing
LVD42-Z12-F5		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 12x10 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD42-Z12-FN5		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 12x10 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD42-Z12-F6		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 12x10 mm \| Option: High BP + flow adj. \| Material: FKM buffer/packing
LVD42-Z12-FN6		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 12x10 mm \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
LVD40-Z13-F		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 1/2 in \| Option: None \| Material: FKM buffer/packing
LVD40-Z13-FN		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 1/2 in \| Option: None \| Material: EPDM buffer/packing
LVD40-Z13-F1		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 1/2 in \| Option: Flow adjustment \| Material: FKM buffer/packing
LVD40-Z13-FN1		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 1/2 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
LVD40-Z13-F4		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 1/2 in \| Option: Indicator \| Material: FKM buffer/packing
LVD40-Z13-FN4		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 1/2 in \| Option: Indicator \| Material: EPDM buffer/packing
LVD40-Z13-F5		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 1/2 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD40-Z13-FN5		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 1/2 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD40-Z13-F6		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 1/2 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
LVD40-Z13-FN6		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 1/2 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
LVD40-Z13-F9		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 1/2 in \| Option: High BP + indicator \| Material: FKM buffer/packing
LVD40-Z13-FN9		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 1/2 in \| Option: High BP + indicator \| Material: EPDM buffer/packing
LVD41-Z13-F		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ3 flare fitting \| Tube size: 1/2 in \| Option: None \| Material: FKM buffer/packing
LVD41-Z13-FN		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ3 flare fitting \| Tube size: 1/2 in \| Option: None \| Material: EPDM buffer/packing
LVD41-Z13-F5		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ3 flare fitting \| Tube size: 1/2 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD41-Z13-FN5		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ3 flare fitting \| Tube size: 1/2 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD42-Z13-F		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 1/2 in \| Option: None \| Material: FKM buffer/packing
LVD42-Z13-FN		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 1/2 in \| Option: None \| Material: EPDM buffer/packing
LVD42-Z13-F1		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 1/2 in \| Option: Flow adjustment \| Material: FKM buffer/packing
LVD42-Z13-FN1		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 1/2 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
LVD42-Z13-F5		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 1/2 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD42-Z13-FN5		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 1/2 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD42-Z13-F6		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 1/2 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
LVD42-Z13-FN6		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 1/2 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
LVD50-Z19-F		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 19x16 mm / 3/4 in \| Option: None \| Material: FKM buffer/packing
LVD50-Z19-FN		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 19x16 mm / 3/4 in \| Option: None \| Material: EPDM buffer/packing
LVD50-Z19-F1		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 19x16 mm / 3/4 in \| Option: Flow adjustment \| Material: FKM buffer/packing
LVD50-Z19-FN1		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 19x16 mm / 3/4 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
LVD50-Z19-F4		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 19x16 mm / 3/4 in \| Option: Indicator \| Material: FKM buffer/packing
LVD50-Z19-FN4		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 19x16 mm / 3/4 in \| Option: Indicator \| Material: EPDM buffer/packing
LVD50-Z19-F5		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD50-Z19-FN5		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD50-Z19-F6		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
LVD50-Z19-FN6		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
LVD50-Z19-F9		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High BP + indicator \| Material: FKM buffer/packing
LVD50-Z19-FN9		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High BP + indicator \| Material: EPDM buffer/packing
LVD51-Z19-F		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Connection: LQ3 flare fitting \| Tube size: 19x16 mm / 3/4 in \| Option: None \| Material: FKM buffer/packing
LVD51-Z19-FN		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Connection: LQ3 flare fitting \| Tube size: 19x16 mm / 3/4 in \| Option: None \| Material: EPDM buffer/packing
LVD51-Z19-F5		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Connection: LQ3 flare fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD51-Z19-FN5		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Connection: LQ3 flare fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD52-Z19-F		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 19x16 mm / 3/4 in \| Option: None \| Material: FKM buffer/packing
LVD52-Z19-FN		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 19x16 mm / 3/4 in \| Option: None \| Material: EPDM buffer/packing
LVD52-Z19-F1		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 19x16 mm / 3/4 in \| Option: Flow adjustment \| Material: FKM buffer/packing
LVD52-Z19-FN1		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 19x16 mm / 3/4 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
LVD52-Z19-F5		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD52-Z19-FN5		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD52-Z19-F6		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
LVD52-Z19-FN6		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
LVD60-Z25-F		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 25x22 mm / 1 in \| Option: None \| Material: FKM buffer/packing
LVD60-Z25-FN		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 25x22 mm / 1 in \| Option: None \| Material: EPDM buffer/packing
LVD60-Z25-F1		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 25x22 mm / 1 in \| Option: Flow adjustment \| Material: FKM buffer/packing
LVD60-Z25-FN1		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 25x22 mm / 1 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
LVD60-Z25-F4		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 25x22 mm / 1 in \| Option: Indicator \| Material: FKM buffer/packing
LVD60-Z25-FN4		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 25x22 mm / 1 in \| Option: Indicator \| Material: EPDM buffer/packing
LVD60-Z25-F5		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 25x22 mm / 1 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD60-Z25-FN5		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 25x22 mm / 1 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD60-Z25-F6		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 25x22 mm / 1 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
LVD60-Z25-FN6		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 25x22 mm / 1 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
LVD60-Z25-F9		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 25x22 mm / 1 in \| Option: High BP + indicator \| Material: FKM buffer/packing
LVD60-Z25-FN9		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 25x22 mm / 1 in \| Option: High BP + indicator \| Material: EPDM buffer/packing
LVD61-Z25-F		Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Connection: LQ3 flare fitting \| Tube size: 25x22 mm / 1 in \| Option: None \| Material: FKM buffer/packing
LVD61-Z25-FN		Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Connection: LQ3 flare fitting \| Tube size: 25x22 mm / 1 in \| Option: None \| Material: EPDM buffer/packing
LVD61-Z25-F5		Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Connection: LQ3 flare fitting \| Tube size: 25x22 mm / 1 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD61-Z25-FN5		Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Connection: LQ3 flare fitting \| Tube size: 25x22 mm / 1 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD62-Z25-F		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 25x22 mm / 1 in \| Option: None \| Material: FKM buffer/packing
LVD62-Z25-FN		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 25x22 mm / 1 in \| Option: None \| Material: EPDM buffer/packing
LVD62-Z25-F1		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 25x22 mm / 1 in \| Option: Flow adjustment \| Material: FKM buffer/packing
LVD62-Z25-FN1		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 25x22 mm / 1 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
LVD62-Z25-F5		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 25x22 mm / 1 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD62-Z25-FN5		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 25x22 mm / 1 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD62-Z25-F6		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 25x22 mm / 1 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
LVD62-Z25-FN6		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 25x22 mm / 1 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
LVD20-T06-F		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 6 mm \| Option: None \| Material: FKM buffer/packing
LVD20-T06-FN		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 6 mm \| Option: None \| Material: EPDM buffer/packing
LVD20-T06-F1		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 6 mm \| Option: Flow adjustment \| Material: FKM buffer/packing
LVD20-T06-FN1		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 6 mm \| Option: Flow adjustment \| Material: EPDM buffer/packing
LVD20-T06-F4		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 6 mm \| Option: Indicator \| Material: FKM buffer/packing
LVD20-T06-FN4		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 6 mm \| Option: Indicator \| Material: EPDM buffer/packing
LVD20-T06-F5		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 6 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD20-T06-FN5		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 6 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD20-T06-F6		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 6 mm \| Option: High BP + flow adj. \| Material: FKM buffer/packing
LVD20-T06-FN6		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 6 mm \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
LVD20-T06-F9		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 6 mm \| Option: High BP + indicator \| Material: FKM buffer/packing
LVD20-T06-FN9		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 6 mm \| Option: High BP + indicator \| Material: EPDM buffer/packing
LVD21-T06-F		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: Integral tube \| Tube size: OD 6 mm \| Option: None \| Material: FKM buffer/packing
LVD21-T06-FN		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: Integral tube \| Tube size: OD 6 mm \| Option: None \| Material: EPDM buffer/packing
LVD21-T06-F5		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: Integral tube \| Tube size: OD 6 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD21-T06-FN5		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: Integral tube \| Tube size: OD 6 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD22-T06-F		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 6 mm \| Option: None \| Material: FKM buffer/packing
LVD22-T06-FN		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 6 mm \| Option: None \| Material: EPDM buffer/packing
LVD22-T06-F1		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 6 mm \| Option: Flow adjustment \| Material: FKM buffer/packing
LVD22-T06-FN1		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 6 mm \| Option: Flow adjustment \| Material: EPDM buffer/packing
LVD22-T06-F5		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 6 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD22-T06-FN5		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 6 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD22-T06-F6		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 6 mm \| Option: High BP + flow adj. \| Material: FKM buffer/packing
LVD22-T06-FN6		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 6 mm \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
LVD20-T07-F		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 1/4 in \| Option: None \| Material: FKM buffer/packing
LVD20-T07-FN		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 1/4 in \| Option: None \| Material: EPDM buffer/packing
LVD20-T07-F1		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 1/4 in \| Option: Flow adjustment \| Material: FKM buffer/packing
LVD20-T07-FN1		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 1/4 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
LVD20-T07-F4		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 1/4 in \| Option: Indicator \| Material: FKM buffer/packing
LVD20-T07-FN4		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 1/4 in \| Option: Indicator \| Material: EPDM buffer/packing
LVD20-T07-F5		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 1/4 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD20-T07-FN5		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 1/4 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD20-T07-F6		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 1/4 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
LVD20-T07-FN6		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 1/4 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
LVD20-T07-F9		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 1/4 in \| Option: High BP + indicator \| Material: FKM buffer/packing
LVD20-T07-FN9		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 1/4 in \| Option: High BP + indicator \| Material: EPDM buffer/packing
LVD21-T07-F		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: Integral tube \| Tube size: OD 1/4 in \| Option: None \| Material: FKM buffer/packing
LVD21-T07-FN		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: Integral tube \| Tube size: OD 1/4 in \| Option: None \| Material: EPDM buffer/packing
LVD21-T07-F5		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: Integral tube \| Tube size: OD 1/4 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD21-T07-FN5		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: Integral tube \| Tube size: OD 1/4 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD22-T07-F		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 1/4 in \| Option: None \| Material: FKM buffer/packing
LVD22-T07-FN		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 1/4 in \| Option: None \| Material: EPDM buffer/packing
LVD22-T07-F1		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 1/4 in \| Option: Flow adjustment \| Material: FKM buffer/packing
LVD22-T07-FN1		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 1/4 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
LVD22-T07-F5		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 1/4 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD22-T07-FN5		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 1/4 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD22-T07-F6		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 1/4 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
LVD22-T07-FN6		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 1/4 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
LVD30-T10-F		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 10 mm \| Option: None \| Material: FKM buffer/packing
LVD30-T10-FN		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 10 mm \| Option: None \| Material: EPDM buffer/packing
LVD30-T10-F1		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 10 mm \| Option: Flow adjustment \| Material: FKM buffer/packing
LVD30-T10-FN1		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 10 mm \| Option: Flow adjustment \| Material: EPDM buffer/packing
LVD30-T10-F4		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 10 mm \| Option: Indicator \| Material: FKM buffer/packing
LVD30-T10-FN4		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 10 mm \| Option: Indicator \| Material: EPDM buffer/packing
LVD30-T10-F5		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 10 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD30-T10-FN5		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 10 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD30-T10-F6		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 10 mm \| Option: High BP + flow adj. \| Material: FKM buffer/packing
LVD30-T10-FN6		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 10 mm \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
LVD30-T10-F9		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 10 mm \| Option: High BP + indicator \| Material: FKM buffer/packing
LVD30-T10-FN9		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 10 mm \| Option: High BP + indicator \| Material: EPDM buffer/packing
LVD31-T10-F		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: Integral tube \| Tube size: OD 10 mm \| Option: None \| Material: FKM buffer/packing
LVD31-T10-FN		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: Integral tube \| Tube size: OD 10 mm \| Option: None \| Material: EPDM buffer/packing
LVD31-T10-F5		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: Integral tube \| Tube size: OD 10 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD31-T10-FN5		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: Integral tube \| Tube size: OD 10 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD32-T10-F		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 10 mm \| Option: None \| Material: FKM buffer/packing
LVD32-T10-FN		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 10 mm \| Option: None \| Material: EPDM buffer/packing
LVD32-T10-F1		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 10 mm \| Option: Flow adjustment \| Material: FKM buffer/packing
LVD32-T10-FN1		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 10 mm \| Option: Flow adjustment \| Material: EPDM buffer/packing
LVD32-T10-F5		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 10 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD32-T10-FN5		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 10 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD32-T10-F6		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 10 mm \| Option: High BP + flow adj. \| Material: FKM buffer/packing
LVD32-T10-FN6		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 10 mm \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
LVD30-T11-F		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 3/8 in \| Option: None \| Material: FKM buffer/packing
LVD30-T11-FN		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 3/8 in \| Option: None \| Material: EPDM buffer/packing
LVD30-T11-F1		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 3/8 in \| Option: Flow adjustment \| Material: FKM buffer/packing
LVD30-T11-FN1		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 3/8 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
LVD30-T11-F4		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 3/8 in \| Option: Indicator \| Material: FKM buffer/packing
LVD30-T11-FN4		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 3/8 in \| Option: Indicator \| Material: EPDM buffer/packing
LVD30-T11-F5		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 3/8 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD30-T11-FN5		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 3/8 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD30-T11-F6		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 3/8 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
LVD30-T11-FN6		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 3/8 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
LVD30-T11-F9		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 3/8 in \| Option: High BP + indicator \| Material: FKM buffer/packing
LVD30-T11-FN9		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 3/8 in \| Option: High BP + indicator \| Material: EPDM buffer/packing
LVD31-T11-F		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: Integral tube \| Tube size: OD 3/8 in \| Option: None \| Material: FKM buffer/packing
LVD31-T11-FN		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: Integral tube \| Tube size: OD 3/8 in \| Option: None \| Material: EPDM buffer/packing
LVD31-T11-F5		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: Integral tube \| Tube size: OD 3/8 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD31-T11-FN5		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: Integral tube \| Tube size: OD 3/8 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD32-T11-F		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 3/8 in \| Option: None \| Material: FKM buffer/packing
LVD32-T11-FN		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 3/8 in \| Option: None \| Material: EPDM buffer/packing
LVD32-T11-F1		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 3/8 in \| Option: Flow adjustment \| Material: FKM buffer/packing
LVD32-T11-FN1		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 3/8 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
LVD32-T11-F5		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 3/8 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD32-T11-FN5		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 3/8 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD32-T11-F6		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 3/8 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
LVD32-T11-FN6		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 3/8 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
LVD40-T12-F		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 12 mm \| Option: None \| Material: FKM buffer/packing
LVD40-T12-FN		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 12 mm \| Option: None \| Material: EPDM buffer/packing
LVD40-T12-F1		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 12 mm \| Option: Flow adjustment \| Material: FKM buffer/packing
LVD40-T12-FN1		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 12 mm \| Option: Flow adjustment \| Material: EPDM buffer/packing
LVD40-T12-F4		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 12 mm \| Option: Indicator \| Material: FKM buffer/packing
LVD40-T12-FN4		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 12 mm \| Option: Indicator \| Material: EPDM buffer/packing
LVD40-T12-F5		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 12 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD40-T12-FN5		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 12 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD40-T12-F6		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 12 mm \| Option: High BP + flow adj. \| Material: FKM buffer/packing
LVD40-T12-FN6		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 12 mm \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
LVD40-T12-F9		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 12 mm \| Option: High BP + indicator \| Material: FKM buffer/packing
LVD40-T12-FN9		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 12 mm \| Option: High BP + indicator \| Material: EPDM buffer/packing
LVD41-T12-F		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: Integral tube \| Tube size: OD 12 mm \| Option: None \| Material: FKM buffer/packing
LVD41-T12-FN		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: Integral tube \| Tube size: OD 12 mm \| Option: None \| Material: EPDM buffer/packing
LVD41-T12-F5		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: Integral tube \| Tube size: OD 12 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD41-T12-FN5		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: Integral tube \| Tube size: OD 12 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD42-T12-F		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 12 mm \| Option: None \| Material: FKM buffer/packing
LVD42-T12-FN		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 12 mm \| Option: None \| Material: EPDM buffer/packing
LVD42-T12-F1		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 12 mm \| Option: Flow adjustment \| Material: FKM buffer/packing
LVD42-T12-FN1		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 12 mm \| Option: Flow adjustment \| Material: EPDM buffer/packing
LVD42-T12-F5		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 12 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD42-T12-FN5		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 12 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD42-T12-F6		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 12 mm \| Option: High BP + flow adj. \| Material: FKM buffer/packing
LVD42-T12-FN6		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 12 mm \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
LVD40-T13-F		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 1/2 in \| Option: None \| Material: FKM buffer/packing
LVD40-T13-FN		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 1/2 in \| Option: None \| Material: EPDM buffer/packing
LVD40-T13-F1		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 1/2 in \| Option: Flow adjustment \| Material: FKM buffer/packing
LVD40-T13-FN1		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 1/2 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
LVD40-T13-F4		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 1/2 in \| Option: Indicator \| Material: FKM buffer/packing
LVD40-T13-FN4		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 1/2 in \| Option: Indicator \| Material: EPDM buffer/packing
LVD40-T13-F5		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 1/2 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD40-T13-FN5		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 1/2 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD40-T13-F6		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 1/2 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
LVD40-T13-FN6		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 1/2 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
LVD40-T13-F9		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 1/2 in \| Option: High BP + indicator \| Material: FKM buffer/packing
LVD40-T13-FN9		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 1/2 in \| Option: High BP + indicator \| Material: EPDM buffer/packing
LVD41-T13-F		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: Integral tube \| Tube size: OD 1/2 in \| Option: None \| Material: FKM buffer/packing
LVD41-T13-FN		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: Integral tube \| Tube size: OD 1/2 in \| Option: None \| Material: EPDM buffer/packing
LVD41-T13-F5		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: Integral tube \| Tube size: OD 1/2 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD41-T13-FN5		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: Integral tube \| Tube size: OD 1/2 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD42-T13-F		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 1/2 in \| Option: None \| Material: FKM buffer/packing
LVD42-T13-FN		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 1/2 in \| Option: None \| Material: EPDM buffer/packing
LVD42-T13-F1		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 1/2 in \| Option: Flow adjustment \| Material: FKM buffer/packing
LVD42-T13-FN1		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 1/2 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
LVD42-T13-F5		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 1/2 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD42-T13-FN5		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 1/2 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD42-T13-F6		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 1/2 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
LVD42-T13-FN6		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 1/2 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
LVD50-T19-F		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 19 mm / 3/4 in \| Option: None \| Material: FKM buffer/packing
LVD50-T19-FN		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 19 mm / 3/4 in \| Option: None \| Material: EPDM buffer/packing
LVD50-T19-F1		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 19 mm / 3/4 in \| Option: Flow adjustment \| Material: FKM buffer/packing
LVD50-T19-FN1		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 19 mm / 3/4 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
LVD50-T19-F4		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 19 mm / 3/4 in \| Option: Indicator \| Material: FKM buffer/packing
LVD50-T19-FN4		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 19 mm / 3/4 in \| Option: Indicator \| Material: EPDM buffer/packing
LVD50-T19-F5		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 19 mm / 3/4 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD50-T19-FN5		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 19 mm / 3/4 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD50-T19-F6		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 19 mm / 3/4 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
LVD50-T19-FN6		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 19 mm / 3/4 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
LVD50-T19-F9		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 19 mm / 3/4 in \| Option: High BP + indicator \| Material: FKM buffer/packing
LVD50-T19-FN9		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 19 mm / 3/4 in \| Option: High BP + indicator \| Material: EPDM buffer/packing
LVD51-T19-F		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Connection: Integral tube \| Tube size: OD 19 mm / 3/4 in \| Option: None \| Material: FKM buffer/packing
LVD51-T19-FN		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Connection: Integral tube \| Tube size: OD 19 mm / 3/4 in \| Option: None \| Material: EPDM buffer/packing
LVD51-T19-F5		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Connection: Integral tube \| Tube size: OD 19 mm / 3/4 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD51-T19-FN5		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Connection: Integral tube \| Tube size: OD 19 mm / 3/4 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD52-T19-F		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 19 mm / 3/4 in \| Option: None \| Material: FKM buffer/packing
LVD52-T19-FN		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 19 mm / 3/4 in \| Option: None \| Material: EPDM buffer/packing
LVD52-T19-F1		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 19 mm / 3/4 in \| Option: Flow adjustment \| Material: FKM buffer/packing
LVD52-T19-FN1		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 19 mm / 3/4 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
LVD52-T19-F5		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 19 mm / 3/4 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD52-T19-FN5		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 19 mm / 3/4 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD52-T19-F6		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 19 mm / 3/4 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
LVD52-T19-FN6		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 19 mm / 3/4 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
LVD60-T25-F		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 25 mm / 1 in \| Option: None \| Material: FKM buffer/packing
LVD60-T25-FN		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 25 mm / 1 in \| Option: None \| Material: EPDM buffer/packing
LVD60-T25-F1		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 25 mm / 1 in \| Option: Flow adjustment \| Material: FKM buffer/packing
LVD60-T25-FN1		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 25 mm / 1 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
LVD60-T25-F4		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 25 mm / 1 in \| Option: Indicator \| Material: FKM buffer/packing
LVD60-T25-FN4		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 25 mm / 1 in \| Option: Indicator \| Material: EPDM buffer/packing
LVD60-T25-F5		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 25 mm / 1 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD60-T25-FN5		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 25 mm / 1 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD60-T25-F6		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 25 mm / 1 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
LVD60-T25-FN6		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 25 mm / 1 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
LVD60-T25-F9		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 25 mm / 1 in \| Option: High BP + indicator \| Material: FKM buffer/packing
LVD60-T25-FN9		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 25 mm / 1 in \| Option: High BP + indicator \| Material: EPDM buffer/packing
LVD61-T25-F		Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Connection: Integral tube \| Tube size: OD 25 mm / 1 in \| Option: None \| Material: FKM buffer/packing
LVD61-T25-FN		Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Connection: Integral tube \| Tube size: OD 25 mm / 1 in \| Option: None \| Material: EPDM buffer/packing
LVD61-T25-F5		Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Connection: Integral tube \| Tube size: OD 25 mm / 1 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD61-T25-FN5		Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Connection: Integral tube \| Tube size: OD 25 mm / 1 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD62-T25-F		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 25 mm / 1 in \| Option: None \| Material: FKM buffer/packing
LVD62-T25-FN		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 25 mm / 1 in \| Option: None \| Material: EPDM buffer/packing
LVD62-T25-F1		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 25 mm / 1 in \| Option: Flow adjustment \| Material: FKM buffer/packing
LVD62-T25-FN1		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 25 mm / 1 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
LVD62-T25-F5		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 25 mm / 1 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
LVD62-T25-FN5		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 25 mm / 1 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
LVD62-T25-F6		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 25 mm / 1 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
LVD62-T25-FN6		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 25 mm / 1 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing

Chemical ValvesSMC

1080 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC LVD-F/FN Compact Air Operated Chemical Valve (PVDF Actuator)

Brand SMC·Chemical Valves

Available part numbers (1080)

LVD20-V03-F, LVD20-V03-FN, LVD20-V03-F1, LVD20-V03-FN1, LVD20-V03-F4, LVD20-V03-FN4, LVD20-V03-F5, LVD20-V03-FN5, LVD20-V03-F6, LVD20-V03-FN6 + 1070 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	LVD20-V03-F	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3x2 mm / 1/8 in \| Option: None \| Material: FKM buffer/packing
	LVD20-V03-FN	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3x2 mm / 1/8 in \| Option: None \| Material: EPDM buffer/packing
	LVD20-V03-F1	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3x2 mm / 1/8 in \| Option: Flow adjustment \| Material: FKM buffer/packing
	LVD20-V03-FN1	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3x2 mm / 1/8 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
	LVD20-V03-F4	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3x2 mm / 1/8 in \| Option: Indicator \| Material: FKM buffer/packing
	LVD20-V03-FN4	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3x2 mm / 1/8 in \| Option: Indicator \| Material: EPDM buffer/packing
	LVD20-V03-F5	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3x2 mm / 1/8 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD20-V03-FN5	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3x2 mm / 1/8 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD20-V03-F6	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3x2 mm / 1/8 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
	LVD20-V03-FN6	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3x2 mm / 1/8 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
	LVD20-V03-F9	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3x2 mm / 1/8 in \| Option: High BP + indicator \| Material: FKM buffer/packing
	LVD20-V03-FN9	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3x2 mm / 1/8 in \| Option: High BP + indicator \| Material: EPDM buffer/packing
	LVD21-V03-F	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 3x2 mm / 1/8 in \| Option: None \| Material: FKM buffer/packing
	LVD21-V03-FN	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 3x2 mm / 1/8 in \| Option: None \| Material: EPDM buffer/packing
	LVD21-V03-F5	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 3x2 mm / 1/8 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD21-V03-FN5	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 3x2 mm / 1/8 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD22-V03-F	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3x2 mm / 1/8 in \| Option: None \| Material: FKM buffer/packing
	LVD22-V03-FN	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3x2 mm / 1/8 in \| Option: None \| Material: EPDM buffer/packing
	LVD22-V03-F1	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3x2 mm / 1/8 in \| Option: Flow adjustment \| Material: FKM buffer/packing
	LVD22-V03-FN1	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3x2 mm / 1/8 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
	LVD22-V03-F5	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3x2 mm / 1/8 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD22-V03-FN5	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3x2 mm / 1/8 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD22-V03-F6	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3x2 mm / 1/8 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
	LVD22-V03-FN6	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3x2 mm / 1/8 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
	LVD20-V04-F	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 4x3 mm \| Option: None \| Material: FKM buffer/packing
	LVD20-V04-FN	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 4x3 mm \| Option: None \| Material: EPDM buffer/packing
	LVD20-V04-F1	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 4x3 mm \| Option: Flow adjustment \| Material: FKM buffer/packing
	LVD20-V04-FN1	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 4x3 mm \| Option: Flow adjustment \| Material: EPDM buffer/packing
	LVD20-V04-F4	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 4x3 mm \| Option: Indicator \| Material: FKM buffer/packing
	LVD20-V04-FN4	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 4x3 mm \| Option: Indicator \| Material: EPDM buffer/packing
	LVD20-V04-F5	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 4x3 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD20-V04-FN5	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 4x3 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD20-V04-F6	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 4x3 mm \| Option: High BP + flow adj. \| Material: FKM buffer/packing
	LVD20-V04-FN6	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 4x3 mm \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
	LVD20-V04-F9	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 4x3 mm \| Option: High BP + indicator \| Material: FKM buffer/packing
	LVD20-V04-FN9	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 4x3 mm \| Option: High BP + indicator \| Material: EPDM buffer/packing
	LVD21-V04-F	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 4x3 mm \| Option: None \| Material: FKM buffer/packing
	LVD21-V04-FN	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 4x3 mm \| Option: None \| Material: EPDM buffer/packing
	LVD21-V04-F5	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 4x3 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD21-V04-FN5	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 4x3 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD22-V04-F	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 4x3 mm \| Option: None \| Material: FKM buffer/packing
	LVD22-V04-FN	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 4x3 mm \| Option: None \| Material: EPDM buffer/packing
	LVD22-V04-F1	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 4x3 mm \| Option: Flow adjustment \| Material: FKM buffer/packing
	LVD22-V04-FN1	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 4x3 mm \| Option: Flow adjustment \| Material: EPDM buffer/packing
	LVD22-V04-F5	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 4x3 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD22-V04-FN5	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 4x3 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD22-V04-F6	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 4x3 mm \| Option: High BP + flow adj. \| Material: FKM buffer/packing
	LVD22-V04-FN6	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 4x3 mm \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
	LVD20-V06-F	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: None \| Material: FKM buffer/packing
	LVD20-V06-FN	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: None \| Material: EPDM buffer/packing
	LVD20-V06-F1	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: Flow adjustment \| Material: FKM buffer/packing
	LVD20-V06-FN1	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: Flow adjustment \| Material: EPDM buffer/packing
	LVD20-V06-F4	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: Indicator \| Material: FKM buffer/packing
	LVD20-V06-FN4	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: Indicator \| Material: EPDM buffer/packing
	LVD20-V06-F5	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD20-V06-FN5	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD20-V06-F6	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: High BP + flow adj. \| Material: FKM buffer/packing
	LVD20-V06-FN6	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
	LVD20-V06-F9	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: High BP + indicator \| Material: FKM buffer/packing
	LVD20-V06-FN9	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: High BP + indicator \| Material: EPDM buffer/packing
	LVD21-V06-F	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: None \| Material: FKM buffer/packing
	LVD21-V06-FN	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: None \| Material: EPDM buffer/packing
	LVD21-V06-F5	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD21-V06-FN5	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD22-V06-F	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: None \| Material: FKM buffer/packing
	LVD22-V06-FN	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: None \| Material: EPDM buffer/packing
	LVD22-V06-F1	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: Flow adjustment \| Material: FKM buffer/packing
	LVD22-V06-FN1	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: Flow adjustment \| Material: EPDM buffer/packing
	LVD22-V06-F5	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD22-V06-FN5	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD22-V06-F6	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: High BP + flow adj. \| Material: FKM buffer/packing
	LVD22-V06-FN6	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
	LVD20-V05-F	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/16 in \| Option: None \| Material: FKM buffer/packing
	LVD20-V05-FN	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/16 in \| Option: None \| Material: EPDM buffer/packing
	LVD20-V05-F1	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/16 in \| Option: Flow adjustment \| Material: FKM buffer/packing
	LVD20-V05-FN1	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/16 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
	LVD20-V05-F4	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/16 in \| Option: Indicator \| Material: FKM buffer/packing
	LVD20-V05-FN4	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/16 in \| Option: Indicator \| Material: EPDM buffer/packing
	LVD20-V05-F5	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/16 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD20-V05-FN5	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/16 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD20-V05-F6	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/16 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
	LVD20-V05-FN6	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/16 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
	LVD20-V05-F9	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/16 in \| Option: High BP + indicator \| Material: FKM buffer/packing
	LVD20-V05-FN9	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/16 in \| Option: High BP + indicator \| Material: EPDM buffer/packing
	LVD21-V05-F	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 3/16 in \| Option: None \| Material: FKM buffer/packing
	LVD21-V05-FN	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 3/16 in \| Option: None \| Material: EPDM buffer/packing
	LVD21-V05-F5	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 3/16 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD21-V05-FN5	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 3/16 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD22-V05-F	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/16 in \| Option: None \| Material: FKM buffer/packing
	LVD22-V05-FN	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/16 in \| Option: None \| Material: EPDM buffer/packing
	LVD22-V05-F1	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/16 in \| Option: Flow adjustment \| Material: FKM buffer/packing
	LVD22-V05-FN1	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/16 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
	LVD22-V05-F5	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/16 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD22-V05-FN5	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/16 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD22-V05-F6	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/16 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
	LVD22-V05-FN6	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/16 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
	LVD20-V07-F	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: None \| Material: FKM buffer/packing
	LVD20-V07-FN	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: None \| Material: EPDM buffer/packing
	LVD20-V07-F1	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: Flow adjustment \| Material: FKM buffer/packing
	LVD20-V07-FN1	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
	LVD20-V07-F4	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: Indicator \| Material: FKM buffer/packing
	LVD20-V07-FN4	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: Indicator \| Material: EPDM buffer/packing
	LVD20-V07-F5	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD20-V07-FN5	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD20-V07-F6	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
	LVD20-V07-FN6	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
	LVD20-V07-F9	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: High BP + indicator \| Material: FKM buffer/packing
	LVD20-V07-FN9	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: High BP + indicator \| Material: EPDM buffer/packing
	LVD21-V07-F	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: None \| Material: FKM buffer/packing
	LVD21-V07-FN	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: None \| Material: EPDM buffer/packing
	LVD21-V07-F5	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD21-V07-FN5	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD22-V07-F	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: None \| Material: FKM buffer/packing
	LVD22-V07-FN	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: None \| Material: EPDM buffer/packing
	LVD22-V07-F1	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: Flow adjustment \| Material: FKM buffer/packing
	LVD22-V07-FN1	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
	LVD22-V07-F5	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD22-V07-FN5	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD22-V07-F6	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
	LVD22-V07-FN6	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
	LVD30-V06-F	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: None \| Material: FKM buffer/packing
	LVD30-V06-FN	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: None \| Material: EPDM buffer/packing
	LVD30-V06-F1	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: Flow adjustment \| Material: FKM buffer/packing
	LVD30-V06-FN1	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: Flow adjustment \| Material: EPDM buffer/packing
	LVD30-V06-F2	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: Bypass \| Material: FKM buffer/packing
	LVD30-V06-FN2	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: Bypass \| Material: EPDM buffer/packing
	LVD30-V06-F3	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: Flow adj. + bypass \| Material: FKM buffer/packing
	LVD30-V06-FN3	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: Flow adj. + bypass \| Material: EPDM buffer/packing
	LVD30-V06-F4	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: Indicator \| Material: FKM buffer/packing
	LVD30-V06-FN4	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: Indicator \| Material: EPDM buffer/packing
	LVD30-V06-F5	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD30-V06-FN5	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD30-V06-F6	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: High BP + flow adj. \| Material: FKM buffer/packing
	LVD30-V06-FN6	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
	LVD30-V06-F7	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: High BP + bypass \| Material: FKM buffer/packing
	LVD30-V06-FN7	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: High BP + bypass \| Material: EPDM buffer/packing
	LVD30-V06-F8	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: High BP + flow adj. + bypass \| Material: FKM buffer/packing
	LVD30-V06-FN8	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: High BP + flow adj. + bypass \| Material: EPDM buffer/packing
	LVD30-V06-F9	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: High BP + indicator \| Material: FKM buffer/packing
	LVD30-V06-FN9	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: High BP + indicator \| Material: EPDM buffer/packing
	LVD30-V06-F24	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: Bypass + indicator \| Material: FKM buffer/packing
	LVD30-V06-FN24	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: Bypass + indicator \| Material: EPDM buffer/packing
	LVD31-V06-F	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: None \| Material: FKM buffer/packing
	LVD31-V06-FN	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: None \| Material: EPDM buffer/packing
	LVD31-V06-F5	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD31-V06-FN5	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD32-V06-F	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: None \| Material: FKM buffer/packing
	LVD32-V06-FN	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: None \| Material: EPDM buffer/packing
	LVD32-V06-F1	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: Flow adjustment \| Material: FKM buffer/packing
	LVD32-V06-FN1	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: Flow adjustment \| Material: EPDM buffer/packing
	LVD32-V06-F2	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: Bypass \| Material: FKM buffer/packing
	LVD32-V06-FN2	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: Bypass \| Material: EPDM buffer/packing
	LVD32-V06-F3	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: Flow adj. + bypass \| Material: FKM buffer/packing
	LVD32-V06-FN3	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: Flow adj. + bypass \| Material: EPDM buffer/packing
	LVD32-V06-F5	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD32-V06-FN5	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD32-V06-F6	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: High BP + flow adj. \| Material: FKM buffer/packing
	LVD32-V06-FN6	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
	LVD32-V06-F7	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: High BP + bypass \| Material: FKM buffer/packing
	LVD32-V06-FN7	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: High BP + bypass \| Material: EPDM buffer/packing
	LVD32-V06-F8	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: High BP + flow adj. + bypass \| Material: FKM buffer/packing
	LVD32-V06-FN8	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 6x4 mm \| Option: High BP + flow adj. + bypass \| Material: EPDM buffer/packing
	LVD30-V08-F	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: None \| Material: FKM buffer/packing
	LVD30-V08-FN	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: None \| Material: EPDM buffer/packing
	LVD30-V08-F1	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: Flow adjustment \| Material: FKM buffer/packing
	LVD30-V08-FN1	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: Flow adjustment \| Material: EPDM buffer/packing
	LVD30-V08-F2	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: Bypass \| Material: FKM buffer/packing
	LVD30-V08-FN2	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: Bypass \| Material: EPDM buffer/packing
	LVD30-V08-F3	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: Flow adj. + bypass \| Material: FKM buffer/packing
	LVD30-V08-FN3	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: Flow adj. + bypass \| Material: EPDM buffer/packing
	LVD30-V08-F4	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: Indicator \| Material: FKM buffer/packing
	LVD30-V08-FN4	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: Indicator \| Material: EPDM buffer/packing
	LVD30-V08-F5	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD30-V08-FN5	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD30-V08-F6	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: High BP + flow adj. \| Material: FKM buffer/packing
	LVD30-V08-FN6	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
	LVD30-V08-F7	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: High BP + bypass \| Material: FKM buffer/packing
	LVD30-V08-FN7	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: High BP + bypass \| Material: EPDM buffer/packing
	LVD30-V08-F8	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: High BP + flow adj. + bypass \| Material: FKM buffer/packing
	LVD30-V08-FN8	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: High BP + flow adj. + bypass \| Material: EPDM buffer/packing
	LVD30-V08-F9	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: High BP + indicator \| Material: FKM buffer/packing
	LVD30-V08-FN9	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: High BP + indicator \| Material: EPDM buffer/packing
	LVD30-V08-F24	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: Bypass + indicator \| Material: FKM buffer/packing
	LVD30-V08-FN24	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: Bypass + indicator \| Material: EPDM buffer/packing
	LVD31-V08-F	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: None \| Material: FKM buffer/packing
	LVD31-V08-FN	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: None \| Material: EPDM buffer/packing
	LVD31-V08-F5	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD31-V08-FN5	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD32-V08-F	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: None \| Material: FKM buffer/packing
	LVD32-V08-FN	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: None \| Material: EPDM buffer/packing
	LVD32-V08-F1	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: Flow adjustment \| Material: FKM buffer/packing
	LVD32-V08-FN1	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: Flow adjustment \| Material: EPDM buffer/packing
	LVD32-V08-F2	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: Bypass \| Material: FKM buffer/packing
	LVD32-V08-FN2	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: Bypass \| Material: EPDM buffer/packing
	LVD32-V08-F3	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: Flow adj. + bypass \| Material: FKM buffer/packing
	LVD32-V08-FN3	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: Flow adj. + bypass \| Material: EPDM buffer/packing
	LVD32-V08-F5	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD32-V08-FN5	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD32-V08-F6	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: High BP + flow adj. \| Material: FKM buffer/packing
	LVD32-V08-FN6	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
	LVD32-V08-F7	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: High BP + bypass \| Material: FKM buffer/packing
	LVD32-V08-FN7	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: High BP + bypass \| Material: EPDM buffer/packing
	LVD32-V08-F8	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: High BP + flow adj. + bypass \| Material: FKM buffer/packing
	LVD32-V08-FN8	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 8x6 mm \| Option: High BP + flow adj. + bypass \| Material: EPDM buffer/packing
	LVD30-V10-F	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: None \| Material: FKM buffer/packing
	LVD30-V10-FN	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: None \| Material: EPDM buffer/packing
	LVD30-V10-F1	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: Flow adjustment \| Material: FKM buffer/packing
	LVD30-V10-FN1	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: Flow adjustment \| Material: EPDM buffer/packing
	LVD30-V10-F2	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: Bypass \| Material: FKM buffer/packing
	LVD30-V10-FN2	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: Bypass \| Material: EPDM buffer/packing
	LVD30-V10-F3	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: Flow adj. + bypass \| Material: FKM buffer/packing
	LVD30-V10-FN3	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: Flow adj. + bypass \| Material: EPDM buffer/packing
	LVD30-V10-F4	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: Indicator \| Material: FKM buffer/packing
	LVD30-V10-FN4	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: Indicator \| Material: EPDM buffer/packing
	LVD30-V10-F5	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD30-V10-FN5	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD30-V10-F6	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High BP + flow adj. \| Material: FKM buffer/packing
	LVD30-V10-FN6	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
	LVD30-V10-F7	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High BP + bypass \| Material: FKM buffer/packing
	LVD30-V10-FN7	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High BP + bypass \| Material: EPDM buffer/packing
	LVD30-V10-F8	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High BP + flow adj. + bypass \| Material: FKM buffer/packing
	LVD30-V10-FN8	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High BP + flow adj. + bypass \| Material: EPDM buffer/packing
	LVD30-V10-F9	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High BP + indicator \| Material: FKM buffer/packing
	LVD30-V10-FN9	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High BP + indicator \| Material: EPDM buffer/packing
	LVD30-V10-F24	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: Bypass + indicator \| Material: FKM buffer/packing
	LVD30-V10-FN24	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: Bypass + indicator \| Material: EPDM buffer/packing
	LVD31-V10-F	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: None \| Material: FKM buffer/packing
	LVD31-V10-FN	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: None \| Material: EPDM buffer/packing
	LVD31-V10-F5	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD31-V10-FN5	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD32-V10-F	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: None \| Material: FKM buffer/packing
	LVD32-V10-FN	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: None \| Material: EPDM buffer/packing
	LVD32-V10-F1	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: Flow adjustment \| Material: FKM buffer/packing
	LVD32-V10-FN1	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: Flow adjustment \| Material: EPDM buffer/packing
	LVD32-V10-F2	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: Bypass \| Material: FKM buffer/packing
	LVD32-V10-FN2	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: Bypass \| Material: EPDM buffer/packing
	LVD32-V10-F3	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: Flow adj. + bypass \| Material: FKM buffer/packing
	LVD32-V10-FN3	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: Flow adj. + bypass \| Material: EPDM buffer/packing
	LVD32-V10-F5	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD32-V10-FN5	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD32-V10-F6	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High BP + flow adj. \| Material: FKM buffer/packing
	LVD32-V10-FN6	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
	LVD32-V10-F7	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High BP + bypass \| Material: FKM buffer/packing
	LVD32-V10-FN7	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High BP + bypass \| Material: EPDM buffer/packing
	LVD32-V10-F8	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High BP + flow adj. + bypass \| Material: FKM buffer/packing
	LVD32-V10-FN8	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High BP + flow adj. + bypass \| Material: EPDM buffer/packing
	LVD30-V07-F	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: None \| Material: FKM buffer/packing
	LVD30-V07-FN	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: None \| Material: EPDM buffer/packing
	LVD30-V07-F1	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: Flow adjustment \| Material: FKM buffer/packing
	LVD30-V07-FN1	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
	LVD30-V07-F2	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: Bypass \| Material: FKM buffer/packing
	LVD30-V07-FN2	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: Bypass \| Material: EPDM buffer/packing
	LVD30-V07-F3	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: Flow adj. + bypass \| Material: FKM buffer/packing
	LVD30-V07-FN3	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: Flow adj. + bypass \| Material: EPDM buffer/packing
	LVD30-V07-F4	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: Indicator \| Material: FKM buffer/packing
	LVD30-V07-FN4	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: Indicator \| Material: EPDM buffer/packing
	LVD30-V07-F5	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD30-V07-FN5	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD30-V07-F6	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
	LVD30-V07-FN6	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
	LVD30-V07-F7	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: High BP + bypass \| Material: FKM buffer/packing
	LVD30-V07-FN7	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: High BP + bypass \| Material: EPDM buffer/packing
	LVD30-V07-F8	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: High BP + flow adj. + bypass \| Material: FKM buffer/packing
	LVD30-V07-FN8	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: High BP + flow adj. + bypass \| Material: EPDM buffer/packing
	LVD30-V07-F9	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: High BP + indicator \| Material: FKM buffer/packing
	LVD30-V07-FN9	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: High BP + indicator \| Material: EPDM buffer/packing
	LVD30-V07-F24	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: Bypass + indicator \| Material: FKM buffer/packing
	LVD30-V07-FN24	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: Bypass + indicator \| Material: EPDM buffer/packing
	LVD31-V07-F	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: None \| Material: FKM buffer/packing
	LVD31-V07-FN	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: None \| Material: EPDM buffer/packing
	LVD31-V07-F5	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD31-V07-FN5	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD32-V07-F	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: None \| Material: FKM buffer/packing
	LVD32-V07-FN	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: None \| Material: EPDM buffer/packing
	LVD32-V07-F1	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: Flow adjustment \| Material: FKM buffer/packing
	LVD32-V07-FN1	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
	LVD32-V07-F2	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: Bypass \| Material: FKM buffer/packing
	LVD32-V07-FN2	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: Bypass \| Material: EPDM buffer/packing
	LVD32-V07-F3	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: Flow adj. + bypass \| Material: FKM buffer/packing
	LVD32-V07-FN3	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: Flow adj. + bypass \| Material: EPDM buffer/packing
	LVD32-V07-F5	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD32-V07-FN5	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD32-V07-F6	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
	LVD32-V07-FN6	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
	LVD32-V07-F7	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: High BP + bypass \| Material: FKM buffer/packing
	LVD32-V07-FN7	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: High BP + bypass \| Material: EPDM buffer/packing
	LVD32-V07-F8	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: High BP + flow adj. + bypass \| Material: FKM buffer/packing
	LVD32-V07-FN8	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/4 in \| Option: High BP + flow adj. + bypass \| Material: EPDM buffer/packing
	LVD30-V11-F	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: None \| Material: FKM buffer/packing
	LVD30-V11-FN	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: None \| Material: EPDM buffer/packing
	LVD30-V11-F1	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: Flow adjustment \| Material: FKM buffer/packing
	LVD30-V11-FN1	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
	LVD30-V11-F2	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: Bypass \| Material: FKM buffer/packing
	LVD30-V11-FN2	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: Bypass \| Material: EPDM buffer/packing
	LVD30-V11-F3	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: Flow adj. + bypass \| Material: FKM buffer/packing
	LVD30-V11-FN3	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: Flow adj. + bypass \| Material: EPDM buffer/packing
	LVD30-V11-F4	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: Indicator \| Material: FKM buffer/packing
	LVD30-V11-FN4	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: Indicator \| Material: EPDM buffer/packing
	LVD30-V11-F5	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD30-V11-FN5	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD30-V11-F6	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
	LVD30-V11-FN6	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
	LVD30-V11-F7	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High BP + bypass \| Material: FKM buffer/packing
	LVD30-V11-FN7	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High BP + bypass \| Material: EPDM buffer/packing
	LVD30-V11-F8	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High BP + flow adj. + bypass \| Material: FKM buffer/packing
	LVD30-V11-FN8	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High BP + flow adj. + bypass \| Material: EPDM buffer/packing
	LVD30-V11-F9	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High BP + indicator \| Material: FKM buffer/packing
	LVD30-V11-FN9	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High BP + indicator \| Material: EPDM buffer/packing
	LVD30-V11-F24	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: Bypass + indicator \| Material: FKM buffer/packing
	LVD30-V11-FN24	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: Bypass + indicator \| Material: EPDM buffer/packing
	LVD31-V11-F	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: None \| Material: FKM buffer/packing
	LVD31-V11-FN	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: None \| Material: EPDM buffer/packing
	LVD31-V11-F5	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD31-V11-FN5	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD32-V11-F	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: None \| Material: FKM buffer/packing
	LVD32-V11-FN	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: None \| Material: EPDM buffer/packing
	LVD32-V11-F1	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: Flow adjustment \| Material: FKM buffer/packing
	LVD32-V11-FN1	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
	LVD32-V11-F2	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: Bypass \| Material: FKM buffer/packing
	LVD32-V11-FN2	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: Bypass \| Material: EPDM buffer/packing
	LVD32-V11-F3	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: Flow adj. + bypass \| Material: FKM buffer/packing
	LVD32-V11-FN3	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: Flow adj. + bypass \| Material: EPDM buffer/packing
	LVD32-V11-F5	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD32-V11-FN5	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD32-V11-F6	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
	LVD32-V11-FN6	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
	LVD32-V11-F7	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High BP + bypass \| Material: FKM buffer/packing
	LVD32-V11-FN7	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High BP + bypass \| Material: EPDM buffer/packing
	LVD32-V11-F8	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High BP + flow adj. + bypass \| Material: FKM buffer/packing
	LVD32-V11-FN8	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High BP + flow adj. + bypass \| Material: EPDM buffer/packing
	LVD40-V10-F	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: None \| Material: FKM buffer/packing
	LVD40-V10-FN	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: None \| Material: EPDM buffer/packing
	LVD40-V10-F1	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: Flow adjustment \| Material: FKM buffer/packing
	LVD40-V10-FN1	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: Flow adjustment \| Material: EPDM buffer/packing
	LVD40-V10-F2	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: Bypass \| Material: FKM buffer/packing
	LVD40-V10-FN2	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: Bypass \| Material: EPDM buffer/packing
	LVD40-V10-F3	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: Flow adj. + bypass \| Material: FKM buffer/packing
	LVD40-V10-FN3	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: Flow adj. + bypass \| Material: EPDM buffer/packing
	LVD40-V10-F4	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: Indicator \| Material: FKM buffer/packing
	LVD40-V10-FN4	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: Indicator \| Material: EPDM buffer/packing
	LVD40-V10-F5	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD40-V10-FN5	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD40-V10-F6	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High BP + flow adj. \| Material: FKM buffer/packing
	LVD40-V10-FN6	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
	LVD40-V10-F7	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High BP + bypass \| Material: FKM buffer/packing
	LVD40-V10-FN7	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High BP + bypass \| Material: EPDM buffer/packing
	LVD40-V10-F8	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High BP + flow adj. + bypass \| Material: FKM buffer/packing
	LVD40-V10-FN8	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High BP + flow adj. + bypass \| Material: EPDM buffer/packing
	LVD40-V10-F9	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High BP + indicator \| Material: FKM buffer/packing
	LVD40-V10-FN9	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High BP + indicator \| Material: EPDM buffer/packing
	LVD40-V10-F24	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: Bypass + indicator \| Material: FKM buffer/packing
	LVD40-V10-FN24	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: Bypass + indicator \| Material: EPDM buffer/packing
	LVD41-V10-F	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: None \| Material: FKM buffer/packing
	LVD41-V10-FN	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: None \| Material: EPDM buffer/packing
	LVD41-V10-F5	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD41-V10-FN5	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD42-V10-F	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: None \| Material: FKM buffer/packing
	LVD42-V10-FN	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: None \| Material: EPDM buffer/packing
	LVD42-V10-F1	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: Flow adjustment \| Material: FKM buffer/packing
	LVD42-V10-FN1	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: Flow adjustment \| Material: EPDM buffer/packing
	LVD42-V10-F2	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: Bypass \| Material: FKM buffer/packing
	LVD42-V10-FN2	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: Bypass \| Material: EPDM buffer/packing
	LVD42-V10-F3	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: Flow adj. + bypass \| Material: FKM buffer/packing
	LVD42-V10-FN3	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: Flow adj. + bypass \| Material: EPDM buffer/packing
	LVD42-V10-F5	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD42-V10-FN5	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD42-V10-F6	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High BP + flow adj. \| Material: FKM buffer/packing
	LVD42-V10-FN6	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
	LVD42-V10-F7	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High BP + bypass \| Material: FKM buffer/packing
	LVD42-V10-FN7	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High BP + bypass \| Material: EPDM buffer/packing
	LVD42-V10-F8	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High BP + flow adj. + bypass \| Material: FKM buffer/packing
	LVD42-V10-FN8	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 10x8 mm \| Option: High BP + flow adj. + bypass \| Material: EPDM buffer/packing
	LVD40-V12-F	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: None \| Material: FKM buffer/packing
	LVD40-V12-FN	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: None \| Material: EPDM buffer/packing
	LVD40-V12-F1	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: Flow adjustment \| Material: FKM buffer/packing
	LVD40-V12-FN1	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: Flow adjustment \| Material: EPDM buffer/packing
	LVD40-V12-F2	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: Bypass \| Material: FKM buffer/packing
	LVD40-V12-FN2	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: Bypass \| Material: EPDM buffer/packing
	LVD40-V12-F3	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: Flow adj. + bypass \| Material: FKM buffer/packing
	LVD40-V12-FN3	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: Flow adj. + bypass \| Material: EPDM buffer/packing
	LVD40-V12-F4	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: Indicator \| Material: FKM buffer/packing
	LVD40-V12-FN4	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: Indicator \| Material: EPDM buffer/packing
	LVD40-V12-F5	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD40-V12-FN5	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD40-V12-F6	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High BP + flow adj. \| Material: FKM buffer/packing
	LVD40-V12-FN6	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
	LVD40-V12-F7	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High BP + bypass \| Material: FKM buffer/packing
	LVD40-V12-FN7	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High BP + bypass \| Material: EPDM buffer/packing
	LVD40-V12-F8	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High BP + flow adj. + bypass \| Material: FKM buffer/packing
	LVD40-V12-FN8	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High BP + flow adj. + bypass \| Material: EPDM buffer/packing
	LVD40-V12-F9	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High BP + indicator \| Material: FKM buffer/packing
	LVD40-V12-FN9	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High BP + indicator \| Material: EPDM buffer/packing
	LVD40-V12-F24	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: Bypass + indicator \| Material: FKM buffer/packing
	LVD40-V12-FN24	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: Bypass + indicator \| Material: EPDM buffer/packing
	LVD41-V12-F	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: None \| Material: FKM buffer/packing
	LVD41-V12-FN	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: None \| Material: EPDM buffer/packing
	LVD41-V12-F5	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD41-V12-FN5	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD42-V12-F	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: None \| Material: FKM buffer/packing
	LVD42-V12-FN	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: None \| Material: EPDM buffer/packing
	LVD42-V12-F1	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: Flow adjustment \| Material: FKM buffer/packing
	LVD42-V12-FN1	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: Flow adjustment \| Material: EPDM buffer/packing
	LVD42-V12-F2	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: Bypass \| Material: FKM buffer/packing
	LVD42-V12-FN2	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: Bypass \| Material: EPDM buffer/packing
	LVD42-V12-F3	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: Flow adj. + bypass \| Material: FKM buffer/packing
	LVD42-V12-FN3	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: Flow adj. + bypass \| Material: EPDM buffer/packing
	LVD42-V12-F5	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD42-V12-FN5	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD42-V12-F6	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High BP + flow adj. \| Material: FKM buffer/packing
	LVD42-V12-FN6	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
	LVD42-V12-F7	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High BP + bypass \| Material: FKM buffer/packing
	LVD42-V12-FN7	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High BP + bypass \| Material: EPDM buffer/packing
	LVD42-V12-F8	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High BP + flow adj. + bypass \| Material: FKM buffer/packing
	LVD42-V12-FN8	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High BP + flow adj. + bypass \| Material: EPDM buffer/packing
	LVD40-V11-F	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: None \| Material: FKM buffer/packing
	LVD40-V11-FN	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: None \| Material: EPDM buffer/packing
	LVD40-V11-F1	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: Flow adjustment \| Material: FKM buffer/packing
	LVD40-V11-FN1	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
	LVD40-V11-F2	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: Bypass \| Material: FKM buffer/packing
	LVD40-V11-FN2	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: Bypass \| Material: EPDM buffer/packing
	LVD40-V11-F3	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: Flow adj. + bypass \| Material: FKM buffer/packing
	LVD40-V11-FN3	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: Flow adj. + bypass \| Material: EPDM buffer/packing
	LVD40-V11-F4	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: Indicator \| Material: FKM buffer/packing
	LVD40-V11-FN4	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: Indicator \| Material: EPDM buffer/packing
	LVD40-V11-F5	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD40-V11-FN5	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD40-V11-F6	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
	LVD40-V11-FN6	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
	LVD40-V11-F7	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High BP + bypass \| Material: FKM buffer/packing
	LVD40-V11-FN7	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High BP + bypass \| Material: EPDM buffer/packing
	LVD40-V11-F8	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High BP + flow adj. + bypass \| Material: FKM buffer/packing
	LVD40-V11-FN8	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High BP + flow adj. + bypass \| Material: EPDM buffer/packing
	LVD40-V11-F9	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High BP + indicator \| Material: FKM buffer/packing
	LVD40-V11-FN9	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High BP + indicator \| Material: EPDM buffer/packing
	LVD40-V11-F24	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: Bypass + indicator \| Material: FKM buffer/packing
	LVD40-V11-FN24	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: Bypass + indicator \| Material: EPDM buffer/packing
	LVD41-V11-F	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: None \| Material: FKM buffer/packing
	LVD41-V11-FN	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: None \| Material: EPDM buffer/packing
	LVD41-V11-F5	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD41-V11-FN5	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD42-V11-F	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: None \| Material: FKM buffer/packing
	LVD42-V11-FN	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: None \| Material: EPDM buffer/packing
	LVD42-V11-F1	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: Flow adjustment \| Material: FKM buffer/packing
	LVD42-V11-FN1	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
	LVD42-V11-F2	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: Bypass \| Material: FKM buffer/packing
	LVD42-V11-FN2	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: Bypass \| Material: EPDM buffer/packing
	LVD42-V11-F3	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: Flow adj. + bypass \| Material: FKM buffer/packing
	LVD42-V11-FN3	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: Flow adj. + bypass \| Material: EPDM buffer/packing
	LVD42-V11-F5	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD42-V11-FN5	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD42-V11-F6	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
	LVD42-V11-FN6	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
	LVD42-V11-F7	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High BP + bypass \| Material: FKM buffer/packing
	LVD42-V11-FN7	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High BP + bypass \| Material: EPDM buffer/packing
	LVD42-V11-F8	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High BP + flow adj. + bypass \| Material: FKM buffer/packing
	LVD42-V11-FN8	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 3/8 in \| Option: High BP + flow adj. + bypass \| Material: EPDM buffer/packing
	LVD40-V13-F	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: None \| Material: FKM buffer/packing
	LVD40-V13-FN	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: None \| Material: EPDM buffer/packing
	LVD40-V13-F1	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: Flow adjustment \| Material: FKM buffer/packing
	LVD40-V13-FN1	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
	LVD40-V13-F2	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: Bypass \| Material: FKM buffer/packing
	LVD40-V13-FN2	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: Bypass \| Material: EPDM buffer/packing
	LVD40-V13-F3	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: Flow adj. + bypass \| Material: FKM buffer/packing
	LVD40-V13-FN3	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: Flow adj. + bypass \| Material: EPDM buffer/packing
	LVD40-V13-F4	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: Indicator \| Material: FKM buffer/packing
	LVD40-V13-FN4	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: Indicator \| Material: EPDM buffer/packing
	LVD40-V13-F5	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD40-V13-FN5	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD40-V13-F6	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
	LVD40-V13-FN6	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
	LVD40-V13-F7	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High BP + bypass \| Material: FKM buffer/packing
	LVD40-V13-FN7	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High BP + bypass \| Material: EPDM buffer/packing
	LVD40-V13-F8	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High BP + flow adj. + bypass \| Material: FKM buffer/packing
	LVD40-V13-FN8	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High BP + flow adj. + bypass \| Material: EPDM buffer/packing
	LVD40-V13-F9	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High BP + indicator \| Material: FKM buffer/packing
	LVD40-V13-FN9	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High BP + indicator \| Material: EPDM buffer/packing
	LVD40-V13-F24	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: Bypass + indicator \| Material: FKM buffer/packing
	LVD40-V13-FN24	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: Bypass + indicator \| Material: EPDM buffer/packing
	LVD41-V13-F	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: None \| Material: FKM buffer/packing
	LVD41-V13-FN	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: None \| Material: EPDM buffer/packing
	LVD41-V13-F5	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD41-V13-FN5	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD42-V13-F	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: None \| Material: FKM buffer/packing
	LVD42-V13-FN	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: None \| Material: EPDM buffer/packing
	LVD42-V13-F1	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: Flow adjustment \| Material: FKM buffer/packing
	LVD42-V13-FN1	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
	LVD42-V13-F2	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: Bypass \| Material: FKM buffer/packing
	LVD42-V13-FN2	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: Bypass \| Material: EPDM buffer/packing
	LVD42-V13-F3	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: Flow adj. + bypass \| Material: FKM buffer/packing
	LVD42-V13-FN3	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: Flow adj. + bypass \| Material: EPDM buffer/packing
	LVD42-V13-F5	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD42-V13-FN5	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD42-V13-F6	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
	LVD42-V13-FN6	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
	LVD42-V13-F7	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High BP + bypass \| Material: FKM buffer/packing
	LVD42-V13-FN7	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High BP + bypass \| Material: EPDM buffer/packing
	LVD42-V13-F8	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High BP + flow adj. + bypass \| Material: FKM buffer/packing
	LVD42-V13-FN8	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High BP + flow adj. + bypass \| Material: EPDM buffer/packing
	LVD50-V12-F	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: None \| Material: FKM buffer/packing
	LVD50-V12-FN	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: None \| Material: EPDM buffer/packing
	LVD50-V12-F1	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: Flow adjustment \| Material: FKM buffer/packing
	LVD50-V12-FN1	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: Flow adjustment \| Material: EPDM buffer/packing
	LVD50-V12-F2	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: Bypass \| Material: FKM buffer/packing
	LVD50-V12-FN2	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: Bypass \| Material: EPDM buffer/packing
	LVD50-V12-F3	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: Flow adj. + bypass \| Material: FKM buffer/packing
	LVD50-V12-FN3	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: Flow adj. + bypass \| Material: EPDM buffer/packing
	LVD50-V12-F4	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: Indicator \| Material: FKM buffer/packing
	LVD50-V12-FN4	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: Indicator \| Material: EPDM buffer/packing
	LVD50-V12-F5	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD50-V12-FN5	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD50-V12-F6	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High BP + flow adj. \| Material: FKM buffer/packing
	LVD50-V12-FN6	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
	LVD50-V12-F7	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High BP + bypass \| Material: FKM buffer/packing
	LVD50-V12-FN7	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High BP + bypass \| Material: EPDM buffer/packing
	LVD50-V12-F8	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High BP + flow adj. + bypass \| Material: FKM buffer/packing
	LVD50-V12-FN8	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High BP + flow adj. + bypass \| Material: EPDM buffer/packing
	LVD50-V12-F9	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High BP + indicator \| Material: FKM buffer/packing
	LVD50-V12-FN9	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High BP + indicator \| Material: EPDM buffer/packing
	LVD50-V12-F24	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: Bypass + indicator \| Material: FKM buffer/packing
	LVD50-V12-FN24	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: Bypass + indicator \| Material: EPDM buffer/packing
	LVD51-V12-F	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: None \| Material: FKM buffer/packing
	LVD51-V12-FN	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: None \| Material: EPDM buffer/packing
	LVD51-V12-F5	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD51-V12-FN5	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD52-V12-F	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: None \| Material: FKM buffer/packing
	LVD52-V12-FN	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: None \| Material: EPDM buffer/packing
	LVD52-V12-F1	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: Flow adjustment \| Material: FKM buffer/packing
	LVD52-V12-FN1	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: Flow adjustment \| Material: EPDM buffer/packing
	LVD52-V12-F2	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: Bypass \| Material: FKM buffer/packing
	LVD52-V12-FN2	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: Bypass \| Material: EPDM buffer/packing
	LVD52-V12-F3	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: Flow adj. + bypass \| Material: FKM buffer/packing
	LVD52-V12-FN3	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: Flow adj. + bypass \| Material: EPDM buffer/packing
	LVD52-V12-F5	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD52-V12-FN5	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD52-V12-F6	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High BP + flow adj. \| Material: FKM buffer/packing
	LVD52-V12-FN6	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
	LVD52-V12-F7	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High BP + bypass \| Material: FKM buffer/packing
	LVD52-V12-FN7	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High BP + bypass \| Material: EPDM buffer/packing
	LVD52-V12-F8	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High BP + flow adj. + bypass \| Material: FKM buffer/packing
	LVD52-V12-FN8	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 12x10 mm \| Option: High BP + flow adj. + bypass \| Material: EPDM buffer/packing
	LVD50-V19-F	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: None \| Material: FKM buffer/packing
	LVD50-V19-FN	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: None \| Material: EPDM buffer/packing
	LVD50-V19-F1	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: Flow adjustment \| Material: FKM buffer/packing
	LVD50-V19-FN1	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
	LVD50-V19-F2	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: Bypass \| Material: FKM buffer/packing
	LVD50-V19-FN2	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: Bypass \| Material: EPDM buffer/packing
	LVD50-V19-F3	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: Flow adj. + bypass \| Material: FKM buffer/packing
	LVD50-V19-FN3	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: Flow adj. + bypass \| Material: EPDM buffer/packing
	LVD50-V19-F4	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: Indicator \| Material: FKM buffer/packing
	LVD50-V19-FN4	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: Indicator \| Material: EPDM buffer/packing
	LVD50-V19-F5	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD50-V19-FN5	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD50-V19-F6	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
	LVD50-V19-FN6	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
	LVD50-V19-F7	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High BP + bypass \| Material: FKM buffer/packing
	LVD50-V19-FN7	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High BP + bypass \| Material: EPDM buffer/packing
	LVD50-V19-F8	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High BP + flow adj. + bypass \| Material: FKM buffer/packing
	LVD50-V19-FN8	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High BP + flow adj. + bypass \| Material: EPDM buffer/packing
	LVD50-V19-F9	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High BP + indicator \| Material: FKM buffer/packing
	LVD50-V19-FN9	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High BP + indicator \| Material: EPDM buffer/packing
	LVD50-V19-F24	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: Bypass + indicator \| Material: FKM buffer/packing
	LVD50-V19-FN24	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: Bypass + indicator \| Material: EPDM buffer/packing
	LVD51-V19-F	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: None \| Material: FKM buffer/packing
	LVD51-V19-FN	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: None \| Material: EPDM buffer/packing
	LVD51-V19-F5	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD51-V19-FN5	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD52-V19-F	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: None \| Material: FKM buffer/packing
	LVD52-V19-FN	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: None \| Material: EPDM buffer/packing
	LVD52-V19-F1	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: Flow adjustment \| Material: FKM buffer/packing
	LVD52-V19-FN1	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
	LVD52-V19-F2	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: Bypass \| Material: FKM buffer/packing
	LVD52-V19-FN2	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: Bypass \| Material: EPDM buffer/packing
	LVD52-V19-F3	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: Flow adj. + bypass \| Material: FKM buffer/packing
	LVD52-V19-FN3	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: Flow adj. + bypass \| Material: EPDM buffer/packing
	LVD52-V19-F5	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD52-V19-FN5	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD52-V19-F6	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
	LVD52-V19-FN6	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
	LVD52-V19-F7	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High BP + bypass \| Material: FKM buffer/packing
	LVD52-V19-FN7	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High BP + bypass \| Material: EPDM buffer/packing
	LVD52-V19-F8	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High BP + flow adj. + bypass \| Material: FKM buffer/packing
	LVD52-V19-FN8	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High BP + flow adj. + bypass \| Material: EPDM buffer/packing
	LVD50-V13-F	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: None \| Material: FKM buffer/packing
	LVD50-V13-FN	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: None \| Material: EPDM buffer/packing
	LVD50-V13-F1	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: Flow adjustment \| Material: FKM buffer/packing
	LVD50-V13-FN1	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
	LVD50-V13-F2	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: Bypass \| Material: FKM buffer/packing
	LVD50-V13-FN2	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: Bypass \| Material: EPDM buffer/packing
	LVD50-V13-F3	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: Flow adj. + bypass \| Material: FKM buffer/packing
	LVD50-V13-FN3	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: Flow adj. + bypass \| Material: EPDM buffer/packing
	LVD50-V13-F4	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: Indicator \| Material: FKM buffer/packing
	LVD50-V13-FN4	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: Indicator \| Material: EPDM buffer/packing
	LVD50-V13-F5	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD50-V13-FN5	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD50-V13-F6	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
	LVD50-V13-FN6	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
	LVD50-V13-F7	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High BP + bypass \| Material: FKM buffer/packing
	LVD50-V13-FN7	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High BP + bypass \| Material: EPDM buffer/packing
	LVD50-V13-F8	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High BP + flow adj. + bypass \| Material: FKM buffer/packing
	LVD50-V13-FN8	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High BP + flow adj. + bypass \| Material: EPDM buffer/packing
	LVD50-V13-F9	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High BP + indicator \| Material: FKM buffer/packing
	LVD50-V13-FN9	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High BP + indicator \| Material: EPDM buffer/packing
	LVD50-V13-F24	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: Bypass + indicator \| Material: FKM buffer/packing
	LVD50-V13-FN24	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: Bypass + indicator \| Material: EPDM buffer/packing
	LVD51-V13-F	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: None \| Material: FKM buffer/packing
	LVD51-V13-FN	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: None \| Material: EPDM buffer/packing
	LVD51-V13-F5	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD51-V13-FN5	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD52-V13-F	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: None \| Material: FKM buffer/packing
	LVD52-V13-FN	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: None \| Material: EPDM buffer/packing
	LVD52-V13-F1	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: Flow adjustment \| Material: FKM buffer/packing
	LVD52-V13-FN1	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
	LVD52-V13-F2	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: Bypass \| Material: FKM buffer/packing
	LVD52-V13-FN2	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: Bypass \| Material: EPDM buffer/packing
	LVD52-V13-F3	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: Flow adj. + bypass \| Material: FKM buffer/packing
	LVD52-V13-FN3	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: Flow adj. + bypass \| Material: EPDM buffer/packing
	LVD52-V13-F5	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD52-V13-FN5	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD52-V13-F6	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
	LVD52-V13-FN6	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
	LVD52-V13-F7	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High BP + bypass \| Material: FKM buffer/packing
	LVD52-V13-FN7	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High BP + bypass \| Material: EPDM buffer/packing
	LVD52-V13-F8	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High BP + flow adj. + bypass \| Material: FKM buffer/packing
	LVD52-V13-FN8	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 1/2 in \| Option: High BP + flow adj. + bypass \| Material: EPDM buffer/packing
	LVD60-V19-F	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: None \| Material: FKM buffer/packing
	LVD60-V19-FN	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: None \| Material: EPDM buffer/packing
	LVD60-V19-F1	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: Flow adjustment \| Material: FKM buffer/packing
	LVD60-V19-FN1	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
	LVD60-V19-F4	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: Indicator \| Material: FKM buffer/packing
	LVD60-V19-FN4	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: Indicator \| Material: EPDM buffer/packing
	LVD60-V19-F5	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD60-V19-FN5	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD60-V19-F6	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
	LVD60-V19-FN6	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
	LVD60-V19-F9	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High BP + indicator \| Material: FKM buffer/packing
	LVD60-V19-FN9	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High BP + indicator \| Material: EPDM buffer/packing
	LVD61-V19-F	Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: None \| Material: FKM buffer/packing
	LVD61-V19-FN	Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: None \| Material: EPDM buffer/packing
	LVD61-V19-F5	Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD61-V19-FN5	Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD62-V19-F	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: None \| Material: FKM buffer/packing
	LVD62-V19-FN	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: None \| Material: EPDM buffer/packing
	LVD62-V19-F1	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: Flow adjustment \| Material: FKM buffer/packing
	LVD62-V19-FN1	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
	LVD62-V19-F5	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD62-V19-FN5	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD62-V19-F6	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
	LVD62-V19-FN6	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
	LVD60-V25-F	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 25x22 mm / 1 in \| Option: None \| Material: FKM buffer/packing
	LVD60-V25-FN	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 25x22 mm / 1 in \| Option: None \| Material: EPDM buffer/packing
	LVD60-V25-F1	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 25x22 mm / 1 in \| Option: Flow adjustment \| Material: FKM buffer/packing
	LVD60-V25-FN1	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 25x22 mm / 1 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
	LVD60-V25-F4	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 25x22 mm / 1 in \| Option: Indicator \| Material: FKM buffer/packing
	LVD60-V25-FN4	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 25x22 mm / 1 in \| Option: Indicator \| Material: EPDM buffer/packing
	LVD60-V25-F5	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 25x22 mm / 1 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD60-V25-FN5	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 25x22 mm / 1 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD60-V25-F6	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 25x22 mm / 1 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
	LVD60-V25-FN6	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 25x22 mm / 1 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
	LVD60-V25-F9	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 25x22 mm / 1 in \| Option: High BP + indicator \| Material: FKM buffer/packing
	LVD60-V25-FN9	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: LQ1 fitting \| Tube size: 25x22 mm / 1 in \| Option: High BP + indicator \| Material: EPDM buffer/packing
	LVD61-V25-F	Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 25x22 mm / 1 in \| Option: None \| Material: FKM buffer/packing
	LVD61-V25-FN	Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 25x22 mm / 1 in \| Option: None \| Material: EPDM buffer/packing
	LVD61-V25-F5	Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 25x22 mm / 1 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD61-V25-FN5	Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Connection: LQ1 fitting \| Tube size: 25x22 mm / 1 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD62-V25-F	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 25x22 mm / 1 in \| Option: None \| Material: FKM buffer/packing
	LVD62-V25-FN	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 25x22 mm / 1 in \| Option: None \| Material: EPDM buffer/packing
	LVD62-V25-F1	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 25x22 mm / 1 in \| Option: Flow adjustment \| Material: FKM buffer/packing
	LVD62-V25-FN1	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 25x22 mm / 1 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
	LVD62-V25-F5	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 25x22 mm / 1 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD62-V25-FN5	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 25x22 mm / 1 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD62-V25-F6	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 25x22 mm / 1 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
	LVD62-V25-FN6	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Connection: LQ1 fitting \| Tube size: 25x22 mm / 1 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
	LVD20-Z06-F	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 6x4 mm \| Option: None \| Material: FKM buffer/packing
	LVD20-Z06-FN	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 6x4 mm \| Option: None \| Material: EPDM buffer/packing
	LVD20-Z06-F1	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 6x4 mm \| Option: Flow adjustment \| Material: FKM buffer/packing
	LVD20-Z06-FN1	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 6x4 mm \| Option: Flow adjustment \| Material: EPDM buffer/packing
	LVD20-Z06-F4	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 6x4 mm \| Option: Indicator \| Material: FKM buffer/packing
	LVD20-Z06-FN4	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 6x4 mm \| Option: Indicator \| Material: EPDM buffer/packing
	LVD20-Z06-F5	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 6x4 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD20-Z06-FN5	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 6x4 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD20-Z06-F6	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 6x4 mm \| Option: High BP + flow adj. \| Material: FKM buffer/packing
	LVD20-Z06-FN6	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 6x4 mm \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
	LVD20-Z06-F9	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 6x4 mm \| Option: High BP + indicator \| Material: FKM buffer/packing
	LVD20-Z06-FN9	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 6x4 mm \| Option: High BP + indicator \| Material: EPDM buffer/packing
	LVD21-Z06-F	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ3 flare fitting \| Tube size: 6x4 mm \| Option: None \| Material: FKM buffer/packing
	LVD21-Z06-FN	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ3 flare fitting \| Tube size: 6x4 mm \| Option: None \| Material: EPDM buffer/packing
	LVD21-Z06-F5	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ3 flare fitting \| Tube size: 6x4 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD21-Z06-FN5	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ3 flare fitting \| Tube size: 6x4 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD22-Z06-F	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 6x4 mm \| Option: None \| Material: FKM buffer/packing
	LVD22-Z06-FN	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 6x4 mm \| Option: None \| Material: EPDM buffer/packing
	LVD22-Z06-F1	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 6x4 mm \| Option: Flow adjustment \| Material: FKM buffer/packing
	LVD22-Z06-FN1	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 6x4 mm \| Option: Flow adjustment \| Material: EPDM buffer/packing
	LVD22-Z06-F5	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 6x4 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD22-Z06-FN5	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 6x4 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD22-Z06-F6	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 6x4 mm \| Option: High BP + flow adj. \| Material: FKM buffer/packing
	LVD22-Z06-FN6	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 6x4 mm \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
	LVD20-Z07-F	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 1/4 in \| Option: None \| Material: FKM buffer/packing
	LVD20-Z07-FN	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 1/4 in \| Option: None \| Material: EPDM buffer/packing
	LVD20-Z07-F1	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 1/4 in \| Option: Flow adjustment \| Material: FKM buffer/packing
	LVD20-Z07-FN1	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 1/4 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
	LVD20-Z07-F4	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 1/4 in \| Option: Indicator \| Material: FKM buffer/packing
	LVD20-Z07-FN4	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 1/4 in \| Option: Indicator \| Material: EPDM buffer/packing
	LVD20-Z07-F5	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 1/4 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD20-Z07-FN5	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 1/4 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD20-Z07-F6	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 1/4 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
	LVD20-Z07-FN6	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 1/4 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
	LVD20-Z07-F9	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 1/4 in \| Option: High BP + indicator \| Material: FKM buffer/packing
	LVD20-Z07-FN9	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 1/4 in \| Option: High BP + indicator \| Material: EPDM buffer/packing
	LVD21-Z07-F	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ3 flare fitting \| Tube size: 1/4 in \| Option: None \| Material: FKM buffer/packing
	LVD21-Z07-FN	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ3 flare fitting \| Tube size: 1/4 in \| Option: None \| Material: EPDM buffer/packing
	LVD21-Z07-F5	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ3 flare fitting \| Tube size: 1/4 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD21-Z07-FN5	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: LQ3 flare fitting \| Tube size: 1/4 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD22-Z07-F	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 1/4 in \| Option: None \| Material: FKM buffer/packing
	LVD22-Z07-FN	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 1/4 in \| Option: None \| Material: EPDM buffer/packing
	LVD22-Z07-F1	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 1/4 in \| Option: Flow adjustment \| Material: FKM buffer/packing
	LVD22-Z07-FN1	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 1/4 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
	LVD22-Z07-F5	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 1/4 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD22-Z07-FN5	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 1/4 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD22-Z07-F6	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 1/4 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
	LVD22-Z07-FN6	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 1/4 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
	LVD30-Z08-F	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 8x6 mm \| Option: None \| Material: FKM buffer/packing
	LVD30-Z08-FN	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 8x6 mm \| Option: None \| Material: EPDM buffer/packing
	LVD30-Z08-F1	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 8x6 mm \| Option: Flow adjustment \| Material: FKM buffer/packing
	LVD30-Z08-FN1	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 8x6 mm \| Option: Flow adjustment \| Material: EPDM buffer/packing
	LVD30-Z08-F4	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 8x6 mm \| Option: Indicator \| Material: FKM buffer/packing
	LVD30-Z08-FN4	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 8x6 mm \| Option: Indicator \| Material: EPDM buffer/packing
	LVD30-Z08-F5	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 8x6 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD30-Z08-FN5	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 8x6 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD30-Z08-F6	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 8x6 mm \| Option: High BP + flow adj. \| Material: FKM buffer/packing
	LVD30-Z08-FN6	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 8x6 mm \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
	LVD30-Z08-F9	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 8x6 mm \| Option: High BP + indicator \| Material: FKM buffer/packing
	LVD30-Z08-FN9	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 8x6 mm \| Option: High BP + indicator \| Material: EPDM buffer/packing
	LVD31-Z08-F	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ3 flare fitting \| Tube size: 8x6 mm \| Option: None \| Material: FKM buffer/packing
	LVD31-Z08-FN	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ3 flare fitting \| Tube size: 8x6 mm \| Option: None \| Material: EPDM buffer/packing
	LVD31-Z08-F5	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ3 flare fitting \| Tube size: 8x6 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD31-Z08-FN5	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ3 flare fitting \| Tube size: 8x6 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD32-Z08-F	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 8x6 mm \| Option: None \| Material: FKM buffer/packing
	LVD32-Z08-FN	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 8x6 mm \| Option: None \| Material: EPDM buffer/packing
	LVD32-Z08-F1	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 8x6 mm \| Option: Flow adjustment \| Material: FKM buffer/packing
	LVD32-Z08-FN1	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 8x6 mm \| Option: Flow adjustment \| Material: EPDM buffer/packing
	LVD32-Z08-F5	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 8x6 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD32-Z08-FN5	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 8x6 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD32-Z08-F6	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 8x6 mm \| Option: High BP + flow adj. \| Material: FKM buffer/packing
	LVD32-Z08-FN6	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 8x6 mm \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
	LVD30-Z10-F	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 10x8 mm \| Option: None \| Material: FKM buffer/packing
	LVD30-Z10-FN	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 10x8 mm \| Option: None \| Material: EPDM buffer/packing
	LVD30-Z10-F1	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 10x8 mm \| Option: Flow adjustment \| Material: FKM buffer/packing
	LVD30-Z10-FN1	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 10x8 mm \| Option: Flow adjustment \| Material: EPDM buffer/packing
	LVD30-Z10-F4	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 10x8 mm \| Option: Indicator \| Material: FKM buffer/packing
	LVD30-Z10-FN4	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 10x8 mm \| Option: Indicator \| Material: EPDM buffer/packing
	LVD30-Z10-F5	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 10x8 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD30-Z10-FN5	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 10x8 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD30-Z10-F6	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 10x8 mm \| Option: High BP + flow adj. \| Material: FKM buffer/packing
	LVD30-Z10-FN6	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 10x8 mm \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
	LVD30-Z10-F9	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 10x8 mm \| Option: High BP + indicator \| Material: FKM buffer/packing
	LVD30-Z10-FN9	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 10x8 mm \| Option: High BP + indicator \| Material: EPDM buffer/packing
	LVD31-Z10-F	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ3 flare fitting \| Tube size: 10x8 mm \| Option: None \| Material: FKM buffer/packing
	LVD31-Z10-FN	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ3 flare fitting \| Tube size: 10x8 mm \| Option: None \| Material: EPDM buffer/packing
	LVD31-Z10-F5	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ3 flare fitting \| Tube size: 10x8 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD31-Z10-FN5	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ3 flare fitting \| Tube size: 10x8 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD32-Z10-F	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 10x8 mm \| Option: None \| Material: FKM buffer/packing
	LVD32-Z10-FN	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 10x8 mm \| Option: None \| Material: EPDM buffer/packing
	LVD32-Z10-F1	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 10x8 mm \| Option: Flow adjustment \| Material: FKM buffer/packing
	LVD32-Z10-FN1	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 10x8 mm \| Option: Flow adjustment \| Material: EPDM buffer/packing
	LVD32-Z10-F5	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 10x8 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD32-Z10-FN5	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 10x8 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD32-Z10-F6	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 10x8 mm \| Option: High BP + flow adj. \| Material: FKM buffer/packing
	LVD32-Z10-FN6	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 10x8 mm \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
	LVD30-Z11-F	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 3/8 in \| Option: None \| Material: FKM buffer/packing
	LVD30-Z11-FN	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 3/8 in \| Option: None \| Material: EPDM buffer/packing
	LVD30-Z11-F1	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 3/8 in \| Option: Flow adjustment \| Material: FKM buffer/packing
	LVD30-Z11-FN1	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 3/8 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
	LVD30-Z11-F4	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 3/8 in \| Option: Indicator \| Material: FKM buffer/packing
	LVD30-Z11-FN4	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 3/8 in \| Option: Indicator \| Material: EPDM buffer/packing
	LVD30-Z11-F5	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 3/8 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD30-Z11-FN5	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 3/8 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD30-Z11-F6	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 3/8 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
	LVD30-Z11-FN6	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 3/8 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
	LVD30-Z11-F9	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 3/8 in \| Option: High BP + indicator \| Material: FKM buffer/packing
	LVD30-Z11-FN9	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 3/8 in \| Option: High BP + indicator \| Material: EPDM buffer/packing
	LVD31-Z11-F	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ3 flare fitting \| Tube size: 3/8 in \| Option: None \| Material: FKM buffer/packing
	LVD31-Z11-FN	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ3 flare fitting \| Tube size: 3/8 in \| Option: None \| Material: EPDM buffer/packing
	LVD31-Z11-F5	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ3 flare fitting \| Tube size: 3/8 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD31-Z11-FN5	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: LQ3 flare fitting \| Tube size: 3/8 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD32-Z11-F	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 3/8 in \| Option: None \| Material: FKM buffer/packing
	LVD32-Z11-FN	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 3/8 in \| Option: None \| Material: EPDM buffer/packing
	LVD32-Z11-F1	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 3/8 in \| Option: Flow adjustment \| Material: FKM buffer/packing
	LVD32-Z11-FN1	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 3/8 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
	LVD32-Z11-F5	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 3/8 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD32-Z11-FN5	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 3/8 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD32-Z11-F6	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 3/8 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
	LVD32-Z11-FN6	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 3/8 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
	LVD40-Z12-F	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 12x10 mm \| Option: None \| Material: FKM buffer/packing
	LVD40-Z12-FN	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 12x10 mm \| Option: None \| Material: EPDM buffer/packing
	LVD40-Z12-F1	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 12x10 mm \| Option: Flow adjustment \| Material: FKM buffer/packing
	LVD40-Z12-FN1	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 12x10 mm \| Option: Flow adjustment \| Material: EPDM buffer/packing
	LVD40-Z12-F4	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 12x10 mm \| Option: Indicator \| Material: FKM buffer/packing
	LVD40-Z12-FN4	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 12x10 mm \| Option: Indicator \| Material: EPDM buffer/packing
	LVD40-Z12-F5	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 12x10 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD40-Z12-FN5	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 12x10 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD40-Z12-F6	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 12x10 mm \| Option: High BP + flow adj. \| Material: FKM buffer/packing
	LVD40-Z12-FN6	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 12x10 mm \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
	LVD40-Z12-F9	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 12x10 mm \| Option: High BP + indicator \| Material: FKM buffer/packing
	LVD40-Z12-FN9	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 12x10 mm \| Option: High BP + indicator \| Material: EPDM buffer/packing
	LVD41-Z12-F	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ3 flare fitting \| Tube size: 12x10 mm \| Option: None \| Material: FKM buffer/packing
	LVD41-Z12-FN	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ3 flare fitting \| Tube size: 12x10 mm \| Option: None \| Material: EPDM buffer/packing
	LVD41-Z12-F5	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ3 flare fitting \| Tube size: 12x10 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD41-Z12-FN5	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ3 flare fitting \| Tube size: 12x10 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD42-Z12-F	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 12x10 mm \| Option: None \| Material: FKM buffer/packing
	LVD42-Z12-FN	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 12x10 mm \| Option: None \| Material: EPDM buffer/packing
	LVD42-Z12-F1	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 12x10 mm \| Option: Flow adjustment \| Material: FKM buffer/packing
	LVD42-Z12-FN1	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 12x10 mm \| Option: Flow adjustment \| Material: EPDM buffer/packing
	LVD42-Z12-F5	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 12x10 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD42-Z12-FN5	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 12x10 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD42-Z12-F6	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 12x10 mm \| Option: High BP + flow adj. \| Material: FKM buffer/packing
	LVD42-Z12-FN6	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 12x10 mm \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
	LVD40-Z13-F	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 1/2 in \| Option: None \| Material: FKM buffer/packing
	LVD40-Z13-FN	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 1/2 in \| Option: None \| Material: EPDM buffer/packing
	LVD40-Z13-F1	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 1/2 in \| Option: Flow adjustment \| Material: FKM buffer/packing
	LVD40-Z13-FN1	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 1/2 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
	LVD40-Z13-F4	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 1/2 in \| Option: Indicator \| Material: FKM buffer/packing
	LVD40-Z13-FN4	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 1/2 in \| Option: Indicator \| Material: EPDM buffer/packing
	LVD40-Z13-F5	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 1/2 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD40-Z13-FN5	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 1/2 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD40-Z13-F6	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 1/2 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
	LVD40-Z13-FN6	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 1/2 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
	LVD40-Z13-F9	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 1/2 in \| Option: High BP + indicator \| Material: FKM buffer/packing
	LVD40-Z13-FN9	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 1/2 in \| Option: High BP + indicator \| Material: EPDM buffer/packing
	LVD41-Z13-F	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ3 flare fitting \| Tube size: 1/2 in \| Option: None \| Material: FKM buffer/packing
	LVD41-Z13-FN	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ3 flare fitting \| Tube size: 1/2 in \| Option: None \| Material: EPDM buffer/packing
	LVD41-Z13-F5	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ3 flare fitting \| Tube size: 1/2 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD41-Z13-FN5	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: LQ3 flare fitting \| Tube size: 1/2 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD42-Z13-F	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 1/2 in \| Option: None \| Material: FKM buffer/packing
	LVD42-Z13-FN	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 1/2 in \| Option: None \| Material: EPDM buffer/packing
	LVD42-Z13-F1	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 1/2 in \| Option: Flow adjustment \| Material: FKM buffer/packing
	LVD42-Z13-FN1	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 1/2 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
	LVD42-Z13-F5	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 1/2 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD42-Z13-FN5	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 1/2 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD42-Z13-F6	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 1/2 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
	LVD42-Z13-FN6	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 1/2 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
	LVD50-Z19-F	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 19x16 mm / 3/4 in \| Option: None \| Material: FKM buffer/packing
	LVD50-Z19-FN	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 19x16 mm / 3/4 in \| Option: None \| Material: EPDM buffer/packing
	LVD50-Z19-F1	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 19x16 mm / 3/4 in \| Option: Flow adjustment \| Material: FKM buffer/packing
	LVD50-Z19-FN1	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 19x16 mm / 3/4 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
	LVD50-Z19-F4	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 19x16 mm / 3/4 in \| Option: Indicator \| Material: FKM buffer/packing
	LVD50-Z19-FN4	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 19x16 mm / 3/4 in \| Option: Indicator \| Material: EPDM buffer/packing
	LVD50-Z19-F5	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD50-Z19-FN5	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD50-Z19-F6	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
	LVD50-Z19-FN6	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
	LVD50-Z19-F9	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High BP + indicator \| Material: FKM buffer/packing
	LVD50-Z19-FN9	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High BP + indicator \| Material: EPDM buffer/packing
	LVD51-Z19-F	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Connection: LQ3 flare fitting \| Tube size: 19x16 mm / 3/4 in \| Option: None \| Material: FKM buffer/packing
	LVD51-Z19-FN	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Connection: LQ3 flare fitting \| Tube size: 19x16 mm / 3/4 in \| Option: None \| Material: EPDM buffer/packing
	LVD51-Z19-F5	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Connection: LQ3 flare fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD51-Z19-FN5	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Connection: LQ3 flare fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD52-Z19-F	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 19x16 mm / 3/4 in \| Option: None \| Material: FKM buffer/packing
	LVD52-Z19-FN	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 19x16 mm / 3/4 in \| Option: None \| Material: EPDM buffer/packing
	LVD52-Z19-F1	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 19x16 mm / 3/4 in \| Option: Flow adjustment \| Material: FKM buffer/packing
	LVD52-Z19-FN1	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 19x16 mm / 3/4 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
	LVD52-Z19-F5	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD52-Z19-FN5	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD52-Z19-F6	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
	LVD52-Z19-FN6	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 19x16 mm / 3/4 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
	LVD60-Z25-F	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 25x22 mm / 1 in \| Option: None \| Material: FKM buffer/packing
	LVD60-Z25-FN	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 25x22 mm / 1 in \| Option: None \| Material: EPDM buffer/packing
	LVD60-Z25-F1	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 25x22 mm / 1 in \| Option: Flow adjustment \| Material: FKM buffer/packing
	LVD60-Z25-FN1	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 25x22 mm / 1 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
	LVD60-Z25-F4	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 25x22 mm / 1 in \| Option: Indicator \| Material: FKM buffer/packing
	LVD60-Z25-FN4	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 25x22 mm / 1 in \| Option: Indicator \| Material: EPDM buffer/packing
	LVD60-Z25-F5	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 25x22 mm / 1 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD60-Z25-FN5	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 25x22 mm / 1 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD60-Z25-F6	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 25x22 mm / 1 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
	LVD60-Z25-FN6	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 25x22 mm / 1 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
	LVD60-Z25-F9	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 25x22 mm / 1 in \| Option: High BP + indicator \| Material: FKM buffer/packing
	LVD60-Z25-FN9	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: LQ3 flare fitting \| Tube size: 25x22 mm / 1 in \| Option: High BP + indicator \| Material: EPDM buffer/packing
	LVD61-Z25-F	Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Connection: LQ3 flare fitting \| Tube size: 25x22 mm / 1 in \| Option: None \| Material: FKM buffer/packing
	LVD61-Z25-FN	Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Connection: LQ3 flare fitting \| Tube size: 25x22 mm / 1 in \| Option: None \| Material: EPDM buffer/packing
	LVD61-Z25-F5	Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Connection: LQ3 flare fitting \| Tube size: 25x22 mm / 1 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD61-Z25-FN5	Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Connection: LQ3 flare fitting \| Tube size: 25x22 mm / 1 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD62-Z25-F	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 25x22 mm / 1 in \| Option: None \| Material: FKM buffer/packing
	LVD62-Z25-FN	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 25x22 mm / 1 in \| Option: None \| Material: EPDM buffer/packing
	LVD62-Z25-F1	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 25x22 mm / 1 in \| Option: Flow adjustment \| Material: FKM buffer/packing
	LVD62-Z25-FN1	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 25x22 mm / 1 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
	LVD62-Z25-F5	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 25x22 mm / 1 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD62-Z25-FN5	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 25x22 mm / 1 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD62-Z25-F6	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 25x22 mm / 1 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
	LVD62-Z25-FN6	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Connection: LQ3 flare fitting \| Tube size: 25x22 mm / 1 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
	LVD20-T06-F	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 6 mm \| Option: None \| Material: FKM buffer/packing
	LVD20-T06-FN	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 6 mm \| Option: None \| Material: EPDM buffer/packing
	LVD20-T06-F1	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 6 mm \| Option: Flow adjustment \| Material: FKM buffer/packing
	LVD20-T06-FN1	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 6 mm \| Option: Flow adjustment \| Material: EPDM buffer/packing
	LVD20-T06-F4	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 6 mm \| Option: Indicator \| Material: FKM buffer/packing
	LVD20-T06-FN4	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 6 mm \| Option: Indicator \| Material: EPDM buffer/packing
	LVD20-T06-F5	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 6 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD20-T06-FN5	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 6 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD20-T06-F6	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 6 mm \| Option: High BP + flow adj. \| Material: FKM buffer/packing
	LVD20-T06-FN6	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 6 mm \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
	LVD20-T06-F9	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 6 mm \| Option: High BP + indicator \| Material: FKM buffer/packing
	LVD20-T06-FN9	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 6 mm \| Option: High BP + indicator \| Material: EPDM buffer/packing
	LVD21-T06-F	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: Integral tube \| Tube size: OD 6 mm \| Option: None \| Material: FKM buffer/packing
	LVD21-T06-FN	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: Integral tube \| Tube size: OD 6 mm \| Option: None \| Material: EPDM buffer/packing
	LVD21-T06-F5	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: Integral tube \| Tube size: OD 6 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD21-T06-FN5	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: Integral tube \| Tube size: OD 6 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD22-T06-F	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 6 mm \| Option: None \| Material: FKM buffer/packing
	LVD22-T06-FN	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 6 mm \| Option: None \| Material: EPDM buffer/packing
	LVD22-T06-F1	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 6 mm \| Option: Flow adjustment \| Material: FKM buffer/packing
	LVD22-T06-FN1	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 6 mm \| Option: Flow adjustment \| Material: EPDM buffer/packing
	LVD22-T06-F5	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 6 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD22-T06-FN5	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 6 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD22-T06-F6	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 6 mm \| Option: High BP + flow adj. \| Material: FKM buffer/packing
	LVD22-T06-FN6	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 6 mm \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
	LVD20-T07-F	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 1/4 in \| Option: None \| Material: FKM buffer/packing
	LVD20-T07-FN	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 1/4 in \| Option: None \| Material: EPDM buffer/packing
	LVD20-T07-F1	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 1/4 in \| Option: Flow adjustment \| Material: FKM buffer/packing
	LVD20-T07-FN1	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 1/4 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
	LVD20-T07-F4	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 1/4 in \| Option: Indicator \| Material: FKM buffer/packing
	LVD20-T07-FN4	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 1/4 in \| Option: Indicator \| Material: EPDM buffer/packing
	LVD20-T07-F5	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 1/4 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD20-T07-FN5	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 1/4 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD20-T07-F6	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 1/4 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
	LVD20-T07-FN6	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 1/4 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
	LVD20-T07-F9	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 1/4 in \| Option: High BP + indicator \| Material: FKM buffer/packing
	LVD20-T07-FN9	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 1/4 in \| Option: High BP + indicator \| Material: EPDM buffer/packing
	LVD21-T07-F	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: Integral tube \| Tube size: OD 1/4 in \| Option: None \| Material: FKM buffer/packing
	LVD21-T07-FN	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: Integral tube \| Tube size: OD 1/4 in \| Option: None \| Material: EPDM buffer/packing
	LVD21-T07-F5	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: Integral tube \| Tube size: OD 1/4 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD21-T07-FN5	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Connection: Integral tube \| Tube size: OD 1/4 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD22-T07-F	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 1/4 in \| Option: None \| Material: FKM buffer/packing
	LVD22-T07-FN	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 1/4 in \| Option: None \| Material: EPDM buffer/packing
	LVD22-T07-F1	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 1/4 in \| Option: Flow adjustment \| Material: FKM buffer/packing
	LVD22-T07-FN1	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 1/4 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
	LVD22-T07-F5	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 1/4 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD22-T07-FN5	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 1/4 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD22-T07-F6	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 1/4 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
	LVD22-T07-FN6	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 1/4 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
	LVD30-T10-F	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 10 mm \| Option: None \| Material: FKM buffer/packing
	LVD30-T10-FN	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 10 mm \| Option: None \| Material: EPDM buffer/packing
	LVD30-T10-F1	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 10 mm \| Option: Flow adjustment \| Material: FKM buffer/packing
	LVD30-T10-FN1	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 10 mm \| Option: Flow adjustment \| Material: EPDM buffer/packing
	LVD30-T10-F4	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 10 mm \| Option: Indicator \| Material: FKM buffer/packing
	LVD30-T10-FN4	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 10 mm \| Option: Indicator \| Material: EPDM buffer/packing
	LVD30-T10-F5	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 10 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD30-T10-FN5	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 10 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD30-T10-F6	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 10 mm \| Option: High BP + flow adj. \| Material: FKM buffer/packing
	LVD30-T10-FN6	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 10 mm \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
	LVD30-T10-F9	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 10 mm \| Option: High BP + indicator \| Material: FKM buffer/packing
	LVD30-T10-FN9	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 10 mm \| Option: High BP + indicator \| Material: EPDM buffer/packing
	LVD31-T10-F	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: Integral tube \| Tube size: OD 10 mm \| Option: None \| Material: FKM buffer/packing
	LVD31-T10-FN	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: Integral tube \| Tube size: OD 10 mm \| Option: None \| Material: EPDM buffer/packing
	LVD31-T10-F5	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: Integral tube \| Tube size: OD 10 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD31-T10-FN5	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: Integral tube \| Tube size: OD 10 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD32-T10-F	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 10 mm \| Option: None \| Material: FKM buffer/packing
	LVD32-T10-FN	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 10 mm \| Option: None \| Material: EPDM buffer/packing
	LVD32-T10-F1	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 10 mm \| Option: Flow adjustment \| Material: FKM buffer/packing
	LVD32-T10-FN1	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 10 mm \| Option: Flow adjustment \| Material: EPDM buffer/packing
	LVD32-T10-F5	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 10 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD32-T10-FN5	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 10 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD32-T10-F6	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 10 mm \| Option: High BP + flow adj. \| Material: FKM buffer/packing
	LVD32-T10-FN6	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 10 mm \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
	LVD30-T11-F	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 3/8 in \| Option: None \| Material: FKM buffer/packing
	LVD30-T11-FN	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 3/8 in \| Option: None \| Material: EPDM buffer/packing
	LVD30-T11-F1	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 3/8 in \| Option: Flow adjustment \| Material: FKM buffer/packing
	LVD30-T11-FN1	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 3/8 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
	LVD30-T11-F4	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 3/8 in \| Option: Indicator \| Material: FKM buffer/packing
	LVD30-T11-FN4	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 3/8 in \| Option: Indicator \| Material: EPDM buffer/packing
	LVD30-T11-F5	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 3/8 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD30-T11-FN5	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 3/8 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD30-T11-F6	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 3/8 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
	LVD30-T11-FN6	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 3/8 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
	LVD30-T11-F9	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 3/8 in \| Option: High BP + indicator \| Material: FKM buffer/packing
	LVD30-T11-FN9	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 3/8 in \| Option: High BP + indicator \| Material: EPDM buffer/packing
	LVD31-T11-F	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: Integral tube \| Tube size: OD 3/8 in \| Option: None \| Material: FKM buffer/packing
	LVD31-T11-FN	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: Integral tube \| Tube size: OD 3/8 in \| Option: None \| Material: EPDM buffer/packing
	LVD31-T11-F5	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: Integral tube \| Tube size: OD 3/8 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD31-T11-FN5	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Connection: Integral tube \| Tube size: OD 3/8 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD32-T11-F	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 3/8 in \| Option: None \| Material: FKM buffer/packing
	LVD32-T11-FN	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 3/8 in \| Option: None \| Material: EPDM buffer/packing
	LVD32-T11-F1	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 3/8 in \| Option: Flow adjustment \| Material: FKM buffer/packing
	LVD32-T11-FN1	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 3/8 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
	LVD32-T11-F5	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 3/8 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD32-T11-FN5	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 3/8 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD32-T11-F6	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 3/8 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
	LVD32-T11-FN6	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 3/8 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
	LVD40-T12-F	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 12 mm \| Option: None \| Material: FKM buffer/packing
	LVD40-T12-FN	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 12 mm \| Option: None \| Material: EPDM buffer/packing
	LVD40-T12-F1	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 12 mm \| Option: Flow adjustment \| Material: FKM buffer/packing
	LVD40-T12-FN1	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 12 mm \| Option: Flow adjustment \| Material: EPDM buffer/packing
	LVD40-T12-F4	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 12 mm \| Option: Indicator \| Material: FKM buffer/packing
	LVD40-T12-FN4	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 12 mm \| Option: Indicator \| Material: EPDM buffer/packing
	LVD40-T12-F5	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 12 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD40-T12-FN5	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 12 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD40-T12-F6	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 12 mm \| Option: High BP + flow adj. \| Material: FKM buffer/packing
	LVD40-T12-FN6	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 12 mm \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
	LVD40-T12-F9	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 12 mm \| Option: High BP + indicator \| Material: FKM buffer/packing
	LVD40-T12-FN9	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 12 mm \| Option: High BP + indicator \| Material: EPDM buffer/packing
	LVD41-T12-F	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: Integral tube \| Tube size: OD 12 mm \| Option: None \| Material: FKM buffer/packing
	LVD41-T12-FN	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: Integral tube \| Tube size: OD 12 mm \| Option: None \| Material: EPDM buffer/packing
	LVD41-T12-F5	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: Integral tube \| Tube size: OD 12 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD41-T12-FN5	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: Integral tube \| Tube size: OD 12 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD42-T12-F	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 12 mm \| Option: None \| Material: FKM buffer/packing
	LVD42-T12-FN	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 12 mm \| Option: None \| Material: EPDM buffer/packing
	LVD42-T12-F1	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 12 mm \| Option: Flow adjustment \| Material: FKM buffer/packing
	LVD42-T12-FN1	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 12 mm \| Option: Flow adjustment \| Material: EPDM buffer/packing
	LVD42-T12-F5	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 12 mm \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD42-T12-FN5	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 12 mm \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD42-T12-F6	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 12 mm \| Option: High BP + flow adj. \| Material: FKM buffer/packing
	LVD42-T12-FN6	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 12 mm \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
	LVD40-T13-F	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 1/2 in \| Option: None \| Material: FKM buffer/packing
	LVD40-T13-FN	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 1/2 in \| Option: None \| Material: EPDM buffer/packing
	LVD40-T13-F1	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 1/2 in \| Option: Flow adjustment \| Material: FKM buffer/packing
	LVD40-T13-FN1	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 1/2 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
	LVD40-T13-F4	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 1/2 in \| Option: Indicator \| Material: FKM buffer/packing
	LVD40-T13-FN4	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 1/2 in \| Option: Indicator \| Material: EPDM buffer/packing
	LVD40-T13-F5	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 1/2 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD40-T13-FN5	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 1/2 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD40-T13-F6	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 1/2 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
	LVD40-T13-FN6	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 1/2 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
	LVD40-T13-F9	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 1/2 in \| Option: High BP + indicator \| Material: FKM buffer/packing
	LVD40-T13-FN9	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 1/2 in \| Option: High BP + indicator \| Material: EPDM buffer/packing
	LVD41-T13-F	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: Integral tube \| Tube size: OD 1/2 in \| Option: None \| Material: FKM buffer/packing
	LVD41-T13-FN	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: Integral tube \| Tube size: OD 1/2 in \| Option: None \| Material: EPDM buffer/packing
	LVD41-T13-F5	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: Integral tube \| Tube size: OD 1/2 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD41-T13-FN5	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Connection: Integral tube \| Tube size: OD 1/2 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD42-T13-F	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 1/2 in \| Option: None \| Material: FKM buffer/packing
	LVD42-T13-FN	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 1/2 in \| Option: None \| Material: EPDM buffer/packing
	LVD42-T13-F1	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 1/2 in \| Option: Flow adjustment \| Material: FKM buffer/packing
	LVD42-T13-FN1	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 1/2 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
	LVD42-T13-F5	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 1/2 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD42-T13-FN5	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 1/2 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD42-T13-F6	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 1/2 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
	LVD42-T13-FN6	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 1/2 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
	LVD50-T19-F	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 19 mm / 3/4 in \| Option: None \| Material: FKM buffer/packing
	LVD50-T19-FN	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 19 mm / 3/4 in \| Option: None \| Material: EPDM buffer/packing
	LVD50-T19-F1	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 19 mm / 3/4 in \| Option: Flow adjustment \| Material: FKM buffer/packing
	LVD50-T19-FN1	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 19 mm / 3/4 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
	LVD50-T19-F4	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 19 mm / 3/4 in \| Option: Indicator \| Material: FKM buffer/packing
	LVD50-T19-FN4	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 19 mm / 3/4 in \| Option: Indicator \| Material: EPDM buffer/packing
	LVD50-T19-F5	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 19 mm / 3/4 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD50-T19-FN5	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 19 mm / 3/4 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD50-T19-F6	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 19 mm / 3/4 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
	LVD50-T19-FN6	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 19 mm / 3/4 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
	LVD50-T19-F9	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 19 mm / 3/4 in \| Option: High BP + indicator \| Material: FKM buffer/packing
	LVD50-T19-FN9	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 19 mm / 3/4 in \| Option: High BP + indicator \| Material: EPDM buffer/packing
	LVD51-T19-F	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Connection: Integral tube \| Tube size: OD 19 mm / 3/4 in \| Option: None \| Material: FKM buffer/packing
	LVD51-T19-FN	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Connection: Integral tube \| Tube size: OD 19 mm / 3/4 in \| Option: None \| Material: EPDM buffer/packing
	LVD51-T19-F5	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Connection: Integral tube \| Tube size: OD 19 mm / 3/4 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD51-T19-FN5	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Connection: Integral tube \| Tube size: OD 19 mm / 3/4 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD52-T19-F	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 19 mm / 3/4 in \| Option: None \| Material: FKM buffer/packing
	LVD52-T19-FN	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 19 mm / 3/4 in \| Option: None \| Material: EPDM buffer/packing
	LVD52-T19-F1	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 19 mm / 3/4 in \| Option: Flow adjustment \| Material: FKM buffer/packing
	LVD52-T19-FN1	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 19 mm / 3/4 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
	LVD52-T19-F5	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 19 mm / 3/4 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD52-T19-FN5	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 19 mm / 3/4 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD52-T19-F6	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 19 mm / 3/4 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
	LVD52-T19-FN6	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 19 mm / 3/4 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
	LVD60-T25-F	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 25 mm / 1 in \| Option: None \| Material: FKM buffer/packing
	LVD60-T25-FN	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 25 mm / 1 in \| Option: None \| Material: EPDM buffer/packing
	LVD60-T25-F1	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 25 mm / 1 in \| Option: Flow adjustment \| Material: FKM buffer/packing
	LVD60-T25-FN1	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 25 mm / 1 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
	LVD60-T25-F4	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 25 mm / 1 in \| Option: Indicator \| Material: FKM buffer/packing
	LVD60-T25-FN4	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 25 mm / 1 in \| Option: Indicator \| Material: EPDM buffer/packing
	LVD60-T25-F5	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 25 mm / 1 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD60-T25-FN5	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 25 mm / 1 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD60-T25-F6	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 25 mm / 1 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
	LVD60-T25-FN6	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 25 mm / 1 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing
	LVD60-T25-F9	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 25 mm / 1 in \| Option: High BP + indicator \| Material: FKM buffer/packing
	LVD60-T25-FN9	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Connection: Integral tube \| Tube size: OD 25 mm / 1 in \| Option: High BP + indicator \| Material: EPDM buffer/packing
	LVD61-T25-F	Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Connection: Integral tube \| Tube size: OD 25 mm / 1 in \| Option: None \| Material: FKM buffer/packing
	LVD61-T25-FN	Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Connection: Integral tube \| Tube size: OD 25 mm / 1 in \| Option: None \| Material: EPDM buffer/packing
	LVD61-T25-F5	Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Connection: Integral tube \| Tube size: OD 25 mm / 1 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD61-T25-FN5	Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Connection: Integral tube \| Tube size: OD 25 mm / 1 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD62-T25-F	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 25 mm / 1 in \| Option: None \| Material: FKM buffer/packing
	LVD62-T25-FN	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 25 mm / 1 in \| Option: None \| Material: EPDM buffer/packing
	LVD62-T25-F1	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 25 mm / 1 in \| Option: Flow adjustment \| Material: FKM buffer/packing
	LVD62-T25-FN1	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 25 mm / 1 in \| Option: Flow adjustment \| Material: EPDM buffer/packing
	LVD62-T25-F5	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 25 mm / 1 in \| Option: High back pressure 0.5 MPa \| Material: FKM buffer/packing
	LVD62-T25-FN5	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 25 mm / 1 in \| Option: High back pressure 0.5 MPa \| Material: EPDM buffer/packing
	LVD62-T25-F6	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 25 mm / 1 in \| Option: High BP + flow adj. \| Material: FKM buffer/packing
	LVD62-T25-FN6	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Connection: Integral tube \| Tube size: OD 25 mm / 1 in \| Option: High BP + flow adj. \| Material: EPDM buffer/packing

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC LVD-F/FN Compact Air Operated Chemical Valve (PVDF Actuator)
