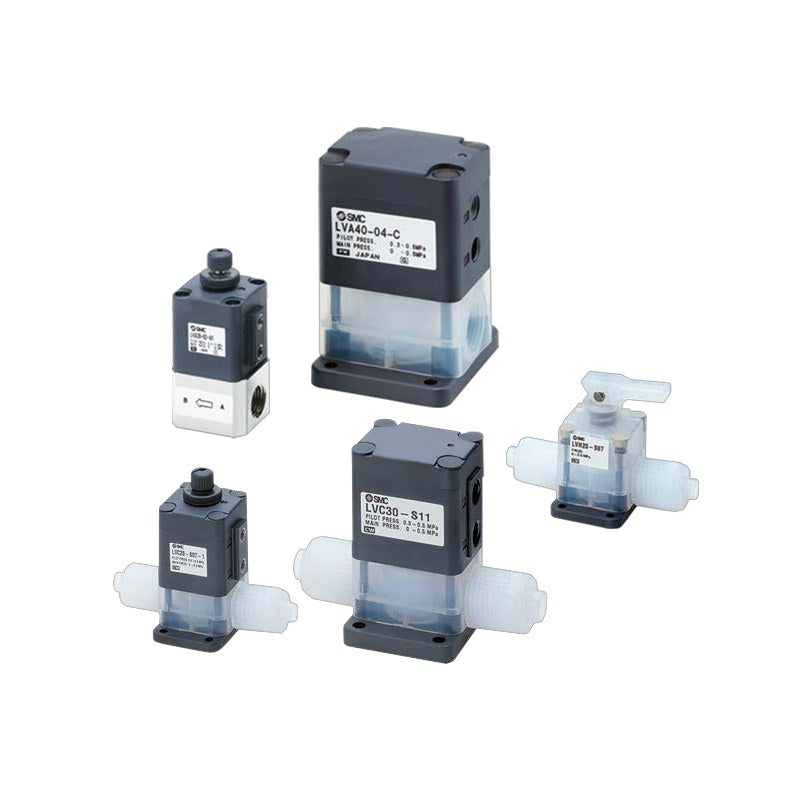

SMC LVH Manual Chemical Valve (LQ2 Fitting / Threaded)

SMC LVH Manual Chemical Valve (LQ2 Fitting / Threaded)

SMC LVH series lever-operated manual 2-port N.C. chemical valve, with integrated LQ2 fittings (PFA) or threaded SUS/PPS/PFA body, body classes 2 to 4, plus manifold valves and LLH manifold bases.

Key features

  • Toggle lever operation, non-lock (self return) or lock type (L)
  • Fitting integrated type: PFA body with LQ2 hyper fittings for 3 mm to 12 mm (1/8 to 1/2 in) tube
  • Threaded type: SUS316, PPS or PFA body, Rc1/8 to Rc1/2 (NPT/G on order)
  • Stacking manifold LLH (2 to 5 stations, PFA, common IN, individual OUT) in fitting or threaded versions
  • Different B-port tube size and manifold R-side tube size are suffixes

Specifications

Operation Manual, toggle lever
Valve type N.C., 2-port
Proof pressure 1 MPa
Operating pressure A to B 0 to 0.5 MPa; B to A 0 to 0.2 MPa
Back pressure 0.3 MPa or less
Fluid and ambient temperature 0 to 60°C
Valve leakage 0 cm3/min (with water)
Flow Kv LVH20 0.3, LVH30 1.4, LVH40 2.1
Source SMC Korea catalog LVC/LVA/LVH Series (SMCKR_LVC_LVA_LVH.pdf), p. 190-200 (PDF p. 39-49)
LVH20-S03 Type: Single, LQ2 fitting | Body class: 2 (orifice 4 mm) | Lever: Non-lock (self return) | Connection: 3x2 mm or 1/8 in | Material: PFA body, PTFE
LVH20-S04 Type: Single, LQ2 fitting | Body class: 2 (orifice 4 mm) | Lever: Non-lock (self return) | Connection: 4x3 mm | Material: PFA body, PTFE
LVH20-S05 Type: Single, LQ2 fitting | Body class: 2 (orifice 4 mm) | Lever: Non-lock (self return) | Connection: 3/16x1/8 in | Material: PFA body, PTFE
LVH20-S06 Type: Single, LQ2 fitting | Body class: 2 (orifice 4 mm) | Lever: Non-lock (self return) | Connection: 6x4 mm | Material: PFA body, PTFE
LVH20-S07 Type: Single, LQ2 fitting | Body class: 2 (orifice 4 mm) | Lever: Non-lock (self return) | Connection: 1/4x5/32 in | Material: PFA body, PTFE
LVH20L-S03 Type: Single, LQ2 fitting | Body class: 2 (orifice 4 mm) | Lever: Lock | Connection: 3x2 mm or 1/8 in | Material: PFA body, PTFE
LVH20L-S04 Type: Single, LQ2 fitting | Body class: 2 (orifice 4 mm) | Lever: Lock | Connection: 4x3 mm | Material: PFA body, PTFE
LVH20L-S05 Type: Single, LQ2 fitting | Body class: 2 (orifice 4 mm) | Lever: Lock | Connection: 3/16x1/8 in | Material: PFA body, PTFE
LVH20L-S06 Type: Single, LQ2 fitting | Body class: 2 (orifice 4 mm) | Lever: Lock | Connection: 6x4 mm | Material: PFA body, PTFE
LVH20L-S07 Type: Single, LQ2 fitting | Body class: 2 (orifice 4 mm) | Lever: Lock | Connection: 1/4x5/32 in | Material: PFA body, PTFE
LVH30-S06 Type: Single, LQ2 fitting | Body class: 3 (orifice 8 mm) | Lever: Non-lock (self return) | Connection: 6x4 mm | Material: PFA body, PTFE
LVH30-S07 Type: Single, LQ2 fitting | Body class: 3 (orifice 8 mm) | Lever: Non-lock (self return) | Connection: 1/4x5/32 in | Material: PFA body, PTFE
LVH30-S08 Type: Single, LQ2 fitting | Body class: 3 (orifice 8 mm) | Lever: Non-lock (self return) | Connection: 8x6 mm | Material: PFA body, PTFE
LVH30-S10 Type: Single, LQ2 fitting | Body class: 3 (orifice 8 mm) | Lever: Non-lock (self return) | Connection: 10x8 mm | Material: PFA body, PTFE
LVH30-S11 Type: Single, LQ2 fitting | Body class: 3 (orifice 8 mm) | Lever: Non-lock (self return) | Connection: 3/8x1/4 in | Material: PFA body, PTFE
LVH30L-S06 Type: Single, LQ2 fitting | Body class: 3 (orifice 8 mm) | Lever: Lock | Connection: 6x4 mm | Material: PFA body, PTFE
LVH30L-S07 Type: Single, LQ2 fitting | Body class: 3 (orifice 8 mm) | Lever: Lock | Connection: 1/4x5/32 in | Material: PFA body, PTFE
LVH30L-S08 Type: Single, LQ2 fitting | Body class: 3 (orifice 8 mm) | Lever: Lock | Connection: 8x6 mm | Material: PFA body, PTFE
LVH30L-S10 Type: Single, LQ2 fitting | Body class: 3 (orifice 8 mm) | Lever: Lock | Connection: 10x8 mm | Material: PFA body, PTFE
LVH30L-S11 Type: Single, LQ2 fitting | Body class: 3 (orifice 8 mm) | Lever: Lock | Connection: 3/8x1/4 in | Material: PFA body, PTFE
LVH40-S10 Type: Single, LQ2 fitting | Body class: 4 (orifice 10 mm) | Lever: Non-lock (self return) | Connection: 10x8 mm | Material: PFA body, PTFE
LVH40-S11 Type: Single, LQ2 fitting | Body class: 4 (orifice 10 mm) | Lever: Non-lock (self return) | Connection: 3/8x1/4 in | Material: PFA body, PTFE
LVH40-S12 Type: Single, LQ2 fitting | Body class: 4 (orifice 10 mm) | Lever: Non-lock (self return) | Connection: 12x10 mm | Material: PFA body, PTFE
LVH40-S13 Type: Single, LQ2 fitting | Body class: 4 (orifice 10 mm) | Lever: Non-lock (self return) | Connection: 1/2x3/8 in | Material: PFA body, PTFE
LVH40L-S10 Type: Single, LQ2 fitting | Body class: 4 (orifice 10 mm) | Lever: Lock | Connection: 10x8 mm | Material: PFA body, PTFE
LVH40L-S11 Type: Single, LQ2 fitting | Body class: 4 (orifice 10 mm) | Lever: Lock | Connection: 3/8x1/4 in | Material: PFA body, PTFE
LVH40L-S12 Type: Single, LQ2 fitting | Body class: 4 (orifice 10 mm) | Lever: Lock | Connection: 12x10 mm | Material: PFA body, PTFE
LVH40L-S13 Type: Single, LQ2 fitting | Body class: 4 (orifice 10 mm) | Lever: Lock | Connection: 1/2x3/8 in | Material: PFA body, PTFE
LVH20-01-A Type: Single, threaded | Body class: 2 (orifice 4 mm) | Lever: Non-lock (self return) | Connection: Rc1/8 | Material: SUS body, PTFE
LVH20-02-A Type: Single, threaded | Body class: 2 (orifice 4 mm) | Lever: Non-lock (self return) | Connection: Rc1/4 | Material: SUS body, PTFE
LVH20-02-B Type: Single, threaded | Body class: 2 (orifice 4 mm) | Lever: Non-lock (self return) | Connection: Rc1/4 | Material: PPS body, PTFE
LVH20-02-C Type: Single, threaded | Body class: 2 (orifice 4 mm) | Lever: Non-lock (self return) | Connection: Rc1/4 | Material: PFA body, PTFE
LVH20L-01-A Type: Single, threaded | Body class: 2 (orifice 4 mm) | Lever: Lock | Connection: Rc1/8 | Material: SUS body, PTFE
LVH20L-02-A Type: Single, threaded | Body class: 2 (orifice 4 mm) | Lever: Lock | Connection: Rc1/4 | Material: SUS body, PTFE
LVH20L-02-B Type: Single, threaded | Body class: 2 (orifice 4 mm) | Lever: Lock | Connection: Rc1/4 | Material: PPS body, PTFE
LVH20L-02-C Type: Single, threaded | Body class: 2 (orifice 4 mm) | Lever: Lock | Connection: Rc1/4 | Material: PFA body, PTFE
LVH30-02-A Type: Single, threaded | Body class: 3 (orifice 8 mm) | Lever: Non-lock (self return) | Connection: Rc1/4 | Material: SUS body, PTFE
LVH30-03-A Type: Single, threaded | Body class: 3 (orifice 8 mm) | Lever: Non-lock (self return) | Connection: Rc3/8 | Material: SUS body, PTFE
LVH30-03-B Type: Single, threaded | Body class: 3 (orifice 8 mm) | Lever: Non-lock (self return) | Connection: Rc3/8 | Material: PPS body, PTFE
LVH30-03-C Type: Single, threaded | Body class: 3 (orifice 8 mm) | Lever: Non-lock (self return) | Connection: Rc3/8 | Material: PFA body, PTFE
LVH30L-02-A Type: Single, threaded | Body class: 3 (orifice 8 mm) | Lever: Lock | Connection: Rc1/4 | Material: SUS body, PTFE
LVH30L-03-A Type: Single, threaded | Body class: 3 (orifice 8 mm) | Lever: Lock | Connection: Rc3/8 | Material: SUS body, PTFE
LVH30L-03-B Type: Single, threaded | Body class: 3 (orifice 8 mm) | Lever: Lock | Connection: Rc3/8 | Material: PPS body, PTFE
LVH30L-03-C Type: Single, threaded | Body class: 3 (orifice 8 mm) | Lever: Lock | Connection: Rc3/8 | Material: PFA body, PTFE
LVH40-03-A Type: Single, threaded | Body class: 4 (orifice 12 mm) | Lever: Non-lock (self return) | Connection: Rc3/8 | Material: SUS body, PTFE
LVH40-04-A Type: Single, threaded | Body class: 4 (orifice 12 mm) | Lever: Non-lock (self return) | Connection: Rc1/2 | Material: SUS body, PTFE
LVH40-04-B Type: Single, threaded | Body class: 4 (orifice 12 mm) | Lever: Non-lock (self return) | Connection: Rc1/2 | Material: PPS body, PTFE
LVH40-04-C Type: Single, threaded | Body class: 4 (orifice 12 mm) | Lever: Non-lock (self return) | Connection: Rc1/2 | Material: PFA body, PTFE
LVH40L-03-A Type: Single, threaded | Body class: 4 (orifice 12 mm) | Lever: Lock | Connection: Rc3/8 | Material: SUS body, PTFE
LVH40L-04-A Type: Single, threaded | Body class: 4 (orifice 12 mm) | Lever: Lock | Connection: Rc1/2 | Material: SUS body, PTFE
LVH40L-04-B Type: Single, threaded | Body class: 4 (orifice 12 mm) | Lever: Lock | Connection: Rc1/2 | Material: PPS body, PTFE
LVH40L-04-C Type: Single, threaded | Body class: 4 (orifice 12 mm) | Lever: Lock | Connection: Rc1/2 | Material: PFA body, PTFE
LVH20A-S03 Type: Manifold valve, LQ2 fitting | Body class: 2 (orifice 4 mm) | Lever: Non-lock (self return) | Connection: 3x2 mm or 1/8 in | Material: PFA body, PTFE
LVH20A-S04 Type: Manifold valve, LQ2 fitting | Body class: 2 (orifice 4 mm) | Lever: Non-lock (self return) | Connection: 4x3 mm | Material: PFA body, PTFE
LVH20A-S05 Type: Manifold valve, LQ2 fitting | Body class: 2 (orifice 4 mm) | Lever: Non-lock (self return) | Connection: 3/16x1/8 in | Material: PFA body, PTFE
LVH20A-S06 Type: Manifold valve, LQ2 fitting | Body class: 2 (orifice 4 mm) | Lever: Non-lock (self return) | Connection: 6x4 mm | Material: PFA body, PTFE
LVH20A-S07 Type: Manifold valve, LQ2 fitting | Body class: 2 (orifice 4 mm) | Lever: Non-lock (self return) | Connection: 1/4x5/32 in | Material: PFA body, PTFE
LVH20A-02-C Type: Manifold valve, threaded | Body class: 2 (orifice 4 mm) | Lever: Non-lock (self return) | Connection: Rc1/4 | Material: PFA body, PTFE
LVH20AL-S03 Type: Manifold valve, LQ2 fitting | Body class: 2 (orifice 4 mm) | Lever: Lock | Connection: 3x2 mm or 1/8 in | Material: PFA body, PTFE
LVH20AL-S04 Type: Manifold valve, LQ2 fitting | Body class: 2 (orifice 4 mm) | Lever: Lock | Connection: 4x3 mm | Material: PFA body, PTFE
LVH20AL-S05 Type: Manifold valve, LQ2 fitting | Body class: 2 (orifice 4 mm) | Lever: Lock | Connection: 3/16x1/8 in | Material: PFA body, PTFE
LVH20AL-S06 Type: Manifold valve, LQ2 fitting | Body class: 2 (orifice 4 mm) | Lever: Lock | Connection: 6x4 mm | Material: PFA body, PTFE
LVH20AL-S07 Type: Manifold valve, LQ2 fitting | Body class: 2 (orifice 4 mm) | Lever: Lock | Connection: 1/4x5/32 in | Material: PFA body, PTFE
LVH20AL-02-C Type: Manifold valve, threaded | Body class: 2 (orifice 4 mm) | Lever: Lock | Connection: Rc1/4 | Material: PFA body, PTFE
LVH30A-S06 Type: Manifold valve, LQ2 fitting | Body class: 3 (orifice 8 mm) | Lever: Non-lock (self return) | Connection: 6x4 mm | Material: PFA body, PTFE
LVH30A-S07 Type: Manifold valve, LQ2 fitting | Body class: 3 (orifice 8 mm) | Lever: Non-lock (self return) | Connection: 1/4x5/32 in | Material: PFA body, PTFE
LVH30A-S08 Type: Manifold valve, LQ2 fitting | Body class: 3 (orifice 8 mm) | Lever: Non-lock (self return) | Connection: 8x6 mm | Material: PFA body, PTFE
LVH30A-S10 Type: Manifold valve, LQ2 fitting | Body class: 3 (orifice 8 mm) | Lever: Non-lock (self return) | Connection: 10x8 mm | Material: PFA body, PTFE
LVH30A-S11 Type: Manifold valve, LQ2 fitting | Body class: 3 (orifice 8 mm) | Lever: Non-lock (self return) | Connection: 3/8x1/4 in | Material: PFA body, PTFE
LVH30A-03-C Type: Manifold valve, threaded | Body class: 3 (orifice 8 mm) | Lever: Non-lock (self return) | Connection: Rc3/8 | Material: PFA body, PTFE
LVH30AL-S06 Type: Manifold valve, LQ2 fitting | Body class: 3 (orifice 8 mm) | Lever: Lock | Connection: 6x4 mm | Material: PFA body, PTFE
LVH30AL-S07 Type: Manifold valve, LQ2 fitting | Body class: 3 (orifice 8 mm) | Lever: Lock | Connection: 1/4x5/32 in | Material: PFA body, PTFE
LVH30AL-S08 Type: Manifold valve, LQ2 fitting | Body class: 3 (orifice 8 mm) | Lever: Lock | Connection: 8x6 mm | Material: PFA body, PTFE
LVH30AL-S10 Type: Manifold valve, LQ2 fitting | Body class: 3 (orifice 8 mm) | Lever: Lock | Connection: 10x8 mm | Material: PFA body, PTFE
LVH30AL-S11 Type: Manifold valve, LQ2 fitting | Body class: 3 (orifice 8 mm) | Lever: Lock | Connection: 3/8x1/4 in | Material: PFA body, PTFE
LVH30AL-03-C Type: Manifold valve, threaded | Body class: 3 (orifice 8 mm) | Lever: Lock | Connection: Rc3/8 | Material: PFA body, PTFE
LVH40A-S10 Type: Manifold valve, LQ2 fitting | Body class: 4 (orifice 10 mm) | Lever: Non-lock (self return) | Connection: 10x8 mm | Material: PFA body, PTFE
LVH40A-S11 Type: Manifold valve, LQ2 fitting | Body class: 4 (orifice 10 mm) | Lever: Non-lock (self return) | Connection: 3/8x1/4 in | Material: PFA body, PTFE
LVH40A-S12 Type: Manifold valve, LQ2 fitting | Body class: 4 (orifice 10 mm) | Lever: Non-lock (self return) | Connection: 12x10 mm | Material: PFA body, PTFE
LVH40A-S13 Type: Manifold valve, LQ2 fitting | Body class: 4 (orifice 10 mm) | Lever: Non-lock (self return) | Connection: 1/2x3/8 in | Material: PFA body, PTFE
LVH40A-04-C Type: Manifold valve, threaded | Body class: 4 (orifice 12 mm) | Lever: Non-lock (self return) | Connection: Rc1/2 | Material: PFA body, PTFE
LVH40AL-S10 Type: Manifold valve, LQ2 fitting | Body class: 4 (orifice 10 mm) | Lever: Lock | Connection: 10x8 mm | Material: PFA body, PTFE
LVH40AL-S11 Type: Manifold valve, LQ2 fitting | Body class: 4 (orifice 10 mm) | Lever: Lock | Connection: 3/8x1/4 in | Material: PFA body, PTFE
LVH40AL-S12 Type: Manifold valve, LQ2 fitting | Body class: 4 (orifice 10 mm) | Lever: Lock | Connection: 12x10 mm | Material: PFA body, PTFE
LVH40AL-S13 Type: Manifold valve, LQ2 fitting | Body class: 4 (orifice 10 mm) | Lever: Lock | Connection: 1/2x3/8 in | Material: PFA body, PTFE
LVH40AL-04-C Type: Manifold valve, threaded | Body class: 4 (orifice 12 mm) | Lever: Lock | Connection: Rc1/2 | Material: PFA body, PTFE
LLH2A-02-S06 Type: Manifold base, 2 st., fitting | Body class: 2 | Lever: - | Connection: 6x4 mm | Material: PFA manifold
LLH2A-02-S07 Type: Manifold base, 2 st., fitting | Body class: 2 | Lever: - | Connection: 1/4x5/32 in | Material: PFA manifold
LLH2A-02-S08 Type: Manifold base, 2 st., fitting | Body class: 2 | Lever: - | Connection: 8x6 mm | Material: PFA manifold
LLH2A-02-S10 Type: Manifold base, 2 st., fitting | Body class: 2 | Lever: - | Connection: 10x8 mm | Material: PFA manifold
LLH2A-02-S11 Type: Manifold base, 2 st., fitting | Body class: 2 | Lever: - | Connection: 3/8x1/4 in | Material: PFA manifold
LLH2A-02-02-C Type: Manifold base, 2 st., threaded | Body class: 2 | Lever: - | Connection: Rc1/4 | Material: PFA manifold
LLH2A-03-S06 Type: Manifold base, 3 st., fitting | Body class: 2 | Lever: - | Connection: 6x4 mm | Material: PFA manifold
LLH2A-03-S07 Type: Manifold base, 3 st., fitting | Body class: 2 | Lever: - | Connection: 1/4x5/32 in | Material: PFA manifold
LLH2A-03-S08 Type: Manifold base, 3 st., fitting | Body class: 2 | Lever: - | Connection: 8x6 mm | Material: PFA manifold
LLH2A-03-S10 Type: Manifold base, 3 st., fitting | Body class: 2 | Lever: - | Connection: 10x8 mm | Material: PFA manifold
LLH2A-03-S11 Type: Manifold base, 3 st., fitting | Body class: 2 | Lever: - | Connection: 3/8x1/4 in | Material: PFA manifold
LLH2A-03-02-C Type: Manifold base, 3 st., threaded | Body class: 2 | Lever: - | Connection: Rc1/4 | Material: PFA manifold
LLH2A-04-S06 Type: Manifold base, 4 st., fitting | Body class: 2 | Lever: - | Connection: 6x4 mm | Material: PFA manifold
LLH2A-04-S07 Type: Manifold base, 4 st., fitting | Body class: 2 | Lever: - | Connection: 1/4x5/32 in | Material: PFA manifold
LLH2A-04-S08 Type: Manifold base, 4 st., fitting | Body class: 2 | Lever: - | Connection: 8x6 mm | Material: PFA manifold
LLH2A-04-S10 Type: Manifold base, 4 st., fitting | Body class: 2 | Lever: - | Connection: 10x8 mm | Material: PFA manifold
LLH2A-04-S11 Type: Manifold base, 4 st., fitting | Body class: 2 | Lever: - | Connection: 3/8x1/4 in | Material: PFA manifold
LLH2A-04-02-C Type: Manifold base, 4 st., threaded | Body class: 2 | Lever: - | Connection: Rc1/4 | Material: PFA manifold
LLH2A-05-S06 Type: Manifold base, 5 st., fitting | Body class: 2 | Lever: - | Connection: 6x4 mm | Material: PFA manifold
LLH2A-05-S07 Type: Manifold base, 5 st., fitting | Body class: 2 | Lever: - | Connection: 1/4x5/32 in | Material: PFA manifold
LLH2A-05-S08 Type: Manifold base, 5 st., fitting | Body class: 2 | Lever: - | Connection: 8x6 mm | Material: PFA manifold
LLH2A-05-S10 Type: Manifold base, 5 st., fitting | Body class: 2 | Lever: - | Connection: 10x8 mm | Material: PFA manifold
LLH2A-05-S11 Type: Manifold base, 5 st., fitting | Body class: 2 | Lever: - | Connection: 3/8x1/4 in | Material: PFA manifold
LLH2A-05-02-C Type: Manifold base, 5 st., threaded | Body class: 2 | Lever: - | Connection: Rc1/4 | Material: PFA manifold
LLH3A-02-S10 Type: Manifold base, 2 st., fitting | Body class: 3 | Lever: - | Connection: 10x8 mm | Material: PFA manifold
LLH3A-02-S11 Type: Manifold base, 2 st., fitting | Body class: 3 | Lever: - | Connection: 3/8x1/4 in | Material: PFA manifold
LLH3A-02-S12 Type: Manifold base, 2 st., fitting | Body class: 3 | Lever: - | Connection: 12x10 mm | Material: PFA manifold
LLH3A-02-S13 Type: Manifold base, 2 st., fitting | Body class: 3 | Lever: - | Connection: 1/2x3/8 in | Material: PFA manifold
LLH3A-02-03-C Type: Manifold base, 2 st., threaded | Body class: 3 | Lever: - | Connection: Rc3/8 | Material: PFA manifold
LLH3A-03-S10 Type: Manifold base, 3 st., fitting | Body class: 3 | Lever: - | Connection: 10x8 mm | Material: PFA manifold
LLH3A-03-S11 Type: Manifold base, 3 st., fitting | Body class: 3 | Lever: - | Connection: 3/8x1/4 in | Material: PFA manifold
LLH3A-03-S12 Type: Manifold base, 3 st., fitting | Body class: 3 | Lever: - | Connection: 12x10 mm | Material: PFA manifold
LLH3A-03-S13 Type: Manifold base, 3 st., fitting | Body class: 3 | Lever: - | Connection: 1/2x3/8 in | Material: PFA manifold
LLH3A-03-03-C Type: Manifold base, 3 st., threaded | Body class: 3 | Lever: - | Connection: Rc3/8 | Material: PFA manifold
LLH3A-04-S10 Type: Manifold base, 4 st., fitting | Body class: 3 | Lever: - | Connection: 10x8 mm | Material: PFA manifold
LLH3A-04-S11 Type: Manifold base, 4 st., fitting | Body class: 3 | Lever: - | Connection: 3/8x1/4 in | Material: PFA manifold
LLH3A-04-S12 Type: Manifold base, 4 st., fitting | Body class: 3 | Lever: - | Connection: 12x10 mm | Material: PFA manifold
LLH3A-04-S13 Type: Manifold base, 4 st., fitting | Body class: 3 | Lever: - | Connection: 1/2x3/8 in | Material: PFA manifold
LLH3A-04-03-C Type: Manifold base, 4 st., threaded | Body class: 3 | Lever: - | Connection: Rc3/8 | Material: PFA manifold
LLH3A-05-S10 Type: Manifold base, 5 st., fitting | Body class: 3 | Lever: - | Connection: 10x8 mm | Material: PFA manifold
LLH3A-05-S11 Type: Manifold base, 5 st., fitting | Body class: 3 | Lever: - | Connection: 3/8x1/4 in | Material: PFA manifold
LLH3A-05-S12 Type: Manifold base, 5 st., fitting | Body class: 3 | Lever: - | Connection: 12x10 mm | Material: PFA manifold
LLH3A-05-S13 Type: Manifold base, 5 st., fitting | Body class: 3 | Lever: - | Connection: 1/2x3/8 in | Material: PFA manifold
LLH3A-05-03-C Type: Manifold base, 5 st., threaded | Body class: 3 | Lever: - | Connection: Rc3/8 | Material: PFA manifold
LLH4A-02-S12 Type: Manifold base, 2 st., fitting | Body class: 4 | Lever: - | Connection: 12x10 mm | Material: PFA manifold
LLH4A-02-S13 Type: Manifold base, 2 st., fitting | Body class: 4 | Lever: - | Connection: 1/2x3/8 in | Material: PFA manifold
LLH4A-02-S19 Type: Manifold base, 2 st., fitting | Body class: 4 | Lever: - | Connection: 19x16 mm or 3/4x5/8 in | Material: PFA manifold
LLH4A-02-04-C Type: Manifold base, 2 st., threaded | Body class: 4 | Lever: - | Connection: Rc1/2 | Material: PFA manifold
LLH4A-03-S12 Type: Manifold base, 3 st., fitting | Body class: 4 | Lever: - | Connection: 12x10 mm | Material: PFA manifold
LLH4A-03-S13 Type: Manifold base, 3 st., fitting | Body class: 4 | Lever: - | Connection: 1/2x3/8 in | Material: PFA manifold
LLH4A-03-S19 Type: Manifold base, 3 st., fitting | Body class: 4 | Lever: - | Connection: 19x16 mm or 3/4x5/8 in | Material: PFA manifold
LLH4A-03-04-C Type: Manifold base, 3 st., threaded | Body class: 4 | Lever: - | Connection: Rc1/2 | Material: PFA manifold
LLH4A-04-S12 Type: Manifold base, 4 st., fitting | Body class: 4 | Lever: - | Connection: 12x10 mm | Material: PFA manifold
LLH4A-04-S13 Type: Manifold base, 4 st., fitting | Body class: 4 | Lever: - | Connection: 1/2x3/8 in | Material: PFA manifold
LLH4A-04-S19 Type: Manifold base, 4 st., fitting | Body class: 4 | Lever: - | Connection: 19x16 mm or 3/4x5/8 in | Material: PFA manifold
LLH4A-04-04-C Type: Manifold base, 4 st., threaded | Body class: 4 | Lever: - | Connection: Rc1/2 | Material: PFA manifold
LLH4A-05-S12 Type: Manifold base, 5 st., fitting | Body class: 4 | Lever: - | Connection: 12x10 mm | Material: PFA manifold
LLH4A-05-S13 Type: Manifold base, 5 st., fitting | Body class: 4 | Lever: - | Connection: 1/2x3/8 in | Material: PFA manifold
LLH4A-05-S19 Type: Manifold base, 5 st., fitting | Body class: 4 | Lever: - | Connection: 19x16 mm or 3/4x5/8 in | Material: PFA manifold
LLH4A-05-04-C Type: Manifold base, 5 st., threaded | Body class: 4 | Lever: - | Connection: Rc1/2 | Material: PFA manifold
Chemical ValvesSMC
146 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC LVH Manual Chemical Valve (LQ2 Fitting / Threaded)

Brand SMC·Chemical Valves

Available part numbers (146)

LVH20-S03, LVH20-S04, LVH20-S05, LVH20-S06, LVH20-S07, LVH20L-S03, LVH20L-S04, LVH20L-S05, LVH20L-S06, LVH20L-S07 + 136 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LVH20-S03Type: Single, LQ2 fitting | Body class: 2 (orifice 4 mm) | Lever: Non-lock (self return) | Connection: 3x2 mm or 1/8 in | Material: PFA body, PTFE
LVH20-S04Type: Single, LQ2 fitting | Body class: 2 (orifice 4 mm) | Lever: Non-lock (self return) | Connection: 4x3 mm | Material: PFA body, PTFE
LVH20-S05Type: Single, LQ2 fitting | Body class: 2 (orifice 4 mm) | Lever: Non-lock (self return) | Connection: 3/16x1/8 in | Material: PFA body, PTFE
LVH20-S06Type: Single, LQ2 fitting | Body class: 2 (orifice 4 mm) | Lever: Non-lock (self return) | Connection: 6x4 mm | Material: PFA body, PTFE
LVH20-S07Type: Single, LQ2 fitting | Body class: 2 (orifice 4 mm) | Lever: Non-lock (self return) | Connection: 1/4x5/32 in | Material: PFA body, PTFE
LVH20L-S03Type: Single, LQ2 fitting | Body class: 2 (orifice 4 mm) | Lever: Lock | Connection: 3x2 mm or 1/8 in | Material: PFA body, PTFE
LVH20L-S04Type: Single, LQ2 fitting | Body class: 2 (orifice 4 mm) | Lever: Lock | Connection: 4x3 mm | Material: PFA body, PTFE
LVH20L-S05Type: Single, LQ2 fitting | Body class: 2 (orifice 4 mm) | Lever: Lock | Connection: 3/16x1/8 in | Material: PFA body, PTFE
LVH20L-S06Type: Single, LQ2 fitting | Body class: 2 (orifice 4 mm) | Lever: Lock | Connection: 6x4 mm | Material: PFA body, PTFE
LVH20L-S07Type: Single, LQ2 fitting | Body class: 2 (orifice 4 mm) | Lever: Lock | Connection: 1/4x5/32 in | Material: PFA body, PTFE
LVH30-S06Type: Single, LQ2 fitting | Body class: 3 (orifice 8 mm) | Lever: Non-lock (self return) | Connection: 6x4 mm | Material: PFA body, PTFE
LVH30-S07Type: Single, LQ2 fitting | Body class: 3 (orifice 8 mm) | Lever: Non-lock (self return) | Connection: 1/4x5/32 in | Material: PFA body, PTFE
LVH30-S08Type: Single, LQ2 fitting | Body class: 3 (orifice 8 mm) | Lever: Non-lock (self return) | Connection: 8x6 mm | Material: PFA body, PTFE
LVH30-S10Type: Single, LQ2 fitting | Body class: 3 (orifice 8 mm) | Lever: Non-lock (self return) | Connection: 10x8 mm | Material: PFA body, PTFE
LVH30-S11Type: Single, LQ2 fitting | Body class: 3 (orifice 8 mm) | Lever: Non-lock (self return) | Connection: 3/8x1/4 in | Material: PFA body, PTFE
LVH30L-S06Type: Single, LQ2 fitting | Body class: 3 (orifice 8 mm) | Lever: Lock | Connection: 6x4 mm | Material: PFA body, PTFE
LVH30L-S07Type: Single, LQ2 fitting | Body class: 3 (orifice 8 mm) | Lever: Lock | Connection: 1/4x5/32 in | Material: PFA body, PTFE
LVH30L-S08Type: Single, LQ2 fitting | Body class: 3 (orifice 8 mm) | Lever: Lock | Connection: 8x6 mm | Material: PFA body, PTFE
LVH30L-S10Type: Single, LQ2 fitting | Body class: 3 (orifice 8 mm) | Lever: Lock | Connection: 10x8 mm | Material: PFA body, PTFE
LVH30L-S11Type: Single, LQ2 fitting | Body class: 3 (orifice 8 mm) | Lever: Lock | Connection: 3/8x1/4 in | Material: PFA body, PTFE
LVH40-S10Type: Single, LQ2 fitting | Body class: 4 (orifice 10 mm) | Lever: Non-lock (self return) | Connection: 10x8 mm | Material: PFA body, PTFE
LVH40-S11Type: Single, LQ2 fitting | Body class: 4 (orifice 10 mm) | Lever: Non-lock (self return) | Connection: 3/8x1/4 in | Material: PFA body, PTFE
LVH40-S12Type: Single, LQ2 fitting | Body class: 4 (orifice 10 mm) | Lever: Non-lock (self return) | Connection: 12x10 mm | Material: PFA body, PTFE
LVH40-S13Type: Single, LQ2 fitting | Body class: 4 (orifice 10 mm) | Lever: Non-lock (self return) | Connection: 1/2x3/8 in | Material: PFA body, PTFE
LVH40L-S10Type: Single, LQ2 fitting | Body class: 4 (orifice 10 mm) | Lever: Lock | Connection: 10x8 mm | Material: PFA body, PTFE
LVH40L-S11Type: Single, LQ2 fitting | Body class: 4 (orifice 10 mm) | Lever: Lock | Connection: 3/8x1/4 in | Material: PFA body, PTFE
LVH40L-S12Type: Single, LQ2 fitting | Body class: 4 (orifice 10 mm) | Lever: Lock | Connection: 12x10 mm | Material: PFA body, PTFE
LVH40L-S13Type: Single, LQ2 fitting | Body class: 4 (orifice 10 mm) | Lever: Lock | Connection: 1/2x3/8 in | Material: PFA body, PTFE
LVH20-01-AType: Single, threaded | Body class: 2 (orifice 4 mm) | Lever: Non-lock (self return) | Connection: Rc1/8 | Material: SUS body, PTFE
LVH20-02-AType: Single, threaded | Body class: 2 (orifice 4 mm) | Lever: Non-lock (self return) | Connection: Rc1/4 | Material: SUS body, PTFE
LVH20-02-BType: Single, threaded | Body class: 2 (orifice 4 mm) | Lever: Non-lock (self return) | Connection: Rc1/4 | Material: PPS body, PTFE
LVH20-02-CType: Single, threaded | Body class: 2 (orifice 4 mm) | Lever: Non-lock (self return) | Connection: Rc1/4 | Material: PFA body, PTFE
LVH20L-01-AType: Single, threaded | Body class: 2 (orifice 4 mm) | Lever: Lock | Connection: Rc1/8 | Material: SUS body, PTFE
LVH20L-02-AType: Single, threaded | Body class: 2 (orifice 4 mm) | Lever: Lock | Connection: Rc1/4 | Material: SUS body, PTFE
LVH20L-02-BType: Single, threaded | Body class: 2 (orifice 4 mm) | Lever: Lock | Connection: Rc1/4 | Material: PPS body, PTFE
LVH20L-02-CType: Single, threaded | Body class: 2 (orifice 4 mm) | Lever: Lock | Connection: Rc1/4 | Material: PFA body, PTFE
LVH30-02-AType: Single, threaded | Body class: 3 (orifice 8 mm) | Lever: Non-lock (self return) | Connection: Rc1/4 | Material: SUS body, PTFE
LVH30-03-AType: Single, threaded | Body class: 3 (orifice 8 mm) | Lever: Non-lock (self return) | Connection: Rc3/8 | Material: SUS body, PTFE
LVH30-03-BType: Single, threaded | Body class: 3 (orifice 8 mm) | Lever: Non-lock (self return) | Connection: Rc3/8 | Material: PPS body, PTFE
LVH30-03-CType: Single, threaded | Body class: 3 (orifice 8 mm) | Lever: Non-lock (self return) | Connection: Rc3/8 | Material: PFA body, PTFE
LVH30L-02-AType: Single, threaded | Body class: 3 (orifice 8 mm) | Lever: Lock | Connection: Rc1/4 | Material: SUS body, PTFE
LVH30L-03-AType: Single, threaded | Body class: 3 (orifice 8 mm) | Lever: Lock | Connection: Rc3/8 | Material: SUS body, PTFE
LVH30L-03-BType: Single, threaded | Body class: 3 (orifice 8 mm) | Lever: Lock | Connection: Rc3/8 | Material: PPS body, PTFE
LVH30L-03-CType: Single, threaded | Body class: 3 (orifice 8 mm) | Lever: Lock | Connection: Rc3/8 | Material: PFA body, PTFE
LVH40-03-AType: Single, threaded | Body class: 4 (orifice 12 mm) | Lever: Non-lock (self return) | Connection: Rc3/8 | Material: SUS body, PTFE
LVH40-04-AType: Single, threaded | Body class: 4 (orifice 12 mm) | Lever: Non-lock (self return) | Connection: Rc1/2 | Material: SUS body, PTFE
LVH40-04-BType: Single, threaded | Body class: 4 (orifice 12 mm) | Lever: Non-lock (self return) | Connection: Rc1/2 | Material: PPS body, PTFE
LVH40-04-CType: Single, threaded | Body class: 4 (orifice 12 mm) | Lever: Non-lock (self return) | Connection: Rc1/2 | Material: PFA body, PTFE
LVH40L-03-AType: Single, threaded | Body class: 4 (orifice 12 mm) | Lever: Lock | Connection: Rc3/8 | Material: SUS body, PTFE
LVH40L-04-AType: Single, threaded | Body class: 4 (orifice 12 mm) | Lever: Lock | Connection: Rc1/2 | Material: SUS body, PTFE
LVH40L-04-BType: Single, threaded | Body class: 4 (orifice 12 mm) | Lever: Lock | Connection: Rc1/2 | Material: PPS body, PTFE
LVH40L-04-CType: Single, threaded | Body class: 4 (orifice 12 mm) | Lever: Lock | Connection: Rc1/2 | Material: PFA body, PTFE
LVH20A-S03Type: Manifold valve, LQ2 fitting | Body class: 2 (orifice 4 mm) | Lever: Non-lock (self return) | Connection: 3x2 mm or 1/8 in | Material: PFA body, PTFE
LVH20A-S04Type: Manifold valve, LQ2 fitting | Body class: 2 (orifice 4 mm) | Lever: Non-lock (self return) | Connection: 4x3 mm | Material: PFA body, PTFE
LVH20A-S05Type: Manifold valve, LQ2 fitting | Body class: 2 (orifice 4 mm) | Lever: Non-lock (self return) | Connection: 3/16x1/8 in | Material: PFA body, PTFE
LVH20A-S06Type: Manifold valve, LQ2 fitting | Body class: 2 (orifice 4 mm) | Lever: Non-lock (self return) | Connection: 6x4 mm | Material: PFA body, PTFE
LVH20A-S07Type: Manifold valve, LQ2 fitting | Body class: 2 (orifice 4 mm) | Lever: Non-lock (self return) | Connection: 1/4x5/32 in | Material: PFA body, PTFE
LVH20A-02-CType: Manifold valve, threaded | Body class: 2 (orifice 4 mm) | Lever: Non-lock (self return) | Connection: Rc1/4 | Material: PFA body, PTFE
LVH20AL-S03Type: Manifold valve, LQ2 fitting | Body class: 2 (orifice 4 mm) | Lever: Lock | Connection: 3x2 mm or 1/8 in | Material: PFA body, PTFE
LVH20AL-S04Type: Manifold valve, LQ2 fitting | Body class: 2 (orifice 4 mm) | Lever: Lock | Connection: 4x3 mm | Material: PFA body, PTFE
LVH20AL-S05Type: Manifold valve, LQ2 fitting | Body class: 2 (orifice 4 mm) | Lever: Lock | Connection: 3/16x1/8 in | Material: PFA body, PTFE
LVH20AL-S06Type: Manifold valve, LQ2 fitting | Body class: 2 (orifice 4 mm) | Lever: Lock | Connection: 6x4 mm | Material: PFA body, PTFE
LVH20AL-S07Type: Manifold valve, LQ2 fitting | Body class: 2 (orifice 4 mm) | Lever: Lock | Connection: 1/4x5/32 in | Material: PFA body, PTFE
LVH20AL-02-CType: Manifold valve, threaded | Body class: 2 (orifice 4 mm) | Lever: Lock | Connection: Rc1/4 | Material: PFA body, PTFE
LVH30A-S06Type: Manifold valve, LQ2 fitting | Body class: 3 (orifice 8 mm) | Lever: Non-lock (self return) | Connection: 6x4 mm | Material: PFA body, PTFE
LVH30A-S07Type: Manifold valve, LQ2 fitting | Body class: 3 (orifice 8 mm) | Lever: Non-lock (self return) | Connection: 1/4x5/32 in | Material: PFA body, PTFE
LVH30A-S08Type: Manifold valve, LQ2 fitting | Body class: 3 (orifice 8 mm) | Lever: Non-lock (self return) | Connection: 8x6 mm | Material: PFA body, PTFE
LVH30A-S10Type: Manifold valve, LQ2 fitting | Body class: 3 (orifice 8 mm) | Lever: Non-lock (self return) | Connection: 10x8 mm | Material: PFA body, PTFE
LVH30A-S11Type: Manifold valve, LQ2 fitting | Body class: 3 (orifice 8 mm) | Lever: Non-lock (self return) | Connection: 3/8x1/4 in | Material: PFA body, PTFE
LVH30A-03-CType: Manifold valve, threaded | Body class: 3 (orifice 8 mm) | Lever: Non-lock (self return) | Connection: Rc3/8 | Material: PFA body, PTFE
LVH30AL-S06Type: Manifold valve, LQ2 fitting | Body class: 3 (orifice 8 mm) | Lever: Lock | Connection: 6x4 mm | Material: PFA body, PTFE
LVH30AL-S07Type: Manifold valve, LQ2 fitting | Body class: 3 (orifice 8 mm) | Lever: Lock | Connection: 1/4x5/32 in | Material: PFA body, PTFE
LVH30AL-S08Type: Manifold valve, LQ2 fitting | Body class: 3 (orifice 8 mm) | Lever: Lock | Connection: 8x6 mm | Material: PFA body, PTFE
LVH30AL-S10Type: Manifold valve, LQ2 fitting | Body class: 3 (orifice 8 mm) | Lever: Lock | Connection: 10x8 mm | Material: PFA body, PTFE
LVH30AL-S11Type: Manifold valve, LQ2 fitting | Body class: 3 (orifice 8 mm) | Lever: Lock | Connection: 3/8x1/4 in | Material: PFA body, PTFE
LVH30AL-03-CType: Manifold valve, threaded | Body class: 3 (orifice 8 mm) | Lever: Lock | Connection: Rc3/8 | Material: PFA body, PTFE
LVH40A-S10Type: Manifold valve, LQ2 fitting | Body class: 4 (orifice 10 mm) | Lever: Non-lock (self return) | Connection: 10x8 mm | Material: PFA body, PTFE
LVH40A-S11Type: Manifold valve, LQ2 fitting | Body class: 4 (orifice 10 mm) | Lever: Non-lock (self return) | Connection: 3/8x1/4 in | Material: PFA body, PTFE
LVH40A-S12Type: Manifold valve, LQ2 fitting | Body class: 4 (orifice 10 mm) | Lever: Non-lock (self return) | Connection: 12x10 mm | Material: PFA body, PTFE
LVH40A-S13Type: Manifold valve, LQ2 fitting | Body class: 4 (orifice 10 mm) | Lever: Non-lock (self return) | Connection: 1/2x3/8 in | Material: PFA body, PTFE
LVH40A-04-CType: Manifold valve, threaded | Body class: 4 (orifice 12 mm) | Lever: Non-lock (self return) | Connection: Rc1/2 | Material: PFA body, PTFE
LVH40AL-S10Type: Manifold valve, LQ2 fitting | Body class: 4 (orifice 10 mm) | Lever: Lock | Connection: 10x8 mm | Material: PFA body, PTFE
LVH40AL-S11Type: Manifold valve, LQ2 fitting | Body class: 4 (orifice 10 mm) | Lever: Lock | Connection: 3/8x1/4 in | Material: PFA body, PTFE
LVH40AL-S12Type: Manifold valve, LQ2 fitting | Body class: 4 (orifice 10 mm) | Lever: Lock | Connection: 12x10 mm | Material: PFA body, PTFE
LVH40AL-S13Type: Manifold valve, LQ2 fitting | Body class: 4 (orifice 10 mm) | Lever: Lock | Connection: 1/2x3/8 in | Material: PFA body, PTFE
LVH40AL-04-CType: Manifold valve, threaded | Body class: 4 (orifice 12 mm) | Lever: Lock | Connection: Rc1/2 | Material: PFA body, PTFE
LLH2A-02-S06Type: Manifold base, 2 st., fitting | Body class: 2 | Lever: - | Connection: 6x4 mm | Material: PFA manifold
LLH2A-02-S07Type: Manifold base, 2 st., fitting | Body class: 2 | Lever: - | Connection: 1/4x5/32 in | Material: PFA manifold
LLH2A-02-S08Type: Manifold base, 2 st., fitting | Body class: 2 | Lever: - | Connection: 8x6 mm | Material: PFA manifold
LLH2A-02-S10Type: Manifold base, 2 st., fitting | Body class: 2 | Lever: - | Connection: 10x8 mm | Material: PFA manifold
LLH2A-02-S11Type: Manifold base, 2 st., fitting | Body class: 2 | Lever: - | Connection: 3/8x1/4 in | Material: PFA manifold
LLH2A-02-02-CType: Manifold base, 2 st., threaded | Body class: 2 | Lever: - | Connection: Rc1/4 | Material: PFA manifold
LLH2A-03-S06Type: Manifold base, 3 st., fitting | Body class: 2 | Lever: - | Connection: 6x4 mm | Material: PFA manifold
LLH2A-03-S07Type: Manifold base, 3 st., fitting | Body class: 2 | Lever: - | Connection: 1/4x5/32 in | Material: PFA manifold
LLH2A-03-S08Type: Manifold base, 3 st., fitting | Body class: 2 | Lever: - | Connection: 8x6 mm | Material: PFA manifold
LLH2A-03-S10Type: Manifold base, 3 st., fitting | Body class: 2 | Lever: - | Connection: 10x8 mm | Material: PFA manifold
LLH2A-03-S11Type: Manifold base, 3 st., fitting | Body class: 2 | Lever: - | Connection: 3/8x1/4 in | Material: PFA manifold
LLH2A-03-02-CType: Manifold base, 3 st., threaded | Body class: 2 | Lever: - | Connection: Rc1/4 | Material: PFA manifold
LLH2A-04-S06Type: Manifold base, 4 st., fitting | Body class: 2 | Lever: - | Connection: 6x4 mm | Material: PFA manifold
LLH2A-04-S07Type: Manifold base, 4 st., fitting | Body class: 2 | Lever: - | Connection: 1/4x5/32 in | Material: PFA manifold
LLH2A-04-S08Type: Manifold base, 4 st., fitting | Body class: 2 | Lever: - | Connection: 8x6 mm | Material: PFA manifold
LLH2A-04-S10Type: Manifold base, 4 st., fitting | Body class: 2 | Lever: - | Connection: 10x8 mm | Material: PFA manifold
LLH2A-04-S11Type: Manifold base, 4 st., fitting | Body class: 2 | Lever: - | Connection: 3/8x1/4 in | Material: PFA manifold
LLH2A-04-02-CType: Manifold base, 4 st., threaded | Body class: 2 | Lever: - | Connection: Rc1/4 | Material: PFA manifold
LLH2A-05-S06Type: Manifold base, 5 st., fitting | Body class: 2 | Lever: - | Connection: 6x4 mm | Material: PFA manifold
LLH2A-05-S07Type: Manifold base, 5 st., fitting | Body class: 2 | Lever: - | Connection: 1/4x5/32 in | Material: PFA manifold
LLH2A-05-S08Type: Manifold base, 5 st., fitting | Body class: 2 | Lever: - | Connection: 8x6 mm | Material: PFA manifold
LLH2A-05-S10Type: Manifold base, 5 st., fitting | Body class: 2 | Lever: - | Connection: 10x8 mm | Material: PFA manifold
LLH2A-05-S11Type: Manifold base, 5 st., fitting | Body class: 2 | Lever: - | Connection: 3/8x1/4 in | Material: PFA manifold
LLH2A-05-02-CType: Manifold base, 5 st., threaded | Body class: 2 | Lever: - | Connection: Rc1/4 | Material: PFA manifold
LLH3A-02-S10Type: Manifold base, 2 st., fitting | Body class: 3 | Lever: - | Connection: 10x8 mm | Material: PFA manifold
LLH3A-02-S11Type: Manifold base, 2 st., fitting | Body class: 3 | Lever: - | Connection: 3/8x1/4 in | Material: PFA manifold
LLH3A-02-S12Type: Manifold base, 2 st., fitting | Body class: 3 | Lever: - | Connection: 12x10 mm | Material: PFA manifold
LLH3A-02-S13Type: Manifold base, 2 st., fitting | Body class: 3 | Lever: - | Connection: 1/2x3/8 in | Material: PFA manifold
LLH3A-02-03-CType: Manifold base, 2 st., threaded | Body class: 3 | Lever: - | Connection: Rc3/8 | Material: PFA manifold
LLH3A-03-S10Type: Manifold base, 3 st., fitting | Body class: 3 | Lever: - | Connection: 10x8 mm | Material: PFA manifold
LLH3A-03-S11Type: Manifold base, 3 st., fitting | Body class: 3 | Lever: - | Connection: 3/8x1/4 in | Material: PFA manifold
LLH3A-03-S12Type: Manifold base, 3 st., fitting | Body class: 3 | Lever: - | Connection: 12x10 mm | Material: PFA manifold
LLH3A-03-S13Type: Manifold base, 3 st., fitting | Body class: 3 | Lever: - | Connection: 1/2x3/8 in | Material: PFA manifold
LLH3A-03-03-CType: Manifold base, 3 st., threaded | Body class: 3 | Lever: - | Connection: Rc3/8 | Material: PFA manifold
LLH3A-04-S10Type: Manifold base, 4 st., fitting | Body class: 3 | Lever: - | Connection: 10x8 mm | Material: PFA manifold
LLH3A-04-S11Type: Manifold base, 4 st., fitting | Body class: 3 | Lever: - | Connection: 3/8x1/4 in | Material: PFA manifold
LLH3A-04-S12Type: Manifold base, 4 st., fitting | Body class: 3 | Lever: - | Connection: 12x10 mm | Material: PFA manifold
LLH3A-04-S13Type: Manifold base, 4 st., fitting | Body class: 3 | Lever: - | Connection: 1/2x3/8 in | Material: PFA manifold
LLH3A-04-03-CType: Manifold base, 4 st., threaded | Body class: 3 | Lever: - | Connection: Rc3/8 | Material: PFA manifold
LLH3A-05-S10Type: Manifold base, 5 st., fitting | Body class: 3 | Lever: - | Connection: 10x8 mm | Material: PFA manifold
LLH3A-05-S11Type: Manifold base, 5 st., fitting | Body class: 3 | Lever: - | Connection: 3/8x1/4 in | Material: PFA manifold
LLH3A-05-S12Type: Manifold base, 5 st., fitting | Body class: 3 | Lever: - | Connection: 12x10 mm | Material: PFA manifold
LLH3A-05-S13Type: Manifold base, 5 st., fitting | Body class: 3 | Lever: - | Connection: 1/2x3/8 in | Material: PFA manifold
LLH3A-05-03-CType: Manifold base, 5 st., threaded | Body class: 3 | Lever: - | Connection: Rc3/8 | Material: PFA manifold
LLH4A-02-S12Type: Manifold base, 2 st., fitting | Body class: 4 | Lever: - | Connection: 12x10 mm | Material: PFA manifold
LLH4A-02-S13Type: Manifold base, 2 st., fitting | Body class: 4 | Lever: - | Connection: 1/2x3/8 in | Material: PFA manifold
LLH4A-02-S19Type: Manifold base, 2 st., fitting | Body class: 4 | Lever: - | Connection: 19x16 mm or 3/4x5/8 in | Material: PFA manifold
LLH4A-02-04-CType: Manifold base, 2 st., threaded | Body class: 4 | Lever: - | Connection: Rc1/2 | Material: PFA manifold
LLH4A-03-S12Type: Manifold base, 3 st., fitting | Body class: 4 | Lever: - | Connection: 12x10 mm | Material: PFA manifold
LLH4A-03-S13Type: Manifold base, 3 st., fitting | Body class: 4 | Lever: - | Connection: 1/2x3/8 in | Material: PFA manifold
LLH4A-03-S19Type: Manifold base, 3 st., fitting | Body class: 4 | Lever: - | Connection: 19x16 mm or 3/4x5/8 in | Material: PFA manifold
LLH4A-03-04-CType: Manifold base, 3 st., threaded | Body class: 4 | Lever: - | Connection: Rc1/2 | Material: PFA manifold
LLH4A-04-S12Type: Manifold base, 4 st., fitting | Body class: 4 | Lever: - | Connection: 12x10 mm | Material: PFA manifold
LLH4A-04-S13Type: Manifold base, 4 st., fitting | Body class: 4 | Lever: - | Connection: 1/2x3/8 in | Material: PFA manifold
LLH4A-04-S19Type: Manifold base, 4 st., fitting | Body class: 4 | Lever: - | Connection: 19x16 mm or 3/4x5/8 in | Material: PFA manifold
LLH4A-04-04-CType: Manifold base, 4 st., threaded | Body class: 4 | Lever: - | Connection: Rc1/2 | Material: PFA manifold
LLH4A-05-S12Type: Manifold base, 5 st., fitting | Body class: 4 | Lever: - | Connection: 12x10 mm | Material: PFA manifold
LLH4A-05-S13Type: Manifold base, 5 st., fitting | Body class: 4 | Lever: - | Connection: 1/2x3/8 in | Material: PFA manifold
LLH4A-05-S19Type: Manifold base, 5 st., fitting | Body class: 4 | Lever: - | Connection: 19x16 mm or 3/4x5/8 in | Material: PFA manifold
LLH4A-05-04-CType: Manifold base, 5 st., threaded | Body class: 4 | Lever: - | Connection: Rc1/2 | Material: PFA manifold

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
