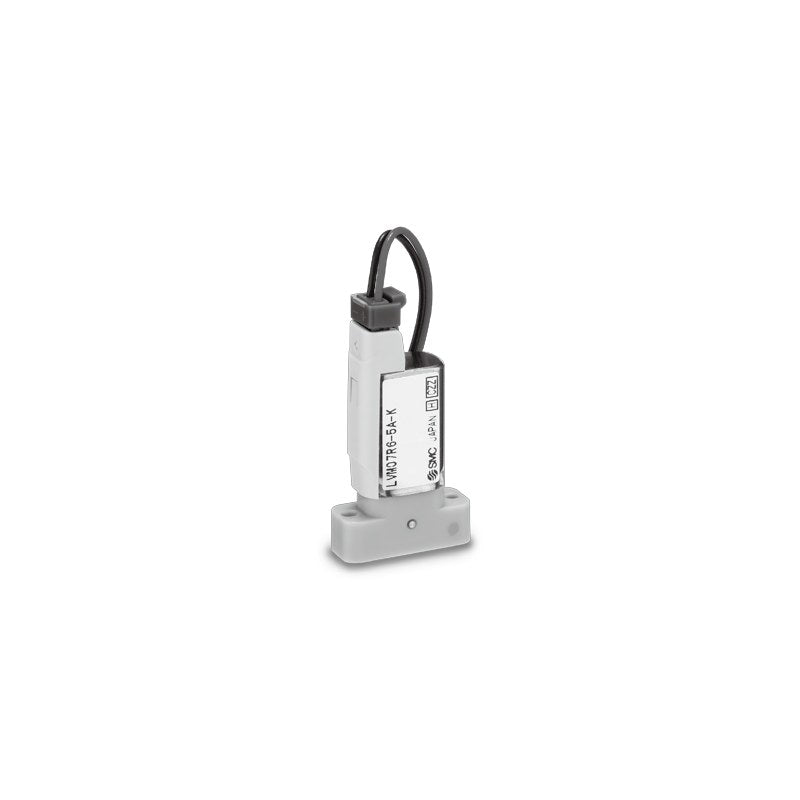

SMC LVM07 Compact Direct Operated 2-Port Chemical Valve (7 mm)

SMC LVM07 Compact Direct Operated 2-Port Chemical Valve (7 mm)

SMC LVM07 series direct operated rocker-type 2-port N.C. solenoid valve for chemicals, 7 mm wide and 7 g, base mounted with or without PEEK sub-plate.

Key features

  • Direct operated rocker type with isolating diaphragm: fluid is kept away from the solenoid
  • 7 mm valve width, 8 mm manifold pitch, 31 mm height, mass 7 g (11 g with sub-plate)
  • Wetted parts PEEK body with EPDM, FKM or Kalrez diaphragm
  • Low-power circuit built-in version (Y1): 2.8 W start, 0.8 W holding; standard type requires external power-saving control
  • Orifice 0.8 mm, Kv 0.004, internal valve volume 8 µL
  • Lead wire entry/length (grommet 150 to 1000 mm, plug connector K/KO/KZ/KOZ), CE/UKCA (Q) and DC12V coil are specified as suffixes; listed codes are DC24V with standard lead wire

Specifications

Valve construction Direct operated rocker, N.C., 2-port
Piping Base mounted (LVM07R6)
Operating pressure -75 kPa to 0.1 MPa
Orifice 0.8 mm
Response time 10 ms or less (air)
Fluid Air, water, deionized water, diluted chemicals, cleaning fluid
Rated voltage DC24V (DC12V also available, symbol 6)
Allowable voltage fluctuation ±10% of rated voltage
Coil insulation Class B
Enclosure IP40 equivalent
Ambient and fluid temperature 0 to 50°C (no freezing)
Leakage 0 internal and external (with water)
Source SMC Korea catalog LVM Series (SMCKR_LVM.pdf), p. 335-337 (PDF p. 8-10)
LVM07R6-5A Circuit: Standard | Body diaphragm: PEEK / EPDM | Mounting: Base, no sub-plate
LVM07R6-5AP Circuit: Standard | Body diaphragm: PEEK / EPDM | Mounting: Base, no sub-plate, anti-reverse pin
LVM07R6-5A3 Circuit: Standard | Body diaphragm: PEEK / EPDM | Mounting: Sub-plate PEEK, M6
LVM07R6-5B Circuit: Standard | Body diaphragm: PEEK / FKM | Mounting: Base, no sub-plate
LVM07R6-5BP Circuit: Standard | Body diaphragm: PEEK / FKM | Mounting: Base, no sub-plate, anti-reverse pin
LVM07R6-5B3 Circuit: Standard | Body diaphragm: PEEK / FKM | Mounting: Sub-plate PEEK, M6
LVM07R6-5C Circuit: Standard | Body diaphragm: PEEK / Kalrez | Mounting: Base, no sub-plate
LVM07R6-5CP Circuit: Standard | Body diaphragm: PEEK / Kalrez | Mounting: Base, no sub-plate, anti-reverse pin
LVM07R6-5C3 Circuit: Standard | Body diaphragm: PEEK / Kalrez | Mounting: Sub-plate PEEK, M6
LVM07R6Y1-5A Circuit: Low-power circuit | Body diaphragm: PEEK / EPDM | Mounting: Base, no sub-plate
LVM07R6Y1-5AP Circuit: Low-power circuit | Body diaphragm: PEEK / EPDM | Mounting: Base, no sub-plate, anti-reverse pin
LVM07R6Y1-5A3 Circuit: Low-power circuit | Body diaphragm: PEEK / EPDM | Mounting: Sub-plate PEEK, M6
LVM07R6Y1-5B Circuit: Low-power circuit | Body diaphragm: PEEK / FKM | Mounting: Base, no sub-plate
LVM07R6Y1-5BP Circuit: Low-power circuit | Body diaphragm: PEEK / FKM | Mounting: Base, no sub-plate, anti-reverse pin
LVM07R6Y1-5B3 Circuit: Low-power circuit | Body diaphragm: PEEK / FKM | Mounting: Sub-plate PEEK, M6
LVM07R6Y1-5C Circuit: Low-power circuit | Body diaphragm: PEEK / Kalrez | Mounting: Base, no sub-plate
LVM07R6Y1-5CP Circuit: Low-power circuit | Body diaphragm: PEEK / Kalrez | Mounting: Base, no sub-plate, anti-reverse pin
LVM07R6Y1-5C3 Circuit: Low-power circuit | Body diaphragm: PEEK / Kalrez | Mounting: Sub-plate PEEK, M6
