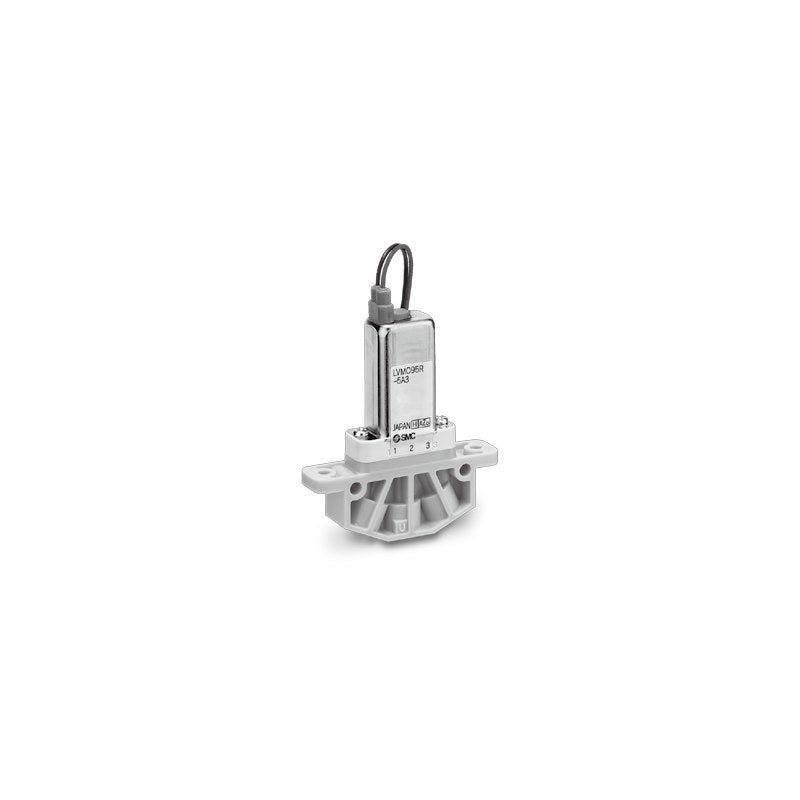

SMC LVM09/090 Compact Direct Operated 2/3-Port Chemical Valve

SMC LVM09/090 Compact Direct Operated 2/3-Port Chemical Valve

SMC LVM09/090 series direct operated rocker-type 2/3-port solenoid valve for chemicals, 9.5 mm wide, in direct piping (tube insertion) and base mounted versions.

Key features

  • Direct operated rocker type with isolating diaphragm, N.C., N.O. and universal (3-port) valve types
  • 9.5 mm valve width, 10.5 mm manifold pitch
  • Wetted parts PEEK with EPDM, FKM or Kalrez diaphragm; optional PEEK sub-plate with M6 ports
  • Low-power circuit versions Y (plug connector) and Y1 (grommet) are ordered together with the matching lead wire suffix
  • Orifice 1 mm (2-port) / 1.1 mm (3-port), Kv 0.015, internal valve volume 18 to 29 µL
  • Lead wire entry/length (grommet 150 to 1000 mm, plug connector K/KO/KZ/KOZ), CE/UKCA (Q) and DC12V coil are specified as suffixes; listed codes are DC24V with standard lead wire

Specifications

Valve construction Direct operated rocker
Operating pressure -75 kPa to 0.2 MPa
Response time 10 ms or less (air)
Power consumption 2 W standard (24 VDC)
Fluid Air, water, deionized water, diluted chemicals, cleaning fluid
Rated voltage DC24V (DC12V also available, symbol 6)
Allowable voltage fluctuation ±10% of rated voltage
Coil insulation Class B
Enclosure IP40 equivalent
Ambient and fluid temperature 0 to 50°C (no freezing)
Leakage 0 internal and external (with water)
Source SMC Korea catalog LVM Series (SMCKR_LVM.pdf), p. 340-346 (PDF p. 13-19)
LVM09R1-5A Piping: Direct (tube insertion) | Valve: 2-port N.C. | Body diaphragm: PEEK / EPDM | Sub plate: None
LVM09R1-5B Piping: Direct (tube insertion) | Valve: 2-port N.C. | Body diaphragm: PEEK / FKM | Sub plate: None
LVM09R1-5C Piping: Direct (tube insertion) | Valve: 2-port N.C. | Body diaphragm: PEEK / Kalrez | Sub plate: None
LVM09R2-5A Piping: Direct (tube insertion) | Valve: 2-port N.O. | Body diaphragm: PEEK / EPDM | Sub plate: None
LVM09R2-5B Piping: Direct (tube insertion) | Valve: 2-port N.O. | Body diaphragm: PEEK / FKM | Sub plate: None
LVM09R2-5C Piping: Direct (tube insertion) | Valve: 2-port N.O. | Body diaphragm: PEEK / Kalrez | Sub plate: None
LVM092R-5A Piping: Direct (tube insertion) | Valve: 3-port Universal | Body diaphragm: PEEK / EPDM | Sub plate: None
LVM092R-5B Piping: Direct (tube insertion) | Valve: 3-port Universal | Body diaphragm: PEEK / FKM | Sub plate: None
LVM092R-5C Piping: Direct (tube insertion) | Valve: 3-port Universal | Body diaphragm: PEEK / Kalrez | Sub plate: None
LVM09R3-5A Piping: Base mounted | Valve: 2-port N.C. | Body diaphragm: PEEK / EPDM | Sub plate: None
LVM09R3-5AP Piping: Base mounted | Valve: 2-port N.C. | Body diaphragm: PEEK / EPDM | Sub plate: None, anti-reverse pin
LVM09R3-5A3 Piping: Base mounted | Valve: 2-port N.C. | Body diaphragm: PEEK / EPDM | Sub plate: PEEK, M6
LVM09R3-5B Piping: Base mounted | Valve: 2-port N.C. | Body diaphragm: PEEK / FKM | Sub plate: None
LVM09R3-5BP Piping: Base mounted | Valve: 2-port N.C. | Body diaphragm: PEEK / FKM | Sub plate: None, anti-reverse pin
LVM09R3-5B3 Piping: Base mounted | Valve: 2-port N.C. | Body diaphragm: PEEK / FKM | Sub plate: PEEK, M6
LVM09R3-5C Piping: Base mounted | Valve: 2-port N.C. | Body diaphragm: PEEK / Kalrez | Sub plate: None
LVM09R3-5CP Piping: Base mounted | Valve: 2-port N.C. | Body diaphragm: PEEK / Kalrez | Sub plate: None, anti-reverse pin
LVM09R3-5C3 Piping: Base mounted | Valve: 2-port N.C. | Body diaphragm: PEEK / Kalrez | Sub plate: PEEK, M6
LVM09R4-5A Piping: Base mounted | Valve: 2-port N.O. | Body diaphragm: PEEK / EPDM | Sub plate: None
LVM09R4-5AP Piping: Base mounted | Valve: 2-port N.O. | Body diaphragm: PEEK / EPDM | Sub plate: None, anti-reverse pin
LVM09R4-5A3 Piping: Base mounted | Valve: 2-port N.O. | Body diaphragm: PEEK / EPDM | Sub plate: PEEK, M6
LVM09R4-5B Piping: Base mounted | Valve: 2-port N.O. | Body diaphragm: PEEK / FKM | Sub plate: None
LVM09R4-5BP Piping: Base mounted | Valve: 2-port N.O. | Body diaphragm: PEEK / FKM | Sub plate: None, anti-reverse pin
LVM09R4-5B3 Piping: Base mounted | Valve: 2-port N.O. | Body diaphragm: PEEK / FKM | Sub plate: PEEK, M6
LVM09R4-5C Piping: Base mounted | Valve: 2-port N.O. | Body diaphragm: PEEK / Kalrez | Sub plate: None
LVM09R4-5CP Piping: Base mounted | Valve: 2-port N.O. | Body diaphragm: PEEK / Kalrez | Sub plate: None, anti-reverse pin
LVM09R4-5C3 Piping: Base mounted | Valve: 2-port N.O. | Body diaphragm: PEEK / Kalrez | Sub plate: PEEK, M6
LVM09R6-5A Piping: Base mounted (R6) | Valve: 2-port N.C. | Body diaphragm: PEEK / EPDM | Sub plate: None
LVM09R6-5AP Piping: Base mounted (R6) | Valve: 2-port N.C. | Body diaphragm: PEEK / EPDM | Sub plate: None, anti-reverse pin
LVM09R6-5A3 Piping: Base mounted (R6) | Valve: 2-port N.C. | Body diaphragm: PEEK / EPDM | Sub plate: PEEK, M6
LVM09R6-5B Piping: Base mounted (R6) | Valve: 2-port N.C. | Body diaphragm: PEEK / FKM | Sub plate: None
LVM09R6-5BP Piping: Base mounted (R6) | Valve: 2-port N.C. | Body diaphragm: PEEK / FKM | Sub plate: None, anti-reverse pin
LVM09R6-5B3 Piping: Base mounted (R6) | Valve: 2-port N.C. | Body diaphragm: PEEK / FKM | Sub plate: PEEK, M6
LVM09R6-5C Piping: Base mounted (R6) | Valve: 2-port N.C. | Body diaphragm: PEEK / Kalrez | Sub plate: None
LVM09R6-5CP Piping: Base mounted (R6) | Valve: 2-port N.C. | Body diaphragm: PEEK / Kalrez | Sub plate: None, anti-reverse pin
LVM09R6-5C3 Piping: Base mounted (R6) | Valve: 2-port N.C. | Body diaphragm: PEEK / Kalrez | Sub plate: PEEK, M6
LVM095R-5A Piping: Base mounted | Valve: 3-port Universal | Body diaphragm: PEEK / EPDM | Sub plate: None
LVM095R-5AP Piping: Base mounted | Valve: 3-port Universal | Body diaphragm: PEEK / EPDM | Sub plate: None, anti-reverse pin
LVM095R-5A3 Piping: Base mounted | Valve: 3-port Universal | Body diaphragm: PEEK / EPDM | Sub plate: PEEK, M6
LVM095R-5B Piping: Base mounted | Valve: 3-port Universal | Body diaphragm: PEEK / FKM | Sub plate: None
LVM095R-5BP Piping: Base mounted | Valve: 3-port Universal | Body diaphragm: PEEK / FKM | Sub plate: None, anti-reverse pin
LVM095R-5B3 Piping: Base mounted | Valve: 3-port Universal | Body diaphragm: PEEK / FKM | Sub plate: PEEK, M6
LVM095R-5C Piping: Base mounted | Valve: 3-port Universal | Body diaphragm: PEEK / Kalrez | Sub plate: None
LVM095R-5CP Piping: Base mounted | Valve: 3-port Universal | Body diaphragm: PEEK / Kalrez | Sub plate: None, anti-reverse pin
LVM095R-5C3 Piping: Base mounted | Valve: 3-port Universal | Body diaphragm: PEEK / Kalrez | Sub plate: PEEK, M6
