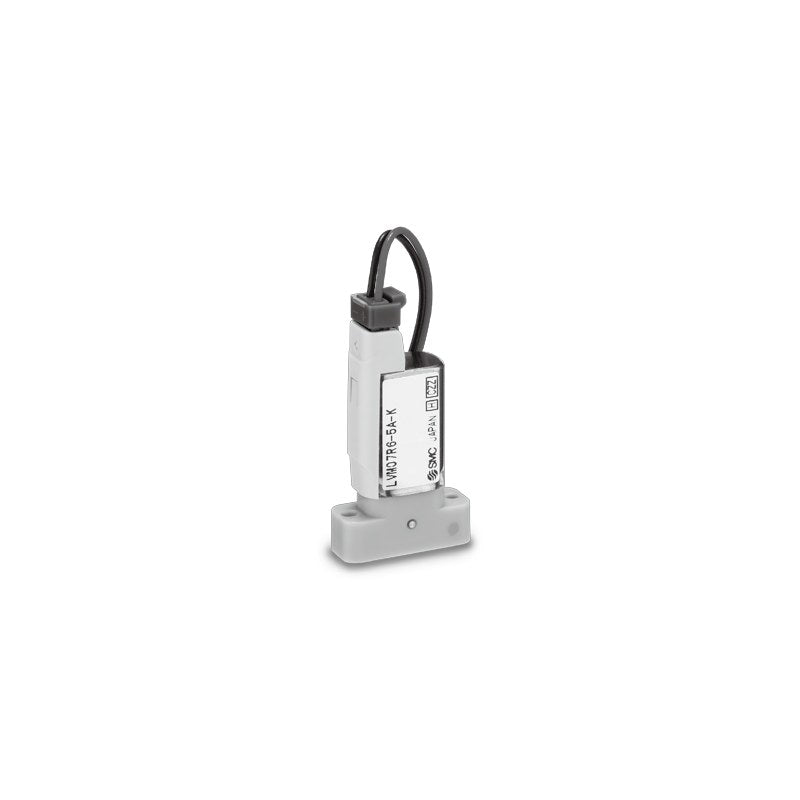

SMC LVM10/100 Compact Direct Operated 2/3-Port Chemical Valve

SMC LVM10/100 Compact Direct Operated 2/3-Port Chemical Valve

SMC LVM10/100 series direct operated rocker-type 2/3-port solenoid valve for chemicals, 13 mm wide, direct piping or base mounted with PVDF or PFA sub-plate.

Key features

  • Direct operated rocker type with isolating diaphragm, N.C., N.O. and universal (3-port) valve types
  • 13 mm valve width, 14 mm manifold pitch
  • Wetted parts PEEK or PFA with EPDM, FKM or Kalrez diaphragm (PFA body: no PVDF sub-plate)
  • Low-power circuit version (Y) reduces holding power; bracket and manual override options
  • Orifice 1.4 mm, Kv 0.025, internal valve volume 20 to 28 µL
  • Lead wire entry/length (grommet 150 to 1000 mm, plug connector K/KO/KZ/KOZ), CE/UKCA (Q) and DC12V coil are specified as suffixes; listed codes are DC24V with standard lead wire

Specifications

Valve construction Direct operated rocker
Operating pressure -75 kPa to 0.25 MPa
Response time 10 ms or less (air); low-power OFF 35 ms or less
Fluid Air, water, deionized water, diluted chemicals, cleaning fluid
Rated voltage DC24V (DC12V also available, symbol 6)
Allowable voltage fluctuation ±10% of rated voltage
Coil insulation Class B
Enclosure IP40 equivalent
Ambient and fluid temperature 0 to 50°C (no freezing)
Leakage 0 internal and external (with water)
Source SMC Korea catalog LVM Series (SMCKR_LVM.pdf), p. 347-353 (PDF p. 20-26)
LVM10R1-5A Piping: Direct (tube insertion) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: None
LVM10R1-5A-1 Piping: Direct (tube insertion) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: Bracket
LVM10R1-5A-2 Piping: Direct (tube insertion) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: Manual override
LVM10R1-5A-3 Piping: Direct (tube insertion) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: Bracket + manual
LVM10R1-5B Piping: Direct (tube insertion) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: None | Option: None
LVM10R1-5B-1 Piping: Direct (tube insertion) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: None | Option: Bracket
LVM10R1-5B-2 Piping: Direct (tube insertion) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: None | Option: Manual override
LVM10R1-5B-3 Piping: Direct (tube insertion) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: None | Option: Bracket + manual
LVM10R1-5C Piping: Direct (tube insertion) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: None
LVM10R1-5C-1 Piping: Direct (tube insertion) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: Bracket
LVM10R1-5C-2 Piping: Direct (tube insertion) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: Manual override
LVM10R1-5C-3 Piping: Direct (tube insertion) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: Bracket + manual
LVM10R1Y-5A Piping: Direct (tube insertion) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: None
LVM10R1Y-5A-1 Piping: Direct (tube insertion) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: Bracket
LVM10R1Y-5A-2 Piping: Direct (tube insertion) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: Manual override
LVM10R1Y-5A-3 Piping: Direct (tube insertion) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: Bracket + manual
LVM10R1Y-5B Piping: Direct (tube insertion) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: None | Option: None
LVM10R1Y-5B-1 Piping: Direct (tube insertion) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: None | Option: Bracket
LVM10R1Y-5B-2 Piping: Direct (tube insertion) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: None | Option: Manual override
LVM10R1Y-5B-3 Piping: Direct (tube insertion) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: None | Option: Bracket + manual
LVM10R1Y-5C Piping: Direct (tube insertion) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: None
LVM10R1Y-5C-1 Piping: Direct (tube insertion) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: Bracket
LVM10R1Y-5C-2 Piping: Direct (tube insertion) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: Manual override
LVM10R1Y-5C-3 Piping: Direct (tube insertion) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: Bracket + manual
LVM10R2-5A Piping: Direct (tube insertion) | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: None
LVM10R2-5A-1 Piping: Direct (tube insertion) | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: Bracket
LVM10R2-5A-2 Piping: Direct (tube insertion) | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: Manual override
LVM10R2-5A-3 Piping: Direct (tube insertion) | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: Bracket + manual
LVM10R2-5B Piping: Direct (tube insertion) | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: None | Option: None
LVM10R2-5B-1 Piping: Direct (tube insertion) | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: None | Option: Bracket
LVM10R2-5B-2 Piping: Direct (tube insertion) | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: None | Option: Manual override
LVM10R2-5B-3 Piping: Direct (tube insertion) | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: None | Option: Bracket + manual
LVM10R2-5C Piping: Direct (tube insertion) | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: None
LVM10R2-5C-1 Piping: Direct (tube insertion) | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: Bracket
LVM10R2-5C-2 Piping: Direct (tube insertion) | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: Manual override
LVM10R2-5C-3 Piping: Direct (tube insertion) | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: Bracket + manual
LVM10R2Y-5A Piping: Direct (tube insertion) | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: None
LVM10R2Y-5A-1 Piping: Direct (tube insertion) | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: Bracket
LVM10R2Y-5A-2 Piping: Direct (tube insertion) | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: Manual override
LVM10R2Y-5A-3 Piping: Direct (tube insertion) | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: Bracket + manual
LVM10R2Y-5B Piping: Direct (tube insertion) | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: None | Option: None
LVM10R2Y-5B-1 Piping: Direct (tube insertion) | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: None | Option: Bracket
LVM10R2Y-5B-2 Piping: Direct (tube insertion) | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: None | Option: Manual override
LVM10R2Y-5B-3 Piping: Direct (tube insertion) | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: None | Option: Bracket + manual
LVM10R2Y-5C Piping: Direct (tube insertion) | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: None
LVM10R2Y-5C-1 Piping: Direct (tube insertion) | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: Bracket
LVM10R2Y-5C-2 Piping: Direct (tube insertion) | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: Manual override
LVM10R2Y-5C-3 Piping: Direct (tube insertion) | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: Bracket + manual
LVM102R-5A Piping: Direct (tube insertion) | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: None
LVM102R-5A-1 Piping: Direct (tube insertion) | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: Bracket
LVM102R-5A-2 Piping: Direct (tube insertion) | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: Manual override
LVM102R-5A-3 Piping: Direct (tube insertion) | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: Bracket + manual
LVM102R-5B Piping: Direct (tube insertion) | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: None | Option: None
LVM102R-5B-1 Piping: Direct (tube insertion) | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: None | Option: Bracket
LVM102R-5B-2 Piping: Direct (tube insertion) | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: None | Option: Manual override
LVM102R-5B-3 Piping: Direct (tube insertion) | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: None | Option: Bracket + manual
LVM102R-5C Piping: Direct (tube insertion) | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: None
LVM102R-5C-1 Piping: Direct (tube insertion) | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: Bracket
LVM102R-5C-2 Piping: Direct (tube insertion) | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: Manual override
LVM102R-5C-3 Piping: Direct (tube insertion) | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: Bracket + manual
LVM102RY-5A Piping: Direct (tube insertion) | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: None
LVM102RY-5A-1 Piping: Direct (tube insertion) | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: Bracket
LVM102RY-5A-2 Piping: Direct (tube insertion) | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: Manual override
LVM102RY-5A-3 Piping: Direct (tube insertion) | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: Bracket + manual
LVM102RY-5B Piping: Direct (tube insertion) | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: None | Option: None
LVM102RY-5B-1 Piping: Direct (tube insertion) | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: None | Option: Bracket
LVM102RY-5B-2 Piping: Direct (tube insertion) | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: None | Option: Manual override
LVM102RY-5B-3 Piping: Direct (tube insertion) | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: None | Option: Bracket + manual
LVM102RY-5C Piping: Direct (tube insertion) | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: None
LVM102RY-5C-1 Piping: Direct (tube insertion) | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: Bracket
LVM102RY-5C-2 Piping: Direct (tube insertion) | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: Manual override
LVM102RY-5C-3 Piping: Direct (tube insertion) | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: Bracket + manual
LVM10R3-5A Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: None
LVM10R3-5A-2 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: Manual override
LVM10R3-5AP Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: None, anti-reverse pin | Option: None
LVM10R3-5AP-2 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: None, anti-reverse pin | Option: Manual override
LVM10R3-5A1 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, M6 | Option: None
LVM10R3-5A1-1 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, M6 | Option: Bracket
LVM10R3-5A1-2 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, M6 | Option: Manual override
LVM10R3-5A1-3 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, M6 | Option: Bracket + manual
LVM10R3-5A2 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: PFA, M6 | Option: None
LVM10R3-5A2-1 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: PFA, M6 | Option: Bracket
LVM10R3-5A2-2 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: PFA, M6 | Option: Manual override
LVM10R3-5A2-3 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: PFA, M6 | Option: Bracket + manual
LVM10R3-5B Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: None | Option: None
LVM10R3-5B-2 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: None | Option: Manual override
LVM10R3-5BP Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: None, anti-reverse pin | Option: None
LVM10R3-5BP-2 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: None, anti-reverse pin | Option: Manual override
LVM10R3-5B1 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: PVDF, M6 | Option: None
LVM10R3-5B1-1 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: PVDF, M6 | Option: Bracket
LVM10R3-5B1-2 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: PVDF, M6 | Option: Manual override
LVM10R3-5B1-3 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: PVDF, M6 | Option: Bracket + manual
LVM10R3-5B2 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: PFA, M6 | Option: None
LVM10R3-5B2-1 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: PFA, M6 | Option: Bracket
LVM10R3-5B2-2 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: PFA, M6 | Option: Manual override
LVM10R3-5B2-3 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: PFA, M6 | Option: Bracket + manual
LVM10R3-5C Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: None
LVM10R3-5C-2 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: Manual override
LVM10R3-5CP Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: None, anti-reverse pin | Option: None
LVM10R3-5CP-2 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: None, anti-reverse pin | Option: Manual override
LVM10R3-5C1 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, M6 | Option: None
LVM10R3-5C1-1 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, M6 | Option: Bracket
LVM10R3-5C1-2 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, M6 | Option: Manual override
LVM10R3-5C1-3 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, M6 | Option: Bracket + manual
LVM10R3-5C2 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: PFA, M6 | Option: None
LVM10R3-5C2-1 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: PFA, M6 | Option: Bracket
LVM10R3-5C2-2 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: PFA, M6 | Option: Manual override
LVM10R3-5C2-3 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: PFA, M6 | Option: Bracket + manual
LVM10R3-5E Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PFA / EPDM | Sub plate: None | Option: None
LVM10R3-5E-2 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PFA / EPDM | Sub plate: None | Option: Manual override
LVM10R3-5E2 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PFA / EPDM | Sub plate: PFA, M6 | Option: None
LVM10R3-5E2-1 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PFA / EPDM | Sub plate: PFA, M6 | Option: Bracket
LVM10R3-5E2-2 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PFA / EPDM | Sub plate: PFA, M6 | Option: Manual override
LVM10R3-5E2-3 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PFA / EPDM | Sub plate: PFA, M6 | Option: Bracket + manual
LVM10R3-5F Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PFA / FKM | Sub plate: None | Option: None
LVM10R3-5F-2 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PFA / FKM | Sub plate: None | Option: Manual override
LVM10R3-5F2 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PFA / FKM | Sub plate: PFA, M6 | Option: None
LVM10R3-5F2-1 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PFA / FKM | Sub plate: PFA, M6 | Option: Bracket
LVM10R3-5F2-2 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PFA / FKM | Sub plate: PFA, M6 | Option: Manual override
LVM10R3-5F2-3 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PFA / FKM | Sub plate: PFA, M6 | Option: Bracket + manual
LVM10R3-5G Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PFA / Kalrez | Sub plate: None | Option: None
LVM10R3-5G-2 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PFA / Kalrez | Sub plate: None | Option: Manual override
LVM10R3-5G2 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PFA / Kalrez | Sub plate: PFA, M6 | Option: None
LVM10R3-5G2-1 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PFA / Kalrez | Sub plate: PFA, M6 | Option: Bracket
LVM10R3-5G2-2 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PFA / Kalrez | Sub plate: PFA, M6 | Option: Manual override
LVM10R3-5G2-3 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PFA / Kalrez | Sub plate: PFA, M6 | Option: Bracket + manual
LVM10R3Y-5A Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: None
LVM10R3Y-5A-2 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: Manual override
LVM10R3Y-5AP Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: None, anti-reverse pin | Option: None
LVM10R3Y-5AP-2 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: None, anti-reverse pin | Option: Manual override
LVM10R3Y-5A1 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, M6 | Option: None
LVM10R3Y-5A1-1 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, M6 | Option: Bracket
LVM10R3Y-5A1-2 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, M6 | Option: Manual override
LVM10R3Y-5A1-3 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, M6 | Option: Bracket + manual
LVM10R3Y-5A2 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: PFA, M6 | Option: None
LVM10R3Y-5A2-1 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: PFA, M6 | Option: Bracket
LVM10R3Y-5A2-2 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: PFA, M6 | Option: Manual override
LVM10R3Y-5A2-3 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: PFA, M6 | Option: Bracket + manual
LVM10R3Y-5B Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: None | Option: None
LVM10R3Y-5B-2 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: None | Option: Manual override
LVM10R3Y-5BP Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: None, anti-reverse pin | Option: None
LVM10R3Y-5BP-2 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: None, anti-reverse pin | Option: Manual override
LVM10R3Y-5B1 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: PVDF, M6 | Option: None
LVM10R3Y-5B1-1 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: PVDF, M6 | Option: Bracket
LVM10R3Y-5B1-2 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: PVDF, M6 | Option: Manual override
LVM10R3Y-5B1-3 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: PVDF, M6 | Option: Bracket + manual
LVM10R3Y-5B2 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: PFA, M6 | Option: None
LVM10R3Y-5B2-1 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: PFA, M6 | Option: Bracket
LVM10R3Y-5B2-2 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: PFA, M6 | Option: Manual override
LVM10R3Y-5B2-3 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: PFA, M6 | Option: Bracket + manual
LVM10R3Y-5C Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: None
LVM10R3Y-5C-2 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: Manual override
LVM10R3Y-5CP Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: None, anti-reverse pin | Option: None
LVM10R3Y-5CP-2 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: None, anti-reverse pin | Option: Manual override
LVM10R3Y-5C1 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, M6 | Option: None
LVM10R3Y-5C1-1 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, M6 | Option: Bracket
LVM10R3Y-5C1-2 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, M6 | Option: Manual override
LVM10R3Y-5C1-3 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, M6 | Option: Bracket + manual
LVM10R3Y-5C2 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: PFA, M6 | Option: None
LVM10R3Y-5C2-1 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: PFA, M6 | Option: Bracket
LVM10R3Y-5C2-2 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: PFA, M6 | Option: Manual override
LVM10R3Y-5C2-3 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: PFA, M6 | Option: Bracket + manual
LVM10R3Y-5E Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PFA / EPDM | Sub plate: None | Option: None
LVM10R3Y-5E-2 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PFA / EPDM | Sub plate: None | Option: Manual override
LVM10R3Y-5E2 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PFA / EPDM | Sub plate: PFA, M6 | Option: None
LVM10R3Y-5E2-1 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PFA / EPDM | Sub plate: PFA, M6 | Option: Bracket
LVM10R3Y-5E2-2 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PFA / EPDM | Sub plate: PFA, M6 | Option: Manual override
LVM10R3Y-5E2-3 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PFA / EPDM | Sub plate: PFA, M6 | Option: Bracket + manual
LVM10R3Y-5F Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PFA / FKM | Sub plate: None | Option: None
LVM10R3Y-5F-2 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PFA / FKM | Sub plate: None | Option: Manual override
LVM10R3Y-5F2 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PFA / FKM | Sub plate: PFA, M6 | Option: None
LVM10R3Y-5F2-1 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PFA / FKM | Sub plate: PFA, M6 | Option: Bracket
LVM10R3Y-5F2-2 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PFA / FKM | Sub plate: PFA, M6 | Option: Manual override
LVM10R3Y-5F2-3 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PFA / FKM | Sub plate: PFA, M6 | Option: Bracket + manual
LVM10R3Y-5G Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PFA / Kalrez | Sub plate: None | Option: None
LVM10R3Y-5G-2 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PFA / Kalrez | Sub plate: None | Option: Manual override
LVM10R3Y-5G2 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PFA / Kalrez | Sub plate: PFA, M6 | Option: None
LVM10R3Y-5G2-1 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PFA / Kalrez | Sub plate: PFA, M6 | Option: Bracket
LVM10R3Y-5G2-2 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PFA / Kalrez | Sub plate: PFA, M6 | Option: Manual override
LVM10R3Y-5G2-3 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PFA / Kalrez | Sub plate: PFA, M6 | Option: Bracket + manual
LVM10R4-5A Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: None
LVM10R4-5A-2 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: Manual override
LVM10R4-5AP Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: None, anti-reverse pin | Option: None
LVM10R4-5AP-2 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: None, anti-reverse pin | Option: Manual override
LVM10R4-5A1 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, M6 | Option: None
LVM10R4-5A1-1 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, M6 | Option: Bracket
LVM10R4-5A1-2 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, M6 | Option: Manual override
LVM10R4-5A1-3 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, M6 | Option: Bracket + manual
LVM10R4-5A2 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: PFA, M6 | Option: None
LVM10R4-5A2-1 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: PFA, M6 | Option: Bracket
LVM10R4-5A2-2 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: PFA, M6 | Option: Manual override
LVM10R4-5A2-3 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: PFA, M6 | Option: Bracket + manual
LVM10R4-5B Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: None | Option: None
LVM10R4-5B-2 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: None | Option: Manual override
LVM10R4-5BP Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: None, anti-reverse pin | Option: None
LVM10R4-5BP-2 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: None, anti-reverse pin | Option: Manual override
LVM10R4-5B1 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: PVDF, M6 | Option: None
LVM10R4-5B1-1 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: PVDF, M6 | Option: Bracket
LVM10R4-5B1-2 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: PVDF, M6 | Option: Manual override
LVM10R4-5B1-3 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: PVDF, M6 | Option: Bracket + manual
LVM10R4-5B2 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: PFA, M6 | Option: None
LVM10R4-5B2-1 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: PFA, M6 | Option: Bracket
LVM10R4-5B2-2 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: PFA, M6 | Option: Manual override
LVM10R4-5B2-3 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: PFA, M6 | Option: Bracket + manual
LVM10R4-5C Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: None
LVM10R4-5C-2 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: Manual override
LVM10R4-5CP Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: None, anti-reverse pin | Option: None
LVM10R4-5CP-2 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: None, anti-reverse pin | Option: Manual override
LVM10R4-5C1 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, M6 | Option: None
LVM10R4-5C1-1 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, M6 | Option: Bracket
LVM10R4-5C1-2 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, M6 | Option: Manual override
LVM10R4-5C1-3 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, M6 | Option: Bracket + manual
LVM10R4-5C2 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: PFA, M6 | Option: None
LVM10R4-5C2-1 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: PFA, M6 | Option: Bracket
LVM10R4-5C2-2 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: PFA, M6 | Option: Manual override
LVM10R4-5C2-3 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: PFA, M6 | Option: Bracket + manual
LVM10R4-5E Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PFA / EPDM | Sub plate: None | Option: None
LVM10R4-5E-2 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PFA / EPDM | Sub plate: None | Option: Manual override
LVM10R4-5E2 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PFA / EPDM | Sub plate: PFA, M6 | Option: None
LVM10R4-5E2-1 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PFA / EPDM | Sub plate: PFA, M6 | Option: Bracket
LVM10R4-5E2-2 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PFA / EPDM | Sub plate: PFA, M6 | Option: Manual override
LVM10R4-5E2-3 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PFA / EPDM | Sub plate: PFA, M6 | Option: Bracket + manual
LVM10R4-5F Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PFA / FKM | Sub plate: None | Option: None
LVM10R4-5F-2 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PFA / FKM | Sub plate: None | Option: Manual override
LVM10R4-5F2 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PFA / FKM | Sub plate: PFA, M6 | Option: None
LVM10R4-5F2-1 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PFA / FKM | Sub plate: PFA, M6 | Option: Bracket
LVM10R4-5F2-2 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PFA / FKM | Sub plate: PFA, M6 | Option: Manual override
LVM10R4-5F2-3 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PFA / FKM | Sub plate: PFA, M6 | Option: Bracket + manual
LVM10R4-5G Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PFA / Kalrez | Sub plate: None | Option: None
LVM10R4-5G-2 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PFA / Kalrez | Sub plate: None | Option: Manual override
LVM10R4-5G2 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PFA / Kalrez | Sub plate: PFA, M6 | Option: None
LVM10R4-5G2-1 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PFA / Kalrez | Sub plate: PFA, M6 | Option: Bracket
LVM10R4-5G2-2 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PFA / Kalrez | Sub plate: PFA, M6 | Option: Manual override
LVM10R4-5G2-3 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PFA / Kalrez | Sub plate: PFA, M6 | Option: Bracket + manual
LVM10R4Y-5A Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: None
LVM10R4Y-5A-2 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: Manual override
LVM10R4Y-5AP Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: None, anti-reverse pin | Option: None
LVM10R4Y-5AP-2 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: None, anti-reverse pin | Option: Manual override
LVM10R4Y-5A1 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, M6 | Option: None
LVM10R4Y-5A1-1 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, M6 | Option: Bracket
LVM10R4Y-5A1-2 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, M6 | Option: Manual override
LVM10R4Y-5A1-3 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, M6 | Option: Bracket + manual
LVM10R4Y-5A2 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: PFA, M6 | Option: None
LVM10R4Y-5A2-1 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: PFA, M6 | Option: Bracket
LVM10R4Y-5A2-2 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: PFA, M6 | Option: Manual override
LVM10R4Y-5A2-3 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: PFA, M6 | Option: Bracket + manual
LVM10R4Y-5B Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: None | Option: None
LVM10R4Y-5B-2 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: None | Option: Manual override
LVM10R4Y-5BP Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: None, anti-reverse pin | Option: None
LVM10R4Y-5BP-2 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: None, anti-reverse pin | Option: Manual override
LVM10R4Y-5B1 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: PVDF, M6 | Option: None
LVM10R4Y-5B1-1 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: PVDF, M6 | Option: Bracket
LVM10R4Y-5B1-2 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: PVDF, M6 | Option: Manual override
LVM10R4Y-5B1-3 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: PVDF, M6 | Option: Bracket + manual
LVM10R4Y-5B2 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: PFA, M6 | Option: None
LVM10R4Y-5B2-1 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: PFA, M6 | Option: Bracket
LVM10R4Y-5B2-2 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: PFA, M6 | Option: Manual override
LVM10R4Y-5B2-3 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: PFA, M6 | Option: Bracket + manual
LVM10R4Y-5C Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: None
LVM10R4Y-5C-2 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: Manual override
LVM10R4Y-5CP Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: None, anti-reverse pin | Option: None
LVM10R4Y-5CP-2 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: None, anti-reverse pin | Option: Manual override
LVM10R4Y-5C1 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, M6 | Option: None
LVM10R4Y-5C1-1 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, M6 | Option: Bracket
LVM10R4Y-5C1-2 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, M6 | Option: Manual override
LVM10R4Y-5C1-3 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, M6 | Option: Bracket + manual
LVM10R4Y-5C2 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: PFA, M6 | Option: None
LVM10R4Y-5C2-1 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: PFA, M6 | Option: Bracket
LVM10R4Y-5C2-2 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: PFA, M6 | Option: Manual override
LVM10R4Y-5C2-3 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: PFA, M6 | Option: Bracket + manual
LVM10R4Y-5E Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PFA / EPDM | Sub plate: None | Option: None
LVM10R4Y-5E-2 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PFA / EPDM | Sub plate: None | Option: Manual override
LVM10R4Y-5E2 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PFA / EPDM | Sub plate: PFA, M6 | Option: None
LVM10R4Y-5E2-1 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PFA / EPDM | Sub plate: PFA, M6 | Option: Bracket
LVM10R4Y-5E2-2 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PFA / EPDM | Sub plate: PFA, M6 | Option: Manual override
LVM10R4Y-5E2-3 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PFA / EPDM | Sub plate: PFA, M6 | Option: Bracket + manual
LVM10R4Y-5F Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PFA / FKM | Sub plate: None | Option: None
LVM10R4Y-5F-2 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PFA / FKM | Sub plate: None | Option: Manual override
LVM10R4Y-5F2 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PFA / FKM | Sub plate: PFA, M6 | Option: None
LVM10R4Y-5F2-1 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PFA / FKM | Sub plate: PFA, M6 | Option: Bracket
LVM10R4Y-5F2-2 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PFA / FKM | Sub plate: PFA, M6 | Option: Manual override
LVM10R4Y-5F2-3 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PFA / FKM | Sub plate: PFA, M6 | Option: Bracket + manual
LVM10R4Y-5G Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PFA / Kalrez | Sub plate: None | Option: None
LVM10R4Y-5G-2 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PFA / Kalrez | Sub plate: None | Option: Manual override
LVM10R4Y-5G2 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PFA / Kalrez | Sub plate: PFA, M6 | Option: None
LVM10R4Y-5G2-1 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PFA / Kalrez | Sub plate: PFA, M6 | Option: Bracket
LVM10R4Y-5G2-2 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PFA / Kalrez | Sub plate: PFA, M6 | Option: Manual override
LVM10R4Y-5G2-3 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PFA / Kalrez | Sub plate: PFA, M6 | Option: Bracket + manual
LVM10R6-5A Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: None
LVM10R6-5A-2 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: Manual override
LVM10R6-5AP Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: None, anti-reverse pin | Option: None
LVM10R6-5AP-2 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: None, anti-reverse pin | Option: Manual override
LVM10R6-5A1 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, M6 | Option: None
LVM10R6-5A1-1 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, M6 | Option: Bracket
LVM10R6-5A1-2 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, M6 | Option: Manual override
LVM10R6-5A1-3 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, M6 | Option: Bracket + manual
LVM10R6-5A2 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: PFA, M6 | Option: None
LVM10R6-5A2-1 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: PFA, M6 | Option: Bracket
LVM10R6-5A2-2 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: PFA, M6 | Option: Manual override
LVM10R6-5A2-3 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: PFA, M6 | Option: Bracket + manual
LVM10R6-5B Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: None | Option: None
LVM10R6-5B-2 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: None | Option: Manual override
LVM10R6-5BP Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: None, anti-reverse pin | Option: None
LVM10R6-5BP-2 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: None, anti-reverse pin | Option: Manual override
LVM10R6-5B1 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: PVDF, M6 | Option: None
LVM10R6-5B1-1 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: PVDF, M6 | Option: Bracket
LVM10R6-5B1-2 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: PVDF, M6 | Option: Manual override
LVM10R6-5B1-3 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: PVDF, M6 | Option: Bracket + manual
LVM10R6-5B2 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: PFA, M6 | Option: None
LVM10R6-5B2-1 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: PFA, M6 | Option: Bracket
LVM10R6-5B2-2 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: PFA, M6 | Option: Manual override
LVM10R6-5B2-3 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: PFA, M6 | Option: Bracket + manual
LVM10R6-5C Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: None
LVM10R6-5C-2 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: Manual override
LVM10R6-5CP Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: None, anti-reverse pin | Option: None
LVM10R6-5CP-2 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: None, anti-reverse pin | Option: Manual override
LVM10R6-5C1 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, M6 | Option: None
LVM10R6-5C1-1 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, M6 | Option: Bracket
LVM10R6-5C1-2 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, M6 | Option: Manual override
LVM10R6-5C1-3 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, M6 | Option: Bracket + manual
LVM10R6-5C2 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: PFA, M6 | Option: None
LVM10R6-5C2-1 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: PFA, M6 | Option: Bracket
LVM10R6-5C2-2 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: PFA, M6 | Option: Manual override
LVM10R6-5C2-3 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: PFA, M6 | Option: Bracket + manual
LVM10R6-5E Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PFA / EPDM | Sub plate: None | Option: None
LVM10R6-5E-2 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PFA / EPDM | Sub plate: None | Option: Manual override
LVM10R6-5E2 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PFA / EPDM | Sub plate: PFA, M6 | Option: None
LVM10R6-5E2-1 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PFA / EPDM | Sub plate: PFA, M6 | Option: Bracket
LVM10R6-5E2-2 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PFA / EPDM | Sub plate: PFA, M6 | Option: Manual override
LVM10R6-5E2-3 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PFA / EPDM | Sub plate: PFA, M6 | Option: Bracket + manual
LVM10R6-5F Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PFA / FKM | Sub plate: None | Option: None
LVM10R6-5F-2 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PFA / FKM | Sub plate: None | Option: Manual override
LVM10R6-5F2 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PFA / FKM | Sub plate: PFA, M6 | Option: None
LVM10R6-5F2-1 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PFA / FKM | Sub plate: PFA, M6 | Option: Bracket
LVM10R6-5F2-2 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PFA / FKM | Sub plate: PFA, M6 | Option: Manual override
LVM10R6-5F2-3 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PFA / FKM | Sub plate: PFA, M6 | Option: Bracket + manual
LVM10R6-5G Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PFA / Kalrez | Sub plate: None | Option: None
LVM10R6-5G-2 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PFA / Kalrez | Sub plate: None | Option: Manual override
LVM10R6-5G2 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PFA / Kalrez | Sub plate: PFA, M6 | Option: None
LVM10R6-5G2-1 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PFA / Kalrez | Sub plate: PFA, M6 | Option: Bracket
LVM10R6-5G2-2 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PFA / Kalrez | Sub plate: PFA, M6 | Option: Manual override
LVM10R6-5G2-3 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PFA / Kalrez | Sub plate: PFA, M6 | Option: Bracket + manual
LVM10R6Y-5A Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: None
LVM10R6Y-5A-2 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: Manual override
LVM10R6Y-5AP Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: None, anti-reverse pin | Option: None
LVM10R6Y-5AP-2 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: None, anti-reverse pin | Option: Manual override
LVM10R6Y-5A1 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, M6 | Option: None
LVM10R6Y-5A1-1 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, M6 | Option: Bracket
LVM10R6Y-5A1-2 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, M6 | Option: Manual override
LVM10R6Y-5A1-3 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, M6 | Option: Bracket + manual
LVM10R6Y-5A2 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: PFA, M6 | Option: None
LVM10R6Y-5A2-1 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: PFA, M6 | Option: Bracket
LVM10R6Y-5A2-2 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: PFA, M6 | Option: Manual override
LVM10R6Y-5A2-3 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: PFA, M6 | Option: Bracket + manual
LVM10R6Y-5B Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: None | Option: None
LVM10R6Y-5B-2 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: None | Option: Manual override
LVM10R6Y-5BP Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: None, anti-reverse pin | Option: None
LVM10R6Y-5BP-2 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: None, anti-reverse pin | Option: Manual override
LVM10R6Y-5B1 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: PVDF, M6 | Option: None
LVM10R6Y-5B1-1 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: PVDF, M6 | Option: Bracket
LVM10R6Y-5B1-2 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: PVDF, M6 | Option: Manual override
LVM10R6Y-5B1-3 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: PVDF, M6 | Option: Bracket + manual
LVM10R6Y-5B2 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: PFA, M6 | Option: None
LVM10R6Y-5B2-1 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: PFA, M6 | Option: Bracket
LVM10R6Y-5B2-2 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: PFA, M6 | Option: Manual override
LVM10R6Y-5B2-3 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: PFA, M6 | Option: Bracket + manual
LVM10R6Y-5C Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: None
LVM10R6Y-5C-2 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: Manual override
LVM10R6Y-5CP Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: None, anti-reverse pin | Option: None
LVM10R6Y-5CP-2 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: None, anti-reverse pin | Option: Manual override
LVM10R6Y-5C1 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, M6 | Option: None
LVM10R6Y-5C1-1 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, M6 | Option: Bracket
LVM10R6Y-5C1-2 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, M6 | Option: Manual override
LVM10R6Y-5C1-3 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, M6 | Option: Bracket + manual
LVM10R6Y-5C2 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: PFA, M6 | Option: None
LVM10R6Y-5C2-1 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: PFA, M6 | Option: Bracket
LVM10R6Y-5C2-2 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: PFA, M6 | Option: Manual override
LVM10R6Y-5C2-3 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: PFA, M6 | Option: Bracket + manual
LVM10R6Y-5E Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PFA / EPDM | Sub plate: None | Option: None
LVM10R6Y-5E-2 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PFA / EPDM | Sub plate: None | Option: Manual override
LVM10R6Y-5E2 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PFA / EPDM | Sub plate: PFA, M6 | Option: None
LVM10R6Y-5E2-1 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PFA / EPDM | Sub plate: PFA, M6 | Option: Bracket
LVM10R6Y-5E2-2 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PFA / EPDM | Sub plate: PFA, M6 | Option: Manual override
LVM10R6Y-5E2-3 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PFA / EPDM | Sub plate: PFA, M6 | Option: Bracket + manual
LVM10R6Y-5F Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PFA / FKM | Sub plate: None | Option: None
LVM10R6Y-5F-2 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PFA / FKM | Sub plate: None | Option: Manual override
LVM10R6Y-5F2 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PFA / FKM | Sub plate: PFA, M6 | Option: None
LVM10R6Y-5F2-1 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PFA / FKM | Sub plate: PFA, M6 | Option: Bracket
LVM10R6Y-5F2-2 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PFA / FKM | Sub plate: PFA, M6 | Option: Manual override
LVM10R6Y-5F2-3 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PFA / FKM | Sub plate: PFA, M6 | Option: Bracket + manual
LVM10R6Y-5G Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PFA / Kalrez | Sub plate: None | Option: None
LVM10R6Y-5G-2 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PFA / Kalrez | Sub plate: None | Option: Manual override
LVM10R6Y-5G2 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PFA / Kalrez | Sub plate: PFA, M6 | Option: None
LVM10R6Y-5G2-1 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PFA / Kalrez | Sub plate: PFA, M6 | Option: Bracket
LVM10R6Y-5G2-2 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PFA / Kalrez | Sub plate: PFA, M6 | Option: Manual override
LVM10R6Y-5G2-3 Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PFA / Kalrez | Sub plate: PFA, M6 | Option: Bracket + manual
LVM105R-5A Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: None
LVM105R-5A-2 Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: Manual override
LVM105R-5AP Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: None, anti-reverse pin | Option: None
LVM105R-5AP-2 Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: None, anti-reverse pin | Option: Manual override
LVM105R-5A1 Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, M6 | Option: None
LVM105R-5A1-1 Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, M6 | Option: Bracket
LVM105R-5A1-2 Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, M6 | Option: Manual override
LVM105R-5A1-3 Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, M6 | Option: Bracket + manual
LVM105R-5A2 Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: PFA, M6 | Option: None
LVM105R-5A2-1 Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: PFA, M6 | Option: Bracket
LVM105R-5A2-2 Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: PFA, M6 | Option: Manual override
LVM105R-5A2-3 Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: PFA, M6 | Option: Bracket + manual
LVM105R-5B Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: None | Option: None
LVM105R-5B-2 Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: None | Option: Manual override
LVM105R-5BP Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: None, anti-reverse pin | Option: None
LVM105R-5BP-2 Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: None, anti-reverse pin | Option: Manual override
LVM105R-5B1 Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: PVDF, M6 | Option: None
LVM105R-5B1-1 Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: PVDF, M6 | Option: Bracket
LVM105R-5B1-2 Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: PVDF, M6 | Option: Manual override
LVM105R-5B1-3 Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: PVDF, M6 | Option: Bracket + manual
LVM105R-5B2 Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: PFA, M6 | Option: None
LVM105R-5B2-1 Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: PFA, M6 | Option: Bracket
LVM105R-5B2-2 Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: PFA, M6 | Option: Manual override
LVM105R-5B2-3 Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: PFA, M6 | Option: Bracket + manual
LVM105R-5C Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: None
LVM105R-5C-2 Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: Manual override
LVM105R-5CP Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: None, anti-reverse pin | Option: None
LVM105R-5CP-2 Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: None, anti-reverse pin | Option: Manual override
LVM105R-5C1 Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, M6 | Option: None
LVM105R-5C1-1 Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, M6 | Option: Bracket
LVM105R-5C1-2 Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, M6 | Option: Manual override
LVM105R-5C1-3 Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, M6 | Option: Bracket + manual
LVM105R-5C2 Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: PFA, M6 | Option: None
LVM105R-5C2-1 Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: PFA, M6 | Option: Bracket
LVM105R-5C2-2 Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: PFA, M6 | Option: Manual override
LVM105R-5C2-3 Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: PFA, M6 | Option: Bracket + manual
LVM105R-5E Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PFA / EPDM | Sub plate: None | Option: None
LVM105R-5E-2 Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PFA / EPDM | Sub plate: None | Option: Manual override
LVM105R-5E2 Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PFA / EPDM | Sub plate: PFA, M6 | Option: None
LVM105R-5E2-1 Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PFA / EPDM | Sub plate: PFA, M6 | Option: Bracket
LVM105R-5E2-2 Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PFA / EPDM | Sub plate: PFA, M6 | Option: Manual override
LVM105R-5E2-3 Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PFA / EPDM | Sub plate: PFA, M6 | Option: Bracket + manual
LVM105R-5F Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PFA / FKM | Sub plate: None | Option: None
LVM105R-5F-2 Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PFA / FKM | Sub plate: None | Option: Manual override
LVM105R-5F2 Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PFA / FKM | Sub plate: PFA, M6 | Option: None
LVM105R-5F2-1 Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PFA / FKM | Sub plate: PFA, M6 | Option: Bracket
LVM105R-5F2-2 Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PFA / FKM | Sub plate: PFA, M6 | Option: Manual override
LVM105R-5F2-3 Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PFA / FKM | Sub plate: PFA, M6 | Option: Bracket + manual
LVM105R-5G Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PFA / Kalrez | Sub plate: None | Option: None
LVM105R-5G-2 Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PFA / Kalrez | Sub plate: None | Option: Manual override
LVM105R-5G2 Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PFA / Kalrez | Sub plate: PFA, M6 | Option: None
LVM105R-5G2-1 Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PFA / Kalrez | Sub plate: PFA, M6 | Option: Bracket
LVM105R-5G2-2 Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PFA / Kalrez | Sub plate: PFA, M6 | Option: Manual override
LVM105R-5G2-3 Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PFA / Kalrez | Sub plate: PFA, M6 | Option: Bracket + manual
LVM105RY-5A Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: None
LVM105RY-5A-2 Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: Manual override
LVM105RY-5AP Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: None, anti-reverse pin | Option: None
LVM105RY-5AP-2 Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: None, anti-reverse pin | Option: Manual override
LVM105RY-5A1 Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, M6 | Option: None
LVM105RY-5A1-1 Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, M6 | Option: Bracket
LVM105RY-5A1-2 Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, M6 | Option: Manual override
LVM105RY-5A1-3 Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, M6 | Option: Bracket + manual
LVM105RY-5A2 Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: PFA, M6 | Option: None
LVM105RY-5A2-1 Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: PFA, M6 | Option: Bracket
LVM105RY-5A2-2 Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: PFA, M6 | Option: Manual override
LVM105RY-5A2-3 Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: PFA, M6 | Option: Bracket + manual
LVM105RY-5B Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: None | Option: None
LVM105RY-5B-2 Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: None | Option: Manual override
LVM105RY-5BP Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: None, anti-reverse pin | Option: None
LVM105RY-5BP-2 Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: None, anti-reverse pin | Option: Manual override
LVM105RY-5B1 Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: PVDF, M6 | Option: None
LVM105RY-5B1-1 Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: PVDF, M6 | Option: Bracket
LVM105RY-5B1-2 Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: PVDF, M6 | Option: Manual override
LVM105RY-5B1-3 Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: PVDF, M6 | Option: Bracket + manual
LVM105RY-5B2 Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: PFA, M6 | Option: None
LVM105RY-5B2-1 Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: PFA, M6 | Option: Bracket
LVM105RY-5B2-2 Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: PFA, M6 | Option: Manual override
LVM105RY-5B2-3 Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: PFA, M6 | Option: Bracket + manual
LVM105RY-5C Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: None
LVM105RY-5C-2 Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: Manual override
LVM105RY-5CP Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: None, anti-reverse pin | Option: None
LVM105RY-5CP-2 Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: None, anti-reverse pin | Option: Manual override
LVM105RY-5C1 Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, M6 | Option: None
LVM105RY-5C1-1 Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, M6 | Option: Bracket
LVM105RY-5C1-2 Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, M6 | Option: Manual override
LVM105RY-5C1-3 Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, M6 | Option: Bracket + manual
LVM105RY-5C2 Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: PFA, M6 | Option: None
LVM105RY-5C2-1 Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: PFA, M6 | Option: Bracket
LVM105RY-5C2-2 Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: PFA, M6 | Option: Manual override
LVM105RY-5C2-3 Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: PFA, M6 | Option: Bracket + manual
LVM105RY-5E Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PFA / EPDM | Sub plate: None | Option: None
LVM105RY-5E-2 Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PFA / EPDM | Sub plate: None | Option: Manual override
LVM105RY-5E2 Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PFA / EPDM | Sub plate: PFA, M6 | Option: None
LVM105RY-5E2-1 Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PFA / EPDM | Sub plate: PFA, M6 | Option: Bracket
LVM105RY-5E2-2 Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PFA / EPDM | Sub plate: PFA, M6 | Option: Manual override
LVM105RY-5E2-3 Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PFA / EPDM | Sub plate: PFA, M6 | Option: Bracket + manual
LVM105RY-5F Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PFA / FKM | Sub plate: None | Option: None
LVM105RY-5F-2 Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PFA / FKM | Sub plate: None | Option: Manual override
LVM105RY-5F2 Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PFA / FKM | Sub plate: PFA, M6 | Option: None
LVM105RY-5F2-1 Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PFA / FKM | Sub plate: PFA, M6 | Option: Bracket
LVM105RY-5F2-2 Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PFA / FKM | Sub plate: PFA, M6 | Option: Manual override
LVM105RY-5F2-3 Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PFA / FKM | Sub plate: PFA, M6 | Option: Bracket + manual
LVM105RY-5G Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PFA / Kalrez | Sub plate: None | Option: None
LVM105RY-5G-2 Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PFA / Kalrez | Sub plate: None | Option: Manual override
LVM105RY-5G2 Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PFA / Kalrez | Sub plate: PFA, M6 | Option: None
LVM105RY-5G2-1 Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PFA / Kalrez | Sub plate: PFA, M6 | Option: Bracket
LVM105RY-5G2-2 Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PFA / Kalrez | Sub plate: PFA, M6 | Option: Manual override
LVM105RY-5G2-3 Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PFA / Kalrez | Sub plate: PFA, M6 | Option: Bracket + manual
Chemical ValvesSMC
504 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC LVM10/100 Compact Direct Operated 2/3-Port Chemical Valve

Brand SMC·Chemical Valves

Available part numbers (504)

LVM10R1-5A, LVM10R1-5A-1, LVM10R1-5A-2, LVM10R1-5A-3, LVM10R1-5B, LVM10R1-5B-1, LVM10R1-5B-2, LVM10R1-5B-3, LVM10R1-5C, LVM10R1-5C-1 + 494 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LVM10R1-5APiping: Direct (tube insertion) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: None
LVM10R1-5A-1Piping: Direct (tube insertion) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: Bracket
LVM10R1-5A-2Piping: Direct (tube insertion) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: Manual override
LVM10R1-5A-3Piping: Direct (tube insertion) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: Bracket + manual
LVM10R1-5BPiping: Direct (tube insertion) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: None | Option: None
LVM10R1-5B-1Piping: Direct (tube insertion) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: None | Option: Bracket
LVM10R1-5B-2Piping: Direct (tube insertion) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: None | Option: Manual override
LVM10R1-5B-3Piping: Direct (tube insertion) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: None | Option: Bracket + manual
LVM10R1-5CPiping: Direct (tube insertion) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: None
LVM10R1-5C-1Piping: Direct (tube insertion) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: Bracket
LVM10R1-5C-2Piping: Direct (tube insertion) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: Manual override
LVM10R1-5C-3Piping: Direct (tube insertion) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: Bracket + manual
LVM10R1Y-5APiping: Direct (tube insertion) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: None
LVM10R1Y-5A-1Piping: Direct (tube insertion) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: Bracket
LVM10R1Y-5A-2Piping: Direct (tube insertion) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: Manual override
LVM10R1Y-5A-3Piping: Direct (tube insertion) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: Bracket + manual
LVM10R1Y-5BPiping: Direct (tube insertion) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: None | Option: None
LVM10R1Y-5B-1Piping: Direct (tube insertion) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: None | Option: Bracket
LVM10R1Y-5B-2Piping: Direct (tube insertion) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: None | Option: Manual override
LVM10R1Y-5B-3Piping: Direct (tube insertion) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: None | Option: Bracket + manual
LVM10R1Y-5CPiping: Direct (tube insertion) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: None
LVM10R1Y-5C-1Piping: Direct (tube insertion) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: Bracket
LVM10R1Y-5C-2Piping: Direct (tube insertion) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: Manual override
LVM10R1Y-5C-3Piping: Direct (tube insertion) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: Bracket + manual
LVM10R2-5APiping: Direct (tube insertion) | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: None
LVM10R2-5A-1Piping: Direct (tube insertion) | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: Bracket
LVM10R2-5A-2Piping: Direct (tube insertion) | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: Manual override
LVM10R2-5A-3Piping: Direct (tube insertion) | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: Bracket + manual
LVM10R2-5BPiping: Direct (tube insertion) | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: None | Option: None
LVM10R2-5B-1Piping: Direct (tube insertion) | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: None | Option: Bracket
LVM10R2-5B-2Piping: Direct (tube insertion) | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: None | Option: Manual override
LVM10R2-5B-3Piping: Direct (tube insertion) | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: None | Option: Bracket + manual
LVM10R2-5CPiping: Direct (tube insertion) | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: None
LVM10R2-5C-1Piping: Direct (tube insertion) | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: Bracket
LVM10R2-5C-2Piping: Direct (tube insertion) | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: Manual override
LVM10R2-5C-3Piping: Direct (tube insertion) | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: Bracket + manual
LVM10R2Y-5APiping: Direct (tube insertion) | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: None
LVM10R2Y-5A-1Piping: Direct (tube insertion) | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: Bracket
LVM10R2Y-5A-2Piping: Direct (tube insertion) | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: Manual override
LVM10R2Y-5A-3Piping: Direct (tube insertion) | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: Bracket + manual
LVM10R2Y-5BPiping: Direct (tube insertion) | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: None | Option: None
LVM10R2Y-5B-1Piping: Direct (tube insertion) | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: None | Option: Bracket
LVM10R2Y-5B-2Piping: Direct (tube insertion) | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: None | Option: Manual override
LVM10R2Y-5B-3Piping: Direct (tube insertion) | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: None | Option: Bracket + manual
LVM10R2Y-5CPiping: Direct (tube insertion) | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: None
LVM10R2Y-5C-1Piping: Direct (tube insertion) | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: Bracket
LVM10R2Y-5C-2Piping: Direct (tube insertion) | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: Manual override
LVM10R2Y-5C-3Piping: Direct (tube insertion) | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: Bracket + manual
LVM102R-5APiping: Direct (tube insertion) | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: None
LVM102R-5A-1Piping: Direct (tube insertion) | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: Bracket
LVM102R-5A-2Piping: Direct (tube insertion) | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: Manual override
LVM102R-5A-3Piping: Direct (tube insertion) | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: Bracket + manual
LVM102R-5BPiping: Direct (tube insertion) | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: None | Option: None
LVM102R-5B-1Piping: Direct (tube insertion) | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: None | Option: Bracket
LVM102R-5B-2Piping: Direct (tube insertion) | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: None | Option: Manual override
LVM102R-5B-3Piping: Direct (tube insertion) | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: None | Option: Bracket + manual
LVM102R-5CPiping: Direct (tube insertion) | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: None
LVM102R-5C-1Piping: Direct (tube insertion) | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: Bracket
LVM102R-5C-2Piping: Direct (tube insertion) | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: Manual override
LVM102R-5C-3Piping: Direct (tube insertion) | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: Bracket + manual
LVM102RY-5APiping: Direct (tube insertion) | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: None
LVM102RY-5A-1Piping: Direct (tube insertion) | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: Bracket
LVM102RY-5A-2Piping: Direct (tube insertion) | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: Manual override
LVM102RY-5A-3Piping: Direct (tube insertion) | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: Bracket + manual
LVM102RY-5BPiping: Direct (tube insertion) | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: None | Option: None
LVM102RY-5B-1Piping: Direct (tube insertion) | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: None | Option: Bracket
LVM102RY-5B-2Piping: Direct (tube insertion) | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: None | Option: Manual override
LVM102RY-5B-3Piping: Direct (tube insertion) | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: None | Option: Bracket + manual
LVM102RY-5CPiping: Direct (tube insertion) | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: None
LVM102RY-5C-1Piping: Direct (tube insertion) | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: Bracket
LVM102RY-5C-2Piping: Direct (tube insertion) | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: Manual override
LVM102RY-5C-3Piping: Direct (tube insertion) | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: Bracket + manual
LVM10R3-5APiping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: None
LVM10R3-5A-2Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: Manual override
LVM10R3-5APPiping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: None, anti-reverse pin | Option: None
LVM10R3-5AP-2Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: None, anti-reverse pin | Option: Manual override
LVM10R3-5A1Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, M6 | Option: None
LVM10R3-5A1-1Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, M6 | Option: Bracket
LVM10R3-5A1-2Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, M6 | Option: Manual override
LVM10R3-5A1-3Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, M6 | Option: Bracket + manual
LVM10R3-5A2Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: PFA, M6 | Option: None
LVM10R3-5A2-1Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: PFA, M6 | Option: Bracket
LVM10R3-5A2-2Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: PFA, M6 | Option: Manual override
LVM10R3-5A2-3Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: PFA, M6 | Option: Bracket + manual
LVM10R3-5BPiping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: None | Option: None
LVM10R3-5B-2Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: None | Option: Manual override
LVM10R3-5BPPiping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: None, anti-reverse pin | Option: None
LVM10R3-5BP-2Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: None, anti-reverse pin | Option: Manual override
LVM10R3-5B1Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: PVDF, M6 | Option: None
LVM10R3-5B1-1Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: PVDF, M6 | Option: Bracket
LVM10R3-5B1-2Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: PVDF, M6 | Option: Manual override
LVM10R3-5B1-3Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: PVDF, M6 | Option: Bracket + manual
LVM10R3-5B2Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: PFA, M6 | Option: None
LVM10R3-5B2-1Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: PFA, M6 | Option: Bracket
LVM10R3-5B2-2Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: PFA, M6 | Option: Manual override
LVM10R3-5B2-3Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: PFA, M6 | Option: Bracket + manual
LVM10R3-5CPiping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: None
LVM10R3-5C-2Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: Manual override
LVM10R3-5CPPiping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: None, anti-reverse pin | Option: None
LVM10R3-5CP-2Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: None, anti-reverse pin | Option: Manual override
LVM10R3-5C1Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, M6 | Option: None
LVM10R3-5C1-1Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, M6 | Option: Bracket
LVM10R3-5C1-2Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, M6 | Option: Manual override
LVM10R3-5C1-3Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, M6 | Option: Bracket + manual
LVM10R3-5C2Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: PFA, M6 | Option: None
LVM10R3-5C2-1Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: PFA, M6 | Option: Bracket
LVM10R3-5C2-2Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: PFA, M6 | Option: Manual override
LVM10R3-5C2-3Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: PFA, M6 | Option: Bracket + manual
LVM10R3-5EPiping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PFA / EPDM | Sub plate: None | Option: None
LVM10R3-5E-2Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PFA / EPDM | Sub plate: None | Option: Manual override
LVM10R3-5E2Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PFA / EPDM | Sub plate: PFA, M6 | Option: None
LVM10R3-5E2-1Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PFA / EPDM | Sub plate: PFA, M6 | Option: Bracket
LVM10R3-5E2-2Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PFA / EPDM | Sub plate: PFA, M6 | Option: Manual override
LVM10R3-5E2-3Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PFA / EPDM | Sub plate: PFA, M6 | Option: Bracket + manual
LVM10R3-5FPiping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PFA / FKM | Sub plate: None | Option: None
LVM10R3-5F-2Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PFA / FKM | Sub plate: None | Option: Manual override
LVM10R3-5F2Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PFA / FKM | Sub plate: PFA, M6 | Option: None
LVM10R3-5F2-1Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PFA / FKM | Sub plate: PFA, M6 | Option: Bracket
LVM10R3-5F2-2Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PFA / FKM | Sub plate: PFA, M6 | Option: Manual override
LVM10R3-5F2-3Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PFA / FKM | Sub plate: PFA, M6 | Option: Bracket + manual
LVM10R3-5GPiping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PFA / Kalrez | Sub plate: None | Option: None
LVM10R3-5G-2Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PFA / Kalrez | Sub plate: None | Option: Manual override
LVM10R3-5G2Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PFA / Kalrez | Sub plate: PFA, M6 | Option: None
LVM10R3-5G2-1Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PFA / Kalrez | Sub plate: PFA, M6 | Option: Bracket
LVM10R3-5G2-2Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PFA / Kalrez | Sub plate: PFA, M6 | Option: Manual override
LVM10R3-5G2-3Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PFA / Kalrez | Sub plate: PFA, M6 | Option: Bracket + manual
LVM10R3Y-5APiping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: None
LVM10R3Y-5A-2Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: Manual override
LVM10R3Y-5APPiping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: None, anti-reverse pin | Option: None
LVM10R3Y-5AP-2Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: None, anti-reverse pin | Option: Manual override
LVM10R3Y-5A1Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, M6 | Option: None
LVM10R3Y-5A1-1Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, M6 | Option: Bracket
LVM10R3Y-5A1-2Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, M6 | Option: Manual override
LVM10R3Y-5A1-3Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, M6 | Option: Bracket + manual
LVM10R3Y-5A2Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: PFA, M6 | Option: None
LVM10R3Y-5A2-1Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: PFA, M6 | Option: Bracket
LVM10R3Y-5A2-2Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: PFA, M6 | Option: Manual override
LVM10R3Y-5A2-3Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: PFA, M6 | Option: Bracket + manual
LVM10R3Y-5BPiping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: None | Option: None
LVM10R3Y-5B-2Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: None | Option: Manual override
LVM10R3Y-5BPPiping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: None, anti-reverse pin | Option: None
LVM10R3Y-5BP-2Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: None, anti-reverse pin | Option: Manual override
LVM10R3Y-5B1Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: PVDF, M6 | Option: None
LVM10R3Y-5B1-1Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: PVDF, M6 | Option: Bracket
LVM10R3Y-5B1-2Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: PVDF, M6 | Option: Manual override
LVM10R3Y-5B1-3Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: PVDF, M6 | Option: Bracket + manual
LVM10R3Y-5B2Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: PFA, M6 | Option: None
LVM10R3Y-5B2-1Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: PFA, M6 | Option: Bracket
LVM10R3Y-5B2-2Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: PFA, M6 | Option: Manual override
LVM10R3Y-5B2-3Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: PFA, M6 | Option: Bracket + manual
LVM10R3Y-5CPiping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: None
LVM10R3Y-5C-2Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: Manual override
LVM10R3Y-5CPPiping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: None, anti-reverse pin | Option: None
LVM10R3Y-5CP-2Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: None, anti-reverse pin | Option: Manual override
LVM10R3Y-5C1Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, M6 | Option: None
LVM10R3Y-5C1-1Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, M6 | Option: Bracket
LVM10R3Y-5C1-2Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, M6 | Option: Manual override
LVM10R3Y-5C1-3Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, M6 | Option: Bracket + manual
LVM10R3Y-5C2Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: PFA, M6 | Option: None
LVM10R3Y-5C2-1Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: PFA, M6 | Option: Bracket
LVM10R3Y-5C2-2Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: PFA, M6 | Option: Manual override
LVM10R3Y-5C2-3Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: PFA, M6 | Option: Bracket + manual
LVM10R3Y-5EPiping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PFA / EPDM | Sub plate: None | Option: None
LVM10R3Y-5E-2Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PFA / EPDM | Sub plate: None | Option: Manual override
LVM10R3Y-5E2Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PFA / EPDM | Sub plate: PFA, M6 | Option: None
LVM10R3Y-5E2-1Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PFA / EPDM | Sub plate: PFA, M6 | Option: Bracket
LVM10R3Y-5E2-2Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PFA / EPDM | Sub plate: PFA, M6 | Option: Manual override
LVM10R3Y-5E2-3Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PFA / EPDM | Sub plate: PFA, M6 | Option: Bracket + manual
LVM10R3Y-5FPiping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PFA / FKM | Sub plate: None | Option: None
LVM10R3Y-5F-2Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PFA / FKM | Sub plate: None | Option: Manual override
LVM10R3Y-5F2Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PFA / FKM | Sub plate: PFA, M6 | Option: None
LVM10R3Y-5F2-1Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PFA / FKM | Sub plate: PFA, M6 | Option: Bracket
LVM10R3Y-5F2-2Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PFA / FKM | Sub plate: PFA, M6 | Option: Manual override
LVM10R3Y-5F2-3Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PFA / FKM | Sub plate: PFA, M6 | Option: Bracket + manual
LVM10R3Y-5GPiping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PFA / Kalrez | Sub plate: None | Option: None
LVM10R3Y-5G-2Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PFA / Kalrez | Sub plate: None | Option: Manual override
LVM10R3Y-5G2Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PFA / Kalrez | Sub plate: PFA, M6 | Option: None
LVM10R3Y-5G2-1Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PFA / Kalrez | Sub plate: PFA, M6 | Option: Bracket
LVM10R3Y-5G2-2Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PFA / Kalrez | Sub plate: PFA, M6 | Option: Manual override
LVM10R3Y-5G2-3Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PFA / Kalrez | Sub plate: PFA, M6 | Option: Bracket + manual
LVM10R4-5APiping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: None
LVM10R4-5A-2Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: Manual override
LVM10R4-5APPiping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: None, anti-reverse pin | Option: None
LVM10R4-5AP-2Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: None, anti-reverse pin | Option: Manual override
LVM10R4-5A1Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, M6 | Option: None
LVM10R4-5A1-1Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, M6 | Option: Bracket
LVM10R4-5A1-2Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, M6 | Option: Manual override
LVM10R4-5A1-3Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, M6 | Option: Bracket + manual
LVM10R4-5A2Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: PFA, M6 | Option: None
LVM10R4-5A2-1Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: PFA, M6 | Option: Bracket
LVM10R4-5A2-2Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: PFA, M6 | Option: Manual override
LVM10R4-5A2-3Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: PFA, M6 | Option: Bracket + manual
LVM10R4-5BPiping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: None | Option: None
LVM10R4-5B-2Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: None | Option: Manual override
LVM10R4-5BPPiping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: None, anti-reverse pin | Option: None
LVM10R4-5BP-2Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: None, anti-reverse pin | Option: Manual override
LVM10R4-5B1Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: PVDF, M6 | Option: None
LVM10R4-5B1-1Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: PVDF, M6 | Option: Bracket
LVM10R4-5B1-2Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: PVDF, M6 | Option: Manual override
LVM10R4-5B1-3Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: PVDF, M6 | Option: Bracket + manual
LVM10R4-5B2Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: PFA, M6 | Option: None
LVM10R4-5B2-1Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: PFA, M6 | Option: Bracket
LVM10R4-5B2-2Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: PFA, M6 | Option: Manual override
LVM10R4-5B2-3Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: PFA, M6 | Option: Bracket + manual
LVM10R4-5CPiping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: None
LVM10R4-5C-2Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: Manual override
LVM10R4-5CPPiping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: None, anti-reverse pin | Option: None
LVM10R4-5CP-2Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: None, anti-reverse pin | Option: Manual override
LVM10R4-5C1Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, M6 | Option: None
LVM10R4-5C1-1Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, M6 | Option: Bracket
LVM10R4-5C1-2Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, M6 | Option: Manual override
LVM10R4-5C1-3Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, M6 | Option: Bracket + manual
LVM10R4-5C2Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: PFA, M6 | Option: None
LVM10R4-5C2-1Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: PFA, M6 | Option: Bracket
LVM10R4-5C2-2Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: PFA, M6 | Option: Manual override
LVM10R4-5C2-3Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: PFA, M6 | Option: Bracket + manual
LVM10R4-5EPiping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PFA / EPDM | Sub plate: None | Option: None
LVM10R4-5E-2Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PFA / EPDM | Sub plate: None | Option: Manual override
LVM10R4-5E2Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PFA / EPDM | Sub plate: PFA, M6 | Option: None
LVM10R4-5E2-1Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PFA / EPDM | Sub plate: PFA, M6 | Option: Bracket
LVM10R4-5E2-2Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PFA / EPDM | Sub plate: PFA, M6 | Option: Manual override
LVM10R4-5E2-3Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PFA / EPDM | Sub plate: PFA, M6 | Option: Bracket + manual
LVM10R4-5FPiping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PFA / FKM | Sub plate: None | Option: None
LVM10R4-5F-2Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PFA / FKM | Sub plate: None | Option: Manual override
LVM10R4-5F2Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PFA / FKM | Sub plate: PFA, M6 | Option: None
LVM10R4-5F2-1Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PFA / FKM | Sub plate: PFA, M6 | Option: Bracket
LVM10R4-5F2-2Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PFA / FKM | Sub plate: PFA, M6 | Option: Manual override
LVM10R4-5F2-3Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PFA / FKM | Sub plate: PFA, M6 | Option: Bracket + manual
LVM10R4-5GPiping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PFA / Kalrez | Sub plate: None | Option: None
LVM10R4-5G-2Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PFA / Kalrez | Sub plate: None | Option: Manual override
LVM10R4-5G2Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PFA / Kalrez | Sub plate: PFA, M6 | Option: None
LVM10R4-5G2-1Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PFA / Kalrez | Sub plate: PFA, M6 | Option: Bracket
LVM10R4-5G2-2Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PFA / Kalrez | Sub plate: PFA, M6 | Option: Manual override
LVM10R4-5G2-3Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PFA / Kalrez | Sub plate: PFA, M6 | Option: Bracket + manual
LVM10R4Y-5APiping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: None
LVM10R4Y-5A-2Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: Manual override
LVM10R4Y-5APPiping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: None, anti-reverse pin | Option: None
LVM10R4Y-5AP-2Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: None, anti-reverse pin | Option: Manual override
LVM10R4Y-5A1Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, M6 | Option: None
LVM10R4Y-5A1-1Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, M6 | Option: Bracket
LVM10R4Y-5A1-2Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, M6 | Option: Manual override
LVM10R4Y-5A1-3Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, M6 | Option: Bracket + manual
LVM10R4Y-5A2Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: PFA, M6 | Option: None
LVM10R4Y-5A2-1Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: PFA, M6 | Option: Bracket
LVM10R4Y-5A2-2Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: PFA, M6 | Option: Manual override
LVM10R4Y-5A2-3Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: PFA, M6 | Option: Bracket + manual
LVM10R4Y-5BPiping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: None | Option: None
LVM10R4Y-5B-2Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: None | Option: Manual override
LVM10R4Y-5BPPiping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: None, anti-reverse pin | Option: None
LVM10R4Y-5BP-2Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: None, anti-reverse pin | Option: Manual override
LVM10R4Y-5B1Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: PVDF, M6 | Option: None
LVM10R4Y-5B1-1Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: PVDF, M6 | Option: Bracket
LVM10R4Y-5B1-2Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: PVDF, M6 | Option: Manual override
LVM10R4Y-5B1-3Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: PVDF, M6 | Option: Bracket + manual
LVM10R4Y-5B2Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: PFA, M6 | Option: None
LVM10R4Y-5B2-1Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: PFA, M6 | Option: Bracket
LVM10R4Y-5B2-2Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: PFA, M6 | Option: Manual override
LVM10R4Y-5B2-3Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: PFA, M6 | Option: Bracket + manual
LVM10R4Y-5CPiping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: None
LVM10R4Y-5C-2Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: Manual override
LVM10R4Y-5CPPiping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: None, anti-reverse pin | Option: None
LVM10R4Y-5CP-2Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: None, anti-reverse pin | Option: Manual override
LVM10R4Y-5C1Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, M6 | Option: None
LVM10R4Y-5C1-1Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, M6 | Option: Bracket
LVM10R4Y-5C1-2Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, M6 | Option: Manual override
LVM10R4Y-5C1-3Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, M6 | Option: Bracket + manual
LVM10R4Y-5C2Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: PFA, M6 | Option: None
LVM10R4Y-5C2-1Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: PFA, M6 | Option: Bracket
LVM10R4Y-5C2-2Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: PFA, M6 | Option: Manual override
LVM10R4Y-5C2-3Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: PFA, M6 | Option: Bracket + manual
LVM10R4Y-5EPiping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PFA / EPDM | Sub plate: None | Option: None
LVM10R4Y-5E-2Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PFA / EPDM | Sub plate: None | Option: Manual override
LVM10R4Y-5E2Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PFA / EPDM | Sub plate: PFA, M6 | Option: None
LVM10R4Y-5E2-1Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PFA / EPDM | Sub plate: PFA, M6 | Option: Bracket
LVM10R4Y-5E2-2Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PFA / EPDM | Sub plate: PFA, M6 | Option: Manual override
LVM10R4Y-5E2-3Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PFA / EPDM | Sub plate: PFA, M6 | Option: Bracket + manual
LVM10R4Y-5FPiping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PFA / FKM | Sub plate: None | Option: None
LVM10R4Y-5F-2Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PFA / FKM | Sub plate: None | Option: Manual override
LVM10R4Y-5F2Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PFA / FKM | Sub plate: PFA, M6 | Option: None
LVM10R4Y-5F2-1Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PFA / FKM | Sub plate: PFA, M6 | Option: Bracket
LVM10R4Y-5F2-2Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PFA / FKM | Sub plate: PFA, M6 | Option: Manual override
LVM10R4Y-5F2-3Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PFA / FKM | Sub plate: PFA, M6 | Option: Bracket + manual
LVM10R4Y-5GPiping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PFA / Kalrez | Sub plate: None | Option: None
LVM10R4Y-5G-2Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PFA / Kalrez | Sub plate: None | Option: Manual override
LVM10R4Y-5G2Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PFA / Kalrez | Sub plate: PFA, M6 | Option: None
LVM10R4Y-5G2-1Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PFA / Kalrez | Sub plate: PFA, M6 | Option: Bracket
LVM10R4Y-5G2-2Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PFA / Kalrez | Sub plate: PFA, M6 | Option: Manual override
LVM10R4Y-5G2-3Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PFA / Kalrez | Sub plate: PFA, M6 | Option: Bracket + manual
LVM10R6-5APiping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: None
LVM10R6-5A-2Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: Manual override
LVM10R6-5APPiping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: None, anti-reverse pin | Option: None
LVM10R6-5AP-2Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: None, anti-reverse pin | Option: Manual override
LVM10R6-5A1Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, M6 | Option: None
LVM10R6-5A1-1Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, M6 | Option: Bracket
LVM10R6-5A1-2Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, M6 | Option: Manual override
LVM10R6-5A1-3Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, M6 | Option: Bracket + manual
LVM10R6-5A2Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: PFA, M6 | Option: None
LVM10R6-5A2-1Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: PFA, M6 | Option: Bracket
LVM10R6-5A2-2Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: PFA, M6 | Option: Manual override
LVM10R6-5A2-3Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: PFA, M6 | Option: Bracket + manual
LVM10R6-5BPiping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: None | Option: None
LVM10R6-5B-2Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: None | Option: Manual override
LVM10R6-5BPPiping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: None, anti-reverse pin | Option: None
LVM10R6-5BP-2Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: None, anti-reverse pin | Option: Manual override
LVM10R6-5B1Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: PVDF, M6 | Option: None
LVM10R6-5B1-1Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: PVDF, M6 | Option: Bracket
LVM10R6-5B1-2Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: PVDF, M6 | Option: Manual override
LVM10R6-5B1-3Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: PVDF, M6 | Option: Bracket + manual
LVM10R6-5B2Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: PFA, M6 | Option: None
LVM10R6-5B2-1Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: PFA, M6 | Option: Bracket
LVM10R6-5B2-2Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: PFA, M6 | Option: Manual override
LVM10R6-5B2-3Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: PFA, M6 | Option: Bracket + manual
LVM10R6-5CPiping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: None
LVM10R6-5C-2Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: Manual override
LVM10R6-5CPPiping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: None, anti-reverse pin | Option: None
LVM10R6-5CP-2Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: None, anti-reverse pin | Option: Manual override
LVM10R6-5C1Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, M6 | Option: None
LVM10R6-5C1-1Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, M6 | Option: Bracket
LVM10R6-5C1-2Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, M6 | Option: Manual override
LVM10R6-5C1-3Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, M6 | Option: Bracket + manual
LVM10R6-5C2Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: PFA, M6 | Option: None
LVM10R6-5C2-1Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: PFA, M6 | Option: Bracket
LVM10R6-5C2-2Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: PFA, M6 | Option: Manual override
LVM10R6-5C2-3Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: PFA, M6 | Option: Bracket + manual
LVM10R6-5EPiping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PFA / EPDM | Sub plate: None | Option: None
LVM10R6-5E-2Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PFA / EPDM | Sub plate: None | Option: Manual override
LVM10R6-5E2Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PFA / EPDM | Sub plate: PFA, M6 | Option: None
LVM10R6-5E2-1Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PFA / EPDM | Sub plate: PFA, M6 | Option: Bracket
LVM10R6-5E2-2Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PFA / EPDM | Sub plate: PFA, M6 | Option: Manual override
LVM10R6-5E2-3Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PFA / EPDM | Sub plate: PFA, M6 | Option: Bracket + manual
LVM10R6-5FPiping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PFA / FKM | Sub plate: None | Option: None
LVM10R6-5F-2Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PFA / FKM | Sub plate: None | Option: Manual override
LVM10R6-5F2Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PFA / FKM | Sub plate: PFA, M6 | Option: None
LVM10R6-5F2-1Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PFA / FKM | Sub plate: PFA, M6 | Option: Bracket
LVM10R6-5F2-2Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PFA / FKM | Sub plate: PFA, M6 | Option: Manual override
LVM10R6-5F2-3Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PFA / FKM | Sub plate: PFA, M6 | Option: Bracket + manual
LVM10R6-5GPiping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PFA / Kalrez | Sub plate: None | Option: None
LVM10R6-5G-2Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PFA / Kalrez | Sub plate: None | Option: Manual override
LVM10R6-5G2Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PFA / Kalrez | Sub plate: PFA, M6 | Option: None
LVM10R6-5G2-1Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PFA / Kalrez | Sub plate: PFA, M6 | Option: Bracket
LVM10R6-5G2-2Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PFA / Kalrez | Sub plate: PFA, M6 | Option: Manual override
LVM10R6-5G2-3Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PFA / Kalrez | Sub plate: PFA, M6 | Option: Bracket + manual
LVM10R6Y-5APiping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: None
LVM10R6Y-5A-2Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: Manual override
LVM10R6Y-5APPiping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: None, anti-reverse pin | Option: None
LVM10R6Y-5AP-2Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: None, anti-reverse pin | Option: Manual override
LVM10R6Y-5A1Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, M6 | Option: None
LVM10R6Y-5A1-1Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, M6 | Option: Bracket
LVM10R6Y-5A1-2Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, M6 | Option: Manual override
LVM10R6Y-5A1-3Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, M6 | Option: Bracket + manual
LVM10R6Y-5A2Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: PFA, M6 | Option: None
LVM10R6Y-5A2-1Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: PFA, M6 | Option: Bracket
LVM10R6Y-5A2-2Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: PFA, M6 | Option: Manual override
LVM10R6Y-5A2-3Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: PFA, M6 | Option: Bracket + manual
LVM10R6Y-5BPiping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: None | Option: None
LVM10R6Y-5B-2Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: None | Option: Manual override
LVM10R6Y-5BPPiping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: None, anti-reverse pin | Option: None
LVM10R6Y-5BP-2Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: None, anti-reverse pin | Option: Manual override
LVM10R6Y-5B1Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: PVDF, M6 | Option: None
LVM10R6Y-5B1-1Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: PVDF, M6 | Option: Bracket
LVM10R6Y-5B1-2Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: PVDF, M6 | Option: Manual override
LVM10R6Y-5B1-3Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: PVDF, M6 | Option: Bracket + manual
LVM10R6Y-5B2Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: PFA, M6 | Option: None
LVM10R6Y-5B2-1Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: PFA, M6 | Option: Bracket
LVM10R6Y-5B2-2Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: PFA, M6 | Option: Manual override
LVM10R6Y-5B2-3Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: PFA, M6 | Option: Bracket + manual
LVM10R6Y-5CPiping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: None
LVM10R6Y-5C-2Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: Manual override
LVM10R6Y-5CPPiping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: None, anti-reverse pin | Option: None
LVM10R6Y-5CP-2Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: None, anti-reverse pin | Option: Manual override
LVM10R6Y-5C1Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, M6 | Option: None
LVM10R6Y-5C1-1Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, M6 | Option: Bracket
LVM10R6Y-5C1-2Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, M6 | Option: Manual override
LVM10R6Y-5C1-3Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, M6 | Option: Bracket + manual
LVM10R6Y-5C2Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: PFA, M6 | Option: None
LVM10R6Y-5C2-1Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: PFA, M6 | Option: Bracket
LVM10R6Y-5C2-2Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: PFA, M6 | Option: Manual override
LVM10R6Y-5C2-3Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: PFA, M6 | Option: Bracket + manual
LVM10R6Y-5EPiping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PFA / EPDM | Sub plate: None | Option: None
LVM10R6Y-5E-2Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PFA / EPDM | Sub plate: None | Option: Manual override
LVM10R6Y-5E2Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PFA / EPDM | Sub plate: PFA, M6 | Option: None
LVM10R6Y-5E2-1Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PFA / EPDM | Sub plate: PFA, M6 | Option: Bracket
LVM10R6Y-5E2-2Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PFA / EPDM | Sub plate: PFA, M6 | Option: Manual override
LVM10R6Y-5E2-3Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PFA / EPDM | Sub plate: PFA, M6 | Option: Bracket + manual
LVM10R6Y-5FPiping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PFA / FKM | Sub plate: None | Option: None
LVM10R6Y-5F-2Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PFA / FKM | Sub plate: None | Option: Manual override
LVM10R6Y-5F2Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PFA / FKM | Sub plate: PFA, M6 | Option: None
LVM10R6Y-5F2-1Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PFA / FKM | Sub plate: PFA, M6 | Option: Bracket
LVM10R6Y-5F2-2Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PFA / FKM | Sub plate: PFA, M6 | Option: Manual override
LVM10R6Y-5F2-3Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PFA / FKM | Sub plate: PFA, M6 | Option: Bracket + manual
LVM10R6Y-5GPiping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PFA / Kalrez | Sub plate: None | Option: None
LVM10R6Y-5G-2Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PFA / Kalrez | Sub plate: None | Option: Manual override
LVM10R6Y-5G2Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PFA / Kalrez | Sub plate: PFA, M6 | Option: None
LVM10R6Y-5G2-1Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PFA / Kalrez | Sub plate: PFA, M6 | Option: Bracket
LVM10R6Y-5G2-2Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PFA / Kalrez | Sub plate: PFA, M6 | Option: Manual override
LVM10R6Y-5G2-3Piping: Base mounted (R6) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PFA / Kalrez | Sub plate: PFA, M6 | Option: Bracket + manual
LVM105R-5APiping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: None
LVM105R-5A-2Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: Manual override
LVM105R-5APPiping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: None, anti-reverse pin | Option: None
LVM105R-5AP-2Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: None, anti-reverse pin | Option: Manual override
LVM105R-5A1Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, M6 | Option: None
LVM105R-5A1-1Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, M6 | Option: Bracket
LVM105R-5A1-2Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, M6 | Option: Manual override
LVM105R-5A1-3Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, M6 | Option: Bracket + manual
LVM105R-5A2Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: PFA, M6 | Option: None
LVM105R-5A2-1Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: PFA, M6 | Option: Bracket
LVM105R-5A2-2Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: PFA, M6 | Option: Manual override
LVM105R-5A2-3Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: PFA, M6 | Option: Bracket + manual
LVM105R-5BPiping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: None | Option: None
LVM105R-5B-2Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: None | Option: Manual override
LVM105R-5BPPiping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: None, anti-reverse pin | Option: None
LVM105R-5BP-2Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: None, anti-reverse pin | Option: Manual override
LVM105R-5B1Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: PVDF, M6 | Option: None
LVM105R-5B1-1Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: PVDF, M6 | Option: Bracket
LVM105R-5B1-2Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: PVDF, M6 | Option: Manual override
LVM105R-5B1-3Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: PVDF, M6 | Option: Bracket + manual
LVM105R-5B2Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: PFA, M6 | Option: None
LVM105R-5B2-1Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: PFA, M6 | Option: Bracket
LVM105R-5B2-2Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: PFA, M6 | Option: Manual override
LVM105R-5B2-3Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: PFA, M6 | Option: Bracket + manual
LVM105R-5CPiping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: None
LVM105R-5C-2Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: Manual override
LVM105R-5CPPiping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: None, anti-reverse pin | Option: None
LVM105R-5CP-2Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: None, anti-reverse pin | Option: Manual override
LVM105R-5C1Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, M6 | Option: None
LVM105R-5C1-1Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, M6 | Option: Bracket
LVM105R-5C1-2Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, M6 | Option: Manual override
LVM105R-5C1-3Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, M6 | Option: Bracket + manual
LVM105R-5C2Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: PFA, M6 | Option: None
LVM105R-5C2-1Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: PFA, M6 | Option: Bracket
LVM105R-5C2-2Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: PFA, M6 | Option: Manual override
LVM105R-5C2-3Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: PFA, M6 | Option: Bracket + manual
LVM105R-5EPiping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PFA / EPDM | Sub plate: None | Option: None
LVM105R-5E-2Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PFA / EPDM | Sub plate: None | Option: Manual override
LVM105R-5E2Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PFA / EPDM | Sub plate: PFA, M6 | Option: None
LVM105R-5E2-1Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PFA / EPDM | Sub plate: PFA, M6 | Option: Bracket
LVM105R-5E2-2Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PFA / EPDM | Sub plate: PFA, M6 | Option: Manual override
LVM105R-5E2-3Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PFA / EPDM | Sub plate: PFA, M6 | Option: Bracket + manual
LVM105R-5FPiping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PFA / FKM | Sub plate: None | Option: None
LVM105R-5F-2Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PFA / FKM | Sub plate: None | Option: Manual override
LVM105R-5F2Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PFA / FKM | Sub plate: PFA, M6 | Option: None
LVM105R-5F2-1Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PFA / FKM | Sub plate: PFA, M6 | Option: Bracket
LVM105R-5F2-2Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PFA / FKM | Sub plate: PFA, M6 | Option: Manual override
LVM105R-5F2-3Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PFA / FKM | Sub plate: PFA, M6 | Option: Bracket + manual
LVM105R-5GPiping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PFA / Kalrez | Sub plate: None | Option: None
LVM105R-5G-2Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PFA / Kalrez | Sub plate: None | Option: Manual override
LVM105R-5G2Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PFA / Kalrez | Sub plate: PFA, M6 | Option: None
LVM105R-5G2-1Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PFA / Kalrez | Sub plate: PFA, M6 | Option: Bracket
LVM105R-5G2-2Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PFA / Kalrez | Sub plate: PFA, M6 | Option: Manual override
LVM105R-5G2-3Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PFA / Kalrez | Sub plate: PFA, M6 | Option: Bracket + manual
LVM105RY-5APiping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: None
LVM105RY-5A-2Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: None | Option: Manual override
LVM105RY-5APPiping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: None, anti-reverse pin | Option: None
LVM105RY-5AP-2Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: None, anti-reverse pin | Option: Manual override
LVM105RY-5A1Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, M6 | Option: None
LVM105RY-5A1-1Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, M6 | Option: Bracket
LVM105RY-5A1-2Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, M6 | Option: Manual override
LVM105RY-5A1-3Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, M6 | Option: Bracket + manual
LVM105RY-5A2Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: PFA, M6 | Option: None
LVM105RY-5A2-1Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: PFA, M6 | Option: Bracket
LVM105RY-5A2-2Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: PFA, M6 | Option: Manual override
LVM105RY-5A2-3Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: PFA, M6 | Option: Bracket + manual
LVM105RY-5BPiping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: None | Option: None
LVM105RY-5B-2Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: None | Option: Manual override
LVM105RY-5BPPiping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: None, anti-reverse pin | Option: None
LVM105RY-5BP-2Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: None, anti-reverse pin | Option: Manual override
LVM105RY-5B1Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: PVDF, M6 | Option: None
LVM105RY-5B1-1Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: PVDF, M6 | Option: Bracket
LVM105RY-5B1-2Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: PVDF, M6 | Option: Manual override
LVM105RY-5B1-3Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: PVDF, M6 | Option: Bracket + manual
LVM105RY-5B2Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: PFA, M6 | Option: None
LVM105RY-5B2-1Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: PFA, M6 | Option: Bracket
LVM105RY-5B2-2Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: PFA, M6 | Option: Manual override
LVM105RY-5B2-3Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: PFA, M6 | Option: Bracket + manual
LVM105RY-5CPiping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: None
LVM105RY-5C-2Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: None | Option: Manual override
LVM105RY-5CPPiping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: None, anti-reverse pin | Option: None
LVM105RY-5CP-2Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: None, anti-reverse pin | Option: Manual override
LVM105RY-5C1Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, M6 | Option: None
LVM105RY-5C1-1Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, M6 | Option: Bracket
LVM105RY-5C1-2Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, M6 | Option: Manual override
LVM105RY-5C1-3Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, M6 | Option: Bracket + manual
LVM105RY-5C2Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: PFA, M6 | Option: None
LVM105RY-5C2-1Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: PFA, M6 | Option: Bracket
LVM105RY-5C2-2Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: PFA, M6 | Option: Manual override
LVM105RY-5C2-3Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: PFA, M6 | Option: Bracket + manual
LVM105RY-5EPiping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PFA / EPDM | Sub plate: None | Option: None
LVM105RY-5E-2Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PFA / EPDM | Sub plate: None | Option: Manual override
LVM105RY-5E2Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PFA / EPDM | Sub plate: PFA, M6 | Option: None
LVM105RY-5E2-1Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PFA / EPDM | Sub plate: PFA, M6 | Option: Bracket
LVM105RY-5E2-2Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PFA / EPDM | Sub plate: PFA, M6 | Option: Manual override
LVM105RY-5E2-3Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PFA / EPDM | Sub plate: PFA, M6 | Option: Bracket + manual
LVM105RY-5FPiping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PFA / FKM | Sub plate: None | Option: None
LVM105RY-5F-2Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PFA / FKM | Sub plate: None | Option: Manual override
LVM105RY-5F2Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PFA / FKM | Sub plate: PFA, M6 | Option: None
LVM105RY-5F2-1Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PFA / FKM | Sub plate: PFA, M6 | Option: Bracket
LVM105RY-5F2-2Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PFA / FKM | Sub plate: PFA, M6 | Option: Manual override
LVM105RY-5F2-3Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PFA / FKM | Sub plate: PFA, M6 | Option: Bracket + manual
LVM105RY-5GPiping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PFA / Kalrez | Sub plate: None | Option: None
LVM105RY-5G-2Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PFA / Kalrez | Sub plate: None | Option: Manual override
LVM105RY-5G2Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PFA / Kalrez | Sub plate: PFA, M6 | Option: None
LVM105RY-5G2-1Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PFA / Kalrez | Sub plate: PFA, M6 | Option: Bracket
LVM105RY-5G2-2Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PFA / Kalrez | Sub plate: PFA, M6 | Option: Manual override
LVM105RY-5G2-3Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PFA / Kalrez | Sub plate: PFA, M6 | Option: Bracket + manual

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
