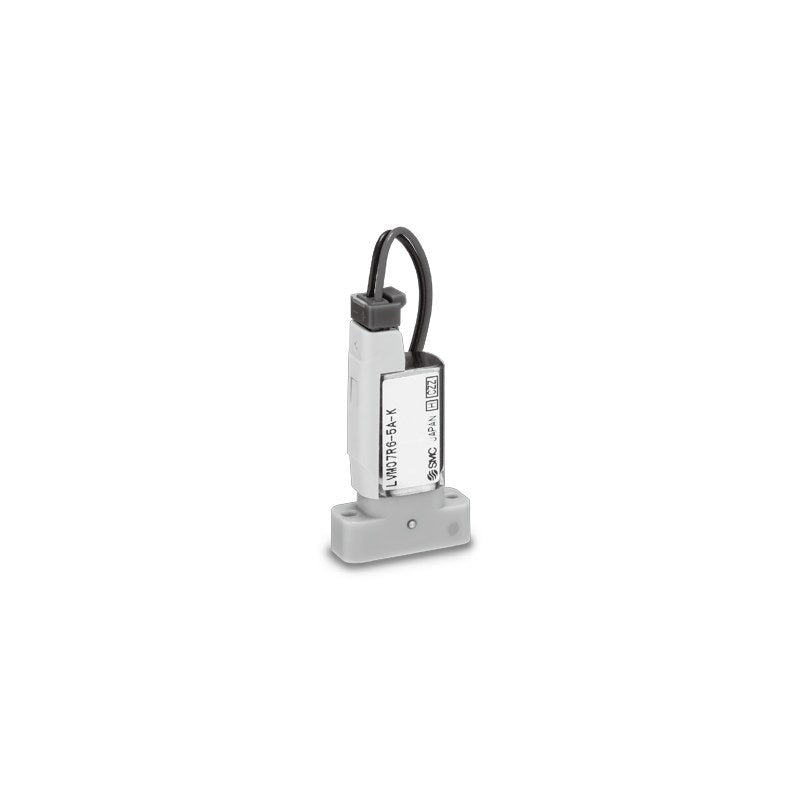

SMC LVM11/13 Low-Power Direct Operated 2-Port Chemical Valve

SMC LVM11/13 Low-Power Direct Operated 2-Port Chemical Valve

SMC LVM11/13 series direct operated poppet-type 2-port N.C. solenoid valve for chemicals with built-in low-power circuit, in direct piping (LVM11) and base mounted (LVM13) versions.

Key features

  • Direct operated poppet type, N.C., with built-in low-power circuit (2.5 W start, 1 W holding)
  • Orifice 1.5 mm, internal valve volume 11 µL (LVM11) / 13 µL (LVM13)
  • Wetted parts PEEK with EPDM, FKM or Kalrez
  • Bracket option for direct piping type; anti-reverse pin option for base mounted type
  • Lead wire entry/length (grommet 150 to 1000 mm, plug connector K/KO/KZ/KOZ), CE/UKCA (Q) and DC12V coil are specified as suffixes; listed codes are DC24V with standard lead wire

Specifications

Valve construction Direct operated poppet, N.C., 2-port
Operating pressure 0 to 0.25 MPa
Response time 10 ms or less (air)
Mass 30 g
Fluid Air, water, deionized water, diluted chemicals, cleaning fluid
Rated voltage DC24V (DC12V also available, symbol 6)
Allowable voltage fluctuation ±10% of rated voltage
Coil insulation Class B
Enclosure IP40 equivalent
Ambient and fluid temperature 0 to 50°C (no freezing)
Leakage 0 internal and external (with water)
Source SMC Korea catalog LVM Series (SMCKR_LVM.pdf), p. 366-370 (PDF p. 39-43)
LVM11-5A Piping: Direct piping (LVM11) | Body diaphragm: PEEK / EPDM | Option: None
LVM11-5A-1 Piping: Direct piping (LVM11) | Body diaphragm: PEEK / EPDM | Option: Bracket
LVM11-5B Piping: Direct piping (LVM11) | Body diaphragm: PEEK / FKM | Option: None
LVM11-5B-1 Piping: Direct piping (LVM11) | Body diaphragm: PEEK / FKM | Option: Bracket
LVM11-5C Piping: Direct piping (LVM11) | Body diaphragm: PEEK / Kalrez | Option: None
LVM11-5C-1 Piping: Direct piping (LVM11) | Body diaphragm: PEEK / Kalrez | Option: Bracket
LVM13-5A Piping: Base mounted (LVM13) | Body diaphragm: PEEK / EPDM | Option: None
LVM13-5AP Piping: Base mounted (LVM13) | Body diaphragm: PEEK / EPDM | Option: Anti-reverse pin
LVM13-5B Piping: Base mounted (LVM13) | Body diaphragm: PEEK / FKM | Option: None
LVM13-5BP Piping: Base mounted (LVM13) | Body diaphragm: PEEK / FKM | Option: Anti-reverse pin
LVM13-5C Piping: Base mounted (LVM13) | Body diaphragm: PEEK / Kalrez | Option: None
LVM13-5CP Piping: Base mounted (LVM13) | Body diaphragm: PEEK / Kalrez | Option: Anti-reverse pin
Chemical ValvesSMC
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC LVM11/13 Low-Power Direct Operated 2-Port Chemical Valve

Brand SMC·Chemical Valves

Available part numbers (12)

LVM11-5A, LVM11-5A-1, LVM11-5B, LVM11-5B-1, LVM11-5C, LVM11-5C-1, LVM13-5A, LVM13-5AP, LVM13-5B, LVM13-5BP + 2 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LVM11-5APiping: Direct piping (LVM11) | Body diaphragm: PEEK / EPDM | Option: None
LVM11-5A-1Piping: Direct piping (LVM11) | Body diaphragm: PEEK / EPDM | Option: Bracket
LVM11-5BPiping: Direct piping (LVM11) | Body diaphragm: PEEK / FKM | Option: None
LVM11-5B-1Piping: Direct piping (LVM11) | Body diaphragm: PEEK / FKM | Option: Bracket
LVM11-5CPiping: Direct piping (LVM11) | Body diaphragm: PEEK / Kalrez | Option: None
LVM11-5C-1Piping: Direct piping (LVM11) | Body diaphragm: PEEK / Kalrez | Option: Bracket
LVM13-5APiping: Base mounted (LVM13) | Body diaphragm: PEEK / EPDM | Option: None
LVM13-5APPiping: Base mounted (LVM13) | Body diaphragm: PEEK / EPDM | Option: Anti-reverse pin
LVM13-5BPiping: Base mounted (LVM13) | Body diaphragm: PEEK / FKM | Option: None
LVM13-5BPPiping: Base mounted (LVM13) | Body diaphragm: PEEK / FKM | Option: Anti-reverse pin
LVM13-5CPiping: Base mounted (LVM13) | Body diaphragm: PEEK / Kalrez | Option: None
LVM13-5CPPiping: Base mounted (LVM13) | Body diaphragm: PEEK / Kalrez | Option: Anti-reverse pin
