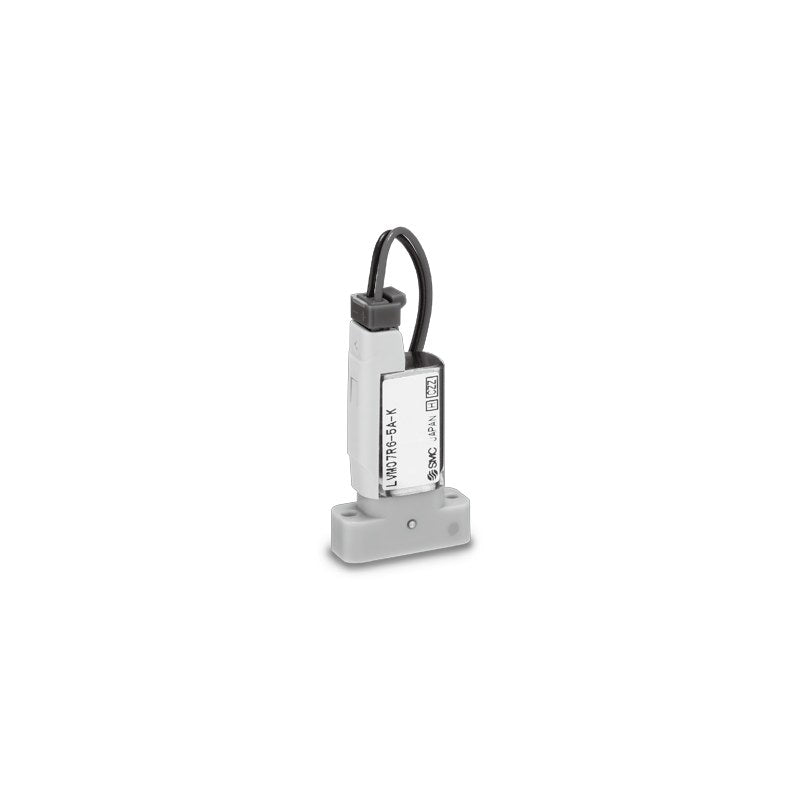

SMC LVM15/150 Compact Direct Operated 2/3-Port Chemical Valve

SMC LVM15/150 Compact Direct Operated 2/3-Port Chemical Valve

SMC LVM15/150 series base mounted direct operated rocker-type 2/3-port solenoid valve for chemicals, 16 mm wide, with built-in low-power circuit and a 0.6 MPa high-pressure version.

Key features

  • Direct operated rocker type with isolating diaphragm, N.C., N.O. and universal (3-port) valve types
  • 16 mm valve width, 17 mm manifold pitch
  • Standard type to 0.25 MPa (orifice 1.6 mm) or high-pressure type HY to 0.6 MPa (orifice 1 mm)
  • Low-power circuit built in: 5.5 W start, 1 W holding
  • Wetted parts PEEK with EPDM, FKM or Kalrez diaphragm; optional PVDF sub-plate with M6 ports
  • Lead wire entry/length (grommet 150 to 1000 mm, plug connector K/KO/KZ/KOZ), CE/UKCA (Q) and DC12V coil are specified as suffixes; listed codes are DC24V with standard lead wire

Specifications

Valve construction Direct operated rocker, base mounted
Operating pressure -75 kPa to 0.25 MPa (HY max. 0.6 MPa)
Response time 15 ms or less (air)
Fluid Air, water, deionized water, diluted chemicals, cleaning fluid
Rated voltage DC24V (DC12V also available, symbol 6)
Allowable voltage fluctuation ±10% of rated voltage
Coil insulation Class B
Enclosure IP40 equivalent
Ambient and fluid temperature 0 to 50°C (no freezing)
Leakage 0 internal and external (with water)
Source SMC Korea catalog LVM Series (SMCKR_LVM.pdf), p. 354-358 (PDF p. 27-31)
LVM15R3Y-5A Valve: 2-port N.C. | Pressure: Standard 0.25 MPa | Body diaphragm: PEEK / EPDM | Sub plate: None
LVM15R3Y-5AP Valve: 2-port N.C. | Pressure: Standard 0.25 MPa | Body diaphragm: PEEK / EPDM | Sub plate: None, anti-reverse pin
LVM15R3Y-5A1 Valve: 2-port N.C. | Pressure: Standard 0.25 MPa | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, M6
LVM15R3Y-5B Valve: 2-port N.C. | Pressure: Standard 0.25 MPa | Body diaphragm: PEEK / FKM | Sub plate: None
LVM15R3Y-5BP Valve: 2-port N.C. | Pressure: Standard 0.25 MPa | Body diaphragm: PEEK / FKM | Sub plate: None, anti-reverse pin
LVM15R3Y-5B1 Valve: 2-port N.C. | Pressure: Standard 0.25 MPa | Body diaphragm: PEEK / FKM | Sub plate: PVDF, M6
LVM15R3Y-5C Valve: 2-port N.C. | Pressure: Standard 0.25 MPa | Body diaphragm: PEEK / Kalrez | Sub plate: None
LVM15R3Y-5CP Valve: 2-port N.C. | Pressure: Standard 0.25 MPa | Body diaphragm: PEEK / Kalrez | Sub plate: None, anti-reverse pin
LVM15R3Y-5C1 Valve: 2-port N.C. | Pressure: Standard 0.25 MPa | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, M6
LVM15R3HY-5A Valve: 2-port N.C. | Pressure: High pressure 0.6 MPa | Body diaphragm: PEEK / EPDM | Sub plate: None
LVM15R3HY-5AP Valve: 2-port N.C. | Pressure: High pressure 0.6 MPa | Body diaphragm: PEEK / EPDM | Sub plate: None, anti-reverse pin
LVM15R3HY-5A1 Valve: 2-port N.C. | Pressure: High pressure 0.6 MPa | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, M6
LVM15R3HY-5B Valve: 2-port N.C. | Pressure: High pressure 0.6 MPa | Body diaphragm: PEEK / FKM | Sub plate: None
LVM15R3HY-5BP Valve: 2-port N.C. | Pressure: High pressure 0.6 MPa | Body diaphragm: PEEK / FKM | Sub plate: None, anti-reverse pin
LVM15R3HY-5B1 Valve: 2-port N.C. | Pressure: High pressure 0.6 MPa | Body diaphragm: PEEK / FKM | Sub plate: PVDF, M6
LVM15R3HY-5C Valve: 2-port N.C. | Pressure: High pressure 0.6 MPa | Body diaphragm: PEEK / Kalrez | Sub plate: None
LVM15R3HY-5CP Valve: 2-port N.C. | Pressure: High pressure 0.6 MPa | Body diaphragm: PEEK / Kalrez | Sub plate: None, anti-reverse pin
LVM15R3HY-5C1 Valve: 2-port N.C. | Pressure: High pressure 0.6 MPa | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, M6
LVM15R4Y-5A Valve: 2-port N.O. | Pressure: Standard 0.25 MPa | Body diaphragm: PEEK / EPDM | Sub plate: None
LVM15R4Y-5AP Valve: 2-port N.O. | Pressure: Standard 0.25 MPa | Body diaphragm: PEEK / EPDM | Sub plate: None, anti-reverse pin
LVM15R4Y-5A1 Valve: 2-port N.O. | Pressure: Standard 0.25 MPa | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, M6
LVM15R4Y-5B Valve: 2-port N.O. | Pressure: Standard 0.25 MPa | Body diaphragm: PEEK / FKM | Sub plate: None
LVM15R4Y-5BP Valve: 2-port N.O. | Pressure: Standard 0.25 MPa | Body diaphragm: PEEK / FKM | Sub plate: None, anti-reverse pin
LVM15R4Y-5B1 Valve: 2-port N.O. | Pressure: Standard 0.25 MPa | Body diaphragm: PEEK / FKM | Sub plate: PVDF, M6
LVM15R4Y-5C Valve: 2-port N.O. | Pressure: Standard 0.25 MPa | Body diaphragm: PEEK / Kalrez | Sub plate: None
LVM15R4Y-5CP Valve: 2-port N.O. | Pressure: Standard 0.25 MPa | Body diaphragm: PEEK / Kalrez | Sub plate: None, anti-reverse pin
LVM15R4Y-5C1 Valve: 2-port N.O. | Pressure: Standard 0.25 MPa | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, M6
LVM15R4HY-5A Valve: 2-port N.O. | Pressure: High pressure 0.6 MPa | Body diaphragm: PEEK / EPDM | Sub plate: None
LVM15R4HY-5AP Valve: 2-port N.O. | Pressure: High pressure 0.6 MPa | Body diaphragm: PEEK / EPDM | Sub plate: None, anti-reverse pin
LVM15R4HY-5A1 Valve: 2-port N.O. | Pressure: High pressure 0.6 MPa | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, M6
LVM15R4HY-5B Valve: 2-port N.O. | Pressure: High pressure 0.6 MPa | Body diaphragm: PEEK / FKM | Sub plate: None
LVM15R4HY-5BP Valve: 2-port N.O. | Pressure: High pressure 0.6 MPa | Body diaphragm: PEEK / FKM | Sub plate: None, anti-reverse pin
LVM15R4HY-5B1 Valve: 2-port N.O. | Pressure: High pressure 0.6 MPa | Body diaphragm: PEEK / FKM | Sub plate: PVDF, M6
LVM15R4HY-5C Valve: 2-port N.O. | Pressure: High pressure 0.6 MPa | Body diaphragm: PEEK / Kalrez | Sub plate: None
LVM15R4HY-5CP Valve: 2-port N.O. | Pressure: High pressure 0.6 MPa | Body diaphragm: PEEK / Kalrez | Sub plate: None, anti-reverse pin
LVM15R4HY-5C1 Valve: 2-port N.O. | Pressure: High pressure 0.6 MPa | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, M6
LVM15R6Y-5A Valve: 2-port N.C. (R6) | Pressure: Standard 0.25 MPa | Body diaphragm: PEEK / EPDM | Sub plate: None
LVM15R6Y-5AP Valve: 2-port N.C. (R6) | Pressure: Standard 0.25 MPa | Body diaphragm: PEEK / EPDM | Sub plate: None, anti-reverse pin
LVM15R6Y-5A1 Valve: 2-port N.C. (R6) | Pressure: Standard 0.25 MPa | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, M6
LVM15R6Y-5B Valve: 2-port N.C. (R6) | Pressure: Standard 0.25 MPa | Body diaphragm: PEEK / FKM | Sub plate: None
LVM15R6Y-5BP Valve: 2-port N.C. (R6) | Pressure: Standard 0.25 MPa | Body diaphragm: PEEK / FKM | Sub plate: None, anti-reverse pin
LVM15R6Y-5B1 Valve: 2-port N.C. (R6) | Pressure: Standard 0.25 MPa | Body diaphragm: PEEK / FKM | Sub plate: PVDF, M6
LVM15R6Y-5C Valve: 2-port N.C. (R6) | Pressure: Standard 0.25 MPa | Body diaphragm: PEEK / Kalrez | Sub plate: None
LVM15R6Y-5CP Valve: 2-port N.C. (R6) | Pressure: Standard 0.25 MPa | Body diaphragm: PEEK / Kalrez | Sub plate: None, anti-reverse pin
LVM15R6Y-5C1 Valve: 2-port N.C. (R6) | Pressure: Standard 0.25 MPa | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, M6
LVM15R6HY-5A Valve: 2-port N.C. (R6) | Pressure: High pressure 0.6 MPa | Body diaphragm: PEEK / EPDM | Sub plate: None
LVM15R6HY-5AP Valve: 2-port N.C. (R6) | Pressure: High pressure 0.6 MPa | Body diaphragm: PEEK / EPDM | Sub plate: None, anti-reverse pin
LVM15R6HY-5A1 Valve: 2-port N.C. (R6) | Pressure: High pressure 0.6 MPa | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, M6
LVM15R6HY-5B Valve: 2-port N.C. (R6) | Pressure: High pressure 0.6 MPa | Body diaphragm: PEEK / FKM | Sub plate: None
LVM15R6HY-5BP Valve: 2-port N.C. (R6) | Pressure: High pressure 0.6 MPa | Body diaphragm: PEEK / FKM | Sub plate: None, anti-reverse pin
LVM15R6HY-5B1 Valve: 2-port N.C. (R6) | Pressure: High pressure 0.6 MPa | Body diaphragm: PEEK / FKM | Sub plate: PVDF, M6
LVM15R6HY-5C Valve: 2-port N.C. (R6) | Pressure: High pressure 0.6 MPa | Body diaphragm: PEEK / Kalrez | Sub plate: None
LVM15R6HY-5CP Valve: 2-port N.C. (R6) | Pressure: High pressure 0.6 MPa | Body diaphragm: PEEK / Kalrez | Sub plate: None, anti-reverse pin
LVM15R6HY-5C1 Valve: 2-port N.C. (R6) | Pressure: High pressure 0.6 MPa | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, M6
LVM155RY-5A Valve: 3-port Universal | Pressure: Standard 0.25 MPa | Body diaphragm: PEEK / EPDM | Sub plate: None
LVM155RY-5AP Valve: 3-port Universal | Pressure: Standard 0.25 MPa | Body diaphragm: PEEK / EPDM | Sub plate: None, anti-reverse pin
LVM155RY-5A1 Valve: 3-port Universal | Pressure: Standard 0.25 MPa | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, M6
LVM155RY-5B Valve: 3-port Universal | Pressure: Standard 0.25 MPa | Body diaphragm: PEEK / FKM | Sub plate: None
LVM155RY-5BP Valve: 3-port Universal | Pressure: Standard 0.25 MPa | Body diaphragm: PEEK / FKM | Sub plate: None, anti-reverse pin
LVM155RY-5B1 Valve: 3-port Universal | Pressure: Standard 0.25 MPa | Body diaphragm: PEEK / FKM | Sub plate: PVDF, M6
LVM155RY-5C Valve: 3-port Universal | Pressure: Standard 0.25 MPa | Body diaphragm: PEEK / Kalrez | Sub plate: None
LVM155RY-5CP Valve: 3-port Universal | Pressure: Standard 0.25 MPa | Body diaphragm: PEEK / Kalrez | Sub plate: None, anti-reverse pin
LVM155RY-5C1 Valve: 3-port Universal | Pressure: Standard 0.25 MPa | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, M6
LVM155RHY-5A Valve: 3-port Universal | Pressure: High pressure 0.6 MPa | Body diaphragm: PEEK / EPDM | Sub plate: None
LVM155RHY-5AP Valve: 3-port Universal | Pressure: High pressure 0.6 MPa | Body diaphragm: PEEK / EPDM | Sub plate: None, anti-reverse pin
LVM155RHY-5A1 Valve: 3-port Universal | Pressure: High pressure 0.6 MPa | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, M6
LVM155RHY-5B Valve: 3-port Universal | Pressure: High pressure 0.6 MPa | Body diaphragm: PEEK / FKM | Sub plate: None
LVM155RHY-5BP Valve: 3-port Universal | Pressure: High pressure 0.6 MPa | Body diaphragm: PEEK / FKM | Sub plate: None, anti-reverse pin
LVM155RHY-5B1 Valve: 3-port Universal | Pressure: High pressure 0.6 MPa | Body diaphragm: PEEK / FKM | Sub plate: PVDF, M6
LVM155RHY-5C Valve: 3-port Universal | Pressure: High pressure 0.6 MPa | Body diaphragm: PEEK / Kalrez | Sub plate: None
LVM155RHY-5CP Valve: 3-port Universal | Pressure: High pressure 0.6 MPa | Body diaphragm: PEEK / Kalrez | Sub plate: None, anti-reverse pin
LVM155RHY-5C1 Valve: 3-port Universal | Pressure: High pressure 0.6 MPa | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, M6
Chemical ValvesSMC
72 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC LVM15/150 Compact Direct Operated 2/3-Port Chemical Valve

Brand SMC·Chemical Valves

Available part numbers (72)

LVM15R3Y-5A, LVM15R3Y-5AP, LVM15R3Y-5A1, LVM15R3Y-5B, LVM15R3Y-5BP, LVM15R3Y-5B1, LVM15R3Y-5C, LVM15R3Y-5CP, LVM15R3Y-5C1, LVM15R3HY-5A + 62 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
