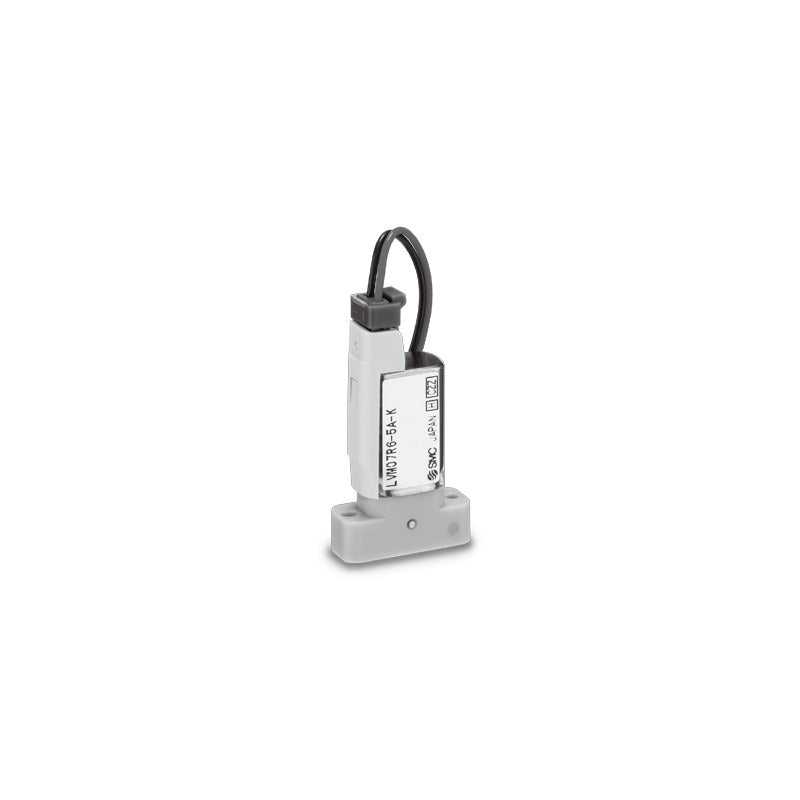

SMC LVM20/200 Compact Direct Operated 2/3-Port Chemical Valve

SMC LVM20/200 Compact Direct Operated 2/3-Port Chemical Valve

SMC LVM20/200 series direct operated rocker-type 2/3-port solenoid valve for chemicals, 20 mm wide, direct piping (tube insertion) or base mounted with PVDF Rc1/8 sub-plate.

Key features

  • Direct operated rocker type with isolating diaphragm, N.C., N.O. and universal (3-port) valve types
  • 20 mm valve width, 21 mm manifold pitch
  • Orifice 2 mm, Kv 0.055, internal valve volume 84 µL
  • Low-power circuit version (Y): 4 W start, 0.6 W holding
  • Wetted parts PEEK with EPDM, FKM or Kalrez diaphragm; PVDF sub-plate Rc1/8 (G1/8, NPT1/8 on order)
  • Lead wire entry/length (grommet 150 to 1000 mm, plug connector K/KO/KZ/KOZ), CE/UKCA (Q) and DC12V coil are specified as suffixes; listed codes are DC24V with standard lead wire

Specifications

Valve construction Direct operated rocker
Operating pressure -75 kPa to 0.25 MPa (base 3-port 0.3 MPa)
Response time 20 ms or less (air); low-power OFF 40 ms or less
Fluid Air, water, deionized water, diluted chemicals, cleaning fluid
Rated voltage DC24V (DC12V also available, symbol 6)
Allowable voltage fluctuation ±10% of rated voltage
Coil insulation Class B
Enclosure IP40 equivalent
Ambient and fluid temperature 0 to 50°C (no freezing)
Leakage 0 internal and external (with water)
Source SMC Korea catalog LVM Series (SMCKR_LVM.pdf), p. 359-365 (PDF p. 32-38)
LVM20R1-5A Piping: Direct (tube insertion) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: None
LVM20R1-5B Piping: Direct (tube insertion) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: None
LVM20R1-5C Piping: Direct (tube insertion) | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: None
LVM20R1Y-5A Piping: Direct (tube insertion) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: None
LVM20R1Y-5B Piping: Direct (tube insertion) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: None
LVM20R1Y-5C Piping: Direct (tube insertion) | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: None
LVM20R2-5A Piping: Direct (tube insertion) | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: None
LVM20R2-5B Piping: Direct (tube insertion) | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: None
LVM20R2-5C Piping: Direct (tube insertion) | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: None
LVM20R2Y-5A Piping: Direct (tube insertion) | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: None
LVM20R2Y-5B Piping: Direct (tube insertion) | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: None
LVM20R2Y-5C Piping: Direct (tube insertion) | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: None
LVM202R-5A Piping: Direct (tube insertion) | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: None
LVM202R-5B Piping: Direct (tube insertion) | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: None
LVM202R-5C Piping: Direct (tube insertion) | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: None
LVM202RY-5A Piping: Direct (tube insertion) | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: None
LVM202RY-5B Piping: Direct (tube insertion) | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: None
LVM202RY-5C Piping: Direct (tube insertion) | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: None
LVM20R3-5A Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: None
LVM20R3-5AP Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: None, anti-reverse pin
LVM20R3-5A1 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, Rc1/8
LVM20R3-5B Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: None
LVM20R3-5BP Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: None, anti-reverse pin
LVM20R3-5B1 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: PVDF, Rc1/8
LVM20R3-5C Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: None
LVM20R3-5CP Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: None, anti-reverse pin
LVM20R3-5C1 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, Rc1/8
LVM20R3Y-5A Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: None
LVM20R3Y-5AP Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: None, anti-reverse pin
LVM20R3Y-5A1 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, Rc1/8
LVM20R3Y-5B Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: None
LVM20R3Y-5BP Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: None, anti-reverse pin
LVM20R3Y-5B1 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: PVDF, Rc1/8
LVM20R3Y-5C Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: None
LVM20R3Y-5CP Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: None, anti-reverse pin
LVM20R3Y-5C1 Piping: Base mounted | Valve: 2-port N.C. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, Rc1/8
LVM20R4-5A Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: None
LVM20R4-5AP Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: None, anti-reverse pin
LVM20R4-5A1 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, Rc1/8
LVM20R4-5B Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: None
LVM20R4-5BP Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: None, anti-reverse pin
LVM20R4-5B1 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: PVDF, Rc1/8
LVM20R4-5C Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: None
LVM20R4-5CP Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: None, anti-reverse pin
LVM20R4-5C1 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, Rc1/8
LVM20R4Y-5A Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: None
LVM20R4Y-5AP Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: None, anti-reverse pin
LVM20R4Y-5A1 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, Rc1/8
LVM20R4Y-5B Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: None
LVM20R4Y-5BP Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: None, anti-reverse pin
LVM20R4Y-5B1 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: PVDF, Rc1/8
LVM20R4Y-5C Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: None
LVM20R4Y-5CP Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: None, anti-reverse pin
LVM20R4Y-5C1 Piping: Base mounted | Valve: 2-port N.O. | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, Rc1/8
LVM205R-5A Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: None
LVM205R-5AP Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: None, anti-reverse pin
LVM205R-5A1 Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, Rc1/8
LVM205R-5B Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: None
LVM205R-5BP Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: None, anti-reverse pin
LVM205R-5B1 Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / FKM | Sub plate: PVDF, Rc1/8
LVM205R-5C Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: None
LVM205R-5CP Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: None, anti-reverse pin
LVM205R-5C1 Piping: Base mounted | Valve: 3-port Universal | Circuit: Standard | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, Rc1/8
LVM205RY-5A Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: None
LVM205RY-5AP Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: None, anti-reverse pin
LVM205RY-5A1 Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / EPDM | Sub plate: PVDF, Rc1/8
LVM205RY-5B Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: None
LVM205RY-5BP Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: None, anti-reverse pin
LVM205RY-5B1 Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / FKM | Sub plate: PVDF, Rc1/8
LVM205RY-5C Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: None
LVM205RY-5CP Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: None, anti-reverse pin
LVM205RY-5C1 Piping: Base mounted | Valve: 3-port Universal | Circuit: Low-power | Body diaphragm: PEEK / Kalrez | Sub plate: PVDF, Rc1/8
