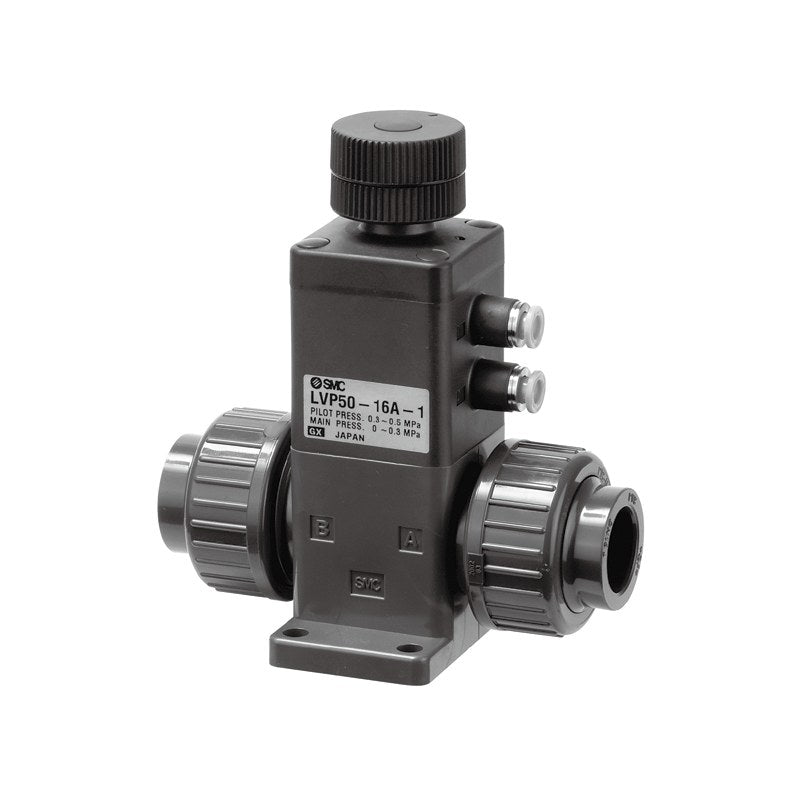

SMC LVP CPVC Air Operated Valve (PVC Union, 16A to 25A)

SMC LVP CPVC Air Operated Valve (PVC Union, 16A to 25A)

SMC LVP series air-operated diaphragm valve with CPVC body and PTFE diaphragm, PVC union ends for rigid PVC pipe, for deionized water and chemicals.

Key features

  • CPVC body, PTFE diaphragm; O-ring FKM (standard) or EPDM (N)
  • PVC union ends for rigid PVC pipe (JIS K6742) OD 22, 26 or 32 mm
  • Water hammer reduction type (W): about 50% lower than the standard type
  • Pilot port: ø6 one-touch fitting, Rc1/8 or M5x0.8 (NPT1/8 on order); 4 pilot port positions (P2 to P4 suffix)
  • Options: flow adjustment and bypass (N.C. and double acting)

Specifications

Fluid Deionized water, chemicals
Operating pressure LVP5 0 to 0.3 MPa, LVP6 0 to 0.4 MPa
Proof pressure 1 MPa
Pilot pressure 0.3 to 0.5 MPa
Orifice LVP5 ø16, LVP6 ø22
Flow Kv LVP5 4.25, LVP6 8.1
Fluid and ambient temperature 0 to 60 C (no freezing)
Valve leakage 0 cm3/min
Materials Body CPVC, diaphragm PTFE, actuator PPS, union U-PVC
Source SMC Korea catalog LVP Series (SMCKR_LVP.pdf), p. 847-850 (PDF p. 1-4)
LVP50-16A Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: None
LVP50-16A-1 Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: Flow adjustment
LVP50-16A-2 Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: Bypass
LVP50-16A-3 Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: Flow adj. + bypass
LVP50-16A-N Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: None
LVP50-16A-N1 Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: Flow adjustment
LVP50-16A-N2 Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: Bypass
LVP50-16A-N3 Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: Flow adj. + bypass
LVP50-16A1 Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: Rc1/8 | O-ring: FKM | Option: None
LVP50-16A1-1 Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: Rc1/8 | O-ring: FKM | Option: Flow adjustment
LVP50-16A1-2 Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: Rc1/8 | O-ring: FKM | Option: Bypass
LVP50-16A1-3 Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: Rc1/8 | O-ring: FKM | Option: Flow adj. + bypass
LVP50-16A1-N Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: None
LVP50-16A1-N1 Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: Flow adjustment
LVP50-16A1-N2 Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: Bypass
LVP50-16A1-N3 Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: Flow adj. + bypass
LVP50-16A2 Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: M5x0.8 | O-ring: FKM | Option: None
LVP50-16A2-1 Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: M5x0.8 | O-ring: FKM | Option: Flow adjustment
LVP50-16A2-2 Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: M5x0.8 | O-ring: FKM | Option: Bypass
LVP50-16A2-3 Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: M5x0.8 | O-ring: FKM | Option: Flow adj. + bypass
LVP50-16A2-N Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: None
LVP50-16A2-N1 Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: Flow adjustment
LVP50-16A2-N2 Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: Bypass
LVP50-16A2-N3 Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: Flow adj. + bypass
LVP50W-16A Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: None
LVP50W-16A-1 Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: Flow adjustment
LVP50W-16A-2 Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: Bypass
LVP50W-16A-3 Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: Flow adj. + bypass
LVP50W-16A-N Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: None
LVP50W-16A-N1 Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: Flow adjustment
LVP50W-16A-N2 Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: Bypass
LVP50W-16A-N3 Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: Flow adj. + bypass
LVP50W-16A1 Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: Rc1/8 | O-ring: FKM | Option: None
LVP50W-16A1-1 Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: Rc1/8 | O-ring: FKM | Option: Flow adjustment
LVP50W-16A1-2 Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: Rc1/8 | O-ring: FKM | Option: Bypass
LVP50W-16A1-3 Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: Rc1/8 | O-ring: FKM | Option: Flow adj. + bypass
LVP50W-16A1-N Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: None
LVP50W-16A1-N1 Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: Flow adjustment
LVP50W-16A1-N2 Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: Bypass
LVP50W-16A1-N3 Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: Flow adj. + bypass
LVP50W-16A2 Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: M5x0.8 | O-ring: FKM | Option: None
LVP50W-16A2-1 Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: M5x0.8 | O-ring: FKM | Option: Flow adjustment
LVP50W-16A2-2 Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: M5x0.8 | O-ring: FKM | Option: Bypass
LVP50W-16A2-3 Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: M5x0.8 | O-ring: FKM | Option: Flow adj. + bypass
LVP50W-16A2-N Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: None
LVP50W-16A2-N1 Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: Flow adjustment
LVP50W-16A2-N2 Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: Bypass
LVP50W-16A2-N3 Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: Flow adj. + bypass
LVP51-16A Valve type: N.O. | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: None
LVP51-16A-N Valve type: N.O. | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: None
LVP51-16A1 Valve type: N.O. | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: Rc1/8 | O-ring: FKM | Option: None
LVP51-16A1-N Valve type: N.O. | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: None
LVP51-16A2 Valve type: N.O. | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: M5x0.8 | O-ring: FKM | Option: None
LVP51-16A2-N Valve type: N.O. | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: None
LVP51W-16A Valve type: N.O. | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: None
LVP51W-16A-N Valve type: N.O. | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: None
LVP51W-16A1 Valve type: N.O. | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: Rc1/8 | O-ring: FKM | Option: None
LVP51W-16A1-N Valve type: N.O. | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: None
LVP51W-16A2 Valve type: N.O. | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: M5x0.8 | O-ring: FKM | Option: None
LVP51W-16A2-N Valve type: N.O. | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: None
LVP52-16A Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: None
LVP52-16A-1 Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: Flow adjustment
LVP52-16A-2 Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: Bypass
LVP52-16A-3 Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: Flow adj. + bypass
LVP52-16A-N Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: None
LVP52-16A-N1 Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: Flow adjustment
LVP52-16A-N2 Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: Bypass
LVP52-16A-N3 Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: Flow adj. + bypass
LVP52-16A1 Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: Rc1/8 | O-ring: FKM | Option: None
LVP52-16A1-1 Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: Rc1/8 | O-ring: FKM | Option: Flow adjustment
LVP52-16A1-2 Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: Rc1/8 | O-ring: FKM | Option: Bypass
LVP52-16A1-3 Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: Rc1/8 | O-ring: FKM | Option: Flow adj. + bypass
LVP52-16A1-N Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: None
LVP52-16A1-N1 Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: Flow adjustment
LVP52-16A1-N2 Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: Bypass
LVP52-16A1-N3 Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: Flow adj. + bypass
LVP52-16A2 Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: M5x0.8 | O-ring: FKM | Option: None
LVP52-16A2-1 Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: M5x0.8 | O-ring: FKM | Option: Flow adjustment
LVP52-16A2-2 Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: M5x0.8 | O-ring: FKM | Option: Bypass
LVP52-16A2-3 Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: M5x0.8 | O-ring: FKM | Option: Flow adj. + bypass
LVP52-16A2-N Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: None
LVP52-16A2-N1 Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: Flow adjustment
LVP52-16A2-N2 Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: Bypass
LVP52-16A2-N3 Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: Flow adj. + bypass
LVP52W-16A Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: None
LVP52W-16A-1 Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: Flow adjustment
LVP52W-16A-2 Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: Bypass
LVP52W-16A-3 Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: Flow adj. + bypass
LVP52W-16A-N Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: None
LVP52W-16A-N1 Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: Flow adjustment
LVP52W-16A-N2 Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: Bypass
LVP52W-16A-N3 Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: Flow adj. + bypass
LVP52W-16A1 Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: Rc1/8 | O-ring: FKM | Option: None
LVP52W-16A1-1 Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: Rc1/8 | O-ring: FKM | Option: Flow adjustment
LVP52W-16A1-2 Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: Rc1/8 | O-ring: FKM | Option: Bypass
LVP52W-16A1-3 Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: Rc1/8 | O-ring: FKM | Option: Flow adj. + bypass
LVP52W-16A1-N Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: None
LVP52W-16A1-N1 Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: Flow adjustment
LVP52W-16A1-N2 Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: Bypass
LVP52W-16A1-N3 Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: Flow adj. + bypass
LVP52W-16A2 Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: M5x0.8 | O-ring: FKM | Option: None
LVP52W-16A2-1 Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: M5x0.8 | O-ring: FKM | Option: Flow adjustment
LVP52W-16A2-2 Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: M5x0.8 | O-ring: FKM | Option: Bypass
LVP52W-16A2-3 Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: M5x0.8 | O-ring: FKM | Option: Flow adj. + bypass
LVP52W-16A2-N Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: None
LVP52W-16A2-N1 Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: Flow adjustment
LVP52W-16A2-N2 Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: Bypass
LVP52W-16A2-N3 Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: Flow adj. + bypass
LVP60-20A Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: None
LVP60-20A-1 Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: Flow adjustment
LVP60-20A-2 Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: Bypass
LVP60-20A-3 Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: Flow adj. + bypass
LVP60-20A-N Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: None
LVP60-20A-N1 Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: Flow adjustment
LVP60-20A-N2 Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: Bypass
LVP60-20A-N3 Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: Flow adj. + bypass
LVP60-20A1 Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: Rc1/8 | O-ring: FKM | Option: None
LVP60-20A1-1 Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: Rc1/8 | O-ring: FKM | Option: Flow adjustment
LVP60-20A1-2 Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: Rc1/8 | O-ring: FKM | Option: Bypass
LVP60-20A1-3 Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: Rc1/8 | O-ring: FKM | Option: Flow adj. + bypass
LVP60-20A1-N Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: None
LVP60-20A1-N1 Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: Flow adjustment
LVP60-20A1-N2 Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: Bypass
LVP60-20A1-N3 Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: Flow adj. + bypass
LVP60-20A2 Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: M5x0.8 | O-ring: FKM | Option: None
LVP60-20A2-1 Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: M5x0.8 | O-ring: FKM | Option: Flow adjustment
LVP60-20A2-2 Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: M5x0.8 | O-ring: FKM | Option: Bypass
LVP60-20A2-3 Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: M5x0.8 | O-ring: FKM | Option: Flow adj. + bypass
LVP60-20A2-N Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: None
LVP60-20A2-N1 Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: Flow adjustment
LVP60-20A2-N2 Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: Bypass
LVP60-20A2-N3 Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: Flow adj. + bypass
LVP60-25A Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: None
LVP60-25A-1 Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: Flow adjustment
LVP60-25A-2 Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: Bypass
LVP60-25A-3 Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: Flow adj. + bypass
LVP60-25A-N Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: None
LVP60-25A-N1 Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: Flow adjustment
LVP60-25A-N2 Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: Bypass
LVP60-25A-N3 Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: Flow adj. + bypass
LVP60-25A1 Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: Rc1/8 | O-ring: FKM | Option: None
LVP60-25A1-1 Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: Rc1/8 | O-ring: FKM | Option: Flow adjustment
LVP60-25A1-2 Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: Rc1/8 | O-ring: FKM | Option: Bypass
LVP60-25A1-3 Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: Rc1/8 | O-ring: FKM | Option: Flow adj. + bypass
LVP60-25A1-N Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: None
LVP60-25A1-N1 Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: Flow adjustment
LVP60-25A1-N2 Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: Bypass
LVP60-25A1-N3 Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: Flow adj. + bypass
LVP60-25A2 Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: M5x0.8 | O-ring: FKM | Option: None
LVP60-25A2-1 Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: M5x0.8 | O-ring: FKM | Option: Flow adjustment
LVP60-25A2-2 Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: M5x0.8 | O-ring: FKM | Option: Bypass
LVP60-25A2-3 Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: M5x0.8 | O-ring: FKM | Option: Flow adj. + bypass
LVP60-25A2-N Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: None
LVP60-25A2-N1 Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: Flow adjustment
LVP60-25A2-N2 Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: Bypass
LVP60-25A2-N3 Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: Flow adj. + bypass
LVP60W-20A Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: None
LVP60W-20A-1 Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: Flow adjustment
LVP60W-20A-2 Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: Bypass
LVP60W-20A-3 Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: Flow adj. + bypass
LVP60W-20A-N Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: None
LVP60W-20A-N1 Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: Flow adjustment
LVP60W-20A-N2 Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: Bypass
LVP60W-20A-N3 Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: Flow adj. + bypass
LVP60W-20A1 Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: Rc1/8 | O-ring: FKM | Option: None
LVP60W-20A1-1 Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: Rc1/8 | O-ring: FKM | Option: Flow adjustment
LVP60W-20A1-2 Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: Rc1/8 | O-ring: FKM | Option: Bypass
LVP60W-20A1-3 Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: Rc1/8 | O-ring: FKM | Option: Flow adj. + bypass
LVP60W-20A1-N Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: None
LVP60W-20A1-N1 Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: Flow adjustment
LVP60W-20A1-N2 Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: Bypass
LVP60W-20A1-N3 Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: Flow adj. + bypass
LVP60W-20A2 Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: M5x0.8 | O-ring: FKM | Option: None
LVP60W-20A2-1 Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: M5x0.8 | O-ring: FKM | Option: Flow adjustment
LVP60W-20A2-2 Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: M5x0.8 | O-ring: FKM | Option: Bypass
LVP60W-20A2-3 Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: M5x0.8 | O-ring: FKM | Option: Flow adj. + bypass
LVP60W-20A2-N Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: None
LVP60W-20A2-N1 Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: Flow adjustment
LVP60W-20A2-N2 Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: Bypass
LVP60W-20A2-N3 Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: Flow adj. + bypass
LVP60W-25A Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: None
LVP60W-25A-1 Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: Flow adjustment
LVP60W-25A-2 Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: Bypass
LVP60W-25A-3 Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: Flow adj. + bypass
LVP60W-25A-N Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: None
LVP60W-25A-N1 Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: Flow adjustment
LVP60W-25A-N2 Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: Bypass
LVP60W-25A-N3 Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: Flow adj. + bypass
LVP60W-25A1 Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: Rc1/8 | O-ring: FKM | Option: None
LVP60W-25A1-1 Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: Rc1/8 | O-ring: FKM | Option: Flow adjustment
LVP60W-25A1-2 Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: Rc1/8 | O-ring: FKM | Option: Bypass
LVP60W-25A1-3 Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: Rc1/8 | O-ring: FKM | Option: Flow adj. + bypass
LVP60W-25A1-N Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: None
LVP60W-25A1-N1 Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: Flow adjustment
LVP60W-25A1-N2 Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: Bypass
LVP60W-25A1-N3 Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: Flow adj. + bypass
LVP60W-25A2 Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: M5x0.8 | O-ring: FKM | Option: None
LVP60W-25A2-1 Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: M5x0.8 | O-ring: FKM | Option: Flow adjustment
LVP60W-25A2-2 Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: M5x0.8 | O-ring: FKM | Option: Bypass
LVP60W-25A2-3 Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: M5x0.8 | O-ring: FKM | Option: Flow adj. + bypass
LVP60W-25A2-N Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: None
LVP60W-25A2-N1 Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: Flow adjustment
LVP60W-25A2-N2 Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: Bypass
LVP60W-25A2-N3 Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: Flow adj. + bypass
LVP61-20A Valve type: N.O. | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: None
LVP61-20A-N Valve type: N.O. | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: None
LVP61-20A1 Valve type: N.O. | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: Rc1/8 | O-ring: FKM | Option: None
LVP61-20A1-N Valve type: N.O. | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: None
LVP61-20A2 Valve type: N.O. | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: M5x0.8 | O-ring: FKM | Option: None
LVP61-20A2-N Valve type: N.O. | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: None
LVP61-25A Valve type: N.O. | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: None
LVP61-25A-N Valve type: N.O. | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: None
LVP61-25A1 Valve type: N.O. | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: Rc1/8 | O-ring: FKM | Option: None
LVP61-25A1-N Valve type: N.O. | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: None
LVP61-25A2 Valve type: N.O. | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: M5x0.8 | O-ring: FKM | Option: None
LVP61-25A2-N Valve type: N.O. | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: None
LVP61W-20A Valve type: N.O. | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: None
LVP61W-20A-N Valve type: N.O. | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: None
LVP61W-20A1 Valve type: N.O. | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: Rc1/8 | O-ring: FKM | Option: None
LVP61W-20A1-N Valve type: N.O. | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: None
LVP61W-20A2 Valve type: N.O. | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: M5x0.8 | O-ring: FKM | Option: None
LVP61W-20A2-N Valve type: N.O. | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: None
LVP61W-25A Valve type: N.O. | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: None
LVP61W-25A-N Valve type: N.O. | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: None
LVP61W-25A1 Valve type: N.O. | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: Rc1/8 | O-ring: FKM | Option: None
LVP61W-25A1-N Valve type: N.O. | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: None
LVP61W-25A2 Valve type: N.O. | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: M5x0.8 | O-ring: FKM | Option: None
LVP61W-25A2-N Valve type: N.O. | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: None
LVP62-20A Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: None
LVP62-20A-1 Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: Flow adjustment
LVP62-20A-2 Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: Bypass
LVP62-20A-3 Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: Flow adj. + bypass
LVP62-20A-N Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: None
LVP62-20A-N1 Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: Flow adjustment
LVP62-20A-N2 Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: Bypass
LVP62-20A-N3 Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: Flow adj. + bypass
LVP62-20A1 Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: Rc1/8 | O-ring: FKM | Option: None
LVP62-20A1-1 Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: Rc1/8 | O-ring: FKM | Option: Flow adjustment
LVP62-20A1-2 Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: Rc1/8 | O-ring: FKM | Option: Bypass
LVP62-20A1-3 Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: Rc1/8 | O-ring: FKM | Option: Flow adj. + bypass
LVP62-20A1-N Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: None
LVP62-20A1-N1 Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: Flow adjustment
LVP62-20A1-N2 Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: Bypass
LVP62-20A1-N3 Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: Flow adj. + bypass
LVP62-20A2 Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: M5x0.8 | O-ring: FKM | Option: None
LVP62-20A2-1 Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: M5x0.8 | O-ring: FKM | Option: Flow adjustment
LVP62-20A2-2 Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: M5x0.8 | O-ring: FKM | Option: Bypass
LVP62-20A2-3 Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: M5x0.8 | O-ring: FKM | Option: Flow adj. + bypass
LVP62-20A2-N Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: None
LVP62-20A2-N1 Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: Flow adjustment
LVP62-20A2-N2 Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: Bypass
LVP62-20A2-N3 Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: Flow adj. + bypass
LVP62-25A Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: None
LVP62-25A-1 Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: Flow adjustment
LVP62-25A-2 Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: Bypass
LVP62-25A-3 Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: Flow adj. + bypass
LVP62-25A-N Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: None
LVP62-25A-N1 Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: Flow adjustment
LVP62-25A-N2 Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: Bypass
LVP62-25A-N3 Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: Flow adj. + bypass
LVP62-25A1 Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: Rc1/8 | O-ring: FKM | Option: None
LVP62-25A1-1 Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: Rc1/8 | O-ring: FKM | Option: Flow adjustment
LVP62-25A1-2 Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: Rc1/8 | O-ring: FKM | Option: Bypass
LVP62-25A1-3 Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: Rc1/8 | O-ring: FKM | Option: Flow adj. + bypass
LVP62-25A1-N Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: None
LVP62-25A1-N1 Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: Flow adjustment
LVP62-25A1-N2 Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: Bypass
LVP62-25A1-N3 Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: Flow adj. + bypass
LVP62-25A2 Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: M5x0.8 | O-ring: FKM | Option: None
LVP62-25A2-1 Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: M5x0.8 | O-ring: FKM | Option: Flow adjustment
LVP62-25A2-2 Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: M5x0.8 | O-ring: FKM | Option: Bypass
LVP62-25A2-3 Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: M5x0.8 | O-ring: FKM | Option: Flow adj. + bypass
LVP62-25A2-N Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: None
LVP62-25A2-N1 Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: Flow adjustment
LVP62-25A2-N2 Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: Bypass
LVP62-25A2-N3 Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: Flow adj. + bypass
LVP62W-20A Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: None
LVP62W-20A-1 Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: Flow adjustment
LVP62W-20A-2 Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: Bypass
LVP62W-20A-3 Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: Flow adj. + bypass
LVP62W-20A-N Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: None
LVP62W-20A-N1 Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: Flow adjustment
LVP62W-20A-N2 Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: Bypass
LVP62W-20A-N3 Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: Flow adj. + bypass
LVP62W-20A1 Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: Rc1/8 | O-ring: FKM | Option: None
LVP62W-20A1-1 Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: Rc1/8 | O-ring: FKM | Option: Flow adjustment
LVP62W-20A1-2 Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: Rc1/8 | O-ring: FKM | Option: Bypass
LVP62W-20A1-3 Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: Rc1/8 | O-ring: FKM | Option: Flow adj. + bypass
LVP62W-20A1-N Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: None
LVP62W-20A1-N1 Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: Flow adjustment
LVP62W-20A1-N2 Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: Bypass
LVP62W-20A1-N3 Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: Flow adj. + bypass
LVP62W-20A2 Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: M5x0.8 | O-ring: FKM | Option: None
LVP62W-20A2-1 Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: M5x0.8 | O-ring: FKM | Option: Flow adjustment
LVP62W-20A2-2 Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: M5x0.8 | O-ring: FKM | Option: Bypass
LVP62W-20A2-3 Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: M5x0.8 | O-ring: FKM | Option: Flow adj. + bypass
LVP62W-20A2-N Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: None
LVP62W-20A2-N1 Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: Flow adjustment
LVP62W-20A2-N2 Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: Bypass
LVP62W-20A2-N3 Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: Flow adj. + bypass
LVP62W-25A Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: None
LVP62W-25A-1 Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: Flow adjustment
LVP62W-25A-2 Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: Bypass
LVP62W-25A-3 Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: Flow adj. + bypass
LVP62W-25A-N Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: None
LVP62W-25A-N1 Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: Flow adjustment
LVP62W-25A-N2 Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: Bypass
LVP62W-25A-N3 Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: Flow adj. + bypass
LVP62W-25A1 Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: Rc1/8 | O-ring: FKM | Option: None
LVP62W-25A1-1 Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: Rc1/8 | O-ring: FKM | Option: Flow adjustment
LVP62W-25A1-2 Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: Rc1/8 | O-ring: FKM | Option: Bypass
LVP62W-25A1-3 Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: Rc1/8 | O-ring: FKM | Option: Flow adj. + bypass
LVP62W-25A1-N Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: None
LVP62W-25A1-N1 Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: Flow adjustment
LVP62W-25A1-N2 Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: Bypass
LVP62W-25A1-N3 Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: Flow adj. + bypass
LVP62W-25A2 Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: M5x0.8 | O-ring: FKM | Option: None
LVP62W-25A2-1 Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: M5x0.8 | O-ring: FKM | Option: Flow adjustment
LVP62W-25A2-2 Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: M5x0.8 | O-ring: FKM | Option: Bypass
LVP62W-25A2-3 Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: M5x0.8 | O-ring: FKM | Option: Flow adj. + bypass
LVP62W-25A2-N Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: None
LVP62W-25A2-N1 Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: Flow adjustment
LVP62W-25A2-N2 Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: Bypass
LVP62W-25A2-N3 Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: Flow adj. + bypass
Chemical ValvesSMC
324 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC LVP CPVC Air Operated Valve (PVC Union, 16A to 25A)

Brand SMC·Chemical Valves

Available part numbers (324)

LVP50-16A, LVP50-16A-1, LVP50-16A-2, LVP50-16A-3, LVP50-16A-N, LVP50-16A-N1, LVP50-16A-N2, LVP50-16A-N3, LVP50-16A1, LVP50-16A1-1 + 314 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LVP50-16AValve type: N.C. | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: None
LVP50-16A-1Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: Flow adjustment
LVP50-16A-2Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: Bypass
LVP50-16A-3Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: Flow adj. + bypass
LVP50-16A-NValve type: N.C. | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: None
LVP50-16A-N1Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: Flow adjustment
LVP50-16A-N2Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: Bypass
LVP50-16A-N3Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: Flow adj. + bypass
LVP50-16A1Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: Rc1/8 | O-ring: FKM | Option: None
LVP50-16A1-1Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: Rc1/8 | O-ring: FKM | Option: Flow adjustment
LVP50-16A1-2Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: Rc1/8 | O-ring: FKM | Option: Bypass
LVP50-16A1-3Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: Rc1/8 | O-ring: FKM | Option: Flow adj. + bypass
LVP50-16A1-NValve type: N.C. | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: None
LVP50-16A1-N1Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: Flow adjustment
LVP50-16A1-N2Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: Bypass
LVP50-16A1-N3Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: Flow adj. + bypass
LVP50-16A2Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: M5x0.8 | O-ring: FKM | Option: None
LVP50-16A2-1Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: M5x0.8 | O-ring: FKM | Option: Flow adjustment
LVP50-16A2-2Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: M5x0.8 | O-ring: FKM | Option: Bypass
LVP50-16A2-3Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: M5x0.8 | O-ring: FKM | Option: Flow adj. + bypass
LVP50-16A2-NValve type: N.C. | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: None
LVP50-16A2-N1Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: Flow adjustment
LVP50-16A2-N2Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: Bypass
LVP50-16A2-N3Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: Flow adj. + bypass
LVP50W-16AValve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: None
LVP50W-16A-1Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: Flow adjustment
LVP50W-16A-2Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: Bypass
LVP50W-16A-3Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: Flow adj. + bypass
LVP50W-16A-NValve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: None
LVP50W-16A-N1Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: Flow adjustment
LVP50W-16A-N2Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: Bypass
LVP50W-16A-N3Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: Flow adj. + bypass
LVP50W-16A1Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: Rc1/8 | O-ring: FKM | Option: None
LVP50W-16A1-1Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: Rc1/8 | O-ring: FKM | Option: Flow adjustment
LVP50W-16A1-2Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: Rc1/8 | O-ring: FKM | Option: Bypass
LVP50W-16A1-3Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: Rc1/8 | O-ring: FKM | Option: Flow adj. + bypass
LVP50W-16A1-NValve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: None
LVP50W-16A1-N1Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: Flow adjustment
LVP50W-16A1-N2Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: Bypass
LVP50W-16A1-N3Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: Flow adj. + bypass
LVP50W-16A2Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: M5x0.8 | O-ring: FKM | Option: None
LVP50W-16A2-1Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: M5x0.8 | O-ring: FKM | Option: Flow adjustment
LVP50W-16A2-2Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: M5x0.8 | O-ring: FKM | Option: Bypass
LVP50W-16A2-3Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: M5x0.8 | O-ring: FKM | Option: Flow adj. + bypass
LVP50W-16A2-NValve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: None
LVP50W-16A2-N1Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: Flow adjustment
LVP50W-16A2-N2Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: Bypass
LVP50W-16A2-N3Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: Flow adj. + bypass
LVP51-16AValve type: N.O. | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: None
LVP51-16A-NValve type: N.O. | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: None
LVP51-16A1Valve type: N.O. | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: Rc1/8 | O-ring: FKM | Option: None
LVP51-16A1-NValve type: N.O. | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: None
LVP51-16A2Valve type: N.O. | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: M5x0.8 | O-ring: FKM | Option: None
LVP51-16A2-NValve type: N.O. | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: None
LVP51W-16AValve type: N.O. | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: None
LVP51W-16A-NValve type: N.O. | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: None
LVP51W-16A1Valve type: N.O. | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: Rc1/8 | O-ring: FKM | Option: None
LVP51W-16A1-NValve type: N.O. | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: None
LVP51W-16A2Valve type: N.O. | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: M5x0.8 | O-ring: FKM | Option: None
LVP51W-16A2-NValve type: N.O. | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: None
LVP52-16AValve type: Double acting | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: None
LVP52-16A-1Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: Flow adjustment
LVP52-16A-2Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: Bypass
LVP52-16A-3Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: Flow adj. + bypass
LVP52-16A-NValve type: Double acting | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: None
LVP52-16A-N1Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: Flow adjustment
LVP52-16A-N2Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: Bypass
LVP52-16A-N3Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: Flow adj. + bypass
LVP52-16A1Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: Rc1/8 | O-ring: FKM | Option: None
LVP52-16A1-1Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: Rc1/8 | O-ring: FKM | Option: Flow adjustment
LVP52-16A1-2Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: Rc1/8 | O-ring: FKM | Option: Bypass
LVP52-16A1-3Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: Rc1/8 | O-ring: FKM | Option: Flow adj. + bypass
LVP52-16A1-NValve type: Double acting | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: None
LVP52-16A1-N1Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: Flow adjustment
LVP52-16A1-N2Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: Bypass
LVP52-16A1-N3Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: Flow adj. + bypass
LVP52-16A2Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: M5x0.8 | O-ring: FKM | Option: None
LVP52-16A2-1Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: M5x0.8 | O-ring: FKM | Option: Flow adjustment
LVP52-16A2-2Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: M5x0.8 | O-ring: FKM | Option: Bypass
LVP52-16A2-3Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: M5x0.8 | O-ring: FKM | Option: Flow adj. + bypass
LVP52-16A2-NValve type: Double acting | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: None
LVP52-16A2-N1Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: Flow adjustment
LVP52-16A2-N2Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: Bypass
LVP52-16A2-N3Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 22 (16A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: Flow adj. + bypass
LVP52W-16AValve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: None
LVP52W-16A-1Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: Flow adjustment
LVP52W-16A-2Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: Bypass
LVP52W-16A-3Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: Flow adj. + bypass
LVP52W-16A-NValve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: None
LVP52W-16A-N1Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: Flow adjustment
LVP52W-16A-N2Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: Bypass
LVP52W-16A-N3Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: Flow adj. + bypass
LVP52W-16A1Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: Rc1/8 | O-ring: FKM | Option: None
LVP52W-16A1-1Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: Rc1/8 | O-ring: FKM | Option: Flow adjustment
LVP52W-16A1-2Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: Rc1/8 | O-ring: FKM | Option: Bypass
LVP52W-16A1-3Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: Rc1/8 | O-ring: FKM | Option: Flow adj. + bypass
LVP52W-16A1-NValve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: None
LVP52W-16A1-N1Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: Flow adjustment
LVP52W-16A1-N2Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: Bypass
LVP52W-16A1-N3Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: Flow adj. + bypass
LVP52W-16A2Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: M5x0.8 | O-ring: FKM | Option: None
LVP52W-16A2-1Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: M5x0.8 | O-ring: FKM | Option: Flow adjustment
LVP52W-16A2-2Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: M5x0.8 | O-ring: FKM | Option: Bypass
LVP52W-16A2-3Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: M5x0.8 | O-ring: FKM | Option: Flow adj. + bypass
LVP52W-16A2-NValve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: None
LVP52W-16A2-N1Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: Flow adjustment
LVP52W-16A2-N2Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: Bypass
LVP52W-16A2-N3Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 22 (16A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: Flow adj. + bypass
LVP60-20AValve type: N.C. | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: None
LVP60-20A-1Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: Flow adjustment
LVP60-20A-2Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: Bypass
LVP60-20A-3Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: Flow adj. + bypass
LVP60-20A-NValve type: N.C. | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: None
LVP60-20A-N1Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: Flow adjustment
LVP60-20A-N2Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: Bypass
LVP60-20A-N3Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: Flow adj. + bypass
LVP60-20A1Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: Rc1/8 | O-ring: FKM | Option: None
LVP60-20A1-1Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: Rc1/8 | O-ring: FKM | Option: Flow adjustment
LVP60-20A1-2Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: Rc1/8 | O-ring: FKM | Option: Bypass
LVP60-20A1-3Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: Rc1/8 | O-ring: FKM | Option: Flow adj. + bypass
LVP60-20A1-NValve type: N.C. | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: None
LVP60-20A1-N1Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: Flow adjustment
LVP60-20A1-N2Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: Bypass
LVP60-20A1-N3Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: Flow adj. + bypass
LVP60-20A2Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: M5x0.8 | O-ring: FKM | Option: None
LVP60-20A2-1Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: M5x0.8 | O-ring: FKM | Option: Flow adjustment
LVP60-20A2-2Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: M5x0.8 | O-ring: FKM | Option: Bypass
LVP60-20A2-3Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: M5x0.8 | O-ring: FKM | Option: Flow adj. + bypass
LVP60-20A2-NValve type: N.C. | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: None
LVP60-20A2-N1Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: Flow adjustment
LVP60-20A2-N2Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: Bypass
LVP60-20A2-N3Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: Flow adj. + bypass
LVP60-25AValve type: N.C. | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: None
LVP60-25A-1Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: Flow adjustment
LVP60-25A-2Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: Bypass
LVP60-25A-3Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: Flow adj. + bypass
LVP60-25A-NValve type: N.C. | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: None
LVP60-25A-N1Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: Flow adjustment
LVP60-25A-N2Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: Bypass
LVP60-25A-N3Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: Flow adj. + bypass
LVP60-25A1Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: Rc1/8 | O-ring: FKM | Option: None
LVP60-25A1-1Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: Rc1/8 | O-ring: FKM | Option: Flow adjustment
LVP60-25A1-2Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: Rc1/8 | O-ring: FKM | Option: Bypass
LVP60-25A1-3Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: Rc1/8 | O-ring: FKM | Option: Flow adj. + bypass
LVP60-25A1-NValve type: N.C. | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: None
LVP60-25A1-N1Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: Flow adjustment
LVP60-25A1-N2Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: Bypass
LVP60-25A1-N3Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: Flow adj. + bypass
LVP60-25A2Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: M5x0.8 | O-ring: FKM | Option: None
LVP60-25A2-1Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: M5x0.8 | O-ring: FKM | Option: Flow adjustment
LVP60-25A2-2Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: M5x0.8 | O-ring: FKM | Option: Bypass
LVP60-25A2-3Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: M5x0.8 | O-ring: FKM | Option: Flow adj. + bypass
LVP60-25A2-NValve type: N.C. | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: None
LVP60-25A2-N1Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: Flow adjustment
LVP60-25A2-N2Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: Bypass
LVP60-25A2-N3Valve type: N.C. | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: Flow adj. + bypass
LVP60W-20AValve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: None
LVP60W-20A-1Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: Flow adjustment
LVP60W-20A-2Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: Bypass
LVP60W-20A-3Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: Flow adj. + bypass
LVP60W-20A-NValve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: None
LVP60W-20A-N1Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: Flow adjustment
LVP60W-20A-N2Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: Bypass
LVP60W-20A-N3Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: Flow adj. + bypass
LVP60W-20A1Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: Rc1/8 | O-ring: FKM | Option: None
LVP60W-20A1-1Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: Rc1/8 | O-ring: FKM | Option: Flow adjustment
LVP60W-20A1-2Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: Rc1/8 | O-ring: FKM | Option: Bypass
LVP60W-20A1-3Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: Rc1/8 | O-ring: FKM | Option: Flow adj. + bypass
LVP60W-20A1-NValve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: None
LVP60W-20A1-N1Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: Flow adjustment
LVP60W-20A1-N2Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: Bypass
LVP60W-20A1-N3Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: Flow adj. + bypass
LVP60W-20A2Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: M5x0.8 | O-ring: FKM | Option: None
LVP60W-20A2-1Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: M5x0.8 | O-ring: FKM | Option: Flow adjustment
LVP60W-20A2-2Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: M5x0.8 | O-ring: FKM | Option: Bypass
LVP60W-20A2-3Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: M5x0.8 | O-ring: FKM | Option: Flow adj. + bypass
LVP60W-20A2-NValve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: None
LVP60W-20A2-N1Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: Flow adjustment
LVP60W-20A2-N2Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: Bypass
LVP60W-20A2-N3Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: Flow adj. + bypass
LVP60W-25AValve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: None
LVP60W-25A-1Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: Flow adjustment
LVP60W-25A-2Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: Bypass
LVP60W-25A-3Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: Flow adj. + bypass
LVP60W-25A-NValve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: None
LVP60W-25A-N1Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: Flow adjustment
LVP60W-25A-N2Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: Bypass
LVP60W-25A-N3Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: Flow adj. + bypass
LVP60W-25A1Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: Rc1/8 | O-ring: FKM | Option: None
LVP60W-25A1-1Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: Rc1/8 | O-ring: FKM | Option: Flow adjustment
LVP60W-25A1-2Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: Rc1/8 | O-ring: FKM | Option: Bypass
LVP60W-25A1-3Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: Rc1/8 | O-ring: FKM | Option: Flow adj. + bypass
LVP60W-25A1-NValve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: None
LVP60W-25A1-N1Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: Flow adjustment
LVP60W-25A1-N2Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: Bypass
LVP60W-25A1-N3Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: Flow adj. + bypass
LVP60W-25A2Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: M5x0.8 | O-ring: FKM | Option: None
LVP60W-25A2-1Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: M5x0.8 | O-ring: FKM | Option: Flow adjustment
LVP60W-25A2-2Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: M5x0.8 | O-ring: FKM | Option: Bypass
LVP60W-25A2-3Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: M5x0.8 | O-ring: FKM | Option: Flow adj. + bypass
LVP60W-25A2-NValve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: None
LVP60W-25A2-N1Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: Flow adjustment
LVP60W-25A2-N2Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: Bypass
LVP60W-25A2-N3Valve type: N.C. | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: Flow adj. + bypass
LVP61-20AValve type: N.O. | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: None
LVP61-20A-NValve type: N.O. | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: None
LVP61-20A1Valve type: N.O. | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: Rc1/8 | O-ring: FKM | Option: None
LVP61-20A1-NValve type: N.O. | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: None
LVP61-20A2Valve type: N.O. | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: M5x0.8 | O-ring: FKM | Option: None
LVP61-20A2-NValve type: N.O. | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: None
LVP61-25AValve type: N.O. | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: None
LVP61-25A-NValve type: N.O. | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: None
LVP61-25A1Valve type: N.O. | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: Rc1/8 | O-ring: FKM | Option: None
LVP61-25A1-NValve type: N.O. | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: None
LVP61-25A2Valve type: N.O. | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: M5x0.8 | O-ring: FKM | Option: None
LVP61-25A2-NValve type: N.O. | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: None
LVP61W-20AValve type: N.O. | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: None
LVP61W-20A-NValve type: N.O. | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: None
LVP61W-20A1Valve type: N.O. | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: Rc1/8 | O-ring: FKM | Option: None
LVP61W-20A1-NValve type: N.O. | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: None
LVP61W-20A2Valve type: N.O. | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: M5x0.8 | O-ring: FKM | Option: None
LVP61W-20A2-NValve type: N.O. | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: None
LVP61W-25AValve type: N.O. | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: None
LVP61W-25A-NValve type: N.O. | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: None
LVP61W-25A1Valve type: N.O. | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: Rc1/8 | O-ring: FKM | Option: None
LVP61W-25A1-NValve type: N.O. | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: None
LVP61W-25A2Valve type: N.O. | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: M5x0.8 | O-ring: FKM | Option: None
LVP61W-25A2-NValve type: N.O. | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: None
LVP62-20AValve type: Double acting | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: None
LVP62-20A-1Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: Flow adjustment
LVP62-20A-2Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: Bypass
LVP62-20A-3Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: Flow adj. + bypass
LVP62-20A-NValve type: Double acting | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: None
LVP62-20A-N1Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: Flow adjustment
LVP62-20A-N2Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: Bypass
LVP62-20A-N3Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: Flow adj. + bypass
LVP62-20A1Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: Rc1/8 | O-ring: FKM | Option: None
LVP62-20A1-1Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: Rc1/8 | O-ring: FKM | Option: Flow adjustment
LVP62-20A1-2Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: Rc1/8 | O-ring: FKM | Option: Bypass
LVP62-20A1-3Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: Rc1/8 | O-ring: FKM | Option: Flow adj. + bypass
LVP62-20A1-NValve type: Double acting | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: None
LVP62-20A1-N1Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: Flow adjustment
LVP62-20A1-N2Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: Bypass
LVP62-20A1-N3Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: Flow adj. + bypass
LVP62-20A2Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: M5x0.8 | O-ring: FKM | Option: None
LVP62-20A2-1Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: M5x0.8 | O-ring: FKM | Option: Flow adjustment
LVP62-20A2-2Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: M5x0.8 | O-ring: FKM | Option: Bypass
LVP62-20A2-3Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: M5x0.8 | O-ring: FKM | Option: Flow adj. + bypass
LVP62-20A2-NValve type: Double acting | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: None
LVP62-20A2-N1Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: Flow adjustment
LVP62-20A2-N2Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: Bypass
LVP62-20A2-N3Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 26 (20A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: Flow adj. + bypass
LVP62-25AValve type: Double acting | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: None
LVP62-25A-1Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: Flow adjustment
LVP62-25A-2Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: Bypass
LVP62-25A-3Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: Flow adj. + bypass
LVP62-25A-NValve type: Double acting | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: None
LVP62-25A-N1Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: Flow adjustment
LVP62-25A-N2Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: Bypass
LVP62-25A-N3Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: Flow adj. + bypass
LVP62-25A1Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: Rc1/8 | O-ring: FKM | Option: None
LVP62-25A1-1Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: Rc1/8 | O-ring: FKM | Option: Flow adjustment
LVP62-25A1-2Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: Rc1/8 | O-ring: FKM | Option: Bypass
LVP62-25A1-3Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: Rc1/8 | O-ring: FKM | Option: Flow adj. + bypass
LVP62-25A1-NValve type: Double acting | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: None
LVP62-25A1-N1Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: Flow adjustment
LVP62-25A1-N2Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: Bypass
LVP62-25A1-N3Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: Flow adj. + bypass
LVP62-25A2Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: M5x0.8 | O-ring: FKM | Option: None
LVP62-25A2-1Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: M5x0.8 | O-ring: FKM | Option: Flow adjustment
LVP62-25A2-2Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: M5x0.8 | O-ring: FKM | Option: Bypass
LVP62-25A2-3Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: M5x0.8 | O-ring: FKM | Option: Flow adj. + bypass
LVP62-25A2-NValve type: Double acting | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: None
LVP62-25A2-N1Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: Flow adjustment
LVP62-25A2-N2Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: Bypass
LVP62-25A2-N3Valve type: Double acting | Type: Standard | Connection: PVC pipe OD 32 (25A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: Flow adj. + bypass
LVP62W-20AValve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: None
LVP62W-20A-1Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: Flow adjustment
LVP62W-20A-2Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: Bypass
LVP62W-20A-3Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: Flow adj. + bypass
LVP62W-20A-NValve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: None
LVP62W-20A-N1Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: Flow adjustment
LVP62W-20A-N2Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: Bypass
LVP62W-20A-N3Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: Flow adj. + bypass
LVP62W-20A1Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: Rc1/8 | O-ring: FKM | Option: None
LVP62W-20A1-1Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: Rc1/8 | O-ring: FKM | Option: Flow adjustment
LVP62W-20A1-2Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: Rc1/8 | O-ring: FKM | Option: Bypass
LVP62W-20A1-3Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: Rc1/8 | O-ring: FKM | Option: Flow adj. + bypass
LVP62W-20A1-NValve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: None
LVP62W-20A1-N1Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: Flow adjustment
LVP62W-20A1-N2Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: Bypass
LVP62W-20A1-N3Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: Flow adj. + bypass
LVP62W-20A2Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: M5x0.8 | O-ring: FKM | Option: None
LVP62W-20A2-1Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: M5x0.8 | O-ring: FKM | Option: Flow adjustment
LVP62W-20A2-2Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: M5x0.8 | O-ring: FKM | Option: Bypass
LVP62W-20A2-3Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: M5x0.8 | O-ring: FKM | Option: Flow adj. + bypass
LVP62W-20A2-NValve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: None
LVP62W-20A2-N1Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: Flow adjustment
LVP62W-20A2-N2Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: Bypass
LVP62W-20A2-N3Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 26 (20A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: Flow adj. + bypass
LVP62W-25AValve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: None
LVP62W-25A-1Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: Flow adjustment
LVP62W-25A-2Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: Bypass
LVP62W-25A-3Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: ø6 one-touch fitting | O-ring: FKM | Option: Flow adj. + bypass
LVP62W-25A-NValve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: None
LVP62W-25A-N1Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: Flow adjustment
LVP62W-25A-N2Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: Bypass
LVP62W-25A-N3Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: ø6 one-touch fitting | O-ring: EPDM | Option: Flow adj. + bypass
LVP62W-25A1Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: Rc1/8 | O-ring: FKM | Option: None
LVP62W-25A1-1Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: Rc1/8 | O-ring: FKM | Option: Flow adjustment
LVP62W-25A1-2Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: Rc1/8 | O-ring: FKM | Option: Bypass
LVP62W-25A1-3Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: Rc1/8 | O-ring: FKM | Option: Flow adj. + bypass
LVP62W-25A1-NValve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: None
LVP62W-25A1-N1Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: Flow adjustment
LVP62W-25A1-N2Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: Bypass
LVP62W-25A1-N3Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: Rc1/8 | O-ring: EPDM | Option: Flow adj. + bypass
LVP62W-25A2Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: M5x0.8 | O-ring: FKM | Option: None
LVP62W-25A2-1Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: M5x0.8 | O-ring: FKM | Option: Flow adjustment
LVP62W-25A2-2Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: M5x0.8 | O-ring: FKM | Option: Bypass
LVP62W-25A2-3Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: M5x0.8 | O-ring: FKM | Option: Flow adj. + bypass
LVP62W-25A2-NValve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: None
LVP62W-25A2-N1Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: Flow adjustment
LVP62W-25A2-N2Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: Bypass
LVP62W-25A2-N3Valve type: Double acting | Type: Water hammer reduction | Connection: PVC pipe OD 32 (25A) | Pilot port: M5x0.8 | O-ring: EPDM | Option: Flow adj. + bypass

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
