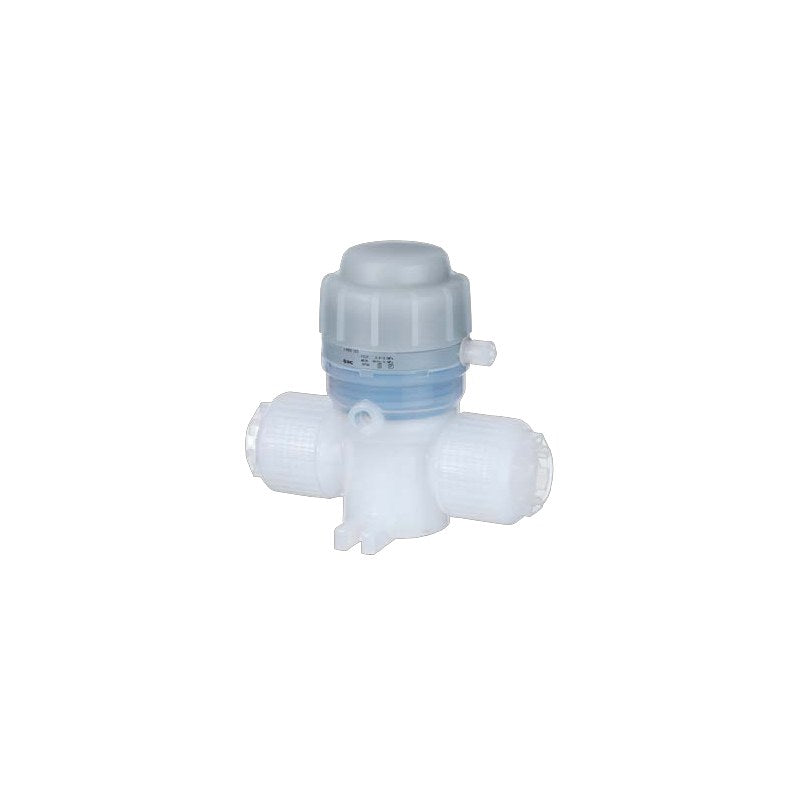

SMC LVQ Air Operated Chemical Valve (LQ1 Fitting, Class 2-3)

SMC LVQ series air-operated diaphragm valve for chemicals and ultrapure water, New PFA body with integrated LQ1 insert-bushing hyper fitting, body classes 2 to 3.

Key features

Fluid-contact parts New PFA body and PTFE diaphragm; PVDF actuator joined without metal screws (non-metal exterior)
Piston damper and tapered flow path reduce particles, micro-bubbles and liquid retention
Pilot port can be oriented in 8 directions (P2 to P8 suffix, standard direction 1)
Options: flow adjustment, bypass, indicator, high back pressure 0.42 MPa; buffer FKM, FFKM, EPDM (ammonia) or high-temperature 170 C
Pilot port also available with LQ fitting for 4x3 tube (M) and NPT1/8 (N); reducer B-port sizes on order

Specifications

Fluid	Deionized water, chemicals (see compatibility list)
Fluid connection	LQ1 hyper fitting (insert bushing) integrated
Proof pressure	1 MPa
Operating pressure (A to B)	-98 kPa to 0.5 MPa (LVQ60 0.4 MPa)
Back pressure	0.3 MPa or less (LVQ60 0.2 MPa); high BP 0.42 MPa
Pilot pressure	0.3 to 0.5 MPa (high BP 0.45 to 0.55 MPa)
Flow Cv (class 2/3/4/5/6)	0.35 / 1.3 / 1.9 / 5 / 8 (high flow 9.5)
Fluid temperature	0 to 100 C (high temp. 0 to 170 C)
Ambient temperature	0 to 60 C
Wetted materials	Body New PFA, diaphragm PTFE; actuator PVDF
Source	SMC Korea catalog LVQ Series (SMCKR_LVQ.pdf), p. 69-78 (PDF p. 8-17)

LVQ20-V03		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ20-V03R		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ20-V03-J		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ20-V03R-J		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ20-V03-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ20-V03R-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ20-V03-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ20-V03R-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ20-V03-1		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
LVQ20-V03R-1		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
LVQ20-V03-1-J		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ20-V03R-1-J		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ20-V03-1-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
LVQ20-V03R-1-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
LVQ20-V03-1-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ20-V03R-1-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ20-V03-2		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ20-V03R-2		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ20-V03-2-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ20-V03R-2-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ20-V03-2-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ20-V03R-2-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ20-V03-3		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ20-V03R-3		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ20-V03-3-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ20-V03R-3-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ20-V03-3-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ20-V03R-3-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ20-V03-4		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
LVQ20-V03R-4		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
LVQ20-V03-4-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
LVQ20-V03R-4-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
LVQ20-V03-4-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ20-V03R-4-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ20-V03-5		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ20-V03R-5		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ20-V03-5-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ20-V03R-5-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ20-V03-5-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ20-V03R-5-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ20-V03-6		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
LVQ20-V03R-6		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
LVQ20-V03-6-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ20-V03R-6-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ20-V03-6-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ20-V03R-6-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ20-V03-7		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
LVQ20-V03R-7		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
LVQ20-V03-7-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
LVQ20-V03R-7-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
LVQ20-V03-7-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ20-V03R-7-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ20-V03-8		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ20-V03R-8		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ20-V03-8-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ20-V03R-8-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ20-V03-8-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ20-V03R-8-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ20-V03-9		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
LVQ20-V03R-9		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
LVQ20-V03-9-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
LVQ20-V03R-9-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
LVQ20-V03-9-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ20-V03R-9-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ20-V03-24		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
LVQ20-V03R-24		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
LVQ20-V03-24-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
LVQ20-V03R-24-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
LVQ20-V03-24-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ20-V03R-24-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ21-V03		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ21-V03R		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ21-V03-J		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ21-V03R-J		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ21-V03-K		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ21-V03R-K		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ21-V03-N		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ21-V03R-N		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ22-V03		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ22-V03R		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ22-V03-J		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ22-V03R-J		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ22-V03-K		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ22-V03R-K		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ22-V03-N		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ22-V03R-N		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ22-V03-2		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ22-V03R-2		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ22-V03-2-K		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ22-V03R-2-K		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ22-V03-2-N		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ22-V03R-2-N		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ20-V04		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ20-V04R		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ20-V04-J		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ20-V04R-J		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ20-V04-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ20-V04R-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ20-V04-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ20-V04R-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ20-V04-1		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
LVQ20-V04R-1		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
LVQ20-V04-1-J		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ20-V04R-1-J		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ20-V04-1-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
LVQ20-V04R-1-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
LVQ20-V04-1-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ20-V04R-1-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ20-V04-2		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ20-V04R-2		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ20-V04-2-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ20-V04R-2-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ20-V04-2-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ20-V04R-2-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ20-V04-3		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ20-V04R-3		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ20-V04-3-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ20-V04R-3-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ20-V04-3-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ20-V04R-3-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ20-V04-4		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
LVQ20-V04R-4		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
LVQ20-V04-4-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
LVQ20-V04R-4-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
LVQ20-V04-4-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ20-V04R-4-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ20-V04-5		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ20-V04R-5		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ20-V04-5-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ20-V04R-5-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ20-V04-5-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ20-V04R-5-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ20-V04-6		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
LVQ20-V04R-6		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
LVQ20-V04-6-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ20-V04R-6-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ20-V04-6-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ20-V04R-6-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ20-V04-7		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
LVQ20-V04R-7		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
LVQ20-V04-7-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
LVQ20-V04R-7-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
LVQ20-V04-7-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ20-V04R-7-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ20-V04-8		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ20-V04R-8		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ20-V04-8-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ20-V04R-8-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ20-V04-8-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ20-V04R-8-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ20-V04-9		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
LVQ20-V04R-9		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
LVQ20-V04-9-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
LVQ20-V04R-9-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
LVQ20-V04-9-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ20-V04R-9-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ20-V04-24		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
LVQ20-V04R-24		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
LVQ20-V04-24-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
LVQ20-V04R-24-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
LVQ20-V04-24-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ20-V04R-24-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ21-V04		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ21-V04R		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ21-V04-J		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ21-V04R-J		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ21-V04-K		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ21-V04R-K		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ21-V04-N		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ21-V04R-N		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ22-V04		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ22-V04R		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ22-V04-J		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ22-V04R-J		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ22-V04-K		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ22-V04R-K		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ22-V04-N		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ22-V04R-N		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ22-V04-2		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ22-V04R-2		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ22-V04-2-K		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ22-V04R-2-K		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ22-V04-2-N		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ22-V04R-2-N		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ20-V06		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ20-V06R		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ20-V06-J		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ20-V06R-J		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ20-V06-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ20-V06R-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ20-V06-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ20-V06R-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ20-V06-1		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
LVQ20-V06R-1		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
LVQ20-V06-1-J		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ20-V06R-1-J		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ20-V06-1-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
LVQ20-V06R-1-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
LVQ20-V06-1-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ20-V06R-1-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ20-V06-2		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ20-V06R-2		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ20-V06-2-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ20-V06R-2-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ20-V06-2-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ20-V06R-2-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ20-V06-3		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ20-V06R-3		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ20-V06-3-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ20-V06R-3-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ20-V06-3-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ20-V06R-3-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ20-V06-4		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
LVQ20-V06R-4		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
LVQ20-V06-4-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
LVQ20-V06R-4-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
LVQ20-V06-4-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ20-V06R-4-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ20-V06-5		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ20-V06R-5		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ20-V06-5-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ20-V06R-5-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ20-V06-5-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ20-V06R-5-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ20-V06-6		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
LVQ20-V06R-6		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
LVQ20-V06-6-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ20-V06R-6-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ20-V06-6-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ20-V06R-6-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ20-V06-7		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
LVQ20-V06R-7		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
LVQ20-V06-7-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
LVQ20-V06R-7-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
LVQ20-V06-7-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ20-V06R-7-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ20-V06-8		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ20-V06R-8		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ20-V06-8-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ20-V06R-8-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ20-V06-8-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ20-V06R-8-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ20-V06-9		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
LVQ20-V06R-9		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
LVQ20-V06-9-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
LVQ20-V06R-9-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
LVQ20-V06-9-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ20-V06R-9-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ20-V06-24		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
LVQ20-V06R-24		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
LVQ20-V06-24-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
LVQ20-V06R-24-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
LVQ20-V06-24-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ20-V06R-24-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ21-V06		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ21-V06R		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ21-V06-J		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ21-V06R-J		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ21-V06-K		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ21-V06R-K		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ21-V06-N		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ21-V06R-N		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ22-V06		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ22-V06R		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ22-V06-J		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ22-V06R-J		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ22-V06-K		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ22-V06R-K		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ22-V06-N		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ22-V06R-N		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ22-V06-2		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ22-V06R-2		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ22-V06-2-K		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ22-V06R-2-K		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ22-V06-2-N		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ22-V06R-2-N		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ20-V05		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ20-V05R		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ20-V05-J		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ20-V05R-J		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ20-V05-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ20-V05R-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ20-V05-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ20-V05R-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ20-V05-1		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
LVQ20-V05R-1		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
LVQ20-V05-1-J		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ20-V05R-1-J		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ20-V05-1-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
LVQ20-V05R-1-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
LVQ20-V05-1-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ20-V05R-1-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ20-V05-2		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ20-V05R-2		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ20-V05-2-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ20-V05R-2-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ20-V05-2-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ20-V05R-2-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ20-V05-3		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ20-V05R-3		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ20-V05-3-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ20-V05R-3-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ20-V05-3-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ20-V05R-3-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ20-V05-4		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
LVQ20-V05R-4		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
LVQ20-V05-4-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
LVQ20-V05R-4-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
LVQ20-V05-4-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ20-V05R-4-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ20-V05-5		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ20-V05R-5		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ20-V05-5-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ20-V05R-5-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ20-V05-5-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ20-V05R-5-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ20-V05-6		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
LVQ20-V05R-6		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
LVQ20-V05-6-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ20-V05R-6-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ20-V05-6-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ20-V05R-6-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ20-V05-7		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
LVQ20-V05R-7		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
LVQ20-V05-7-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
LVQ20-V05R-7-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
LVQ20-V05-7-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ20-V05R-7-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ20-V05-8		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ20-V05R-8		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ20-V05-8-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ20-V05R-8-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ20-V05-8-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ20-V05R-8-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ20-V05-9		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
LVQ20-V05R-9		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
LVQ20-V05-9-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
LVQ20-V05R-9-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
LVQ20-V05-9-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ20-V05R-9-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ20-V05-24		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
LVQ20-V05R-24		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
LVQ20-V05-24-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
LVQ20-V05R-24-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
LVQ20-V05-24-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ20-V05R-24-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ21-V05		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ21-V05R		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ21-V05-J		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ21-V05R-J		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ21-V05-K		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ21-V05R-K		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ21-V05-N		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ21-V05R-N		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ22-V05		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ22-V05R		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ22-V05-J		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ22-V05R-J		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ22-V05-K		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ22-V05R-K		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ22-V05-N		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ22-V05R-N		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ22-V05-2		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ22-V05R-2		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ22-V05-2-K		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ22-V05R-2-K		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ22-V05-2-N		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ22-V05R-2-N		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ20-V07		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ20-V07R		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ20-V07-J		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ20-V07R-J		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ20-V07-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ20-V07R-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ20-V07-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ20-V07R-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ20-V07-1		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
LVQ20-V07R-1		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
LVQ20-V07-1-J		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ20-V07R-1-J		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ20-V07-1-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
LVQ20-V07R-1-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
LVQ20-V07-1-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ20-V07R-1-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ20-V07-2		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ20-V07R-2		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ20-V07-2-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ20-V07R-2-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ20-V07-2-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ20-V07R-2-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ20-V07-3		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ20-V07R-3		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ20-V07-3-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ20-V07R-3-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ20-V07-3-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ20-V07R-3-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ20-V07-4		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
LVQ20-V07R-4		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
LVQ20-V07-4-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
LVQ20-V07R-4-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
LVQ20-V07-4-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ20-V07R-4-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ20-V07-5		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ20-V07R-5		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ20-V07-5-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ20-V07R-5-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ20-V07-5-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ20-V07R-5-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ20-V07-6		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
LVQ20-V07R-6		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
LVQ20-V07-6-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ20-V07R-6-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ20-V07-6-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ20-V07R-6-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ20-V07-7		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
LVQ20-V07R-7		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
LVQ20-V07-7-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
LVQ20-V07R-7-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
LVQ20-V07-7-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ20-V07R-7-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ20-V07-8		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ20-V07R-8		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ20-V07-8-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ20-V07R-8-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ20-V07-8-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ20-V07R-8-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ20-V07-9		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
LVQ20-V07R-9		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
LVQ20-V07-9-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
LVQ20-V07R-9-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
LVQ20-V07-9-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ20-V07R-9-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ20-V07-24		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
LVQ20-V07R-24		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
LVQ20-V07-24-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
LVQ20-V07R-24-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
LVQ20-V07-24-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ20-V07R-24-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ21-V07		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ21-V07R		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ21-V07-J		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ21-V07R-J		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ21-V07-K		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ21-V07R-K		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ21-V07-N		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ21-V07R-N		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ22-V07		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ22-V07R		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ22-V07-J		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ22-V07R-J		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ22-V07-K		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ22-V07R-K		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ22-V07-N		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ22-V07R-N		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ22-V07-2		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ22-V07R-2		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ22-V07-2-K		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ22-V07R-2-K		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ22-V07-2-N		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ22-V07R-2-N		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ30-V06		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ30-V06R		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ30-V06-J		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ30-V06R-J		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ30-V06-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ30-V06R-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ30-V06-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ30-V06R-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ30-V06-1		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
LVQ30-V06R-1		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
LVQ30-V06-1-J		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ30-V06R-1-J		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ30-V06-1-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
LVQ30-V06R-1-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
LVQ30-V06-1-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ30-V06R-1-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ30-V06-2		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ30-V06R-2		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ30-V06-2-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ30-V06R-2-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ30-V06-2-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ30-V06R-2-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ30-V06-3		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ30-V06R-3		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ30-V06-3-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ30-V06R-3-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ30-V06-3-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ30-V06R-3-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ30-V06-4		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
LVQ30-V06R-4		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
LVQ30-V06-4-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
LVQ30-V06R-4-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
LVQ30-V06-4-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ30-V06R-4-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ30-V06-5		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ30-V06R-5		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ30-V06-5-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ30-V06R-5-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ30-V06-5-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ30-V06R-5-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ30-V06-6		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
LVQ30-V06R-6		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
LVQ30-V06-6-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ30-V06R-6-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ30-V06-6-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ30-V06R-6-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ30-V06-7		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
LVQ30-V06R-7		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
LVQ30-V06-7-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
LVQ30-V06R-7-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
LVQ30-V06-7-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ30-V06R-7-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ30-V06-8		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ30-V06R-8		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ30-V06-8-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ30-V06R-8-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ30-V06-8-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ30-V06R-8-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ30-V06-9		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
LVQ30-V06R-9		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
LVQ30-V06-9-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
LVQ30-V06R-9-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
LVQ30-V06-9-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ30-V06R-9-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ30-V06-24		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
LVQ30-V06R-24		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
LVQ30-V06-24-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
LVQ30-V06R-24-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
LVQ30-V06-24-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ30-V06R-24-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ31-V06		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ31-V06R		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ31-V06-J		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ31-V06R-J		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ31-V06-K		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ31-V06R-K		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ31-V06-N		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ31-V06R-N		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ32-V06		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ32-V06R		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ32-V06-J		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ32-V06R-J		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ32-V06-K		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ32-V06R-K		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ32-V06-N		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ32-V06R-N		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ32-V06-2		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ32-V06R-2		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ32-V06-2-K		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ32-V06R-2-K		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ32-V06-2-N		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ32-V06R-2-N		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ30-V08		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ30-V08R		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ30-V08-J		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ30-V08R-J		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ30-V08-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ30-V08R-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ30-V08-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ30-V08R-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ30-V08-1		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
LVQ30-V08R-1		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
LVQ30-V08-1-J		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ30-V08R-1-J		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ30-V08-1-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
LVQ30-V08R-1-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
LVQ30-V08-1-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ30-V08R-1-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ30-V08-2		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ30-V08R-2		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ30-V08-2-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ30-V08R-2-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ30-V08-2-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ30-V08R-2-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ30-V08-3		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ30-V08R-3		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ30-V08-3-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ30-V08R-3-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ30-V08-3-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ30-V08R-3-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ30-V08-4		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
LVQ30-V08R-4		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
LVQ30-V08-4-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
LVQ30-V08R-4-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
LVQ30-V08-4-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ30-V08R-4-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ30-V08-5		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ30-V08R-5		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ30-V08-5-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ30-V08R-5-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ30-V08-5-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ30-V08R-5-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ30-V08-6		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
LVQ30-V08R-6		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
LVQ30-V08-6-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ30-V08R-6-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ30-V08-6-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ30-V08R-6-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ30-V08-7		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
LVQ30-V08R-7		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
LVQ30-V08-7-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
LVQ30-V08R-7-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
LVQ30-V08-7-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ30-V08R-7-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ30-V08-8		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ30-V08R-8		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ30-V08-8-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ30-V08R-8-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ30-V08-8-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ30-V08R-8-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ30-V08-9		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
LVQ30-V08R-9		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
LVQ30-V08-9-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
LVQ30-V08R-9-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
LVQ30-V08-9-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ30-V08R-9-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ30-V08-24		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
LVQ30-V08R-24		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
LVQ30-V08-24-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
LVQ30-V08R-24-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
LVQ30-V08-24-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ30-V08R-24-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ31-V08		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ31-V08R		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ31-V08-J		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ31-V08R-J		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ31-V08-K		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ31-V08R-K		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ31-V08-N		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ31-V08R-N		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ32-V08		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ32-V08R		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ32-V08-J		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ32-V08R-J		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ32-V08-K		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ32-V08R-K		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ32-V08-N		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ32-V08R-N		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ32-V08-2		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ32-V08R-2		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ32-V08-2-K		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ32-V08R-2-K		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ32-V08-2-N		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ32-V08R-2-N		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ30-V10		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ30-V10R		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ30-V10-J		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ30-V10R-J		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ30-V10-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ30-V10R-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ30-V10-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ30-V10R-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ30-V10-1		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
LVQ30-V10R-1		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
LVQ30-V10-1-J		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ30-V10R-1-J		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ30-V10-1-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
LVQ30-V10R-1-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
LVQ30-V10-1-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ30-V10R-1-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ30-V10-2		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ30-V10R-2		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ30-V10-2-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ30-V10R-2-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ30-V10-2-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ30-V10R-2-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ30-V10-3		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ30-V10R-3		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ30-V10-3-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ30-V10R-3-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ30-V10-3-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ30-V10R-3-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ30-V10-4		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
LVQ30-V10R-4		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
LVQ30-V10-4-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
LVQ30-V10R-4-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
LVQ30-V10-4-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ30-V10R-4-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ30-V10-5		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ30-V10R-5		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ30-V10-5-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ30-V10R-5-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ30-V10-5-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ30-V10R-5-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ30-V10-6		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
LVQ30-V10R-6		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
LVQ30-V10-6-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ30-V10R-6-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ30-V10-6-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ30-V10R-6-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ30-V10-7		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
LVQ30-V10R-7		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
LVQ30-V10-7-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
LVQ30-V10R-7-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
LVQ30-V10-7-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ30-V10R-7-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ30-V10-8		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ30-V10R-8		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ30-V10-8-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ30-V10R-8-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ30-V10-8-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ30-V10R-8-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ30-V10-9		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
LVQ30-V10R-9		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
LVQ30-V10-9-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
LVQ30-V10R-9-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
LVQ30-V10-9-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ30-V10R-9-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ30-V10-24		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
LVQ30-V10R-24		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
LVQ30-V10-24-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
LVQ30-V10R-24-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
LVQ30-V10-24-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ30-V10R-24-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ31-V10		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ31-V10R		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ31-V10-J		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ31-V10R-J		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ31-V10-K		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ31-V10R-K		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ31-V10-N		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ31-V10R-N		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ32-V10		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ32-V10R		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ32-V10-J		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ32-V10R-J		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ32-V10-K		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ32-V10R-K		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ32-V10-N		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ32-V10R-N		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ32-V10-2		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ32-V10R-2		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ32-V10-2-K		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ32-V10R-2-K		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ32-V10-2-N		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ32-V10R-2-N		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ30-V07		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ30-V07R		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ30-V07-J		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ30-V07R-J		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ30-V07-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ30-V07R-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ30-V07-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ30-V07R-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ30-V07-1		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
LVQ30-V07R-1		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
LVQ30-V07-1-J		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ30-V07R-1-J		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ30-V07-1-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
LVQ30-V07R-1-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
LVQ30-V07-1-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ30-V07R-1-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ30-V07-2		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ30-V07R-2		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ30-V07-2-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ30-V07R-2-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ30-V07-2-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ30-V07R-2-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ30-V07-3		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ30-V07R-3		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ30-V07-3-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ30-V07R-3-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ30-V07-3-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ30-V07R-3-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ30-V07-4		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
LVQ30-V07R-4		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
LVQ30-V07-4-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
LVQ30-V07R-4-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
LVQ30-V07-4-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ30-V07R-4-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ30-V07-5		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ30-V07R-5		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ30-V07-5-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ30-V07R-5-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ30-V07-5-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ30-V07R-5-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ30-V07-6		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
LVQ30-V07R-6		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
LVQ30-V07-6-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ30-V07R-6-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ30-V07-6-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ30-V07R-6-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ30-V07-7		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
LVQ30-V07R-7		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
LVQ30-V07-7-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
LVQ30-V07R-7-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
LVQ30-V07-7-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ30-V07R-7-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ30-V07-8		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ30-V07R-8		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ30-V07-8-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ30-V07R-8-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ30-V07-8-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ30-V07R-8-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ30-V07-9		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
LVQ30-V07R-9		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
LVQ30-V07-9-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
LVQ30-V07R-9-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
LVQ30-V07-9-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ30-V07R-9-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ30-V07-24		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
LVQ30-V07R-24		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
LVQ30-V07-24-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
LVQ30-V07R-24-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
LVQ30-V07-24-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ30-V07R-24-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ31-V07		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ31-V07R		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ31-V07-J		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ31-V07R-J		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ31-V07-K		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ31-V07R-K		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ31-V07-N		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ31-V07R-N		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ32-V07		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ32-V07R		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ32-V07-J		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ32-V07R-J		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ32-V07-K		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ32-V07R-K		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ32-V07-N		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ32-V07R-N		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ32-V07-2		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ32-V07R-2		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ32-V07-2-K		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ32-V07R-2-K		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ32-V07-2-N		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ32-V07R-2-N		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ30-V11		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ30-V11R		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ30-V11-J		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ30-V11R-J		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ30-V11-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ30-V11R-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ30-V11-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ30-V11R-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ30-V11-1		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
LVQ30-V11R-1		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
LVQ30-V11-1-J		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ30-V11R-1-J		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ30-V11-1-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
LVQ30-V11R-1-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
LVQ30-V11-1-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ30-V11R-1-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ30-V11-2		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ30-V11R-2		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ30-V11-2-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ30-V11R-2-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ30-V11-2-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ30-V11R-2-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ30-V11-3		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ30-V11R-3		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ30-V11-3-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ30-V11R-3-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ30-V11-3-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ30-V11R-3-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ30-V11-4		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
LVQ30-V11R-4		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
LVQ30-V11-4-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
LVQ30-V11R-4-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
LVQ30-V11-4-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ30-V11R-4-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ30-V11-5		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ30-V11R-5		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ30-V11-5-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ30-V11R-5-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ30-V11-5-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ30-V11R-5-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ30-V11-6		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
LVQ30-V11R-6		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
LVQ30-V11-6-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ30-V11R-6-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ30-V11-6-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ30-V11R-6-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ30-V11-7		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
LVQ30-V11R-7		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
LVQ30-V11-7-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
LVQ30-V11R-7-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
LVQ30-V11-7-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ30-V11R-7-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ30-V11-8		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ30-V11R-8		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ30-V11-8-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ30-V11R-8-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ30-V11-8-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ30-V11R-8-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ30-V11-9		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
LVQ30-V11R-9		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
LVQ30-V11-9-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
LVQ30-V11R-9-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
LVQ30-V11-9-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ30-V11R-9-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ30-V11-24		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
LVQ30-V11R-24		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
LVQ30-V11-24-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
LVQ30-V11R-24-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
LVQ30-V11-24-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ30-V11R-24-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ31-V11		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ31-V11R		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ31-V11-J		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ31-V11R-J		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ31-V11-K		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ31-V11R-K		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ31-V11-N		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ31-V11R-N		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ32-V11		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ32-V11R		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ32-V11-J		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ32-V11R-J		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ32-V11-K		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ32-V11R-K		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ32-V11-N		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ32-V11R-N		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ32-V11-2		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ32-V11R-2		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ32-V11-2-K		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ32-V11R-2-K		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ32-V11-2-N		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ32-V11R-2-N		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)

Chemical ValvesSMC

920 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC LVQ Air Operated Chemical Valve (LQ1 Fitting, Class 2-3)

Brand SMC·Chemical Valves

Available part numbers (920)

LVQ20-V03, LVQ20-V03R, LVQ20-V03-J, LVQ20-V03R-J, LVQ20-V03-K, LVQ20-V03R-K, LVQ20-V03-N, LVQ20-V03R-N, LVQ20-V03-1, LVQ20-V03R-1 + 910 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	LVQ20-V03	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ20-V03R	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ20-V03-J	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ20-V03R-J	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ20-V03-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ20-V03R-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ20-V03-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ20-V03R-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ20-V03-1	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
	LVQ20-V03R-1	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
	LVQ20-V03-1-J	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ20-V03R-1-J	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ20-V03-1-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
	LVQ20-V03R-1-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
	LVQ20-V03-1-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ20-V03R-1-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ20-V03-2	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ20-V03R-2	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ20-V03-2-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ20-V03R-2-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ20-V03-2-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ20-V03R-2-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ20-V03-3	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ20-V03R-3	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ20-V03-3-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ20-V03R-3-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ20-V03-3-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ20-V03R-3-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ20-V03-4	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
	LVQ20-V03R-4	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
	LVQ20-V03-4-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
	LVQ20-V03R-4-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
	LVQ20-V03-4-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ20-V03R-4-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ20-V03-5	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ20-V03R-5	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ20-V03-5-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ20-V03R-5-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ20-V03-5-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ20-V03R-5-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ20-V03-6	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ20-V03R-6	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ20-V03-6-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ20-V03R-6-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ20-V03-6-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ20-V03R-6-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ20-V03-7	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
	LVQ20-V03R-7	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
	LVQ20-V03-7-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
	LVQ20-V03R-7-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
	LVQ20-V03-7-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ20-V03R-7-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ20-V03-8	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ20-V03R-8	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ20-V03-8-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ20-V03R-8-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ20-V03-8-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ20-V03R-8-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ20-V03-9	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
	LVQ20-V03R-9	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
	LVQ20-V03-9-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
	LVQ20-V03R-9-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
	LVQ20-V03-9-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ20-V03R-9-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ20-V03-24	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
	LVQ20-V03R-24	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
	LVQ20-V03-24-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ20-V03R-24-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ20-V03-24-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ20-V03R-24-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ21-V03	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ21-V03R	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ21-V03-J	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ21-V03R-J	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ21-V03-K	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ21-V03R-K	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ21-V03-N	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ21-V03R-N	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ22-V03	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ22-V03R	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ22-V03-J	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ22-V03R-J	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ22-V03-K	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ22-V03R-K	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ22-V03-N	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ22-V03R-N	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ22-V03-2	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ22-V03R-2	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ22-V03-2-K	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ22-V03R-2-K	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ22-V03-2-N	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ22-V03R-2-N	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ20-V04	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ20-V04R	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ20-V04-J	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ20-V04R-J	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ20-V04-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ20-V04R-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ20-V04-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ20-V04R-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ20-V04-1	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
	LVQ20-V04R-1	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
	LVQ20-V04-1-J	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ20-V04R-1-J	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ20-V04-1-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
	LVQ20-V04R-1-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
	LVQ20-V04-1-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ20-V04R-1-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ20-V04-2	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ20-V04R-2	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ20-V04-2-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ20-V04R-2-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ20-V04-2-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ20-V04R-2-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ20-V04-3	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ20-V04R-3	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ20-V04-3-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ20-V04R-3-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ20-V04-3-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ20-V04R-3-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ20-V04-4	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
	LVQ20-V04R-4	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
	LVQ20-V04-4-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
	LVQ20-V04R-4-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
	LVQ20-V04-4-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ20-V04R-4-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ20-V04-5	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ20-V04R-5	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ20-V04-5-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ20-V04R-5-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ20-V04-5-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ20-V04R-5-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ20-V04-6	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ20-V04R-6	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ20-V04-6-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ20-V04R-6-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ20-V04-6-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ20-V04R-6-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ20-V04-7	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
	LVQ20-V04R-7	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
	LVQ20-V04-7-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
	LVQ20-V04R-7-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
	LVQ20-V04-7-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ20-V04R-7-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ20-V04-8	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ20-V04R-8	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ20-V04-8-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ20-V04R-8-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ20-V04-8-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ20-V04R-8-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ20-V04-9	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
	LVQ20-V04R-9	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
	LVQ20-V04-9-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
	LVQ20-V04R-9-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
	LVQ20-V04-9-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ20-V04R-9-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ20-V04-24	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
	LVQ20-V04R-24	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
	LVQ20-V04-24-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ20-V04R-24-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ20-V04-24-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ20-V04R-24-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ21-V04	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ21-V04R	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ21-V04-J	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ21-V04R-J	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ21-V04-K	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ21-V04R-K	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ21-V04-N	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ21-V04R-N	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ22-V04	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ22-V04R	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ22-V04-J	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ22-V04R-J	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ22-V04-K	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ22-V04R-K	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ22-V04-N	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ22-V04R-N	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ22-V04-2	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ22-V04R-2	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ22-V04-2-K	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ22-V04R-2-K	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ22-V04-2-N	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ22-V04R-2-N	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ20-V06	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ20-V06R	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ20-V06-J	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ20-V06R-J	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ20-V06-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ20-V06R-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ20-V06-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ20-V06R-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ20-V06-1	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
	LVQ20-V06R-1	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
	LVQ20-V06-1-J	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ20-V06R-1-J	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ20-V06-1-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
	LVQ20-V06R-1-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
	LVQ20-V06-1-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ20-V06R-1-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ20-V06-2	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ20-V06R-2	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ20-V06-2-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ20-V06R-2-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ20-V06-2-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ20-V06R-2-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ20-V06-3	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ20-V06R-3	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ20-V06-3-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ20-V06R-3-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ20-V06-3-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ20-V06R-3-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ20-V06-4	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
	LVQ20-V06R-4	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
	LVQ20-V06-4-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
	LVQ20-V06R-4-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
	LVQ20-V06-4-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ20-V06R-4-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ20-V06-5	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ20-V06R-5	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ20-V06-5-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ20-V06R-5-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ20-V06-5-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ20-V06R-5-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ20-V06-6	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ20-V06R-6	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ20-V06-6-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ20-V06R-6-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ20-V06-6-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ20-V06R-6-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ20-V06-7	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
	LVQ20-V06R-7	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
	LVQ20-V06-7-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
	LVQ20-V06R-7-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
	LVQ20-V06-7-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ20-V06R-7-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ20-V06-8	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ20-V06R-8	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ20-V06-8-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ20-V06R-8-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ20-V06-8-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ20-V06R-8-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ20-V06-9	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
	LVQ20-V06R-9	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
	LVQ20-V06-9-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
	LVQ20-V06R-9-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
	LVQ20-V06-9-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ20-V06R-9-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ20-V06-24	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
	LVQ20-V06R-24	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
	LVQ20-V06-24-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ20-V06R-24-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ20-V06-24-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ20-V06R-24-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ21-V06	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ21-V06R	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ21-V06-J	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ21-V06R-J	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ21-V06-K	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ21-V06R-K	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ21-V06-N	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ21-V06R-N	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ22-V06	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ22-V06R	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ22-V06-J	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ22-V06R-J	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ22-V06-K	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ22-V06R-K	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ22-V06-N	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ22-V06R-N	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ22-V06-2	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ22-V06R-2	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ22-V06-2-K	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ22-V06R-2-K	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ22-V06-2-N	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ22-V06R-2-N	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ20-V05	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ20-V05R	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ20-V05-J	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ20-V05R-J	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ20-V05-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ20-V05R-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ20-V05-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ20-V05R-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ20-V05-1	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
	LVQ20-V05R-1	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
	LVQ20-V05-1-J	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ20-V05R-1-J	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ20-V05-1-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
	LVQ20-V05R-1-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
	LVQ20-V05-1-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ20-V05R-1-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ20-V05-2	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ20-V05R-2	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ20-V05-2-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ20-V05R-2-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ20-V05-2-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ20-V05R-2-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ20-V05-3	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ20-V05R-3	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ20-V05-3-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ20-V05R-3-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ20-V05-3-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ20-V05R-3-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ20-V05-4	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
	LVQ20-V05R-4	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
	LVQ20-V05-4-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
	LVQ20-V05R-4-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
	LVQ20-V05-4-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ20-V05R-4-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ20-V05-5	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ20-V05R-5	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ20-V05-5-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ20-V05R-5-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ20-V05-5-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ20-V05R-5-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ20-V05-6	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ20-V05R-6	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ20-V05-6-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ20-V05R-6-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ20-V05-6-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ20-V05R-6-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ20-V05-7	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
	LVQ20-V05R-7	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
	LVQ20-V05-7-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
	LVQ20-V05R-7-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
	LVQ20-V05-7-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ20-V05R-7-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ20-V05-8	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ20-V05R-8	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ20-V05-8-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ20-V05R-8-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ20-V05-8-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ20-V05R-8-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ20-V05-9	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
	LVQ20-V05R-9	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
	LVQ20-V05-9-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
	LVQ20-V05R-9-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
	LVQ20-V05-9-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ20-V05R-9-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ20-V05-24	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
	LVQ20-V05R-24	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
	LVQ20-V05-24-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ20-V05R-24-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ20-V05-24-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ20-V05R-24-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ21-V05	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ21-V05R	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ21-V05-J	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ21-V05R-J	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ21-V05-K	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ21-V05R-K	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ21-V05-N	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ21-V05R-N	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ22-V05	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ22-V05R	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ22-V05-J	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ22-V05R-J	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ22-V05-K	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ22-V05R-K	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ22-V05-N	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ22-V05R-N	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ22-V05-2	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ22-V05R-2	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ22-V05-2-K	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ22-V05R-2-K	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ22-V05-2-N	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3/16 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ22-V05R-2-N	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3/16 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ20-V07	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ20-V07R	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ20-V07-J	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ20-V07R-J	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ20-V07-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ20-V07R-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ20-V07-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ20-V07R-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ20-V07-1	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
	LVQ20-V07R-1	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
	LVQ20-V07-1-J	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ20-V07R-1-J	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ20-V07-1-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
	LVQ20-V07R-1-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
	LVQ20-V07-1-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ20-V07R-1-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ20-V07-2	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ20-V07R-2	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ20-V07-2-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ20-V07R-2-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ20-V07-2-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ20-V07R-2-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ20-V07-3	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ20-V07R-3	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ20-V07-3-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ20-V07R-3-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ20-V07-3-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ20-V07R-3-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ20-V07-4	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
	LVQ20-V07R-4	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
	LVQ20-V07-4-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
	LVQ20-V07R-4-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
	LVQ20-V07-4-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ20-V07R-4-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ20-V07-5	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ20-V07R-5	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ20-V07-5-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ20-V07R-5-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ20-V07-5-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ20-V07R-5-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ20-V07-6	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ20-V07R-6	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ20-V07-6-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ20-V07R-6-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ20-V07-6-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ20-V07R-6-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ20-V07-7	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
	LVQ20-V07R-7	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
	LVQ20-V07-7-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
	LVQ20-V07R-7-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
	LVQ20-V07-7-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ20-V07R-7-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ20-V07-8	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ20-V07R-8	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ20-V07-8-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ20-V07R-8-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ20-V07-8-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ20-V07R-8-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ20-V07-9	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
	LVQ20-V07R-9	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
	LVQ20-V07-9-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
	LVQ20-V07R-9-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
	LVQ20-V07-9-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ20-V07R-9-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ20-V07-24	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
	LVQ20-V07R-24	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
	LVQ20-V07-24-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ20-V07R-24-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ20-V07-24-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ20-V07R-24-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ21-V07	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ21-V07R	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ21-V07-J	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ21-V07R-J	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ21-V07-K	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ21-V07R-K	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ21-V07-N	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ21-V07R-N	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ22-V07	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ22-V07R	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ22-V07-J	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ22-V07R-J	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ22-V07-K	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ22-V07R-K	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ22-V07-N	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ22-V07R-N	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ22-V07-2	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ22-V07R-2	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ22-V07-2-K	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ22-V07R-2-K	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ22-V07-2-N	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ22-V07R-2-N	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ30-V06	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ30-V06R	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ30-V06-J	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ30-V06R-J	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ30-V06-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ30-V06R-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ30-V06-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ30-V06R-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ30-V06-1	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
	LVQ30-V06R-1	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
	LVQ30-V06-1-J	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ30-V06R-1-J	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ30-V06-1-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
	LVQ30-V06R-1-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
	LVQ30-V06-1-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ30-V06R-1-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ30-V06-2	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ30-V06R-2	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ30-V06-2-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ30-V06R-2-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ30-V06-2-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ30-V06R-2-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ30-V06-3	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ30-V06R-3	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ30-V06-3-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ30-V06R-3-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ30-V06-3-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ30-V06R-3-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ30-V06-4	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
	LVQ30-V06R-4	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
	LVQ30-V06-4-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
	LVQ30-V06R-4-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
	LVQ30-V06-4-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ30-V06R-4-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ30-V06-5	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ30-V06R-5	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ30-V06-5-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ30-V06R-5-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ30-V06-5-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ30-V06R-5-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ30-V06-6	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ30-V06R-6	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ30-V06-6-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ30-V06R-6-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ30-V06-6-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ30-V06R-6-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ30-V06-7	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
	LVQ30-V06R-7	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
	LVQ30-V06-7-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
	LVQ30-V06R-7-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
	LVQ30-V06-7-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ30-V06R-7-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ30-V06-8	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ30-V06R-8	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ30-V06-8-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ30-V06R-8-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ30-V06-8-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ30-V06R-8-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ30-V06-9	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
	LVQ30-V06R-9	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
	LVQ30-V06-9-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
	LVQ30-V06R-9-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
	LVQ30-V06-9-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ30-V06R-9-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ30-V06-24	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
	LVQ30-V06R-24	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
	LVQ30-V06-24-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ30-V06R-24-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ30-V06-24-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ30-V06R-24-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ31-V06	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ31-V06R	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ31-V06-J	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ31-V06R-J	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ31-V06-K	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ31-V06R-K	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ31-V06-N	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ31-V06R-N	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ32-V06	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ32-V06R	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ32-V06-J	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ32-V06R-J	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ32-V06-K	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ32-V06R-K	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ32-V06-N	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ32-V06R-N	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ32-V06-2	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ32-V06R-2	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ32-V06-2-K	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ32-V06R-2-K	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ32-V06-2-N	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ32-V06R-2-N	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ30-V08	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ30-V08R	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ30-V08-J	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ30-V08R-J	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ30-V08-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ30-V08R-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ30-V08-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ30-V08R-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ30-V08-1	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
	LVQ30-V08R-1	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
	LVQ30-V08-1-J	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ30-V08R-1-J	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ30-V08-1-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
	LVQ30-V08R-1-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
	LVQ30-V08-1-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ30-V08R-1-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ30-V08-2	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ30-V08R-2	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ30-V08-2-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ30-V08R-2-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ30-V08-2-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ30-V08R-2-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ30-V08-3	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ30-V08R-3	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ30-V08-3-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ30-V08R-3-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ30-V08-3-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ30-V08R-3-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ30-V08-4	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
	LVQ30-V08R-4	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
	LVQ30-V08-4-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
	LVQ30-V08R-4-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
	LVQ30-V08-4-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ30-V08R-4-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ30-V08-5	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ30-V08R-5	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ30-V08-5-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ30-V08R-5-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ30-V08-5-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ30-V08R-5-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ30-V08-6	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ30-V08R-6	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ30-V08-6-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ30-V08R-6-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ30-V08-6-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ30-V08R-6-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ30-V08-7	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
	LVQ30-V08R-7	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
	LVQ30-V08-7-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
	LVQ30-V08R-7-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
	LVQ30-V08-7-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ30-V08R-7-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ30-V08-8	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ30-V08R-8	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ30-V08-8-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ30-V08R-8-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ30-V08-8-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ30-V08R-8-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ30-V08-9	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
	LVQ30-V08R-9	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
	LVQ30-V08-9-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
	LVQ30-V08R-9-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
	LVQ30-V08-9-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ30-V08R-9-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ30-V08-24	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
	LVQ30-V08R-24	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
	LVQ30-V08-24-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ30-V08R-24-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ30-V08-24-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ30-V08R-24-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ31-V08	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ31-V08R	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ31-V08-J	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ31-V08R-J	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ31-V08-K	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ31-V08R-K	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ31-V08-N	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ31-V08R-N	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ32-V08	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ32-V08R	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ32-V08-J	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ32-V08R-J	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ32-V08-K	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ32-V08R-K	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ32-V08-N	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ32-V08R-N	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ32-V08-2	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ32-V08R-2	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ32-V08-2-K	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ32-V08R-2-K	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ32-V08-2-N	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ32-V08R-2-N	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ30-V10	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ30-V10R	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ30-V10-J	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ30-V10R-J	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ30-V10-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ30-V10R-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ30-V10-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ30-V10R-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ30-V10-1	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
	LVQ30-V10R-1	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
	LVQ30-V10-1-J	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ30-V10R-1-J	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ30-V10-1-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
	LVQ30-V10R-1-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
	LVQ30-V10-1-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ30-V10R-1-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ30-V10-2	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ30-V10R-2	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ30-V10-2-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ30-V10R-2-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ30-V10-2-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ30-V10R-2-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ30-V10-3	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ30-V10R-3	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ30-V10-3-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ30-V10R-3-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ30-V10-3-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ30-V10R-3-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ30-V10-4	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
	LVQ30-V10R-4	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
	LVQ30-V10-4-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
	LVQ30-V10R-4-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
	LVQ30-V10-4-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ30-V10R-4-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ30-V10-5	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ30-V10R-5	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ30-V10-5-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ30-V10R-5-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ30-V10-5-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ30-V10R-5-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ30-V10-6	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ30-V10R-6	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ30-V10-6-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ30-V10R-6-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ30-V10-6-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ30-V10R-6-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ30-V10-7	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
	LVQ30-V10R-7	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
	LVQ30-V10-7-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
	LVQ30-V10R-7-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
	LVQ30-V10-7-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ30-V10R-7-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ30-V10-8	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ30-V10R-8	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ30-V10-8-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ30-V10R-8-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ30-V10-8-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ30-V10R-8-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ30-V10-9	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
	LVQ30-V10R-9	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
	LVQ30-V10-9-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
	LVQ30-V10R-9-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
	LVQ30-V10-9-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ30-V10R-9-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ30-V10-24	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
	LVQ30-V10R-24	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
	LVQ30-V10-24-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ30-V10R-24-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ30-V10-24-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ30-V10R-24-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ31-V10	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ31-V10R	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ31-V10-J	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ31-V10R-J	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ31-V10-K	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ31-V10R-K	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ31-V10-N	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ31-V10R-N	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ32-V10	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ32-V10R	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ32-V10-J	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ32-V10R-J	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ32-V10-K	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ32-V10R-K	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ32-V10-N	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ32-V10R-N	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ32-V10-2	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ32-V10R-2	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ32-V10-2-K	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ32-V10R-2-K	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ32-V10-2-N	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ32-V10R-2-N	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ30-V07	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ30-V07R	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ30-V07-J	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ30-V07R-J	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ30-V07-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ30-V07R-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ30-V07-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ30-V07R-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ30-V07-1	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
	LVQ30-V07R-1	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
	LVQ30-V07-1-J	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ30-V07R-1-J	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ30-V07-1-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
	LVQ30-V07R-1-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
	LVQ30-V07-1-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ30-V07R-1-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ30-V07-2	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ30-V07R-2	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ30-V07-2-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ30-V07R-2-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ30-V07-2-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ30-V07R-2-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ30-V07-3	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ30-V07R-3	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ30-V07-3-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ30-V07R-3-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ30-V07-3-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ30-V07R-3-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ30-V07-4	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
	LVQ30-V07R-4	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
	LVQ30-V07-4-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
	LVQ30-V07R-4-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
	LVQ30-V07-4-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ30-V07R-4-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ30-V07-5	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ30-V07R-5	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ30-V07-5-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ30-V07R-5-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ30-V07-5-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ30-V07R-5-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ30-V07-6	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ30-V07R-6	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ30-V07-6-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ30-V07R-6-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ30-V07-6-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ30-V07R-6-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ30-V07-7	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
	LVQ30-V07R-7	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
	LVQ30-V07-7-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
	LVQ30-V07R-7-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
	LVQ30-V07-7-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ30-V07R-7-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ30-V07-8	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ30-V07R-8	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ30-V07-8-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ30-V07R-8-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ30-V07-8-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ30-V07R-8-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ30-V07-9	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
	LVQ30-V07R-9	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
	LVQ30-V07-9-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
	LVQ30-V07R-9-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
	LVQ30-V07-9-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ30-V07R-9-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ30-V07-24	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
	LVQ30-V07R-24	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
	LVQ30-V07-24-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ30-V07R-24-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ30-V07-24-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ30-V07R-24-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ31-V07	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ31-V07R	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ31-V07-J	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ31-V07R-J	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ31-V07-K	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ31-V07R-K	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ31-V07-N	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ31-V07R-N	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ32-V07	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ32-V07R	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ32-V07-J	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ32-V07R-J	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ32-V07-K	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ32-V07R-K	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ32-V07-N	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ32-V07R-N	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ32-V07-2	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ32-V07R-2	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ32-V07-2-K	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ32-V07R-2-K	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ32-V07-2-N	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 1/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ32-V07R-2-N	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 1/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ30-V11	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ30-V11R	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ30-V11-J	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ30-V11R-J	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ30-V11-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ30-V11R-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ30-V11-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ30-V11R-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ30-V11-1	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
	LVQ30-V11R-1	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
	LVQ30-V11-1-J	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ30-V11R-1-J	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ30-V11-1-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
	LVQ30-V11R-1-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
	LVQ30-V11-1-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ30-V11R-1-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ30-V11-2	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ30-V11R-2	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ30-V11-2-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ30-V11R-2-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ30-V11-2-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ30-V11R-2-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ30-V11-3	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ30-V11R-3	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ30-V11-3-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ30-V11R-3-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ30-V11-3-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ30-V11R-3-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ30-V11-4	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
	LVQ30-V11R-4	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
	LVQ30-V11-4-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
	LVQ30-V11R-4-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
	LVQ30-V11-4-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ30-V11R-4-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ30-V11-5	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ30-V11R-5	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ30-V11-5-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ30-V11R-5-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ30-V11-5-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ30-V11R-5-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ30-V11-6	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ30-V11R-6	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ30-V11-6-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ30-V11R-6-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ30-V11-6-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ30-V11R-6-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ30-V11-7	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
	LVQ30-V11R-7	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
	LVQ30-V11-7-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
	LVQ30-V11R-7-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
	LVQ30-V11-7-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ30-V11R-7-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ30-V11-8	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ30-V11R-8	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ30-V11-8-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ30-V11R-8-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ30-V11-8-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ30-V11R-8-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ30-V11-9	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
	LVQ30-V11R-9	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
	LVQ30-V11-9-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
	LVQ30-V11R-9-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
	LVQ30-V11-9-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ30-V11R-9-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ30-V11-24	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
	LVQ30-V11R-24	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
	LVQ30-V11-24-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ30-V11R-24-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ30-V11-24-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ30-V11R-24-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ31-V11	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ31-V11R	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ31-V11-J	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ31-V11R-J	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ31-V11-K	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ31-V11R-K	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ31-V11-N	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ31-V11R-N	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ32-V11	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ32-V11R	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ32-V11-J	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ32-V11R-J	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ32-V11-K	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ32-V11R-K	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ32-V11-N	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ32-V11R-N	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ32-V11-2	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ32-V11R-2	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ32-V11-2-K	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ32-V11R-2-K	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ32-V11-2-N	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ32-V11R-2-N	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC LVQ Air Operated Chemical Valve (LQ1 Fitting, Class 2-3)
