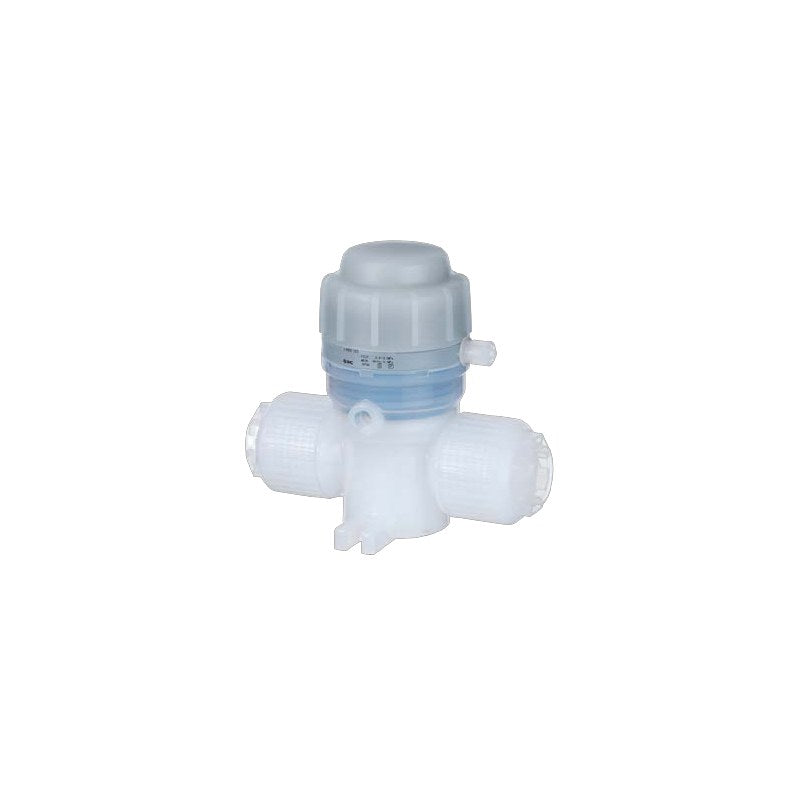

SMC LVQ Air Operated Chemical Valve (LQ1 Fitting, Class 4-6)

SMC LVQ series air-operated diaphragm valve for chemicals and ultrapure water, New PFA body with integrated LQ1 insert-bushing hyper fitting, body classes 4 to 6.

Key features

Fluid-contact parts New PFA body and PTFE diaphragm; PVDF actuator joined without metal screws (non-metal exterior)
Piston damper and tapered flow path reduce particles, micro-bubbles and liquid retention
Pilot port can be oriented in 8 directions (P2 to P8 suffix, standard direction 1)
Options: flow adjustment, bypass, indicator, high back pressure 0.42 MPa; buffer FKM, FFKM, EPDM (ammonia) or high-temperature 170 C
Pilot port also available with LQ fitting for 4x3 tube (M) and NPT1/8 (N); reducer B-port sizes on order

Specifications

Fluid	Deionized water, chemicals (see compatibility list)
Fluid connection	LQ1 hyper fitting (insert bushing) integrated
Proof pressure	1 MPa
Operating pressure (A to B)	-98 kPa to 0.5 MPa (LVQ60 0.4 MPa)
Back pressure	0.3 MPa or less (LVQ60 0.2 MPa); high BP 0.42 MPa
Pilot pressure	0.3 to 0.5 MPa (high BP 0.45 to 0.55 MPa)
Flow Cv (class 2/3/4/5/6)	0.35 / 1.3 / 1.9 / 5 / 8 (high flow 9.5)
Fluid temperature	0 to 100 C (high temp. 0 to 170 C)
Ambient temperature	0 to 60 C
Wetted materials	Body New PFA, diaphragm PTFE; actuator PVDF
Source	SMC Korea catalog LVQ Series (SMCKR_LVQ.pdf), p. 69-78 (PDF p. 8-17)

LVQ40-V10		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ40-V10R		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ40-V10-J		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ40-V10R-J		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ40-V10-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ40-V10R-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ40-V10-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ40-V10R-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ40-V10-1		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
LVQ40-V10R-1		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
LVQ40-V10-1-J		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ40-V10R-1-J		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ40-V10-1-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
LVQ40-V10R-1-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
LVQ40-V10-1-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ40-V10R-1-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ40-V10-2		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ40-V10R-2		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ40-V10-2-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ40-V10R-2-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ40-V10-2-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ40-V10R-2-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ40-V10-3		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ40-V10R-3		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ40-V10-3-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ40-V10R-3-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ40-V10-3-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ40-V10R-3-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ40-V10-4		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
LVQ40-V10R-4		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
LVQ40-V10-4-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
LVQ40-V10R-4-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
LVQ40-V10-4-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ40-V10R-4-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ40-V10-5		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ40-V10R-5		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ40-V10-5-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ40-V10R-5-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ40-V10-5-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ40-V10R-5-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ40-V10-6		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
LVQ40-V10R-6		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
LVQ40-V10-6-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ40-V10R-6-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ40-V10-6-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ40-V10R-6-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ40-V10-7		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
LVQ40-V10R-7		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
LVQ40-V10-7-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
LVQ40-V10R-7-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
LVQ40-V10-7-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ40-V10R-7-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ40-V10-8		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ40-V10R-8		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ40-V10-8-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ40-V10R-8-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ40-V10-8-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ40-V10R-8-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ40-V10-9		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
LVQ40-V10R-9		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
LVQ40-V10-9-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
LVQ40-V10R-9-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
LVQ40-V10-9-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ40-V10R-9-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ40-V10-24		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
LVQ40-V10R-24		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
LVQ40-V10-24-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
LVQ40-V10R-24-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
LVQ40-V10-24-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ40-V10R-24-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ41-V10		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ41-V10R		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ41-V10-J		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ41-V10R-J		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ41-V10-K		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ41-V10R-K		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ41-V10-N		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ41-V10R-N		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ42-V10		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ42-V10R		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ42-V10-J		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ42-V10R-J		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ42-V10-K		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ42-V10R-K		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ42-V10-N		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ42-V10R-N		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ42-V10-2		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ42-V10R-2		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ42-V10-2-K		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ42-V10R-2-K		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ42-V10-2-N		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ42-V10R-2-N		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ40-V12		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ40-V12R		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ40-V12-J		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ40-V12R-J		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ40-V12-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ40-V12R-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ40-V12-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ40-V12R-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ40-V12-1		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
LVQ40-V12R-1		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
LVQ40-V12-1-J		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ40-V12R-1-J		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ40-V12-1-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
LVQ40-V12R-1-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
LVQ40-V12-1-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ40-V12R-1-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ40-V12-2		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ40-V12R-2		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ40-V12-2-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ40-V12R-2-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ40-V12-2-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ40-V12R-2-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ40-V12-3		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ40-V12R-3		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ40-V12-3-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ40-V12R-3-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ40-V12-3-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ40-V12R-3-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ40-V12-4		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
LVQ40-V12R-4		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
LVQ40-V12-4-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
LVQ40-V12R-4-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
LVQ40-V12-4-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ40-V12R-4-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ40-V12-5		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ40-V12R-5		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ40-V12-5-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ40-V12R-5-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ40-V12-5-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ40-V12R-5-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ40-V12-6		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
LVQ40-V12R-6		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
LVQ40-V12-6-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ40-V12R-6-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ40-V12-6-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ40-V12R-6-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ40-V12-7		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
LVQ40-V12R-7		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
LVQ40-V12-7-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
LVQ40-V12R-7-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
LVQ40-V12-7-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ40-V12R-7-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ40-V12-8		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ40-V12R-8		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ40-V12-8-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ40-V12R-8-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ40-V12-8-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ40-V12R-8-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ40-V12-9		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
LVQ40-V12R-9		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
LVQ40-V12-9-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
LVQ40-V12R-9-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
LVQ40-V12-9-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ40-V12R-9-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ40-V12-24		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
LVQ40-V12R-24		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
LVQ40-V12-24-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
LVQ40-V12R-24-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
LVQ40-V12-24-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ40-V12R-24-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ41-V12		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ41-V12R		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ41-V12-J		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ41-V12R-J		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ41-V12-K		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ41-V12R-K		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ41-V12-N		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ41-V12R-N		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ42-V12		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ42-V12R		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ42-V12-J		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ42-V12R-J		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ42-V12-K		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ42-V12R-K		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ42-V12-N		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ42-V12R-N		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ42-V12-2		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ42-V12R-2		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ42-V12-2-K		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ42-V12R-2-K		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ42-V12-2-N		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ42-V12R-2-N		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ40-V11		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ40-V11R		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ40-V11-J		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ40-V11R-J		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ40-V11-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ40-V11R-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ40-V11-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ40-V11R-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ40-V11-1		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
LVQ40-V11R-1		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
LVQ40-V11-1-J		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ40-V11R-1-J		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ40-V11-1-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
LVQ40-V11R-1-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
LVQ40-V11-1-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ40-V11R-1-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ40-V11-2		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ40-V11R-2		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ40-V11-2-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ40-V11R-2-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ40-V11-2-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ40-V11R-2-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ40-V11-3		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ40-V11R-3		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ40-V11-3-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ40-V11R-3-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ40-V11-3-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ40-V11R-3-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ40-V11-4		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
LVQ40-V11R-4		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
LVQ40-V11-4-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
LVQ40-V11R-4-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
LVQ40-V11-4-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ40-V11R-4-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ40-V11-5		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ40-V11R-5		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ40-V11-5-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ40-V11R-5-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ40-V11-5-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ40-V11R-5-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ40-V11-6		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
LVQ40-V11R-6		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
LVQ40-V11-6-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ40-V11R-6-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ40-V11-6-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ40-V11R-6-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ40-V11-7		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
LVQ40-V11R-7		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
LVQ40-V11-7-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
LVQ40-V11R-7-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
LVQ40-V11-7-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ40-V11R-7-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ40-V11-8		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ40-V11R-8		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ40-V11-8-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ40-V11R-8-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ40-V11-8-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ40-V11R-8-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ40-V11-9		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
LVQ40-V11R-9		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
LVQ40-V11-9-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
LVQ40-V11R-9-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
LVQ40-V11-9-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ40-V11R-9-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ40-V11-24		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
LVQ40-V11R-24		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
LVQ40-V11-24-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
LVQ40-V11R-24-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
LVQ40-V11-24-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ40-V11R-24-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ41-V11		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ41-V11R		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ41-V11-J		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ41-V11R-J		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ41-V11-K		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ41-V11R-K		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ41-V11-N		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ41-V11R-N		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ42-V11		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ42-V11R		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ42-V11-J		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ42-V11R-J		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ42-V11-K		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ42-V11R-K		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ42-V11-N		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ42-V11R-N		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ42-V11-2		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ42-V11R-2		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ42-V11-2-K		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ42-V11R-2-K		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ42-V11-2-N		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ42-V11R-2-N		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ40-V13		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ40-V13R		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ40-V13-J		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ40-V13R-J		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ40-V13-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ40-V13R-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ40-V13-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ40-V13R-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ40-V13-1		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
LVQ40-V13R-1		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
LVQ40-V13-1-J		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ40-V13R-1-J		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ40-V13-1-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
LVQ40-V13R-1-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
LVQ40-V13-1-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ40-V13R-1-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ40-V13-2		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ40-V13R-2		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ40-V13-2-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ40-V13R-2-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ40-V13-2-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ40-V13R-2-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ40-V13-3		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ40-V13R-3		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ40-V13-3-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ40-V13R-3-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ40-V13-3-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ40-V13R-3-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ40-V13-4		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
LVQ40-V13R-4		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
LVQ40-V13-4-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
LVQ40-V13R-4-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
LVQ40-V13-4-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ40-V13R-4-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ40-V13-5		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ40-V13R-5		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ40-V13-5-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ40-V13R-5-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ40-V13-5-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ40-V13R-5-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ40-V13-6		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
LVQ40-V13R-6		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
LVQ40-V13-6-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ40-V13R-6-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ40-V13-6-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ40-V13R-6-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ40-V13-7		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
LVQ40-V13R-7		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
LVQ40-V13-7-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
LVQ40-V13R-7-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
LVQ40-V13-7-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ40-V13R-7-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ40-V13-8		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ40-V13R-8		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ40-V13-8-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ40-V13R-8-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ40-V13-8-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ40-V13R-8-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ40-V13-9		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
LVQ40-V13R-9		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
LVQ40-V13-9-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
LVQ40-V13R-9-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
LVQ40-V13-9-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ40-V13R-9-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ40-V13-24		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
LVQ40-V13R-24		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
LVQ40-V13-24-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
LVQ40-V13R-24-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
LVQ40-V13-24-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ40-V13R-24-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ41-V13		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ41-V13R		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ41-V13-J		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ41-V13R-J		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ41-V13-K		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ41-V13R-K		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ41-V13-N		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ41-V13R-N		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ42-V13		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ42-V13R		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ42-V13-J		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ42-V13R-J		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ42-V13-K		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ42-V13R-K		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ42-V13-N		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ42-V13R-N		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ42-V13-2		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ42-V13R-2		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ42-V13-2-K		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ42-V13R-2-K		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ42-V13-2-N		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ42-V13R-2-N		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ50-V12		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ50-V12R		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ50-V12-J		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ50-V12R-J		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ50-V12-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ50-V12R-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ50-V12-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ50-V12R-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ50-V12-1		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
LVQ50-V12R-1		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
LVQ50-V12-1-J		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ50-V12R-1-J		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ50-V12-1-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
LVQ50-V12R-1-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
LVQ50-V12-1-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ50-V12R-1-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ50-V12-2		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ50-V12R-2		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ50-V12-2-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ50-V12R-2-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ50-V12-2-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ50-V12R-2-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ50-V12-3		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ50-V12R-3		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ50-V12-3-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ50-V12R-3-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ50-V12-3-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ50-V12R-3-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ50-V12-4		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
LVQ50-V12R-4		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
LVQ50-V12-4-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
LVQ50-V12R-4-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
LVQ50-V12-4-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ50-V12R-4-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ50-V12-5		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ50-V12R-5		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ50-V12-5-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ50-V12R-5-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ50-V12-5-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ50-V12R-5-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ50-V12-6		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
LVQ50-V12R-6		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
LVQ50-V12-6-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ50-V12R-6-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ50-V12-6-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ50-V12R-6-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ50-V12-7		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
LVQ50-V12R-7		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
LVQ50-V12-7-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
LVQ50-V12R-7-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
LVQ50-V12-7-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ50-V12R-7-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ50-V12-8		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ50-V12R-8		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ50-V12-8-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ50-V12R-8-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ50-V12-8-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ50-V12R-8-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ50-V12-9		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
LVQ50-V12R-9		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
LVQ50-V12-9-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
LVQ50-V12R-9-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
LVQ50-V12-9-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ50-V12R-9-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ50-V12-24		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
LVQ50-V12R-24		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
LVQ50-V12-24-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
LVQ50-V12R-24-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
LVQ50-V12-24-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ50-V12R-24-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ51-V12		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ51-V12R		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ51-V12-J		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ51-V12R-J		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ51-V12-K		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ51-V12R-K		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ51-V12-N		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ51-V12R-N		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ52-V12		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ52-V12R		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ52-V12-J		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ52-V12R-J		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ52-V12-K		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ52-V12R-K		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ52-V12-N		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ52-V12R-N		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ52-V12-2		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ52-V12R-2		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ52-V12-2-K		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ52-V12R-2-K		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ52-V12-2-N		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ52-V12R-2-N		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ50-V19		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ50-V19R		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ50-V19-J		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ50-V19R-J		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ50-V19-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ50-V19R-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ50-V19-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ50-V19R-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ50-V19-1		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
LVQ50-V19R-1		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
LVQ50-V19-1-J		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ50-V19R-1-J		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ50-V19-1-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
LVQ50-V19R-1-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
LVQ50-V19-1-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ50-V19R-1-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ50-V19-2		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ50-V19R-2		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ50-V19-2-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ50-V19R-2-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ50-V19-2-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ50-V19R-2-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ50-V19-3		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ50-V19R-3		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ50-V19-3-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ50-V19R-3-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ50-V19-3-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ50-V19R-3-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ50-V19-4		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
LVQ50-V19R-4		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
LVQ50-V19-4-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
LVQ50-V19R-4-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
LVQ50-V19-4-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ50-V19R-4-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ50-V19-5		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ50-V19R-5		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ50-V19-5-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ50-V19R-5-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ50-V19-5-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ50-V19R-5-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ50-V19-6		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
LVQ50-V19R-6		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
LVQ50-V19-6-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ50-V19R-6-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ50-V19-6-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ50-V19R-6-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ50-V19-7		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
LVQ50-V19R-7		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
LVQ50-V19-7-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
LVQ50-V19R-7-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
LVQ50-V19-7-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ50-V19R-7-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ50-V19-8		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ50-V19R-8		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ50-V19-8-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ50-V19R-8-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ50-V19-8-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ50-V19R-8-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ50-V19-9		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
LVQ50-V19R-9		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
LVQ50-V19-9-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
LVQ50-V19R-9-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
LVQ50-V19-9-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ50-V19R-9-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ50-V19-24		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
LVQ50-V19R-24		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
LVQ50-V19-24-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
LVQ50-V19R-24-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
LVQ50-V19-24-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ50-V19R-24-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ51-V19		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ51-V19R		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ51-V19-J		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ51-V19R-J		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ51-V19-K		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ51-V19R-K		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ51-V19-N		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ51-V19R-N		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ52-V19		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ52-V19R		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ52-V19-J		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ52-V19R-J		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ52-V19-K		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ52-V19R-K		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ52-V19-N		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ52-V19R-N		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ52-V19-2		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ52-V19R-2		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ52-V19-2-K		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ52-V19R-2-K		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ52-V19-2-N		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ52-V19R-2-N		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ50-V13		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ50-V13R		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ50-V13-J		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ50-V13R-J		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ50-V13-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ50-V13R-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ50-V13-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ50-V13R-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ50-V13-1		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
LVQ50-V13R-1		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
LVQ50-V13-1-J		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ50-V13R-1-J		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ50-V13-1-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
LVQ50-V13R-1-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
LVQ50-V13-1-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ50-V13R-1-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ50-V13-2		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ50-V13R-2		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ50-V13-2-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ50-V13R-2-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ50-V13-2-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ50-V13R-2-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ50-V13-3		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ50-V13R-3		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ50-V13-3-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ50-V13R-3-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ50-V13-3-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ50-V13R-3-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ50-V13-4		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
LVQ50-V13R-4		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
LVQ50-V13-4-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
LVQ50-V13R-4-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
LVQ50-V13-4-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ50-V13R-4-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ50-V13-5		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ50-V13R-5		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ50-V13-5-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ50-V13R-5-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ50-V13-5-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ50-V13R-5-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ50-V13-6		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
LVQ50-V13R-6		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
LVQ50-V13-6-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ50-V13R-6-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ50-V13-6-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ50-V13R-6-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ50-V13-7		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
LVQ50-V13R-7		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
LVQ50-V13-7-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
LVQ50-V13R-7-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
LVQ50-V13-7-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ50-V13R-7-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ50-V13-8		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ50-V13R-8		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ50-V13-8-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ50-V13R-8-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ50-V13-8-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ50-V13R-8-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ50-V13-9		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
LVQ50-V13R-9		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
LVQ50-V13-9-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
LVQ50-V13R-9-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
LVQ50-V13-9-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ50-V13R-9-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ50-V13-24		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
LVQ50-V13R-24		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
LVQ50-V13-24-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
LVQ50-V13R-24-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
LVQ50-V13-24-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ50-V13R-24-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ51-V13		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ51-V13R		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ51-V13-J		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ51-V13R-J		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ51-V13-K		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ51-V13R-K		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ51-V13-N		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ51-V13R-N		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ52-V13		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ52-V13R		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ52-V13-J		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ52-V13R-J		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ52-V13-K		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ52-V13R-K		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ52-V13-N		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ52-V13R-N		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ52-V13-2		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ52-V13R-2		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ52-V13-2-K		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ52-V13R-2-K		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ52-V13-2-N		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ52-V13R-2-N		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ60-V19		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ60-V19R		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ60-V19-J		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ60-V19R-J		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ60-V19-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ60-V19R-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ60-V19-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ60-V19R-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ60-V19-P		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high flow
LVQ60-V19R-P		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high flow
LVQ60-V19-1		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
LVQ60-V19R-1		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
LVQ60-V19-1-J		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ60-V19R-1-J		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ60-V19-1-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
LVQ60-V19R-1-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
LVQ60-V19-1-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ60-V19R-1-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ60-V19-2		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ60-V19R-2		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ60-V19-2-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ60-V19R-2-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ60-V19-2-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ60-V19R-2-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ60-V19-3		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ60-V19R-3		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ60-V19-3-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ60-V19R-3-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ60-V19-3-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ60-V19R-3-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ60-V19-4		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
LVQ60-V19R-4		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
LVQ60-V19-4-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
LVQ60-V19R-4-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
LVQ60-V19-4-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ60-V19R-4-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ60-V19-4-P		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM, high flow
LVQ60-V19R-4-P		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM, high flow
LVQ60-V19-5		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ60-V19R-5		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ60-V19-5-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ60-V19R-5-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ60-V19-5-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ60-V19R-5-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ60-V19-5-P		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM, high flow
LVQ60-V19R-5-P		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM, high flow
LVQ60-V19-6		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
LVQ60-V19R-6		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
LVQ60-V19-6-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ60-V19R-6-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ60-V19-6-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ60-V19R-6-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ60-V19-7		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
LVQ60-V19R-7		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
LVQ60-V19-7-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
LVQ60-V19R-7-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
LVQ60-V19-7-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ60-V19R-7-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ60-V19-8		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ60-V19R-8		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ60-V19-8-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ60-V19R-8-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ60-V19-8-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ60-V19R-8-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ60-V19-9		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
LVQ60-V19R-9		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
LVQ60-V19-9-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
LVQ60-V19R-9-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
LVQ60-V19-9-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ60-V19R-9-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ60-V19-24		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
LVQ60-V19R-24		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
LVQ60-V19-24-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
LVQ60-V19R-24-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
LVQ60-V19-24-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ60-V19R-24-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ61-V19		Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ61-V19R		Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ61-V19-J		Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ61-V19R-J		Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ61-V19-K		Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ61-V19R-K		Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ61-V19-N		Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ61-V19R-N		Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ61-V19-P		Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high flow
LVQ61-V19R-P		Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high flow
LVQ62-V19		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ62-V19R		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ62-V19-J		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ62-V19R-J		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ62-V19-K		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ62-V19R-K		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ62-V19-N		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ62-V19R-N		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ62-V19-P		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high flow
LVQ62-V19R-P		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high flow
LVQ62-V19-2		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ62-V19R-2		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ62-V19-2-K		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ62-V19R-2-K		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ62-V19-2-N		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ62-V19R-2-N		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ60-V25		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ60-V25R		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ60-V25-J		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ60-V25R-J		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ60-V25-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ60-V25R-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ60-V25-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ60-V25R-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ60-V25-P		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high flow
LVQ60-V25R-P		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high flow
LVQ60-V25-1		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
LVQ60-V25R-1		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
LVQ60-V25-1-J		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ60-V25R-1-J		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ60-V25-1-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
LVQ60-V25R-1-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
LVQ60-V25-1-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ60-V25R-1-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ60-V25-2		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ60-V25R-2		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ60-V25-2-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ60-V25R-2-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ60-V25-2-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ60-V25R-2-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ60-V25-3		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ60-V25R-3		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ60-V25-3-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ60-V25R-3-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ60-V25-3-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ60-V25R-3-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ60-V25-4		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
LVQ60-V25R-4		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
LVQ60-V25-4-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
LVQ60-V25R-4-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
LVQ60-V25-4-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ60-V25R-4-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ60-V25-4-P		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM, high flow
LVQ60-V25R-4-P		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM, high flow
LVQ60-V25-5		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ60-V25R-5		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ60-V25-5-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ60-V25R-5-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ60-V25-5-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ60-V25R-5-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ60-V25-5-P		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM, high flow
LVQ60-V25R-5-P		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM, high flow
LVQ60-V25-6		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
LVQ60-V25R-6		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
LVQ60-V25-6-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ60-V25R-6-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ60-V25-6-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ60-V25R-6-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ60-V25-7		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
LVQ60-V25R-7		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
LVQ60-V25-7-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
LVQ60-V25R-7-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
LVQ60-V25-7-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ60-V25R-7-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ60-V25-8		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ60-V25R-8		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ60-V25-8-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ60-V25R-8-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ60-V25-8-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ60-V25R-8-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ60-V25-9		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
LVQ60-V25R-9		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
LVQ60-V25-9-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
LVQ60-V25R-9-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
LVQ60-V25-9-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ60-V25R-9-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ60-V25-24		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
LVQ60-V25R-24		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
LVQ60-V25-24-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
LVQ60-V25R-24-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
LVQ60-V25-24-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ60-V25R-24-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ61-V25		Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ61-V25R		Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ61-V25-J		Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ61-V25R-J		Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ61-V25-K		Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ61-V25R-K		Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ61-V25-N		Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ61-V25R-N		Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ61-V25-P		Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high flow
LVQ61-V25R-P		Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high flow
LVQ62-V25		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ62-V25R		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ62-V25-J		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ62-V25R-J		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ62-V25-K		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ62-V25R-K		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ62-V25-N		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ62-V25R-N		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ62-V25-P		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high flow
LVQ62-V25R-P		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high flow
LVQ62-V25-2		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ62-V25R-2		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ62-V25-2-K		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ62-V25R-2-K		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ62-V25-2-N		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ62-V25R-2-N		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)

Chemical ValvesSMC

848 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC LVQ Air Operated Chemical Valve (LQ1 Fitting, Class 4-6)

Brand SMC·Chemical Valves

Available part numbers (848)

LVQ40-V10, LVQ40-V10R, LVQ40-V10-J, LVQ40-V10R-J, LVQ40-V10-K, LVQ40-V10R-K, LVQ40-V10-N, LVQ40-V10R-N, LVQ40-V10-1, LVQ40-V10R-1 + 838 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	LVQ40-V10	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ40-V10R	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ40-V10-J	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ40-V10R-J	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ40-V10-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ40-V10R-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ40-V10-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ40-V10R-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ40-V10-1	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
	LVQ40-V10R-1	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
	LVQ40-V10-1-J	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ40-V10R-1-J	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ40-V10-1-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
	LVQ40-V10R-1-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
	LVQ40-V10-1-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ40-V10R-1-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ40-V10-2	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ40-V10R-2	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ40-V10-2-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ40-V10R-2-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ40-V10-2-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ40-V10R-2-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ40-V10-3	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ40-V10R-3	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ40-V10-3-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ40-V10R-3-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ40-V10-3-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ40-V10R-3-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ40-V10-4	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
	LVQ40-V10R-4	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
	LVQ40-V10-4-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
	LVQ40-V10R-4-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
	LVQ40-V10-4-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ40-V10R-4-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ40-V10-5	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ40-V10R-5	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ40-V10-5-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ40-V10R-5-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ40-V10-5-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ40-V10R-5-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ40-V10-6	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ40-V10R-6	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ40-V10-6-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ40-V10R-6-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ40-V10-6-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ40-V10R-6-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ40-V10-7	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
	LVQ40-V10R-7	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
	LVQ40-V10-7-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
	LVQ40-V10R-7-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
	LVQ40-V10-7-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ40-V10R-7-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ40-V10-8	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ40-V10R-8	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ40-V10-8-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ40-V10R-8-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ40-V10-8-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ40-V10R-8-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ40-V10-9	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
	LVQ40-V10R-9	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
	LVQ40-V10-9-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
	LVQ40-V10R-9-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
	LVQ40-V10-9-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ40-V10R-9-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ40-V10-24	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
	LVQ40-V10R-24	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
	LVQ40-V10-24-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ40-V10R-24-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ40-V10-24-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ40-V10R-24-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ41-V10	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ41-V10R	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ41-V10-J	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ41-V10R-J	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ41-V10-K	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ41-V10R-K	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ41-V10-N	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ41-V10R-N	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ42-V10	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ42-V10R	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ42-V10-J	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ42-V10R-J	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ42-V10-K	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ42-V10R-K	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ42-V10-N	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ42-V10R-N	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ42-V10-2	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ42-V10R-2	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ42-V10-2-K	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ42-V10R-2-K	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ42-V10-2-N	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ42-V10R-2-N	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ40-V12	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ40-V12R	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ40-V12-J	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ40-V12R-J	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ40-V12-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ40-V12R-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ40-V12-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ40-V12R-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ40-V12-1	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
	LVQ40-V12R-1	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
	LVQ40-V12-1-J	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ40-V12R-1-J	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ40-V12-1-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
	LVQ40-V12R-1-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
	LVQ40-V12-1-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ40-V12R-1-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ40-V12-2	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ40-V12R-2	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ40-V12-2-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ40-V12R-2-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ40-V12-2-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ40-V12R-2-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ40-V12-3	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ40-V12R-3	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ40-V12-3-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ40-V12R-3-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ40-V12-3-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ40-V12R-3-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ40-V12-4	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
	LVQ40-V12R-4	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
	LVQ40-V12-4-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
	LVQ40-V12R-4-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
	LVQ40-V12-4-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ40-V12R-4-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ40-V12-5	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ40-V12R-5	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ40-V12-5-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ40-V12R-5-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ40-V12-5-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ40-V12R-5-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ40-V12-6	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ40-V12R-6	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ40-V12-6-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ40-V12R-6-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ40-V12-6-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ40-V12R-6-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ40-V12-7	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
	LVQ40-V12R-7	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
	LVQ40-V12-7-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
	LVQ40-V12R-7-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
	LVQ40-V12-7-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ40-V12R-7-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ40-V12-8	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ40-V12R-8	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ40-V12-8-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ40-V12R-8-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ40-V12-8-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ40-V12R-8-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ40-V12-9	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
	LVQ40-V12R-9	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
	LVQ40-V12-9-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
	LVQ40-V12R-9-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
	LVQ40-V12-9-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ40-V12R-9-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ40-V12-24	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
	LVQ40-V12R-24	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
	LVQ40-V12-24-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ40-V12R-24-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ40-V12-24-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ40-V12R-24-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ41-V12	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ41-V12R	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ41-V12-J	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ41-V12R-J	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ41-V12-K	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ41-V12R-K	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ41-V12-N	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ41-V12R-N	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ42-V12	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ42-V12R	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ42-V12-J	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ42-V12R-J	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ42-V12-K	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ42-V12R-K	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ42-V12-N	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ42-V12R-N	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ42-V12-2	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ42-V12R-2	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ42-V12-2-K	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ42-V12R-2-K	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ42-V12-2-N	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ42-V12R-2-N	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ40-V11	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ40-V11R	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ40-V11-J	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ40-V11R-J	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ40-V11-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ40-V11R-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ40-V11-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ40-V11R-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ40-V11-1	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
	LVQ40-V11R-1	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
	LVQ40-V11-1-J	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ40-V11R-1-J	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ40-V11-1-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
	LVQ40-V11R-1-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
	LVQ40-V11-1-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ40-V11R-1-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ40-V11-2	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ40-V11R-2	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ40-V11-2-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ40-V11R-2-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ40-V11-2-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ40-V11R-2-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ40-V11-3	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ40-V11R-3	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ40-V11-3-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ40-V11R-3-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ40-V11-3-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ40-V11R-3-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ40-V11-4	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
	LVQ40-V11R-4	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
	LVQ40-V11-4-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
	LVQ40-V11R-4-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
	LVQ40-V11-4-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ40-V11R-4-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ40-V11-5	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ40-V11R-5	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ40-V11-5-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ40-V11R-5-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ40-V11-5-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ40-V11R-5-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ40-V11-6	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ40-V11R-6	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ40-V11-6-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ40-V11R-6-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ40-V11-6-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ40-V11R-6-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ40-V11-7	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
	LVQ40-V11R-7	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
	LVQ40-V11-7-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
	LVQ40-V11R-7-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
	LVQ40-V11-7-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ40-V11R-7-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ40-V11-8	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ40-V11R-8	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ40-V11-8-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ40-V11R-8-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ40-V11-8-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ40-V11R-8-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ40-V11-9	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
	LVQ40-V11R-9	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
	LVQ40-V11-9-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
	LVQ40-V11R-9-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
	LVQ40-V11-9-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ40-V11R-9-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ40-V11-24	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
	LVQ40-V11R-24	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
	LVQ40-V11-24-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ40-V11R-24-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ40-V11-24-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ40-V11R-24-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ41-V11	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ41-V11R	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ41-V11-J	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ41-V11R-J	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ41-V11-K	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ41-V11R-K	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ41-V11-N	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ41-V11R-N	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ42-V11	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ42-V11R	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ42-V11-J	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ42-V11R-J	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ42-V11-K	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ42-V11R-K	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ42-V11-N	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ42-V11R-N	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ42-V11-2	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ42-V11R-2	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ42-V11-2-K	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ42-V11R-2-K	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ42-V11-2-N	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 3/8 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ42-V11R-2-N	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 3/8 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ40-V13	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ40-V13R	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ40-V13-J	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ40-V13R-J	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ40-V13-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ40-V13R-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ40-V13-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ40-V13R-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ40-V13-1	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
	LVQ40-V13R-1	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
	LVQ40-V13-1-J	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ40-V13R-1-J	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ40-V13-1-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
	LVQ40-V13R-1-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
	LVQ40-V13-1-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ40-V13R-1-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ40-V13-2	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ40-V13R-2	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ40-V13-2-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ40-V13R-2-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ40-V13-2-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ40-V13R-2-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ40-V13-3	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ40-V13R-3	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ40-V13-3-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ40-V13R-3-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ40-V13-3-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ40-V13R-3-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ40-V13-4	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
	LVQ40-V13R-4	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
	LVQ40-V13-4-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
	LVQ40-V13R-4-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
	LVQ40-V13-4-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ40-V13R-4-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ40-V13-5	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ40-V13R-5	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ40-V13-5-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ40-V13R-5-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ40-V13-5-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ40-V13R-5-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ40-V13-6	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ40-V13R-6	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ40-V13-6-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ40-V13R-6-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ40-V13-6-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ40-V13R-6-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ40-V13-7	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
	LVQ40-V13R-7	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
	LVQ40-V13-7-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
	LVQ40-V13R-7-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
	LVQ40-V13-7-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ40-V13R-7-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ40-V13-8	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ40-V13R-8	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ40-V13-8-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ40-V13R-8-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ40-V13-8-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ40-V13R-8-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ40-V13-9	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
	LVQ40-V13R-9	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
	LVQ40-V13-9-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
	LVQ40-V13R-9-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
	LVQ40-V13-9-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ40-V13R-9-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ40-V13-24	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
	LVQ40-V13R-24	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
	LVQ40-V13-24-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ40-V13R-24-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ40-V13-24-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ40-V13R-24-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ41-V13	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ41-V13R	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ41-V13-J	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ41-V13R-J	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ41-V13-K	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ41-V13R-K	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ41-V13-N	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ41-V13R-N	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ42-V13	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ42-V13R	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ42-V13-J	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ42-V13R-J	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ42-V13-K	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ42-V13R-K	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ42-V13-N	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ42-V13R-N	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ42-V13-2	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ42-V13R-2	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ42-V13-2-K	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ42-V13R-2-K	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ42-V13-2-N	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ42-V13R-2-N	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ50-V12	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ50-V12R	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ50-V12-J	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ50-V12R-J	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ50-V12-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ50-V12R-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ50-V12-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ50-V12R-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ50-V12-1	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
	LVQ50-V12R-1	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
	LVQ50-V12-1-J	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ50-V12R-1-J	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ50-V12-1-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
	LVQ50-V12R-1-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
	LVQ50-V12-1-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ50-V12R-1-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ50-V12-2	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ50-V12R-2	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ50-V12-2-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ50-V12R-2-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ50-V12-2-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ50-V12R-2-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ50-V12-3	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ50-V12R-3	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ50-V12-3-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ50-V12R-3-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ50-V12-3-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ50-V12R-3-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ50-V12-4	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
	LVQ50-V12R-4	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
	LVQ50-V12-4-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
	LVQ50-V12R-4-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
	LVQ50-V12-4-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ50-V12R-4-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ50-V12-5	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ50-V12R-5	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ50-V12-5-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ50-V12R-5-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ50-V12-5-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ50-V12R-5-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ50-V12-6	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ50-V12R-6	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ50-V12-6-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ50-V12R-6-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ50-V12-6-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ50-V12R-6-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ50-V12-7	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
	LVQ50-V12R-7	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
	LVQ50-V12-7-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
	LVQ50-V12R-7-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
	LVQ50-V12-7-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ50-V12R-7-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ50-V12-8	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ50-V12R-8	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ50-V12-8-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ50-V12R-8-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ50-V12-8-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ50-V12R-8-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ50-V12-9	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
	LVQ50-V12R-9	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
	LVQ50-V12-9-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
	LVQ50-V12R-9-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
	LVQ50-V12-9-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ50-V12R-9-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ50-V12-24	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
	LVQ50-V12R-24	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
	LVQ50-V12-24-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ50-V12R-24-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ50-V12-24-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ50-V12R-24-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ51-V12	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ51-V12R	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ51-V12-J	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ51-V12R-J	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ51-V12-K	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ51-V12R-K	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ51-V12-N	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ51-V12R-N	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ52-V12	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ52-V12R	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ52-V12-J	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ52-V12R-J	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ52-V12-K	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ52-V12R-K	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ52-V12-N	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ52-V12R-N	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ52-V12-2	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ52-V12R-2	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ52-V12-2-K	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ52-V12R-2-K	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ52-V12-2-N	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ52-V12R-2-N	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ50-V19	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ50-V19R	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ50-V19-J	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ50-V19R-J	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ50-V19-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ50-V19R-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ50-V19-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ50-V19R-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ50-V19-1	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
	LVQ50-V19R-1	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
	LVQ50-V19-1-J	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ50-V19R-1-J	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ50-V19-1-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
	LVQ50-V19R-1-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
	LVQ50-V19-1-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ50-V19R-1-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ50-V19-2	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ50-V19R-2	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ50-V19-2-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ50-V19R-2-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ50-V19-2-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ50-V19R-2-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ50-V19-3	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ50-V19R-3	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ50-V19-3-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ50-V19R-3-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ50-V19-3-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ50-V19R-3-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ50-V19-4	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
	LVQ50-V19R-4	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
	LVQ50-V19-4-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
	LVQ50-V19R-4-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
	LVQ50-V19-4-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ50-V19R-4-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ50-V19-5	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ50-V19R-5	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ50-V19-5-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ50-V19R-5-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ50-V19-5-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ50-V19R-5-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ50-V19-6	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ50-V19R-6	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ50-V19-6-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ50-V19R-6-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ50-V19-6-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ50-V19R-6-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ50-V19-7	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
	LVQ50-V19R-7	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
	LVQ50-V19-7-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
	LVQ50-V19R-7-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
	LVQ50-V19-7-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ50-V19R-7-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ50-V19-8	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ50-V19R-8	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ50-V19-8-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ50-V19R-8-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ50-V19-8-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ50-V19R-8-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ50-V19-9	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
	LVQ50-V19R-9	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
	LVQ50-V19-9-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
	LVQ50-V19R-9-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
	LVQ50-V19-9-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ50-V19R-9-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ50-V19-24	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
	LVQ50-V19R-24	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
	LVQ50-V19-24-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ50-V19R-24-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ50-V19-24-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ50-V19R-24-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ51-V19	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ51-V19R	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ51-V19-J	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ51-V19R-J	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ51-V19-K	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ51-V19R-K	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ51-V19-N	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ51-V19R-N	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ52-V19	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ52-V19R	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ52-V19-J	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ52-V19R-J	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ52-V19-K	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ52-V19R-K	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ52-V19-N	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ52-V19R-N	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ52-V19-2	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ52-V19R-2	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ52-V19-2-K	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ52-V19R-2-K	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ52-V19-2-N	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ52-V19R-2-N	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ50-V13	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ50-V13R	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ50-V13-J	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ50-V13R-J	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ50-V13-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ50-V13R-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ50-V13-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ50-V13R-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ50-V13-1	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
	LVQ50-V13R-1	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
	LVQ50-V13-1-J	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ50-V13R-1-J	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ50-V13-1-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
	LVQ50-V13R-1-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
	LVQ50-V13-1-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ50-V13R-1-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ50-V13-2	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ50-V13R-2	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ50-V13-2-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ50-V13R-2-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ50-V13-2-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ50-V13R-2-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ50-V13-3	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ50-V13R-3	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ50-V13-3-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ50-V13R-3-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ50-V13-3-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ50-V13R-3-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ50-V13-4	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
	LVQ50-V13R-4	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
	LVQ50-V13-4-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
	LVQ50-V13R-4-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
	LVQ50-V13-4-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ50-V13R-4-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ50-V13-5	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ50-V13R-5	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ50-V13-5-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ50-V13R-5-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ50-V13-5-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ50-V13R-5-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ50-V13-6	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ50-V13R-6	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ50-V13-6-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ50-V13R-6-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ50-V13-6-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ50-V13R-6-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ50-V13-7	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
	LVQ50-V13R-7	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
	LVQ50-V13-7-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
	LVQ50-V13R-7-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
	LVQ50-V13-7-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ50-V13R-7-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ50-V13-8	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ50-V13R-8	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ50-V13-8-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ50-V13R-8-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ50-V13-8-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ50-V13R-8-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ50-V13-9	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
	LVQ50-V13R-9	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
	LVQ50-V13-9-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
	LVQ50-V13R-9-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
	LVQ50-V13-9-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ50-V13R-9-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ50-V13-24	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
	LVQ50-V13R-24	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
	LVQ50-V13-24-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ50-V13R-24-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ50-V13-24-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ50-V13R-24-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ51-V13	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ51-V13R	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ51-V13-J	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ51-V13R-J	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ51-V13-K	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ51-V13R-K	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ51-V13-N	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ51-V13R-N	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ52-V13	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ52-V13R	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ52-V13-J	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ52-V13R-J	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ52-V13-K	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ52-V13R-K	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ52-V13-N	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ52-V13R-N	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ52-V13-2	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ52-V13R-2	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ52-V13-2-K	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ52-V13R-2-K	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ52-V13-2-N	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 1/2 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ52-V13R-2-N	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 1/2 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ60-V19	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ60-V19R	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ60-V19-J	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ60-V19R-J	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ60-V19-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ60-V19R-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ60-V19-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ60-V19R-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ60-V19-P	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high flow
	LVQ60-V19R-P	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high flow
	LVQ60-V19-1	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
	LVQ60-V19R-1	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
	LVQ60-V19-1-J	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ60-V19R-1-J	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ60-V19-1-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
	LVQ60-V19R-1-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
	LVQ60-V19-1-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ60-V19R-1-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ60-V19-2	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ60-V19R-2	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ60-V19-2-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ60-V19R-2-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ60-V19-2-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ60-V19R-2-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ60-V19-3	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ60-V19R-3	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ60-V19-3-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ60-V19R-3-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ60-V19-3-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ60-V19R-3-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ60-V19-4	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
	LVQ60-V19R-4	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
	LVQ60-V19-4-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
	LVQ60-V19R-4-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
	LVQ60-V19-4-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ60-V19R-4-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ60-V19-4-P	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM, high flow
	LVQ60-V19R-4-P	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM, high flow
	LVQ60-V19-5	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ60-V19R-5	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ60-V19-5-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ60-V19R-5-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ60-V19-5-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ60-V19R-5-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ60-V19-5-P	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM, high flow
	LVQ60-V19R-5-P	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM, high flow
	LVQ60-V19-6	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ60-V19R-6	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ60-V19-6-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ60-V19R-6-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ60-V19-6-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ60-V19R-6-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ60-V19-7	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
	LVQ60-V19R-7	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
	LVQ60-V19-7-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
	LVQ60-V19R-7-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
	LVQ60-V19-7-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ60-V19R-7-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ60-V19-8	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ60-V19R-8	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ60-V19-8-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ60-V19R-8-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ60-V19-8-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ60-V19R-8-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ60-V19-9	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
	LVQ60-V19R-9	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
	LVQ60-V19-9-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
	LVQ60-V19R-9-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
	LVQ60-V19-9-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ60-V19R-9-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ60-V19-24	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
	LVQ60-V19R-24	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
	LVQ60-V19-24-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ60-V19R-24-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ60-V19-24-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ60-V19R-24-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ61-V19	Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ61-V19R	Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ61-V19-J	Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ61-V19R-J	Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ61-V19-K	Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ61-V19R-K	Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ61-V19-N	Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ61-V19R-N	Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ61-V19-P	Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high flow
	LVQ61-V19R-P	Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high flow
	LVQ62-V19	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ62-V19R	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ62-V19-J	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ62-V19R-J	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ62-V19-K	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ62-V19R-K	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ62-V19-N	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ62-V19R-N	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ62-V19-P	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high flow
	LVQ62-V19R-P	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high flow
	LVQ62-V19-2	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ62-V19R-2	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ62-V19-2-K	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ62-V19R-2-K	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ62-V19-2-N	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ62-V19R-2-N	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in (reducer) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ60-V25	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ60-V25R	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ60-V25-J	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ60-V25R-J	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ60-V25-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ60-V25R-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ60-V25-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ60-V25R-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ60-V25-P	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high flow
	LVQ60-V25R-P	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high flow
	LVQ60-V25-1	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
	LVQ60-V25R-1	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
	LVQ60-V25-1-J	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ60-V25R-1-J	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ60-V25-1-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
	LVQ60-V25R-1-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
	LVQ60-V25-1-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ60-V25R-1-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ60-V25-2	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ60-V25R-2	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ60-V25-2-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ60-V25R-2-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ60-V25-2-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ60-V25R-2-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ60-V25-3	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ60-V25R-3	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ60-V25-3-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ60-V25R-3-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ60-V25-3-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ60-V25R-3-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ60-V25-4	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
	LVQ60-V25R-4	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
	LVQ60-V25-4-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
	LVQ60-V25R-4-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
	LVQ60-V25-4-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ60-V25R-4-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ60-V25-4-P	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM, high flow
	LVQ60-V25R-4-P	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM, high flow
	LVQ60-V25-5	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ60-V25R-5	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ60-V25-5-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ60-V25R-5-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ60-V25-5-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ60-V25R-5-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ60-V25-5-P	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM, high flow
	LVQ60-V25R-5-P	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM, high flow
	LVQ60-V25-6	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ60-V25R-6	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ60-V25-6-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ60-V25R-6-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ60-V25-6-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ60-V25R-6-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ60-V25-7	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
	LVQ60-V25R-7	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
	LVQ60-V25-7-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
	LVQ60-V25R-7-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
	LVQ60-V25-7-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ60-V25R-7-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ60-V25-8	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ60-V25R-8	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ60-V25-8-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ60-V25R-8-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ60-V25-8-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ60-V25R-8-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ60-V25-9	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
	LVQ60-V25R-9	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
	LVQ60-V25-9-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
	LVQ60-V25R-9-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
	LVQ60-V25-9-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ60-V25R-9-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ60-V25-24	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
	LVQ60-V25R-24	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
	LVQ60-V25-24-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ60-V25R-24-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ60-V25-24-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ60-V25R-24-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ61-V25	Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ61-V25R	Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ61-V25-J	Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ61-V25R-J	Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ61-V25-K	Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ61-V25R-K	Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ61-V25-N	Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ61-V25R-N	Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ61-V25-P	Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high flow
	LVQ61-V25R-P	Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high flow
	LVQ62-V25	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ62-V25R	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ62-V25-J	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ62-V25R-J	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ62-V25-K	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ62-V25R-K	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ62-V25-N	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ62-V25R-N	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ62-V25-P	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high flow
	LVQ62-V25R-P	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high flow
	LVQ62-V25-2	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ62-V25R-2	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ62-V25-2-K	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ62-V25R-2-K	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ62-V25-2-N	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ62-V25R-2-N	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in (std) \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC LVQ Air Operated Chemical Valve (LQ1 Fitting, Class 4-6)
