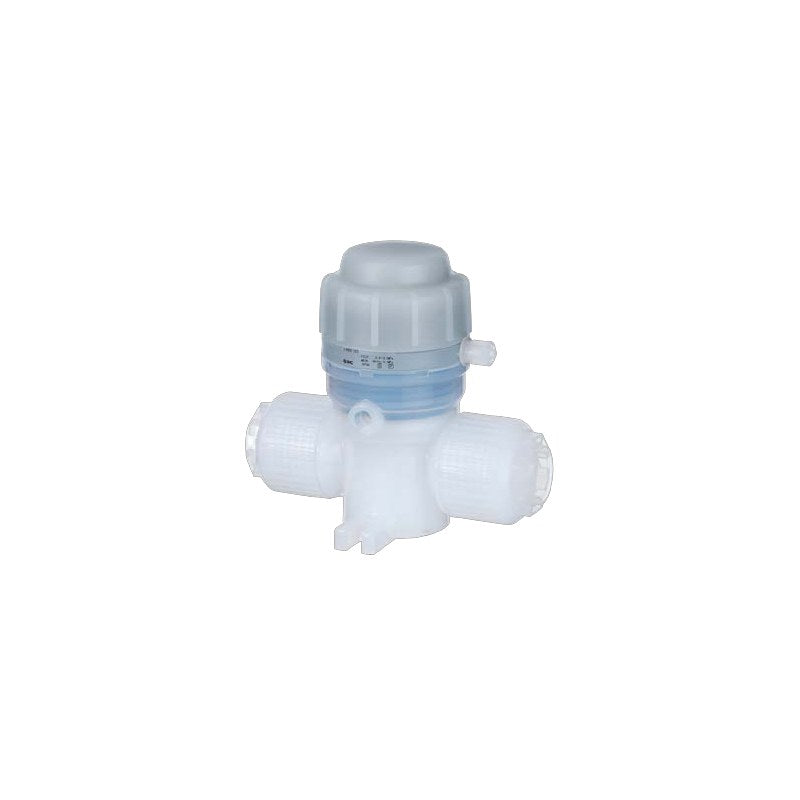

SMC LVQ..H-Z Chemical Valve (Back Pressure 0.5 MPa, LQ3)

SMC LVQH-Z series air-operated chemical valve rated for 0.5 MPa back pressure, New PFA body with integrated LQ3 flare fitting.

Key features

Withstands back pressure up to 0.5 MPa with pilot pressure 0.5 to 0.8 MPa
Fluid-contact parts New PFA body and PTFE diaphragm; PVDF actuator, non-metal exterior
Options: flow adjustment, bypass, indicator, indicator + bypass; buffer FKM, FFKM or EPDM; high flow on LVQ60H
Pilot port orientation selectable in 8 directions (P2 to P8 suffix)
Same external dimensions as the standard LVQ series

Specifications

Fluid	Deionized water, chemicals (see compatibility list)
Fluid connection	LQ3 flare fitting integrated
Proof pressure	1 MPa
Operating pressure (A to B)	-98 kPa to 0.5 MPa
Back pressure	0.5 MPa or less
Pilot pressure	0.5 to 0.8 MPa
Flow Cv (class 2/3/4/5/6)	0.35 / 1.3 / 1.9 / 5 / 8 (high flow 9.5)
Fluid temperature	0 to 100 C
Ambient temperature	0 to 60 C
Wetted materials	Body New PFA, diaphragm PTFE; actuator PVDF
Source	SMC Korea catalog LVQ Series (SMCKR_LVQ.pdf), p. 145-147 (PDF p. 84-86)

LVQ20H-Z03		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ20H-Z03R		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ20H-Z03-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ20H-Z03R-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ20H-Z03-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ20H-Z03R-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ20H-Z03-1		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
LVQ20H-Z03R-1		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
LVQ20H-Z03-1-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
LVQ20H-Z03R-1-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
LVQ20H-Z03-1-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ20H-Z03R-1-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ20H-Z03-2		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ20H-Z03R-2		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ20H-Z03-2-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ20H-Z03R-2-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ20H-Z03-2-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ20H-Z03R-2-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ20H-Z03-3		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ20H-Z03R-3		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ20H-Z03-3-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ20H-Z03R-3-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ20H-Z03-3-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ20H-Z03R-3-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ20H-Z03-4		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
LVQ20H-Z03R-4		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
LVQ20H-Z03-4-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
LVQ20H-Z03R-4-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
LVQ20H-Z03-4-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ20H-Z03R-4-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ20H-Z03-24		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
LVQ20H-Z03R-24		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
LVQ20H-Z03-24-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
LVQ20H-Z03R-24-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
LVQ20H-Z03-24-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ20H-Z03R-24-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ21H-Z03		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ21H-Z03R		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ21H-Z03-K		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ21H-Z03R-K		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ21H-Z03-N		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ21H-Z03R-N		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ22H-Z03		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ22H-Z03R		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ22H-Z03-K		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ22H-Z03R-K		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ22H-Z03-N		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ22H-Z03R-N		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ22H-Z03-2		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ22H-Z03R-2		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ22H-Z03-2-K		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ22H-Z03R-2-K		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ22H-Z03-2-N		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ22H-Z03R-2-N		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ20H-Z04		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ20H-Z04R		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ20H-Z04-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ20H-Z04R-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ20H-Z04-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ20H-Z04R-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ20H-Z04-1		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
LVQ20H-Z04R-1		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
LVQ20H-Z04-1-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
LVQ20H-Z04R-1-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
LVQ20H-Z04-1-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ20H-Z04R-1-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ20H-Z04-2		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ20H-Z04R-2		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ20H-Z04-2-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ20H-Z04R-2-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ20H-Z04-2-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ20H-Z04R-2-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ20H-Z04-3		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ20H-Z04R-3		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ20H-Z04-3-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ20H-Z04R-3-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ20H-Z04-3-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ20H-Z04R-3-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ20H-Z04-4		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
LVQ20H-Z04R-4		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
LVQ20H-Z04-4-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
LVQ20H-Z04R-4-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
LVQ20H-Z04-4-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ20H-Z04R-4-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ20H-Z04-24		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
LVQ20H-Z04R-24		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
LVQ20H-Z04-24-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
LVQ20H-Z04R-24-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
LVQ20H-Z04-24-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ20H-Z04R-24-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ21H-Z04		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ21H-Z04R		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ21H-Z04-K		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ21H-Z04R-K		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ21H-Z04-N		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ21H-Z04R-N		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ22H-Z04		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ22H-Z04R		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ22H-Z04-K		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ22H-Z04R-K		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ22H-Z04-N		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ22H-Z04R-N		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ22H-Z04-2		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ22H-Z04R-2		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ22H-Z04-2-K		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ22H-Z04R-2-K		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ22H-Z04-2-N		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ22H-Z04R-2-N		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ20H-Z06		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ20H-Z06R		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ20H-Z06-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ20H-Z06R-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ20H-Z06-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ20H-Z06R-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ20H-Z06-1		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
LVQ20H-Z06R-1		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
LVQ20H-Z06-1-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
LVQ20H-Z06R-1-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
LVQ20H-Z06-1-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ20H-Z06R-1-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ20H-Z06-2		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ20H-Z06R-2		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ20H-Z06-2-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ20H-Z06R-2-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ20H-Z06-2-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ20H-Z06R-2-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ20H-Z06-3		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ20H-Z06R-3		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ20H-Z06-3-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ20H-Z06R-3-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ20H-Z06-3-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ20H-Z06R-3-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ20H-Z06-4		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
LVQ20H-Z06R-4		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
LVQ20H-Z06-4-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
LVQ20H-Z06R-4-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
LVQ20H-Z06-4-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ20H-Z06R-4-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ20H-Z06-24		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
LVQ20H-Z06R-24		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
LVQ20H-Z06-24-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
LVQ20H-Z06R-24-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
LVQ20H-Z06-24-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ20H-Z06R-24-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ21H-Z06		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ21H-Z06R		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ21H-Z06-K		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ21H-Z06R-K		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ21H-Z06-N		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ21H-Z06R-N		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ22H-Z06		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ22H-Z06R		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ22H-Z06-K		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ22H-Z06R-K		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ22H-Z06-N		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ22H-Z06R-N		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ22H-Z06-2		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ22H-Z06R-2		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ22H-Z06-2-K		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ22H-Z06R-2-K		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ22H-Z06-2-N		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ22H-Z06R-2-N		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ20H-Z07		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ20H-Z07R		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ20H-Z07-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ20H-Z07R-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ20H-Z07-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ20H-Z07R-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ20H-Z07-1		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
LVQ20H-Z07R-1		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
LVQ20H-Z07-1-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
LVQ20H-Z07R-1-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
LVQ20H-Z07-1-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ20H-Z07R-1-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ20H-Z07-2		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ20H-Z07R-2		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ20H-Z07-2-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ20H-Z07R-2-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ20H-Z07-2-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ20H-Z07R-2-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ20H-Z07-3		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ20H-Z07R-3		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ20H-Z07-3-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ20H-Z07R-3-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ20H-Z07-3-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ20H-Z07R-3-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ20H-Z07-4		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
LVQ20H-Z07R-4		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
LVQ20H-Z07-4-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
LVQ20H-Z07R-4-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
LVQ20H-Z07-4-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ20H-Z07R-4-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ20H-Z07-24		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
LVQ20H-Z07R-24		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
LVQ20H-Z07-24-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
LVQ20H-Z07R-24-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
LVQ20H-Z07-24-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ20H-Z07R-24-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ21H-Z07		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ21H-Z07R		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ21H-Z07-K		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ21H-Z07R-K		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ21H-Z07-N		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ21H-Z07R-N		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ22H-Z07		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ22H-Z07R		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ22H-Z07-K		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ22H-Z07R-K		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ22H-Z07-N		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ22H-Z07R-N		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ22H-Z07-2		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ22H-Z07R-2		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ22H-Z07-2-K		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ22H-Z07R-2-K		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ22H-Z07-2-N		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ22H-Z07R-2-N		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ30H-Z08		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ30H-Z08R		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ30H-Z08-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ30H-Z08R-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ30H-Z08-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ30H-Z08R-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ30H-Z08-1		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
LVQ30H-Z08R-1		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
LVQ30H-Z08-1-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
LVQ30H-Z08R-1-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
LVQ30H-Z08-1-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ30H-Z08R-1-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ30H-Z08-2		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ30H-Z08R-2		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ30H-Z08-2-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ30H-Z08R-2-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ30H-Z08-2-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ30H-Z08R-2-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ30H-Z08-3		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ30H-Z08R-3		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ30H-Z08-3-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ30H-Z08R-3-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ30H-Z08-3-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ30H-Z08R-3-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ30H-Z08-4		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
LVQ30H-Z08R-4		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
LVQ30H-Z08-4-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
LVQ30H-Z08R-4-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
LVQ30H-Z08-4-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ30H-Z08R-4-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ30H-Z08-24		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
LVQ30H-Z08R-24		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
LVQ30H-Z08-24-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
LVQ30H-Z08R-24-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
LVQ30H-Z08-24-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ30H-Z08R-24-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ31H-Z08		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ31H-Z08R		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ31H-Z08-K		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ31H-Z08R-K		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ31H-Z08-N		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ31H-Z08R-N		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ32H-Z08		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ32H-Z08R		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ32H-Z08-K		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ32H-Z08R-K		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ32H-Z08-N		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ32H-Z08R-N		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ32H-Z08-2		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ32H-Z08R-2		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ32H-Z08-2-K		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ32H-Z08R-2-K		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ32H-Z08-2-N		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ32H-Z08R-2-N		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ30H-Z10		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ30H-Z10R		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ30H-Z10-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ30H-Z10R-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ30H-Z10-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ30H-Z10R-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ30H-Z10-1		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
LVQ30H-Z10R-1		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
LVQ30H-Z10-1-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
LVQ30H-Z10R-1-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
LVQ30H-Z10-1-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ30H-Z10R-1-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ30H-Z10-2		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ30H-Z10R-2		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ30H-Z10-2-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ30H-Z10R-2-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ30H-Z10-2-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ30H-Z10R-2-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ30H-Z10-3		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ30H-Z10R-3		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ30H-Z10-3-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ30H-Z10R-3-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ30H-Z10-3-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ30H-Z10R-3-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ30H-Z10-4		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
LVQ30H-Z10R-4		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
LVQ30H-Z10-4-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
LVQ30H-Z10R-4-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
LVQ30H-Z10-4-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ30H-Z10R-4-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ30H-Z10-24		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
LVQ30H-Z10R-24		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
LVQ30H-Z10-24-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
LVQ30H-Z10R-24-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
LVQ30H-Z10-24-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ30H-Z10R-24-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ31H-Z10		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ31H-Z10R		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ31H-Z10-K		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ31H-Z10R-K		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ31H-Z10-N		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ31H-Z10R-N		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ32H-Z10		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ32H-Z10R		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ32H-Z10-K		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ32H-Z10R-K		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ32H-Z10-N		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ32H-Z10R-N		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ32H-Z10-2		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ32H-Z10R-2		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ32H-Z10-2-K		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ32H-Z10R-2-K		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ32H-Z10-2-N		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ32H-Z10R-2-N		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ30H-Z11		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ30H-Z11R		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ30H-Z11-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ30H-Z11R-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ30H-Z11-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ30H-Z11R-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ30H-Z11-1		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
LVQ30H-Z11R-1		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
LVQ30H-Z11-1-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
LVQ30H-Z11R-1-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
LVQ30H-Z11-1-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ30H-Z11R-1-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ30H-Z11-2		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ30H-Z11R-2		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ30H-Z11-2-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ30H-Z11R-2-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ30H-Z11-2-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ30H-Z11R-2-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ30H-Z11-3		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ30H-Z11R-3		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ30H-Z11-3-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ30H-Z11R-3-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ30H-Z11-3-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ30H-Z11R-3-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ30H-Z11-4		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
LVQ30H-Z11R-4		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
LVQ30H-Z11-4-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
LVQ30H-Z11R-4-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
LVQ30H-Z11-4-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ30H-Z11R-4-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ30H-Z11-24		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
LVQ30H-Z11R-24		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
LVQ30H-Z11-24-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
LVQ30H-Z11R-24-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
LVQ30H-Z11-24-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ30H-Z11R-24-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ31H-Z11		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ31H-Z11R		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ31H-Z11-K		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ31H-Z11R-K		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ31H-Z11-N		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ31H-Z11R-N		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ32H-Z11		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ32H-Z11R		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ32H-Z11-K		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ32H-Z11R-K		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ32H-Z11-N		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ32H-Z11R-N		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ32H-Z11-2		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ32H-Z11R-2		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ32H-Z11-2-K		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ32H-Z11R-2-K		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ32H-Z11-2-N		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ32H-Z11R-2-N		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ40H-Z12		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ40H-Z12R		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ40H-Z12-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ40H-Z12R-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ40H-Z12-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ40H-Z12R-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ40H-Z12-1		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
LVQ40H-Z12R-1		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
LVQ40H-Z12-1-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
LVQ40H-Z12R-1-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
LVQ40H-Z12-1-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ40H-Z12R-1-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ40H-Z12-2		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ40H-Z12R-2		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ40H-Z12-2-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ40H-Z12R-2-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ40H-Z12-2-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ40H-Z12R-2-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ40H-Z12-3		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ40H-Z12R-3		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ40H-Z12-3-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ40H-Z12R-3-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ40H-Z12-3-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ40H-Z12R-3-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ40H-Z12-4		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
LVQ40H-Z12R-4		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
LVQ40H-Z12-4-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
LVQ40H-Z12R-4-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
LVQ40H-Z12-4-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ40H-Z12R-4-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ40H-Z12-24		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
LVQ40H-Z12R-24		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
LVQ40H-Z12-24-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
LVQ40H-Z12R-24-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
LVQ40H-Z12-24-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ40H-Z12R-24-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ41H-Z12		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ41H-Z12R		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ41H-Z12-K		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ41H-Z12R-K		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ41H-Z12-N		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ41H-Z12R-N		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ42H-Z12		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ42H-Z12R		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ42H-Z12-K		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ42H-Z12R-K		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ42H-Z12-N		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ42H-Z12R-N		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ42H-Z12-2		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ42H-Z12R-2		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ42H-Z12-2-K		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ42H-Z12R-2-K		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ42H-Z12-2-N		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ42H-Z12R-2-N		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ40H-Z13		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ40H-Z13R		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ40H-Z13-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ40H-Z13R-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ40H-Z13-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ40H-Z13R-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ40H-Z13-1		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
LVQ40H-Z13R-1		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
LVQ40H-Z13-1-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
LVQ40H-Z13R-1-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
LVQ40H-Z13-1-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ40H-Z13R-1-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ40H-Z13-2		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ40H-Z13R-2		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ40H-Z13-2-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ40H-Z13R-2-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ40H-Z13-2-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ40H-Z13R-2-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ40H-Z13-3		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ40H-Z13R-3		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ40H-Z13-3-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ40H-Z13R-3-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ40H-Z13-3-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ40H-Z13R-3-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ40H-Z13-4		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
LVQ40H-Z13R-4		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
LVQ40H-Z13-4-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
LVQ40H-Z13R-4-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
LVQ40H-Z13-4-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ40H-Z13R-4-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ40H-Z13-24		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
LVQ40H-Z13R-24		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
LVQ40H-Z13-24-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
LVQ40H-Z13R-24-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
LVQ40H-Z13-24-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ40H-Z13R-24-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ41H-Z13		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ41H-Z13R		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ41H-Z13-K		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ41H-Z13R-K		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ41H-Z13-N		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ41H-Z13R-N		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ42H-Z13		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ42H-Z13R		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ42H-Z13-K		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ42H-Z13R-K		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ42H-Z13-N		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ42H-Z13R-N		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ42H-Z13-2		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ42H-Z13R-2		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ42H-Z13-2-K		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ42H-Z13R-2-K		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ42H-Z13-2-N		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ42H-Z13R-2-N		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ50H-Z19		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ50H-Z19R		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ50H-Z19-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ50H-Z19R-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ50H-Z19-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ50H-Z19R-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ50H-Z19-1		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
LVQ50H-Z19R-1		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
LVQ50H-Z19-1-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
LVQ50H-Z19R-1-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
LVQ50H-Z19-1-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ50H-Z19R-1-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ50H-Z19-2		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ50H-Z19R-2		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ50H-Z19-2-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ50H-Z19R-2-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ50H-Z19-2-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ50H-Z19R-2-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ50H-Z19-3		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ50H-Z19R-3		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ50H-Z19-3-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ50H-Z19R-3-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ50H-Z19-3-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ50H-Z19R-3-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ50H-Z19-4		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
LVQ50H-Z19R-4		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
LVQ50H-Z19-4-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
LVQ50H-Z19R-4-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
LVQ50H-Z19-4-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ50H-Z19R-4-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ50H-Z19-24		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
LVQ50H-Z19R-24		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
LVQ50H-Z19-24-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
LVQ50H-Z19R-24-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
LVQ50H-Z19-24-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ50H-Z19R-24-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ51H-Z19		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ51H-Z19R		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ51H-Z19-K		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ51H-Z19R-K		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ51H-Z19-N		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ51H-Z19R-N		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ52H-Z19		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ52H-Z19R		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ52H-Z19-K		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ52H-Z19R-K		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ52H-Z19-N		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ52H-Z19R-N		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ52H-Z19-2		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ52H-Z19R-2		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ52H-Z19-2-K		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ52H-Z19R-2-K		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ52H-Z19-2-N		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ52H-Z19R-2-N		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ60H-Z25		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ60H-Z25R		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ60H-Z25-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ60H-Z25R-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ60H-Z25-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ60H-Z25R-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ60H-Z25-P		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high flow
LVQ60H-Z25R-P		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high flow
LVQ60H-Z25-1		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
LVQ60H-Z25R-1		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
LVQ60H-Z25-1-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
LVQ60H-Z25R-1-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
LVQ60H-Z25-1-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ60H-Z25R-1-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ60H-Z25-2		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ60H-Z25R-2		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ60H-Z25-2-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ60H-Z25R-2-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ60H-Z25-2-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ60H-Z25R-2-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ60H-Z25-3		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ60H-Z25R-3		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ60H-Z25-3-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ60H-Z25R-3-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ60H-Z25-3-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ60H-Z25R-3-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ60H-Z25-4		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
LVQ60H-Z25R-4		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
LVQ60H-Z25-4-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
LVQ60H-Z25R-4-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
LVQ60H-Z25-4-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ60H-Z25R-4-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ60H-Z25-4-P		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM, high flow
LVQ60H-Z25R-4-P		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM, high flow
LVQ60H-Z25-24		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
LVQ60H-Z25R-24		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
LVQ60H-Z25-24-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
LVQ60H-Z25R-24-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
LVQ60H-Z25-24-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ60H-Z25R-24-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ61H-Z25		Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ61H-Z25R		Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ61H-Z25-K		Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ61H-Z25R-K		Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ61H-Z25-N		Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ61H-Z25R-N		Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ61H-Z25-P		Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high flow
LVQ61H-Z25R-P		Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high flow
LVQ62H-Z25		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ62H-Z25R		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ62H-Z25-K		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ62H-Z25R-K		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ62H-Z25-N		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ62H-Z25R-N		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ62H-Z25-P		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high flow
LVQ62H-Z25R-P		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high flow
LVQ62H-Z25-2		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ62H-Z25R-2		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ62H-Z25-2-K		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ62H-Z25R-2-K		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ62H-Z25-2-N		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ62H-Z25R-2-N		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)

Chemical ValvesSMC

602 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC LVQ..H-Z Chemical Valve (Back Pressure 0.5 MPa, LQ3)

Brand SMC·Chemical Valves

Available part numbers (602)

LVQ20H-Z03, LVQ20H-Z03R, LVQ20H-Z03-K, LVQ20H-Z03R-K, LVQ20H-Z03-N, LVQ20H-Z03R-N, LVQ20H-Z03-1, LVQ20H-Z03R-1, LVQ20H-Z03-1-K, LVQ20H-Z03R-1-K + 592 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	LVQ20H-Z03	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ20H-Z03R	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ20H-Z03-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ20H-Z03R-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ20H-Z03-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ20H-Z03R-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ20H-Z03-1	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
	LVQ20H-Z03R-1	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
	LVQ20H-Z03-1-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
	LVQ20H-Z03R-1-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
	LVQ20H-Z03-1-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ20H-Z03R-1-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ20H-Z03-2	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ20H-Z03R-2	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ20H-Z03-2-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ20H-Z03R-2-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ20H-Z03-2-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ20H-Z03R-2-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ20H-Z03-3	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ20H-Z03R-3	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ20H-Z03-3-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ20H-Z03R-3-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ20H-Z03-3-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ20H-Z03R-3-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ20H-Z03-4	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
	LVQ20H-Z03R-4	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
	LVQ20H-Z03-4-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
	LVQ20H-Z03R-4-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
	LVQ20H-Z03-4-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ20H-Z03R-4-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ20H-Z03-24	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
	LVQ20H-Z03R-24	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
	LVQ20H-Z03-24-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ20H-Z03R-24-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ20H-Z03-24-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ20H-Z03R-24-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ21H-Z03	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ21H-Z03R	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ21H-Z03-K	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ21H-Z03R-K	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ21H-Z03-N	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ21H-Z03R-N	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ22H-Z03	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ22H-Z03R	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ22H-Z03-K	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ22H-Z03R-K	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ22H-Z03-N	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ22H-Z03R-N	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ22H-Z03-2	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ22H-Z03R-2	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ22H-Z03-2-K	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ22H-Z03R-2-K	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ22H-Z03-2-N	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ22H-Z03R-2-N	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ20H-Z04	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ20H-Z04R	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ20H-Z04-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ20H-Z04R-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ20H-Z04-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ20H-Z04R-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ20H-Z04-1	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
	LVQ20H-Z04R-1	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
	LVQ20H-Z04-1-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
	LVQ20H-Z04R-1-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
	LVQ20H-Z04-1-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ20H-Z04R-1-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ20H-Z04-2	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ20H-Z04R-2	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ20H-Z04-2-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ20H-Z04R-2-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ20H-Z04-2-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ20H-Z04R-2-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ20H-Z04-3	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ20H-Z04R-3	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ20H-Z04-3-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ20H-Z04R-3-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ20H-Z04-3-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ20H-Z04R-3-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ20H-Z04-4	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
	LVQ20H-Z04R-4	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
	LVQ20H-Z04-4-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
	LVQ20H-Z04R-4-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
	LVQ20H-Z04-4-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ20H-Z04R-4-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ20H-Z04-24	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
	LVQ20H-Z04R-24	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
	LVQ20H-Z04-24-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ20H-Z04R-24-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ20H-Z04-24-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ20H-Z04R-24-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ21H-Z04	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ21H-Z04R	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ21H-Z04-K	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ21H-Z04R-K	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ21H-Z04-N	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ21H-Z04R-N	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ22H-Z04	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ22H-Z04R	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ22H-Z04-K	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ22H-Z04R-K	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ22H-Z04-N	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ22H-Z04R-N	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ22H-Z04-2	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ22H-Z04R-2	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ22H-Z04-2-K	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ22H-Z04R-2-K	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ22H-Z04-2-N	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ22H-Z04R-2-N	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ20H-Z06	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ20H-Z06R	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ20H-Z06-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ20H-Z06R-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ20H-Z06-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ20H-Z06R-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ20H-Z06-1	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
	LVQ20H-Z06R-1	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
	LVQ20H-Z06-1-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
	LVQ20H-Z06R-1-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
	LVQ20H-Z06-1-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ20H-Z06R-1-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ20H-Z06-2	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ20H-Z06R-2	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ20H-Z06-2-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ20H-Z06R-2-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ20H-Z06-2-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ20H-Z06R-2-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ20H-Z06-3	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ20H-Z06R-3	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ20H-Z06-3-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ20H-Z06R-3-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ20H-Z06-3-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ20H-Z06R-3-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ20H-Z06-4	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
	LVQ20H-Z06R-4	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
	LVQ20H-Z06-4-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
	LVQ20H-Z06R-4-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
	LVQ20H-Z06-4-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ20H-Z06R-4-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ20H-Z06-24	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
	LVQ20H-Z06R-24	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
	LVQ20H-Z06-24-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ20H-Z06R-24-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ20H-Z06-24-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ20H-Z06R-24-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ21H-Z06	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ21H-Z06R	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ21H-Z06-K	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ21H-Z06R-K	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ21H-Z06-N	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ21H-Z06R-N	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ22H-Z06	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ22H-Z06R	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ22H-Z06-K	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ22H-Z06R-K	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ22H-Z06-N	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ22H-Z06R-N	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ22H-Z06-2	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ22H-Z06R-2	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ22H-Z06-2-K	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ22H-Z06R-2-K	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ22H-Z06-2-N	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ22H-Z06R-2-N	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ20H-Z07	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ20H-Z07R	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ20H-Z07-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ20H-Z07R-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ20H-Z07-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ20H-Z07R-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ20H-Z07-1	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
	LVQ20H-Z07R-1	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
	LVQ20H-Z07-1-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
	LVQ20H-Z07R-1-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
	LVQ20H-Z07-1-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ20H-Z07R-1-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ20H-Z07-2	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ20H-Z07R-2	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ20H-Z07-2-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ20H-Z07R-2-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ20H-Z07-2-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ20H-Z07R-2-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ20H-Z07-3	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ20H-Z07R-3	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ20H-Z07-3-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ20H-Z07R-3-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ20H-Z07-3-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ20H-Z07R-3-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ20H-Z07-4	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
	LVQ20H-Z07R-4	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
	LVQ20H-Z07-4-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
	LVQ20H-Z07R-4-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
	LVQ20H-Z07-4-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ20H-Z07R-4-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ20H-Z07-24	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
	LVQ20H-Z07R-24	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
	LVQ20H-Z07-24-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ20H-Z07R-24-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ20H-Z07-24-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ20H-Z07R-24-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ21H-Z07	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ21H-Z07R	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ21H-Z07-K	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ21H-Z07R-K	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ21H-Z07-N	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ21H-Z07R-N	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ22H-Z07	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ22H-Z07R	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ22H-Z07-K	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ22H-Z07R-K	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ22H-Z07-N	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ22H-Z07R-N	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ22H-Z07-2	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ22H-Z07R-2	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ22H-Z07-2-K	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ22H-Z07R-2-K	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ22H-Z07-2-N	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ22H-Z07R-2-N	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ30H-Z08	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ30H-Z08R	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ30H-Z08-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ30H-Z08R-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ30H-Z08-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ30H-Z08R-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ30H-Z08-1	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
	LVQ30H-Z08R-1	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
	LVQ30H-Z08-1-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
	LVQ30H-Z08R-1-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
	LVQ30H-Z08-1-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ30H-Z08R-1-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ30H-Z08-2	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ30H-Z08R-2	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ30H-Z08-2-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ30H-Z08R-2-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ30H-Z08-2-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ30H-Z08R-2-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ30H-Z08-3	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ30H-Z08R-3	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ30H-Z08-3-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ30H-Z08R-3-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ30H-Z08-3-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ30H-Z08R-3-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ30H-Z08-4	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
	LVQ30H-Z08R-4	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
	LVQ30H-Z08-4-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
	LVQ30H-Z08R-4-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
	LVQ30H-Z08-4-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ30H-Z08R-4-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ30H-Z08-24	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
	LVQ30H-Z08R-24	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
	LVQ30H-Z08-24-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ30H-Z08R-24-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ30H-Z08-24-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ30H-Z08R-24-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ31H-Z08	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ31H-Z08R	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ31H-Z08-K	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ31H-Z08R-K	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ31H-Z08-N	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ31H-Z08R-N	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ32H-Z08	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ32H-Z08R	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ32H-Z08-K	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ32H-Z08R-K	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ32H-Z08-N	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ32H-Z08R-N	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ32H-Z08-2	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ32H-Z08R-2	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ32H-Z08-2-K	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ32H-Z08R-2-K	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ32H-Z08-2-N	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ32H-Z08R-2-N	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ30H-Z10	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ30H-Z10R	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ30H-Z10-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ30H-Z10R-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ30H-Z10-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ30H-Z10R-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ30H-Z10-1	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
	LVQ30H-Z10R-1	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
	LVQ30H-Z10-1-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
	LVQ30H-Z10R-1-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
	LVQ30H-Z10-1-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ30H-Z10R-1-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ30H-Z10-2	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ30H-Z10R-2	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ30H-Z10-2-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ30H-Z10R-2-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ30H-Z10-2-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ30H-Z10R-2-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ30H-Z10-3	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ30H-Z10R-3	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ30H-Z10-3-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ30H-Z10R-3-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ30H-Z10-3-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ30H-Z10R-3-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ30H-Z10-4	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
	LVQ30H-Z10R-4	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
	LVQ30H-Z10-4-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
	LVQ30H-Z10R-4-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
	LVQ30H-Z10-4-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ30H-Z10R-4-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ30H-Z10-24	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
	LVQ30H-Z10R-24	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
	LVQ30H-Z10-24-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ30H-Z10R-24-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ30H-Z10-24-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ30H-Z10R-24-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ31H-Z10	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ31H-Z10R	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ31H-Z10-K	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ31H-Z10R-K	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ31H-Z10-N	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ31H-Z10R-N	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ32H-Z10	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ32H-Z10R	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ32H-Z10-K	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ32H-Z10R-K	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ32H-Z10-N	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ32H-Z10R-N	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ32H-Z10-2	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ32H-Z10R-2	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ32H-Z10-2-K	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ32H-Z10R-2-K	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ32H-Z10-2-N	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ32H-Z10R-2-N	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ30H-Z11	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ30H-Z11R	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ30H-Z11-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ30H-Z11R-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ30H-Z11-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ30H-Z11R-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ30H-Z11-1	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
	LVQ30H-Z11R-1	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
	LVQ30H-Z11-1-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
	LVQ30H-Z11R-1-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
	LVQ30H-Z11-1-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ30H-Z11R-1-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ30H-Z11-2	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ30H-Z11R-2	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ30H-Z11-2-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ30H-Z11R-2-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ30H-Z11-2-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ30H-Z11R-2-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ30H-Z11-3	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ30H-Z11R-3	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ30H-Z11-3-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ30H-Z11R-3-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ30H-Z11-3-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ30H-Z11R-3-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ30H-Z11-4	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
	LVQ30H-Z11R-4	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
	LVQ30H-Z11-4-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
	LVQ30H-Z11R-4-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
	LVQ30H-Z11-4-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ30H-Z11R-4-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ30H-Z11-24	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
	LVQ30H-Z11R-24	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
	LVQ30H-Z11-24-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ30H-Z11R-24-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ30H-Z11-24-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ30H-Z11R-24-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ31H-Z11	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ31H-Z11R	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ31H-Z11-K	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ31H-Z11R-K	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ31H-Z11-N	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ31H-Z11R-N	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ32H-Z11	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ32H-Z11R	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ32H-Z11-K	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ32H-Z11R-K	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ32H-Z11-N	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ32H-Z11R-N	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ32H-Z11-2	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ32H-Z11R-2	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ32H-Z11-2-K	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ32H-Z11R-2-K	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ32H-Z11-2-N	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ32H-Z11R-2-N	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ40H-Z12	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ40H-Z12R	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ40H-Z12-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ40H-Z12R-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ40H-Z12-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ40H-Z12R-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ40H-Z12-1	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
	LVQ40H-Z12R-1	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
	LVQ40H-Z12-1-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
	LVQ40H-Z12R-1-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
	LVQ40H-Z12-1-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ40H-Z12R-1-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ40H-Z12-2	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ40H-Z12R-2	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ40H-Z12-2-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ40H-Z12R-2-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ40H-Z12-2-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ40H-Z12R-2-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ40H-Z12-3	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ40H-Z12R-3	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ40H-Z12-3-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ40H-Z12R-3-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ40H-Z12-3-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ40H-Z12R-3-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ40H-Z12-4	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
	LVQ40H-Z12R-4	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
	LVQ40H-Z12-4-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
	LVQ40H-Z12R-4-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
	LVQ40H-Z12-4-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ40H-Z12R-4-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ40H-Z12-24	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
	LVQ40H-Z12R-24	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
	LVQ40H-Z12-24-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ40H-Z12R-24-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ40H-Z12-24-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ40H-Z12R-24-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ41H-Z12	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ41H-Z12R	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ41H-Z12-K	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ41H-Z12R-K	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ41H-Z12-N	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ41H-Z12R-N	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ42H-Z12	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ42H-Z12R	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ42H-Z12-K	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ42H-Z12R-K	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ42H-Z12-N	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ42H-Z12R-N	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ42H-Z12-2	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ42H-Z12R-2	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ42H-Z12-2-K	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ42H-Z12R-2-K	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ42H-Z12-2-N	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ42H-Z12R-2-N	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ40H-Z13	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ40H-Z13R	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ40H-Z13-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ40H-Z13R-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ40H-Z13-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ40H-Z13R-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ40H-Z13-1	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
	LVQ40H-Z13R-1	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
	LVQ40H-Z13-1-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
	LVQ40H-Z13R-1-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
	LVQ40H-Z13-1-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ40H-Z13R-1-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ40H-Z13-2	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ40H-Z13R-2	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ40H-Z13-2-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ40H-Z13R-2-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ40H-Z13-2-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ40H-Z13R-2-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ40H-Z13-3	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ40H-Z13R-3	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ40H-Z13-3-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ40H-Z13R-3-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ40H-Z13-3-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ40H-Z13R-3-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ40H-Z13-4	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
	LVQ40H-Z13R-4	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
	LVQ40H-Z13-4-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
	LVQ40H-Z13R-4-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
	LVQ40H-Z13-4-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ40H-Z13R-4-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ40H-Z13-24	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
	LVQ40H-Z13R-24	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
	LVQ40H-Z13-24-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ40H-Z13R-24-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ40H-Z13-24-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ40H-Z13R-24-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ41H-Z13	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ41H-Z13R	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ41H-Z13-K	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ41H-Z13R-K	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ41H-Z13-N	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ41H-Z13R-N	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ42H-Z13	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ42H-Z13R	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ42H-Z13-K	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ42H-Z13R-K	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ42H-Z13-N	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ42H-Z13R-N	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ42H-Z13-2	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ42H-Z13R-2	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ42H-Z13-2-K	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ42H-Z13R-2-K	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ42H-Z13-2-N	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ42H-Z13R-2-N	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ50H-Z19	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ50H-Z19R	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ50H-Z19-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ50H-Z19R-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ50H-Z19-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ50H-Z19R-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ50H-Z19-1	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
	LVQ50H-Z19R-1	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
	LVQ50H-Z19-1-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
	LVQ50H-Z19R-1-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
	LVQ50H-Z19-1-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ50H-Z19R-1-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ50H-Z19-2	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ50H-Z19R-2	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ50H-Z19-2-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ50H-Z19R-2-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ50H-Z19-2-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ50H-Z19R-2-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ50H-Z19-3	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ50H-Z19R-3	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ50H-Z19-3-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ50H-Z19R-3-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ50H-Z19-3-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ50H-Z19R-3-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ50H-Z19-4	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
	LVQ50H-Z19R-4	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
	LVQ50H-Z19-4-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
	LVQ50H-Z19R-4-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
	LVQ50H-Z19-4-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ50H-Z19R-4-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ50H-Z19-24	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
	LVQ50H-Z19R-24	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
	LVQ50H-Z19-24-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ50H-Z19R-24-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ50H-Z19-24-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ50H-Z19R-24-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ51H-Z19	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ51H-Z19R	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ51H-Z19-K	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ51H-Z19R-K	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ51H-Z19-N	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ51H-Z19R-N	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ52H-Z19	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ52H-Z19R	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ52H-Z19-K	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ52H-Z19R-K	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ52H-Z19-N	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ52H-Z19R-N	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ52H-Z19-2	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ52H-Z19R-2	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ52H-Z19-2-K	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ52H-Z19R-2-K	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ52H-Z19-2-N	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ52H-Z19R-2-N	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ60H-Z25	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ60H-Z25R	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ60H-Z25-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ60H-Z25R-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ60H-Z25-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ60H-Z25R-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ60H-Z25-P	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high flow
	LVQ60H-Z25R-P	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high flow
	LVQ60H-Z25-1	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
	LVQ60H-Z25R-1	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
	LVQ60H-Z25-1-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
	LVQ60H-Z25R-1-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
	LVQ60H-Z25-1-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ60H-Z25R-1-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ60H-Z25-2	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ60H-Z25R-2	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ60H-Z25-2-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ60H-Z25R-2-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ60H-Z25-2-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ60H-Z25R-2-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ60H-Z25-3	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ60H-Z25R-3	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ60H-Z25-3-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ60H-Z25R-3-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ60H-Z25-3-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ60H-Z25R-3-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ60H-Z25-4	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
	LVQ60H-Z25R-4	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
	LVQ60H-Z25-4-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
	LVQ60H-Z25R-4-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
	LVQ60H-Z25-4-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ60H-Z25R-4-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ60H-Z25-4-P	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM, high flow
	LVQ60H-Z25R-4-P	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM, high flow
	LVQ60H-Z25-24	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
	LVQ60H-Z25R-24	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
	LVQ60H-Z25-24-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ60H-Z25R-24-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ60H-Z25-24-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ60H-Z25R-24-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ61H-Z25	Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ61H-Z25R	Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ61H-Z25-K	Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ61H-Z25R-K	Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ61H-Z25-N	Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ61H-Z25R-N	Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ61H-Z25-P	Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high flow
	LVQ61H-Z25R-P	Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high flow
	LVQ62H-Z25	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ62H-Z25R	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ62H-Z25-K	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ62H-Z25R-K	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ62H-Z25-N	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ62H-Z25R-N	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ62H-Z25-P	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high flow
	LVQ62H-Z25R-P	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high flow
	LVQ62H-Z25-2	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ62H-Z25R-2	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ62H-Z25-2-K	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ62H-Z25R-2-K	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ62H-Z25-2-N	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ62H-Z25R-2-N	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC LVQ..H-Z Chemical Valve (Back Pressure 0.5 MPa, LQ3)
