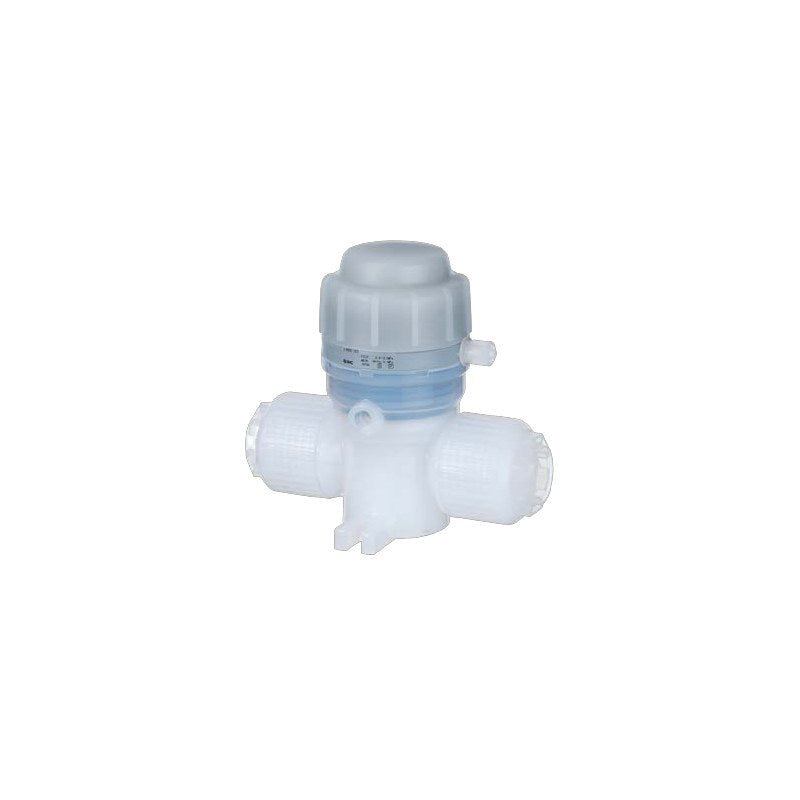

SMC LVQ-T Air Operated Chemical Valve (Tube Integral Type)

SMC LVQ-T Air Operated Chemical Valve (Tube Integral Type)

SMC LVQ-T series air-operated chemical diaphragm valve with integral PFA tube ends, for welded or fitting connection in chemical lines.

Key features

  • Fluid-contact parts New PFA body and PTFE diaphragm; PVDF actuator joined without metal screws (non-metal exterior)
  • Piston damper and tapered flow path reduce particles, micro-bubbles and liquid retention
  • Pilot port can be oriented in 8 directions (P2 to P8 suffix, standard direction 1)
  • Options: flow adjustment, bypass, indicator, high back pressure 0.42 MPa; buffer FKM, FFKM, EPDM (ammonia) or high-temperature 170 C
  • Tube OD: metric 6, 10, 12, 19, 25 mm or inch 1/4 to 1 in

Specifications

Fluid Deionized water, chemicals (see compatibility list)
Fluid connection Integral PFA tube
Proof pressure 1 MPa
Operating pressure (A to B) -98 kPa to 0.5 MPa (LVQ60 0.4 MPa)
Back pressure 0.3 MPa or less (LVQ60 0.2 MPa); high BP 0.42 MPa
Pilot pressure 0.3 to 0.5 MPa (high BP 0.45 to 0.55 MPa)
Flow Cv (class 2/3/4/5/6) 0.35 / 1.3 / 1.9 / 5 / 8 (high flow 9.5)
Fluid temperature 0 to 100 C (high temp. 0 to 170 C)
Ambient temperature 0 to 60 C
Wetted materials Body New PFA, diaphragm PTFE; actuator PVDF
Source SMC Korea catalog LVQ Series (SMCKR_LVQ.pdf), p. 131-133 (PDF p. 70-72)
LVQ20-T06 Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM
LVQ20-T06R Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM
LVQ20-T06-J Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM, high temp. 170 C
LVQ20-T06R-J Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM, high temp. 170 C
LVQ20-T06-K Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FFKM
LVQ20-T06R-K Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: None | Buffer: FFKM
LVQ20-T06-N Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: EPDM (ammonia)
LVQ20-T06R-N Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: None | Buffer: EPDM (ammonia)
LVQ20-T06-1 Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adjustment | Buffer: FKM
LVQ20-T06R-1 Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: Flow adjustment | Buffer: FKM
LVQ20-T06-1-J Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adjustment | Buffer: FKM, high temp. 170 C
LVQ20-T06R-1-J Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: Flow adjustment | Buffer: FKM, high temp. 170 C
LVQ20-T06-1-K Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adjustment | Buffer: FFKM
LVQ20-T06R-1-K Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: Flow adjustment | Buffer: FFKM
LVQ20-T06-1-N Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adjustment | Buffer: EPDM (ammonia)
LVQ20-T06R-1-N Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: Flow adjustment | Buffer: EPDM (ammonia)
LVQ20-T06-2 Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: FKM
LVQ20-T06R-2 Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: FKM
LVQ20-T06-2-K Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: FFKM
LVQ20-T06R-2-K Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: FFKM
LVQ20-T06-2-N Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: EPDM (ammonia)
LVQ20-T06R-2-N Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: EPDM (ammonia)
LVQ20-T06-3 Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adj. + bypass | Buffer: FKM
LVQ20-T06R-3 Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: Flow adj. + bypass | Buffer: FKM
LVQ20-T06-3-K Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adj. + bypass | Buffer: FFKM
LVQ20-T06R-3-K Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: Flow adj. + bypass | Buffer: FFKM
LVQ20-T06-3-N Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adj. + bypass | Buffer: EPDM (ammonia)
LVQ20-T06R-3-N Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: Flow adj. + bypass | Buffer: EPDM (ammonia)
LVQ20-T06-4 Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Indicator | Buffer: FKM
LVQ20-T06R-4 Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: Indicator | Buffer: FKM
LVQ20-T06-4-K Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Indicator | Buffer: FFKM
LVQ20-T06R-4-K Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: Indicator | Buffer: FFKM
LVQ20-T06-4-N Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Indicator | Buffer: EPDM (ammonia)
LVQ20-T06R-4-N Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: Indicator | Buffer: EPDM (ammonia)
LVQ20-T06-5 Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High back pressure 0.42 MPa | Buffer: FKM
LVQ20-T06R-5 Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: High back pressure 0.42 MPa | Buffer: FKM
LVQ20-T06-5-K Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High back pressure 0.42 MPa | Buffer: FFKM
LVQ20-T06R-5-K Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: High back pressure 0.42 MPa | Buffer: FFKM
LVQ20-T06-5-N Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High back pressure 0.42 MPa | Buffer: EPDM (ammonia)
LVQ20-T06R-5-N Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: High back pressure 0.42 MPa | Buffer: EPDM (ammonia)
LVQ20-T06-6 Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. | Buffer: FKM
LVQ20-T06R-6 Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: High BP + flow adj. | Buffer: FKM
LVQ20-T06-6-K Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. | Buffer: FFKM
LVQ20-T06R-6-K Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: High BP + flow adj. | Buffer: FFKM
LVQ20-T06-6-N Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. | Buffer: EPDM (ammonia)
LVQ20-T06R-6-N Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: High BP + flow adj. | Buffer: EPDM (ammonia)
LVQ20-T06-7 Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + bypass | Buffer: FKM
LVQ20-T06R-7 Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: High BP + bypass | Buffer: FKM
LVQ20-T06-7-K Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + bypass | Buffer: FFKM
LVQ20-T06R-7-K Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: High BP + bypass | Buffer: FFKM
LVQ20-T06-7-N Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + bypass | Buffer: EPDM (ammonia)
LVQ20-T06R-7-N Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: High BP + bypass | Buffer: EPDM (ammonia)
LVQ20-T06-8 Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. + bypass | Buffer: FKM
LVQ20-T06R-8 Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: High BP + flow adj. + bypass | Buffer: FKM
LVQ20-T06-8-K Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. + bypass | Buffer: FFKM
LVQ20-T06R-8-K Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: High BP + flow adj. + bypass | Buffer: FFKM
LVQ20-T06-8-N Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. + bypass | Buffer: EPDM (ammonia)
LVQ20-T06R-8-N Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: High BP + flow adj. + bypass | Buffer: EPDM (ammonia)
LVQ20-T06-9 Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + indicator | Buffer: FKM
LVQ20-T06R-9 Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: High BP + indicator | Buffer: FKM
LVQ20-T06-9-K Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + indicator | Buffer: FFKM
LVQ20-T06R-9-K Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: High BP + indicator | Buffer: FFKM
LVQ20-T06-9-N Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + indicator | Buffer: EPDM (ammonia)
LVQ20-T06R-9-N Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: High BP + indicator | Buffer: EPDM (ammonia)
LVQ21-T06 Body class: 2 (ø4 orifice) | Valve type: N.O. | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM
LVQ21-T06R Body class: 2 (ø4 orifice) | Valve type: N.O. | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM
LVQ21-T06-J Body class: 2 (ø4 orifice) | Valve type: N.O. | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM, high temp. 170 C
LVQ21-T06R-J Body class: 2 (ø4 orifice) | Valve type: N.O. | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM, high temp. 170 C
LVQ21-T06-K Body class: 2 (ø4 orifice) | Valve type: N.O. | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FFKM
LVQ21-T06R-K Body class: 2 (ø4 orifice) | Valve type: N.O. | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: None | Buffer: FFKM
LVQ21-T06-N Body class: 2 (ø4 orifice) | Valve type: N.O. | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: EPDM (ammonia)
LVQ21-T06R-N Body class: 2 (ø4 orifice) | Valve type: N.O. | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: None | Buffer: EPDM (ammonia)
LVQ22-T06 Body class: 2 (ø4 orifice) | Valve type: Double acting | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM
LVQ22-T06R Body class: 2 (ø4 orifice) | Valve type: Double acting | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM
LVQ22-T06-J Body class: 2 (ø4 orifice) | Valve type: Double acting | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM, high temp. 170 C
LVQ22-T06R-J Body class: 2 (ø4 orifice) | Valve type: Double acting | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM, high temp. 170 C
LVQ22-T06-K Body class: 2 (ø4 orifice) | Valve type: Double acting | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FFKM
LVQ22-T06R-K Body class: 2 (ø4 orifice) | Valve type: Double acting | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: None | Buffer: FFKM
LVQ22-T06-N Body class: 2 (ø4 orifice) | Valve type: Double acting | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: EPDM (ammonia)
LVQ22-T06R-N Body class: 2 (ø4 orifice) | Valve type: Double acting | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: None | Buffer: EPDM (ammonia)
LVQ22-T06-2 Body class: 2 (ø4 orifice) | Valve type: Double acting | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: FKM
LVQ22-T06R-2 Body class: 2 (ø4 orifice) | Valve type: Double acting | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: FKM
LVQ22-T06-2-K Body class: 2 (ø4 orifice) | Valve type: Double acting | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: FFKM
LVQ22-T06R-2-K Body class: 2 (ø4 orifice) | Valve type: Double acting | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: FFKM
LVQ22-T06-2-N Body class: 2 (ø4 orifice) | Valve type: Double acting | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: EPDM (ammonia)
LVQ22-T06R-2-N Body class: 2 (ø4 orifice) | Valve type: Double acting | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: EPDM (ammonia)
LVQ20-T07 Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM
LVQ20-T07R Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM
LVQ20-T07-J Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM, high temp. 170 C
LVQ20-T07R-J Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM, high temp. 170 C
LVQ20-T07-K Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FFKM
LVQ20-T07R-K Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FFKM
LVQ20-T07-N Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: EPDM (ammonia)
LVQ20-T07R-N Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: None | Buffer: EPDM (ammonia)
LVQ20-T07-1 Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adjustment | Buffer: FKM
LVQ20-T07R-1 Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: Flow adjustment | Buffer: FKM
LVQ20-T07-1-J Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adjustment | Buffer: FKM, high temp. 170 C
LVQ20-T07R-1-J Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: Flow adjustment | Buffer: FKM, high temp. 170 C
LVQ20-T07-1-K Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adjustment | Buffer: FFKM
LVQ20-T07R-1-K Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: Flow adjustment | Buffer: FFKM
LVQ20-T07-1-N Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adjustment | Buffer: EPDM (ammonia)
LVQ20-T07R-1-N Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: Flow adjustment | Buffer: EPDM (ammonia)
LVQ20-T07-2 Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: FKM
LVQ20-T07R-2 Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: FKM
LVQ20-T07-2-K Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: FFKM
LVQ20-T07R-2-K Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: FFKM
LVQ20-T07-2-N Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: EPDM (ammonia)
LVQ20-T07R-2-N Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: EPDM (ammonia)
LVQ20-T07-3 Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adj. + bypass | Buffer: FKM
LVQ20-T07R-3 Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: Flow adj. + bypass | Buffer: FKM
LVQ20-T07-3-K Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adj. + bypass | Buffer: FFKM
LVQ20-T07R-3-K Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: Flow adj. + bypass | Buffer: FFKM
LVQ20-T07-3-N Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adj. + bypass | Buffer: EPDM (ammonia)
LVQ20-T07R-3-N Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: Flow adj. + bypass | Buffer: EPDM (ammonia)
LVQ20-T07-4 Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Indicator | Buffer: FKM
LVQ20-T07R-4 Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: Indicator | Buffer: FKM
LVQ20-T07-4-K Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Indicator | Buffer: FFKM
LVQ20-T07R-4-K Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: Indicator | Buffer: FFKM
LVQ20-T07-4-N Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Indicator | Buffer: EPDM (ammonia)
LVQ20-T07R-4-N Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: Indicator | Buffer: EPDM (ammonia)
LVQ20-T07-5 Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High back pressure 0.42 MPa | Buffer: FKM
LVQ20-T07R-5 Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: High back pressure 0.42 MPa | Buffer: FKM
LVQ20-T07-5-K Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High back pressure 0.42 MPa | Buffer: FFKM
LVQ20-T07R-5-K Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: High back pressure 0.42 MPa | Buffer: FFKM
LVQ20-T07-5-N Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High back pressure 0.42 MPa | Buffer: EPDM (ammonia)
LVQ20-T07R-5-N Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: High back pressure 0.42 MPa | Buffer: EPDM (ammonia)
LVQ20-T07-6 Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. | Buffer: FKM
LVQ20-T07R-6 Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: High BP + flow adj. | Buffer: FKM
LVQ20-T07-6-K Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. | Buffer: FFKM
LVQ20-T07R-6-K Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: High BP + flow adj. | Buffer: FFKM
LVQ20-T07-6-N Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. | Buffer: EPDM (ammonia)
LVQ20-T07R-6-N Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: High BP + flow adj. | Buffer: EPDM (ammonia)
LVQ20-T07-7 Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + bypass | Buffer: FKM
LVQ20-T07R-7 Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: High BP + bypass | Buffer: FKM
LVQ20-T07-7-K Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + bypass | Buffer: FFKM
LVQ20-T07R-7-K Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: High BP + bypass | Buffer: FFKM
LVQ20-T07-7-N Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + bypass | Buffer: EPDM (ammonia)
LVQ20-T07R-7-N Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: High BP + bypass | Buffer: EPDM (ammonia)
LVQ20-T07-8 Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. + bypass | Buffer: FKM
LVQ20-T07R-8 Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: High BP + flow adj. + bypass | Buffer: FKM
LVQ20-T07-8-K Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. + bypass | Buffer: FFKM
LVQ20-T07R-8-K Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: High BP + flow adj. + bypass | Buffer: FFKM
LVQ20-T07-8-N Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. + bypass | Buffer: EPDM (ammonia)
LVQ20-T07R-8-N Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: High BP + flow adj. + bypass | Buffer: EPDM (ammonia)
LVQ20-T07-9 Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + indicator | Buffer: FKM
LVQ20-T07R-9 Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: High BP + indicator | Buffer: FKM
LVQ20-T07-9-K Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + indicator | Buffer: FFKM
LVQ20-T07R-9-K Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: High BP + indicator | Buffer: FFKM
LVQ20-T07-9-N Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + indicator | Buffer: EPDM (ammonia)
LVQ20-T07R-9-N Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: High BP + indicator | Buffer: EPDM (ammonia)
LVQ21-T07 Body class: 2 (ø4 orifice) | Valve type: N.O. | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM
LVQ21-T07R Body class: 2 (ø4 orifice) | Valve type: N.O. | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM
LVQ21-T07-J Body class: 2 (ø4 orifice) | Valve type: N.O. | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM, high temp. 170 C
LVQ21-T07R-J Body class: 2 (ø4 orifice) | Valve type: N.O. | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM, high temp. 170 C
LVQ21-T07-K Body class: 2 (ø4 orifice) | Valve type: N.O. | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FFKM
LVQ21-T07R-K Body class: 2 (ø4 orifice) | Valve type: N.O. | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FFKM
LVQ21-T07-N Body class: 2 (ø4 orifice) | Valve type: N.O. | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: EPDM (ammonia)
LVQ21-T07R-N Body class: 2 (ø4 orifice) | Valve type: N.O. | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: None | Buffer: EPDM (ammonia)
LVQ22-T07 Body class: 2 (ø4 orifice) | Valve type: Double acting | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM
LVQ22-T07R Body class: 2 (ø4 orifice) | Valve type: Double acting | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM
LVQ22-T07-J Body class: 2 (ø4 orifice) | Valve type: Double acting | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM, high temp. 170 C
LVQ22-T07R-J Body class: 2 (ø4 orifice) | Valve type: Double acting | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM, high temp. 170 C
LVQ22-T07-K Body class: 2 (ø4 orifice) | Valve type: Double acting | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FFKM
LVQ22-T07R-K Body class: 2 (ø4 orifice) | Valve type: Double acting | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FFKM
LVQ22-T07-N Body class: 2 (ø4 orifice) | Valve type: Double acting | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: EPDM (ammonia)
LVQ22-T07R-N Body class: 2 (ø4 orifice) | Valve type: Double acting | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: None | Buffer: EPDM (ammonia)
LVQ22-T07-2 Body class: 2 (ø4 orifice) | Valve type: Double acting | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: FKM
LVQ22-T07R-2 Body class: 2 (ø4 orifice) | Valve type: Double acting | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: FKM
LVQ22-T07-2-K Body class: 2 (ø4 orifice) | Valve type: Double acting | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: FFKM
LVQ22-T07R-2-K Body class: 2 (ø4 orifice) | Valve type: Double acting | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: FFKM
LVQ22-T07-2-N Body class: 2 (ø4 orifice) | Valve type: Double acting | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: EPDM (ammonia)
LVQ22-T07R-2-N Body class: 2 (ø4 orifice) | Valve type: Double acting | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: EPDM (ammonia)
LVQ30-T10 Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM
LVQ30-T10R Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM
LVQ30-T10-J Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM, high temp. 170 C
LVQ30-T10R-J Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM, high temp. 170 C
LVQ30-T10-K Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FFKM
LVQ30-T10R-K Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: None | Buffer: FFKM
LVQ30-T10-N Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: EPDM (ammonia)
LVQ30-T10R-N Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: None | Buffer: EPDM (ammonia)
LVQ30-T10-1 Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adjustment | Buffer: FKM
LVQ30-T10R-1 Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: Flow adjustment | Buffer: FKM
LVQ30-T10-1-J Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adjustment | Buffer: FKM, high temp. 170 C
LVQ30-T10R-1-J Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: Flow adjustment | Buffer: FKM, high temp. 170 C
LVQ30-T10-1-K Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adjustment | Buffer: FFKM
LVQ30-T10R-1-K Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: Flow adjustment | Buffer: FFKM
LVQ30-T10-1-N Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adjustment | Buffer: EPDM (ammonia)
LVQ30-T10R-1-N Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: Flow adjustment | Buffer: EPDM (ammonia)
LVQ30-T10-2 Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: FKM
LVQ30-T10R-2 Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: FKM
LVQ30-T10-2-K Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: FFKM
LVQ30-T10R-2-K Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: FFKM
LVQ30-T10-2-N Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: EPDM (ammonia)
LVQ30-T10R-2-N Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: EPDM (ammonia)
LVQ30-T10-3 Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adj. + bypass | Buffer: FKM
LVQ30-T10R-3 Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: Flow adj. + bypass | Buffer: FKM
LVQ30-T10-3-K Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adj. + bypass | Buffer: FFKM
LVQ30-T10R-3-K Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: Flow adj. + bypass | Buffer: FFKM
LVQ30-T10-3-N Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adj. + bypass | Buffer: EPDM (ammonia)
LVQ30-T10R-3-N Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: Flow adj. + bypass | Buffer: EPDM (ammonia)
LVQ30-T10-4 Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Indicator | Buffer: FKM
LVQ30-T10R-4 Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: Indicator | Buffer: FKM
LVQ30-T10-4-K Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Indicator | Buffer: FFKM
LVQ30-T10R-4-K Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: Indicator | Buffer: FFKM
LVQ30-T10-4-N Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Indicator | Buffer: EPDM (ammonia)
LVQ30-T10R-4-N Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: Indicator | Buffer: EPDM (ammonia)
LVQ30-T10-5 Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High back pressure 0.42 MPa | Buffer: FKM
LVQ30-T10R-5 Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: High back pressure 0.42 MPa | Buffer: FKM
LVQ30-T10-5-K Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High back pressure 0.42 MPa | Buffer: FFKM
LVQ30-T10R-5-K Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: High back pressure 0.42 MPa | Buffer: FFKM
LVQ30-T10-5-N Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High back pressure 0.42 MPa | Buffer: EPDM (ammonia)
LVQ30-T10R-5-N Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: High back pressure 0.42 MPa | Buffer: EPDM (ammonia)
LVQ30-T10-6 Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. | Buffer: FKM
LVQ30-T10R-6 Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: High BP + flow adj. | Buffer: FKM
LVQ30-T10-6-K Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. | Buffer: FFKM
LVQ30-T10R-6-K Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: High BP + flow adj. | Buffer: FFKM
LVQ30-T10-6-N Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. | Buffer: EPDM (ammonia)
LVQ30-T10R-6-N Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: High BP + flow adj. | Buffer: EPDM (ammonia)
LVQ30-T10-7 Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + bypass | Buffer: FKM
LVQ30-T10R-7 Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: High BP + bypass | Buffer: FKM
LVQ30-T10-7-K Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + bypass | Buffer: FFKM
LVQ30-T10R-7-K Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: High BP + bypass | Buffer: FFKM
LVQ30-T10-7-N Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + bypass | Buffer: EPDM (ammonia)
LVQ30-T10R-7-N Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: High BP + bypass | Buffer: EPDM (ammonia)
LVQ30-T10-8 Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. + bypass | Buffer: FKM
LVQ30-T10R-8 Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: High BP + flow adj. + bypass | Buffer: FKM
LVQ30-T10-8-K Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. + bypass | Buffer: FFKM
LVQ30-T10R-8-K Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: High BP + flow adj. + bypass | Buffer: FFKM
LVQ30-T10-8-N Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. + bypass | Buffer: EPDM (ammonia)
LVQ30-T10R-8-N Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: High BP + flow adj. + bypass | Buffer: EPDM (ammonia)
LVQ30-T10-9 Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + indicator | Buffer: FKM
LVQ30-T10R-9 Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: High BP + indicator | Buffer: FKM
LVQ30-T10-9-K Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + indicator | Buffer: FFKM
LVQ30-T10R-9-K Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: High BP + indicator | Buffer: FFKM
LVQ30-T10-9-N Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + indicator | Buffer: EPDM (ammonia)
LVQ30-T10R-9-N Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: High BP + indicator | Buffer: EPDM (ammonia)
LVQ31-T10 Body class: 3 (ø8 orifice) | Valve type: N.O. | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM
LVQ31-T10R Body class: 3 (ø8 orifice) | Valve type: N.O. | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM
LVQ31-T10-J Body class: 3 (ø8 orifice) | Valve type: N.O. | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM, high temp. 170 C
LVQ31-T10R-J Body class: 3 (ø8 orifice) | Valve type: N.O. | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM, high temp. 170 C
LVQ31-T10-K Body class: 3 (ø8 orifice) | Valve type: N.O. | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FFKM
LVQ31-T10R-K Body class: 3 (ø8 orifice) | Valve type: N.O. | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: None | Buffer: FFKM
LVQ31-T10-N Body class: 3 (ø8 orifice) | Valve type: N.O. | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: EPDM (ammonia)
LVQ31-T10R-N Body class: 3 (ø8 orifice) | Valve type: N.O. | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: None | Buffer: EPDM (ammonia)
LVQ32-T10 Body class: 3 (ø8 orifice) | Valve type: Double acting | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM
LVQ32-T10R Body class: 3 (ø8 orifice) | Valve type: Double acting | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM
LVQ32-T10-J Body class: 3 (ø8 orifice) | Valve type: Double acting | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM, high temp. 170 C
LVQ32-T10R-J Body class: 3 (ø8 orifice) | Valve type: Double acting | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM, high temp. 170 C
LVQ32-T10-K Body class: 3 (ø8 orifice) | Valve type: Double acting | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FFKM
LVQ32-T10R-K Body class: 3 (ø8 orifice) | Valve type: Double acting | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: None | Buffer: FFKM
LVQ32-T10-N Body class: 3 (ø8 orifice) | Valve type: Double acting | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: EPDM (ammonia)
LVQ32-T10R-N Body class: 3 (ø8 orifice) | Valve type: Double acting | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: None | Buffer: EPDM (ammonia)
LVQ32-T10-2 Body class: 3 (ø8 orifice) | Valve type: Double acting | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: FKM
LVQ32-T10R-2 Body class: 3 (ø8 orifice) | Valve type: Double acting | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: FKM
LVQ32-T10-2-K Body class: 3 (ø8 orifice) | Valve type: Double acting | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: FFKM
LVQ32-T10R-2-K Body class: 3 (ø8 orifice) | Valve type: Double acting | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: FFKM
LVQ32-T10-2-N Body class: 3 (ø8 orifice) | Valve type: Double acting | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: EPDM (ammonia)
LVQ32-T10R-2-N Body class: 3 (ø8 orifice) | Valve type: Double acting | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: EPDM (ammonia)
LVQ30-T11 Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM
LVQ30-T11R Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM
LVQ30-T11-J Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM, high temp. 170 C
LVQ30-T11R-J Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM, high temp. 170 C
LVQ30-T11-K Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FFKM
LVQ30-T11R-K Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FFKM
LVQ30-T11-N Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: EPDM (ammonia)
LVQ30-T11R-N Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: None | Buffer: EPDM (ammonia)
LVQ30-T11-1 Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adjustment | Buffer: FKM
LVQ30-T11R-1 Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: Flow adjustment | Buffer: FKM
LVQ30-T11-1-J Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adjustment | Buffer: FKM, high temp. 170 C
LVQ30-T11R-1-J Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: Flow adjustment | Buffer: FKM, high temp. 170 C
LVQ30-T11-1-K Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adjustment | Buffer: FFKM
LVQ30-T11R-1-K Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: Flow adjustment | Buffer: FFKM
LVQ30-T11-1-N Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adjustment | Buffer: EPDM (ammonia)
LVQ30-T11R-1-N Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: Flow adjustment | Buffer: EPDM (ammonia)
LVQ30-T11-2 Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: FKM
LVQ30-T11R-2 Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: FKM
LVQ30-T11-2-K Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: FFKM
LVQ30-T11R-2-K Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: FFKM
LVQ30-T11-2-N Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: EPDM (ammonia)
LVQ30-T11R-2-N Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: EPDM (ammonia)
LVQ30-T11-3 Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adj. + bypass | Buffer: FKM
LVQ30-T11R-3 Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: Flow adj. + bypass | Buffer: FKM
LVQ30-T11-3-K Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adj. + bypass | Buffer: FFKM
LVQ30-T11R-3-K Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: Flow adj. + bypass | Buffer: FFKM
LVQ30-T11-3-N Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adj. + bypass | Buffer: EPDM (ammonia)
LVQ30-T11R-3-N Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: Flow adj. + bypass | Buffer: EPDM (ammonia)
LVQ30-T11-4 Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Indicator | Buffer: FKM
LVQ30-T11R-4 Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: Indicator | Buffer: FKM
LVQ30-T11-4-K Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Indicator | Buffer: FFKM
LVQ30-T11R-4-K Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: Indicator | Buffer: FFKM
LVQ30-T11-4-N Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Indicator | Buffer: EPDM (ammonia)
LVQ30-T11R-4-N Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: Indicator | Buffer: EPDM (ammonia)
LVQ30-T11-5 Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High back pressure 0.42 MPa | Buffer: FKM
LVQ30-T11R-5 Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: High back pressure 0.42 MPa | Buffer: FKM
LVQ30-T11-5-K Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High back pressure 0.42 MPa | Buffer: FFKM
LVQ30-T11R-5-K Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: High back pressure 0.42 MPa | Buffer: FFKM
LVQ30-T11-5-N Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High back pressure 0.42 MPa | Buffer: EPDM (ammonia)
LVQ30-T11R-5-N Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: High back pressure 0.42 MPa | Buffer: EPDM (ammonia)
LVQ30-T11-6 Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. | Buffer: FKM
LVQ30-T11R-6 Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: High BP + flow adj. | Buffer: FKM
LVQ30-T11-6-K Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. | Buffer: FFKM
LVQ30-T11R-6-K Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: High BP + flow adj. | Buffer: FFKM
LVQ30-T11-6-N Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. | Buffer: EPDM (ammonia)
LVQ30-T11R-6-N Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: High BP + flow adj. | Buffer: EPDM (ammonia)
LVQ30-T11-7 Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + bypass | Buffer: FKM
LVQ30-T11R-7 Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: High BP + bypass | Buffer: FKM
LVQ30-T11-7-K Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + bypass | Buffer: FFKM
LVQ30-T11R-7-K Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: High BP + bypass | Buffer: FFKM
LVQ30-T11-7-N Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + bypass | Buffer: EPDM (ammonia)
LVQ30-T11R-7-N Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: High BP + bypass | Buffer: EPDM (ammonia)
LVQ30-T11-8 Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. + bypass | Buffer: FKM
LVQ30-T11R-8 Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: High BP + flow adj. + bypass | Buffer: FKM
LVQ30-T11-8-K Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. + bypass | Buffer: FFKM
LVQ30-T11R-8-K Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: High BP + flow adj. + bypass | Buffer: FFKM
LVQ30-T11-8-N Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. + bypass | Buffer: EPDM (ammonia)
LVQ30-T11R-8-N Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: High BP + flow adj. + bypass | Buffer: EPDM (ammonia)
LVQ30-T11-9 Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + indicator | Buffer: FKM
LVQ30-T11R-9 Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: High BP + indicator | Buffer: FKM
LVQ30-T11-9-K Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + indicator | Buffer: FFKM
LVQ30-T11R-9-K Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: High BP + indicator | Buffer: FFKM
LVQ30-T11-9-N Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + indicator | Buffer: EPDM (ammonia)
LVQ30-T11R-9-N Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: High BP + indicator | Buffer: EPDM (ammonia)
LVQ31-T11 Body class: 3 (ø8 orifice) | Valve type: N.O. | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM
LVQ31-T11R Body class: 3 (ø8 orifice) | Valve type: N.O. | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM
LVQ31-T11-J Body class: 3 (ø8 orifice) | Valve type: N.O. | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM, high temp. 170 C
LVQ31-T11R-J Body class: 3 (ø8 orifice) | Valve type: N.O. | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM, high temp. 170 C
LVQ31-T11-K Body class: 3 (ø8 orifice) | Valve type: N.O. | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FFKM
LVQ31-T11R-K Body class: 3 (ø8 orifice) | Valve type: N.O. | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FFKM
LVQ31-T11-N Body class: 3 (ø8 orifice) | Valve type: N.O. | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: EPDM (ammonia)
LVQ31-T11R-N Body class: 3 (ø8 orifice) | Valve type: N.O. | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: None | Buffer: EPDM (ammonia)
LVQ32-T11 Body class: 3 (ø8 orifice) | Valve type: Double acting | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM
LVQ32-T11R Body class: 3 (ø8 orifice) | Valve type: Double acting | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM
LVQ32-T11-J Body class: 3 (ø8 orifice) | Valve type: Double acting | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM, high temp. 170 C
LVQ32-T11R-J Body class: 3 (ø8 orifice) | Valve type: Double acting | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM, high temp. 170 C
LVQ32-T11-K Body class: 3 (ø8 orifice) | Valve type: Double acting | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FFKM
LVQ32-T11R-K Body class: 3 (ø8 orifice) | Valve type: Double acting | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FFKM
LVQ32-T11-N Body class: 3 (ø8 orifice) | Valve type: Double acting | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: EPDM (ammonia)
LVQ32-T11R-N Body class: 3 (ø8 orifice) | Valve type: Double acting | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: None | Buffer: EPDM (ammonia)
LVQ32-T11-2 Body class: 3 (ø8 orifice) | Valve type: Double acting | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: FKM
LVQ32-T11R-2 Body class: 3 (ø8 orifice) | Valve type: Double acting | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: FKM
LVQ32-T11-2-K Body class: 3 (ø8 orifice) | Valve type: Double acting | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: FFKM
LVQ32-T11R-2-K Body class: 3 (ø8 orifice) | Valve type: Double acting | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: FFKM
LVQ32-T11-2-N Body class: 3 (ø8 orifice) | Valve type: Double acting | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: EPDM (ammonia)
LVQ32-T11R-2-N Body class: 3 (ø8 orifice) | Valve type: Double acting | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: EPDM (ammonia)
LVQ40-T12 Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM
LVQ40-T12R Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM
LVQ40-T12-J Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM, high temp. 170 C
LVQ40-T12R-J Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM, high temp. 170 C
LVQ40-T12-K Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FFKM
LVQ40-T12R-K Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: None | Buffer: FFKM
LVQ40-T12-N Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: EPDM (ammonia)
LVQ40-T12R-N Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: None | Buffer: EPDM (ammonia)
LVQ40-T12-1 Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adjustment | Buffer: FKM
LVQ40-T12R-1 Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: Flow adjustment | Buffer: FKM
LVQ40-T12-1-J Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adjustment | Buffer: FKM, high temp. 170 C
LVQ40-T12R-1-J Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: Flow adjustment | Buffer: FKM, high temp. 170 C
LVQ40-T12-1-K Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adjustment | Buffer: FFKM
LVQ40-T12R-1-K Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: Flow adjustment | Buffer: FFKM
LVQ40-T12-1-N Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adjustment | Buffer: EPDM (ammonia)
LVQ40-T12R-1-N Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: Flow adjustment | Buffer: EPDM (ammonia)
LVQ40-T12-2 Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: FKM
LVQ40-T12R-2 Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: FKM
LVQ40-T12-2-K Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: FFKM
LVQ40-T12R-2-K Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: FFKM
LVQ40-T12-2-N Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: EPDM (ammonia)
LVQ40-T12R-2-N Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: EPDM (ammonia)
LVQ40-T12-3 Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adj. + bypass | Buffer: FKM
LVQ40-T12R-3 Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: Flow adj. + bypass | Buffer: FKM
LVQ40-T12-3-K Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adj. + bypass | Buffer: FFKM
LVQ40-T12R-3-K Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: Flow adj. + bypass | Buffer: FFKM
LVQ40-T12-3-N Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adj. + bypass | Buffer: EPDM (ammonia)
LVQ40-T12R-3-N Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: Flow adj. + bypass | Buffer: EPDM (ammonia)
LVQ40-T12-4 Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Indicator | Buffer: FKM
LVQ40-T12R-4 Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: Indicator | Buffer: FKM
LVQ40-T12-4-K Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Indicator | Buffer: FFKM
LVQ40-T12R-4-K Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: Indicator | Buffer: FFKM
LVQ40-T12-4-N Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Indicator | Buffer: EPDM (ammonia)
LVQ40-T12R-4-N Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: Indicator | Buffer: EPDM (ammonia)
LVQ40-T12-5 Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High back pressure 0.42 MPa | Buffer: FKM
LVQ40-T12R-5 Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: High back pressure 0.42 MPa | Buffer: FKM
LVQ40-T12-5-K Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High back pressure 0.42 MPa | Buffer: FFKM
LVQ40-T12R-5-K Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: High back pressure 0.42 MPa | Buffer: FFKM
LVQ40-T12-5-N Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High back pressure 0.42 MPa | Buffer: EPDM (ammonia)
LVQ40-T12R-5-N Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: High back pressure 0.42 MPa | Buffer: EPDM (ammonia)
LVQ40-T12-6 Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. | Buffer: FKM
LVQ40-T12R-6 Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: High BP + flow adj. | Buffer: FKM
LVQ40-T12-6-K Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. | Buffer: FFKM
LVQ40-T12R-6-K Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: High BP + flow adj. | Buffer: FFKM
LVQ40-T12-6-N Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. | Buffer: EPDM (ammonia)
LVQ40-T12R-6-N Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: High BP + flow adj. | Buffer: EPDM (ammonia)
LVQ40-T12-7 Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + bypass | Buffer: FKM
LVQ40-T12R-7 Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: High BP + bypass | Buffer: FKM
LVQ40-T12-7-K Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + bypass | Buffer: FFKM
LVQ40-T12R-7-K Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: High BP + bypass | Buffer: FFKM
LVQ40-T12-7-N Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + bypass | Buffer: EPDM (ammonia)
LVQ40-T12R-7-N Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: High BP + bypass | Buffer: EPDM (ammonia)
LVQ40-T12-8 Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. + bypass | Buffer: FKM
LVQ40-T12R-8 Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: High BP + flow adj. + bypass | Buffer: FKM
LVQ40-T12-8-K Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. + bypass | Buffer: FFKM
LVQ40-T12R-8-K Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: High BP + flow adj. + bypass | Buffer: FFKM
LVQ40-T12-8-N Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. + bypass | Buffer: EPDM (ammonia)
LVQ40-T12R-8-N Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: High BP + flow adj. + bypass | Buffer: EPDM (ammonia)
LVQ40-T12-9 Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + indicator | Buffer: FKM
LVQ40-T12R-9 Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: High BP + indicator | Buffer: FKM
LVQ40-T12-9-K Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + indicator | Buffer: FFKM
LVQ40-T12R-9-K Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: High BP + indicator | Buffer: FFKM
LVQ40-T12-9-N Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + indicator | Buffer: EPDM (ammonia)
LVQ40-T12R-9-N Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: High BP + indicator | Buffer: EPDM (ammonia)
LVQ41-T12 Body class: 4 (ø10 orifice) | Valve type: N.O. | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM
LVQ41-T12R Body class: 4 (ø10 orifice) | Valve type: N.O. | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM
LVQ41-T12-J Body class: 4 (ø10 orifice) | Valve type: N.O. | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM, high temp. 170 C
LVQ41-T12R-J Body class: 4 (ø10 orifice) | Valve type: N.O. | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM, high temp. 170 C
LVQ41-T12-K Body class: 4 (ø10 orifice) | Valve type: N.O. | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FFKM
LVQ41-T12R-K Body class: 4 (ø10 orifice) | Valve type: N.O. | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: None | Buffer: FFKM
LVQ41-T12-N Body class: 4 (ø10 orifice) | Valve type: N.O. | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: EPDM (ammonia)
LVQ41-T12R-N Body class: 4 (ø10 orifice) | Valve type: N.O. | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: None | Buffer: EPDM (ammonia)
LVQ42-T12 Body class: 4 (ø10 orifice) | Valve type: Double acting | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM
LVQ42-T12R Body class: 4 (ø10 orifice) | Valve type: Double acting | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM
LVQ42-T12-J Body class: 4 (ø10 orifice) | Valve type: Double acting | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM, high temp. 170 C
LVQ42-T12R-J Body class: 4 (ø10 orifice) | Valve type: Double acting | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM, high temp. 170 C
LVQ42-T12-K Body class: 4 (ø10 orifice) | Valve type: Double acting | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FFKM
LVQ42-T12R-K Body class: 4 (ø10 orifice) | Valve type: Double acting | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: None | Buffer: FFKM
LVQ42-T12-N Body class: 4 (ø10 orifice) | Valve type: Double acting | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: EPDM (ammonia)
LVQ42-T12R-N Body class: 4 (ø10 orifice) | Valve type: Double acting | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: None | Buffer: EPDM (ammonia)
LVQ42-T12-2 Body class: 4 (ø10 orifice) | Valve type: Double acting | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: FKM
LVQ42-T12R-2 Body class: 4 (ø10 orifice) | Valve type: Double acting | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: FKM
LVQ42-T12-2-K Body class: 4 (ø10 orifice) | Valve type: Double acting | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: FFKM
LVQ42-T12R-2-K Body class: 4 (ø10 orifice) | Valve type: Double acting | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: FFKM
LVQ42-T12-2-N Body class: 4 (ø10 orifice) | Valve type: Double acting | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: EPDM (ammonia)
LVQ42-T12R-2-N Body class: 4 (ø10 orifice) | Valve type: Double acting | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: EPDM (ammonia)
LVQ40-T13 Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM
LVQ40-T13R Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM
LVQ40-T13-J Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM, high temp. 170 C
LVQ40-T13R-J Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM, high temp. 170 C
LVQ40-T13-K Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FFKM
LVQ40-T13R-K Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FFKM
LVQ40-T13-N Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: EPDM (ammonia)
LVQ40-T13R-N Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: None | Buffer: EPDM (ammonia)
LVQ40-T13-1 Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adjustment | Buffer: FKM
LVQ40-T13R-1 Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: Flow adjustment | Buffer: FKM
LVQ40-T13-1-J Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adjustment | Buffer: FKM, high temp. 170 C
LVQ40-T13R-1-J Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: Flow adjustment | Buffer: FKM, high temp. 170 C
LVQ40-T13-1-K Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adjustment | Buffer: FFKM
LVQ40-T13R-1-K Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: Flow adjustment | Buffer: FFKM
LVQ40-T13-1-N Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adjustment | Buffer: EPDM (ammonia)
LVQ40-T13R-1-N Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: Flow adjustment | Buffer: EPDM (ammonia)
LVQ40-T13-2 Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: FKM
LVQ40-T13R-2 Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: FKM
LVQ40-T13-2-K Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: FFKM
LVQ40-T13R-2-K Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: FFKM
LVQ40-T13-2-N Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: EPDM (ammonia)
LVQ40-T13R-2-N Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: EPDM (ammonia)
LVQ40-T13-3 Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adj. + bypass | Buffer: FKM
LVQ40-T13R-3 Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: Flow adj. + bypass | Buffer: FKM
LVQ40-T13-3-K Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adj. + bypass | Buffer: FFKM
LVQ40-T13R-3-K Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: Flow adj. + bypass | Buffer: FFKM
LVQ40-T13-3-N Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adj. + bypass | Buffer: EPDM (ammonia)
LVQ40-T13R-3-N Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: Flow adj. + bypass | Buffer: EPDM (ammonia)
LVQ40-T13-4 Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Indicator | Buffer: FKM
LVQ40-T13R-4 Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: Indicator | Buffer: FKM
LVQ40-T13-4-K Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Indicator | Buffer: FFKM
LVQ40-T13R-4-K Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: Indicator | Buffer: FFKM
LVQ40-T13-4-N Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Indicator | Buffer: EPDM (ammonia)
LVQ40-T13R-4-N Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: Indicator | Buffer: EPDM (ammonia)
LVQ40-T13-5 Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High back pressure 0.42 MPa | Buffer: FKM
LVQ40-T13R-5 Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: High back pressure 0.42 MPa | Buffer: FKM
LVQ40-T13-5-K Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High back pressure 0.42 MPa | Buffer: FFKM
LVQ40-T13R-5-K Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: High back pressure 0.42 MPa | Buffer: FFKM
LVQ40-T13-5-N Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High back pressure 0.42 MPa | Buffer: EPDM (ammonia)
LVQ40-T13R-5-N Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: High back pressure 0.42 MPa | Buffer: EPDM (ammonia)
LVQ40-T13-6 Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. | Buffer: FKM
LVQ40-T13R-6 Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: High BP + flow adj. | Buffer: FKM
LVQ40-T13-6-K Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. | Buffer: FFKM
LVQ40-T13R-6-K Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: High BP + flow adj. | Buffer: FFKM
LVQ40-T13-6-N Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. | Buffer: EPDM (ammonia)
LVQ40-T13R-6-N Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: High BP + flow adj. | Buffer: EPDM (ammonia)
LVQ40-T13-7 Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + bypass | Buffer: FKM
LVQ40-T13R-7 Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: High BP + bypass | Buffer: FKM
LVQ40-T13-7-K Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + bypass | Buffer: FFKM
LVQ40-T13R-7-K Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: High BP + bypass | Buffer: FFKM
LVQ40-T13-7-N Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + bypass | Buffer: EPDM (ammonia)
LVQ40-T13R-7-N Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: High BP + bypass | Buffer: EPDM (ammonia)
LVQ40-T13-8 Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. + bypass | Buffer: FKM
LVQ40-T13R-8 Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: High BP + flow adj. + bypass | Buffer: FKM
LVQ40-T13-8-K Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. + bypass | Buffer: FFKM
LVQ40-T13R-8-K Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: High BP + flow adj. + bypass | Buffer: FFKM
LVQ40-T13-8-N Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. + bypass | Buffer: EPDM (ammonia)
LVQ40-T13R-8-N Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: High BP + flow adj. + bypass | Buffer: EPDM (ammonia)
LVQ40-T13-9 Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + indicator | Buffer: FKM
LVQ40-T13R-9 Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: High BP + indicator | Buffer: FKM
LVQ40-T13-9-K Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + indicator | Buffer: FFKM
LVQ40-T13R-9-K Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: High BP + indicator | Buffer: FFKM
LVQ40-T13-9-N Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + indicator | Buffer: EPDM (ammonia)
LVQ40-T13R-9-N Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: High BP + indicator | Buffer: EPDM (ammonia)
LVQ41-T13 Body class: 4 (ø10 orifice) | Valve type: N.O. | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM
LVQ41-T13R Body class: 4 (ø10 orifice) | Valve type: N.O. | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM
LVQ41-T13-J Body class: 4 (ø10 orifice) | Valve type: N.O. | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM, high temp. 170 C
LVQ41-T13R-J Body class: 4 (ø10 orifice) | Valve type: N.O. | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM, high temp. 170 C
LVQ41-T13-K Body class: 4 (ø10 orifice) | Valve type: N.O. | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FFKM
LVQ41-T13R-K Body class: 4 (ø10 orifice) | Valve type: N.O. | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FFKM
LVQ41-T13-N Body class: 4 (ø10 orifice) | Valve type: N.O. | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: EPDM (ammonia)
LVQ41-T13R-N Body class: 4 (ø10 orifice) | Valve type: N.O. | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: None | Buffer: EPDM (ammonia)
LVQ42-T13 Body class: 4 (ø10 orifice) | Valve type: Double acting | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM
LVQ42-T13R Body class: 4 (ø10 orifice) | Valve type: Double acting | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM
LVQ42-T13-J Body class: 4 (ø10 orifice) | Valve type: Double acting | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM, high temp. 170 C
LVQ42-T13R-J Body class: 4 (ø10 orifice) | Valve type: Double acting | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM, high temp. 170 C
LVQ42-T13-K Body class: 4 (ø10 orifice) | Valve type: Double acting | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FFKM
LVQ42-T13R-K Body class: 4 (ø10 orifice) | Valve type: Double acting | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FFKM
LVQ42-T13-N Body class: 4 (ø10 orifice) | Valve type: Double acting | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: EPDM (ammonia)
LVQ42-T13R-N Body class: 4 (ø10 orifice) | Valve type: Double acting | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: None | Buffer: EPDM (ammonia)
LVQ42-T13-2 Body class: 4 (ø10 orifice) | Valve type: Double acting | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: FKM
LVQ42-T13R-2 Body class: 4 (ø10 orifice) | Valve type: Double acting | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: FKM
LVQ42-T13-2-K Body class: 4 (ø10 orifice) | Valve type: Double acting | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: FFKM
LVQ42-T13R-2-K Body class: 4 (ø10 orifice) | Valve type: Double acting | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: FFKM
LVQ42-T13-2-N Body class: 4 (ø10 orifice) | Valve type: Double acting | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: EPDM (ammonia)
LVQ42-T13R-2-N Body class: 4 (ø10 orifice) | Valve type: Double acting | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: EPDM (ammonia)
LVQ50-T19 Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM
LVQ50-T19R Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM
LVQ50-T19-J Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM, high temp. 170 C
LVQ50-T19R-J Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM, high temp. 170 C
LVQ50-T19-K Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FFKM
LVQ50-T19R-K Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FFKM
LVQ50-T19-N Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: EPDM (ammonia)
LVQ50-T19R-N Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: None | Buffer: EPDM (ammonia)
LVQ50-T19-1 Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adjustment | Buffer: FKM
LVQ50-T19R-1 Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: Flow adjustment | Buffer: FKM
LVQ50-T19-1-J Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adjustment | Buffer: FKM, high temp. 170 C
LVQ50-T19R-1-J Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: Flow adjustment | Buffer: FKM, high temp. 170 C
LVQ50-T19-1-K Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adjustment | Buffer: FFKM
LVQ50-T19R-1-K Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: Flow adjustment | Buffer: FFKM
LVQ50-T19-1-N Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adjustment | Buffer: EPDM (ammonia)
LVQ50-T19R-1-N Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: Flow adjustment | Buffer: EPDM (ammonia)
LVQ50-T19-2 Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: FKM
LVQ50-T19R-2 Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: FKM
LVQ50-T19-2-K Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: FFKM
LVQ50-T19R-2-K Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: FFKM
LVQ50-T19-2-N Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: EPDM (ammonia)
LVQ50-T19R-2-N Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: EPDM (ammonia)
LVQ50-T19-3 Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adj. + bypass | Buffer: FKM
LVQ50-T19R-3 Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: Flow adj. + bypass | Buffer: FKM
LVQ50-T19-3-K Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adj. + bypass | Buffer: FFKM
LVQ50-T19R-3-K Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: Flow adj. + bypass | Buffer: FFKM
LVQ50-T19-3-N Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adj. + bypass | Buffer: EPDM (ammonia)
LVQ50-T19R-3-N Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: Flow adj. + bypass | Buffer: EPDM (ammonia)
LVQ50-T19-4 Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Indicator | Buffer: FKM
LVQ50-T19R-4 Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: Indicator | Buffer: FKM
LVQ50-T19-4-K Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Indicator | Buffer: FFKM
LVQ50-T19R-4-K Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: Indicator | Buffer: FFKM
LVQ50-T19-4-N Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Indicator | Buffer: EPDM (ammonia)
LVQ50-T19R-4-N Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: Indicator | Buffer: EPDM (ammonia)
LVQ50-T19-5 Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High back pressure 0.42 MPa | Buffer: FKM
LVQ50-T19R-5 Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: High back pressure 0.42 MPa | Buffer: FKM
LVQ50-T19-5-K Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High back pressure 0.42 MPa | Buffer: FFKM
LVQ50-T19R-5-K Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: High back pressure 0.42 MPa | Buffer: FFKM
LVQ50-T19-5-N Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High back pressure 0.42 MPa | Buffer: EPDM (ammonia)
LVQ50-T19R-5-N Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: High back pressure 0.42 MPa | Buffer: EPDM (ammonia)
LVQ50-T19-6 Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. | Buffer: FKM
LVQ50-T19R-6 Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: High BP + flow adj. | Buffer: FKM
LVQ50-T19-6-K Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. | Buffer: FFKM
LVQ50-T19R-6-K Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: High BP + flow adj. | Buffer: FFKM
LVQ50-T19-6-N Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. | Buffer: EPDM (ammonia)
LVQ50-T19R-6-N Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: High BP + flow adj. | Buffer: EPDM (ammonia)
LVQ50-T19-7 Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + bypass | Buffer: FKM
LVQ50-T19R-7 Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: High BP + bypass | Buffer: FKM
LVQ50-T19-7-K Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + bypass | Buffer: FFKM
LVQ50-T19R-7-K Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: High BP + bypass | Buffer: FFKM
LVQ50-T19-7-N Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + bypass | Buffer: EPDM (ammonia)
LVQ50-T19R-7-N Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: High BP + bypass | Buffer: EPDM (ammonia)
LVQ50-T19-8 Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. + bypass | Buffer: FKM
LVQ50-T19R-8 Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: High BP + flow adj. + bypass | Buffer: FKM
LVQ50-T19-8-K Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. + bypass | Buffer: FFKM
LVQ50-T19R-8-K Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: High BP + flow adj. + bypass | Buffer: FFKM
LVQ50-T19-8-N Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. + bypass | Buffer: EPDM (ammonia)
LVQ50-T19R-8-N Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: High BP + flow adj. + bypass | Buffer: EPDM (ammonia)
LVQ50-T19-9 Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + indicator | Buffer: FKM
LVQ50-T19R-9 Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: High BP + indicator | Buffer: FKM
LVQ50-T19-9-K Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + indicator | Buffer: FFKM
LVQ50-T19R-9-K Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: High BP + indicator | Buffer: FFKM
LVQ50-T19-9-N Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + indicator | Buffer: EPDM (ammonia)
LVQ50-T19R-9-N Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: High BP + indicator | Buffer: EPDM (ammonia)
LVQ51-T19 Body class: 5 (ø16 orifice) | Valve type: N.O. | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM
LVQ51-T19R Body class: 5 (ø16 orifice) | Valve type: N.O. | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM
LVQ51-T19-J Body class: 5 (ø16 orifice) | Valve type: N.O. | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM, high temp. 170 C
LVQ51-T19R-J Body class: 5 (ø16 orifice) | Valve type: N.O. | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM, high temp. 170 C
LVQ51-T19-K Body class: 5 (ø16 orifice) | Valve type: N.O. | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FFKM
LVQ51-T19R-K Body class: 5 (ø16 orifice) | Valve type: N.O. | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FFKM
LVQ51-T19-N Body class: 5 (ø16 orifice) | Valve type: N.O. | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: EPDM (ammonia)
LVQ51-T19R-N Body class: 5 (ø16 orifice) | Valve type: N.O. | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: None | Buffer: EPDM (ammonia)
LVQ52-T19 Body class: 5 (ø16 orifice) | Valve type: Double acting | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM
LVQ52-T19R Body class: 5 (ø16 orifice) | Valve type: Double acting | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM
LVQ52-T19-J Body class: 5 (ø16 orifice) | Valve type: Double acting | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM, high temp. 170 C
LVQ52-T19R-J Body class: 5 (ø16 orifice) | Valve type: Double acting | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM, high temp. 170 C
LVQ52-T19-K Body class: 5 (ø16 orifice) | Valve type: Double acting | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FFKM
LVQ52-T19R-K Body class: 5 (ø16 orifice) | Valve type: Double acting | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FFKM
LVQ52-T19-N Body class: 5 (ø16 orifice) | Valve type: Double acting | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: EPDM (ammonia)
LVQ52-T19R-N Body class: 5 (ø16 orifice) | Valve type: Double acting | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: None | Buffer: EPDM (ammonia)
LVQ52-T19-2 Body class: 5 (ø16 orifice) | Valve type: Double acting | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: FKM
LVQ52-T19R-2 Body class: 5 (ø16 orifice) | Valve type: Double acting | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: FKM
LVQ52-T19-2-K Body class: 5 (ø16 orifice) | Valve type: Double acting | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: FFKM
LVQ52-T19R-2-K Body class: 5 (ø16 orifice) | Valve type: Double acting | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: FFKM
LVQ52-T19-2-N Body class: 5 (ø16 orifice) | Valve type: Double acting | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: EPDM (ammonia)
LVQ52-T19R-2-N Body class: 5 (ø16 orifice) | Valve type: Double acting | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: EPDM (ammonia)
LVQ60-T25 Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM
LVQ60-T25R Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM
LVQ60-T25-J Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM, high temp. 170 C
LVQ60-T25R-J Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM, high temp. 170 C
LVQ60-T25-K Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FFKM
LVQ60-T25R-K Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FFKM
LVQ60-T25-N Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: EPDM (ammonia)
LVQ60-T25R-N Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: None | Buffer: EPDM (ammonia)
LVQ60-T25-P Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM, high flow
LVQ60-T25R-P Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM, high flow
LVQ60-T25-1 Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adjustment | Buffer: FKM
LVQ60-T25R-1 Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: Flow adjustment | Buffer: FKM
LVQ60-T25-1-J Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adjustment | Buffer: FKM, high temp. 170 C
LVQ60-T25R-1-J Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: Flow adjustment | Buffer: FKM, high temp. 170 C
LVQ60-T25-1-K Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adjustment | Buffer: FFKM
LVQ60-T25R-1-K Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: Flow adjustment | Buffer: FFKM
LVQ60-T25-1-N Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adjustment | Buffer: EPDM (ammonia)
LVQ60-T25R-1-N Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: Flow adjustment | Buffer: EPDM (ammonia)
LVQ60-T25-2 Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: FKM
LVQ60-T25R-2 Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: FKM
LVQ60-T25-2-K Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: FFKM
LVQ60-T25R-2-K Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: FFKM
LVQ60-T25-2-N Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: EPDM (ammonia)
LVQ60-T25R-2-N Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: EPDM (ammonia)
LVQ60-T25-3 Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adj. + bypass | Buffer: FKM
LVQ60-T25R-3 Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: Flow adj. + bypass | Buffer: FKM
LVQ60-T25-3-K Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adj. + bypass | Buffer: FFKM
LVQ60-T25R-3-K Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: Flow adj. + bypass | Buffer: FFKM
LVQ60-T25-3-N Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adj. + bypass | Buffer: EPDM (ammonia)
LVQ60-T25R-3-N Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: Flow adj. + bypass | Buffer: EPDM (ammonia)
LVQ60-T25-4 Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Indicator | Buffer: FKM
LVQ60-T25R-4 Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: Indicator | Buffer: FKM
LVQ60-T25-4-K Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Indicator | Buffer: FFKM
LVQ60-T25R-4-K Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: Indicator | Buffer: FFKM
LVQ60-T25-4-N Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Indicator | Buffer: EPDM (ammonia)
LVQ60-T25R-4-N Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: Indicator | Buffer: EPDM (ammonia)
LVQ60-T25-4-P Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Indicator | Buffer: FKM, high flow
LVQ60-T25R-4-P Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: Indicator | Buffer: FKM, high flow
LVQ60-T25-5 Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High back pressure 0.42 MPa | Buffer: FKM
LVQ60-T25R-5 Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: High back pressure 0.42 MPa | Buffer: FKM
LVQ60-T25-5-K Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High back pressure 0.42 MPa | Buffer: FFKM
LVQ60-T25R-5-K Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: High back pressure 0.42 MPa | Buffer: FFKM
LVQ60-T25-5-N Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High back pressure 0.42 MPa | Buffer: EPDM (ammonia)
LVQ60-T25R-5-N Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: High back pressure 0.42 MPa | Buffer: EPDM (ammonia)
LVQ60-T25-5-P Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High back pressure 0.42 MPa | Buffer: FKM, high flow
LVQ60-T25R-5-P Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: High back pressure 0.42 MPa | Buffer: FKM, high flow
LVQ60-T25-6 Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. | Buffer: FKM
LVQ60-T25R-6 Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: High BP + flow adj. | Buffer: FKM
LVQ60-T25-6-K Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. | Buffer: FFKM
LVQ60-T25R-6-K Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: High BP + flow adj. | Buffer: FFKM
LVQ60-T25-6-N Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. | Buffer: EPDM (ammonia)
LVQ60-T25R-6-N Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: High BP + flow adj. | Buffer: EPDM (ammonia)
LVQ60-T25-7 Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + bypass | Buffer: FKM
LVQ60-T25R-7 Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: High BP + bypass | Buffer: FKM
LVQ60-T25-7-K Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + bypass | Buffer: FFKM
LVQ60-T25R-7-K Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: High BP + bypass | Buffer: FFKM
LVQ60-T25-7-N Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + bypass | Buffer: EPDM (ammonia)
LVQ60-T25R-7-N Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: High BP + bypass | Buffer: EPDM (ammonia)
LVQ60-T25-8 Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. + bypass | Buffer: FKM
LVQ60-T25R-8 Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: High BP + flow adj. + bypass | Buffer: FKM
LVQ60-T25-8-K Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. + bypass | Buffer: FFKM
LVQ60-T25R-8-K Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: High BP + flow adj. + bypass | Buffer: FFKM
LVQ60-T25-8-N Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. + bypass | Buffer: EPDM (ammonia)
LVQ60-T25R-8-N Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: High BP + flow adj. + bypass | Buffer: EPDM (ammonia)
LVQ60-T25-9 Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + indicator | Buffer: FKM
LVQ60-T25R-9 Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: High BP + indicator | Buffer: FKM
LVQ60-T25-9-K Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + indicator | Buffer: FFKM
LVQ60-T25R-9-K Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: High BP + indicator | Buffer: FFKM
LVQ60-T25-9-N Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + indicator | Buffer: EPDM (ammonia)
LVQ60-T25R-9-N Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: High BP + indicator | Buffer: EPDM (ammonia)
LVQ61-T25 Body class: 6 (ø22 orifice) | Valve type: N.O. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM
LVQ61-T25R Body class: 6 (ø22 orifice) | Valve type: N.O. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM
LVQ61-T25-J Body class: 6 (ø22 orifice) | Valve type: N.O. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM, high temp. 170 C
LVQ61-T25R-J Body class: 6 (ø22 orifice) | Valve type: N.O. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM, high temp. 170 C
LVQ61-T25-K Body class: 6 (ø22 orifice) | Valve type: N.O. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FFKM
LVQ61-T25R-K Body class: 6 (ø22 orifice) | Valve type: N.O. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FFKM
LVQ61-T25-N Body class: 6 (ø22 orifice) | Valve type: N.O. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: EPDM (ammonia)
LVQ61-T25R-N Body class: 6 (ø22 orifice) | Valve type: N.O. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: None | Buffer: EPDM (ammonia)
LVQ61-T25-P Body class: 6 (ø22 orifice) | Valve type: N.O. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM, high flow
LVQ61-T25R-P Body class: 6 (ø22 orifice) | Valve type: N.O. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM, high flow
LVQ62-T25 Body class: 6 (ø22 orifice) | Valve type: Double acting | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM
LVQ62-T25R Body class: 6 (ø22 orifice) | Valve type: Double acting | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM
LVQ62-T25-J Body class: 6 (ø22 orifice) | Valve type: Double acting | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM, high temp. 170 C
LVQ62-T25R-J Body class: 6 (ø22 orifice) | Valve type: Double acting | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM, high temp. 170 C
LVQ62-T25-K Body class: 6 (ø22 orifice) | Valve type: Double acting | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FFKM
LVQ62-T25R-K Body class: 6 (ø22 orifice) | Valve type: Double acting | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FFKM
LVQ62-T25-N Body class: 6 (ø22 orifice) | Valve type: Double acting | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: EPDM (ammonia)
LVQ62-T25R-N Body class: 6 (ø22 orifice) | Valve type: Double acting | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: None | Buffer: EPDM (ammonia)
LVQ62-T25-P Body class: 6 (ø22 orifice) | Valve type: Double acting | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM, high flow
LVQ62-T25R-P Body class: 6 (ø22 orifice) | Valve type: Double acting | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM, high flow
LVQ62-T25-2 Body class: 6 (ø22 orifice) | Valve type: Double acting | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: FKM
LVQ62-T25R-2 Body class: 6 (ø22 orifice) | Valve type: Double acting | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: FKM
LVQ62-T25-2-K Body class: 6 (ø22 orifice) | Valve type: Double acting | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: FFKM
LVQ62-T25R-2-K Body class: 6 (ø22 orifice) | Valve type: Double acting | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: FFKM
LVQ62-T25-2-N Body class: 6 (ø22 orifice) | Valve type: Double acting | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: EPDM (ammonia)
LVQ62-T25R-2-N Body class: 6 (ø22 orifice) | Valve type: Double acting | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: EPDM (ammonia)
Chemical ValvesSMC
698 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC LVQ-T Air Operated Chemical Valve (Tube Integral Type)

Brand SMC·Chemical Valves

Available part numbers (698)

LVQ20-T06, LVQ20-T06R, LVQ20-T06-J, LVQ20-T06R-J, LVQ20-T06-K, LVQ20-T06R-K, LVQ20-T06-N, LVQ20-T06R-N, LVQ20-T06-1, LVQ20-T06R-1 + 688 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LVQ20-T06Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM
LVQ20-T06RBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM
LVQ20-T06-JBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM, high temp. 170 C
LVQ20-T06R-JBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM, high temp. 170 C
LVQ20-T06-KBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FFKM
LVQ20-T06R-KBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: None | Buffer: FFKM
LVQ20-T06-NBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: EPDM (ammonia)
LVQ20-T06R-NBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: None | Buffer: EPDM (ammonia)
LVQ20-T06-1Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adjustment | Buffer: FKM
LVQ20-T06R-1Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: Flow adjustment | Buffer: FKM
LVQ20-T06-1-JBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adjustment | Buffer: FKM, high temp. 170 C
LVQ20-T06R-1-JBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: Flow adjustment | Buffer: FKM, high temp. 170 C
LVQ20-T06-1-KBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adjustment | Buffer: FFKM
LVQ20-T06R-1-KBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: Flow adjustment | Buffer: FFKM
LVQ20-T06-1-NBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adjustment | Buffer: EPDM (ammonia)
LVQ20-T06R-1-NBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: Flow adjustment | Buffer: EPDM (ammonia)
LVQ20-T06-2Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: FKM
LVQ20-T06R-2Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: FKM
LVQ20-T06-2-KBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: FFKM
LVQ20-T06R-2-KBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: FFKM
LVQ20-T06-2-NBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: EPDM (ammonia)
LVQ20-T06R-2-NBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: EPDM (ammonia)
LVQ20-T06-3Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adj. + bypass | Buffer: FKM
LVQ20-T06R-3Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: Flow adj. + bypass | Buffer: FKM
LVQ20-T06-3-KBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adj. + bypass | Buffer: FFKM
LVQ20-T06R-3-KBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: Flow adj. + bypass | Buffer: FFKM
LVQ20-T06-3-NBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adj. + bypass | Buffer: EPDM (ammonia)
LVQ20-T06R-3-NBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: Flow adj. + bypass | Buffer: EPDM (ammonia)
LVQ20-T06-4Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Indicator | Buffer: FKM
LVQ20-T06R-4Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: Indicator | Buffer: FKM
LVQ20-T06-4-KBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Indicator | Buffer: FFKM
LVQ20-T06R-4-KBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: Indicator | Buffer: FFKM
LVQ20-T06-4-NBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Indicator | Buffer: EPDM (ammonia)
LVQ20-T06R-4-NBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: Indicator | Buffer: EPDM (ammonia)
LVQ20-T06-5Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High back pressure 0.42 MPa | Buffer: FKM
LVQ20-T06R-5Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: High back pressure 0.42 MPa | Buffer: FKM
LVQ20-T06-5-KBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High back pressure 0.42 MPa | Buffer: FFKM
LVQ20-T06R-5-KBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: High back pressure 0.42 MPa | Buffer: FFKM
LVQ20-T06-5-NBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High back pressure 0.42 MPa | Buffer: EPDM (ammonia)
LVQ20-T06R-5-NBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: High back pressure 0.42 MPa | Buffer: EPDM (ammonia)
LVQ20-T06-6Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. | Buffer: FKM
LVQ20-T06R-6Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: High BP + flow adj. | Buffer: FKM
LVQ20-T06-6-KBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. | Buffer: FFKM
LVQ20-T06R-6-KBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: High BP + flow adj. | Buffer: FFKM
LVQ20-T06-6-NBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. | Buffer: EPDM (ammonia)
LVQ20-T06R-6-NBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: High BP + flow adj. | Buffer: EPDM (ammonia)
LVQ20-T06-7Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + bypass | Buffer: FKM
LVQ20-T06R-7Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: High BP + bypass | Buffer: FKM
LVQ20-T06-7-KBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + bypass | Buffer: FFKM
LVQ20-T06R-7-KBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: High BP + bypass | Buffer: FFKM
LVQ20-T06-7-NBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + bypass | Buffer: EPDM (ammonia)
LVQ20-T06R-7-NBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: High BP + bypass | Buffer: EPDM (ammonia)
LVQ20-T06-8Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. + bypass | Buffer: FKM
LVQ20-T06R-8Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: High BP + flow adj. + bypass | Buffer: FKM
LVQ20-T06-8-KBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. + bypass | Buffer: FFKM
LVQ20-T06R-8-KBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: High BP + flow adj. + bypass | Buffer: FFKM
LVQ20-T06-8-NBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. + bypass | Buffer: EPDM (ammonia)
LVQ20-T06R-8-NBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: High BP + flow adj. + bypass | Buffer: EPDM (ammonia)
LVQ20-T06-9Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + indicator | Buffer: FKM
LVQ20-T06R-9Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: High BP + indicator | Buffer: FKM
LVQ20-T06-9-KBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + indicator | Buffer: FFKM
LVQ20-T06R-9-KBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: High BP + indicator | Buffer: FFKM
LVQ20-T06-9-NBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + indicator | Buffer: EPDM (ammonia)
LVQ20-T06R-9-NBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: High BP + indicator | Buffer: EPDM (ammonia)
LVQ21-T06Body class: 2 (ø4 orifice) | Valve type: N.O. | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM
LVQ21-T06RBody class: 2 (ø4 orifice) | Valve type: N.O. | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM
LVQ21-T06-JBody class: 2 (ø4 orifice) | Valve type: N.O. | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM, high temp. 170 C
LVQ21-T06R-JBody class: 2 (ø4 orifice) | Valve type: N.O. | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM, high temp. 170 C
LVQ21-T06-KBody class: 2 (ø4 orifice) | Valve type: N.O. | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FFKM
LVQ21-T06R-KBody class: 2 (ø4 orifice) | Valve type: N.O. | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: None | Buffer: FFKM
LVQ21-T06-NBody class: 2 (ø4 orifice) | Valve type: N.O. | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: EPDM (ammonia)
LVQ21-T06R-NBody class: 2 (ø4 orifice) | Valve type: N.O. | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: None | Buffer: EPDM (ammonia)
LVQ22-T06Body class: 2 (ø4 orifice) | Valve type: Double acting | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM
LVQ22-T06RBody class: 2 (ø4 orifice) | Valve type: Double acting | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM
LVQ22-T06-JBody class: 2 (ø4 orifice) | Valve type: Double acting | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM, high temp. 170 C
LVQ22-T06R-JBody class: 2 (ø4 orifice) | Valve type: Double acting | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM, high temp. 170 C
LVQ22-T06-KBody class: 2 (ø4 orifice) | Valve type: Double acting | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FFKM
LVQ22-T06R-KBody class: 2 (ø4 orifice) | Valve type: Double acting | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: None | Buffer: FFKM
LVQ22-T06-NBody class: 2 (ø4 orifice) | Valve type: Double acting | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: EPDM (ammonia)
LVQ22-T06R-NBody class: 2 (ø4 orifice) | Valve type: Double acting | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: None | Buffer: EPDM (ammonia)
LVQ22-T06-2Body class: 2 (ø4 orifice) | Valve type: Double acting | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: FKM
LVQ22-T06R-2Body class: 2 (ø4 orifice) | Valve type: Double acting | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: FKM
LVQ22-T06-2-KBody class: 2 (ø4 orifice) | Valve type: Double acting | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: FFKM
LVQ22-T06R-2-KBody class: 2 (ø4 orifice) | Valve type: Double acting | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: FFKM
LVQ22-T06-2-NBody class: 2 (ø4 orifice) | Valve type: Double acting | Tube size: OD 6 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: EPDM (ammonia)
LVQ22-T06R-2-NBody class: 2 (ø4 orifice) | Valve type: Double acting | Tube size: OD 6 mm | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: EPDM (ammonia)
LVQ20-T07Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM
LVQ20-T07RBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM
LVQ20-T07-JBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM, high temp. 170 C
LVQ20-T07R-JBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM, high temp. 170 C
LVQ20-T07-KBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FFKM
LVQ20-T07R-KBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FFKM
LVQ20-T07-NBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: EPDM (ammonia)
LVQ20-T07R-NBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: None | Buffer: EPDM (ammonia)
LVQ20-T07-1Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adjustment | Buffer: FKM
LVQ20-T07R-1Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: Flow adjustment | Buffer: FKM
LVQ20-T07-1-JBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adjustment | Buffer: FKM, high temp. 170 C
LVQ20-T07R-1-JBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: Flow adjustment | Buffer: FKM, high temp. 170 C
LVQ20-T07-1-KBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adjustment | Buffer: FFKM
LVQ20-T07R-1-KBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: Flow adjustment | Buffer: FFKM
LVQ20-T07-1-NBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adjustment | Buffer: EPDM (ammonia)
LVQ20-T07R-1-NBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: Flow adjustment | Buffer: EPDM (ammonia)
LVQ20-T07-2Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: FKM
LVQ20-T07R-2Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: FKM
LVQ20-T07-2-KBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: FFKM
LVQ20-T07R-2-KBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: FFKM
LVQ20-T07-2-NBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: EPDM (ammonia)
LVQ20-T07R-2-NBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: EPDM (ammonia)
LVQ20-T07-3Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adj. + bypass | Buffer: FKM
LVQ20-T07R-3Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: Flow adj. + bypass | Buffer: FKM
LVQ20-T07-3-KBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adj. + bypass | Buffer: FFKM
LVQ20-T07R-3-KBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: Flow adj. + bypass | Buffer: FFKM
LVQ20-T07-3-NBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adj. + bypass | Buffer: EPDM (ammonia)
LVQ20-T07R-3-NBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: Flow adj. + bypass | Buffer: EPDM (ammonia)
LVQ20-T07-4Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Indicator | Buffer: FKM
LVQ20-T07R-4Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: Indicator | Buffer: FKM
LVQ20-T07-4-KBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Indicator | Buffer: FFKM
LVQ20-T07R-4-KBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: Indicator | Buffer: FFKM
LVQ20-T07-4-NBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Indicator | Buffer: EPDM (ammonia)
LVQ20-T07R-4-NBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: Indicator | Buffer: EPDM (ammonia)
LVQ20-T07-5Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High back pressure 0.42 MPa | Buffer: FKM
LVQ20-T07R-5Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: High back pressure 0.42 MPa | Buffer: FKM
LVQ20-T07-5-KBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High back pressure 0.42 MPa | Buffer: FFKM
LVQ20-T07R-5-KBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: High back pressure 0.42 MPa | Buffer: FFKM
LVQ20-T07-5-NBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High back pressure 0.42 MPa | Buffer: EPDM (ammonia)
LVQ20-T07R-5-NBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: High back pressure 0.42 MPa | Buffer: EPDM (ammonia)
LVQ20-T07-6Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. | Buffer: FKM
LVQ20-T07R-6Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: High BP + flow adj. | Buffer: FKM
LVQ20-T07-6-KBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. | Buffer: FFKM
LVQ20-T07R-6-KBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: High BP + flow adj. | Buffer: FFKM
LVQ20-T07-6-NBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. | Buffer: EPDM (ammonia)
LVQ20-T07R-6-NBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: High BP + flow adj. | Buffer: EPDM (ammonia)
LVQ20-T07-7Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + bypass | Buffer: FKM
LVQ20-T07R-7Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: High BP + bypass | Buffer: FKM
LVQ20-T07-7-KBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + bypass | Buffer: FFKM
LVQ20-T07R-7-KBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: High BP + bypass | Buffer: FFKM
LVQ20-T07-7-NBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + bypass | Buffer: EPDM (ammonia)
LVQ20-T07R-7-NBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: High BP + bypass | Buffer: EPDM (ammonia)
LVQ20-T07-8Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. + bypass | Buffer: FKM
LVQ20-T07R-8Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: High BP + flow adj. + bypass | Buffer: FKM
LVQ20-T07-8-KBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. + bypass | Buffer: FFKM
LVQ20-T07R-8-KBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: High BP + flow adj. + bypass | Buffer: FFKM
LVQ20-T07-8-NBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. + bypass | Buffer: EPDM (ammonia)
LVQ20-T07R-8-NBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: High BP + flow adj. + bypass | Buffer: EPDM (ammonia)
LVQ20-T07-9Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + indicator | Buffer: FKM
LVQ20-T07R-9Body class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: High BP + indicator | Buffer: FKM
LVQ20-T07-9-KBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + indicator | Buffer: FFKM
LVQ20-T07R-9-KBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: High BP + indicator | Buffer: FFKM
LVQ20-T07-9-NBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + indicator | Buffer: EPDM (ammonia)
LVQ20-T07R-9-NBody class: 2 (ø4 orifice) | Valve type: N.C. | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: High BP + indicator | Buffer: EPDM (ammonia)
LVQ21-T07Body class: 2 (ø4 orifice) | Valve type: N.O. | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM
LVQ21-T07RBody class: 2 (ø4 orifice) | Valve type: N.O. | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM
LVQ21-T07-JBody class: 2 (ø4 orifice) | Valve type: N.O. | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM, high temp. 170 C
LVQ21-T07R-JBody class: 2 (ø4 orifice) | Valve type: N.O. | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM, high temp. 170 C
LVQ21-T07-KBody class: 2 (ø4 orifice) | Valve type: N.O. | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FFKM
LVQ21-T07R-KBody class: 2 (ø4 orifice) | Valve type: N.O. | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FFKM
LVQ21-T07-NBody class: 2 (ø4 orifice) | Valve type: N.O. | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: EPDM (ammonia)
LVQ21-T07R-NBody class: 2 (ø4 orifice) | Valve type: N.O. | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: None | Buffer: EPDM (ammonia)
LVQ22-T07Body class: 2 (ø4 orifice) | Valve type: Double acting | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM
LVQ22-T07RBody class: 2 (ø4 orifice) | Valve type: Double acting | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM
LVQ22-T07-JBody class: 2 (ø4 orifice) | Valve type: Double acting | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM, high temp. 170 C
LVQ22-T07R-JBody class: 2 (ø4 orifice) | Valve type: Double acting | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM, high temp. 170 C
LVQ22-T07-KBody class: 2 (ø4 orifice) | Valve type: Double acting | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FFKM
LVQ22-T07R-KBody class: 2 (ø4 orifice) | Valve type: Double acting | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FFKM
LVQ22-T07-NBody class: 2 (ø4 orifice) | Valve type: Double acting | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: EPDM (ammonia)
LVQ22-T07R-NBody class: 2 (ø4 orifice) | Valve type: Double acting | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: None | Buffer: EPDM (ammonia)
LVQ22-T07-2Body class: 2 (ø4 orifice) | Valve type: Double acting | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: FKM
LVQ22-T07R-2Body class: 2 (ø4 orifice) | Valve type: Double acting | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: FKM
LVQ22-T07-2-KBody class: 2 (ø4 orifice) | Valve type: Double acting | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: FFKM
LVQ22-T07R-2-KBody class: 2 (ø4 orifice) | Valve type: Double acting | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: FFKM
LVQ22-T07-2-NBody class: 2 (ø4 orifice) | Valve type: Double acting | Tube size: OD 1/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: EPDM (ammonia)
LVQ22-T07R-2-NBody class: 2 (ø4 orifice) | Valve type: Double acting | Tube size: OD 1/4 in | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: EPDM (ammonia)
LVQ30-T10Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM
LVQ30-T10RBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM
LVQ30-T10-JBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM, high temp. 170 C
LVQ30-T10R-JBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM, high temp. 170 C
LVQ30-T10-KBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FFKM
LVQ30-T10R-KBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: None | Buffer: FFKM
LVQ30-T10-NBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: EPDM (ammonia)
LVQ30-T10R-NBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: None | Buffer: EPDM (ammonia)
LVQ30-T10-1Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adjustment | Buffer: FKM
LVQ30-T10R-1Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: Flow adjustment | Buffer: FKM
LVQ30-T10-1-JBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adjustment | Buffer: FKM, high temp. 170 C
LVQ30-T10R-1-JBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: Flow adjustment | Buffer: FKM, high temp. 170 C
LVQ30-T10-1-KBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adjustment | Buffer: FFKM
LVQ30-T10R-1-KBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: Flow adjustment | Buffer: FFKM
LVQ30-T10-1-NBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adjustment | Buffer: EPDM (ammonia)
LVQ30-T10R-1-NBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: Flow adjustment | Buffer: EPDM (ammonia)
LVQ30-T10-2Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: FKM
LVQ30-T10R-2Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: FKM
LVQ30-T10-2-KBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: FFKM
LVQ30-T10R-2-KBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: FFKM
LVQ30-T10-2-NBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: EPDM (ammonia)
LVQ30-T10R-2-NBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: EPDM (ammonia)
LVQ30-T10-3Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adj. + bypass | Buffer: FKM
LVQ30-T10R-3Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: Flow adj. + bypass | Buffer: FKM
LVQ30-T10-3-KBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adj. + bypass | Buffer: FFKM
LVQ30-T10R-3-KBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: Flow adj. + bypass | Buffer: FFKM
LVQ30-T10-3-NBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adj. + bypass | Buffer: EPDM (ammonia)
LVQ30-T10R-3-NBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: Flow adj. + bypass | Buffer: EPDM (ammonia)
LVQ30-T10-4Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Indicator | Buffer: FKM
LVQ30-T10R-4Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: Indicator | Buffer: FKM
LVQ30-T10-4-KBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Indicator | Buffer: FFKM
LVQ30-T10R-4-KBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: Indicator | Buffer: FFKM
LVQ30-T10-4-NBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Indicator | Buffer: EPDM (ammonia)
LVQ30-T10R-4-NBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: Indicator | Buffer: EPDM (ammonia)
LVQ30-T10-5Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High back pressure 0.42 MPa | Buffer: FKM
LVQ30-T10R-5Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: High back pressure 0.42 MPa | Buffer: FKM
LVQ30-T10-5-KBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High back pressure 0.42 MPa | Buffer: FFKM
LVQ30-T10R-5-KBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: High back pressure 0.42 MPa | Buffer: FFKM
LVQ30-T10-5-NBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High back pressure 0.42 MPa | Buffer: EPDM (ammonia)
LVQ30-T10R-5-NBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: High back pressure 0.42 MPa | Buffer: EPDM (ammonia)
LVQ30-T10-6Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. | Buffer: FKM
LVQ30-T10R-6Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: High BP + flow adj. | Buffer: FKM
LVQ30-T10-6-KBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. | Buffer: FFKM
LVQ30-T10R-6-KBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: High BP + flow adj. | Buffer: FFKM
LVQ30-T10-6-NBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. | Buffer: EPDM (ammonia)
LVQ30-T10R-6-NBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: High BP + flow adj. | Buffer: EPDM (ammonia)
LVQ30-T10-7Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + bypass | Buffer: FKM
LVQ30-T10R-7Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: High BP + bypass | Buffer: FKM
LVQ30-T10-7-KBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + bypass | Buffer: FFKM
LVQ30-T10R-7-KBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: High BP + bypass | Buffer: FFKM
LVQ30-T10-7-NBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + bypass | Buffer: EPDM (ammonia)
LVQ30-T10R-7-NBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: High BP + bypass | Buffer: EPDM (ammonia)
LVQ30-T10-8Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. + bypass | Buffer: FKM
LVQ30-T10R-8Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: High BP + flow adj. + bypass | Buffer: FKM
LVQ30-T10-8-KBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. + bypass | Buffer: FFKM
LVQ30-T10R-8-KBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: High BP + flow adj. + bypass | Buffer: FFKM
LVQ30-T10-8-NBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. + bypass | Buffer: EPDM (ammonia)
LVQ30-T10R-8-NBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: High BP + flow adj. + bypass | Buffer: EPDM (ammonia)
LVQ30-T10-9Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + indicator | Buffer: FKM
LVQ30-T10R-9Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: High BP + indicator | Buffer: FKM
LVQ30-T10-9-KBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + indicator | Buffer: FFKM
LVQ30-T10R-9-KBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: High BP + indicator | Buffer: FFKM
LVQ30-T10-9-NBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + indicator | Buffer: EPDM (ammonia)
LVQ30-T10R-9-NBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: High BP + indicator | Buffer: EPDM (ammonia)
LVQ31-T10Body class: 3 (ø8 orifice) | Valve type: N.O. | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM
LVQ31-T10RBody class: 3 (ø8 orifice) | Valve type: N.O. | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM
LVQ31-T10-JBody class: 3 (ø8 orifice) | Valve type: N.O. | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM, high temp. 170 C
LVQ31-T10R-JBody class: 3 (ø8 orifice) | Valve type: N.O. | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM, high temp. 170 C
LVQ31-T10-KBody class: 3 (ø8 orifice) | Valve type: N.O. | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FFKM
LVQ31-T10R-KBody class: 3 (ø8 orifice) | Valve type: N.O. | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: None | Buffer: FFKM
LVQ31-T10-NBody class: 3 (ø8 orifice) | Valve type: N.O. | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: EPDM (ammonia)
LVQ31-T10R-NBody class: 3 (ø8 orifice) | Valve type: N.O. | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: None | Buffer: EPDM (ammonia)
LVQ32-T10Body class: 3 (ø8 orifice) | Valve type: Double acting | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM
LVQ32-T10RBody class: 3 (ø8 orifice) | Valve type: Double acting | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM
LVQ32-T10-JBody class: 3 (ø8 orifice) | Valve type: Double acting | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM, high temp. 170 C
LVQ32-T10R-JBody class: 3 (ø8 orifice) | Valve type: Double acting | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM, high temp. 170 C
LVQ32-T10-KBody class: 3 (ø8 orifice) | Valve type: Double acting | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FFKM
LVQ32-T10R-KBody class: 3 (ø8 orifice) | Valve type: Double acting | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: None | Buffer: FFKM
LVQ32-T10-NBody class: 3 (ø8 orifice) | Valve type: Double acting | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: EPDM (ammonia)
LVQ32-T10R-NBody class: 3 (ø8 orifice) | Valve type: Double acting | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: None | Buffer: EPDM (ammonia)
LVQ32-T10-2Body class: 3 (ø8 orifice) | Valve type: Double acting | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: FKM
LVQ32-T10R-2Body class: 3 (ø8 orifice) | Valve type: Double acting | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: FKM
LVQ32-T10-2-KBody class: 3 (ø8 orifice) | Valve type: Double acting | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: FFKM
LVQ32-T10R-2-KBody class: 3 (ø8 orifice) | Valve type: Double acting | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: FFKM
LVQ32-T10-2-NBody class: 3 (ø8 orifice) | Valve type: Double acting | Tube size: OD 10 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: EPDM (ammonia)
LVQ32-T10R-2-NBody class: 3 (ø8 orifice) | Valve type: Double acting | Tube size: OD 10 mm | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: EPDM (ammonia)
LVQ30-T11Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM
LVQ30-T11RBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM
LVQ30-T11-JBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM, high temp. 170 C
LVQ30-T11R-JBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM, high temp. 170 C
LVQ30-T11-KBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FFKM
LVQ30-T11R-KBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FFKM
LVQ30-T11-NBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: EPDM (ammonia)
LVQ30-T11R-NBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: None | Buffer: EPDM (ammonia)
LVQ30-T11-1Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adjustment | Buffer: FKM
LVQ30-T11R-1Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: Flow adjustment | Buffer: FKM
LVQ30-T11-1-JBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adjustment | Buffer: FKM, high temp. 170 C
LVQ30-T11R-1-JBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: Flow adjustment | Buffer: FKM, high temp. 170 C
LVQ30-T11-1-KBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adjustment | Buffer: FFKM
LVQ30-T11R-1-KBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: Flow adjustment | Buffer: FFKM
LVQ30-T11-1-NBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adjustment | Buffer: EPDM (ammonia)
LVQ30-T11R-1-NBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: Flow adjustment | Buffer: EPDM (ammonia)
LVQ30-T11-2Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: FKM
LVQ30-T11R-2Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: FKM
LVQ30-T11-2-KBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: FFKM
LVQ30-T11R-2-KBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: FFKM
LVQ30-T11-2-NBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: EPDM (ammonia)
LVQ30-T11R-2-NBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: EPDM (ammonia)
LVQ30-T11-3Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adj. + bypass | Buffer: FKM
LVQ30-T11R-3Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: Flow adj. + bypass | Buffer: FKM
LVQ30-T11-3-KBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adj. + bypass | Buffer: FFKM
LVQ30-T11R-3-KBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: Flow adj. + bypass | Buffer: FFKM
LVQ30-T11-3-NBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adj. + bypass | Buffer: EPDM (ammonia)
LVQ30-T11R-3-NBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: Flow adj. + bypass | Buffer: EPDM (ammonia)
LVQ30-T11-4Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Indicator | Buffer: FKM
LVQ30-T11R-4Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: Indicator | Buffer: FKM
LVQ30-T11-4-KBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Indicator | Buffer: FFKM
LVQ30-T11R-4-KBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: Indicator | Buffer: FFKM
LVQ30-T11-4-NBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Indicator | Buffer: EPDM (ammonia)
LVQ30-T11R-4-NBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: Indicator | Buffer: EPDM (ammonia)
LVQ30-T11-5Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High back pressure 0.42 MPa | Buffer: FKM
LVQ30-T11R-5Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: High back pressure 0.42 MPa | Buffer: FKM
LVQ30-T11-5-KBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High back pressure 0.42 MPa | Buffer: FFKM
LVQ30-T11R-5-KBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: High back pressure 0.42 MPa | Buffer: FFKM
LVQ30-T11-5-NBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High back pressure 0.42 MPa | Buffer: EPDM (ammonia)
LVQ30-T11R-5-NBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: High back pressure 0.42 MPa | Buffer: EPDM (ammonia)
LVQ30-T11-6Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. | Buffer: FKM
LVQ30-T11R-6Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: High BP + flow adj. | Buffer: FKM
LVQ30-T11-6-KBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. | Buffer: FFKM
LVQ30-T11R-6-KBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: High BP + flow adj. | Buffer: FFKM
LVQ30-T11-6-NBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. | Buffer: EPDM (ammonia)
LVQ30-T11R-6-NBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: High BP + flow adj. | Buffer: EPDM (ammonia)
LVQ30-T11-7Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + bypass | Buffer: FKM
LVQ30-T11R-7Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: High BP + bypass | Buffer: FKM
LVQ30-T11-7-KBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + bypass | Buffer: FFKM
LVQ30-T11R-7-KBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: High BP + bypass | Buffer: FFKM
LVQ30-T11-7-NBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + bypass | Buffer: EPDM (ammonia)
LVQ30-T11R-7-NBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: High BP + bypass | Buffer: EPDM (ammonia)
LVQ30-T11-8Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. + bypass | Buffer: FKM
LVQ30-T11R-8Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: High BP + flow adj. + bypass | Buffer: FKM
LVQ30-T11-8-KBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. + bypass | Buffer: FFKM
LVQ30-T11R-8-KBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: High BP + flow adj. + bypass | Buffer: FFKM
LVQ30-T11-8-NBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. + bypass | Buffer: EPDM (ammonia)
LVQ30-T11R-8-NBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: High BP + flow adj. + bypass | Buffer: EPDM (ammonia)
LVQ30-T11-9Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + indicator | Buffer: FKM
LVQ30-T11R-9Body class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: High BP + indicator | Buffer: FKM
LVQ30-T11-9-KBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + indicator | Buffer: FFKM
LVQ30-T11R-9-KBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: High BP + indicator | Buffer: FFKM
LVQ30-T11-9-NBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + indicator | Buffer: EPDM (ammonia)
LVQ30-T11R-9-NBody class: 3 (ø8 orifice) | Valve type: N.C. | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: High BP + indicator | Buffer: EPDM (ammonia)
LVQ31-T11Body class: 3 (ø8 orifice) | Valve type: N.O. | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM
LVQ31-T11RBody class: 3 (ø8 orifice) | Valve type: N.O. | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM
LVQ31-T11-JBody class: 3 (ø8 orifice) | Valve type: N.O. | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM, high temp. 170 C
LVQ31-T11R-JBody class: 3 (ø8 orifice) | Valve type: N.O. | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM, high temp. 170 C
LVQ31-T11-KBody class: 3 (ø8 orifice) | Valve type: N.O. | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FFKM
LVQ31-T11R-KBody class: 3 (ø8 orifice) | Valve type: N.O. | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FFKM
LVQ31-T11-NBody class: 3 (ø8 orifice) | Valve type: N.O. | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: EPDM (ammonia)
LVQ31-T11R-NBody class: 3 (ø8 orifice) | Valve type: N.O. | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: None | Buffer: EPDM (ammonia)
LVQ32-T11Body class: 3 (ø8 orifice) | Valve type: Double acting | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM
LVQ32-T11RBody class: 3 (ø8 orifice) | Valve type: Double acting | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM
LVQ32-T11-JBody class: 3 (ø8 orifice) | Valve type: Double acting | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM, high temp. 170 C
LVQ32-T11R-JBody class: 3 (ø8 orifice) | Valve type: Double acting | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM, high temp. 170 C
LVQ32-T11-KBody class: 3 (ø8 orifice) | Valve type: Double acting | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FFKM
LVQ32-T11R-KBody class: 3 (ø8 orifice) | Valve type: Double acting | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FFKM
LVQ32-T11-NBody class: 3 (ø8 orifice) | Valve type: Double acting | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: EPDM (ammonia)
LVQ32-T11R-NBody class: 3 (ø8 orifice) | Valve type: Double acting | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: None | Buffer: EPDM (ammonia)
LVQ32-T11-2Body class: 3 (ø8 orifice) | Valve type: Double acting | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: FKM
LVQ32-T11R-2Body class: 3 (ø8 orifice) | Valve type: Double acting | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: FKM
LVQ32-T11-2-KBody class: 3 (ø8 orifice) | Valve type: Double acting | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: FFKM
LVQ32-T11R-2-KBody class: 3 (ø8 orifice) | Valve type: Double acting | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: FFKM
LVQ32-T11-2-NBody class: 3 (ø8 orifice) | Valve type: Double acting | Tube size: OD 3/8 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: EPDM (ammonia)
LVQ32-T11R-2-NBody class: 3 (ø8 orifice) | Valve type: Double acting | Tube size: OD 3/8 in | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: EPDM (ammonia)
LVQ40-T12Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM
LVQ40-T12RBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM
LVQ40-T12-JBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM, high temp. 170 C
LVQ40-T12R-JBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM, high temp. 170 C
LVQ40-T12-KBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FFKM
LVQ40-T12R-KBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: None | Buffer: FFKM
LVQ40-T12-NBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: EPDM (ammonia)
LVQ40-T12R-NBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: None | Buffer: EPDM (ammonia)
LVQ40-T12-1Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adjustment | Buffer: FKM
LVQ40-T12R-1Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: Flow adjustment | Buffer: FKM
LVQ40-T12-1-JBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adjustment | Buffer: FKM, high temp. 170 C
LVQ40-T12R-1-JBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: Flow adjustment | Buffer: FKM, high temp. 170 C
LVQ40-T12-1-KBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adjustment | Buffer: FFKM
LVQ40-T12R-1-KBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: Flow adjustment | Buffer: FFKM
LVQ40-T12-1-NBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adjustment | Buffer: EPDM (ammonia)
LVQ40-T12R-1-NBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: Flow adjustment | Buffer: EPDM (ammonia)
LVQ40-T12-2Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: FKM
LVQ40-T12R-2Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: FKM
LVQ40-T12-2-KBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: FFKM
LVQ40-T12R-2-KBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: FFKM
LVQ40-T12-2-NBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: EPDM (ammonia)
LVQ40-T12R-2-NBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: EPDM (ammonia)
LVQ40-T12-3Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adj. + bypass | Buffer: FKM
LVQ40-T12R-3Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: Flow adj. + bypass | Buffer: FKM
LVQ40-T12-3-KBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adj. + bypass | Buffer: FFKM
LVQ40-T12R-3-KBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: Flow adj. + bypass | Buffer: FFKM
LVQ40-T12-3-NBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adj. + bypass | Buffer: EPDM (ammonia)
LVQ40-T12R-3-NBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: Flow adj. + bypass | Buffer: EPDM (ammonia)
LVQ40-T12-4Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Indicator | Buffer: FKM
LVQ40-T12R-4Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: Indicator | Buffer: FKM
LVQ40-T12-4-KBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Indicator | Buffer: FFKM
LVQ40-T12R-4-KBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: Indicator | Buffer: FFKM
LVQ40-T12-4-NBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Indicator | Buffer: EPDM (ammonia)
LVQ40-T12R-4-NBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: Indicator | Buffer: EPDM (ammonia)
LVQ40-T12-5Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High back pressure 0.42 MPa | Buffer: FKM
LVQ40-T12R-5Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: High back pressure 0.42 MPa | Buffer: FKM
LVQ40-T12-5-KBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High back pressure 0.42 MPa | Buffer: FFKM
LVQ40-T12R-5-KBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: High back pressure 0.42 MPa | Buffer: FFKM
LVQ40-T12-5-NBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High back pressure 0.42 MPa | Buffer: EPDM (ammonia)
LVQ40-T12R-5-NBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: High back pressure 0.42 MPa | Buffer: EPDM (ammonia)
LVQ40-T12-6Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. | Buffer: FKM
LVQ40-T12R-6Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: High BP + flow adj. | Buffer: FKM
LVQ40-T12-6-KBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. | Buffer: FFKM
LVQ40-T12R-6-KBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: High BP + flow adj. | Buffer: FFKM
LVQ40-T12-6-NBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. | Buffer: EPDM (ammonia)
LVQ40-T12R-6-NBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: High BP + flow adj. | Buffer: EPDM (ammonia)
LVQ40-T12-7Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + bypass | Buffer: FKM
LVQ40-T12R-7Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: High BP + bypass | Buffer: FKM
LVQ40-T12-7-KBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + bypass | Buffer: FFKM
LVQ40-T12R-7-KBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: High BP + bypass | Buffer: FFKM
LVQ40-T12-7-NBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + bypass | Buffer: EPDM (ammonia)
LVQ40-T12R-7-NBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: High BP + bypass | Buffer: EPDM (ammonia)
LVQ40-T12-8Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. + bypass | Buffer: FKM
LVQ40-T12R-8Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: High BP + flow adj. + bypass | Buffer: FKM
LVQ40-T12-8-KBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. + bypass | Buffer: FFKM
LVQ40-T12R-8-KBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: High BP + flow adj. + bypass | Buffer: FFKM
LVQ40-T12-8-NBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. + bypass | Buffer: EPDM (ammonia)
LVQ40-T12R-8-NBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: High BP + flow adj. + bypass | Buffer: EPDM (ammonia)
LVQ40-T12-9Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + indicator | Buffer: FKM
LVQ40-T12R-9Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: High BP + indicator | Buffer: FKM
LVQ40-T12-9-KBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + indicator | Buffer: FFKM
LVQ40-T12R-9-KBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: High BP + indicator | Buffer: FFKM
LVQ40-T12-9-NBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + indicator | Buffer: EPDM (ammonia)
LVQ40-T12R-9-NBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: High BP + indicator | Buffer: EPDM (ammonia)
LVQ41-T12Body class: 4 (ø10 orifice) | Valve type: N.O. | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM
LVQ41-T12RBody class: 4 (ø10 orifice) | Valve type: N.O. | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM
LVQ41-T12-JBody class: 4 (ø10 orifice) | Valve type: N.O. | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM, high temp. 170 C
LVQ41-T12R-JBody class: 4 (ø10 orifice) | Valve type: N.O. | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM, high temp. 170 C
LVQ41-T12-KBody class: 4 (ø10 orifice) | Valve type: N.O. | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FFKM
LVQ41-T12R-KBody class: 4 (ø10 orifice) | Valve type: N.O. | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: None | Buffer: FFKM
LVQ41-T12-NBody class: 4 (ø10 orifice) | Valve type: N.O. | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: EPDM (ammonia)
LVQ41-T12R-NBody class: 4 (ø10 orifice) | Valve type: N.O. | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: None | Buffer: EPDM (ammonia)
LVQ42-T12Body class: 4 (ø10 orifice) | Valve type: Double acting | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM
LVQ42-T12RBody class: 4 (ø10 orifice) | Valve type: Double acting | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM
LVQ42-T12-JBody class: 4 (ø10 orifice) | Valve type: Double acting | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM, high temp. 170 C
LVQ42-T12R-JBody class: 4 (ø10 orifice) | Valve type: Double acting | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM, high temp. 170 C
LVQ42-T12-KBody class: 4 (ø10 orifice) | Valve type: Double acting | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FFKM
LVQ42-T12R-KBody class: 4 (ø10 orifice) | Valve type: Double acting | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: None | Buffer: FFKM
LVQ42-T12-NBody class: 4 (ø10 orifice) | Valve type: Double acting | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: EPDM (ammonia)
LVQ42-T12R-NBody class: 4 (ø10 orifice) | Valve type: Double acting | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: None | Buffer: EPDM (ammonia)
LVQ42-T12-2Body class: 4 (ø10 orifice) | Valve type: Double acting | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: FKM
LVQ42-T12R-2Body class: 4 (ø10 orifice) | Valve type: Double acting | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: FKM
LVQ42-T12-2-KBody class: 4 (ø10 orifice) | Valve type: Double acting | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: FFKM
LVQ42-T12R-2-KBody class: 4 (ø10 orifice) | Valve type: Double acting | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: FFKM
LVQ42-T12-2-NBody class: 4 (ø10 orifice) | Valve type: Double acting | Tube size: OD 12 mm | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: EPDM (ammonia)
LVQ42-T12R-2-NBody class: 4 (ø10 orifice) | Valve type: Double acting | Tube size: OD 12 mm | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: EPDM (ammonia)
LVQ40-T13Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM
LVQ40-T13RBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM
LVQ40-T13-JBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM, high temp. 170 C
LVQ40-T13R-JBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM, high temp. 170 C
LVQ40-T13-KBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FFKM
LVQ40-T13R-KBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FFKM
LVQ40-T13-NBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: EPDM (ammonia)
LVQ40-T13R-NBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: None | Buffer: EPDM (ammonia)
LVQ40-T13-1Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adjustment | Buffer: FKM
LVQ40-T13R-1Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: Flow adjustment | Buffer: FKM
LVQ40-T13-1-JBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adjustment | Buffer: FKM, high temp. 170 C
LVQ40-T13R-1-JBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: Flow adjustment | Buffer: FKM, high temp. 170 C
LVQ40-T13-1-KBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adjustment | Buffer: FFKM
LVQ40-T13R-1-KBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: Flow adjustment | Buffer: FFKM
LVQ40-T13-1-NBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adjustment | Buffer: EPDM (ammonia)
LVQ40-T13R-1-NBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: Flow adjustment | Buffer: EPDM (ammonia)
LVQ40-T13-2Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: FKM
LVQ40-T13R-2Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: FKM
LVQ40-T13-2-KBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: FFKM
LVQ40-T13R-2-KBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: FFKM
LVQ40-T13-2-NBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: EPDM (ammonia)
LVQ40-T13R-2-NBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: EPDM (ammonia)
LVQ40-T13-3Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adj. + bypass | Buffer: FKM
LVQ40-T13R-3Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: Flow adj. + bypass | Buffer: FKM
LVQ40-T13-3-KBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adj. + bypass | Buffer: FFKM
LVQ40-T13R-3-KBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: Flow adj. + bypass | Buffer: FFKM
LVQ40-T13-3-NBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adj. + bypass | Buffer: EPDM (ammonia)
LVQ40-T13R-3-NBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: Flow adj. + bypass | Buffer: EPDM (ammonia)
LVQ40-T13-4Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Indicator | Buffer: FKM
LVQ40-T13R-4Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: Indicator | Buffer: FKM
LVQ40-T13-4-KBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Indicator | Buffer: FFKM
LVQ40-T13R-4-KBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: Indicator | Buffer: FFKM
LVQ40-T13-4-NBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Indicator | Buffer: EPDM (ammonia)
LVQ40-T13R-4-NBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: Indicator | Buffer: EPDM (ammonia)
LVQ40-T13-5Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High back pressure 0.42 MPa | Buffer: FKM
LVQ40-T13R-5Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: High back pressure 0.42 MPa | Buffer: FKM
LVQ40-T13-5-KBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High back pressure 0.42 MPa | Buffer: FFKM
LVQ40-T13R-5-KBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: High back pressure 0.42 MPa | Buffer: FFKM
LVQ40-T13-5-NBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High back pressure 0.42 MPa | Buffer: EPDM (ammonia)
LVQ40-T13R-5-NBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: High back pressure 0.42 MPa | Buffer: EPDM (ammonia)
LVQ40-T13-6Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. | Buffer: FKM
LVQ40-T13R-6Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: High BP + flow adj. | Buffer: FKM
LVQ40-T13-6-KBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. | Buffer: FFKM
LVQ40-T13R-6-KBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: High BP + flow adj. | Buffer: FFKM
LVQ40-T13-6-NBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. | Buffer: EPDM (ammonia)
LVQ40-T13R-6-NBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: High BP + flow adj. | Buffer: EPDM (ammonia)
LVQ40-T13-7Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + bypass | Buffer: FKM
LVQ40-T13R-7Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: High BP + bypass | Buffer: FKM
LVQ40-T13-7-KBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + bypass | Buffer: FFKM
LVQ40-T13R-7-KBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: High BP + bypass | Buffer: FFKM
LVQ40-T13-7-NBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + bypass | Buffer: EPDM (ammonia)
LVQ40-T13R-7-NBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: High BP + bypass | Buffer: EPDM (ammonia)
LVQ40-T13-8Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. + bypass | Buffer: FKM
LVQ40-T13R-8Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: High BP + flow adj. + bypass | Buffer: FKM
LVQ40-T13-8-KBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. + bypass | Buffer: FFKM
LVQ40-T13R-8-KBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: High BP + flow adj. + bypass | Buffer: FFKM
LVQ40-T13-8-NBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. + bypass | Buffer: EPDM (ammonia)
LVQ40-T13R-8-NBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: High BP + flow adj. + bypass | Buffer: EPDM (ammonia)
LVQ40-T13-9Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + indicator | Buffer: FKM
LVQ40-T13R-9Body class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: High BP + indicator | Buffer: FKM
LVQ40-T13-9-KBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + indicator | Buffer: FFKM
LVQ40-T13R-9-KBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: High BP + indicator | Buffer: FFKM
LVQ40-T13-9-NBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + indicator | Buffer: EPDM (ammonia)
LVQ40-T13R-9-NBody class: 4 (ø10 orifice) | Valve type: N.C. | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: High BP + indicator | Buffer: EPDM (ammonia)
LVQ41-T13Body class: 4 (ø10 orifice) | Valve type: N.O. | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM
LVQ41-T13RBody class: 4 (ø10 orifice) | Valve type: N.O. | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM
LVQ41-T13-JBody class: 4 (ø10 orifice) | Valve type: N.O. | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM, high temp. 170 C
LVQ41-T13R-JBody class: 4 (ø10 orifice) | Valve type: N.O. | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM, high temp. 170 C
LVQ41-T13-KBody class: 4 (ø10 orifice) | Valve type: N.O. | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FFKM
LVQ41-T13R-KBody class: 4 (ø10 orifice) | Valve type: N.O. | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FFKM
LVQ41-T13-NBody class: 4 (ø10 orifice) | Valve type: N.O. | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: EPDM (ammonia)
LVQ41-T13R-NBody class: 4 (ø10 orifice) | Valve type: N.O. | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: None | Buffer: EPDM (ammonia)
LVQ42-T13Body class: 4 (ø10 orifice) | Valve type: Double acting | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM
LVQ42-T13RBody class: 4 (ø10 orifice) | Valve type: Double acting | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM
LVQ42-T13-JBody class: 4 (ø10 orifice) | Valve type: Double acting | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM, high temp. 170 C
LVQ42-T13R-JBody class: 4 (ø10 orifice) | Valve type: Double acting | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM, high temp. 170 C
LVQ42-T13-KBody class: 4 (ø10 orifice) | Valve type: Double acting | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FFKM
LVQ42-T13R-KBody class: 4 (ø10 orifice) | Valve type: Double acting | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FFKM
LVQ42-T13-NBody class: 4 (ø10 orifice) | Valve type: Double acting | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: EPDM (ammonia)
LVQ42-T13R-NBody class: 4 (ø10 orifice) | Valve type: Double acting | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: None | Buffer: EPDM (ammonia)
LVQ42-T13-2Body class: 4 (ø10 orifice) | Valve type: Double acting | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: FKM
LVQ42-T13R-2Body class: 4 (ø10 orifice) | Valve type: Double acting | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: FKM
LVQ42-T13-2-KBody class: 4 (ø10 orifice) | Valve type: Double acting | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: FFKM
LVQ42-T13R-2-KBody class: 4 (ø10 orifice) | Valve type: Double acting | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: FFKM
LVQ42-T13-2-NBody class: 4 (ø10 orifice) | Valve type: Double acting | Tube size: OD 1/2 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: EPDM (ammonia)
LVQ42-T13R-2-NBody class: 4 (ø10 orifice) | Valve type: Double acting | Tube size: OD 1/2 in | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: EPDM (ammonia)
LVQ50-T19Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM
LVQ50-T19RBody class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM
LVQ50-T19-JBody class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM, high temp. 170 C
LVQ50-T19R-JBody class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM, high temp. 170 C
LVQ50-T19-KBody class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FFKM
LVQ50-T19R-KBody class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FFKM
LVQ50-T19-NBody class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: EPDM (ammonia)
LVQ50-T19R-NBody class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: None | Buffer: EPDM (ammonia)
LVQ50-T19-1Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adjustment | Buffer: FKM
LVQ50-T19R-1Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: Flow adjustment | Buffer: FKM
LVQ50-T19-1-JBody class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adjustment | Buffer: FKM, high temp. 170 C
LVQ50-T19R-1-JBody class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: Flow adjustment | Buffer: FKM, high temp. 170 C
LVQ50-T19-1-KBody class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adjustment | Buffer: FFKM
LVQ50-T19R-1-KBody class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: Flow adjustment | Buffer: FFKM
LVQ50-T19-1-NBody class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adjustment | Buffer: EPDM (ammonia)
LVQ50-T19R-1-NBody class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: Flow adjustment | Buffer: EPDM (ammonia)
LVQ50-T19-2Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: FKM
LVQ50-T19R-2Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: FKM
LVQ50-T19-2-KBody class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: FFKM
LVQ50-T19R-2-KBody class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: FFKM
LVQ50-T19-2-NBody class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: EPDM (ammonia)
LVQ50-T19R-2-NBody class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: EPDM (ammonia)
LVQ50-T19-3Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adj. + bypass | Buffer: FKM
LVQ50-T19R-3Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: Flow adj. + bypass | Buffer: FKM
LVQ50-T19-3-KBody class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adj. + bypass | Buffer: FFKM
LVQ50-T19R-3-KBody class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: Flow adj. + bypass | Buffer: FFKM
LVQ50-T19-3-NBody class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adj. + bypass | Buffer: EPDM (ammonia)
LVQ50-T19R-3-NBody class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: Flow adj. + bypass | Buffer: EPDM (ammonia)
LVQ50-T19-4Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Indicator | Buffer: FKM
LVQ50-T19R-4Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: Indicator | Buffer: FKM
LVQ50-T19-4-KBody class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Indicator | Buffer: FFKM
LVQ50-T19R-4-KBody class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: Indicator | Buffer: FFKM
LVQ50-T19-4-NBody class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Indicator | Buffer: EPDM (ammonia)
LVQ50-T19R-4-NBody class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: Indicator | Buffer: EPDM (ammonia)
LVQ50-T19-5Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High back pressure 0.42 MPa | Buffer: FKM
LVQ50-T19R-5Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: High back pressure 0.42 MPa | Buffer: FKM
LVQ50-T19-5-KBody class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High back pressure 0.42 MPa | Buffer: FFKM
LVQ50-T19R-5-KBody class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: High back pressure 0.42 MPa | Buffer: FFKM
LVQ50-T19-5-NBody class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High back pressure 0.42 MPa | Buffer: EPDM (ammonia)
LVQ50-T19R-5-NBody class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: High back pressure 0.42 MPa | Buffer: EPDM (ammonia)
LVQ50-T19-6Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. | Buffer: FKM
LVQ50-T19R-6Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: High BP + flow adj. | Buffer: FKM
LVQ50-T19-6-KBody class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. | Buffer: FFKM
LVQ50-T19R-6-KBody class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: High BP + flow adj. | Buffer: FFKM
LVQ50-T19-6-NBody class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. | Buffer: EPDM (ammonia)
LVQ50-T19R-6-NBody class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: High BP + flow adj. | Buffer: EPDM (ammonia)
LVQ50-T19-7Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + bypass | Buffer: FKM
LVQ50-T19R-7Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: High BP + bypass | Buffer: FKM
LVQ50-T19-7-KBody class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + bypass | Buffer: FFKM
LVQ50-T19R-7-KBody class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: High BP + bypass | Buffer: FFKM
LVQ50-T19-7-NBody class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + bypass | Buffer: EPDM (ammonia)
LVQ50-T19R-7-NBody class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: High BP + bypass | Buffer: EPDM (ammonia)
LVQ50-T19-8Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. + bypass | Buffer: FKM
LVQ50-T19R-8Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: High BP + flow adj. + bypass | Buffer: FKM
LVQ50-T19-8-KBody class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. + bypass | Buffer: FFKM
LVQ50-T19R-8-KBody class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: High BP + flow adj. + bypass | Buffer: FFKM
LVQ50-T19-8-NBody class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. + bypass | Buffer: EPDM (ammonia)
LVQ50-T19R-8-NBody class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: High BP + flow adj. + bypass | Buffer: EPDM (ammonia)
LVQ50-T19-9Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + indicator | Buffer: FKM
LVQ50-T19R-9Body class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: High BP + indicator | Buffer: FKM
LVQ50-T19-9-KBody class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + indicator | Buffer: FFKM
LVQ50-T19R-9-KBody class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: High BP + indicator | Buffer: FFKM
LVQ50-T19-9-NBody class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + indicator | Buffer: EPDM (ammonia)
LVQ50-T19R-9-NBody class: 5 (ø16 orifice) | Valve type: N.C. | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: High BP + indicator | Buffer: EPDM (ammonia)
LVQ51-T19Body class: 5 (ø16 orifice) | Valve type: N.O. | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM
LVQ51-T19RBody class: 5 (ø16 orifice) | Valve type: N.O. | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM
LVQ51-T19-JBody class: 5 (ø16 orifice) | Valve type: N.O. | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM, high temp. 170 C
LVQ51-T19R-JBody class: 5 (ø16 orifice) | Valve type: N.O. | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM, high temp. 170 C
LVQ51-T19-KBody class: 5 (ø16 orifice) | Valve type: N.O. | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FFKM
LVQ51-T19R-KBody class: 5 (ø16 orifice) | Valve type: N.O. | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FFKM
LVQ51-T19-NBody class: 5 (ø16 orifice) | Valve type: N.O. | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: EPDM (ammonia)
LVQ51-T19R-NBody class: 5 (ø16 orifice) | Valve type: N.O. | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: None | Buffer: EPDM (ammonia)
LVQ52-T19Body class: 5 (ø16 orifice) | Valve type: Double acting | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM
LVQ52-T19RBody class: 5 (ø16 orifice) | Valve type: Double acting | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM
LVQ52-T19-JBody class: 5 (ø16 orifice) | Valve type: Double acting | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM, high temp. 170 C
LVQ52-T19R-JBody class: 5 (ø16 orifice) | Valve type: Double acting | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM, high temp. 170 C
LVQ52-T19-KBody class: 5 (ø16 orifice) | Valve type: Double acting | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FFKM
LVQ52-T19R-KBody class: 5 (ø16 orifice) | Valve type: Double acting | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FFKM
LVQ52-T19-NBody class: 5 (ø16 orifice) | Valve type: Double acting | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: EPDM (ammonia)
LVQ52-T19R-NBody class: 5 (ø16 orifice) | Valve type: Double acting | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: None | Buffer: EPDM (ammonia)
LVQ52-T19-2Body class: 5 (ø16 orifice) | Valve type: Double acting | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: FKM
LVQ52-T19R-2Body class: 5 (ø16 orifice) | Valve type: Double acting | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: FKM
LVQ52-T19-2-KBody class: 5 (ø16 orifice) | Valve type: Double acting | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: FFKM
LVQ52-T19R-2-KBody class: 5 (ø16 orifice) | Valve type: Double acting | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: FFKM
LVQ52-T19-2-NBody class: 5 (ø16 orifice) | Valve type: Double acting | Tube size: OD 19 mm / 3/4 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: EPDM (ammonia)
LVQ52-T19R-2-NBody class: 5 (ø16 orifice) | Valve type: Double acting | Tube size: OD 19 mm / 3/4 in | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: EPDM (ammonia)
LVQ60-T25Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM
LVQ60-T25RBody class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM
LVQ60-T25-JBody class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM, high temp. 170 C
LVQ60-T25R-JBody class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM, high temp. 170 C
LVQ60-T25-KBody class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FFKM
LVQ60-T25R-KBody class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FFKM
LVQ60-T25-NBody class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: EPDM (ammonia)
LVQ60-T25R-NBody class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: None | Buffer: EPDM (ammonia)
LVQ60-T25-PBody class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM, high flow
LVQ60-T25R-PBody class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM, high flow
LVQ60-T25-1Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adjustment | Buffer: FKM
LVQ60-T25R-1Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: Flow adjustment | Buffer: FKM
LVQ60-T25-1-JBody class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adjustment | Buffer: FKM, high temp. 170 C
LVQ60-T25R-1-JBody class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: Flow adjustment | Buffer: FKM, high temp. 170 C
LVQ60-T25-1-KBody class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adjustment | Buffer: FFKM
LVQ60-T25R-1-KBody class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: Flow adjustment | Buffer: FFKM
LVQ60-T25-1-NBody class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adjustment | Buffer: EPDM (ammonia)
LVQ60-T25R-1-NBody class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: Flow adjustment | Buffer: EPDM (ammonia)
LVQ60-T25-2Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: FKM
LVQ60-T25R-2Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: FKM
LVQ60-T25-2-KBody class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: FFKM
LVQ60-T25R-2-KBody class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: FFKM
LVQ60-T25-2-NBody class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: EPDM (ammonia)
LVQ60-T25R-2-NBody class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: EPDM (ammonia)
LVQ60-T25-3Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adj. + bypass | Buffer: FKM
LVQ60-T25R-3Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: Flow adj. + bypass | Buffer: FKM
LVQ60-T25-3-KBody class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adj. + bypass | Buffer: FFKM
LVQ60-T25R-3-KBody class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: Flow adj. + bypass | Buffer: FFKM
LVQ60-T25-3-NBody class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Flow adj. + bypass | Buffer: EPDM (ammonia)
LVQ60-T25R-3-NBody class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: Flow adj. + bypass | Buffer: EPDM (ammonia)
LVQ60-T25-4Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Indicator | Buffer: FKM
LVQ60-T25R-4Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: Indicator | Buffer: FKM
LVQ60-T25-4-KBody class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Indicator | Buffer: FFKM
LVQ60-T25R-4-KBody class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: Indicator | Buffer: FFKM
LVQ60-T25-4-NBody class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Indicator | Buffer: EPDM (ammonia)
LVQ60-T25R-4-NBody class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: Indicator | Buffer: EPDM (ammonia)
LVQ60-T25-4-PBody class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Indicator | Buffer: FKM, high flow
LVQ60-T25R-4-PBody class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: Indicator | Buffer: FKM, high flow
LVQ60-T25-5Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High back pressure 0.42 MPa | Buffer: FKM
LVQ60-T25R-5Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: High back pressure 0.42 MPa | Buffer: FKM
LVQ60-T25-5-KBody class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High back pressure 0.42 MPa | Buffer: FFKM
LVQ60-T25R-5-KBody class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: High back pressure 0.42 MPa | Buffer: FFKM
LVQ60-T25-5-NBody class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High back pressure 0.42 MPa | Buffer: EPDM (ammonia)
LVQ60-T25R-5-NBody class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: High back pressure 0.42 MPa | Buffer: EPDM (ammonia)
LVQ60-T25-5-PBody class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High back pressure 0.42 MPa | Buffer: FKM, high flow
LVQ60-T25R-5-PBody class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: High back pressure 0.42 MPa | Buffer: FKM, high flow
LVQ60-T25-6Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. | Buffer: FKM
LVQ60-T25R-6Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: High BP + flow adj. | Buffer: FKM
LVQ60-T25-6-KBody class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. | Buffer: FFKM
LVQ60-T25R-6-KBody class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: High BP + flow adj. | Buffer: FFKM
LVQ60-T25-6-NBody class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. | Buffer: EPDM (ammonia)
LVQ60-T25R-6-NBody class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: High BP + flow adj. | Buffer: EPDM (ammonia)
LVQ60-T25-7Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + bypass | Buffer: FKM
LVQ60-T25R-7Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: High BP + bypass | Buffer: FKM
LVQ60-T25-7-KBody class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + bypass | Buffer: FFKM
LVQ60-T25R-7-KBody class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: High BP + bypass | Buffer: FFKM
LVQ60-T25-7-NBody class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + bypass | Buffer: EPDM (ammonia)
LVQ60-T25R-7-NBody class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: High BP + bypass | Buffer: EPDM (ammonia)
LVQ60-T25-8Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. + bypass | Buffer: FKM
LVQ60-T25R-8Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: High BP + flow adj. + bypass | Buffer: FKM
LVQ60-T25-8-KBody class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. + bypass | Buffer: FFKM
LVQ60-T25R-8-KBody class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: High BP + flow adj. + bypass | Buffer: FFKM
LVQ60-T25-8-NBody class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + flow adj. + bypass | Buffer: EPDM (ammonia)
LVQ60-T25R-8-NBody class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: High BP + flow adj. + bypass | Buffer: EPDM (ammonia)
LVQ60-T25-9Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + indicator | Buffer: FKM
LVQ60-T25R-9Body class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: High BP + indicator | Buffer: FKM
LVQ60-T25-9-KBody class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + indicator | Buffer: FFKM
LVQ60-T25R-9-KBody class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: High BP + indicator | Buffer: FFKM
LVQ60-T25-9-NBody class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: High BP + indicator | Buffer: EPDM (ammonia)
LVQ60-T25R-9-NBody class: 6 (ø22 orifice) | Valve type: N.C. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: High BP + indicator | Buffer: EPDM (ammonia)
LVQ61-T25Body class: 6 (ø22 orifice) | Valve type: N.O. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM
LVQ61-T25RBody class: 6 (ø22 orifice) | Valve type: N.O. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM
LVQ61-T25-JBody class: 6 (ø22 orifice) | Valve type: N.O. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM, high temp. 170 C
LVQ61-T25R-JBody class: 6 (ø22 orifice) | Valve type: N.O. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM, high temp. 170 C
LVQ61-T25-KBody class: 6 (ø22 orifice) | Valve type: N.O. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FFKM
LVQ61-T25R-KBody class: 6 (ø22 orifice) | Valve type: N.O. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FFKM
LVQ61-T25-NBody class: 6 (ø22 orifice) | Valve type: N.O. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: EPDM (ammonia)
LVQ61-T25R-NBody class: 6 (ø22 orifice) | Valve type: N.O. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: None | Buffer: EPDM (ammonia)
LVQ61-T25-PBody class: 6 (ø22 orifice) | Valve type: N.O. | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM, high flow
LVQ61-T25R-PBody class: 6 (ø22 orifice) | Valve type: N.O. | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM, high flow
LVQ62-T25Body class: 6 (ø22 orifice) | Valve type: Double acting | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM
LVQ62-T25RBody class: 6 (ø22 orifice) | Valve type: Double acting | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM
LVQ62-T25-JBody class: 6 (ø22 orifice) | Valve type: Double acting | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM, high temp. 170 C
LVQ62-T25R-JBody class: 6 (ø22 orifice) | Valve type: Double acting | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM, high temp. 170 C
LVQ62-T25-KBody class: 6 (ø22 orifice) | Valve type: Double acting | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FFKM
LVQ62-T25R-KBody class: 6 (ø22 orifice) | Valve type: Double acting | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FFKM
LVQ62-T25-NBody class: 6 (ø22 orifice) | Valve type: Double acting | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: EPDM (ammonia)
LVQ62-T25R-NBody class: 6 (ø22 orifice) | Valve type: Double acting | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: None | Buffer: EPDM (ammonia)
LVQ62-T25-PBody class: 6 (ø22 orifice) | Valve type: Double acting | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: None | Buffer: FKM, high flow
LVQ62-T25R-PBody class: 6 (ø22 orifice) | Valve type: Double acting | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: None | Buffer: FKM, high flow
LVQ62-T25-2Body class: 6 (ø22 orifice) | Valve type: Double acting | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: FKM
LVQ62-T25R-2Body class: 6 (ø22 orifice) | Valve type: Double acting | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: FKM
LVQ62-T25-2-KBody class: 6 (ø22 orifice) | Valve type: Double acting | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: FFKM
LVQ62-T25R-2-KBody class: 6 (ø22 orifice) | Valve type: Double acting | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: FFKM
LVQ62-T25-2-NBody class: 6 (ø22 orifice) | Valve type: Double acting | Tube size: OD 25 mm / 1 in | Pilot port: Integrated fitting, 1/8 in tube | Option: Bypass | Buffer: EPDM (ammonia)
LVQ62-T25R-2-NBody class: 6 (ø22 orifice) | Valve type: Double acting | Tube size: OD 25 mm / 1 in | Pilot port: Rc1/8 thread | Option: Bypass | Buffer: EPDM (ammonia)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
