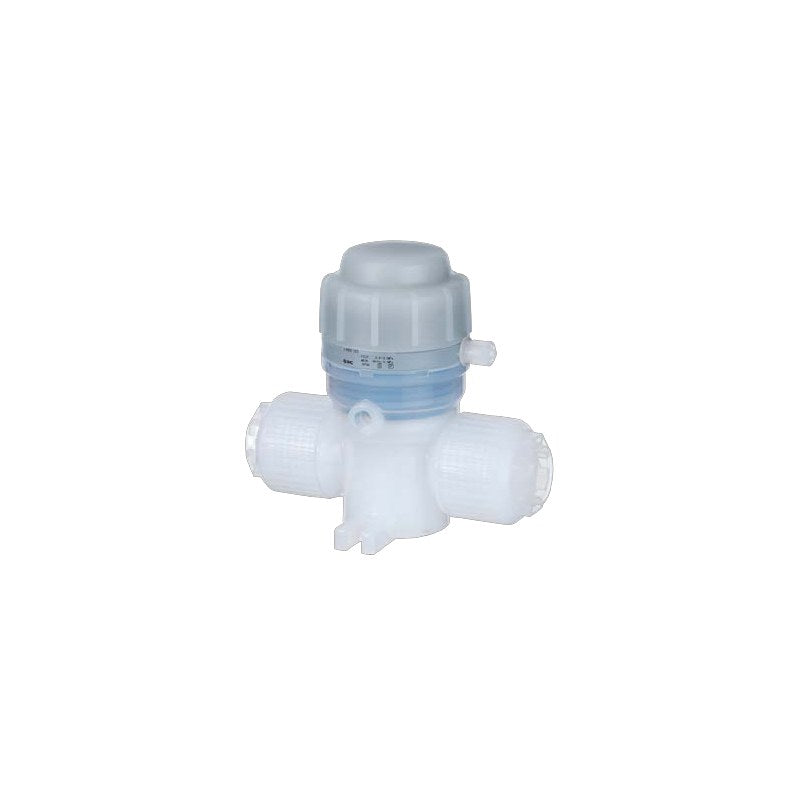

SMC LVQ-Z Air Operated Chemical Valve (LQ3 Flare Fitting)

SMC LVQ-Z series air-operated diaphragm valve for chemicals, New PFA body with integrated LQ3 flare-type hyper fitting, orifice ø4 to ø22.

Key features

Fluid-contact parts New PFA body and PTFE diaphragm; PVDF actuator joined without metal screws (non-metal exterior)
Piston damper and tapered flow path reduce particles, micro-bubbles and liquid retention
Pilot port can be oriented in 8 directions (P2 to P8 suffix, standard direction 1)
Options: flow adjustment, bypass, indicator, high back pressure 0.42 MPa; buffer FKM, FFKM, EPDM (ammonia) or high-temperature 170 C
Pilot port also available with LQ fitting for 4x3 tube (M) and NPT1/8 (N); reducer B-port sizes on order

Specifications

Fluid	Deionized water, chemicals (see compatibility list)
Fluid connection	LQ3 flare-type hyper fitting integrated
Proof pressure	1 MPa
Operating pressure (A to B)	-98 kPa to 0.5 MPa (LVQ60 0.4 MPa)
Back pressure	0.3 MPa or less (LVQ60 0.2 MPa); high BP 0.42 MPa
Pilot pressure	0.3 to 0.5 MPa (high BP 0.45 to 0.55 MPa)
Flow Cv (class 2/3/4/5/6)	0.35 / 1.3 / 1.9 / 5 / 8 (high flow 9.5)
Fluid temperature	0 to 100 C (high temp. 0 to 170 C)
Ambient temperature	0 to 60 C
Wetted materials	Body New PFA, diaphragm PTFE; actuator PVDF
Source	SMC Korea catalog LVQ Series (SMCKR_LVQ.pdf), p. 101-110 (PDF p. 40-48)

LVQ20-Z03		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ20-Z03R		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ20-Z03-J		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ20-Z03R-J		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ20-Z03-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ20-Z03R-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ20-Z03-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ20-Z03R-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ20-Z03-1		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
LVQ20-Z03R-1		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
LVQ20-Z03-1-J		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ20-Z03R-1-J		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ20-Z03-1-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
LVQ20-Z03R-1-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
LVQ20-Z03-1-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ20-Z03R-1-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ20-Z03-2		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ20-Z03R-2		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ20-Z03-2-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ20-Z03R-2-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ20-Z03-2-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ20-Z03R-2-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ20-Z03-3		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ20-Z03R-3		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ20-Z03-3-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ20-Z03R-3-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ20-Z03-3-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ20-Z03R-3-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ20-Z03-4		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
LVQ20-Z03R-4		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
LVQ20-Z03-4-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
LVQ20-Z03R-4-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
LVQ20-Z03-4-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ20-Z03R-4-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ20-Z03-5		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ20-Z03R-5		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ20-Z03-5-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ20-Z03R-5-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ20-Z03-5-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ20-Z03R-5-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ20-Z03-6		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
LVQ20-Z03R-6		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
LVQ20-Z03-6-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ20-Z03R-6-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ20-Z03-6-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ20-Z03R-6-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ20-Z03-7		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
LVQ20-Z03R-7		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
LVQ20-Z03-7-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
LVQ20-Z03R-7-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
LVQ20-Z03-7-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ20-Z03R-7-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ20-Z03-8		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ20-Z03R-8		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ20-Z03-8-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ20-Z03R-8-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ20-Z03-8-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ20-Z03R-8-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ20-Z03-9		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
LVQ20-Z03R-9		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
LVQ20-Z03-9-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
LVQ20-Z03R-9-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
LVQ20-Z03-9-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ20-Z03R-9-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ20-Z03-24		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
LVQ20-Z03R-24		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
LVQ20-Z03-24-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
LVQ20-Z03R-24-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
LVQ20-Z03-24-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ20-Z03R-24-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ21-Z03		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ21-Z03R		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ21-Z03-J		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ21-Z03R-J		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ21-Z03-K		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ21-Z03R-K		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ21-Z03-N		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ21-Z03R-N		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ22-Z03		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ22-Z03R		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ22-Z03-J		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ22-Z03R-J		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ22-Z03-K		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ22-Z03R-K		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ22-Z03-N		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ22-Z03R-N		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ22-Z03-2		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ22-Z03R-2		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ22-Z03-2-K		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ22-Z03R-2-K		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ22-Z03-2-N		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ22-Z03R-2-N		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ20-Z04		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ20-Z04R		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ20-Z04-J		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ20-Z04R-J		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ20-Z04-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ20-Z04R-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ20-Z04-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ20-Z04R-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ20-Z04-1		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
LVQ20-Z04R-1		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
LVQ20-Z04-1-J		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ20-Z04R-1-J		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ20-Z04-1-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
LVQ20-Z04R-1-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
LVQ20-Z04-1-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ20-Z04R-1-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ20-Z04-2		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ20-Z04R-2		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ20-Z04-2-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ20-Z04R-2-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ20-Z04-2-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ20-Z04R-2-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ20-Z04-3		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ20-Z04R-3		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ20-Z04-3-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ20-Z04R-3-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ20-Z04-3-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ20-Z04R-3-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ20-Z04-4		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
LVQ20-Z04R-4		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
LVQ20-Z04-4-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
LVQ20-Z04R-4-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
LVQ20-Z04-4-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ20-Z04R-4-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ20-Z04-5		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ20-Z04R-5		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ20-Z04-5-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ20-Z04R-5-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ20-Z04-5-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ20-Z04R-5-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ20-Z04-6		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
LVQ20-Z04R-6		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
LVQ20-Z04-6-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ20-Z04R-6-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ20-Z04-6-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ20-Z04R-6-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ20-Z04-7		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
LVQ20-Z04R-7		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
LVQ20-Z04-7-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
LVQ20-Z04R-7-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
LVQ20-Z04-7-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ20-Z04R-7-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ20-Z04-8		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ20-Z04R-8		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ20-Z04-8-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ20-Z04R-8-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ20-Z04-8-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ20-Z04R-8-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ20-Z04-9		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
LVQ20-Z04R-9		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
LVQ20-Z04-9-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
LVQ20-Z04R-9-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
LVQ20-Z04-9-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ20-Z04R-9-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ20-Z04-24		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
LVQ20-Z04R-24		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
LVQ20-Z04-24-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
LVQ20-Z04R-24-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
LVQ20-Z04-24-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ20-Z04R-24-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ21-Z04		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ21-Z04R		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ21-Z04-J		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ21-Z04R-J		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ21-Z04-K		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ21-Z04R-K		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ21-Z04-N		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ21-Z04R-N		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ22-Z04		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ22-Z04R		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ22-Z04-J		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ22-Z04R-J		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ22-Z04-K		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ22-Z04R-K		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ22-Z04-N		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ22-Z04R-N		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ22-Z04-2		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ22-Z04R-2		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ22-Z04-2-K		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ22-Z04R-2-K		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ22-Z04-2-N		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ22-Z04R-2-N		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ20-Z06		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ20-Z06R		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ20-Z06-J		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ20-Z06R-J		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ20-Z06-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ20-Z06R-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ20-Z06-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ20-Z06R-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ20-Z06-1		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
LVQ20-Z06R-1		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
LVQ20-Z06-1-J		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ20-Z06R-1-J		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ20-Z06-1-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
LVQ20-Z06R-1-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
LVQ20-Z06-1-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ20-Z06R-1-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ20-Z06-2		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ20-Z06R-2		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ20-Z06-2-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ20-Z06R-2-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ20-Z06-2-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ20-Z06R-2-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ20-Z06-3		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ20-Z06R-3		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ20-Z06-3-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ20-Z06R-3-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ20-Z06-3-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ20-Z06R-3-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ20-Z06-4		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
LVQ20-Z06R-4		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
LVQ20-Z06-4-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
LVQ20-Z06R-4-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
LVQ20-Z06-4-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ20-Z06R-4-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ20-Z06-5		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ20-Z06R-5		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ20-Z06-5-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ20-Z06R-5-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ20-Z06-5-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ20-Z06R-5-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ20-Z06-6		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
LVQ20-Z06R-6		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
LVQ20-Z06-6-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ20-Z06R-6-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ20-Z06-6-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ20-Z06R-6-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ20-Z06-7		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
LVQ20-Z06R-7		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
LVQ20-Z06-7-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
LVQ20-Z06R-7-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
LVQ20-Z06-7-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ20-Z06R-7-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ20-Z06-8		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ20-Z06R-8		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ20-Z06-8-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ20-Z06R-8-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ20-Z06-8-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ20-Z06R-8-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ20-Z06-9		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
LVQ20-Z06R-9		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
LVQ20-Z06-9-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
LVQ20-Z06R-9-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
LVQ20-Z06-9-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ20-Z06R-9-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ20-Z06-24		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
LVQ20-Z06R-24		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
LVQ20-Z06-24-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
LVQ20-Z06R-24-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
LVQ20-Z06-24-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ20-Z06R-24-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ21-Z06		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ21-Z06R		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ21-Z06-J		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ21-Z06R-J		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ21-Z06-K		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ21-Z06R-K		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ21-Z06-N		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ21-Z06R-N		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ22-Z06		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ22-Z06R		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ22-Z06-J		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ22-Z06R-J		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ22-Z06-K		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ22-Z06R-K		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ22-Z06-N		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ22-Z06R-N		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ22-Z06-2		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ22-Z06R-2		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ22-Z06-2-K		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ22-Z06R-2-K		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ22-Z06-2-N		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ22-Z06R-2-N		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ20-Z07		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ20-Z07R		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ20-Z07-J		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ20-Z07R-J		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ20-Z07-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ20-Z07R-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ20-Z07-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ20-Z07R-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ20-Z07-1		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
LVQ20-Z07R-1		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
LVQ20-Z07-1-J		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ20-Z07R-1-J		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ20-Z07-1-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
LVQ20-Z07R-1-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
LVQ20-Z07-1-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ20-Z07R-1-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ20-Z07-2		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ20-Z07R-2		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ20-Z07-2-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ20-Z07R-2-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ20-Z07-2-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ20-Z07R-2-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ20-Z07-3		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ20-Z07R-3		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ20-Z07-3-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ20-Z07R-3-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ20-Z07-3-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ20-Z07R-3-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ20-Z07-4		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
LVQ20-Z07R-4		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
LVQ20-Z07-4-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
LVQ20-Z07R-4-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
LVQ20-Z07-4-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ20-Z07R-4-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ20-Z07-5		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ20-Z07R-5		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ20-Z07-5-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ20-Z07R-5-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ20-Z07-5-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ20-Z07R-5-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ20-Z07-6		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
LVQ20-Z07R-6		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
LVQ20-Z07-6-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ20-Z07R-6-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ20-Z07-6-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ20-Z07R-6-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ20-Z07-7		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
LVQ20-Z07R-7		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
LVQ20-Z07-7-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
LVQ20-Z07R-7-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
LVQ20-Z07-7-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ20-Z07R-7-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ20-Z07-8		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ20-Z07R-8		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ20-Z07-8-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ20-Z07R-8-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ20-Z07-8-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ20-Z07R-8-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ20-Z07-9		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
LVQ20-Z07R-9		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
LVQ20-Z07-9-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
LVQ20-Z07R-9-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
LVQ20-Z07-9-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ20-Z07R-9-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ20-Z07-24		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
LVQ20-Z07R-24		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
LVQ20-Z07-24-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
LVQ20-Z07R-24-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
LVQ20-Z07-24-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ20-Z07R-24-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ21-Z07		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ21-Z07R		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ21-Z07-J		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ21-Z07R-J		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ21-Z07-K		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ21-Z07R-K		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ21-Z07-N		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ21-Z07R-N		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ22-Z07		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ22-Z07R		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ22-Z07-J		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ22-Z07R-J		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ22-Z07-K		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ22-Z07R-K		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ22-Z07-N		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ22-Z07R-N		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ22-Z07-2		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ22-Z07R-2		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ22-Z07-2-K		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ22-Z07R-2-K		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ22-Z07-2-N		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ22-Z07R-2-N		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ30-Z08		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ30-Z08R		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ30-Z08-J		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ30-Z08R-J		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ30-Z08-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ30-Z08R-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ30-Z08-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ30-Z08R-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ30-Z08-1		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
LVQ30-Z08R-1		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
LVQ30-Z08-1-J		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ30-Z08R-1-J		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ30-Z08-1-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
LVQ30-Z08R-1-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
LVQ30-Z08-1-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ30-Z08R-1-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ30-Z08-2		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ30-Z08R-2		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ30-Z08-2-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ30-Z08R-2-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ30-Z08-2-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ30-Z08R-2-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ30-Z08-3		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ30-Z08R-3		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ30-Z08-3-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ30-Z08R-3-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ30-Z08-3-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ30-Z08R-3-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ30-Z08-4		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
LVQ30-Z08R-4		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
LVQ30-Z08-4-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
LVQ30-Z08R-4-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
LVQ30-Z08-4-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ30-Z08R-4-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ30-Z08-5		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ30-Z08R-5		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ30-Z08-5-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ30-Z08R-5-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ30-Z08-5-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ30-Z08R-5-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ30-Z08-6		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
LVQ30-Z08R-6		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
LVQ30-Z08-6-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ30-Z08R-6-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ30-Z08-6-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ30-Z08R-6-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ30-Z08-7		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
LVQ30-Z08R-7		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
LVQ30-Z08-7-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
LVQ30-Z08R-7-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
LVQ30-Z08-7-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ30-Z08R-7-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ30-Z08-8		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ30-Z08R-8		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ30-Z08-8-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ30-Z08R-8-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ30-Z08-8-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ30-Z08R-8-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ30-Z08-9		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
LVQ30-Z08R-9		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
LVQ30-Z08-9-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
LVQ30-Z08R-9-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
LVQ30-Z08-9-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ30-Z08R-9-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ30-Z08-24		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
LVQ30-Z08R-24		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
LVQ30-Z08-24-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
LVQ30-Z08R-24-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
LVQ30-Z08-24-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ30-Z08R-24-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ31-Z08		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ31-Z08R		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ31-Z08-J		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ31-Z08R-J		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ31-Z08-K		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ31-Z08R-K		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ31-Z08-N		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ31-Z08R-N		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ32-Z08		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ32-Z08R		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ32-Z08-J		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ32-Z08R-J		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ32-Z08-K		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ32-Z08R-K		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ32-Z08-N		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ32-Z08R-N		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ32-Z08-2		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ32-Z08R-2		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ32-Z08-2-K		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ32-Z08R-2-K		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ32-Z08-2-N		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ32-Z08R-2-N		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ30-Z10		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ30-Z10R		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ30-Z10-J		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ30-Z10R-J		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ30-Z10-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ30-Z10R-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ30-Z10-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ30-Z10R-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ30-Z10-1		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
LVQ30-Z10R-1		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
LVQ30-Z10-1-J		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ30-Z10R-1-J		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ30-Z10-1-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
LVQ30-Z10R-1-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
LVQ30-Z10-1-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ30-Z10R-1-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ30-Z10-2		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ30-Z10R-2		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ30-Z10-2-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ30-Z10R-2-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ30-Z10-2-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ30-Z10R-2-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ30-Z10-3		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ30-Z10R-3		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ30-Z10-3-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ30-Z10R-3-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ30-Z10-3-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ30-Z10R-3-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ30-Z10-4		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
LVQ30-Z10R-4		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
LVQ30-Z10-4-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
LVQ30-Z10R-4-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
LVQ30-Z10-4-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ30-Z10R-4-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ30-Z10-5		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ30-Z10R-5		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ30-Z10-5-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ30-Z10R-5-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ30-Z10-5-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ30-Z10R-5-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ30-Z10-6		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
LVQ30-Z10R-6		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
LVQ30-Z10-6-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ30-Z10R-6-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ30-Z10-6-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ30-Z10R-6-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ30-Z10-7		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
LVQ30-Z10R-7		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
LVQ30-Z10-7-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
LVQ30-Z10R-7-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
LVQ30-Z10-7-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ30-Z10R-7-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ30-Z10-8		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ30-Z10R-8		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ30-Z10-8-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ30-Z10R-8-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ30-Z10-8-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ30-Z10R-8-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ30-Z10-9		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
LVQ30-Z10R-9		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
LVQ30-Z10-9-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
LVQ30-Z10R-9-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
LVQ30-Z10-9-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ30-Z10R-9-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ30-Z10-24		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
LVQ30-Z10R-24		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
LVQ30-Z10-24-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
LVQ30-Z10R-24-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
LVQ30-Z10-24-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ30-Z10R-24-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ31-Z10		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ31-Z10R		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ31-Z10-J		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ31-Z10R-J		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ31-Z10-K		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ31-Z10R-K		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ31-Z10-N		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ31-Z10R-N		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ32-Z10		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ32-Z10R		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ32-Z10-J		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ32-Z10R-J		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ32-Z10-K		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ32-Z10R-K		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ32-Z10-N		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ32-Z10R-N		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ32-Z10-2		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ32-Z10R-2		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ32-Z10-2-K		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ32-Z10R-2-K		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ32-Z10-2-N		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ32-Z10R-2-N		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ30-Z11		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ30-Z11R		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ30-Z11-J		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ30-Z11R-J		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ30-Z11-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ30-Z11R-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ30-Z11-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ30-Z11R-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ30-Z11-1		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
LVQ30-Z11R-1		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
LVQ30-Z11-1-J		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ30-Z11R-1-J		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ30-Z11-1-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
LVQ30-Z11R-1-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
LVQ30-Z11-1-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ30-Z11R-1-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ30-Z11-2		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ30-Z11R-2		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ30-Z11-2-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ30-Z11R-2-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ30-Z11-2-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ30-Z11R-2-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ30-Z11-3		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ30-Z11R-3		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ30-Z11-3-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ30-Z11R-3-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ30-Z11-3-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ30-Z11R-3-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ30-Z11-4		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
LVQ30-Z11R-4		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
LVQ30-Z11-4-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
LVQ30-Z11R-4-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
LVQ30-Z11-4-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ30-Z11R-4-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ30-Z11-5		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ30-Z11R-5		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ30-Z11-5-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ30-Z11R-5-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ30-Z11-5-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ30-Z11R-5-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ30-Z11-6		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
LVQ30-Z11R-6		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
LVQ30-Z11-6-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ30-Z11R-6-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ30-Z11-6-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ30-Z11R-6-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ30-Z11-7		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
LVQ30-Z11R-7		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
LVQ30-Z11-7-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
LVQ30-Z11R-7-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
LVQ30-Z11-7-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ30-Z11R-7-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ30-Z11-8		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ30-Z11R-8		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ30-Z11-8-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ30-Z11R-8-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ30-Z11-8-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ30-Z11R-8-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ30-Z11-9		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
LVQ30-Z11R-9		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
LVQ30-Z11-9-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
LVQ30-Z11R-9-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
LVQ30-Z11-9-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ30-Z11R-9-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ30-Z11-24		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
LVQ30-Z11R-24		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
LVQ30-Z11-24-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
LVQ30-Z11R-24-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
LVQ30-Z11-24-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ30-Z11R-24-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ31-Z11		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ31-Z11R		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ31-Z11-J		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ31-Z11R-J		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ31-Z11-K		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ31-Z11R-K		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ31-Z11-N		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ31-Z11R-N		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ32-Z11		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ32-Z11R		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ32-Z11-J		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ32-Z11R-J		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ32-Z11-K		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ32-Z11R-K		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ32-Z11-N		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ32-Z11R-N		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ32-Z11-2		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ32-Z11R-2		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ32-Z11-2-K		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ32-Z11R-2-K		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ32-Z11-2-N		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ32-Z11R-2-N		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ40-Z12		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ40-Z12R		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ40-Z12-J		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ40-Z12R-J		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ40-Z12-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ40-Z12R-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ40-Z12-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ40-Z12R-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ40-Z12-1		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
LVQ40-Z12R-1		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
LVQ40-Z12-1-J		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ40-Z12R-1-J		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ40-Z12-1-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
LVQ40-Z12R-1-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
LVQ40-Z12-1-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ40-Z12R-1-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ40-Z12-2		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ40-Z12R-2		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ40-Z12-2-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ40-Z12R-2-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ40-Z12-2-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ40-Z12R-2-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ40-Z12-3		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ40-Z12R-3		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ40-Z12-3-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ40-Z12R-3-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ40-Z12-3-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ40-Z12R-3-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ40-Z12-4		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
LVQ40-Z12R-4		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
LVQ40-Z12-4-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
LVQ40-Z12R-4-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
LVQ40-Z12-4-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ40-Z12R-4-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ40-Z12-5		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ40-Z12R-5		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ40-Z12-5-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ40-Z12R-5-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ40-Z12-5-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ40-Z12R-5-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ40-Z12-6		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
LVQ40-Z12R-6		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
LVQ40-Z12-6-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ40-Z12R-6-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ40-Z12-6-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ40-Z12R-6-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ40-Z12-7		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
LVQ40-Z12R-7		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
LVQ40-Z12-7-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
LVQ40-Z12R-7-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
LVQ40-Z12-7-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ40-Z12R-7-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ40-Z12-8		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ40-Z12R-8		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ40-Z12-8-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ40-Z12R-8-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ40-Z12-8-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ40-Z12R-8-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ40-Z12-9		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
LVQ40-Z12R-9		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
LVQ40-Z12-9-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
LVQ40-Z12R-9-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
LVQ40-Z12-9-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ40-Z12R-9-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ40-Z12-24		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
LVQ40-Z12R-24		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
LVQ40-Z12-24-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
LVQ40-Z12R-24-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
LVQ40-Z12-24-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ40-Z12R-24-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ41-Z12		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ41-Z12R		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ41-Z12-J		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ41-Z12R-J		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ41-Z12-K		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ41-Z12R-K		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ41-Z12-N		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ41-Z12R-N		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ42-Z12		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ42-Z12R		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ42-Z12-J		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ42-Z12R-J		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ42-Z12-K		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ42-Z12R-K		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ42-Z12-N		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ42-Z12R-N		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ42-Z12-2		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ42-Z12R-2		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ42-Z12-2-K		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ42-Z12R-2-K		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ42-Z12-2-N		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ42-Z12R-2-N		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ40-Z13		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ40-Z13R		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ40-Z13-J		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ40-Z13R-J		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ40-Z13-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ40-Z13R-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ40-Z13-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ40-Z13R-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ40-Z13-1		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
LVQ40-Z13R-1		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
LVQ40-Z13-1-J		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ40-Z13R-1-J		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ40-Z13-1-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
LVQ40-Z13R-1-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
LVQ40-Z13-1-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ40-Z13R-1-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ40-Z13-2		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ40-Z13R-2		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ40-Z13-2-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ40-Z13R-2-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ40-Z13-2-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ40-Z13R-2-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ40-Z13-3		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ40-Z13R-3		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ40-Z13-3-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ40-Z13R-3-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ40-Z13-3-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ40-Z13R-3-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ40-Z13-4		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
LVQ40-Z13R-4		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
LVQ40-Z13-4-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
LVQ40-Z13R-4-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
LVQ40-Z13-4-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ40-Z13R-4-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ40-Z13-5		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ40-Z13R-5		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ40-Z13-5-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ40-Z13R-5-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ40-Z13-5-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ40-Z13R-5-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ40-Z13-6		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
LVQ40-Z13R-6		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
LVQ40-Z13-6-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ40-Z13R-6-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ40-Z13-6-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ40-Z13R-6-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ40-Z13-7		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
LVQ40-Z13R-7		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
LVQ40-Z13-7-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
LVQ40-Z13R-7-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
LVQ40-Z13-7-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ40-Z13R-7-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ40-Z13-8		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ40-Z13R-8		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ40-Z13-8-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ40-Z13R-8-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ40-Z13-8-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ40-Z13R-8-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ40-Z13-9		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
LVQ40-Z13R-9		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
LVQ40-Z13-9-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
LVQ40-Z13R-9-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
LVQ40-Z13-9-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ40-Z13R-9-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ40-Z13-24		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
LVQ40-Z13R-24		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
LVQ40-Z13-24-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
LVQ40-Z13R-24-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
LVQ40-Z13-24-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ40-Z13R-24-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ41-Z13		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ41-Z13R		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ41-Z13-J		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ41-Z13R-J		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ41-Z13-K		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ41-Z13R-K		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ41-Z13-N		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ41-Z13R-N		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ42-Z13		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ42-Z13R		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ42-Z13-J		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ42-Z13R-J		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ42-Z13-K		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ42-Z13R-K		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ42-Z13-N		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ42-Z13R-N		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ42-Z13-2		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ42-Z13R-2		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ42-Z13-2-K		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ42-Z13R-2-K		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ42-Z13-2-N		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ42-Z13R-2-N		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ50-Z19		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ50-Z19R		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ50-Z19-J		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ50-Z19R-J		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ50-Z19-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ50-Z19R-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ50-Z19-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ50-Z19R-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ50-Z19-1		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
LVQ50-Z19R-1		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
LVQ50-Z19-1-J		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ50-Z19R-1-J		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ50-Z19-1-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
LVQ50-Z19R-1-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
LVQ50-Z19-1-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ50-Z19R-1-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ50-Z19-2		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ50-Z19R-2		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ50-Z19-2-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ50-Z19R-2-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ50-Z19-2-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ50-Z19R-2-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ50-Z19-3		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ50-Z19R-3		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ50-Z19-3-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ50-Z19R-3-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ50-Z19-3-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ50-Z19R-3-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ50-Z19-4		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
LVQ50-Z19R-4		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
LVQ50-Z19-4-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
LVQ50-Z19R-4-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
LVQ50-Z19-4-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ50-Z19R-4-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ50-Z19-5		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ50-Z19R-5		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ50-Z19-5-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ50-Z19R-5-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ50-Z19-5-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ50-Z19R-5-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ50-Z19-6		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
LVQ50-Z19R-6		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
LVQ50-Z19-6-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ50-Z19R-6-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ50-Z19-6-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ50-Z19R-6-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ50-Z19-7		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
LVQ50-Z19R-7		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
LVQ50-Z19-7-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
LVQ50-Z19R-7-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
LVQ50-Z19-7-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ50-Z19R-7-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ50-Z19-8		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ50-Z19R-8		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ50-Z19-8-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ50-Z19R-8-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ50-Z19-8-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ50-Z19R-8-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ50-Z19-9		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
LVQ50-Z19R-9		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
LVQ50-Z19-9-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
LVQ50-Z19R-9-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
LVQ50-Z19-9-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ50-Z19R-9-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ50-Z19-24		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
LVQ50-Z19R-24		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
LVQ50-Z19-24-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
LVQ50-Z19R-24-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
LVQ50-Z19-24-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ50-Z19R-24-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ51-Z19		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ51-Z19R		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ51-Z19-J		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ51-Z19R-J		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ51-Z19-K		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ51-Z19R-K		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ51-Z19-N		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ51-Z19R-N		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ52-Z19		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ52-Z19R		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ52-Z19-J		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ52-Z19R-J		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ52-Z19-K		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ52-Z19R-K		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ52-Z19-N		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ52-Z19R-N		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ52-Z19-2		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ52-Z19R-2		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ52-Z19-2-K		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ52-Z19R-2-K		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ52-Z19-2-N		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ52-Z19R-2-N		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ60-Z25		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ60-Z25R		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ60-Z25-J		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ60-Z25R-J		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ60-Z25-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ60-Z25R-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ60-Z25-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ60-Z25R-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ60-Z25-P		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high flow
LVQ60-Z25R-P		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high flow
LVQ60-Z25-1		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
LVQ60-Z25R-1		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
LVQ60-Z25-1-J		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ60-Z25R-1-J		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ60-Z25-1-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
LVQ60-Z25R-1-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
LVQ60-Z25-1-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ60-Z25R-1-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ60-Z25-2		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ60-Z25R-2		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ60-Z25-2-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ60-Z25R-2-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ60-Z25-2-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ60-Z25R-2-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ60-Z25-3		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ60-Z25R-3		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ60-Z25-3-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ60-Z25R-3-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ60-Z25-3-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ60-Z25R-3-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ60-Z25-4		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
LVQ60-Z25R-4		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
LVQ60-Z25-4-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
LVQ60-Z25R-4-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
LVQ60-Z25-4-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ60-Z25R-4-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ60-Z25-4-P		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM, high flow
LVQ60-Z25R-4-P		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM, high flow
LVQ60-Z25-5		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ60-Z25R-5		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ60-Z25-5-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ60-Z25R-5-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ60-Z25-5-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ60-Z25R-5-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ60-Z25-5-P		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM, high flow
LVQ60-Z25R-5-P		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM, high flow
LVQ60-Z25-6		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
LVQ60-Z25R-6		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
LVQ60-Z25-6-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ60-Z25R-6-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ60-Z25-6-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ60-Z25R-6-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ60-Z25-7		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
LVQ60-Z25R-7		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
LVQ60-Z25-7-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
LVQ60-Z25R-7-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
LVQ60-Z25-7-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ60-Z25R-7-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ60-Z25-8		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ60-Z25R-8		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ60-Z25-8-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ60-Z25R-8-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ60-Z25-8-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ60-Z25R-8-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ60-Z25-9		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
LVQ60-Z25R-9		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
LVQ60-Z25-9-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
LVQ60-Z25R-9-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
LVQ60-Z25-9-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ60-Z25R-9-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ60-Z25-24		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
LVQ60-Z25R-24		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
LVQ60-Z25-24-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
LVQ60-Z25R-24-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
LVQ60-Z25-24-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ60-Z25R-24-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ61-Z25		Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ61-Z25R		Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ61-Z25-J		Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ61-Z25R-J		Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ61-Z25-K		Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ61-Z25R-K		Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ61-Z25-N		Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ61-Z25R-N		Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ61-Z25-P		Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high flow
LVQ61-Z25R-P		Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high flow
LVQ62-Z25		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ62-Z25R		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ62-Z25-J		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ62-Z25R-J		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ62-Z25-K		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ62-Z25R-K		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ62-Z25-N		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ62-Z25R-N		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ62-Z25-P		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high flow
LVQ62-Z25R-P		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high flow
LVQ62-Z25-2		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ62-Z25R-2		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ62-Z25-2-K		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ62-Z25R-2-K		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ62-Z25-2-N		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ62-Z25R-2-N		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)

Chemical ValvesSMC

1022 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC LVQ-Z Air Operated Chemical Valve (LQ3 Flare Fitting)

Brand SMC·Chemical Valves

Available part numbers (1022)

LVQ20-Z03, LVQ20-Z03R, LVQ20-Z03-J, LVQ20-Z03R-J, LVQ20-Z03-K, LVQ20-Z03R-K, LVQ20-Z03-N, LVQ20-Z03R-N, LVQ20-Z03-1, LVQ20-Z03R-1 + 1012 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	LVQ20-Z03	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ20-Z03R	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ20-Z03-J	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ20-Z03R-J	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ20-Z03-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ20-Z03R-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ20-Z03-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ20-Z03R-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ20-Z03-1	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
	LVQ20-Z03R-1	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
	LVQ20-Z03-1-J	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ20-Z03R-1-J	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ20-Z03-1-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
	LVQ20-Z03R-1-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
	LVQ20-Z03-1-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ20-Z03R-1-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ20-Z03-2	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ20-Z03R-2	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ20-Z03-2-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ20-Z03R-2-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ20-Z03-2-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ20-Z03R-2-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ20-Z03-3	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ20-Z03R-3	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ20-Z03-3-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ20-Z03R-3-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ20-Z03-3-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ20-Z03R-3-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ20-Z03-4	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
	LVQ20-Z03R-4	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
	LVQ20-Z03-4-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
	LVQ20-Z03R-4-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
	LVQ20-Z03-4-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ20-Z03R-4-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ20-Z03-5	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ20-Z03R-5	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ20-Z03-5-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ20-Z03R-5-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ20-Z03-5-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ20-Z03R-5-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ20-Z03-6	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ20-Z03R-6	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ20-Z03-6-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ20-Z03R-6-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ20-Z03-6-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ20-Z03R-6-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ20-Z03-7	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
	LVQ20-Z03R-7	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
	LVQ20-Z03-7-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
	LVQ20-Z03R-7-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
	LVQ20-Z03-7-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ20-Z03R-7-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ20-Z03-8	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ20-Z03R-8	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ20-Z03-8-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ20-Z03R-8-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ20-Z03-8-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ20-Z03R-8-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ20-Z03-9	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
	LVQ20-Z03R-9	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
	LVQ20-Z03-9-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
	LVQ20-Z03R-9-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
	LVQ20-Z03-9-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ20-Z03R-9-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ20-Z03-24	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
	LVQ20-Z03R-24	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
	LVQ20-Z03-24-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ20-Z03R-24-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ20-Z03-24-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ20-Z03R-24-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ21-Z03	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ21-Z03R	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ21-Z03-J	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ21-Z03R-J	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ21-Z03-K	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ21-Z03R-K	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ21-Z03-N	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ21-Z03R-N	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ22-Z03	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ22-Z03R	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ22-Z03-J	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ22-Z03R-J	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ22-Z03-K	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ22-Z03R-K	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ22-Z03-N	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ22-Z03R-N	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ22-Z03-2	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ22-Z03R-2	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ22-Z03-2-K	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ22-Z03R-2-K	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ22-Z03-2-N	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ22-Z03R-2-N	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 3x2 mm / 1/8 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ20-Z04	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ20-Z04R	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ20-Z04-J	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ20-Z04R-J	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ20-Z04-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ20-Z04R-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ20-Z04-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ20-Z04R-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ20-Z04-1	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
	LVQ20-Z04R-1	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
	LVQ20-Z04-1-J	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ20-Z04R-1-J	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ20-Z04-1-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
	LVQ20-Z04R-1-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
	LVQ20-Z04-1-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ20-Z04R-1-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ20-Z04-2	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ20-Z04R-2	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ20-Z04-2-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ20-Z04R-2-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ20-Z04-2-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ20-Z04R-2-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ20-Z04-3	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ20-Z04R-3	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ20-Z04-3-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ20-Z04R-3-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ20-Z04-3-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ20-Z04R-3-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ20-Z04-4	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
	LVQ20-Z04R-4	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
	LVQ20-Z04-4-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
	LVQ20-Z04R-4-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
	LVQ20-Z04-4-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ20-Z04R-4-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ20-Z04-5	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ20-Z04R-5	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ20-Z04-5-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ20-Z04R-5-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ20-Z04-5-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ20-Z04R-5-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ20-Z04-6	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ20-Z04R-6	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ20-Z04-6-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ20-Z04R-6-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ20-Z04-6-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ20-Z04R-6-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ20-Z04-7	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
	LVQ20-Z04R-7	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
	LVQ20-Z04-7-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
	LVQ20-Z04R-7-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
	LVQ20-Z04-7-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ20-Z04R-7-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ20-Z04-8	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ20-Z04R-8	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ20-Z04-8-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ20-Z04R-8-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ20-Z04-8-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ20-Z04R-8-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ20-Z04-9	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
	LVQ20-Z04R-9	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
	LVQ20-Z04-9-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
	LVQ20-Z04R-9-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
	LVQ20-Z04-9-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ20-Z04R-9-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ20-Z04-24	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
	LVQ20-Z04R-24	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
	LVQ20-Z04-24-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ20-Z04R-24-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ20-Z04-24-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ20-Z04R-24-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ21-Z04	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ21-Z04R	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ21-Z04-J	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ21-Z04R-J	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ21-Z04-K	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ21-Z04R-K	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ21-Z04-N	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ21-Z04R-N	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ22-Z04	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ22-Z04R	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ22-Z04-J	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ22-Z04R-J	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ22-Z04-K	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ22-Z04R-K	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ22-Z04-N	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ22-Z04R-N	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ22-Z04-2	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ22-Z04R-2	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ22-Z04-2-K	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ22-Z04R-2-K	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ22-Z04-2-N	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ22-Z04R-2-N	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 4x3 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ20-Z06	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ20-Z06R	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ20-Z06-J	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ20-Z06R-J	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ20-Z06-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ20-Z06R-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ20-Z06-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ20-Z06R-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ20-Z06-1	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
	LVQ20-Z06R-1	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
	LVQ20-Z06-1-J	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ20-Z06R-1-J	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ20-Z06-1-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
	LVQ20-Z06R-1-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
	LVQ20-Z06-1-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ20-Z06R-1-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ20-Z06-2	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ20-Z06R-2	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ20-Z06-2-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ20-Z06R-2-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ20-Z06-2-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ20-Z06R-2-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ20-Z06-3	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ20-Z06R-3	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ20-Z06-3-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ20-Z06R-3-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ20-Z06-3-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ20-Z06R-3-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ20-Z06-4	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
	LVQ20-Z06R-4	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
	LVQ20-Z06-4-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
	LVQ20-Z06R-4-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
	LVQ20-Z06-4-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ20-Z06R-4-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ20-Z06-5	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ20-Z06R-5	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ20-Z06-5-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ20-Z06R-5-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ20-Z06-5-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ20-Z06R-5-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ20-Z06-6	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ20-Z06R-6	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ20-Z06-6-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ20-Z06R-6-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ20-Z06-6-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ20-Z06R-6-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ20-Z06-7	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
	LVQ20-Z06R-7	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
	LVQ20-Z06-7-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
	LVQ20-Z06R-7-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
	LVQ20-Z06-7-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ20-Z06R-7-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ20-Z06-8	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ20-Z06R-8	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ20-Z06-8-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ20-Z06R-8-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ20-Z06-8-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ20-Z06R-8-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ20-Z06-9	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
	LVQ20-Z06R-9	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
	LVQ20-Z06-9-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
	LVQ20-Z06R-9-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
	LVQ20-Z06-9-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ20-Z06R-9-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ20-Z06-24	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
	LVQ20-Z06R-24	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
	LVQ20-Z06-24-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ20-Z06R-24-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ20-Z06-24-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ20-Z06R-24-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ21-Z06	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ21-Z06R	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ21-Z06-J	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ21-Z06R-J	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ21-Z06-K	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ21-Z06R-K	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ21-Z06-N	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ21-Z06R-N	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ22-Z06	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ22-Z06R	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ22-Z06-J	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ22-Z06R-J	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ22-Z06-K	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ22-Z06R-K	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ22-Z06-N	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ22-Z06R-N	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ22-Z06-2	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ22-Z06R-2	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ22-Z06-2-K	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ22-Z06R-2-K	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ22-Z06-2-N	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ22-Z06R-2-N	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 6x4 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ20-Z07	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ20-Z07R	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ20-Z07-J	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ20-Z07R-J	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ20-Z07-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ20-Z07R-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ20-Z07-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ20-Z07R-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ20-Z07-1	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
	LVQ20-Z07R-1	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
	LVQ20-Z07-1-J	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ20-Z07R-1-J	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ20-Z07-1-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
	LVQ20-Z07R-1-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
	LVQ20-Z07-1-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ20-Z07R-1-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ20-Z07-2	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ20-Z07R-2	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ20-Z07-2-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ20-Z07R-2-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ20-Z07-2-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ20-Z07R-2-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ20-Z07-3	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ20-Z07R-3	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ20-Z07-3-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ20-Z07R-3-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ20-Z07-3-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ20-Z07R-3-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ20-Z07-4	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
	LVQ20-Z07R-4	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
	LVQ20-Z07-4-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
	LVQ20-Z07R-4-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
	LVQ20-Z07-4-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ20-Z07R-4-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ20-Z07-5	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ20-Z07R-5	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ20-Z07-5-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ20-Z07R-5-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ20-Z07-5-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ20-Z07R-5-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ20-Z07-6	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ20-Z07R-6	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ20-Z07-6-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ20-Z07R-6-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ20-Z07-6-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ20-Z07R-6-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ20-Z07-7	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
	LVQ20-Z07R-7	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
	LVQ20-Z07-7-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
	LVQ20-Z07R-7-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
	LVQ20-Z07-7-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ20-Z07R-7-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ20-Z07-8	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ20-Z07R-8	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ20-Z07-8-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ20-Z07R-8-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ20-Z07-8-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ20-Z07R-8-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ20-Z07-9	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
	LVQ20-Z07R-9	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
	LVQ20-Z07-9-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
	LVQ20-Z07R-9-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
	LVQ20-Z07-9-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ20-Z07R-9-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ20-Z07-24	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
	LVQ20-Z07R-24	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
	LVQ20-Z07-24-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ20-Z07R-24-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ20-Z07-24-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ20-Z07R-24-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ21-Z07	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ21-Z07R	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ21-Z07-J	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ21-Z07R-J	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ21-Z07-K	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ21-Z07R-K	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ21-Z07-N	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ21-Z07R-N	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ22-Z07	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ22-Z07R	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ22-Z07-J	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ22-Z07R-J	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ22-Z07-K	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ22-Z07R-K	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ22-Z07-N	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ22-Z07R-N	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ22-Z07-2	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ22-Z07R-2	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ22-Z07-2-K	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ22-Z07R-2-K	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ22-Z07-2-N	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ22-Z07R-2-N	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: 1/4 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ30-Z08	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ30-Z08R	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ30-Z08-J	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ30-Z08R-J	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ30-Z08-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ30-Z08R-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ30-Z08-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ30-Z08R-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ30-Z08-1	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
	LVQ30-Z08R-1	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
	LVQ30-Z08-1-J	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ30-Z08R-1-J	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ30-Z08-1-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
	LVQ30-Z08R-1-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
	LVQ30-Z08-1-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ30-Z08R-1-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ30-Z08-2	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ30-Z08R-2	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ30-Z08-2-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ30-Z08R-2-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ30-Z08-2-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ30-Z08R-2-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ30-Z08-3	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ30-Z08R-3	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ30-Z08-3-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ30-Z08R-3-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ30-Z08-3-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ30-Z08R-3-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ30-Z08-4	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
	LVQ30-Z08R-4	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
	LVQ30-Z08-4-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
	LVQ30-Z08R-4-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
	LVQ30-Z08-4-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ30-Z08R-4-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ30-Z08-5	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ30-Z08R-5	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ30-Z08-5-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ30-Z08R-5-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ30-Z08-5-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ30-Z08R-5-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ30-Z08-6	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ30-Z08R-6	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ30-Z08-6-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ30-Z08R-6-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ30-Z08-6-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ30-Z08R-6-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ30-Z08-7	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
	LVQ30-Z08R-7	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
	LVQ30-Z08-7-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
	LVQ30-Z08R-7-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
	LVQ30-Z08-7-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ30-Z08R-7-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ30-Z08-8	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ30-Z08R-8	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ30-Z08-8-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ30-Z08R-8-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ30-Z08-8-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ30-Z08R-8-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ30-Z08-9	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
	LVQ30-Z08R-9	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
	LVQ30-Z08-9-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
	LVQ30-Z08R-9-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
	LVQ30-Z08-9-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ30-Z08R-9-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ30-Z08-24	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
	LVQ30-Z08R-24	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
	LVQ30-Z08-24-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ30-Z08R-24-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ30-Z08-24-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ30-Z08R-24-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ31-Z08	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ31-Z08R	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ31-Z08-J	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ31-Z08R-J	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ31-Z08-K	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ31-Z08R-K	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ31-Z08-N	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ31-Z08R-N	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ32-Z08	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ32-Z08R	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ32-Z08-J	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ32-Z08R-J	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ32-Z08-K	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ32-Z08R-K	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ32-Z08-N	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ32-Z08R-N	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ32-Z08-2	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ32-Z08R-2	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ32-Z08-2-K	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ32-Z08R-2-K	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ32-Z08-2-N	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ32-Z08R-2-N	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 8x6 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ30-Z10	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ30-Z10R	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ30-Z10-J	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ30-Z10R-J	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ30-Z10-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ30-Z10R-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ30-Z10-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ30-Z10R-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ30-Z10-1	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
	LVQ30-Z10R-1	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
	LVQ30-Z10-1-J	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ30-Z10R-1-J	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ30-Z10-1-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
	LVQ30-Z10R-1-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
	LVQ30-Z10-1-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ30-Z10R-1-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ30-Z10-2	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ30-Z10R-2	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ30-Z10-2-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ30-Z10R-2-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ30-Z10-2-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ30-Z10R-2-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ30-Z10-3	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ30-Z10R-3	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ30-Z10-3-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ30-Z10R-3-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ30-Z10-3-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ30-Z10R-3-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ30-Z10-4	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
	LVQ30-Z10R-4	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
	LVQ30-Z10-4-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
	LVQ30-Z10R-4-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
	LVQ30-Z10-4-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ30-Z10R-4-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ30-Z10-5	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ30-Z10R-5	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ30-Z10-5-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ30-Z10R-5-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ30-Z10-5-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ30-Z10R-5-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ30-Z10-6	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ30-Z10R-6	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ30-Z10-6-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ30-Z10R-6-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ30-Z10-6-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ30-Z10R-6-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ30-Z10-7	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
	LVQ30-Z10R-7	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
	LVQ30-Z10-7-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
	LVQ30-Z10R-7-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
	LVQ30-Z10-7-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ30-Z10R-7-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ30-Z10-8	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ30-Z10R-8	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ30-Z10-8-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ30-Z10R-8-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ30-Z10-8-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ30-Z10R-8-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ30-Z10-9	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
	LVQ30-Z10R-9	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
	LVQ30-Z10-9-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
	LVQ30-Z10R-9-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
	LVQ30-Z10-9-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ30-Z10R-9-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ30-Z10-24	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
	LVQ30-Z10R-24	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
	LVQ30-Z10-24-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ30-Z10R-24-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ30-Z10-24-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ30-Z10R-24-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ31-Z10	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ31-Z10R	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ31-Z10-J	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ31-Z10R-J	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ31-Z10-K	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ31-Z10R-K	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ31-Z10-N	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ31-Z10R-N	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ32-Z10	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ32-Z10R	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ32-Z10-J	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ32-Z10R-J	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ32-Z10-K	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ32-Z10R-K	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ32-Z10-N	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ32-Z10R-N	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ32-Z10-2	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ32-Z10R-2	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ32-Z10-2-K	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ32-Z10R-2-K	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ32-Z10-2-N	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ32-Z10R-2-N	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 10x8 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ30-Z11	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ30-Z11R	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ30-Z11-J	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ30-Z11R-J	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ30-Z11-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ30-Z11R-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ30-Z11-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ30-Z11R-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ30-Z11-1	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
	LVQ30-Z11R-1	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
	LVQ30-Z11-1-J	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ30-Z11R-1-J	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ30-Z11-1-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
	LVQ30-Z11R-1-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
	LVQ30-Z11-1-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ30-Z11R-1-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ30-Z11-2	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ30-Z11R-2	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ30-Z11-2-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ30-Z11R-2-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ30-Z11-2-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ30-Z11R-2-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ30-Z11-3	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ30-Z11R-3	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ30-Z11-3-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ30-Z11R-3-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ30-Z11-3-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ30-Z11R-3-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ30-Z11-4	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
	LVQ30-Z11R-4	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
	LVQ30-Z11-4-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
	LVQ30-Z11R-4-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
	LVQ30-Z11-4-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ30-Z11R-4-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ30-Z11-5	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ30-Z11R-5	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ30-Z11-5-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ30-Z11R-5-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ30-Z11-5-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ30-Z11R-5-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ30-Z11-6	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ30-Z11R-6	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ30-Z11-6-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ30-Z11R-6-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ30-Z11-6-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ30-Z11R-6-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ30-Z11-7	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
	LVQ30-Z11R-7	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
	LVQ30-Z11-7-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
	LVQ30-Z11R-7-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
	LVQ30-Z11-7-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ30-Z11R-7-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ30-Z11-8	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ30-Z11R-8	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ30-Z11-8-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ30-Z11R-8-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ30-Z11-8-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ30-Z11R-8-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ30-Z11-9	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
	LVQ30-Z11R-9	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
	LVQ30-Z11-9-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
	LVQ30-Z11R-9-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
	LVQ30-Z11-9-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ30-Z11R-9-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ30-Z11-24	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
	LVQ30-Z11R-24	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
	LVQ30-Z11-24-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ30-Z11R-24-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ30-Z11-24-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ30-Z11R-24-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ31-Z11	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ31-Z11R	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ31-Z11-J	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ31-Z11R-J	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ31-Z11-K	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ31-Z11R-K	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ31-Z11-N	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ31-Z11R-N	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ32-Z11	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ32-Z11R	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ32-Z11-J	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ32-Z11R-J	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ32-Z11-K	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ32-Z11R-K	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ32-Z11-N	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ32-Z11R-N	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ32-Z11-2	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ32-Z11R-2	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ32-Z11-2-K	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ32-Z11R-2-K	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ32-Z11-2-N	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ32-Z11R-2-N	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: 3/8 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ40-Z12	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ40-Z12R	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ40-Z12-J	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ40-Z12R-J	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ40-Z12-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ40-Z12R-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ40-Z12-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ40-Z12R-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ40-Z12-1	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
	LVQ40-Z12R-1	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
	LVQ40-Z12-1-J	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ40-Z12R-1-J	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ40-Z12-1-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
	LVQ40-Z12R-1-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
	LVQ40-Z12-1-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ40-Z12R-1-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ40-Z12-2	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ40-Z12R-2	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ40-Z12-2-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ40-Z12R-2-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ40-Z12-2-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ40-Z12R-2-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ40-Z12-3	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ40-Z12R-3	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ40-Z12-3-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ40-Z12R-3-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ40-Z12-3-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ40-Z12R-3-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ40-Z12-4	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
	LVQ40-Z12R-4	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
	LVQ40-Z12-4-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
	LVQ40-Z12R-4-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
	LVQ40-Z12-4-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ40-Z12R-4-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ40-Z12-5	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ40-Z12R-5	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ40-Z12-5-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ40-Z12R-5-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ40-Z12-5-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ40-Z12R-5-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ40-Z12-6	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ40-Z12R-6	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ40-Z12-6-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ40-Z12R-6-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ40-Z12-6-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ40-Z12R-6-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ40-Z12-7	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
	LVQ40-Z12R-7	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
	LVQ40-Z12-7-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
	LVQ40-Z12R-7-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
	LVQ40-Z12-7-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ40-Z12R-7-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ40-Z12-8	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ40-Z12R-8	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ40-Z12-8-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ40-Z12R-8-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ40-Z12-8-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ40-Z12R-8-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ40-Z12-9	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
	LVQ40-Z12R-9	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
	LVQ40-Z12-9-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
	LVQ40-Z12R-9-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
	LVQ40-Z12-9-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ40-Z12R-9-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ40-Z12-24	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
	LVQ40-Z12R-24	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
	LVQ40-Z12-24-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ40-Z12R-24-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ40-Z12-24-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ40-Z12R-24-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ41-Z12	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ41-Z12R	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ41-Z12-J	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ41-Z12R-J	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ41-Z12-K	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ41-Z12R-K	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ41-Z12-N	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ41-Z12R-N	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ42-Z12	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ42-Z12R	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ42-Z12-J	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ42-Z12R-J	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ42-Z12-K	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ42-Z12R-K	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ42-Z12-N	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ42-Z12R-N	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ42-Z12-2	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ42-Z12R-2	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ42-Z12-2-K	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ42-Z12R-2-K	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ42-Z12-2-N	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ42-Z12R-2-N	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 12x10 mm \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ40-Z13	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ40-Z13R	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ40-Z13-J	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ40-Z13R-J	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ40-Z13-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ40-Z13R-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ40-Z13-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ40-Z13R-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ40-Z13-1	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
	LVQ40-Z13R-1	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
	LVQ40-Z13-1-J	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ40-Z13R-1-J	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ40-Z13-1-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
	LVQ40-Z13R-1-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
	LVQ40-Z13-1-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ40-Z13R-1-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ40-Z13-2	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ40-Z13R-2	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ40-Z13-2-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ40-Z13R-2-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ40-Z13-2-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ40-Z13R-2-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ40-Z13-3	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ40-Z13R-3	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ40-Z13-3-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ40-Z13R-3-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ40-Z13-3-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ40-Z13R-3-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ40-Z13-4	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
	LVQ40-Z13R-4	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
	LVQ40-Z13-4-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
	LVQ40-Z13R-4-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
	LVQ40-Z13-4-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ40-Z13R-4-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ40-Z13-5	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ40-Z13R-5	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ40-Z13-5-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ40-Z13R-5-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ40-Z13-5-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ40-Z13R-5-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ40-Z13-6	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ40-Z13R-6	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ40-Z13-6-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ40-Z13R-6-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ40-Z13-6-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ40-Z13R-6-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ40-Z13-7	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
	LVQ40-Z13R-7	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
	LVQ40-Z13-7-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
	LVQ40-Z13R-7-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
	LVQ40-Z13-7-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ40-Z13R-7-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ40-Z13-8	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ40-Z13R-8	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ40-Z13-8-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ40-Z13R-8-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ40-Z13-8-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ40-Z13R-8-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ40-Z13-9	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
	LVQ40-Z13R-9	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
	LVQ40-Z13-9-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
	LVQ40-Z13R-9-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
	LVQ40-Z13-9-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ40-Z13R-9-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ40-Z13-24	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
	LVQ40-Z13R-24	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
	LVQ40-Z13-24-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ40-Z13R-24-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ40-Z13-24-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ40-Z13R-24-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ41-Z13	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ41-Z13R	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ41-Z13-J	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ41-Z13R-J	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ41-Z13-K	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ41-Z13R-K	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ41-Z13-N	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ41-Z13R-N	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ42-Z13	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ42-Z13R	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ42-Z13-J	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ42-Z13R-J	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ42-Z13-K	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ42-Z13R-K	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ42-Z13-N	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ42-Z13R-N	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ42-Z13-2	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ42-Z13R-2	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ42-Z13-2-K	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ42-Z13R-2-K	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ42-Z13-2-N	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ42-Z13R-2-N	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: 1/2 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ50-Z19	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ50-Z19R	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ50-Z19-J	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ50-Z19R-J	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ50-Z19-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ50-Z19R-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ50-Z19-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ50-Z19R-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ50-Z19-1	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
	LVQ50-Z19R-1	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
	LVQ50-Z19-1-J	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ50-Z19R-1-J	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ50-Z19-1-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
	LVQ50-Z19R-1-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
	LVQ50-Z19-1-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ50-Z19R-1-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ50-Z19-2	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ50-Z19R-2	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ50-Z19-2-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ50-Z19R-2-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ50-Z19-2-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ50-Z19R-2-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ50-Z19-3	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ50-Z19R-3	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ50-Z19-3-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ50-Z19R-3-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ50-Z19-3-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ50-Z19R-3-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ50-Z19-4	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
	LVQ50-Z19R-4	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
	LVQ50-Z19-4-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
	LVQ50-Z19R-4-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
	LVQ50-Z19-4-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ50-Z19R-4-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ50-Z19-5	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ50-Z19R-5	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ50-Z19-5-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ50-Z19R-5-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ50-Z19-5-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ50-Z19R-5-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ50-Z19-6	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ50-Z19R-6	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ50-Z19-6-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ50-Z19R-6-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ50-Z19-6-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ50-Z19R-6-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ50-Z19-7	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
	LVQ50-Z19R-7	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
	LVQ50-Z19-7-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
	LVQ50-Z19R-7-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
	LVQ50-Z19-7-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ50-Z19R-7-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ50-Z19-8	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ50-Z19R-8	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ50-Z19-8-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ50-Z19R-8-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ50-Z19-8-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ50-Z19R-8-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ50-Z19-9	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
	LVQ50-Z19R-9	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
	LVQ50-Z19-9-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
	LVQ50-Z19R-9-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
	LVQ50-Z19-9-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ50-Z19R-9-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ50-Z19-24	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
	LVQ50-Z19R-24	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
	LVQ50-Z19-24-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ50-Z19R-24-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ50-Z19-24-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ50-Z19R-24-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ51-Z19	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ51-Z19R	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ51-Z19-J	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ51-Z19R-J	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ51-Z19-K	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ51-Z19R-K	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ51-Z19-N	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ51-Z19R-N	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ52-Z19	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ52-Z19R	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ52-Z19-J	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ52-Z19R-J	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ52-Z19-K	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ52-Z19R-K	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ52-Z19-N	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ52-Z19R-N	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ52-Z19-2	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ52-Z19R-2	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ52-Z19-2-K	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ52-Z19R-2-K	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ52-Z19-2-N	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ52-Z19R-2-N	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: 19x16 mm / 3/4 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ60-Z25	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ60-Z25R	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ60-Z25-J	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ60-Z25R-J	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ60-Z25-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ60-Z25R-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ60-Z25-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ60-Z25R-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ60-Z25-P	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high flow
	LVQ60-Z25R-P	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high flow
	LVQ60-Z25-1	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
	LVQ60-Z25R-1	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
	LVQ60-Z25-1-J	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ60-Z25R-1-J	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ60-Z25-1-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
	LVQ60-Z25R-1-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
	LVQ60-Z25-1-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ60-Z25R-1-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ60-Z25-2	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ60-Z25R-2	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ60-Z25-2-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ60-Z25R-2-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ60-Z25-2-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ60-Z25R-2-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ60-Z25-3	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ60-Z25R-3	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ60-Z25-3-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ60-Z25R-3-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ60-Z25-3-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ60-Z25R-3-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ60-Z25-4	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
	LVQ60-Z25R-4	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
	LVQ60-Z25-4-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
	LVQ60-Z25R-4-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
	LVQ60-Z25-4-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ60-Z25R-4-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ60-Z25-4-P	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM, high flow
	LVQ60-Z25R-4-P	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM, high flow
	LVQ60-Z25-5	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ60-Z25R-5	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ60-Z25-5-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ60-Z25R-5-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ60-Z25-5-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ60-Z25R-5-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ60-Z25-5-P	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM, high flow
	LVQ60-Z25R-5-P	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM, high flow
	LVQ60-Z25-6	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ60-Z25R-6	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ60-Z25-6-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ60-Z25R-6-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ60-Z25-6-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ60-Z25R-6-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ60-Z25-7	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
	LVQ60-Z25R-7	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
	LVQ60-Z25-7-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
	LVQ60-Z25R-7-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
	LVQ60-Z25-7-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ60-Z25R-7-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ60-Z25-8	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ60-Z25R-8	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ60-Z25-8-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ60-Z25R-8-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ60-Z25-8-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ60-Z25R-8-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ60-Z25-9	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
	LVQ60-Z25R-9	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
	LVQ60-Z25-9-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
	LVQ60-Z25R-9-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
	LVQ60-Z25-9-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ60-Z25R-9-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ60-Z25-24	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
	LVQ60-Z25R-24	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
	LVQ60-Z25-24-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ60-Z25R-24-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ60-Z25-24-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ60-Z25R-24-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ61-Z25	Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ61-Z25R	Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ61-Z25-J	Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ61-Z25R-J	Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ61-Z25-K	Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ61-Z25R-K	Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ61-Z25-N	Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ61-Z25R-N	Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ61-Z25-P	Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high flow
	LVQ61-Z25R-P	Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high flow
	LVQ62-Z25	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ62-Z25R	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ62-Z25-J	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ62-Z25R-J	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ62-Z25-K	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ62-Z25R-K	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ62-Z25-N	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ62-Z25R-N	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ62-Z25-P	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high flow
	LVQ62-Z25R-P	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high flow
	LVQ62-Z25-2	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ62-Z25R-2	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ62-Z25-2-K	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ62-Z25R-2-K	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ62-Z25-2-N	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ62-Z25R-2-N	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: 25x22 mm / 1 in \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC LVQ-Z Air Operated Chemical Valve (LQ3 Flare Fitting)
