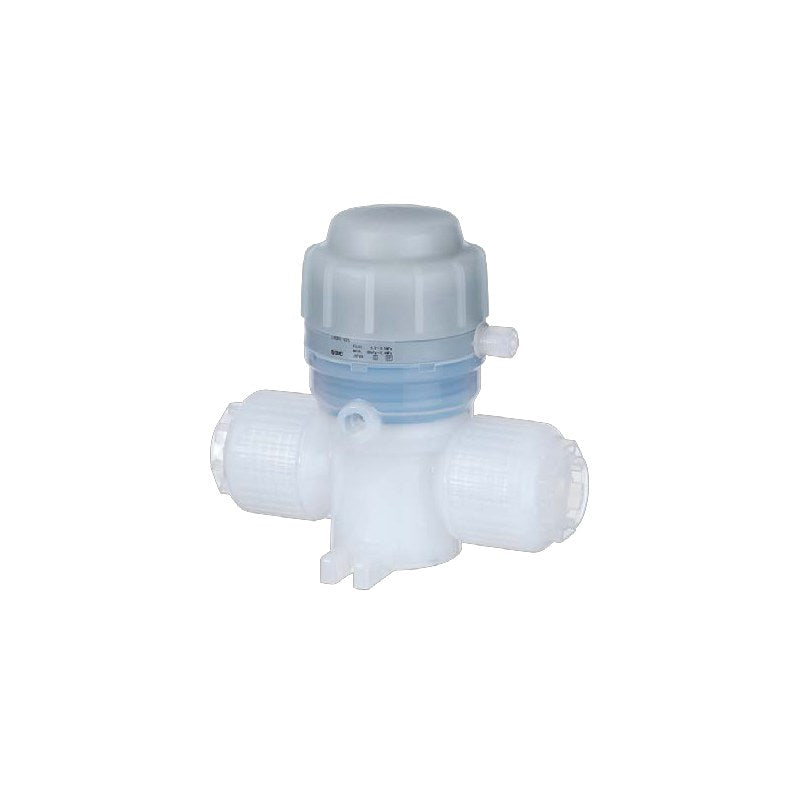

SMC LVQH Manual Chemical Valve (LQ1, LQ3 or Tube Integral)

SMC LVQH Manual Chemical Valve (LQ1, LQ3 or Tube Integral)

SMC LVQH series manually operated chemical diaphragm valve, New PFA body with LQ1 insert-bushing (V), LQ3 flare (Z) or integral tube (T) connection.

Key features

  • 90-degree turn handle (1) or multi-turn handle with open/close indicator and lock (4)
  • Fluid-contact parts New PFA body and PTFE diaphragm; PVDF actuator, non-metal exterior
  • Buffer material FKM (standard), FFKM (K) or EPDM for ammonia water (N)
  • Breathing port Rc1/8 (R) listed; NPT1/8 is the blank-symbol alternative
  • Reducer tube sizes selectable within the same body class (LQ1 type)

Specifications

Fluid Deionized water, chemicals (see compatibility list)
Proof pressure 1 MPa
Operating pressure (A to B) -98 kPa to 0.5 MPa (LVQH60 0.4 MPa)
Back pressure 0.3 MPa or less (LVQH60 0.2 MPa)
Valve leakage 0 cm3/min (water pressure)
Flow Cv (class 2/3/4/5/6) 0.35 / 1.3 / 1.9 / 5 / 8
Fluid temperature 0 to 100 C
Ambient temperature 0 to 60 C
Breathing port Rc1/8
Source SMC Korea catalog LVQ Series (SMCKR_LVQ.pdf), p. 90-93, 121-124, 139-141 (PDF p. 29-32, 60-63, 78-80)
LVQH20-V03R-1 Body class: 2 (ø4 orifice) | Connection: LQ1 fitting | Tube size: 3x2 mm / 1/8 in | Handle: 90 deg turn | Buffer: FKM
LVQH20-V03R-1-K Body class: 2 (ø4 orifice) | Connection: LQ1 fitting | Tube size: 3x2 mm / 1/8 in | Handle: 90 deg turn | Buffer: FFKM
LVQH20-V03R-1-N Body class: 2 (ø4 orifice) | Connection: LQ1 fitting | Tube size: 3x2 mm / 1/8 in | Handle: 90 deg turn | Buffer: EPDM (ammonia)
LVQH20-V03R-4 Body class: 2 (ø4 orifice) | Connection: LQ1 fitting | Tube size: 3x2 mm / 1/8 in | Handle: Multi-turn with indicator | Buffer: FKM
LVQH20-V03R-4-K Body class: 2 (ø4 orifice) | Connection: LQ1 fitting | Tube size: 3x2 mm / 1/8 in | Handle: Multi-turn with indicator | Buffer: FFKM
LVQH20-V03R-4-N Body class: 2 (ø4 orifice) | Connection: LQ1 fitting | Tube size: 3x2 mm / 1/8 in | Handle: Multi-turn with indicator | Buffer: EPDM (ammonia)
LVQH20-V04R-1 Body class: 2 (ø4 orifice) | Connection: LQ1 fitting | Tube size: 4x3 mm | Handle: 90 deg turn | Buffer: FKM
LVQH20-V04R-1-K Body class: 2 (ø4 orifice) | Connection: LQ1 fitting | Tube size: 4x3 mm | Handle: 90 deg turn | Buffer: FFKM
LVQH20-V04R-1-N Body class: 2 (ø4 orifice) | Connection: LQ1 fitting | Tube size: 4x3 mm | Handle: 90 deg turn | Buffer: EPDM (ammonia)
LVQH20-V04R-4 Body class: 2 (ø4 orifice) | Connection: LQ1 fitting | Tube size: 4x3 mm | Handle: Multi-turn with indicator | Buffer: FKM
LVQH20-V04R-4-K Body class: 2 (ø4 orifice) | Connection: LQ1 fitting | Tube size: 4x3 mm | Handle: Multi-turn with indicator | Buffer: FFKM
LVQH20-V04R-4-N Body class: 2 (ø4 orifice) | Connection: LQ1 fitting | Tube size: 4x3 mm | Handle: Multi-turn with indicator | Buffer: EPDM (ammonia)
LVQH20-V06R-1 Body class: 2 (ø4 orifice) | Connection: LQ1 fitting | Tube size: 6x4 mm | Handle: 90 deg turn | Buffer: FKM
LVQH20-V06R-1-K Body class: 2 (ø4 orifice) | Connection: LQ1 fitting | Tube size: 6x4 mm | Handle: 90 deg turn | Buffer: FFKM
LVQH20-V06R-1-N Body class: 2 (ø4 orifice) | Connection: LQ1 fitting | Tube size: 6x4 mm | Handle: 90 deg turn | Buffer: EPDM (ammonia)
LVQH20-V06R-4 Body class: 2 (ø4 orifice) | Connection: LQ1 fitting | Tube size: 6x4 mm | Handle: Multi-turn with indicator | Buffer: FKM
LVQH20-V06R-4-K Body class: 2 (ø4 orifice) | Connection: LQ1 fitting | Tube size: 6x4 mm | Handle: Multi-turn with indicator | Buffer: FFKM
LVQH20-V06R-4-N Body class: 2 (ø4 orifice) | Connection: LQ1 fitting | Tube size: 6x4 mm | Handle: Multi-turn with indicator | Buffer: EPDM (ammonia)
LVQH20-V05R-1 Body class: 2 (ø4 orifice) | Connection: LQ1 fitting | Tube size: 3/16 in | Handle: 90 deg turn | Buffer: FKM
LVQH20-V05R-1-K Body class: 2 (ø4 orifice) | Connection: LQ1 fitting | Tube size: 3/16 in | Handle: 90 deg turn | Buffer: FFKM
LVQH20-V05R-1-N Body class: 2 (ø4 orifice) | Connection: LQ1 fitting | Tube size: 3/16 in | Handle: 90 deg turn | Buffer: EPDM (ammonia)
LVQH20-V05R-4 Body class: 2 (ø4 orifice) | Connection: LQ1 fitting | Tube size: 3/16 in | Handle: Multi-turn with indicator | Buffer: FKM
LVQH20-V05R-4-K Body class: 2 (ø4 orifice) | Connection: LQ1 fitting | Tube size: 3/16 in | Handle: Multi-turn with indicator | Buffer: FFKM
LVQH20-V05R-4-N Body class: 2 (ø4 orifice) | Connection: LQ1 fitting | Tube size: 3/16 in | Handle: Multi-turn with indicator | Buffer: EPDM (ammonia)
LVQH20-V07R-1 Body class: 2 (ø4 orifice) | Connection: LQ1 fitting | Tube size: 1/4 in | Handle: 90 deg turn | Buffer: FKM
LVQH20-V07R-1-K Body class: 2 (ø4 orifice) | Connection: LQ1 fitting | Tube size: 1/4 in | Handle: 90 deg turn | Buffer: FFKM
LVQH20-V07R-1-N Body class: 2 (ø4 orifice) | Connection: LQ1 fitting | Tube size: 1/4 in | Handle: 90 deg turn | Buffer: EPDM (ammonia)
LVQH20-V07R-4 Body class: 2 (ø4 orifice) | Connection: LQ1 fitting | Tube size: 1/4 in | Handle: Multi-turn with indicator | Buffer: FKM
LVQH20-V07R-4-K Body class: 2 (ø4 orifice) | Connection: LQ1 fitting | Tube size: 1/4 in | Handle: Multi-turn with indicator | Buffer: FFKM
LVQH20-V07R-4-N Body class: 2 (ø4 orifice) | Connection: LQ1 fitting | Tube size: 1/4 in | Handle: Multi-turn with indicator | Buffer: EPDM (ammonia)
LVQH30-V06R-1 Body class: 3 (ø8 orifice) | Connection: LQ1 fitting | Tube size: 6x4 mm | Handle: 90 deg turn | Buffer: FKM
LVQH30-V06R-1-K Body class: 3 (ø8 orifice) | Connection: LQ1 fitting | Tube size: 6x4 mm | Handle: 90 deg turn | Buffer: FFKM
LVQH30-V06R-1-N Body class: 3 (ø8 orifice) | Connection: LQ1 fitting | Tube size: 6x4 mm | Handle: 90 deg turn | Buffer: EPDM (ammonia)
LVQH30-V06R-4 Body class: 3 (ø8 orifice) | Connection: LQ1 fitting | Tube size: 6x4 mm | Handle: Multi-turn with indicator | Buffer: FKM
LVQH30-V06R-4-K Body class: 3 (ø8 orifice) | Connection: LQ1 fitting | Tube size: 6x4 mm | Handle: Multi-turn with indicator | Buffer: FFKM
LVQH30-V06R-4-N Body class: 3 (ø8 orifice) | Connection: LQ1 fitting | Tube size: 6x4 mm | Handle: Multi-turn with indicator | Buffer: EPDM (ammonia)
LVQH30-V08R-1 Body class: 3 (ø8 orifice) | Connection: LQ1 fitting | Tube size: 8x6 mm | Handle: 90 deg turn | Buffer: FKM
LVQH30-V08R-1-K Body class: 3 (ø8 orifice) | Connection: LQ1 fitting | Tube size: 8x6 mm | Handle: 90 deg turn | Buffer: FFKM
LVQH30-V08R-1-N Body class: 3 (ø8 orifice) | Connection: LQ1 fitting | Tube size: 8x6 mm | Handle: 90 deg turn | Buffer: EPDM (ammonia)
LVQH30-V08R-4 Body class: 3 (ø8 orifice) | Connection: LQ1 fitting | Tube size: 8x6 mm | Handle: Multi-turn with indicator | Buffer: FKM
LVQH30-V08R-4-K Body class: 3 (ø8 orifice) | Connection: LQ1 fitting | Tube size: 8x6 mm | Handle: Multi-turn with indicator | Buffer: FFKM
LVQH30-V08R-4-N Body class: 3 (ø8 orifice) | Connection: LQ1 fitting | Tube size: 8x6 mm | Handle: Multi-turn with indicator | Buffer: EPDM (ammonia)
LVQH30-V10R-1 Body class: 3 (ø8 orifice) | Connection: LQ1 fitting | Tube size: 10x8 mm | Handle: 90 deg turn | Buffer: FKM
LVQH30-V10R-1-K Body class: 3 (ø8 orifice) | Connection: LQ1 fitting | Tube size: 10x8 mm | Handle: 90 deg turn | Buffer: FFKM
LVQH30-V10R-1-N Body class: 3 (ø8 orifice) | Connection: LQ1 fitting | Tube size: 10x8 mm | Handle: 90 deg turn | Buffer: EPDM (ammonia)
LVQH30-V10R-4 Body class: 3 (ø8 orifice) | Connection: LQ1 fitting | Tube size: 10x8 mm | Handle: Multi-turn with indicator | Buffer: FKM
LVQH30-V10R-4-K Body class: 3 (ø8 orifice) | Connection: LQ1 fitting | Tube size: 10x8 mm | Handle: Multi-turn with indicator | Buffer: FFKM
LVQH30-V10R-4-N Body class: 3 (ø8 orifice) | Connection: LQ1 fitting | Tube size: 10x8 mm | Handle: Multi-turn with indicator | Buffer: EPDM (ammonia)
LVQH30-V07R-1 Body class: 3 (ø8 orifice) | Connection: LQ1 fitting | Tube size: 1/4 in | Handle: 90 deg turn | Buffer: FKM
LVQH30-V07R-1-K Body class: 3 (ø8 orifice) | Connection: LQ1 fitting | Tube size: 1/4 in | Handle: 90 deg turn | Buffer: FFKM
LVQH30-V07R-1-N Body class: 3 (ø8 orifice) | Connection: LQ1 fitting | Tube size: 1/4 in | Handle: 90 deg turn | Buffer: EPDM (ammonia)
LVQH30-V07R-4 Body class: 3 (ø8 orifice) | Connection: LQ1 fitting | Tube size: 1/4 in | Handle: Multi-turn with indicator | Buffer: FKM
LVQH30-V07R-4-K Body class: 3 (ø8 orifice) | Connection: LQ1 fitting | Tube size: 1/4 in | Handle: Multi-turn with indicator | Buffer: FFKM
LVQH30-V07R-4-N Body class: 3 (ø8 orifice) | Connection: LQ1 fitting | Tube size: 1/4 in | Handle: Multi-turn with indicator | Buffer: EPDM (ammonia)
LVQH30-V11R-1 Body class: 3 (ø8 orifice) | Connection: LQ1 fitting | Tube size: 3/8 in | Handle: 90 deg turn | Buffer: FKM
LVQH30-V11R-1-K Body class: 3 (ø8 orifice) | Connection: LQ1 fitting | Tube size: 3/8 in | Handle: 90 deg turn | Buffer: FFKM
LVQH30-V11R-1-N Body class: 3 (ø8 orifice) | Connection: LQ1 fitting | Tube size: 3/8 in | Handle: 90 deg turn | Buffer: EPDM (ammonia)
LVQH30-V11R-4 Body class: 3 (ø8 orifice) | Connection: LQ1 fitting | Tube size: 3/8 in | Handle: Multi-turn with indicator | Buffer: FKM
LVQH30-V11R-4-K Body class: 3 (ø8 orifice) | Connection: LQ1 fitting | Tube size: 3/8 in | Handle: Multi-turn with indicator | Buffer: FFKM
LVQH30-V11R-4-N Body class: 3 (ø8 orifice) | Connection: LQ1 fitting | Tube size: 3/8 in | Handle: Multi-turn with indicator | Buffer: EPDM (ammonia)
LVQH40-V10R-1 Body class: 4 (ø10 orifice) | Connection: LQ1 fitting | Tube size: 10x8 mm | Handle: 90 deg turn | Buffer: FKM
LVQH40-V10R-1-K Body class: 4 (ø10 orifice) | Connection: LQ1 fitting | Tube size: 10x8 mm | Handle: 90 deg turn | Buffer: FFKM
LVQH40-V10R-1-N Body class: 4 (ø10 orifice) | Connection: LQ1 fitting | Tube size: 10x8 mm | Handle: 90 deg turn | Buffer: EPDM (ammonia)
LVQH40-V10R-4 Body class: 4 (ø10 orifice) | Connection: LQ1 fitting | Tube size: 10x8 mm | Handle: Multi-turn with indicator | Buffer: FKM
LVQH40-V10R-4-K Body class: 4 (ø10 orifice) | Connection: LQ1 fitting | Tube size: 10x8 mm | Handle: Multi-turn with indicator | Buffer: FFKM
LVQH40-V10R-4-N Body class: 4 (ø10 orifice) | Connection: LQ1 fitting | Tube size: 10x8 mm | Handle: Multi-turn with indicator | Buffer: EPDM (ammonia)
LVQH40-V12R-1 Body class: 4 (ø10 orifice) | Connection: LQ1 fitting | Tube size: 12x10 mm | Handle: 90 deg turn | Buffer: FKM
LVQH40-V12R-1-K Body class: 4 (ø10 orifice) | Connection: LQ1 fitting | Tube size: 12x10 mm | Handle: 90 deg turn | Buffer: FFKM
LVQH40-V12R-1-N Body class: 4 (ø10 orifice) | Connection: LQ1 fitting | Tube size: 12x10 mm | Handle: 90 deg turn | Buffer: EPDM (ammonia)
LVQH40-V12R-4 Body class: 4 (ø10 orifice) | Connection: LQ1 fitting | Tube size: 12x10 mm | Handle: Multi-turn with indicator | Buffer: FKM
LVQH40-V12R-4-K Body class: 4 (ø10 orifice) | Connection: LQ1 fitting | Tube size: 12x10 mm | Handle: Multi-turn with indicator | Buffer: FFKM
LVQH40-V12R-4-N Body class: 4 (ø10 orifice) | Connection: LQ1 fitting | Tube size: 12x10 mm | Handle: Multi-turn with indicator | Buffer: EPDM (ammonia)
LVQH40-V11R-1 Body class: 4 (ø10 orifice) | Connection: LQ1 fitting | Tube size: 3/8 in | Handle: 90 deg turn | Buffer: FKM
LVQH40-V11R-1-K Body class: 4 (ø10 orifice) | Connection: LQ1 fitting | Tube size: 3/8 in | Handle: 90 deg turn | Buffer: FFKM
LVQH40-V11R-1-N Body class: 4 (ø10 orifice) | Connection: LQ1 fitting | Tube size: 3/8 in | Handle: 90 deg turn | Buffer: EPDM (ammonia)
LVQH40-V11R-4 Body class: 4 (ø10 orifice) | Connection: LQ1 fitting | Tube size: 3/8 in | Handle: Multi-turn with indicator | Buffer: FKM
LVQH40-V11R-4-K Body class: 4 (ø10 orifice) | Connection: LQ1 fitting | Tube size: 3/8 in | Handle: Multi-turn with indicator | Buffer: FFKM
LVQH40-V11R-4-N Body class: 4 (ø10 orifice) | Connection: LQ1 fitting | Tube size: 3/8 in | Handle: Multi-turn with indicator | Buffer: EPDM (ammonia)
LVQH40-V13R-1 Body class: 4 (ø10 orifice) | Connection: LQ1 fitting | Tube size: 1/2 in | Handle: 90 deg turn | Buffer: FKM
LVQH40-V13R-1-K Body class: 4 (ø10 orifice) | Connection: LQ1 fitting | Tube size: 1/2 in | Handle: 90 deg turn | Buffer: FFKM
LVQH40-V13R-1-N Body class: 4 (ø10 orifice) | Connection: LQ1 fitting | Tube size: 1/2 in | Handle: 90 deg turn | Buffer: EPDM (ammonia)
LVQH40-V13R-4 Body class: 4 (ø10 orifice) | Connection: LQ1 fitting | Tube size: 1/2 in | Handle: Multi-turn with indicator | Buffer: FKM
LVQH40-V13R-4-K Body class: 4 (ø10 orifice) | Connection: LQ1 fitting | Tube size: 1/2 in | Handle: Multi-turn with indicator | Buffer: FFKM
LVQH40-V13R-4-N Body class: 4 (ø10 orifice) | Connection: LQ1 fitting | Tube size: 1/2 in | Handle: Multi-turn with indicator | Buffer: EPDM (ammonia)
LVQH50-V12R-1 Body class: 5 (ø16 orifice) | Connection: LQ1 fitting | Tube size: 12x10 mm | Handle: 90 deg turn | Buffer: FKM
LVQH50-V12R-1-K Body class: 5 (ø16 orifice) | Connection: LQ1 fitting | Tube size: 12x10 mm | Handle: 90 deg turn | Buffer: FFKM
LVQH50-V12R-1-N Body class: 5 (ø16 orifice) | Connection: LQ1 fitting | Tube size: 12x10 mm | Handle: 90 deg turn | Buffer: EPDM (ammonia)
LVQH50-V12R-4 Body class: 5 (ø16 orifice) | Connection: LQ1 fitting | Tube size: 12x10 mm | Handle: Multi-turn with indicator | Buffer: FKM
LVQH50-V12R-4-K Body class: 5 (ø16 orifice) | Connection: LQ1 fitting | Tube size: 12x10 mm | Handle: Multi-turn with indicator | Buffer: FFKM
LVQH50-V12R-4-N Body class: 5 (ø16 orifice) | Connection: LQ1 fitting | Tube size: 12x10 mm | Handle: Multi-turn with indicator | Buffer: EPDM (ammonia)
LVQH50-V19R-1 Body class: 5 (ø16 orifice) | Connection: LQ1 fitting | Tube size: 19x16 mm / 3/4 in | Handle: 90 deg turn | Buffer: FKM
LVQH50-V19R-1-K Body class: 5 (ø16 orifice) | Connection: LQ1 fitting | Tube size: 19x16 mm / 3/4 in | Handle: 90 deg turn | Buffer: FFKM
LVQH50-V19R-1-N Body class: 5 (ø16 orifice) | Connection: LQ1 fitting | Tube size: 19x16 mm / 3/4 in | Handle: 90 deg turn | Buffer: EPDM (ammonia)
LVQH50-V19R-4 Body class: 5 (ø16 orifice) | Connection: LQ1 fitting | Tube size: 19x16 mm / 3/4 in | Handle: Multi-turn with indicator | Buffer: FKM
LVQH50-V19R-4-K Body class: 5 (ø16 orifice) | Connection: LQ1 fitting | Tube size: 19x16 mm / 3/4 in | Handle: Multi-turn with indicator | Buffer: FFKM
LVQH50-V19R-4-N Body class: 5 (ø16 orifice) | Connection: LQ1 fitting | Tube size: 19x16 mm / 3/4 in | Handle: Multi-turn with indicator | Buffer: EPDM (ammonia)
LVQH50-V13R-1 Body class: 5 (ø16 orifice) | Connection: LQ1 fitting | Tube size: 1/2 in | Handle: 90 deg turn | Buffer: FKM
LVQH50-V13R-1-K Body class: 5 (ø16 orifice) | Connection: LQ1 fitting | Tube size: 1/2 in | Handle: 90 deg turn | Buffer: FFKM
LVQH50-V13R-1-N Body class: 5 (ø16 orifice) | Connection: LQ1 fitting | Tube size: 1/2 in | Handle: 90 deg turn | Buffer: EPDM (ammonia)
LVQH50-V13R-4 Body class: 5 (ø16 orifice) | Connection: LQ1 fitting | Tube size: 1/2 in | Handle: Multi-turn with indicator | Buffer: FKM
LVQH50-V13R-4-K Body class: 5 (ø16 orifice) | Connection: LQ1 fitting | Tube size: 1/2 in | Handle: Multi-turn with indicator | Buffer: FFKM
LVQH50-V13R-4-N Body class: 5 (ø16 orifice) | Connection: LQ1 fitting | Tube size: 1/2 in | Handle: Multi-turn with indicator | Buffer: EPDM (ammonia)
LVQH60-V19R-1 Body class: 6 (ø22 orifice) | Connection: LQ1 fitting | Tube size: 19x16 mm / 3/4 in | Handle: 90 deg turn | Buffer: FKM
LVQH60-V19R-1-K Body class: 6 (ø22 orifice) | Connection: LQ1 fitting | Tube size: 19x16 mm / 3/4 in | Handle: 90 deg turn | Buffer: FFKM
LVQH60-V19R-1-N Body class: 6 (ø22 orifice) | Connection: LQ1 fitting | Tube size: 19x16 mm / 3/4 in | Handle: 90 deg turn | Buffer: EPDM (ammonia)
LVQH60-V19R-4 Body class: 6 (ø22 orifice) | Connection: LQ1 fitting | Tube size: 19x16 mm / 3/4 in | Handle: Multi-turn with indicator | Buffer: FKM
LVQH60-V19R-4-K Body class: 6 (ø22 orifice) | Connection: LQ1 fitting | Tube size: 19x16 mm / 3/4 in | Handle: Multi-turn with indicator | Buffer: FFKM
LVQH60-V19R-4-N Body class: 6 (ø22 orifice) | Connection: LQ1 fitting | Tube size: 19x16 mm / 3/4 in | Handle: Multi-turn with indicator | Buffer: EPDM (ammonia)
LVQH60-V25R-1 Body class: 6 (ø22 orifice) | Connection: LQ1 fitting | Tube size: 25x22 mm / 1 in | Handle: 90 deg turn | Buffer: FKM
LVQH60-V25R-1-K Body class: 6 (ø22 orifice) | Connection: LQ1 fitting | Tube size: 25x22 mm / 1 in | Handle: 90 deg turn | Buffer: FFKM
LVQH60-V25R-1-N Body class: 6 (ø22 orifice) | Connection: LQ1 fitting | Tube size: 25x22 mm / 1 in | Handle: 90 deg turn | Buffer: EPDM (ammonia)
LVQH60-V25R-4 Body class: 6 (ø22 orifice) | Connection: LQ1 fitting | Tube size: 25x22 mm / 1 in | Handle: Multi-turn with indicator | Buffer: FKM
LVQH60-V25R-4-K Body class: 6 (ø22 orifice) | Connection: LQ1 fitting | Tube size: 25x22 mm / 1 in | Handle: Multi-turn with indicator | Buffer: FFKM
LVQH60-V25R-4-N Body class: 6 (ø22 orifice) | Connection: LQ1 fitting | Tube size: 25x22 mm / 1 in | Handle: Multi-turn with indicator | Buffer: EPDM (ammonia)
LVQH20-Z03R-1 Body class: 2 (ø4 orifice) | Connection: LQ3 flare fitting | Tube size: 3x2 mm / 1/8 in | Handle: 90 deg turn | Buffer: FKM
LVQH20-Z03R-1-K Body class: 2 (ø4 orifice) | Connection: LQ3 flare fitting | Tube size: 3x2 mm / 1/8 in | Handle: 90 deg turn | Buffer: FFKM
LVQH20-Z03R-1-N Body class: 2 (ø4 orifice) | Connection: LQ3 flare fitting | Tube size: 3x2 mm / 1/8 in | Handle: 90 deg turn | Buffer: EPDM (ammonia)
LVQH20-Z03R-4 Body class: 2 (ø4 orifice) | Connection: LQ3 flare fitting | Tube size: 3x2 mm / 1/8 in | Handle: Multi-turn with indicator | Buffer: FKM
LVQH20-Z03R-4-K Body class: 2 (ø4 orifice) | Connection: LQ3 flare fitting | Tube size: 3x2 mm / 1/8 in | Handle: Multi-turn with indicator | Buffer: FFKM
LVQH20-Z03R-4-N Body class: 2 (ø4 orifice) | Connection: LQ3 flare fitting | Tube size: 3x2 mm / 1/8 in | Handle: Multi-turn with indicator | Buffer: EPDM (ammonia)
LVQH20-Z04R-1 Body class: 2 (ø4 orifice) | Connection: LQ3 flare fitting | Tube size: 4x3 mm | Handle: 90 deg turn | Buffer: FKM
LVQH20-Z04R-1-K Body class: 2 (ø4 orifice) | Connection: LQ3 flare fitting | Tube size: 4x3 mm | Handle: 90 deg turn | Buffer: FFKM
LVQH20-Z04R-1-N Body class: 2 (ø4 orifice) | Connection: LQ3 flare fitting | Tube size: 4x3 mm | Handle: 90 deg turn | Buffer: EPDM (ammonia)
LVQH20-Z04R-4 Body class: 2 (ø4 orifice) | Connection: LQ3 flare fitting | Tube size: 4x3 mm | Handle: Multi-turn with indicator | Buffer: FKM
LVQH20-Z04R-4-K Body class: 2 (ø4 orifice) | Connection: LQ3 flare fitting | Tube size: 4x3 mm | Handle: Multi-turn with indicator | Buffer: FFKM
LVQH20-Z04R-4-N Body class: 2 (ø4 orifice) | Connection: LQ3 flare fitting | Tube size: 4x3 mm | Handle: Multi-turn with indicator | Buffer: EPDM (ammonia)
LVQH20-Z06R-1 Body class: 2 (ø4 orifice) | Connection: LQ3 flare fitting | Tube size: 6x4 mm | Handle: 90 deg turn | Buffer: FKM
LVQH20-Z06R-1-K Body class: 2 (ø4 orifice) | Connection: LQ3 flare fitting | Tube size: 6x4 mm | Handle: 90 deg turn | Buffer: FFKM
LVQH20-Z06R-1-N Body class: 2 (ø4 orifice) | Connection: LQ3 flare fitting | Tube size: 6x4 mm | Handle: 90 deg turn | Buffer: EPDM (ammonia)
LVQH20-Z06R-4 Body class: 2 (ø4 orifice) | Connection: LQ3 flare fitting | Tube size: 6x4 mm | Handle: Multi-turn with indicator | Buffer: FKM
LVQH20-Z06R-4-K Body class: 2 (ø4 orifice) | Connection: LQ3 flare fitting | Tube size: 6x4 mm | Handle: Multi-turn with indicator | Buffer: FFKM
LVQH20-Z06R-4-N Body class: 2 (ø4 orifice) | Connection: LQ3 flare fitting | Tube size: 6x4 mm | Handle: Multi-turn with indicator | Buffer: EPDM (ammonia)
LVQH20-Z07R-1 Body class: 2 (ø4 orifice) | Connection: LQ3 flare fitting | Tube size: 1/4 in | Handle: 90 deg turn | Buffer: FKM
LVQH20-Z07R-1-K Body class: 2 (ø4 orifice) | Connection: LQ3 flare fitting | Tube size: 1/4 in | Handle: 90 deg turn | Buffer: FFKM
LVQH20-Z07R-1-N Body class: 2 (ø4 orifice) | Connection: LQ3 flare fitting | Tube size: 1/4 in | Handle: 90 deg turn | Buffer: EPDM (ammonia)
LVQH20-Z07R-4 Body class: 2 (ø4 orifice) | Connection: LQ3 flare fitting | Tube size: 1/4 in | Handle: Multi-turn with indicator | Buffer: FKM
LVQH20-Z07R-4-K Body class: 2 (ø4 orifice) | Connection: LQ3 flare fitting | Tube size: 1/4 in | Handle: Multi-turn with indicator | Buffer: FFKM
LVQH20-Z07R-4-N Body class: 2 (ø4 orifice) | Connection: LQ3 flare fitting | Tube size: 1/4 in | Handle: Multi-turn with indicator | Buffer: EPDM (ammonia)
LVQH30-Z08R-1 Body class: 3 (ø8 orifice) | Connection: LQ3 flare fitting | Tube size: 8x6 mm | Handle: 90 deg turn | Buffer: FKM
LVQH30-Z08R-1-K Body class: 3 (ø8 orifice) | Connection: LQ3 flare fitting | Tube size: 8x6 mm | Handle: 90 deg turn | Buffer: FFKM
LVQH30-Z08R-1-N Body class: 3 (ø8 orifice) | Connection: LQ3 flare fitting | Tube size: 8x6 mm | Handle: 90 deg turn | Buffer: EPDM (ammonia)
LVQH30-Z08R-4 Body class: 3 (ø8 orifice) | Connection: LQ3 flare fitting | Tube size: 8x6 mm | Handle: Multi-turn with indicator | Buffer: FKM
LVQH30-Z08R-4-K Body class: 3 (ø8 orifice) | Connection: LQ3 flare fitting | Tube size: 8x6 mm | Handle: Multi-turn with indicator | Buffer: FFKM
LVQH30-Z08R-4-N Body class: 3 (ø8 orifice) | Connection: LQ3 flare fitting | Tube size: 8x6 mm | Handle: Multi-turn with indicator | Buffer: EPDM (ammonia)
LVQH30-Z10R-1 Body class: 3 (ø8 orifice) | Connection: LQ3 flare fitting | Tube size: 10x8 mm | Handle: 90 deg turn | Buffer: FKM
LVQH30-Z10R-1-K Body class: 3 (ø8 orifice) | Connection: LQ3 flare fitting | Tube size: 10x8 mm | Handle: 90 deg turn | Buffer: FFKM
LVQH30-Z10R-1-N Body class: 3 (ø8 orifice) | Connection: LQ3 flare fitting | Tube size: 10x8 mm | Handle: 90 deg turn | Buffer: EPDM (ammonia)
LVQH30-Z10R-4 Body class: 3 (ø8 orifice) | Connection: LQ3 flare fitting | Tube size: 10x8 mm | Handle: Multi-turn with indicator | Buffer: FKM
LVQH30-Z10R-4-K Body class: 3 (ø8 orifice) | Connection: LQ3 flare fitting | Tube size: 10x8 mm | Handle: Multi-turn with indicator | Buffer: FFKM
LVQH30-Z10R-4-N Body class: 3 (ø8 orifice) | Connection: LQ3 flare fitting | Tube size: 10x8 mm | Handle: Multi-turn with indicator | Buffer: EPDM (ammonia)
LVQH30-Z11R-1 Body class: 3 (ø8 orifice) | Connection: LQ3 flare fitting | Tube size: 3/8 in | Handle: 90 deg turn | Buffer: FKM
LVQH30-Z11R-1-K Body class: 3 (ø8 orifice) | Connection: LQ3 flare fitting | Tube size: 3/8 in | Handle: 90 deg turn | Buffer: FFKM
LVQH30-Z11R-1-N Body class: 3 (ø8 orifice) | Connection: LQ3 flare fitting | Tube size: 3/8 in | Handle: 90 deg turn | Buffer: EPDM (ammonia)
LVQH30-Z11R-4 Body class: 3 (ø8 orifice) | Connection: LQ3 flare fitting | Tube size: 3/8 in | Handle: Multi-turn with indicator | Buffer: FKM
LVQH30-Z11R-4-K Body class: 3 (ø8 orifice) | Connection: LQ3 flare fitting | Tube size: 3/8 in | Handle: Multi-turn with indicator | Buffer: FFKM
LVQH30-Z11R-4-N Body class: 3 (ø8 orifice) | Connection: LQ3 flare fitting | Tube size: 3/8 in | Handle: Multi-turn with indicator | Buffer: EPDM (ammonia)
LVQH40-Z12R-1 Body class: 4 (ø10 orifice) | Connection: LQ3 flare fitting | Tube size: 12x10 mm | Handle: 90 deg turn | Buffer: FKM
LVQH40-Z12R-1-K Body class: 4 (ø10 orifice) | Connection: LQ3 flare fitting | Tube size: 12x10 mm | Handle: 90 deg turn | Buffer: FFKM
LVQH40-Z12R-1-N Body class: 4 (ø10 orifice) | Connection: LQ3 flare fitting | Tube size: 12x10 mm | Handle: 90 deg turn | Buffer: EPDM (ammonia)
LVQH40-Z12R-4 Body class: 4 (ø10 orifice) | Connection: LQ3 flare fitting | Tube size: 12x10 mm | Handle: Multi-turn with indicator | Buffer: FKM
LVQH40-Z12R-4-K Body class: 4 (ø10 orifice) | Connection: LQ3 flare fitting | Tube size: 12x10 mm | Handle: Multi-turn with indicator | Buffer: FFKM
LVQH40-Z12R-4-N Body class: 4 (ø10 orifice) | Connection: LQ3 flare fitting | Tube size: 12x10 mm | Handle: Multi-turn with indicator | Buffer: EPDM (ammonia)
LVQH40-Z13R-1 Body class: 4 (ø10 orifice) | Connection: LQ3 flare fitting | Tube size: 1/2 in | Handle: 90 deg turn | Buffer: FKM
LVQH40-Z13R-1-K Body class: 4 (ø10 orifice) | Connection: LQ3 flare fitting | Tube size: 1/2 in | Handle: 90 deg turn | Buffer: FFKM
LVQH40-Z13R-1-N Body class: 4 (ø10 orifice) | Connection: LQ3 flare fitting | Tube size: 1/2 in | Handle: 90 deg turn | Buffer: EPDM (ammonia)
LVQH40-Z13R-4 Body class: 4 (ø10 orifice) | Connection: LQ3 flare fitting | Tube size: 1/2 in | Handle: Multi-turn with indicator | Buffer: FKM
LVQH40-Z13R-4-K Body class: 4 (ø10 orifice) | Connection: LQ3 flare fitting | Tube size: 1/2 in | Handle: Multi-turn with indicator | Buffer: FFKM
LVQH40-Z13R-4-N Body class: 4 (ø10 orifice) | Connection: LQ3 flare fitting | Tube size: 1/2 in | Handle: Multi-turn with indicator | Buffer: EPDM (ammonia)
LVQH50-Z19R-1 Body class: 5 (ø16 orifice) | Connection: LQ3 flare fitting | Tube size: 19x16 mm / 3/4 in | Handle: 90 deg turn | Buffer: FKM
LVQH50-Z19R-1-K Body class: 5 (ø16 orifice) | Connection: LQ3 flare fitting | Tube size: 19x16 mm / 3/4 in | Handle: 90 deg turn | Buffer: FFKM
LVQH50-Z19R-1-N Body class: 5 (ø16 orifice) | Connection: LQ3 flare fitting | Tube size: 19x16 mm / 3/4 in | Handle: 90 deg turn | Buffer: EPDM (ammonia)
LVQH50-Z19R-4 Body class: 5 (ø16 orifice) | Connection: LQ3 flare fitting | Tube size: 19x16 mm / 3/4 in | Handle: Multi-turn with indicator | Buffer: FKM
LVQH50-Z19R-4-K Body class: 5 (ø16 orifice) | Connection: LQ3 flare fitting | Tube size: 19x16 mm / 3/4 in | Handle: Multi-turn with indicator | Buffer: FFKM
LVQH50-Z19R-4-N Body class: 5 (ø16 orifice) | Connection: LQ3 flare fitting | Tube size: 19x16 mm / 3/4 in | Handle: Multi-turn with indicator | Buffer: EPDM (ammonia)
LVQH60-Z25R-1 Body class: 6 (ø22 orifice) | Connection: LQ3 flare fitting | Tube size: 25x22 mm / 1 in | Handle: 90 deg turn | Buffer: FKM
LVQH60-Z25R-1-K Body class: 6 (ø22 orifice) | Connection: LQ3 flare fitting | Tube size: 25x22 mm / 1 in | Handle: 90 deg turn | Buffer: FFKM
LVQH60-Z25R-1-N Body class: 6 (ø22 orifice) | Connection: LQ3 flare fitting | Tube size: 25x22 mm / 1 in | Handle: 90 deg turn | Buffer: EPDM (ammonia)
LVQH60-Z25R-4 Body class: 6 (ø22 orifice) | Connection: LQ3 flare fitting | Tube size: 25x22 mm / 1 in | Handle: Multi-turn with indicator | Buffer: FKM
LVQH60-Z25R-4-K Body class: 6 (ø22 orifice) | Connection: LQ3 flare fitting | Tube size: 25x22 mm / 1 in | Handle: Multi-turn with indicator | Buffer: FFKM
LVQH60-Z25R-4-N Body class: 6 (ø22 orifice) | Connection: LQ3 flare fitting | Tube size: 25x22 mm / 1 in | Handle: Multi-turn with indicator | Buffer: EPDM (ammonia)
LVQH20-T06R-1 Body class: 2 (ø4 orifice) | Connection: Integral tube | Tube size: OD 6 mm | Handle: 90 deg turn | Buffer: FKM
LVQH20-T06R-1-K Body class: 2 (ø4 orifice) | Connection: Integral tube | Tube size: OD 6 mm | Handle: 90 deg turn | Buffer: FFKM
LVQH20-T06R-1-N Body class: 2 (ø4 orifice) | Connection: Integral tube | Tube size: OD 6 mm | Handle: 90 deg turn | Buffer: EPDM (ammonia)
LVQH20-T06R-4 Body class: 2 (ø4 orifice) | Connection: Integral tube | Tube size: OD 6 mm | Handle: Multi-turn with indicator | Buffer: FKM
LVQH20-T06R-4-K Body class: 2 (ø4 orifice) | Connection: Integral tube | Tube size: OD 6 mm | Handle: Multi-turn with indicator | Buffer: FFKM
LVQH20-T06R-4-N Body class: 2 (ø4 orifice) | Connection: Integral tube | Tube size: OD 6 mm | Handle: Multi-turn with indicator | Buffer: EPDM (ammonia)
LVQH20-T07R-1 Body class: 2 (ø4 orifice) | Connection: Integral tube | Tube size: OD 1/4 in | Handle: 90 deg turn | Buffer: FKM
LVQH20-T07R-1-K Body class: 2 (ø4 orifice) | Connection: Integral tube | Tube size: OD 1/4 in | Handle: 90 deg turn | Buffer: FFKM
LVQH20-T07R-1-N Body class: 2 (ø4 orifice) | Connection: Integral tube | Tube size: OD 1/4 in | Handle: 90 deg turn | Buffer: EPDM (ammonia)
LVQH20-T07R-4 Body class: 2 (ø4 orifice) | Connection: Integral tube | Tube size: OD 1/4 in | Handle: Multi-turn with indicator | Buffer: FKM
LVQH20-T07R-4-K Body class: 2 (ø4 orifice) | Connection: Integral tube | Tube size: OD 1/4 in | Handle: Multi-turn with indicator | Buffer: FFKM
LVQH20-T07R-4-N Body class: 2 (ø4 orifice) | Connection: Integral tube | Tube size: OD 1/4 in | Handle: Multi-turn with indicator | Buffer: EPDM (ammonia)
LVQH30-T10R-1 Body class: 3 (ø8 orifice) | Connection: Integral tube | Tube size: OD 10 mm | Handle: 90 deg turn | Buffer: FKM
LVQH30-T10R-1-K Body class: 3 (ø8 orifice) | Connection: Integral tube | Tube size: OD 10 mm | Handle: 90 deg turn | Buffer: FFKM
LVQH30-T10R-1-N Body class: 3 (ø8 orifice) | Connection: Integral tube | Tube size: OD 10 mm | Handle: 90 deg turn | Buffer: EPDM (ammonia)
LVQH30-T10R-4 Body class: 3 (ø8 orifice) | Connection: Integral tube | Tube size: OD 10 mm | Handle: Multi-turn with indicator | Buffer: FKM
LVQH30-T10R-4-K Body class: 3 (ø8 orifice) | Connection: Integral tube | Tube size: OD 10 mm | Handle: Multi-turn with indicator | Buffer: FFKM
LVQH30-T10R-4-N Body class: 3 (ø8 orifice) | Connection: Integral tube | Tube size: OD 10 mm | Handle: Multi-turn with indicator | Buffer: EPDM (ammonia)
LVQH30-T11R-1 Body class: 3 (ø8 orifice) | Connection: Integral tube | Tube size: OD 3/8 in | Handle: 90 deg turn | Buffer: FKM
LVQH30-T11R-1-K Body class: 3 (ø8 orifice) | Connection: Integral tube | Tube size: OD 3/8 in | Handle: 90 deg turn | Buffer: FFKM
LVQH30-T11R-1-N Body class: 3 (ø8 orifice) | Connection: Integral tube | Tube size: OD 3/8 in | Handle: 90 deg turn | Buffer: EPDM (ammonia)
LVQH30-T11R-4 Body class: 3 (ø8 orifice) | Connection: Integral tube | Tube size: OD 3/8 in | Handle: Multi-turn with indicator | Buffer: FKM
LVQH30-T11R-4-K Body class: 3 (ø8 orifice) | Connection: Integral tube | Tube size: OD 3/8 in | Handle: Multi-turn with indicator | Buffer: FFKM
LVQH30-T11R-4-N Body class: 3 (ø8 orifice) | Connection: Integral tube | Tube size: OD 3/8 in | Handle: Multi-turn with indicator | Buffer: EPDM (ammonia)
LVQH40-T12R-1 Body class: 4 (ø10 orifice) | Connection: Integral tube | Tube size: OD 12 mm | Handle: 90 deg turn | Buffer: FKM
LVQH40-T12R-1-K Body class: 4 (ø10 orifice) | Connection: Integral tube | Tube size: OD 12 mm | Handle: 90 deg turn | Buffer: FFKM
LVQH40-T12R-1-N Body class: 4 (ø10 orifice) | Connection: Integral tube | Tube size: OD 12 mm | Handle: 90 deg turn | Buffer: EPDM (ammonia)
LVQH40-T12R-4 Body class: 4 (ø10 orifice) | Connection: Integral tube | Tube size: OD 12 mm | Handle: Multi-turn with indicator | Buffer: FKM
LVQH40-T12R-4-K Body class: 4 (ø10 orifice) | Connection: Integral tube | Tube size: OD 12 mm | Handle: Multi-turn with indicator | Buffer: FFKM
LVQH40-T12R-4-N Body class: 4 (ø10 orifice) | Connection: Integral tube | Tube size: OD 12 mm | Handle: Multi-turn with indicator | Buffer: EPDM (ammonia)
LVQH40-T13R-1 Body class: 4 (ø10 orifice) | Connection: Integral tube | Tube size: OD 1/2 in | Handle: 90 deg turn | Buffer: FKM
LVQH40-T13R-1-K Body class: 4 (ø10 orifice) | Connection: Integral tube | Tube size: OD 1/2 in | Handle: 90 deg turn | Buffer: FFKM
LVQH40-T13R-1-N Body class: 4 (ø10 orifice) | Connection: Integral tube | Tube size: OD 1/2 in | Handle: 90 deg turn | Buffer: EPDM (ammonia)
LVQH40-T13R-4 Body class: 4 (ø10 orifice) | Connection: Integral tube | Tube size: OD 1/2 in | Handle: Multi-turn with indicator | Buffer: FKM
LVQH40-T13R-4-K Body class: 4 (ø10 orifice) | Connection: Integral tube | Tube size: OD 1/2 in | Handle: Multi-turn with indicator | Buffer: FFKM
LVQH40-T13R-4-N Body class: 4 (ø10 orifice) | Connection: Integral tube | Tube size: OD 1/2 in | Handle: Multi-turn with indicator | Buffer: EPDM (ammonia)
LVQH50-T19R-1 Body class: 5 (ø16 orifice) | Connection: Integral tube | Tube size: OD 19 mm / 3/4 in | Handle: 90 deg turn | Buffer: FKM
LVQH50-T19R-1-K Body class: 5 (ø16 orifice) | Connection: Integral tube | Tube size: OD 19 mm / 3/4 in | Handle: 90 deg turn | Buffer: FFKM
LVQH50-T19R-1-N Body class: 5 (ø16 orifice) | Connection: Integral tube | Tube size: OD 19 mm / 3/4 in | Handle: 90 deg turn | Buffer: EPDM (ammonia)
LVQH50-T19R-4 Body class: 5 (ø16 orifice) | Connection: Integral tube | Tube size: OD 19 mm / 3/4 in | Handle: Multi-turn with indicator | Buffer: FKM
LVQH50-T19R-4-K Body class: 5 (ø16 orifice) | Connection: Integral tube | Tube size: OD 19 mm / 3/4 in | Handle: Multi-turn with indicator | Buffer: FFKM
LVQH50-T19R-4-N Body class: 5 (ø16 orifice) | Connection: Integral tube | Tube size: OD 19 mm / 3/4 in | Handle: Multi-turn with indicator | Buffer: EPDM (ammonia)
LVQH60-T25R-1 Body class: 6 (ø22 orifice) | Connection: Integral tube | Tube size: OD 25 mm / 1 in | Handle: 90 deg turn | Buffer: FKM
LVQH60-T25R-1-K Body class: 6 (ø22 orifice) | Connection: Integral tube | Tube size: OD 25 mm / 1 in | Handle: 90 deg turn | Buffer: FFKM
LVQH60-T25R-1-N Body class: 6 (ø22 orifice) | Connection: Integral tube | Tube size: OD 25 mm / 1 in | Handle: 90 deg turn | Buffer: EPDM (ammonia)
LVQH60-T25R-4 Body class: 6 (ø22 orifice) | Connection: Integral tube | Tube size: OD 25 mm / 1 in | Handle: Multi-turn with indicator | Buffer: FKM
LVQH60-T25R-4-K Body class: 6 (ø22 orifice) | Connection: Integral tube | Tube size: OD 25 mm / 1 in | Handle: Multi-turn with indicator | Buffer: FFKM
LVQH60-T25R-4-N Body class: 6 (ø22 orifice) | Connection: Integral tube | Tube size: OD 25 mm / 1 in | Handle: Multi-turn with indicator | Buffer: EPDM (ammonia)
Chemical ValvesSMC
228 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC LVQH Manual Chemical Valve (LQ1, LQ3 or Tube Integral)

Brand SMC·Chemical Valves

Available part numbers (228)

LVQH20-V03R-1, LVQH20-V03R-1-K, LVQH20-V03R-1-N, LVQH20-V03R-4, LVQH20-V03R-4-K, LVQH20-V03R-4-N, LVQH20-V04R-1, LVQH20-V04R-1-K, LVQH20-V04R-1-N, LVQH20-V04R-4 + 218 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LVQH20-V03R-1Body class: 2 (ø4 orifice) | Connection: LQ1 fitting | Tube size: 3x2 mm / 1/8 in | Handle: 90 deg turn | Buffer: FKM
LVQH20-V03R-1-KBody class: 2 (ø4 orifice) | Connection: LQ1 fitting | Tube size: 3x2 mm / 1/8 in | Handle: 90 deg turn | Buffer: FFKM
LVQH20-V03R-1-NBody class: 2 (ø4 orifice) | Connection: LQ1 fitting | Tube size: 3x2 mm / 1/8 in | Handle: 90 deg turn | Buffer: EPDM (ammonia)
LVQH20-V03R-4Body class: 2 (ø4 orifice) | Connection: LQ1 fitting | Tube size: 3x2 mm / 1/8 in | Handle: Multi-turn with indicator | Buffer: FKM
LVQH20-V03R-4-KBody class: 2 (ø4 orifice) | Connection: LQ1 fitting | Tube size: 3x2 mm / 1/8 in | Handle: Multi-turn with indicator | Buffer: FFKM
LVQH20-V03R-4-NBody class: 2 (ø4 orifice) | Connection: LQ1 fitting | Tube size: 3x2 mm / 1/8 in | Handle: Multi-turn with indicator | Buffer: EPDM (ammonia)
LVQH20-V04R-1Body class: 2 (ø4 orifice) | Connection: LQ1 fitting | Tube size: 4x3 mm | Handle: 90 deg turn | Buffer: FKM
LVQH20-V04R-1-KBody class: 2 (ø4 orifice) | Connection: LQ1 fitting | Tube size: 4x3 mm | Handle: 90 deg turn | Buffer: FFKM
LVQH20-V04R-1-NBody class: 2 (ø4 orifice) | Connection: LQ1 fitting | Tube size: 4x3 mm | Handle: 90 deg turn | Buffer: EPDM (ammonia)
LVQH20-V04R-4Body class: 2 (ø4 orifice) | Connection: LQ1 fitting | Tube size: 4x3 mm | Handle: Multi-turn with indicator | Buffer: FKM
LVQH20-V04R-4-KBody class: 2 (ø4 orifice) | Connection: LQ1 fitting | Tube size: 4x3 mm | Handle: Multi-turn with indicator | Buffer: FFKM
LVQH20-V04R-4-NBody class: 2 (ø4 orifice) | Connection: LQ1 fitting | Tube size: 4x3 mm | Handle: Multi-turn with indicator | Buffer: EPDM (ammonia)
LVQH20-V06R-1Body class: 2 (ø4 orifice) | Connection: LQ1 fitting | Tube size: 6x4 mm | Handle: 90 deg turn | Buffer: FKM
LVQH20-V06R-1-KBody class: 2 (ø4 orifice) | Connection: LQ1 fitting | Tube size: 6x4 mm | Handle: 90 deg turn | Buffer: FFKM
LVQH20-V06R-1-NBody class: 2 (ø4 orifice) | Connection: LQ1 fitting | Tube size: 6x4 mm | Handle: 90 deg turn | Buffer: EPDM (ammonia)
LVQH20-V06R-4Body class: 2 (ø4 orifice) | Connection: LQ1 fitting | Tube size: 6x4 mm | Handle: Multi-turn with indicator | Buffer: FKM
LVQH20-V06R-4-KBody class: 2 (ø4 orifice) | Connection: LQ1 fitting | Tube size: 6x4 mm | Handle: Multi-turn with indicator | Buffer: FFKM
LVQH20-V06R-4-NBody class: 2 (ø4 orifice) | Connection: LQ1 fitting | Tube size: 6x4 mm | Handle: Multi-turn with indicator | Buffer: EPDM (ammonia)
LVQH20-V05R-1Body class: 2 (ø4 orifice) | Connection: LQ1 fitting | Tube size: 3/16 in | Handle: 90 deg turn | Buffer: FKM
LVQH20-V05R-1-KBody class: 2 (ø4 orifice) | Connection: LQ1 fitting | Tube size: 3/16 in | Handle: 90 deg turn | Buffer: FFKM
LVQH20-V05R-1-NBody class: 2 (ø4 orifice) | Connection: LQ1 fitting | Tube size: 3/16 in | Handle: 90 deg turn | Buffer: EPDM (ammonia)
LVQH20-V05R-4Body class: 2 (ø4 orifice) | Connection: LQ1 fitting | Tube size: 3/16 in | Handle: Multi-turn with indicator | Buffer: FKM
LVQH20-V05R-4-KBody class: 2 (ø4 orifice) | Connection: LQ1 fitting | Tube size: 3/16 in | Handle: Multi-turn with indicator | Buffer: FFKM
LVQH20-V05R-4-NBody class: 2 (ø4 orifice) | Connection: LQ1 fitting | Tube size: 3/16 in | Handle: Multi-turn with indicator | Buffer: EPDM (ammonia)
LVQH20-V07R-1Body class: 2 (ø4 orifice) | Connection: LQ1 fitting | Tube size: 1/4 in | Handle: 90 deg turn | Buffer: FKM
LVQH20-V07R-1-KBody class: 2 (ø4 orifice) | Connection: LQ1 fitting | Tube size: 1/4 in | Handle: 90 deg turn | Buffer: FFKM
LVQH20-V07R-1-NBody class: 2 (ø4 orifice) | Connection: LQ1 fitting | Tube size: 1/4 in | Handle: 90 deg turn | Buffer: EPDM (ammonia)
LVQH20-V07R-4Body class: 2 (ø4 orifice) | Connection: LQ1 fitting | Tube size: 1/4 in | Handle: Multi-turn with indicator | Buffer: FKM
LVQH20-V07R-4-KBody class: 2 (ø4 orifice) | Connection: LQ1 fitting | Tube size: 1/4 in | Handle: Multi-turn with indicator | Buffer: FFKM
LVQH20-V07R-4-NBody class: 2 (ø4 orifice) | Connection: LQ1 fitting | Tube size: 1/4 in | Handle: Multi-turn with indicator | Buffer: EPDM (ammonia)
LVQH30-V06R-1Body class: 3 (ø8 orifice) | Connection: LQ1 fitting | Tube size: 6x4 mm | Handle: 90 deg turn | Buffer: FKM
LVQH30-V06R-1-KBody class: 3 (ø8 orifice) | Connection: LQ1 fitting | Tube size: 6x4 mm | Handle: 90 deg turn | Buffer: FFKM
LVQH30-V06R-1-NBody class: 3 (ø8 orifice) | Connection: LQ1 fitting | Tube size: 6x4 mm | Handle: 90 deg turn | Buffer: EPDM (ammonia)
LVQH30-V06R-4Body class: 3 (ø8 orifice) | Connection: LQ1 fitting | Tube size: 6x4 mm | Handle: Multi-turn with indicator | Buffer: FKM
LVQH30-V06R-4-KBody class: 3 (ø8 orifice) | Connection: LQ1 fitting | Tube size: 6x4 mm | Handle: Multi-turn with indicator | Buffer: FFKM
LVQH30-V06R-4-NBody class: 3 (ø8 orifice) | Connection: LQ1 fitting | Tube size: 6x4 mm | Handle: Multi-turn with indicator | Buffer: EPDM (ammonia)
LVQH30-V08R-1Body class: 3 (ø8 orifice) | Connection: LQ1 fitting | Tube size: 8x6 mm | Handle: 90 deg turn | Buffer: FKM
LVQH30-V08R-1-KBody class: 3 (ø8 orifice) | Connection: LQ1 fitting | Tube size: 8x6 mm | Handle: 90 deg turn | Buffer: FFKM
LVQH30-V08R-1-NBody class: 3 (ø8 orifice) | Connection: LQ1 fitting | Tube size: 8x6 mm | Handle: 90 deg turn | Buffer: EPDM (ammonia)
LVQH30-V08R-4Body class: 3 (ø8 orifice) | Connection: LQ1 fitting | Tube size: 8x6 mm | Handle: Multi-turn with indicator | Buffer: FKM
LVQH30-V08R-4-KBody class: 3 (ø8 orifice) | Connection: LQ1 fitting | Tube size: 8x6 mm | Handle: Multi-turn with indicator | Buffer: FFKM
LVQH30-V08R-4-NBody class: 3 (ø8 orifice) | Connection: LQ1 fitting | Tube size: 8x6 mm | Handle: Multi-turn with indicator | Buffer: EPDM (ammonia)
LVQH30-V10R-1Body class: 3 (ø8 orifice) | Connection: LQ1 fitting | Tube size: 10x8 mm | Handle: 90 deg turn | Buffer: FKM
LVQH30-V10R-1-KBody class: 3 (ø8 orifice) | Connection: LQ1 fitting | Tube size: 10x8 mm | Handle: 90 deg turn | Buffer: FFKM
LVQH30-V10R-1-NBody class: 3 (ø8 orifice) | Connection: LQ1 fitting | Tube size: 10x8 mm | Handle: 90 deg turn | Buffer: EPDM (ammonia)
LVQH30-V10R-4Body class: 3 (ø8 orifice) | Connection: LQ1 fitting | Tube size: 10x8 mm | Handle: Multi-turn with indicator | Buffer: FKM
LVQH30-V10R-4-KBody class: 3 (ø8 orifice) | Connection: LQ1 fitting | Tube size: 10x8 mm | Handle: Multi-turn with indicator | Buffer: FFKM
LVQH30-V10R-4-NBody class: 3 (ø8 orifice) | Connection: LQ1 fitting | Tube size: 10x8 mm | Handle: Multi-turn with indicator | Buffer: EPDM (ammonia)
LVQH30-V07R-1Body class: 3 (ø8 orifice) | Connection: LQ1 fitting | Tube size: 1/4 in | Handle: 90 deg turn | Buffer: FKM
LVQH30-V07R-1-KBody class: 3 (ø8 orifice) | Connection: LQ1 fitting | Tube size: 1/4 in | Handle: 90 deg turn | Buffer: FFKM
LVQH30-V07R-1-NBody class: 3 (ø8 orifice) | Connection: LQ1 fitting | Tube size: 1/4 in | Handle: 90 deg turn | Buffer: EPDM (ammonia)
LVQH30-V07R-4Body class: 3 (ø8 orifice) | Connection: LQ1 fitting | Tube size: 1/4 in | Handle: Multi-turn with indicator | Buffer: FKM
LVQH30-V07R-4-KBody class: 3 (ø8 orifice) | Connection: LQ1 fitting | Tube size: 1/4 in | Handle: Multi-turn with indicator | Buffer: FFKM
LVQH30-V07R-4-NBody class: 3 (ø8 orifice) | Connection: LQ1 fitting | Tube size: 1/4 in | Handle: Multi-turn with indicator | Buffer: EPDM (ammonia)
LVQH30-V11R-1Body class: 3 (ø8 orifice) | Connection: LQ1 fitting | Tube size: 3/8 in | Handle: 90 deg turn | Buffer: FKM
LVQH30-V11R-1-KBody class: 3 (ø8 orifice) | Connection: LQ1 fitting | Tube size: 3/8 in | Handle: 90 deg turn | Buffer: FFKM
LVQH30-V11R-1-NBody class: 3 (ø8 orifice) | Connection: LQ1 fitting | Tube size: 3/8 in | Handle: 90 deg turn | Buffer: EPDM (ammonia)
LVQH30-V11R-4Body class: 3 (ø8 orifice) | Connection: LQ1 fitting | Tube size: 3/8 in | Handle: Multi-turn with indicator | Buffer: FKM
LVQH30-V11R-4-KBody class: 3 (ø8 orifice) | Connection: LQ1 fitting | Tube size: 3/8 in | Handle: Multi-turn with indicator | Buffer: FFKM
LVQH30-V11R-4-NBody class: 3 (ø8 orifice) | Connection: LQ1 fitting | Tube size: 3/8 in | Handle: Multi-turn with indicator | Buffer: EPDM (ammonia)
LVQH40-V10R-1Body class: 4 (ø10 orifice) | Connection: LQ1 fitting | Tube size: 10x8 mm | Handle: 90 deg turn | Buffer: FKM
LVQH40-V10R-1-KBody class: 4 (ø10 orifice) | Connection: LQ1 fitting | Tube size: 10x8 mm | Handle: 90 deg turn | Buffer: FFKM
LVQH40-V10R-1-NBody class: 4 (ø10 orifice) | Connection: LQ1 fitting | Tube size: 10x8 mm | Handle: 90 deg turn | Buffer: EPDM (ammonia)
LVQH40-V10R-4Body class: 4 (ø10 orifice) | Connection: LQ1 fitting | Tube size: 10x8 mm | Handle: Multi-turn with indicator | Buffer: FKM
LVQH40-V10R-4-KBody class: 4 (ø10 orifice) | Connection: LQ1 fitting | Tube size: 10x8 mm | Handle: Multi-turn with indicator | Buffer: FFKM
LVQH40-V10R-4-NBody class: 4 (ø10 orifice) | Connection: LQ1 fitting | Tube size: 10x8 mm | Handle: Multi-turn with indicator | Buffer: EPDM (ammonia)
LVQH40-V12R-1Body class: 4 (ø10 orifice) | Connection: LQ1 fitting | Tube size: 12x10 mm | Handle: 90 deg turn | Buffer: FKM
LVQH40-V12R-1-KBody class: 4 (ø10 orifice) | Connection: LQ1 fitting | Tube size: 12x10 mm | Handle: 90 deg turn | Buffer: FFKM
LVQH40-V12R-1-NBody class: 4 (ø10 orifice) | Connection: LQ1 fitting | Tube size: 12x10 mm | Handle: 90 deg turn | Buffer: EPDM (ammonia)
LVQH40-V12R-4Body class: 4 (ø10 orifice) | Connection: LQ1 fitting | Tube size: 12x10 mm | Handle: Multi-turn with indicator | Buffer: FKM
LVQH40-V12R-4-KBody class: 4 (ø10 orifice) | Connection: LQ1 fitting | Tube size: 12x10 mm | Handle: Multi-turn with indicator | Buffer: FFKM
LVQH40-V12R-4-NBody class: 4 (ø10 orifice) | Connection: LQ1 fitting | Tube size: 12x10 mm | Handle: Multi-turn with indicator | Buffer: EPDM (ammonia)
LVQH40-V11R-1Body class: 4 (ø10 orifice) | Connection: LQ1 fitting | Tube size: 3/8 in | Handle: 90 deg turn | Buffer: FKM
LVQH40-V11R-1-KBody class: 4 (ø10 orifice) | Connection: LQ1 fitting | Tube size: 3/8 in | Handle: 90 deg turn | Buffer: FFKM
LVQH40-V11R-1-NBody class: 4 (ø10 orifice) | Connection: LQ1 fitting | Tube size: 3/8 in | Handle: 90 deg turn | Buffer: EPDM (ammonia)
LVQH40-V11R-4Body class: 4 (ø10 orifice) | Connection: LQ1 fitting | Tube size: 3/8 in | Handle: Multi-turn with indicator | Buffer: FKM
LVQH40-V11R-4-KBody class: 4 (ø10 orifice) | Connection: LQ1 fitting | Tube size: 3/8 in | Handle: Multi-turn with indicator | Buffer: FFKM
LVQH40-V11R-4-NBody class: 4 (ø10 orifice) | Connection: LQ1 fitting | Tube size: 3/8 in | Handle: Multi-turn with indicator | Buffer: EPDM (ammonia)
LVQH40-V13R-1Body class: 4 (ø10 orifice) | Connection: LQ1 fitting | Tube size: 1/2 in | Handle: 90 deg turn | Buffer: FKM
LVQH40-V13R-1-KBody class: 4 (ø10 orifice) | Connection: LQ1 fitting | Tube size: 1/2 in | Handle: 90 deg turn | Buffer: FFKM
LVQH40-V13R-1-NBody class: 4 (ø10 orifice) | Connection: LQ1 fitting | Tube size: 1/2 in | Handle: 90 deg turn | Buffer: EPDM (ammonia)
LVQH40-V13R-4Body class: 4 (ø10 orifice) | Connection: LQ1 fitting | Tube size: 1/2 in | Handle: Multi-turn with indicator | Buffer: FKM
LVQH40-V13R-4-KBody class: 4 (ø10 orifice) | Connection: LQ1 fitting | Tube size: 1/2 in | Handle: Multi-turn with indicator | Buffer: FFKM
LVQH40-V13R-4-NBody class: 4 (ø10 orifice) | Connection: LQ1 fitting | Tube size: 1/2 in | Handle: Multi-turn with indicator | Buffer: EPDM (ammonia)
LVQH50-V12R-1Body class: 5 (ø16 orifice) | Connection: LQ1 fitting | Tube size: 12x10 mm | Handle: 90 deg turn | Buffer: FKM
LVQH50-V12R-1-KBody class: 5 (ø16 orifice) | Connection: LQ1 fitting | Tube size: 12x10 mm | Handle: 90 deg turn | Buffer: FFKM
LVQH50-V12R-1-NBody class: 5 (ø16 orifice) | Connection: LQ1 fitting | Tube size: 12x10 mm | Handle: 90 deg turn | Buffer: EPDM (ammonia)
LVQH50-V12R-4Body class: 5 (ø16 orifice) | Connection: LQ1 fitting | Tube size: 12x10 mm | Handle: Multi-turn with indicator | Buffer: FKM
LVQH50-V12R-4-KBody class: 5 (ø16 orifice) | Connection: LQ1 fitting | Tube size: 12x10 mm | Handle: Multi-turn with indicator | Buffer: FFKM
LVQH50-V12R-4-NBody class: 5 (ø16 orifice) | Connection: LQ1 fitting | Tube size: 12x10 mm | Handle: Multi-turn with indicator | Buffer: EPDM (ammonia)
LVQH50-V19R-1Body class: 5 (ø16 orifice) | Connection: LQ1 fitting | Tube size: 19x16 mm / 3/4 in | Handle: 90 deg turn | Buffer: FKM
LVQH50-V19R-1-KBody class: 5 (ø16 orifice) | Connection: LQ1 fitting | Tube size: 19x16 mm / 3/4 in | Handle: 90 deg turn | Buffer: FFKM
LVQH50-V19R-1-NBody class: 5 (ø16 orifice) | Connection: LQ1 fitting | Tube size: 19x16 mm / 3/4 in | Handle: 90 deg turn | Buffer: EPDM (ammonia)
LVQH50-V19R-4Body class: 5 (ø16 orifice) | Connection: LQ1 fitting | Tube size: 19x16 mm / 3/4 in | Handle: Multi-turn with indicator | Buffer: FKM
LVQH50-V19R-4-KBody class: 5 (ø16 orifice) | Connection: LQ1 fitting | Tube size: 19x16 mm / 3/4 in | Handle: Multi-turn with indicator | Buffer: FFKM
LVQH50-V19R-4-NBody class: 5 (ø16 orifice) | Connection: LQ1 fitting | Tube size: 19x16 mm / 3/4 in | Handle: Multi-turn with indicator | Buffer: EPDM (ammonia)
LVQH50-V13R-1Body class: 5 (ø16 orifice) | Connection: LQ1 fitting | Tube size: 1/2 in | Handle: 90 deg turn | Buffer: FKM
LVQH50-V13R-1-KBody class: 5 (ø16 orifice) | Connection: LQ1 fitting | Tube size: 1/2 in | Handle: 90 deg turn | Buffer: FFKM
LVQH50-V13R-1-NBody class: 5 (ø16 orifice) | Connection: LQ1 fitting | Tube size: 1/2 in | Handle: 90 deg turn | Buffer: EPDM (ammonia)
LVQH50-V13R-4Body class: 5 (ø16 orifice) | Connection: LQ1 fitting | Tube size: 1/2 in | Handle: Multi-turn with indicator | Buffer: FKM
LVQH50-V13R-4-KBody class: 5 (ø16 orifice) | Connection: LQ1 fitting | Tube size: 1/2 in | Handle: Multi-turn with indicator | Buffer: FFKM
LVQH50-V13R-4-NBody class: 5 (ø16 orifice) | Connection: LQ1 fitting | Tube size: 1/2 in | Handle: Multi-turn with indicator | Buffer: EPDM (ammonia)
LVQH60-V19R-1Body class: 6 (ø22 orifice) | Connection: LQ1 fitting | Tube size: 19x16 mm / 3/4 in | Handle: 90 deg turn | Buffer: FKM
LVQH60-V19R-1-KBody class: 6 (ø22 orifice) | Connection: LQ1 fitting | Tube size: 19x16 mm / 3/4 in | Handle: 90 deg turn | Buffer: FFKM
LVQH60-V19R-1-NBody class: 6 (ø22 orifice) | Connection: LQ1 fitting | Tube size: 19x16 mm / 3/4 in | Handle: 90 deg turn | Buffer: EPDM (ammonia)
LVQH60-V19R-4Body class: 6 (ø22 orifice) | Connection: LQ1 fitting | Tube size: 19x16 mm / 3/4 in | Handle: Multi-turn with indicator | Buffer: FKM
LVQH60-V19R-4-KBody class: 6 (ø22 orifice) | Connection: LQ1 fitting | Tube size: 19x16 mm / 3/4 in | Handle: Multi-turn with indicator | Buffer: FFKM
LVQH60-V19R-4-NBody class: 6 (ø22 orifice) | Connection: LQ1 fitting | Tube size: 19x16 mm / 3/4 in | Handle: Multi-turn with indicator | Buffer: EPDM (ammonia)
LVQH60-V25R-1Body class: 6 (ø22 orifice) | Connection: LQ1 fitting | Tube size: 25x22 mm / 1 in | Handle: 90 deg turn | Buffer: FKM
LVQH60-V25R-1-KBody class: 6 (ø22 orifice) | Connection: LQ1 fitting | Tube size: 25x22 mm / 1 in | Handle: 90 deg turn | Buffer: FFKM
LVQH60-V25R-1-NBody class: 6 (ø22 orifice) | Connection: LQ1 fitting | Tube size: 25x22 mm / 1 in | Handle: 90 deg turn | Buffer: EPDM (ammonia)
LVQH60-V25R-4Body class: 6 (ø22 orifice) | Connection: LQ1 fitting | Tube size: 25x22 mm / 1 in | Handle: Multi-turn with indicator | Buffer: FKM
LVQH60-V25R-4-KBody class: 6 (ø22 orifice) | Connection: LQ1 fitting | Tube size: 25x22 mm / 1 in | Handle: Multi-turn with indicator | Buffer: FFKM
LVQH60-V25R-4-NBody class: 6 (ø22 orifice) | Connection: LQ1 fitting | Tube size: 25x22 mm / 1 in | Handle: Multi-turn with indicator | Buffer: EPDM (ammonia)
LVQH20-Z03R-1Body class: 2 (ø4 orifice) | Connection: LQ3 flare fitting | Tube size: 3x2 mm / 1/8 in | Handle: 90 deg turn | Buffer: FKM
LVQH20-Z03R-1-KBody class: 2 (ø4 orifice) | Connection: LQ3 flare fitting | Tube size: 3x2 mm / 1/8 in | Handle: 90 deg turn | Buffer: FFKM
LVQH20-Z03R-1-NBody class: 2 (ø4 orifice) | Connection: LQ3 flare fitting | Tube size: 3x2 mm / 1/8 in | Handle: 90 deg turn | Buffer: EPDM (ammonia)
LVQH20-Z03R-4Body class: 2 (ø4 orifice) | Connection: LQ3 flare fitting | Tube size: 3x2 mm / 1/8 in | Handle: Multi-turn with indicator | Buffer: FKM
LVQH20-Z03R-4-KBody class: 2 (ø4 orifice) | Connection: LQ3 flare fitting | Tube size: 3x2 mm / 1/8 in | Handle: Multi-turn with indicator | Buffer: FFKM
LVQH20-Z03R-4-NBody class: 2 (ø4 orifice) | Connection: LQ3 flare fitting | Tube size: 3x2 mm / 1/8 in | Handle: Multi-turn with indicator | Buffer: EPDM (ammonia)
LVQH20-Z04R-1Body class: 2 (ø4 orifice) | Connection: LQ3 flare fitting | Tube size: 4x3 mm | Handle: 90 deg turn | Buffer: FKM
LVQH20-Z04R-1-KBody class: 2 (ø4 orifice) | Connection: LQ3 flare fitting | Tube size: 4x3 mm | Handle: 90 deg turn | Buffer: FFKM
LVQH20-Z04R-1-NBody class: 2 (ø4 orifice) | Connection: LQ3 flare fitting | Tube size: 4x3 mm | Handle: 90 deg turn | Buffer: EPDM (ammonia)
LVQH20-Z04R-4Body class: 2 (ø4 orifice) | Connection: LQ3 flare fitting | Tube size: 4x3 mm | Handle: Multi-turn with indicator | Buffer: FKM
LVQH20-Z04R-4-KBody class: 2 (ø4 orifice) | Connection: LQ3 flare fitting | Tube size: 4x3 mm | Handle: Multi-turn with indicator | Buffer: FFKM
LVQH20-Z04R-4-NBody class: 2 (ø4 orifice) | Connection: LQ3 flare fitting | Tube size: 4x3 mm | Handle: Multi-turn with indicator | Buffer: EPDM (ammonia)
LVQH20-Z06R-1Body class: 2 (ø4 orifice) | Connection: LQ3 flare fitting | Tube size: 6x4 mm | Handle: 90 deg turn | Buffer: FKM
LVQH20-Z06R-1-KBody class: 2 (ø4 orifice) | Connection: LQ3 flare fitting | Tube size: 6x4 mm | Handle: 90 deg turn | Buffer: FFKM
LVQH20-Z06R-1-NBody class: 2 (ø4 orifice) | Connection: LQ3 flare fitting | Tube size: 6x4 mm | Handle: 90 deg turn | Buffer: EPDM (ammonia)
LVQH20-Z06R-4Body class: 2 (ø4 orifice) | Connection: LQ3 flare fitting | Tube size: 6x4 mm | Handle: Multi-turn with indicator | Buffer: FKM
LVQH20-Z06R-4-KBody class: 2 (ø4 orifice) | Connection: LQ3 flare fitting | Tube size: 6x4 mm | Handle: Multi-turn with indicator | Buffer: FFKM
LVQH20-Z06R-4-NBody class: 2 (ø4 orifice) | Connection: LQ3 flare fitting | Tube size: 6x4 mm | Handle: Multi-turn with indicator | Buffer: EPDM (ammonia)
LVQH20-Z07R-1Body class: 2 (ø4 orifice) | Connection: LQ3 flare fitting | Tube size: 1/4 in | Handle: 90 deg turn | Buffer: FKM
LVQH20-Z07R-1-KBody class: 2 (ø4 orifice) | Connection: LQ3 flare fitting | Tube size: 1/4 in | Handle: 90 deg turn | Buffer: FFKM
LVQH20-Z07R-1-NBody class: 2 (ø4 orifice) | Connection: LQ3 flare fitting | Tube size: 1/4 in | Handle: 90 deg turn | Buffer: EPDM (ammonia)
LVQH20-Z07R-4Body class: 2 (ø4 orifice) | Connection: LQ3 flare fitting | Tube size: 1/4 in | Handle: Multi-turn with indicator | Buffer: FKM
LVQH20-Z07R-4-KBody class: 2 (ø4 orifice) | Connection: LQ3 flare fitting | Tube size: 1/4 in | Handle: Multi-turn with indicator | Buffer: FFKM
LVQH20-Z07R-4-NBody class: 2 (ø4 orifice) | Connection: LQ3 flare fitting | Tube size: 1/4 in | Handle: Multi-turn with indicator | Buffer: EPDM (ammonia)
LVQH30-Z08R-1Body class: 3 (ø8 orifice) | Connection: LQ3 flare fitting | Tube size: 8x6 mm | Handle: 90 deg turn | Buffer: FKM
LVQH30-Z08R-1-KBody class: 3 (ø8 orifice) | Connection: LQ3 flare fitting | Tube size: 8x6 mm | Handle: 90 deg turn | Buffer: FFKM
LVQH30-Z08R-1-NBody class: 3 (ø8 orifice) | Connection: LQ3 flare fitting | Tube size: 8x6 mm | Handle: 90 deg turn | Buffer: EPDM (ammonia)
LVQH30-Z08R-4Body class: 3 (ø8 orifice) | Connection: LQ3 flare fitting | Tube size: 8x6 mm | Handle: Multi-turn with indicator | Buffer: FKM
LVQH30-Z08R-4-KBody class: 3 (ø8 orifice) | Connection: LQ3 flare fitting | Tube size: 8x6 mm | Handle: Multi-turn with indicator | Buffer: FFKM
LVQH30-Z08R-4-NBody class: 3 (ø8 orifice) | Connection: LQ3 flare fitting | Tube size: 8x6 mm | Handle: Multi-turn with indicator | Buffer: EPDM (ammonia)
LVQH30-Z10R-1Body class: 3 (ø8 orifice) | Connection: LQ3 flare fitting | Tube size: 10x8 mm | Handle: 90 deg turn | Buffer: FKM
LVQH30-Z10R-1-KBody class: 3 (ø8 orifice) | Connection: LQ3 flare fitting | Tube size: 10x8 mm | Handle: 90 deg turn | Buffer: FFKM
LVQH30-Z10R-1-NBody class: 3 (ø8 orifice) | Connection: LQ3 flare fitting | Tube size: 10x8 mm | Handle: 90 deg turn | Buffer: EPDM (ammonia)
LVQH30-Z10R-4Body class: 3 (ø8 orifice) | Connection: LQ3 flare fitting | Tube size: 10x8 mm | Handle: Multi-turn with indicator | Buffer: FKM
LVQH30-Z10R-4-KBody class: 3 (ø8 orifice) | Connection: LQ3 flare fitting | Tube size: 10x8 mm | Handle: Multi-turn with indicator | Buffer: FFKM
LVQH30-Z10R-4-NBody class: 3 (ø8 orifice) | Connection: LQ3 flare fitting | Tube size: 10x8 mm | Handle: Multi-turn with indicator | Buffer: EPDM (ammonia)
LVQH30-Z11R-1Body class: 3 (ø8 orifice) | Connection: LQ3 flare fitting | Tube size: 3/8 in | Handle: 90 deg turn | Buffer: FKM
LVQH30-Z11R-1-KBody class: 3 (ø8 orifice) | Connection: LQ3 flare fitting | Tube size: 3/8 in | Handle: 90 deg turn | Buffer: FFKM
LVQH30-Z11R-1-NBody class: 3 (ø8 orifice) | Connection: LQ3 flare fitting | Tube size: 3/8 in | Handle: 90 deg turn | Buffer: EPDM (ammonia)
LVQH30-Z11R-4Body class: 3 (ø8 orifice) | Connection: LQ3 flare fitting | Tube size: 3/8 in | Handle: Multi-turn with indicator | Buffer: FKM
LVQH30-Z11R-4-KBody class: 3 (ø8 orifice) | Connection: LQ3 flare fitting | Tube size: 3/8 in | Handle: Multi-turn with indicator | Buffer: FFKM
LVQH30-Z11R-4-NBody class: 3 (ø8 orifice) | Connection: LQ3 flare fitting | Tube size: 3/8 in | Handle: Multi-turn with indicator | Buffer: EPDM (ammonia)
LVQH40-Z12R-1Body class: 4 (ø10 orifice) | Connection: LQ3 flare fitting | Tube size: 12x10 mm | Handle: 90 deg turn | Buffer: FKM
LVQH40-Z12R-1-KBody class: 4 (ø10 orifice) | Connection: LQ3 flare fitting | Tube size: 12x10 mm | Handle: 90 deg turn | Buffer: FFKM
LVQH40-Z12R-1-NBody class: 4 (ø10 orifice) | Connection: LQ3 flare fitting | Tube size: 12x10 mm | Handle: 90 deg turn | Buffer: EPDM (ammonia)
LVQH40-Z12R-4Body class: 4 (ø10 orifice) | Connection: LQ3 flare fitting | Tube size: 12x10 mm | Handle: Multi-turn with indicator | Buffer: FKM
LVQH40-Z12R-4-KBody class: 4 (ø10 orifice) | Connection: LQ3 flare fitting | Tube size: 12x10 mm | Handle: Multi-turn with indicator | Buffer: FFKM
LVQH40-Z12R-4-NBody class: 4 (ø10 orifice) | Connection: LQ3 flare fitting | Tube size: 12x10 mm | Handle: Multi-turn with indicator | Buffer: EPDM (ammonia)
LVQH40-Z13R-1Body class: 4 (ø10 orifice) | Connection: LQ3 flare fitting | Tube size: 1/2 in | Handle: 90 deg turn | Buffer: FKM
LVQH40-Z13R-1-KBody class: 4 (ø10 orifice) | Connection: LQ3 flare fitting | Tube size: 1/2 in | Handle: 90 deg turn | Buffer: FFKM
LVQH40-Z13R-1-NBody class: 4 (ø10 orifice) | Connection: LQ3 flare fitting | Tube size: 1/2 in | Handle: 90 deg turn | Buffer: EPDM (ammonia)
LVQH40-Z13R-4Body class: 4 (ø10 orifice) | Connection: LQ3 flare fitting | Tube size: 1/2 in | Handle: Multi-turn with indicator | Buffer: FKM
LVQH40-Z13R-4-KBody class: 4 (ø10 orifice) | Connection: LQ3 flare fitting | Tube size: 1/2 in | Handle: Multi-turn with indicator | Buffer: FFKM
LVQH40-Z13R-4-NBody class: 4 (ø10 orifice) | Connection: LQ3 flare fitting | Tube size: 1/2 in | Handle: Multi-turn with indicator | Buffer: EPDM (ammonia)
LVQH50-Z19R-1Body class: 5 (ø16 orifice) | Connection: LQ3 flare fitting | Tube size: 19x16 mm / 3/4 in | Handle: 90 deg turn | Buffer: FKM
LVQH50-Z19R-1-KBody class: 5 (ø16 orifice) | Connection: LQ3 flare fitting | Tube size: 19x16 mm / 3/4 in | Handle: 90 deg turn | Buffer: FFKM
LVQH50-Z19R-1-NBody class: 5 (ø16 orifice) | Connection: LQ3 flare fitting | Tube size: 19x16 mm / 3/4 in | Handle: 90 deg turn | Buffer: EPDM (ammonia)
LVQH50-Z19R-4Body class: 5 (ø16 orifice) | Connection: LQ3 flare fitting | Tube size: 19x16 mm / 3/4 in | Handle: Multi-turn with indicator | Buffer: FKM
LVQH50-Z19R-4-KBody class: 5 (ø16 orifice) | Connection: LQ3 flare fitting | Tube size: 19x16 mm / 3/4 in | Handle: Multi-turn with indicator | Buffer: FFKM
LVQH50-Z19R-4-NBody class: 5 (ø16 orifice) | Connection: LQ3 flare fitting | Tube size: 19x16 mm / 3/4 in | Handle: Multi-turn with indicator | Buffer: EPDM (ammonia)
LVQH60-Z25R-1Body class: 6 (ø22 orifice) | Connection: LQ3 flare fitting | Tube size: 25x22 mm / 1 in | Handle: 90 deg turn | Buffer: FKM
LVQH60-Z25R-1-KBody class: 6 (ø22 orifice) | Connection: LQ3 flare fitting | Tube size: 25x22 mm / 1 in | Handle: 90 deg turn | Buffer: FFKM
LVQH60-Z25R-1-NBody class: 6 (ø22 orifice) | Connection: LQ3 flare fitting | Tube size: 25x22 mm / 1 in | Handle: 90 deg turn | Buffer: EPDM (ammonia)
LVQH60-Z25R-4Body class: 6 (ø22 orifice) | Connection: LQ3 flare fitting | Tube size: 25x22 mm / 1 in | Handle: Multi-turn with indicator | Buffer: FKM
LVQH60-Z25R-4-KBody class: 6 (ø22 orifice) | Connection: LQ3 flare fitting | Tube size: 25x22 mm / 1 in | Handle: Multi-turn with indicator | Buffer: FFKM
LVQH60-Z25R-4-NBody class: 6 (ø22 orifice) | Connection: LQ3 flare fitting | Tube size: 25x22 mm / 1 in | Handle: Multi-turn with indicator | Buffer: EPDM (ammonia)
LVQH20-T06R-1Body class: 2 (ø4 orifice) | Connection: Integral tube | Tube size: OD 6 mm | Handle: 90 deg turn | Buffer: FKM
LVQH20-T06R-1-KBody class: 2 (ø4 orifice) | Connection: Integral tube | Tube size: OD 6 mm | Handle: 90 deg turn | Buffer: FFKM
LVQH20-T06R-1-NBody class: 2 (ø4 orifice) | Connection: Integral tube | Tube size: OD 6 mm | Handle: 90 deg turn | Buffer: EPDM (ammonia)
LVQH20-T06R-4Body class: 2 (ø4 orifice) | Connection: Integral tube | Tube size: OD 6 mm | Handle: Multi-turn with indicator | Buffer: FKM
LVQH20-T06R-4-KBody class: 2 (ø4 orifice) | Connection: Integral tube | Tube size: OD 6 mm | Handle: Multi-turn with indicator | Buffer: FFKM
LVQH20-T06R-4-NBody class: 2 (ø4 orifice) | Connection: Integral tube | Tube size: OD 6 mm | Handle: Multi-turn with indicator | Buffer: EPDM (ammonia)
LVQH20-T07R-1Body class: 2 (ø4 orifice) | Connection: Integral tube | Tube size: OD 1/4 in | Handle: 90 deg turn | Buffer: FKM
LVQH20-T07R-1-KBody class: 2 (ø4 orifice) | Connection: Integral tube | Tube size: OD 1/4 in | Handle: 90 deg turn | Buffer: FFKM
LVQH20-T07R-1-NBody class: 2 (ø4 orifice) | Connection: Integral tube | Tube size: OD 1/4 in | Handle: 90 deg turn | Buffer: EPDM (ammonia)
LVQH20-T07R-4Body class: 2 (ø4 orifice) | Connection: Integral tube | Tube size: OD 1/4 in | Handle: Multi-turn with indicator | Buffer: FKM
LVQH20-T07R-4-KBody class: 2 (ø4 orifice) | Connection: Integral tube | Tube size: OD 1/4 in | Handle: Multi-turn with indicator | Buffer: FFKM
LVQH20-T07R-4-NBody class: 2 (ø4 orifice) | Connection: Integral tube | Tube size: OD 1/4 in | Handle: Multi-turn with indicator | Buffer: EPDM (ammonia)
LVQH30-T10R-1Body class: 3 (ø8 orifice) | Connection: Integral tube | Tube size: OD 10 mm | Handle: 90 deg turn | Buffer: FKM
LVQH30-T10R-1-KBody class: 3 (ø8 orifice) | Connection: Integral tube | Tube size: OD 10 mm | Handle: 90 deg turn | Buffer: FFKM
LVQH30-T10R-1-NBody class: 3 (ø8 orifice) | Connection: Integral tube | Tube size: OD 10 mm | Handle: 90 deg turn | Buffer: EPDM (ammonia)
LVQH30-T10R-4Body class: 3 (ø8 orifice) | Connection: Integral tube | Tube size: OD 10 mm | Handle: Multi-turn with indicator | Buffer: FKM
LVQH30-T10R-4-KBody class: 3 (ø8 orifice) | Connection: Integral tube | Tube size: OD 10 mm | Handle: Multi-turn with indicator | Buffer: FFKM
LVQH30-T10R-4-NBody class: 3 (ø8 orifice) | Connection: Integral tube | Tube size: OD 10 mm | Handle: Multi-turn with indicator | Buffer: EPDM (ammonia)
LVQH30-T11R-1Body class: 3 (ø8 orifice) | Connection: Integral tube | Tube size: OD 3/8 in | Handle: 90 deg turn | Buffer: FKM
LVQH30-T11R-1-KBody class: 3 (ø8 orifice) | Connection: Integral tube | Tube size: OD 3/8 in | Handle: 90 deg turn | Buffer: FFKM
LVQH30-T11R-1-NBody class: 3 (ø8 orifice) | Connection: Integral tube | Tube size: OD 3/8 in | Handle: 90 deg turn | Buffer: EPDM (ammonia)
LVQH30-T11R-4Body class: 3 (ø8 orifice) | Connection: Integral tube | Tube size: OD 3/8 in | Handle: Multi-turn with indicator | Buffer: FKM
LVQH30-T11R-4-KBody class: 3 (ø8 orifice) | Connection: Integral tube | Tube size: OD 3/8 in | Handle: Multi-turn with indicator | Buffer: FFKM
LVQH30-T11R-4-NBody class: 3 (ø8 orifice) | Connection: Integral tube | Tube size: OD 3/8 in | Handle: Multi-turn with indicator | Buffer: EPDM (ammonia)
LVQH40-T12R-1Body class: 4 (ø10 orifice) | Connection: Integral tube | Tube size: OD 12 mm | Handle: 90 deg turn | Buffer: FKM
LVQH40-T12R-1-KBody class: 4 (ø10 orifice) | Connection: Integral tube | Tube size: OD 12 mm | Handle: 90 deg turn | Buffer: FFKM
LVQH40-T12R-1-NBody class: 4 (ø10 orifice) | Connection: Integral tube | Tube size: OD 12 mm | Handle: 90 deg turn | Buffer: EPDM (ammonia)
LVQH40-T12R-4Body class: 4 (ø10 orifice) | Connection: Integral tube | Tube size: OD 12 mm | Handle: Multi-turn with indicator | Buffer: FKM
LVQH40-T12R-4-KBody class: 4 (ø10 orifice) | Connection: Integral tube | Tube size: OD 12 mm | Handle: Multi-turn with indicator | Buffer: FFKM
LVQH40-T12R-4-NBody class: 4 (ø10 orifice) | Connection: Integral tube | Tube size: OD 12 mm | Handle: Multi-turn with indicator | Buffer: EPDM (ammonia)
LVQH40-T13R-1Body class: 4 (ø10 orifice) | Connection: Integral tube | Tube size: OD 1/2 in | Handle: 90 deg turn | Buffer: FKM
LVQH40-T13R-1-KBody class: 4 (ø10 orifice) | Connection: Integral tube | Tube size: OD 1/2 in | Handle: 90 deg turn | Buffer: FFKM
LVQH40-T13R-1-NBody class: 4 (ø10 orifice) | Connection: Integral tube | Tube size: OD 1/2 in | Handle: 90 deg turn | Buffer: EPDM (ammonia)
LVQH40-T13R-4Body class: 4 (ø10 orifice) | Connection: Integral tube | Tube size: OD 1/2 in | Handle: Multi-turn with indicator | Buffer: FKM
LVQH40-T13R-4-KBody class: 4 (ø10 orifice) | Connection: Integral tube | Tube size: OD 1/2 in | Handle: Multi-turn with indicator | Buffer: FFKM
LVQH40-T13R-4-NBody class: 4 (ø10 orifice) | Connection: Integral tube | Tube size: OD 1/2 in | Handle: Multi-turn with indicator | Buffer: EPDM (ammonia)
LVQH50-T19R-1Body class: 5 (ø16 orifice) | Connection: Integral tube | Tube size: OD 19 mm / 3/4 in | Handle: 90 deg turn | Buffer: FKM
LVQH50-T19R-1-KBody class: 5 (ø16 orifice) | Connection: Integral tube | Tube size: OD 19 mm / 3/4 in | Handle: 90 deg turn | Buffer: FFKM
LVQH50-T19R-1-NBody class: 5 (ø16 orifice) | Connection: Integral tube | Tube size: OD 19 mm / 3/4 in | Handle: 90 deg turn | Buffer: EPDM (ammonia)
LVQH50-T19R-4Body class: 5 (ø16 orifice) | Connection: Integral tube | Tube size: OD 19 mm / 3/4 in | Handle: Multi-turn with indicator | Buffer: FKM
LVQH50-T19R-4-KBody class: 5 (ø16 orifice) | Connection: Integral tube | Tube size: OD 19 mm / 3/4 in | Handle: Multi-turn with indicator | Buffer: FFKM
LVQH50-T19R-4-NBody class: 5 (ø16 orifice) | Connection: Integral tube | Tube size: OD 19 mm / 3/4 in | Handle: Multi-turn with indicator | Buffer: EPDM (ammonia)
LVQH60-T25R-1Body class: 6 (ø22 orifice) | Connection: Integral tube | Tube size: OD 25 mm / 1 in | Handle: 90 deg turn | Buffer: FKM
LVQH60-T25R-1-KBody class: 6 (ø22 orifice) | Connection: Integral tube | Tube size: OD 25 mm / 1 in | Handle: 90 deg turn | Buffer: FFKM
LVQH60-T25R-1-NBody class: 6 (ø22 orifice) | Connection: Integral tube | Tube size: OD 25 mm / 1 in | Handle: 90 deg turn | Buffer: EPDM (ammonia)
LVQH60-T25R-4Body class: 6 (ø22 orifice) | Connection: Integral tube | Tube size: OD 25 mm / 1 in | Handle: Multi-turn with indicator | Buffer: FKM
LVQH60-T25R-4-KBody class: 6 (ø22 orifice) | Connection: Integral tube | Tube size: OD 25 mm / 1 in | Handle: Multi-turn with indicator | Buffer: FFKM
LVQH60-T25R-4-NBody class: 6 (ø22 orifice) | Connection: Integral tube | Tube size: OD 25 mm / 1 in | Handle: Multi-turn with indicator | Buffer: EPDM (ammonia)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
