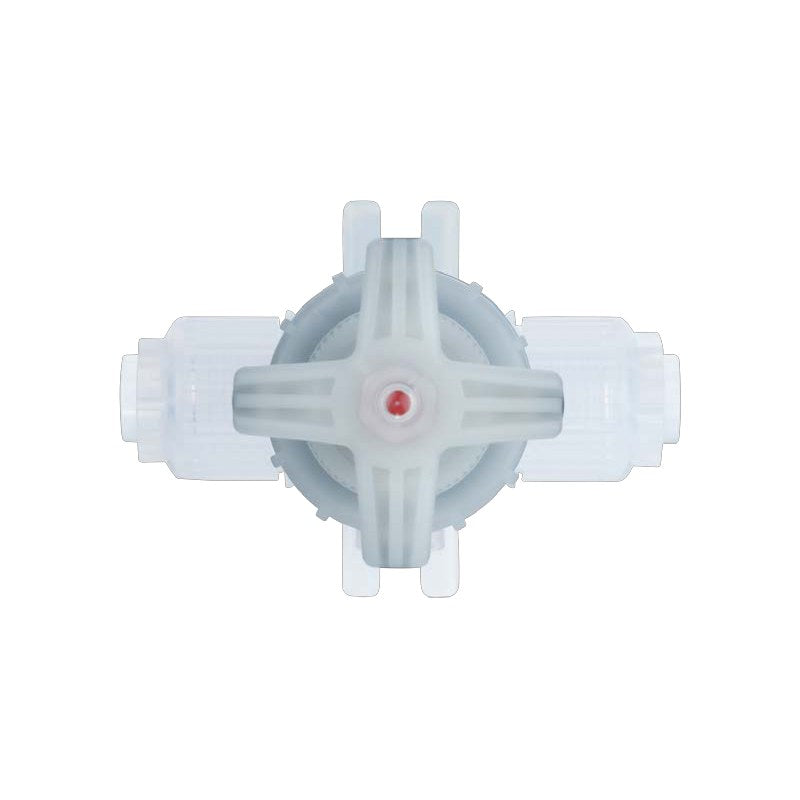

SMC LVQS Air Operated Chemical Valve (Space Saving, LQ1/LQ3)

SMC LVQS series space-saving air-operated chemical valve; the valve body connects directly to LQ1 or LQ3 union/elbow/tee fittings to shorten piping length.

Key features

Space-saving connection: body ports mate with LQ1 (V) or LQ3 (Z) space-saving fittings ordered separately
Fluid-contact parts New PFA body and PTFE diaphragm; PVDF actuator, non-metal exterior
Pilot port orientation selectable in 8 directions (P2 to P8 suffix)
Options: flow adjustment, bypass, indicator, high back pressure 0.42 MPa; buffer FKM, FFKM, EPDM or high-temperature
Fittings (union, elbow, tee, panel-mount union) are separate part numbers

Specifications

Fluid	Deionized water, chemicals (see compatibility list)
Fluid connection	Space-saving LQ1 (V) or LQ3 (Z) connection
Proof pressure	1 MPa
Operating pressure (A to B)	-98 kPa to 0.5 MPa (LVQ60 0.4 MPa)
Back pressure	0.3 MPa or less (LVQ60 0.2 MPa); high BP 0.42 MPa
Pilot pressure	0.3 to 0.5 MPa (high BP 0.45 to 0.55 MPa)
Flow Cv (class 2/3/4/5/6)	0.35 / 1.3 / 1.9 / 5 / 8 (high flow 9.5)
Fluid temperature	0 to 100 C (high temp. 0 to 170 C)
Ambient temperature	0 to 60 C
Wetted materials	Body New PFA, diaphragm PTFE; actuator PVDF
Source	SMC Korea catalog LVQ Series (SMCKR_LVQ.pdf), p. 79-89, 111-120 (PDF p. 18-28, 50-59)

LVQ20S-V07		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ20S-V07R		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ20S-V07-J		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ20S-V07R-J		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ20S-V07-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ20S-V07R-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ20S-V07-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ20S-V07R-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ20S-V07-1		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
LVQ20S-V07R-1		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
LVQ20S-V07-1-J		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ20S-V07R-1-J		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ20S-V07-1-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
LVQ20S-V07R-1-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
LVQ20S-V07-1-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ20S-V07R-1-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ20S-V07-2		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ20S-V07R-2		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ20S-V07-2-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ20S-V07R-2-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ20S-V07-2-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ20S-V07R-2-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ20S-V07-3		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ20S-V07R-3		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ20S-V07-3-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ20S-V07R-3-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ20S-V07-3-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ20S-V07R-3-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ20S-V07-4		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
LVQ20S-V07R-4		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
LVQ20S-V07-4-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
LVQ20S-V07R-4-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
LVQ20S-V07-4-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ20S-V07R-4-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ20S-V07-5		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ20S-V07R-5		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ20S-V07-5-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ20S-V07R-5-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ20S-V07-5-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ20S-V07R-5-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ20S-V07-6		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
LVQ20S-V07R-6		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
LVQ20S-V07-6-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ20S-V07R-6-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ20S-V07-6-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ20S-V07R-6-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ20S-V07-7		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
LVQ20S-V07R-7		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
LVQ20S-V07-7-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
LVQ20S-V07R-7-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
LVQ20S-V07-7-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ20S-V07R-7-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ20S-V07-8		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ20S-V07R-8		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ20S-V07-8-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ20S-V07R-8-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ20S-V07-8-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ20S-V07R-8-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ20S-V07-9		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
LVQ20S-V07R-9		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
LVQ20S-V07-9-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
LVQ20S-V07R-9-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
LVQ20S-V07-9-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ20S-V07R-9-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ20S-V07-24		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
LVQ20S-V07R-24		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
LVQ20S-V07-24-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
LVQ20S-V07R-24-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
LVQ20S-V07-24-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ20S-V07R-24-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ21S-V07		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ21S-V07R		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ21S-V07-J		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ21S-V07R-J		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ21S-V07-K		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ21S-V07R-K		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ21S-V07-N		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ21S-V07R-N		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ22S-V07		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ22S-V07R		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ22S-V07-J		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ22S-V07R-J		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ22S-V07-K		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ22S-V07R-K		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ22S-V07-N		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ22S-V07R-N		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ22S-V07-2		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ22S-V07R-2		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ22S-V07-2-K		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ22S-V07R-2-K		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ22S-V07-2-N		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ22S-V07R-2-N		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ30S-V11		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ30S-V11R		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ30S-V11-J		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ30S-V11R-J		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ30S-V11-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ30S-V11R-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ30S-V11-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ30S-V11R-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ30S-V11-1		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
LVQ30S-V11R-1		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
LVQ30S-V11-1-J		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ30S-V11R-1-J		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ30S-V11-1-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
LVQ30S-V11R-1-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
LVQ30S-V11-1-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ30S-V11R-1-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ30S-V11-2		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ30S-V11R-2		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ30S-V11-2-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ30S-V11R-2-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ30S-V11-2-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ30S-V11R-2-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ30S-V11-3		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ30S-V11R-3		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ30S-V11-3-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ30S-V11R-3-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ30S-V11-3-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ30S-V11R-3-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ30S-V11-4		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
LVQ30S-V11R-4		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
LVQ30S-V11-4-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
LVQ30S-V11R-4-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
LVQ30S-V11-4-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ30S-V11R-4-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ30S-V11-5		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ30S-V11R-5		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ30S-V11-5-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ30S-V11R-5-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ30S-V11-5-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ30S-V11R-5-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ30S-V11-6		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
LVQ30S-V11R-6		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
LVQ30S-V11-6-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ30S-V11R-6-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ30S-V11-6-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ30S-V11R-6-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ30S-V11-7		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
LVQ30S-V11R-7		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
LVQ30S-V11-7-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
LVQ30S-V11R-7-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
LVQ30S-V11-7-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ30S-V11R-7-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ30S-V11-8		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ30S-V11R-8		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ30S-V11-8-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ30S-V11R-8-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ30S-V11-8-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ30S-V11R-8-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ30S-V11-9		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
LVQ30S-V11R-9		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
LVQ30S-V11-9-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
LVQ30S-V11R-9-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
LVQ30S-V11-9-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ30S-V11R-9-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ30S-V11-24		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
LVQ30S-V11R-24		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
LVQ30S-V11-24-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
LVQ30S-V11R-24-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
LVQ30S-V11-24-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ30S-V11R-24-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ31S-V11		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ31S-V11R		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ31S-V11-J		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ31S-V11R-J		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ31S-V11-K		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ31S-V11R-K		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ31S-V11-N		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ31S-V11R-N		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ32S-V11		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ32S-V11R		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ32S-V11-J		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ32S-V11R-J		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ32S-V11-K		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ32S-V11R-K		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ32S-V11-N		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ32S-V11R-N		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ32S-V11-2		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ32S-V11R-2		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ32S-V11-2-K		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ32S-V11R-2-K		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ32S-V11-2-N		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ32S-V11R-2-N		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ40S-V13		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ40S-V13R		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ40S-V13-J		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ40S-V13R-J		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ40S-V13-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ40S-V13R-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ40S-V13-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ40S-V13R-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ40S-V13-1		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
LVQ40S-V13R-1		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
LVQ40S-V13-1-J		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ40S-V13R-1-J		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ40S-V13-1-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
LVQ40S-V13R-1-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
LVQ40S-V13-1-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ40S-V13R-1-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ40S-V13-2		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ40S-V13R-2		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ40S-V13-2-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ40S-V13R-2-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ40S-V13-2-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ40S-V13R-2-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ40S-V13-3		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ40S-V13R-3		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ40S-V13-3-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ40S-V13R-3-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ40S-V13-3-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ40S-V13R-3-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ40S-V13-4		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
LVQ40S-V13R-4		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
LVQ40S-V13-4-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
LVQ40S-V13R-4-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
LVQ40S-V13-4-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ40S-V13R-4-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ40S-V13-5		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ40S-V13R-5		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ40S-V13-5-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ40S-V13R-5-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ40S-V13-5-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ40S-V13R-5-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ40S-V13-6		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
LVQ40S-V13R-6		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
LVQ40S-V13-6-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ40S-V13R-6-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ40S-V13-6-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ40S-V13R-6-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ40S-V13-7		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
LVQ40S-V13R-7		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
LVQ40S-V13-7-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
LVQ40S-V13R-7-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
LVQ40S-V13-7-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ40S-V13R-7-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ40S-V13-8		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ40S-V13R-8		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ40S-V13-8-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ40S-V13R-8-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ40S-V13-8-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ40S-V13R-8-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ40S-V13-9		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
LVQ40S-V13R-9		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
LVQ40S-V13-9-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
LVQ40S-V13R-9-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
LVQ40S-V13-9-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ40S-V13R-9-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ40S-V13-24		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
LVQ40S-V13R-24		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
LVQ40S-V13-24-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
LVQ40S-V13R-24-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
LVQ40S-V13-24-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ40S-V13R-24-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ41S-V13		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ41S-V13R		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ41S-V13-J		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ41S-V13R-J		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ41S-V13-K		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ41S-V13R-K		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ41S-V13-N		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ41S-V13R-N		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ42S-V13		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ42S-V13R		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ42S-V13-J		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ42S-V13R-J		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ42S-V13-K		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ42S-V13R-K		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ42S-V13-N		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ42S-V13R-N		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ42S-V13-2		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ42S-V13R-2		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ42S-V13-2-K		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ42S-V13R-2-K		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ42S-V13-2-N		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ42S-V13R-2-N		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ50S-V19		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ50S-V19R		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ50S-V19-J		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ50S-V19R-J		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ50S-V19-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ50S-V19R-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ50S-V19-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ50S-V19R-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ50S-V19-1		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
LVQ50S-V19R-1		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
LVQ50S-V19-1-J		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ50S-V19R-1-J		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ50S-V19-1-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
LVQ50S-V19R-1-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
LVQ50S-V19-1-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ50S-V19R-1-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ50S-V19-2		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ50S-V19R-2		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ50S-V19-2-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ50S-V19R-2-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ50S-V19-2-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ50S-V19R-2-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ50S-V19-3		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ50S-V19R-3		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ50S-V19-3-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ50S-V19R-3-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ50S-V19-3-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ50S-V19R-3-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ50S-V19-4		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
LVQ50S-V19R-4		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
LVQ50S-V19-4-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
LVQ50S-V19R-4-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
LVQ50S-V19-4-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ50S-V19R-4-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ50S-V19-5		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ50S-V19R-5		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ50S-V19-5-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ50S-V19R-5-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ50S-V19-5-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ50S-V19R-5-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ50S-V19-6		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
LVQ50S-V19R-6		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
LVQ50S-V19-6-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ50S-V19R-6-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ50S-V19-6-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ50S-V19R-6-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ50S-V19-7		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
LVQ50S-V19R-7		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
LVQ50S-V19-7-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
LVQ50S-V19R-7-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
LVQ50S-V19-7-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ50S-V19R-7-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ50S-V19-8		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ50S-V19R-8		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ50S-V19-8-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ50S-V19R-8-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ50S-V19-8-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ50S-V19R-8-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ50S-V19-9		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
LVQ50S-V19R-9		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
LVQ50S-V19-9-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
LVQ50S-V19R-9-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
LVQ50S-V19-9-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ50S-V19R-9-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ50S-V19-24		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
LVQ50S-V19R-24		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
LVQ50S-V19-24-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
LVQ50S-V19R-24-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
LVQ50S-V19-24-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ50S-V19R-24-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ51S-V19		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ51S-V19R		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ51S-V19-J		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ51S-V19R-J		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ51S-V19-K		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ51S-V19R-K		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ51S-V19-N		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ51S-V19R-N		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ52S-V19		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ52S-V19R		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ52S-V19-J		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ52S-V19R-J		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ52S-V19-K		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ52S-V19R-K		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ52S-V19-N		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ52S-V19R-N		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ52S-V19-2		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ52S-V19R-2		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ52S-V19-2-K		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ52S-V19R-2-K		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ52S-V19-2-N		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ52S-V19R-2-N		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ60S-V25		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ60S-V25R		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ60S-V25-J		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ60S-V25R-J		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ60S-V25-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ60S-V25R-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ60S-V25-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ60S-V25R-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ60S-V25-P		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high flow
LVQ60S-V25R-P		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high flow
LVQ60S-V25-1		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
LVQ60S-V25R-1		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
LVQ60S-V25-1-J		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ60S-V25R-1-J		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ60S-V25-1-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
LVQ60S-V25R-1-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
LVQ60S-V25-1-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ60S-V25R-1-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ60S-V25-2		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ60S-V25R-2		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ60S-V25-2-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ60S-V25R-2-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ60S-V25-2-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ60S-V25R-2-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ60S-V25-3		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ60S-V25R-3		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ60S-V25-3-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ60S-V25R-3-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ60S-V25-3-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ60S-V25R-3-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ60S-V25-4		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
LVQ60S-V25R-4		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
LVQ60S-V25-4-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
LVQ60S-V25R-4-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
LVQ60S-V25-4-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ60S-V25R-4-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ60S-V25-4-P		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM, high flow
LVQ60S-V25R-4-P		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM, high flow
LVQ60S-V25-5		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ60S-V25R-5		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ60S-V25-5-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ60S-V25R-5-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ60S-V25-5-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ60S-V25R-5-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ60S-V25-5-P		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM, high flow
LVQ60S-V25R-5-P		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM, high flow
LVQ60S-V25-6		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
LVQ60S-V25R-6		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
LVQ60S-V25-6-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ60S-V25R-6-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ60S-V25-6-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ60S-V25R-6-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ60S-V25-7		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
LVQ60S-V25R-7		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
LVQ60S-V25-7-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
LVQ60S-V25R-7-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
LVQ60S-V25-7-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ60S-V25R-7-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ60S-V25-8		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ60S-V25R-8		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ60S-V25-8-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ60S-V25R-8-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ60S-V25-8-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ60S-V25R-8-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ60S-V25-9		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
LVQ60S-V25R-9		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
LVQ60S-V25-9-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
LVQ60S-V25R-9-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
LVQ60S-V25-9-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ60S-V25R-9-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ60S-V25-24		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
LVQ60S-V25R-24		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
LVQ60S-V25-24-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
LVQ60S-V25R-24-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
LVQ60S-V25-24-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ60S-V25R-24-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ61S-V25		Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ61S-V25R		Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ61S-V25-J		Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ61S-V25R-J		Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ61S-V25-K		Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ61S-V25R-K		Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ61S-V25-N		Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ61S-V25R-N		Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ61S-V25-P		Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high flow
LVQ61S-V25R-P		Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high flow
LVQ62S-V25		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ62S-V25R		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ62S-V25-J		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ62S-V25R-J		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ62S-V25-K		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ62S-V25R-K		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ62S-V25-N		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ62S-V25R-N		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ62S-V25-P		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high flow
LVQ62S-V25R-P		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high flow
LVQ62S-V25-2		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ62S-V25R-2		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ62S-V25-2-K		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ62S-V25R-2-K		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ62S-V25-2-N		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ62S-V25R-2-N		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ20S-Z07		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ20S-Z07R		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ20S-Z07-J		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ20S-Z07R-J		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ20S-Z07-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ20S-Z07R-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ20S-Z07-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ20S-Z07R-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ20S-Z07-1		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
LVQ20S-Z07R-1		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
LVQ20S-Z07-1-J		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ20S-Z07R-1-J		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ20S-Z07-1-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
LVQ20S-Z07R-1-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
LVQ20S-Z07-1-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ20S-Z07R-1-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ20S-Z07-2		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ20S-Z07R-2		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ20S-Z07-2-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ20S-Z07R-2-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ20S-Z07-2-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ20S-Z07R-2-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ20S-Z07-3		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ20S-Z07R-3		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ20S-Z07-3-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ20S-Z07R-3-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ20S-Z07-3-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ20S-Z07R-3-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ20S-Z07-4		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
LVQ20S-Z07R-4		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
LVQ20S-Z07-4-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
LVQ20S-Z07R-4-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
LVQ20S-Z07-4-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ20S-Z07R-4-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ20S-Z07-5		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ20S-Z07R-5		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ20S-Z07-5-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ20S-Z07R-5-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ20S-Z07-5-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ20S-Z07R-5-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ20S-Z07-6		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
LVQ20S-Z07R-6		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
LVQ20S-Z07-6-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ20S-Z07R-6-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ20S-Z07-6-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ20S-Z07R-6-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ20S-Z07-7		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
LVQ20S-Z07R-7		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
LVQ20S-Z07-7-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
LVQ20S-Z07R-7-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
LVQ20S-Z07-7-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ20S-Z07R-7-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ20S-Z07-8		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ20S-Z07R-8		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ20S-Z07-8-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ20S-Z07R-8-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ20S-Z07-8-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ20S-Z07R-8-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ20S-Z07-9		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
LVQ20S-Z07R-9		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
LVQ20S-Z07-9-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
LVQ20S-Z07R-9-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
LVQ20S-Z07-9-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ20S-Z07R-9-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ20S-Z07-24		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
LVQ20S-Z07R-24		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
LVQ20S-Z07-24-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
LVQ20S-Z07R-24-K		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
LVQ20S-Z07-24-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ20S-Z07R-24-N		Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ21S-Z07		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ21S-Z07R		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ21S-Z07-J		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ21S-Z07R-J		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ21S-Z07-K		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ21S-Z07R-K		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ21S-Z07-N		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ21S-Z07R-N		Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ22S-Z07		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ22S-Z07R		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ22S-Z07-J		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ22S-Z07R-J		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ22S-Z07-K		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ22S-Z07R-K		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ22S-Z07-N		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ22S-Z07R-N		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ22S-Z07-2		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ22S-Z07R-2		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ22S-Z07-2-K		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ22S-Z07R-2-K		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ22S-Z07-2-N		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ22S-Z07R-2-N		Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ30S-Z11		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ30S-Z11R		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ30S-Z11-J		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ30S-Z11R-J		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ30S-Z11-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ30S-Z11R-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ30S-Z11-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ30S-Z11R-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ30S-Z11-1		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
LVQ30S-Z11R-1		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
LVQ30S-Z11-1-J		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ30S-Z11R-1-J		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ30S-Z11-1-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
LVQ30S-Z11R-1-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
LVQ30S-Z11-1-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ30S-Z11R-1-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ30S-Z11-2		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ30S-Z11R-2		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ30S-Z11-2-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ30S-Z11R-2-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ30S-Z11-2-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ30S-Z11R-2-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ30S-Z11-3		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ30S-Z11R-3		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ30S-Z11-3-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ30S-Z11R-3-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ30S-Z11-3-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ30S-Z11R-3-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ30S-Z11-4		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
LVQ30S-Z11R-4		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
LVQ30S-Z11-4-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
LVQ30S-Z11R-4-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
LVQ30S-Z11-4-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ30S-Z11R-4-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ30S-Z11-5		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ30S-Z11R-5		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ30S-Z11-5-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ30S-Z11R-5-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ30S-Z11-5-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ30S-Z11R-5-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ30S-Z11-6		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
LVQ30S-Z11R-6		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
LVQ30S-Z11-6-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ30S-Z11R-6-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ30S-Z11-6-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ30S-Z11R-6-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ30S-Z11-7		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
LVQ30S-Z11R-7		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
LVQ30S-Z11-7-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
LVQ30S-Z11R-7-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
LVQ30S-Z11-7-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ30S-Z11R-7-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ30S-Z11-8		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ30S-Z11R-8		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ30S-Z11-8-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ30S-Z11R-8-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ30S-Z11-8-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ30S-Z11R-8-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ30S-Z11-9		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
LVQ30S-Z11R-9		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
LVQ30S-Z11-9-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
LVQ30S-Z11R-9-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
LVQ30S-Z11-9-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ30S-Z11R-9-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ30S-Z11-24		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
LVQ30S-Z11R-24		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
LVQ30S-Z11-24-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
LVQ30S-Z11R-24-K		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
LVQ30S-Z11-24-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ30S-Z11R-24-N		Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ31S-Z11		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ31S-Z11R		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ31S-Z11-J		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ31S-Z11R-J		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ31S-Z11-K		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ31S-Z11R-K		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ31S-Z11-N		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ31S-Z11R-N		Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ32S-Z11		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ32S-Z11R		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ32S-Z11-J		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ32S-Z11R-J		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ32S-Z11-K		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ32S-Z11R-K		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ32S-Z11-N		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ32S-Z11R-N		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ32S-Z11-2		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ32S-Z11R-2		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ32S-Z11-2-K		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ32S-Z11R-2-K		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ32S-Z11-2-N		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ32S-Z11R-2-N		Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ40S-Z13		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ40S-Z13R		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ40S-Z13-J		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ40S-Z13R-J		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ40S-Z13-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ40S-Z13R-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ40S-Z13-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ40S-Z13R-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ40S-Z13-1		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
LVQ40S-Z13R-1		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
LVQ40S-Z13-1-J		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ40S-Z13R-1-J		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ40S-Z13-1-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
LVQ40S-Z13R-1-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
LVQ40S-Z13-1-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ40S-Z13R-1-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ40S-Z13-2		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ40S-Z13R-2		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ40S-Z13-2-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ40S-Z13R-2-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ40S-Z13-2-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ40S-Z13R-2-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ40S-Z13-3		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ40S-Z13R-3		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ40S-Z13-3-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ40S-Z13R-3-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ40S-Z13-3-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ40S-Z13R-3-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ40S-Z13-4		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
LVQ40S-Z13R-4		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
LVQ40S-Z13-4-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
LVQ40S-Z13R-4-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
LVQ40S-Z13-4-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ40S-Z13R-4-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ40S-Z13-5		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ40S-Z13R-5		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ40S-Z13-5-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ40S-Z13R-5-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ40S-Z13-5-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ40S-Z13R-5-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ40S-Z13-6		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
LVQ40S-Z13R-6		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
LVQ40S-Z13-6-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ40S-Z13R-6-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ40S-Z13-6-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ40S-Z13R-6-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ40S-Z13-7		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
LVQ40S-Z13R-7		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
LVQ40S-Z13-7-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
LVQ40S-Z13R-7-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
LVQ40S-Z13-7-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ40S-Z13R-7-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ40S-Z13-8		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ40S-Z13R-8		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ40S-Z13-8-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ40S-Z13R-8-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ40S-Z13-8-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ40S-Z13R-8-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ40S-Z13-9		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
LVQ40S-Z13R-9		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
LVQ40S-Z13-9-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
LVQ40S-Z13R-9-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
LVQ40S-Z13-9-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ40S-Z13R-9-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ40S-Z13-24		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
LVQ40S-Z13R-24		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
LVQ40S-Z13-24-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
LVQ40S-Z13R-24-K		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
LVQ40S-Z13-24-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ40S-Z13R-24-N		Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ41S-Z13		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ41S-Z13R		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ41S-Z13-J		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ41S-Z13R-J		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ41S-Z13-K		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ41S-Z13R-K		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ41S-Z13-N		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ41S-Z13R-N		Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ42S-Z13		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ42S-Z13R		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ42S-Z13-J		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ42S-Z13R-J		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ42S-Z13-K		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ42S-Z13R-K		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ42S-Z13-N		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ42S-Z13R-N		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ42S-Z13-2		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ42S-Z13R-2		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ42S-Z13-2-K		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ42S-Z13R-2-K		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ42S-Z13-2-N		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ42S-Z13R-2-N		Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ50S-Z19		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ50S-Z19R		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ50S-Z19-J		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ50S-Z19R-J		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ50S-Z19-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ50S-Z19R-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ50S-Z19-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ50S-Z19R-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ50S-Z19-1		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
LVQ50S-Z19R-1		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
LVQ50S-Z19-1-J		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ50S-Z19R-1-J		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ50S-Z19-1-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
LVQ50S-Z19R-1-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
LVQ50S-Z19-1-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ50S-Z19R-1-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ50S-Z19-2		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ50S-Z19R-2		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ50S-Z19-2-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ50S-Z19R-2-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ50S-Z19-2-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ50S-Z19R-2-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ50S-Z19-3		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ50S-Z19R-3		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ50S-Z19-3-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ50S-Z19R-3-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ50S-Z19-3-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ50S-Z19R-3-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ50S-Z19-4		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
LVQ50S-Z19R-4		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
LVQ50S-Z19-4-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
LVQ50S-Z19R-4-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
LVQ50S-Z19-4-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ50S-Z19R-4-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ50S-Z19-5		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ50S-Z19R-5		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ50S-Z19-5-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ50S-Z19R-5-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ50S-Z19-5-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ50S-Z19R-5-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ50S-Z19-6		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
LVQ50S-Z19R-6		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
LVQ50S-Z19-6-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ50S-Z19R-6-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ50S-Z19-6-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ50S-Z19R-6-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ50S-Z19-7		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
LVQ50S-Z19R-7		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
LVQ50S-Z19-7-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
LVQ50S-Z19R-7-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
LVQ50S-Z19-7-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ50S-Z19R-7-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ50S-Z19-8		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ50S-Z19R-8		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ50S-Z19-8-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ50S-Z19R-8-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ50S-Z19-8-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ50S-Z19R-8-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ50S-Z19-9		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
LVQ50S-Z19R-9		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
LVQ50S-Z19-9-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
LVQ50S-Z19R-9-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
LVQ50S-Z19-9-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ50S-Z19R-9-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ50S-Z19-24		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
LVQ50S-Z19R-24		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
LVQ50S-Z19-24-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
LVQ50S-Z19R-24-K		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
LVQ50S-Z19-24-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ50S-Z19R-24-N		Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ51S-Z19		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ51S-Z19R		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ51S-Z19-J		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ51S-Z19R-J		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ51S-Z19-K		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ51S-Z19R-K		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ51S-Z19-N		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ51S-Z19R-N		Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ52S-Z19		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ52S-Z19R		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ52S-Z19-J		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ52S-Z19R-J		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ52S-Z19-K		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ52S-Z19R-K		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ52S-Z19-N		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ52S-Z19R-N		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ52S-Z19-2		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ52S-Z19R-2		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ52S-Z19-2-K		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ52S-Z19R-2-K		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ52S-Z19-2-N		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ52S-Z19R-2-N		Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ60S-Z25		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ60S-Z25R		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ60S-Z25-J		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ60S-Z25R-J		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ60S-Z25-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ60S-Z25R-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ60S-Z25-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ60S-Z25R-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ60S-Z25-P		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high flow
LVQ60S-Z25R-P		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high flow
LVQ60S-Z25-1		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
LVQ60S-Z25R-1		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
LVQ60S-Z25-1-J		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ60S-Z25R-1-J		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
LVQ60S-Z25-1-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
LVQ60S-Z25R-1-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
LVQ60S-Z25-1-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ60S-Z25R-1-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
LVQ60S-Z25-2		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ60S-Z25R-2		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ60S-Z25-2-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ60S-Z25R-2-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ60S-Z25-2-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ60S-Z25R-2-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ60S-Z25-3		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ60S-Z25R-3		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
LVQ60S-Z25-3-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ60S-Z25R-3-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
LVQ60S-Z25-3-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ60S-Z25R-3-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ60S-Z25-4		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
LVQ60S-Z25R-4		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
LVQ60S-Z25-4-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
LVQ60S-Z25R-4-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
LVQ60S-Z25-4-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ60S-Z25R-4-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
LVQ60S-Z25-4-P		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM, high flow
LVQ60S-Z25R-4-P		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM, high flow
LVQ60S-Z25-5		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ60S-Z25R-5		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
LVQ60S-Z25-5-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ60S-Z25R-5-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
LVQ60S-Z25-5-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ60S-Z25R-5-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
LVQ60S-Z25-5-P		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM, high flow
LVQ60S-Z25R-5-P		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM, high flow
LVQ60S-Z25-6		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
LVQ60S-Z25R-6		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
LVQ60S-Z25-6-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ60S-Z25R-6-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
LVQ60S-Z25-6-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ60S-Z25R-6-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
LVQ60S-Z25-7		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
LVQ60S-Z25R-7		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
LVQ60S-Z25-7-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
LVQ60S-Z25R-7-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
LVQ60S-Z25-7-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ60S-Z25R-7-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
LVQ60S-Z25-8		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ60S-Z25R-8		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
LVQ60S-Z25-8-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ60S-Z25R-8-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
LVQ60S-Z25-8-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ60S-Z25R-8-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
LVQ60S-Z25-9		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
LVQ60S-Z25R-9		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
LVQ60S-Z25-9-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
LVQ60S-Z25R-9-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
LVQ60S-Z25-9-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ60S-Z25R-9-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
LVQ60S-Z25-24		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
LVQ60S-Z25R-24		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
LVQ60S-Z25-24-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
LVQ60S-Z25R-24-K		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
LVQ60S-Z25-24-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ60S-Z25R-24-N		Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
LVQ61S-Z25		Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ61S-Z25R		Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ61S-Z25-J		Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ61S-Z25R-J		Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ61S-Z25-K		Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ61S-Z25R-K		Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ61S-Z25-N		Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ61S-Z25R-N		Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ61S-Z25-P		Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high flow
LVQ61S-Z25R-P		Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high flow
LVQ62S-Z25		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
LVQ62S-Z25R		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
LVQ62S-Z25-J		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ62S-Z25R-J		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
LVQ62S-Z25-K		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
LVQ62S-Z25R-K		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
LVQ62S-Z25-N		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
LVQ62S-Z25R-N		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
LVQ62S-Z25-P		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high flow
LVQ62S-Z25R-P		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high flow
LVQ62S-Z25-2		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
LVQ62S-Z25R-2		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
LVQ62S-Z25-2-K		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
LVQ62S-Z25R-2-K		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
LVQ62S-Z25-2-N		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
LVQ62S-Z25R-2-N		Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)

Chemical ValvesSMC

940 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC LVQS Air Operated Chemical Valve (Space Saving, LQ1/LQ3)

Brand SMC·Chemical Valves

Available part numbers (940)

LVQ20S-V07, LVQ20S-V07R, LVQ20S-V07-J, LVQ20S-V07R-J, LVQ20S-V07-K, LVQ20S-V07R-K, LVQ20S-V07-N, LVQ20S-V07R-N, LVQ20S-V07-1, LVQ20S-V07R-1 + 930 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	LVQ20S-V07	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ20S-V07R	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ20S-V07-J	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ20S-V07R-J	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ20S-V07-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ20S-V07R-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ20S-V07-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ20S-V07R-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ20S-V07-1	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
	LVQ20S-V07R-1	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
	LVQ20S-V07-1-J	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ20S-V07R-1-J	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ20S-V07-1-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
	LVQ20S-V07R-1-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
	LVQ20S-V07-1-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ20S-V07R-1-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ20S-V07-2	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ20S-V07R-2	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ20S-V07-2-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ20S-V07R-2-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ20S-V07-2-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ20S-V07R-2-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ20S-V07-3	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ20S-V07R-3	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ20S-V07-3-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ20S-V07R-3-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ20S-V07-3-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ20S-V07R-3-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ20S-V07-4	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
	LVQ20S-V07R-4	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
	LVQ20S-V07-4-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
	LVQ20S-V07R-4-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
	LVQ20S-V07-4-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ20S-V07R-4-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ20S-V07-5	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ20S-V07R-5	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ20S-V07-5-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ20S-V07R-5-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ20S-V07-5-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ20S-V07R-5-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ20S-V07-6	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ20S-V07R-6	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ20S-V07-6-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ20S-V07R-6-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ20S-V07-6-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ20S-V07R-6-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ20S-V07-7	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
	LVQ20S-V07R-7	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
	LVQ20S-V07-7-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
	LVQ20S-V07R-7-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
	LVQ20S-V07-7-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ20S-V07R-7-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ20S-V07-8	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ20S-V07R-8	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ20S-V07-8-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ20S-V07R-8-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ20S-V07-8-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ20S-V07R-8-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ20S-V07-9	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
	LVQ20S-V07R-9	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
	LVQ20S-V07-9-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
	LVQ20S-V07R-9-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
	LVQ20S-V07-9-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ20S-V07R-9-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ20S-V07-24	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
	LVQ20S-V07R-24	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
	LVQ20S-V07-24-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ20S-V07R-24-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ20S-V07-24-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ20S-V07R-24-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ21S-V07	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ21S-V07R	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ21S-V07-J	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ21S-V07R-J	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ21S-V07-K	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ21S-V07R-K	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ21S-V07-N	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ21S-V07R-N	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ22S-V07	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ22S-V07R	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ22S-V07-J	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ22S-V07R-J	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ22S-V07-K	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ22S-V07R-K	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ22S-V07-N	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ22S-V07R-N	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ22S-V07-2	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ22S-V07R-2	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ22S-V07-2-K	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ22S-V07R-2-K	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ22S-V07-2-N	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ22S-V07R-2-N	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 2 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ30S-V11	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ30S-V11R	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ30S-V11-J	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ30S-V11R-J	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ30S-V11-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ30S-V11R-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ30S-V11-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ30S-V11R-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ30S-V11-1	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
	LVQ30S-V11R-1	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
	LVQ30S-V11-1-J	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ30S-V11R-1-J	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ30S-V11-1-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
	LVQ30S-V11R-1-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
	LVQ30S-V11-1-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ30S-V11R-1-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ30S-V11-2	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ30S-V11R-2	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ30S-V11-2-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ30S-V11R-2-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ30S-V11-2-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ30S-V11R-2-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ30S-V11-3	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ30S-V11R-3	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ30S-V11-3-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ30S-V11R-3-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ30S-V11-3-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ30S-V11R-3-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ30S-V11-4	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
	LVQ30S-V11R-4	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
	LVQ30S-V11-4-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
	LVQ30S-V11R-4-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
	LVQ30S-V11-4-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ30S-V11R-4-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ30S-V11-5	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ30S-V11R-5	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ30S-V11-5-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ30S-V11R-5-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ30S-V11-5-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ30S-V11R-5-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ30S-V11-6	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ30S-V11R-6	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ30S-V11-6-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ30S-V11R-6-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ30S-V11-6-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ30S-V11R-6-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ30S-V11-7	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
	LVQ30S-V11R-7	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
	LVQ30S-V11-7-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
	LVQ30S-V11R-7-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
	LVQ30S-V11-7-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ30S-V11R-7-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ30S-V11-8	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ30S-V11R-8	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ30S-V11-8-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ30S-V11R-8-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ30S-V11-8-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ30S-V11R-8-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ30S-V11-9	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
	LVQ30S-V11R-9	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
	LVQ30S-V11-9-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
	LVQ30S-V11R-9-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
	LVQ30S-V11-9-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ30S-V11R-9-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ30S-V11-24	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
	LVQ30S-V11R-24	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
	LVQ30S-V11-24-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ30S-V11R-24-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ30S-V11-24-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ30S-V11R-24-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ31S-V11	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ31S-V11R	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ31S-V11-J	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ31S-V11R-J	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ31S-V11-K	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ31S-V11R-K	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ31S-V11-N	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ31S-V11R-N	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ32S-V11	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ32S-V11R	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ32S-V11-J	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ32S-V11R-J	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ32S-V11-K	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ32S-V11R-K	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ32S-V11-N	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ32S-V11R-N	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ32S-V11-2	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ32S-V11R-2	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ32S-V11-2-K	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ32S-V11R-2-K	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ32S-V11-2-N	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ32S-V11R-2-N	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 3 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ40S-V13	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ40S-V13R	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ40S-V13-J	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ40S-V13R-J	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ40S-V13-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ40S-V13R-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ40S-V13-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ40S-V13R-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ40S-V13-1	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
	LVQ40S-V13R-1	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
	LVQ40S-V13-1-J	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ40S-V13R-1-J	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ40S-V13-1-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
	LVQ40S-V13R-1-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
	LVQ40S-V13-1-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ40S-V13R-1-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ40S-V13-2	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ40S-V13R-2	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ40S-V13-2-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ40S-V13R-2-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ40S-V13-2-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ40S-V13R-2-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ40S-V13-3	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ40S-V13R-3	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ40S-V13-3-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ40S-V13R-3-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ40S-V13-3-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ40S-V13R-3-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ40S-V13-4	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
	LVQ40S-V13R-4	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
	LVQ40S-V13-4-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
	LVQ40S-V13R-4-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
	LVQ40S-V13-4-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ40S-V13R-4-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ40S-V13-5	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ40S-V13R-5	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ40S-V13-5-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ40S-V13R-5-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ40S-V13-5-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ40S-V13R-5-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ40S-V13-6	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ40S-V13R-6	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ40S-V13-6-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ40S-V13R-6-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ40S-V13-6-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ40S-V13R-6-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ40S-V13-7	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
	LVQ40S-V13R-7	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
	LVQ40S-V13-7-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
	LVQ40S-V13R-7-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
	LVQ40S-V13-7-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ40S-V13R-7-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ40S-V13-8	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ40S-V13R-8	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ40S-V13-8-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ40S-V13R-8-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ40S-V13-8-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ40S-V13R-8-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ40S-V13-9	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
	LVQ40S-V13R-9	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
	LVQ40S-V13-9-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
	LVQ40S-V13R-9-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
	LVQ40S-V13-9-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ40S-V13R-9-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ40S-V13-24	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
	LVQ40S-V13R-24	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
	LVQ40S-V13-24-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ40S-V13R-24-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ40S-V13-24-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ40S-V13R-24-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ41S-V13	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ41S-V13R	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ41S-V13-J	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ41S-V13R-J	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ41S-V13-K	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ41S-V13R-K	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ41S-V13-N	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ41S-V13R-N	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ42S-V13	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ42S-V13R	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ42S-V13-J	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ42S-V13R-J	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ42S-V13-K	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ42S-V13R-K	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ42S-V13-N	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ42S-V13R-N	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ42S-V13-2	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ42S-V13R-2	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ42S-V13-2-K	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ42S-V13R-2-K	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ42S-V13-2-N	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ42S-V13R-2-N	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 4 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ50S-V19	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ50S-V19R	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ50S-V19-J	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ50S-V19R-J	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ50S-V19-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ50S-V19R-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ50S-V19-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ50S-V19R-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ50S-V19-1	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
	LVQ50S-V19R-1	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
	LVQ50S-V19-1-J	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ50S-V19R-1-J	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ50S-V19-1-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
	LVQ50S-V19R-1-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
	LVQ50S-V19-1-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ50S-V19R-1-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ50S-V19-2	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ50S-V19R-2	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ50S-V19-2-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ50S-V19R-2-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ50S-V19-2-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ50S-V19R-2-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ50S-V19-3	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ50S-V19R-3	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ50S-V19-3-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ50S-V19R-3-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ50S-V19-3-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ50S-V19R-3-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ50S-V19-4	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
	LVQ50S-V19R-4	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
	LVQ50S-V19-4-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
	LVQ50S-V19R-4-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
	LVQ50S-V19-4-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ50S-V19R-4-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ50S-V19-5	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ50S-V19R-5	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ50S-V19-5-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ50S-V19R-5-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ50S-V19-5-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ50S-V19R-5-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ50S-V19-6	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ50S-V19R-6	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ50S-V19-6-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ50S-V19R-6-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ50S-V19-6-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ50S-V19R-6-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ50S-V19-7	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
	LVQ50S-V19R-7	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
	LVQ50S-V19-7-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
	LVQ50S-V19R-7-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
	LVQ50S-V19-7-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ50S-V19R-7-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ50S-V19-8	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ50S-V19R-8	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ50S-V19-8-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ50S-V19R-8-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ50S-V19-8-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ50S-V19R-8-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ50S-V19-9	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
	LVQ50S-V19R-9	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
	LVQ50S-V19-9-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
	LVQ50S-V19R-9-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
	LVQ50S-V19-9-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ50S-V19R-9-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ50S-V19-24	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
	LVQ50S-V19R-24	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
	LVQ50S-V19-24-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ50S-V19R-24-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ50S-V19-24-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ50S-V19R-24-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ51S-V19	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ51S-V19R	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ51S-V19-J	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ51S-V19R-J	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ51S-V19-K	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ51S-V19R-K	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ51S-V19-N	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ51S-V19R-N	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ52S-V19	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ52S-V19R	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ52S-V19-J	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ52S-V19R-J	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ52S-V19-K	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ52S-V19R-K	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ52S-V19-N	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ52S-V19R-N	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ52S-V19-2	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ52S-V19R-2	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ52S-V19-2-K	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ52S-V19R-2-K	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ52S-V19-2-N	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ52S-V19R-2-N	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 5 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ60S-V25	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ60S-V25R	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ60S-V25-J	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ60S-V25R-J	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ60S-V25-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ60S-V25R-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ60S-V25-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ60S-V25R-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ60S-V25-P	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high flow
	LVQ60S-V25R-P	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high flow
	LVQ60S-V25-1	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
	LVQ60S-V25R-1	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
	LVQ60S-V25-1-J	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ60S-V25R-1-J	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ60S-V25-1-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
	LVQ60S-V25R-1-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
	LVQ60S-V25-1-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ60S-V25R-1-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ60S-V25-2	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ60S-V25R-2	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ60S-V25-2-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ60S-V25R-2-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ60S-V25-2-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ60S-V25R-2-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ60S-V25-3	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ60S-V25R-3	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ60S-V25-3-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ60S-V25R-3-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ60S-V25-3-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ60S-V25R-3-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ60S-V25-4	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
	LVQ60S-V25R-4	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
	LVQ60S-V25-4-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
	LVQ60S-V25R-4-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
	LVQ60S-V25-4-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ60S-V25R-4-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ60S-V25-4-P	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM, high flow
	LVQ60S-V25R-4-P	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM, high flow
	LVQ60S-V25-5	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ60S-V25R-5	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ60S-V25-5-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ60S-V25R-5-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ60S-V25-5-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ60S-V25R-5-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ60S-V25-5-P	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM, high flow
	LVQ60S-V25R-5-P	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM, high flow
	LVQ60S-V25-6	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ60S-V25R-6	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ60S-V25-6-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ60S-V25R-6-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ60S-V25-6-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ60S-V25R-6-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ60S-V25-7	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
	LVQ60S-V25R-7	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
	LVQ60S-V25-7-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
	LVQ60S-V25R-7-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
	LVQ60S-V25-7-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ60S-V25R-7-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ60S-V25-8	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ60S-V25R-8	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ60S-V25-8-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ60S-V25R-8-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ60S-V25-8-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ60S-V25R-8-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ60S-V25-9	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
	LVQ60S-V25R-9	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
	LVQ60S-V25-9-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
	LVQ60S-V25R-9-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
	LVQ60S-V25-9-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ60S-V25R-9-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ60S-V25-24	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
	LVQ60S-V25R-24	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
	LVQ60S-V25-24-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ60S-V25R-24-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ60S-V25-24-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ60S-V25R-24-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ61S-V25	Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ61S-V25R	Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ61S-V25-J	Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ61S-V25R-J	Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ61S-V25-K	Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ61S-V25R-K	Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ61S-V25-N	Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ61S-V25R-N	Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ61S-V25-P	Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high flow
	LVQ61S-V25R-P	Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high flow
	LVQ62S-V25	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ62S-V25R	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ62S-V25-J	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ62S-V25R-J	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ62S-V25-K	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ62S-V25R-K	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ62S-V25-N	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ62S-V25R-N	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ62S-V25-P	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high flow
	LVQ62S-V25R-P	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high flow
	LVQ62S-V25-2	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ62S-V25R-2	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ62S-V25-2-K	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ62S-V25R-2-K	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ62S-V25-2-N	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ62S-V25R-2-N	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: LQ1 size 6 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ20S-Z07	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ20S-Z07R	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ20S-Z07-J	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ20S-Z07R-J	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ20S-Z07-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ20S-Z07R-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ20S-Z07-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ20S-Z07R-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ20S-Z07-1	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
	LVQ20S-Z07R-1	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
	LVQ20S-Z07-1-J	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ20S-Z07R-1-J	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ20S-Z07-1-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
	LVQ20S-Z07R-1-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
	LVQ20S-Z07-1-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ20S-Z07R-1-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ20S-Z07-2	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ20S-Z07R-2	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ20S-Z07-2-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ20S-Z07R-2-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ20S-Z07-2-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ20S-Z07R-2-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ20S-Z07-3	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ20S-Z07R-3	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ20S-Z07-3-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ20S-Z07R-3-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ20S-Z07-3-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ20S-Z07R-3-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ20S-Z07-4	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
	LVQ20S-Z07R-4	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
	LVQ20S-Z07-4-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
	LVQ20S-Z07R-4-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
	LVQ20S-Z07-4-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ20S-Z07R-4-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ20S-Z07-5	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ20S-Z07R-5	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ20S-Z07-5-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ20S-Z07R-5-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ20S-Z07-5-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ20S-Z07R-5-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ20S-Z07-6	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ20S-Z07R-6	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ20S-Z07-6-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ20S-Z07R-6-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ20S-Z07-6-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ20S-Z07R-6-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ20S-Z07-7	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
	LVQ20S-Z07R-7	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
	LVQ20S-Z07-7-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
	LVQ20S-Z07R-7-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
	LVQ20S-Z07-7-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ20S-Z07R-7-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ20S-Z07-8	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ20S-Z07R-8	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ20S-Z07-8-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ20S-Z07R-8-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ20S-Z07-8-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ20S-Z07R-8-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ20S-Z07-9	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
	LVQ20S-Z07R-9	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
	LVQ20S-Z07-9-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
	LVQ20S-Z07R-9-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
	LVQ20S-Z07-9-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ20S-Z07R-9-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ20S-Z07-24	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
	LVQ20S-Z07R-24	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
	LVQ20S-Z07-24-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ20S-Z07R-24-K	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ20S-Z07-24-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ20S-Z07R-24-N	Body class: 2 (ø4 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ21S-Z07	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ21S-Z07R	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ21S-Z07-J	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ21S-Z07R-J	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ21S-Z07-K	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ21S-Z07R-K	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ21S-Z07-N	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ21S-Z07R-N	Body class: 2 (ø4 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ22S-Z07	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ22S-Z07R	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ22S-Z07-J	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ22S-Z07R-J	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ22S-Z07-K	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ22S-Z07R-K	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ22S-Z07-N	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ22S-Z07R-N	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ22S-Z07-2	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ22S-Z07R-2	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ22S-Z07-2-K	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ22S-Z07R-2-K	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ22S-Z07-2-N	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 2 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ22S-Z07R-2-N	Body class: 2 (ø4 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 2 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ30S-Z11	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ30S-Z11R	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ30S-Z11-J	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ30S-Z11R-J	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ30S-Z11-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ30S-Z11R-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ30S-Z11-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ30S-Z11R-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ30S-Z11-1	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
	LVQ30S-Z11R-1	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
	LVQ30S-Z11-1-J	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ30S-Z11R-1-J	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ30S-Z11-1-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
	LVQ30S-Z11R-1-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
	LVQ30S-Z11-1-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ30S-Z11R-1-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ30S-Z11-2	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ30S-Z11R-2	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ30S-Z11-2-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ30S-Z11R-2-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ30S-Z11-2-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ30S-Z11R-2-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ30S-Z11-3	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ30S-Z11R-3	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ30S-Z11-3-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ30S-Z11R-3-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ30S-Z11-3-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ30S-Z11R-3-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ30S-Z11-4	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
	LVQ30S-Z11R-4	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
	LVQ30S-Z11-4-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
	LVQ30S-Z11R-4-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
	LVQ30S-Z11-4-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ30S-Z11R-4-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ30S-Z11-5	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ30S-Z11R-5	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ30S-Z11-5-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ30S-Z11R-5-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ30S-Z11-5-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ30S-Z11R-5-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ30S-Z11-6	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ30S-Z11R-6	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ30S-Z11-6-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ30S-Z11R-6-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ30S-Z11-6-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ30S-Z11R-6-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ30S-Z11-7	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
	LVQ30S-Z11R-7	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
	LVQ30S-Z11-7-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
	LVQ30S-Z11R-7-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
	LVQ30S-Z11-7-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ30S-Z11R-7-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ30S-Z11-8	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ30S-Z11R-8	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ30S-Z11-8-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ30S-Z11R-8-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ30S-Z11-8-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ30S-Z11R-8-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ30S-Z11-9	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
	LVQ30S-Z11R-9	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
	LVQ30S-Z11-9-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
	LVQ30S-Z11R-9-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
	LVQ30S-Z11-9-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ30S-Z11R-9-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ30S-Z11-24	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
	LVQ30S-Z11R-24	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
	LVQ30S-Z11-24-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ30S-Z11R-24-K	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ30S-Z11-24-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ30S-Z11R-24-N	Body class: 3 (ø8 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ31S-Z11	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ31S-Z11R	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ31S-Z11-J	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ31S-Z11R-J	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ31S-Z11-K	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ31S-Z11R-K	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ31S-Z11-N	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ31S-Z11R-N	Body class: 3 (ø8 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ32S-Z11	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ32S-Z11R	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ32S-Z11-J	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ32S-Z11R-J	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ32S-Z11-K	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ32S-Z11R-K	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ32S-Z11-N	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ32S-Z11R-N	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ32S-Z11-2	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ32S-Z11R-2	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ32S-Z11-2-K	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ32S-Z11R-2-K	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ32S-Z11-2-N	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 3 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ32S-Z11R-2-N	Body class: 3 (ø8 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 3 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ40S-Z13	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ40S-Z13R	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ40S-Z13-J	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ40S-Z13R-J	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ40S-Z13-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ40S-Z13R-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ40S-Z13-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ40S-Z13R-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ40S-Z13-1	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
	LVQ40S-Z13R-1	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
	LVQ40S-Z13-1-J	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ40S-Z13R-1-J	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ40S-Z13-1-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
	LVQ40S-Z13R-1-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
	LVQ40S-Z13-1-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ40S-Z13R-1-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ40S-Z13-2	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ40S-Z13R-2	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ40S-Z13-2-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ40S-Z13R-2-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ40S-Z13-2-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ40S-Z13R-2-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ40S-Z13-3	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ40S-Z13R-3	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ40S-Z13-3-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ40S-Z13R-3-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ40S-Z13-3-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ40S-Z13R-3-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ40S-Z13-4	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
	LVQ40S-Z13R-4	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
	LVQ40S-Z13-4-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
	LVQ40S-Z13R-4-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
	LVQ40S-Z13-4-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ40S-Z13R-4-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ40S-Z13-5	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ40S-Z13R-5	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ40S-Z13-5-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ40S-Z13R-5-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ40S-Z13-5-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ40S-Z13R-5-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ40S-Z13-6	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ40S-Z13R-6	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ40S-Z13-6-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ40S-Z13R-6-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ40S-Z13-6-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ40S-Z13R-6-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ40S-Z13-7	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
	LVQ40S-Z13R-7	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
	LVQ40S-Z13-7-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
	LVQ40S-Z13R-7-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
	LVQ40S-Z13-7-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ40S-Z13R-7-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ40S-Z13-8	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ40S-Z13R-8	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ40S-Z13-8-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ40S-Z13R-8-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ40S-Z13-8-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ40S-Z13R-8-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ40S-Z13-9	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
	LVQ40S-Z13R-9	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
	LVQ40S-Z13-9-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
	LVQ40S-Z13R-9-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
	LVQ40S-Z13-9-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ40S-Z13R-9-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ40S-Z13-24	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
	LVQ40S-Z13R-24	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
	LVQ40S-Z13-24-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ40S-Z13R-24-K	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ40S-Z13-24-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ40S-Z13R-24-N	Body class: 4 (ø10 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ41S-Z13	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ41S-Z13R	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ41S-Z13-J	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ41S-Z13R-J	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ41S-Z13-K	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ41S-Z13R-K	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ41S-Z13-N	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ41S-Z13R-N	Body class: 4 (ø10 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ42S-Z13	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ42S-Z13R	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ42S-Z13-J	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ42S-Z13R-J	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ42S-Z13-K	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ42S-Z13R-K	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ42S-Z13-N	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ42S-Z13R-N	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ42S-Z13-2	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ42S-Z13R-2	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ42S-Z13-2-K	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ42S-Z13R-2-K	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ42S-Z13-2-N	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 4 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ42S-Z13R-2-N	Body class: 4 (ø10 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 4 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ50S-Z19	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ50S-Z19R	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ50S-Z19-J	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ50S-Z19R-J	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ50S-Z19-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ50S-Z19R-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ50S-Z19-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ50S-Z19R-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ50S-Z19-1	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
	LVQ50S-Z19R-1	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
	LVQ50S-Z19-1-J	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ50S-Z19R-1-J	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ50S-Z19-1-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
	LVQ50S-Z19R-1-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
	LVQ50S-Z19-1-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ50S-Z19R-1-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ50S-Z19-2	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ50S-Z19R-2	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ50S-Z19-2-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ50S-Z19R-2-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ50S-Z19-2-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ50S-Z19R-2-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ50S-Z19-3	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ50S-Z19R-3	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ50S-Z19-3-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ50S-Z19R-3-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ50S-Z19-3-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ50S-Z19R-3-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ50S-Z19-4	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
	LVQ50S-Z19R-4	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
	LVQ50S-Z19-4-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
	LVQ50S-Z19R-4-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
	LVQ50S-Z19-4-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ50S-Z19R-4-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ50S-Z19-5	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ50S-Z19R-5	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ50S-Z19-5-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ50S-Z19R-5-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ50S-Z19-5-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ50S-Z19R-5-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ50S-Z19-6	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ50S-Z19R-6	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ50S-Z19-6-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ50S-Z19R-6-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ50S-Z19-6-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ50S-Z19R-6-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ50S-Z19-7	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
	LVQ50S-Z19R-7	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
	LVQ50S-Z19-7-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
	LVQ50S-Z19R-7-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
	LVQ50S-Z19-7-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ50S-Z19R-7-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ50S-Z19-8	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ50S-Z19R-8	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ50S-Z19-8-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ50S-Z19R-8-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ50S-Z19-8-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ50S-Z19R-8-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ50S-Z19-9	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
	LVQ50S-Z19R-9	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
	LVQ50S-Z19-9-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
	LVQ50S-Z19R-9-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
	LVQ50S-Z19-9-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ50S-Z19R-9-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ50S-Z19-24	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
	LVQ50S-Z19R-24	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
	LVQ50S-Z19-24-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ50S-Z19R-24-K	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ50S-Z19-24-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ50S-Z19R-24-N	Body class: 5 (ø16 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ51S-Z19	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ51S-Z19R	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ51S-Z19-J	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ51S-Z19R-J	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ51S-Z19-K	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ51S-Z19R-K	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ51S-Z19-N	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ51S-Z19R-N	Body class: 5 (ø16 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ52S-Z19	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ52S-Z19R	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ52S-Z19-J	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ52S-Z19R-J	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ52S-Z19-K	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ52S-Z19R-K	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ52S-Z19-N	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ52S-Z19R-N	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ52S-Z19-2	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ52S-Z19R-2	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ52S-Z19-2-K	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ52S-Z19R-2-K	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ52S-Z19-2-N	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 5 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ52S-Z19R-2-N	Body class: 5 (ø16 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 5 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ60S-Z25	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ60S-Z25R	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ60S-Z25-J	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ60S-Z25R-J	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ60S-Z25-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ60S-Z25R-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ60S-Z25-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ60S-Z25R-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ60S-Z25-P	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high flow
	LVQ60S-Z25R-P	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high flow
	LVQ60S-Z25-1	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM
	LVQ60S-Z25R-1	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM
	LVQ60S-Z25-1-J	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ60S-Z25R-1-J	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FKM, high temp. 170 C
	LVQ60S-Z25-1-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: FFKM
	LVQ60S-Z25R-1-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: FFKM
	LVQ60S-Z25-1-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ60S-Z25R-1-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: Flow adjustment \| Buffer: EPDM (ammonia)
	LVQ60S-Z25-2	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ60S-Z25R-2	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ60S-Z25-2-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ60S-Z25R-2-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ60S-Z25-2-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ60S-Z25R-2-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ60S-Z25-3	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ60S-Z25R-3	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FKM
	LVQ60S-Z25-3-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ60S-Z25R-3-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: FFKM
	LVQ60S-Z25-3-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ60S-Z25R-3-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: Flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ60S-Z25-4	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM
	LVQ60S-Z25R-4	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM
	LVQ60S-Z25-4-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FFKM
	LVQ60S-Z25R-4-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FFKM
	LVQ60S-Z25-4-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ60S-Z25R-4-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: EPDM (ammonia)
	LVQ60S-Z25-4-P	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator \| Buffer: FKM, high flow
	LVQ60S-Z25R-4-P	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: Indicator \| Buffer: FKM, high flow
	LVQ60S-Z25-5	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ60S-Z25R-5	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM
	LVQ60S-Z25-5-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ60S-Z25R-5-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FFKM
	LVQ60S-Z25-5-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ60S-Z25R-5-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: EPDM (ammonia)
	LVQ60S-Z25-5-P	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High back pressure 0.42 MPa \| Buffer: FKM, high flow
	LVQ60S-Z25R-5-P	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: High back pressure 0.42 MPa \| Buffer: FKM, high flow
	LVQ60S-Z25-6	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ60S-Z25R-6	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FKM
	LVQ60S-Z25-6-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ60S-Z25R-6-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: FFKM
	LVQ60S-Z25-6-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ60S-Z25R-6-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. \| Buffer: EPDM (ammonia)
	LVQ60S-Z25-7	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FKM
	LVQ60S-Z25R-7	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FKM
	LVQ60S-Z25-7-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: FFKM
	LVQ60S-Z25R-7-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: FFKM
	LVQ60S-Z25-7-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ60S-Z25R-7-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: High BP + bypass \| Buffer: EPDM (ammonia)
	LVQ60S-Z25-8	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ60S-Z25R-8	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FKM
	LVQ60S-Z25-8-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ60S-Z25R-8-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: FFKM
	LVQ60S-Z25-8-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ60S-Z25R-8-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: High BP + flow adj. + bypass \| Buffer: EPDM (ammonia)
	LVQ60S-Z25-9	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FKM
	LVQ60S-Z25R-9	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FKM
	LVQ60S-Z25-9-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: FFKM
	LVQ60S-Z25R-9-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: FFKM
	LVQ60S-Z25-9-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ60S-Z25R-9-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: High BP + indicator \| Buffer: EPDM (ammonia)
	LVQ60S-Z25-24	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FKM
	LVQ60S-Z25R-24	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FKM
	LVQ60S-Z25-24-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ60S-Z25R-24-K	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: FFKM
	LVQ60S-Z25-24-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ60S-Z25R-24-N	Body class: 6 (ø22 orifice) \| Valve type: N.C. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: Indicator + bypass \| Buffer: EPDM (ammonia)
	LVQ61S-Z25	Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ61S-Z25R	Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ61S-Z25-J	Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ61S-Z25R-J	Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ61S-Z25-K	Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ61S-Z25R-K	Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ61S-Z25-N	Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ61S-Z25R-N	Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ61S-Z25-P	Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high flow
	LVQ61S-Z25R-P	Body class: 6 (ø22 orifice) \| Valve type: N.O. \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high flow
	LVQ62S-Z25	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM
	LVQ62S-Z25R	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM
	LVQ62S-Z25-J	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ62S-Z25R-J	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high temp. 170 C
	LVQ62S-Z25-K	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FFKM
	LVQ62S-Z25R-K	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FFKM
	LVQ62S-Z25-N	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: EPDM (ammonia)
	LVQ62S-Z25R-N	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: EPDM (ammonia)
	LVQ62S-Z25-P	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: None \| Buffer: FKM, high flow
	LVQ62S-Z25R-P	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: None \| Buffer: FKM, high flow
	LVQ62S-Z25-2	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FKM
	LVQ62S-Z25R-2	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FKM
	LVQ62S-Z25-2-K	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: FFKM
	LVQ62S-Z25R-2-K	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: FFKM
	LVQ62S-Z25-2-N	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 6 \| Pilot port: Integrated fitting, 1/8 in tube \| Option: Bypass \| Buffer: EPDM (ammonia)
	LVQ62S-Z25R-2-N	Body class: 6 (ø22 orifice) \| Valve type: Double acting \| Tube size: LQ3 size 6 \| Pilot port: Rc1/8 thread \| Option: Bypass \| Buffer: EPDM (ammonia)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC LVQS Air Operated Chemical Valve (Space Saving, LQ1/LQ3)
