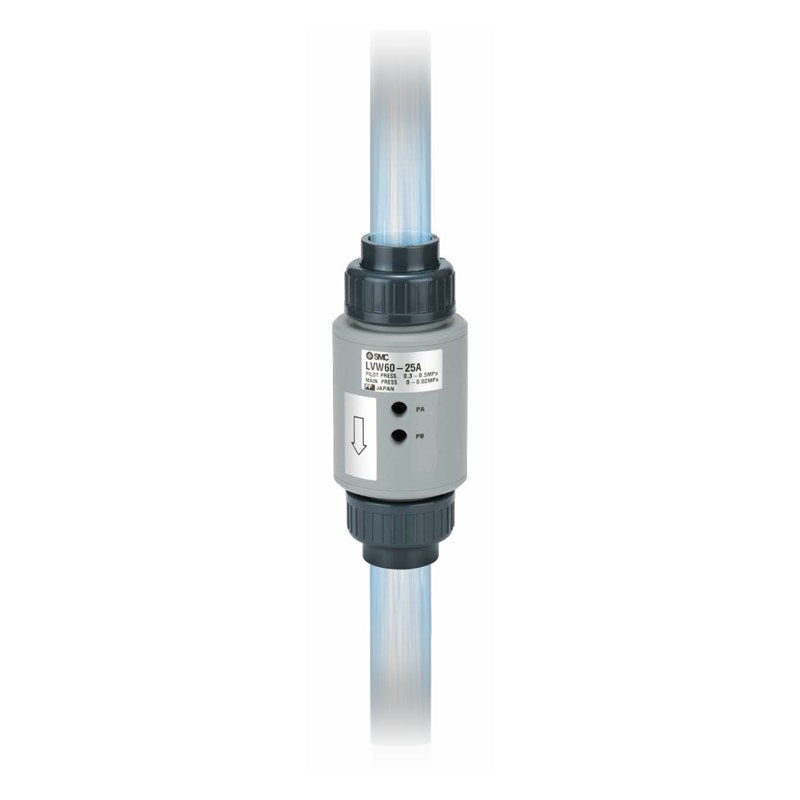

SMC LVW PVC Quick Drain Valve (25A to 80A)

SMC LVW PVC Quick Drain Valve (25A to 80A)

SMC LVW series air-operated quick drain valve with PVC body and PTFE poppet, union connection for JIS K6742 rigid PVC pipe 25A to 80A.

Key features

  • Large orifice ø25 to ø80 for fast draining of cleaning tanks and baths
  • PVC body and housing, PTFE poppet; O-ring FKM (standard) or EPDM (N)
  • Union connection for easy piping to rigid PVC pipe OD 32 to 89 mm
  • Pilot port Rc1/8 (listed) or NPT1/8 (N suffix before O-ring symbol)

Specifications

Fluid Deionized water, chemicals
Operating pressure 0 to 0.02 MPa
Pilot pressure 0.3 to 0.5 MPa
Flow Cv 10 (25A) to 198 (80A)
Fluid temperature 0 to 60 C
Valve leakage 0 cm3/min (water pressure)
Pilot port Rc1/8
Source SMC Korea catalog LVW Series (SMCKR_LVW.pdf), p. 851-854 (PDF p. 1-4)
LVW60-25A Body class: 6 | Pipe size: 25A (PVC pipe OD 32) | Orifice: ø25 | O-ring: FKM
LVW60-25A-N Body class: 6 | Pipe size: 25A (PVC pipe OD 32) | Orifice: ø25 | O-ring: EPDM
LVW80-32A Body class: 8 | Pipe size: 32A (PVC pipe OD 38) | Orifice: ø40 | O-ring: FKM
LVW80-32A-N Body class: 8 | Pipe size: 32A (PVC pipe OD 38) | Orifice: ø40 | O-ring: EPDM
LVW80-40A Body class: 8 | Pipe size: 40A (PVC pipe OD 48) | Orifice: ø40 | O-ring: FKM
LVW80-40A-N Body class: 8 | Pipe size: 40A (PVC pipe OD 48) | Orifice: ø40 | O-ring: EPDM
LVW90-50A Body class: 9 | Pipe size: 50A (PVC pipe OD 60) | Orifice: ø65 | O-ring: FKM
LVW90-50A-N Body class: 9 | Pipe size: 50A (PVC pipe OD 60) | Orifice: ø65 | O-ring: EPDM
LVW90-65A Body class: 9 | Pipe size: 65A (PVC pipe OD 75) | Orifice: ø65 | O-ring: FKM
LVW90-65A-N Body class: 9 | Pipe size: 65A (PVC pipe OD 75) | Orifice: ø65 | O-ring: EPDM
LVW90-80A Body class: 9 | Pipe size: 80A (PVC pipe OD 89) | Orifice: ø80 | O-ring: FKM
LVW90-80A-N Body class: 9 | Pipe size: 80A (PVC pipe OD 89) | Orifice: ø80 | O-ring: EPDM
Chemical ValvesSMC
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC LVW PVC Quick Drain Valve (25A to 80A)

Brand SMC·Chemical Valves

Available part numbers (12)

LVW60-25A, LVW60-25A-N, LVW80-32A, LVW80-32A-N, LVW80-40A, LVW80-40A-N, LVW90-50A, LVW90-50A-N, LVW90-65A, LVW90-65A-N + 2 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LVW60-25ABody class: 6 | Pipe size: 25A (PVC pipe OD 32) | Orifice: ø25 | O-ring: FKM
LVW60-25A-NBody class: 6 | Pipe size: 25A (PVC pipe OD 32) | Orifice: ø25 | O-ring: EPDM
LVW80-32ABody class: 8 | Pipe size: 32A (PVC pipe OD 38) | Orifice: ø40 | O-ring: FKM
LVW80-32A-NBody class: 8 | Pipe size: 32A (PVC pipe OD 38) | Orifice: ø40 | O-ring: EPDM
LVW80-40ABody class: 8 | Pipe size: 40A (PVC pipe OD 48) | Orifice: ø40 | O-ring: FKM
LVW80-40A-NBody class: 8 | Pipe size: 40A (PVC pipe OD 48) | Orifice: ø40 | O-ring: EPDM
LVW90-50ABody class: 9 | Pipe size: 50A (PVC pipe OD 60) | Orifice: ø65 | O-ring: FKM
LVW90-50A-NBody class: 9 | Pipe size: 50A (PVC pipe OD 60) | Orifice: ø65 | O-ring: EPDM
LVW90-65ABody class: 9 | Pipe size: 65A (PVC pipe OD 75) | Orifice: ø65 | O-ring: FKM
LVW90-65A-NBody class: 9 | Pipe size: 65A (PVC pipe OD 75) | Orifice: ø65 | O-ring: EPDM
LVW90-80ABody class: 9 | Pipe size: 80A (PVC pipe OD 89) | Orifice: ø80 | O-ring: FKM
LVW90-80A-NBody class: 9 | Pipe size: 80A (PVC pipe OD 89) | Orifice: ø80 | O-ring: EPDM
